Platform2 PF309 User Manual

Feature:

• Bluetooth ver 2.1 + EDR with Special Audio Algorithm and DSP Processor for clean,

best-in-class wireless stereo sound

• Two 35 mm full range drivers deliver superb music fidelity

• iUi Passive Woofer

• Rechargeable Lithium-ion battery for up to 8 hours of playtime

• Convenient charging with USB charging cable

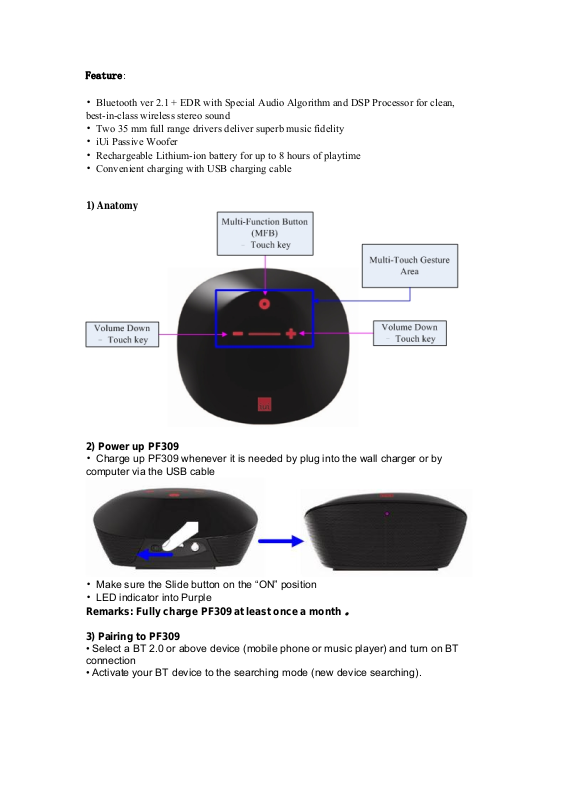

1) Anatomy

2) Power up PF309

• Charge up PF309 whenever it is needed by plug into the wall charger or by
computer via the USB cable

• Make sure the Slide button on the “ON” position

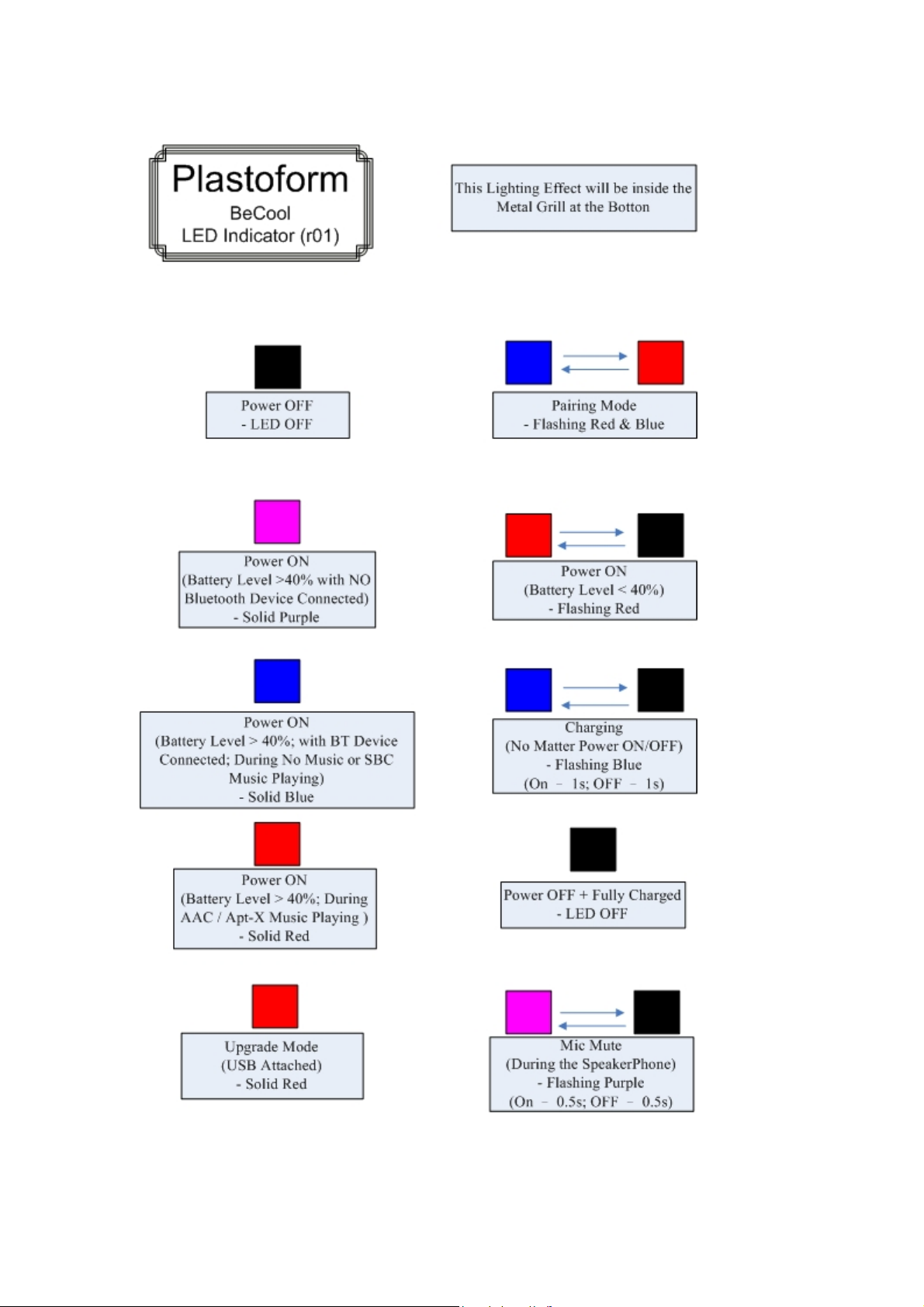

• LED indicator into Purple

Remarks: Fully charge PF309 at least once a month

3) Pairing to PF309

• Select a BT 2.0 or above device (mobile phone or music player) and turn on BT
connection

• Activate your BT device to the searching mode (new device searching).

。

• Press and hold “Multi-Function” Button until the front Grid flashing in BLUE/RED,

and the Speaker will says “Discovering”; PF309 has 3 mins (searchable time) for your
BT device to pair with.

• <<PF309>> will be displayed in your BT device and select it for pairing. “0000” is the
pairing code if necessary. (Pairing code is not necessary for the iPhone,
iPod , and iPad)

• Speaker will say “Your Device is connected” when PF309 is successfully paired and
LED stops flashing

• Double check with your BT device to see “PF309” is connected.

Remark: Pairing steps are for 1st time connection, automatic connection is
allowed on most BT devices

Remark: PF309 will also stop flashing with a different sound to indicate pairing
failure after the 3mins.

4) Active Pairing on PF309 (Alternative way to Pair)

• Power up the PF309

• Put your Bluetooth Device into the Discovery mode, and put close to the

PF309

• The “Pair Invitation” will be pop-up on your Bluetooth Device, and just click

the “Accept”. “0000” is the pairing code if necessary.

Remark: if using iDevice, just leave your iDevice on the Bluetooth Setting Page;
if using the Android Phone, it may automatically connected, it depends different
models

5) Bluetooth Music Streaming to PF309

• Stay connected to PF309 via BT, repeat the pairing step if it has been disconnected

• Select music to play in BT device

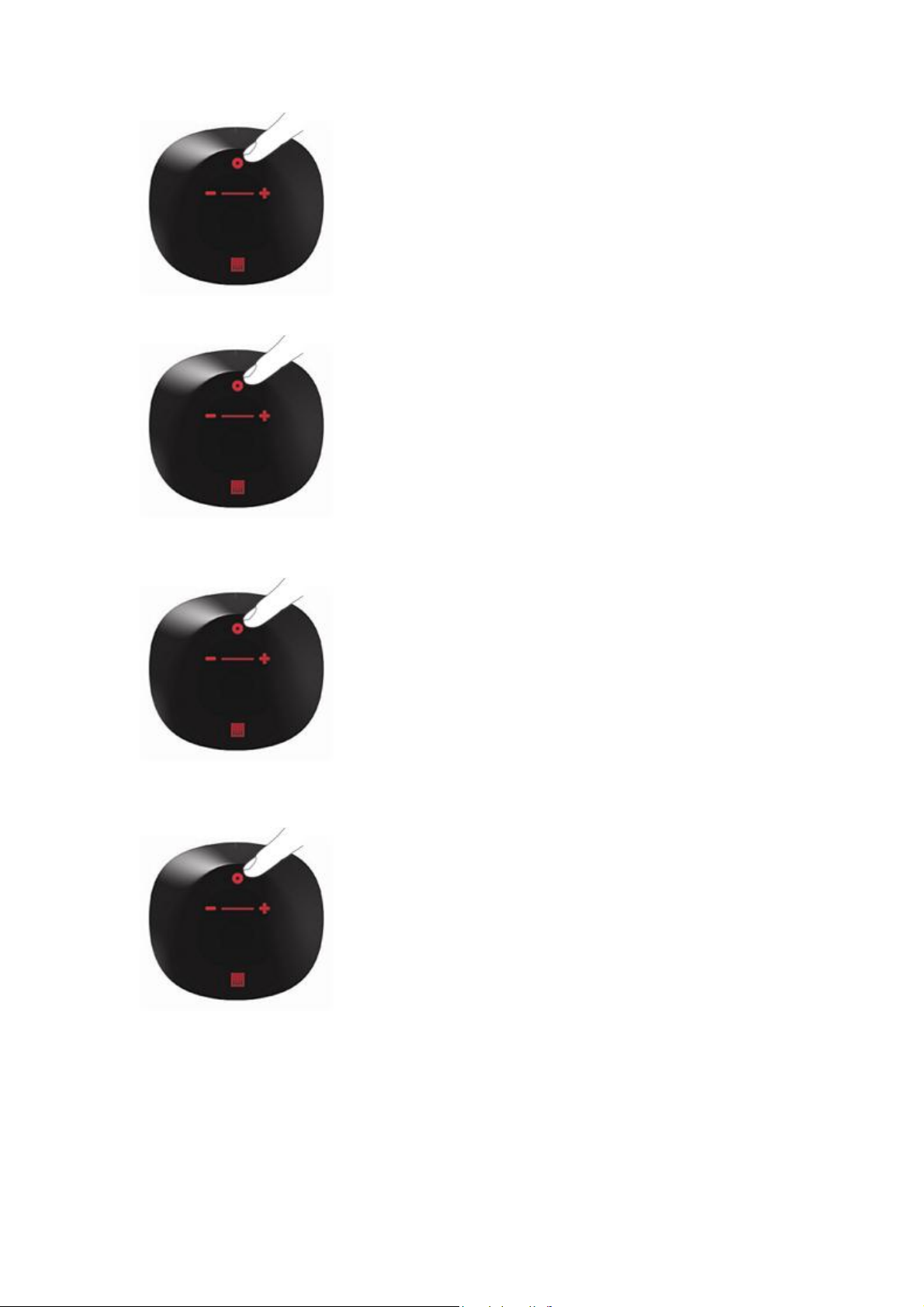

• Press “Multi-Function” Button for Play / Pause

• Press “Volume up” or “Volume down” to adjust volume level or adjust it from your

BT device

• Multi-Touch Gesture Left to Right for next song

• Multi-Touch Gesture Right to Left for the previous song

• Slide Switch to “Off” position to switch off

6) Talking via PF309

Remarks: Only available on BT mobile with HFP/HSP

• Press “Multi-Function” Button for answering a call (When the phone is ringing)

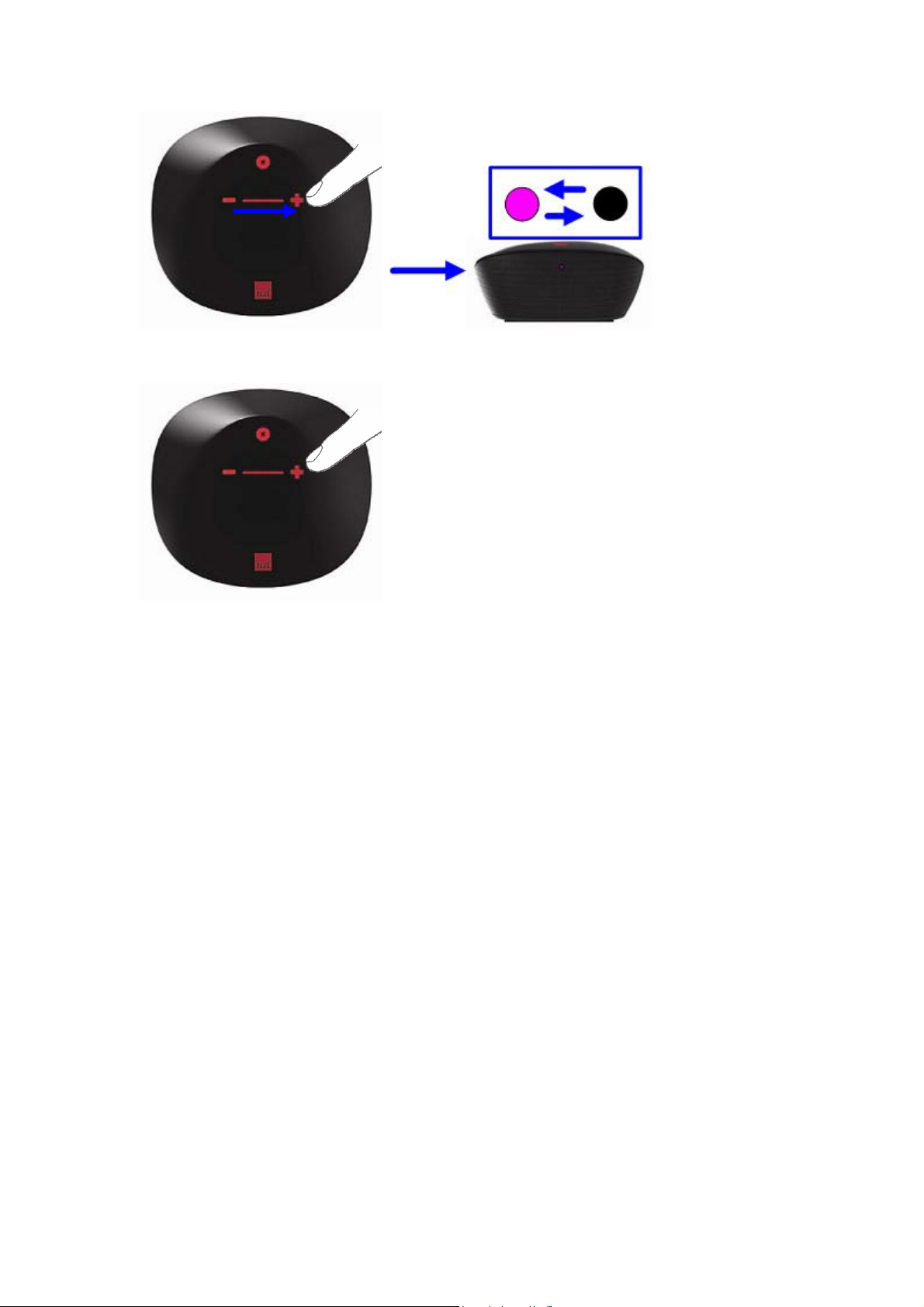

• Slide from “Left to Right” on the Volume buttons for rejecting the call (When the

phone is ringing)
