Platform2 PF306 User Manual

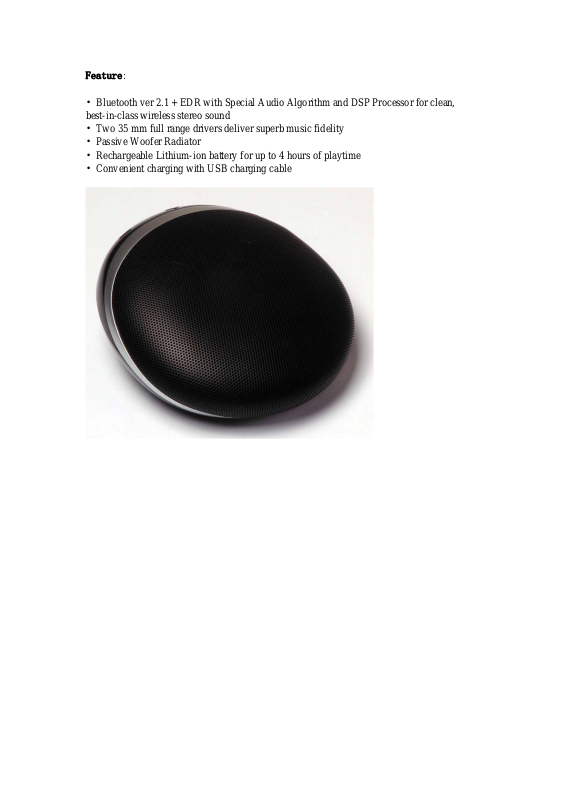

Feature:

• Bluetooth ver 2.1 + EDR with Special Audio Algorithm and DSP Processor for clean,

best-in-class wireless stereo sound

• Two 35 mm full range drivers deliver superb music fidelity

• Passive Woofer Radiator

• Rechargeable Lithium-ion battery for up to 4 hours of playtime

• Convenient charging with USB charging cable

Button Location:

1) Anatomy

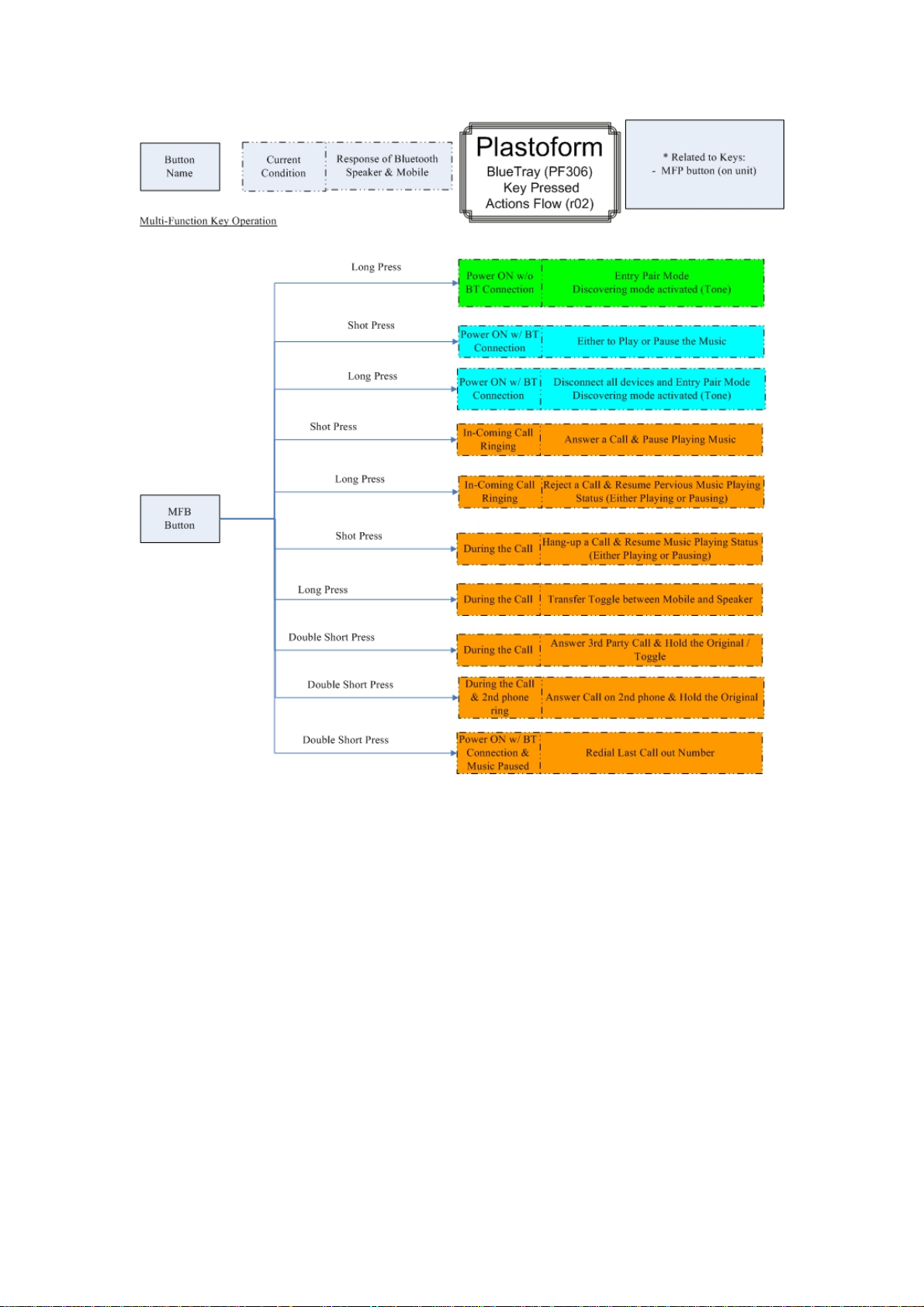

Button (in Bluetooth Music):
A: Play/Pause
B: Volume ­C: Volume +

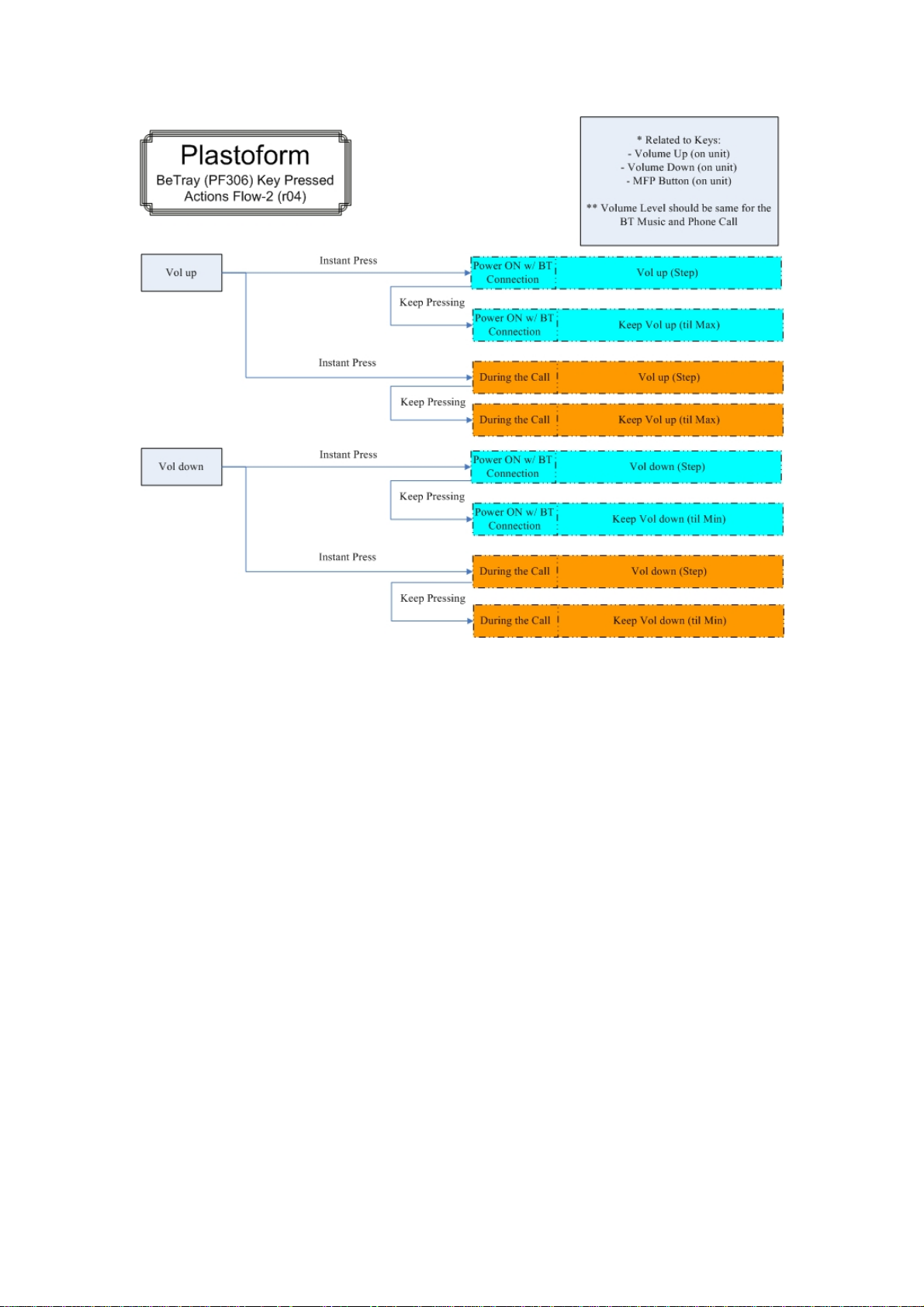

Button (during the phone call):
A (during Ringing): Answer Call (Short press) / Reject Call (Long press)
A (during the call): End of Call (Short press) / Toggle between Phone (Long Press)
B: Volume –
C: Volume +

Button (in General without Bluetooth connection):
A: Entry Pairing mode (Long pressing)

Button (in Aux-in Music):
A: Entry Pairing mode (Long Pressing)

2) Power up PF306

• Charge up PF306 whenever it is needed by plug into the wall charger or by
computer via the USB cable

• Make sure the Slide button on the “ON” position

3) Pairing to PF306

• Select a BT 2.0 or above device (mobile phone or music player) and turn on BT
connection

• Activate your BT device to the searching mode (new device searching).

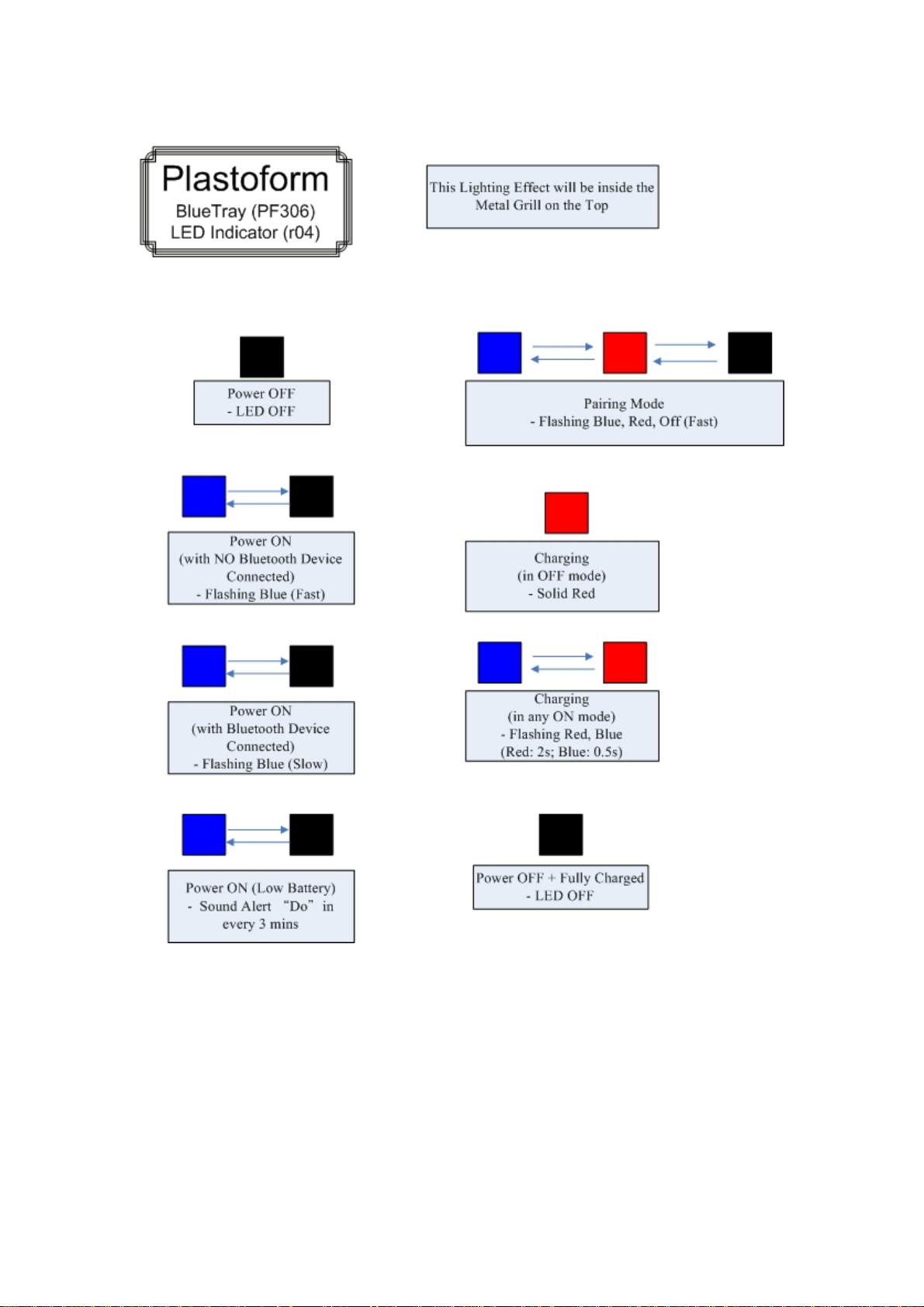

• Press Down and hold the speaker until the front Grid flashing in BLUE/RED and hear
the “Do Do” Sound, PF306 has 3 mins (searchable time) for your BT device to pair
with.

• <<PF306>> will be displayed in your BT device and select it for pairing. “0000” is the
pairing code if necessary. (Pairing code is not necessary for the iPhone,
iPod , and iPad)

• Beep sound will be given when PF306 is successfully paired and stop flashing

• Double check with your BT device to see “PF306” is connected.

Remark: Pairing steps are for 1st time connection, automatic connection is
allowed on most BT devices

Remark: PF306 will also stop flashing with a different sound to indicate pairing
failure after the 3mins.

5) Listening to PF306

• Stay connected to PF306 via BT, repeat the pairing step if it has been disconnected

• Select music to play in BT device

• Press Down the unit for Play / Pause

• Touch embossed “+” or “-“icon to adjust volume level or adjust it from your BT device

• Slide the Button at the back at “OFF” position to switch off

6) Talking via PF306

Remarks: Only available on BT mobile with HFP/HSP

• Press Down the unit for answering a call

• Press Down & hold the unit for rejecting the call

• Press Down to hang up when the call finish

• Press Down & hold the unit during the call to switch between PF306 and mobile

• Double Press Down the unit to answer a call from 3rd party
