PLASTEC VENTILATION, INC.
Scr
Support Stands, Painted Black
www.plastecvent.net Phone: 941-751-7596 Fax: 941-751-7598
Submittal Data and Specifications

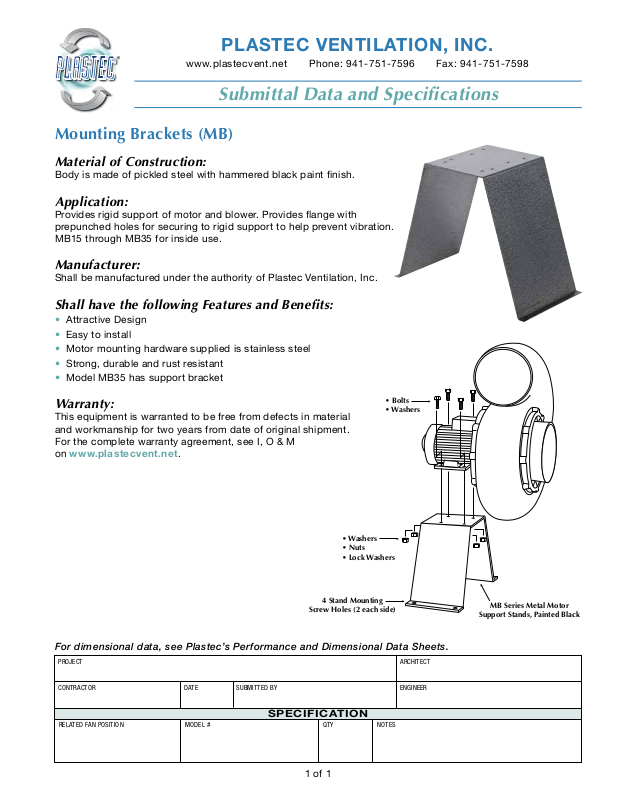

Mounting Brackets (MB)
Material of Construction:
Body is made of pickled steel with hammered black paint finish.
Application:
Provides rigid support of motor and blower. Provides flange with
prepunched holes for securing to rigid support to help prevent vibration.
MB15 through MB35 for inside use.
Manufacturer:
Shall be manufactured under the authority of Plastec Ventilation, Inc.
Shall have the following Features and Benefits:
• Attractive Design
• Easy to install
• Motor mounting hardware supplied is stainless steel
• Strong, durable and rust resistant
• Model MB35 has support bracket
Warranty:
This equipment is warranted to be free from defects in material
and workmanship for two years from date of original shipment.
For the complete warranty agreement, see I, O & M
on www.plastecvent.net.
• Washers
• Nuts
• Lock Washers
4 Stand Mounting
ew Holes (2 each side)
For dimensional data, see Plastec’s Performance and Dimensional Data Sheets.
PROJECT ARCHITECT
CONTRACTOR DATE SUBMITTED BY ENGINEER
• Bolts
• Washers
MB Series Metal Motor
SPECIFICATION
RELATED FAN POSITION MODEL # QTY NOTES
1 of 1
