Plantronics VOYAGER 510 - SYSTEM PAIRING, VOYAGER 510 User Manual
PLT 510

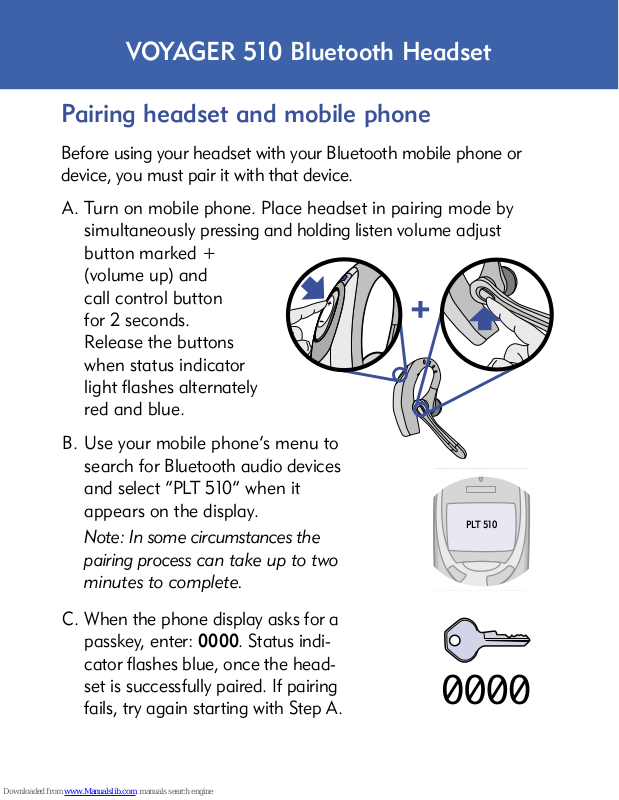

VOYAGER 510 Bluetooth Headset
Pairing headset and mobile phone
Before using your headset with your Bluetooth mobile phone or
device, you must pair it with that device.
A. Turn on mobile phone. Place headset in pairing mode by
simultaneously pressing and holding listen volume adjust
button marked +
(volume up) and
call control button
for 2 seconds.
Release the buttons
when status indicator
light flashes alternately
red and blue.
B. Use your mobile phone’s menu to
search for Bluetooth audio devices
and select “PLT 510” when it
appears on the display.
Note: In some circumstances the
pairing process
can take up to two
minutes to complete.
C. When the phone display asks for a
passkey, enter: 0000. Status indi-
cator flashes blue, once the headset is successfully paired. If pairing
fails, try again starting with Step A.
