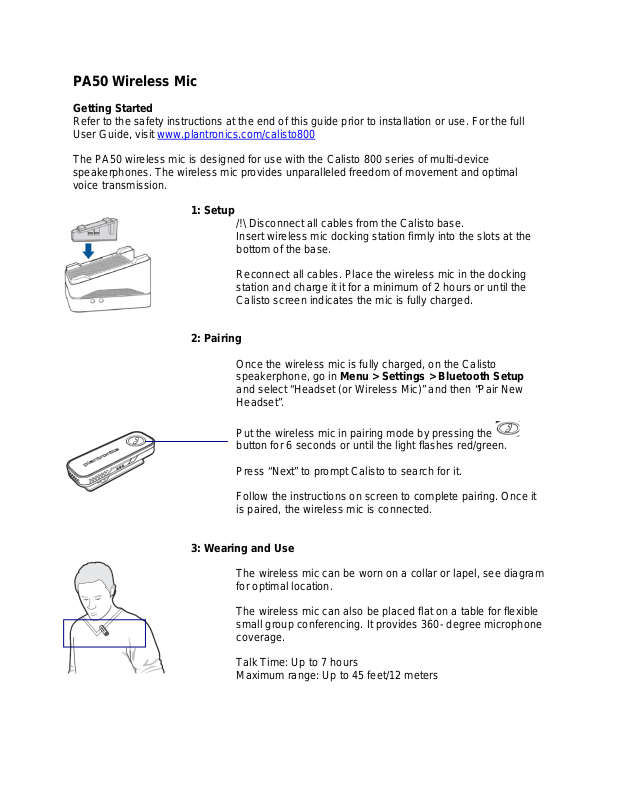

PA50 Wireless Mic

Getting Started

Refer to the safety instructions at the end of this guide prior to installation or use. For the full
User Guide, visit www.plantronics.com/calisto800

The PA50 wireless mic is designed for use with the Calisto 800 series of multi-device
speakerphones. The wireless mic provides unparalleled freedom of movement and optimal
voice transmission.

1: Setup

/!\ Disconnect all cables from the Calisto base.

Insert wireless mic docking station firmly into the slots at the
bottom of the base.

Reconnect all cables. Place the wireless mic in the docking
station and charge it it for a minimum of 2 hours or until the
Calisto screen indicates the mic is fully charged.

2: Pairing

Once the wireless mic is fully charged, on the Calisto
speakerphone, go in Menu > Settings > Bluetooth Setup
and select “Headset (or Wireless Mic)” and then “Pair New
Headset”.

Put the wireless mic in pairing mode by pressing the
button for 6 seconds or until the light flashes red/green.

Press “Next” to prompt Calisto to search for it.
Follow the instructions on screen to complete pairing. Once it

is paired, the wireless mic is connected.

3: Wearing and Use

The wireless mic can be worn on a collar or lapel, see diagram
for optimal location.

The wireless mic can also be placed flat on a table for flexible
small group conferencing. It provides 360- degree microphone
coverage.

Talk Time: Up to 7 hours
Maximum range: Up to 45 feet/12 meters



4: Features

Once undocked, press the

key on the wireless mic to

replace the built-in speakerphone microphone.
When the wireless mic is active, the {icon} is displayed on

screen and the built-in speakerphone microphone is turned off.
To transfer a call from the wireless mic to the speakerphone

and back, press

on the speakerphone.

Talk/End button: Press with one tap to answer or end a call.
The key is green when you have an incoming call, red when
you are on a call.

Mute/Unmute buttons: press red button on both sides. The
buttons light red when a call is muted.

Warranty

Warranty: Plantronics offers a two (2) year limited warranty. For full warranty details, conditions
and technical assistance, please visit our website: www.plantronics.com/support

Safety Instructions

Please read the following safety and operational instructions before using your Calisto phone system.
Please keep these instructions for your reference. When using this product, these basic safety
precautions and warnings should be followed to reduce the risk of fire, electric shock, injury to persons
and damage to property.

/!\ This symbol identifies and alerts the user to the presence of important safety warnings.
Operating, storage and charging temperature is 0°C to 40°C (32°F to 104°F).

/!\ Warnings

o Observe all signs and instructions regarding the use of an electrical device or RF radio product in

designated areas, such as gas/refueling stations, hospitals, blasting areas, potentially explosive
atmospheres, or aircraft.

o Do not insert anything into the product because this may cause damage to the internal components

or cause injury to you.

o Avoid contact with liquids. Do not locate this product near water, for example, near a bathtub, or sink,

in a wet basement, or near a swimming pool.

o Use only those Plantronics products and accessories designed for use with this product.
o CHILDREN. Never allow children to play with the product—small parts may be a choking hazard.
o If you experience a skin irritation after using this product, discontinue use and contact Plantronics.

/!\ Wireless Microphone Charging/Battery Warnings (PA50)
