Plantronics Explorer ML10 User Manual

plantronics.com/support

en

Tel: [phone]

ar

Tel: [phone]*

cs

Tel: [phone]*

da

Tel: [phone]

de

Deutschland 0800 9323 400
Österreich 0800 242 500
Schweiz 0800 932 340

el

Tel: [phone]*

es

Tel: [phone]

fi

Tel: [phone]

fr

Tel: [phone]

ga

Tel: [phone]

*Support in English

he

Tel: [phone]*

hu

Tel: [phone]*

it

Numero Verde: 800 950934

nl

NL 0800 7526876
BE 0800 39202
LUX 800 24870

no

Tel: [phone]

pl

Tel: [phone]*

pt

Tel: [phone]

ro

Tel: [phone]*

ru

Tel: [phone]
Tel: [phone]*

sv

Tel: [phone]

tr

Tel: [phone]*

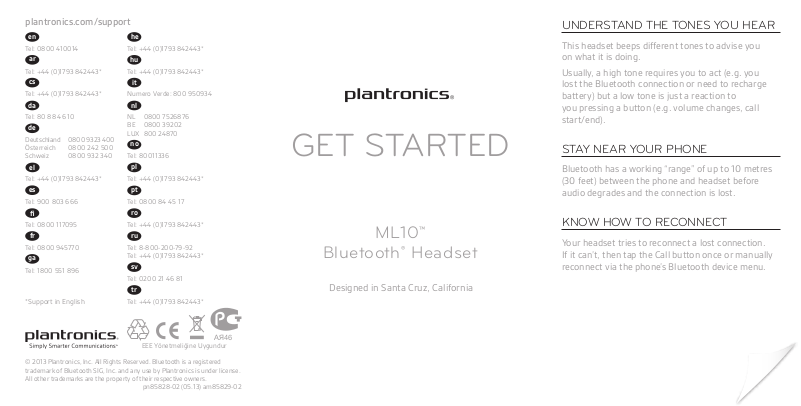

GET STARTED

™

ML10

Bluetooth® Headset

Designed in Santa Cruz, California

UNDERSTAND THE TONES YOU HEAR

This headset beeps different tones to advise you

on what it is doing.

Usually, a high tone requires you to act (e.g. you

lost the Bluetooth connection or need to recharge
battery) but a low tone is just a reaction to
you pressing a button (e.g. volume changes, call
start/end).

STAY NEAR YOUR PHONE

Bluetooth has a working “range” of up to 10 metres

(30 feet) between the phone and headset before
audio degrades and the connection is lost.

KNOW HOW TO RECONNECT

Your headset tries to reconnect a lost connection.

If it can’t, then tap the Call button once or manually
reconnect via the phone’s Bluetooth device menu.

EEE Yönetmeliğine Uygundur

© 2013 Plantronics, Inc. All Rights Reserved. Bluetooth is a registered
trademark of Bluetooth SIG, Inc. and any use by Plantronics is under license.
All other trademarks are the property of their respective owners.

pn85828-02 (05.13) am85829-02

AЯ46

4

5

2

3

1

READY SET CONNECT

TAKE A GOOD LOOK FIND THE BEST FITTAKE A GOOD LOOK

1 POWER SWITCH

•On(slidetoreveal

black)

•Off(slidetoreveal
red)

2 CALL BUTTON

•Takeacallorendit
(1 tap)

•Redial(2taps)

•Initiatephone’s

voice-dialing (2-sec
press until tone is
heard)

•Reconnectlost

Bluetooth connection
(1 tap)

•Activatepairingmode

(press until LED flashes
red/blue)

NOTE See ‘For Your Safety’ booklet for important safety, charging,

battery, and regulatory information before you use this headset.
This headset has an embedded, non-replaceable battery.

Full user guide: plantronics.com/documentation.
Register your headset at plantronics.com/productregistration.

WARNING Always listen at moderate levels. See plantronics.
com/healthandsafety for more information on headsets and
hearing.

3 LED

•Charging(solidred)

•Lowbattery(3red

flashes at powering on)

•Pairingmode

(repeating red/blue
flashes)

4 VOLUME BUTTON

•Volumepresets(1tap

per level change)

5 MICRO USB CHARGING

PORT

•Charge:
1 hour before first use
2 hours (100% charge)

•Donotuseheadset
while charging

1

2

Right earLeft ear
