Plantronics EXPLORER 220, EXPLORER 350, EXPLORER 340, EXPLORER 370, EXPLORER 360 User Manual

C

ommunication Products

(Pty) Ltd

Email: [e-mail]

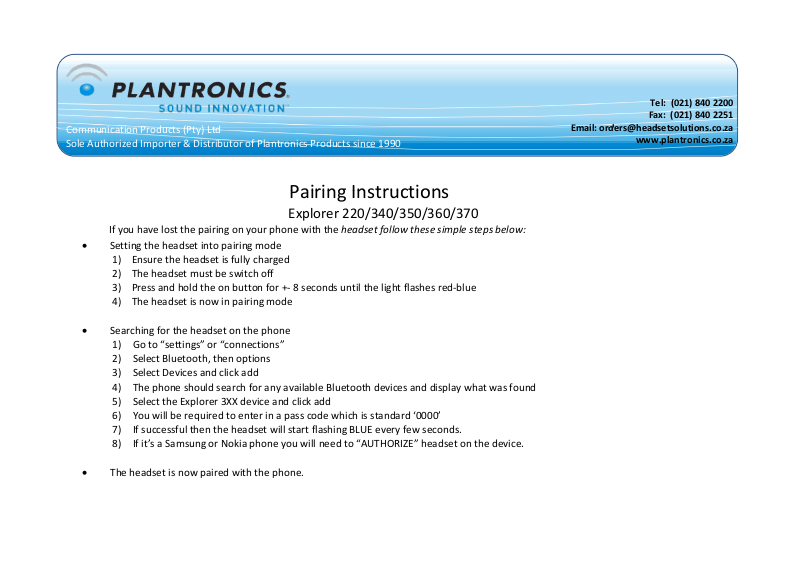

Pairing Instructions

)

g

8)

If it s a Samsung or Nokia phone you will need to AUTHORIZE headset on the device

Sole Authorized Importer & Distributor of Plantronics Products since 1990

Explorer 220/340/350/360/370

If you have lost the pairing on your phone with the headset follow these simple steps below:

• Setting the headset into pairing mode

1) Ensure the headset is fully charged

2) The headset must be switch off

3) Press and hold the on button for +- 8 seconds until the light flashes red-blue

4) The headset is now in pairing mode

• Searching for the headset on the phone

1) Go to “settings” or “connections”

2) Select Bluetooth, then options

3) Select Devices and click add

4) The phone should search for any available Bluetooth devices and display what was found

5) Select the Explorer 3XX device and click add

6) You will be required to enter in a pass code which is standard ‘0000’

7) If successful then the headset will start flashing BLUE every few seconds.

8

If it’s a Samsun

or Nokia phone you will need to “AUTHORIZE” headset on the device.

Tel: [phone]

Fax: [phone]

www.plantronics.co.za

.

• The headset is now paired with the phone.
