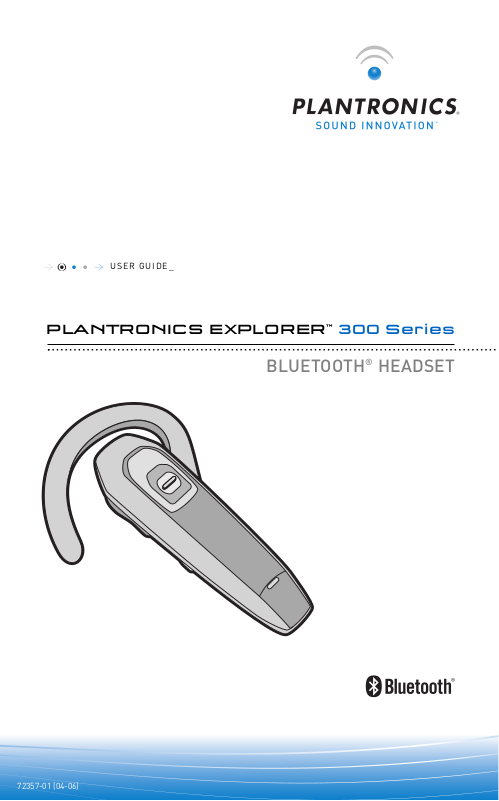

USER GUIDE_

PLANTRONICS EXPLORER™300 Series

BLUETOOTH®HEADSET

72357-01 (04-06)

TABLE OF CONTENTS

Package Contents & Features 3

Charging & Powering 5

Pairing 6

Adjusting Fit 7

Using Your Headset 8

Indicator Lights 9

Accessories 10

Troubleshooting 12

Product Specifications 12

Technical Assistance 13

Warranty 13

Regulatory Notices 14

WELCOME

Thank you for purchasing a Plantronics headset.

Let us provide you with the best possible service and technical support. After you review this user guide, if you need additional assistance or have any product questions, please contact:

• Plantronics Technical Assistance Center at 866-363-BLUE (2583)

• www.plantronics.com/support

Before getting started, please review the safety booklet included in the package.

Visit www.plantronics.com/productregistration to register your product online so we can provide you with the best possible service and technical support.

PACKAGE CONTENTS & FEATURES

Indicator light

Call control button

Microphone

Adjustable ear loop

Ear tip

Charging jack

Indicator light

Call control button

Microphone

Adjustable ear loop

Ear tip

Charging jack

PLANTRONICS EXPLORER 330

PLANTRONICS EXPLORER 340 AND 350

PACKAGE CONTENTS & FEATURES

PLANTRONICS EXPLORER 330 & 340

AC power adapter

PLANTRONICS EXPLORER 350

Cradle Mount Options

In-car charging cradle (shown with vent clip)

Vehicle charging adapter

Dash mount

Vent clip

USB headset charger

CHARGING & POWERING

CHARGING

Explorer 330 & 340 Explorer 350

Before using, you must first charge your headset.

20 minutes = minimum charge 2 hours = full charge

Light is solid red when battery is charging.

NOTE For the best user experience, keep your headset fully charged.

CAUTION Do not use headset while charging and do not connect the charger while

the headset is in use.

POWERING

Press the control button for 2 seconds to power on. Press the control button for 3 seconds to power off.

PAIRING

1. 2.

Before using your headset for the first time, you must pair it with your Bluetooth phone or device. Be sure the headset is fully charged. For set up and pairing instructions with Bluetooth devices other than mobile phones, please consult your Bluetooth device user guide.

Begin with headset turned off.

1. Press call control button for

6 seconds. Release button when indicator light flashes blue and red. Headset is ready to pair with Bluetooth device.

NOTE The headset can pair to

multiple Bluetooth devices, but will only connect to one device at a time. The headset will automatically connect to the last device to which it was connected.

2. While the headset is flashing red

and blue, use the phone menu to search for Bluetooth devices and select “3XXPlantronics”.

3. When prompted for passkey enter

0000. Headset will flash blue when paired successfully.

ADJUSTING FIT

Right Ear

Left Ear

1. 2.

Lift ear loop. Swivel ear loop to the right or left for

3. 4. 5.

Place ear loop behind ear.

right or left ear wearing.

Pivot headset to place speaker into ear.

Position speaker and align microphone with mouth.

USING YOUR HEADSET

ANSWERING/ENDING/MAKING CALLS

For best performance, position your mobile phone on the same side of your body as the headset.

To answer or end a call, briefly press the call control button. To make a call, enter number on your phone, press send, and the call is

automatically transferred to headset; no need to press call control button.

ADJUSTING THE VOLUME

Briefly push up or down on the call control button for incremental volume steps. You will hear two tones (high tone followed by low tone) at the volume limit.

WARNING For your comfort, health, and safety, do not exceed moderate

listening levels.

USING YOUR HEADSET

ADDITIONAL FEATURES

edialing Last Number

To activate last number redial, double press the call control button. You will hear a high tone after each double key press.

Using Voice Dialing

With the headset on, press the call control button for 2 seconds to activate the voice dialing.

NOTE To use voice activated dialing,

the voice dialing feature must be enabled on your phone. See your Bluetooth phone manual for instructions.

ejecting a Call

When receiving an incoming call, press the call control button for 2 seconds to reject the call.

Switching a Call From Phone to Headset

To switch an active call from your phone to your headset, press the call control button for 3 seconds.

Switching a Call From Headset to Phone

To switch an active call from your headset to your phone, press the call control button for 2 seconds.

INDICATOR LIGHTS

Headset Status Headset Indicator Light

Powering on Blue flashes. Repeat.

Powering off Red appears and goes off.

Charging battery Red solid light.

Low battery Red flashes.

Pairing mode Blue/red flashes for 120 seconds.

Missed call Purple flashes. Double press the call control

button to cancel.

Ringing Purple flashes. Briefly press call control button

to answer the call. Press call control button for 2 seconds to reject the call.

ACCESSORIES

INCLUDED ACCESSORIES

In-car charging cradle and in-vehicle charging adapter – for Explorer 350 only

1. Select vent clip or dash mount option. Attach to rear of in-car charging cradle.

NOTE Select the mounting option that allows the charging cradle to not interfere

with car controls.

2. Insert charging plug into slot on bottom of charging cradle. Be sure to slide to top of slot.

3. Attach charging cradle to dash mount or vent.

IMPORTANT Clip onto lowest vent slot. Be sure the headset is not directly in the

vent air flow. If headset cannot be positioned out of air flow, use dash mount instead.

4. Place ear tip as shown in the top of the cradle. Gently press the bottom of the headset to plug the charging adapter into the charging jack. Then plug in-vehicle charging adapter into vehicle power.
