USER GUIDE
CS50-R
......................................................................................
WIRELESS OFFICE HEADSET SYSTEM
2
TABLE OF CONTENTS
REGISTER YOUR PRODUCT ONLINE
Package Contents
Features
Setup
Positioning
Adjusting Fit
Charging
3
4
6
7
8
7
9
Making/Answering/Ending Calls
8
Headset Controls
Volume
Mute
11
10
9
Troubleshooting
13
Base Indicator Lights
11
Battery Replacement
13
System Reset
14
15
Subscription
15
15
Maintenance
Technical Assistance
Regulatory Notices
Visit www.plantronics.com/productregistration to register your CS50-R product online so
we can provide you with the best possible service and technical support.
3
PACKAGE CONTENTS
Headset
Earloops
Headband
CS50
CS55
Base
AC Charger
AC Charger
Headset and Wearing Options
Base
You can wear your new headset either over your head or over the ear. You may change
your wearing style as often as you like.
4
FEATURES
Charge Indicator Light (red)
Subscription
Button Access
Hole (paperclip
required)
Charge Contacts
Status Indicator Light (green)
Headset Docking Cradle
AC Charger Port
Back and Side
Front
5
FEATURES
Front:
Rear:
Listening
Volume/Mute
Talk Indicator Light
Speaker
Battery Cover
Call Control Button
Microphone
Headset
Tel ephone Cord Jack
Telephone Handset Jack
Speaking Volume
Major Adjust
AC Charging Jack
Handset Lifter Jack
Ringer Switch On/Off
Stand Pegs
3.5mm
Connector
Base
Headset
6
SETUP
Plug the cord that is connected to the CS50-R base into the 3.5mm jack on the CS50-R
compatible phone.
CAUTION: Your phone may have two similar jacks. Put the cord only in the jack that fits,
it's the one furthest toward the back of the phone.
Plug the AC charger into an outlet and into the base’s AC charging jack.
1
2
Before starting the setup of the CS50-R headset system, install your CS50-R compatible
phone and be sure it is working properly. For installation details regarding your phone,
refer to the user guide that came with it.
HEADSET MUTE
To mute headset, press the listening volume/mute button straight in. Press again
to unmute.
You will hear 3 rapid beeps every 30 seconds to indicate mute is on.
LISTENING VOLUME
Rock the headset volume control back and forth to adjust listening volume.
NOTE: Be sure to set your telephone’s volume at the mid range before adjusting the
CS50-R volume.
9
10
HEADSET CONTROLS
Making/answering/
ending calls
Ascending/descending
tones, 3 tones at limit
2 tones every 15 seconds
Short key press
Short key press
straight in
Rock back
and forth
Mid tone
Low battery
warning (5 minutes of
talk time remaining)
Return headset
to charging cradle
1 tone every 10 seconds
Out of range
warning - when on
an active call
Move closer
to base
2 tones just before range
limit. 3 tones beyond
range limit and active
call will be suspended.
1 tone will sound when
returning within range;
call will be re-established
if within 15 minutes
Incoming call
notification*
Press call control
button to answer call
3 repetitive tones
Mute
Listening volume
Key Feature Action Tone
Action
Light
Fully charged Red light goes off
Charging Red light illuminates brightly
Green light flashes slowly
Headset not in base Red light illuminates softly
Headset not in base - link active
Green light flashes quicklyMuted
Solid green lightHeadset docked in base
BASE INDICATOR LIGHTS
Status Indicator Light (green)
Charge Indicator Light (red)
TROUBLESHOOTING
Problem Solution
I plugged everything in
but the lights won’t
come on.
• Check that the AC charger jack is connected to the base unit.
• Check that the AC charger is securely connected to a working
wall outlet.
• Check that the AC charger is the model supplied by Plantronics.
My headset does
not work with the
base unit.
• Check that the base is connected to the correct size jack on
phone.
• Headset may be out of range of the base. Move closer to base
unit until headset is within range. Range varies with office
environment.
• Headset battery is dead. Recharge the battery by placing the
headset in the headset charging cradle or by using the AC
charger supplied. See page 7.
• Listening volume too low. Press the volume up button on the
headset.
• You may have to resubscribe your headset with the base. See
page 13.
11
TROUBLESHOOTING
Problem Solution
• Headset is muted. Press the mute button on headset to unmute
the microphone. See page 9.
I cannot hear
caller/dial tone.
• Check that all cords are connected correctly.
• Check that the base has power (green indicator light) and the
headset battery is fully charged.
• Ensure you are in headset mode. Press the call control button to
select correct mode. The status indicator light on the base is
green.
Callers cannot
hear me.
Headset is uncomfortable
when worn in over-the-ear
mode.
Try changing earloop sizes. Experiment to find the best fit.
Sound in handset is
distorted/I hear echo in
handset.
• Point microphone towards your chin.
• Listening volume too high on phone. If your phone has a handset
volume control, lower this until the distortion disappears.
• If the distortion is still present, lower the listening volume adjust
button on the headset.
• Base is too close to computer or phone. See page 7 for
proper positioning.
• System needs to be reset. Perform system reset as described
on page 13.
People I talk to can
hear a buzz in the
background.
• Move the CS50-R base further away from your phone.
• AC charger is plugged into a power strip. Plug the AC charger
into the wall directly.
• Picking up another radio frequency. Call the Plantronics
Technical Assistance Center for an RF filter and one will be sent
to you at no charge.
Battery talk time
performance is
significantly degraded
even after a full recharge.
Battery is going bad. Replace the battery with a new battery
pack. See page 14.
The call is dropped. Headset lost subscription. Try to reset the system. See page
13. If this does not work, tr y the resubscription procedure on
page 13.
I hear static that
does not allow me to
communicate.
• Link to headset is lost. Try to reestablish a link by pressing the
call control button.
• Unplug the AC charger from the base for 5 seconds, then plug
back in.
• Reset the whole system as described on page 13.
I hear beeps in
the headset.
• One beep every 10 seconds is caused by a low battery warning.
Recharge batter y by returning it to the base charge cradle for
one to three hours until charge light stays lit or quits blinking.
• Two beeps is an out of range warning. Move closer to the base.
• Two beeps every 15 seconds indicates your mute is on. Press
the mute button once to turn mute off.
• When an optional lifter is connected, three repetitive beeps
indicate a call is coming into the headset. Press the call control
button on the headset to answer the call.
12
SUBSCRIPTION
The headset and base unit are supplied subscribed to each other. However, if you wish to use a
replacement headset with the base unit, then the units must be re-subscribed as follows:
5 sec.
1
SYSTEM RESET
To recover from some fault conditions (refer to Troubleshooting page), you may need to
perform a system reset.
1
1
2

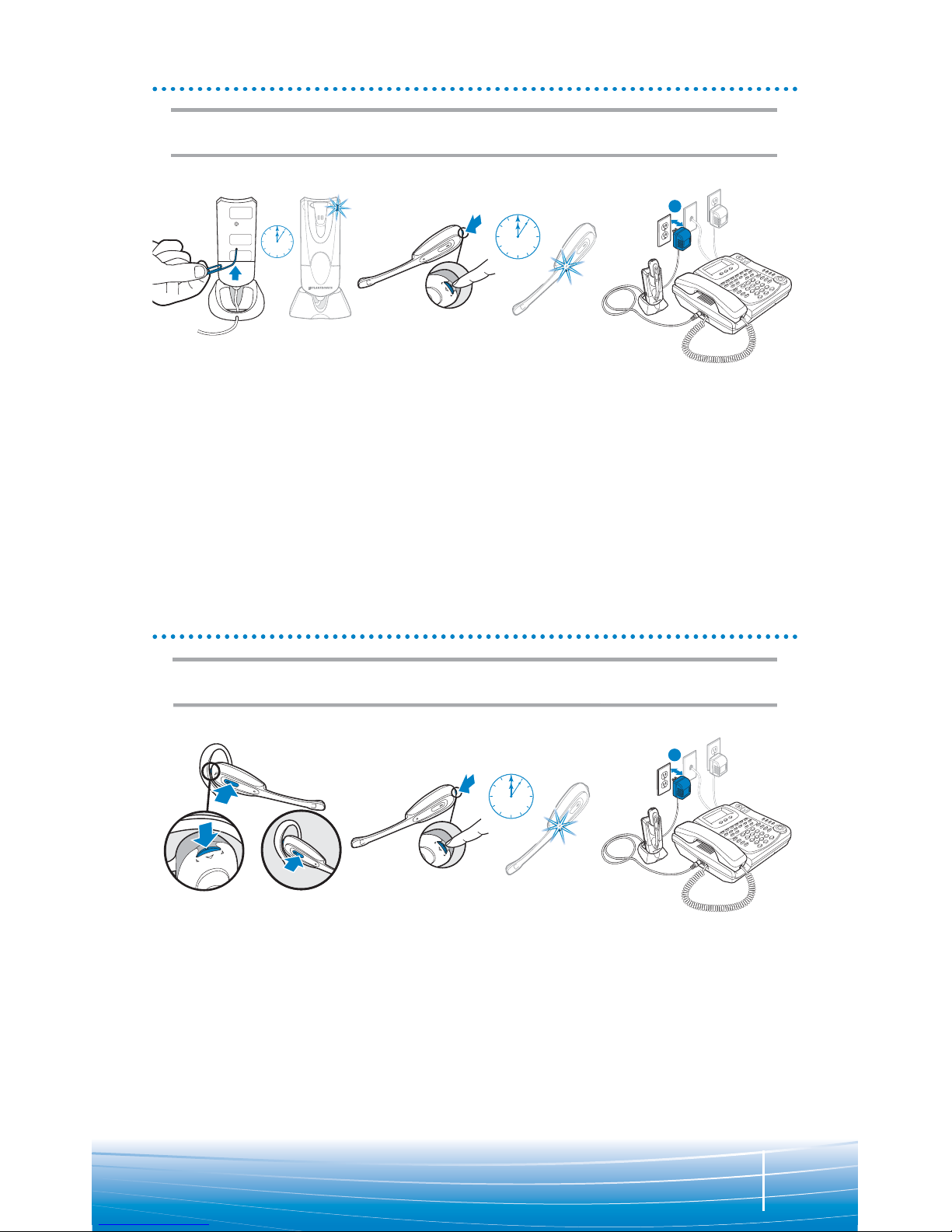

Return the headset to the charging cradle.
1. Use a paperclip to press and hold the
subscription button through the
access hole on the base unit for a
minimum of 5 seconds. The status
indicator light will then flash.
2. Press and hold the headset mute
switch for a minimum of 5 seconds.
The headset indicator light will then
illuminate.
3. Disconnect the AC charger from the
AC charging jack for 5 seconds.
4. Reconnect.
Successful re-subscription is indicated
when the status indicator is fully illuminated
and the talk indicator light is off.
If re-subscription fails within 2 minutes, the
headset will return to the un-subscribed
state. Try the re-subscription process again
or call Technical Support.
2
5 sec.
3
13
1. Press both the call control button
and the listening volume/mute button for 5 seconds. When the talk
indicator light blinks, release both
buttons.
2. Press the call control button again.
The talk indicator light will again
blink briefly to indicate the headset is
back to normal operation.
3. Disconnect the AC charger from the
AC charging jack for 5 seconds.
4. Reconnect.
The system reset operation is complete.
2
5 sec.
3
14
BATTERY REPLACEMENT
1 2
4
3
Pinch both sides of the battery cover and
lift to remove.
Slide the battery out and gently separate
at the connection. DO NOT pull the battery
out by the wires.
Reconnect and install the new battery. Pinch both sides of the battery cover
and replace.
The custom battery inside the headset should last 2-3 years. When talk time decreases
significantly, you should replace the battery. Call Plantronics at (800) 544-4660 ext.5538 to
order one. Once you receive it, follow directions below to replace.
After replacing the battery, remember to allow 3 hours to fully charge.
REGULATORY NOTICES
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception which can be determined by turning the radio or television off and on, the user is encouraged to try to correct interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on another circuit.
4. Consult the dealer or an experienced radio/TV technician for help.
FCC REGISTRATION INFORMATION — Part 68
This equipment complies with Part 68 of the FCC rules and the requirements adopted by ACTA. On the exteri-
or of this equipment is a label that contains a product identifier in the format US:AAAEQ##TXXXX. If request-
ed, this information must be provided to your telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply
with the applicable FCC Part 68 rules and requirements adopted by ACTA. A compliant telephone cord and
modular plug is provided with this product. It is designed to be connected to a compatible jack that is also
compliant. See installation instructions for details.
The REN is useful to determine the quantity of devices you may connect to your telephone line. Excessive
RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most, but
not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices you
may connect to your line, as determined by the REN, contact your local telephone company. For product
approved after July 23, 2001, the REN for this product is part of the product identifier that has the format
US:AAAEQ##TXXXX. The digits represented by ### are the REN without the decimal point. (For example, 03
represents a REN of 0.3.) For earlier producers, the REN is separately shown on the label.
If this telephone equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the
telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to
make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this unit, for repair or warranty information, please contact customer service at
(800) 544-4660. If the equipment is causing harm to the network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
DO NOT DISASSEMBLE THIS EQUIPMENT: it does not contain any user serviceable components.
We recommend the installation of an AC surge arrester in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges, typically lighting transients, are very destructive to cus-
tomer terminal equipment connected to AC power sources.
FCC Requirements
MAINTENANCE
1. Unplug the unit from the telephone and the AC charger from the power source
before cleaning.
2. Clean the equipment with a damp (not wet) cloth.
3. Do not use solvents or other cleaning agents.
The Plantronics Technical Assistance Center is ready to assist you with the CS50-R
headset system. Dial (800) 544-4660 ext. 5538, or visit the support section of our website
at www.plantronics.com/support.
For questions concerning your telephone please call 1.888.872.5200.
TECHNICAL ASSISTANCE
15
Exposure to RF Radiation
The internal wireless radio operates within the guidelines found in radio frequency safety standards and
recommendations, which reflect the consensus of the scientific community. Independent studies have shown
that the internal wireless radio is safe for use by consumers. Visit www.plantronics.com for more information.
NOTE: Modifications not expressly approved by Plantronics, Inc. could void the user's authority to operate the equipment.
WARRANTY
SOUND INNOVATION
Limited Warranty
• This warranty covers any defects in materials and workmanship of the CS50-R headset
systems manufactured, sold or certified by Plantronics which were purchased and used
in the United States.
• This warranty lasts for one year from the date of purchase of the products.
• This warranty extends to you only if you are the end user with the original purchase
receipt.
• We will, at our option, repair or replace the products that do not conform to the
warranty. We may use functionally equivalent reconditioned/refurbished/remanufactured/
pre-owned or new products or parts.
• To obtain service in the U.S., contact Plantronics at (800) 544-4660 ext. 5538.
• THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS.
• This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state. Please contact your dealer or our service center for the full
details of our limited warranty, including items not covered by this limited warranty.
© 2005-2006 Plantronics, Inc. All rights reserved. Plantronics, the logo design, CS50 and Plantronics
Sound Innovation are trademarks or registered trademarks of Plantronics, Inc. All other trademarks are
the property of their respective owners.
Patents U.S. 5,210,791; 6,735,453; D492,667; EM 69109; and Patents Pending.
Printed in USA. 72752-07 (02.06)
Plantronics Inc.
345 Encinal Street
Santa Cruz, CA 95060 USA
Tel: (800) 544-4660
www.plantronics.com
Loading...
