Planet Technology IPM-8001, IPM-8002 User Manual

8-Port IP Power Manager

IPM-8001 IPM-8002

User’s Manual

Copyright© 2006 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as i s". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the conte nts hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or register ed trademarks of their respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not ins talled and us ed in acc ordance with the instructions, ma y cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution:

To assure continued compliance.(example-use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrol led environment. In order to avoid the possibility of exceeding the F CC radio frequency expos ure limits, human proximit y to the antenna shall not be less than 20 cm(8 inches) during normal operation.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8,2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.

WEEE regulation

To avoid the potential effects on the environment and human health as a result of the

presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User’s Manual for PLANET 8-Port IP Power Manager Model: IPM-8001, IPM-8002 Rev: 1.0 (February, 2006) Part No. EM-IPM8001

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION.............................................1

1.1 PACKAGE CONTENTS..............................................................................................................1

1.2 PRODUCT DESCRIPTION..........................................................................................................1

1.3 FEATURES...............................................................................................................................1

1.4 FRONT AND REAR PANEL........................................................................................................2

1.5 LED AND BUTTON ON FRONT PANEL.....................................................................................2

1.5.1 Power Outlet LED and Button..........................................................................................2

1.5.2 System Load and Status Indication...................................................................................3

1.6 FRONT PANEL INTERFACE.......................................................................................................4

CHAPTER 2 HARDWARE INSTALLATION...............6

2.1

2.2

2.3

2.4

2.5

2.6

ONNECTING INPUT POWER

ONNECTING OUTPUT DEVICE

ONNECTING DIGITAL OUTPUTS

ONNECTING

ONNECTING THE CONSOLE

ONNECTING

EMD

...............................................................................................................7

LAN

.................................................................................................6

.............................................................................................6

...........................................................................................7

.................................................................................................8

WAN

................................................................................................8

CHAPTER 3 USER CONTROL BUTTON....................1

CHAPTER 4 QUICK SETUP...................................................2

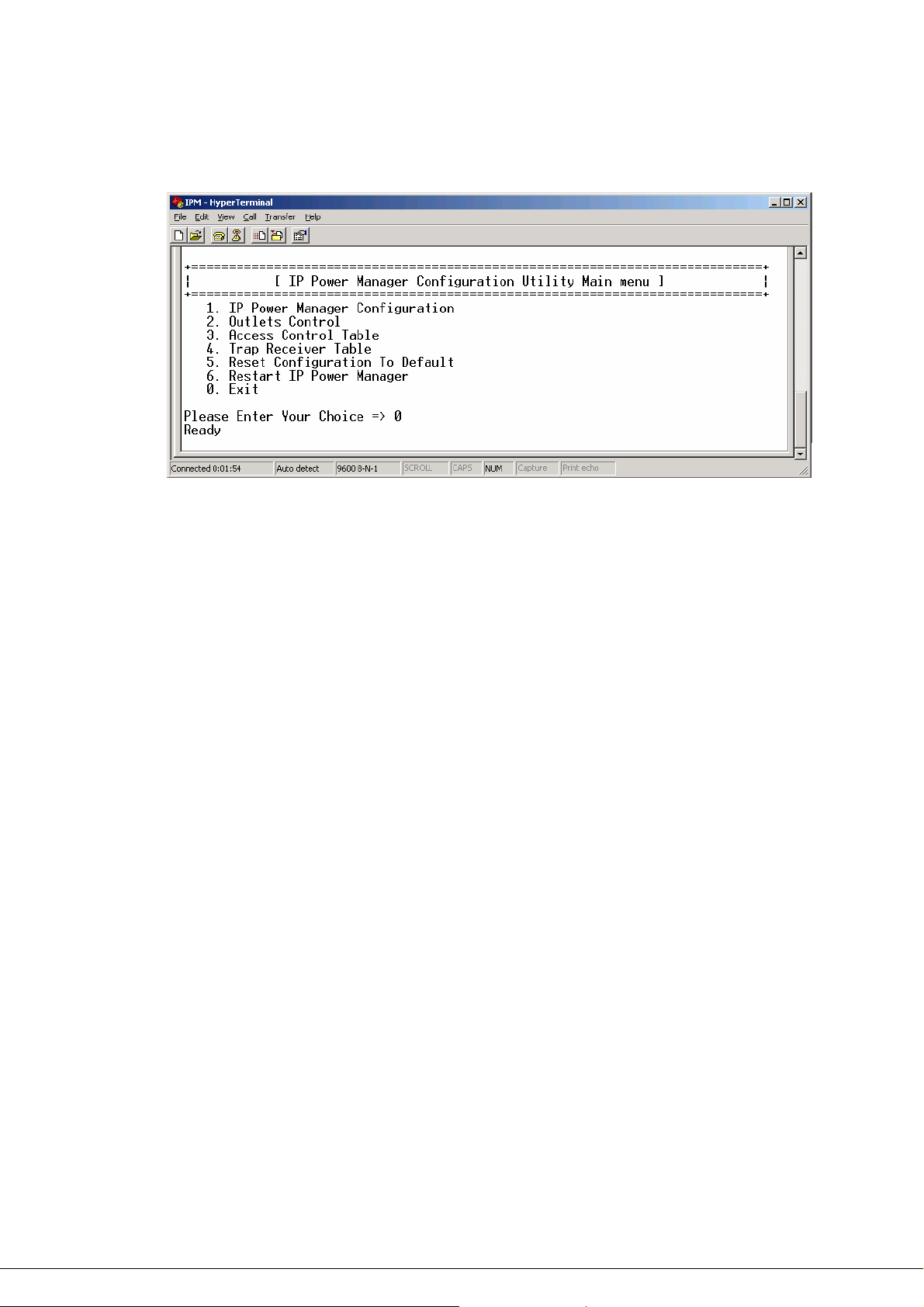

CHAPTER 5 CONFIGURE WITH CONSOLE............5

5.1 RUN HYPER TERMINAL..........................................................................................................5

5.2 IP POWER MANAGER CONFIGURATION ..................................................................................8

5.2.1 System Group....................................................................................................................8

5.2.2 Control Group...................................................................................................................9

5.3 OUTLETS CONTROL..............................................................................................................10

5.4 ACCESS CONTROL................................................................................................................11

5.5 TRAP RECEIVER TABLE ........................................................................................................12

5.6 RESET CONFIGURATION TO DEFAULT...................................................................................13

5.7 RESTART IP POWER MANAGER.............................................................................................13

5.8 EXIT.....................................................................................................................................14

CHAPTER 6 WEB CONFIGURATION..........................15

6.1 POWER MANAGEMENT.........................................................................................................16

6.1.1 Control............................................................................................................................16

6.1.2 Schedule..........................................................................................................................20

6.2 ENVIRONMENT.....................................................................................................................21

6.2.1 Status..............................................................................................................................21

6.2.2 Configuration .................................................................................................................21

6.2.3 Alarm..............................................................................................................................23

6.3 SYSTEM................................................................................................................................23

6.3.1 Configuration .................................................................................................................23

6.3.2 Multi-User ......................................................................................................................24

6.3.3 Date & Time....................................................................................................................26

6.3.4 Trap Receivers................................................................................................................27

6.3.6 WOL................................................................................................................................28

6.3.7 Email Notification...........................................................................................................29

6.3.8 External Links.................................................................................................................30

6.4 NETWORK ............................................................................................................................31

6.4.1 Configuration .................................................................................................................31

6.4.2 Control............................................................................................................................32

6.4.3 Access Control ................................................................................................................33

6.5 LOGS....................................................................................................................................34

6.5.1 History............................................................................................................................34

6.5.2 Event...............................................................................................................................35

6.5.3 Clear and Save Log Data ...............................................................................................36

CHAPTER 7 UTILITY............................................................37

APPENDIX A ERROR CODE.............................................39

APPENDIX B SPECIFICATION.......................................40

APPENDIX C GLOSSARY...................................................41

Chapter 1 Introduction

Thank you for purchasing PLANET IP Power Manager. This manual guides you on how to install and properly use the IP Power Manager in order to take full advantage of its features.

1.1 Package Contents

Make sure that you have the following items:

z One IP Power Manager z One Power Cord z One User’s Manual and Utility CD z One Quick Installation Guide z One Console Cable z One Rackmount Ear kit z Four Rubber Feet z Four Feet Screw

Note: If any of the above items are missing, contact your supplier for support.

1.2 Product Description

The IP Power Manager includes two models, IPM-8001 and IPM-8002. Model IPM-8001 is for 100V to 120VAC power input, IPM-8002 for input power range from 220V to 240VAC, in the following section, unless specified, IPM-8000 will means the IP Power Manager of the two models.

1.3 Features

z Eight power outlets that can be turn on or off in multiple ways, with easy monitoring of

current consumption

z Versatile sensors supported through EMD (Environmental Monitoring Device) inputs z Active extended devices via digital outputs z Monitor and manager connected devices and sensors remotely z Control manually, or remotely through console or network z Intelligent turn on/off devices based on event occurrence of planned schedule z Comprehensive power management and flexible configuration through web browser,

NMS, Telnet, SNMP, or Hyper Terminal (via console)

z Configurable user security control z User friendly interface to display input and output status z Detailed data-logging for statistical analysis and diagnostics

- 1 -

z Upgrade utility for easy firmware upgrade z Event notification through SNMP trap or E-Mail alerts z Daily history report through E-mail z Supports SSL-3 and SSH V1 protocol z Administrator and multiple users with password protection for double-layer security z Address-specific IP security masks to prevent unauthorized access z Available in 110V, 220V and 240V models

1.4 Front and Rear Panel

Front Panel

IPM-8001 Rear Panel

IPM-8002 Rear Panel

1.5 LED And Button on Front Panel

1.5.1 Power Outlet LED and Button

There are eight set of LED and button for each power outlet, the description is as below.

- 2 -

LED Function Description

Current level indicator

connected output device through the power outlet. Displays t he o ut - let power status.

Displays the amount of current being drawn by the

Outlet power indicator

Remote control indicator

Button Description

Off: Power off Green: Power on Displays

the remote control status of each outlet. Off: Remote control Red: Remote control

enabled

disabled

Allows manual control of each power outlet. Press repeatedly to switch between

remote

control and power on/off mode.

1.5.2 System Load and Status Indication

For IPM-8000, the INPUT LEDs and STATUS digital LED indicators shows the real time status of the system.

- 3 -

LED Function Description

Input power consumption

Displays the amount of current being drawn by the

INPUT

indicator

LED Function Description

connected output device through the power outlet.

Displays input voltage (Volts), input current (Ampere), and frequency (Hz), sequentially

Input power status

display. This indicator also shows system

STATUS

indicator

an error code such E01, E02, to Appendix A Error Code to know the details of each error

on the 7-segment switching

errors in the form of

E03, and so on. You may check

code.

1.6 Front Panel Interface

- 4 -

Name Function Description

LAN

Console

Dip-Switch

Reset

Ethernet (LAN) port

Console port

Operation mode DIP switch

Reset button

Enables you to connect IP Power Manager to a LAN or WAN. Enables serial port.

you to configure the IP Power Manager using the

Or y

ou can connect an optional EMD to this port. Sets the mode of operation for the IP Power Manager. S1 off and

S2 off: Normal operation (default mode). Please don’t change the position of the dip switches, it may cause your IP Power Manager works incorrect when the dip switches in wrong position. Enables system locks

you to reset the IP Power Manager in case the

up.

- 5 -

Chapter 2 Hardware Installation

Before you proceed with the installation, it is necessary that you have enough information about the

2.1

The output devices. Connect outlet as shown:

IP Power Manager

Connecting Input Power

IP Power Manager has an IEC C20 power inlet for supplyin g and managing power for the

the power cord to the power inlet and plug the other end into a power

After power connected. You may see the 7-Segment LED display some error messages. If it shows “E01”, please refer to section 2.6 to connect WAN. If it shows “E16”, that is mean the power phase of connected power outlet is reverse. Please try to make the power phase corr ect. Or you can refer to section 5.2.2 to disable Input Phase Detection on refer to Appendix A Error Code for details.

2.2

The servers, and printers. Their power on/off status can be remotely through the LAN and Console ports. C onnect the power connectors of the devices to shown:

Connecting Output Device

IP Power Manager

each of the power outlets A through H with the power cords supplied with the devices a s

IP Power Manager

has eight power ou tlets for connecting devices such as work stations,

IP Power Manager

temporally. For other error message, please

8000 to your LAN or

controlled manually as well as

- 6 -

2.3 Connecting Digital Outputs

The

IP Power Manager connect indicators (NC). The digital output connectors are work as a switch to let you switch the connected device On or Off. The connectors will not provide power to the connected device. So the connected device should connect with its power adapter. You can remotely through the console or over the LAN.

2.4 Connecting EMD

An environmental monitoring device that is sensors connected to for detecting temperature, humidity , water port.

The EMD can also be connected to alarms or indicators and controlled through the

Power Manager

level, and so on can be connected to the

. Connect the EMD to the console port as shown:

provides two digital outputs (NO by default) to which you can

or other output devices that are normally open (NO) or normally closed

IP Power Manager

control the digital outputs

with the console

- 7 -

2.5 Connecting The Console

You can control the output devices and manage their power status through the console port with serial connection. Use the bundled serial cable to connect the COM port of your PC and the CONSOLE port of the control and manage your

IP Power Manager IP Power Manager.

as shown. Then you can run Hyper Terminal to

2.6 Connecting LAN or WAN

The

IP Power Manager manage the graphic user the

IP Power Manager to a free port on your switch using an Ethernet cable. Yo u can then

power outlets and digital outputs over the network. The

interface that allows you to control the device through a web browser. Connect

has an RJ-45 LAN connector that enables you to monitor and

- 8 -

IP Power Manager

has a

control the

IP Power Manager

from your PC or laptop. When the network has installed a router, you can also use your mobile phone or connected

to Internet to control

IP Power Manager.

PDA that is web browser supported and

- 9 -

Chapter 3 User Control Button

You can turn on power manually for eac h of the eight output devices with the control buttons provided control function as well as turn power on/off for each outlet manually. The control

Remote Control

Power Manager

After switching modes, you need to press the control button again within 5 seconds to change the

under each status indicator A through H. Each button allows you to set the remote

button has two modes of operation. Press the button repeatedly to switch between

mode status.

mode and Power On/Off

switches modes as follows:

mode. When you press the control button, the

Remote control mode

1. Press the control button once. The remote control indicator starts flashing red.

2. Now press control button again within 5 seconds and hold for more than 5 seconds. The remote state.

For instance, if remote control indicator is enabled (gray) before you press the control button, it turns on (red) after

control indicator starts flashing red at a faster speed and then inverts its original

step 2, indicating that remote control is disabled.

Power on/off mode

1. Press the control button twice. The outlet power indicator starts flashing green.

2. Now press control button again within 5 seconds and hold for more than 5 seconds.

The outlet power original

For instance, if (green) after

step 2, indicating that outlet power is turned on.

state.

outlet power indicator is off (gray) before you press the control button, it turns on

indicator starts flashing green at a faster speed and then inverts its

- 1 -

Chapter 4 Quick Setup

When you are first time configure your know how to initial your IP Power Manager fastest.

1. Please insert User’s Manual and Utility CD into the CD-ROM drive to initiate the autorun program. Once completed a menu screen will appear.

2. Click on “Initial Utility” hyper link to initiate the installation. If the autorun program is not process in your PC, you can click the “Start” button and choose “Run”. (Suppose “E” is your CD-ROM drive). When the dialog box appears, enter “E:\Utility\Setup.exe” and press enter key. You will see the dialog box as below.

IP Power Manager

. You may refer to this chapter to

3. Please press “Discover” to find out your IP Power Manager.

4. Please select your IP Power Manager in the Device List and click “Modify” button to enter the user account and password. In default, user account and password is “admin”. Please press “OK”.

- 2 -

5. In default, IP Power Manager is DHCP client enables. If there is no DHCP server in your network. Please click “Set IP” button. Then enter a n I P address that in the same segment of your configuration PC. Please press “OK”.

6. Please press “Browse” button, then you will see a dialog box asking you the user name and password. Please enter “admin” for first time configuration. If you have change the user name and password, please enter correct user name and password of this dialog box. Please press “OK”.

7. Then the IP Power Manager configuration web page will appear. You can check the power outlet status in this web page. For more configurations, please check chapte r 6 and refer the details.

- 3 -

- 4 -

Chapter 5 Configure With Console

The

IP Power Manager

system through your PC’s RS-232 serial (COM) port. Use the serial cable provided to connect the

has provided a serial port that enables you to configure and control the

console describes how to use a cons ole application to c ontrol settings such as its table.

port to your PC’s COM port as described in “Connecting the console”. This section

the

IP Power Manager

address, outlet control parame ters , access control table, and trap receivers

and configure its

5.1 Run Hyper Terminal

Follow these steps to start HyperTerminal and communicate with the Manager

To start HyperTerminal, click Star ==> Programs ==> Accessories ==> Communications ==>

A New Connection opens. Type a name for the connection in the Name field and select an icon

2. for the connection. Click

HyperTerminal from the Windows

OK when done.

Start button.

IP Power

From the Connect T Click

OK when done.

o drop-down box, select the COM port that

- 5 -

IP Power Manager

connected.

The Properties window opens. Click” Restore Defaults” to use the default settings. Make sure that the

Bits per second field is set to 9600. Click OK when done.

Press any key. The IP Power Manager Configuration Utility Main menu opens and you are prompted for a password. Type the default password ( main menu options are displayed.

- 6 -

admin

) and press Enter to continue. The

6. After enter correct password, you will see the main menu of console interface.

- 7 -

5.2 IP Power Manager Configuration

In this option. You can setup the general settings of this IP Power M anager.

5.2.1 System Group

In this option. You can change the IP Power Manager IP settings, system date and time.

Option Description

IP Address

Gateway Address

Network Mask

System Date System Time

The IP address of IP Power Manager is dotted format. Default value is "192.168.0.10", and size is 15 characters. The IP address of the gateway is dotted format. Default value is "0.0.0.0", and size is 15 characters. The subnet mask of IP Power Manager is dotted format. Default value is "255.255.255.0", and size is 15 characters. Set date of IP Power Manager, format is dd/mm/yyyy. Set time of IP Power Manager, format is hh:mm:ss.

- 8 -

5.2.2 Control Group

Option Description

Administrator User Name Administrator Password

BOOTP/DHCP Control

TFTP Upgrade Control Ping Echo Control

Input Phase

In default, the user name is “admin”. You can change the user name to a simply memorize name. In default, the password is “admin”. Please change the password to IP Power Manager in the first time configuration. That can prevent unauthorized user access to IP Power Manager. This is the parameter enabling or disabling the Boot Protocol (BOOTP) / Dynamic Host Configuration Protocol (DHCP) process. These protocols are used to obtain a dynamic IP address from a BOOTP / DHCP server. You can upgrade IP Power Manager via TFTP protocol when this option enabled. Enable/Disable the IP Power Manager to respond to Ping requests. For protect IP Power Manager when they are connect to Internet. We will suggest you enable this option to let your IP Power Manager stop response the ping command. IP Power Manager will detect the input power phase to make sure the

Detection

Telnet Control

connected device can receive the correct power input. When input power phase is reverse, IP Power Manager will display error code “E16” on 7-Segment LED. Please try to make the input power phase correct. Or you can disable this function temporally with this option. This is the parameter enabling or disabling the terminal to the server application (Telnet) control process. (e.g. telnet 192.168.1.1). The user may configure the Telnet protocol to use a port number other than the

- 9 -

standard Telnet port (23).

HTTP Control

SNMP Control

Enable/Disable the HTTP connection with the IP Power Manager. The user may configure HTTP protocol to use a port number other than standard HTTP port (80). Enable/Disable the SNMP connection with the IP Power Manager. The user may configure the SNMP protocol to use a port number other than the standard SNMP port (161).

5.3 Outlets Control

In this option, you can select the power outlet and change its settings.

Please select the power outlet you want to configure in above screen. Then the below screen will appear.

Option Description

Outlet Name Location

Set the name of this outlet. Set the location of this outlet.

- 10 -

Power on Delay (Seconds) Power off Delay (Seconds) Output Current Threshold (Amp) Output Current Over Threshold Turn Power Off

Set power on delay time in seconds. The outlet will turn on after the delay time. Set power off delay time in seconds. The outlet will turn on after the delay time. Set the upper limit of output current in Amp.

If selected, it will turn power off of outlet when this event occurred. Default value is not selected.

5.4 Access Control

It prevents unauthorized network access to the IP Power Manager. There are 2 kinds of type for "Access Type", "Permitted", and "Denied". It is need to set the first item for its "IP Address" to "255.255.255.255" and "Access Type" to "Permitted" as default value in order to let user is able to connect to the IP Power Manager.

Option Description

IP Address

Access

The management station's IP address. "0.0.0.0" means entry not configured. (e.g. An entry "192.168.0.255" means the client with the IP address within the range from "192.168.0.0" to "192.168.0.255" become the management station with the access type set by Administrator. "255.255.255.255" grant the access right to all IP. Available options are: Permitted and Denied.

- 11 -

5.5 Trap Receiver Table

This page lists the parameters for SNMP trap receivers (For SNMP Network Management).

Option Description

IP Address

Community String

NMS-Type NMS Severity Description

The IP Address in dotted format of the NMS station to which the trap should be sent. The community string of the trap PDU to be sent. The maximum length of the string is 19 characters. Types of the traps to be received. Set the type of the trap. Set the level of the trap to be received.

Information: All traps are received. Warning: Trap that need to be noticed and are in dangerous is received. Severe: The significant traps such as the outlet voltage over threshold are

received.

- 12 -

5.6 Reset Configuration To Default

When you would like to reset IP Power Manger to default configuration, please select this option and press “y”.

5.7 Restart IP Power Manager

After configuration, please select this option to make the new function works.

- 13 -

5.8 Exit

Select this option to exit Hyper Terminal.

- 14 -

Chapter 6 Web Configuration

The

IP Power Manager

such

as Internet Explorer. This enables you to access and control th e

and subsequently, it’s output devices remotely from your desktop, laptop, PDA, or even your

provides a graphic user i n t er f ace t h a t ca n be viewed from a web browser

IP Power Manager

outlets

mobile phone. This section provides and control the

1. Open your web browser.

2. Enter the IP address of your IP Power Manager in the address field.

3. A User Name and Password dialog box will appear. Please enter your User Name and Password here. Default User Name and Password are both “admin”. Click OK.

4. Then you will see the HOME screen as below.

IP Power Manager

instructions about how to use the web interface to configure

remotely.

The left panel provides five options, Power Management, Environment (when EM

- 15 -

connected), System, Network and Logs. When you click the IP Power Manager front panel on the Hom e screen. You will see the device status as below.

6.1 Power Management

6.1.1 Control

This page shows the rear input, each outlets, or digital output, it will link to its associated page. If the security level for each outlet is "Read" or the remote control status is "Disabled", the link of outlet will be disabled, the color of outlet picture will be gray. You can power on/off all the power outlets with the buttons.

view of IP Power Manager. While mouse moving over the picture of

- 16 -

6.1.1.1 Inlet

This page shows the associated status and even action of inlet.

Option Description

Status Input Voltage (Volt) Input Current (Amp) Input Frequency (Hz) Input Voltage Threshold High (Volt)

The current input voltage in Volt. The current input currents in Amp. The current input frequency in Hz. High threshold of input voltage. When input voltage i s highe r than th is value, IP Power Manager will take action specified in the "Inlet Event s Action" table.

- 17 -

Input Voltage Threshold Low (Volt)

Current Event of Inlet

Inlet Events Action Input Voltage Over Threshold High Input Voltage Under Threshold Low

Low threshold of input voltage. When input voltage is lower than this value, IP Power Manager will take action specified in the "Inlet Event s Action" table. Shows the associated event description when there is an event occurred. If there is no event occurred, it shows "None".

Turn off selected outlets or digital outputs will occur when the input voltage over high set point. Turn off selected outlets or digital outputs will occur when the input voltage under low set point.

6.1.1.2 Outlets

This page shows the outlet status and allows user to configure the settings.

Option Description

Status Output Current (Amp) Power Status

Configure Outlet Name Location Power On Delay (Seconds)

The nominal input currents in Amp. When the power status is "Off", the color is Red. If power status is "On", the color is Green.

Set the name of this outlet. Set the name of the location of this outlet. Set power on delay time in seconds. The outlet will turn on after the delay time.

- 18 -

Power Off Delay (Seconds) Output Current Threshold (Amp) Output Current Over Threshold Turn Power Off Manual Control Turn On / Turn Off button

Set power off delay time in seconds. The outlet will turn off after the delay time. Set the upper limit of output current in Amp.

If selected, it will turn power off of outlet when this event occurred. Default value is not selected.

Turn On/Off the outlet immediately by click the buttons.

6.1.1.3 Digital Outputs

This page shows the digital output status and allows user to configure the settings.

Option Description

Status Digital Output 1 Digital Output 2 Event Action Digital Output 1 Event Action Digital Output 2 Event Action Digital Outputs Manual Control

The status of digital output 1 while system start up. The status of digital output 2 while system start up.

If selected, the digital output 1 will invert its current status when event occurred. If selected, the digital output 2 will invert its current status when event occurred.

- 19 -

Turn On / Turn Off button

Turn digital outputs on or off manually.

6.1.2 Schedule

This page allows user to add or remove the IP Power Manager's schedule list dynamically. The maximum schedule is 32.

When you would like to add a new schedule, please press “Add New”. Then you will see the screen below. When “Edit” button click, you will also see this screen for edit the existing schedule. If you want to delete the schedule, please press “Delete” button.

Option Description

Schedule Type

Choose the schedule type to be "Weekly Schedule" or "Special

Schedule Day

Schedule". Set the week day of the schedule, if the "Schedule Type" is "Weekly Schedule. Set the specific date of the schedule, if the "Schedule

- 20 -

Type" is "Special Schedule".

Schedule Date (yyyy/mm/dd) Schedule Time (hh:mm) Outlets Action

Selected Outlets

Set the date of this schedule.

The time in 24-hour format means when the outlet should turn off or turn on its output power. Set the outlet action to be on or off. IP Power Manager will take action at schedule time. Choose the outlets which you want to turn on or off at schedule time.

6.2 Environment

When the console port connected with the EMD, the web interface will shows this option for environment monitoring and setting. If the IP Power Manager does not connect with the EMD, the web interface will not show this setup option.

6.2.1 Status

This page shows the temperature, humidity, and alarms information of the EMD (Environmental Monitoring Device). If there is alarm occurred, the alarm text color should change to Red. Otherwise, it is Black.

6.2.2 Configuration

This page allows user to configure all necessary parameters of EMD (Environmental Monitoring Device).

- 21 -

Option Description

Sensor Name Set Point

Calibration Offset

Alarm Type

Configure the name of a sensor (or device) with up to 15 characters. The threshold of a sensor (Temperature or Humidity) will trigger an alarm, whenever the measurement is over (high) or under (low) the set point. If the checkbox is not filled, the threshold is disabled and the alarm will not be triggered. The valid range for the Temperature threshold setting is 5 to 65, and 5 to 95 for Humidity. If the measurement value of a sensor doesn't, for whatever reason, comply with the actual environment, the 'Calibration Offset' setting can be configured to adjust the final value of the sensor. For example, if a sensor reports 43% humidity for a 45% humidity environment, the user can configure the humidity offset as 2% so the sensor can then adjust its final value to 45%. If an alarm sensor (water leak, security, etc) is connected to the IP Power Manager, the user can configure the alarm as 'Disabled', 'Normal Open', or 'Normal Close'. A 'Disabled' setting will mean the alarm is inactive. 'Normal Open' and 'Normal Close' are used for a two-wire detector that will emulate an open/close state. When the

EMD Status

wires are closed to 'loop-back' (the signal for the sensor), the sensor will detect the state as closed. The sensor will NOT activate the alarm for 'Normal Close' in this case, although the alarm will be activated if configured as 'Normal Open'. The EMD can be configured as 'Disabled' or 'Auto'. The setup should be configured as 'Disabled' if an EMD is not attached to the port. The EMD type will be auto detected by the IP Power Manager if configured as 'Auto' and if the EMD is plugged into the port.

- 22 -

EMD T emperature Unit

Choose the displayed temperature unit to “Celsius” or “Fahrenheit”.

6.2.3 Alarm

This page allows user to modify the parameters associated with the environment events.

6.3 System

6.3.1 Configuration

This page contains three groups, “Configure System”, “Administrator Name and Password”, and “Control” group. Configuration of this page is allowed when the security level is “Administrator”.

- 23 -

Option Description Configure System

System Name

System Contact

System Location

SNMP Read Community SNMP Write Community History Log Interval

Administrator User Name and Password

This field allows the user to set the value in System name that is defined in MIB-II or to view the current setting. Size is 31 characters. This field allows the user to set the value in System manager (System Contact) that is defined in MIB-II or to view the current setting. Size is 31 characters. This field allows the user to set the value in System installation place (System Location) that is defined in MIB-II or to view the current setting. Size is 31 characters. This field allows the user to set the read level community of SNMP or to view the current setting. Size is 31 characters. This field allows the user to set the write level community of SNMP or to view the current setting. Size is 31 characters. This field allows the user to set the polling time (in seconds) of the Input, Output and EMD (if connected) information. The readings will be stored in the history log.

Administrator User Name Administrator Password Confirm Administrator Password Control Reset to Default Restart System

You may enter the administrator user name, and the default value is “admin”. Size is 31 characters. You may set the administrator password, and the default value is “admin”. Size is 31 characters. Confirm the password again, and the value should be the same as “Administrator Password”. Size is 31 characters.

All of the configurations will reset to the default value. You may restart the system by click the button.

6.3.2 Multi-User

This page allows user to add or remove the IP Power Manager's multi-user list dynamically. The maximum schedule is 10.

- 24 -

Option Description

Index User Name Password Outlet Privilege

Modify

This column provides a reference number for the existence user. The user name which is used to log in the IP Powe r Manager syst em. The password which is used to log in the IP Power Manager system. The security level for each outlet. There are two kinds of security level, one is "Read/Write", and the other is "Read". Clicking on the "Add New" or "Edit" button will pop up "Multi-User Editor" window which could configure the setting of schedule. Clicking on the "Delete" button will remove an existence user.

- 25 -

6.3.3 Date & Time

This page provides the appropriate options below to enable the IP Power Mana ger date/time to be changed in different methods. It will show the current date and time of the IP Power Manager. Thi s can be changed to synchroni ze with a computer, and enquiry from a time server (NTP) or manually. For the system time, it should be counted automatically.

Option Description

Current Date and Time IP Power Manager System Date IP Power Manager System Time Configure Date and Time Set Manually

Synchronize with computer time Synchronize with NTP server

Current date of the IP Power Manager, format is dd/mm/yyyy.

Current time of the IP Power Manager, format is hh:mm:ss.

User can set the date and time with the following format: dd/mm/yyyy and hh:mm:ss. Select this option and click 'Set Value' to synchronize with the time from the computer clock. You must configure the NTP server IP and select the correct timezone to activate this option. After being configured to synchronize with NTP, the IP Power Manager will synchronize its time with the server periodically. If Daylight Saving Time enabled, the time will be one hour earlier than NTP server time.

- 26 -

6.3.4 Trap Receivers

This page lists the parameters for SNMP trap receivers (For SNMP Network Manageme nt).

Option Description

Index NMS IP Address

Community String

Trap Type

Severity

The index number of the entry in the table. The IP Address in dotted format of the NMS station to which the trap should be sent. The community string of the trap PDU to be sent. The maximum length of the string is 19 characters. Types of the traps to be received. Set the type of the trap. [None]: Traps are not be received. [IP Power Manager Trap]: Traps are received base on IP Power Manager MIB. Set the level of the trap to be received. [Information]: All traps are received. [Warning]: Trap that need to be noticed and are in dangerous is received.

Description

[Severe]: The significant traps such as the outlet voltage over threshold are received. Customer description string.

- 27 -

6.3.6 WOL

IP Power Manager has support WOL function to wake your PCs up. This function can help your servers work again after the power interruption.

Option Description

Repeating Times Interval Timer (Sec) Index MAC Address Action

The times of WOL packet IP Power Manager will send. The interval between send next WOL packet. The index number of the entry in the table. MAC address of the PC you would like to wake up. You can select Enable or Disable this option.

Outlet Define Description Modify

Wake On LAN Test

Please select one of the outlet or keep the default setting. Customer description string. You can press Edit to modify the MAC table or press Delete to delete the MAC address table. You may press this button to make sure the data of MAC tables are correct.

- 28 -

6.3.7 Email Notification

This page is allowed when the security level is “Administrator”. There are two groups in this page, one is “General Configuration” group and the other is “Email Receivers Tables”.

Option Description

General Configuration Mail Server

User Account

User Password Sender's Email Address

DNS Address

s Administrator, you may enter the IP Address or Hostname of a SMTP mail server that will be used to send email messages from the IP Power Manager. If entering a Hostname, you are also required to enter the DNS Address. If entering an IP Address, the DNS Address field will automatically be populated with the IP Address you entered.

s Administrator, you may enter the User Account of the mail server that will be used by the IP Power Manager to login mail server to forward mails. As Administrator, you may enter the User Password of User Account. This field specify the content of the 'From' field of the Email. If this field left blank, the sender's address will be: account@ip_address.

s Administrator, you are required to enter the IP address of your network DNS server if you entered a Hostname for the Mail Server. Otherwise, this field will contain 0.0.0.0.

Mail Daily Status Report At (hh:mm)

If you intend to have the IP Power Manager send a Daily S t atus report to select email address (Mail Accounts), you need to enter the time of

- 29 -

Email Receivers Tables

day in 24-hour format at which time you want the email sent.

Mail Account

Description

Mail Type

s Administrator, you may enter the email address of the individual you wish to have the IP Power Manager send mail to. As Administrator, you may enter a description for reference purposes for each of the Mail Account you configure.

s Administrator, you are allowed to select what type of email is sent to a specific Mail Account. The choices are None, Events, Daily Status, or Event/Status. The default of None allows you to disable the sending of email to a specific recipient. Selecting Events specifies that the recipient should only receive short event-related messages. Selecting Daily Status specifies that the recipient should only receive the Daily Status message that contains two file attachments containing information logged by the IP Power Manager (in .csv format suitable for viewing in Microsoft Excel). One attachment contains the History Log contents (Logged IP Power Manager data) and the other contains the Event Log contents (Logged Event text). Selecting Events/Status specifies that the recipient should receive an email message containing the event-related notification and the two file attachments (as described above), each time an event notification is sent.

Event Level

s Administrator, you are allowed to select the severity level of notification you wish to send to each Mail Account configured to be sent Mail Type: Events or Events/Status. This filter is based on the SNMP-based traps (events) and allows selection of Informational, Warning or Severe. Refer to the MIB documentation included with the adapter for more information.

6.3.8 External Links

This page describes the setting of External Links. Up to four links can be setup by this page, each link can config to an external web page that user can easily connect to related web p ages. Such as another IP Power Manager or Technical Support homepage.

- 30 -

Option Description

Screen Text

Link Address

Status

This is the description of link name which will display on the menu tree for user's reference. This field defines the real name of web page to be connected, in URL format. There are two kinds of status, "Enabled", and "Disabled". If the setting is "Enabled", the screen text will be shown on the main menu frame.

6.4 Network

6.4.1 Configuration

Configuration of this page is allowed when the security level is “Administrator”. If user reset configurations to default, the configuration of "IP Address", "Gateway Address" and "Subnet Mask" will also be kept.

- 31 -

Option Description

IP Address

Gateway Address

Subnet Mask

DNS Address

The IP address of IP Power Manager is dotted format. Default value is "192.168.1.1", and size is 15 characters. The IP address of the gateway is dotted format. Default value is "0.0.0.0", and size is 15 characters. The subnet mask of IP Power Manager is dotted format. Default value is "255.255.255.0", and size is 15 characters.

s Administrator, you are required to enter the IP address of your network DNS server if you entered a Hostname for the Mail Server. Otherwise, this field will contain 0.0.0.0.

6.4.2 Control

Configuration of this page is allowed when the security level is “Administrator”. It allows user t o change some network ports, and enabled or disabled the function of protocols.

Option Description

BootP / DHCP Status

/ Dynamic Host Configuration Protocol (DHCP) process. These protocols are used to obtain a dynamic IP address from a BootP / DHCP server.

PING Echo Network Upgrade

This is the parameter enabling or disabling the Trivial File Transfe Protocol (TFTP) upgrade control. You can use the provided upgrade utility on Windows via TFTP to upgrade the IP Power Manager firmware.

meter enabling or disabling the Boot Protocol (BootP) This is the para

the IP Power Manager to respond to Ping requests. Enable/Disable

- 32 -

Telnet Connection

parameter enabling or disabling the terminal to the server This is the application (Telnet) control process. (e.g. telnet 192.168.1.1). The user may configure the Telnet protocol to use a port number other than the standard Telnet port (23).

HTTP Support

ion with the IP Power Manager. Enable/Disable the HTTP connect The user may configure HTTP protocol to use a port number other than standard HTTP port (80).

SNMP Support

Enable/Disable the SNMP conn The user may configure the SNMP protocol to use a port number oth

ection with the IP Power Manager.

than the standard SNMP port (161).

6.4.3 Access Control

d when the security level is “Administrator”. It prevents Configuration of this page is allowe unauthorized network access to the IP Power Manager. There are 2 kinds of type for "Access Type", "Permitted", and "Denied". It is need to set the first item for its "IP Address" to "255.255.255.255" and "Access Type" to "Permitted" as default value in order to let user is able to connect to the IP Power Manager.

Option Description

dex

In IP Addre

The index number of the entry in the table. The managem

ent station's IP address. "0.0.0.0" means entry not

configured. (e.g. An entry "192.168.7.255"

means the client with the IP address within the range from "192.168.7.0" to "192.168.7.255" become the management station with the access type set by Administrator. "255.255.255.255" grant the acce ss right to all IP.

- 33 -

Access Type

.5 Logs

This page gives a snap-shot of all th Administrator can change co Interval" in "Configuration of IP Power Manager" page. The existing values are overwritten when the maximum number of entries (rows) has been reached. You can clear the log data in "Clear & Save" menu.

6.5.1 Histor

You will see the history log list in this screen. You may select one of them to check the log content. If an EMD is conne

Available options are: Permitted and Denied.

e fundamental IP Power Manager parameters. The

nsolidation interval by modifying the variable "History Log

cted, it will also log the following information.

- 34 -

Option Description

Date (dd/mm/yyyy) Time (hh:mm:ss)

Input Voltage Input Current Input Frequency Total Output Current Output Current

EMD Temperature EMD Humidity

This column show the date on which the recording was made. This gives the time in a 24-hour format when the values were recorded. This shows the input voltage in Volts at the time of recording. This shows the input current in Amps at the time of recording. This shows the input voltage in Hz at the time of recording. This shows the total output current in Amps at the time of recording. This shows the output current of the 8 outlets in Amps at the time of recording. This shows the temperature in This shows the humidity in % at the time of recording.

C at the time of recording.

6.5.2 Event

You will see the eve g list in this screen. You may select one of them to check the log content.

nt lo

- 35 -

Option Description

Date (dd/mm/yyyy) Time (hh:mm:ss)

Event Description

This column show the date on which the recording was made. This gives the time in a 24-hour format when the values were recorded.

6.5.3 Clear and Save Log Data

This screen allows you to clear or save the log file.

Option Description

Clear Log Data

Save Log Data

Please select which log you would like to delete and click “Clear” button. You can click the diskette icon to save History or Event log into a file.

- 36 -

Chapter 7 Utility

IP Power Manager has provided a utility for customer t o set the IP address and u pgrade. You can find this utility in “Utility” folder of bundled CD.

Buttons Description

Device List Set IP Browse Add

Modify

Remove Discover

Upgrade

This will show you all the IP Power manager in your network. Assign an IP address to IP Power Manager. Open the configuration web page of selected IP Power Manager. If the knowing IP Power Manager is not appear in the list, you can add this device to the list manually. You may press this button to enter the default login user name and password of your IP Power Manager. Before some operating of this utility, you will need to enter the default login user name and password firstly. Remove IP Power Manager from the list. When your IP Power Manger is not in the list, you can press this button to search. In default, this button will be gray. After press “Open” to locate the upgrade firmware. Then you can press this button to upgrade your IP Power Manager

- 37 -

with the located firmware.

Open Q

uit

Press this button to locate the firmware. Close utility.

- 38 -

E r Code rro Description

Appendix A Error Code

E01 E02 E03 E04 E05 E06 E07 E08 E09 E10 E11 E12 E13 E14 E15 E16

Network link down Parameters checksum error Input voltage over threshold high (Volt) Input voltage over threshold low (Volt) Outlet A current over threshold (Amp) Outlet B current over threshold (Amp) Outlet C current over threshold (Amp) Outlet D current over threshold (Amp) Outlet E current over threshold (Amp) Outlet F current over threshold (Amp) Outlet G current over threshold (Amp) Outlet H current over threshold (Amp)

Input source abnormal (for 110V model) Input source abnormal (for 220/240V model) Input current sensor value abnormal Input source phase incorrect (see note below)

- 39 -

Appendix B Specification

Model LAN

Port Console port COM por Digital Output AC

Input

AC Output

Load

Inlet Connector Outlet

nector

Con

Management Tool

Dim

ension

IP IPM-8002-EU IPM-8002-UK M-8001-US 10

/100Mbps, RJ-45 RJ-45 connector x 1 1; For UPS connet ction 2 pair

0~125V, 15A, 50~60Hz 220V, 15A, 5011 ~60Hz 240V, 13A, 50~60Hz 11 ~60Hz 240V, 13A, 50~60Hz 0~125V, 15A, 50~60Hz 220V, 15A, 50

15A for each outlet

1 x

IEC 320 C20

8 x NEMA 5-15R

W utility, Telnet, Hyper

eb Browser, SNMP software, Windows base

rminal (via console) 43

6 x 270 x 44 mm (L x W x H)

10A for each outlet or total 15A

8 x IEC 320 C13

10A for each outlet or total 13A

Weight

3.8Kg

Model

Input Relay Two digital inputs Connection RJ-45 connector Monitoring Temperate Monitoring Humidity 10 ~ 90% ± 3%

IPM-EMD

0 ~ 80 degree C ±1 degree C

- 40 -

uthenti

A cation

Appendix C Glossary

Authentication refe ed message's integrity.

HCP

DHCP (Dynamic Host Configuration Protocol) software automatically assigns IP addresses to

station g onto a TCP/IP network,

client s loggin which eliminates the need to manually assign

ermanent IP addresses.

NS stands fo main Name System. DNS converts machine nam s to the IP addresses th

D r Do e at all machines on the net have. It translates fro d

omain

D Name

he domain name typically refers to a

T n Internet site address.

irmware

irmware refe memory chips tha heir content withou

F rs to t retain t t electrical power (for example, BIOS ROM).

way

Gate

Gateways are compute abling different networks, applications, and

perating syst to exchange information.

o ems

ost Nam

H e

rs to the verification of a transmitt

m name to address an from address to name.

The ro

uter firmware stores settings made in the interface.

rs that convert protocols en

he name given to a computer or client station that acts as a source for information on the

etwork.

TTP

TTP (Hyper ort Protocol) is th

H Text Transp e communications protocol used to connect to

rs on the World Wide Web. HTTP ablishes a conn

serve est ection with a Web server and transmits HTML pages to client browser (for example Windows IE). HTTP addresses all begin with the prefix 'http://' prefix .yahoo.com).

ICMP (Internet Control Message Protocol) is a TCP/IP protocol used to send error and control messages over the LAN (for example, it is used by the router to notify a message sender that the destination node is not available).

IP (Internet Protocol) is the protocol in the TCP/IP communications protocol suite that contains a network address and allows messages to be routed to a different network or subnet. However, IP does not ensure delivery of a complete message—TCP provides the function of ensuring delivery.

IP Address

(for example, http://www

The IP (Internet Protocol) address refers to the address of a computer attached to a TCP/IP

- 41 -

network. Every client and server station must ha either a permanent address or have one dyn addresses are written a

s four sets of numbers separated by periods (for example,

ve a unique IP address. Clients are assigned

amically assigned to them via DHCP. IP

211.23.181.189).

LAN

LANs (Local Area Networks) are networks that serve users within specific geographical areas, such as in a company building. LANs are comprised of servers, workstations, a network operating system, and com

MAC Add

ress

munications links such as the router.

A MAC address i s a unique serial n umber burned into hard ware ad apters, giving t he ada pter a unique identification.

(Network) Adm

The network administrator is the person who manages the LAN within an org administrato

inistrator

anization. The

r's job includes ensuring network security, keeping software, hardware, and

firmware up-to-date, and keeping track of network activity.

NTP

NTP (Netwo

rk Time Protocol) is used to synchronize the real-time clock in a com puter. Internet

primary and secondary servers synchronize to Coordinated Universal Time (UTC).

Packet

A packet is a

portion of data that is transmitted in network communications. Packets are also sometimes called frames and datagrams. Packets contain not only data, but also the destination IP

address.

Ping

Ping (Packet Internet Groper) is a utility used to find out if a particular IP address is present online, and is usually used by networks for debugging.

Port

Ports are the communications pathways in and out of computers an and switche

s). Most PCs have serial and parallel ports, which are external sockets for

d network devices (routers

connecting devices such as printers, modems, and mice. All network adapters use ports to connect to the LAN. Ports are typically numbered.

Protocol

A proto

col is a rule that governs the communication of data.

Server

Servers are typically powerful and fast machines that store programs and data. The programs and data are shared by client machines (workstations) on the network.

SMTP

SMTP (Simple Mail T

ransfer Protocol) is the standard Internet e-mail protocol. SMTP is a

TCP/IP protocol defining message format and includes a message transfer agent that stores

- 42 -

and forwards mail.

SNMP

SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol. S data to

the workstation used to oversee the network.

NMP hardware or software components transmit network device activity

Subnet Mask

Subnet Masks are used by IP protocol to direct messages into a specified network segment (i.e., subnet). A subnet mask is stored in the client machine, serv with an incoming

IP address to determine whether to accept or reject the packet.

er or router and is compared

TCP

(Transmission Contro over the network are transm

l Protocol) is the transport protocol in TCP/IP that ensures messages

itted accurately and completely.

TCP/IP

TCP/IP (Transmission Control Protocol/Internet Protocol) is the main Internet communications protocol. The TCP part ensures that data is completely se Anoth

er part of the TCP/IP protocol set i s UDP, which is used to send data when accuracy and

nt and received at the other end.

guaranteed packet delivery are not as important (for example, in realtime video and audio transmission). The IP c

omponent of TCP/IP provides data routability, meaning that data packets contain the destination station and network addresses, enabling TCP/IP messages to be sent to multiple networks within the LAN or in the WAN.

Telnet

is a terminal emulation protocol commonly used on the Internet and TCP- or IP-based networks. Telnet is used for connecting to remote devices and ru comp

onent of the TCP/IP communications protocol.

nning programs. Telnet is an integral

UDP

(User Datagram Protocol) is a protocol within TCP/IP that is used to transport information when accurate delivery isn't necessary (for example, real-time video and audio where packets can be dumped as there is no time for retransmittin

g the data).

WAN

WAN (Wide Area Network) is a communications network tha such as

a country (contrasted with a LAN, which covers a small area such as a company

t covers a wide geographic area

building).

- 43 -

Planet Technology IPM-8001, IPM-8002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1 Introduction

1.1 Package Contents

1.2 Product Description

1.3 Features

1.4 Front and Rear Panel

1.5 LED And Button on Front Panel

1.5.1 Power Outlet LED and Button

1.5.2 System Load and Status Indication

1.6 Front Panel Interface

Chapter 2 Hardware Installation

Connecting Input Power

Connecting Output Device

2.3 Connecting Digital Outputs

2.4 Connecting EMD

2.5 Connecting The Console

2.6 Connecting LAN or WAN

Chapter 3 User Control Button

Chapter 4 Quick Setup

Chapter 5 Configure With Console

5.1 Run Hyper Terminal

5.2 IP Power Manager Configuration

5.2.1 System Group

5.2.2 Control Group

5.3 Outlets Control

5.4 Access Control

5.5 Trap Receiver Table

5.6 Reset Configuration To Default

5.7 Restart IP Power Manager

5.8 Exit

Chapter 6 Web Configuration

6.1 Power Management

6.1.1 Control

6.1.1.1 Inlet

6.1.1.2 Outlets

6.1.1.3 Digital Outputs

6.1.2 Schedule

6.2 Environment

6.2.1 Status

6.2.2 Configuration

6.2.3 Alarm

6.3 System

6.3.1 Configuration

6.3.2 Multi-User

6.3.3 Date & Time

6.3.4 Trap Receivers

6.3.6 WOL

6.3.7 Email Notification

6.3.8 External Links

6.4 Network

6.4.1 Configuration

6.4.2 Control

6.4.3 Access Control

Access Type

6.5.2 Event

Event Description

6.5.3 Clear and Save Log Data

Chapter 7 Utility

Appendix A Error Code

Appendix B Specification

Appendix C Glossary
