Copyright
Copyright 2011 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any
software described in this manual is sold or licensed "as is". Should the programs prove defective following
their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the
software. Further, this company reserves the right to revise this publication and to make changes from time to
time in the contents hereof without obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
1. Reori
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
ent or relocate the receiving antenna.
FCC Caution:
To assure continued compliance, (example-use only shielded interface cables when connecting to computer or
peripheral devices) any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions:
(1) This device may not cause harmful interference
(2) This Device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
I
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna
shall not be less than 20 cm (8 inches) during normal operation.
CE mark Warning
This is a class B device, in a domestic environment; this product may cause radio interference, in which case
the user may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Stand by mode operation.
For energy saving, please remove the DC-plug or push the hardware Power Switch to OFF position to
disconnect
the device from the power circuit.
Without remove the DC-plug or switch off the device, the device will still consuming power from the power
circuit. In the view of Saving the Energy and reduce the unnecessary power consuming, it is strongly suggested
to switch off or remove the DC-plug for the device if this device is not intended to be active.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal
Equipment and the mutual recognition of their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to
ensure the safe use of the equipment.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following the
EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None
Outdoor use limited to 10
France
mW e.i.r.p. within the band
2454-2483.5 MHz
General authorization required for outdoor use and
public service
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
II
None
Italy
Luxembourg None
Norway Implemented
Russian Federation None Only for indoor applications
If used outside of own premises, general authorization is
required
General authorization required for network and service
supply(not for spectrum)
This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 802.11n Wireless Portable AP / Router
Model: WNRT-300
Rev: 1.0 (June, 2011)
Part No. EM-WNRT-300_v1.0 (2081-E50230-000)
III
CONTENTS
Chapter 1. Product Introduction..........................................................................................................1
1.1. Package Contents......................................................................................................... 1
1.2. Product Description .......................................................................................................1
1.3. Product Features...........................................................................................................2
1.4. Product Specification.....................................................................................................4
Chapter 2. Hardware Interface .............................................................................................................7
2.1. Overview........................................................................................................................7
2.2. LED Indications .............................................................................................................7
Chapter 3. Installation Guide ...............................................................................................................9
3.1. System Requirements................................................................................................... 9
3.2. Typical Application.........................................................................................................9
3.2.1. Router Mode........................................................................................................ 9
3.2.2. AP Mode............................................................................................................ 10
3.2.3. Client Mode .......................................................................................................10
3.3. Manual Network Setup - TCP/IP Configuration........................................................... 11
3.3.1. Obtain an IP Address Automatically .................................................................. 11
3.3.2. Configure the IP address manually ...................................................................13
3.4. Hardware Installation...................................................................................................14
3.5. Starting Setup in Web UI .............................................................................................16
Chapter 4. Configuration in Web UI...................................................................................................18
4.1. Login............................................................................................................................ 18

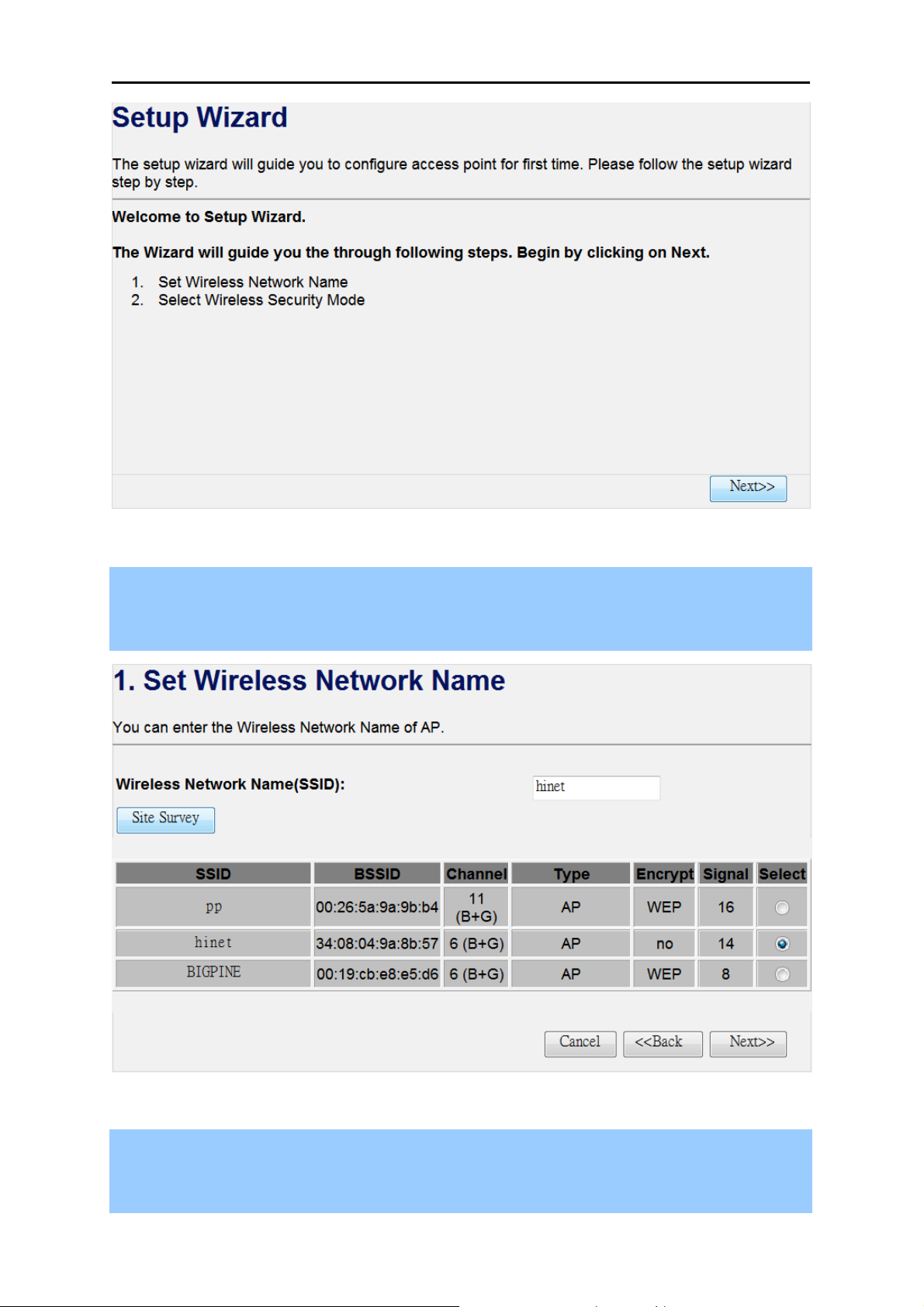

4.2. Setup Wizard...............................................................................................................18
4.3. Operation Mode...........................................................................................................23
4.4. Wireless....................................................................................................................... 24
4.4.1. Basic Settings....................................................................................................24

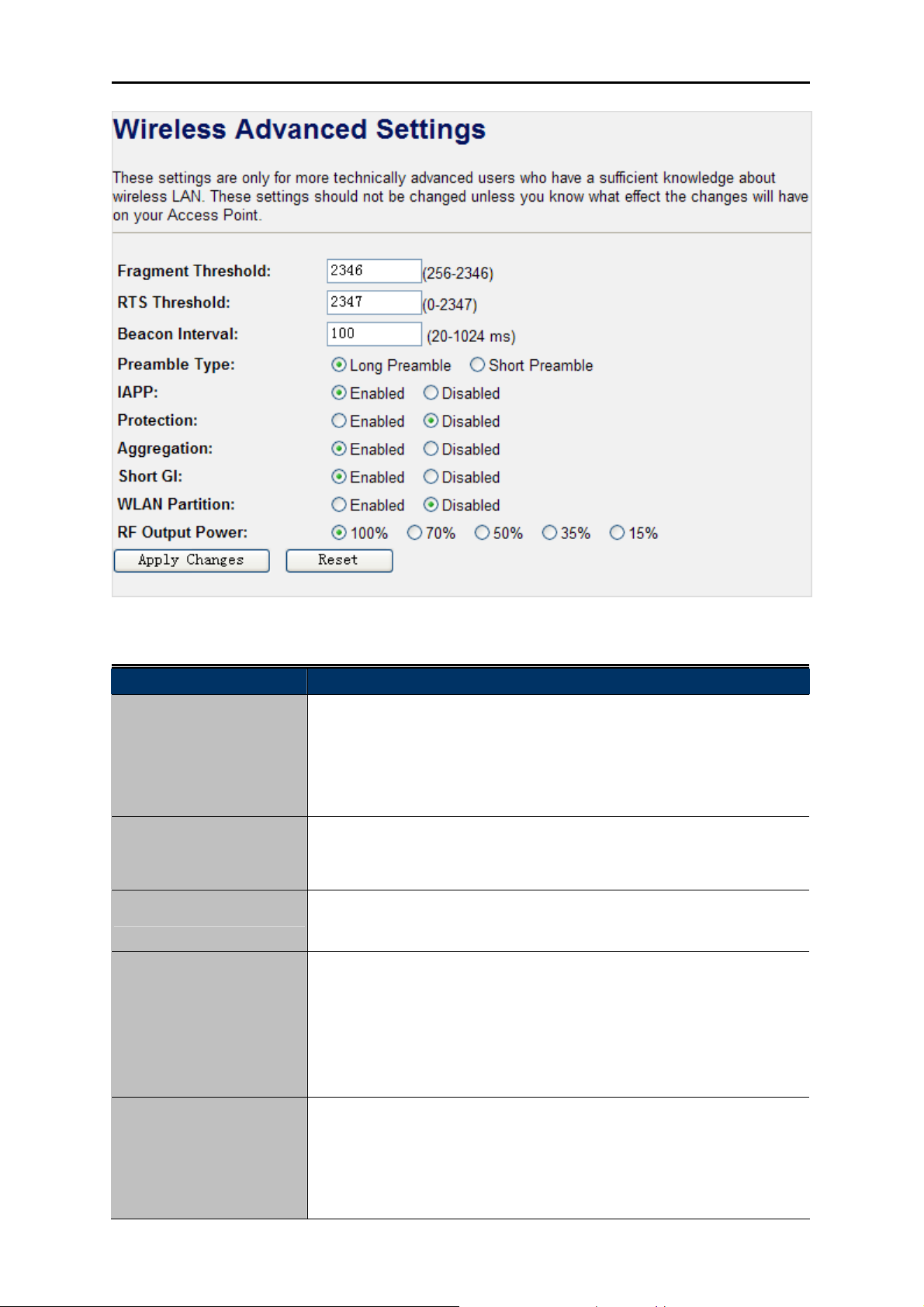

4.4.2. Advanced Settings............................................................................................. 26
4.4.3. Security..............................................................................................................29
4.4.4. Access Control................................................................................................... 30

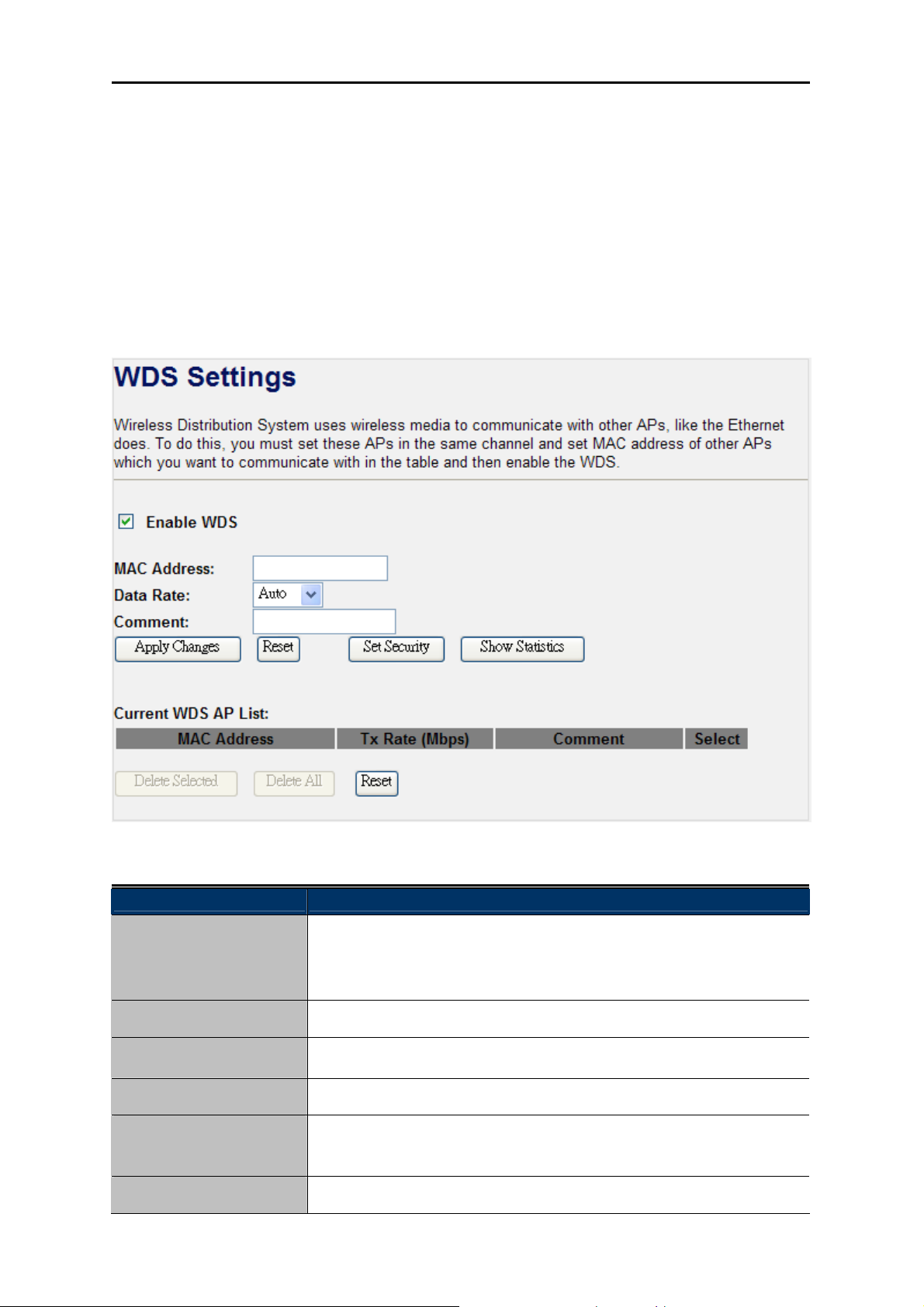

4.4.5. WDS Settings ....................................................................................................31
4.4.6. Site Survey ........................................................................................................32

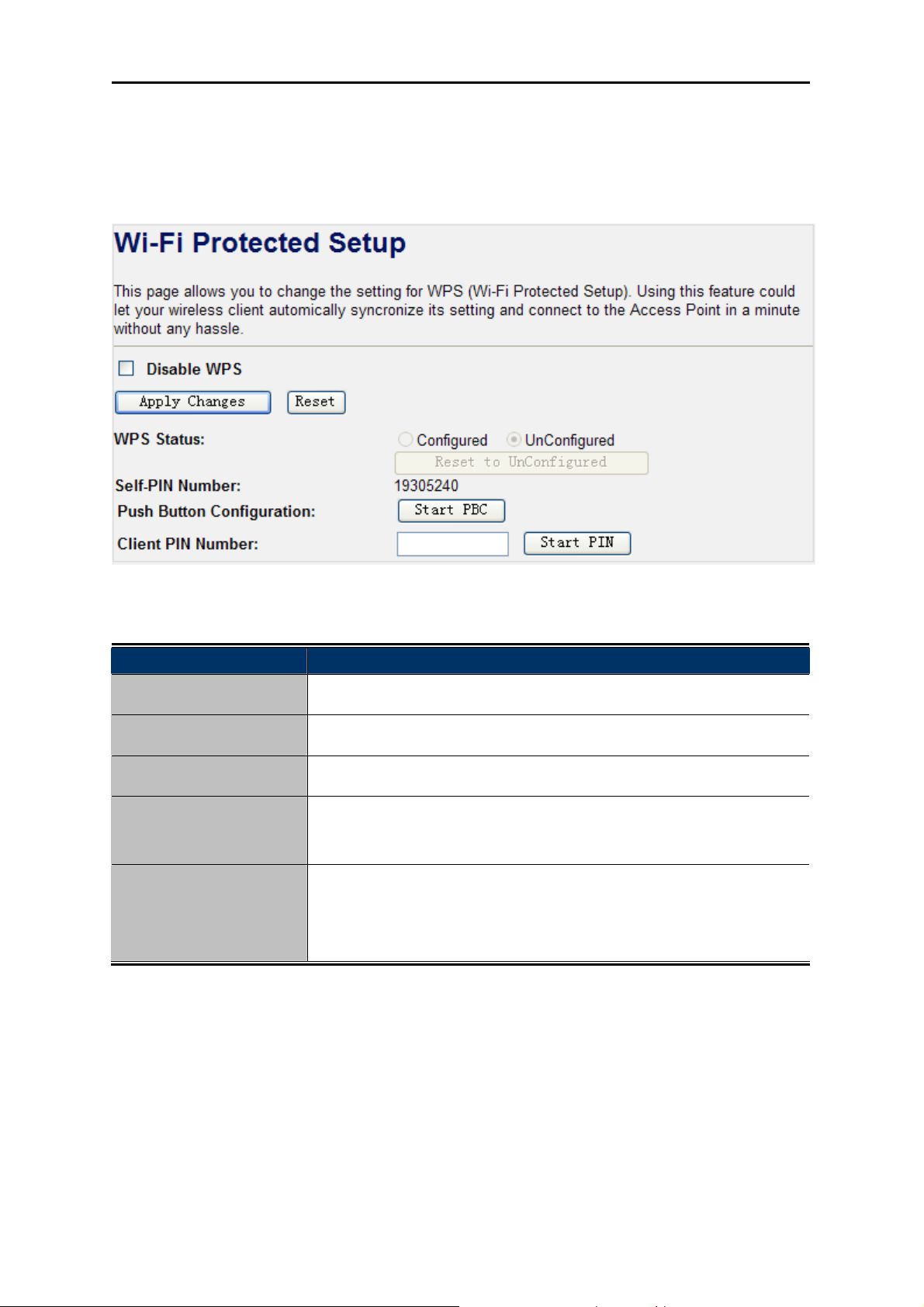

4.4.7. WPS ..................................................................................................................33
4.4.8. Schedule............................................................................................................33
4.5. TCP/IP Settings...........................................................................................................34

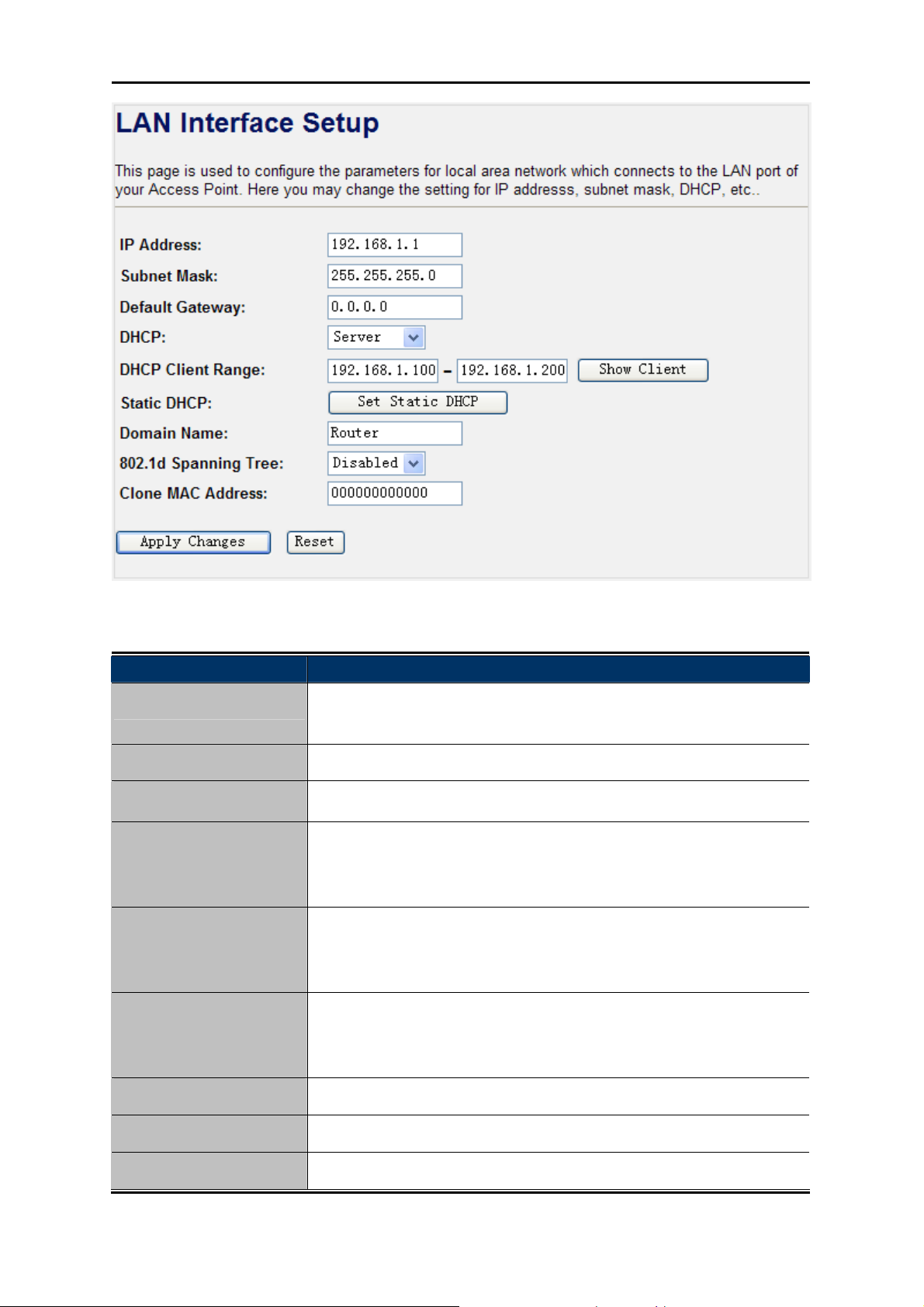

4.5.1. LAN Interface.....................................................................................................34

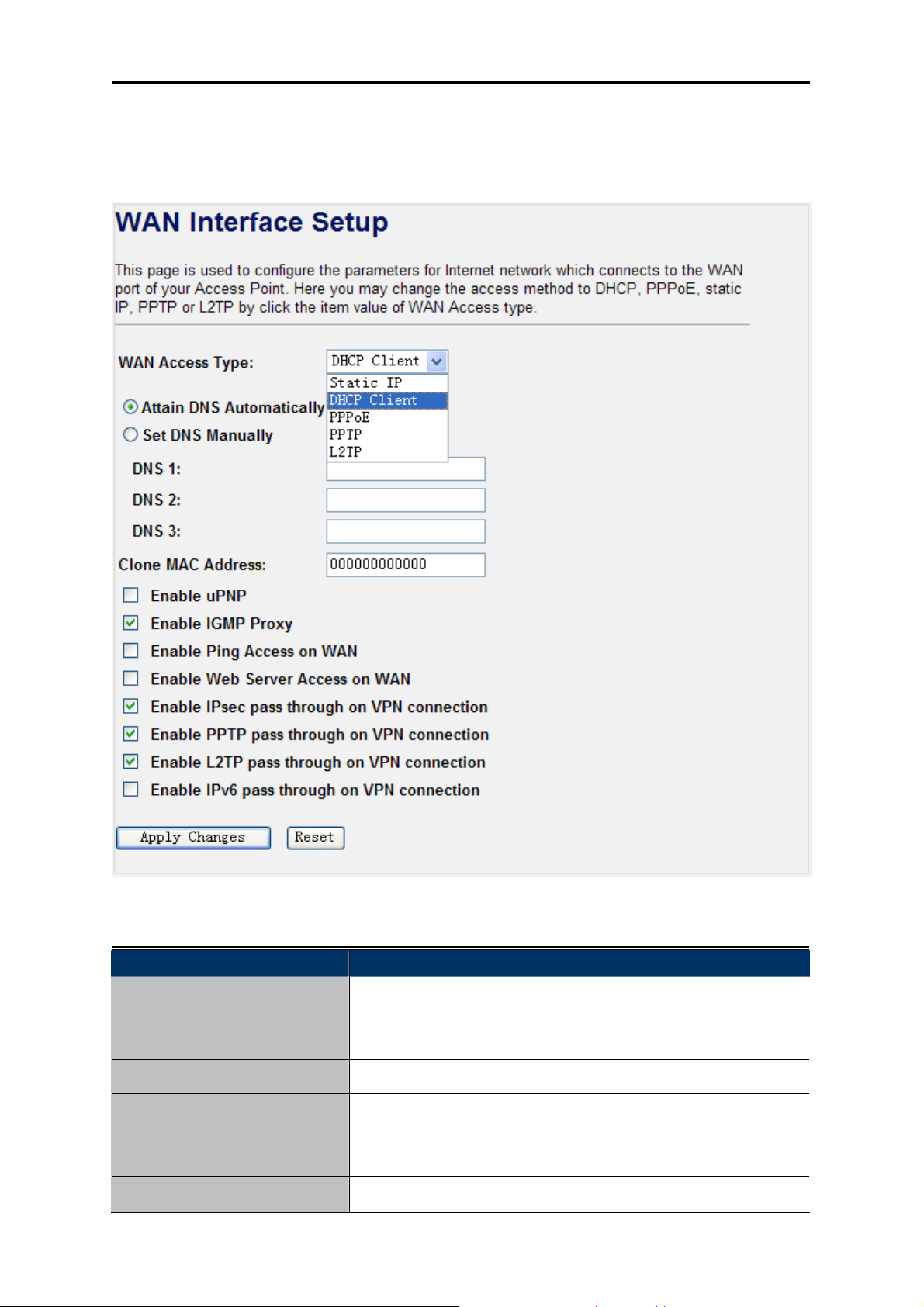

4.5.2. WAN Interface ...................................................................................................36
IV V
4.6. Firewall ........................................................................................................................37
4.6.1. Port Filtering ......................................................................................................38

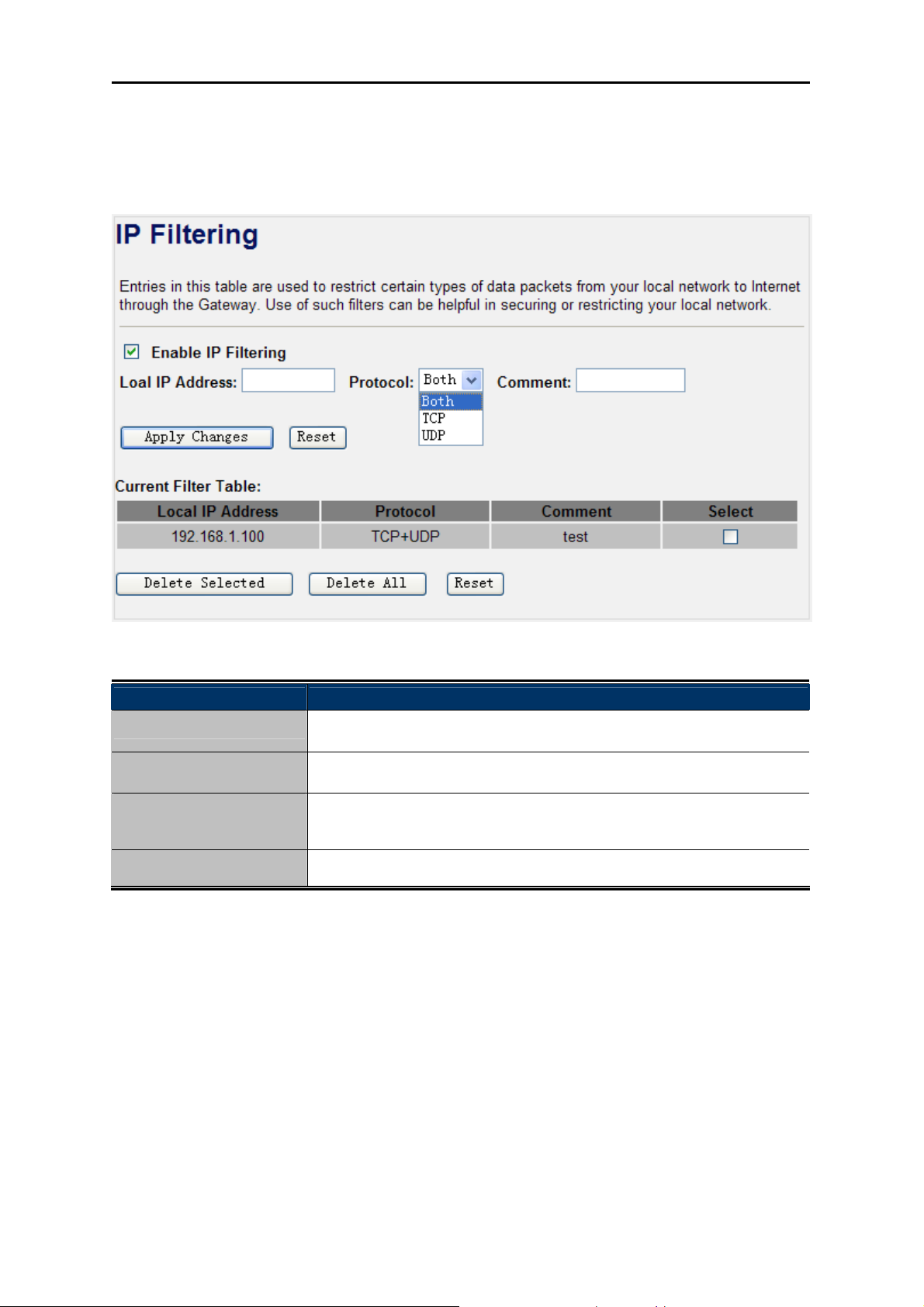

4.6.2. IP Filtering .........................................................................................................39

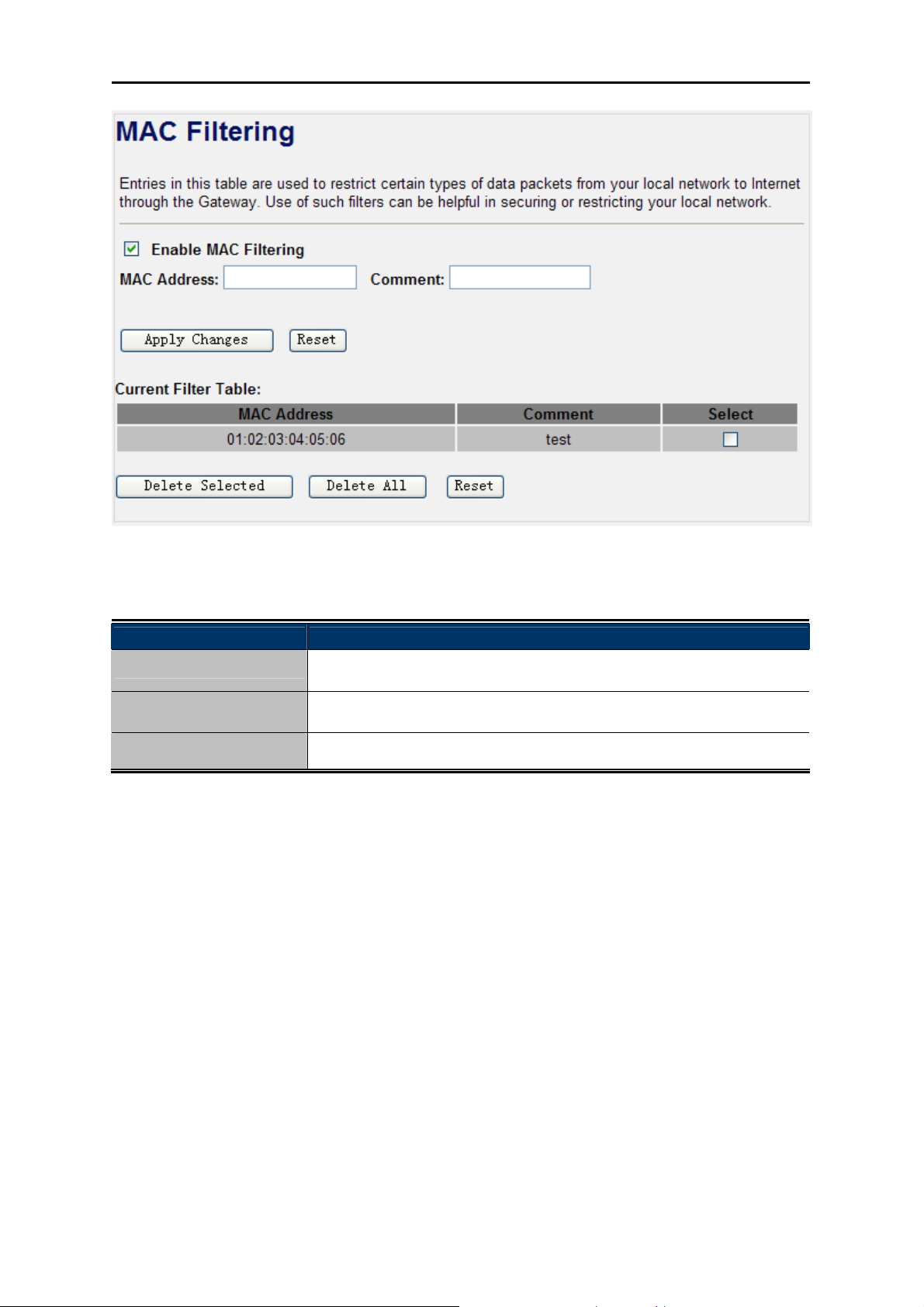

4.6.3. MAC Filtering..................................................................................................... 39
4.6.4. Port Forwarding.................................................................................................40

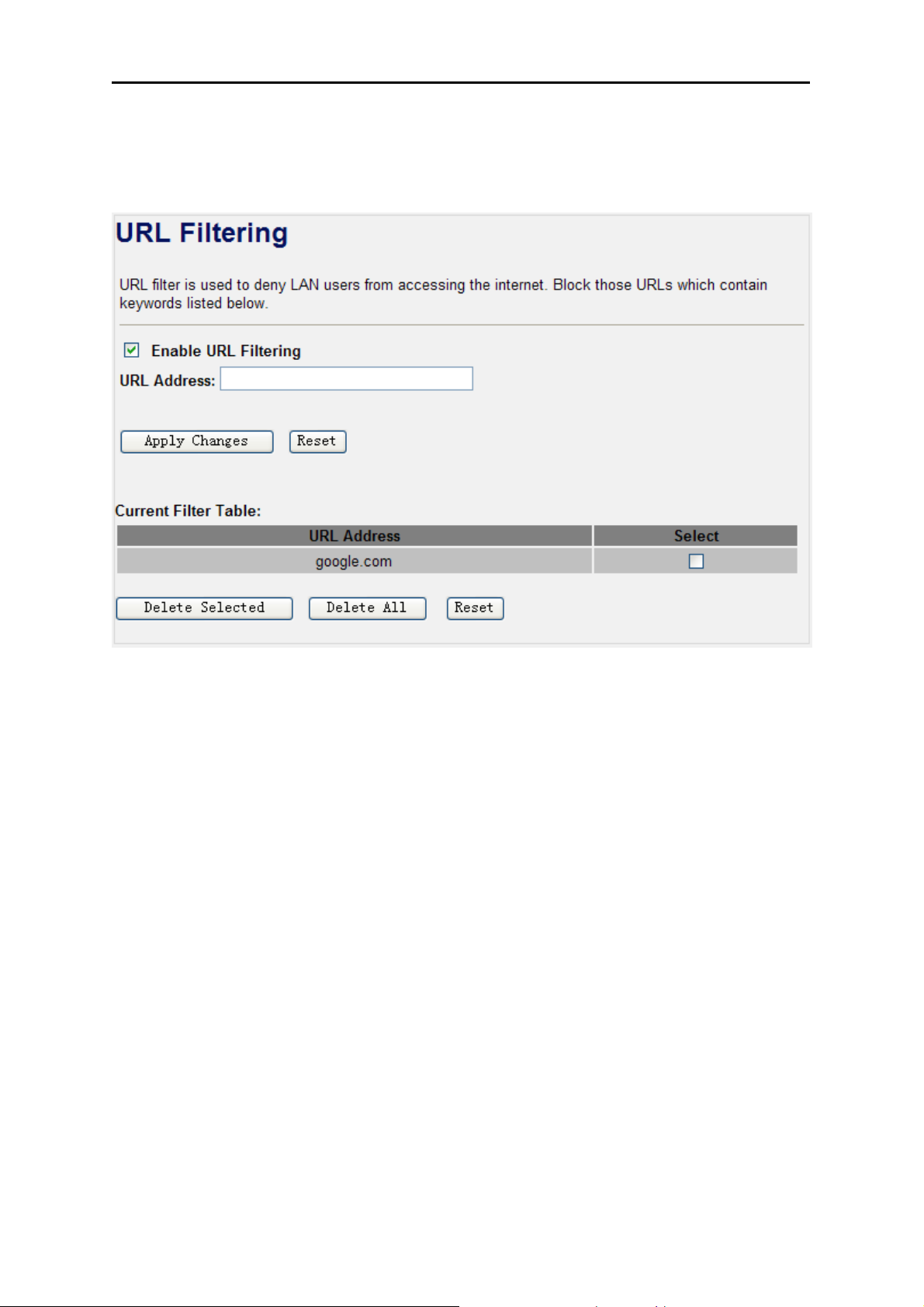

4.6.5. URL Filtering......................................................................................................42
4.6.6. DMZ...................................................................................................................42
4.6.7. VLAN .................................................................................................................43

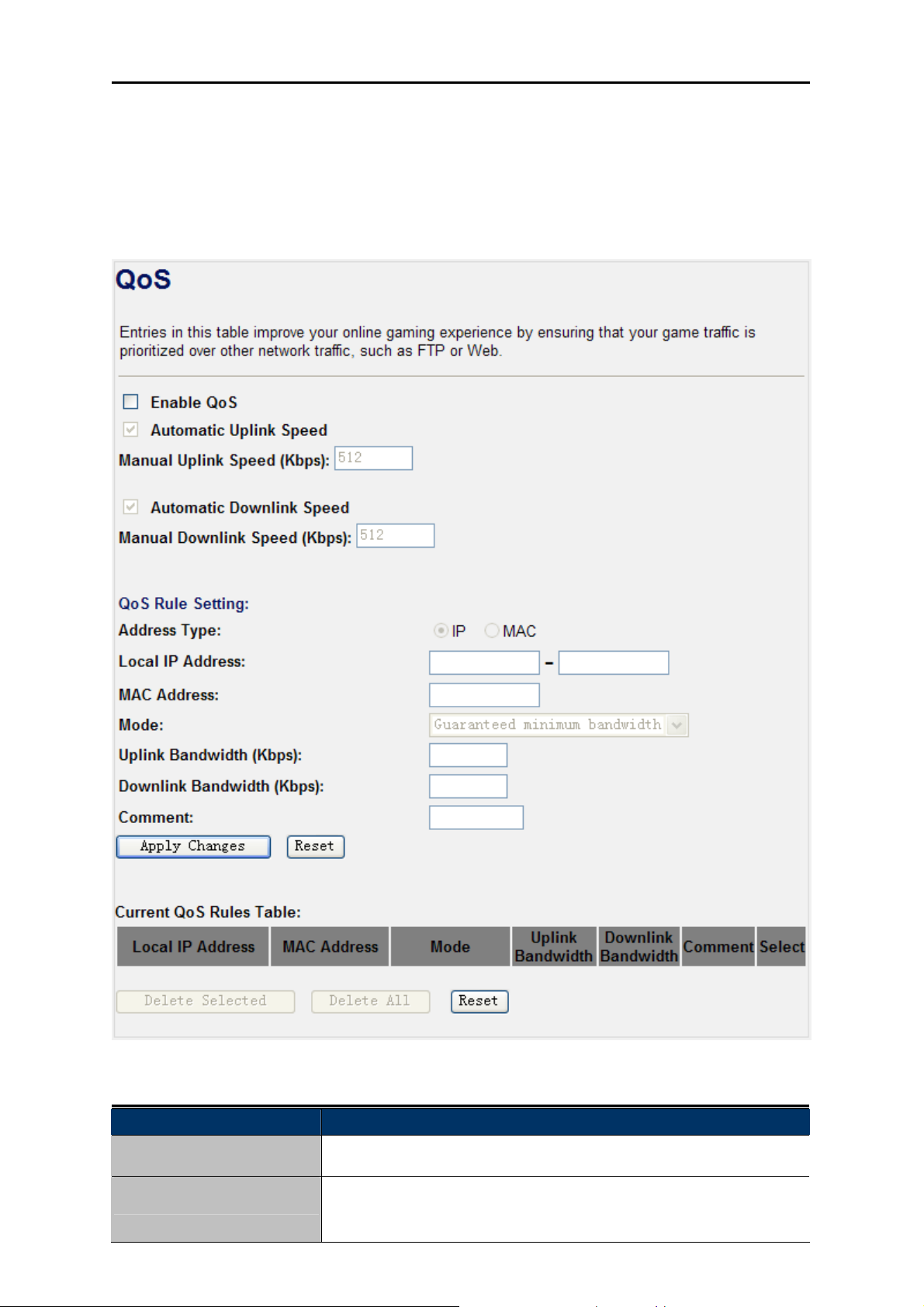

4.7. QoS .............................................................................................................................45
4.8. Route Setup ................................................................................................................46
4.9. Management ...............................................................................................................47
4.9.1. Status.................................................................................................................47
4.9.2. Statistics ............................................................................................................48
4.9.3. DDNS ................................................................................................................49
4.9.4. Time Zone Setting .............................................................................................50
4.9.5. Denial of Service ...............................................................................................50
4.9.6. Log.....................................................................................................................51
4.9.7. Upgrade Firmware............................................................................................. 52
4.9.8. Save/Reload Settings........................................................................................53

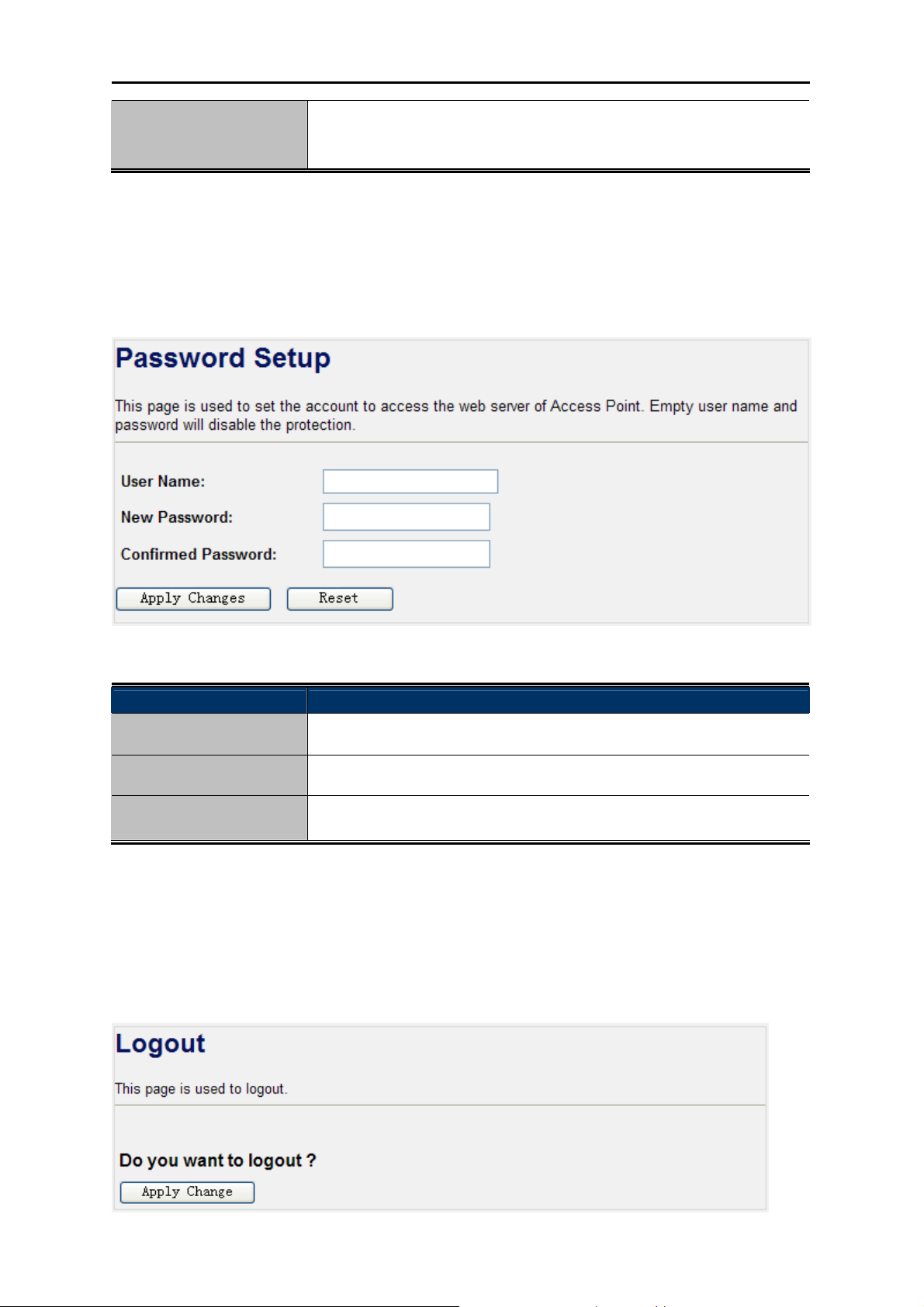

4.9.9. Password...........................................................................................................54
4.10. Logout........................................................................................................................54
Chapter 5. Quick Connection to a Wireless Network ...................................................................... 55

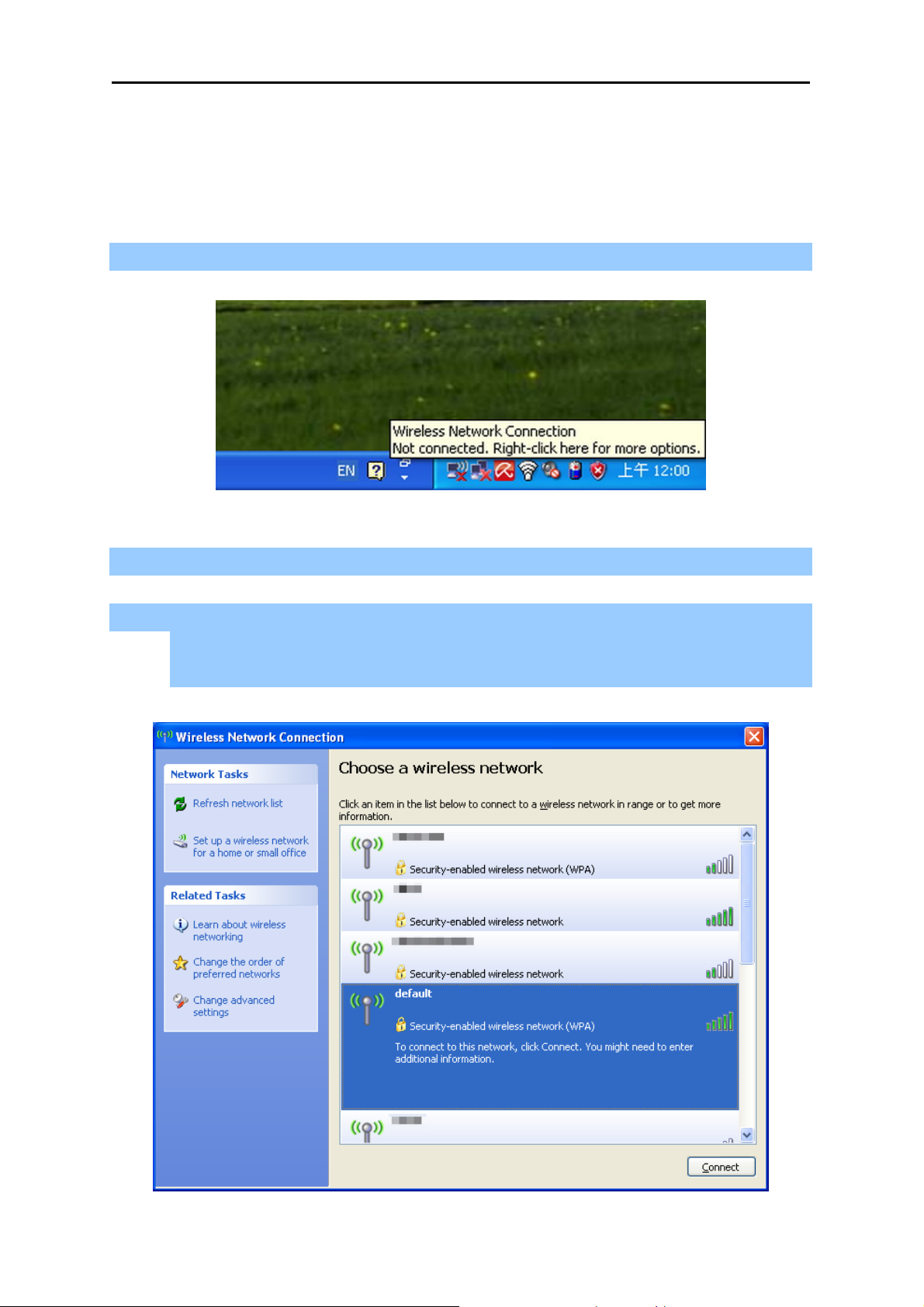

5.1. Windows XP (Wireless Zero Configuration)................................................................55
5.2. Windows 7 (WLAN AutoConfig) ..................................................................................57

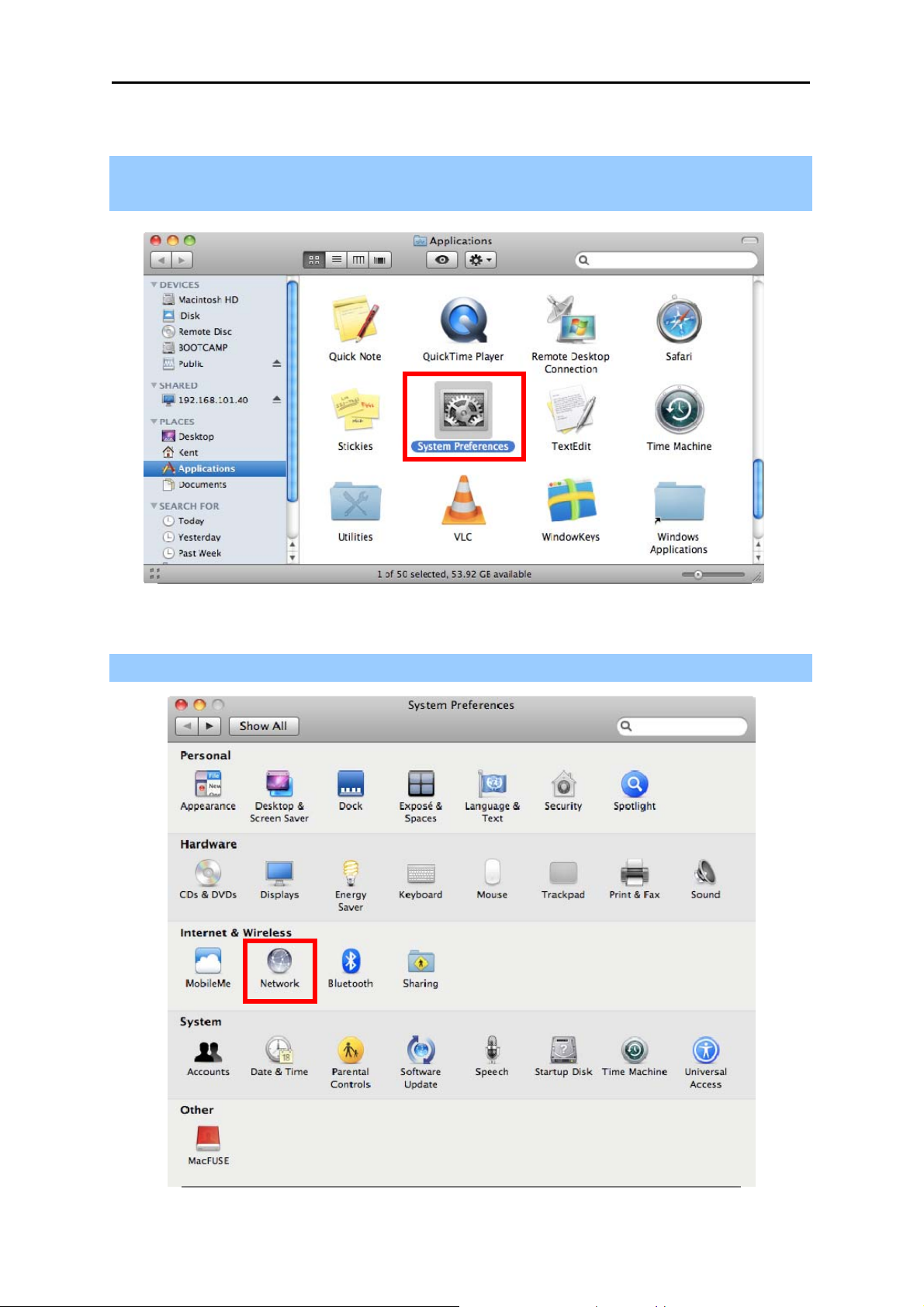

5.3. Mac OS X ....................................................................................................................60

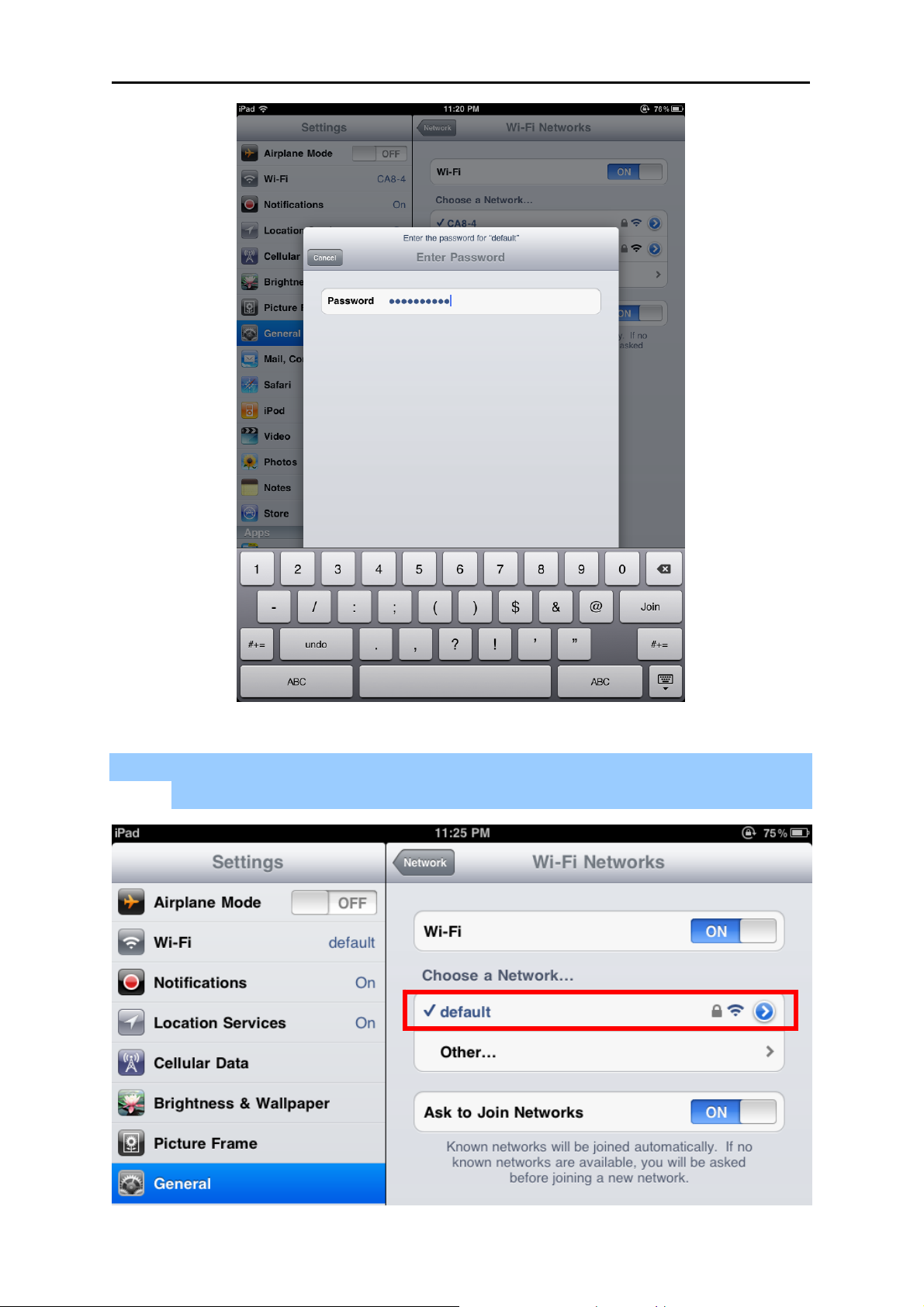

5.4. iPhone / iPod Touch / iPad ..........................................................................................64
Appendix.............................................................................................................................................. 67
User’s Manual of WNRT-300
Chapter 1. Product Introduction
1.1. Package Contents
The following items should be contained in the package:
WNRT-300 Portable AP/Router
Power Adapter
USB Cable
Ethernet Cable
Li-ion Battery
Quick Installation Guide
CD-ROM (User’s Manual included)
If there is any item missed or damaged, please contact the seller immediately.
1.2. Product Description
Multiple Wireless Network Technologies for Greater Access
PLANET Wireless Portable Broadband Router, the WNRT-300 features 802.11n radio with 1T1R
antenna technology compliant with 802.11b/g/n standards. Compared with general wireless routers,
the WNRT-300 offers more powerful and flexible capability for business demands to access Internet
with true mobility and range extension of wireless network.
More Flexibility and Mobility
With the tiny-sized and stylish design, the WNRT-300 is easy to carry for the true mobility. It can
operate in various environments with the hardware switch modes including AP,
Router
which helps to immediately set up a wireless network without software configuration. The portable
design and operation flexibility make the WNRT-300 suitable for travelling, moving and outdoor
applications.
, and
Client
,
-1-
User’s Manual of WNRT-300
Built-in High Capacity Battery
The WNRT-300 has one built-in rechargeable lithium battery and its power supplied through mini USB
interface. The power can be directly charged via the computer's USB port which increases the
convenience even when there is no power outlet available.
One-touch Secure Wireless Connection
In order to simplify security settings for home and SOHO network, the WNRT-300 supports Wi-Fi
Protected Setup (WPS) with configuration in PBC and PIN type. Just push the WPS button or key in
the PIN code, the secure connection between the WNRT-300 and the wireless clients can be built
immediately, which offers users a convenient and fast method to construct a secure wireless network.
Wide Range of Wireless Security Support
To secure the wireless communication, the WNRT-300 supports most up-to-date encryptions including
WPA/WPA2-PSK with TKIP/AES.
WNRT-300 enhances security and management features such as multiple SSID and IEEE 802.1Q
VLAN support. It can create up to 5 virtual standalone AP with 5 different SSID according to individual
security levels and encryption scheme of various wireless devices. Even more, the VLAN support
allows multiple SSID to access Internal VLAN topology.
Made to fulfill enterprise and various applications demand, the
Advanced Firewall Security
In the Router mode, the WNRT-300 supports NAT functions and allows multiple users to access
Internet via only one single legal IP. It provides Port Forwarding and DMZ for LAN PC to act as an
application server. Furthermore, the advanced firewall by the WNRT-300 can protect your Intranet
clients from unauthorized accesses and various DoS attacks from the Internet. In aspect of the firewall,
the WNRT-300 provides IP/ MAC/ Port/ URL filtering, and prevents possible hackers attack.
Easy Setup Anytime Anywhere
The WNRT-300 provides a total solution for home and business users. With the High Speed 802.11n
wireless technology, the WNRT-300 is easy to integrate the wireless devices with existing wired
network.
1.3. Product Features
Industrial Compliant Wireless LAN & LAN
-2-
User’s Manual of WNRT-300
Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
Backward compatible with 802.11b/g standard
Equipped with one 10/100Mbps RJ-45 Ethernet port for LAN/WAN, Auto MDI/MDI-X
supported
Wireless Network Range Extender
Multiple Wireless Modes: AP, WDS, Repeater, Universal Repeater, Client
Supports WMM (Wi-Fi Multimedia), Wireless QoS
Supports IAPP (Inter Access Point Protocol), Wireless Roaming
Fixed-network Broadband Router
Supported Internet types: Dynamic IP/ Static IP/ PPPoE/ L2TP/ PPTP
Supports Static & Dynamic (RIP1 and 2) Routing
Supports IP / MAC-Based Bandwidth Control
Supports 802.1d STP & IGMP Proxy
Secure Network Connection
Advanced security: 64/128-bit WEP, WPA-Enterprise/ WPA2-Enterprise and
WPA-PSK/WPA2-PSK with TKIP/AES Encryption, 802.1x Authentication
Built-in NAT firewall features with Port/ IP/ MAC/ URL Filtering, and DoS protection
Supports 802.1Q VLAN
Advanced Networking Function for Specific Application
Supports multiple sessions IPSec, L2TP, PPTP, and IPv6 VPN pass-through
Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking
applications
Supports DHCP Server
Easy to Install & Management
Web-Based UI and setup Wizard for easy configuration
System status monitoring includes DHCP Client and System Log
Flexible Application & Business-oriented design
Portable and Pocket-sized design for true mobility
Hardware switchable operation modes: Router / AP / Client
One-touch Wi-Fi Protected Setup (WPS)
Built-in rechargeable Li-ion battery
-3-
1.4. Product Specification
User’s Manual of WNRT-300
Product
Hardware Specification
Interface LAN/WAN 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Antenna
Button/Switch
LED Indicators PWR, WLAN, WAN/LAN, WPS, CHG
Material Plastic
Dimension (W x D x H) 88 x 62 x 18 mm
Weight
Battery Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh)
Power Requirement DC 5V , 0.4A maximum, connected through mini-USB connector
Power Adapter
Standard Accessory
Wireless Interface Specification
Standard Compliance with IEEE 802.11b/g/n
Frequency Band 2.4~2.4835GHz
Extend Frequency DSSS
Modulation Type DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Data Transmission
Rates
Transmission Distance
Channel
Max. RF Power 20 dBm (EIRP)
Receive Sensitivity
WNRT-300
150Mbps 802.11n Wireless AP / Router
Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional
Front panel (from left to right):
Mode Selection Switch (Router/Client/AP)
WPS Button
Power On/Off Switch
Rear panel:
Reset button
*Push for above 5 seconds to reset to factory default settings
With battery: 80g
Without battery: 58g
AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current
Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1,
Quick Guide x 1
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Indoor up to 100m
outdoor up to 300m (it is limited to the environment)
America/ FCC: 2.412~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
Software Features
Operation Mode
AP
Router
Client
(Switchable by H/W)
-4-
AP
Wireless Mode
WDS
Repeater (WDS+AP)
Universal Repeater (AP+Client)
WEP (64/128-bit) encryption security
Encryption Security
WPA-Enterprise / WPA2-Enterprise (TKIP/AES)
WPA-Personal / WPA2-Personal (TKIP/AES)
802.1x Authentication
Provide wireless LAN ACL (Access Control List) filtering
Wireless Security
Wireless MAC address filtering
Support WPS (Wi-Fi Protected Setup)
Enable/Disable SSID Broadcast
WMM(Wi-Fi Multimedia): 802.11e Wireless QoS
Wireless Advanced
IAPP(Inter Access Point Protocol): 802.11f Wireless Roaming
Provide Wireless Statistics
Shares data and Internet access for users, supporting following internet access:
PPPoE
Internet Connection
Typ e
Dynamic IP
Static IP
PPTP
L2TP
NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding, and DMZ
Firewall
Built-in firewall with IP address/ MAC address/ Port/ URL filtering
Support ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
Support 802.1Q VLAN up to 4
Routing Protocol Static / Dynamic (RIP1 and 2) Routing
VPN Pass-through PPTP, L2TP, IPSec, IPv6
Built-in DHCP server supporting static IP address distributing
Support UPnP, Dynamic DNS
LAN
Support IGMP Proxy
Support 802.1d STP (Spanning Tree)
IP / MAC-based Bandwidth Control
Web-based (HTTP) management interface
System Management
SNTP time synchronize
Easy firmware upgrade
System Log supports Remote Log
Standards Conformance
IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE Standards
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Others Protocols and
Standards
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Environment
Temperature
Operating: 0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C
User’s Manual of WNRT-300
-5-
User’s Manual of WNRT-300
Humidity
Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)
-6-
Chapter 2. Hardware Interface
2.1. Overview
Front Panel
User’s Manual of WNRT-300
Rear Panel
Object Description
WPS Button
Reset
Figure 2-1
Figure 2-2
Press the button for about 5 seconds to activate the WPS function.
Reset the WNRT-300 to the factory default settings by holding the
Reset button and pressing down for about 5 seconds.
2.2. LED Indications
The LEDs on the top panel indicate the instant status of system power, wireless data activity, WPS,
port links, battery, and help monitor and troubleshoot when needed. Figure 2-3 and Table 2-1 show the
LED indications of the WNRT-300.
-7-
User’s Manual of WNRT-300
LED Definition
LED COLOR STATE FUNCTION
Power Green
WLAN Blue
WPS Blue
WAN/LAN Blue
Figure 2-3 Top Panel
On Device power on
Off Device power off
Flash Low battery power
Flash The Wireless function is enabled.
Off The Wireless function is disabled.
On WPS is activated
Off WPS is not activated
On Link is established
Off No Ethernet device connected
Battery
Status
Flash Packets are transmitting or receiving
On Charging
Red
Off Charging complete/ no external power input
Table 2-1
-8-
User’s Manual of WNRT-300
Chapter 3. Installation Guide
3.1. System Requirements
Broadband Internet Access Service (Cable / xDSL / Ethernet connection)
One Cable/xDSL Modem that has an RJ-45 connector (not necessary if the WNRT-300 is
connected directly to the Ethernet.)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ-45 connectors
PC of subscribers running Windows 98/ME, NT4.0, 2000/XP, Windows Vista / Win 7, MAC OS 9 or
later, Linux, UNIX or other platform compatible with TCP/IP protocols
Above PC installed with WEB Browser
It is recommended to use Internet Explore 7.0 or above to access the WNRT-300.
3.2. Typical Application
Please shift the hardware switch on the WNRT-300 to change the operation mode.
3.2.1. Router Mode
In Router Mode, the NAT (Network Address Translation) function and DHCP server are both enabled, and all
wireless clients share the same public IP assigned by ISP through WAN port of the WNRT-300. The WNRT-300 is
supposed to connect with the Cable / xDSL Modem by UTP cable.
Figure 3-1
-9-
User’s Manual of WNRT-300
3.2.2. AP Mode
In AP Mode, the NAT (Network Address Translation) function and DHCP server are both disabled, and all wireless
clients obtain the IP address from the network device connected with LAN port of the WNRT-300. They can
certainly assign the IP address for themselves as well in the Control Panel of Windows. The WNRT-300 is
supposed to bridge to the Ethernet directly by UTP cable.
Figure 3-2
3.2.3. Client Mode
In Client Mode, the WNRT-300 is supposed to act as a wireless station for the PC. Users can site
survey the available local AP and choose someone to connect with.
Figure 3-3
-10-
User’s Manual of WNRT-300
3.3. Manual Network Setup - TCP/IP Configuration
The default IP address of the WNRT-300 is 192.168.1.1, and the default Subnet Mask is
255.255.255.0. These values can be changed as you desire in the web UI of the WNRT-300. In this
section, we use all the default values for description.
No matter you want to configure the WNRT-300 via wired or wireless connection, the PC need to be
assigned an IP address first. Before you connect the local PC to the WNRT-300 via wired or wireless
connection, please configure the IP address for your PC in the following two ways first.
Obtain an IP address automatically
Configure the IP address manually
The following sections will introduce how to install and configure the TCP/IP correctly in Windows XP.
First, make sure your Ethernet Adapter is working, and refer to the Ethernet adapter’s manual if
needed.
3.3.1. Obtain an IP Address Automatically
If you are sure the DHCP server of WNRT-300 is enabled (the default setting of Router Mode), you can
set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. And then the
WNRT-300 built-in DHCP server will assign an IP address to the PC automatically.
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2) Double-click the Network Connections icon. Then right-click on the Wireless Network
Connection, and select Properties in the appearing window.
Figure 3-4
-11-
User’s Manual of WNRT-300
3) In the prompt window shown below, double click on the Internet Protocol (TCP/IP).
Figure 3-5
4) Choose Obtain an IP address automatically, and Obtain DNS server automatically as shown
in the figure below. Then click OK to save your settings.
Figure 3-1
-12-
User’s Manual of WNRT-300
3.3.2. Configure the IP address manually
If you are sure the DHCP server of WNRT-300 is disabled (the default setting of AP Mode and Client
Mode), you can configure the IP address manually. The IP address of your PC should be
192.168.1.xxx (the same subnet of the IP address of WNRT-300, and "xxx" is any number from 2 to
254), Subnet Mask is 255.255.255.0, and the Gateway is 192.168.1.1 (The default IP address of
WNRT-300)
1) Continue the settings from the last figure, select Use the following IP address radio button.
2) If the LAN IP address of the WNRT-300 is 192.168.1.1, enter IP address 192.168.1.x (x is from 2
to 254), and Subnet mask 255.255.255.0.
3) Enter the LAN IP address of the WNRT-300 (the default IP is 192.168.1.1) into the Default
gateway field.
4) Select Use the following DNS server addresses radio button. In the Preferred DNS Server field,
you can enter the DNS server IP address provided by your local ISP. Then click OK to save your
settings.
Figure 4-2
-13-
User’s Manual of WNRT-300
3.4. Hardware Installation
Please follow the instruction below to build the wireless network connection between WNRT-300 and
your computers.
Before you start using the WNRT-300, please follow the procedures below to
install and charge the battery.
Step 1: Remove the battery cover, and insert the attached battery into the slot. Then replace the
cover back.
Step 2: Charge the battery by the attached power adapter and USB cable. The red LED will be lit
up.
Step 3: The battery needs to be charged for 8 hours in the first time. When the battery is fully
charged, the red LED will be off.
Before installing the WNRT-300, make sure your PC is connected to the Internet through the
broadband service successfully at this moment. If there is any problem, please contact your local ISP.
After that, please install the WNRT-300 according to the following steps.
Step 1. Please shift the hardware switch on the WNRT-300 to the operation mode you want to use,
and follow the figure below to install it for the purpose of configuration.
-14-
User’s Manual of WNRT-300
Figure 3-4
Step 2. Please turn on the WNRT-300.
Figure 3-6
The procedures of hardware installation are finished. Please continuously follow the next section to
start setup in the web UI.
If you want to configure the WNRT-300 via wireless connection, please use
your PC to site survey the wireless signal of WNRT-300, and connect your PC
with it wirelessly.
Default SSID: default
*Default Wireless Security: None
-15-
User’s Manual of WNRT-300
Figure 3-5
3.5. Starting Setup in Web UI
It is easy to configure and manage the WNRT-300 via web browser. To access the web UI of the
WNRT-300, please open a web browser and enter the default IP address http://192.168.1.1
address field of the browser.
Figure 3-7
After a moment, a login window will appear. Enter the User Name and Password. Then click the OK
in the
button.
-16-
User’s Manual of WNRT-300
Figure 3-8 Login Window
Default User name: admin
Default Password: admin
If the above screen does not pop up, it may mean that your web-browser has been set
to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the
screen that appears, cancel the Using Proxy checkbox, and click OK to finish it.
After you enter the username and password, the main screen appears as Figure 3-9
Figure 3-9 WNRT-300 Web UI Screenshot
The next chapter will introduce the functions of the web UI.
-17-
User’s Manual of WNRT-300
Chapter 4. Configuration in Web UI
4.1. Login
After successfully logging into the web UI of the WNRT-300, you will see the main menus on the left
side of the web-based utility. There are some different options appear as the operation mode changes.
For example, the figure below is the menus of Router Mode in the web UI.
Figure 4-1 The Menu of Router Mode in The Web UI
The details for the functions in each operation mode are listed in the following sections.
4.2. Setup Wizard
No matter what operation mode you switch to on the WNRT-300, the first screen you enter into the
web UI is the Setup Wizard. It will guide the user to configure the WNRT-300 easily and quickly. There
are different procedures in different operation modes. According to the operation mode you switch to,
please follow the instructions below to configure the WNRT-300 via Setup Wizard.
Router Mode
-18-
User’s Manual of WNRT-300
Step 1. The figure below is the screen of the Setup Wizard in Router Mode. Please click the
“Next>>” button to continue.
Figure 4-2
Step 2. Please select the corresponding WAN connection type of your Internet service, and fill the
correct parameters in the blanks. Then click the “Finished” button to save the settings and
reboot to take effect.
Figure 4-3
-19-
User’s Manual of WNRT-300
AP Mode
Step 1. The figure below is the screen of the Setup Wizard in AP Mode. Please click the “Next>>”
button to continue.
Figure 4-4
Step 2. Please enter the SSID for recognizing the wireless connection. The default setting is
“default”. Then click the “Next>>” button to continue.
Figure 4-5
-20-
User’s Manual of WNRT-300
Step 3. Please select the wireless security mode, and setup the password for wireless connection.
Then click the “Finished” button to save the settings and reboot to take effect.
Figure 4-6
Client Mode
Step 1. The figure below is the screen of the Setup Wizard in Client Mode. Please click the
“Next>>” button to continue.
-21-
Figure 4-7
User’s Manual of WNRT-300
Step 2. Please enter the SSID of the AP you want to connect with, or you can click the “Site Survey”
button to search the available local AP. The details of the available AP will appear. Then
choose the AP you want to connect to, and click the “Next>>” button to continue.
Figure 4-8
Step 3. Please select the correct encryption method of the AP you chose before, and enter the
password of it. Then click the “Finished” button to save the settings and reboot to take
effect.
-22-
Figure 4-9
User’s Manual of WNRT-300
4.3. Operation Mode
This page shows the current operation mode, but users can only change it by shifting the hardware
switch on the WNRT-300.
Figure 4-10
-23-
User’s Manual of WNRT-300
4.4. Wireless
The Wireless menu contains submenus of the settings about wireless network. Please refer to the
following sections for the details.
Figure 4-11
4.4.1. Basic Settings
Choose menu “Wireless Basic Settings”, and you can configure the basic settings for the wireless
network in this page. After the configuration, please click the “Apply Changes” button to save the
settings.
Figure 4-12 Wireless Basic Settings
-24-
User’s Manual of WNRT-300
Object Description
Disable Wireless LAN
Check the box to disable the wireless function.
Interface
Band Select the desired mode. Default is “2.4GHz (B+G+N)”. It is strongly
recommended that you set the Band to “2.4GHz (B+G+N)”, and all of
802.11b, 802.11g, and 802.11n wireless stations can connect to the
WNRT-300.
2.4 GHz (B): 802.11b mode, rate is up to 11 Mbps
2.4 GHz (G): 802.11g mode, rate is up to 54 Mbps
2.4 GHz (N): 802.11n mode, rate is up to 150 Mbps(1T1R)
2.4 GHz (B+G): 802.11b/g mode, rate is up to 11 Mbps or 54 Mbps
2.4 GHz (G+N): 802.11g/n mode, rate is up to 54 Mbps or 150
Mbps
2.4 GHz (B+G+N): 802.11b/g/n mode, rate is up to 11 Mbps,54
Mbps, or 150 Mbps
Mode There are AP, WDS, AP+WDS, and Client, four kinds of wireless
mode selection. If you select WDS or AP+WDS, please click “WDS
Settings” submenu for the related configuration. Furthermore, click the
“Multiple AP” button to enable multiple SSID function.
Network Type In Infrastructure, the wireless LAN serves as a wireless station. And
the user can use the PC equipped the WNRT-300 to access the
wireless network via other access point. In Ad hoc, the wireless LAN
will use the Ad-hoc mode to operate.
Default is “Infrastructure”.
SSID
The ID of the wireless network and default is “default”. User can
access the wireless network through it only. However, if you switch to
Client Mode, this field becomes the SSID of the AP you want to
connect with.
Channel Width You can select 20MHz or 40MHz.
Control Sideband You can select Upper or Lower.
Channel Number
You can select the operating frequency of wireless network.
-25-
User’s Manual of WNRT-300
Broadcast SSID
If you enable “Broadcast SSID”, every wireless station located within
the coverage of the WNRT-300 can discover its signal easily. If you are
building a public wireless network, enabling this feature is
recommended. In private network, disabling “Broadcast SSID” can
provide better wireless network security.
Default is “Enabled”.
WMM WMM function can guarantee the packets with high-priority messages
being transmitted preferentially.
Default is “Enabled”.
Data Rate Default is “Auto”.
Associated Clients
Click the “Show Active Clients” button to show the status table of
active wireless clients.
Enable Mac Clone
Enable Mac Clone.
(Single Ethernet Client)
Enable Universal
Repeater Mode
(Acting as AP and client
simultaneously)
It is only available in Client Mode. Universal Repeater is a technology
used to extend wireless coverage. To enable Universal Repeater
Mode, check the box and enter the SSID you want to broadcast in the
field below. Then please click “Security” submenu for the related
settings of the AP you want to connect with.
4.4.2. Advanced Settings
Choose menu “Wireless Advanced Settings”, and you can configure the advanced settings for the
wireless network in this page. After the configuration, please click the “Apply Changes” button to save
the settings.
-26-
User’s Manual of WNRT-300
Object Description
Fragment Threshold
RTS Threshold
Beacon Interval
Preamble Type
Figure 4-13 Wireless Advanced Settings
You can specify the maximum size of packet during the fragmentation
of data to be transmitted. If you set this value too low, it will result in
bad performance.
Default is “2346”.
When the packet size is smaller the RTS threshold, the access point
will not use the RTS/CTS mechanism to send this packet.
Default is “2347”.
The interval of time that this access point broadcast a beacon. Beacon
is used to synchronize the wireless network. Default is “100”.
Preamble type defines the length of CRC block in the frames during
the wireless communication. “Short Preamble” is suitable for high
traffic wireless network. “Long Preamble” can provide more reliable
communication.
IAPP
Default is “Long Preamble”.
IAPP (Inter-Access Point Protocol) enabled is recommendation that
describes an optional extension to IEEE 802.11 that provides wireless
access-point communications among multivendor systems.
Default is “Enabled”.
-27-
User’s Manual of WNRT-300
Protection
Aggregation
Short GI
WLAN Partition
It is recommended to enable the protection mechanism. This
mechanism can decrease the rate of data collision between 802.11b
and 802.11g wireless stations. When the protection mode is enabled,
the throughput of the AP will be a little lower due to many of frame
traffic should be transmitted.
Default is “Disabled”.
It is a function where the values of multiple rows are grouped together.
Default is “Enabled”
It is used to set the time that the receiver waits for RF reflections to
settle out before sampling data.
Default is “Enabled”
This feature also called “WLAN isolation” or “Block Relay”. If this is
enabled, wireless clients cannot exchange data through the
WNRT-300.
Default is “Disabled”.
RF Output Power
Users can adjust the wireless output power here.
Default is “100%”.
-28-
User’s Manual of WNRT-300
4.4.3. Security
Choose menu “Wireless Security”, and you can configure the settings of wireless security for the
wireless network in this page. After the configuration, please click the “Apply Changes” button to save
the settings.
Figure 4-14 Wireless Security
Object Description
Select SSID
Select the SSID you want to configure the wireless security function,
includes the root one and the client one.
Encryption
Disable:
No security setup for wireless connection.
WEP:
It is based on the IEEE 802.11 standard. And the default setting of
authentication is Automatic, which can select Open System or
Shared Key authentication type automatically based on the wireless
station's capability and request. Furthermore, you can select Key
Length and enter 10 & 26 Hexadecimal digits (any combination of
0-9, a-f, A-F, zero key is not promoted) or 5 & 13 ASCII characters in
the Encryption Key field.
WPA / WPA2 / WPA-Mixed:
When you select the authentication mode based on Enterprise
(Radius Server), please enter the IP Address, Port, and Password
of the Radius Server. When you select the other authentication mode
based on Personal (Pre-Shared Key), please enter at least 8 ASCII
characters (Passphrase) or 64 Hexadecimal characters. All of the
Cipher Suites support TKIP and AES.
-29-
User’s Manual of WNRT-300
802.1x Authentication Enable 802.1x authentication function, then please enter the IP
Address, Port, and Password of the Radius Server.
4.4.4. Access Control
Choose menu “Wireless Access Control”, you can choose to allow or deny the computer of
specified MAC address to connect with the WNRT-300 in this page. After the configuration, please
click the “Apply Changes” button to save the settings.
Object Description
Wireless Access
Control Mode
MAC Address
Comment
Current Access Control
List
Figure 4-15 Wireless Access Control
You can choose to set the Allowed-List, Denied-List, or disable this
function.
Enter the MAC address you want to allow or deny to connect to the
WNRT-300 in the field.
You can make some comment for each MAC address on the list.
You can select some MAC address, and click the “Delete Selected”
button to delete it.
-30-
User’s Manual of WNRT-300
4.4.5. WDS Settings
Wireless Distribution System (WDS) uses wireless media to communicate with other APs, like the
Ethernet does. To do this, you must set these APs in the same channel and set MAC address of
other APs which you want to communicate with in the table and then enable the WDS.
Choose menu “Wireless WDS Settings”, and you can configure WDS to connect the WNRT-300
with another AP in this page. After the configuration, please click the “Apply Changes” button to save
the settings.
Figure 4-16 WDS Settings
Object Description
Enable WDS
Check the box to enable the WDS function. Please select WDS or
AP+WDS in the Mode of Wireless Basic Settings before you enable
WDS in this page.
MAC Address
You can enter the MAC address of the AP you want to connect with.
Data Rate Default is “Auto”.
Comment
You can make some comment for each MAC address on the list.
Set Security Click the “Set Security” button, then configure the wireless security
parameters of the AP you want to connect via WDS.
Show Statics
Click the “Show Statics” button to show the WDS AP.
-31-
User’s Manual of WNRT-300
Current WDS AP List
You can select some MAC address of the AP, and click the “Delete
Selected” button to delete it.
4.4.6. Site Survey
Choose menu “Wireless Site Survey” to scan the available local AP. If any Access Point is found,
you could choose any one to connect with manually when the Client Mode is enabled.
Figure 4-17 Wireless Site Survey
-32-
User’s Manual of WNRT-300
4.4.7. WPS
Choose menu “Wireless WPS”, and you can configure the setting for WPS (Wi-Fi Protected Setup).
After the configuration, please click the “Apply Changes” button to save the settings.
Object Description
Disable WPS
WPS Status
Self-PIN Number
Push Button
Configuration
Client PIN Number
Figure 4-18 WPS (Wi-Fi Protected Setup)
You can check the box to disable the WPS function.
Here you can check if the connection via WPS is established or not.
It is the PIN number of the WNRT-300 here.
Click the “Start PBC”, and then activate WPS as well in the client
device within 2 minutes.
In addition to the PBC method, you can also use the PIN method to
activate the WPS. Just enter the PIN number of the client device in the
field, and click the “Start PIN” button.
4.4.8. Schedule
Choose menu “Wireless Schedule”, and you can configure the schedule rule of enabling wireless
function. After the configuration, please click the “Apply Changes” button to save the settings.
-33-
User’s Manual of WNRT-300
Figure 4-19 Wireless Schedule
4.5. TCP/IP Settings
The TCP/IP Settings menu contains submenus of the settings about LAN and WAN. Please refer to
the following sections for the details.
Figure 4-20
4.5.1. LAN Interface
Choose menu “TCP/IP Settings LAN Interface”, and you can configure the parameters for LAN
(Local Area Network). After the configuration, please click the “Apply Changes” button to save the
settings.
-34-
User’s Manual of WNRT-300
Figure 4-21 LAN Interface
Object Description
IP Address The LAN IP address of the WNRT-300, and default is 192.168.1.1. You
can change it according to your request.
Subnet Mask Default is 255.255.255.0. You can change it according to your request.
Default Gateway Default is 0.0.0.0. You can change it according to your request.
DHCP You can select one of Disable, Client, and Server. Default is Server,
that the WNRT-300 can assign IP addresses to the computers
automatically.
DHCP Client Range For the Server mode, you must enter the DHCP client IP address
range in the field. And you can click the “Show Client” button to show
the Active DHCP Client Table.
Static DHCP Click the “Set Static DHCP” button, and you can reserve some IP
addresses for those network devices with the specified MAC
addresses anytime when they request IP addresses.
Domain Name Default is Router.
802.1d Spanning Tree
Clone MAC Address
You can enable or disable the spanning tree function.
You can input a MAC address here for using clone function.
-35-
User’s Manual of WNRT-300
4.5.2. WAN Interface
Choose menu “TCP/IP Settings WAN Interface”, and you can configure the parameters for the
Internet network. After the configuration, please click the “Apply Changes” button to save the settings.
Object Description
WAN Access Type
Clone MAC Address
Enable uPNP
Enable IGMP Proxy
Figure 4-22 WAN Interface
Please select the corresponding WAN Access Type for the
Internet, and fill the correct parameters from your local ISP in the
fields which appear below.
You can input a MAC address here for using clone function.
Check the box to enable the uPNP function. The uPNP devices
can be automatically discovered by the uPNP service application
on the LAN.
Check the box to enable the IGMP Proxy function.
-36-
User’s Manual of WNRT-300
Enable Ping Access on WAN
Enable Web Server Access
on WAN
Enable IPsec pass through
on VPN connection
Enable PPTP pass through
on VPN connection
Enable L2TP pass through on
VPN connection
Enable IPv6 pass through on
VPN connection
4.6. Firewall
Check the box to enable Ping access from the Internet Network.
Check the box to enable the web server access of the
WNRT-300 from the Internet network.
Check the box to enable IPsec pass through function on VPN
connection.
Check the box to enable PPTP pass through function on VPN
connection.
Check the box to enable L2TP pass through function on VPN
connection.
Check the box to enable IPv6 pass through function on VPN
connection.
The Firewall menu contains submenus of the settings about firewall and access filtering. Please refer
to the following sections for the details.
Figure 4-23
-37-
User’s Manual of WNRT-300
4.6.1. Port Filtering
Choose menu “Firewall Port Filtering”, and you can configure which port range and protocol to be
restricted. After the configuration, please click the “Apply Changes” button to save the settings.
Figure 4-24 Port Filtering
Object Description
Enable Port Filtering
Port Range
Protocol
Enable port filtering
Add ports you want to control
Select the port number protocol type (TCP, UDP or both). If you are
unsure, then leave it to the default both protocol
Comment
The description of this setting
Check the “Select” box of which rule you want to delete, then click the “Delete Selected” button to
delete it.
-38-
User’s Manual of WNRT-300
4.6.2. IP Filtering
Choose menu “Firewall IP Filtering”, and you can configure which IP address and protocol to be
restricted. After the configuration, please click the “Apply Changes” button to save the settings.
Figure 4-25 IP Filtering
Object Description
Enable IP Filtering
Local IP Address
Protocol
Enable IP filtering
Add LAN IP address you want to control
Select the port number protocol type (TCP, UDP or both). If you are
unsure, then leave it to the default both protocol
Comment
The description of this setting
Check the “Select” box of which rule you want to delete, and then click the “Delete Selected” button to
delete it.
4.6.3. MAC Filtering
Choose menu “Firewall MAC Filtering”, and you can configure which computer of the specified
MAC address to be restricted. After the configuration, please click the “Apply Changes” button to save
the settings.
-39-
User’s Manual of WNRT-300
Figure 4-26 MAC Filtering
Object Description
Enable MAC Filtering
MAC Address
Comment
Enable MAC filtering
Add MAC address you want to control
The description of this setting
Check the “Select” box of which rule you want to delete, and then click the “Delete Selected” button to
delete it.
4.6.4. Port Forwarding
Choose menu “Firewall Port Forwarding”, and you can configure to re-direct a particular range of
service port numbers from the Internet network to a particular LAN IP address. It helps users to host
some servers behind the firewall. After the configuration, please click the “Apply Changes” button to
save the settings.
-40-
User’s Manual of WNRT-300
Object Description
Enable Port Forwarding
IP Address
Protocol
Port Range
Comment
Figure 4-27 Port Forwarding
Enable Port Forwarding function
Add LAN IP address of specified host or server on the private local
network
Select the port number protocol type (TCP, UDP or both). If you are
unsure, then leave it to the default both protocol
Add ports you want to control. For TCP and UDP Services, enter the
beginning of the range of port numbers used by the service. If the
service uses a single port number, enter it in both the start and finish
fields.
The description of this setting
Check the “Select” box of which rule you want to delete, and then click the “Delete Selected” button to
delete it.
-41-
User’s Manual of WNRT-300
4.6.5. URL Filtering
Choose menu “Firewall URL Filtering”, and you can configure which URL addresses to be blocked.
After the configuration, please click the “Apply Changes” button to save the settings.
Figure 4-28 URL Filtering
Check the “Select” box of which rule you want to delete, and then click the “Delete Selected” button to
delete it.
4.6.6. DMZ
This page allows you to set a De-militarized Zone (DMZ) to separate internal network and Internet.
Choose menu “Firewall DMZ”, and you can configure the private IP address of DMZ. The DMZ
feature allows one local host to be exposed to the Internet for a special-purpose service such as
Internet gaming or video conferencing. After the configuration, please click the “Apply Changes” button
to save the settings.
-42-
User’s Manual of WNRT-300
Figure 4-29 DMZ
Object Description
Enable DMZ
Check the box to enable DMZ function. If the DMZ Host Function is
enabled, it means that you set up DMZ host at a particular computer to
be exposed to the Internet so that some applications/software,
especially Internet / online game can have two way connections.
DMZ Host IP Address
Enter the IP address of a particular host in your LAN which will receive
all the packets originally going to the WAN port / Public IP address
above.
4.6.7. VLAN
If your network uses VLAN (Virtual Local Area Network)s, you can assign the SSID (configured for
Multiple AP) to a VLAN on your network. Client devices that associate using the SSID are grouped into
this VLAN. Up to 5 security profiles can be enabled at one time in WNRT-300, thus allowing up to 5
different SSIDs to be used simultaneously. Cooperating with the VLAN support, network administrators
can define separated wireless subnets for various Class-of-service and security policies.
-43-
User’s Manual of WNRT-300
Choose menu “Firewall VLAN”, and you can configure the settings of virtual LAN. VLAN refers to a
group of logically networked devices on one or more LANs, so that they can communicate with each
other as if they were attached to the same wire. In fact, they are located on different LAN segments.
VLAN are based on logical instead of physical connections, so it is very flexible for user/host
management. After the configuration, please click the “Apply Changes” button to save the settings.
Object Description
Enable VLAN
Enable
Tag
VID
Priority
CFI
Figure 4-30 VLAN Settings
Check the box to enable 802.1Q VLAN function. This option is only
useful if the hubs/switches on your LAN support the VLAN standard.
Select a network which defines VLAN.
Enable Tag VLAN.
It allows 802.1Q Untagged or Tagged VLAN for selected network.
When adding a VLAN to selected network, it tells the AP router
whether to keep or remove the tag from a frame on egress.
Set up VLAN group and VID value for each VAP.
The AP Router allows assign VID for selected Ethernet / Wireless
network. The range for the VID is 1-4090. The VLAN ID is 1 by default
Set up the 802.1p priority.
Set up CFI.
-44-
User’s Manual of WNRT-300
4.7. QoS
The QoS (Quality of Service) function will improve the network performance of the specified computer
by ensuring that its network traffic is prioritized over others’. After the configuration, please click the
“Apply Changes” button to save the settings.
Object Description
Enable QoS
Automatic Uplink Speed
Figure 4-31 QoS
Check the box to enable the QoS function.
Check the box to adjust the uplink speed automatically by the
WNRT-300. Or enter the uplink data rate manually in the field below.
-45-
User’s Manual of WNRT-300
Automatic Downlink
Speed
Check the box to adjust the downlink speed automatically by the
WNRT-300. Or enter the downlink data rate manually in the field
below.
QoS Rule Setting
To set the priority rule, you can appoint the computer by IP address
or MAC address, and enter it in the correct field. Select minimum or
maximum bandwidth, and then fill the uplink and downlink data
rate into the field.
4.8. Route Setup
The page is used to setup dynamic routing protocol or edit static route entry. After the configuration,
please click the “Apply Changes” button to save the settings.
Figure 4-32 Routing Setup
-46-
User’s Manual of WNRT-300
4.9. Management
The Management menu contains submenus of the general settings of the WNRT-300. Please refer to
the following sections for the details.
Figure 4-33
4.9.1. Status
Choose menu “Management Status” to show the current status and some basic settings of the
WNRT-300.
Figure 4-34 Status
-47-
User’s Manual of WNRT-300
4.9.2. Statistics
Choose menu “Management Statistics” to show the packet counters for transmission and
reception regarding to wireless and Ethernet network.
Figure 4-35 Statistics
Item Description
Wireless LAN
Sent Packets
Wireless LAN
Received Packets
Ethernet WAN
Sent Packets
Ethernet WAN
Received Packets
Refresh Click the refresh the statistic counters on the screen.
It shows the statistic count of sent packets on the wireless LAN interface.
It shows the statistic count of received packets on the wireless LAN interface.
It shows the statistic count of sent packets on the Ethernet WAN interface.
It shows the statistic count of received packets on the Ethernet WAN
interface.
-48-
User’s Manual of WNRT-300
4.9.3. DDNS
Choose menu “Management DDNS” to configure the settings about Dynamic DNS. Dynamic DNS
is a kind of service that provides users with a valid, unchanging internet domain name (an URL) to go
with that (possibly ever changing) IP address. After the configuration, please click the “Apply Changes”
button to save the settings.
Object Description
Enable DDNS
Service Provider
Domain Name
User Name/Email
Password/Key
Figure 4-36 DDNS
Check the box to enable the Dynamic DNS function.
Select the DDNS service provider.
Enter the domain name you have registered from the DDNS service
provider.
Enter the user name you have registered from the DDNS service
provider.
Enter the password you have registered from the DDNS service provider.
-49-
User’s Manual of WNRT-300
4.9.4. Time Zone Setting
Choose menu “Management Time Zone Setting” to configure the system time. You can also
maintain the system time by synchronizing with a public time server over the Internet. After the
configuration, please click the “Apply Changes” button to save the settings.
Figure 4-37 Time Zone Setting
Object Description
Time Zone Select
Time Zone Select
Input current time manually.
Select the time zone of the country you are currently in. The router will
set its time based on your selection.
Enable NTP client
update
NTP Server
Check to enable NTP update. Once this function is enabled, Router will
automatically update current time from NTP server.
User may select prefer NTP sever or input address of NTP server
manually.
4.9.5. Denial of Service
A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent
legitimate users of a service from using that service.
Choose menu “Management Denial of Service” to configure the settings of DoS attack prevention.
After the configuration, please click the “Apply Changes” button to save the settings.
-50-
User’s Manual of WNRT-300
Figure 4-38 Denial of Service
Object Description
Enable DoS
Prevention
Check to enable DoS function. User may set other related configurations
about DoS below
4.9.6. Log
Choose menu “Management Log” to configure the settings of system log. You can check the box of
-51-
User’s Manual of WNRT-300
the items you want to record it in the log. After the configuration, please click the “Apply Changes”
button to save the settings.
Figure 4-39 System Log
Object Description
Enable Log
System all/Dos
Check to enable log function.
Select which log you want to check. Related information will be shown at
below.
4.9.7. Upgrade Firmware
Choose menu “Management Upgrade Firmware” to upgrade the firmware of the WNRT-300.
Select the new firmware file downloaded from the PLANET website, and then click “Upload” button to
upgrade it.
-52-
User’s Manual of WNRT-300
Figure 4-40 Upgrade Firmware
Object Description
Select File
Browse and select file you want to upgrade and press Upload to perform
upgrade.
Please wait till on screen shows related information after upgrade
finished.
4.9.8. Save/Reload Settings
Choose menu “Management Save/Reload Settings” to backup or reset the configuration of the
WNRT-300.
Object Description
Save Settings to File
Load Settings from File
Figure 4-41 Save/Reload Settings
Click the “Save…” button to backup the configuration of the
WNRT-300. And then save the “config.dat” in your computer.
Select the configuration file of the WNRT-300, and then click the
“Upload” button to reload the configuration back into the WNRT-300.
-53-
User’s Manual of WNRT-300
Reset Settings to
Default
Click the “Reset” button to reset all settings of the WNRT-300 to factory
default.
4.9.9. Password
Choose menu “Management Password” to change the user name and password which is inputted
to access the web UI of the WNRT-300.
Figure 4-42 Password Setup
Object Description
User Name
New Password
Confirmed Password
Enter user name.
Input the password for this user.
Confirm the password again.
4.10. Logout
Click “Logout” to log out the web UI of the WNRT-300. And then click the “Apply Change” button for
sure.
Figure 4-43 Logout
-54-
User’s Manual of WNRT-300
Chapter 5. Quick Connection to a Wireless Network
5.1. Windows XP (Wireless Zero Configuration)
Step 1: Right-Click on the wireless network icon displayed in the system tray
Figure 5-1
Step 2: Select [View Available Wireless Networks]
Step 3: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [default]
(2) Click the [Connect] button
Figure 5-2
-55-
Step 4: Enter the encryption key of the Wireless Router
(1) The Wireless Network Connection box will appear
(2) Enter the encryption key that configured in section 4.4.3
(3) Click the [Connect] button
User’s Manual of WNRT-300
Step 5: Check if “Connected” is displayed
Figure 5-3
Figure 5-4
-56-
User’s Manual of WNRT-300
Some laptops are equipped with an “Wi-Fi ON/OFF” hardware switch for the
internal wireless LAN. Make sure the it is switched to “ON” position.
5.2. Windows 7 (WLAN AutoConfig)
WLAN AutoConfig service is built-in in Windows 7 and can be used to detect and connect to wireless
network. This built-in wireless network connection tool is similar to wireless zero configuration tool in
Windows XP.
Step 1: Right-Click on the network icon displayed in the system tray
Figure 5-5
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select SSID [default]
(2) Click the [Connect] button
Figure 5-6
-57-
User’s Manual of WNRT-300
Figure 5-7
If you want to connect to this Wireless Router in the future, please check the box of
[Connect automatically].
Step 3: Enter the encryption key of the Wireless Router
(1) The [Connect to a Network] box will appear
(2) Enter the encryption key that configured in section 4.4.3
(3) Click the [OK] button
-58-
Step 4: Check if “Connected” is displayed
User’s Manual of WNRT-300
Figure 5-8
Figure 5-9
Figure 5-10
-59-
User’s Manual of WNRT-300
5.3. Mac OS X
Step 1: Right-Click on the network icon displayed in the system tray
The AirPort Network Connection menu will appear
Figure 5-11
Step 2: Highlight and select the wireless network (SSID) to connect
(1) Select and SSID [default]
(2) Double-click on the selected SSID
Figure 5-12
Step 3: Enter the encryption key of the Wireless Router
(4) Enter the encryption key that configured in section 4.4.3
(1) Click the [OK] button
-60-
User’s Manual of WNRT-300
Figure 5-13
If you want to connect to this Wireless Router in the future, please check
[Remember this network].
Step 4: Check if the AirPort is connect to the selected wireless network.
If “Yes”, then there will be a “check” symbol in front of the SSID.
Figure 5-14
-61-
User’s Manual of WNRT-300
There is another way to configure the MAC OS X Wireless settings:
Step 1: Click and open the [System Preferences] by going to Apple > System Preference or
Applications
Figure 5-14
Step 2: Open Network Preference by clicking on the [Network] icon
Figure 5-15
-62-
User’s Manual of WNRT-300
Step 3: Check Wi-Fi setting and select the available wireless network
(1) Choose the AirPort on the left-menu (make sure it is ON)
(2) Select Network Name [default] here
If this is the first time to connect to the Wireless Router, it should shows “Not network
selected”.
Figure 5-16
-63-
5.4. iPhone / iPod Touch / iPad
Step 1: Tap the [Settings] icon displayed in the home screen
Figure 5-17
User’s Manual of WNRT-300
Step 2: Check Wi-Fi setting and select the available wireless network
(3) Tap [General] \ [Network]
(4) Tap [Wi-Fi]
If this is the first time to connect to the Wireless Router, it should appears “Not
Connected”.
Figure 5-18
-64-
Figure 5-19
User’s Manual of WNRT-300
Step 3: Tap the target wireless network (SSID) in “Choose a Network…”
(1) Turn on Wi-Fi by tapping “Wi-Fi”
(2) Select SSID [default]
Figure 5-20
Step 4: Enter the encryption key of the Wireless Router
(1) The password input screen will be displayed
(2) Enter the encryption key that configured in section 4.4.3
(3) Tap the [Join] button
-65-
User’s Manual of WNRT-300
Figure 5-21
Step 5: Check if the iDevice is connected to the selected wireless network.
If “Yes”, then there will be a “check” symbol in front of the SSID.
Figure 5-22
-66-
Appendix
Malfunction Solution
User’s Manual of WNRT-300
The WNRT-300 is not
responding to me when I want
to access it via web browser
Please check the connection of power cord and network
cable of the WNRT-300. All cords and cables should be
correctly and firmly inserted to the device.
If all LEDs on the WNRT-300 are off, please check the
status of power adapter, and make sure it is correctly
powered.
You must configure your PC as the same IP address
section with the WNRT-300.
Are you using MAC or IP address filter? Try to connect the
WNRT-300 by another computer and see if it works; if not,
please restore the WNRT-300 to factory default settings
(Press “reset” button for over 10 seconds).
Shift the hardware switch to Router Mode, and set your
computer to obtain an IP address automatically (DHCP),
and see if your computer can get an IP address.
If you just did firmware upgrade and this happens, contact
the dealer of purchase for help.
Unable to get connected with
the Internet
a. If all above solutions don’t work, contact the dealer of
purchase for help.
a. Go to “Management Status” submenu, and check the
WAN configuration status.
Please be patient, sometime Internet is just that slow.
b. If you connect your computer to the Internet directly
before, try to do that again. And check if you can get
connected to the Internet with your computer directly
via the device provided by your local Internet service
provider.
c. Check the WAN access type (Static IP / Dynamic IP /
PPPoE / PPTP / L2TP), user name, password, and the
other parameters provided by your local ISP again.
d. Call your Internet service provider and check if there is
something wrong with their service.
e. If you just can’t connect to one or more website, but you
can still use other internet services, please check URL
filter in the web UI.
f. Reset the WNRT-300 to the factory default settings and
try again later.
g. Reset the device provided by your Internet service
provider as well.
-67-
User’s Manual of WNRT-300
h. Try to use IP address instead of hostname. If you can
access a remote server by an IP address but not by a
hostname, please check the DNS setting.
Unable to be found by the
wireless clients
File download is very slow
or breaks frequently
Unable to login the web
management UI: password is
wrong
a. Check if the “Broadcast SSID” is disabled.
b. Are you too far from the WNRT-300? Try to get closer.
c. Please remember that you have to enter SSID to your
wireless client device manually, if SSID broadcast is
disabled.
a. Are you using QoS function? Please disable it and try
again.
Please be patient, sometime Internet is just that slow.
b. Reset the WNRT-300 to the factory default settings and
see if it is better after that.
c. Try to know what are other computers doing in your
local area network. If someone is transferring big files,
other people will think Internet is really slow.
d. If this never happens before, call you Internet service
provider to check if there is something wrong with their
network.
a. Make sure you are connecting to the correct IP address
of the WNRT-300.
b. Password is case-sensitive. Make sure the “Caps Lock”
light is not illuminated.
c. If you really forget the password, please do hardware
The device is getting hot.
The date and time of all event
logs are wrong
reset.
a. This is not a malfunction if you can keep your hand on
the case of the WNRT-300.
b. If you smell something wrong or see the smoke coming
out from the WNRT-300 or power adapter, please
disconnect the device and power adapter from power
(make sure it’s safe before you’re doing this!), and call
your dealer of purchase for help.
a. Adjust the internal clock of the WNRT-300.
-68-
EC Declaration of Conformity
For the following equipment:
*Type of Product: 150Mbps 802.11n Wireless Portable AP / Router
*Model Number: WNRT-300
* Produced by:
Manufacturer‘s
Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.)
is herewith confirmed to comply with the requirements set out in the Council Directive on the
Approximation of the Laws of the Member States relating to
For the evaluation regarding the R&TTE the following standards were applied:
Responsible for marking this declarati o n i f the:
Name : Planet Technology Corp.
1999/5/EC R&TTE.
EN 300 328 V1.7.1 (2006-10)
EN 301 489-17 V1.8.1 (2008-04)
EN 301 489-1 V2.1.1 (2009-05)
EN 50371 (2002)
EN 60950-1 (2006 + A11:2009)
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet T echnology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan
Person responsible for making this declaration
Name, Surname Kent Kang
Position / Title : Product Manager
(R.O.C.)
Taiwan
17st June., 2011
Place Date Legal Signature
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528
EC Declaration of Conformity
English Hereby, PLANET Technology Corporation,
declares that this 802.11n Wireless Portable AP /
Router is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Česky Společnost PLANET Technology Corporation,
tímto prohlašuje, že tato 802.11n Wireless
Portable AP / Router splňuje základní požadavky a
další příslušná ustanovení směrnice 1999/5/EC.
Dansk PLANET Technology Corporation, erklærer
herved, at følgende udstyr 802.11n Wireless
Portable AP / Router overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF
Deutsch Hiermit erklärt PLANET Technology Corporation,
dass sich dieses Gerät 802.11n Wireless Portable
AP / Router in Übereinstimmung mit den
grundlegenden Anforderungen und den anderen
relevanten
Vorschriften der Richtlinie 1999/5/EG befindet".
(BMWi)
Eesti keeles Käesolevaga kinnitab PLANET Technology
Corporation, et see 802.11n Wireless Portable
AP / Router vastab Euroopa Nõukogu direktiivi
1999/5/EC põhinõuetele ja muudele olulistele
tingimustele.
Ελληνικά ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ , PLANET Technology
Corporation, ΔΗΛΩΝΕΙ ΟΤΙ ΑΥ Τ Ο 802.11n
Wireless Portable AP / Router ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣ ΙΩ Δ ΕΙ Σ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙ ΠΕ Σ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ
Lietuviškai Šiuo PLANET Technology Corporation,, skelbia,
kad 802.11n Wireless Portable AP / Router
tenkina visus svarbiausius 1999/5/EC direktyvos
reikalavimus ir kitas svarbias nuostatas.
Magyar A gyártó PLANET Technology Corporation,
kijelenti, hogy ez a 802.11n Wireless Portable AP
/ Router megfelel az 1999/5/EK irányelv
alapkövetelményeinek és a kapcsolódó
rendelkezéseknek.
Malti Hawnhekk, PLANET Technology Corporation,
jiddikjara li dan 802.11n Wireless Portable AP /
Router jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC
