PLANET VIP-361PE User Manual

VIP-361PE VIP-361PE

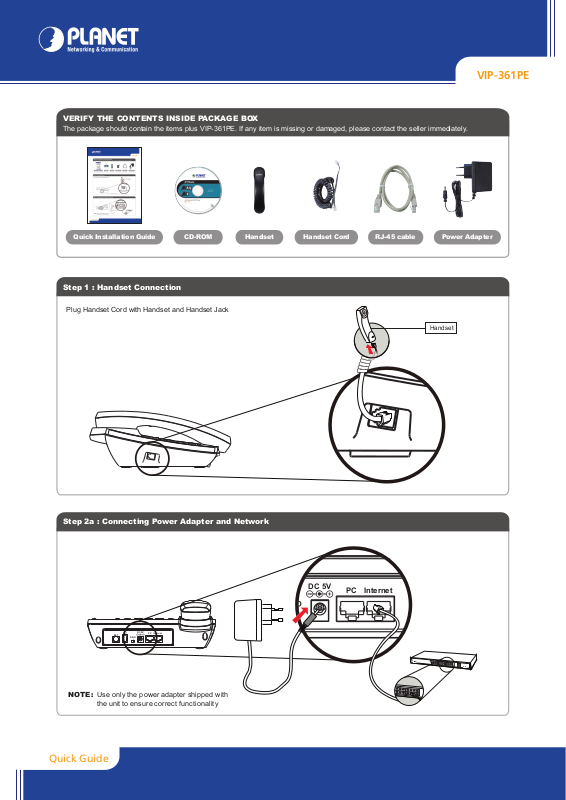

VERIFY THE CONTENTS INSIDE PACKAGE BOX

The package should contain the items plus VIP-361PE. If any item is missing or damaged, please contact the seller immediately.

Step 1 : Handset Connection

Step 2a : Connecting Power Adapter and Network

Handset

Plug Handset Cord with Handset and Handset Jack

EXT

PC

DC 5V

DND

Internet

PC

DC 5V

Internet

Power Adapter

RJ- 45 cableHandset Handset Cord

Quick Installation Guide

NOTE: Use only the power adapter shipped with

the unit to ensure correct functionality

CD-ROM

Quick GuideQuick Guide

2011-D10420-001

PLANET Technology Corporation

Tel: [phone] Fax: [phone]
Email: [e-mail] www.planet.com.tw

11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

PLANET reserves the right to change specications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2013 PLANET Technology Corp. All rights reserved.

EXT

PC

DC 5V

DND

Internet

Step 2b : Connecting Power via PoE interface and Network

NOTE: Only internet port of the VIP-361PE suppor t 802.3af power injection, use of any non -standard POE injector could

damage the device

In the VIP-361PE can be configured without external power, if connecting

to an IEEE802.3af PSE devices such as 802.3af POE injector/hub or

802.3af POE Switch.

Set your computer’s IP address to 192.168.0.x, where x is a number between 2 to

254 (except 1 where is being used for the camera by default). If you don’t know

how to do this, please ask your network administrator.

Use web browser (Internet Explorer 6.0 or above) to connect to 192.168.0.1 (type

this address in the address bar of web browser).

You’ll be prompted to input user name and password: admin / 123

Further Configuration

For detail c onfiguration, please check user’s manual on the bundled CD.
If you have any other questions, please contact the dealer where you purchased this product or you can contact PLANET directly at the following
email address: support [e-mail]

Step 3 : Computer Network Setup

Step 4 : Login Prompt

IEEE802.3af PoE Switch

***
