SIP IP Phone
VIP-154T/VIP-154PT/VIP-154NT
User’s manual
Version 2.01
1
Page 2
Copyright
Copyright (C) 2007 PLANET Technology Corp. All rights reserved.
The products and programs described in this User’s Manual are licensed products of PLANET Technology, This
User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all
accompanying hardware, software, and documentation are copyrighted.
No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any electronic
medium or machine-readable form by any means by electronic or mechanical. Including photocopying, recording,
or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without
the prior express written permission of PLANET Technology.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in all environments and applications,
and makes no warranty and representation, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change without notice and does not represent a commitment on the
part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your
comments and suggestions.
CE mark Warning
The is a class B device, In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of
WEEE as unsorted municipal waste and have to collect such WEEE separately.
Trademarks
The PLANET logo is a trademark of PLANET Technology. This documentation may refer to numerous hardware
and software products by their trade names. In most, if not all cases, their respective companies claim these
designations as trademarks or registered trademarks.
2
Page 3
Revision
User’s Manual for PLANET SIP IP Phone:
Model: VIP-154T/VIP-154PT/VIP-154NT
Rev: 2.01 (2007, July)
Part No. EM-VIP154V2.01
3
Page 4
TABLE OF CONTENTS
Chapter 1............................................................................................... 6
Introduction .......................................................................................... 6
Overview............................................................................................................................6
Package Content ............................................................................................................... 8
Physical Details ................................................................................................................. 8
Rear View ...................................................................................................................8
Front View and Keypad function..............................................................................10
Chapter 2 Preparations & Installation ............................................... 12
Physical Installation Requirement ................................................................................12
LAN IP address configuration via web configuration interface...............................13
Chapter 3 Network Service Configurations ...................................... 15
Configuring and monitoring your IP Phone from web browser ................................ 15
Overview on the web interface of IP Phone .............................................................15
Manipulation of IP Phone via web browser .............................................................15
Chapter 4 VoIP Telephone Adapter Configurations.......................... 17
Phone Book settings .................................................................................................17
Speed Dial settings ...................................................................................................19
Call forward.............................................................................................................. 20
SNTP settings ........................................................................................................... 21
Volume Setting .........................................................................................................21
Ringer Setting...........................................................................................................23
Block Setting ............................................................................................................23
Auto Answer settings (For VIP-154NT) .................................................................. 23
Dial Plan Settings .....................................................................................................24
Flash Time Setting (For VIP-154NT)....................................................................... 26
Call waiting Settings................................................................................................. 26
Voice Mail Settings................................................................................................... 27
Hot line Settings .......................................................................................................27
Alarm Settings ..........................................................................................................28
DDNS Settings .........................................................................................................28
Service Domain Settings ..........................................................................................29
Port Settings.............................................................................................................. 30
Codec Settings ..........................................................................................................31
Codec ID Setting ......................................................................................................31
DTMF Settings ......................................................................................................... 32
RPort Settings...........................................................................................................32
Other Settings ........................................................................................................... 33
4
Page 5
STUN settings ..........................................................................................................33
Auto Configuration...................................................................................................34
PTT Settings (For VIP-154NT)................................................................................ 34
ICMP Settings...........................................................................................................35
Cancel without to tag................................................................................................ 35
System Authority ......................................................................................................35
Save & Reboot..........................................................................................................36
Firmware Upgrade.................................................................................................... 36
Auto Upgrade ...........................................................................................................37
Reset to Default ........................................................................................................ 39
Reboot without saving..............................................................................................39
Appendix A Voice communications............................................................................... 40
Case 1: Voice communication via IP PBX system _ IPX-2000 (Auto-config) ........40
Case 2: VIP-154T to VIP-154T connection via IP address ......................................43
Case 3: Voice communication via SIP proxy server _SIP-50...................................44
Case 4: Call Forward Feature_Example 1................................................................ 45
Case 5: Call Forward Feature_Example 2................................................................ 47
Case 6: Call Forward Feature_Example 3................................................................ 48
Case 7: Call Forward Feature_Example 4................................................................ 50
Case 8: Auto Answer Feature_IP to PSTN............................................................... 51
Case 9: Auto Answer Feature_PSTN to IP............................................................... 53
Appendix B The method of operation guide ................................................................ 55
Call Transfer .............................................................................................................55
3-Way Conference ....................................................................................................55
Call Waiting ..............................................................................................................55
Switch the Realm (Registration Proxy Server).........................................................55
Appendix C VIP-154T / VIP-154PT / VIP-154NT Specifications ..............................57
5
Page 6
Chapter 1
1
Introduction
Overview
Meeting t he ne x t- ge neration I n te r net tel e p ho n y service d em ands, PLA N E T T echnolog y
provides f e at ur e- r ic h, toll-qu a li t y I nt er n et te le ph o ny service s olu tions. T h e b ui lt - in PSTN
interfac e pr ov id e s user m or e c on ve ni en c e between I P Ph on e and PST N c a ll selec t i o ns .
VIP-154NT . W ith 802.3 a f P ower over E t he r net (Po E ) IP Phone VIP-154PT . And the
VIP-154T i s the cost- ef f ec tive SIP I P Phone; t h e VI P - 15 4 s eries ar e SI P 2. 0 ( RF C3261)
complia n t wi th SIP dig e st a u th en ti c at ion supp o rt s .
The VIP- 1 5 4T / V I P- 15 4P T / VIP-15 4 N T ( "I P Ph o ne " in the f o ll owing ter m ) features
high-qua l it y s p ea k erphone t e c hnolog y, a nd includes a n ea s y- to - us e speak e r o n/ o ff
button a n d c a ll hold/ t r a ns fe r bu tt on s f or variou s v oic e services .
The IP P h o ne has a d d i tional f e a t ur es such as b u ilt-in P P P o E/ DH CP c lients,
passwor d - p r otected m ac hi n e m anagem e n t , L CD menu d i s play, sp e e d- di al 3- way
conferenc e k eys, hand s -f ree speak e r p h one, las t n um ber redi a l , incoming m essage
indicator , an d us er - intuiti v e we b ad m inistrat i o n system .
The IP P h o ne is self - c ontained , s er v ic e- in t egrated, i n te ll ig e nt p ho ne featur e s o f fering,
and power f ul voice pr o c es si ng p ow er . T he I P Ph on e c an effor t l e s sly del i v e r t ol l vo ic e
qualit y e q uivalent t o th e r eg ular PST N c on nections u t i li zi n g c utting-e d g e Q ua lity of
Service, e c ho cance l la t io n, c o m fort no i s e g en eration ( C N G ) and vo i c e co m pensatio n
technolo g y. Meanwhile, t h e dual Eth e r n et interfa c e s on the I P Ph on e allow user s to
install i n an e x is ting ne t wor k location w i thout int e r f er in g wi th d es k top PC n e t wo r k
connecti o ns . W hen ins t a l ling the V I P- 15 4 T / VIP-1 5 4P T / VIP-154N T , SI P IP Phone wi t h
IPX-2000 ( PL ANET IP P BX s ys tem), th e VI P - 154 ser i e s I P ph on e s can be e as i ly
integrat e d i n yo u r o f fice; via the a u t o- co nf ig s upport for I P X -2000. No e x p er t is e r e quired
building u p th e Vo I P network d e pl oym ent.
Besides , t h e I P P h o ne s a r e ideal s o l u t ion for o ff i c e / h om e u s e as well as i ns ta l l a tion for
Interne t Telepho n y Se r vi c e Pr ov id er ( ITSP) fr o m leading v en d or s . It 's t h e de livery
platform for IP v o ic e ser v i c es tha t mak e s ben e f i t from the VoI P tech n o l og ies i n yo u r dail y
life.
There are models for VIP-154T/VIP-154PT/VIP-154NT and there are:
VIP-154T: SIP IP Phone
VIP-154PT: 802.3af PoE SIP IP Phone
VIP-154NT: 1 FXO SIP IP Phone
6
Page 7
Product Features
• Built-in PSTN (VIP-154NT)
The built-in PSTN interface provides user more convenience between IP Phone and PSTN call
selections easily
• Simple Installation and administration
Configuration of the IP Phone can be performed in minutes via the LCD menu keypad, telnet, or
web interfaces. Using the built-in LCD display, the IP Phone offers user-friendly configuration
guidelines, machine operation status, call status displays, and incoming call identification.
• IP PBX system integration
Via auto-config support for IPX-2000, no expertise required to establish your office voice network.
VIP-154 series can help you to complete VoIP network deployment in minutes.
• Feature-rich keypad IP Phone
The IP Phone integrates a high-quality speakerphone with the Call Hold, Forward, Transfer and
Waiting functions and also provides advanced telephone features, such as 4 speed-dial keys,
3-way conference key, last number redial, incoming call history indicator in a much more
convenient and functional manner than traditional telephone sets.
• Dynamic IP address assignment, and voice communication
The IP Phone can act as a PPPoE/DHCP client, automatically obtaining an IP address for Internet
access.
• Various field applications compliant
The IP Phone is capable of handling peer-to-peer and SIP proxy / IP PBX registration,
authentication to interact with major IP PBX/SIP gateway/IP Phone in the market. The IP Phone
offers the most flexibility and interoperability with PLANET and 3rd party VoIP vendors, allowing the
deployment of both simple and complex VoIP networks such as ITSP, PC-to-Phone/Phone-to-PC
or enterprise VoIP environments.
• Standards compliant
The VIP-154T / VIP-154PT / VIP-154NT complies with SIP 2.0 (RFC3261), interoperates with 3rd
party SIP voice gateways/terminal/software as well as other PLANET VoIP products. Supported
Voice codecs and VoIP technologies are: G.723, G.729ab, G.711u-law/a-law; Voice Activity
Detection (VAD), and the Confort Noise Generation (CNG).
VoIP Features
• SIP 2.0 (RFC3261) compliant
• Peer-to-Peer / SIP proxy calls
• Voice codec support: G.711, G.723.1, G.726, G.729A, G.729B
7
Page 8
• Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation
(16mSec.), Comfort noise generation
• In band and out-of-band DTMF support
Package Content
The contents of your product should contain the following items:
VoIP IP Phone
Power adapter
Quick Installation Guide
User’s Manual CD
RJ-11 cable x 1
Physical Details
The following figure illustrates the front/rear panel of IP Phone.
Rear View
Rear Panel of VIP-154T
8
Page 9
Rear Panel of VIP-154PT
ture,
rectly to
interface also can be connected with 802.3af PoE
to switch
button on rear panel over 5 seconds will reset the VoIP
Phone to factory default value. (Except speed dial
either PoE or AC adapter can be deployed
Rear Panel of VIP-154NT
1 RESET
2 PC
3 LAN
4 12V DC
5 LINE
1. IP Phone default IP is http://192.168.0.1. Press RESET
Note
9
IP
and call forward settings)
2. For VIP-154PT,
at one time
Reset to the factory default setting
RJ-45 connector, to maintain the existing network struc
connected directly to the PC through straight CAT-5 cable
RJ-45 connector, for Internet access, connected di
Switch/Hub through straight CAT-5 cable.
The LAN
switch or converter for power supply (VIP-154PT)
12V DC Power input outlet
FXO interface, for connect with PSTN line. Press 0*
to PSTN mode. (VIP-154NT only)
Page 10
Front View and Keypad function
M1 ~
Keypad Description
1 LCD Display
Speed Dial
2
M1~M4
3 MENU
4
5
6 OK
Vol +
Vol - /
Menu and all status shall be displayed for users.
To make a speed dial call by pressing the speed dial key
M4.
To bring out the menu selection while IP Phone is in idle state.
To increase the volume of voice when at off-hooked state.
To page up menu when at configuration mode.
To decrease the volume of voice when at off-hooked state.
To page down menu when at configuration mode.
To be used as confirm configuration or enter sub-menu.
7 Phone Book
8 MESSAGE
Enter the phone book selection.
Press this button can enter the voicemail service.
10
Page 11
9 TRANSFER
ming call answered or outgoing
Press to delete digits when at configuration mode or input
Press to dial the last dialed number when the IP Phone is
To switch between the usage of the handset and the speaker
To transfer an active call (inco
call accepted) to another devices.
10 CONF
11 FWD
12 DEL/MUTE
13 Redial
14 Handfree
15 Hold
16 Call Log
Press this button can make conference function.
To carry out forward function.
phone numbers.
Press to mute sounds when at talk mode.
off-hooked.
devices.
To hold the conversation.
Show the calls history.
11
Page 12
2
Chapter 2
Preparations & Installation
Physical Installation Requirement
This chapter illustrates basic installation of IP Phone
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable modem
Administration Interface
PLANET IP Phone provides GUI (Web based, Graphical User Interface) for machine management and
administration.
Web configuration access
To start IP Phone web configuration, you must have one of these web browsers installed on computer
for management
• Netscape Communicator 4.03 or higher
•
Microsoft Internet Explorer 4.01 or higher with Java support
Default IP address of IP Phone is 192.168.0.1. You may now open your web browser, and insert
http://192.168.0.1 in the address bar of your web browser to logon IP Phone web configuration page.
IP Phone will prompt for logon username/password, please enter: root / null (no password) to continue
machine administration.
12
Page 13
locate your PC in the same network segment (192.168.0.x)
. If you’re not familiar with TCP/IP, please refer
In order to connect machine for administration, please
Note
of IP Phone
to related chapter on user’s manual CD or consult your
network administrator for proper network configurations.
LAN IP address configuration via web configuration interface
Execute your web browser, and insert the IP address (default: 192.168.0.1) of IP Phone in the
adddress bar. After logging on machine with username/password (default: root / not passwrd),
browse to “Network” --> “Network settings” configuration menu:
Parameter Description
IP address LAN IP address of
Default: 192.168.0.1
Subnet Mask LAN mask of
13
IP Phone
IP Phone
Page 14
Please consult your ISP personnel to obtain proper PPPoE/IP
If Internet connection cannot be established, please check
service staff
Default: 255.255.255.0
Default Gateway Gateway of
IP Phone
Default: 192.168.0.254
After confirming the modification you’ve done, Please click on the Submit button to apply settings and
browse to “Save & Reboot” menu to reboot the machine to make the settings effective.
Connection Type Data required.
In most circumstances, it is no need to configure the DHCP
settings.
The ISP will assign IP Address, and related information.
The ISP will assign PPPoE username / password for Internet
access,
Fixed IP
DHCP clinet
PPPoE
Hint
address related information, and input carefully.
the physical connection or contact the ISP
for support information.

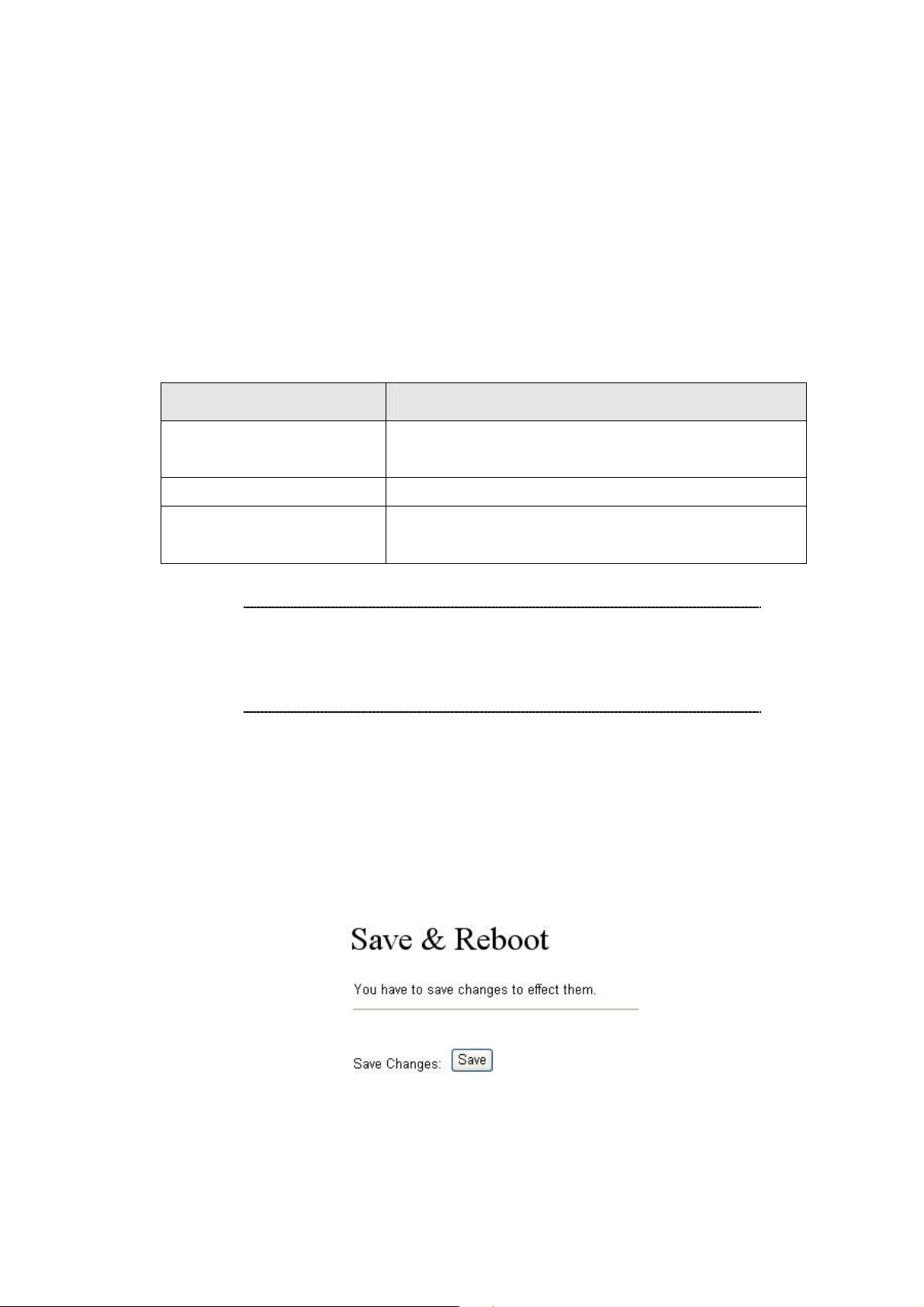

Save Modification to Flash Memory
Most of the IP Phone parameters will take effective after you modify, but it is just temporary stored on
RAM only, it will disappear after your reboot or power off the IP PHone, to save the parameters into
Flash ROM and let it take effective forever, please remember to press the Save & Reboot button after
you modify the parameters.
14
Page 15
Chapter 3
3
Network Service Configurations
Configuring and monitoring your IP Phone from web browser
The IP Phone integrates a web-based graphical user interface that can cover most configurations
and machine status monitoring. Via standard, web browser, you can configure and check machine
status from anywhere around the world.
Overview on the web interface of IP Phone
With web graphical user interface, you may have:
More comprehensive setting feels than traditional command line interface.
Provides user input data fields, check boxes, and for changing machine configuration settings
Displays machine running configuration
To start IP Phone web configuration, you must have one of these web browsers installed on computer
for management
Netscape Communicator 4.03 or higher
Microsoft Internet Explorer 4.01 or higher with Java support
Manipulation of IP Phone via web browser
Log on IP Phone via web browser
After TCP/IP configurations on your PC, you may now open your web browser, and input
http://192.168.0.1 to logon IP Phone web configuration page.
IP Phone will prompt for logon username/password: root / null (not password)
IP Phone log in page
When users login the web page, users can see the IP Phone system information like firmware version,
company…etc in this main page.
15
Page 16
IP Phone main page
16
Page 17
Chapter 4
4
VoIP Telephone Adapter Configurations
Phone Book settings
IP Phone can set up 140 records of Phone Book. User can make calls via Phone Book feature of IP
Phone.
Field Description
Phone Book Page
Phone
Name
URL
Select
17
The default is Page 1. It can select Page1 ~ Page 14
to look round Phone Book records.
The record number from 0 ~ 139, it can set up 140
records in total.
The name of Phone Book records, it only can input
numerals.
Fill in the outgoing number (Line Number) or IP
address.
To select this record.
Page 18
If you need to add a phone number into the Phone Book list, you need to input the position, the name,
and the phone number (by URL type). When you finished a new phone list, just click the “Add Phone”
button.
If you want to delete a phone number, you can select the phone number you want to delete then click
“Delete Selected” button.
If you want to delete all phone numbers, you can click “Delete All” button.
For Example:
STEP 1:
IP Phone had added the above phone numbers. User press Phone Book button from keypad
then the LCD screen will show below:
Search: [ 3]
STEP 2:
Press OK button to enter the Phone Book menu. The LCD screen will show the Phone Book
records pervious made.
STEP 3:
Selecting the recorder you want to dial and press OK button. It sill show the detail information as
00 202
01 206
below:
18
Page 19
STEP 4:
Pick up the telephone handset or press Handfree button to dial to this telephone.
202
192.168.1.2:5062
IP Dialing.. 1
192.168.1.2:5062
Speed Dial settings
In Speed Dial setting function you can add/delete Speed Dial number. You can input maximum 10
entries speed dial list. You can setup the Speed Dial number. If you want to use Speed Dial you just dial
the speed dial number (from 0~9) and follow the “#” key.
If you need to add a phone number into the Speed Dial list, you need to input the position, the name,
and the phone number (by URL type). When you finished a new phone list, just click the “Add Phone”
button.
If you want to delete a phone number, you can select the phone number you want to delete then click
“Delete Selected” button.
If you want to delete all phone numbers, you can click “Delete All” button.
19
Page 20
Call forward
This page defines Call Forward function. You can setup the phone number you want to forward in this
page. There are three type of Forward mode. You can choose All Forward, Busy Forward, and No
Answer Forward by click the icon.
All Forward: All incoming call will forward to the number you chosen. You can input the name and the
phone number in URL field. If you select this function, then all the incoming call will direct forward to the
speed dial number you choose.
Busy Forward: If you are on the phone, the new incoming call will forward to the number you choosed.
You can input the name and the phone number in URL field.
No Answer Forward: If you can not answer the phone, the incoming call will forward to the number you
chosen. You can input the name and the phone number in URL field. Also you have to set the Time Out
time for system to start to forward the call to the number you choosed.
When you finished the setting, please click the Submit button.
Call Forward function for VIP-154T/VIP-154PT
Call Forward to PSTN (VIP-154NT): VIP-154NT not only support Call Forward to IP calls, but also can
forward the calls to PSTN. You can choose the Call Forward type with PSTN, then input the name and
the PSTN number in URL/Number field.
20
Page 21
Call Forward function for VIP-154NT
SNTP settings
This page defines the primary and second SNTP Server IP Address, to get the date/time information.
Also you can base on your location to set the Time Zone, and how long need to synchronize again.
When you finished the setting, please click the Submit button.
Volume Setting
This page defines the Handset Volume, Ringer Volume, and the Handset Gain. When you finished the
setting, please click the Submit button.
Handset Volume is to set the volume for you can hear from the handset.(Handfree mode)
21
Page 22
Speaker Volume is to set the volume for you can hear from the speaker.
Ringer Volume is to set the ringer volume for you can hear.
Handset Gain is to set the volume send out to the other side’s handset.
Speaker Gain is to set the volume send out to the other side’s handset from the microphone. (Handfree
mode)
Volume Settings for VIP-154T/VIP-154PT
Beside the above settings, VIP-154NT also can set the volume of PSTN.
PSTN-Out Volume is to set the volume for you can hear from the PSTN line.
PSTN-In Gain is to set the volume send out to the other PSTN side’s haneset.
Volume Settings for VIP-154NT
22
Page 23
Ringer Setting
This page defines the user can set the tinkle of bells when someone ring your IP Phone. If want to set
ringer, it need to enable Ringer function and select the Ringer Type you wanted. There are four Ringer
Types can be chosen. When you finished the setting, please click the Submit button.
Block Setting
This page defines the Block Setting to keep the phone slience. You can choose Always Block or Block a
period.
Always Block: All incoming call will be blocked until disable this feature.
Block Period: Set a time period and the phone will be blocked during the time period. If the“From”
time is large than the “To” time, the Block time will from Day 1 to Day 2.
When you finished the setting, please click the Submit button.
Auto Answer settings (For VIP-154NT)
This page defines the Auto Answer function. You can set the Auto Answer function to answer the
incoming call by the phone. If the call is come from the IP, then the VIP-154NT can let user to redial the
call to PSTN phone number. If the call is coming from PSTN, then the VIP-154NT can let user to redial
23
Page 24
to IP Phone number.
Auto Answer Counter is to set after the ring count met the number you set then the auto answer will
enable.
For security issue, You’d better to set the PIN Code. If you have set the PIN code, you will hear a tone
to inform you input the PIN Code then you can dial out.
Dial Plan Settings
This page defines the Dial Plan Setting function. This function is when you input the phone number by
the keypad but you don’t need to press “#”. After time out the system will dial directly.
24
Page 25
Field Description
Drop Prefix
Replace rule
+
Dial Now
The rule of add or replace code. If setup as No, it will add the prefix
number prior to the identification number. If setup as Yes, it will
replace the identification number.
The prefix number. It only accept the numeral and the max length is 8.
The identification number. It can accept the numeral or symbol and
the max length is 40.
Symbol: It only accept the [+], [x]
+: It means as “or”. For example, [123+456+334+5xx] even if
[123 or 456 or 334 or 5xx]
x: It is equal to 0~9. For example, [5xx] even if the number
begin 5.
If the dialing number are match with this field, it will dial out and need
not to press the “#” key to end the dialing. It accepts the numeral or
symbol, and the max length are 124.
Note: The starting number can’t be the “0”. For example, if the
number is “0xxxx”, because the starting number is “0”, so that the
system will ignore this dial plan.
Auto Dial Time
Use # as send key
Use * for IP dialing
Stop dialing after seconds then send dial number out.
If setup as Yes, the symtem sill stop to receive the dialing number
when receive the [#] key. The system also will to determine the Auto
Dial Time, it will carry out the calling if there isn’t receive the digit after
the Auto Dial Time.
If setup as No, the system just according to the Auto Dial Time to
determine the end time.
If setup as Yes, the system will look on [*] as [.]. For example, if dial
the “192*168*0*100#”, it will dial out as “192.168.0.100#”.
If setup as No, it just look on [*] as [*]. For example, if dial the “700*#”,
it will dial out as “700*#”.
Descriptions of example:
Example_1: Drop prefix: No, Replace rule 1: 002, +: 1234+4321 (No limit the digit length)
1. If the dialing number is start as 1234, it will add the 002 at begin. The real dialing number is
[0021234].
2. If the dialing number is start as 4321, it will add the 002 at begin. The real dialing number is
[0024321].
Example_2: Drop prefix: Yes, Replace rule 2: 006, +: 002+003+004 (No limit the digit length)
1. If the dialing number is start as 002, it will replace 002 by 006. The real dialing number is
006].
[
2. If the dialing number is start as 003, it will replace 003 by 006. The real dialing number is
25
Page 26
[
003].
Example_3: Drop prefix: No, Replace rule 3: 007, +: 5xxx+35xx (Has limit the digit length)
1. If the dialing number start as 5 and follow 3 digits, it will add the 007 at begin. The real
dialing number is [0075xxx].
2. If the dialing number start as 35 and follow 2 digits, it will add the 007 at begin. The real
dialing number is [00735xx].
Example_4: Dial Now: *xx+#xx+11x+xxxxxx
1. If the dialing number is match with the rule of *xx, it will send out the dialing number directly.
For example, *00/ *01/ *02*99.
2. If the dialing number is match with the rule of #xx, it will send out the dialing number directly.
For example, #00/ #01/ #02#99.
3. If the dialing number is match with the rule of 11x, it will send out the dialing number directly.
For example, 111/ 112/ 113119.
4. If the dialing number is match with the rule of 8 digits, it will send out the dialing number
directly. For example, 12345678.
Flash Time Setting (For VIP-154NT)
When you use the VIP-154NT and you need to press the Hook to do the Flash (Switch to the other
phone line or HOLD), this function is for you to set the time you press the Hook to represent the Flash
function.
Call waiting Settings
When you are talking with other people, You can choose If you want to hear the notice when there is a
new coming call. If the call waiting function is On, if there is a new incomeing call, you will hear the call
waiting notice in your current call. If you set the function to Off, then you will not hear any notice.
26
Page 27
Voice Mail Settings
This page defines the voice mail key function. When device register to IP PBX and it support Voice Mail
System. It can set up the voice mail number in advanced, and press the “MESSAGE” button from
keypad. It will enter for voice mail system.
Hot line Settings
This page defines the Hot line setting in this page. When user pick up the handset, the device will call to
the specific number automatically.
Use Hot Line: Click Enable to carry the Hot line function out.
Hot line number: The hot line number, it can input the IP address or registration number.
27
Page 28
Alarm Settings
This page defines the Alarm setting in this page. It provides the alarm function, and it can set up the
Alarm Time to get the telephone ringed up every day.
Alarm: The default is Off. If set up as On, the telephone will ringed up at the specific time.
Alarm Time: It can set up the system prompt time with 24 hours.
Current time: The next alarm time.
DDNS Settings
This page defines the DDNS setting in this page. You need to have the DDNS account and input the
informations properly. You can have a DDNS account with a public IP address then others can call you
via the DDNS account. But now most of the VoIP applications are work with a SIP Proxy Server. When
you finished the setting, please click the Submit button.
28
Page 29
Service Domain Settings
This router comes with the built-in firewall based on the advanced technology of Stateful Packet
In Service Domain Function you need to input the account and the related informations in this page,
please refer to your ISP provider. You can register three SIP account in the Phon. You can dial the VoIP
phone to your friends via first enable SIP account and receive the phone from these three SIP
accounts.
First you need click Active to enable the Service Domain, then you can input the following items:
Display Name: you can input the name you want to display.
User Name: you need to input the User Name get from your ISP.
Register Name: you need to input the Register Name get from your ISP.
Register Password: you need to input the Register Password get from your ISP.
Domain Server: you need to input the Domain Server get from your ISP.
Proxy Server: you need to input the Proxy Server get from your ISP.
Outbound Proxy: you need to input the Outbound Proxy get from your ISP. If your ISP does not
provide the information, then you can skip this item.
You can see the Register Status in the Status item. If the item shows “Registered”, then your Phone
Adapter is registered to the ISP, you can make a phone call direcly.
If you have more than one SIP account, you can following the steps to register to the other ISP.
When you finished the setting, please click the Submit button.
29
Page 30
Note
Port Settings
This page defines the SIP and RTP port number in this page. Each ISP provider will have different
:
IP Phone can register to three different SIP Proxies at the same time. It can receive any one of
different SIP accounts incoming call, and it can switch to any one SIP accounts for making calls
through input the switch code.
Realm switch code:
1*
: Realm 1
2*
: Realm 2
3*
: Realm 3
For example: The default is realm 1, input the 2* (Follow by the # key) from keypad and hang up
the telephone set. It will switch to realm 2, and it can make the SIP calls via realm 2.
SIP/RTPport setting, please refer to the ISP to setup the port number correctly. When you finished the
setting, please click the Submit button.
30
Page 31
Codec Settings
This page defines the Codec priority, RTP packet length, and VAD function in this page. You need to
follow the ISP suggestion to setup these items. When you finished the setting, please click the Submit
button.
Codec ID Setting
This page defines the Codec ID. Sometimes 2 VoIP device with different Codec ID will cause the
interopability issue. If you are talking with others got some problems, you may ask the other one what
kind of Codec ID he use then you can change your Codec ID. When you finished the setting, please
click the Submit button.
31
Page 32
DTMF Settings
This page defines the DTMF parameters. Yyou can setup the InBand DTMF, 2833 Out-Band DTMF and
Send DTMF SIP Info Enable/Disable in this page. To change this setting, please following your ISP
information. When you finished the setting, please click the Submit button.
RPort Settings
This page defines the RPort Enable/Disable in this page. To change this setting, please following your
ISP information. When you finished the setting, please click the Submit button.
32
Page 33
Other Settings
This page defines the Hold by RFC, Voice/SIP QoS and SIP expire time in this page. To change these
settings please following your ISP information. When you finished the setting, please click the Submit
button. The QoS setting is to set the voice packets’ priority. If you set the value higher than 0, then the
voice packets will get the higher priority to the Internet. But the QoS function still need to cooperate with
the others Internet devices.
A Domain Name Server (DNS) SRV record helps connecting to a SIP user in a similar way that an
MX record helps email delivery. When you send email to "john@example.com", the MX record for
example.com might tell the mail transfer agent to deliver email to a completely different machine, such
as "zaphod.foobar.com". Similarly, when you want to make a SIP phone call to john@example.com, the
SRV record might tell your computer that it should connect to "galaxy.starsystem.tw" to do so.
Dialing by domain names lets a SIP user have a single public "SIP address" which can be
redirected at will to their current location. SRV records maintain stability and also opens up the
possibility to use your own domain, regardless of the domain of the SIP service you are using.
DNS SRV resource records indicates how to find services for various protocols.
STUN settings
This page defines the STUN Enable/Disable and STUN Server IP address in this page. This function
can help your Phone Adapter working properly behind NAT. To change these settings please following
your ISP information. When you finished the setting, please click the Submit button.
33
Page 34
Auto Configuration
This page defines the Auto Configuration (Auto Provision) setting. IP Phone supports TFTP, FTP, HTTP
and IP PBX auto configuration function in total. In IP PBX Auto Configuration Setting you need to check
with your service provider if they have provided this function. Usually this function will be boundle with
an IP PBX to use in the office.
PTT Settings (For VIP-154NT)
This page defines the PTT settings.When VIP-154NT connected to different country’s PSTN Line, you
have to set the country’s setting to meet the requirement. When you finished the setting, please click
the Submit button.
34
Page 35
ICMP Settings
This page defines the ICMP echo Enable/Disable. This function can disable echo when someone ping
this device, it can avoid haker try to attack the device. When you finished the setting, please click the
Submit button.
Cancel without to tag
This function can decide the device if send the cancel tag to Proxy Server. If there has the similar
symptom that the caller cancel the call before the called answer the call, the called still continue to ring
up even the caller has cancel this call. It could try select this function to Yes to avoid the above
symptom.
System Authority
In System Authority you can change your login password.
35
Page 36
Save & Reboot
In Save & Reboot you can save the changes you have done. If you want to use new setting in the IP
Phone, you have to click the Save button. After you click the Save button, the IP Phone will
automatically restart and the new setting will effect.
Firmware Upgrade
In Firmware Upgrade function you can update new firmware via HTTP or TFTP methods in this page.
You can ugrade the firmware by the following steps:
Select the upgrade method and the firmware code type, AP or DSP code.
Click the “Browse” button in the right side of the File Location or you can type the correct path and the
filename in File Location blank.
Select the correct file you want to download to the device then click the Update button.
36
Page 37
Note
:
After firmware loaded, the unit will be reboot, and Default IP address of the customized firmware:
http://192.168.0.1; login name/password: root/null (no password)
Auto Upgrade
The device can update new firmware with the gz or ds file format automatically by the Auto Upgrade
function.
37
Page 38
Field Descriptions
Update via
TFTP Server
HTTP Server
HTTP File Path
FTP Server
FTP Username
FTP Password
FTP File Path
Check new firmware
There are TFTP/ FTP and HTTP three ways to provide the auto
upgrade function.
Input the TFTP Server address, and it could input the IP or Domain
Name form.
Input the HTTP Server address, and it could input the IP or Domain
Name form.
Set up the file path.
Input the FTP Server address, and it could input the IP or Domain
Name form.
The login username.
The login password
Set up the file path.
The device will according to the below ways to check the new
firmware.
- Power On (+ Scheduling): The machine will check the new
firmware when power on and following the scheduling date
Scheduling (Date)
Automatic Update
Firmware File Prefix
Next update time
Note:
If the Check new firmware field selected to Power On, the machine will chck the new
and time.
- Scheduling: The machine will follow the scheduling date
and time to check the new firmware.
The machine will check the new firmware between the time range
by random.
There are Notify only and Automatic ways to update.
- Notify only: If there are new firmware, the ATA will send the
“Be Be Be” sounds when pick up the handset to prompt
there are new firmware.
- Automatic: The device will carry firmware update out
automatically.
It will check the information of model name.
It will show the next check date and time.
firmware accoeding the scheduling time/date and power on. If there are new firmware can
be upgraded, the machine won’t carry firmware update out automatic. The machine will
show the [Found New s/w] message on LCD. Then press [Menu] button for entrying the
main menu and select the [7.Administrator -> 2. Upgrade System -> 1.Upgrade Now]
selection to carry out the upgrade firmware action.
38
Page 39
Reset to Default
In Default Setting you can restore the IP Phone to factory default in this page. You can just click the
Restore button, then the IP Phone will restore to default and automatically restart again.
Reboot without saving
Reboot function you can restart the IP Phone. If you want to restart the IP Phone, you can just click the
Reboot button, then the IP Phone will reboot automatically.
39
Page 40
Appendix A Voice communications
There are several ways to make calls to desired destination in IP Phone. In this section, we’ll lead you
step by step to establish your first voice communication via keypad and web browsers operations.
Case 1: Voice communication via IP PBX system _ IPX-2000 (Auto-config)
In the following sample, we’ll introduce how to integrate the IP Phone with our IP PBX system IPX-2000
via Auto-config feature.
VIP-154T A IP Address: 192.168.0.1
Line Number: 1001
IPX-2000 LAN IP Address: 192.168.0.50
Machine configuration on the IPX-2000
STEP 1:
Log in IPX-2000 and browse to the DHCP menu and create new options list for the auto
configuration.
VIP-154T B IP Address: 192.168.0.2
Line Number: 1002
Code: please insert 151 as the DHCP server option.
Value: http://LAN IP of IPX-2000/tftpboot
If you’d like to enable auto-config for IP extension features in IPX-2000, please be sure to setup
the DHCP option code and the value information.
40
Page 41
In most case, insert the optional code 151 and the value=http://192.168.0.50/tftpboot/
Note: the 192.168.0.50 is the IP address of IPX-2000
STEP 2:
Please browse to the Device IP Phone menu and create new device. And press the EDIT
button for set up the Auto Config configuration.
STEP 3:
Please fill out the Vendor Prefix code and MAC Address of IP Phone.
Note:
The Vendor Prefix of VIP-154 series is pla154
STEP 4:
Please browse to the Device Extension of IP Phone menu to create the two extension
accounts/password: 1001/123 (for VIP-154T A
calls.
41
), and 1002/123(for VIP-154T B) for the voice
Page 42
STEP 5:
After setting up the parameters, please browse to the Service
press RELOAD of IP PBX configuration reload selection for activating the settings.
Machine configuration on the VIP-154T:
STEP 6:
Please log in VIP-154T A via web browser, browse to the Advanced Settings menu. In the
setting page, please browse to the Auto-config page, and select to IP-PBX choice of the
IP PBX service menu, and
Auto Configuration features for IP PBX system.
42
Page 43
1 9 2 1 6 8 * 2 # * 0
STEP 7:
After enabled the Auto-config feature, the VIP-154T A shall be able to obtain IP address and
SIP extension information from IP PBX system IPX-2000 information. To verify the
auto-config results, you may check the extension number from LCD display assigned by
IPX-2000.
STEP 8
Repeat the same configuration steps on VIP-154T B, and check if the VIP-154T B is
successfully registered with the IPX-2000 as one of the IP extensions.
Test the scenario:
To verify the VoIP communication, you may make calls from extension side (VIP-154T A) 1001 to the
number 1002 (VIP-154T B) or reversely make calls from extension client (VIP-154T B) 1002 to the
number 1001 (VIP-154T A)
Case 2: VIP-154T to VIP-154T connection via IP address
Assume there are two VIP-154T’s in the network the IP address are 192.168.0.1, 192.168.0.2
43
192.168.0.1
*
192.168.0.2
Page 44
Operation steps:
calling party is known,
via its IP address and end
talled behind a NAT/firewall/
Pick up the VIP-154T A, you should be able to hear the dial tone, press the keypad: 192*168*0*2# shall
be able to connect to the VIP-154T B.
Then the phone in 192.168.0.2 should ring. Please repeat the same dialing steps on VIP-154T B to
establish the first voice communication from the second VIP-154T
Hint
If the IP address of the remote
you may directly make calls
with an “#”.
If the IP phones are ins
IP sharing device, please make sure the NAT device
support SIP applications before making calls
Case 3: Voice communication via SIP proxy server _SIP-50
SIP-50 IP Address: 192.168.0.50
VIP-154T IP Address: 192.168.0.1
Line Number: 1001
VIP-154T IP Address: 192.168.0.2
Line Number: 2002
Machine configuration on the VIP-154T:
STEP 1:
Log in SIP-50 and create two testing accounts/password: 1001/123 (for VIP-154T A), and
1002/123(for VIP-154T B) for the voice calls.
STEP 2:
Please log in VIP-154T A via web browser, browse to the SIP setting menu and select the
Domain Service config menu. In the setting page, please insert the account/password
information obtained from your service provider (in this sample, we’re using PLANET SIP-50
as the SIP Proxy server for SIP account, call authentications), and then the sample
configuration screen is shown below:
44
Page 45
STEP 3:
Repeat the same configuration steps on VIP-154T B, and check the machine registration
status, make sure the registrations are completed.
Test the scenario:
To verify the VoIP communication, you may make calls from SIP client (VIP-154T A) 1001 to the
number 1002 (VIP-154T B) or reversely make calls from SIP client (VIP-154T B) 1002 to the number
1001 (VIP-154T A )
Case 4: Call Forward Feature_Example 1
In the following samples, we’ll introduce the Call Forward Feature applications.
In this example, there are three VIP-154T register to SIP-50 and VIP-154T_A had set Call Forward
function to VIP-154T_B. (The detail registration settings of SIP-50 and VIP-154T please refer to the
instruction of Case 3)
45
Page 46
Machine configuration on the VIP-154T:
STEP 1:
Please log in VIP-154T_A via web browser, browse to the Phone Settings menu and select
the Call Forward config menu. In the setting page, please enable the All Forward function
and fill in the Name and URL of VIP-154T_B, then the sample configuration screen is shown
below:
STEP 2:
After set up completed and reboot machine, the LCD screen will show below:
46
10-19 17:20
# Forward #
Page 47
After 2~3 seconds, the LCD screen will show below:
10-19 17:20
AF 2002
Test the scenario:
VIP-154T_C pick up the telephone and dial the number 1001(VIP-154T_A), because VIP-154T_A had
set up All Forward function to the number 2002(VIP-154T_B), so the number 2002(VIP-154T_B) will
ring up then it pick up the telephone and communication with the number 3003(VIP-154T_C).
Case 5: Call Forward Feature_Example 2
In this example, there are one VIP-154NT and two VIP-154T register to SIP-50. The VIP-154NT_A had
set Call Forward function to phone number 1111-2222 (PSTN).
Machine configuration on the VIP-154NT:
STEP 1:
Please log in VIP-154NT_A via web browser, browse to the Phone Settings menu and
select the Call Forward config menu. In the setting page, please select the All Forward
function to PSTN choice and fill in the Name and URL/Number of PSTN Phone Number
11112222, then the sample configuration screen is shown below:
47
Page 48
STEP 2:
After set up completed and reboot machine, the LCD screen will show below:
10-19 17:20
# Forward #
After 2~3 seconds, the LCD screen will show below:
10-19 17:20
AF -11112222
Test the scenario:
VIP-154T_C pick up the telephone and dial the number 1001(VIP-154NT_A), because VIP-154NT_A
had set up All Forward function to the PSTN Phone Number 11112222, so the PSTN Phone Number
11112222 will ring up then it pick up the telephone and communication with the number
3003(VIP-154T_C).
Case 6: Call Forward Feature_Example 3
In this example, there are one VIP-154NT and two VIP-154T register to SIP-50. The VIP-154NT_A had
set Call Forward function to number 2002 (VIP-154T_B).
48
Page 49
Machine configuration on the VIP-154NT:
STEP 1:
Please log in VIP-154NT_A via web browser, browse to the Phone Settings menu and
select the Call Forward config menu. In the setting page, please select the All Forward
function to IP choice and fill in the Name and URL/Number of of VIP-154T_B, and then the
STEP 2:
sample configuration screen is shown below:
After set up completed and reboot machine, the LCD screen will show below:
49
Page 50
10-19 17:20
# Forward #
After 2~3 seconds, the LCD screen will show below:
10-19 17:20
AF 2002
Test the scenario:
PSTN Phone Number 11112222 pick up the telephone and dial the PSTN Phone Number
33334444(VIP-154NT_A), because VIP-154NT_A had set up All Forward function to the number
2002(VIP-154T_B), so the number 2002(VIP-154T_B) will ring up then it pick up the telephone and
communication with the PSTN Phone Number 11112222.
Case 7: Call Forward Feature_Example 4
In this example, there are three VIP-154T and connect with Peer to Peer mode. VIP-154T_A had set
Call Forward function to VIP-154T_B.
Machine configuration on the VIP-154T:
STEP 1:
Please log in VIP-154T_A via web browser, browse to the Phone Settings menu and select
the Call Forward config menu. In the setting page, please enable the All Forward function
and fill in the Name and URL of VIP-154T_B, and then the sample configuration screen is
shown below:
50
Page 51
STEP 2:
After set up completed and reboot machine, the LCD screen will show below:
10-19 17:20
# Forward #
After 2~3 seconds, the LCD screen will show below:
10-19 17:20
AF 192.168.0.2
Test the scenario:
VIP-154T_C pick up the telephone and dial the IP Address 192.168.0.1(VIP-154T_A), because
VIP-154T_A had set up All Forward function to the IP Address 192.168.0.2(VIP-154T_B), so the IP
Address 192.168.0.2 (VIP-154T_B) will ring up then it pick up the telephone and communication with
the VIP-154T_C.
Case 8: Auto Answer Feature_IP to PSTN
In this example, there are one VIP-154NT and two VIP-154T and connect with Peer to Peer mode. The
VIP-154NT_A had set Auto Answer function for forwarding calls to arbitrary telephone. If there have
incoming IP calls and VIP-154NT_A doesn’t answer the incoming calls after specific time, the caller will
hear prompt sounds to input the password then dial out an arbitary PSTN telephone.
51
Page 52
Machine configuration on the VIP-154NT:
STEP 1:
Please log in VIP-154NT_A via web browser, browse to the Phone Settings menu and
select the Call Forward config menu. In the setting page, please disable All Forward
STEP 2:
function, and then the sample configuration screen is shown below:
Please log in VIP-154NT_A via web browser, browse to the Phone Settings menu and
select the Auto Answer config menu. In the setting page, please enable the Auto Answer
and PIN Code Enabled function, then the sample configuration screen is shown below:
52
Page 53
Test the scenario:
VIP-154T_C pick up the telephone and dial the IP Address 192.168.0.1(VIP-154NT_A), VIP-154NT will
ring up but doesn’t answer the call. After 3 rings, the VIP-154T_C will hear the prompt sounds then
input the password 123#. VIP-154T_C will hear the dial tone from PSTN line then input Phone Number
11112222. The Phone Number 11112222 will ring up then it pick up the telephone and communication
with the VIP-154T_C.
Case 9: Auto Answer Feature_PSTN to IP
In this example, there are one VIP-154NT and two VIP-154T and connect with Peer to Peer mode. The
VIP-154NT_A had set Auto Answer function for forwarding to arbitrary telephone. If there have
incoming PSTN calls and VIP-154NT_A doesn’t answer the incoming calls after specific time, the caller
will hear prompt sounds to input the password and then dial out an arbitary IP telephone.
Machine configuration on the VIP-154NT:
STEP 1:
53
Page 54
Please log in VIP-154NT_A via web browser, browse to the Phone Settings menu and
select the Auto Answer config menu. In the setting page, please enable the Auto Answer
STEP 2:
and PIN Code Enabled function, and then the sample configuration screen is shown below:
Please log in VIP-154NT_A via web browser, browse to the Phone Book menu and select
the Speed Dial Settings config menu. In the setting page, please add a speed dial number
for dial to IP address 192.168.0.2 (VIP-154T_B), and then the sample configuration screen
is shown below:
Test the scenario:
The Phone Number 11112222 pick up the telephone and dial the PSTN Phone Number
33334444(VIP-154NT_A), VIP-154NT will ring up but doesn’t answer the call. After 3 rings, the Phone
Number 11112222 will hear the prompt sounds then input the password 123#. The Phone Number
11112222 will hear the dial tone then input 0#. The IP address 192.168.0.2 (VIP-154T_B) will ring up
then it pick up the telephone and communication with the Phone Number 11112222.
54
Page 55
Appendix B The method of operation guide
In this section, we’ll introduce the features method of operation, and lead you step by step to establish
these features.
Call Transfer
A. Blind Transfer
1. B call to A and they are in the process of conversation.
2. A press “Transfer” button to hold the conversation with B, and input the number of C (Follow
by the “#” key).
3. C will ring up, and A hang up the handset.
4. C picks up the handset and conversation with B.
B. Attendant Transfer
1. B call to A and they are in the process of conversation.
2. A press “Transfer” button to hold the conversation with B, and input the number of C (Follow
by the “#” key).
3. C will ring up.
4. C picks up the handset and conversation with A.
5. A hang up and C conversation with B.
3-Way Conference
1. A and B are in the process of conversation.
2. A want to invite C to join their conversation.
3. A press “Transfer” button to hold the conversation with B, and input the number of C (Follow
by the “#” key).
4. C will ring up and pick up the handset to conversation with A.
5. A press “CONF” button and they will entry the 3-Way conference mode.
Call Waiting
1. A and B are in the process of conversation.
2. C call to A and A will hear the prompt sounds.
3. A press “Hold” button to hold the conversation with B, and switch to conversation with C.
Switch the Realm (Registration Proxy Server)
IP Phone can register to three different SIP Proxies at the same time. It can receive any one of different
SIP accounts incoming call, and it can switch to any one SIP accounts for making calls through input
55
Page 56
the switch code.
Realm switch code:
1*
: Realm 1
2*
: Realm 2
3*
: Realm 3
For example: The default is realm 1, input the 2* (Follow by the # key) from keypad and hang up the
telephone set. It will switch to realm 2, and it can make the SIP calls via realm 2.
56
Page 57
Appendix C VIP-154T / VIP-154PT / VIP-154NT Specifications
Product SIP IP Phone SIP PoE IP Phone SIP IP Phone with PSTN connectivity
Model VIP-154T VIP-154PT VIP-154NT
Hardware
LAN 1 x 10/100Mbps RJ-45 port
Power Over Ethernet 802.3af compliant at VIP-154PT
PC 1 x 10/100Mbps RJ-45 port
Telephone Interface
LCD display 2 x 16 characters
Speaker Full duplex hands free speaker phone
Protocols and Standard
Standard SIP 2.0 (RFC3261), MD5 for SIP authentication (RFC2069/ RFC 2617), SIP outbound
proxy, SIP NAT Traversal Support STUN (RFC3489)
Voice codec G.711: 64k bit/s (PCM)
G.723.1: 6.3k / 5.3k bit/s
G.726: 16k / 24k / 32k / 40k bit/s (ADPCM)
G.729A: 8k bit/s (CS-ACELP)
G.729B: adds VAD & CNG to G.729
Voice Standard Voice activity detection (VAD)
Comfort noise generation (CNG)
Acoustic echo canceller (AEC)
G.165: Line echo canceller (LEC)
Jitter Buffer
Supplementary
services
Call history Record incoming call
Protocols SIP v1 (RFC2543), v2(RFC3261), TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP,
Network and Configuration
Access Mode Static IP, PPPoE, DHCP
Management Web, LCD menu keypad, Telnet, auto-config by IPX-2000, auto-provision by
Dimension (W x D x
H)
Operating
Environment
Power Requirement 12V DC
EMC/EMI CE, FCC Class B
Caller ID
3-way conference
Immediate (unconditional) call forwarding
Busy call forwarding
No answer calls forwarding
Call Hold/Waiting/Transferring
Outgoing call
Missed (not accepted) call history
RARP, DNS, DHCP, SNTP, PPPoE
TFTP/FTP/HTTP
170 mm x 220 mm x 60 mm
0~50 degree C, 0~90% humidity
Power Over Ethernet 802.3af compliant at VIP-154PT
---
1 x RJ-11
PSTN connectivity at VIP-154NT
57
Loading...
