PLANET FRT-401 User Manual
Wired / Wireless
Internet Fiber Router
FRT-401 / 401S15 / 405
FRT-401N / 401NS15 / 405
User's Manual
1
Copyright
Copyright© 2010 by PLANET Technology Corp. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect
to the contents hereof and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Any software described in this manual is sold or licensed "as is".
Should the programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all necessary servicing,
repair, and any incidental or consequential damages resulting from any defect in the
software. Further, this company reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any person of
such revision or changes.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
To assure continued compliance (example-use only shielded interface cables when
connecting to computer or peripheral devices). Any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following
two conditions: (1) This device may not cause harmful interference, and (2) this Device must
accept any interference received, including interference that may cause undesired
operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation.
2
CE mark Warning
This is a class B device, in a domestic environment; this product may cause radio
interference, in which case the user may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Stand by mode operation.
For energy saving, please remove the DC-plug or push the hardware Power Switch to OFF
position to disconnect the device from the power circuit.
Without remove the DC-plug or switch off the device, the device will still consuming power
from the power circuit. In the view of Saving the Energy and reduce the unnecessary power
consuming, it is strongly suggested to switch off or remove the DC-plug for the device if this
device is not intended to be active.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE
EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and
telecommunication terminal Equipment and the mutual recognition of their conformity
(R&TTE)
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications
Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
WEEE Regulation
To avoid the potential effects on the environment and human health as a result of
the presence of hazardous substances in electrical and electronic equipment, end
users of electrical and electronic equipment should understand the meaning of the
crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal
waste and have to collect such WEEE separately.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity
when working with electrical equipment. All guidelines of this and of the computer
manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
Revision
User’s Manual for Wired / Wireless Internet Fiber Router
Model : FRT-401 / 401S15 / 405
FRT-401N / 401NS15 / 405N
Rev: 1.0 (Apr. 2010)
Part No. EM-FRT40x_FRT40xN_v1.0
3
Table of Contents
1. INTRODUCTION........................................................................................................................................................6
1.1 Feature ................................................................................................................................ 7
1.2 Package Contents .............................................................................................................. 7
1.3 Physical Details..................................................................................................................8
2. INSTALLATION........................................................................................................................................................12
2.1 System Requirement........................................................................................................ 12
2.2 Hardware Installation.......................................................................................................12
2.3 Configuring the Network Properties............................................................................... 15
2.4 Configuring with Web Browser....................................................................................... 21
3. WEB CONFIGURATION MANAGEMENT..........................................................................................................23
3.1 Operation Mode................................................................................................................24
3.2 Internet Settings...............................................................................................................25
3.2.1 WAN........................................................................................................................................................25
¾
STATIC (FIXED IP)......................................................................................................................25
¾
DHCP (AUTO CONFIG)...............................................................................................................26
¾
PPPOE.............................................................................................................................................27
¾
L2TP................................................................................................................................................28
¾
PPTP................................................................................................................................................30
3.2.2 LAN.........................................................................................................................................................31
3.2.3 DHCP clients...........................................................................................................................................32
3.2.4 Advanced Routing...................................................................................................................................33

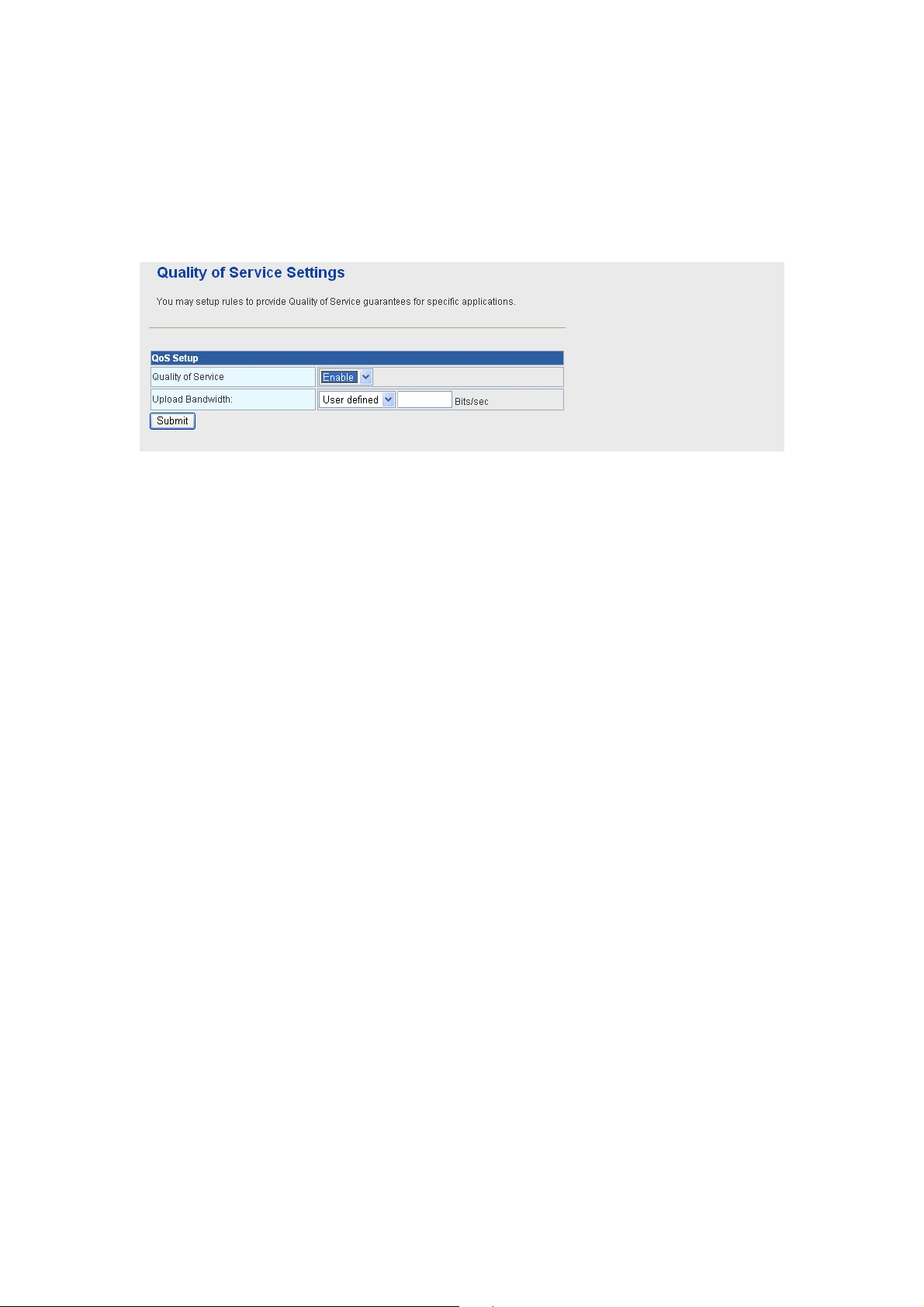

3.2.5 QoS..........................................................................................................................................................34
3.3 Wireless Setting (For FRT-401N / 401NS15 / 405N)....................................................... 35
3.3.1 Basic ........................................................................................................................................................35

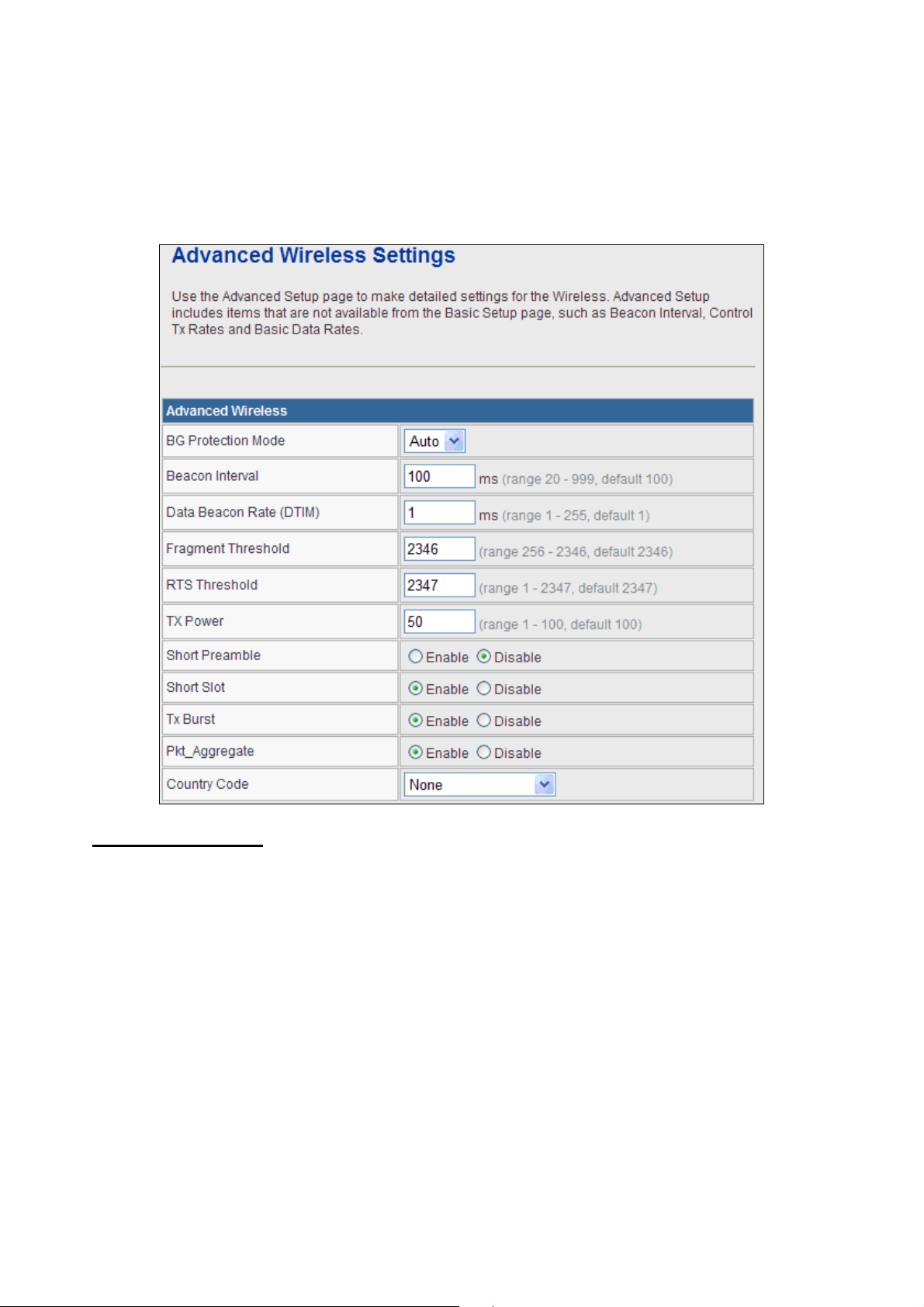

3.3.2 Advanced.................................................................................................................................................37
3.3.3 Security....................................................................................................................................................39
3.3.4 WDS ........................................................................................................................................................41
3.3.5 WPS.........................................................................................................................................................43

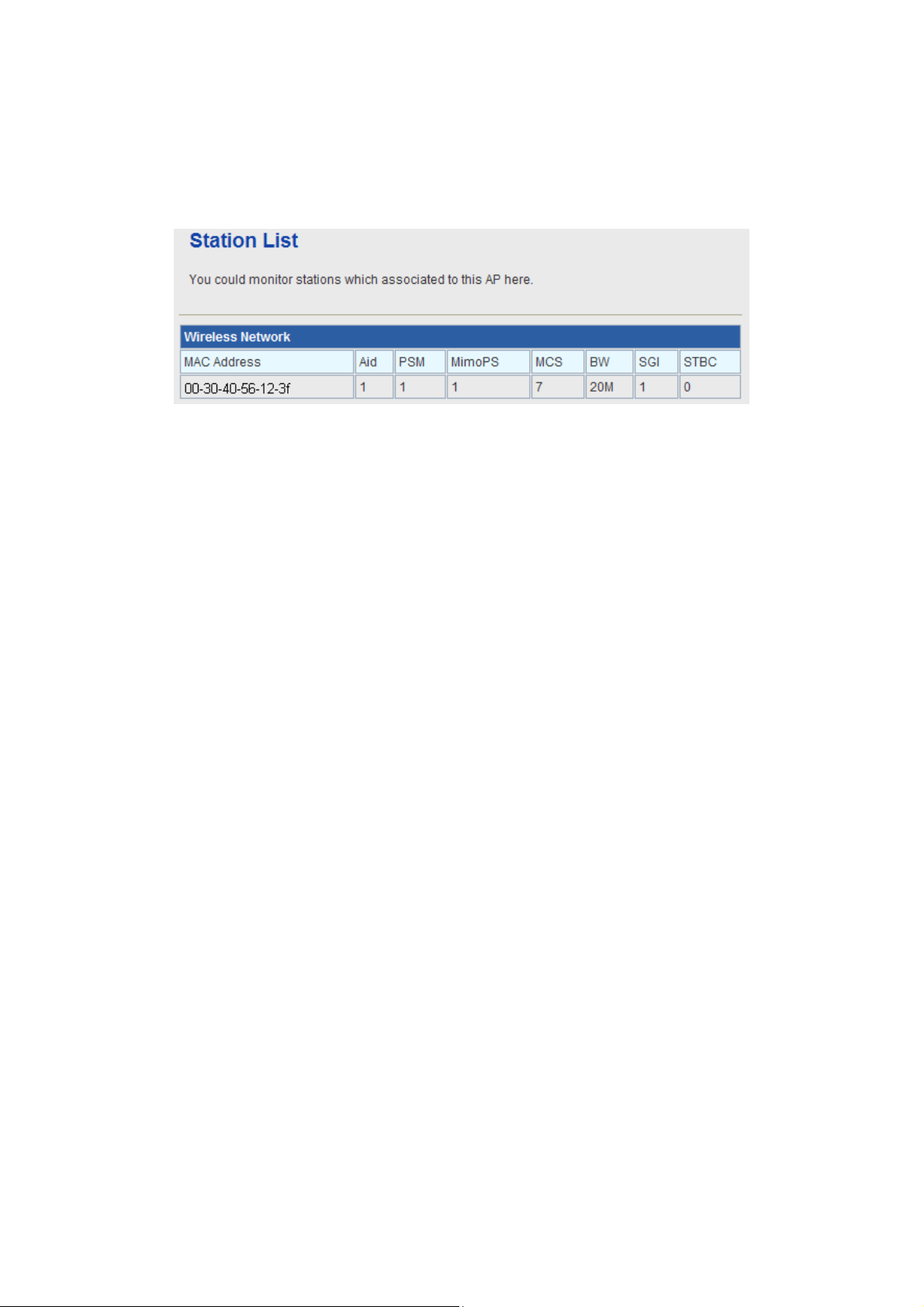

3.3.6 Station List...............................................................................................................................................44
3.4 Firewall..............................................................................................................................45
3.4.1 MAC/IP/Port Filtering.............................................................................................................................45
3.4.2 Port Forwarding (Virtual Server).............................................................................................................47
3.4.3 DMZ ........................................................................................................................................................48
4
3.4.4 System Security Settings..........................................................................................................................49
3.4.5 Content Filtering......................................................................................................................................50
3.5 Fiber / OAM Setting.......................................................................................................... 51

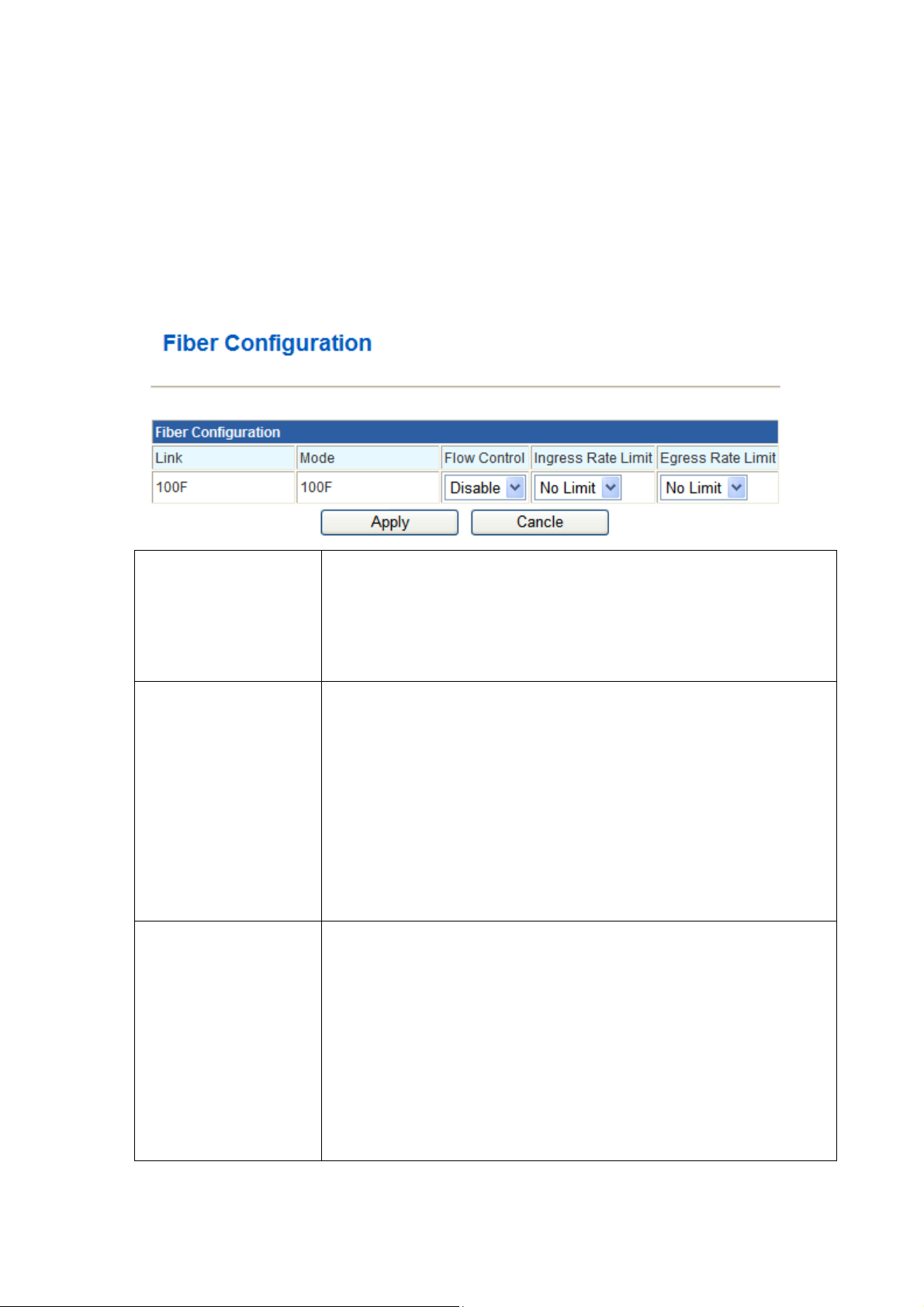

3.5.1 Fiber Configuration..................................................................................................................................51
3.5.2 Remote Configuration..............................................................................................................................52

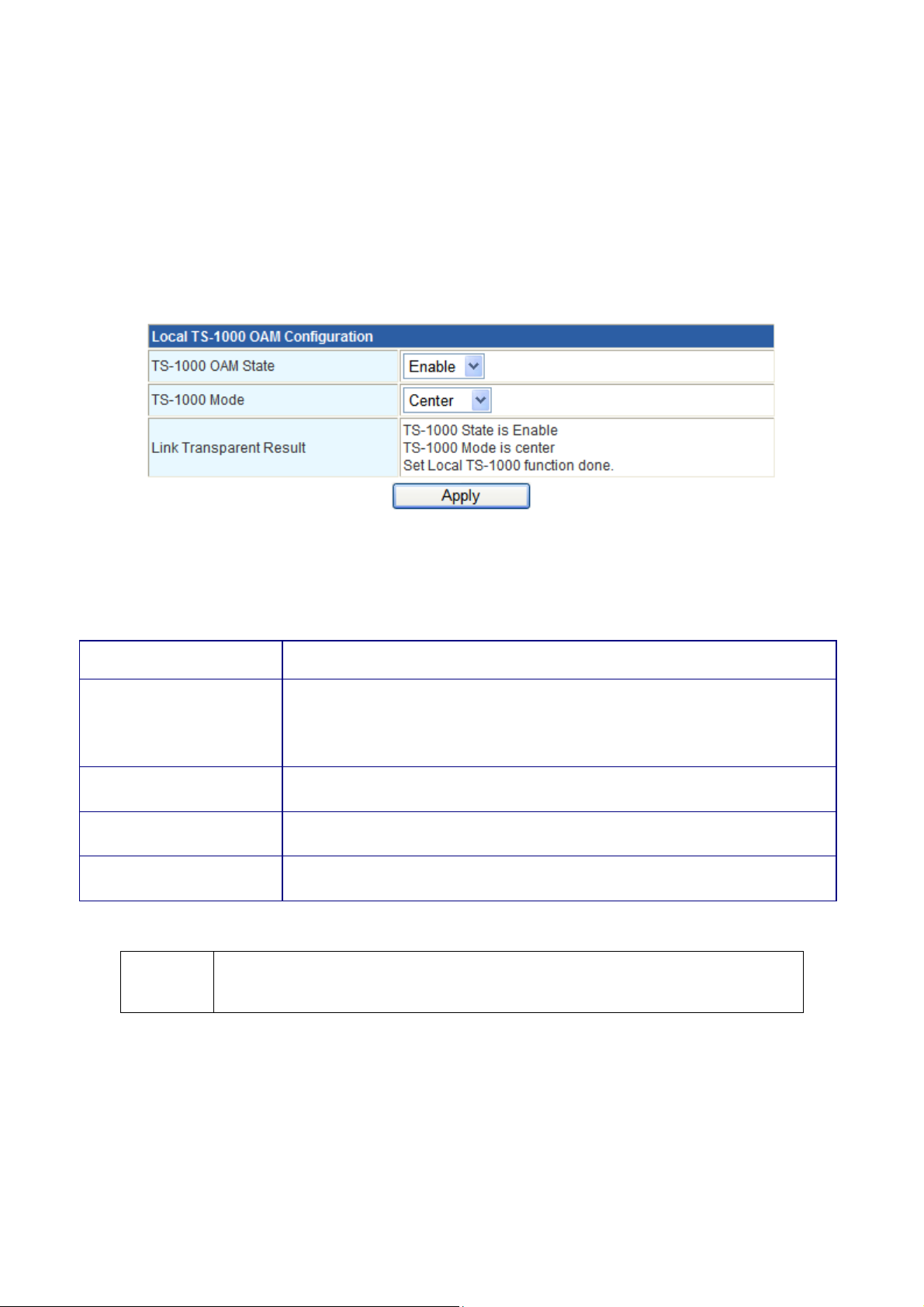

3.5.3 OAM Configuration.................................................................................................................................54

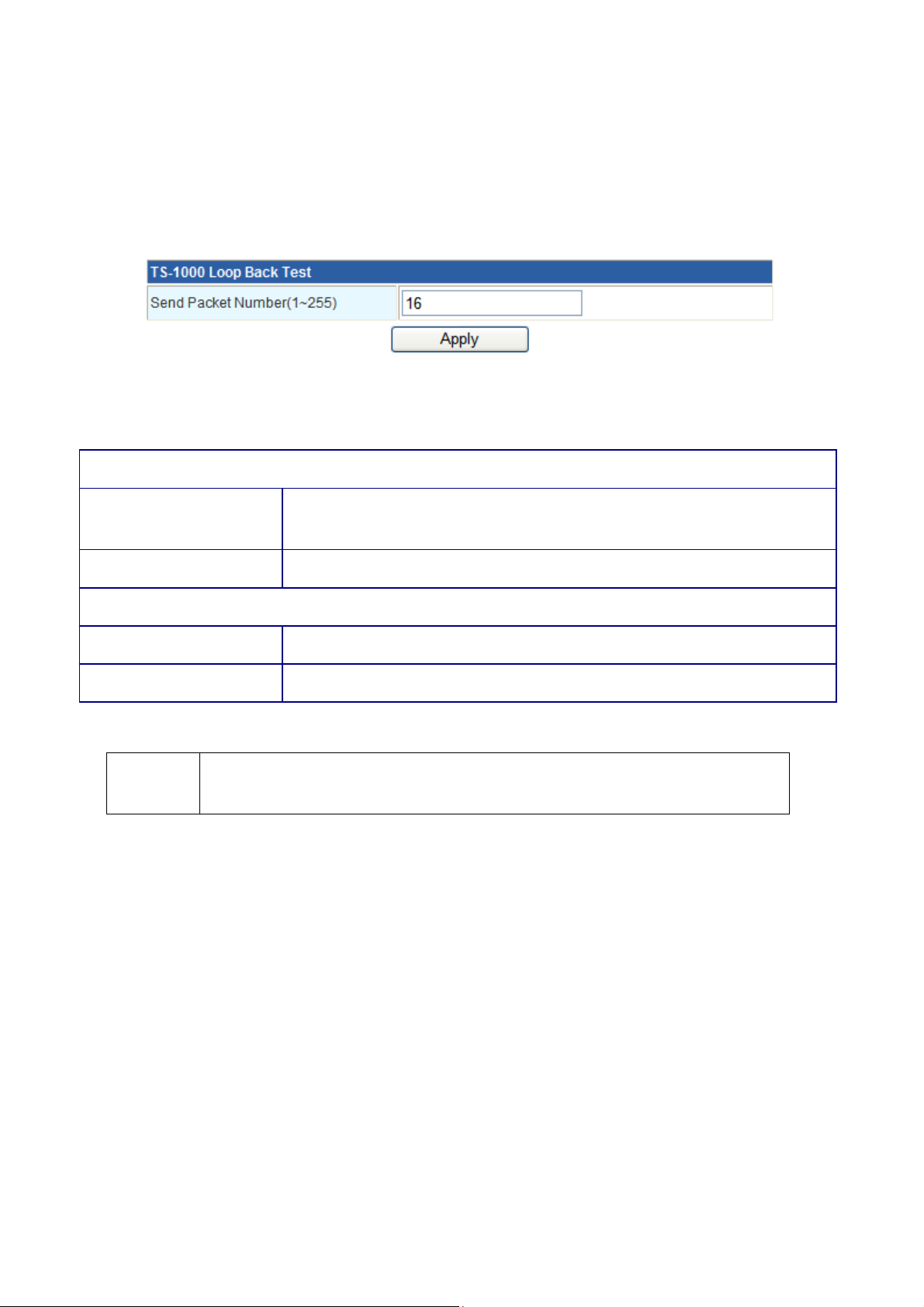

3.5.4 Loop back test..........................................................................................................................................56
3.6 Administration..................................................................................................................59
3.6.1 Management ............................................................................................................................................59
3.6.2 Upload Firmware.....................................................................................................................................60
3.6.3 Setting Management................................................................................................................................61

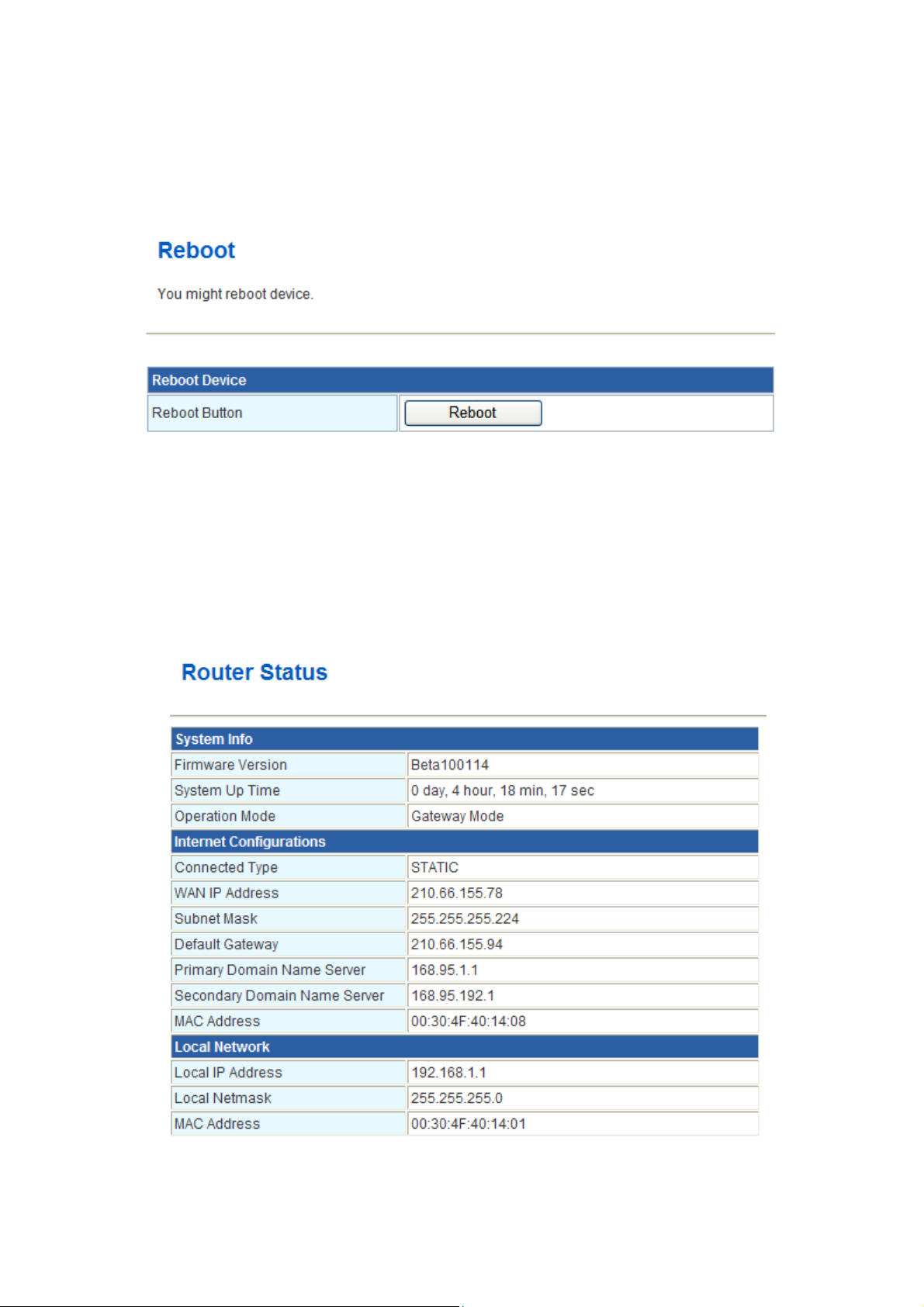

3.6.4 Reboot......................................................................................................................................................62
3.6.5 Status........................................................................................................................................................62
3.6.6 Statistics...................................................................................................................................................63
3.6.7 System Log..............................................................................................................................................64
APPENDIX A..................................................................................................................................................................65
A.1 Device‘s RJ-45 Pin Assignments ................................................................................... 65
A.2 RJ-45 cable pin assignment............................................................................................ 65
A.3 Fiber Optical Cable Connection Parameter................................................................... 66
A.4 Available Modules............................................................................................................ 66
APPENDIX B: SPECIFICATION................................................................................................................................67
APPENDIX C: GLOSSARY..........................................................................................................................................70
5
1. Introduction
With growing network services such as HDTV, IPTV, voice-over-IP (VoIP) and Multimedia
broadband applications, and the demand of bandwidth rises quickly. The current Broadband
environment has not already accorded with needing; the FTTH (fiber-to-the-home) would be the
most promising NGN (Next Generation Networking) application to fulfill the demand.
The PLANET Wired / Wireless Internet Fiber Router, FRT-40x and FRT-40xN series, provides office
and residential users the ideal solution for sharing a high-speed fiber Internet connection and
four-10/100Mbps Fast Ethernet backbone. The Fiber Router is a perfect FTTH Digital Home Router
which can provide very high performance access to Internet, both downstream and upstream up to
100Mbps through the fiber interface. The PLANET Internet Fiber Router supports several common
optical connectors for WAN connection, such as 100BASE-BX, 100BASE-LX, 100BASE-FX and
Small Form Factor Pluggable (SFP). The Fiber Router can be implemented easily for optical fiber
deployment.
With built-in IEEE 802.11b/g and 802.11n wireless network capability, the FRT-40xN series allows
any computer and wireless-enabled network device connect to it without additional cabling. New
802.11n wireless capability gives you the highest speed of wireless experience ever. With a
compatible wireless adapter installed in your PC, the files can be transferred at up to 300Mbps. The
radio coverage is also doubled to offer the high speed wireless connection even in a wide space of
your office or house.
To secure the wireless communication, the FRT-40xN supports most up-to-date encryption, WEP,
WPA-PSK and WPA2-PSK. In order to simplify the security settings, the FRT-40xN supports WPS
configuration with PBC/PIN type for users to easily connect to a secured wireless network.
The PLANET Fiber Router provides QoS features to make the network services smooth. Traffic
priority can be assigned by the router to guarantee some important and specific transmissions,
especially for real-time streaming multimedia applications such as the on-line gaming, VoIP, and
IPTV to keep the bandwidth usage smoothly. Furthermore, the Fiber Router not only provides basic
router functions such as DHCP server, Virtual Server, DMZ, and UPnP, but also provides full firewall
functions including Network Address Translation (NAT), IP / Port / MAC Filtering and Content
Filtering. It serves as an Internet firewall to protect your network from being accessed by
unauthorized users.
6
1.1 Feature
1. Fiber Interface support
2. Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX standard
3. Long distance connection based on optical fiber transceiver
4. Choice of fiber-connector from SC, MT-RJ / VF-45 and WDM, multi-mode / single-mode
fiber / 100Base SFP
5. Co-work with PLANET 100Base-FX Media Conversion and MFB-Series Transceiver
6. QoS support
7. 802.1Q VLAN support
8. Supports FTTH / IPTV applications
9. Built-in 4-port 10/100 Mbps Ethernet switch
10. Router / Bridge / WISP mode support (WISP mode is noly for wireless model)
11. SPI Firewall security for Anti-DoS Prevention
12. Supports IP / Port / MAC Filtering and Content Filtering
13. TS-1000 and 802.3ah OAM support
14. Supports SNMP v1/v2c
15. IEEE 802.11n wireless technology compliant with 802.11b/g standard (For wireless
model)
16. Capable of up to 300Mbps wireless data rate (For wireless model)
17. WPS / WMM support (For wireless model)
18. Supports 64/128-bit WEP, WPA–TKIP(PSK), WPA2-AES(PSK), 802.1x (For wireless
model)
1.2 Package Contents
Wired / Wireless Fiber Router Unit x 1
Power Adapter x 1
Quick Installation Guide x 1
User’s Manual CD x 1
Antenna x 2 (Foe Wireless Model)
7
1.3 Physical Details
FRT-401 / FRT-401S15 / FRT-405
Front Panel
FRT-401 / FRT-401S15
FRT-405
Front Panel LED definition
LED State Description
PWR
WAN
LAN1-4
ON When the router is powered on, and in ready state.
OFF When the router is powered off.
Flashing Data is being transmitted or received via the fiber connection.
ON The optical fiber connection connected successfully.
Flashing Data is being transmitted or received via the corresponding LAN port.
ON The port is up.
8
Front Panel
FRT-401 / FRT-401S15
FRT-405
Rear Panel Port and Button Definition
Connector Description
POWER Power connector with 12V DC 1 A
RESET Press more than 3 seconds for reset to factory default setting.
Router is successfully connected to a device through the corresponding port (1, 2, 3, or 4). If
LAN (1-4)
WAN One Fiber-optic Interface, SC or SFP connector-type
the LED light of LNK/ACT is flashing, the Router is actively sending or receiving data over that
port.
9
FRT-401N / FRT-401NS15 / FRT-405N
Front Panel
FRT-401N / FRT-401NS15
FRT-405N
Front Panel LED definition
LED State Description
ON When the router is powered on, and in ready state.
PWR
OFF When the router is powered off.
WPS
WLAN
Security
WAN
LAN1-4
ON
Flashing
OFF
ON
Flashing
OFF
ON Enable WLAN encryption
OFF Disable WLAN encryption
Flashing Data is being transmitted or received via the fiber connection.
ON The optical fiber connection connected successfully.
Flashing Data is being transmitted or received via the corresponding LAN port.
ON The port is up.
WPS client registration is successful.
WPS client registration window is currently open.
WPS is not available, or WPS is not enabled or initialized.
WLAN radio is on.
Data is being transmitted through WLAN.
WLAN radio is off.
10
Front Panel
FRT-401N / FRT-401NS15
FRT-405N
Rear Panel Port and Button Definition
Connector Description
POWER Power connector with 12V DC 1 A
RESET Press more than 3 seconds for reset to factory default setting.
Router is successfully connected to a device through the corresponding port (1, 2, 3, or 4). If
LAN (1-4)
WPS WPS on or off switch.
WAN One Fiber-optic Interface, SC or SFP connector-type
the LED light of LNK/ACT is flashing, the Router is actively sending or receiving data over that
port.
11
2. Installation
This chapter offers information about installing your router. If you are not familiar with the
hardware or software parameters presented here, please consult your service provider for
the values needed.
2.1 System Requirement
1. Personal computer (PC)
2. Pentium III 266 MHz processor or higher
3. 128 MB RAM minimum
4. 20 MB of free disk space minimum
5. RJ45 Ethernet Port
2.2 Hardware Installation
This section describes how to install your Internet Fiber Router and make connections to the
Fiber Network. Please read the following topics and perform the procedures in the order
being presented. The hardware installation of PLANET Fiber Router do not need software
configuration. To install your Fiber Router on a desktop or shelf, simply complete the
following steps.
12
Connect the Fiber-optic cable to WAN port. Check the WAN LED on the front panel is on
accordingly.
The Fiber types of PLANET Wired / Wireless Fiber Router as the following:
FRT-401 / FRT-401N: 100Base-FX (SC, MM)
FRT-401S15 / FRT-401NS15: 100Base-FX (SC, SM, 15Km)
FRT-405 / FRT-405N: 100Base-FX SFP (LC, MM/SM)
FRT-401 / FRT-401N / FRT-401S15 / FRT-401NS15
13
FRT-405 / FRT-405N
14
2.3 Configuring the Network Properties
Configuring PC in Windows Vista
1. Go to Start / Control Panel / Network and Internet / Network and Sharing Center.
Double-click on Network Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window, click Properties.
15
4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the configuration.
16
Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on
Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window, click Properties.
17
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the configuration.
18
Configuring PC in Windows 2000
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network
and Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status window click Properties.
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address
automatically radio buttons.
6. Click OK to finish the configuration.
19
Configuring PC in Windows 98/Me
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP Æ NE2000 Compatible, or the name of your Network Interface Card
(NIC) in your PC.
3. Select the Obtain an IP address automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and click OK to finish the configuration.
20
2.4 Configuring with Web Browser
It is advisable to change the administrator password to safeguard the security of your
network. To configure the router, open your browser, type “http: //192.168.1.1” into the
address bar and click “Go” to get to the login page.
Save this address in your Favorites for future reference.
At the User name and Password prompt, type your proper user name and password to
login. The default user name / password are “admin / admin”. You can change these later
if you wish. Click “OK”.
21
If the user name and password are correct, you will login Fiber Router successfully and see
the status page. Now you can configure the Fiber Router for your needs.
22
3. Web Configuration Management
Determine your connection settings
Before you configure the router, you need to know the connection information supplied by
your service provider.
Connecting the Fiber Router to your network
Unlike a simple hub or switch, the setup of the Fiber Router consists of more than simply
plugging everything together. Because the Router acts as a DHCP server, you will have to
set some values within the Router, and also configure your networked PCs to accept the IP
Addresses the Router chooses to assign them.
Generally there are several different operating modes for your applications. And you can
know which mode is necessary for your system from ISP. These modes are router, bridge,
and PPPoE+NAT.
Configuring with Web Browser
It is advisable to change the administrator password to safeguard the security of your
network. To configure the router, open your browser, type “http: //192.168.1.1” into the
address bar and click “Go” to get to the login page.
Save this address in your Favorites for future reference.
At the User name prompt, type “admin”. And the Password prompt, type “admin”. You
can change these later if you wish. Click “OK” to login the router and you can start to
configure it now.
23
Loading...
