10/100 Fast Ethernet + 56K Fax/Modem PC Card
PLANET ENW-3503F FCC ID: MQ4LF560TX
Made in Taiwan
The United States Federal Communication Commission (FCC) and the Canadian
Department of Communications have established certain rules governing the use of
modems and other electronic equipment.
FCC Part 68 Registration
This high speed 10/100 Fast Ethernet + 56K FAX/MODEM PC Card complies with
FCC Part 68 rules, and the use of this modem is subject to the following restrictions:
1. The FCC has established rules which permit this device to be directly connected to
the telephone network. Standardized jacks are used for these connections. This
equipment should not be used on party lines or coin phones.
2. If this device is malfunctioning, it may also be causing harm to the telephone
network; this device should be disconnected until the source of the problem can be
determined and until repair has been made. If this is not done, the telephone
company may temporarily disconnect service.
3. The telephone company may make changes in it's facilities, equipment, operation
and procedures; if such changes affect the compatibility or use of this device, the
telephone company is required to give adequate notice of the situation with the
FCC.
4. If the telephone company requests information on what equipment is connected to
their lines, inform them of:
a. The telephone number to which this unit is connected.
b. The Ringer Equivalence Number (REN).
c. The USOC jack required.
d. The FCC Registration number.
2
PLANET ENW-3503F
Items (b) and (d) are indicated on the label. The Ringer Equivalence Number (REN)
is used to determine how many devices can be connected to your telephone line. In
most areas, the sum of the REN's of all the devices on any one line should not exceed
5.0. If too many devices are attached, they may not ring properly.
FCC Part 15 Registration
This device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interface, and
2) This device must accept any interface received, including interface that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
(1) Reorient or relocate the receiving antenna.
(a) Increase the distance between the equipment and receiver
(b) Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
(2) Consult an experienced radio/TV technician for help.
CTR 21 pan-European Certification
This equipment has been approved in accordance with Council Decision 98/482/EC
for pan-European single terminal connection to the public switched telephone
network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an unconditional
assurance of successful operation on every PSTN network termination point. In the
event of problems, you should contact your equipment supplier in the first instance.
3
This device is designed to work with the notified networks in all EC member states.
Nevertheless, some of the network services in invidual countries might not be
supported, but they will not affect the normal data and fax applications. For example,
the metering charge service in Germany. Besides you may encounter difficulty of
using PULSE dialing function in some of the countries, such as Nordic countries.
This kind of network compatibility is dependent on the physical and software settings
of this device. If the users are desired to use this device on those networks, they
should contact the vendor or supplier first.
Trademarks
Copyright PLANET Technology Corp. 1999.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. The
information in this manual is subject to change without notice. All other
trademarks belong to their respective owners.
Revision
This user's manual is for PLANET PC Card family,
model -- ENW-3503F
10/100 Fast Ethernet + 56K Fax Modem multifunction card
Rev: 1.00 (January, 1999)
Part No: EM3503F
4
PLANET ENW-3503F
TABLE OF CONTENTS
GENERAL DESCRIPTION................................................................1
ABOUT THIS MANUAL...................................................................1
ABOUT THIS PRODUCT .................................................................1
This manual will explain how to install and use your ENW-3503F,
the multifunction 10/100 Fast Ethernet + 56K Fax/Modem PC Card
ABOUT THIS PRODUCT
ENW-3503, the 10/100 Fast Ethernet + 56K Fax/Modem PC Card
is a multifunction communication device that lets you perform
multiple communication tasks at the same time:
(1) transmit and receive data up to 56,000 bps
send and receive FAXes from computers or FAX machines
(2) connect to an 10/100 Fast Ethernet LAN
And it uses only one PCMCIA socket while it can provide the
functions listed above.
This PC Card is a credit-card-size Type II PCMCIA adapter that
complies with the PCMCIA 2.1 and JEIDA 4.1 standards and works
with computers that incorporate a compatible interface.
It is Bell, ITU-T (formerly CCITT) and Hayes AT commands
compatible, allowing it to be used worldwide with today's popular
communication software programs. You will be able to send and
receive faxes with any Group 3 fax machine. Using standard phone
lines and 10/100 Fast Ethernet, the data communication functions of
the 10/100 Fast Ethernet + 56K Fax/Modem PC Card will enable
you to successfully access to the servers on 10/100 Fast Ethernet
LAN and hook up to the Internet, transmit E-Mail, send and receive
information and communicate with other PCs, Bulletin Board
LAN + Fax Modem User's Manual
1
Services (BBS) or on-line computer networks such as CompuServe
and America On line.
Specifications
PC Card Interface
PCMCIA Type II.
Dimension
3.37” X 2.128” X 0.197” or
85.6 mm X 54 mm X 5 mm
Weight
60 g
Power
+5V ±5%
Cable and Connector
Two 15-pin detachable connector to PC Card, one with a RJ-11 6pin jack for 56K Fax/Modem and one with a RJ-45 8-pin jack for
10/100 Fast Ethernet LAN connections.
♦ Compatible with most notebook computers andPCMCIA Card and
Socket Service drivers.
♦ High degree of reliability letting you out of trouble.
♦ Easy to install and play.
♦ Support most of the popular Network Operating Systems.
♦ Include popular 56K Fax/Modem communication programs.
♦ Hot swappable.
♦ Feature concurrent use of 10/100 Fast Ethernet LAN and 56K
Fax/Modem.
LAN + Fax Modem User's Manual
3
SYSTEM REQUIREMENTS
• An IBM compatible PC or notebook computer with 386SX or faster
processor
• At least one type II PCMCIA socket
• PCMCIA release 2.1 compliant Card Services and Socket Services
• Drivers and utilities provided with this product
• RJ11 jack for connecting to a phone plug
• RJ45 jack for 10/100Tx connectivity to your network resources
• Driver software loaded on your PC
• Data and/or fax communications software.
CONTENTS INCLUDED IN THE PACKAGE
• ENW-3503F, Multifunction 10/100 Fast Ethernet + 56K
Fax/Modem PC Card
• Two 15-pins PCMCIA cable with RJ-11 and RJ-45 jacks
• A 3-1/2” driver diskette
• User's Manual
• Windows-based 56K Fax/Modem application program
4
PLANET ENW-3503F
INSTALLATION
This chapter describes how to install your 10/100 Fast Ethernet +
56K Fax/Modem multifunction PC Card. Installation procedures
also cover many popular Network Operating Systems.
HARDWARE INSTALLATION
1. Hold the card label up and insert the card into the computer's
PCMCIA slot with the 68 pin connector facing the computer.
2. Plug the two 15-pins PC Card connector into the two 15-pins
socket on the PC Card. Now the hardware installation is
completed. The PC Card is powered d…irectly by the PC.
3. Connect the RJ-45 (8-pin) plug to the LAN and the RJ-11 (6-pin)
plug to the telephone wall outlet.
LAN + Fax Modem User's Manual
5
6
PLANET ENW-3503F
INSTALLING THE SOFTWARE
For Non-Windows 95/98 & Non-Windows NT System
Plug the driver diskette into the floppy drive and set the current
drive to the floppy drive (A:\). Then run INSTALL to install the
dirver.
Novell Netware Installation
Follow the steps bellow to complete the Novell Netware
installations.
1.Run installation program INSTALL.EXE in the driver disk (for
example, A:\INSTALL).
2.Select Netware 3.x and 4.x Workstation in the installation
program dialog box.
3.Check the card settings. If current settings are correct, select Start
Installation and go to step 5. Otherwise, select Modify
Parameters to change settings.
LAN + Fax Modem User's Manual
7
4.Select the appropriate values then press Enter. When you are
finished, press OK to exit.
5.Installation program starts installing drivers and
modifying AUTOEXEC.BAT and NET.CFG. Select Yes then
press Enter to modify the files.
6. Now, the installation is completed.
7. Restart your computer to make Netware connections.
To install the ODI driver manually, follow the instructions below:
1.Copy the file
\NETWARE\LMODI.COM \NETWARE\NET.CFG
and the file
8
PLANET ENW-3503F
\ENABLER\LMVXD.386
from the driver disk to your local hard disk.
2.Using text editor to edit the NET.CFG for setting the frame type.
The frame type default is set to 802.3 for Netware 3.11 server and
802.2 for Netware 3.12 and 4.x servers. The frame type set in
NET.CFG must match that set in Netware servers.
3.Using following format to create a startup batch file
LSL;Link Support Layer Module ;provided by
Novell
LMODI ;Hardware Specific Module
IPXODI ;IPX Protocol Stack Module ;provided by
Novell
NETx;Shell Support Module provided by ;Novell
LOGIN
MS LAN Manager Installation
1.Cast a look at the README.TXT in the \NDIS2 directory in 10/100
Fast Ethernet + 56K Fax/Modem multifunction PC Card driver disk.
Before installing the drivers, please ensure that the Microsoft LAN
Manager has been installed in the target path. The installation
program will check and modify the PROTOCOL.INI file for LAN
Manager.
2.Run INSTALL.EXE in the root of driver diskette (A:\INSTALL).
3.Select Microsoft LAN Manager from the menu screen.
LAN + Fax Modem User's Manual
9
4.Check the card settings. If current settings are correct, select Start
Installation and go to step 5. Otherwise, select Modify
Parameters to change settings.
5.Select the appropriate values then press Enter. When you are
finished, press OK to exit.
6.Installation program starts installing drivers and
modifying CONFIG.SYS and PROTOCOL.INI
Select Yes then press Enter to modify the files.
7.Now, the installation is completed.
8.Reboot the computer to load driver and start LAN Manager.
1.Run INSTALL.EXE file in the driver diskette (A:\INSTALL).
2.Select Packet Driver from the menu screen.
3.Check the card settings. If current settings are correct, select Start
Installation and go to step 5. Otherwise, select Modify
Parameters to change settings.
4.Select the appropriate values then press Enter. When you are
finished, press OK to exit.
5.Installation program starts installing drivers and
modifying AUTOEXEC.BAT. Select Yes then
press Enter to modify the files.
6.Now, the installation is completed.
7.Reboot the computer to load driver.
LAN + Fax Modem User's Manual
11
Windows for Workgroups 3.11 Installation
1. Run INSTALL.EXE in root directory of 10/100 Fast Ethernet +
56K Fax/Modem PC Card driver disk.
2. Select Windows for Workgroup in Network Operating System
screen.
3. If current settings are accepted, select Start Installation and go to
step 13. Otherwise, select Modify Parameters to make
modifications.
4. Move cursor to the setting you want to make a change for then
press Enter to select a fit value. When the configuration is
accepted, press Enter on the OK field to exit the screen and go
back to step 3.
5. Select NDIS Server (LAN Manager,...) as the network server
that you will attach to then press Enter.
6. Installation program starts installing drivers and modifying
AUTOEXEC.BAT. Select Yes then press Enter to modify the
files.
7. Run Windows for Workgroups and click Network Setup icon in
Network group.
8. In Network Settings dialog box, click Networks... button to select
the network operating system.
9. In Networks dialog box, check the radio button before Install
Microsoft Windows Network and No Additional Network.
Press OK to go back the Network Settings screen.
10. Click Drivers... button to select network driver.
12
PLANET ENW-3503F
11. From Network Drivers dialog box, press Add Adapter... button
to enter Add Network Adapter dialog box. Select Unlisted orUpdated NetworkAdapter and press OK.
12. Windows will prompt a Install Driver dialog box; put the driver
diskette into floppy drive then press OK.
13. Select Enhanced mode NDIS3 for.... then press OK.
14. Follow Windows instructions to complete the installation and exit
Windows
15. Reboot the computer to run with WFW 3.11.
Windows NT 3.51 & NT 4.0 Installation
Getting Start for Windows NT3.51
1. Run Windows NT 3.51
2. Login with a full access level , i.e. ADMINISTRATOR
3. Remove all existing network support -- open Program Manager
à Main group à Control Panel à Network -- remove all
existing network components Note: remove all adapters first, then
servers, then workstations, etc.
Add PCMCIA to Your Laptop
1. Open Program Manager→Main group →Control Panel
→Devices
2. Select PCMCIA
3. Press STARTUP
LAN + Fax Modem User's Manual
13
4. Select BOOT, then press OK
5. When all PCMCIA adapters are added, press "Close" and restart
Windows NT
Check Event Viewer when system reboots. Ask your laptop dealer
for help if any problems occur during the pre-installation.
10/100 Fast Ethernet + 56K Fax/Modem PC Card Installation
in NT 3.51
1. Insert the 10/100 Fast Ethernet + 56K Fax/Modem multifunction
PC Card into one of the PCMCIA slots
2. Run Windows NT
3. Login with a full access level i.e. ADMINISTRATOR
4. Open Program Manager→Main group →Control Panel→
Network
5. Press YES to install network components
6. Enter the correct path for NT installation media (CD-ROM). For
example, D:\i386.
7. Press "Do not detect for the network adapter"
8. Open the Network Adapter Card selection box
9. Select <OTHER> REQUIRES DISK FROM
MANUFACTURER
10. Click CONTINUE button
11. Insert the driver disk into floppy disk drive, then enter the
correct path (A:\).
14
PLANET ENW-3503F
12. Take a choice for the 10/100 Fast Ethernet + 56K Fax/Modem PC
Card then press OK.
13. A dialog box will be poped up for the driver settings change.
14. Give appropriate system resources to the 10/100 Fast Ethernet +
56K Fax/Modem PC Card, the settings must be unique for this
device. Resources Recommendation
I/O BaseI/O:300. Possible alternative: 220, 320, 340
Interrupt
(IRQ)
IRQ:5. If your laptop is equipped with
multimedia devices, a higher interrupt (IRQ:11)
may be needed.
Base MemoryD000. Possible alternative: D800
COM PortCOM2 to COM4. Select one of the COM port
that is not in use by other communication
devices.
15. When all settings are completed, press OK
Windows NT will load network and grant configurations for NWLink -TCP/IP -Netbeui Typically the configurations are
unique for each network. Ask your network administrator for
help if you want to change them.
16. Once all network softwares are well loaded, press OK. The
configuration and bindings for the PC Card might be confirmed.
Answer the questions accordingly.
17. Connect to your network using the provided
10/100 Fast Ethernet RJ-45 jack.
18. Reboot the system.
LAN + Fax Modem User's Manual
15
Getting Start for Windows NT4.0
1. Remove all existing PC Cards from the system.
2. Run Windows NT 4.0
3. Login with a full access level i.e. ADMINISTRATOR
4. Remove all existing network support from MY COMPUTER→
CONTROL PANEL→NETWORK → ADAPTERS
5. Press CLOSE after all network components are removed.
6. Remove all serial port devices in MY COMPUTER→
CONTROL PANEL→PORTS
7. Press CLOSE after all serial port devices are removed.
10/100 Fast Ethernet + 56K Fax/Modem PC Card Installation
in NT 4.0
1. Insert 10/100 Fast Ethernet + 56K Fax/Modem PC Card into one of
the PCMCIA Slots
2. Start Windows NT 4.0
Login with a full access level ADMINISTRATOR
4. Open MY COMPUTER →CONTROL PANEL
→NETWORK.
If Network has not been installed,
♦select YES to start Network installation,
16
PLANET ENW-3503F
♦press Next and press SELECT FROM LIST button, then press
HAVE DISK button,
♦ insert the 10/100 Fast Ethernet + 56K Fax/Modem driver disk into
drive floppy disk drive, then enter the correct path.
♦ select the only one choice for the 10/100 Fast Ethernet + 56K
Fax/Modem PC Card, then press OK and NEXT
Windows NT 4.0 will grant configurations for -- TCP/IP -NWLink IPX/SPX -- NetBEUI ... These configurations are unique
for each network. If you want to change them, ask your network
administrator for help.
♦ Press Next twice to use default NETWORK SERVICES settings
Enter the correct path for NT 4.0 system source files.
♦ A dialog box will pop up. Give appropriate system resources to the
10/100 Fast Ethernet + 56K Fax/Modem PC Card; the settings
must be unique for this device. Refer to esources
Recommendation” for NT 3.51 details
♦Press NEXT twice. Enter COMPUTER NAME then press
NEXT
♦ Press FINISH
If Network has been installed
♦ Select ADAPTERS
♦ Press ADD to add network adapters
♦ Press HAVE DISK button
♦ Insert the 10/100 Fast Ethernet + 56K Fax/Modem PC Card driver
disk into floppy disk drive
LAN + Fax Modem User's Manual
17
♦ Enter the correct path for Windows NT 4.0 drivers then press OK.
♦ A dialog box will pop up. Give appropriate system resources to the
10/100 Fast Ethernet + 56K Fax/Modem PC Card; the settings
must be unique for this device. Refer to esources
Recommendation” for NT 3.51 details
♦ Press OK when all setting are completed.
♦ Press CLOSE to complete NETWORK setting
♦ Reboot Windows NT.
Modem configuration for NT 4.0
1. Open MY COMPUTER à CONTROL PANEL à
MODEMS
2. Using default settings and press NEXT
3. System should have detected your LANmodem PC Card, and
enter the Modem Manufactures & Models list screen.
4. Press FINISH and then CLOSE to complete modem setting.
5. Reboot the system.
6. The installations for both LAN and Modem are completed.
Windows 95 Installation
1.Assume that the PCMCIA card reader and drivers have been
loaded and well functioning. The System Icon in the Control Panel
can report on its functionality. If not, check your computer dealer
for technical support.
18
PLANET ENW-3503F
2.Insert 10/100 Fast Ethernet + 56K Fax/Modem multifunction PC
Card into PCMCIA slot. Windows 95 will prompt New Hardware
Found dialog box. In New Hardware Found dialog box, select
Driver from disk provided by hardware manufacturer.
3.Enter the correct path, i.e. "A:\", then insert 10/100 Fast Ethernet
+ 56K Fax/Modem PC Card driver disk. The driver will be installed
automatically, and system may ask for the Windows 95 installation
CD/disks to update the existing files or drivers. After the update,
system will reboot automatically.
4. For the first time installation, click Network icon in ControlPanel to correctly add Protocols, Client and Service according to
your application requirements.
5. Reboot the machine and the card will fully function.
LAN + Fax Modem User's Manual
19
Working with Windows 98
1. Turn on your computer.
2. Insert the Fast Ethernet/Fax/Modem combo PC Card into the free
PCMCIA slot, and make sure it is firmly seated.
3. Windows 98 will prompt New Hardware Found then Add NewHardware Wizard dialog box. Click Next.
4. Select “Search for the best driver for your device(Recommended)”, then click Next.
5. Insert Fast Ethernet/Fax/Modem combo PC Card driver disk, select “Floppy disk
drives”, then click Next.
20
PLANET ENW-3503F
6. Press Finish to complete the installation. Reboot the machine and
now the Fast Ethernet/fax/modem combo PC card is ready to go.
Artisoft Lantastic 6.0 Installation
1.Install LANTASTIC 6.0 first.
2.Run INSTALL.EXE in the 10/100 Fast Ethernet + 56K Fax/Modem
multifunction PC Card driver disk root directory.
3.Select LANTASTIC 6.0 in Network Operating System screen then
enter Driver Install screen.
4.If current settings are correct, select Start Installation and go to step
6. Otherwise, select Modify Parameters to make changes.
5.Move cursor to each field you want to make modification and press
Enter to set correct value. Then press Enter on the OK.
LAN + Fax Modem User's Manual
21
6.Installation program starts copying drivers and modifying
CONFIG.SYS, PROTOCOL.INI, and STARTNET.BAT.
7.Reboot the computer to have the driver take effect.
22
PLANET ENW-3503F
MODEM BASICS
This chapter covers the basic commands and techniques involved in
modem operation. In many cases, this is the only information you
will need in order to get your 10/100 Fast Ethernet + 56K
Fax/Modem PC Card up and running with communication software,
and to start making connections with your PC Card.
Understanding AT Commands
ENW-3503F, the10/100 Fast Ethernet + 56K Fax/Modem PC Card
communicates asynchronously with computers using AT commands.
AT commands are used to configure and control the PC Card.
Commands are usually sent to the modem in way of communication
software, but can also be entered manually with the computer
keyboard.
Command statements must be written in a specific form in order for
the 10/100 Fast Ethernet + 56K Fax/Modem PC Card to recognize
them. A command statement always begins with the letters AT or
at. It is then followed by one or more commands and the <Enter>
key.
AT commands can only be issued when the 10/100 Fast Ethernet +
56K Fax/Modem PC Card is in "Command mode" or "Off-line.”
Once the PC Card has established a connection with another
modem, it is said to be "On-line" or in "Sata mode.” In this mode,
the characters sent to the Ethenet + 56K Fax/Modem PC Card by
LAN + Fax Modem User's Manual
23
your computer are transmitted to the remote modem rather than
being interpreted by the PC Card as commands.
Using the Windows 95/98 Hyper Terminal Program
To issue an AT command statement, you first need to run a
communication program such as the Microsoft Windows yper
Terminal” program. This program provides a simple method to
manually enter AT commands so you can do such things as
ustomize” the settings of your 10/100 Fast Ethernet + 56K
Fax/Modem PC Card, or store phone numbers you commonly
connect to.
Once the 10/100 Fast Ethernet + 56K Fax/Modem PC Card is
connected to your computer serial port and telephone line, open the
Windows 95/98 ccessories” program group, and open the Hyper
Terminal Program. The program will prompt you for a name and
icon to use for your new connection. Type the name TestConnection then press <Enter>.
Next, you will be prompted for country information, area code,
phone number, and the device used to make the connection. For this
test purpose, do not enter a phone number; simply choose the COM
port your 10/100 Fast Ethernet + 56K Fax/Modem is connected to
from the onnect Using” list. Click "OK" when finished.
The next window sets the COM port settings. The settings used for
the Comet should be as follows:
Bits per second:115200
Data bits:8
Parity:None
Stop bits:1
24
PLANET ENW-3503F
Flow Control:Hardware
Click "OK" when finished. After you have done this, save your new
connection by selecting "Save" from the "File" menu then click "OK"
A new connection icon will be added to your Hyper Terminal folder.
You are now ready to start entering AT commands.
In the terminal window, type:
AT<Enter>
LANmodem responds
OK
This confirms that the modem and your computer are
communicating correctly.
To test the telephone line connection, issue the manual answer
command. Type: ATA<Enter>
The LANmodem will pick up the phone line, and try to
communicate. Normally, this command is only used to answer an
incoming call made from another modem. Thus the high pitched
noise you will hear from the speaker. To abort the operation, press
any key, or select isconnect” from the all” menu.
LAN + Fax Modem User's Manual
25
Dialing and Answering Techniques
Depending on what communications software you use to make
modem connections, you may not have much control of how the
modem dials the telephone number. This section shows some useful
examples of the AT commands used for dialing and answering
operations. The command characters specific to each function are
shown in bold type.
Dialing using the ATD Command
Touch Tone Dialing:ATDT 555 1212
Pulse Dialing:ATDP 555 1212
Tone and Pulse Dialing:ATDP 555 1212 WT 24
Pausing During Dialing:ATDT 9,,555 1212
Auto-Answer and Hook Controls
Enabling Auto-Answer: ATS0=n
Note: In this example, n is a number from 1 to 255 that corresponds
to the number of rings after which your modem answers an
incoming call.
Disabling Auto-Answer: ATS0=0
Manually Answering a Call:ATA
Take modem off-hook:ATH1
Hang up modem (on-hook):ATH0
26
PLANET ENW-3503F
Manually Disconnecting a Call: +++ATH
LAN + Fax Modem User's Manual
27
DRIVERS INFORMATION
Notes for NDIS Driver
The following are examples of CONFIG.SYS file and
AUTOEXEC.BAT for loading System Soft, Card Services and
NDIS2 driver:
set path= c:\lanman.dos\netprog;%path%
net start workstation
load netbeui
/mir=n
Examples of partial AUTOEXEC.BAT file:
The 10/100 Fast Ethernet function configuration information for the
DOS NDIS driver is contained in the PROTOCOL.INI file. To
make allowances for passing the requested modem COM port
(1,2,3,4) to the driver, there has been another field added. The
28
PLANET ENW-3503F
section of the PROTOCOL.INI file that contains configuration
information for this card must begin with [LMNDIS_NIF]. The
valid entries in the file are listed below:
[LMNDIS_NIF]
DRIVERNAME - LMNDIS$
This line must always be presend
IOADDRESS - value
where value is one of the following address:
0x220, 0x300, 0x320, 0x340.
The leading 0x for the hex notation is required.
To have Card Services select the address base from it's pool of
available address then use a value of 0.
INTERRUPT - value
where values is one of the following interrupts:
3, 4, 5, 7, 9, 10, 11, 12, 15.
To have Card Services select an available interrupt resource then place a
value of 0 at this location.
Notes for Packet Driver
The following are examples of CONFIG.SYS file for loading
System Soft Card Services and packet driver:
After installation of the multi-function PCMCIA card drivers, the
system will automatically update both CONFIG.SYS and
AUTOEXEC.BAT for you so that the driver will be loaded upon
system start up. When modifying the two files, the system will make
copies named CONFIG.ABO and AUTOEXEC.ABO in the
system's directory. If the driver of PC Card is not successfully
loaded, replace the two *.ABO file for related file and try to start
the system again.
The following are examples of CONFIG.SYS and
AUTOEXEC.BAT for loading System Soft, Card Services and
drivers for Windows for Workgroups:
This chapter provides a number of examples of Questions (Q:),
Causes (C:), and Answers (A:). If your modem is not functioning
properly, look up the problem here, or ask your dealer for technical
assistance.
Q:The modem does not respond to AT commands.
C:The COMx: port that the modem is set to may be used by another
card in the computer already.
A:Change the COMx: port of the PC CARD 56K FAX/MODEM
modem to a different unused port. It might be best to set it to
COM3: or COM4:. Even if you are not using a serial port which is
set to the same COMx: port as the modem, it can still interfere with
the modem. Be sure to update your software COMx: port setting as
well.
C:The Interrupt that the modem is using may be the same Interrupt
that another card is using.
A:Change the IRQ settings to a different, unused, IRQ. Even if you
are not using a serial port which is set to the same IRQ as the
modem, it can still interfere with the modem.
Q:The modem does not execute the command line.
C:Make sure you are typing 'AT' at the beginning of command line.
C:Make sure the modem is not in Data Mode. type +++ if necessary.
LAN + Fax Modem User's Manual
29
C:Make sure your software is set to the same COMx: port as the
modem is.
Q:The modem does not give a response after an AT command was
executed.
C:The echo and/or responses may be turned off by the ATE0Q1
commands. Use AT&V to check that.
A:Use ATE1Q0 then Enter to change them back.
C:Make sure the modem is in Command Mode not in Data Mode
when you type the AT command.
Q:The modem gives an 'ERROR' response after an AT command
was executed.
C:Make sure you did not type an invalid command.
C:Make sure your command line is 40 characters or less in length.
Q:The modem goes off-hook and disables the telephone line.
C:The modem may be set to auto-answer the phone when it rings.
A:Disable auto-answer by typing ATS0=0 then Enter at the
command line.
Q:The modem does not auto-answer the phone.
30
PLANET ENW-3503F
C:If necessary, make sure the software is configured to auto-answer
the phone.
A:To set auto-answer mode on from the AT commands, type
ATS0=n then press Enter. The n stands for which number of rings
the modem will answer on.
Ex: ATS0=3 takes the modem answer on the third ring.
Q:The software does not control the modem properly or can not
detect the modem.
A:Make sure the software has been set up correctly. Check the
initialization and dial strings.
C:Some TSRs (programs that stay in memory after they are loaded)
may conflict with the communications software.
A:Try starting your computer without loading any TSRs.
Q:The characters on the screen are doubled.
C:Both the modem and the software have the echo feature turned on.
A:Since only one needs an echo, turn the software echo feature off.
C:The remote modem is echoing your typed characters.
A:Type ATE1 then Enter at the command line. Then turn off the
software echo feature.
Q:No text appears on the screen when in data mode.
C:The remote modem is not echoing your typed characters.
LAN + Fax Modem User's Manual
31
A:Type ATE0 then press Enter at the command line. Then turn the
software echo feature on.
C:Your software may not be set to use Full Duplex or the remote
modem may not be set to use Full Duplex either.
C:The remote modem may be waiting for you to type a command
before it will reply with text.
Q:No text appears on the screen when in command mode.
A:If you can't see the characters you are typing, then type ATE1 then
press Enter.
Q:The modem does not dial a phone number after you execute the
AT dial command.
C:If you are using touch tone dialing on a phone line that requires
pulses, then it may not work. Use ATDT in place of ATDP.
Q:When your communications software tells the modem to dial, it
does not.
C:Make sure the software dialing prefix is ATDT.
C:Make sure the software and modem are set to the same COMx:
port.
C:The modem may not have hung up the phone line since the last
call.
A:Change to command mode and type ATH then press Enter.
32
PLANET ENW-3503F
Q:The modem can connect to some modems, but not others.
C:The remote modem may not support data compression or error
correction, which might cause it to take too long to negotiate a link.
A:You might try changing the way the modem negotiates by using the
AT&Qn, ATNn, and ATS37=n commands. It might be best to start
with AT&Q0N1.
Q:When dialing another modem, you receive a 'CONNECT'
response, but nothing else.
C:The remote modem may be waiting for you to type a command. Or try
to press Enter for logging on to the remote site.
Q:The modem speaker does not make any sound when you're
connecting to another modem.
C:The software may have the speaker disabled.
A:Change the setting in your software or use the ATMn command to
turn the speaker on.
Q:The modem disconnects (looses the connection) in the middle of
use.
C:The remote modem may have locked up.
C:The telephone switch may have disconnected your call.
C:Your software may have turned off the DTR signal.
LAN + Fax Modem User's Manual
33
Q:The modem does not connect with another modem.
C:There may be a problem with the remote modem if you do not hear
the high pitched tone from the remote modem.
Q:Occasionally, the modem gives a burst of errors.
C:The telephone line may be noisy or bad.
A:Hang up the call and try to connect again for getting a better
telephone line.
C:If there are other telephones on the same line that your modem is
using, someone may have picked up a telephone on that extension.
C:Your telephone line may have the call waiting feature.
A:Try adding '*70,' to your ATDT dialing command line. If it doesn
help, ask your telephone company how to disable it temporarily.
Q:The modem gets errors in transmitted data randomly.
A:Try to use V.42 or MNP1-4 if possible.
A:Connect the modems at a slower baud rate.
Q:After you download a file, it was not stored on your disk drive.
C:If both modems are using MNP or V.42 protocol, then the flow
control may not be enabled.
34
PLANET ENW-3503F
A:Configure your software to use RTS/CTS flow control. That will
cause your computer to pause long enough for the file to be stored to
disk.
Q:The text on the screen is not legible.
C:Your software settings may not match the settings on the remote site.
A:Make sure your data bits, stop bits, and parity settings match the
settings that the other computer is using. The two most common
settings are: 8 data bits, None parity, and 1 stop bit (8,N,1) or 7 data
bits, Even parity, and 1 stop bit (7,E,1).
C:If the telephone line is very noisy, you may see corrupted data on your
screen.
C:Due to poor telephone line conditions, the modem may have fallen
back to a slower communication speed. You may need to change the
baud rate setting in your software to match this slower speed. To
return the modem to the higher speed, disconnect the link and re-
establish again.
Q:When using V.42bis or MNP5, some features are disabled.
C:You may be using a non-streaming protocol, like Xmodem or
Ymodem to transfer files. Those are fine unless you are using V.42bis
or MNP5
A:When using V.42bis or MNP5, you should use a streaming transfer
protocol like Ymodem-G or Zmodem.
A:Configure your software to use hardware flow control (RTS/CTS
ON).
LAN + Fax Modem User's Manual
35
Q:When the modem is connecting to another modem, it reports a
higher connect baud rate that it is really using.
C:The modem defaults to report the modem-to-computer baud rate
when it responds with CONNECT.
A:Go to command mode with your communication program (like Telix)
and type ATW2, then press Enter. This tells the modem to report the
modem-to-modem baud rate instead
Q:When I run CARDEN, the error message show C-Card is
not enabled successfully”
C:No memory space to map the attribute memory of PCMCIA card.
A:If memory management software e.g. EMM386 has been installed,
you have to reserve some areas in upper memory (C000:0 -- EFFF:F)
for attribute memory of PCMCIA card during enabling the card.
Example:Device=C:\DOS\EMM386.EXE RAM X=D000-D3FF.
Reserve D000 - D3FF for attribute memory.
C:No free I/O space or interrupt request can be assigned to the
PCMCIA card.
A:The LAN/Modem card needs 32 contiguous I/O ports and one
interrupt request for LAN. It also need 8 contiguous I/O ports and
another interrupt request for 56K Fax/Modem. The LAN ports have
to be located at one of the following I/O space. 0x300, 0x320, 0x340,
0x360. The 56K Fax/Modem ports have to be located at one of the
0x2F8, 0x3E8, 0x3E8. Besides for the compatibility consideration
with some of the 56K Fax/Modem applications. The Modem interrupt
36
PLANET ENW-3503F
(MIR) is recommended to be assigned at value less than 7 (IRQ3 to
6). Make sure that the resources are available for the LAN/Modem
card.
Q:How can I know the LAN/Modem card has been enabled or
not ?
A:If the Card Service is installed, you can check by hearing the beep
when card insertion.
A:Run CARDEN /CHK to check, if the card has been enabled. The
resources allocated for the card are shown as below at the last line of
display message.
“ IOP=0Xnnn IRQ=nn COM=nn MIR=nn”
Q: How to install the Win 95 driver over SystemSoft CardWorks ?
A:1.Start the Win 95 then plug the LAN/Modem card into the PCMCIA
slot. The SystemSoft Cardwizard window should appear.
2.Select the appropreate slot number which the LAN/Modem card is
plugged in.
3.Select View pull down menu
4.Select Properties.
5.Select Drivers in Properties.
6.Select Change Card Driver to active the selective items above it.
7.Select Use Plug and Play.
8.Press OK. Win 95 will request to withdraw the card.
LAN + Fax Modem User's Manual
37
9.Insert the card again.
10.Follow the instruction to insert the diskette and input the path A:\
for LAN/Modem driver.
11.Add client and service as you wanted by Network Icon in ControlPanel.
12.Reboot the system
Q: The Netware driver runs successfully but fails to login on to the
Netware server
C: Frame type imcompatiable with server.
A: The default frame type for Netware 3.11 and before is 802.3 but it
changed to 802.2 in Netware 4.x and 3.12. You may check the
content of NET.CFG to see if the frame type is accepted by the
server or not. If the frame type can not be accepted by server, edit
NET.CFG to change the frame type at client site or add the frame
type which can be accepted at sever site.
38
PLANET ENW-3503F
APPENDIX A: NDIS2 AND ODI DRIVERS FOR
WFW 3.11
NDIS2 Driver for Workgroups
1.Run Windows for Workgroups and click Network Setup icon in
Network group.
2.In Network Settings dialog box, click Networks... button to select
the network operating system.
3.In Networks dialog box, check the radio button before Install
Microsoft Windows Network and No Additional Network. Press
OK to go back the Network Settings screen.
4.Click Drivers... button to select network driver.
5.In Network Drivers dialog box, press Add Adapter... button to
enter Add Network Adapter dialog box. Select Unlisted orUpdated NetworkAdapter then press OK.
6.Windows will prompt a Install Driver dialog box. In this time, put
the driver diskette into floppy drive then press OK.
7.Select the Real mode NDIS2 for... string then press OK.
8.Follow Windows instructions to complete the installation and exit
Windows.
9.Run INSTALL.EXE from root directory of driver diskette.
10.Select Windows for Workgroup in Network Operating System
screen.
LAN + Fax Modem User's Manual
39
11.If current settings are acceptable, select Start Installation and go to
step 13. Otherwise, select Modify Parameters to make settings
changed.
12.Move cursor to the setting you want to make a change for then press
Enter to select a fit value. When the configuration is set completely,
press Enter on the OK field to exit the screen then go back to step
11.
13.Select NDIS Server(LAN Manager,...) as the network server that
you will attach to then press Enter key.
14.Installation program starts to copy related files to the destination
directory and modifies AUTOEXEC.BAT under user
agreement.
15.Reboot the computer to let the driver take effect.
ODI Driver for Workgroups
1.Run Windows for workgroups and click Network Setup icon in
Network group.
2.In Network Settings dialog box, click Networks... button to select
the network operating system.
3. In Networks dialog box, check the radio button before Install
Microsoft Windows Network and Others:. Select Netware Shell,
3.X or 4.0 and above, then press OK to go back the Network
Settings screen.
4.Click on Drivers... button to select network driver.
40
PLANET ENW-3503F
5.In Network Drivers dialog box, press AddAdapter... button to
enter Add Network Adapter dialogbox. Select Unlisted orUpdated NetworkAdapter then press OK.
6.Windows will prompt a Install Driver dialog box. In this time, put
the driver diskette into floppy drive then press OK.
7.Select the Netware ODI Driver ... string then press OK.
8.Follow Windows’ instructions to complete the installation and exit
Windows.
9.Run INSTALL.EXE from root directory of driver diskette.
10.Select Windows for Workgroup in Network Operating System
screen.
11.If current settings are accepted, select Start Installation and go to
step 13. Otherwise, select Modify Parameters to make settings
changed.
12.Move cursor to the setting you want to make a change for then press
Enter to select a fit value. When the configuration is set completely,
press Enter on the OK field to exit the screen.
13.Select Novell Netware Server as the network server that you will
connect to then press Enter key.
14.Installation program starts to copy related files to the destination
directory and modifies AUTOEXEC.BAT and NET.CFG under user
agreement.
15. Reboot the computer to let the driver take effect.
LAN + Fax Modem User's Manual
41
APPENDIX B: UNINSTALLATION THE 10/100
FAST ETHERNET + FAXMODEM IN WIN 95/98
When you face the installation problems of LAN/56K Fax/Modem
PC Card, you need to uninstall the PC Card and install it once again.
This uninstallation guide is used to conduct the users to fully
uninstall the LAN/56K Fax/Modem properties in Windows 95/98.

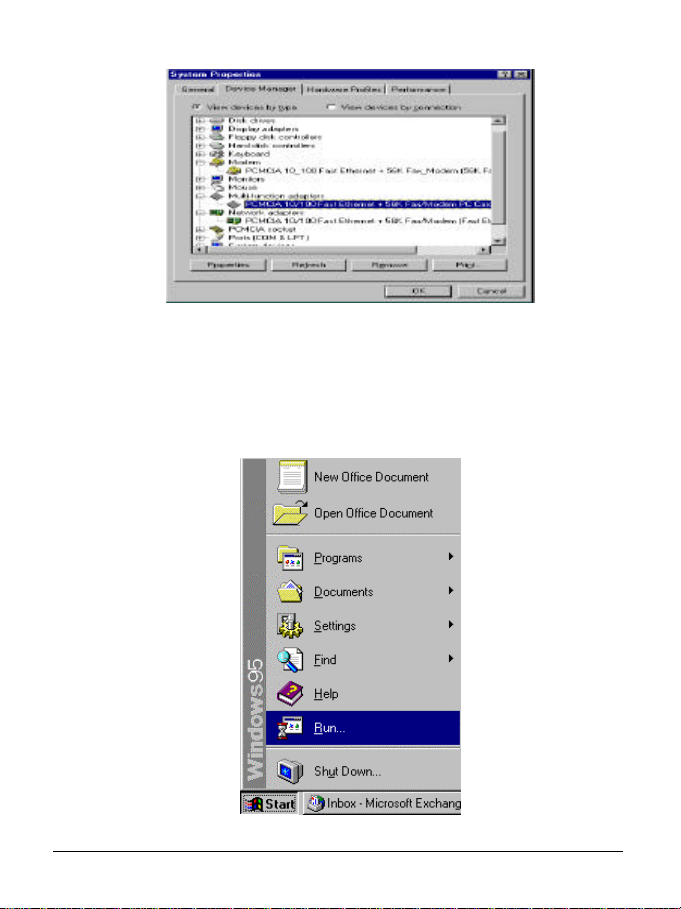

Remove the Multi-function adapters properties from the DeviceManager folder of System in
Control Panel program group.
Supposedly the Intelligent xxxxx (Modem)
42
PLANET ENW-3503F
Card in Modem properties and the Intelligent xxxxx (10/100
Fast Ethernet) Card in Network adapters properties will be
removed automatically. If not, remove them manually.
Click Start button in Windows 95/98 main screen then select
Run….
LAN + Fax Modem User's Manual
43

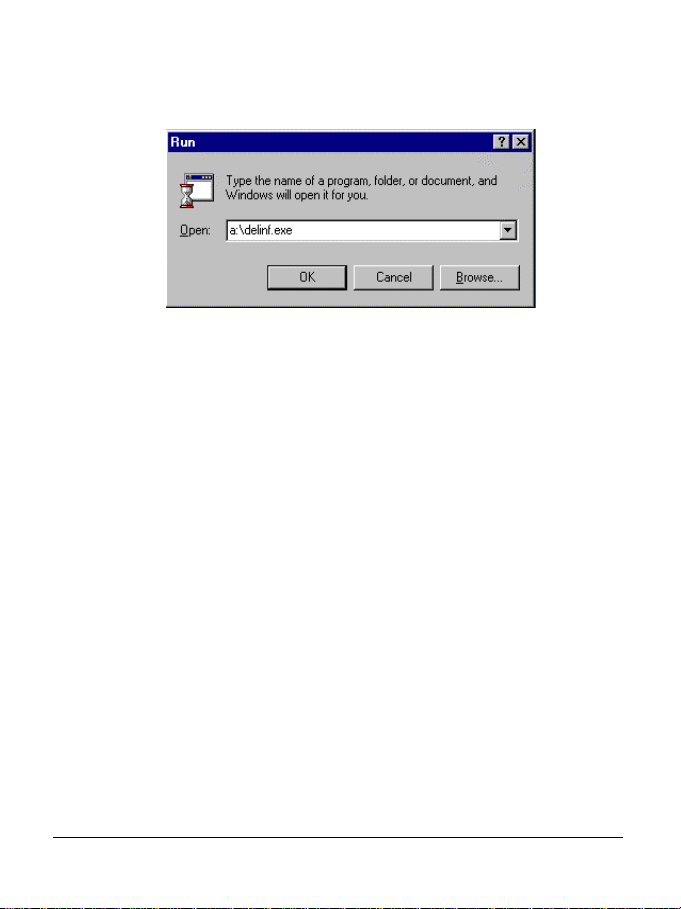

3. Insert the 10/100 Fast Ethernet + 56K Fax/Modem Program
(Driver) Disk, then enter A:\delinf.exe then click on OK.
4. Re-start Windows 95/98. Now the 10/100 Fast Ethernet + 56K
Fax/Modem PC Card is completely uninstalled.
44
PLANET ENW-3503F
APPENDIX C: AT COMMAND QUICK REFERENCE
Modem AT Commands
Basic AT Command Set
CommandOptionsFunction & Description
A/Re-execute the last command string
<any key>Terminate the current connection attempt when entered in
All the following commands require an “AT” prefix
AGo off-hook and attempt to establish a connection without waiting
BnLine modulation options
B0Select V.22 mode for 1200 bps connection
B1 *Select Bell 212A for 1200 bps connection
B2Select V.23 1200 bps for receiving, 75 bps for transmitting in
B3Select V.23 75 bps for receiving, 1200 bps for transmitting in
B15Select V.21 for 300 bps connection
B16Select Bell 103 for 300 bps connection
DnDial command, beginning the dialing sequence. The string “n”
LRe-dial last number. Should be the first character following ATD,
PPulse dial.
RReverse dial. Originate call in answer mode (go on-line in answer
S=nDial the phone number stored in NVRAM at location “n” (n=0, 1,
TDTMF tone dial.
WWait for second dial tone. The modem waits for the second dial
,Pause. Cause the modem to pause for a time before processing the
handshaking state
for a ring
originate mode; 75 bps
for receiving and 1200 bps for transmitting in answer mode
originate mode; 1200 bps for receiving and 75 bps for transmitting
in answer mode
(telephone number and modifiers) listed as follows is entered after
the “D” command
ignored otherwise
mode)
2, 3)
tone before processing the dial string
LAN + Fax Modem User's Manual
45
!Hook Flash (for call transfer). Cause the modem to go on-hook for
@Wait for 5 seconds of silence after dialing number
;Return to command state after dialing a number without
EnAT command echo options
E0Echo disabled
E1 *Echo enabled
HnSwitch-hook control
H0 *Modem goes on-hook
H1Modem goes off-hook
MnSpeaker control
M0Speaker always off
M1 *Speaker on until carrier present
M2Speaker always on
M3Speaker off during dialing and on until carrier present
NnSelect negotiate handshake
N0When originating or answering, handshake only at the
N1 *When originating or answering, start handshaking only at the
OnGo on-line
O0Return modem to a previously established state (return to data
O1Begin a retrain sequence, then return to on-line state.
O3Issue a rate re-negotiation, then return to on-line state.
PEnable pulse dialing (Disabled in CTR 21 approved models)
QnResult code display options
Q0 *Result code enabled
Q1Result code disabled
TEnable tone dialing
VnResult code form
V0Display result code in numeric form (see
V1 *Display result code in verbose (text) form
WnSelect extended result code options
W0CONNECT result code reports DTE speed. Disable protocol result
W1CONNECT result code reports DTE speed. Enable protocol result
46
next character in the dial string (specified by S8 register)
0.5 second then return to off-hook
disconnecting the call
communication rate specified by S37 register and “ATBn” and no
fallback
communication standard specified by S37 register and “ATBn”
During handshake, fallback to a lower speed may occur.
mode).
also the result code options table)
codes.
(see also the “Result Code Options Table” )
codes.
PLANET ENW-3503F
W2 *CONNECT result code reports DCE speed. Enable protocol result
codes.
XnSelect result codes/call progress options
X0Display CONNECT or “1” for all speeds.
Ignore dial tone and busy tone detection.
X1Display connect message and the modem’s data rate, and an
indication of the modem’s error correction and data compression.
Ignore dial tone and busy tone detection.
X2Display connect message and the modem’s data rate, and an
indication of the modem’s error correction and data compression.
Check dial tone before proceeding dialing,
ignore busy tone detection.
X3Display connect message and the modem’s data rate, and an
indication of the modem’s error correction and data compression.
Ignore dial tone before proceeding dialing,
check busy tone after making dialing.
X4 *Display connect message and the modem’s data rate, and an
indication of the modem’s error correction and data compression.
Check dial tone and busy tone.
X5Same as X4.
X6Same as X4.
X7Display CONNECT or “1” for all speeds.
Check dial tone and busy tone.
ZnRecall stored profile
Z0Reset and recall user profile 0. Either Z0 or
Z1 restores the same single profile.
* Manufacturer default
Extended “AT&” (Ampersand) Command Set
CommandOptionsFunction & Description
&CnData carrier detect option
&C0State of carrier from remote modem is ignored. DCD circuit is
always on
&C1 *DCD turns on when the remote modem’s carrier signal is detected,
and off when the carrier signal is not detected.
&DnData Terminal Ready (DTR) option.
&D0DTR ignored
&D1Go to command mode on on-to-off DTR transition
&D2 *Hang up and go to command mode on on-to-off DTR transition.
Auto-answer is disabled if DTR is low
&D3Hang up and reset from user profile 0 on the on-to-off DTR
LAN + Fax Modem User's Manual
47
&FRecall factory default setting as active configuration
&GnV.22bis guard tone option
&G0 *No guard tone
&G1550 Hz guard tone
&G21800 Hz guard tone
&KnSet local flow control
&K0Disable flow control
&K3 *Enable bi-directional hardware flow control (CTS/RTS)
&K4Enable bi-directional software flow control (XON/XOFF)
&PnPulse dialing make/break ratio selection
&P0Make=39%, Break=61%, international version (Default)
&P1Make=33%, Break=67%, international version
&QnAsync communications mode options
&Q0Async mode, buffered (same as “AT\N0”)
&Q5 *Error control mode, buffered (same as “AT\N3”)
&Q8MNP error control mode. If an MNP error control protocol is not
&Q9V.42 or MNP error control mode. If neither error control protocol is
&SnData Set Ready (DSR) option
&S0 *DSR always on
&S1DSR on during handshake and on-line, off in test mode or idle mode
&TnSelf-test commands
&T0Terminate any test in progress
&T1Local analog loopback test
&T3Local digital loopback (LDL) test
&T6Remote digital loopback test, in normal mode
&VView active file and stored phone numbers
&WStore active configuration into the modem’s NVRAM
&Zn=xStore telephone number
* Manufacturer default
transition
Make=33%, Break=67% for use in 20 pps, Japanese version
Make=33%, Break=67% for use in 10 pps, Japanese version
(Default)
established, the modem will fallback according to the current setting
in S36 register.
established, the modem will fallback according to the current setting
in S36 register.
n=0 to 3
x=<string> see also the dial modifier in ”ATDn” command
The max. number of digits per string is 40.
48
PLANET ENW-3503F
Extended “AT\” (Back Slash) Command Set
CommandOptionsFunction & Description
\JnConstant DTE speed option
\NnError control mode options
\QnLocal flow control options
\TnSet inactive timer (for buffer mode only)
\VnProtocol result codes
* Manufacturer default
\J0 *DCE and DTE rates are independent
\J1Force the DTE interface speed to the DCE connection rate (line
speed) after on-line
\N0Buffered mode, no error control (flow control is allowed).
\N1Direct mode, no error control (no flow control is allowed).
\N2MNP reliable mode. If MNP 2-4 error control establishment fails,
the modem disconnects.
\N3 *V.42, MNP or buffer mode. The modem attempts to connect in
V.42 mode. If this fails, the modem attempts to connect in MNP
mode. If this fails, the modem connects in buffer mode.
\N4V.42 or disconnect. The modem attempts to connect in V.42 mode.
If this fails, the call will be disconnected.
\Q0Disable flow control (same as “AT&K0”)
\Q1XON/XOFF software flow control (same as “AT&K4”)
\Q3 *RTS/CTS hardware flow control (same as “AT&K3”)
\V0Disable protocol result code appended to DCE speed
\V1 *Enable protocol result code appended to DCE speed
Extended “AT%” (Percent) Command Set
CommandOptionsFunction & Description
%BView numbers in blacklist. If blacklisting is in effect, this command
%CnData compression control
%C0No data compression
%C1 *V.42bis/MNP 5 data compression enabled.
* Manufacturer default
displays the numbers for which the last call attempted in the past
two hours failed. The ERROR result code appears in the countries
that do not require blacklisting.
LAN + Fax Modem User's Manual
49
Extended “AT-” (Dash) Command Set
CommandOptionsFunction & Description
-CnData calling tone options
* Manufacturer default
-C0 *Disable data calling tone
-C1Enable data calling tone (the freq. is 1,300 Hz with a cadance of 0.5
sec. ON and 2 sec. OFF)
V.42bisV.42 error control and V.42bis data compression
V.42V.42 error control only
MNP5MNP 4 error control and MNP 5 data compression
MNP4MNP 4 error control only
NoECNo error control and data control protocols
v
v
v
v
v
v
v
v
v
v
v
v
v
LAN + Fax Modem User's Manual
53
APPENDIX D: S-REGISTERS QUICK REFERENCE
S-Registers, TSn=x”
Regis
Dec.Function & DescriptionDefault
ter
S0=0 - 255Set the number of the rings required before the modem
S1=0 - 255Count the incoming rings and store the value to this
S2=0 - 255S2 holds the decimal value of the ASCII character used as
S3=0 - 127Hold the decimal value of the Carriage Return <CR>
S4=0 - 127Hold the decimal value of the character recognized as a
S5=0 - 32,
127
S6=Set the length of time, in seconds, that the modem must
2 - 65For international version002
4 - 65For Japanese version004
S7=Set the time, in seconds, that the modem must wait before
1 - 255For international version050
35 - 59For Japanese version050
automatically answers
a call. Set 0=0” to disable auto-answer mode
register. The value of this register is incremented with
each ring. If no rings occur over an 8 sec. interval, this
register is cleared. User can read but should not change
this value
the escape character.
The default value (043) corresponds to
an ASCII character “+” . A value of 128
to 255 disables the escape process, i.e.,
no escape character will be recognized
character used as the command line and result code
terminator. Pertain to asynchronous operation only
line feed. The line feed control character is output after
the carriage return control character if verbose result code
are used.
Hold the decimal value of the character recognized as a
backspace. The modem will not recognize the backspace
character if this register is set to a value greater than 32
wait (minimum 2 seconds even if the value is less than 2)
after going off-hook before dialing the first digit of the
telephone number
hanging up because carrier is not detected
000
000
043
013
010
008
54
PLANET ENW-3503F
S8=0 - 65Set the time, in seconds, that the modem must pause
S10=1 - 255Set the length of time, in tenths of a second, that the
S11=50 -
150
S12=0 - 255Define the maximum period, in 2-hundredths of a second,
S28=0 - 255V.34 modulation en-/disabler
S30=0 - 90Inactivity timer. Set the length of time, in minutes, that
S36=Negotiation fallback options007
0, 2Hang up
1, 3Fall back to an async connection
4, 6Attempt MNP mode. If MNP fails, hang up.
5, 7Attempt MNP mode. If MNP fails, fallback to async
S37=Desired DCE speed (line speed)000
0Maximum modem speed
2Attempt 1200/75 bps connection
3Attempt to a 300 bps connection
5Attempt to a 1200 bps connection
6Attempt to a 2400 bps connection
7Attempt to a 4800 bps connection
8Attempt to a 7200 bps connection
9Attempt to a 9600 bps connection
10Attempt to a 12000 bps connection
11Attempt to a 14400 bps connection
12Attempt to a 16800 bps connection
13Attempt to a 19200 bps connection
14Attempt to a 21600 bps connection
15Attempt to a 24000 bps connection
16Attempt to a 26400 bps connection
17Attempt to a 28800 bps connection
18Attempt to a 31200 bps connection
when the “,” dial modifier is encountered in the dial
string
modem waits before hanging up after a loss of carrier
DTMF duration and inter digit delay. Set the duration and
spacing, in mini-seconds, in DTMF touch tine dialing
allowed between consecutive asynchronous escape
character “+” (plus) for the escape sequence to be
considered valid
0: disabled
1- 255: enabled
the modem counts when
there is no data flow in or out the DTE serial port. A
connection is disengaged when the counter reaches the
preset value. Set S30 =0 to disable the inactivity timer.
For buffer mode only.
