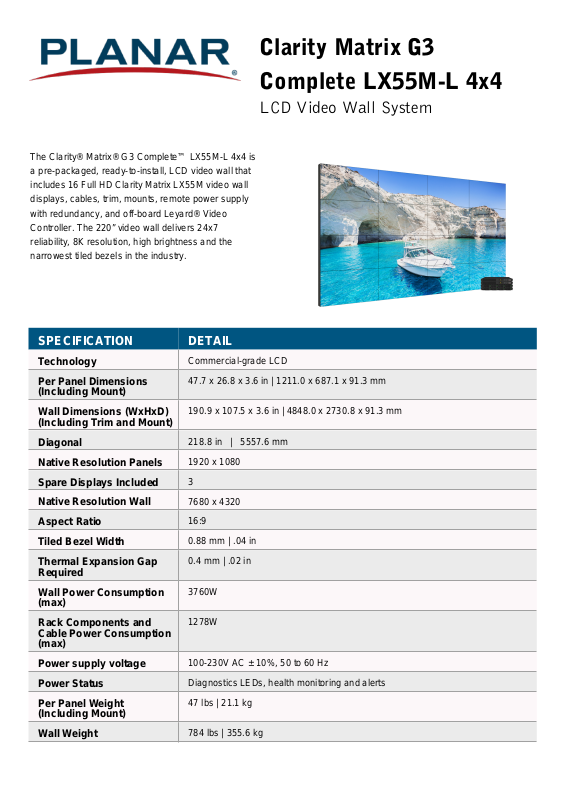

Planar LX55M-L 4x4 Datasheet

The Clarity® Matrix® G3 Complete™ LX55M-L 4x4 is a pre-packaged, ready-to-install, LCD video wall that includes 16 Full HD Clarity Matrix LX55M video wall displays, cables, trim, mounts, remote power supply with redundancy, and off-board Leyard® Video Controller. The 220” video wall delivers 24x7 reliability, 8K resolution, high brightness and the narrowest tiled bezels in the industry.

Clarity Matrix G3 Complete LX55M-L 4x4

LCD Video Wall System

SPECIFICATION DETAIL

Technology Per Panel Dimensions

(Including Mount) Wall Dimensions (WxHxD)

(Including Trim and Mount) Diagonal Native Resolution Panels Spare Displays Included Native Resolution Wall Aspect Ratio Tiled Bezel Width Thermal Expansion Gap

Required Wall Power Consumption

(max)

Commercial-grade LCD

47.7 x 26.8 x 3.6 in | 1211.0 x 687.1 x 91.3 mm

190.9 x 107.5 x 3.6 in | 4848.0 x 2730.8 x 91.3 mm

218.8 in | 5557.6 mm 1920 x 1080 3 7680 x 4320 16:9

0.88 mm | .04 in

0.4 mm | .02 in

3760W

Rack Components and Cable Power Consumption (max)

Power supply voltage Power Status Per Panel Weight

(Including Mount) Wall Weight

1278W

100-230V AC ± 10%, 50 to 60 Hz Diagnostics LEDs, health monitoring and alerts 47 lbs | 21.1 kg

784 lbs | 355.6 kg

Shipping weight

1480 lbs | 671.3 kg

Mounted Depth Brightness (typ) Contrast ratio (full field) Response Time (typ) Full viewing angle Video Inputs (Controller) Video Outputs (Controller) Video Extension built-in Control Sync Backlight control Backlight sensing and

reporting Display module position

sensing

3.6in | 91.44mm (wall to front of display) 500 cd/m² or nits 10000:1 (local dimming on) 1100:1 (local dimming off) 8 ms 178° 8x HDMI 2.0 (w/ HDCP 2.2), 1x DisplayPort 1.2 18 x RJ45 8P8C, 2 x DisplayPort 1.2 200ft | 60m over STP CAT6 IR Remote Control, RS-232, USB, Network, Leyard WallDirector Software Mini BNC In/Out Individual and wall control At display level

Auto-sensing integrated

Backlight life (1/2 brightness)

Power Supply Wall Mount Acoustic Noise Wall Heat Load (max) Rack Heat Load (max) Operating

Temperature/Humidity (degrees F/C, relative humidity)

Orientation Safety regulations

50,000 Hrs

Offboard | Redundant Optional | Hot Swap Planar® EasyAxis™ Mounting System LCD: <30dBA (fanless), VC: 45dBA, RPS: <40dBA @ 25°C (77°F) 12830 BTU/hr 2028 BTU/hr 5° to 40° C / 20-90% RH | 41° to 104° F / 20-90% RH

Landscape Complies with EN60950, FCC Class A, CISPR22/85, CE, EU RoHS

For more information, please visit www.planar.com
