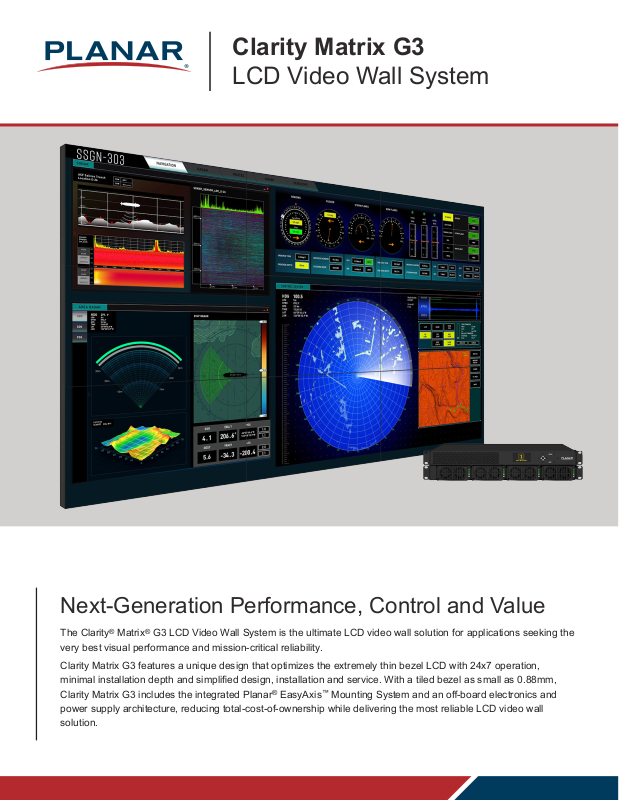

Clarity Matrix G3
LCD Video Wall System
Next-Generation Performance, Control and Value
The Clarity® Matrix® G3 LCD Video Wall System is the ultimate LCD video wall solution for applications seeking the
very best visual performance and mission-critical reliability.
Clarity Matrix G3 features a unique design that optimizes the extremely thin bezel LCD with 24x7 operation,
minimal installation depth and simplied design, installation and service. With a tiled bezel as small as 0.88mm,
Clarity Matrix G3 includes the integrated Planar® EasyAxis™ Mounting System and an o-board electronics and
power supply architecture, reducing total-cost-of-ownership while delivering the most reliable LCD video wall
solution.
Page 2
Unique Architecture and Benets by Design
Designed and developed by video wall industry experts, the third generation Clarity Matrix G3 LCD Video Wall System addresses the
challenges faced by all video wall installations including: mounting and alignment, reliability and extended operation, service and maintenance
access and simple, eective image processing and management.
At the heart of Clarity Matrix G3 is a distributed design that takes heat, complexity and potential points-of-failure o the LCD display and
places it with a centrally located, easily accessible and highly reliable rack-mounted system.
65", 55", 46" LCD displays
Perfect alignment
with Planar EasyAxis
Mounting System
Tiled bezel width as
small as 0.88mm
Fanless LCD module for
whisper-quiet operation
Optional Planar® ERO-LCD™
protects surface and can be
touch-enabled
O-board power supplies eliminate
need for outlets behind displays
Planar WallSync synchronizes
video playback & eliminates
image tearing between
displays
System Components:
• Clarity Matrix G3 LCD displays
• Planar EasyAxis Mounting System
• Planar Big Picture Plus video processing
with Planar WallSync technology
• O-Board Planar Remote Power Supply
and Planar Video Controller
• Planar WallDirector Software
Planar Video Controller drives
up to 9 Full HD display sections
Planar Remote Power Supply
drives up to eight displays
Simplied Design, Installation and Service
Designing, installing and servicing an LCD video wall has never been easier with Clarity Matrix G3. The architecture is focused on eliminating
compatibility and integrity concerns, as well as eliminating costs associated with long distance cable extenders and AC power outlets behind
the video wall. Fewer cables are necessary to run to the video wall, simplifying and reducing the cost of the system.
Service Mode for
in-wall servicing
Architecture Advantages:
• Integrated video and power extension up to 200 feet (60 meters)
• Rack-mount components can be co-located with sources and processing equipment for easy
serviceability and no disruption at the video wall
• No third-party long-distance extenders or cables needed
• Entire video wall is controlled with a single remote control, RS-232 or LAN device, including
third-party control system
• Power and video looping between panels for minimizing long-distance cable runs
• No AC outlets required behind the displays
Perfect Alignment
The Clarity Matrix G3 LCD Video Wall System includes the Planar EasyAxis Mounting System with built-in precision alignment capabilities,
an in-wall service position and an industry-leading total installation depth as small as 3.6" (91mm). As a result, Clarity Matrix G3 has the
thinnest footprint of any LCD video wall, making it compliant with the Americans with Disabilities Act (ADA) requirement for protruding
objects of less than four inches. Planar EasyAxis adjustment cams facilitate precise 6-axis alignment ensuring uniform, minimized imageto-image gap.
Page 3
Advanced Video Wall Processing
Clarity Matrix G3 delivers extensive and exible video wall processing options to display sources on the video wall. With Planar® Big Picture
Plus™ Video Wall Processing, Clarity Matrix G3 allows sources to be scaled across the entire video wall or any section of the video wall. To
simplify Planar Big Picture Plus set-up, Clarity Matrix G3 has position sensors built into the LCD that determine its location within the array
and scale the sources across the video wall, saving hours of set-up time.
Planar Big Picture Plus Processing allows for ultra-high resolution content up to 4K to spread over multiple displays at native resolution. For
more complex congurations, Clarity Matrix G3 supports all leading image processing and digital signage software solutions including the
Clarity® VCS™ Video Wall Processor.
Solving a range of video wall genlock and synchronization challenges, Clarity Matrix G3 includes Planar® WallSync™ genlock technology.
Planar WallSync uses Smart Genlock to automatically ensure perfectly synchronized video playback without manual conguration.
Scale across multiple displays 4K Picture in Picture (PiP) Tile multiple sources in single displayFlexible resolution support
Mission Critical Design
The unique architecture of Clarity Matrix G3 provides
a mission-critical design with hot-swappable redundant
Remote Power Supply Modules, redundant AC input
circuitry, reduced thermal stress and health and status
monitoring capabilities. Clarity Matrix G3 adds n+1 hot
swapping capabilities with the Planar® Remote Power
Supply so in the event of failure, the video wall remains
operational without disruption.
Optional n+1 redundant
Power Supply Module
Hot-swappable modules
For government and military customers delivering highly
sensitive information, the Fiber Video Extension option
provides a more secure and longer distance option for
extending the video signal from Clarity Matrix G3 o-
board electronics to Clarity Matrix G3 displays.
Fits standard 19" rack
Planar WallDirector Software
Clarity Matrix G3 leverages Planar® WallDirector™ Software— a
new intuitive and powerful software tool to simplify installation,
conguration and operation of your video wall.
The Planar WallDirector Software allows users to:
• Set-up & congure a video wall
• Monitor the health & status of all video wall components from a
convenient, centralized location
• Send customized email or SNMP alerts to select people when
specic fault conditions arise
• Store & recall windowing layouts via simple, one-button presets
• Drag & drop video wall canvas, for window positioning & sizing
Page 4
CLARITY MATRIX G3 LCD VIDEO WALL SYSTEM SPECIFICATIONS
Model MX65U-4K LX55M/MX55M LX55X/MX55X LX55U LX46X LX46U/MX46U
Diagonal 65 in / 1651 mm
Display Dimension
(including mount, WxHxD)
Display Weight Landscape
(including mount)
Display Weight Portrait
(including mount)
Brightness 800 cd/m² or nits
Tiled Bezel Width 3.7 mm / .15 in .88 mm / .04 in 1.7 mm / .06 in 3.7 mm / .15 in 1.7 mm / .06 in 3.7 mm / .15 in
Power Consumption
(Max/display)
Heat Load
(Max/display)
Mounted Depth (wall to display face) 3.7 in / 93 mm
LCD Technology Commercial-grade direct-view LCD
Display Resolution 3840 x 2160
Contrast Ratio 4000:1
Cat6A STP Cables/Connectors Required
Full Viewing Angle 178°
Backlight Sensing and Reporting At Display Level
Display Module Position Sensing Yes
Acoustic Noise at Display Fanless/Noiseless
Operating Temperature/Humidity 5° to 40° C | 41° to 104° F (20-90% relative humidity, non-condensing)
Protective / Touch Glass Option Planar ERO-LCD technology (Optional)
Regulations Complies with EN60950, FCC Class A, CISPR22/85, EC, EU RoHS, TAA Compliant
54.4 x 31.8 x 3.7 in
(1433.6 x 808.6 x 93 mm)
64 lbs / 29 kg
66 lbs / 30 kg 49 lbs / 22.4 kg 53 lbs / 24kg 42 lbs / 19 kg
390W LX: 235W / MX: 235W LX: 155W / MX: 225W 155W 125W LX: 115W / MX: 140W
1331 BTU/hr
55 in / 1397 mm 55 in / 1397 mm 55 in / 1397 mm
47.6 x 26.8 x 3.5 in
(1210.5 x 681.2 x 90 mm)
47 lbs / 21.1 kg 51 lbs / 23 kg
500 cd/m² or nits
700 cd/m² or nits
LX: 802 BTU/hr
MX: 802 BTU/hr
10000:1 (local dimming on)
1100:1 (local dimming off)
47.7 x 26.9 x 3.6 in
(1211 x 683 x 91 mm)
500 cd/m² or nits
800 cd/m² or nits
LX: 529 BTU/hr
MX: 767 BTU/hr
47.8 x 26.9 x 3.6 in
(1213 x 684 x 91 mm)
500 cd/m² or nits
3.6 in / 91 mm
1920 x 1080
529 BTU/hr 426 BTU/hr
MOUNTING
Mounting Solutions Planar EasyAxis Mounting System (1 per display included) | VESA hole pattern available (Optional)
Americans with Disability Act (ADA)
Compliance
Orientation Landscape or Portrait
Floor Standing Mount Bases Optional
In-Wall Service Front and Rear
Display Module Position Adjustment 6-axis integrated adjustments
Yes, clearance from wall under 4in
46 in / 1168.4 mm
40.3 x 22.7 x 3.6 in
(1019 x 573 x 91 mm)
4000:1
46 in / 1168.4 mm
40.2 x 22.7 x 3.6 in
(1022 x 577 x 91 mm)
40 lbs / 18 kg
500 cd/m² or nits
800 cd/m² or nits
LX: 392 BTU/hr
MX: 477 BTU/hr
REMOTE POWER SUPPLY
Model
Type 1RU rack mount; 19in (482.6mm) rack 1.5RU rack mount; 19in (482.6mm) rack
Line Voltage 100-240 Volts AC autoranging 200-240 Volts AC autoranging
Power Output 1200W per output
Power Supply Congurations 1, 2 or 3 outputs 2, 4 or 6 outputs
Redundancy n + 1 redundant option
Hot Swap Supported for each power supply module
Low Power Standby Mode <3W in standby mode
Power Status Diagnostic LEDs per power supply module
Maximum Distance from Wall 200ft (60m) standard, 500ft (152.4m) maximum
VIDEO CONTROLLER
Type
Video Inputs 4x HDMI 2.0 (w/ HDCP 2.2); 1x DisplayPort 1.2
Video Outputs
Image Scaling
Mullion Compensation Integrated with pixel by pixel adjustments
Control
Controller Status Diagnostic LEDs, health monitoring and alerts
Maximum Distance from Wall 200ft (60m)
9-Output Controller: 9x RJ45 8P8C, 1x DisplayPort 1.2
4-Output Controller: 4x RJ45 8P8C, 1x DisplayPort 1.2
Planar Big Picture Plus Processing, Planar WallSync, PiP,
1U rack mount controller drives
up to 9 Full HD (1920x1080) panels
4K at 60Hz upscaling and downscaling
IR Remote Control, RS-232, USB,
Network, Planar WallDirector Software
RPS110 RPS220
FIBER VIDEO EXTENSION MODULE OPTION
Type 1U rack mount module drives up to 4 displays
10G Duplex LC SFP+ single mode transceivers supporting
Fiber Optic Connection Type
USB Extension USB-B at module; USB-A at panel
IR Remote Extension Embedded
Power
distances up to 10km (32.8kft) (Single mode transceivers
supporting 2km (6500ft) included) from video wall. Compatible
with multi mode transceivers supporting up to 300m (980ft) from
the wall. (Multi mode transceivers not provided)
Powered by the Remote Power Supply. Optional AC Power
Adapter available when the Fiber Module is located away from
the Remote Power Supply.
www.planar.com
Planar is a trademark of Planar Systems, Inc. All other trademarks and service marks are property of their holders. Copyright © 2021 Planar Systems, Inc. All rights reserved.
This document may not be copied in any form without permission from Planar. Information in this document is subject to change without notice. 1/2021
