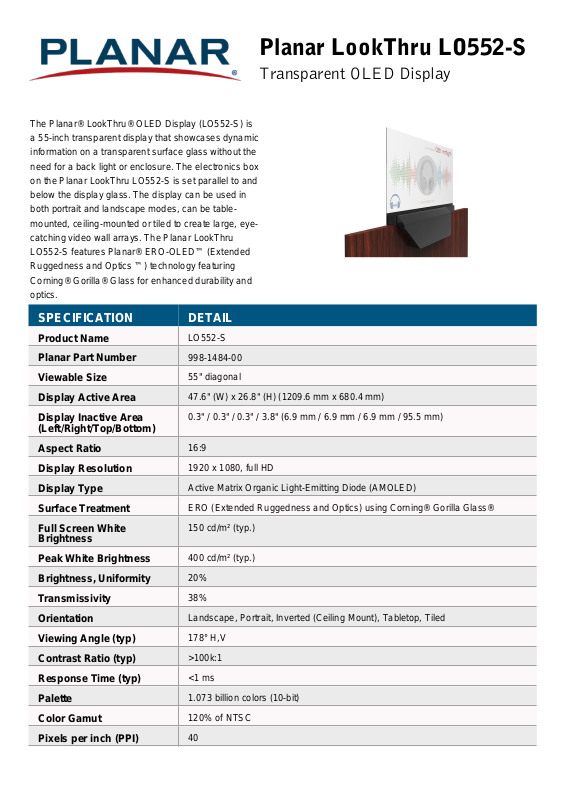

Planar LO552-S Datasheet

The Planar® LookThru® OLED Display (LO552-S) is a 55-inch transparent display that showcases dynamic information on a transparent surface glass without the need for a back light or enclosure. The electronics box on the Planar LookThru LO552-S is set parallel to and below the display glass. The display can be used in both portrait and landscape modes, can be tablemounted, ceiling-mounted or tiled to create large, eyecatching video wall arrays. The Planar LookThru LO552-S features Planar® ERO-OLED™ (Extended Ruggedness and Optics ™) technology featuring Corning® Gorilla® Glass for enhanced durability and optics.

SPECIFICATION DETAIL

Planar LookThru LO552-S

Transparent OLED Display

Product Name Planar Part Number Viewable Size Display Active Area Display Inactive Area

(Left/Right/Top/Bottom) Aspect Ratio Display Resolution Display Type Surface Treatment Full Screen White

Brightness Peak White Brightness Brightness, Uniformity Transmissivity

LO552-S 998-1484-00 55" diagonal

47.6" (W) x 26.8" (H) (1209.6 mm x 680.4 mm)

0.3" / 0.3" / 0.3" / 3.8" (6.9 mm / 6.9 mm / 6.9 mm / 95.5 mm)

16:9 1920 x 1080, full HD Active Matrix Organic Light-Emitting Diode (AMOLED) ERO (Extended Ruggedness and Optics) using Corning® Gorilla Glass® 150 cd/m² (typ.)

400 cd/m² (typ.) 20% 38%

Orientation Viewing Angle (typ) Contrast Ratio (typ) Response Time (typ) Palette Color Gamut Pixels per inch (PPI)

Landscape, Portrait, Inverted (Ceiling Mount), Tabletop, Tiled 178° H,V >100k:1 <1 ms

1.073 billion colors (10-bit) 120% of NTSC 40

Pixel Pitch

0.63 mm

Frame Rate Video Inputs External Connections Audio Output Dimensions (W x H x D) Weight Power Requirements Power Consumption (typ) Power Consumption (max) Product Approvals

Mount Control and Monitoring Operating Temperature Humidity

120Hz HDMI x4, DisplayPort x1 LAN RJ45, RS232, IR, Keypad, AC Power In, USB-A, USB-B PC Line Out, S/PDIF

48.2" x 40.5" x 5.3" (1223.4 mm x 1029.8 mm x 134.0 mm)

59.5 lbs (27.0 kg) 100 to 240VAC 97W (<1W standby) 300W NRTL Listed, FCC-Class A, CE Class A, WEEE, RCM, PSE, EN60950 and

CISPER22/2010, RoHS No

IR, RS-232, LAN, Keypad 0º to 40ºC 20-95% RH non-condensing

Options / Features

Warranty UPC

Fanless, TAA-Compliant, optional tray. Tiling/Video Wall configurations possible through optional external processor. Straight mount.

1 year 8 10689 00709 8

For more information, please visit www.planar.com
