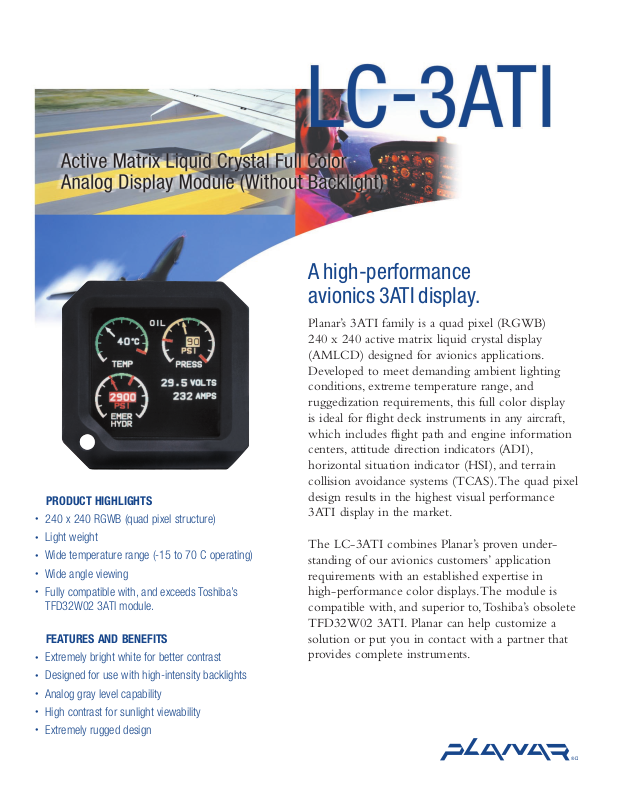

Planar LC3ATI User Manual
A high-performance
avionics 3ATI display.
Planar’s 3ATI family is a quad pixel (RGWB)
240 x 240 active matrix liquid crystal display
(AMLCD) designed for avionics applications.
Developed to meet demanding ambient lighting
conditions, extreme temperature range, and
ruggedization requirements, this full color display
is ideal for flight deck instruments in any aircraft,
which includes flight path and engine information
centers, attitude direction indicators (ADI),
horizontal situation indicator (HSI), and terrain
collision avoidance systems (TCAS).The quad pixel
design results in the highest visual performance
3ATI display in the market.
The LC-3ATI combines Planar’s proven understanding of our avionics customers’ application
requirements with an established expertise in
high-performance color displays.The module is
compatible with, and superior to,Toshiba’s obsolete
TFD32W02 3ATI. Planar can help customize a
solution or put you in contact with a partner that
provides complete instruments.
PRODUCT HIGHLIGHTS
•
240 x 240 RGWB (quad pixel structure)
•
Light weight
•
Wide temperature range (-15 to 70 C operating)
•
Wide angle viewing
•
Fully compatible with, and exceeds Toshiba’s
TFD32W02 3ATI module.
FEATURES AND BENEFITS
•
Extremely bright white for better contrast
•
Designed for use with high-intensity backlights
•
Analog gray level capability
•
High contrast for sunlight viewability
•
Extremely rugged design
®
For more information, visit our website at www.planar.com
© October 2001, Planar Systems, Inc. Planar is a registered trademark and Invitium is a trademark
of Planar Systems, Inc. All other trademarks are the properties of their respective owners. Technical
information in this document is subject to change without notice. 003-0006-00A
EUROPE & ASIA-PACIFIC SALES
Planar Systems, Inc.
Olarinluoma 9
P.O. Box 46
FIN-02201 Espoo, Finland
Phone +358 9 420 01
Fax +358 9 420 0200
Email intlsales@planar.com
AMERICAS SALES
Planar Systems, Inc.
1400 NW Compton Drive
Beaverton, OR 97006-1992 USA
Toll Free +1 (866) 475 2627
Phone +1 (503) 748 1100
Fax +1 (503) 748 1493
Email sales@planar.com
SUPPORT AND SERVICE
Planar is an international company with global manufacturing sites, sales
network, and full application engineering support and service in the U.S.
and Europe.
LC240.240.24-3ATI
®
Display Technology
Color
Viewing Angle (10:1 contrast)
Response Time
Resolution
Pixel Pitch
Display Active Area (W x H)
Weight
Transmission
Specular Reflectance
Supply Voltages
Power Consumption
Temperature
Humidity (operating,
non-condensing)
Altitude
Shock
Vibration
Analog Signals
Digital Signals
Connector
Qualifications
Backlight
TECHNICAL SPECIFICATIONS
Active matrix liquid crystal display (AMLCD)
Full color. Red, green, white, and blue
quad sub-pixels.
Hor: ±45° min, Vert: +40°/-25°
min at 25 °C, 5V drive
50 ms max at 25°C
240 x 240 color pixels
0.24 x 0.24 mm
57.6 mm x 57.6 mm
120 g max, 99 g typical
6.5% min at 25 °C
1.0% max
+5 Vdc, +13 Vdc, +22 Vdc
200 mW typical
Operating: -15 to +70 °C
Powered: -40 to +85 °C
Storage: -55 to +90 °C
95%
-15,000 to +55,000 feet ( 16,764 meters)
6 g, 11 ms (3 on each of 6 surfaces)
0.03 g2/Hz 10-30 Hz, 0.002 g2/Hz
75-1000 Hz
Data: 1.0 to 11.0 V RGWB
Control: CMOS/TTL logic level
Two 14-contact flex cables, 1 mm pitch,
123 mm long.
D0-160D
Backlight not included
EXPERIENCED AVIONICS SUPPLIER. As a leading provider
of high-performance display systems, Planar has over
seventeen years of experience providing solutions to meet
the demanding requirements of the commercial avionics
market.This understanding of the unique demands of sunlight-readable and flight deck applications is demonstrated
in the LC-3ATI.
AVIONICS DISPLAY FEATURES.
There is no
environment that poses more challenges to a
flat panel display than a cockpit.The wide range of ambient
lighting condition – from dark night to bright sunlight
streaming through the cockpit directly onto the display,
the mechanical restraints, and the rugged specifications are
extreme and unique.The LC-3ATI addresses these needs
with proven Planar quality.
SUPERIOR TECHNICAL SUPPORT AND CUSTOMER SERVICE.
Planar’s international team of application engineers bring
a level of expertise and professionalism, to assist you
throughout your design cycle, and to help you optimize
the visual performance of your end product.
DIMENSIONS (all dimensions in millimeters)
Loading...
