USB sockets

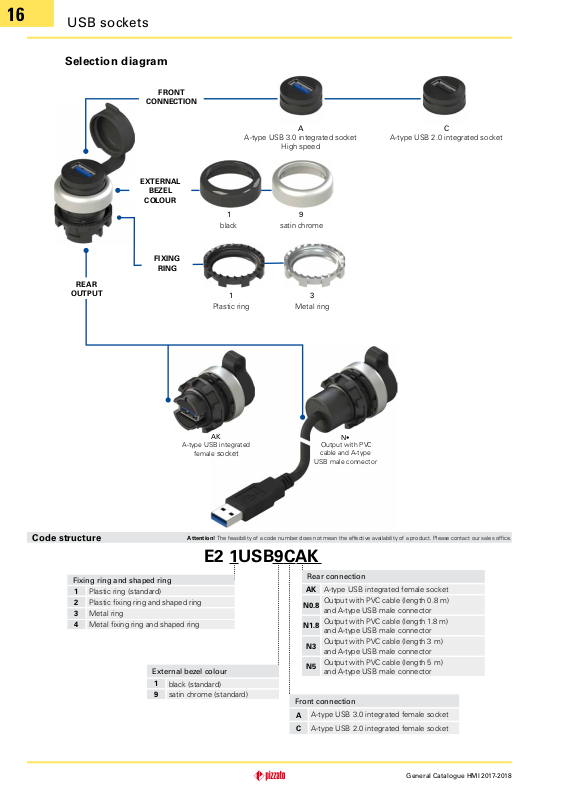

Selection diagram
FRONT
CONNECTION
REAR
OUTPUT
EXTERNAL
BEZEL
COLOUR
FIXING
RING
A-type USB 3.0 integrated socket
A C
High speed
1 9
black satin chrome
1 3
Plastic ring Metal ring
A-type USB 2.0 integrated socket
Code structure
Fixing ring and shaped ring
1
Plastic ring (standard)
2
Plastic fixing ring and shaped ring
3
Metal ring
4
Metal fixing ring and shaped ring
A-type USB integrated
AK
female socket
Attention! The feasibility of a code number does not mean the effective availability of a product. Please contact our sales office.
E2 1USB9CAK
External bezel colour
1
black (standard)
9
satin chrome (standard)
Rear connection
AK
N0.8
N1.8
N3
N5
Front connection
A-type USB 3.0 integrated female socket
A
C
A-type USB 2.0 integrated female socket
N•
Output with PVC
cable and A-type
USB male connector
A-type USB integrated female socket
Output with PVC cable (length 0.8 m)
and A-type USB male connector
Output with PVC cable (length 1.8 m)
and A-type USB male connector
Output with PVC cable (length 3 m)
and A-type USB male connector
Output with PVC cable (length 5 m)
and A-type USB male connector
General Catalogue HMI 2017-2018
37.3
Technical data
General data
Connections: USB 3.0 or USB 2.0
Protection degree: IP67 acc. to EN 60529
(with closed cap)
Ambient temperature: -25°C … +70°C
Tightening torque of the ring: 2 … 2.5 Nm
Utilization requirements: See page 139
In compliance with standards:
IEC 60947-1, IEC 60947-5-1, IEC 60204-1, EN 60947-1, EN 60947-5-1, EN 60204-1,
UL 508, CSA 22-2 No. 14
Compliance with the requirements of:
Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU.
16
Main features
•Two data transfer speeds
•Protection degree IP67
•Version with socket/socket
•Version with socket / cable with male connector
Quality marks:
UL approval: E131787
EAC approval: RU C-IT ДМ94.В.01024
General data
USB 3.0 High Speed
The USB socket for Ø 22 mm buttons uses
latest-generation USB 3.0 connectors, in
order to offer maximum data transfer speed.
Moreover, the socket is also backward
compatible with previous USB connectors.
USB 2.0
The USB socket for Ø 22 mm buttons is
also available with USB 2.0 connectors and
standard data transfer speed. This option
offers the best value for money.
Features approved by UL
Ratings: 1.8A (Supplied by class 2 or limited energy external power supply source)
Tightening torque 2.0 Nm
With port cover in open position “For Use on a Flat Surface of a Type 1”, with port
cover in close position “For Use on a Flat Surface of a Type 1, 4X, 12 and 13”.
Please contact our technical department for the list of approved products.
Versions with socket and with cable
For making device installation flexible and suitable for any situation
there are two versions available:
- with female socket-to-female socket connection
- with female socket / cable with male connector (available in
different lengths)
Shaped ring
Integrated protection cap
The protection cap integrated in the device ensures maximum
resistance, preventing any water or dirt to get inside.
The cap remains attached to the device even when it is not fastened,
avoiding it to get lost; besides, its design allows the mounting of
label holders.
General Catalogue HMI 2017-2018
The shaped ring can be used when no plate
holder or other devices are applied; it prevents
dirt and other residues from settling between the
connectors and the panel or housing.
This turns out to be particularly useful in the
sectors where high standards of cleanness and
hygiene are required.
Dimensions
47.8
Ø 20.3
21.7
a
a = 0.8 / 1.8 / 3 / 5 m
29.6
All measures in the drawings are in mm
37.3
21.7
41
29.6
