Pitco SSHLV14T Service Manual

Solstice Gas ROV Fryers

SSHLV Series

Service Manual

RETAIN AND STORE THIS MANUAL IN A SAFE P LACE FOR FUTURE USE

L22-392 R1 (10/14)

Pitco SSHLV (ROV) Gas Fryers

!

!

Improper installation, operation, adjustment, mainten ance , all alterations or servi ce, and unauthorized

! WARNING !

DO NOT supply the appliance with a gas that is not indicated on the data plate. If conversion of the
appliance is required, contact your dealer or authorized service agent.

! DANGER !

Only qualified service personnel may service or convert this appli an ce to use a gas other than that for
which it was originally manufactured. Improper conversion can lead to property dam age, i njury or death.

! DANGER !

Prior to moving, testing, maintaining or repairing your appliance, ensure it is emptied of all oil, cool,

!

!

No structural material on the fryer should be altered or removed to accommodate placement of the fryer
excess heat, causing property damage, i njury and death.

!

!

Adequate means must be provided to limit the movement of this appliance without depending on the gas

gas lines and property damage, injury and death.

! DANGER !

DO NOT sit or stand on this appliance. The appliance’s top deck, door, front panel, tank, splash
falling or contact with hot liquids causing property damage, injurious severe burns and/or death.

!

!

NEVER use the appliance as a step for cleaning or accessing the ventilation hood. Serious

injurious severe burns and/or death.

!

!

Do not store or use gasoline, store or spray aerosols or other flammable liquids or vapors in the vicinity

alterations or modifications can cause property damage, injury or death. Read the installation, operating
and service manuals thoroughly before installing or servicing this equipment.

disconnected from gas and all electrical power. Failure to do so may result in property damage, dam age
to your fryer, injury or death.

under a hood, or any other reason. Unauthorized modifications could cause improper combustion and

DANGER

DANGER

line. Single fryers equipped with legs must be stabilized by installing anchor straps. All fryers equipped
with casters must be stabilized by installing restraining lanyards. If a flexible gas line is in use, an
additional restraining lanyard must be connected at all times when the fryer is in use. The restraining
cable must NOT exceed 80% of the length of the flexible gas line. Failure t o do so m ay result in ruptured

back, tank cover, workshelf, drain board are not steps. Serious injury will result from slipping,

injury will result from slipping, falling or contact with hot liquids causing property damage,

of this or any other appliance. Appliances incorporate open flames and/or high heat that will ignite
flammable vapors causing property damage, injury and death.

DANGER

DANGER

DANGER

L22-392 R1 2

Pitco SSHLV (ROV) Gas Fryers

!

!

Instructions to be followed, in the event an operator smells/detects a gas leak, must be p o sted in a

and death.

!

!

The contents of the crumb catch and/or filter pan of any filter system must be emptied into a

fire, property damage, injury and death.

! DANGER !

Any and all spilled oil, water or other liquids that occurs as a result of operation, cleaning, maintenance

!

!

Check for gas leaks after installation or servicing of a gas fryer. Apply a leak detection solution to all
could lead to fire and/or explosion, property damage, injury and death.

! WARNING !

DO NOT use the filter pan to transport oil, hot or cold. The filter pan is not designed to transport oil.

damage, injurious severe burns and/or death.

!

!

DO NOT remove frypot fittings before all oil is drained from the tank. Serious injury will result from

death.

!

!

For appliances equipped with manual (opposed to automated) filtration, shut down the appliance

appliance inadvertently heating up during the draining and filtering process.

!

!

This appliance must be installed and used in su ch a way that any water cannot contact the fat or oil.
Water will react violently with hot fat or oil causing severe burns, injury or death.

!

!

Keep all items and hands out of drains. Automated actuators may close without notice causing damage to
the fryer and personal injury.

!

!

This appliance is NOT jet stream approved. Do not clean the appliance with a water jet. Use of any
pressurized water jet will cause damage to the fryer and personal injury.

prominent location. This information can be obtained from your local gas company or supplier. Fai l ure to
post the instructions could leave an active gas leak unresolved, leading to fire, property damage, injury

fireproof container at the end of the frying operation each day. Some food particles can
spontaneously combust into flames if left soaking in certain oil/shortening materials, causing

or repair of this fryer should immediately be cleaned and dried. Failure to do so can create a slippery
surface resulting in falling/impact injury or death.

DANGER

DANGER

DANGER

connections and joints to ensure there are no bubbles or leaks. Fai lure to check for and correct any leaks

Serious injury will result from slipping, falling or contact with hot liquids causing property

slipping, falling or contact with hot liquids causing property damage, injurious severe burns and/or

completely when the shortening, fat or oil is being drained from the appliance. This will prevent the

WARNING

WARNING

WARNING

WARNING

L22-392 R1 3

WARNING

Pitco SSHLV (ROV) Gas Fryers

!

!

This appliance is intended for indoor use only. Do NOT use outdoors.

!

!

This appliance is not intended for use by persons (including children) with reduced physical, sensory or

! CAUTION !

Use caution and wear appropriate safety equipment to avoid contact with hot oil or surfaces. Hot oil and
surfaces can cause severe burns and injury .

!

!

Do not bang fry baskets or other utensils on the joining strips between batteried fry pots. Banging
frybaskets or any other utensil on the joining strip will distort and promote oil m i gration i nsi de the fryer.

!

!

NEVER run water through the filter pump. Water will damage the pump seals and render the pump
inoperable/ It will also void the warranty on the filter pump.

NOTE

Some US states require any gas appliance to be installed by a state l icensed plumber or pipe fitter. Check
with your local municipality prior to installation.

NOTE

This equipment must be installed in accordance with appropriate local and national codes i n the stat e,
country and/or region in the appliance is to be operated. Contact your local gas authority for guidance.

NOTE

This equipment is to be installed in compliance with the basic plumbing code of the Building Officials and

NOTE

Photos and drawings used in this manual are intended to illustrate operational, cleaning and technical
procedures and may not conform to onsite management operational procedures.

NOTE

This appliance is intended to be used for commercial applications: For example in kitchens of
NOT for continuous mass production of food.

NOTE

This appliance is intended for professional use only and is to be operated by qualified, trained personnel

warranty. See chapter one for descriptions of qualified personnel.

WARNING

mental capabilities, or lack of experience and knowledge. Property damage, personal i nj ury or death can
result from unqualified operators.

WARNING

CAUTION

CAUTION

Code Administration International (BOCA) and the Food Service Sanitation Manual of the U.S Foo d and
Drug Administration.

restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc. but

only. A Pitco Authorized Service Agent (ASA) or other qualified professional must perform installation,
maintenance and repairs. Installation or repairs by unqualified personnel will void the manufacturer’s

L22-392 R1 4

Pitco SSHLV (ROV) Gas Fryers

NOTE

If, during the warranty period, the end user uses a part for this Pitco appliance other than an UNMODIFIED

received from an unauthorized servicer/supplier.

new part purchased directly from Pitco or any of Pitco’s authorized service agents, and/or the par t being
used is modified from its original configuration, THE WARRANTY WILL BE VOID. Further, Pitco Frialator
and its affiliates will not be liable for any claims, damages or expenses incurred by the customer which
arise directly or indirectly, in whole or in part, due to the installation of any modified part and/or part

1 Notice

In the event of problems or questions about your order, contact the Pitco Frialator factory at
[phone].

For non-routine maintenance or repairs, or for service information, contact your local Pitco Frialator
Authorized Service and Parts representative (ASAP). In order to assist you quickly,your Pitco Frialator
ASAP or Service Department representative requires certain information about your equipment. Most of
this information is printed on a data plate affixed to the inside of the fryer door. Part numbers are found
in the Service and Parts Manual. Parts orders may be placed directly with your local ASAP or
distributor. A list of Pitco Factory Authorized Service and Parts is located on the Pitco Frialator website
at www.pitco.com. If you do not have access to this list, contact the Pitco Frialator Service Department
at [phone] or by email at:

Literature Fulfillment (brochures, spec sheets, manuals)

[e-mail]

Non-urgent service parts inquires. i.e. (part numbers or reference information)

[e-mail]

Non-urgent technical service questions

[e-mail]

Non-urgent warranty questions

[e-mail]

MAILING ADDRESS
Pitco Frialator
P.O. Box 501
Concord, NH 03302-0501
SHIPPING ADDRESS
Pitco Frialator
10 Ferry Street
Concord, NH 03301
EQUIPMENT REFERENECE INFORMATION

Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________

L22-392 R1 5

Pitco SSHLV (ROV) Gas Fryers

TABLE OF CONTENTS

1 Notice ........................................................................................................................................... 5

2 General ......................................................................................................................................... 8

2.1 Serial Numbers ...................................................................................................................... 9

2.2 Safety Information ............................................................................................................... 10

2.2.1 Installation, Operating, and Service Personnel ............................................................... 10

2.3 Definitions ............................................................................................................................ 10

2.3.1 Qualified and/or Authorized Operating Personnel ........................................................... 10

2.3.2 Qualified Installation Personnel ....................................................................................... 10

2.4 Shipping Damage Claim Procedure .................................................................................... 11

3 Theory of Operation .................................................................................................................. 11

3.1 The Matchless Ignition System ........................................................................................... 11

3.2 Auto Filtration Boards .......................................................................................................... 12

3.3 Thermostats ........................................................................................................................ 14

3.4 Fryer Sequence Operation .................................................................................................. 14

3.5 Heating System ................................................................................................................... 14

3.6 Safety System ..................................................................................................................... 15

3.7 Filter System (Manual Filtration Only) ................................................................................. 15

3.8 Basket Lift (Optional) ........................................................................................................... 16

3.9 Auto Top Off – ATO (Optional) ............................................................................................ 16

3.10 Automated Filtration (Optional) ........................................................................................... 17

4 Accessing Fryer for Servicing ................................................................................................. 18

5 Replacing the Controllers ........................................................................................................ 19

5.1 Removing the Controller Front Panel Bezel ........................................................................ 19

6 Manual Operation of Drain and Return (Auto Filter Only) ..................................................... 20

7 Blocked Drain (Auto Filter Only) .............................................................................................. 21

7.1 Replacing the Relay Board and Paper ................................................................................ 22

8 Checking Resistance ................................................................................................................ 23

8.1 Checking the Resistance of the Transformer ...................................................................... 23

8.2 Diagram Identifying Terminals for Second Resistance ....................................................... 24

8.3 Checking the Resistance of the DVI Switch ........................................................................ 24

8.4 Checking the Resistance of the Hi-Limit ............................................................................. 25

8.5 Checking the Resistance of the Temperature Probe .......................................................... 26

9 Replacing Temperature Probe ................................................................................................. 27

10 Replacing the Ignition Module and Hi-Limit ........................................................................... 29

11 Replacing an Igniter/Pilot Assembly ....................................................................................... 30

12 Replacing Drain Valve with Actuator (Auto Filter Only) ........................................................ 31

13 Replacing the DC Power Supply .............................................................................................. 33

14 Replacing Transformer/Power Box ......................................................................................... 34

15 Changing Filter Pump Actuator ............................................................................................... 35

16 Testing the Auto Top Off Probe (if equipped) ........................................................................ 36

17 Replacing the Auto Top Off Probe (If equipped) .................................................................... 38

18 Gas Conversion ......................................................................................................................... 40

19 Replacing the Return Valve ...................................................................................................... 41

20 Replacing the Optional Flush Hose Assembly and Valve ..................................................... 42

21 Replacing the Waste Oil and Components ............................................................................. 45

21.1 Removing Rear Mounting Bracket ...................................................................................... 45

21.2 Removing the Check Valve ................................................................................................. 46

22 Removing the Filter Pump from the Motor ............................................................................. 48

22.1 Replacing Seal Kit ............................................................................................................... 48

23 Replacing the Drain Line or Gasket ........................................................................................ 49

L22-392 R1 6

Pitco SSHLV (ROV) Gas Fryers

24 Replacing the Pump Relay and Circuit Breaker ..................................................................... 50

24.1 Replacing the Circuit Breaker .............................................................................................. 50

24.2 Replacing the Pump Relay .................................................................................................. 51

25 Cleaning the Gas Valve Vent Tube .......................................................................................... 52

26 Checking the Gas Pressure ..................................................................................................... 53

26.1 Taking a Supply Gas Pressure Reading ............................................................................. 53

26.2 Taking a Manifold Gas Pressure Reading ........................................................................... 55

26.3 Adjusting Manifold Gas Pressure ........................................................................................ 56

26.4 Adjusting Pilot Flame ........................................................................................................... 56

27 Replacing the Self-Cleaning Burner Solenoid ........................................................................ 57

28 Replacing the Gas Valve .......................................................................................................... 58

29 Replacing the DVI Switch (Manual Filter Only) ....................................................................... 60

30 Replacing the Burner Assembly .............................................................................................. 61

30.1 Replacing the Burner(s) ...................................................................................................... 61

30.2 Replacing the Burner Assembly .......................................................................................... 63

31 Replacing the Frypot ................................................................................................................ 64

32 Replacing the Basket Lift Components .................................................................................. 68

32.1 Removing the Basket Lift Cover .......................................................................................... 68

32.2 Replacing the Basket Lift Transformer ................................................................................ 68

32.3 Replacing the Basket Lift Driver Board ............................................................................... 69

32.4 Adjusting the Magnetic Sensor ............................................................................................ 70

32.5 Replacing the Basket Lift Actuator ...................................................................................... 70

33 Replacing the Filter Pump and Motor ...................................................................................... 72

33.1 Removing the Filter Pump and Motor .................................................................................. 72

34 Information Charts/Tables ........................................................................................................ 75

34.1 Temperature Probe Resistance Chart ................................................................................. 76

34.2 Orifice Size Chart ................................................................................................................ 77

34.3 Orifice Size at Sea Level Chart ........................................................................................... 78

35 Simplified Wiring Diagrams ..................................................................................................... 79

35.1 Wiring Diagram – Heat Control Wiring Left & Right (ROV) ................................................. 79

35.2 Wiring Diagram – Auto Filter Board (AFB2) Wiring (ROV) .................................................. 80

35.3 Wiring Diagram – Connector Locations Detail AFB2 W/Jib & No Bulk Oil Option (ROV) ... 81

35.4 Wiring Diagram – Calibration Test Points and Indicators (ROV) ......................................... 82

35.5 Wiring Diagram – AC & DC Control Voltage Supplies (ROV) ............................................ 83

35.6 Wiring Diagram – Basket Lift Option & Connector Locations (ROV) .................................. 84

35.7 Wiring Diagram – Filter Pump Options 208V-240V (ROV) ................................................. 85

35.8 Wiring Diagram – Full Vat with SCB .................................................................................... 86

35.9 Wiring Diagram – Basket Lifts ............................................................................................. 87

35.10 Wiring Diagram – Filter Motor 115V-60Hz ....................................................................... 88

35.11 Wiring Diagrams – Filter Motor 208-240V ....................................................................... 89

L22-392 R1 7

Pitco SSHLV (ROV) Gas Fryers

2 General

Read the instructions in this manual thoroughly before attempting to operate this equipment. This
manual covers all configurations of Pitco SSHLV gas models. The fryers in this model family have most
parts in common, and when discussed as a group, will be referred to as SSHLV fryers.

The SSHLV fryers feature a low oil volume frying vat, optional automatic oil top off and optional
automated filtration unit. The Solstice design features a large round drain, which ensures that fries and
other debris will be washed into the filter pan. The SSHLV fryers are controlled with an I12 + Controller.
Fryers in this series come in full- or split-vat arrangements, and can be purchased in batteries of up to
five fryers.

L22-392 R1 8

Pitco SSHLV (ROV) Gas Fryers

NOTE

2.1 Serial Numbers

If, parts returned to the factory under warranty are found to be a functional/serviceable, Pitco may, at its
discretion, decline warranty reimbursement and may charge for replacement parts.

L22-392 R1 9

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

!

!

! WARNING !

! DANGER !

2.2 Safety Information

Before attempting to install, operate or service your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in shaded boxes similar to the one below.

Clean up any spilled oil or shortening immediately. Oil or shortening left on the floor creates a
slipping hazard that will result in personal injury sustained from falling.

NOTE boxes contain especially important information.

CAUTION boxes contain information about actions or conditions that may cause or result in a
malfunction of your system and/or minor personal injury.

WARNING boxes contain information about actions or conditions that may cause or result in damage

to your system and/or moderate personal injury, and which may cause your system to malfunction.

DANGER boxes contain information about actions or conditions that may cause or result in serious
injury or death to personnel, and which may cause damage to your system and/or cause your system

to malfunction.

NOTE

CAUTION

2.2.1 Installation, Operating, and Service Personnel

Operating information for Pitco equipment has been prepared for use by qualified and/or authorized
personnel only, as defined in Section 2.3. All installation and service on Pitco equipment must be

performed by qualified, certified, licensed, and/or authorized installation or service personnel,
as defined in Section 2.3.2.

2.3 Definitions

2.3.1 Qualified and/or Authorized Operating Personnel

Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized them themselves with the equipment functions, or who have had previous
experience and/or training with the operation of the equipment covered in this manual.

2.3.2 Qualified Installation Personnel

Qualified installation personnel are individuals, firms, corporations, and/or companies which, either in
person or through a representative, are engaged in and are responsible for the installation of electrical
appliances. Qualified personnel must be experienced in such work, be familiar with all electrical

L22-392 R1 10

Pitco SSHLV (ROV) Gas Fryers

PITCO DOES NOT ASSUME RESPONSIBILITY FOR DAMAGE OR LOSS INCURRED IN

TRANSIT.

precautions involved, and have complied with all requirements of applicable national and local
codes.Qualified Service Personnel
Qualified service personnel are those who are familiar with Pitco equipment and who have been
authorized by Pitco Frialator to perform service on the equipment. All authorized service personnel are
required to be equipped with a complete set of service and parts manuals, and to stock a minimum
amount of parts for Pitco equipment. Failure to use qualified service personnel will void the Pitco
warranty on your equipment

2.4 Shipping Damage Claim Procedure

What to do if your equipment arrives damaged:

Please note that this equipment was carefully inspected and packed by skilled personnel before leaving
the factory. The freight company assumes full responsibility for safe delivery upon acceptance of the
equipment.

1. File Claim for Damages Immediately - regardless of extent of damage.

2. Inspect For and Record All Visible Loss or Damage, and ensure that this information is
noted on the freight bill or express receipt and is signed by the person making the delivery.

3. Concealed Loss or Damage- If damage is unnoticed until equipment is unpacked, notify the
freight company or carrier immediately upon discovery and file a concealed damage claim.
This must be submitted within 15 days of date of delivery. Be sure to retain container for
inspection.

3 Theory of Operation

SSHLV Series gas fryers utilize a welded, stainless steel fryvat that is directly heated with high
efficiency, atmospheric burner tubes. The atmospheric burner tubes eliminate the maintenance heavy
and inefficient (over time due to clogging) blowers used in other fryers. Heat tubes provide as much as
80% more surface area for heat transfer than open vat fryers (tubeless), providing faster recovery
without scorching the oil. Each tube, four total, is fitted with proprietary, incoloy baffles that are heated
by air/gas jet emitted from our patented burners. The baffles transfer heat to the fryvat by means of
infrared radiation and conduction plus convection flow from the air/gas jet. The tubular heat also allows
for a “cold zone” below the tubes where cooking debris will settle at t temperature much lower than the
cooking temperate. The lower temperature prevents the debris from carbonizing and oxidizing the
cooking oil prematurely as typically found in non-tube style fryvats. In full-vat units, gas flow to the
burners is regulated by one electromechanical gas valve. In split-vat units, each burner bank has its
own valve to independently control each vat. All fryers in this series are equipped with 24 V AC gas
valve systems, and all are configured with matchless ignition.

3.1 The Matchless Ignition System

An ignition module, mounted behind the gas valve, is connected to an ignitor/pilot assembly between
the burners. The ignition module performs three important functions: provides an ignition spark,
supplies voltage to the gas valve, and proofs the pilot flame. The module employs a four second time
delay circuit (after flame sense) and a signal that activates the gas valve. Two types are currently used:
A closed-box design is used in most fryers, but in some fryers built for export, the module is packaged
differently. A single “one-spark” module is used on current production full-vat fryers. All dual-vat fryers
use two single “one-spark” modules. The ignitor/pilot assembly consists of an igniter, a pilot tube/hood,
and a flame sensor.

L22-392 R1 11

Pitco SSHLV (ROV) Gas Fryers

3.2 Auto Filtration Boards

All fryers in this series have an Auto-Filtration Board (AFB) located in the component box behind the
control bezel. The AFB provides a “bus” between the controller and the fryer's individual components
without requiring additional wiring by using a communication protocol over a twisted pair, and allows the
controller to execute commands from one central point. The heat control circuit is show below in Figure

1. This is the bottom left corner of the AFB. For a split vat, this is duplicated on the bottom right hand
corner.

Figure 1 - Bottom left corner of Auto Filtration Board

L22-392 R1 12

Pitco SSHLV (ROV) Gas Fryers

Figure 2 - Auto-Filtration Board (AFB)

L22-392 R1 13

Pitco SSHLV (ROV) Gas Fryers

NOTE

When the controller is on, the pilot should always remain lit.

3.3 Thermostats

SSHLV Series gas fryers have temperature probes located above and between the third and fourth
heat tube of each fryvat (split vat fryers have two probes, one in each vat). SSHLV fryers, like all
Solstice series fryers, use a thermistor style temperature probe. In this type of thermostat, the probe
resistance varies directly with the temperature. That is, as the temperature rises, so does resistance.
Circuitry in the controller monitors the probe resistance and controls burner firing when the resistance
exceeds or falls below programmed temperatures (setpoints). SSHLV Series gas fryers are also
equipped with a high-limit thermostat. In the event that the fryer fails to properly control the oil
temperature, the high-limit thermostat prevents the fryer from overheating to the flash point. The high­limit thermostat acts as a normally closed power switch that opens when exposed to temperatures
above 425°F to 450°F (218°C to 232°C).

3.4 Fryer Sequence Operation

The SSHLV fryer components function in specific order of operation. Knowing and understanding the
sequence of fryer and components operation enables you to diagnose equipment failure more
accurately.

3.5 Heating System

The unit is connected to line voltage:

• If Fuse F1 on the relay board is good:

• The A.C. indicator is illuminated.

• The controller is supplied with 24 VAC.

• With the drain valve handle closed, the proximity switch supplies 24 VAC to the drain valve

interlock (DVI) input at the controller.

• 24 VAC is at the Side On (SO). relay COM contact.

• The controller is turned ON:

• The SO indicator on the relay board is illuminated.

• The SO relay is energized, closing the circuit.

• With the roll out switch and hi-limit in the closed position, the ignition module receives 24VAC

at terminal 6 (24 VAC).

• The ignition module:

• Sends 24 VAC from terminal 3(PV) to the PV terminal on the gas valve.

• Sends the igniter 15kv to spark.

• Senses the flame once the pilot has lit and it sends 24 VAC at terminal 1(MV) and puts 24 VAC

at the Heat Demand (HD) relay COM contact on the relay board. The HD relay on the relay board
interrupts the 24 VAC supply to the gas valve until the controller calls for heat.

• The controller calls for heat:

• The HD indicator on the relay board is illuminated.

L22-392 R1 14

Pitco SSHLV (ROV) Gas Fryers

!

!

Inspect the filter pan prior to pulling the BLUE DRAIN VALVE HANDLE to insure it is empty. If the filter

NOTE

Circuit Breaker should remain in the “ON” position at all times.

• The HD relay is energized, closing the circuit sending 24 VAC to the MV terminal on the gas

valve.

• The computer is supplied with a 24 VAC heat feedback (HFB) signal.

3.6 Safety System

When the roll out switch or hi-limit trips, it interrupts the 24 VAC supply to the ignition module.

• When the controller calls for heat, it does not receive a 24 VAC HFB. With approximately 90
seconds of HFB loss, the controller indicates an ignition failure or heat failure.

• After the roll out switch hi-limit is reset, turn the controller off and then back on for the unit to
heat.

3.7 Filter System (Manual Filtration Only)

Pulling the BLUE drain valve handle will:

• Open the drain at the bottom of the fry vat

• Open the “Drain Valve Interlock” (DVI) magnetic switch disabling the heating system during

filtration.

pan has visible oil, opening the valve will result in hot oil overflow onto the floor resulting in slipping
hazards, fall related injuries, serious burns or death.

• Push handle in to close Drain and enable DVI.

Pulling the RED return valve handle:

• Opens the return valve to that vat.

• Closes the pump proximity switch causing the “pump run” relay to be energized.

• The pump motor begins to run.

• Closing the return valve handle de-energizes the relay and the pump motor stops running and

the return valve closes.

• The pump system is equipped with a circuit breaker which de-energizes the system and the
heat tape (If equipped) in the event of over current. The circuit breaker must be in the “ON”
position for the pump and heat tape to operate.

Pulling the BROWN waste oil valve will: (If equipped):

WARNING

• Divert oil flow from the pump to the fry vat to user supplied waste oil plumbing through a Pitco
supplied three way valve.

• The return piping system may be provided with optional heat tape to prevent solidification of
solid shortening. The heat tape is low wattage and is on constantly to maintain liquid shortening
in the line.

L22-392 R1 15

Pitco SSHLV (ROV) Gas Fryers

3.8 Basket Lift (Optional)

The basket lift is a self contained unit that requires a 120V, 208V, or 240V supply. With most fryer
configurations, the power is supplied from the entrance box at the back of the fryer, but some
configurations require power directly from a wall outlet.

• When power is supplied to basket lift assembly, the baskets lift to the up position.

• The baskets lower with a 24 VDC output from the controller.

• The basket lift control voltage is supplied from the controller

• The basket lift operational voltage is supplied from the line voltage supply that powers the

transformer in the basket lift assembly.

3.9 Auto Top Off – ATO (Optional)

• If equipped, the optional Auto Top Off (ATO) adds small doses of oil from the “Jug in Box” or JIB
when low oil conditions are detected. During frying, small amounts of oil are absorbed (called
“drag out”) by the food and removed from the fryer. These small amounts eventually lead to
replenishment with a “Top Off” event.

• The fryer cannot be filled from empty with the Auto Top Off option.

• The ATO uses the filter pump to move oil from the JIB to the fry vat when low oil conditions are

sensed. A linear actuator redirects the pump flow from the JIB during a Top Off event.

• The ATO doesn’t not operate during a cook cycle to keep the oil hot during cooking. Adding
room temperature oil during cooking would negatively impact the cook cycle and product.

• The ATO probe is located in a reservoir (or weir) at the front, top of the fry tank as pictured
above:

• The probe reservoir must be free of debris & food particles to work properly.

• The ATO probe plugs into the Auto Top Off relay board behind the front control bezel.

The following conditions must be met for the ATO event to occur:

• The vat must be in idle condition, not cooking or melting, with display showing “Ready” or
“Drop”. This display typically shows when the vat is within 20°F of cooking set-point.

• When the cooking control shows Ready, the oil level probe will take time to detect the low level
condition. The lower the level the faster the response. The reverse is also true. Modestly low
levels take longer to resolve. (< 3/8” below probe). Levels ½” below probe should detect in 3­1/2 minutes or less.

L22-392 R1 16

Pitco SSHLV (ROV) Gas Fryers

• Food debris, or oil caked onto probe may prevent ATO operation. Occasional probe cleaning
when vat is empty and cool is recommended.

• Top off does not occur when the control is Off, Melting, Cooking, or Heating.

3.10 Automated Filtration (Optional)

• If equipped with an Automated Filtration system, the filtration works like any other Solstice Fryer
except the manual handles (blue and red) are replaced with actuators (show below) to drain the
fry vat and return oil to fry vat after filtering.

Drain Valve Actuator (top) with Drain Valve (below) 1 Linear Actuator 1

• The Automated Filtration system does not actuate “automatically”, user input is required.

• The actuators for the drain valve and return valve can be manually operated through the I12

computer. (See instructions in this manual, Section 6)

• When a pre-determined threshold (typically a user programmed number of cooks) is reached,
the operator can be prompted to filter the cooking oil. Upon successful operator input, the
system:

• Begins an automated filtration process that first opens the drain valve and drains the oil into the
filter pan.

• Shortly after the drain valve opens, the linear actuator opens the return valve and the filter pump
actuates. The filtering process operates for a pre-defined period of time (user programmable)

• The drain valve closes and the pump continues to run, returning the freshly filtered oil to the fry
vat.

• When all the oil has been pumped back to the fry vat, the pump turns off and the return valve
closes.

• The operator is queried to insure the vat is full. If the operator responds “NO”, the filter pump
turns on and the return valve is opened to pump any remaining oil from the filter pan. When the
operator responds “YES”, the fryer turns itself off and must be re-energized by the operator
pressing the “ON” key to restore power and begin frying.

L22-392 R1 17

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Prior to moving, testing, maintaining or repairing

4 Accessing Fryer for Servicing

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Press off button on control panel.

3. Unplug all power cords.

4. Shut off the main gas supply line to the unit.

2. Shut off the individual gas supply line.

5. Pull back collar to remove the quick
disconnect gas line.

L22-392 R1 18

Pitco SSHLV (ROV) Gas Fryers

5 Replacing the Controllers

5.1 Removing the Controller Front Panel Bezel

1. Remove the two (2) screws on the controller
panel using a Phillips screwdriver. (on a Dual
unit you will need to remove the front panel
divider).

(For a dual unit- remove the front panel divider)

3. Disconnect the controller wiring harness.

2. Pull out the controller panel front bezel.

L22-392 R1 19

Pitco SSHLV (ROV) Gas Fryers

!

!

Any and all spilled oil, water or other liquids that

falling/impact injury or death.

6 Manual Operation of Drain and Return (Auto Filter Only)

1. To open and/or close drain or return oil from
filter pan manually, hold center filter button until
display changes to fryer control (can be done
with fryer on/off).

2. Pressing “L” key brings up the return mode,
Pressing “Yes” key activates the motor and
allows the pump to return oil from the filter pan
to the vat. The pump/motor will remain on until
you press “yes” key again to toggle off.

3. Pressing the “1” key brings up drain toggle
option- press “YES” to open drain – drain will
remain open until “YES” key is pressed again to
toggle drain closed.

occurs as a result of operation, cleaning,
maintenance or repair of this fryer should
immediately be cleaned and dried. Failure to do
so can create a slippery surface resulting i n

DANGER

L22-392 R1 20

Pitco SSHLV (ROV) Gas Fryers

NOTE

Use ONLY the supplied drain cleaning tool to

!

!

DO NOT UNPLUG FRYER FROM SUPPLY

7 Blocked Drain (Auto Filter Only)

1. Display of “Blocked Drain- retry”. The drain is
not closing and the controller is not receiving
the signal that shows that the drain has been
closed.

remove any food debris or foreign object from
drain. Use of any other tool can damage your
drain valve and will void the warranty.

2. Once you cleared the drain press “YES”
button (6) key. If drain closes and the controller
receives the correct signal, check the drain
again to insure the cleaning tool has been
removed. Your fryer should go back into normal
mode. If not, your controller will scroll “block
drain”. You only have 3 times to try and
unblock drain before controller goes into lock
out.

3.If after three tries, the drain is still blocked the
fryer will no longer operate. If you have a multi
fryer system, the other fryers shouldn’t be
affected by this error. Contact Pitco Service or
Authorized Service Person for assistance.
There is NO reset from front controller panel.

4. If at any time you push “N” (0) key another
scrolling message “FRYER WILL BECOME
INOPERABLE”, “CONFIRM SHUT DOWN”
message.

5. If you press the “N” (0) key then the message
will revert to the display “Blocked Drain” as in
number 1. If you press the “Y” (6) key message
will display “Call Service – ERR” the fryer will
no longer operate. If a multi fryer system the
other fryers shouldn’t be effected by this error.

POWER. If the unit is unplugged and plugged in
again, you WILL damage your drain valve and
void the warranty.

WARNING

L22-392 R1 21

Pitco SSHLV (ROV) Gas Fryers

NOTE

Make sure the insulation paper doesn’t have

7.1 Replacing the Relay Board and Paper

1. Remove the front panel. See “Removing the
Controller Front Panel Bezel” in Section 5.1.

2. Disconnect all connections from the board.

3. Remove the seven (7) screws, which hold
down the relay board, using a small flathead
screwdriver.

5. Remove the existing insulation paper and
replace with a new insulator paper.

puncture marks in it.

6. Reinstall by following steps 1 through 5 in
reverse.

4. Remove the relay board and flip it over.

L22-392 R1 22

Pitco SSHLV (ROV) Gas Fryers

.7 ohms +/- 20ohms

8 Checking Resistance

8.1 Checking the Resistance of the Transformer

1. Disconnect all electrical power. Remove the
front panel (see “Removing the Controller
Front Panel Bezel” in Section 5.1).

2. Disconnect the secondary side terminals.

4. Disconnect the primary side terminals.

3. Connect the multimeter to the secondary
terminals and check the resistance.

Secondary Terminals

5. Connect the black lead of multimeter to the
primary terminal marked “5” and check the
resistance readings of taps in following
chart on page 24.

L22-392 R1 23

Pitco SSHLV (ROV) Gas Fryers

8.2 Diagram Identifying Terminals for Second Resistance

TAP Volts Resistance TAP Volts Resistance

10 - 6 24V 0.7 10 - 6 24V 0.6

Tap Volts Resistance Tap Volts Resistance
5 - 1 240V 30. 4 5 - 1 480V 119.5
5 - 2 208V 25. 3 5 - 2 440V 107.7
5 - 3 120V 9.9 5 - 3 380V 90.2

PP 10429 PP 10428

Secondary ResistanceSecondary Resistance

Primary Resistance Primary Resistance

8.3 Checking the Resistance of the DVI Switch

1. Remove the Drain valve interlock (DVI)
connection.

2. Connect the multimeter to the DVI leads
and check the resistance.

DVI Resistance Table:

Valve Closed Valve Open

Near Zero Ohm Open Circuit

3. If measurements do not match the tables

above, replace the DVI, following
instructions in Section 29.

L22-392 R1 24

Pitco SSHLV (ROV) Gas Fryers

NOTE

If the Hi-limit is suspect, allow the fryer to cool to

threshold..

8.4 Checking the Resistance of the Hi-Limit

room temperature before performing this test.
The high limit will remain OPEN until the oil
temperature has dropped below the tripping

1. Unplug the Hi-Limit connection.

2. Connect the multimeter to the Hi-limit leads
and check the resistance.

3. If the measurement shows an open circuit
and/or greater than 0.5 ohms then the

limit

is bad and needs to be replaced or
reset. see Section 10.
If there is a small resistance
(0.1 – 0.2 ohms) reading, the Hi-limit is
closed and ready to use, no replacement is
required.

Hi-

L22-392 R1 25

Pitco SSHLV (ROV) Gas Fryers

8.5 Checking the Resistance of the Temperature Probe

1. Remove the probe connection.

2. Connect the multimeter to the temperature
probe leads and check the resistance.

” See Temperature Probe Resistance Chart on
page 84”.

3. If the measurement on the temperature
probe does not match the data in the Probe
Resistance Chart, the temperature probe
must be replaced per instructions in
Section 9.

L22-392 R1 26

Pitco SSHLV (ROV) Gas Fryers

9 Replacing Temperature Probe

1. Remove Phillips screws from probe holder.

2. Slide probe holder off toward the back of the
tank.

3. Bend horizontal section of probe straight up.

4. Loose compression fitting, pull entire probe
out of bottom of tank.

5. Install new probe from top.

6. Install probe holder with Phillips screws.
(Leave screws loose)

L22-392 R1 27

Pitco SSHLV (ROV) Gas Fryers

7. Install stuffing block in tank using high
temperature food grade thread sealer.
Install white housing on terminals. Tighten
ferrule nut on stuffing block. Plug
connector back in to entrance box
(J7/J107). Tighten screws on probe holder.

L22-392 R1 28

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Prior to moving, testing, maintaining or repairing

damage, damage to your fryer, injury or death.

!

!

Check for gas leaks after installation or servicing

10 Replacing the Ignition Module and Hi-Limit

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electrical
power. Failure to do so may result in property

1. Remove one (1) screw, which holds the

ignition module using a 5/16 inch socket.

2. Remove 3 pin connector and 9 pin connector

on top of the box. You may have to support the
wiring to avoid tangling in the gas lines.

3. Lift the ignition box up and back towards the
burners.

4. To open the ignition module box remove (2)
two 5/16” screws that hold the cover plate on
and slide the plate up to gain access to the
ignition module. You now have access to
ignition box or hi-limit to either test or replace.

5. Follow steps 1 through 4 in reverse order to

L22-392 R1 29

5. Reinstall ignition module and hi-limit
assembly. The box has 4 mounting tabs. Make
sure the tabs are mounted correctly or the box
will not seat properly when re-assembled.

6. Test for proper operation once job is
complete.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

DANGER

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

!

!

Check for gas leaks after installation or servicing

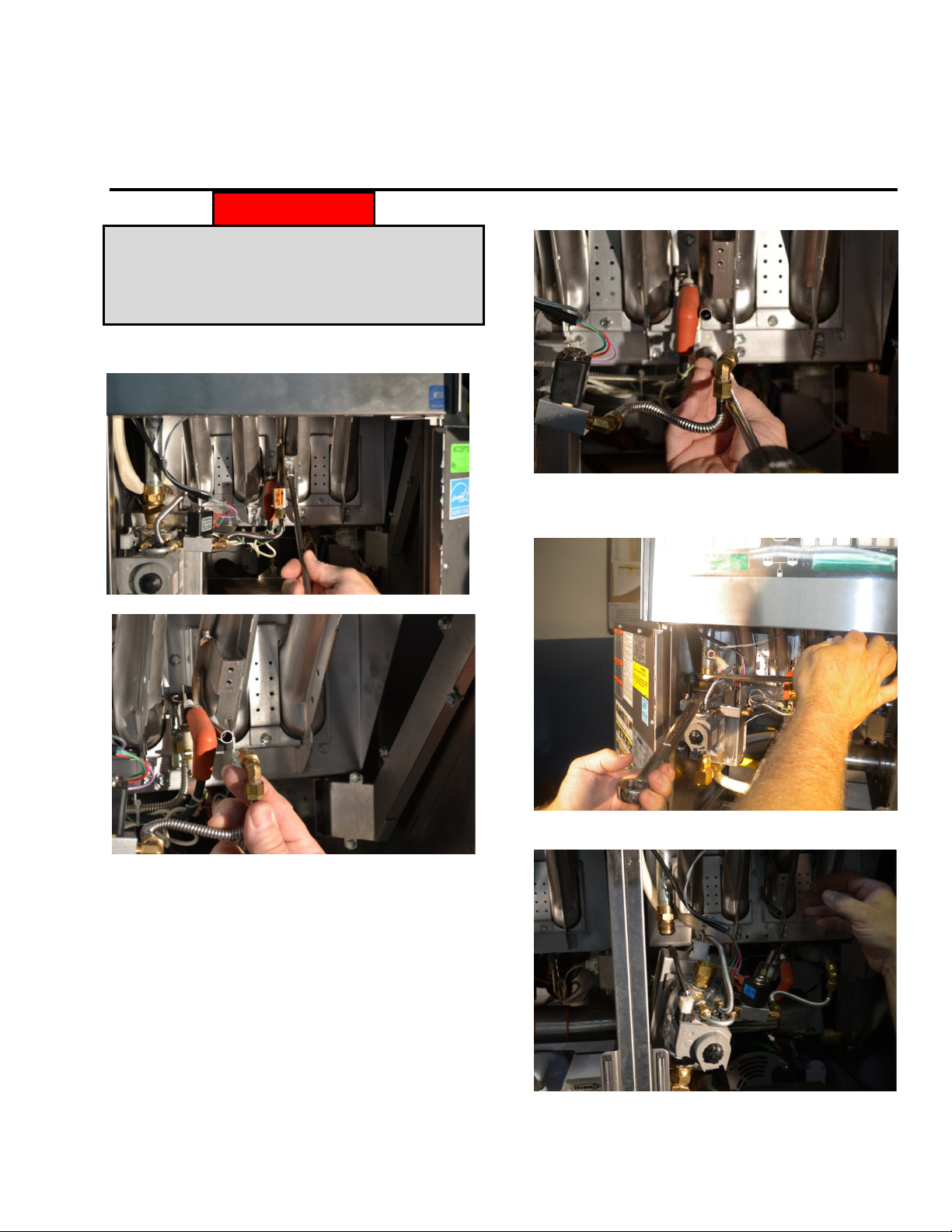

11 Replacing an Igniter/Pilot Assembly

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electrical
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. First cut and remove the zip ties which hold

the flame sensor wire, then carefully remove
the ignition wire boot and move it out of the
way.

2. Remove the two (2) screws, which hold the

pilot assembly using a 5/16”inch socket. One
(1) of the screw, holds the ground wire, be
careful when removing the screw.

DANGER

3. The pilot assembly consists of the pilot tube,
flame hood, flame sensing rod and spark rod
and also the pilot orifice. (If spark wire, flame
sensor wire or ground wire need changing you
will need to gain excess to the ignition module
page 29)

4. Follow steps 1 through 3 in reverse order to
reinstall pilot assembly. Remember to attach
the ground wire to one of the screws.

4. Verify that the spark is adjusted correctly.
The purple spark should jump from the spark
rod to the center of the flame hood. The spark
should not jump to the flame sensing rod.
Spark should be about ¼ inch in length if
adjusted properly.

L22-392 R1 30

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

DANGER

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

!

!

Any and all spilled oil, water or other liquids that

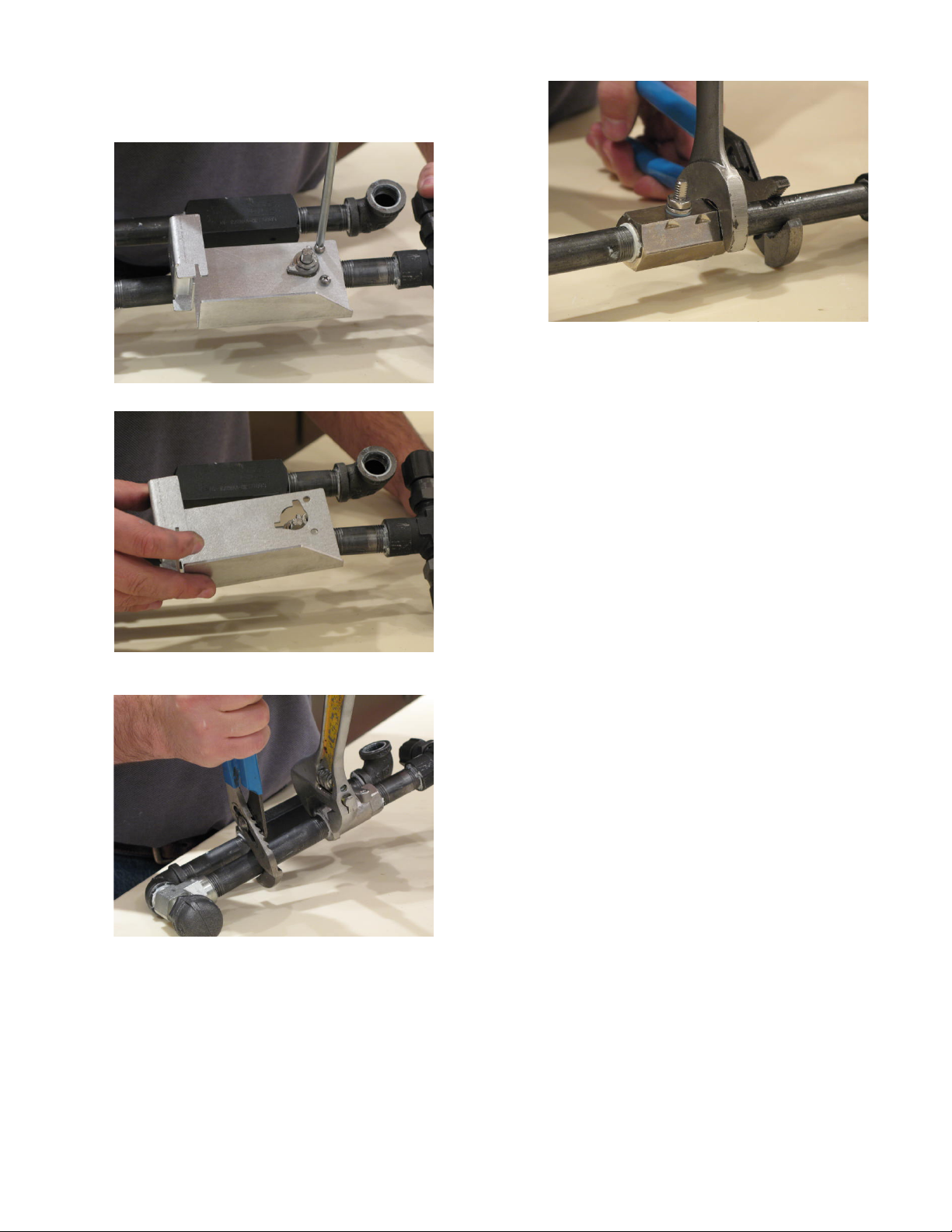

12 Replacing Drain Valve with Actuator (Auto Filter Only)

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Pitco ROV fryer with automated filtration

uses a 24 VDC drain actuator for opening
/closing the drain for each pot.

DANGER

4. Using a 3/32 inch T handle hex key, loosen
the mounting screws on the drain actuator.
Remove the access panel rear of unit, unplug
Molex connector for actuator. Once unplugged,
slide the actuator off.

5. Follow steps 1 through 4 in reverse order to
reinstall Actuator. Remember to remove the
rag or paper towels from the drain.

DANGER

2. On the far left unit remove rubber protection

on thread of retaining clamp screw. Remove
the 2 bolts holding drain elbow in place. Loosen
the retaining clamp holding the drain piping
together and remove the drain elbow.

3. Once the elbow is removed, a small amount

of oil will dip from drain, place a rag or paper
towel in drain.

occurs as a result of operation, cleaning,
maintenance or repair of this fryer should
immediately be cleaned and dried. Failure to do
so can create a slippery surface resulting i n
falling/impact injury or death.

6. Make sure the red gasket is positioned
between the elbow and drain tube where they
join, slide retaining clamp over red gasket with
position nut at bottom of drain line and tighten.

L22-392 R1 31

Pitco SSHLV (ROV) Gas Fryers

NOTE

When reassembling the actuator and valve,

NOTE

When installing the new drain valve, insure

7. Don’t forget gray rubber protector on the

thread of the clamp so they don’t get damaged.

remember to have the arrows in the motor
socket align with the end of the valve stem
slot. The valve and the actuator are indexed
to operate properly. Failure to align the
index marks will result in the valve being
opened when it supposed to be closed, and
vice-versa.

8. After servicing the powered drain system, If

the drain remains open, the motor and valve
assembly are not indexed correctly, remove
motor, and align marks as instructed

.

9. Should the drain valve need to be replaced,
first remove actuator per instruction in
section 4 of this chapter (drain valve comes
with actuator installed), then remove the old
drain valve from the end of the drain nipple
and install the new drain valve and actuator.

the arrow on the valve body is pointed
AWAY from the drain nipple and towards the
filter pan.

L22-392 R1 32

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

13 Replacing the DC Power Supply

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Remove the one (1) 5/16 inch hex screw on
front of mounting box.

2. From the rear of the unit remove two (2) 5/16
hex screws from the small bracket that holds
the hose for the JIB.

3. In the rear of the unit disconnect the black
power cord from the entrance box, also remove
the red/black Molex connector.

L22-392 R1 33

DANGER

4. You can easily remove entire mounting box

and power supply all in one piece.

5. Follow steps 1 through 4 in reverse order to

reinstall DC Power Supply.

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

14 Replacing Transformer/Power Box

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1.Remove service panel 4 screws. Entrance
box is located in rear left hand side. Cut zip ties
holding IEC connectors. Unplug Molex
connector and black IEC connectors. Note: on
multi bank units, it may be necessary to remove
an oil return line to remove the power box.
Make sure to reinstall and tighten this return
line when finished.

2. Remove two (2) phillip screws at top of the
entrance box.

DANGER

3. Entrance box is located on sliding tabs, move

box toward rear and down towards the floor to
unmount from tabs.

4. Follow steps 1 through 3 in reverse order to

Re-install entrance box. When reinstalling take
caution not to bend tab on entrance box.
Position tab on entrance box with sliding slot.
Make sure to reapply zip ties to IEC connector
to keep in place.

L22-392 R1 34

Pitco SSHLV (ROV) Gas Fryers

NOTE

Re-assembly is simplified if the cotter pin in

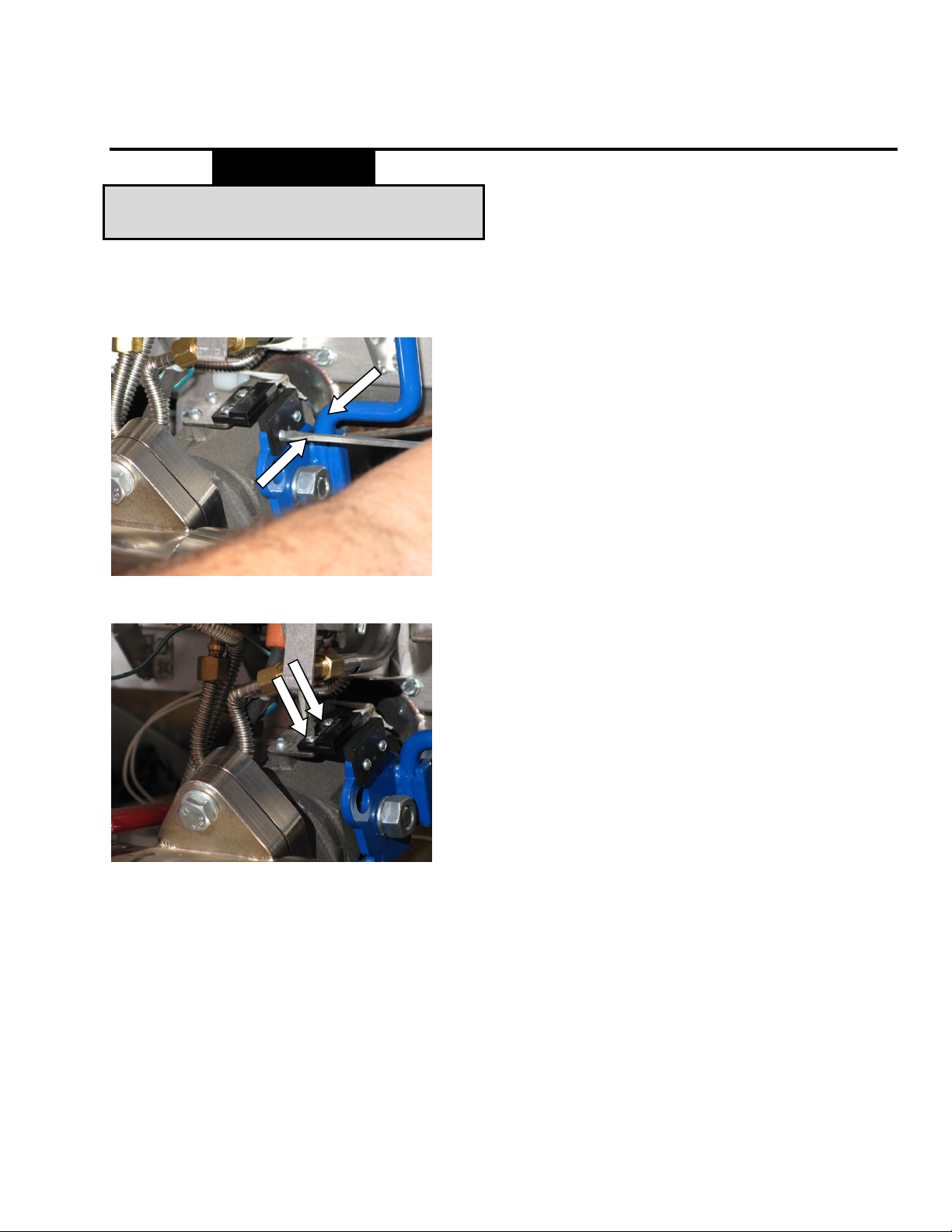

15 Changing Filter Pump Actuator

1. Pull two (2) re-usable cotter pins. One is
located in the front of the actuator unit, second
is located in the rear of the actuator.

2. From the front, unplug the four pin molex
connector for the actuator.

3. Remove filter pump actuator.

4. Follow steps 1 through 3 in reverse to

reinstall new filter pump actuator.

the rear is installed BEFORE the cotter pin
in the front of the fryer.

L22-392 R1 35

Pitco SSHLV (ROV) Gas Fryers

NOTE

Prior to measuring the probes resistance between pins 4 and 5, insure the fry vat contains

16 Testing the Auto Top Off Probe (if equipped)

The Auto Top Off probe should be tested prior to replacement (follows this section).

1. Unplug connector J7 from the Auto Top Off Relay board. Measure the resistance with a
multimeter (set to OHMS) between pins 1 and 2. The resistance should be approximately 150
ohms (+/- 2 ohms). Place either probe to the frame of the fryer and insure you have an open
circuit (open to frame). If the probe measure outside this range, it must be replaced.

enough oil to completely cover the probe.

2. Measure resistance with the multimeter between pins 4 and 5. The meter should read 167
OHMS at 350 degrees F. Measure the resistance with black lead to the frame to insure an open
circuit reading (open to frame).

a. Resistance is dependent on the probe temperature. At room temperature, the resistance

is 108 ohms. At cooking temperatures, the resistance can be as high as 167 ohms. If the
probe measures within this range, it’s OK.

L22-392 R1 36

Pitco SSHLV (ROV) Gas Fryers

L22-392 R1 37

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

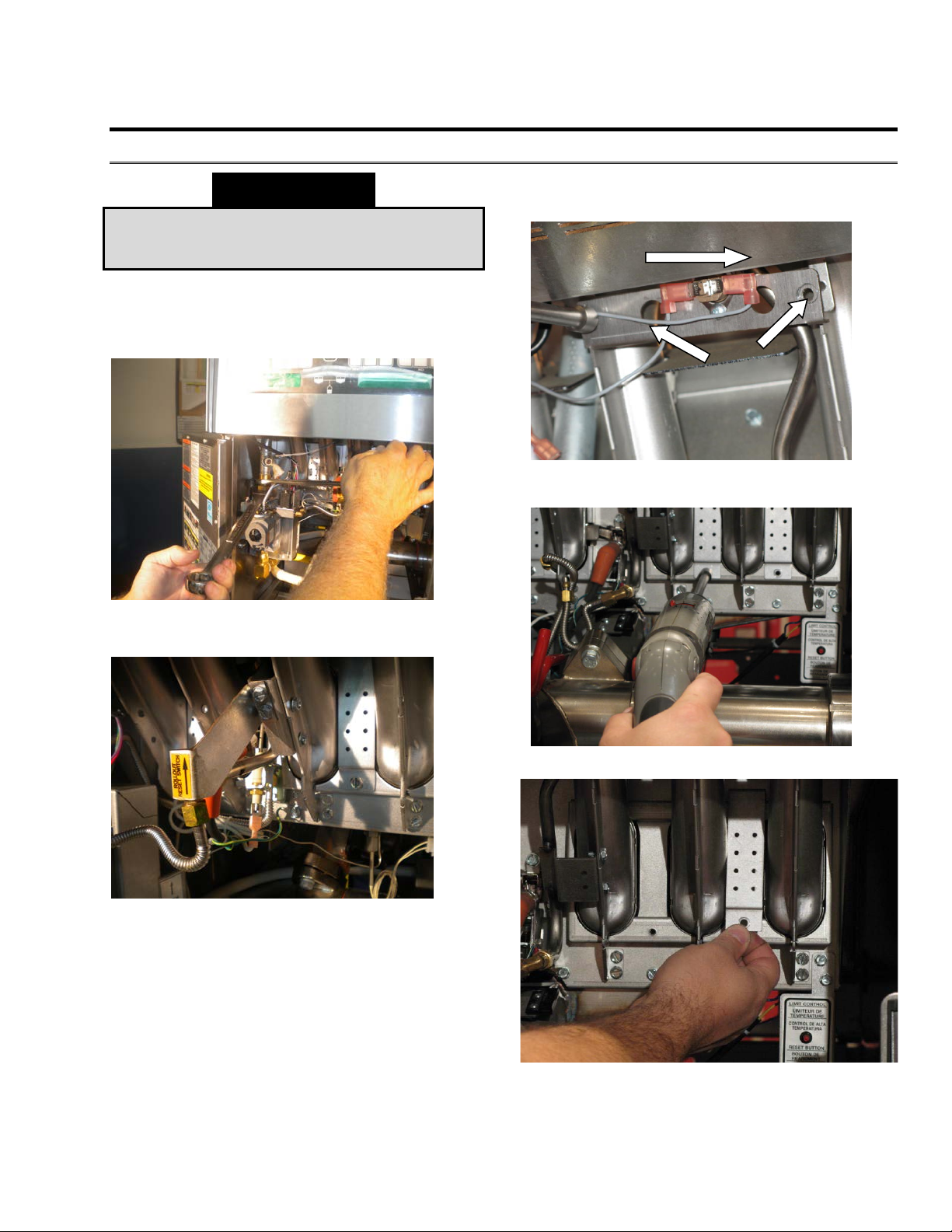

17 Replacing the Auto Top Off Probe (If equipped)

any appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Using a 5/16” nut driver. Remove two (2)
screws from SCB runner tube.

2. Remove orifice from tube.

DANGER

3. Remove two (2) screws from pilot assembly.

4. Use two (2) wrenches 1-1/16inch & 15/16
inch to remove top connection of gas valve.

L22-392 R1 38

5. Drop down and out of way.

Pitco SSHLV (ROV) Gas Fryers

6. Remove five (5) screws from burner plate
using 5/16 nut driver.

7. Position burner assembly out of the way, so
you have access to DLP fitting.

8. Use ½ inch wrench to remove the probe.

9. Remove front panel divider and front panel
using a phillip screw driver.

10. Unplug probe and replace with new probe.

11. Follow steps 1 through 11 in reverse to
reinstall new probe.

L22-392 Rev 1 39

Pitco SSHLV (ROV) Gas Fryers

!

!

Only qualified service personnel may service or

NAT

LP

!

!

Check for gas leaks after installation or servicing

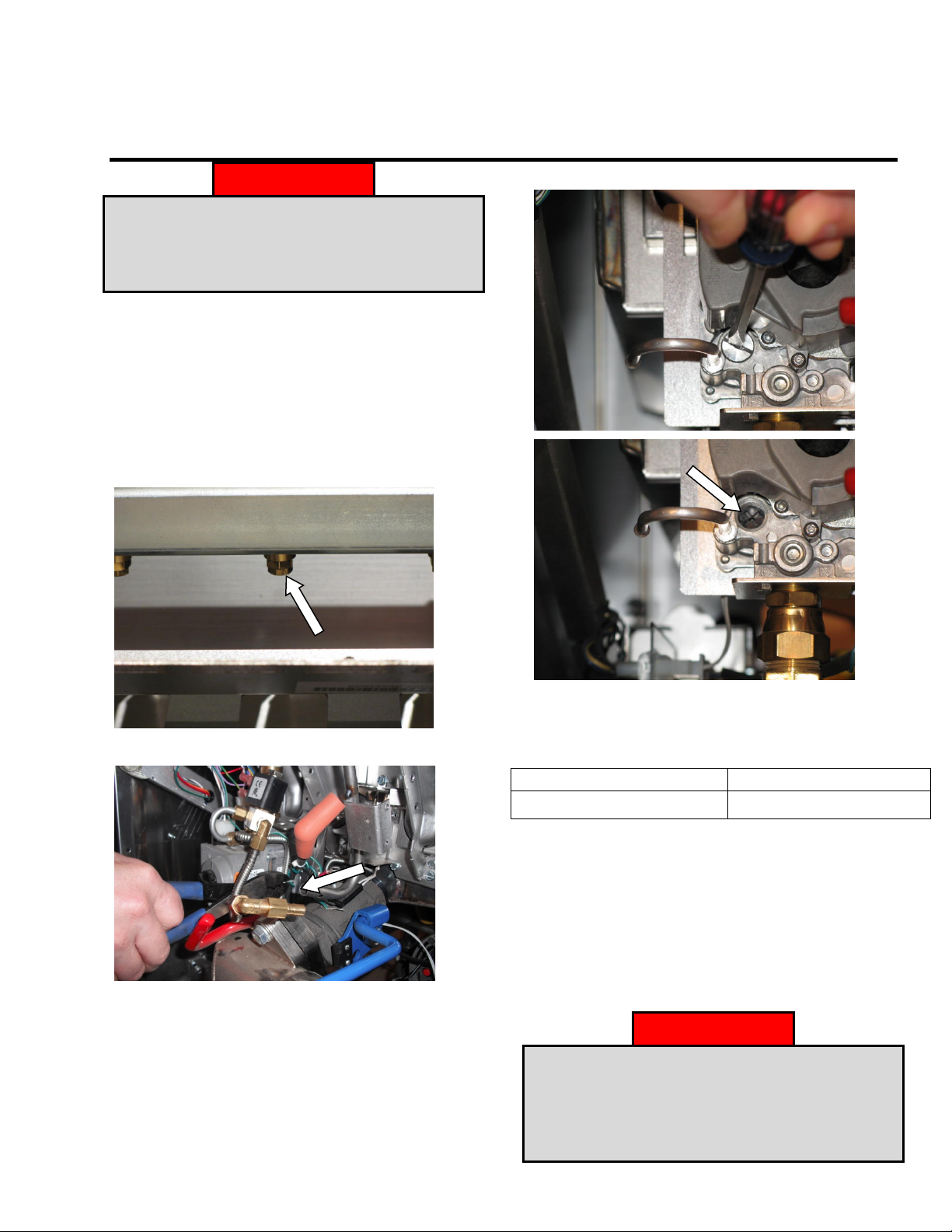

18 Gas Conversion

convert this appliance to use a gas other than
that for which it was originally manufactured.
Improper conversion can lead to property
damage, injury or death.

1. Remove the pilot assembly. See “Replacing
an Igniter/Pilot Assembly” in Section 11.

2. Remove the nut, which holds the pilot tube,
using a 1/2 inch open-ended wrench.

3. Replace bullet orifice with one provide in the
gas conversion kit.

4. Change the main burner orifice tips.

DANGER

6. Replace and adjust the gas valve regulator.

5. Change the SCB orifice tip.

L22-392 Rev 1 40

7. Adjust the burner manifold pressure. See
section 26.2 “Taking a manifold gas pressure
reading”.

Manifold Gas Pressure Table

4.0” wc,(1.0 kPa) (10 mbar) 10” wc (2.5 kPa) (25 mbar)

8. Insert a flathead screwdriver into the cap and
turn counter-clockwise to remove it.

9. Insert flathead screwdriver into the cap and
turn counter-clockwise to increase the gas
pressure or clockwise to decrease the gas
pressure.

10. Place a sticker on the door indicating the
unit has been converted.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

DANGER

Pitco SSHLV (ROV) Gas Fryers

!

!

DO NOT remove fry vat or drain fittings before all oil is drained from the tank. Serious injury will result

NOTE

Thread sealant is not required for these fittings.

19 Replacing the Return Valve

from slipping, falling or contact with hot liquids causing property damage, injurious severe burns

and/or death.

1. Remove all connections from the 3-way
return valve using a 1/16 inch wrench.

WARNING

2. Remove the cotter pin on return valve using
needle-nose pliers.

3. Replace the return valve by following steps 1
through 2 in reverse, replacing the cotter pin if
necessary.

.

L22-392 Rev 1 41

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

20 Replacing the Optional Flush Hose Assembly and Valve

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Remove the lower connection at the 3-way
return valve in the back of the unit using a
15/16 inch wrench.

DANGER

4. Remove two (2) screws holding the flush
hose assembly using a 5/16 socket.

5. Remove the flush hose assembly.

6. Remove the four (4) screws from the
magnets using a flathead screwdriver.

2. Remove the male quick disconnect using a
15/16 inch wrench.

3. Unplug the proximity switch.

L22-392 Rev 1 42

Pitco SSHLV (ROV) Gas Fryers

7. Remove the two (2) screws from the valve
mounting brackets using a 5/16 socket.

9. Lift bracket out and slide forward.

10. Bend down tabs of the stem nut washer
using a needle-nose plier.

8. Slide the bracket to the back of the
assembly.

11. Remove the nut using a 7/16 inch wrench.

L22-392 Rev 1 43

Pitco SSHLV (ROV) Gas Fryers

12. Remove the handle.

13. Remove the mounting bracket.

14. Remove the piping using a 15/16 inch
wrench on the valve and an adjustable wrench
on the piping.

15. Replace the flush hose assembly and valve
by following steps 1 through 14 in reverse.

L22-392 Rev 1 44

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

21 Replacing the Waste Oil and Components

21.1 Removing Rear Mounting Bracket

1. Remove six (6) screws using a 5/16 socket
wrench.

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

2. Disconnect from the filter return line using a
1-1/16 inch wrench.

DANGER

3. Remove two (2) screws with a 5/16 socket
wrench.

L22-392 Rev 1 45

Pitco SSHLV (ROV) Gas Fryers

21.2 Removing the Check Valve

1. Remove the 3/8 inch nipple using an
adjustable wrench.

3. Remove the valve nut using a 9/16 inch
open-ended wrench.

2. Remove the second nipple using two
adjustable wrenches.

L22-392 Rev 1 46

4. Remove the valve lever.

Pitco SSHLV (ROV) Gas Fryers

5. Remove the two (2) screws using a Phillips
screwdriver.

6. Lift off the mounting bracket.

8. Follow steps 1 through 7 in reverse to
reinstall.

7. Remove the valve using two adjustable
wrenches.

L22-392 Rev 1 47

Pitco SSHLV (ROV) Gas Fryers

22 Removing the Filter Pump from the Motor

1. Remove the two (2) bolts holding the filter
pump head to the motor using a 1/2 inch open­ended wrench.

22.1 Replacing Seal Kit

1. Remove the four (4) bolts on filter pump
using 7/16 inch open-ended wrench.

2. Remove the filter pump head from the motor.

3. Reinstall the filter pump head to the motor by
following steps 1 through 2 in reverse.

3. Replace the seal.

2. Remove the filter pump head.

L22-392 Rev 1 48

4. Reinstall the filter pump head to the motor by
following steps 1 through 3 in reverse.

Pitco SSHLV (ROV) Gas Fryers

!

!

Any and all spilled oil, water or other liquids that

23 Replacing the Drain Line or Gasket

1. Remove one (1) screw on the drain line using
a 7/16 inch wrench.

2. Lift off the drain manifold clamp.

3. Slide off the drain manifold gasket.

4. Slide out the drain line.

5. Reinstall the new drain line by following steps
1 through 4 in reverse to.

occurs as a result of operation, cleaning,
maintenance or repair of this fryer should
immediately be cleaned and dried. Failure to do
so can create a slippery surface resulting i n
falling/impact injury or death.

DANGER

L22-392 Rev 1 49

Pitco SSHLV (ROV) Gas Fryers

24 Replacing the Pump Relay and Circuit Breaker

24.1 Replacing the Circuit Breaker

1. Disconnect the connections and power
supply cords from the filter pump.

2. Remove the pump box.

4. Remove all wires on the circuit breaker using
needle-nose pliers.

5. Squeeze the tabs on the circuit breaker and
push it out.

3. Remove the circuit breaker from the pump
box.

6. Reinstall the new circuit breaker by following
steps 1 through 5 in reverse.

L22-392 Rev 1 50

Pitco SSHLV (ROV) Gas Fryers

24.2 Replacing the Pump Relay

1. Remove the two (2) screws, which hold the
pump relay, using a Phillips screwdriver.

2. Remove all wires on the pump relay using
needle-nose pliers. See “Simplified Wiring
Diagrams section 35.7”.

3. Remove the pump relay.

4. Reinstall the new pump relay by following
steps 1 through 2 in reverse.

L22-392 Rev 1 51

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Prior to moving, testing, maintaining or repairing

NOTE

Insure the vent tube is not reinstalled in an
the tube.

!

!

Check for gas leaks after installation or servicing

25 Cleaning the Gas Valve Vent Tube

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Bend the gas valve vent tube to allow for
removal.

2. Loosen nut at the base of the vent tube with
a 3/8 inch open-ended wrench and then
remove.

3. Clean the tube (not shown) and reinstall.

upright position and insure there are no kinks in

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

DANGER

L22-392 Rev 1 52

Pitco SSHLV (ROV) Gas Fryers

26 Checking the Gas Pressure

26.1 Taking a Supply Gas Pressure Reading

1. Turn off gas.

2. Unscrew and remove the gas supply plug
with a 3/16 inch hex wrench.

3.Finger tighten the test fitting into the test port.

4. Finish tightening the test fitting using a 7/16
inch open-ended wrench.

5. Connect the manometer.

L22-392 Rev 1 53

Pitco SSHLV (ROV) Gas Fryers

NOTE

You cannot adjust the supply gas pressure at the

! DANGER !

Check for gas leaks after installation or servicing

NAT

LP

6. Turn on the main gas supply line.

7. Check the supply gas pressure with the
manometer and compare the reading to the
supply gas pressure table to determine what
the incoming gas pressure should be.

Supply Pressure Table (Need to check
incoming pressure both Static and Dynamic)

11. Apply Fluoropolymer paste to gas supply
plug.

12. Reinstall gas supply plug with a 3/16 inch
hex wrench.

7” wc (1.7 kPa) (17.4 mbar) 11” wc (2.7 kPa) (27.4 mbar)

8” wc (2.0 kPa) (20. Mbar) 12” wc (3.0 kPa) (30.0 mbar)

9” wc (2.24 kPa) (22.4 mbar) 13” wc (3.24 kPa) (32.4 mbar)

unit. Anything over/under the recommended
amount should be adjusted at the facility’s main
gas line.

8. Shut off the main gas supply line.

9. Disconnect the manometer.

10. Remove the test fitting.

13. Turn on the main gas supply line.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

L22-392 Rev 1 54

Pitco SSHLV (ROV) Gas Fryers

!

!

Check for gas leaks after installation or servicing

26.2 Taking a Manifold Gas Pressure Reading

1.Turn off main gas.

2. Unscrew and remove the gas manifold plug
with a 3/16 inch hex wrench.

3. Finger tighten the test fitting into the test port.

4. Finish tightening the test fitting using a 7/16
inch open-ended wrench.

5. Connect the manometer.

L22-392 Rev 1 55

6.Turn on the main gas.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

.

DANGER

Pitco SSHLV (ROV) Gas Fryers

NAT

LP

!

!

Check for gas leaks after installation or servicing

26.3 Adjusting Manifold Gas Pressure

1. Check the manifold gas pressure with the
manometer and compare the reading to the
manifold gas pressure table.

Manifold Gas Pressure Table

4.0” wc (1.0 kPa) (10.0 mbar) 10” wc (2.5 kPa) (25 mbar)

2. Insert a flathead screwdriver into the cap and
turn counter-clockwise to remove it.

3. Insert flathead screwdriver into the cap and
turn counter-clockwise to increase the gas
pressure or clockwise to decrease the gas
pressure.

4. When adjustment is complete:
a. Turn off the gas supply line.

b. Disconnect the manometer.
c. Remove the test fitting.
d. Reinstall the gas manifold plug.
e. Reconnect solid state thermostat.
g. Turn on gas supply line.

26.4 Adjusting Pilot Flame

1. Remove pilot adjustment cap with Philips
screwdriver.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

2. Rotate adjuster clockwise to decrease and
counter-clockwise to increase pilot flame.

3. Replace adjustment cap.

DANGER

L22-392 Rev 1 56

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Prior to moving, testing, maintaining or repairing

! DANGER !

Check for gas leaks after installation or servicing

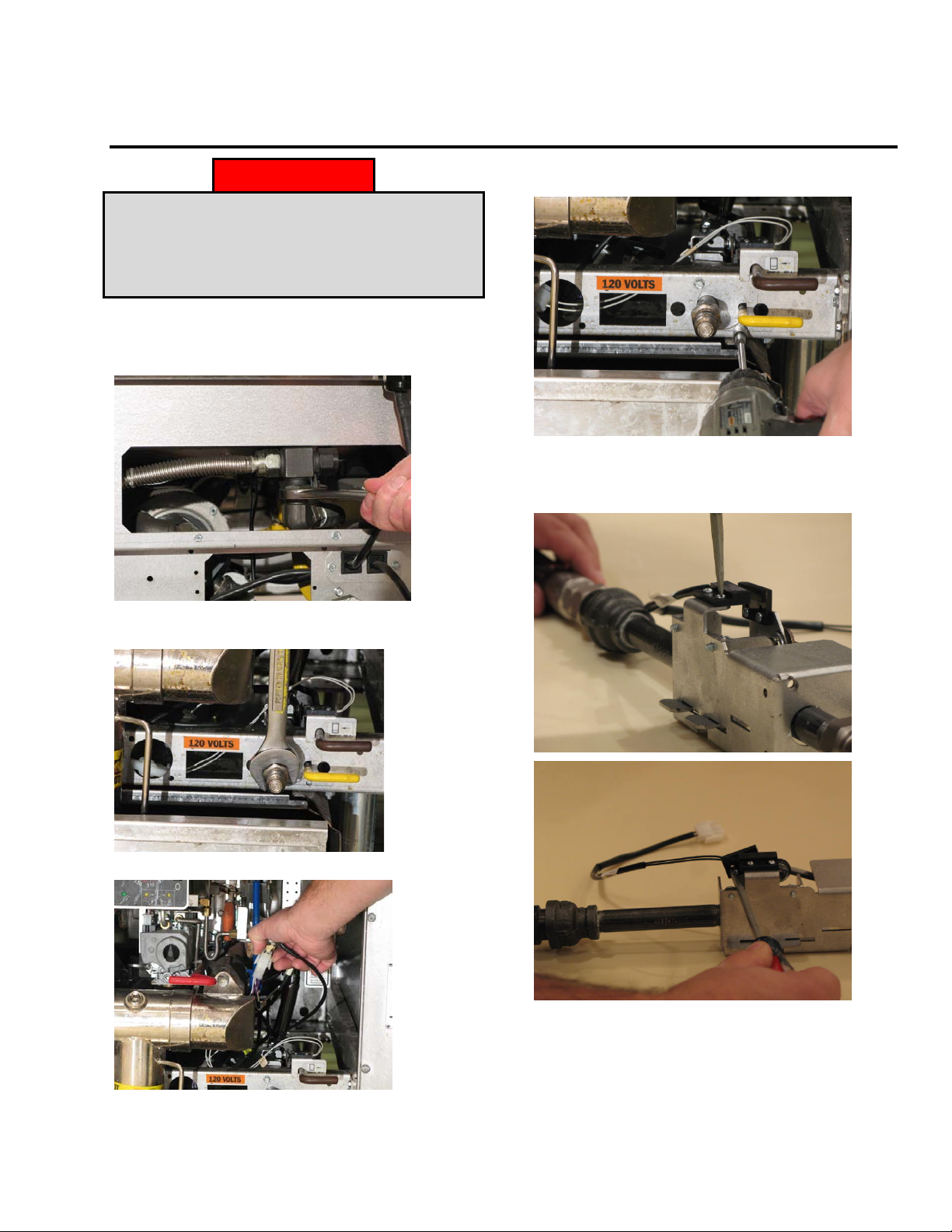

27 Replacing the Self-Cleaning Burner Solenoid

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Remove the SCB flex tube fitting using a ½
inch open-ended wrench.

2. Remove the SCB valve inlet fitting using a ½
inch open-ended wrench.

3. Disconnect the terminals using needle-nose
pliers.

4. Remove the two (2) elbows using a ½ inch
open-ended wrench.

L22-392 Rev 1 57

5.Follow steps 1 through 4 in reverse to reinstall
SCB valve.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

Pitco SSHLV (ROV) Gas Fryers

NOTE

Prior to moving, testing, maintaining or repairing

28 Replacing the Gas Valve

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electrical
power. Failure to do so may result in property
damage, damage to your fryer, injury or death.

1. Remove the pilot tubing from the gas valve
using a 7/16 inch open-ended wrench.

2. Disconnect the wiring connection from gas
valve.

3. Holding the elbow with a wrench, remove the
swivel nut on the bottom gas valve fitting using
a 1-1/16 inch open-ended wrench.

4. Holding the elbow with a 7/8” wrench,
remove the swivel nut on the top gas valve
fitting using a 15/16 inch open-ended wrench.

L22-392 Rev 1 58

5. Remove the gas valve.

Pitco SSHLV (ROV) Gas Fryers

!

!

Check for gas leaks after installation or servicing

6. Remove the fittings and plate from the gas
valve using a 7/8 inch open-ended wrench.

7. Install the heat shield, vent tube, and fittings.

8. Reinstall a new gas valve by following steps
1 through 8 in reverse.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

DANGER

L22-392 Rev 1 59

Pitco SSHLV (ROV) Gas Fryers

NOTE

Photos are for illustrative purposes only and

29 Replacing the DVI Switch (Manual Filter Only)

3. Replace the DVI switch ensuring a 1/4 inch
gap between the actuator and the magnet.

may not be an exact match to your appliance..

1. Remove the two (2) screws, which hold the
proximity sensor on the drain handle, using a
flathead screwdriver.

2. Remove the two (2) screws, which hold the
actuator, using a flathead screwdriver.

4. Follow steps 1 through 3 in reverse to
reinstall a new DVI.

L22-392 Rev 1 60

Pitco SSHLV (ROV) Gas Fryers

NOTE

Gas valve can stay in place if replacing right
side burners.

30 Replacing the Burner Assembly

30.1 Replacing the Burner(s)

side burners. Only needs to be removed for left

1. Drop the gas valve out of the way by holding
the elbow with a 7/8 inch wrench and removing
the swivel nut on the top gas valve fitting using
a 15/16 inch open-ended wrench.

2. Remove the pilot assembly. See “Replacing
an Igniter/Pilot Assembly” in Section 11.

3. Remove the two (2) screws, which hold the
rollout switch, using a 5/16 inch socket.

4.. Remove the screws, which hold the flame
jumper shields, using a 5/16 inch socket.

L22-392 Rev 1 61

4. Remove all flame jumpers.

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Check for gas leaks after installation or servicing

6. Remove the two (2) screws, which hold the
SCB runner tube, using a 5/16 inch socket.

7. Remove the two (2) screws, which hold each
burner, using a 5/16 inch socket.

8. Remove the right burner(s) by sliding them
off the SCB runner tube.

9. Remove the SCB runner tube.

10. Remove the left burner(s) If you have
already removed runner tube, just remove the
left burners.

11. Reinstall the new burner(s) by following
steps 1 through 12 in reverse.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

L22-392 Rev 1 62

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Check for gas leaks after installation or servicing

30.2 Replacing the Burner Assembly

See “Replacing the Burner(s)” in section 31.1.

1. Remove the burner shield.

NOTE: When reinstalling, the burner
shield opening should face toward the
pilot.

2. Remove the eight (8) screws (3 screws on
the top and 2 in the middle and 3 screws on the
bottom), which hold the burner rack, using a
5/16 inch socket.

3. Remove the burner rack by pulling it toward
the front of the unit.

4. If necessary, replace the insulation on the
back of the burner rack. (Please note insulation
may vary from this picture depending on model)

5. Reinstall a new burner assembly by
following steps 1 through 5 in reverse.

of a gas fryer. Apply a leak detection solution to
all connections and joints to ensure there are no
bubbles or leaks. Failure to check for and correct
any leaks could lead to fire and/or explosion,
property damage, injury and death.

L22-392 Rev 1 63

Pitco SSHLV (ROV) Gas Fryers

!

!

Prior to moving, testing, maintaining or repairing

damage, damage to your fryer, injury or death.

31 Replacing the Frypot

your appliance, ensure it is emptied of all oil,
cool, disconnected from gas and all electri cal
power. Failure to do so may result in property

1. Remove the controller front panel (see
Section 5.1), gas valve (see Section 29), pilot
assembly (see Section 11), and burner
assembly (see Section 31.2).

DANGER

4. Loosen the collet using a spanner wrench.

2. Remove the baffle by pulling it out.

NOTE: For SSH models only.

3. Remove the drain manifold flange nut using a
9/16 inch close-ended wrench.

5. Remove the collet.

6. Slide piping away from flange.

L22-392 Rev 1 64

Pitco SSHLV (ROV) Gas Fryers

! DANGER !

Any and all spilled oil, water or other liquids that

7. Remove the flange elbow.

11. Remove the six (6) screws, which hold the
back of the splash back, using a 5/16 inch
socket.

occurs as a result of operation, cleaning,
maintenance or repair of this fryer should
immediately be cleaned and dried. Failure to do
so can create a slippery surface resulting in
falling/impact injury or death.

8. Remove the control box and wiring harness
for each fryer that shares a common top deck.

9. Remove the four (4) screws per fryer, which
hold the top deck down, using a 5/16 inch
socket.

12. Score the silicon sealer between the front of
the splash backs using a flathead screwdriver
or utility knife.

13. Remove the two (2) screws, which hold the
front of the splash back, using a flathead
screwdriver.

10. Remove the top deck by pulling up.

L22-392 Rev 1 65

Pitco SSHLV (ROV) Gas Fryers

14. Remove the splash back by lifting up.

16. Remove the channel strip by pulling up.

15. Remove the six (6) screws, which hold the
tank to the cabinet, using a 5/16 inch socket.

17. Score the silicon sealer between the tanks
using a flathead screwdriver or utility knife.

18. Remove high-limit and temperature probes.
See Replacing Ignition Module and Hi-limit
Section 10.

19. Remove the two (2) screws, which hold the
top deck support, using a 5/16 inch socket.

L22-392 Rev 1 66

Pitco SSHLV (ROV) Gas Fryers

20. Lift up and pull out the tank.

23. Remove the four (4) screws, which hold the
flue, using a 5/16 inch socket and 3/8 inch
close-ended wrench.

24. Remove the return valve using two
adjustable wrenches.

NOTE: Lifting the tank requires two
(2) technicians.

21. Set tank on floor.

22. Remove the drain line using a pipe wrench.

25. Remove actuator with needle nose pliers.

26. Remove filter piping with 1-1/16 inch
wrench.

27. Follow steps 1 through 26 in reverse to
reinstall a new frypot.

L22-392 Rev 1 67

Pitco SSHLV (ROV) Gas Fryers

32 Replacing the Basket Lift Components

32.1 Removing the Basket Lift Cover

1. Remove the six (6) screws, which hold the
back of the basket lift cover, using a 5/16 inch
socket.

2. Lift up the back and remove.

32.2 Replacing the Basket Lift Transformer

1. Remove the two (2) screws, which hold the
transformer, using a 5/16 inch socket.

2. Remove all wires on transformer box using
needle-nose pliers. See “Wiring Diagram –
Basket Lifts” in Section 36.10.

1. Follow steps 1 through 2 in reverse to
reinstall new transformer box.

L22-392 Rev 1 68

Pitco SSHLV (ROV) Gas Fryers

32.3 Replacing the Basket Lift Driver Board

1. Remove all wires on basket lift driver board
using needle-nose pliers.

2. Remove the sensor connection using needle­nose pliers.

4. Remove the actuator power connection using

needle-nose pliers.

5. Remove the four (4) screws, which hold the

basket lift driver board, using a Phillips
screwdriver.

3. Remove the control signal connection using
needle-nose pliers.

L22-392 Rev 1 69

6. Follow steps 1 through 5 in reverse to

reinstall a new basket lift driver board.

Pitco SSHLV (ROV) Gas Fryers

32.4 Adjusting the Magnetic Sensor

1. Make sure the sensor is approximately 3/4
inch from top of the motor to bottom of the
sensor.

2. Make sure the sensor is approximately 7 3/4

inch from top of the motor to bottom of the
sensor.

32.5 Replacing the Basket Lift Actuator

1. Cut all zip ties on the basket lift driver board.

3. Disconnect the upper and lower limit

connections on the basket lift driver board.

2. Disconnect the transformer from the driver
board. See “Wiring Diagram – Basket Lifts” in
Section 36.10.

L22-392 Rev 1 70

4. Remove the two (2) bolts, which hold the

actuator, using a 3/16 inch Allen key.

Pitco SSHLV (ROV) Gas Fryers

5. Remove the top retaining bushing by
unscrewing.

6. Slide the bushing off the shaft.

8. Rotate up the actuator collar.

9. Remove the actuator collar.

7. Disconnect the motor connector from the
driver board.

10. Follow steps 1 through 9 in reverse to

reinstall a new basket lift actuator.

L22-392 Rev 1 71

Pitco SSHLV (ROV) Gas Fryers

NOTE

Photos are for illustrative purposes only and

!

!

Any and all spilled oil, water or other liquids that

33 Replacing the Filter Pump and Motor

33.1 Removing the Filter Pump and Motor

DANGER

may not be an exact match to your appliance..

1. Remove filter pan and filter pan cover.
Loosen the pump inlet tube using a crescent
wrench.

2. Unscrew and remove the inlet valve of the
filter pump system.

occurs as a result of operation, cleaning,
maintenance or repair of this fryer should
immediately be cleaned and dried. Failure to do
so can create a slippery surface resulting i n
falling/impact injury or death.

3. Pull out pump inlet tube.

4. Remove filter pan cover (not shown).

5. Disconnect the connections and power

supply cords from the filter pump.

L22-392 Rev 1 72

Pitco SSHLV (ROV) Gas Fryers

NOTE

The filter pump will fall to the floor once the

pulling out the pins.

6. Remove the lower connection at the 3-way
return valve using a 15/16 inch wrench.

7.Using a 1” inch wrench remove the JIB hose.

8. Remove one (1) screw, which holds a
bracket which is underneath the ON/OFF
breaker switch using a 5/16 inch socket.

9. Remove the rear hair pin on the actuator.

10.Remove the bracket.

L22-392 Rev 1 73

pins are pulled out. It is recommended that
you brace the pump and motor before

Pitco SSHLV (ROV) Gas Fryers

11. Turn down the pins and then pull them out.

12. ROV units with a solofilter, will require the

removal of the RH pan guide rail to allow the
pump to be lowered as shown (Filter pan rails

are not shown). Lower the filter pump to the

floor and then pull it out.

14. Remove two (2) screws on back of filter

pump using a 5/16 inch socket.

15. Remove existing piping from old filter pump

using two adjustable wrenches.

13. Remove the three (3) bolts on the bottom of
the filter pump base using a ½ inch open-ended
wrench.

16. Reinstall a new filter pump by following

steps 1 through 13 in reverse.

L22-392 Rev 1 74

Pitco SSHLV (ROV) Gas Fryers

34 Information Charts/Tables

L22-392 Rev 1 75

Pitco SSHLV (ROV) Gas Fryers

Probe

Temp

(°F)

Probe

Temp

(°C)

Resistance

(Ohms)

Probe

Temp

(°F)

Probe

Temp

(°C)

Resistance

(Ohms)

Probe

Temp

(°F)

Probe

Temp

(°C)

Resistance

(Ohms)

10 -12.2

562734 175 79.4 11719 340 171.1 1058.23

15 -9.4

483875 180 82.2 10716 345 173.9 998.09

20 -6.7

417167 185 85.0 9812 350 176.7 942.00

25 -3.9

360589 190 87.8 8995 355 179.4 889.67

30 -1.1

312474 195 90.6 8255 360 182.2 840.78

35 1.7

271446 200 93.3 7586 365 185.0 795.10

40 4.4

236370 205 96.1 6979 370 187.8 752.38

45 7.2

206311 210 98.9 6427 375 190.6 712.41

50 10.0 180491 215 101.7 5926 380 193.3 674.95
55 12.8 158252 220 104.4 5470 385 196.1 639.87
60 15.6 139055 225 107.2 5055 390 198.9 606.96
65 18.3 122489 230 110.0 4675 395 201.7 576.09
70 21.1 108051 235 112.8 4329 400 204.4 547.09
75 23.9 95539 240 115.6 4013 405 207.2 519.86
80 26.7 84644 245 118.3 3723 410 210.0 494.24
85 29.4 75136 250 121.1 3458 415 212.8 470.16
90 32.2 66823 255 123.9 3214 420 215.6 447.49

95 35.0 59540 260 126.7 2991 425 218.3 426.13
100 37.8 53146 265 129.4 2785 430 221.1 406.02
105 40.6 47523 270 132.2 2597 435 223.9 387.04
110 43.3 42569 275 135.0 2422 440 226.7 369.14
115 46.1 38195 280 137.8 2262 445 229.4 352.24
120 48.9 34328 285 140.6 2113.9 450 232.2 336.29
125 51.7 30902 290 143.3 1977.3 455 235.0 321.21
130 54.4 27862 295 146.1 1851.0 460 237.8 306.94
135 57.2 25161 300 148.9 1734.3 465 240.6 293.46
140 60.0 22755 305 151.7 1626.1 470 243.3 280.69
145 62.8 20610 310 154.4 1525.9 475 246.1 268.61
150 65.6 18695 315 157.2 1433.0 480 248.9 257.15
155 68.3 16981 320 160.0 1346.7 485 251.7 246.30
160 71.1 15446 325 162.8 1266.6 490 254.4 236.00
165 73.9 14069 330 165.6 1192.1 495 257.2 226.24
170 76.7 12823 335 168.3 1122.8 500 260.0 216.96

Probe Resistance in 5°F Increments.

34.1 Temperature Probe Resistance Chart

NOTE: Resistance, of either probe lead, to the frame of the appliance should read as “open’ on

the meter. Typically this is 1Meg ohms or more.
°C = 5/9 (°F-32)
°F = (9/5 * °C) +32

L22-392 Rev 1 76

Pitco SSHLV (ROV) Gas Fryers

Nat

#47

Nat

#48

LP

1.25 mm

LP

1.25 mm

Nat

#41

Nat

#42

LP

#53

LP

1.5 mm

Nat

#38

Nat

#46

LP

.062"

LP

#55

Nat

#43

Nat

#46

LP

1.45 mm

LP

#55

Nat

#41

Nat

#43

LP

#53

LP

1.45 mm

Nat

#41

Nat

#43

LP

#53

LP

1.45 mm

Nat

#41

Nat

#46

LP

#53

LP

#55

Nat

#46

Nat

#43

LP

#55

LP

1.45 mm

Nat

#46

Nat

#46

LP

#55

LP

#55

Nat

#46

Nat

#43

LP

#55

LP

1.45 mm

Nat

#46

Nat

#45

LP

#55

LP

1.35mm

Nat

#45

Nat

#43

LP

1.35 mm

LP

1.45 mm

Nat

#40

Nat

#42

LP

0.0625"

LP

#53

34.2 Orifice Size Chart

Model Gas Type

SSHLV (ROV)

SG14

SG14R

SG14T

SG18

SG18F

SG6H

MGII

Main Burner

Orifice

Model Gas Type

SSHLVT (ROV)

SGM34

SSH55

SSH55T

SSH55R

SSH55TR

SSH60

SSH60R

Main Burner

Orifice

MGIIT

SGH50

SGH50T

SG18HP

SGM1824

SSH60W

SSH60WR

SSH75

SSH75R

SRTG

L22-392 Rev 1 77

Pitco SSHLV (ROV) Gas Fryers

Orifice

Level

2000

3000

4000

5000

6000

7000

8000

9000

10,000

30

30

31

31

31

31

32

32

33

35

31

32

32

32

33

34

35

36

37

38

32

33

34

35

35

36

36

37

38

40

33

35

35

36

36

37

38

38

40

41

34

35

36

36

37

37

38

39

40

42

35

36

36

37

37

38

39

40

41

42

36

37

38

38

39

40

41

41

42

43

37

38

39

39

40

41

42

42

43

43

38

39

40

41

41

42

42

43

43

44

39

40

41

41

42

42

43

43

44

44

40

41

42

42

42

43

43

44

44

45

41

42

42

42

43

43

44

44

45

46

42

42

43

43

43

44

44

45

46

47

43

44

44

44

45

45

46

47

47

48

44

45

45

45

46

47

47

48

48

49

45

46

47

47

47

48

48

49

49

50

46

47

47

47

48

48

49

49

50

50

47

48

48

49

49

49

50

50

51

51

48

49

49

49

50

50

50

51

51

52

49

50

50

50

51

51

51

52

52

52

50

51

51

51

51

52

52

52

53

53

51

51

52

52

52

52

53

53

53

54

52

52

53

53

53

53

53

54

54

54

0.062

0.062

53

53

53

53

53

54

54

54

53

54

54

54

54

54

54

55

55

55

54

54

55

55

55

55

55

56

56

56

55

55

55

55

56

56

56

56

56

57

56

56

56

57

57

57

58

59

59

60

57

58

59

59

60

60

61

62

63

63

58

59

60

60

61

62

62

63

63

64

59

60

61

61

62

62

63

64

64

65

60

61

61

62

63

63

64

64

65

65

34.3 Orifice Size at Sea Level Chart

Size at

Sea

Orifice Size Required at Other Elevations

L22-392 Rev 1 78

Pitco SSHLV (ROV) Gas Fryers

35 Simplified Wiring Diagrams

NOTE: The following wiring diagrams represent the latest revisions and most common models. A current wiring diagram for the fryer can be found
on the inside of the fryer door or call the Pitco Service Department for your particular unit.

35.1 Wiring Diagram – Heat Control Wiring Left & Right (ROV)

L22-392 Rev 1 79

Pitco SSHLV (ROV) Gas Fryers

35.2 Wiring Diagram – Auto Filter Board (AFB2) Wiring (ROV)

L22-392 Rev 1 80

Pitco SSHLV (ROV) Gas Fryers

35.3 Wiring Diagram – Connector Locations Detail AFB2 W/Jib & No Bulk Oil Option (ROV)

L22-392 Rev 1 81

Pitco SSHLV (ROV) Gas Fryers

35.4 Wiring Diagram – Calibration Test Points and Indicators (ROV)

L22-392 Rev 1 82

Pitco SSHLV (ROV) Gas Fryers

35.5 Wiring Diagram – AC & DC Control Voltage Supplies (ROV)

L22-392 Rev 1 83

Pitco SSHLV (ROV) Gas Fryers

35.6 Wiring Diagram – Basket Lift Option & Connector Locations (ROV)

L22-392 Rev 1 84

Pitco SSHLV (ROV) Gas Fryers

35.7 Wiring Diagram – Filter Pump Options 208V-240V (ROV)

L22-392 Rev 1 85

Pitco SSHLV (ROV) Gas Fryers

35.8 Wiring Diagram – Full Vat with SCB

L22-392 Rev 1 86

Pitco SSHLV (ROV) Gas Fryers

35.9 Wiring Diagram – Basket Lifts

L22-392 Rev 1 87

Pitco SSHLV (ROV) Gas Fryers

35.10 Wiring Diagram – Filter Motor 115V-60Hz

L22-392 Rev 1 88

Pitco SSHLV (ROV) Gas Fryers

35.11 Wiring Diagrams – Filter Motor 208-240V

L22-392 Rev 1 89

Pitco SSHLV (ROV) Gas Fryers

NOTES:

L22-392 Rev 1 90

Pitco SSHLV (ROV) Gas Fryers

NOTES:

L22-392 Rev 1 91

Pitco SSHLV (ROV) Gas Fryers

L22-392 Rev 1 92
