Pipo Max-M8 User Manual
User Manual
9.4" Tablet Android 4.1
Model:M8
Contents
Welcome..............................................................................................................３
Important Notices...............................................................................................３
Keys and Functions.............................................................................................４
I. Getting Started.................................................................................................５
1.1 Turn on/off......................................................................................................５
1.1.1 Turn on..........................................................................................................５
1.1.2 Turn off.........................................................................................................５
1.2 Lock/unlock the screen (sleep mode)....................................................５
1.3 Connect to computer.................................................................................５
II. Your Home Screen..........................................................................................６
2.1 Change wallpaper for home screen:......................................................６
2.2 Add/delete applications on home screen:............................................７
2.3 Add widgets to home screen:...................................................................７
III. Network Connection.....................................................................................７
3.1 Wi-Fi..................................................................................................................７
3.1.1 Turn on Wi-Fi................................................................................................７
3.1.2 Turn off Wi-Fi................................................................................................８
3.1.3 Add a Wi-Fi network..................................................................................８
3.2 Bluetooth........................................................................................................８
3.2.1 Make device discoverable.....................................................................８
3.2.2 Scan for devices........................................................................................８
3.2.3 Pair with the Bluetooth device...............................................................９
3.3 3G Network....................................................................................................９
3.3.1 External 3G Network.................................................................................９
3.3.2 Internal 3G support (optional)................................................................９
IV. Internet Browsing.......................................................................................１０
4.1 Internet Browsing......................................................................................１０
V. Install and Manage Apps.........................................................................１１
5.1 Install Apps.................................................................................................１１
5.2 Manage Apps...........................................................................................１１
VI. Multi-media Functions..............................................................................１２
6.1 Music............................................................................................................１２
6.2 Video...........................................................................................................１２
6.2.1 HDMI output............................................................................................１３
6.3 Gallery.........................................................................................................１４
6.4 Camera.......................................................................................................１４
6.5 E-book reader............................................................................................１５
6.6 Sign function..............................................................................................１６
VII. Settings........................................................................................................１６
VIII. Battery........................................................................................................１７

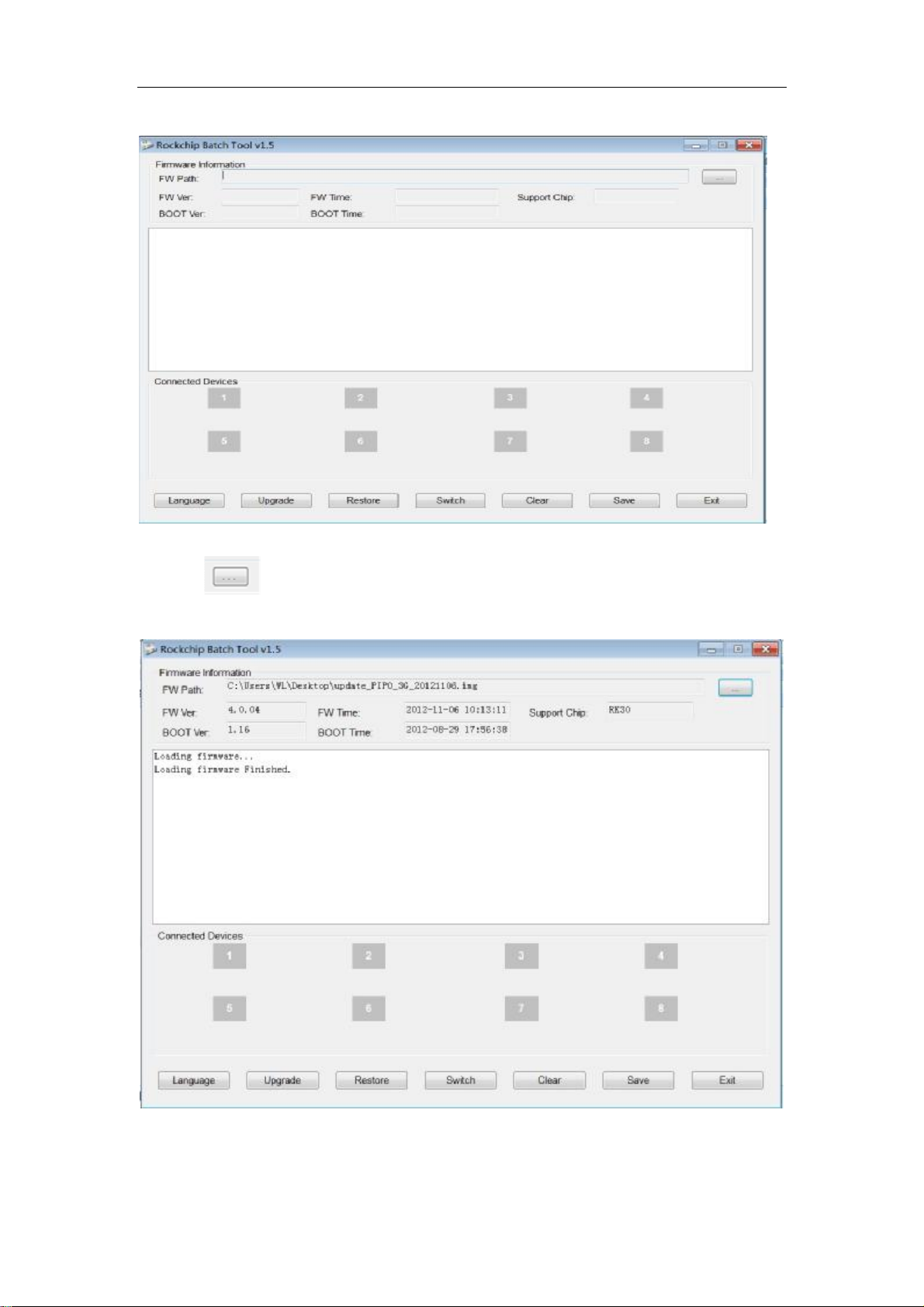

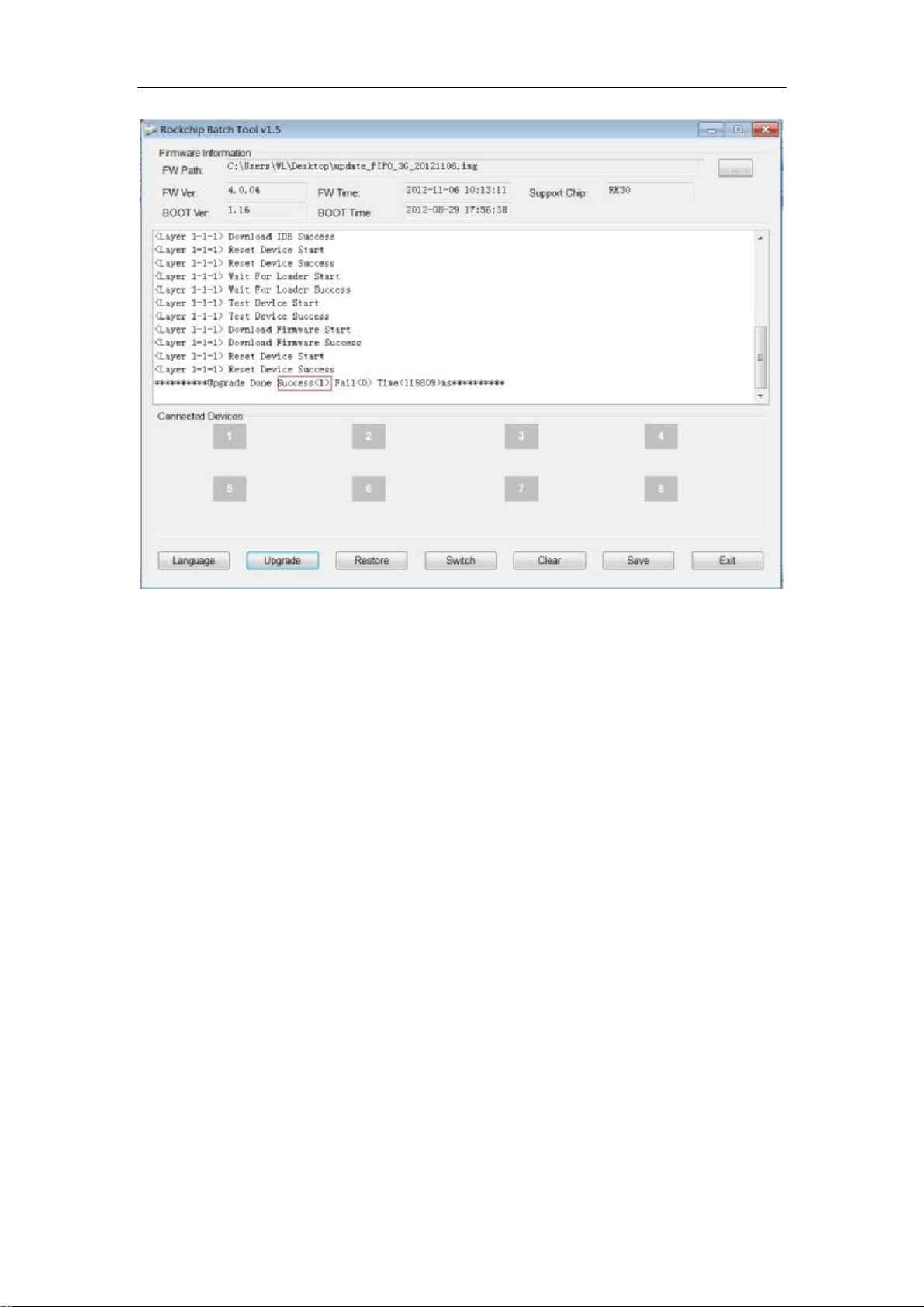

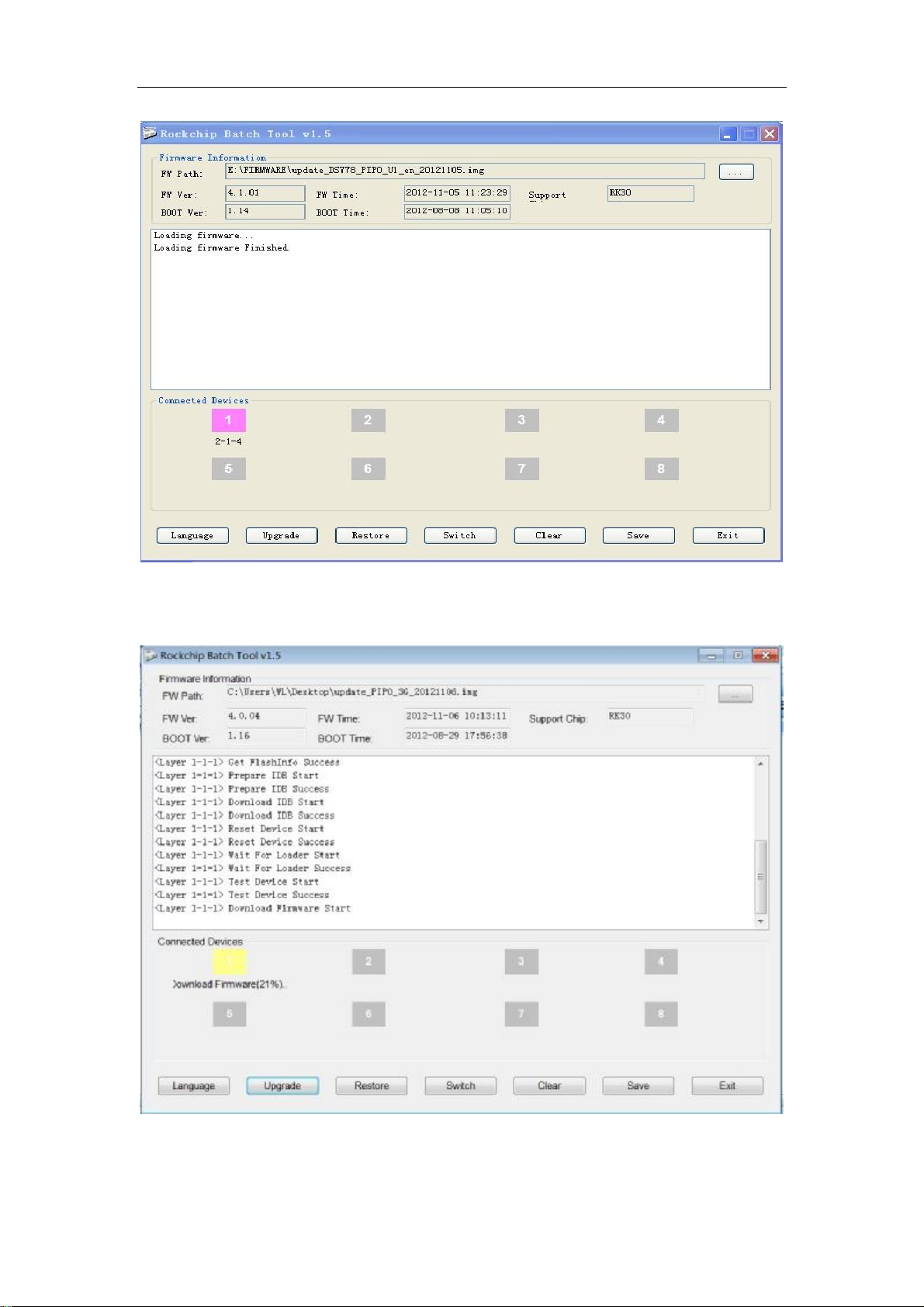

IX .Firmware Upgrading Procedures...........................................................１８
Troubleshooting...............................................................................................２３
２
Welcome
Thank you for purchasing this tablet.
It brings you much convenience for your business (supports Word, Excel,
send & receive e-mails...) and entertainment (supports 3D game,
chatting, movie playback, eBooks.....).
Running on Android 4.1, with a 1.6 GHz processor and highly responsive
capacitive touch screen, it brings you wonderful user experience.
Before beginning, please refer to this user manual carefully.
Important Notices
⊙ While using the earphone, if the volume is excessively high it may
cause hearing damage. So please adjust the volume of the player
to a moderate level and balance the time of using.
⊙ Do not disconnect the tablet suddenly when formatting or uploading
and downloading, which can lead to program errors.
⊙ Do not dismantle the tablet by yourself, and do not use alcohol,
thinner or benzene to clean its surface.
⊙ The tablet cannot support USB charge. If you want to charge the
tablet, please use the AC adaptor supplied. Please use the original
accessories, other tablets’ may does not fit.
⊙ Make sure you know how to upgrade the tablets after you read the
upgrade instruction within the manual. Or do not upgrade it by
yourself.
３
Keys and Functions
1. Esc key Tap to return to home screen
Tap to view the option menu. When you Tap the Menu
2. Menu key
3. Power jack(DC
input)
4. HDMI Connect to TV output via a HDMI cable
5. USB slot Connect to a computer via a USB cable to transfer data
6. Host Connect to Flash drive, 3G dongle. ect
7. MIC MIC
8. TF card slot To insert your TF card
9. SIM card slot To insert your 3G card(optional)
10. Power and lock
key
11. Earphone Jack To connect your earphone
key from within an application, you will see the
sub-menus for the application.
Connect to a 9V output adaptor as included in the
accessories
Hold and press to turn on or turn off the unit.
Briefly press to turn on or turn off the screen.
12. Front camera 2M pixel Front camera
13. Rear camera 5M pixel rear camera.
14. Reset Press to reset the tablet if it freezes or behaves abnormal
15. Speakers Speakers
16. light sensor
17. Flash light Flash while taking picture under dark condition
Sensor will make the display will adjust the brightness
automatically
４
I. Getting Started
1.1 Turn on/off
1.1.1 Turn on
To start your tablet, press and hold the power key at the right side of
your tablet for a while. Tab and drag the lock out of the circle to unlock.
→
Tab and drag the lock out of the circle to unlock.
Drag the lock to right: you will go to the home screen.
Drag the lock to left: you will go to camera directly.
1.1.2 Turn off
To power off your tablet, press and hold the power button until the
“Would you like to shut down?” dialog appears and tap “OK” to power
it off.
1.2 Lock/unlock the screen (sleep mode)
To save battery, you should put your tablet in sleep mode by turning off
the LCD display. To do this, shortly press the power key. Press it again to
wake up the screen.
1.3 Connect to computer
You can connect your tablet to your computer with the supplied USB
cable so you can transfer media files.
If your computer is XP system, please install a Windows Media Player 11
for your computer before transfer media files as android 4.1 system
needs Windows Media Player 11 support.
５
c
d e f
g h i
j k l m
II. Your Home Screen
a b
a. Google
search
Tap to enter Google search page
b. Voice search Tap to open voice search
c. All apps
Launcher
Tap to show all the applications installed
d. ESC key Tap to return to the previous screen/ page.
e. Home Tap to return to your home page
f. Recent
operations
Tap to show your recent operations
g. Screen shoot Tap to shoot one picture of screen
h. Vol + Press to increase the volume
i. Value - Press to decrease the volume
j. Screen shoot
review
k. System time Show the system current time
l. Wi-Fi Wi-Fi signal show here if connected with Wi-Fi
m. Battery status Show battery status
Tap to check the screen shoot pictures
2.1 Change wallpaper for home screen:
Tab and hold your finger in any blank space of the home screen, you
will see a pop-up options; you can choose wallpaper from Gallery, live
Wallpapers or Wallpapers.
６
2.2 Add/delete applications on home screen:
There are several apps in the home screen, you can also add more
frequently-used app icons in this home page and delete some less
frequently-used ones.
Tab the app launcher in the top right corner to go to all apps panel, tap
and move the app you want to the home screen.
To delete an app from home screen, tap and hold it, and them movie it
to the remove icon
2.3 Add widgets to home screen:
Tab all Apps launcher→Tab WIDGETS. There are Analog clock,
bookmarks, calendar, Email, and lots of other widgets. Drag the widget
you want to the home screen.
Tips: Besides your home screen, you can access to other four panels by
sliding left or right in your home screen. You can also customize these
panels.
III. Network Connection
3.1 Wi-Fi
Wi-Fi can only be used when it connects with home Wi-Fi Access Point
(AP) or a free unsecured Wi-Fi hotpot. Under “Wireless & networks”, tap
“Wi-Fi” to turn it on. After a moment, your Wi-Fi networks list should
populate. If you need to rescan for available networks, tap "scan"
3.1.1 Turn on Wi-Fi
Within the App Panel, tap “Settings” → then “Wireless & networks” →
“Wi-Fi” to turn on wifi.
Your tablet lists the networks it finds within range. Tap a network to
connect. If necessary, enter Network SSID, Security, and Wireless
password, and tap “Connect”. When your tablet is connected to the
network, the wireless indicator appears in the status bar. Waves
indicate connection strength.
７
