PiPO Max-M7 User Manual
User Manual
PiPO Max-M7 pro 3G
1
２
Contents
Welcome .......................................................................................................... ３
Important Notices ............................................................................................ ３
Keys and Functions .......................................................................................... ４
I. Getting Started ............................................................................................. ５
1.1 Turn on/off .................................................................................................. ５
1.1.1 Turn on ...................................................................................................... ５
1.1.2 Turn off ...................................................................................................... ５
1.2 Lock/unlock the screen (sleep mode)................................................... ５
1.3 Connect to computer .............................................................................. ５
II. Your Home Screen ....................................................................................... ６
2.1 Change wallpaper: .................................................................................. ７
2.2 Add/delete applications on home screen: .......................................... ７
2.3 Add widgets to home screen: ................................................................ ７
III. Network Connection .................................................................................. ８
3.1 Wi-Fi .............................................................................................................. ８
3.1.1 Turn on Wi-Fi ............................................................................................. ８
3.1.2 Turn off Wi-Fi ............................................................................................ ８
3.1.3 Add a Wi-Fi network ............................................................................... ８
3.2 Bluetooth .................................................................................................... ９
3.2.1 Make device discoverable .................................................................. ９
3.2.2 Scan for devices ..................................................................................... ９
3.2.3 Pair with the Bluetooth device ............................................................. ９
3.3 3G Network ................................................................................................ ９
3.3.1 External 3G Network .............................................................................. ９
3.3.2 Internal 3G support (optional) .......................................................... １０
IV. Internet Browsing .................................................................................... １０

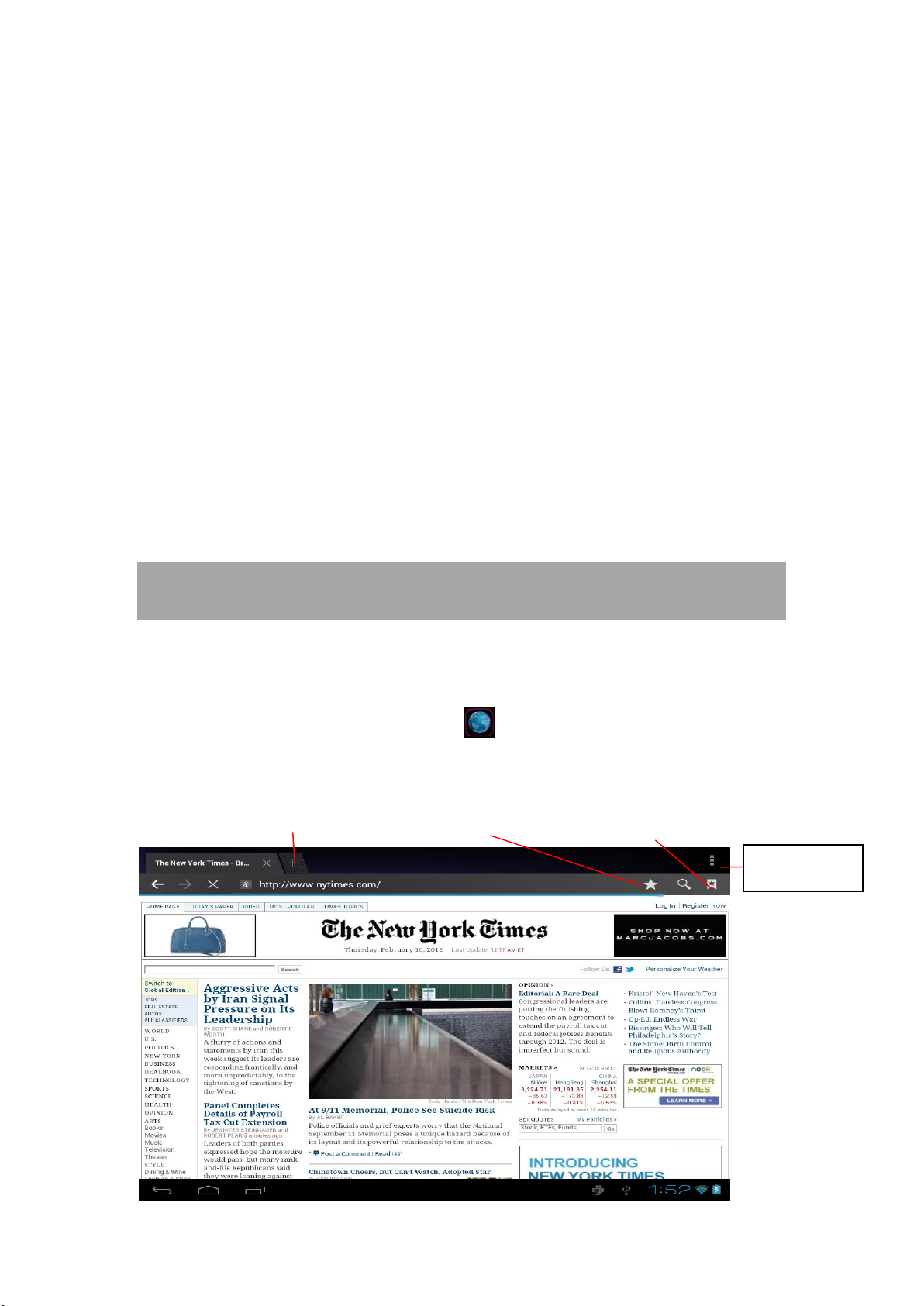

4.1 Internet Browsing ................................................................................... １０
V. Install and Manage Apps ...................................................................... １１
5.1 Install Apps .............................................................................................. １１
5.2 Manage Apps ........................................................................................ １１
VI. Multi-media Functions ........................................................................... １２

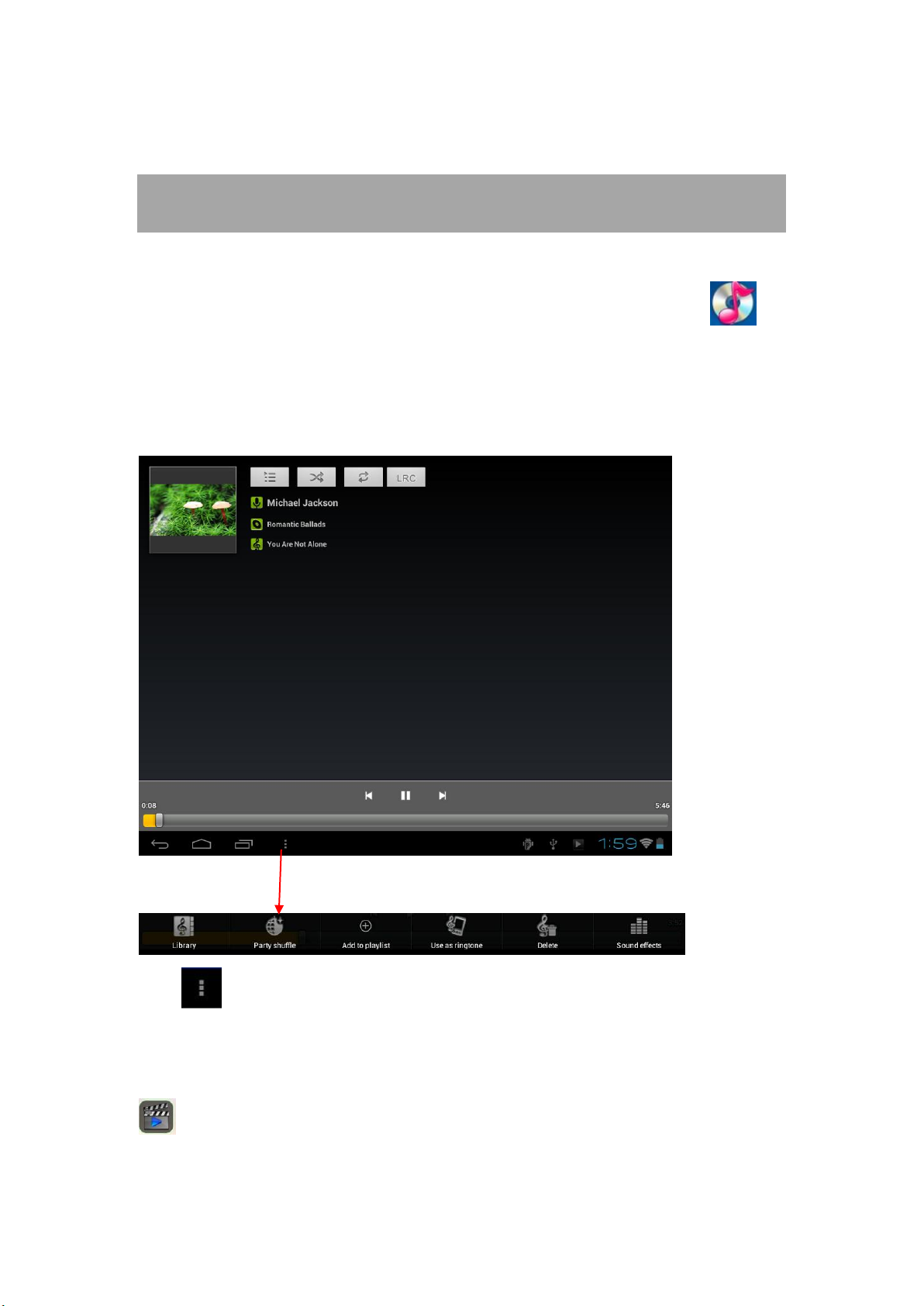

6.1 Music ....................................................................................................... １２

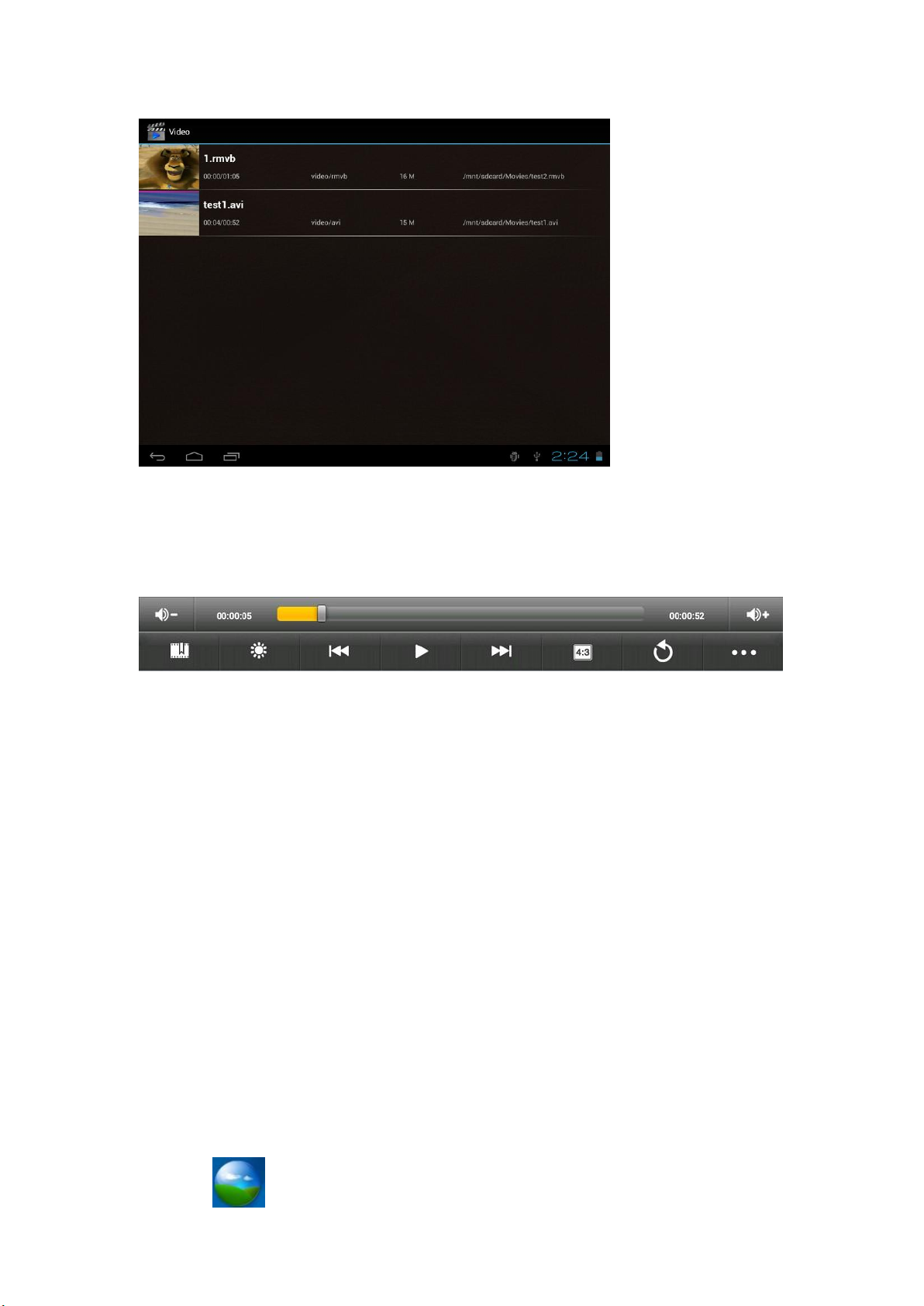

6.2 Video ....................................................................................................... １２
6.2.1 HDMI output ........................................................................................ １３
6.3 Gallery ..................................................................................................... １３
6.4 Camera ................................................................................................... １４
6.5 E-book reader ........................................................................................ １５

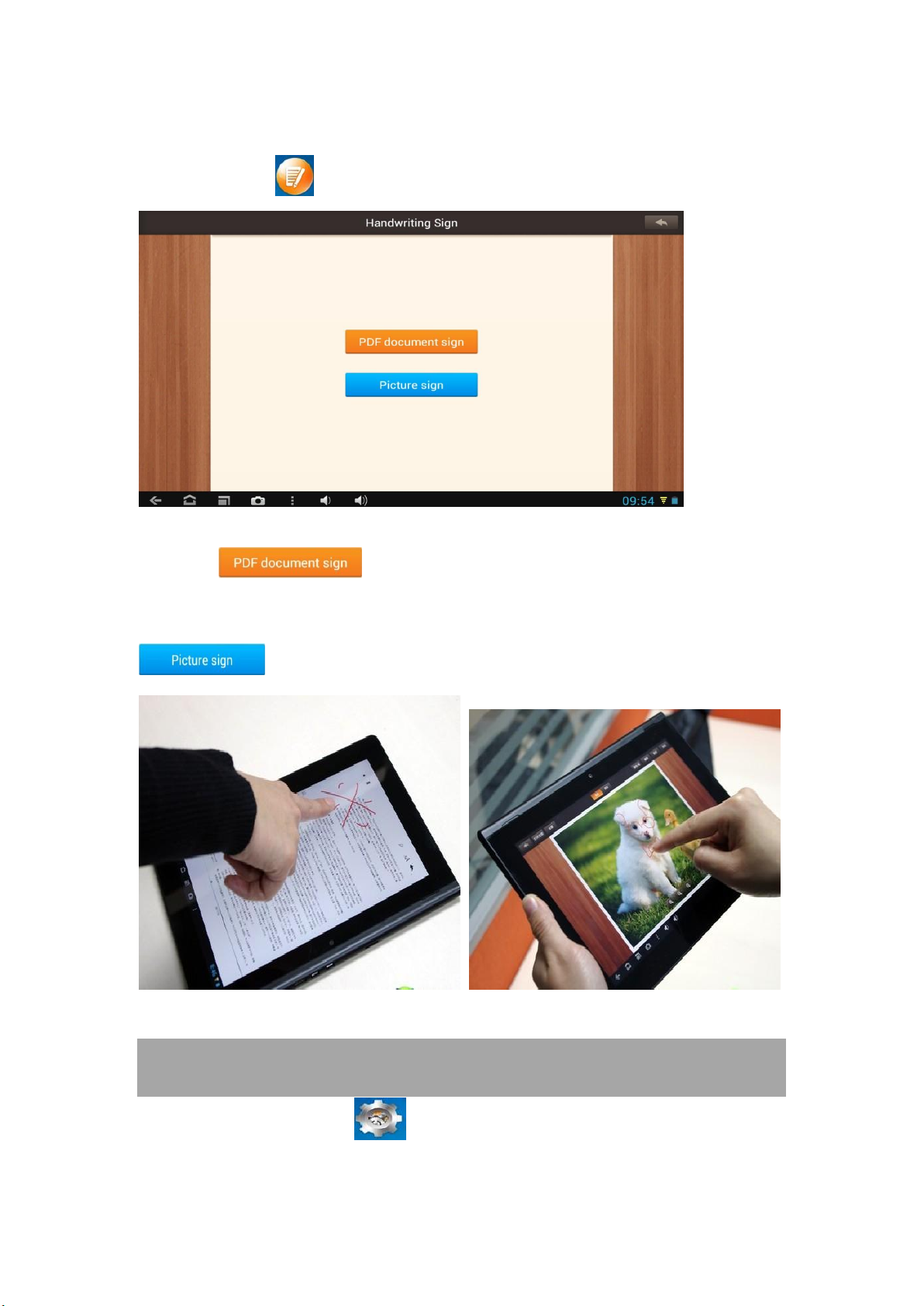

6.6 Sign function........................................................................................... １６
VII. Settings .................................................................................................... １６
VIII. Battery .................................................................................................... ２１
IX .Firmware Upgrading Procedures ......................................................... ２１
Troubleshooting ........................................................................................... ２６
３
Welcome
Thank you for purchasing this tablet.
It brings you much convenience for your business (supports Word, Excel,
send & receive e-mails...) and entertainment (supports 3D game,
chatting, movie playback, eBooks.....).
Running on Android 4.2, with a 1.6GHz processor and highly responsive
capacitive touch screen, it brings you wonderful user experience.
Before beginning, please refer to this user manual carefully.
Important Notices
⊙ While using the earphone, if the volume is excessively high it may
cause hearing damage. So please adjust the volume of the player
to a moderate level and balance the time of using.
⊙ Do not disconnect the tablet suddenly when formatting or uploading
and downloading, which can lead to program errors.
⊙ Do not dismantle the tablet by yourself, and do not use alcohol,
thinner or benzene to clean its surface.
⊙ The tablet dose not support USB charge. If you want to charge the
tablet, please use the AC adaptor supplied. Please use the original
accessories.
⊙ Read this User Manual carefully, Make sure you know how to upgrade
the tablet, other wise do not upgrade it by yourself.
４
Keys and Functions
1. SIM card slot
To insert your SIM card (Data only, only 3G version
is with this card slot)
2. TF card slot
To insert your card
3. Earphone jack
To connect your earphone
4. HOST port
USB OTG, supports mouse, keyboard, USB flash
disk, etc, with a converting cable
5. USB port
Connect to a computer to transfer data
(e.g., music, videos, photos, files).
6. HDMI
Connect to TV output via a HDMI cable
7. MIC
Microphone for recording voice
8. Power jack
(DC input)
Connect to a 5V 2.5Aoutput adaptor as included
in the accessories
9. ESC Key
Tap to return to the previous screen/ page.
10. Front Camera
2M pixels camera
11. Light Sensor
Improve your photo quality
12. Rear Camera
5M pixels auto focus
13. Reset hole
Press to reset the tablet if it freezes or behaves
abnormal
13. Speaker
AAC speaker
14. Speaker
AAC speaker
５
I. Getting Started
→
Tap and drag the lock out of the circle to unlock.
Drag the lock to right: you will go to the home screen.
Drag the lock to left: you will go to camera directly.
1.1 Turn on/off
1.1.1 Turn on
To start your tablet, press and hold the power key at the right side of
your tablet for a while. Tap and drag the lock out of the circle to unlock.
1.1.2 Turn off
To power off your tablet, press and hold the power button until the
“Would you like to shut down?” dialog appears and tap “OK” to power
it off.
1.2 Lock/unlock the screen (sleep mode)
To save battery, you should put your tablet in sleep mode by turning off
the LCD display. To do this, shortly press the power key. Press it again to
wake up the screen.
1.3 Connect to computer
You can connect your tablet to your computer with the supplied USB
cable so you can transfer media files.
If your computer is XP system, please install a Windows Media Player 11
for your computer before transfer media files as android 4.2 system
needs Windows Media Player 11 support.
６
II. Your Home Screen
a. Google
search
Tap to enter Google search page
b. Voice search
Tap to open voice search
c. ESC key
Tap to return to the previous screen/ page.
d. Home
Tap to return to your home page
e. Recent
operations
Tap to show your recent operations
f. Volume -
Tap to lower the volume
g. Volume +
Tap to upper the volume
h. WIFI Signal
There will be WIFI signal when WIFI connected
i. Battery status
Show battery status
a b
c d e f g h i
Tap (All Apps launcher) on the upper right corner to enter into all
apps panel:
７
2.1 Change wallpaper:
Tap the “Settings” icon on the all apps panel, you will see a pop-up
options; Enter into “Display” interface, you can choose wallpaper from
Gallery, live Wallpapers or Wallpapers.
2.2 Add/delete applications on home screen:
There are several apps in the home screen, you can also add more
frequently-used app icons in this home page and delete some less
frequently-used ones.
Tap the app launcher in the top right corner to go to all apps panel, tap
and move the app you want to the home screen.
To delete an app from home screen, tap and hold it, and them movie it
to the remove icon
2.3 Add widgets to home screen:
Tap all Apps launcher→Tap WIDGETS. There are Analog clock,
bookmarks, calendar, Email, and lots of other widgets. Drag the widget
you want to the home screen.
Tips: Besides your home screen, you can access to other four panels by
sliding left or right in your home screen. You can also customize these
panels.
８
III. Network Connection
3.1 Wi-Fi
Wi-Fi can only be used when it connects with home Wi-Fi Access Point
(AP) or a free unsecured Wi-Fi hotpot. Under “Wireless & networks”, tap
“Wi-Fi” to turn it on. After a moment, your Wi-Fi networks list should
populate. If you need to rescan for available networks, tap "scan"
3.1.1 Turn on Wi-Fi
Within the App Panel, tap “Settings”” → “Wi-Fi” to turn on wifi.
Your tablet lists the networks it finds within range. Tap a network to
connect. If necessary, enter Network SSID, Security, and Wireless
password, and tap “Connect”. When your tablet is connected to the
network, the wireless indicator appears in the status bar. Waves
indicate connection strength.
3.1.2 Turn off Wi-Fi
Please turn off Wi-Fi if you’re not using it to save the battery. To turn off
Wi-Fi, Tap it again.
3.1.3 Add a Wi-Fi network
Users may also add a Wi-Fi network under “ settings”. In “settings”, tap
“ ” on the upper right corner. Enter the SSID (name) of the network. If
necessary, enter security or other network configuration details. Touch
Save.
Note: Network status icons turn yellow if you have a Google
Account added to your tablet and the tablet is connected to Google
９
services, for syncing your Gmail, Calendar events, contacts, for backing
up your settings, and so on.
3.2 Bluetooth
3.2.1 Make device discoverable
You must pair your tablet with a device before you can connect to it.
Once you pair your tablet with a device, they stay paired unless you
unpair them.
Under “Settings”, choose “Bluetooth”. Tap Bluetooth to turn on it and
tap “Search for devices”. The Bluetooth indicator then appears in
the status bar.
3.2.2 Scan for devices
After scanning, there will be a list of the IDs of all available Bluetooth
devices in range. If the device you want to pair with isn’t in the list,
Ensure that the other device is turned on and set to be discoverable.
3.2.3 Pair with the Bluetooth device
Tap the name of an available Bluetooth device to pair with. In the
popup “Bluetooth pairing request” dialog, type a PIN.
If the pairing is successful, your tablet connects to the device.
Example: to transmit a photo
Go to “Gallery”, choose a photo to share. Tap any spot on the photo to
view a submenu. Tap icon → , and then choose the device
name in the Paired devices list. The photo will then be sent.
You can touch the right icon to unpair the device.
Note: After pairing, it shows under the Bluetooth device “Paired but not
connected”, but file transmission is still possible.
You can see the received files by touching the right corner icon. At
present, the Bluetooth function only supports files transmission.To extend
battery life, turn Bluetooth power off when not in use.
3.3 3G Network
3.3.1 External 3G Network
A 3G network is a mobile network that allows high-speed data access
and advanced network capacity.
This tablet supports external 3G network by a 3G dongle. You can
connect the 3G dongle to HOST port via the OTG convertor cable (the
shorter one). You can find the convertor cable in the accessories.
