Pioneer SBX-300 User Manual

SBX-300

Speaker Bar System

Operating Instructions

Safety Information

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly.
After you have finished reading the instructions, put them away in a safe place for future reference.

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

WARNING

This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower pot)
or expose it to dripping, splashing, rain or moisture.

WARNING

To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.

VENTILATION CAUTION

When installing the unit, leave space of at least 10 cm
at the sides and top.
Furthermore, to facilitate good heat dissipation, make
sure there is a little distance between the other devices.
When installing the unit in a rack or the like, leave
space of at least 10 cm at the top, rear, and sides.
Internal heat buildup may cause a fire.

WARNING

Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.

D3-4-2-1-1_B1_En

D3-4-2-1-3_A1_En

D3-4-2-1-7a_A1_En

D3-4-2-1-7b*_A1_En

Operating Environment

Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)

CAUTION

The STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).

This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period.

D3-4-2-1-7c*_A1_En

D3-4-2-2-2a*_A1_En

K041_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.

S002*_A1_En

Information for users on collection and disposal of old equipment and used batteries

Symbol for

equipment

Symbol examples

for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.

For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.

By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.

These symbols are only valid in the European Union.
For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and
ask for the correct method of disposal.

K058a_A1_En

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency,
which is a band used by other wireless sys­tems (Microwave ovens and Cordless phones,
etc.). In this event noise appears in your televi­sion image, there is the possibility this unit
(including products supported by this unit) is
causing signal interference with the antenna
input connector of your television, video,
satellite tuner, etc. In this event, increase the
distance between the antenna input connector
and this unit (including products supported by
this unit).

• Pioneer is not responsible for any
malfunction of the compatible Pioneer
product due to communication error/
malfunctions associated with your network
connection and/or your connected
equipment. Please contact your Internet
service provider or network device
manufacturer.

• A separate contract with/payment to an
Internet service provider is required to use
the Internet.

Table of Contents

1 Before you start

5 Introduction
5 – Supplied accessories
5 – Before using the remote control
5 – Replacing the remote control battery
6 – Operating range of remote control
6 – Remote control
7 – Rear panel
8 – Front panel

2 Installing and Connecting the Unit

9 Installing the Unit
9 – Installing the unit in front of a TV
9 – Mounting the unit to a wall
10 Connecting to Your TV
11 Connections with external device

3 Operations

12 Outputting the sound of a device connected to the

unit
12 Enjoying the surround function
12 Listening to sound at nighttime
12 Automatically equalize volume level dierences

during playback
12 Making dialog in movies and vocals in music easy

to hear
13 Adjusting the sound delay time (LIP SYNC (AUDIO

SYNC) )
13 Switching the power to standby mode

automatically (Auto Power O)
13 Enjoying music on Bluetooth®devices
13 – Listening to music on Bluetooth devices

4 Other Functions

15 PHASE CONTROL technology
16 IR Repeater Function
16 – When the TV remote control does not work

(when the unit is installed in front of the TV)

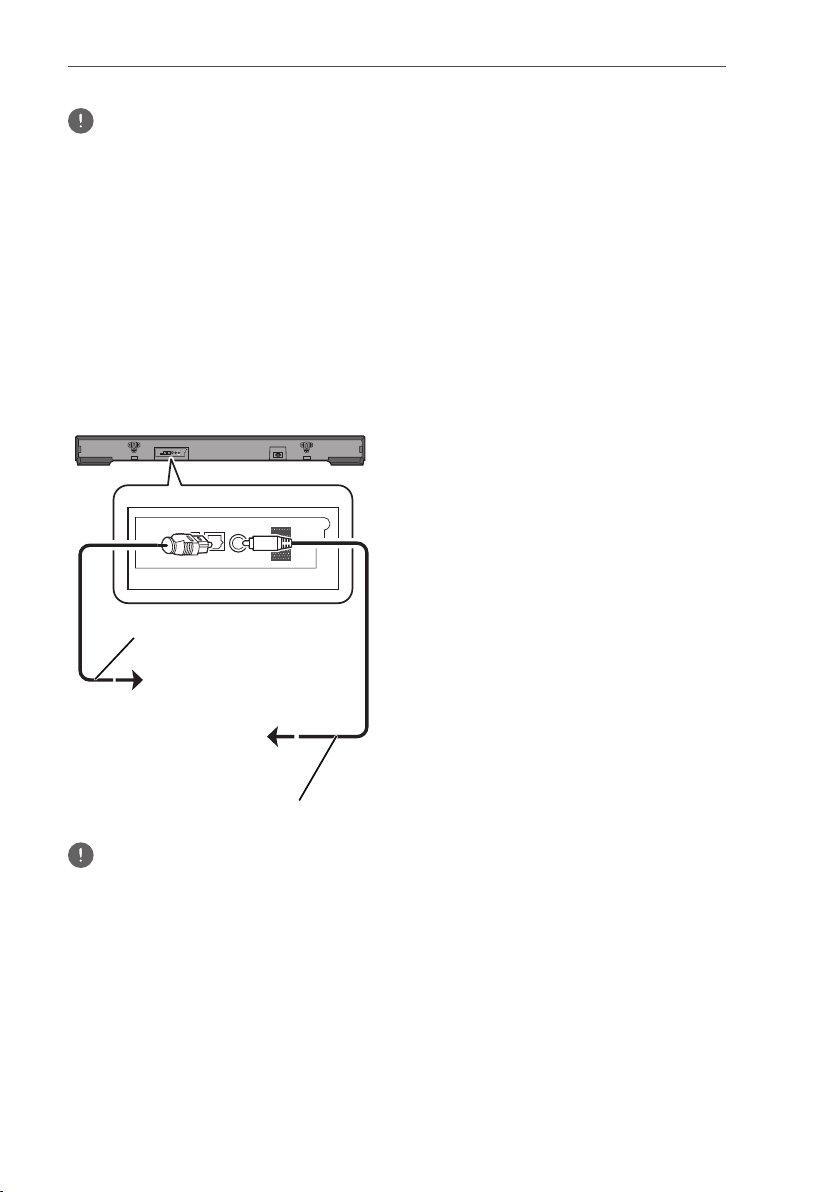

16 – Connecting the supplied IR cable
17 Controlling the unit with the TV remote control
17 – Clearing the learning function
17 Restoring all settings to the default settings

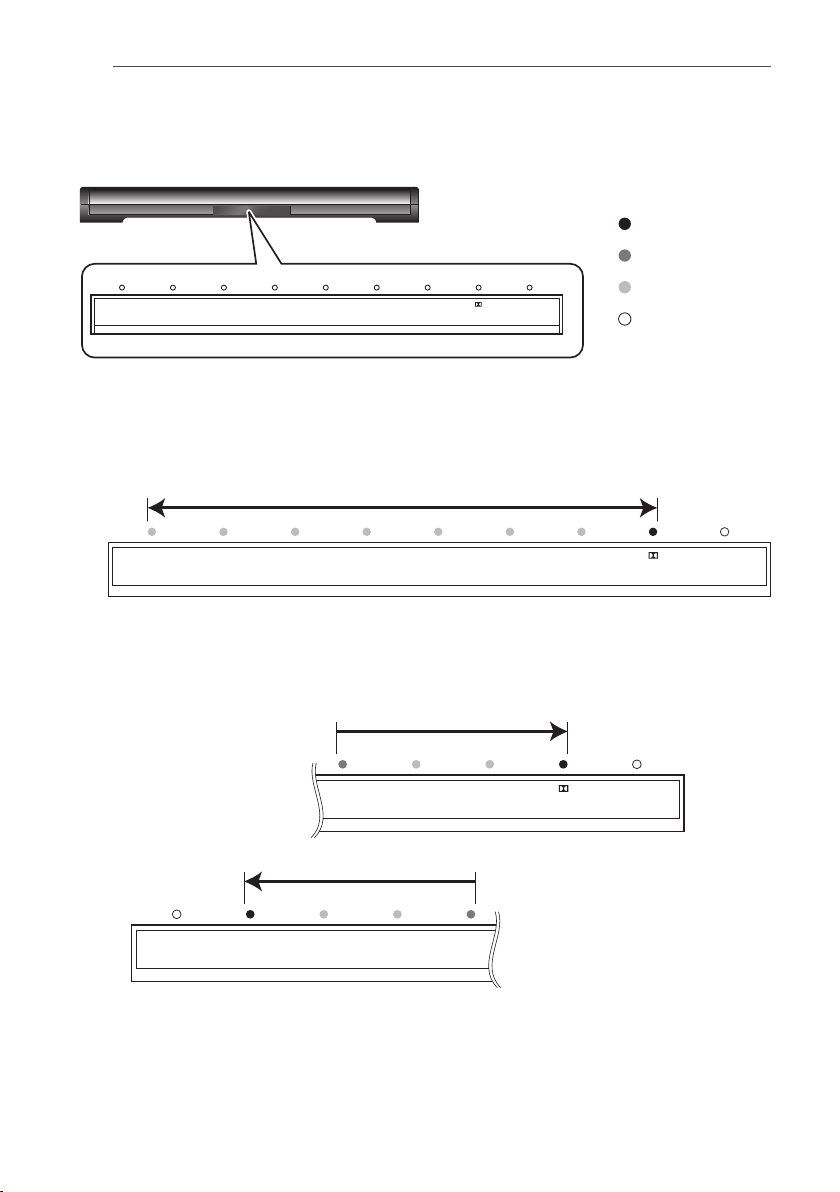

18 Unit indicator operation
19 – MUTE
19 – STATUS
19 – LIP SYNC (AUDIO SYNC)

5 Other Information and

Troubleshooting

20 Troubleshooting
20 – Sound
20 – Others
21 – Trademarks and licenses
21 Radio wave caution
22 – Scope of operation
22 – Radio wave reections
22 – Precautions regarding connections to products

supported by this unit

6 Appendix

23 Specications
23 – Unit
24 – Speakers
25 Maintenance
25 – Handling the unit

Before you start 5

En

Chapter 1

Before you start

Introduction

Supplied accessories

• Height adjustment foot x 2 (L, R)

• Foot attachment screws x 2

• Remote control x 1

• IR cable x 1

• Optical digital audio cable x 1 (1.5 m)

• Power cord

• Warranty

• Operating Instructions (this manual)

Before using the remote
control

The battery comes pre-inserted in the remote
control. Pull out the insulation sheet before
using the remote control.

Replacing the remote control
battery

1. Pull out the battery holder while
pressing the tab.

2. Insert the lithium battery (CR2025 x1)
correctly.

Insert the battery in the holder so that the +
side is facing up.

3. Close the battery holder.

Close securely (a click should be heard).

1

1

3

2

The battery included with the unit have
been provided to allow you to check product
operation and may not last long.

Warning

• Do not use or store the battery in direct sunlight or
other excessively hot place, such as inside a car or
near a heater. This can cause the battery to leak,
overheat, explode or catch fire. It can also reduce
the life or performance of the battery.

• Incorrect replacement of the lithium battery may
result in an explosion. Only replace the battery with
a battery that is the same or an equivalent type.

• The battery may have different voltages, even if
they look similar. Do not use different kinds of the
battery together.

• Do not heat the battery, disassemble them, or
throw them into flames or water.

Caution

• When disposing of used the battery, please comply
with governmental regulations or environmental
public institution’s rules that apply in your country/
area.

• To prevent leakage of battery fluid, remove the
battery if you do not plan to use the remote control
for a long period of time (1 month or more). If the
fluid should leak, wipe it carefully off the inside
of the case, then insert new battery. If a battery
should leak and the fluid should get on your skin,
flush it off with large quantities of water.

• To prevent an accident, store the battery out of the
reach of infants and young children. If accidentally
swallowed, contact a doctor immediately.

Before you start6

En

Operating range of remote
control

The remote control may not work properly if:

• There are obstacles between the remote control
and the unit's remote sensor.

• Direct sunlight or fluorescent light is shining onto
the remote sensor.

• The unit is located near a device that is emitting
infrared rays.

Remote control

1

2

3

7

4

5
6

8

9

• The unit is operated simultaneously with another
infrared remote control unit.

• When the IR repeater function (page 16) or
learning function (page 17) is used to operate
TV remote control, the operating range will differ
depending on the performance of the TV remote
control. (The operating range may be reduced.)

Remote control
sensor

30°30°

7 m

Remote control

MUTE

4

Temporarily mutes the sound. Press again
to restore the original volume.

DIMMER

5

Changes the brightness of the indicators on
the front panel of the unit in three steps.

LIP SYNC (AUDIO SYNC)

6

Adjusts the lip sync function.

VOLUME

7

Adjusts the overall volume including the
subwoofer volume.

SUBWOOFER VOL

8

Adjusts the subwoofer (bass sound)
volume.

STATUS

9

Allows you to confirm the status of various
settings.

STANDBY/ON

1

Turns the power of the unit on/off (standby
mode).

2 Input Selection Buttons

Switches the input of the unit.

3 Sound setting buttons

SURROUND

Turns on/off the surround function.

NIGHT

Turns on/off the night function.

AUTO LEVEL CONTROL

Turns on/off the auto level control function.

DIALOG

Turns the dialog function on/off.

Rear panel

Before you start 7

IR OUT

TV

BD/DVD

STB

ANALOG

AC IN

En

1 2 43 5

TV

BD/DVD

STB

1 Optical digital audio input 1 terminal

(page 10)

Connect a TV or other device with an
optical digital audio output.

2 Optical digital audio input 2 terminal

(page 11)

Connect a BD, DVD, or CD player or other
device with an optical digital audio output.

3 Coaxial digital audio input terminal

(page 11)

Connect a satellite broadcast tuner or
other device with a coaxial digital audio
output.

6 77

IR OUT

ANALOG

4 Analog audio input terminal

(page 10)
(3.5-mm stereo mini jack)

Connect a TV, portable audio player, or
other device with an analog audio output.

5 IR OUT terminal (page 16)

Connect the supplied IR Cable when the TV
remote control does not work.

6 AC IN terminal

Be sure to connect this last.

7 Wall mounting fittings (page 9)

Before you start8

TV BD/DVD SURROUND NIGHT AUTO LEVEL

CONTROL

DIALOG 2

DTS

STB

ANALOG

BT AUDIO

En

Front panel

1 2 3

STANDBY/ON



INPUT SELECT − VOLUME ＋

5 6 7 8 9 a b4

1 uSTANDBY/ON

Turns the power of the unit on/off (standby
mode).

2 INPUT SELECT

Switches the input.

3 VOLUME +/–

Adjusts the volume.

4 Input selection indicators

The indicator corresponding to the
selected input is lit.
Green: TV, BD/DVD, STB
Orange: ANALOG

5 SURROUND indicator

Lit when the surround is on.

6 NIGHT indicator

Lit when the night function is on.

7 AUTO LEVEL CONTROL indicator

Lit when the auto level control function is
on.

8 DIALOG indicator

Lit when the dialog function is on.

9 2/DTS indicator

Lit when any of the following audio formats
is input.
Green: Dolby Digital
Red: DTS
Off: PCM

a BT AUDIO indicator

Lit when connected with a Bluetooth
device.
Flashes when not connected with a
Bluetooth device.
Quick flashing: Pairing mode
Slow flashing: Connection standby mode

b Remote control sensor

Installing and Connecting the Unit 9

En

Chapter 2

Installing and
Connecting the Unit

Before connecting the unit or changing the
connections, be sure to turn off the power and
disconnect the power cord from the outlet.
Also, make sure you have finished connecting
all cables before connecting the power cord to
the wall outlet.

Installing the Unit

Note

• When the unit interferes with the stand or
other parts of the TV.

– Attach the height adjustment feet and adjust

the height.

• When the TV remote control does not work
well.

– Install the unit away from the TV.
– Use the IR repeater function (page 16).

Attach the height adjustment feet



• If the unit interferes with the stand or other
parts of the TV, you can adjust the height of
the unit.

• Match each of the left sides and right sides
of the unit and height adjustment feet and
then secure the height adjustment feet with
the supplied screws.

Cautions on attaching the height

adjustment feet

• To prevent suffocation caused by accidental
swallowing or an injury or other accident, be sure
to carry out the work in a place that is out of the
reach of infants and young children.

• To prevent damage to the product, choose a level
place and carry out the work on a soft surface such
as a carpet while taking care not to over tighten the
mounting screws.

L

R

Installing the unit in front of a
TV

1 Install the unit away from the TV so

that the rear of the unit does not scratch
the TV.

Caution

• Do not install the unit in an unstable place such
as on an unsteady stand or tilted surface. The unit
may fall or tip over, resulting in injury.

• The unit is not magnetically shielded and so should
be used away from a cathode ray tube (CRT) TV
or monitor. Also, do not place devices that are
easily influenced by magnetism (magnetic cards,
watches, video tapes, etc.) near the unit.

L R

Mounting the unit to a wall

You can use the wall mounting fittings on the
rear of the unit to mount the unit to a wall.

Cautions on mounting



The unit is heavy so there is a risk that its
weight could cause the screws to work loose or
the wall material to fail to support it, resulting
in the unit falling. Make sure that the wall you
intend to mount the unit to is strong enough to
support it. Do not mount the unit to a plywood
or soft surface wall.

Mounting screws are not supplied. Use screws
suitable for the wall material and capable of
supporting the weight of the unit.

Installing and Connecting the Unit10

En

1 Obtain commercially available screws

that fit the holes of the wall mounting
fittings on the rear of the unit.

Hole of wall mounting fitting

(25 mm)

4 mm

5 mm

10 mm

2 Screw the screws into the wall.

• Screw in the screws until they are
sticking out of the wall by 3 mm to 4 mm.

Wall mounting

screws

(commercially

available)

3 mm to 4 mm

At least 20 mm

537 mm

3 Hang the unit on the screws by the

holes of the wall mounting fittings on
the rear of the unit.

• Align the holes of the wall mounting
fittings on the rear of the unit and the
screws and then hang the unit on both
screws at the same time.

• Do not hang from the unit. Pay special attention to
children. The unit may fall and break, resulting in
injury.

• Do not connect or disconnect the cables while the
unit is mounted to a wall. Install the cables in such
a way that a foot or other object cannot get caught
in them.

Connecting to Your TV

Connect the unit and TV with the supplied
optical digital audio cable.

To enable hearing of the TV audio with the
unit, connect the supplied optical digital audio
cable.

For a TV that only has an analog audio output
terminal, connect the audio output of the TV
and the analog terminal of the unit with a
commercially available audio cable.

TV

Optical digital
audio cable
(included)

Analog cable
Remove the protection cap at
the end and then connect the
cable while paying attention to
the orientation of the connector.

Rear View

(commercially

available)

Caution

• When the unit is mounted to a wall, there is a risk
of it dropping, falling, etc. due to the weight or
mounting method. Take sufficient care not to cause
an accident.

• Select a location for installation/mounting with
sufficient strength to withstand the weight. If you
are unsure of the strength or anything else, consult
with a professional.

• Pioneer is not responsible for any accidents or
damage that result from improper installation/
mounting, incorrect use, modification, disaster,
etc.

TV

If you will not use
the cable for your TV
connection, you can
use it to connect your
CD player or other
audio device.

BD/DVD

STB

If your TV does not
have a digital terminal,
connect it to the analog
terminal.

IR OUT

ANALOG

Note

• SomeTVshavesettingsfordigitalaudiooutput.For
details,seetheoperatinginstructionsforyourTV.

• Setaudiooutputfromthebuilt-inspeakersofthe
TVtoOFF.Ifthiscannotbeset,settheTVvolume
totheminimumlevel.

Connections with
external device

Youcanconnectaplaybackdevice(BD,DVD,
orCDplayer)withanopticaldigitalaudio
outputorasatellitebroadcasttunerorother
devicewithacoaxialdigitalaudiooutputtothe
unittoenjoythesoundofthatdevice.

Rearofunit

IR OUT

TV

BD/DVD

STB

ANALOG

TV

BD/DVD

Opticaldigitalaudiocable(commercially
available)

AC IN

IR OUT

STB

ANALOG

Installing and Connecting the Unit 11

En

BD player or other device

Satellite broadcast tuner,

cable TV tuner,

or other device

Digitalaudiopincable(commerciallyavailable)

Note

• Anopticaldigitalaudiocablewithasquareplug
canbeconnectedtothisunit.

• WhenanMPEG2-AAC(digitalbroadcast)signalis
inputtoadigitalaudioinputterminal,soundnot
beoutput.
Ifsoundisnotoutput,switchtheaudiooutputof
thedeviceconnectedtothedigitalaudioinput
terminaltoPCM.
Fortheswitchingprocedure,refertotheoperating
instructionsfortheconnecteddevice.

• Someconnecteddeviceshavesettingsforthe
digitalaudiooutput.Fordetails,seetheoperating
instructionsforthespecificplaybackdevice.

Operations12

En

Chapter 3

Operations

Outputting the sound
of a device connected to
the unit

The following describes the procedure up until
listening to the sound of a device connected to
the unit.

1 Turn on the power of the connected

device.

STANDBY/ON

2 Press

3 Press

4 Press the

• When the unit is connected to a TV, set the volume

u

the remote control to turn on the power
of the unit.

INPUT SELECT

button on the remote control.

Switch to the input you wish to play and
then start playback on the connected
device.

To temporarily mute the sound, press the

MUTE

volume to cancel mute.

Caution

to the minimum level or mute the sound. Also,
if the TV speaker sound can be turned off in the
settings menu of the TV, set it to OFF.

VOLUME

. Press the button again or adjust the

Enjoying the surround
function

Turn on the surround function to enjoy sound
that has the realism of a live performance.

The default setting is OFF.

1 Press

SURROUND

function.

When this is turned on, the
indicator lights green.

STANDBY/ON

or

or an input selection

to adjust the volume.

to turn on the surround

SURROUND

on

Listening to sound at
nighttime

This mode is suited to enjoying movies and
other content with a low volume level at
nighttime.

The default setting is OFF.

1 Press

NIGHT

function.

When this is turned on, the
lights green.

to turn on the night

NIGHT

indicator

Automatically equalize
volume level dierences
during playback

The unit automatically equalizes volume level
differences between tracks when playing music
in stereo from a portable digital audio player
and other sources.

The default setting is OFF.

1 Press

AUTO LEVEL CONTROL

the auto level control function.

When this is turned on, the

CONTROL

indicator lights green.

to turn on

AUTO LEVEL

Making dialog in movies
and vocals in music easy
to hear

This enhances the clarity of dialog in movies
and vocals in music.

The default setting is OFF.

1 Press

DIALOG

function.

When this is turned on, the
indicator lights green.

to turn on the dialog

DIALOG

Operations 13

En

Adjusting the sound
delay time
(LIP SYNC (AUDIO SYNC) )

Adjust the sound delay time to sync the sound
with the images.

The default setting is 0.

1 Press

2 Press

3 Press

LIP SYNC

The unit enters lip sync adjustment mode.

VOLUME +/–

time (press + to increase the delay
time).

The indicator lighting state varies depending
on the setting value.
For the indicator operation, refer to Unit
indicator operation (page 18).

LIP SYNC

adjustment mode.

for at least 3 seconds.

to adjust the delay

to end lip sync

Switching the power
to standby mode
automatically
(Auto Power O)

The unit can be automatically switched to
standby mode when there is no signal and
30 minutes elapses without any operation
being performed.

The default setting is ON.

STANDBY/ON

1 Press

2 Press

u

off the power.

STANDBY/ON

u

seconds while pressing
unit.

When this is turned on, the
indicator lights green.
Perform the same operation again to turn
the function off.

on the unit to turn

for at least 3

VOLUME –

2

/DTS

on the

Enjoying music on
Bluetooth®devices

Music on Bluetooth devices such as the
following can be enjoyed wirelessly with the
unit.

• Bluetooth devices: Cell phone

• Bluetooth devices: Digital music player

• Devices without Bluetooth function: Digital

music player + Bluetooth audio transmitter
(commercially available)

Listening to music on
Bluetooth devices

Pairing the unit and the Bluetooth device
(initial registration)

Pairing is required to enjoy the music on a
Bluetooth device with the unit. Perform pairing
the first time you use a Bluetooth device or
when the pairing data has been deleted from
the Bluetooth device.

Before starting the pairing operation, check
that the Bluetooth function on the Bluetooth
device is turned on. For details, refer to the
operating instructions for the Bluetooth device.
Once the pairing operation is performed, it
does not need to be performed again.

1 Press the

The

2 Perform the pairing operation on the

Bluetooth device.

• When you search for the unit from the

• With Bluetooth version 2.0 or lower, a PIN

3 The

that pairing between the unit and
Bluetooth device was successful.

The reception range between the Bluetooth
device and unit is up to 10 m. (This value
is for use in an open space. The reception
range may vary depending on whether walls
or other structures are present.)

Note

• The pairing method may vary depending on the
type of Bluetooth device.

• When 5 minutes elapse in pairing mode, the unit
enters connection standby mode. To perform
pairing again, press
control.

BT AUDIO

BT AUDIO

Bluetooth device, depending on the type
of Bluetooth device, a list of connection
(waiting) devices may be shown on the
display of the Bluetooth device (the name
shown for this unit on the display will be
[SBX-300]).

code needs to be entered.

– The PIN code of the unit is fixed to 0000.

BT AUDIO

.

indicator flashes.

indicator lights. Check

BT AUDIO

on the remote

Operations14

En

4 Play music using your Bluetooth device.

For details on the playback procedure, see
the operating instructions for your Bluetooth
device.

Note

• The unit does not support the AVRCP function.

• The unit does not support the Mono Headset

Profile (Hands Free Profile).

• Bluetooth devices cannot be controlled by the unit.

• Only one Bluetooth device can be connected to the

unit at one time. Connection with multiple devices
is not possible.

• The Bluetooth function may not be able to be used
depending on the type of Bluetooth device (to play
a Bluetooth device with the unit, the Bluetooth
device needs to support the A2DP profile).

BT AUDIO

• The

Bluetooth connection.

• The audio may sound choppy if signals from other
devices interfere with the connection.

• The Bluetooth connection will be lost if a
malfunction occurs due to the effect of a device
that operates in the same frequency, such as a
medical device, microwave, or wireless LAN device.

• If communication is cut off because of objects
between the Bluetooth device and the unit, the
Bluetooth connection will be lost.

• Large distances between the Bluetooth device and
the unit will result in poorer sound quality, and the
connection will be cut off if the distance between
the Bluetooth device and the unit exceeds the
operating range.

• If the power of the unit is turned off, the connection
with the Bluetooth device will be disconnected.

• The sound retriever function* is always on.
* A function that corrects music data compressed

at a high rate to enable playback with better
sound quality.

indicator flashes when there is no

Other Functions 15

En

Chapter 4

Other Functions

PHASE CONTROL
technology

PHASE CONTROL technology is used with this
unit.

During multi-channel playback in a typical
home theater, the LFE (Low Frequency
Effects) signals and low-pitched components
contained in various channels are routed to the
subwoofer or other optimum speaker. However,
in principle, this routing process results in a
frequency where the phase is shifted (group
delay), leading to problems where the low­frequency sounds only arrive delayed or low­pitched sounds cancel each other out due to
interference with other channels. The PHASE
CONTROL technology in the unit is used to
recreate powerful low-pitched sounds that are
faithful to the original sounds.

The phase indicates the time relationship
between two sound waves. Two sounds waves
are said to be “in phase” if their peaks match
up with each other, and the phases are said to
be “out of phase” if their peaks do not match
up.

When the PHASE CONTROL technology is
used, it can provide the following effects when
the sound source is played back.

No PHASE CONTROL technology

Front speaker

Sound
source

Subwoofer

•Rhythmisoutofphaseandunclear

•Poorqualityoflow-pitchedsounds

•Musicalinstrumentshaveanunrealisticsound

With PHASE CONTROL technology

Front speaker

Sound
source

Subwoofer

•Clearrhythm

•Low-pitchedsoundskeeptheirquality

•Musicalinstrumentshavearealisticsound

Listening
position

Listening
position

Timing is
delayed, and
sounds cancel
each other out

Original sound
tone can be
heard

Note

• The PHASE CONTROL technology is always
activated.

Phase Control technology is a trademark
assigned to products that provide matching
of the phase characteristics from recording
to playback based on the PHASE CONTROL
technology concept developed by PIONEER.

Other Functions16

En

IR Repeater Function

When the TV remote control
does not work (when the unit
is installed in front of the TV)

When the unit is installed in front of the TV,
the unit may block the remote control sensor
on the TV so that operation by the TV remote
control no longer works. When this happens,
try testing if the TV remote control works using
the two methods below.

Method 1: Move the position of the unit

forward or backward or to the right
or left, or adjust its height.

Method 2: Connect the supplied IR cable.

Connecting the supplied IR
cable

If the TV remote control does not work even
after changing the position of the unit, use the
supplied IR cable.

1 Connecting the supplied IR cable.

2 Affix the IR cable to the rear panel of

the unit.

• Position the transmitter so that it is
aligned with the TV remote control
sensor.

• Use the TV remote control within the
reception range of the remote control
sensor of the unit.

• Peel off the backing on one side of the
supplied double-sided tape and attach
the tape to the IR cable, and then peel off
the backing on the other side and attach
the IR cable to the unit.

Rear of unit

IR OUT

TV

BD/DVD

Double-sided
tape

Remote control sensor

(1)

STB

ANALOG

(2)

Caution

• Check that the TV cannot be operated with the
remote control of the TV before connecting IR
cable. If it is connected when operation is possible,
the signal output directly from the remote control
of the TV and the signal output via the unit will
interfere with each other.

Note

• For details about the location of the TV remote
control sensor, see the operating instructions for
your TV.

• Select an installation location that best matches
your usage environment.

• Carefully wipe off any dust or objects at the affixing
location.

• This may not work for certain types of TVs. In this
case, try changing the installation position of the
unit.

• The IR repeater function is enabled even when the
power of the unit is off (standby mode).

Other Functions 17

En

Controlling the unit with
the TV remote control

The unit can learn TV remote control operation
to enable operation of the unit with the TV
remote control (learning function).

The following three functions can be operated
with the TV remote control.

• Volume down

• Volume up

• Power on/off (standby mode)

Note

• This function may not be supported depending on
the TV remote control. If it is not supported, use the
remote control supplied with the unit.

1 Turn off the TV.

STANDBY/ON

2 Press

3 Press

4 Press the button below corresponding

Switch between

5 Press the TV remote control button

6 Repeat steps 4 and 5 to enable the unit

u

off the power.

VOLUME –

while pressing

The indicators flash green and the unit
enters remote learning setting mode.

to the function to learn.

Function to

learn

Volume down

Volume up

power on and

standby

corresponding to the function to learn
while pointing the remote control sensor
toward the unit until the indicators
change from flashing green to lit.

• If learning fails, the indicators light red.
The procedure automatically returns to
step 4 so perform the operation again.

• If 10 seconds elapse with the indicators
flashing, the procedure automatically
returns to step 4.

to learn all three functions.

Button on unit

on the unit to turn

for at least 3 seconds

VOLUME +

VOLUME –

VOLUME +

STANDBY/ON

u

on the unit.

Indicator that
flashes green

ANALOG

BD/DVD

STB

TV

7 Press

• If learning failed, perform the operation

• If the same operation is performed with

• If you use the remote control when the

• The TV remote control signals may be received by

VOLUME –

while pressing
end remote control learning mode.

When all of the indicators turn off, release
your fingers from
The unit enters standby mode.

Caution

again while the power of the TV is off. The
light from the TV screen may affect remote
control learning.

a different TV remote control (or different
buttons) after learning, the old functions will
be overwritten with the new ones.

power states of the unit and TV are opposite
after the unit has learned the TV power
button, the function will not work properly. In
this case, press
so that the power states of the unit and TV
become the same before using the remote
control.

and operate both the TV and the unit. Set one of
the following.

– Set audio output from the built-in speakers of

the TV to OFF.

– Set the TV volume to the minimum level.

for at least 3 seconds

VOLUME +

VOLUME +

STANDBY/ON

u

on the unit to

VOLUME –

and

on the unit

Clearing the learning function

1 Press

INPUT SELECT

in learning mode.

The indicators flash red and the learning
function is cleared.

for at least 3 seconds

Restoring all settings to
the default settings

STANDBY/ON

1 Press

The learned TV remote control operations are
also cleared.

u

seconds while pressing
the unit when the power of the unit is
on.

All indicators light red and the default
settings are restored.

Caution

for at least 3

INPUT SELECT

on

.

Other Functions18

CONTROL

DIALOG

DTS

BT AUDIO

TV BD/DVD SURROUND NIGHT AUTO LEVEL

CONTROL

DIALOG 2

DTS
AAC

STB

ANALOG

En

Unit indicator operation

The indicators on the unit appear as follows depending on the state when each operation is
performed.

Indicator color

Red

Green

TV BD/DVD SURROUND NIGHT AUTO LEVEL

STB

ANALOG

CONTROL

Volume

• When

• When

• When the maximum value is reached, the

VOLUME +
VOLUME –

is pressed, the indicators light orange sequentially.

is pressed, the indicators turn off sequentially.

DIALOG

/DTS

indicator lights red.

2

BT AUDIO

DTS

Orange

Unlit

VOLUME +VOLUME –

TV BD/DVD SURROUND NIGHT AUTO LEVEL

STB

ANALOG

Sub Woofer Volume

• When

• When the maximum value is reached, the

• When the minimum value is reached, the

SUBWOOFER VOL +/–

SUBWOOFER level: 0

(Lights green)

SUBWOOFER VOL –

is pressed, the indicators light orange sequentially.

/DTS

indicator lights red.

2

BD/DVD

indicator lights red.

CONTROL

SUBWOOFER level: 0
(Lights green)

DIALOG

SUBWOOFER VOL +

DTS

BT AUDIO

MUTE

• When

MUTE

is pressed, the indicators flash orange.

Other Functions 19

En

TV BD/DVD SURROUND NIGHT AUTO LEVEL

STB

ANALOG

CONTROL

STATUS

• When

STATUS

is pressed, the on/off statuses of various settings are indicated by the indicators

(when a setting is on, the corresponding indicator is lit green).

When learning function is set

STANDBY/ON VOLUME – VOLUME +

TV BD/DVD SURROUND NIGHT AUTO LEVEL

STB

ANALOG

CONTROL

LIP SYNC (AUDIO SYNC)

• The TV and

• When the

off to indicate the lip sync delay time.

• When the maximum value is reached, the

BD/DVD

VOLUME +/–

TV BD/DVD SURROUND NIGHT AUTO LEVEL

indicators are always lit green.

are pressed, the

STB/ANALOG

DIALOG

STB

ANALOG

to

indicator lights red.

CONTROL

DIALOG 2

DIALOG

DIALOG

indicators light orange or turn

DIALOG

DTS

DTS

VOLUME +VOLUME –

DTS

BT AUDIO

When auto power
off is set

BT AUDIO

BT AUDIO

Other Information and Troubleshooting20

En

Chapter 5

Other Information and Troubleshooting

Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something
wrong with this component, check the points below. Sometimes the trouble may lie in another
component. Inspect the other components and electrical appliances being used. If the trouble
cannot be rectified even after checking the points below, ask your nearest Pioneer authorized
service center or your dealer to carry out repair work.

Sound

Problem Check Remedy

yNo sound is output.
ySound is not output

properly.

Others

Problem Check Remedy

Power does not turned
on.

The unit’s power turns off
automatically.

The unit cannot be
operated.

Cannot be operated with
the remote control.

Settings I have made have
been cleared.

I want to adjust the
brightness of the
indicators.

The input selection
indicators are flashing
red.

The unit becomes hot
during use.

Are the cables properly
connected?

Is the audio cable damaged? If the cable is damaged, replace it with a new one.
Are the connected components

properly set?

Is the power cord properly
connected?

Are you operating the remote
control from a point too far
away from the unit?

Is the battery dead? Replace the battery (page 5).

yHave you disconnected the

power cord while the unit’s
power was on?

yHas there been a power

failure?

yConnect the cable properly according to the connected devices

(page 11).
yInsert the cable firmly and all the way in.
yIf there is any dirt on the connection plug and terminal, wipe it off.

Refer to the operating instructions of the connected components and
then check, for example, the volume, input, and speaker settings.

yPlug the power cord securely into the power outlet.
yUnplug the power cord, wait several seconds, then plug the power

cord back in.

If Auto Power Off is set, the unit’s power automatically turns off. Check
the Auto Power Off setting (page 13).

Unplug the power cord, wait several seconds, then plug the power cord
back in.

Operate from within 7 m of the remote control sensor.

Wait for at least 10 seconds after the unit display disappears and then
make sure you press the
button on the remote control before disconnecting the power cord. Be
particularly careful when the power cord is connected to the AC outlet
on another device because the unit turns off in conjunction with the
device.

DIMMER

Press the
brightness.

Before use, unplug the power cord, wait several seconds, then plug the
power cord back in.
If the problem is not resolved, contact the Pioneer Customer Support
Center.

The temperature of the unit cabinet may increase slightly during use
depending on the operating environment. This is not an indication of a
malfunction so you can continue using the unit without worrying.

STANDBY/ON

u

on the remote and select the desired display

on the unit or the power

Other Information and Troubleshooting 21

En

Trademarks and licenses

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

Manufactured under license under U.S.
Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued
& pending. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks
& DTS Digital Surround and the DTS logos
are trademarks of DTS, Inc. Product includes
software. © DTS, Inc. All Rights Reserved.

The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by
PIONEER CORPORATION is under license.
Other trademarks and trade names are those
of their respective owners.

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency,
which is a band used by other wireless systems
(see list below). To prevent noise or interrupted
communication, do not use this unit nearby
such devices, or make sure these devices are
switched off during use.

• Cordless phones

• Cordless facsimiles

• Microwave ovens

• Wireless LAN devices (IEEE802.11b/g)

• Wireless AV equipment

• Wireless controllers for game systems

• Microwave-based health aids

• Some baby monitors

Other, less common, equipment that may
operate on the same frequency:

• Anti-theft systems

• Amateur radio stations (HAM)

• Warehouse logistic management systems

• Discrimination systems for train or

emergency vehicles

Note

• In the event noise appears in your television image,
there is the possibility that a Bluetooth wireless
technology enabled device or this unit (including
products supported by this unit) are causing signal
interference with the antenna input connector of
your television, video, satellite tuner, etc. In this
event, increase the distance between the antenna
input connector and the Bluetooth wireless
technology enabled device or this unit (including
products supported by this unit).

• If there is something obstructing the path between
this unit (including devices supported by this unit)
and the device equipped with Bluetooth wireless
technology (such as a metal door, concrete wall,
or insulation containing tinfoil), you may need
to change the location of your system to prevent
signal noise and interruptions.

Other Information and Troubleshooting22

En

Scope of operation

Use of this unit is limited to home use.
(Transmission distances may be reduced
depending on communication environment).

In the following locations, poor condition or
inability to receive radio waves may cause the
audio to be interrupted or stopped:

• In reinforced concrete buildings or steel
framed or iron-framed buildings.

• Near large metallic furniture.

• In a crowd of people or near a building or

obstacle.

• In a location exposed to the magnetic field,
static electricity or radio wave interference
from radio communication equipment using
the same frequency band (2.4 GHz) as this
unit, such as a 2.4 GHz wireless LAN device
(IEEE802.11b/g) or microwave oven.

• If you live in a heavily populated residential
area (apartment, townhouse, etc.) and if
your neighbor’s microwave is placed near
your system, you may experience radio wave
interference. If this occurs, move your unit
to a different place. When the microwave
is not in use, there will be no radio wave
interference.

Radio wave reections

The radio waves received by this unit include
the radio wave coming directly from the device
equipped with Bluetooth wireless technology
(direct wave) and waves coming from various
directions due to reflections by walls, furniture
and building (reflected waves). The reflected
waves (due to obstacles and reflecting objects)
further produce a variety of reflected waves
as well as variation in reception condition
depending on locations. If the audio cannot
be received properly due to this phenomenon,
try moving the location of the device equipped
with Bluetooth wireless technology a little.
Also note that audio may be interrupted due to
the reflected waves when a person crosses or
approaches the space between this unit and
the device equipped with Bluetooth wireless
technology.

Precautions regarding
connections to products
supported by this unit

• Complete connections for all devices
supported by this unit, including all audio
cords and power cables before connecting
them to this unit.

• After completing connections to this unit,
check the audio and power cables to confirm
that they not twisted together.

• When disconnecting this unit, confirm that
you have sufficient working space in the
surrounding area.

• When changing connections of audio or
other cables for products supported by
this unit, confirm that you have sufficient
working space in the surrounding area.

Chapter 6

Appendix

Specications

Unit

General

Power requirements AC 100 V to 240 V, 50 Hz/60 Hz

Power consumption 36 W

In Standby mode Less than 0.5 W

Without the height adjustment feet attached:

900 mm × 86 mm (front) × 121 mm

Dimensions (W × H × D)

Net Weight 4.3 kg

Operating temperature 5 °C to 35 °C

Operating humidity 85 % or less

* Height at rear: 70 mm

With the height adjustment feet attached:

900 mm × 106 mm (front) × 121 mm

* Height at rear: 90 mm

Appendix 23

En

Inputs/Outputs

DIGITAL IN (OPTICAL) Optical jack x2

Coaxial digital input RCA terminal x1

Analog input 3.5-mm stereo mini jack x1

IR OUT 2.5-mm mini jack x1

Amplier

Practical maximum output

Total 130 W

Front 30W+30W(10%THD,4Ω)

Subwoofer 35W+35W(10%THD,4Ω)

Bluetooth

Version Ver.2.1 + EDR

Transmission output Class 2

Supported profile A2DP

PIN code 0000

Appendix24

En

Speakers

Front

Type Closed box type

Speakers 6.6 cm (cone type)

Impedance Rated 4Ω

Playback frequency band 100 Hz to 20 kHz

Subwoofer

Type Bass reflex type

Speakers 7.7 cm (cone type) × 2

Impedance Rated 4Ω

Playback frequency band 45 Hz to 2 kHz

• Design and specifications are subject to change without notice.

• All other product names, technology names, and company names contained in this document

are trademarks or registered trademarks of PIONEER or their respective companies.

Appendix 25

En

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and
packing materials. If you need to ship the unit,
for maximum protection, re-pack the unit as it
was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide
spray near the unit.

• Wiping with strong pressure may damage
the surface.

• Do not leave rubber or plastic products in
contact with the unit for a long period of
time.

Place of installation

• Do not place this unit on top of a TV or color
monitor. Also install it away from cassette
decks and other devices easily affected by
magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight

• Humid or poorly ventilated places

• Extremely hot places

• Places exposed to vibrations

• Places in which there is much dust or

cigarette smoke

• Places exposed to soot, steam or heat
(kitchens, etc.)

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds,
sofas, etc., or wrapped in cloth, etc. Doing so
will prevent the heat from dispersing, leading
to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or
other component that generates heat. When
rack mounting it, to avoid the heat given off by
the amplifier or other audio component, place
it on a shelf below the amplifier.

About condensation

If this unit is moved suddenly from a cold place
into a warm room (in winter, for example) or
if the temperature in the room in which this
unit is installed rises suddenly due to heater
operation, etc., water droplets (condensation)
may form inside (on operating parts and the
lens). When condensation is present, this
unit will not operate properly and playback
is not possible. Let this unit stand at room
temperature for 1 or 2 hours with the power
turned on (the time depends on the extent
of condensation). The water droplets will
dissipate and playback will become possible.
Condensation can also occur in the summer if
this unit is directly exposed to the air flow from
an air-conditioner. If this happens, move this
unit to a different place.

Cleaning the this unit

• Unplug the power cord from the power outlet
when cleaning this unit.

• Clean this unit using a soft cloth.

• For tough dirt, apply some neutral detergent

diluted in 5 to 6 parts water to a soft cloth,
wring out thoroughly, wipe off the dirt, and
then wipe again with a soft, dry cloth.

• Alcohol, thinner, benzene, insecticides,
etc., could cause the print or paint to peel
off. Also, leaving rubber or vinyl products in
contact with this unit for long periods of time
could mar the cabinet.

• When using chemical-impregnated wipes,
etc., read the cautions included with the
wipes carefully.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku,
Kawasaki-shi, Kanagawa

EU Representative’s:

Pioneer Europe NV

Haven 1087, Keetberglaan 1,
9120 Melsele, Belgium

http://www.pioneer.eu212-0031, Japan

English:

Hereby, Pioneer, declares that this
SBX-300 is in compliance with the
essential requirements and other
relevant provisions of Directive
1999/5/EC.

Suomi:

Pioneer vakuuttaa täten että SBX-300
tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen
mukainen.

Nederlands:

Hierbij verklaart Pioneer dat het toestel
SBX-300 in overeenstemming is met de
essentiële eisen en de andere
relevante bepalingen van richtlijn
1999/5/EG

Français:

Par la présente Pioneer déclare que
l’appareil SBX-300 est conforme aux
exigences essentielles et aux autres
dispositions pertinentes de la directive
1999/5/CE

Svenska:

Härmed intygar Pioneer att denna
SBX-300 står I överensstämmelse med
de väsentliga egenskapskrav och
övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.

Dansk:

Undertegnede Pioneer erklærer herved,
at følgende udstyr SBX-300 overholder
de væsentlige krav og øvrige relevante
krav i direktiv 1999/5/EF

Deutsch:

Hiermit erklärt Pioneer, dass sich
dieses SBX-300 in Übereinstimmung
mit den grundlegenden Anforderungen
und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG
befindet". (BMWi)

Ελληνικά:

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Pioneer ΔΗΛΩΝΕΙ
ΟΤΙ SBX-300 ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ
ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ

Italiano:

Con la presente Pioneer dichiara che
questo SBX-300 è conforme ai requisiti
essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva
1999/5/CE.

Español:

Por medio de la presente Pioneer
declara que el SBX-300 cumple con los
requisitos esenciales y cualesquiera
otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE

Português:

Pioneer declara que este SBX-300 está
conforme com os requisitos essenciais
e outras disposições da Directiva
1999/5/CE.

Pioneer izjavlja, da je ta SBX-300 v
skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive
1999/5/ES.

Pioneer tímto prohlašuje, že tento
SBX-300 je ve shodě se základními
požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES

Eesti:

Käesolevaga kinnitab Pioneer seadme
SBX-300 vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele
sätetele.

Magyar:

Alulírott, Pioneer nyilatkozom, hogy a
SBX-300 megfelel a vonatkozó
alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.

Ar šo Pioneer deklarē, ka SBX-300
atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem
noteikumiem.

Šiuo Pioneer deklaruoja, kad šis
SBX-300 atitinka esminius reikalavimus
ir kitas 1999/5/EB Direktyvos nuostatas.

Malti:

Hawnhekk, Pioneer jiddikjara li dan
SBX-300 jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn
relevanti li hemm fid-Dirrettiva
1999/5/EC

Prin prezenta, Pioneer declara ca acest
SBX-300 este in conformitate cu
cerintele esentiale si alte prevederi ale
Directivei 1999/5/EU.

С настоящето, Pioneer декларира, че
този SBX-300 отговаря на основните
изисквания и други съответни
постановления на Директива
1999/5/EC.

Polski:

Niniejszym Pioneer oświadcza, że
SBX-300 jest zgodny z zasadniczymi
wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy
1999/5/EC

Norsk:

Pioneer erklærer herved at utstyret
SBX-300 er i samsvar med de
grunnleggende krav og øvrige relevante
krav i direktiv 1999/5/EF.

Íslenska:

Hér með lýsir Pioneer yfir því að
SBX-300 er í samræmi við grunnkröfur
og aðrar kröfur, sem gerðar eru í
tilskipun 1999/5/EC

Hrvatski:

Ovime tvrtka Pioneer izjavljuje da je
ovaj SBX-300 u skladu osnovnim
zahtjevima i ostalim odredbama
Direktive 1999/5/EC.

Pioneer týmto vyhlasuje, že SBX-300
spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice
1999/5/ES.

R-TTE-24L_C1_En

http://www.pioneer.co.uk
http://www.pioneer.co.eu

© 2013 PIONEER CORPORATION.
All rights reserved.

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P. O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LT D.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En

Printed in China <CQX1A1782Y>
