PIONEER

Q150 OXYGEN CONCENTRATOR

OWNER’S MANUAL

+"

/

















+



&( 9*





: & 1





18 "













.

%#$!

!(&45$ /267.!/)0/3&.),*!/+"1#&' (-""1"1"" "" - "( )

5 & " "











)

/-

2



;

7

Merits Health Products Co., Ltd.

Read this manual before using concentrator and save for future reference.

1

TABLE OF CONTENTS

0.IEC SYMBOLS ………...………………………………………….…………………3

1.CAUTIONS …………………..……………………..…………….………………..3

2.WARNINGS …………………..……………………..…………….………………..4

3.PRECAUTIONS ………………….………………………………………………...5

4.INTENDED USE ……………………….…………………….………………….….5

5.DESCRIPTION ……………………….…………………...…………………….….6

6.SPECIFICATION ……………………….……………….…………………..….….7

7.HANDLING ………………………….…………………….……………………….9

7.1 Unpacking ……………………………………………………………….………………………….9

8. OPERATION ……………….,………………….…………………………..…...…10

8.1Select a Location ……………………………………………………………..…….……...………10

8.2Plug in Power Cord ……………………………………………………………..…………………10

8.3 Connect Humidifier (if prescribed by your physician) ……………………………….………...…10

8.4 Connect Oxygen Tubing ………………………………………………………………………..…11

8.5 Turn On Power Switch …………………………………….…………………………..…………..12

8.6 Adjust Flowrate …………………………………………………….……….……………………..12

8.7 Oxygen Purity Indicator

……………………………………………………….…………………..12

8.8 Start Oxygen Therapy

……….…………………………………………………………….………12

9.ALARMS …………………………………………………………………..………13

10.MAINTENANCE ……………………………………………..………………….13

10.1 General caring ………………………………………………………………………………...….13

10.2 Cleaning the Cabinet Filter ……………………………………………………...……………….14

10.3Cabinet ………………………………………………………………………..………………….14

10.4Humidifier ………………………………………………………………..………………………15

11. TROUBLESHOOTING ……..………………………………..…………………15

Warranty ……………………....………………………………..…………………16

2

0. IEC SYMBOLS

Caution, Attention or Consult accompanying documents. Alternating Current

Type BF Equipment

No Smoking or Naked Flames

Use No Oil or Grease

1. CAUTIONS

Federal Law restricts this device for sale or use on the order of a physician.

Do not adjust your prescribed level of oxygen flow without consulting your physician.

3

2. WARNINGS

Fire Hazard-Oxygen promotes rapid burning. No Smoking or Open Flames.

Electrical Shock Hazard - do not remove the cabinet or open the cover.

Disconnect the power cord from the electrical outlet before cleaning or servicing.

Do not place this equipment near hot, sparking or burning objects.

Do not use oil or grease on or near this device.

Do not use the concentrator in the presence of pollutants or dangerous fumes.

An alternate source of oxygen should always be available to avoid any interruption in supply.

This unit is not intended for life sustaining or life supporting applications.

Turn the unit off when it is not in use.

In the event of an alarm, contact your equipment provider.

If you experience any signs of discomfort, contact your physician immediately.

Merits recommends that each concentrator be on and running for a minimum of 60 minutes at a time.

Keep the cord away from HEATED or HOT surfaces.

NEVER drop or insert any object into any opening.

NEVER block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air opening may be blocked.

Avoid the operation in wet or damp locations.

4

3. PRECAUTIONS

Always plug in a 15 AMP, grounded circuit. DO NOT USE AN EXTENSION CORD

Place the unit where sides and bottom are unobstructed to ensure proper airflow. (Be sure that the machine is placed away from drapes or other objects that might block the flow of incoming air and/or alarm indicators.)

Only operate the concentrator in a upright position.

Do not use oxygen tubing that exceeds 50 feet in length. The manufacturer recommends crush resistant tubing.

Do not place liquids on the unit or use liquids to clean the unit. Do not use petroleum-based solvents. Clean unit and power cord with mild household cleaner applied with a damp cloth or sponge, then wipe dry.

The Salter Labs 7100 350c.c. Bubble Humidifier and the B&F Medical Bubble Humidifier are suitable for use with the Oxygen Concentrators. Or a humidifier capable of 30 Psi operation and 15 LPM of flow is required. Use of certain humidifiers not specified for use with this oxygen concentrator may impair the performance.

Always choose the FDA or CE approved accessories, such as Masks or cannulas & Humidifiers to ensure the reliability and performance.

Different personnel to prevent cross infection should never use the same mask or cannula.

4. INTENDED USE

The Merit Oxygen Concentrator is intended to be used to supply supplemental oxygen to patients in their home. The devices are not intended for life support nor do they provide any patient monitoring capabilities.

5

5. DESCRIPTION

+"

/





+



&(9*



: &1



1



8 "





. !(&45$ /267.!/)0/3&.),*!/%+"1##&$'! (-""1"1"" "" - "( )

5& " "



)

/

2

;



-



7

The Merit Oxygen Concentrator operates using standard AC Power from a wall outlet. The concentrator takes in and processes room air through a Molecular Sieve filter system resulting in high purity oxygen at flow up to five liters per minute. Unlike liquid or cylinder oxygen, the concentrator does not require refilling and operates at low pressure. The device only requires minimal cleaning and periodic dealer service checks to ensure optimum performance. The oxygen is delivered via an oxygen cannula or catheter and can be used in conjunction with a humidifier, depending on your physician's orders.

6

6. SPECIFICATIONS

Electrical Requirements

115VAC±10 , 60Hz / 230VAC±10 , 50Hz













Rated Current Input

3.5A (115VAC/60Hz); 2.0A (230VAC/50Hz)













Sound Level

45dB(A) Average

















Operating Altitude

Do not use at altitude over 4000 meters.













Oxygen Concentration

90

at 1~5LPM







* Stated performance maximum achieved after 60 min. of run time.

Maximum Oxygen

6±0.5psi. (40±4 kPa.)





Delivery Pressure:























Optional Oxygen Sensor















Oxygen Purity

LED Indicator



















Over 85 (±3 )

GREEN Indicator light



















70 (±3 ) to 85 (±3 )

YELLOW Indicator light



















Below 70 (±3 )

RED Indicator light

























Flow Range / Maximum

0-5 LPM / 5 LPM





Recommended Flow























Average Power

320W









Consumption





















Pressure Relief Activation

250kPa±10











Filters:

Cabinet, Bacteria and Compressor Inlet







Alarms – (Visual/Audible)

High temperature w/ compressor – power shutdown



High / Low pressure alarm







Power loss alarm











Dimensions

68cm(26.8”) High × 45cm(17.7”) Wide × 33cm(13”) Deep









Circuit Breaker

(115VAC/60Hz)



(230VAC/50Hz)

& Fuse

Circuit Breaker: 8A



Circuit Breaker: 4A

Weight

28.2Kg (62lb)













Shipping Weight

31.8Kg (70lb)















Operating Ambient

10

~ 39





Temperature























7

Cabinet

Impact Resistant flame-retardant plastic cabinet





Regulatory Listing

CSA 601 / UL 2601/ IEC/EN-60601-1





Change in Max. Flow with

0.3 LPM

7 kpa Back Pressure



Recommended Storage and

Dry (Up to 95% non-condensing), well ventilated area -20 ~ 60

Shipping Temperature







(1). Conditions may vary based on altitude above sea level, barometric pressure and temperature. Specification subjects to change without notice.

(2). This product complies with the following standards: C22.2 No 601.1-M90, UL Std. No 2601-1 and IEC/EN 60601-1-1.

(3). For electromagnetic compatibility the standards are based as follow: CSA 601.1-2 and IEC/EN 60601-1-2.

(4). Protection against electric shock is classified as Type II.

(5). Degree of protection against electric shock is classified as Type BF.

(6). Mode of operation belongs to continuous mode.

(7). Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide

(8). Degree of protection against ingress of water is rated as IPX0.

8

7. HANDLING

The concentrator should always be kept in the upright position to prevent cabinet damage while being transported. The shipping container has been designed to assure maximum protection of the concentrator.

If the concentrator is to be reshipped by common carrier, additional cartons are available from Merits.

7.1 UNPACKING

1.Check for any obvious damage to the carton or its contents. If damage is evident, notify the carrier, or your local dealer.

2.Remove all loose packing from the carton.

3.Carefully remove all the components from the carton.

NOTE: Unless the oxygen concentrator is to be used immediately, retain container and packing materials for storage until use of the concentrator is required.

9

8. OPERATION

8.1 SELECT A LOCATION

Select a location where sides and bottom are unobstructed to ensure proper airflow. Be sure that the machine is placed away from drapes or other objects that might block the flow of incoming air and/or alarm indicators. The area should be free of pollutants or dangerous fumes. The unit should be placed on a stable level surface. The location should have access to a power outlet without use of an extension cord or where the cord is placed across a traffic area. Do not place near a source or heat or open flame or hot, sparking objects.

8.2 PLUG IN POWER CORD

Plug the power cord into a grounded, 15 AMP power outlet.

8.3 CONNECT HUMIDIFIER (if prescribed by your physician)

The Salter Labs 7100 350c.c. Bubble Humidifier and the B&F Medical Bubble Humidifier are suitable for use with the Oxygen Concentrators. Or a humidifier capable of 30 Psi operation and 15 LPM of flow is required. Use of certain humidifiers not specified for use with this oxygen concentrator may impair the performance.

Fill the humidifier with distilled water according to the manufacturer’s instructions(FIG.1). Do not overfill. Replace the cab and securely tighten. Place the humidifier in the humidifier compartment(FIG.2) and attach to the oxygen outlet of the concentrator(FIG.3).

FIGURE 1 FILLING THE HUMIDIFIER

10

/-



2

;



7

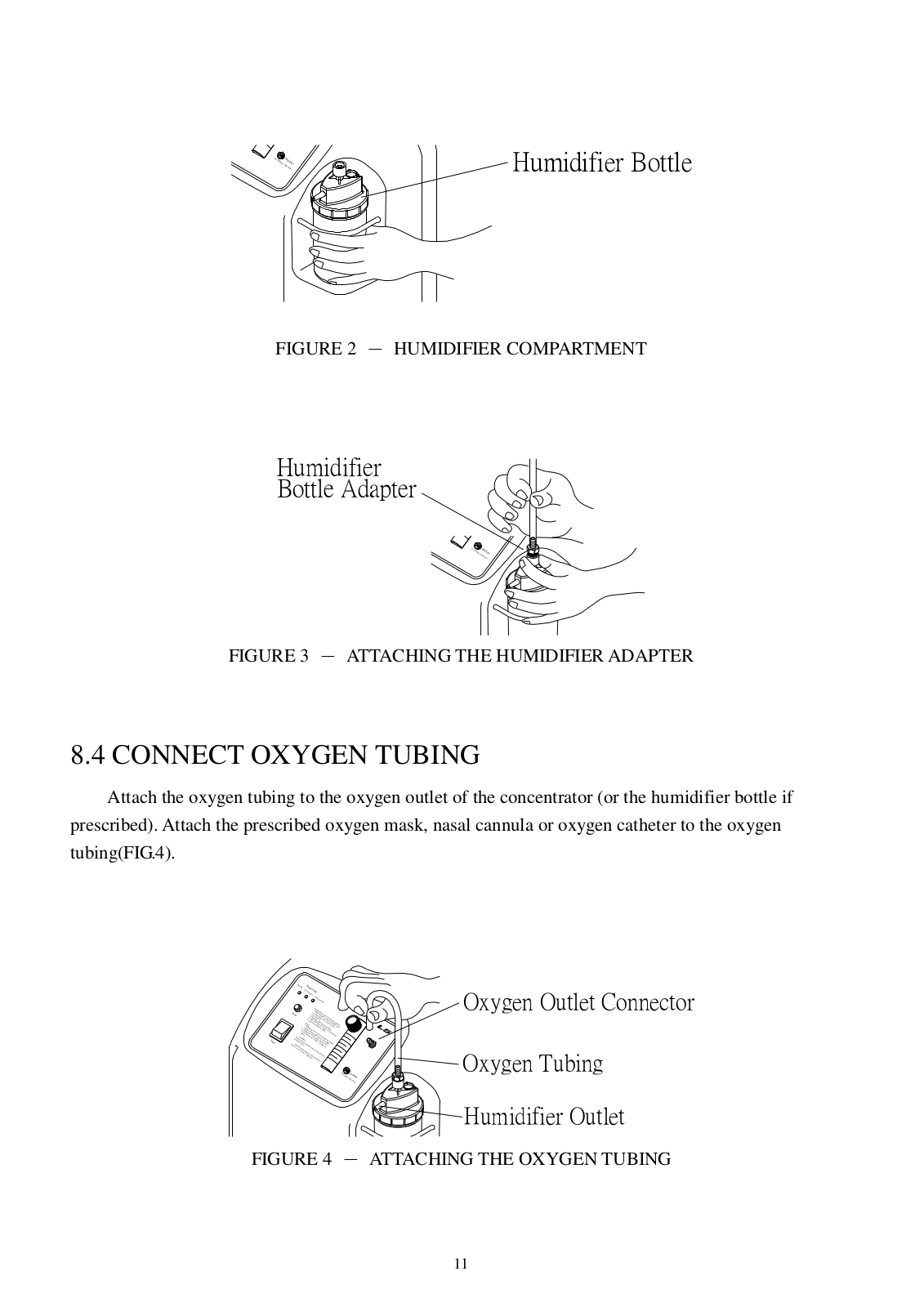

FIGURE 2 HUMIDIFIER COMPARTMENT

/

2



-





;



7

FIGURE 3 ATTACHING THE HUMIDIFIER ADAPTER

8.4 CONNECT OXYGEN TUBING

Attach the oxygen tubing to the oxygen outlet of the concentrator (or the humidifier bottle if prescribed). Attach the prescribed oxygen mask, nasal cannula or oxygen catheter to the oxygen tubing(FIG.4).

+"

/







+



&( 9*





: & 1





18 "













.

#$!

!(&45$ /267#&.!/)0/35&.),*!/%+1#"&' (-""1"1"" "" - "( )

"

"







&











)

/-



2

;



7

FIGURE 4 ATTACHING THE OXYGEN TUBING

11

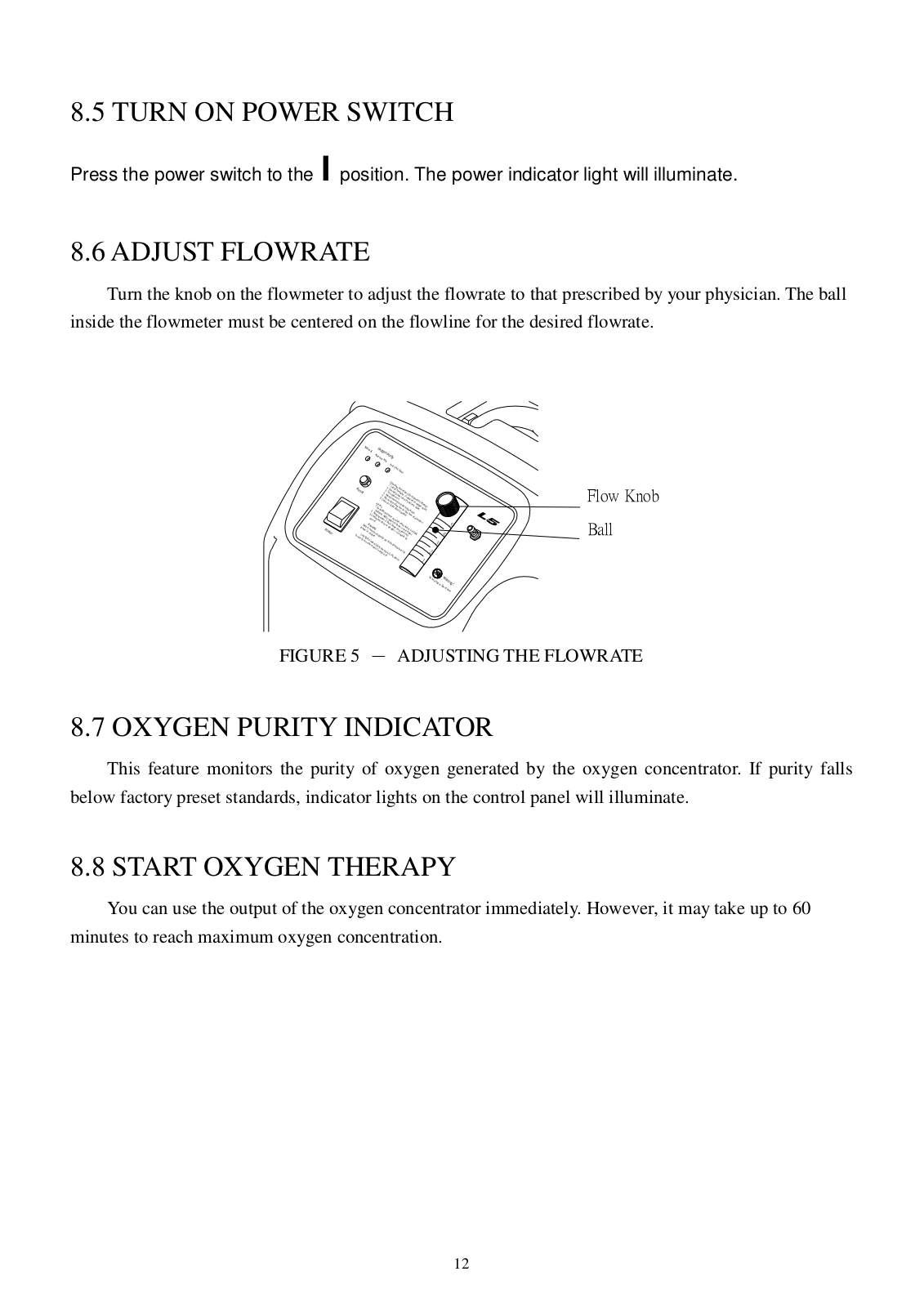

8.5 TURN ON POWER SWITCH

Press the power switch to the I position. The power indicator light will illuminate.

8.6 ADJUST FLOWRATE

Turn the knob on the flowmeter to adjust the flowrate to that prescribed by your physician. The ball inside the flowmeter must be centered on the flowline for the desired flowrate.

+"



/































































&(

+

























































































9*:































































&































1































18































"



































































































.







































# !























$

























%&



















*

'

"

"

















+























, ! "















































&



























-

"

















.































(







0 ) "





" " )







#!



/







-

































)





"

















4 2

1# (













&.//3























11

"







































!&5$























( /6

























7

























&































"



















5



























"



















































































































)















































/

2









-









;



7







FIGURE 5 ADJUSTING THE FLOWRATE

8.7 OXYGEN PURITY INDICATOR

This feature monitors the purity of oxygen generated by the oxygen concentrator. If purity falls below factory preset standards, indicator lights on the control panel will illuminate.

8.8 START OXYGEN THERAPY

You can use the output of the oxygen concentrator immediately. However, it may take up to 60 minutes to reach maximum oxygen concentration.

12

9. ALARMS

The concentrator is equipped with a visual and an audible indicator.

POWER LOSS:

An audible alarm will sound and the power indicator light will turn off.

PRESSURE ALARM:

Visual and audible alarms will occur when pressure is too low, indicating a possible problem with the concentrator or signaling that oxygen flow is beyond flow. Contact your service dealer when this occurs.

THERMAL PROTECTION ALARM:

Visual and audible alarms will occur when temperature inside the concentrator is too high, indicating a possible problem with the concentrator or signaling that cabinet filters need to be clean. Contact your service dealer when this occurs.

Concentrator With Optional Oxygen Concentration Sensor

This sensor provides the indication of oxygen purity as follows:

RED LIGHT Oxygen concentration level falls below 70%(±3 ). Discontinue use and call for service - obtain alternative source of oxygen.

YELLOW LIGHT Oxygen concentration level is between 70%(±3 ) ~ 85%(±3 ). You may continue to use the concentrator unless instructed otherwise by your supplier. Call for service immediately. Be certain that BACKUP OXYGEN is reachable.

GREEN LIGHT Unit is operating - Oxygen at a concentration above 85%(±3 ).

10. MAINTENANCE

10.1 GENERAL CARING

1.Daily inspection of the cabinet filter should occur. Lightly vacuum or sweep off. Do not use any sharp or corrosive materials.

2.Always use, clean and/or replace the humidifier in accordance with manufacturer's or dealer's instructions.

3.The patient should never service or open this machine. It is to be serviced by qualified personnel only.

13

4.The oxygen concentration should be checked every 90 days for units without optional oxygen sensors. The oxygen concentration should be checked every 6 months for units with optional oxygen sensors.

10.2 CLEANING THE CABINET FILTERS

NOTE: All concentrator models have one cabinet filter located at rear side of the cabinet. (FIG. 6)

FIGURE 6 CABINET FILTER LOCATION

1.Remove the cabinet filter and CLEAN AT LEAST ONCE A WEEK depending on environmental conditions. (FIG.7)

2.Clean the cabinet filter with a vacuum cleaner or wash in warm soapy water and rinse thoroughly.

(FIG. 7)

3.Dry the filters thoroughly before reinstallation.

FIGURE 7 REMOVE THE CABINET FILTERS

10.3 CABINET

Clean the cabinet with a mild household cleaner and non-abrasive cloth or sponge.

14

10.4 HUMIDIFIER

NOTE: To clean the oxygen humidifier, follow the instructions provided by the manufacturer. If none are provided, follow these steps

1.Clean the humidifier every day.

2.Wash it in soapy water and rinse it with a solution of 10 parts water and 1 part vinegar.

3.Rinse again with hot water and refill with distilled water to the level shown on the humidifier.

11. TROUBLESHOOTING

























SYMPTOM



PROBABLE CAUSE



SOLUTION

















Alarm:





Main Power Loss:









One (1) short beep, long pause

1.

Power cord NOT plugged in.

1.

Insert plug into outlet







2.

No power at outlet.

2.

Inspect house circuit breakers

Concentrator NOT operating,

3.

Tripped circuit breaker.



or fuses. If problem recurs,

while Power switch ON

4.

Internal repairs required.



use a different outlet.















3.

Reset the circuit breaker.















4.

Call dealer for service.

Alarm:





System Failure:

1.

Remove and clean cabinet

Two (2) short beeps, long pause

1.Unit overheating due to blocked



filter.







air intake.

2.

Move oxygen concentrator at







2.

Internal repairs required.



least three-inches away from

Concentrator NOT operating,











walls, draperies or furniture.

while Power switch ON









3.

Call dealer for service.

Alarm:





System Failure:









Three (3) short beeps, long pause

1. Pneumatically the system is

1.

Shut down the system.









operating at over pressure.

2.

Call dealer for service.







2.

Internal repairs required.





















Alarm:





System Failure:

1.

Remove and clean cabinet

Four (4) short beeps, long pause

1. Pneumatically the system is



filter.









operating at under pressure.

2.

Move oxygen concentrator at







2.

Internal repairs required.



least three-inches away from

















walls, draperies or furniture.















3.

Call dealer for service.

YELLOW or RED LIGHT

1.



Low oxygen purity.

1.

Clean or replace filters

illuminated.

2.



Insufficient power at outlet.

2.

Don’t use extension cords.







3.



Internal repairs required.



Move to another electrical

















outlet or circuit.















3.

Call dealer for service.

15

Warranty

Merits Health Products Co., Ltd. warrants the Pioneer Oxygen Concentrator to be free from defective workmanship and materials for a period of 5 years from the date of purchase. Check with your dealer for more details. This warranty is limited to the original purchaser of the Oxygen Concentrator. Any defective part or assembly will be repaired or replaced, at the sole discretion and determination of Merits Health Products Co., Ltd., if the unit has been properly operated during the warranty period. Normal maintenance items and disposable components are not covered by this warranty. Shipping charges, if any, shall be paid by the purchaser.

Note: There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty and to the extent permitted by law and all implied warranties are excluded. This warranty does not cover providing a loaner Oxygen Concentrator, compensating for costs incurred for Oxygen Concentrator rental, or labor costs incurred in repairing or replacing defective part(s).

Authorized European Representative:

Manufactured by:

Roma Medical Limited

Merits Health Products Co., Ltd.

Unit 23 Vale Business Park,

No.9, Road 36, Taichung Industrial Park,

Cowbridge, Vale of Glamorgan CF71 7PF

Taichung, Taiwan,

United Kingdom

R.O.C.

+44-1446-774519

(886)-4-23594985

CE Marked For Model



Q150 (Europe)

0197

230V~, 50Hz







P/N: 75270003 Rev. 0

16
