SERVICE MANUAL
8R11B CHASSIS
Design and specifications are subject to change without prior notice. (Only Referrence)
|
Description: SERVICE MANUAL 8R11B |
||
|
|
|
|
|
MODEL. |
|
Brand Name: SKYWORTH |
|
|
|
|
|
JOB NO. |
|
|
|
|
|
|
|
|
|
|
|
Engineering Dept: |
|
|
SIZE:A5 |
Artwork By: |
Date: 2012 10 16 |
|
Checked By: |
Date: |
||
|
Approved By: |
Date: |
|
|
|
|
|
1
CONTENT

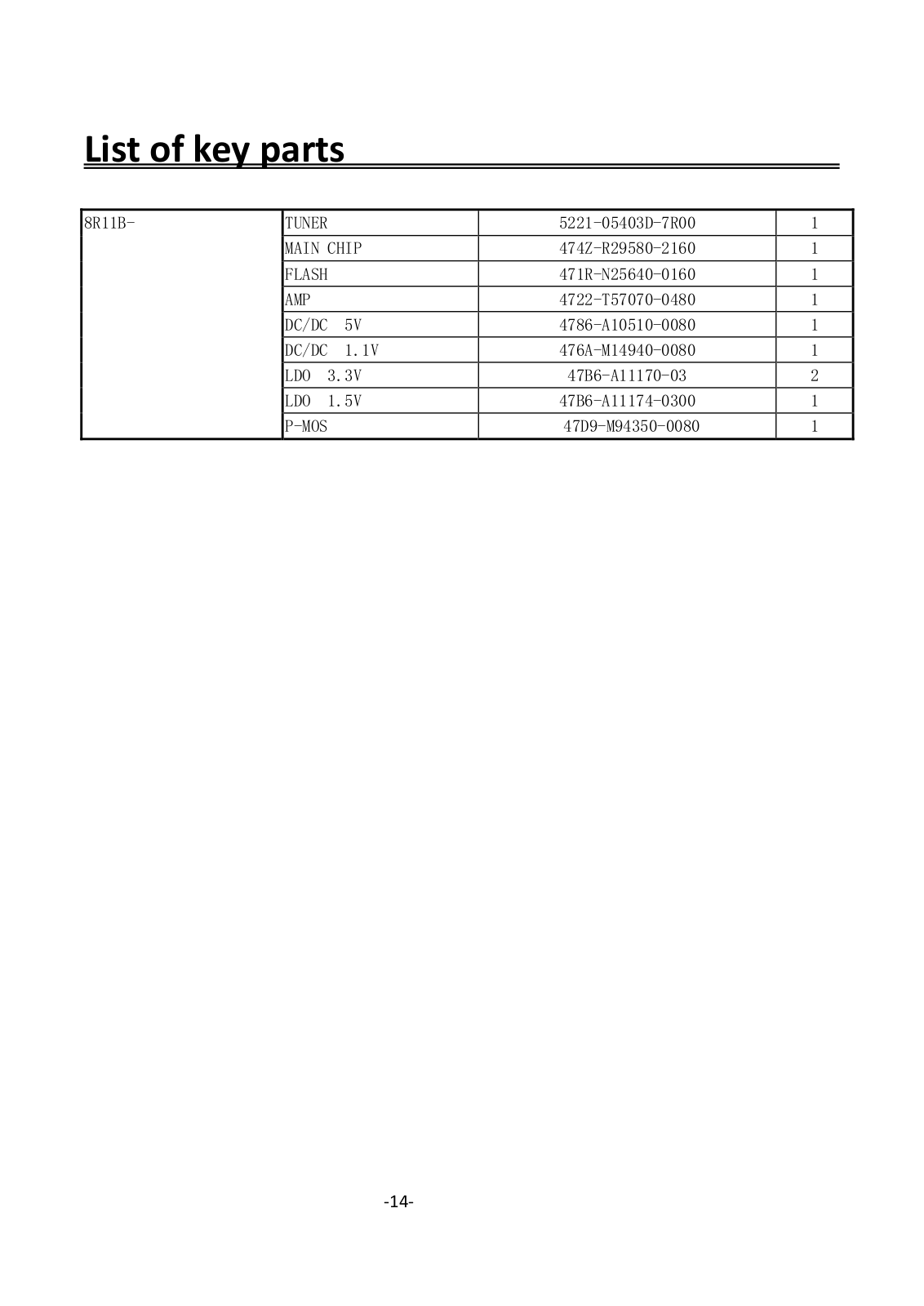

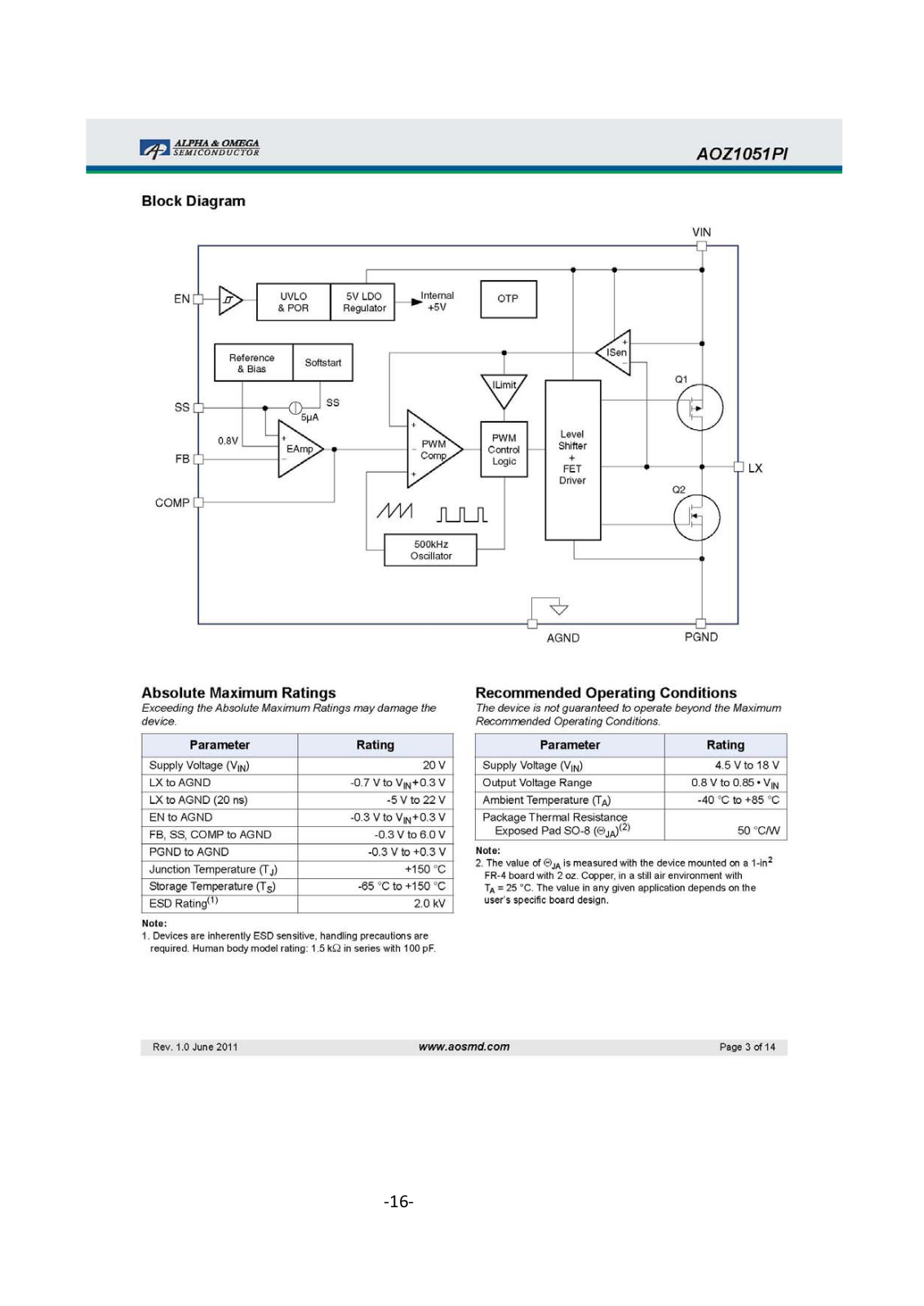

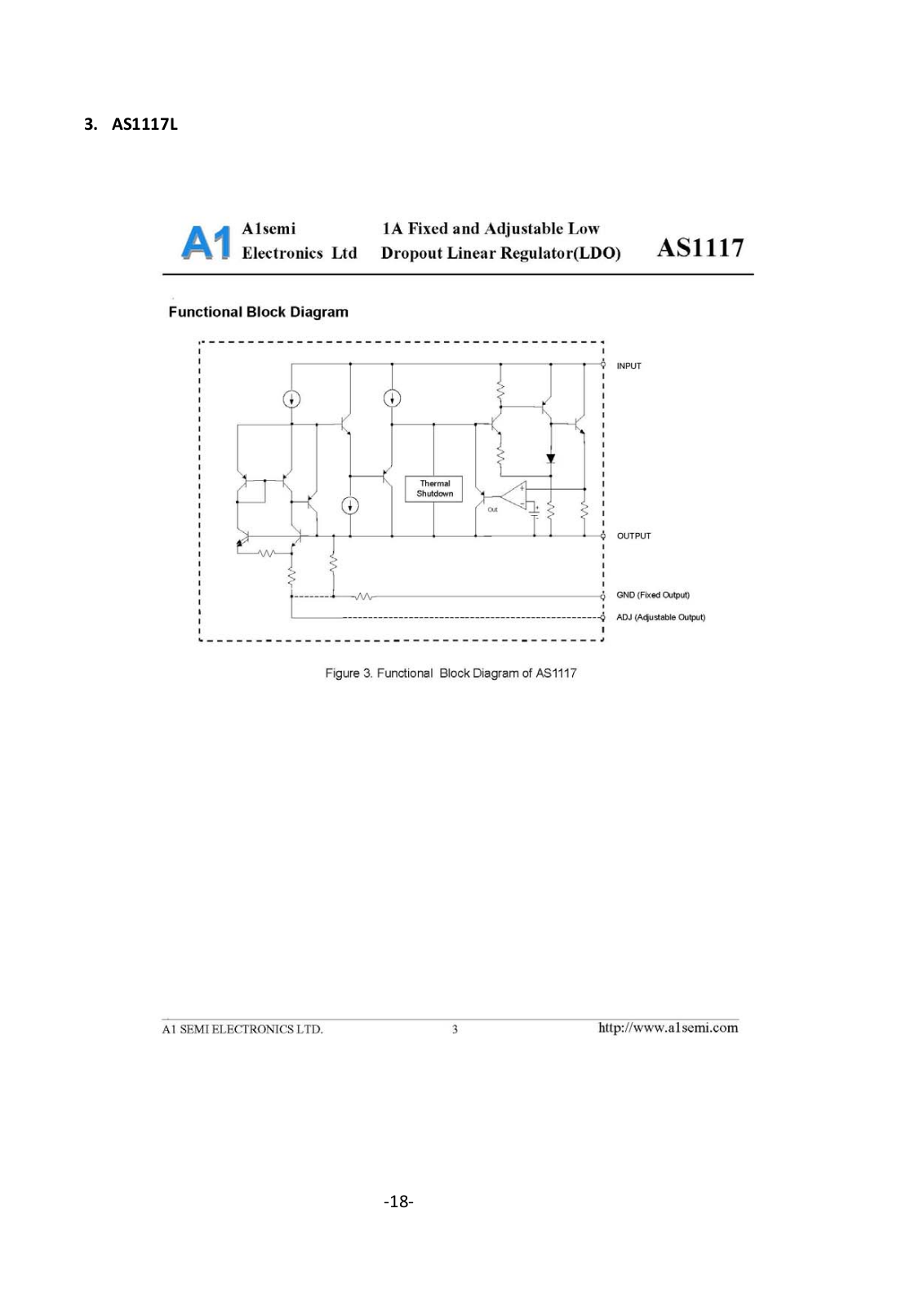

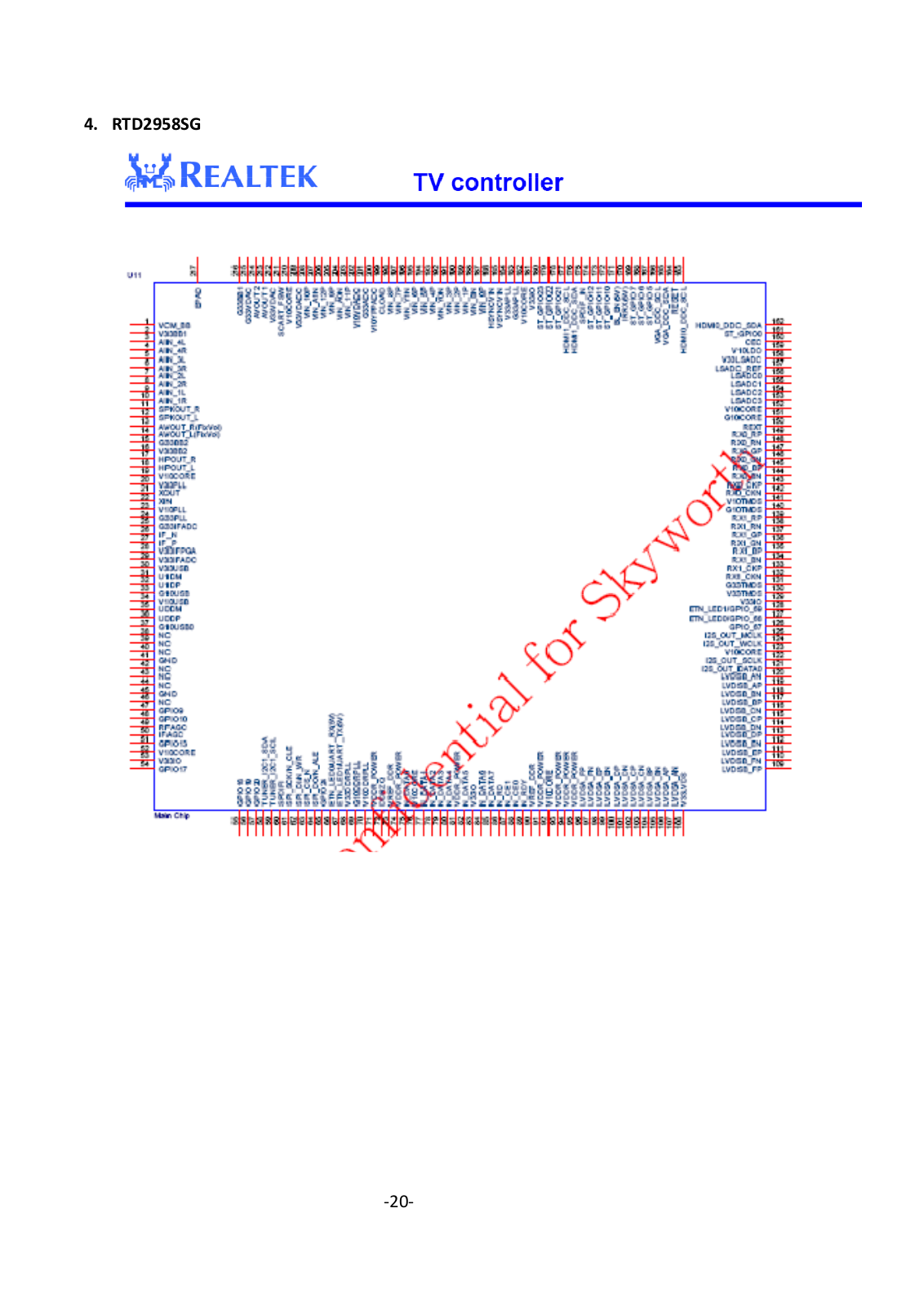

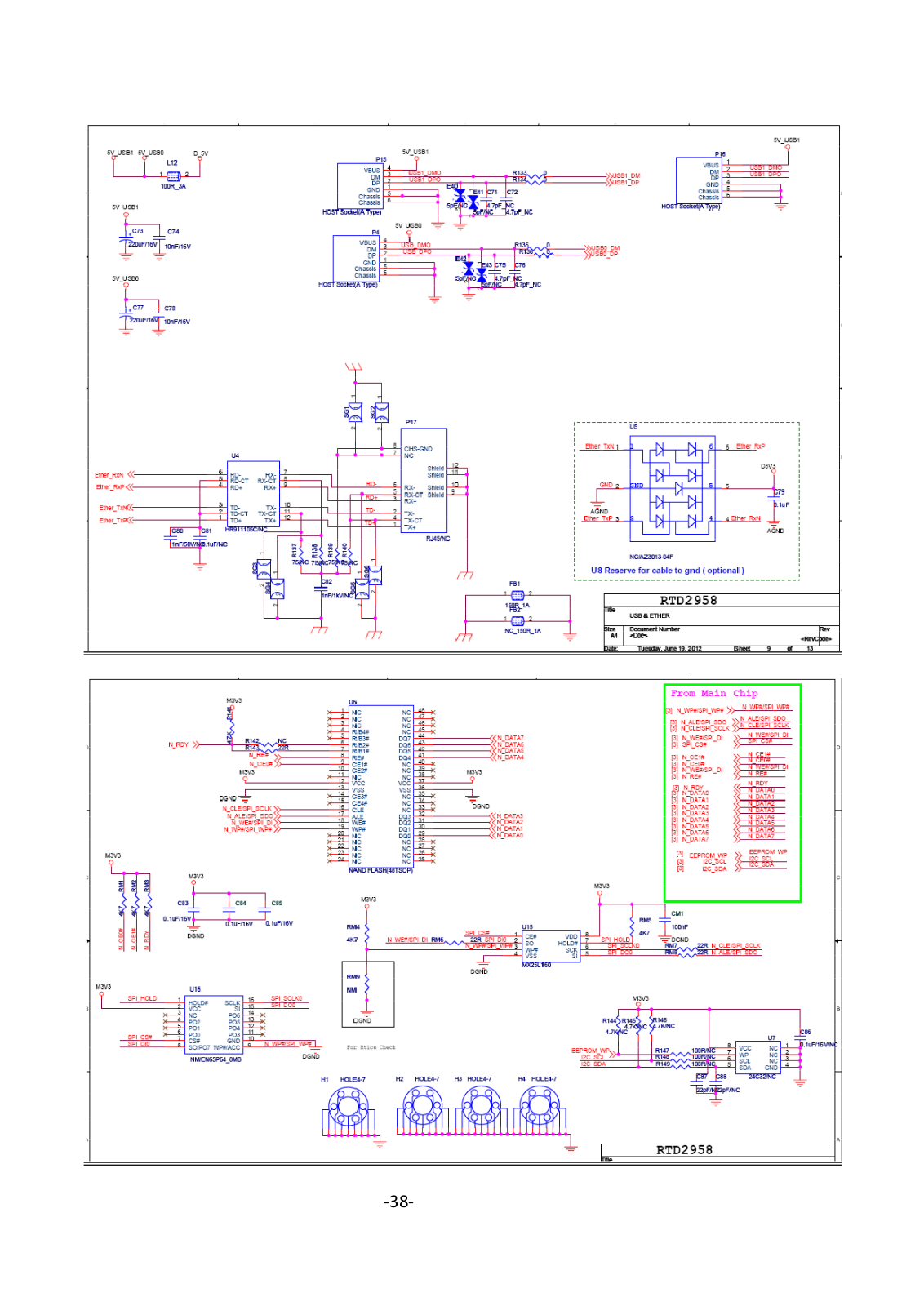

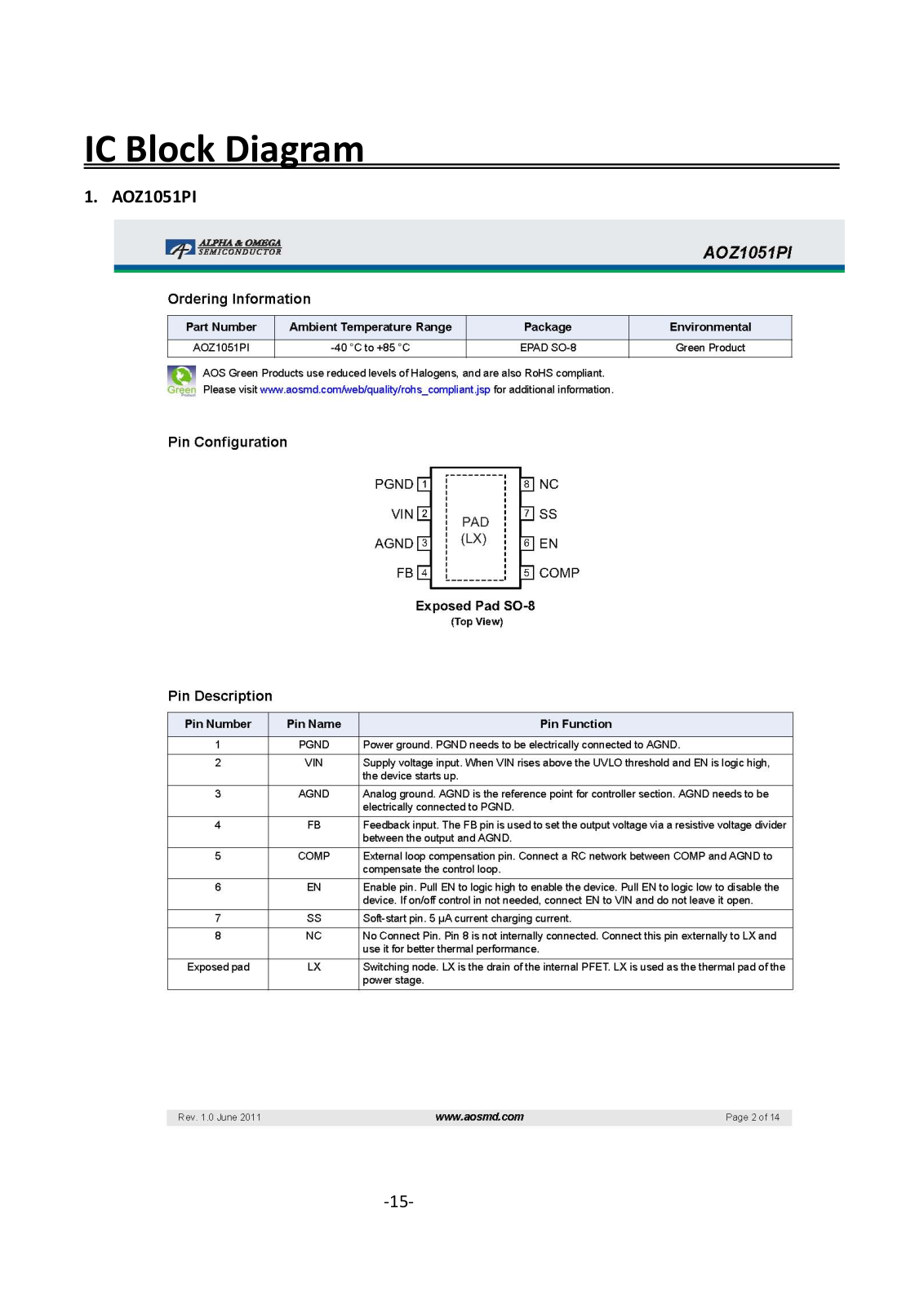

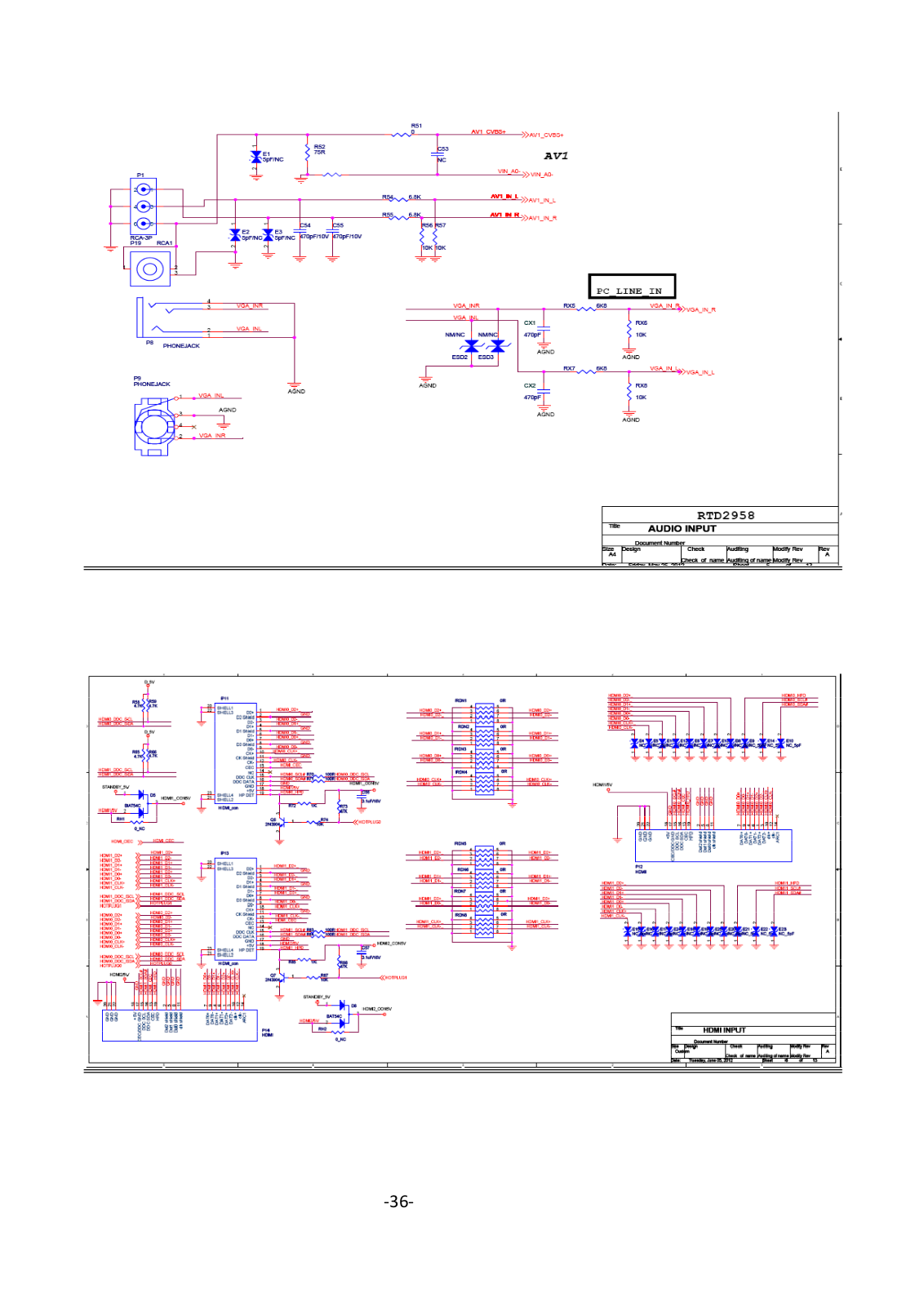

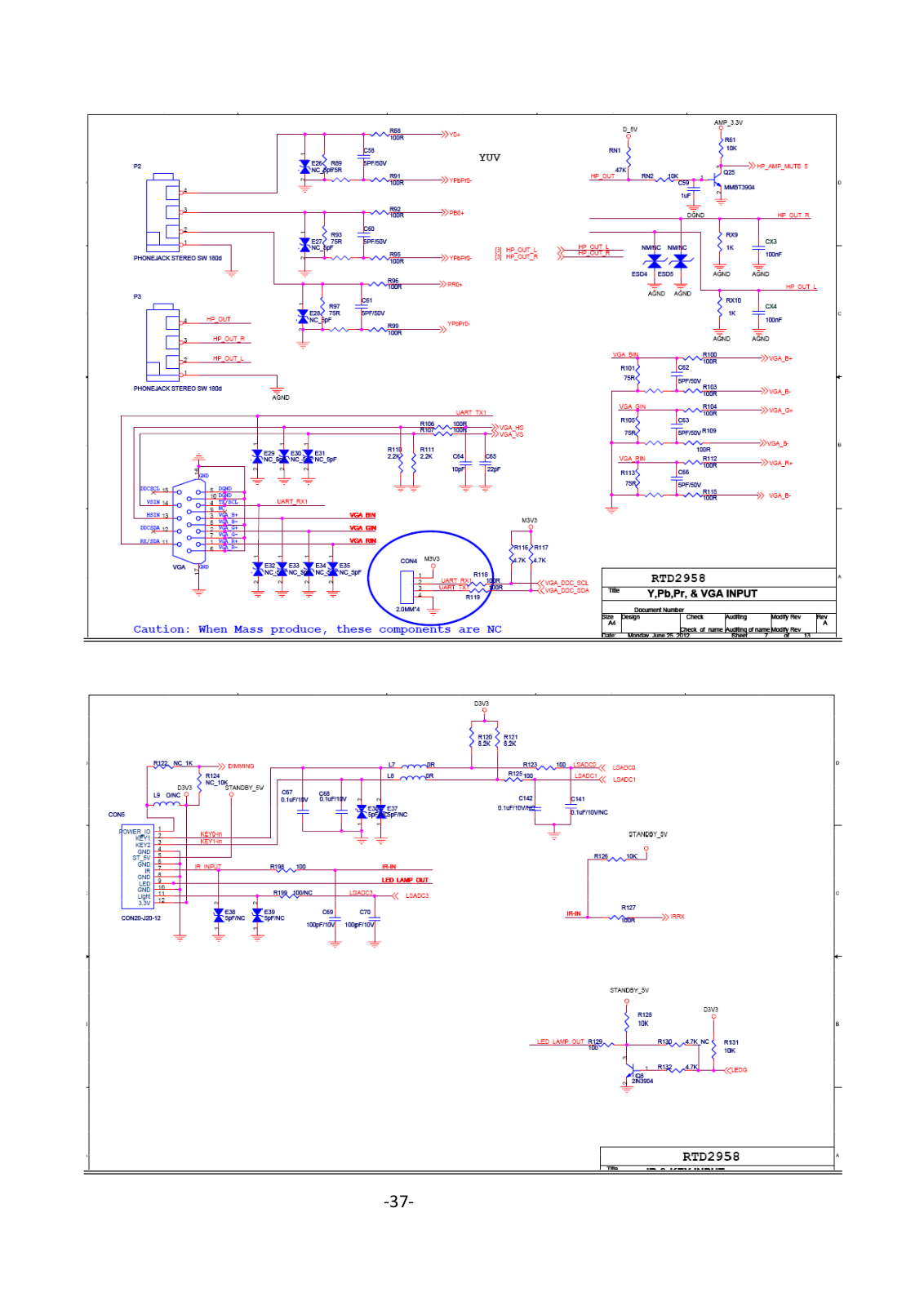

CONTENT 2 Technical Specification 3 14 Block Diagram 15 List of key parts 16 IC BLOCK Diagram 17 31 MAIN PCB TOP 32 MAIN PCB BOT 33 Circuit Diagrams 34 42
2
Technical Specification
1. Application Area:
This product standard is use for LED 8R11B chassis.
2. Specification:
All the standard are measured under following conditions without other specification.
2.1Ambient Temperature: 20+/ 5
2.2Relative Humidity: 65+ 10
2.3Power Supply Voltage: Standard Input Voltage(100 240V AC 50/60HZ)
2.4Adjust after 20 minutes warm up.
3. Test and check method:
3.1Capability: According to nation test standard
3.2Safety:______________________________standard
3.3EMC:________________________________standard
3
Technical Specification
4. Safety and Regulation
|
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
|
|
1. |
Force Stability Inclineplane Tip Test |
|
10 |
|
deg |
|
|
|
|
|
|
|
|
|
|
2. |
Force Stability Level Tip Test |
|
100 |
|
N |
|
|
|
|
|
|
|
|
|
|
3. |
Isolation Gap AC AC/AC DC |
3 |
|
|
mm |
|
|
4. |
Isolation Gap |
6 |
|
|
mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
W |
32E66 |
|
|
|
|
|
|
|
|
|
5. |
Power consumtion Max |
|
|
|
W |
|
|
|
|
|
|
|
||
|
|
|
|
W |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
W |
|
|
|
|
|
|
|
|
|
|
6. |
Power consumtion Standby |
|
|
1 |
W |
|
|
|
|
|
|
|
|
|
|
7. |
Dielectric Voltage |
3 |
|
|
kV |
|
|
|
|
|
|
|
|
|
|
8. |
Isolation Resistance |
4 |
|
|
MΩ |
|
|
|
|
|
|
|
|
|
|
9. |
Leakage Current |
|
5 |
|
mApp |
|
|
|
|
|
|
|
|
|
|
10. |
Power cord captivity |
|
40 |
|
N |
|
|
|
|
|
|
|
|
|
|
11. |
Flammability—Back Cover |
|
PASS |
|
|
|
|
|
|
|
|
|
|
|
|
12. |
Sharp edge |
|
PASS |
|
|
|
|
|
|
|
|
|
|
|
|
13. |
UL Compliance |
|
NO |
|
|
|
|
|
|
|
|
|
|
|
|
14. |
FCC Compliance |
|
NO |
|
|
|
|
|
|
|
|
|
|
|
|
15. |
CDRH Radiation Compliance |
|
NO |
|
|
|
|
16. |
CSA Compliance |
|
NO |
|
|
|
|
|
|
|
|
|
|
|
|
17. |
CEB Compliance |
|
NO |
|
|
|
|
18. |
CE Compliance |
|
|
|
|
Base on different order |
|
|
|
|
|
|
|
|
|
19. |
CB Compliance |
|
YES |
|
|
|
5. Video |
|
|
|
|
|
||
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
Linearity Distortion,Verticl |
|
1 |
|
|
|
|
|
|
|
|
|
|
2. |
Linearity Distortion,Horizontal |
|
1 |
|
|
|
|
|
|
|
|
|
|
3. |
Trapezoidal Distortion,Verticl |
|
1 |
|
|
|
|
|
|
|
|
|
|
4. |
Trapezoidal Distortion, Horizontal |
|
1 |
|
|
|
|
|
|
|
|
|
|
5. |
Over scan, Verticl |
93 |
95 |
97 |
|
|
|
|
|
|
|
|
|
6. |
Over scan, Horizontal |
93 |
95 |
97 |
|
|
|
|
|
|
|
|
|
7. |
Brightness Maximum |
|
300 |
|
|
32E66 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8. |
Video Noise Limited |
|
|
51 |
dBuV |
|
|
Sensitivity(@S/N=30dB) VHF |
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
Technical Specification
9. |
Video Noise Limited |
|
|
54 |
dBuV |
|
|
Sensitivity(@S/N=30dB) UHF |
|
|
|
|
|
|
|
|
|
|
|
|
10. |
Selectivity 1.5M |
35 |
|
|
dB |
|
|
|
|
|
|
|
|
11. |
Selectivity +8M |
40 |
|
|
dB |
|
|
|
|
|
|
|
|
12. |
Tuning Range |
0.7 |
|
|
MHz |
|
|
|
|
|
|
|
|
13. |
Resolution Horizontal |
|
1366 |
|
Lines |
|
|
|
|
|
|
|
|
14. |
Resolution Vertical |
|
768 |
|
Lines |
|
|
|
|
|
|
|
|
6.Chroma
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
White Balance, X axis |
|
|
|
|
|
|
|
|
|
|
|
|
2. |
White Balance,Y axis |
|
|
|
|
|
|
|
|
|
|
|
|
3. |
White Balance,Color Temperature |
6500 |
9800 |
12500 |
kdeg |
12500(266,276) |
|
|
|
|
|
|
9800(280,290) |
|
|
|
|
|
|
6500(313,329) |
|
|
|
|
|
|
|
4. |
Color Sensitivity |
|
30 |
|
dB |
|
|
|
|
|
|
|
|
5. |
Color Burst Lock in Range |
+/ 300 |
|
|
Hz |
|
|
|
|
|
|
|
|
6. |
Color Killer Sensitivity |
|
30 |
|
dBuV |
|
|
|
|
|
|
|
|
7. Audio
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
1. |
Audio Noise Limited Sensitivity,VHF L |
|
25 |
|
dBuV |
|
|
|
|
|
|
|
|
2. |
Audio Noise Limited Sensitivity,VHF H |
|
25 |
|
dBuV |
|
|
|
|
|
|
|
|
3. |
Audio Noise Limited Sensitivity,UHF |
|
28 |
|
dBuV |
|
|
|
|
|
|
|
|
4. |
Buzz(S/N Ratio) |
|
40 |
|
dB |
|
|
|
|
|
|
|
|
5. |
Distortion |
|
3 |
|
|
|
|
|
|
|
|
|
|
6. |
Audio ouput,L/R,at 10 THD |
|
5 |
|
W |
5W for 32” model |
|
|
|
|
|
|
|
7. |
Audio ouput,Center |
|
5 |
|
W |
5W for 32” model |
|
|
|
|
|
|
|
8. |
Stereo Separation |
|
21 |
|
dB |
|
|
|
|
|
|
|
|
9. |
Speaker Impedance |
|
8 |
|
ohm |
|
|
|
|
|
|
|
|
10. |
Speaker Power rating |
|
12 |
|
W |
|
|
|
|
|
|
|
|
8. Power
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
DC Voltage, Audio |
|
24 |
|
V |
|
|
|
|
|
|
|
|
2. |
DC Voltage, Tuner |
|
5 |
|
V |
|
|
|
|
|
|
|
|
5
Technical Specification
9. External Interface
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
Video Input Level |
|
1 |
|
Vpp |
75 ohm |
|
|
|
|
|
|
|
2. |
Video Input Frequency Response |
4.5 |
|
|
MHz |
|
|
|
|
|
|
|
|
3. |
Video Input S/N |
|
40 |
|
dB |
|
|
|
|
|
|
|
|
4. |
Audio Input Level |
|
0.5 |
|
Vrms |
|
|
|
|
|
|
|
|
5. |
Audio Input Frequency Response |
|
|
15 |
kHz |
|
|
|
|
|
|
|
|
6. |
Audio Input S/N |
|
40 |
|
dB |
|
|
|
|
|
|
|
|
7. |
Audio Input Distortion |
|
3 |
|
|
|
|
|
|
|
|
|
|
8. |
Audio Input Dynamic Range |
|
2 |
|
V |
|
|
|
|
|
|
|
|
9. |
Video output Level |
|
1 |
|
Vpp |
|
|
|
|
|
|
|
|
10. |
Video ouput Frequency Response |
|
4.2 |
|
MHz |
|
|
|
|
|
|
|
|
11. |
Video output S/N |
|
50 |
|
dB |
|
|
|
|
|
|
|
|
12. |
Audio output Level |
|
0.5 |
|
Vrms |
|
|
|
|
|
|
|
|
13. |
Audio output Frequency Response |
80 |
|
12000 |
Hz |
|
|
|
|
|
|
|
|
14. |
Audio output S/N |
|
40 |
|
dB |
|
|
|
|
|
|
|
|
15. |
Audio output Distortion |
|
6 |
|
|
|
|
|
|
|
|
|
|
16. |
Video Input Level,R/G/B |
|
0.7 |
|
VPP |
|
|
|
|
|
|
|
|
17. |
Video Input |
|
0.7 |
|
VPP |
|
|
Level,Component(Y,Pb,Pr) |
|
|
|
|
|
|
|
|
|
|
|
|
18. |
RGB Input Resolution,Vertical |
|
|
768 |
pixel |
|
|
|
|
|
|
|
|
19. |
RGB Input Resolution,Horizontal |
|
|
1366 |
pixel |
|
|
|
|
|
|
|
|
20. |
RGB Input Horizontal Frequency |
|
|
68 |
kHz |
|
|
|
|
|
|
|
|
21. |
RGB Input Frame Rate |
|
|
60 |
Hz |
|
|
|
|
|
|
|
|
10. The Others
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
Search sensitivity |
|
40 |
|
dBuV |
|
|
|
|
|
|
|
|
2. |
Clock,real time gain or loss(sec per |
|
NO |
|
sec |
|
|
day) |
|
|
|
|
|
|
|
|
|
|
|
|
3. |
Software Funcitonality Test |
|
YES |
|
|
|
|
|
|
|
|
|
|
4. |
REMOCON Working |
|
8 |
|
m |
|
|
sensitivity,Straight |
|
|
|
|
|
|
|
|
|
|
|
|
5. |
REMOCON Working |
|
6 |
|
m |
|
|
sensitivity,T/B/L/R |
|
|
|
|
|
|
|
|
|
|
|
|
6. |
Close caption sensitivity |
|
46 |
|
dBuV |
|
|
|
|
|
|
|
|
7. |
Teletext sensitivity |
|
46 |
|
dBm |
|
|
|
|
|
|
|
|
8. |
Resonance of unit(sweep |
|
NO |
|
|
|
|
freq:50~1000) |
|
|
|
|
|
|
|
|
|
|
|
|
6
Technical Specification
11. Customer Menu Setup(as shipped condition)
NO. |
Item |
Specification |
Remark |
|
|
|
|
1. |
PSM |
Standard |
|
|
|
|
|
2. |
SSM |
Standard |
|
|
|
|
|
3. |
Volum |
20 |
|
|
|
|
|
4. |
Mute |
off |
|
|
|
|
|
5. |
Input Mode |
RF |
|
|
|
|
|
6. |
Customer menu language |
English |
Base on different order |
|
|
|
|
7. |
AVL |
off |
|
|
|
|
|
8. |
Sleep Timer |
off |
|
|
|
|
|
9. |
Auto sleep |
off |
|
|
|
|
|
10. |
Blue back |
NO |
|
|
|
|
|
11. |
Surround |
off |
|
|
|
|
|
12. |
Caption |
off |
|
|
|
|
|
13. |
Noise Reducer |
Middle |
|
|
|
|
|
12. Reliability
NO. |
Item |
Min |
Typ |
Max |
Unit |
Remark |
|
|
|
|
|
|
|
1. |
ESD |
|
4 |
|
kV |
IEC 1000 4 2 |
|
|
|
|
|
|
|
2. |
EFT/Burst |
|
|
|
kV |
IEC 1000 4 4 |
|
|
|
|
|
|
|
3. |
Surge Immunity |
|
|
|
kV |
IEC 1000 4 5 |
|
|
|
|
|
|
|
4. |
Voltage Dip Test,10ms |
|
|
|
|
IEC 1000 4 11 |
|
|
|
|
|
|
|
5. |
Voltage Dip Test,100ms |
|
|
|
|
IEC 1000 4 11 |
|
|
|
|
|
|
|
6. |
Operation Temperature |
|
|
|
deg |
|
|
|
|
|
|
|
|
7. |
Operation Humidity |
|
|
|
|
|
|
|
|
|
|
|
|
8. |
Storage Temperature |
|
|
|
deg |
|
|
|
|
|
|
|
|
9. |
MTBF(confidence Level:90%) |
|
|
|
hour |
|
|
|
|
|
|
|
|
7
Technical Specification
DTV Productions Specification
PFS-RTD2958SG E66 Series |
V1.00(20120606) |
|
|
|
|
|
|
|
|
DTV-PRODUCTOINS SPECIFICATION |
|
|
|
|
Model # |
|
|
|
32" 55" |
Country( West Eu./East Eu./Russia/AP/US/S.A./Japan/…) |
|
|
Brazil & Argentina |
|
Brand |
|
|
|
Skyworth/ODM |
|
|
|
|
|
Category (Monitor/TV/Combo/Portable TV…) |
|
|
TV |
|
Panel technology (LCD / PDP) |
|
|
|
LCD/LED |
|
|
|
|
|
Market Position (High/Mid/Access,,,) |
|
|
|
Class |
Cabinet Design (Example: 01,23 series ) |
|
|
|
E66/E70 |
|
|
|
|
|
Product Nb |
|
- |
||
Chassis solution |
|
|
|
RTD2958SG |
|
|
|
|
|
Chassis name |
|
- |
||
Chassis PCB Standard |
|
|
|
Skyworth RGB New Standard |
|
|
|
|
|
Predecessor (replace) |
|
- |
||
MP date requested (ETD) |
|
2012.7 |
||
MP date confirmed by supplier (ETD/ETA) |
- |
|||
Status( Pre./Finish ) |
|
- |
||
Regional requirement |
|
|
|
|
Homologation (Gostandard/CE/MPTT/CB/…) |
|
|
CB |
|
RoHS |
|
|
|
Yes |
|
|
|
|
|
Power supply(100-240V AC +/-10%/...) |
|
|
|
100-240V AC (-20%,+10%) |
Power consumption working / Annual |
|
- |
||
|
|
|
|
|
Power consumption standby |
|
|
|
<1W |
Power plug(VDE/UL/BS/…) |
|
|
|
UCIEE/2pins |
|
|
|
|
|
Picture display |
|
|
|
|
Screen size : diagonale (inch) |
|
32",39"42" 46"50"55" |
||
|
|
|
||
Aspect ratio (16/9 // 4/3 // 15/9) |
|
16:9 |
||
1st panel supplier : panel suppliers |
|
|
|
LG |
|
|
|
|
|
1st panel supplier : panel reference |
|
|
|
SKY |
Panel Display Type(MVA/PVA/IPS/…) |
|
|
|
TFT LCD |
1st panel supplier : resolution |
|
|
|
32:1366x768 >42:1920x1080 |
Dynamic contrast ratio |
|
|
|
>10000 1 |
Video signal process |
|
|
|
|
Comb Filter (2D/3D) |
|
|
|
3D |
Noise Reduction (adaptative/3D/…) |
|
|
|
3D |
|
|
|
|
|
Picture improvement ( LTI/CTI,BLE,WLE,...) |
|
|
LTI/CTI |
|
Color process (Gama correction/Skin correction /... ) |
|
|
Follow main IC |
|
|
|
|
||
Colour preset (Cool/Normal/Warm/Personal) |
|
Medium, Cool, Warm and Personal in PC |
||
8
|
mode |
|
Picture control ( Bright/Con./Sharpness/Color/Tint/…) |
Yes |
|
|
|
|
Picture presets : Standard / Bright / Soft / User |
Standard / Mild / Film / Dynamic / Personal |
|
Picture freeze |
Yes |
|
|
No |
|
Multi picture : PIP ( AV )/POP AV |
||
Dynamic Backlight Control |
no |
|
LED Backlight |
Yes |
|
Deinterlacer (No/linerar/motion adaptive/motion compensative) |
3D motion adaptive |
|
Film mode / reverse 3:2/2:2 pull down |
Yes / Yes |
|
|
|
|
Full HD support ( 1080P ) |
Yes |
|
Single scan / Dual scan ( 120HZ ) |
32:Single scan,42/46:Dual scan(option) |
|
|
|
|
Zoom type : 4/3 format |
Yes |
|
Zoom type : 14/9 Zoom |
no |
|
Zoom type : 16/9 Zoom |
16/9 ZOOM 1 |
|
Zoom type : 16/9 Zoom up/down |
16/9 ZOOM 2 |
|
|
|
|
Zoom type : Cinerama |
Yes |
|
Zoom type : 16/9 Format |
Yes |
|
|
|
|
Zoom type : Auto ( by SCART Pin8 and WSS ) |
Yes |
|
Picture Auto adjustment (PC mode) |
Yes |
|
|
|
|
Sound |
|
|
Sound type ( Mono/AV stereo/Stereo ) |
stereo |
|
Music Power (Watt)/RMS Power (Watt) |
2X6W(32")/2 x 8W(>42") |
|
Tone control ( Bass&Treble / Graphic Equalizer ) |
Bass&Treble |
|
Special sound effect ( AVL / WIDE / Pseudo /… ) |
AVL |
|
|
|
|
Suround system ( Dolby / VD / SRS / BBE / … ) |
Built-in Surround |
|
Sound control ( Volume , Balance , Mute ) |
Volume, Balance, Mute |
|
|
|
|
Sound presets (User/Speech/News/Standard) |
Standard / Music / Movie / Sport / Personal |
|
Headphone volume control ( Separated / linked ) |
Yes(Linked) |
|
Sound quality ( High / Mid / Low ) |
Mid |
|
Reception and Decoding capability |
|
|
RF range ATV |
54MHz 864MHz |
|
RF range DTV |
VHF 177-213 MHZ, UHF 473-803 MHZ |
|
Color System (PAL/SECAM/NTSC/PAL M,N ) |
PAL M,PAL N,NTSC M |
|
Audio Standard ( B/G/H/D/K/K'/I/L/L' ) |
M,N |
|
|
|
|
Stereo audio system ( Nicam,MTS,A2,….) |
BTSC,SAP |
|
Video standard NTSC 3.58 / 4.43 (AV)/PAL 60 |
NTSC 3.58/4.43 , PAL |
|
DTV SD support (DVB-T/S/C , ATSC , QAM , … ) |
ISDB-T |
|
DTV HD Support |
MPEG2,MPEG4,H.264 |
|
MHEG5 |
No |
|
|
Yes (720p; 1080i; 1080p@24/50/60Hz; |
|
HD capability with YPbPr |
||
480i/p; 576i/p) |
||
|
||
PC capability (up to maximum format) |
Up to 1280X1024 60Hz |
|
|
Up to 1080P 24/50/60HZ |
|
HDMI capability AV/PC Format) |
9
Compatible video format if DVD/USB: |
JPEG/MPEG2/MPEG4/H.264/DivX |
|
DviX/VCD/SVCD/JPEG/AVI/MPEG2/WMVHD/SD |
(depending on license) |
|
Compatible audio format if DVD/USB: |
MP3/WMA(depending on license) |
|
MP3/WMA/AAC/MPEG1/… |
||
|
||
Playable Discs (CD/CD-R(RW)/CD-ROM/DVD+R/+RW/-R/-RW) |
No |
|
|
|
|
Card reader format compatibility |
No |
|
Macrovision |
Yes |
|
|
|
|
PVR |
no |
|
Network |
No(Option) |
|
|
|
|
User convenience |
|
|
OSD Language* |
English/Spanish/Portuguese |
|
OSD Positioning |
No |
|
OSD Transparency Adjust |
No |
|
OSD Timeout Adjust |
No |
|
|
|
|
Customer Brand name(LOGO) |
Yes |
|
IB languages |
English |
|
|
|
|
ATV Program Numbers (example: 99+3AV input ) |
Air:68+7AV,Cable:125+7AV |
|
DTV Program Numbers |
600 |
|
|
|
|
Program edit ( naming , sorting , skip , swap …. ) |
Naming / Skip / Swap |
|
Auto Naming/Auto Sorting |
No |
|
|
|
|
TV Guide(DTV EPG) |
EPG(next Seven-day) |
|
Favorite program |
Yes |
|
|
|
|
Number of buttons on cabinet (Power; Vol+/-; Pr+/-, Menu ) |
Vol+/-; Pr+/-, Menu ,Source,Power(optional) |
|
Main switch button (yes/No) |
Yes |
|
|
Yes/No |
|
CCD Closed Caption)/V-CHIP |
||
Text Standard: (Top, FLOF,,,) |
No |
|
Teletext Level: 2.5 / 1.5 |
- |
|
Pages for teletext |
- |
|
Teletext character sets **** |
- |
|
|
|
|
DVB-T teletext |
- |
|
Real clock |
From DTV |
|
|
|
|
Sleep timer |
10-240 Min. |
|
Timer |
Turn On / Off, Program Switch |
|
|
|
|
Parent Control -Source and Channel lock (Input code for certain |
Yes |
|
channel) |
||
|
||
Parent Control - Child lock (set the lock of the keyboard, only the |
No |
|
RCU can control the TV) |
||
|
||
Parent Control - Kid pass (preset the ontime, channel for each |
No |
|
day of the week) |
||
|
||
|
|
|
Parent Control - Channel lock (For digital transmission and DVD |
Yes |
|
program, to filter some programms) |
||
|
||
|
|
|
Calendar / Games |
No |
|
No program auto switch off |
15 mins. |
|
|
|
10
Hotel mode (Y/N)
DVD player (No/slot/tray)
Tuner FM (yes/No)
software download(RS232/CI/USB/OAD)
Factory reset
Screen saver
Blue Back
LED indicator(Power on/Standby)
Connectors -Rear
RF Input (Antenna): Air/ Cable/ 2in1
Scart : CVBS in&out / RGB / S-VIDEO
CINCH video in / out AV1
CINCH audio in / out (No volumpe control on Audio out/can be jack 3,5mm)
S-video in
Component Video Input (YCrCb/YPrPb)
Component Audio Input (YCrCb/YPrPb)
VGA in / Audio L/R in / Jack audio in 3.5mm
HDMI
DVI
Audio input for DVI
CINCH subwoofer out / Coaxial out (S/PDIF)
Headphone output connector (mm)
RS232 ( Y/N , VGA or DB9 port …)
Card Readers
USB slot (No/1.1/2)
DVB-CI (common interface)
External power converter input
Connectors -Side
HDMI
AV-IN
AV-OUT
Component Video Input (YCrCb/YPrPb)
Component Audio Input (YCrCb/YPrPb)
Headphone output connector (dia.mm)
CINCH subwoofer out / Coaxial out (S/PDIF)
USB slot (No/1.1/2)
DVB-CI (common interface)
DLNA
UI/RC
11
T.B.D
No
No
USB
Yes in factory menu,reset the setting to shipment state )
Yes
No(Option)
Blue / Red
Air+Cable
No
No
No
No
No
No
VGA + dia. 3.5mm for audio in 2
No
No
Coaxial out ( optical No
No
No
1 (Software update, JPEG, MP3, WMA, RMVB, DivX) Multimedia depends on license No
No
0
1 No
dia.3.5mm for YPrPb in AV (Audio) 1 3.5mm)
No
1 (Software update, JPEG, MP3, WMA, RMVB, DivX) Multimedia depends on license No
No
UI design (font/pixel, 2D/3D graphic engine..) |
|
|
Standard(MSD6329) |
|
RC Model |
|
|
HS-20JA-01 ( Toshiba ) |
|
|
|
|
|
|
RC system |
|
|
RGB Standard |
|
RC # of keys |
|
|
|
|
|
|
|
|
|
Accessories included |
|
|
|
|
Carton (English/French/Spanish) |
|
|
English |
|
IB |
|
|
|
English |
Circuit diagram |
|
|
No |
|
Batteries |
|
|
Yes |
|
|
|
|
|
|
Product registration Card |
|
|
Yes English) |
|
AC Cable Length |
|
|
1.8m |
|
|
|
|
|
|
Audio Cord (Jack 3.5mm) |
|
|
Yes(For component audio in) |
|
VGA Cord |
|
|
No |
|
|
|
|
|
|
Wallmount frame |
|
|
Optional |
|
Antenna Cable |
|
|
No |
|
|
|
|
|
|
6 in 1( YPbPr & CVBS) cable adapter |
|
|
No |
|
General Data |
|
|
|
|
Size |
(W x H x D, with stand) in mm |
- |
||
Size |
(W x H x D, without stand) in mm |
- |
||
|
|
|||
Package Size (W x H x D, without stand) in mm |
- |
|||
Net Weight in kg |
- |
|||
Gross Weight in Kg |
- |
|||
Design / Mechanical |
|
|
|
|
Wallmount VESA compatible (standard reference) |
|
|
Yes |
|
|
|
|
|
|
Adaptor for VESA wallmount compatibility (accessory ref) |
|
|
Yes |
|
Desktop Stand (included/optionnal + ref/No) |
|
|
included |
|
|
|
|
|
|
Panel Tilt (Fowards/Backwards/Rotation) |
|
|
No |
|
Swivel function desktop stand (yes/No) + motorized? |
|
|
No |
|
|
|
|
|
|
Docking station (yes/No) |
|
|
No |
|
Floor Stand (included/optionnal + ref/No) |
|
|
No |
|
|
|
|
|
|
Glass shield (yes/No) |
|
|
No |
|
Finish on Front |
- |
|||
|
|
|||
Finish on side |
- |
|||
Finish on back |
- |
|||
|
|
|||
Finish on stand |
- |
|||
number of colors on carton box |
2 |
|||
Brand logo |
|
|
Customer Inlet |
|
Other logo |
|
|
No |
|
External AC/DC Power with DC power cord (yes/No) |
|
|
No |
|
|
|
|
|
|
Handle (yes/No) |
|
|
No |
|
Detachable speaker (yes/No) |
|
|
No |
|
|
|
|
|
|
Rating Label langages |
|
|
English |
|
12
Loading...
