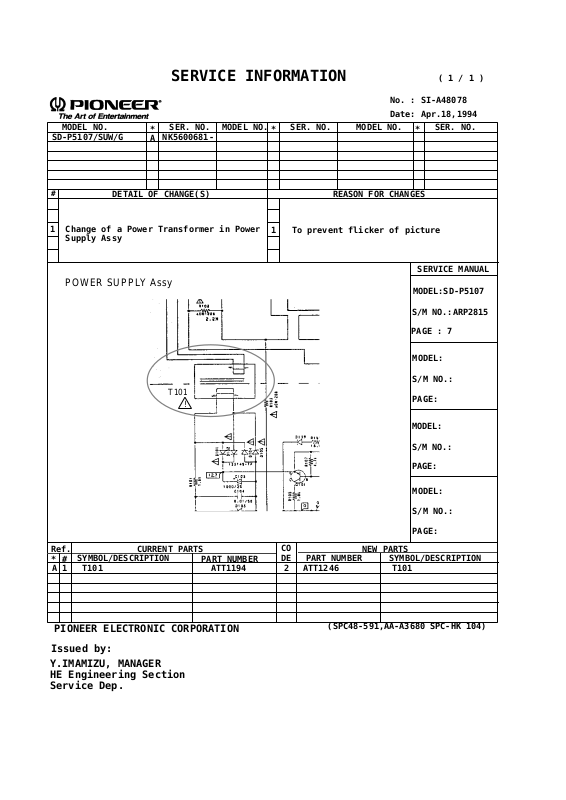

SERVICE INFORMATION

MODEL NO.

SD-P5107/SUW/G

SER. NO. MODEL NO. SER. NO. MODEL NO.

*

NK5600681-

A

*

( 1 / 1 )

No. : SI-A48078 Date: Apr.18,1994

SER. NO.

*

#

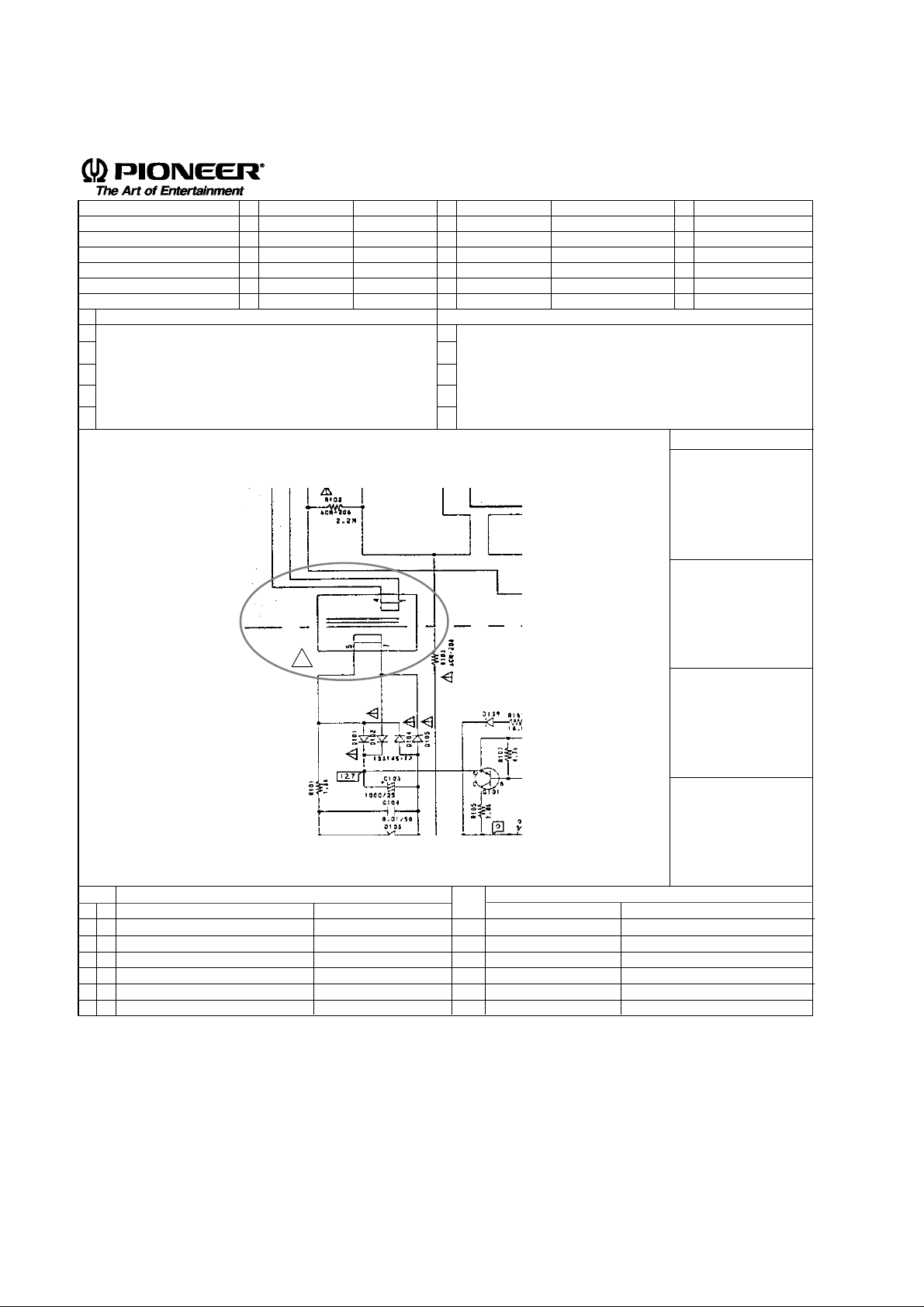

1 Change of a Power Transformer in Power Supply Assy

DETAIL OF CHANGE(S) REASON FOR CHANGES

POWER SUPPLY Assy

T101

!

1 To prevent flicker of picture

SERVICE MANUAL

MODEL:SD-P5107

S/M NO.:ARP2815

PAGE : 7

MODEL:

S/M NO.:

PAGE:

MODEL:

S/M NO.:

PAGE:

Ref. CURRENT PARTS

SYMBOL/DESCRIPTION

* # A 1 ATT1194 2 ATT1246 T101

T101

PART NUMBER

PIONEER ELECTRONIC CORPORATION

CO DE

NEW PARTS

SYMBOL/DESCRIPTIONPART NUMBER

(SPC48-591,AA-A3680 SPC-HK 104)

Issued by:

Y.IMAMIZU, MANAGER HE Engineering Section Service Dep.

MODEL:

S/M NO.:

PAGE:

`

SERVICE INFORMATION

Date:

Oct.13,2000

No.: SI-D01008 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

See to following page

# CHANGE

DETAIL

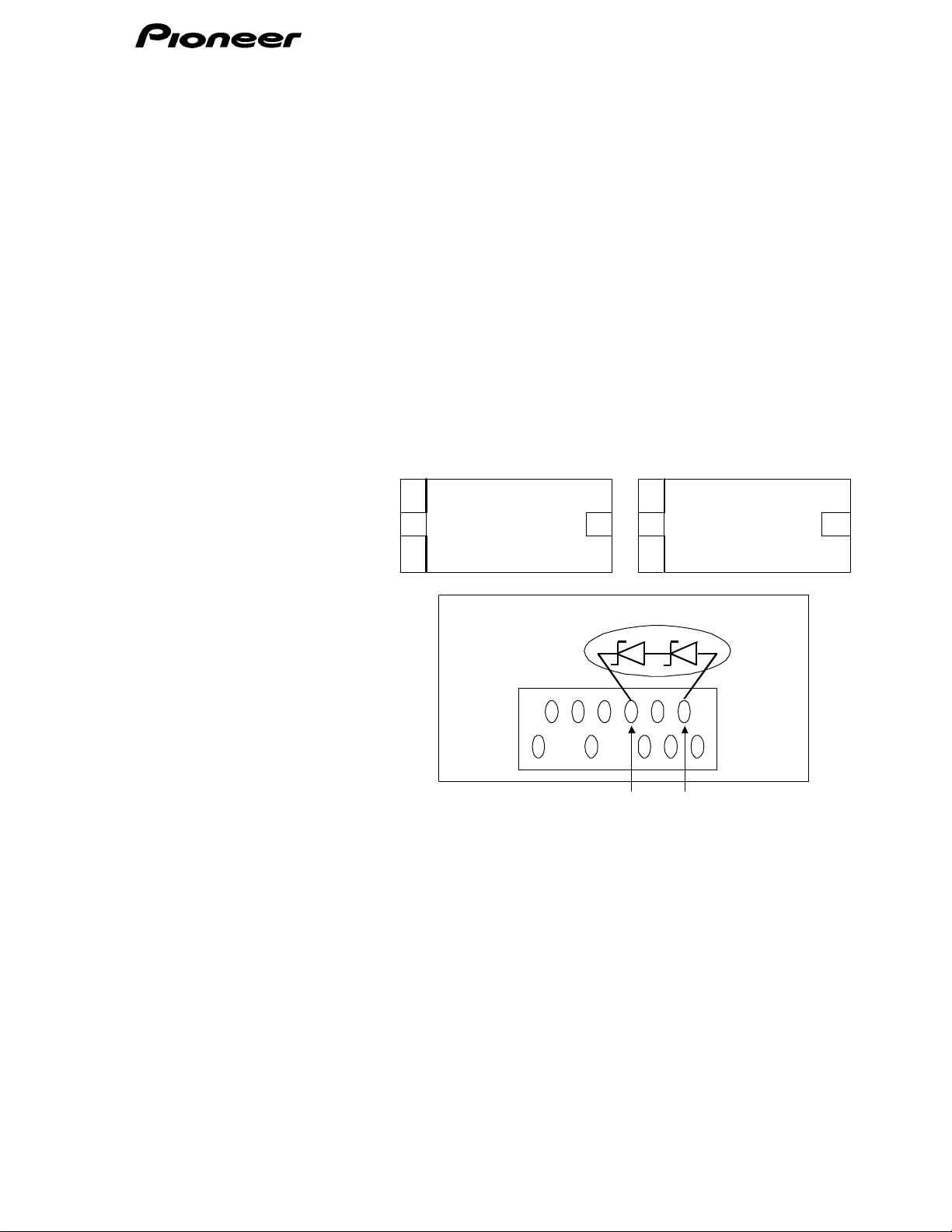

1 When change the CRT DRIVE ICiIC5101,IC5151,IC5201j

from TDA6120Q to TDA6120QN2 in Amplifire AssyiAWV1797j, add diodes between 2pin and 6pin of each TDA6120QN2, and spread the silicone bond(GYA1011) there.

REASON

Please refer to p.110 IC5101 in R CRT DRIVE Assy

1 Production convenience

Difference of the CRT DRIVE IC

TDA6120Q TDA6120QN2

IC5151 in G CRT DRIVE Assy

TDA6120Q TDA6120Q

Please refer to p.111 IC5201 in B CRT DRIVE Assy

* * * * * * * * * * * *

* * * * * * * 1 * * * * * * * * 2 *

PATTERN SIDE

TDA6120QN2

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

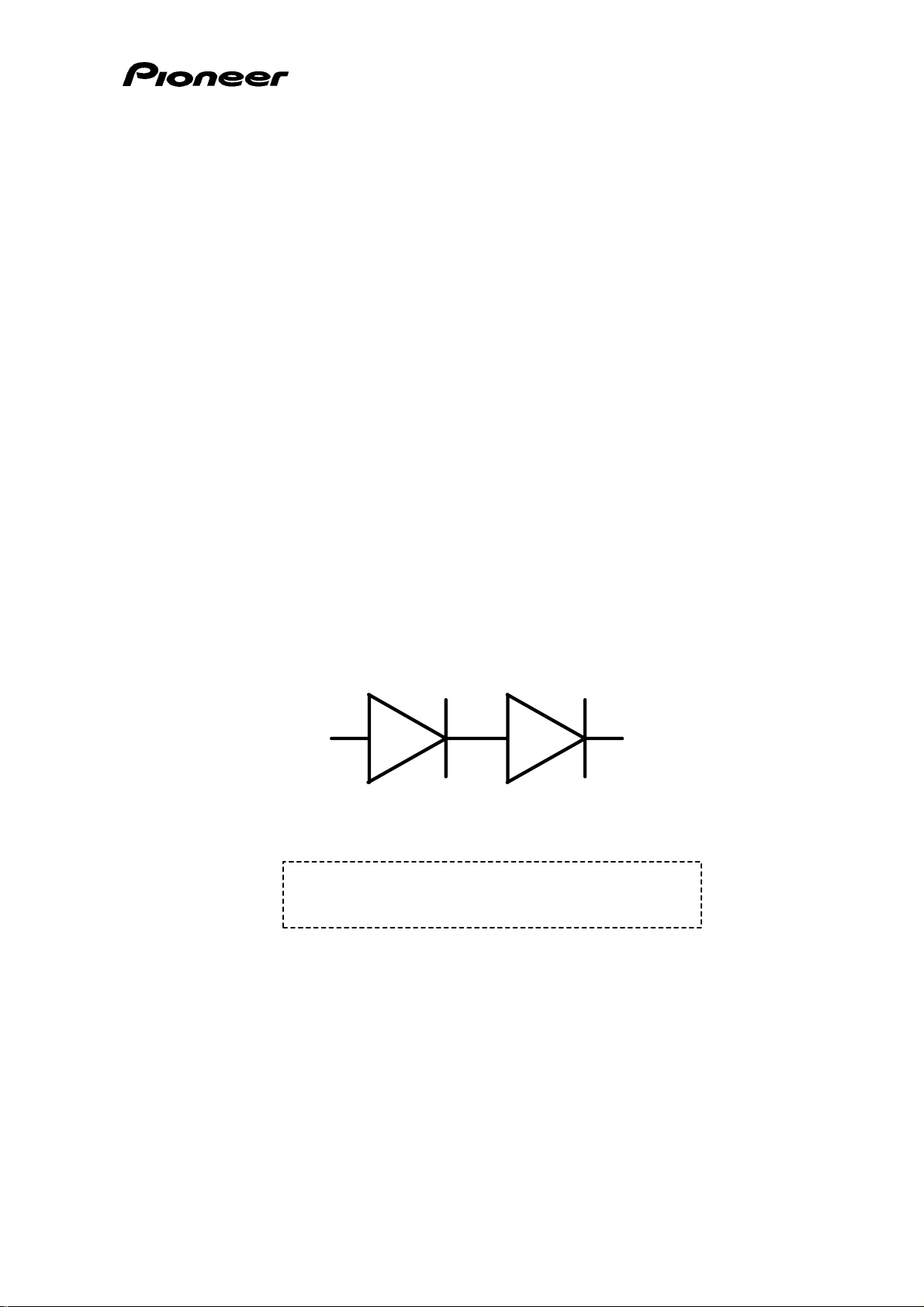

MTZJ5.6A MTZJ3.9B

Silicone bond

(GYA1011)

6pin 2pin

A 1 IC5101 TDA6120Q 2 TDA6120QN2 IC5101 A 1 added - MTZJ5.6A D5107 A 1 added - MTZJ3.9B D5108 A 1 IC5151 TDA6120Q 2 TDA6120QN2 IC5151 A 1 added - MTZJ5.6A D5157 A 1 added - MTZJ3.9B D5158 A 1 IC5201 TDA6120Q 2 TDA6120QN2 IC5201 A 1 added - MTZJ5.6A D5207 A 1 added - MTZJ3.9B D5208

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: MTV01014 KT,9

AA-D2120 AA-D2212

Classify:

( 2/2 )

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3047 110 PRO-610HD/KUXC/CA A R/C ARP3047 110 PRO-710HD/KUXC/CA A R/C SD-532HD5/KBXC A R/C ARP3047 110 SD-532HD5/KUXC/CA A R/C ARP3047 110 SD-582HD5/KUXC/CA A R/C ARP3047 110

`

SERVICE INFORMATION

Date:

Aug.17,2000

No.: SI-D01007-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A 3206 ARP3044 PDP-502MXE/YVLDK A 3226 ARP3044 PDP-505HD/KUC A 1051 ARP3044

# DETAIL

SYMPTOM

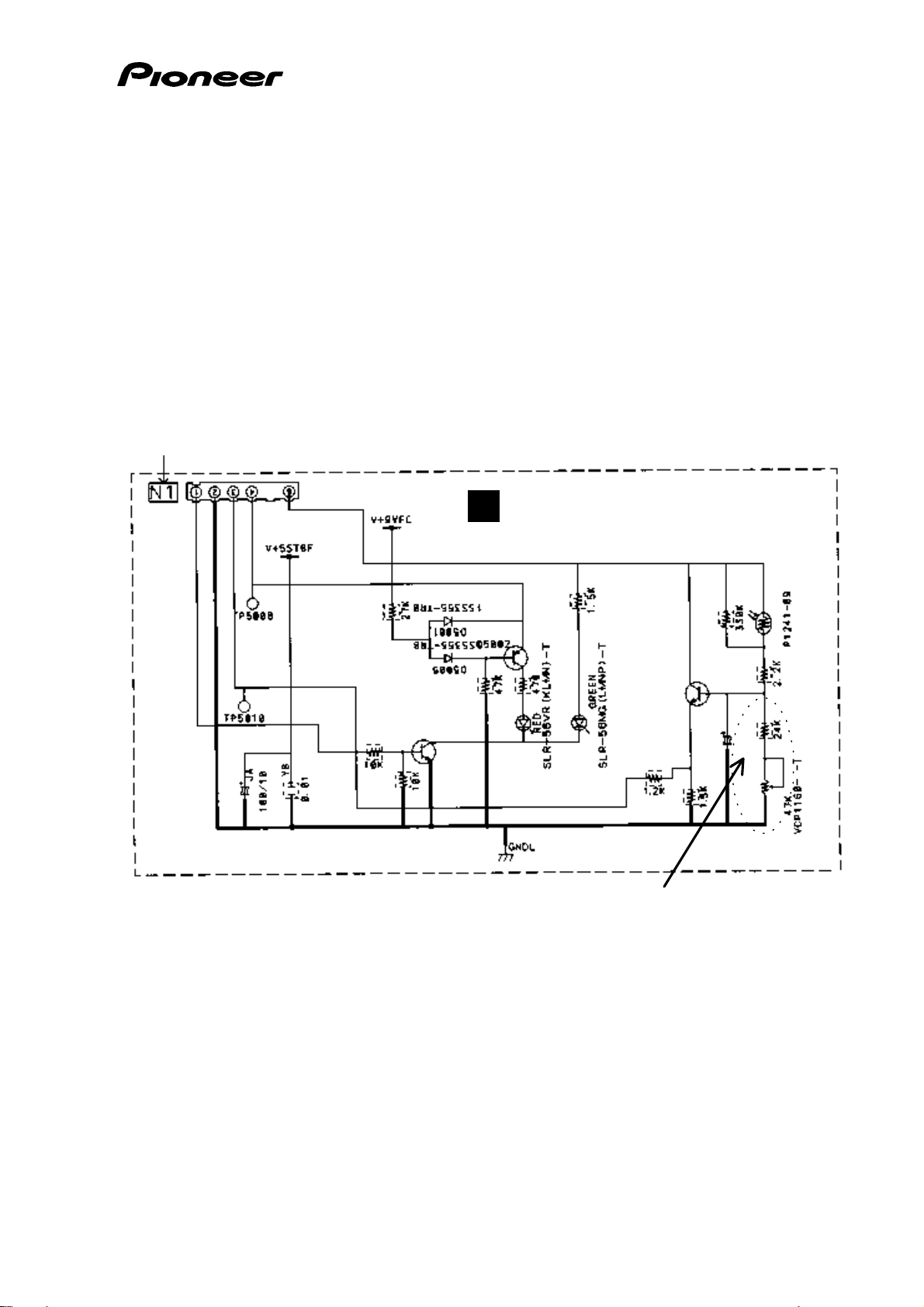

1 Power down (D407 lights on)

CAUSE

1 Short of valuable resistor (VR401) and wiring pattern.

SERVICE REMEDY

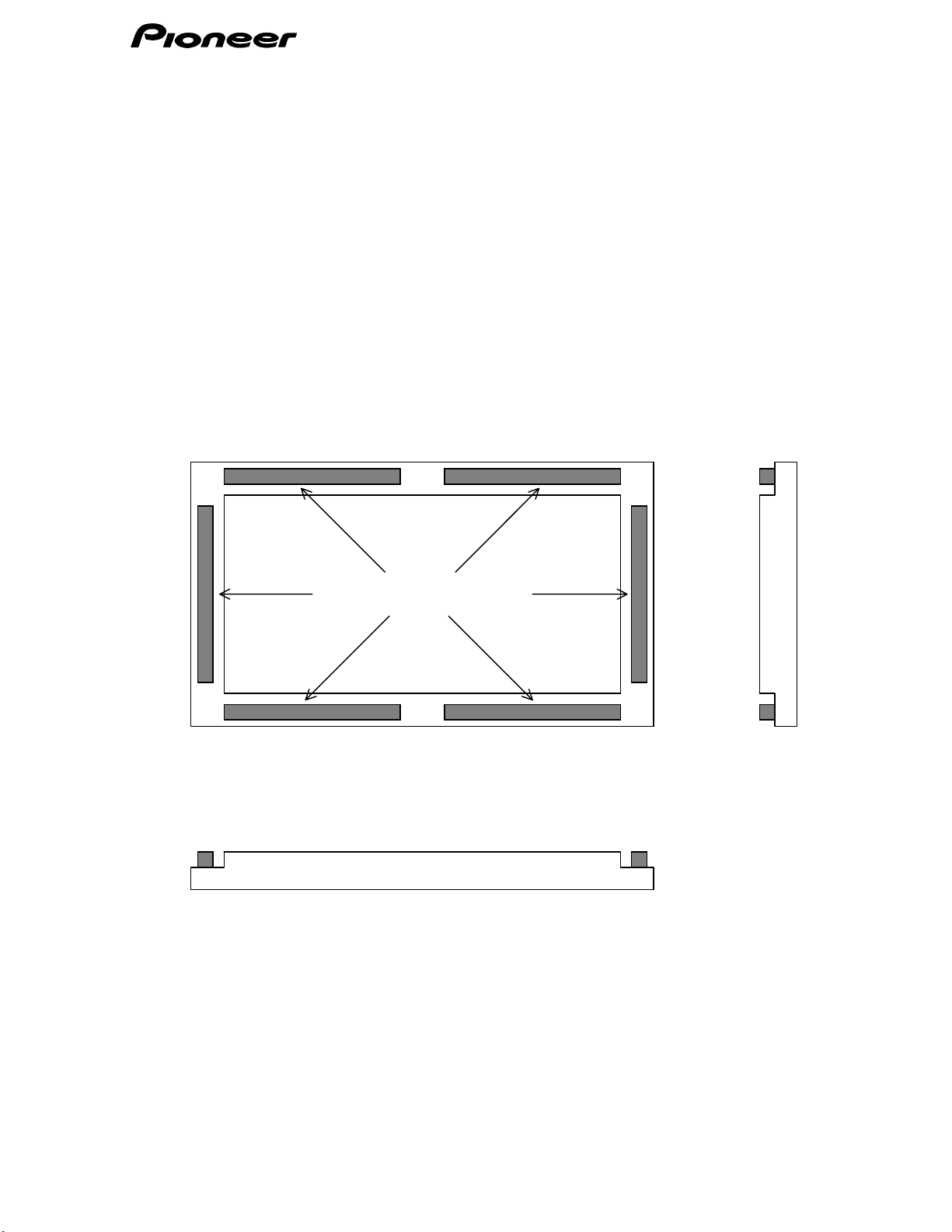

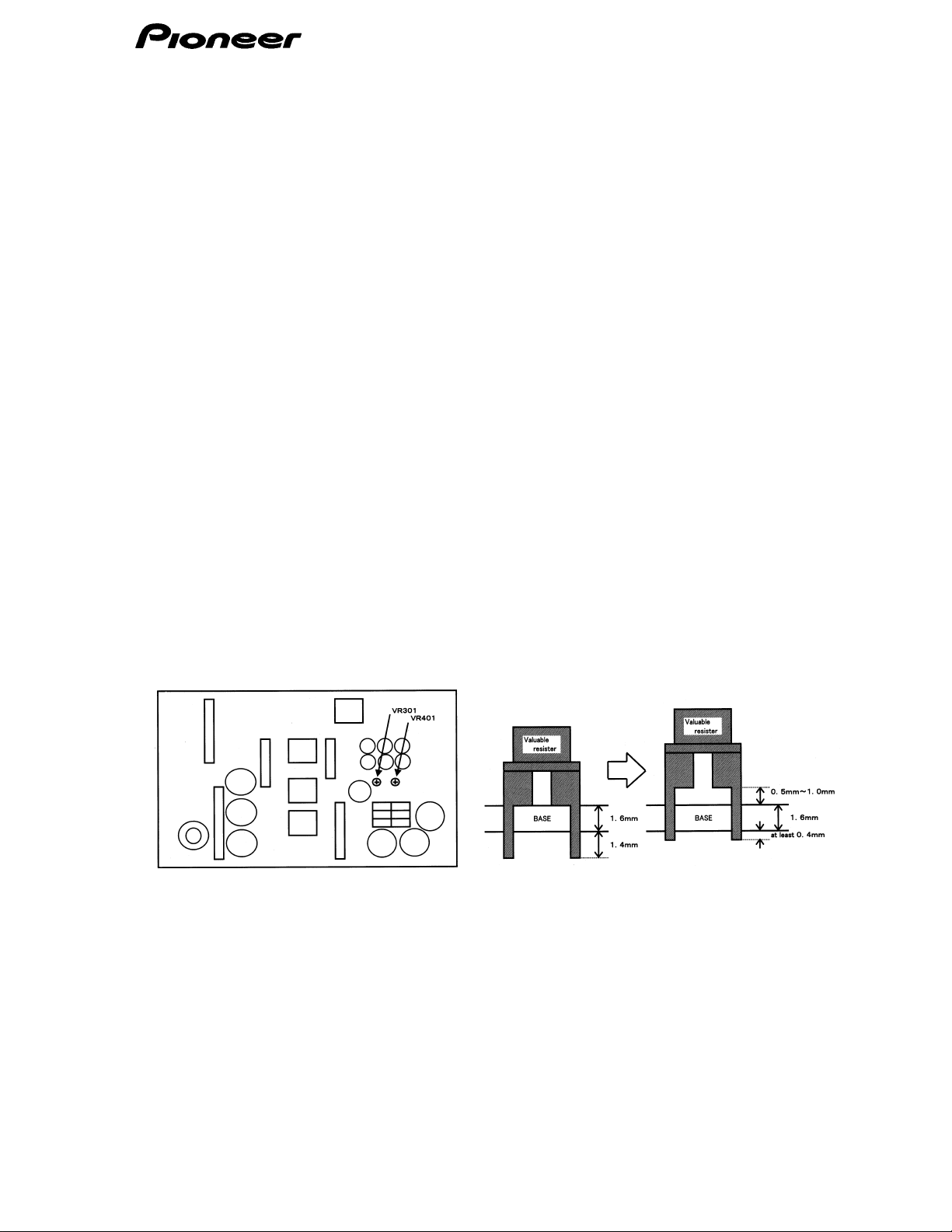

1 Position of VR301 and VR401 is changed (refer to the figure below).

FACTORY COUNTER

-MEASURE

1 Addition of crystal damper between base and VR301, VR401 in POWER ASSY(AWV

1775).

POWER ASSY(AWV1775) PART SIDE S ide view of valuable r esi st or

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER ELECTRONIC CORPORATION

NOTE:PARTS CODE

T.NAKAGAWA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support group 3:Interchangeable in both ways

Service Support Div.

1:Changeable from old to new.

5:Do not use old parts

Memo: PJ/NO. 01-D01

MTV01-004 AA-D1974

Classify:

SERVICE INFORMATION

Date:

June. 1, 2000

No.: SI-D01006 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A R/C ARP3044 PDP-502MXE/YVLDK A R/C ARP3044 PDP-505HD/KUC A R/C ARP3044 PDP-502MX/LUCBW B 04286- ARP3044 PDP-502MXE/YVLDK B 04626- ARP3044 PDP-505HD/KUC C 01635- ARP3044

# CHANGE

DETAIL

1 Change and addition of resistors in Digital video ass’y 2 Change of Digital video ass’y

REASON

1,2 Procurement convenience

As to circuit change, please see page 2/2.

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R3207 RD1/4PU222J 2 RS1/16S222J R3207 A 1 Added - RS1/16S0R0J R3481,3482,3483,3500 A 1 Added - RS1/16S0R0J R3487 B 2 Digital video ass’y AWV1815 2 AWV1838 Digital video ass’y C 2 Digital video ass’y AWV1791 2 AWV1839 Digital video ass’y

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: EM, 73

SPC55-008 AA-D1980

Classify:

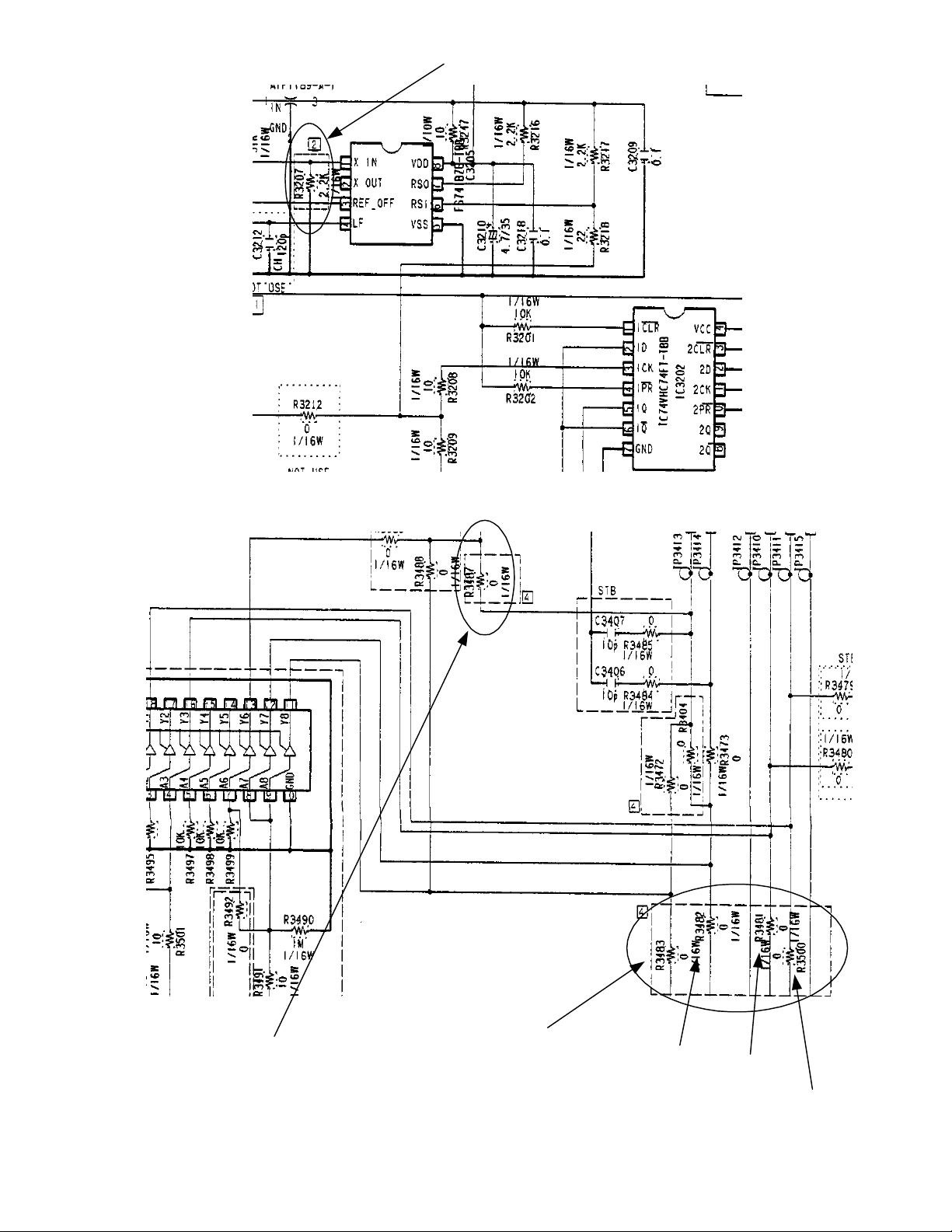

Digital video ass'y

R3207

( 2/2 )

R3487

R3483

R3482

R3481

R3500

SERVICE INFORMATION

Date:

June. 1, 2000

No.: SI-D01005 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A 03657- ARP3044 PDP-502MXE/YVLDK A 03601- ARP3044 PDP-505HD/KUC A 01251- ARP3044 PDP-502MX/LUCBW B R/C ARP3044 PDP-502MXE/YVLDK B R/C ARP3044 PDP-505HD/KUC B R/C ARP3044

# CHANGE

DETAIL

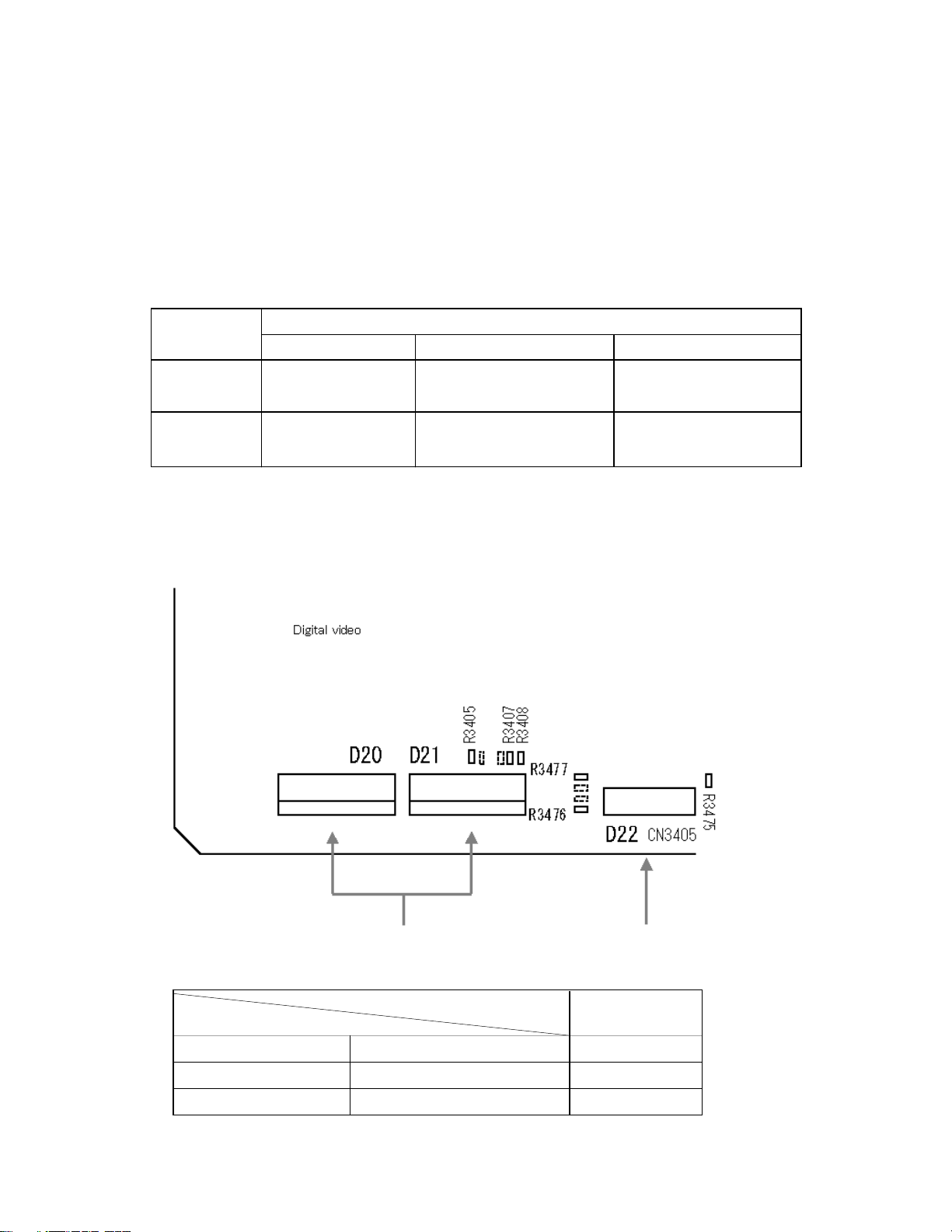

1 Change of FFC between Analog video ass’y and Digital video ass’y 2 Change of resistors in Digital video ass’y

REASON

1 To improve the reliability of CLK, H.D,V.D signal between Analog video ass’y and Digital video ass’y 2 Circuit change of Digital video ass’y

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 FFC ADE1180 2 ADE1181 FFC B 2 R3405,3407,3408 RS1/16S100J - Deleted B 2 Added - RS1/16S100J R3475,3476,3477

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: EM, 73

SPC54-391 AA-D1797

Classify:

`

SERVICE INFORMATION

Date:

May.18,2000

No.: SI-D01004 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

See to following page

# CHANGE

DETAIL

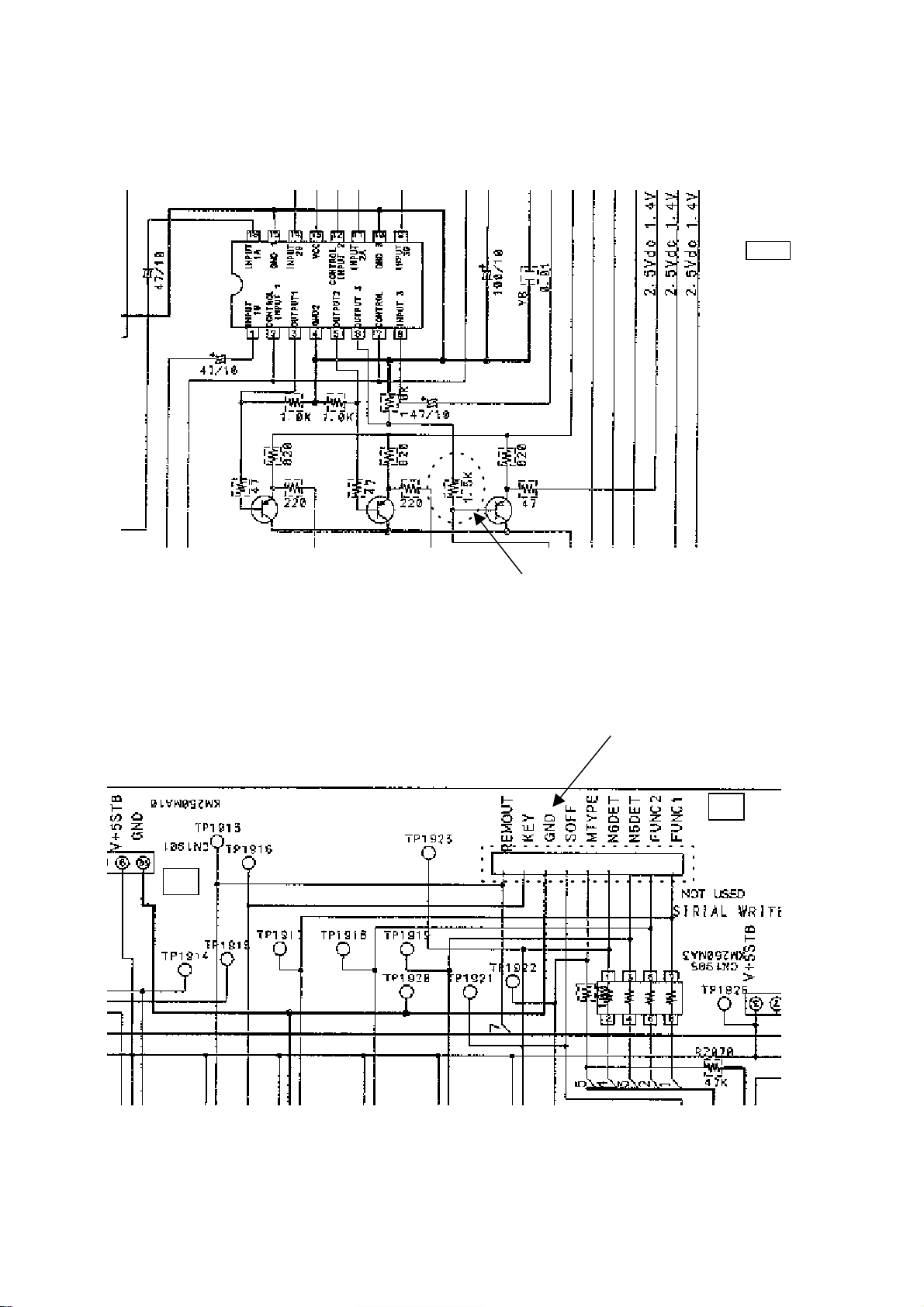

1 Addition of a resistor(R7429) and a transistor(Q7112) 2 Addition of a transistor(Q7326) 3 Change of a resistor(R7429 --> R7153 ---> R7429) 4 Deletion of a transistor(Q7112)

REASON

1 To prevent the noise in 3-picture search mode. 234 To prevent the noise in 3-picture search mode. (Production convenience)

As for Circuit diagram, please see page 3/3.

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - RD1/4PU102J R7429 A 1 Added - 2SC2712 Q7112 A 2 Added - 2SC2712 Q7326 A 3 R7429 RD1/4PU102J 2 RS1/16S102J R7153 A 3 R7153 RS1/16S102J 2 RS1/16S102J R7429 A 4 Q7112 2SC2712 - Deleted

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: EM, 9

SPC54-463 AA-D SPC54-464 1930

Classify: AA-D

1938

( 2/3 )

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3047 45 PRO-610HD/KUXC/CA A R/C ARP3047 45 PRO-710HD/KUXC/CA A R/C SD-532HD5/KBXC A R/C ARP3047 45 SD-532HD5/KUXC/CA A R/C ARP3047 45 SD-582HD5/KUXC/CA A R/C ARP3047 45

S/M P45

( 3/3 )

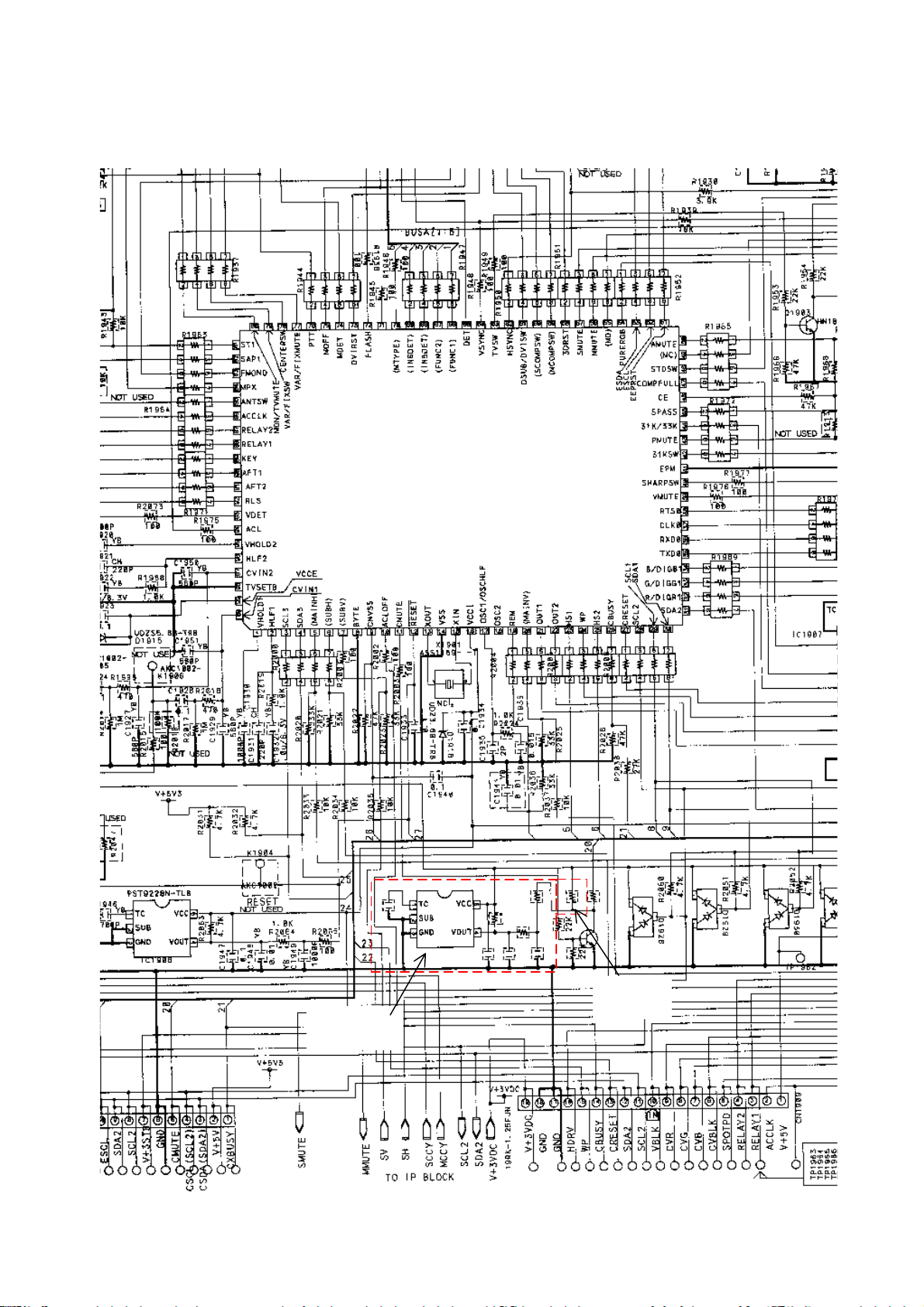

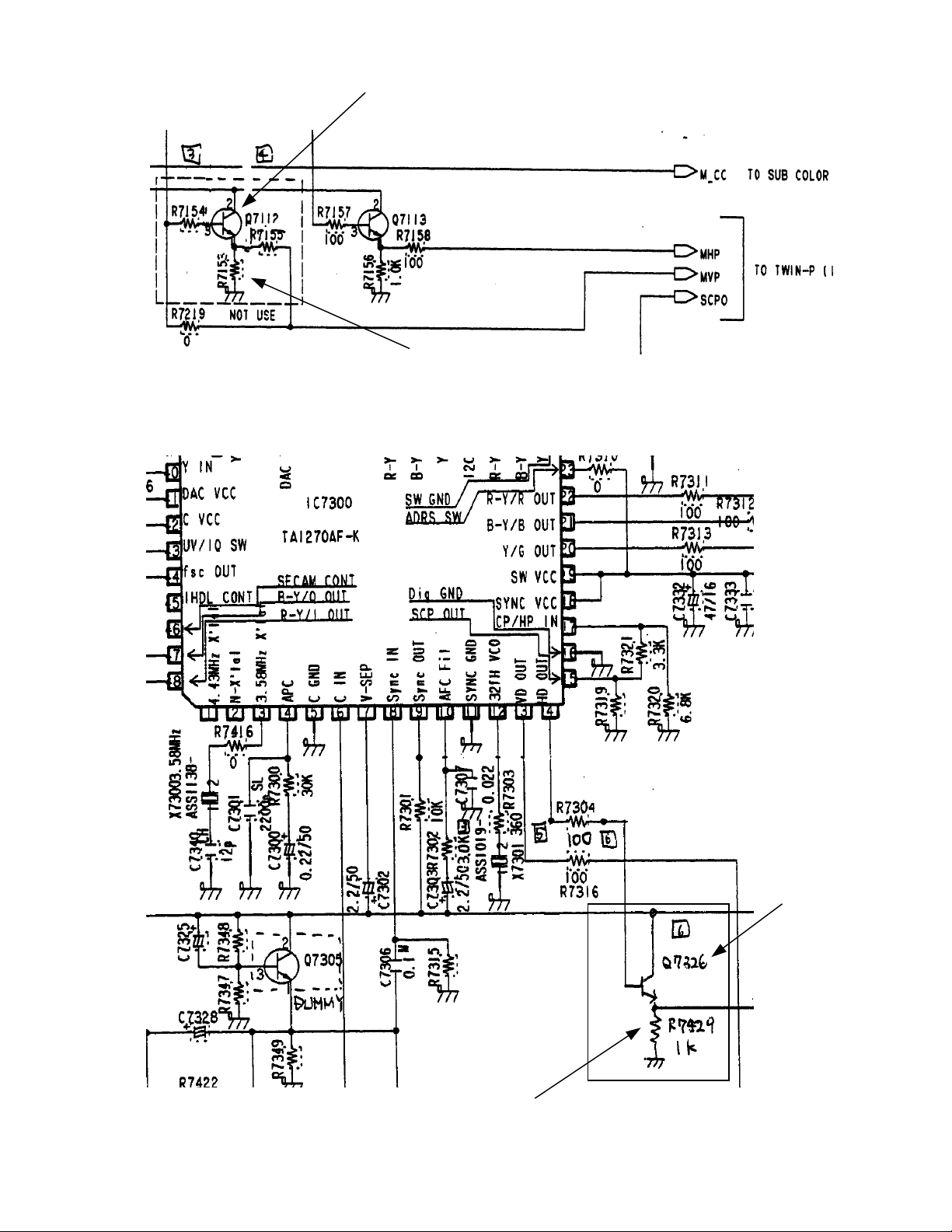

SIGNAL ASSY

S/M P47

SIGNAL ASSY

Q7112

R7153

R7429

Q7326

SERVICE INFORMATION

Date:

May.18,2000

No.: SI-D01003 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3047 78 PRO-610HD/KUXC/CA A R/C ARP3047 78 PRO-710HD/KUXC/CA A R/C

# CHANGE

DETAIL

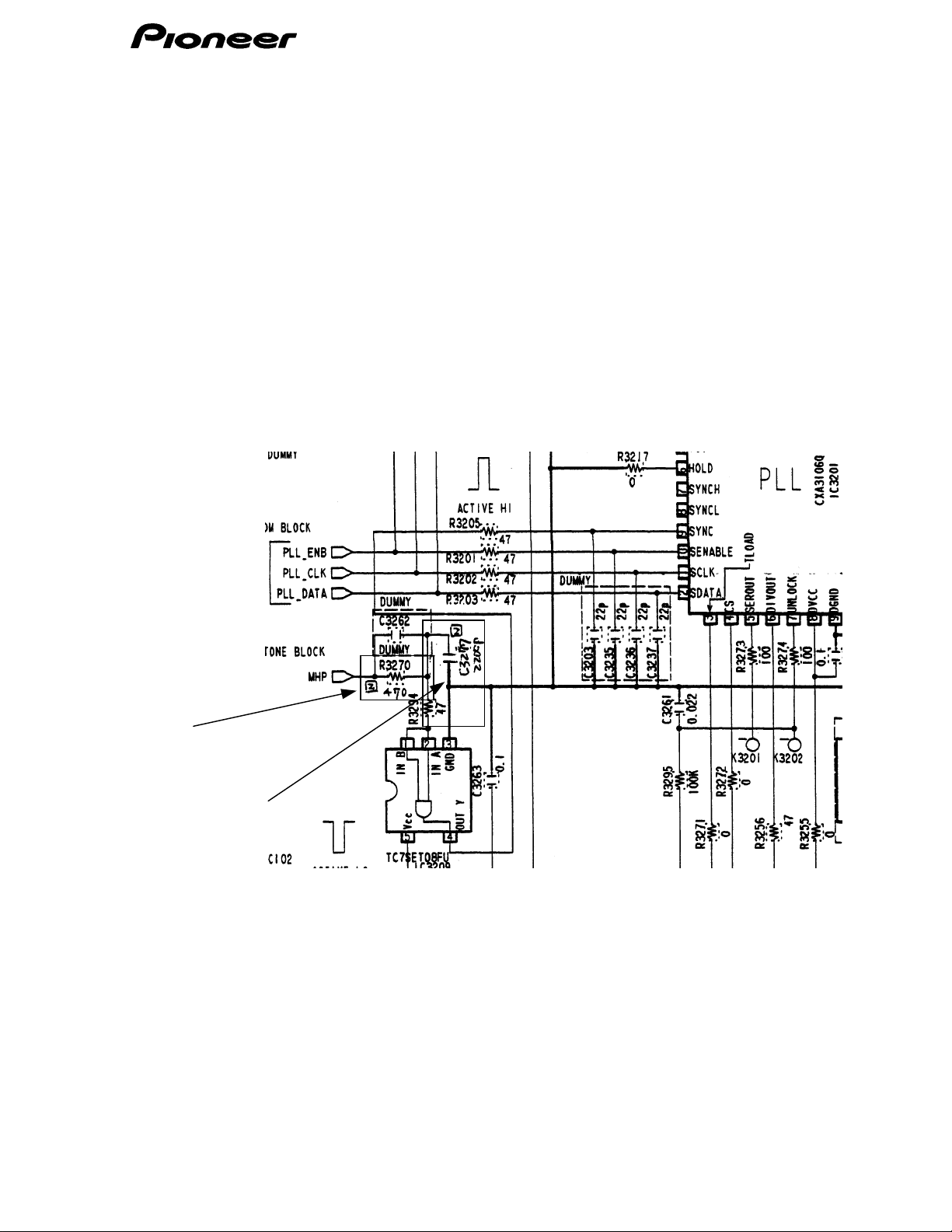

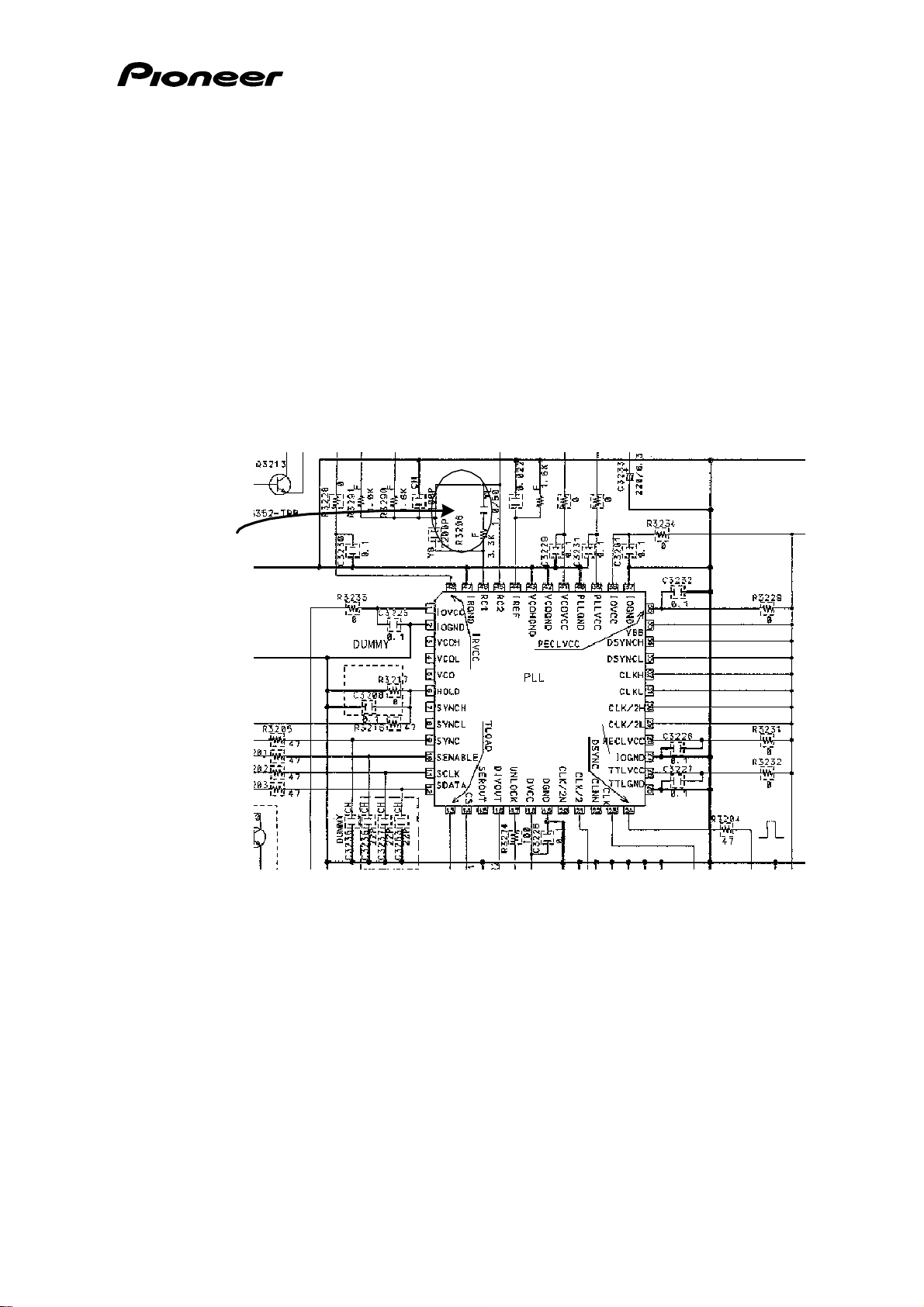

1 Change of a resistor and addition of a capacitor in SUB VIDEO SERVICE ASSY

REASON

1 To prevent the horizontal noise in single screen mode.

R3270 (0 ohm --> 470 ohm)

C3277 (2200pF Added)

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R3270 RS1/16S0R0J 2 RS1/16S471J R3270 A 1 Added - CKSRYB222K50 C3277

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: EM, 9

SPC55-005 AA-D1962

Classify:

SERVICE INFORMATION

Date:

May.15,2000

No.: SI-D01002 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3047 106 PRO-610HD/KUXC/CA A R/C ARP3047 106 PRO-710HD/KUXC/CA A R/C SD-532HD5/KBXC A R/C ARP3047 106 SD-532HD5/KUXC/CA A R/C ARP3047 106 SD-582HD5/KUXC/CA A R/C ARP3047 106

# CHANGE

DETAIL

1 Change of VR602 in DEFLECTION SERVICE ASSY

REASON

1 To improve the reliability of High voltage adjustment

S/M Location:

DEFLECTION SERVICE ASSY P106 C-4

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 VR602 VRTHS6VS223 2 VRTHS6VS473 VR602

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

1;Changeable from old to new.

5:Do not use old parts

Memo: EM, 70

SPC55-004 AA-D2008

Classify:

SERVICE INFORMATION

Date:

Apr. 19, 2000

No.: SI-D01001

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C RRV3047 94 PRO-610HD/KUXC/CA A R/C RRV3047 94 PRO-710HD/KUXC/CA A R/C SD-532HD5/KBXC A R/C RRV3047 94 SD-532HD5/KUXC/CA A R/C RRV3047 94 SD-582HD5/KUXC/CA A R/C RRV3047 94

# CHANGE

DETAIL

1 Change of convergence micro-com in DIGITAL CONV. ASSY 2 Addition of resistor to DIGITAL CONV. ASSY

REASON

1 Production convenience 2 To improve convergence OSD display

DIGITAL CONV. ASSY

IC1652 Location: S/M P94 C-2,3

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 IC1652 PD5564B9 2 PD5564C9 IC1652 A 2 Added - RD1/4PU472J R1737

PIONEER CORPORATION

NOTE:PARTS CODE

,MANAGER

1;Changeable from old to new. 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

5:Do not use old parts

Memo: SPC54-431

AA-D1894

Classify:

a

MODEL

24 ADE1091 RF cable

[S/M NO.]

SD-P404-K

-P4043-K [ARP2080]

( 1 / 2 )

CORRECTION OF SERVICE MANUAL

No.: SI-A49001 Date:May 30,1994

Please correct your service manu

PAGE INCORRECT CORRECT

The following part is available as spare parts.

No. Part No. Description

13

SD-P504-K

-P504-Q [ARP2082]

SD-P455-K

-P4552-K

-P4553-K

-P4553-W [ARP2284]

SD-P505-K

-P505-Q

-P5053-K

-P5053-Q [ARP2285]

SD-P4053-K [ARP2273]

SD-P5005 [ARP2292]

SD-P5553-K

-P5553-Q [ARP2353]

SD-P5065-K

-P5065-Q

-P4565-K

-P4565-Q etc. [ARP2565]

14

10

13

10

13

25

21

22

21

25

94

233

PIONEER ELECTRONIC CORPORATION

Issued by: Y. IMAMIZU, MANAGER HE Engineering Section

Service Dept.

(QP48-032,QP48-041 SMM-AN 106)

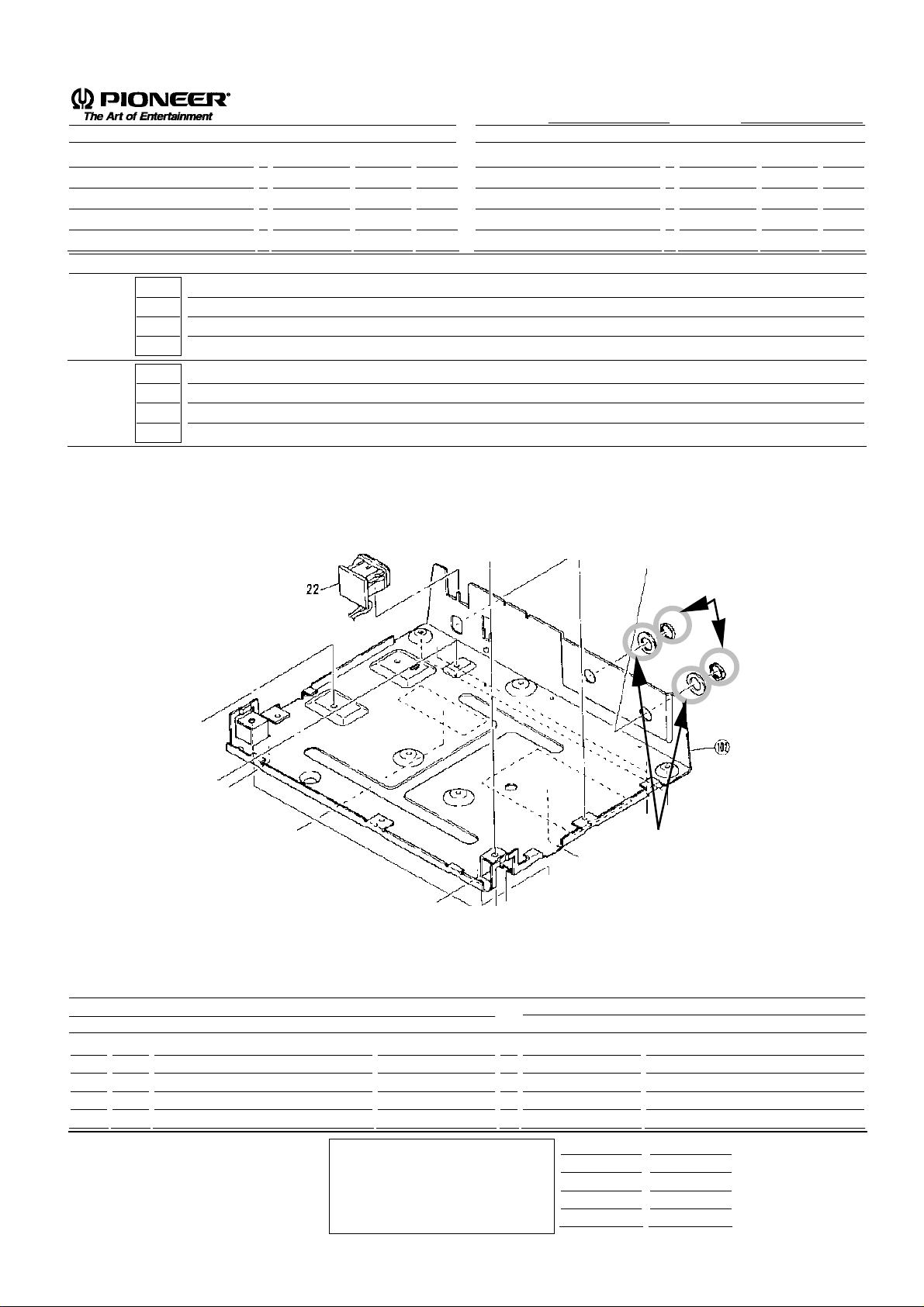

55 AKE-046 Earth terminal

( 2 / 2 )

MODEL

[S/M NO.]

A-09 [ARP2858]

PAGE INCORRECT CORRECT

The following part is available as spare parts.

No. Part No. Description

5

MODEL NO.

MA-99/SD

SERVICE INFORMATION

SER. NO. MODEL NO. SER. NO. MODEL NO.

*

A

006601~

AMA-99/SL

000701~

*

(1/1)

No. :SI-A48088-G

Date:APRIL 13,1994

SER. NO.

*

#

1

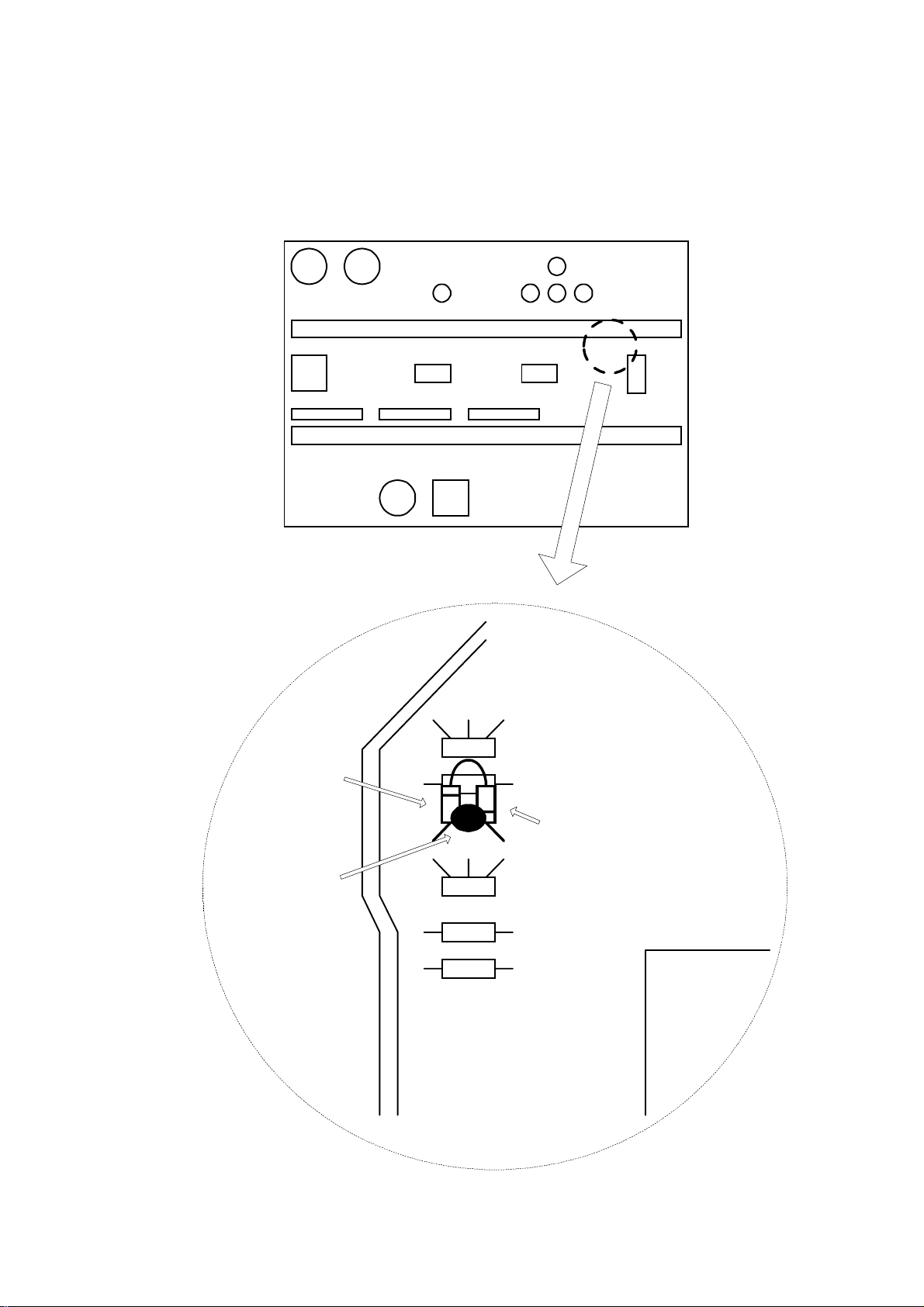

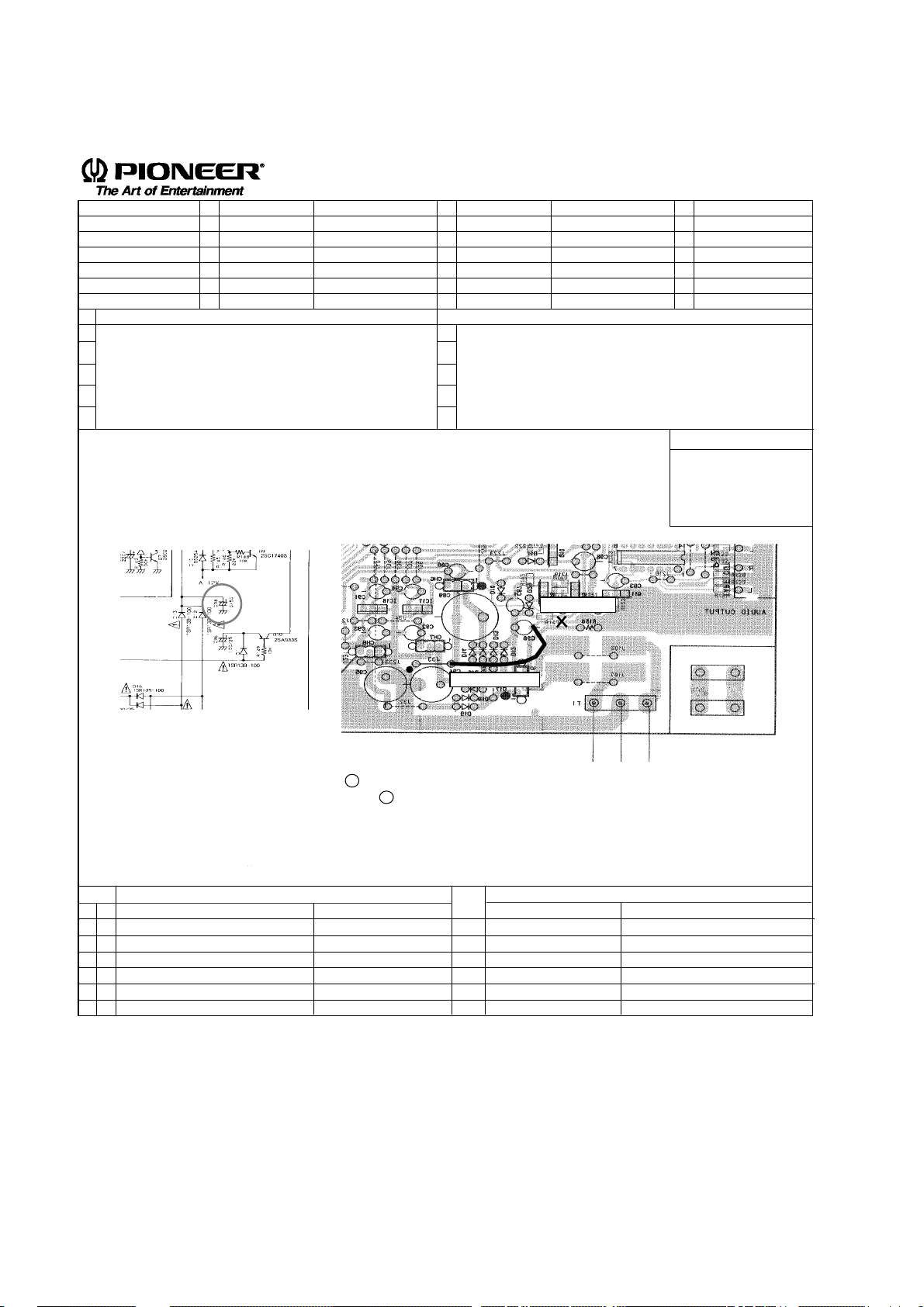

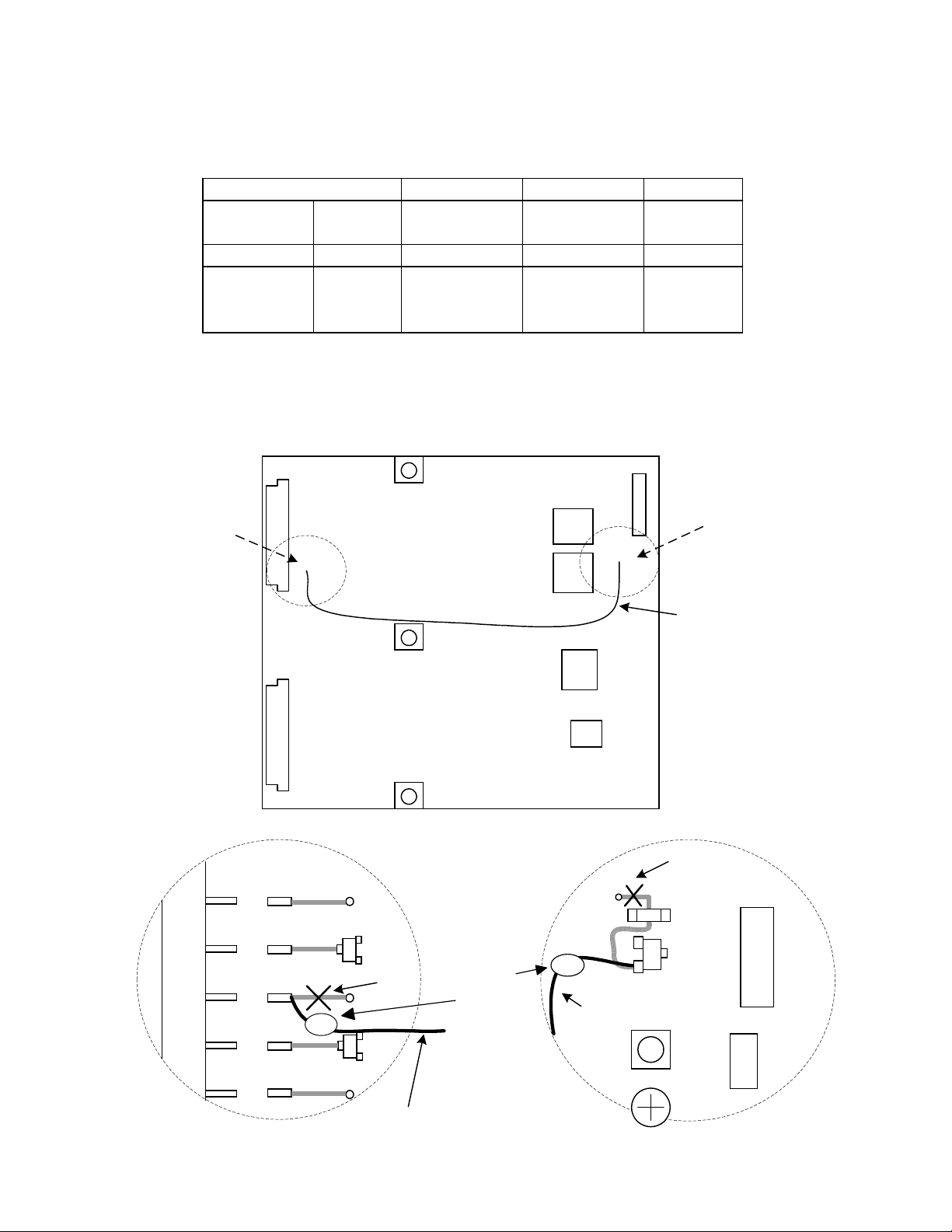

MODIFICATION OF GND PATTERN IN MAIN BOARD ASSY

<CAUSE>

CUT THE GND PATTERN OF C98 - LEAD AS ABOVE. ADD A LEAD WIRE TO CONNECT C98 - LEAD WITH J33(GND) AS ABOVE.

DETAIL OF CHANGE(S) REASON FOR CHANGES

X

TO REDUCE HUM NOISE IN SIGNAL LINE COMING FROM POWER SUPPLY LINE

RESIDUAL NOISE LEVEL IS HIGH IN SIGNAL LINE.

SINCE THE CAPACITOR(C98) OF POWER SUPPLY LINE IS GROUNDED TO THE GND OF SIGNAL LINE, HUM NOISE IS CREATED IN SIGNAL LINE DUE TO THE RIPPLE FROM POWER SUPPLY LINE.

CUT THE PATTERN

ADD A LEAD WIRE

MAIN BOARD ASSY(MWX3029)

SERVICE MANUAL MODEL :MA-99 S/M NO.:TRT1055

PAGE :7

SAME AS COUNTERACTION IN FACTORY

Ref. CURRENT PARTS

#

SYMBOL/DESCRIPTION

*

PART NUMBER

PIONEER ELECTRONIC CORPORATION

Issued by:

Y.IMAMIZU, MANAGER HE Engineering Section Service Dep.

CO DE

NEW PARTS

SYMBOL/DESCRIPTIONPART NUMBER

FA3Y017 TS 120

SERVICE INFORMATION

Date:

Jan. 17, 2001

No.: SI-D01029 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW/1 A 001281- ARP3075 PDP-502MXE/YVLDK/1 A 000741- ARP3075 PDP-505HD/KUC/1 A 000141- ARP3080

# CHANGE

DETAIL

REASON

1 Add the ferrite core (L0006,L0007)

1 To improve the picture noise

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - ATX1041 L0006,L0007

PIONEER CORPORATION

Memo: AA-D2424 KT, 9

SPC55-188 MTV01-083

Classify:

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1;Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

SERVICE INFORMATION

Date:

Jan. 17, 2001

No.: SI-D01028 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-505HD/KUC A R/C

# CHANGE

DETAIL

REASON

1 Change the parts in DIGITAL Assy.

1 To prevent the character from changing.

Please refer to ARP3044

IC2257; page 13

C2281-C2284; page 14

C2259-C2262; page 3

Ref CURRENT PARTS CO NEW PARTS

*#

A 1 IC2257 TC74VHCT541AFT2 TC74VHC541FT IC2257

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 C2281,C2282, CCSQCH221J50 2 CKSQYB222K50 C2281,C2282,

C2283,C2284 C2283,C2284

A 1 C2259,C2260, CCSRCH220J50 CKSQYB152K50 C2259,C2260,

C2261,C2262, C2261,C2262,

PIONEER CORPORATION

Memo: AA-D2531 KT, 9

SPC55-332

Classify:

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1;Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

SERVICE INFORMATION

Date:

Jan. 17, 2001

No.: SI-D01027 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDU-50WX1/TUCYV A R/C ARP3072 6,7

# CHANGE

DETAIL

REASON

1 Change and add the parts.

1 To change the thickness of PROTECT PANEL Assy.

(To improve the performance.)

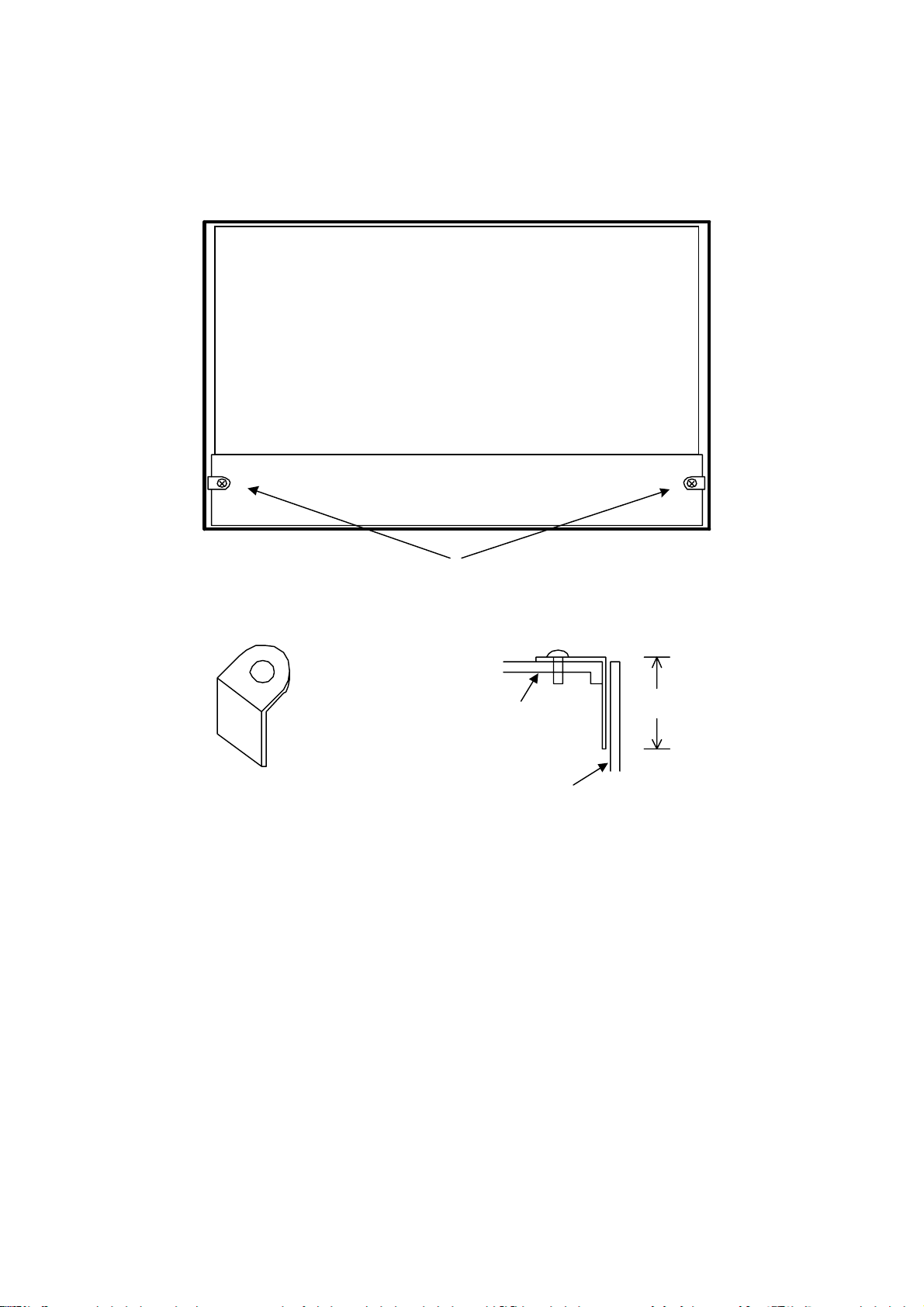

Protect Panel Assy (AMR3162) Front View

Holder Gasket (ANK1677) Front

Protect Panel Assy (AMR3162) Side View

Front

Ref CURRENT PARTS CO NEW PARTS

*#

A 1 Protect Panel Assy AMR3162 2 AMR3230 Protect Panel Assy A 1 Added - ANK1677 Holder Gasket

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1;Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

Memo: AA-D2502 KT, 70

SPC55-313

Classify:

SERVICE INFORMATION

Date:

Mar. 13,2001

No.: SI-D01026 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V400/LU/CA A Running Change ARP2954 80 PDP-V401/LU/CA A Running Change ARP2981 80 PDP-V402/LUBW/CA A Running Change ARP3034 100 PDP-V402/LUBW/CA/1 A Running Change ARP3081 78 PDP-V402/LUCBW A Running Change ARP3034 100

DETAIL

# CHANGE

1 Change of resistors in MAIN POWER ASSY

REASON

1 To improve performance

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R3107 RD1/2PM473J - RS1LMF153J R3107 A 1 R3108 RD1/2PM563J - RS1LMF153J R3108

PIONEER CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER BS 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

Memo: SP C55-299

1;Changeable from old to new.

5:Do not use old parts

AA-D2507

Classify: NM-70

SERVICE INFORMATION

Date:

Mar.19,2001

No.: SI-D01025 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V402EA/YVLDK A Running Change ARP3076 13 22

DETAIL

# CHANGE

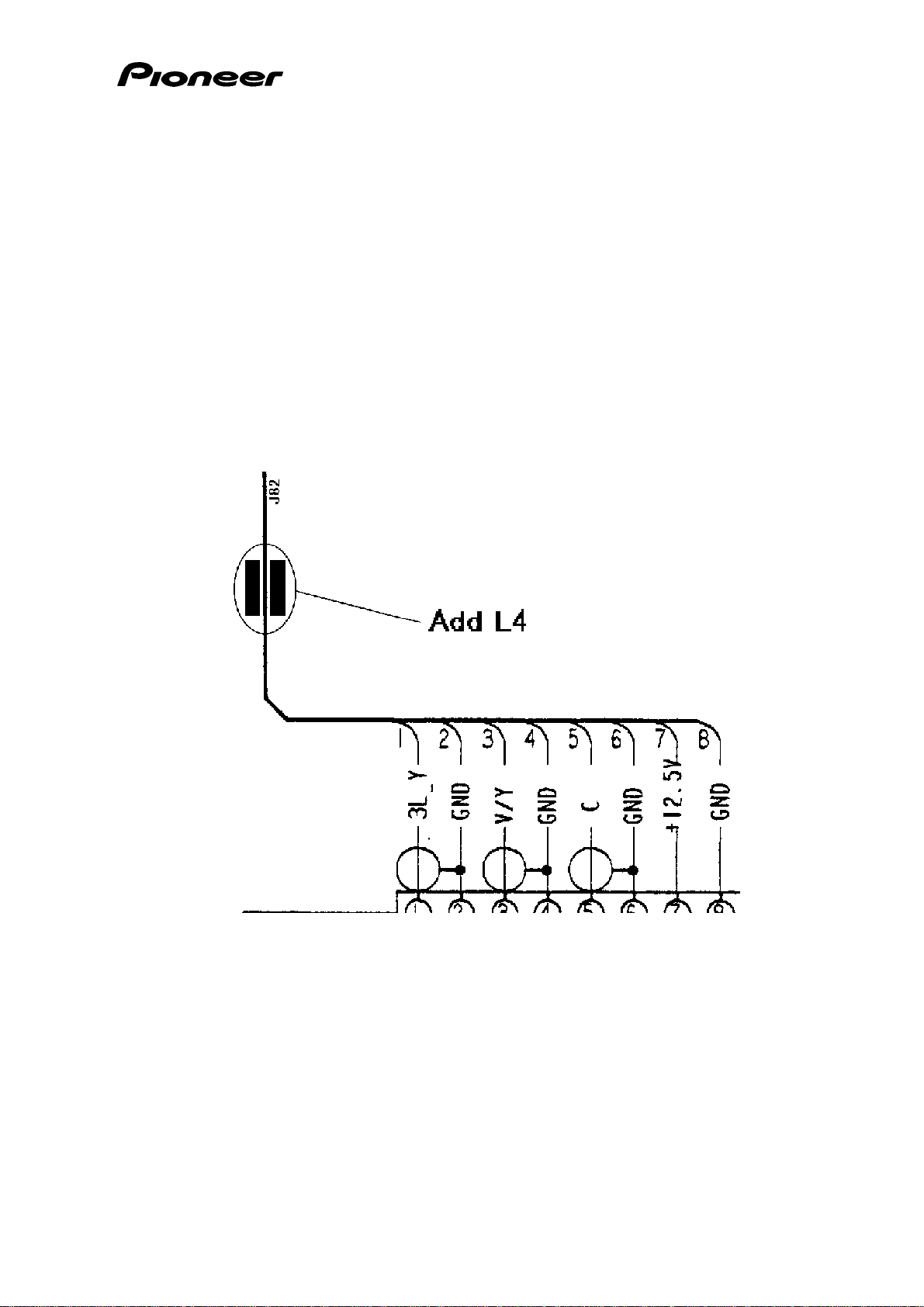

1 Addition of Ferrite Core

2 Change from Wire Saddle to Ferrite Core Holder

REASON

1,2 To improve the performance

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - ATX1037 L4 A 2 Wire Saddle AEC1745 1 AEC1818 Ferrite Core Holder

PIONEER CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER BS 2:Not Interchangeable an all.

Service Engineering Section 3:Interchangeable in both ways Service Division

Memo: SP C55-271

1;Changeable from old to new.

5:Do not use old parts

AA-D2501

Classify: NM-70

`

SERVICE INFORMATION

Date:

Apr.6, 2001

No.: SI-D01024A-G ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-V402/LUBW/CA/1 ALL

SYMPTOM

# DETAIL

PDP repeats on and off in the state that a rear fan is not connected.

CAUSE

In Main Power Assy (ARW1077), noises enter into the Power ON/OFF signal coming

from Microcomputer, and it causes malfunction.

SERVICE

Remove the cathodic side of D3802, and add another diode (HSS104-02) to D3802 in

series

REMEDY

in Main Power Assy (AWR1077).

*Please refer to Figure 1.

FACTORY COUNTER

-MEASURE

Same as Service Remedy

D3802

HSS104-02 (New added diode)

Please discard the previous Service Information, SI-D01024-G, dated on Mar. 9, 2001

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER 2:Not Interchangeable an all.

BS Service Administration Group 3:Interchangeable in both ways BS Service Division

1:Changeable from old to new.

5:Do not use old parts

SYMBOL/DESCRIPTION

Memo: MTV01- 075

Classify: NM-7

( 2/2 )

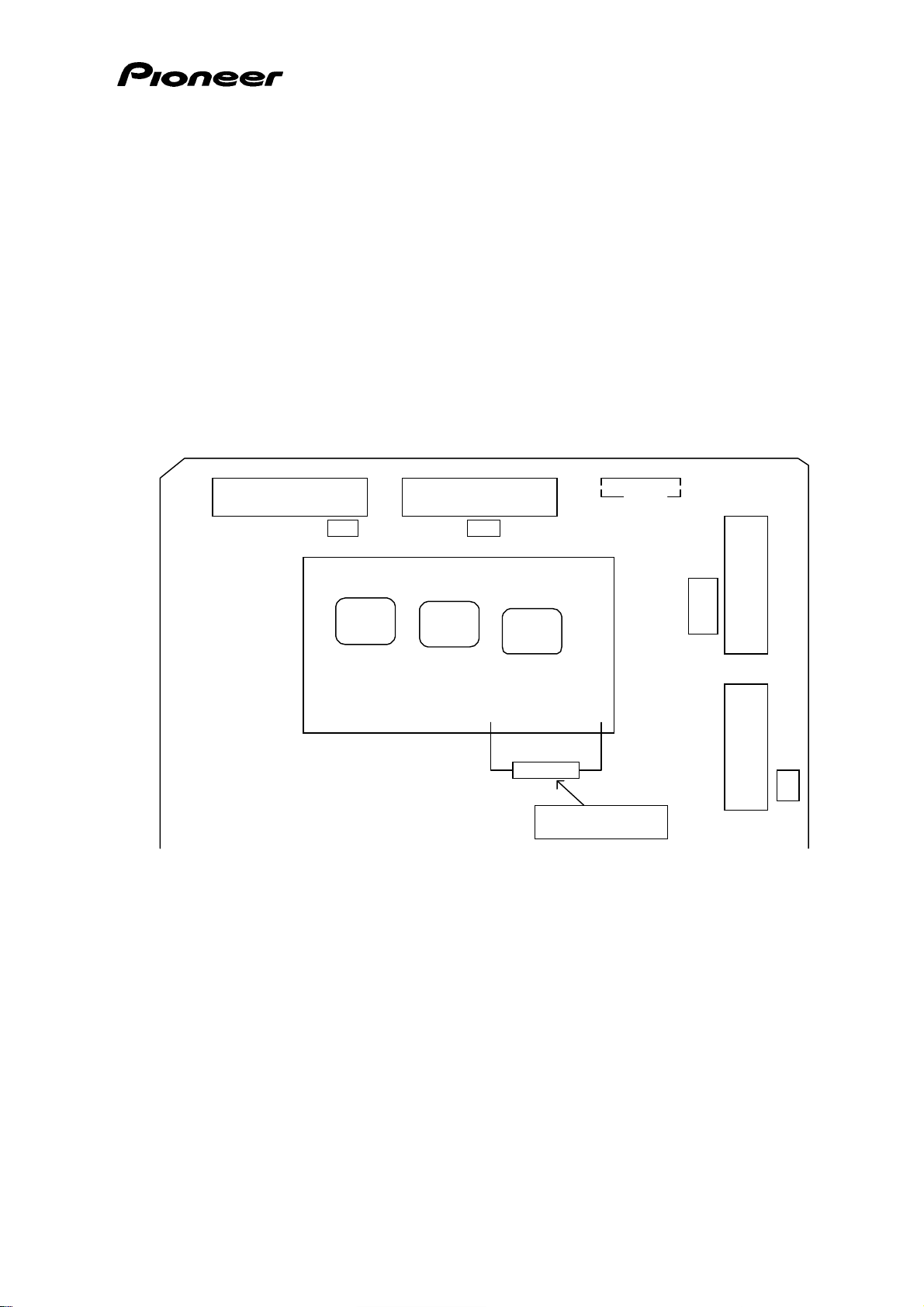

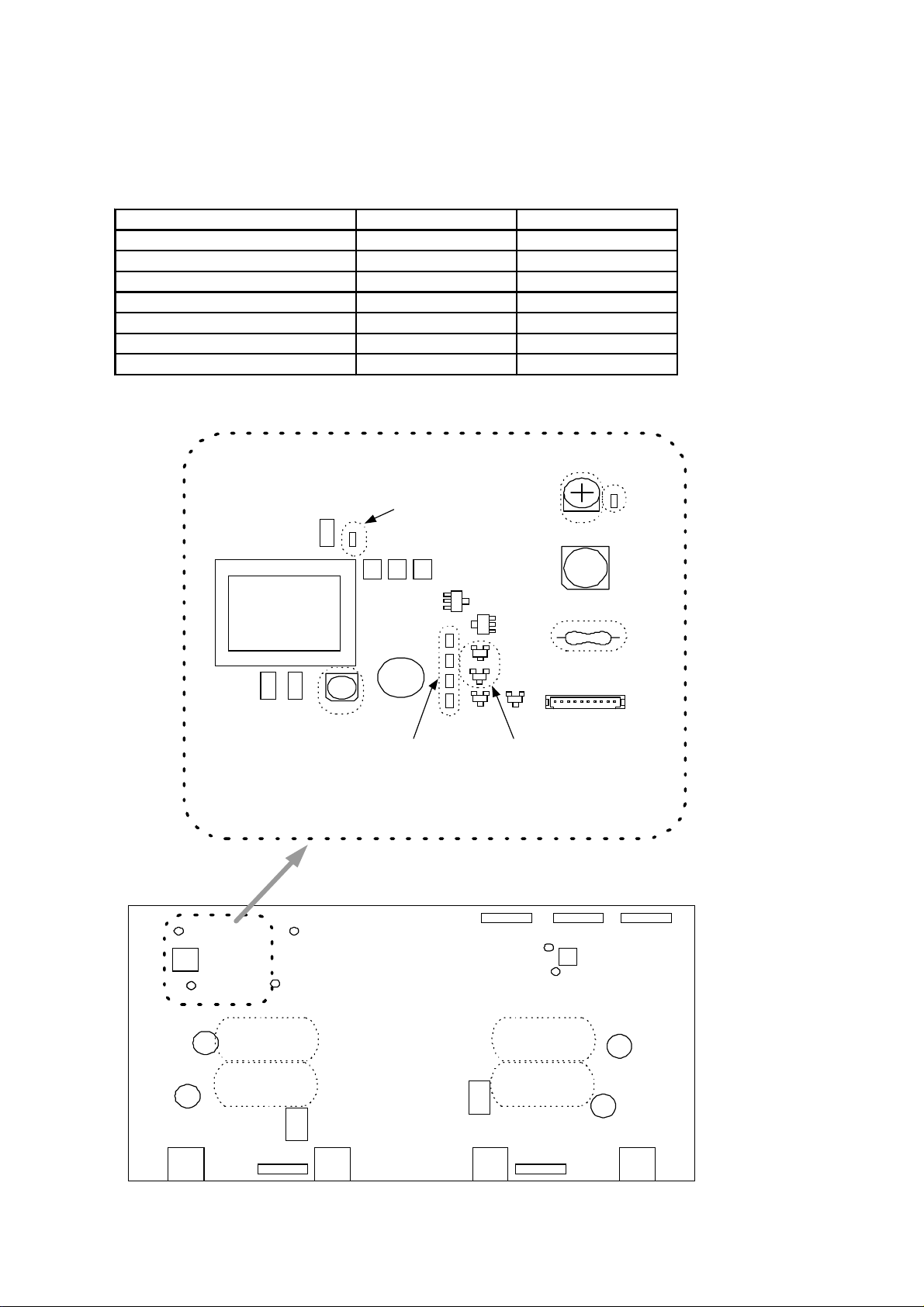

MAINPOWERASSY(AWR1077)PART'SVIEW

D3802

SILICONBOND

(GYA1011)

Q3802 R3804

AddDIODE

(HSS104‑02)

Q3803

R3807 R3808

RY3001

`

SERVICE INFORMATION

Date:

Jan 26, 2001

No.: SI-D01023-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V402EA/YVLDK A 1541-

# DETAIL

SYMPTOM

1 Only when the incoming signal is PAL, Synchronism sometimes; two or three times during 30 minutes, falls into disorder in a moment.

CAUSE

1 Noise is easy to obstruct the wave at the beginning due to the heavy load on the communication line in u-com.

SERVICE REMEDY

Please change R7174 and R7175, from 8.2kohm to 2.7kohm.

FACTORY COUNTER

-MEASURE

Same as the service remedy

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R7174, R7175 RS1/16S822J RS1/16S272J R7174, R7175

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER 2:Not Interchangeable an all.

BS Service Administration Group 3:Interchangeable in both ways BS Service Division

1:Changeable from old to new.

5:Do not use old parts

Memo: MTV01-080

SPC55-333 AA-D3013

Classify: NM-6

`

SERVICE INFORMATION

Date:

Aug.7,2001

No.: SI-D01023A-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V402EA/YVLDK A 1541-

SYMPTOM

# DETAIL

1 Only when the incoming signal is PAL, Synchronism sometimes; two or three times

during 30 minutes, falls into disorder in a moment.

CAUSE

1 Noise is easy to obstruct the wave at the beginning due to the heavy load on the

communication line in u-com.

SERVICE REMEDY

Please change R7174 and R7175, from 8.2kohm to 2.7kohm.

FACTORY COUNTER

-MEASURE

Same as the service remedy

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER

SYMBOL/DESCRIPTION

A 1 R7174, R7175 RS1/16S822J - RS1/16S272J R7174, R7175

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER 2:Not Interchangeable an all.

BS Service Administration Group 3:Interchangeable in both ways BS Service Division

1:Changeable from old to new.

5:Do not use old parts

Memo: MTV01-080 SPC55-333 AA-D3013

Classify: NM-6

MODEL No. S/M No. PG MODEL No. S/M No. PG

PDP-502MX/LUCBW ARP3037 42 PDP-502MXE/YVLDK ARP3037 42

CORRECTION OF SERVICE MANUAL

Date:

Please correct your service manual

Jun. 7, 2001

No.: SI-D01022 ( 1/1 )

6. ADJUSTMENT

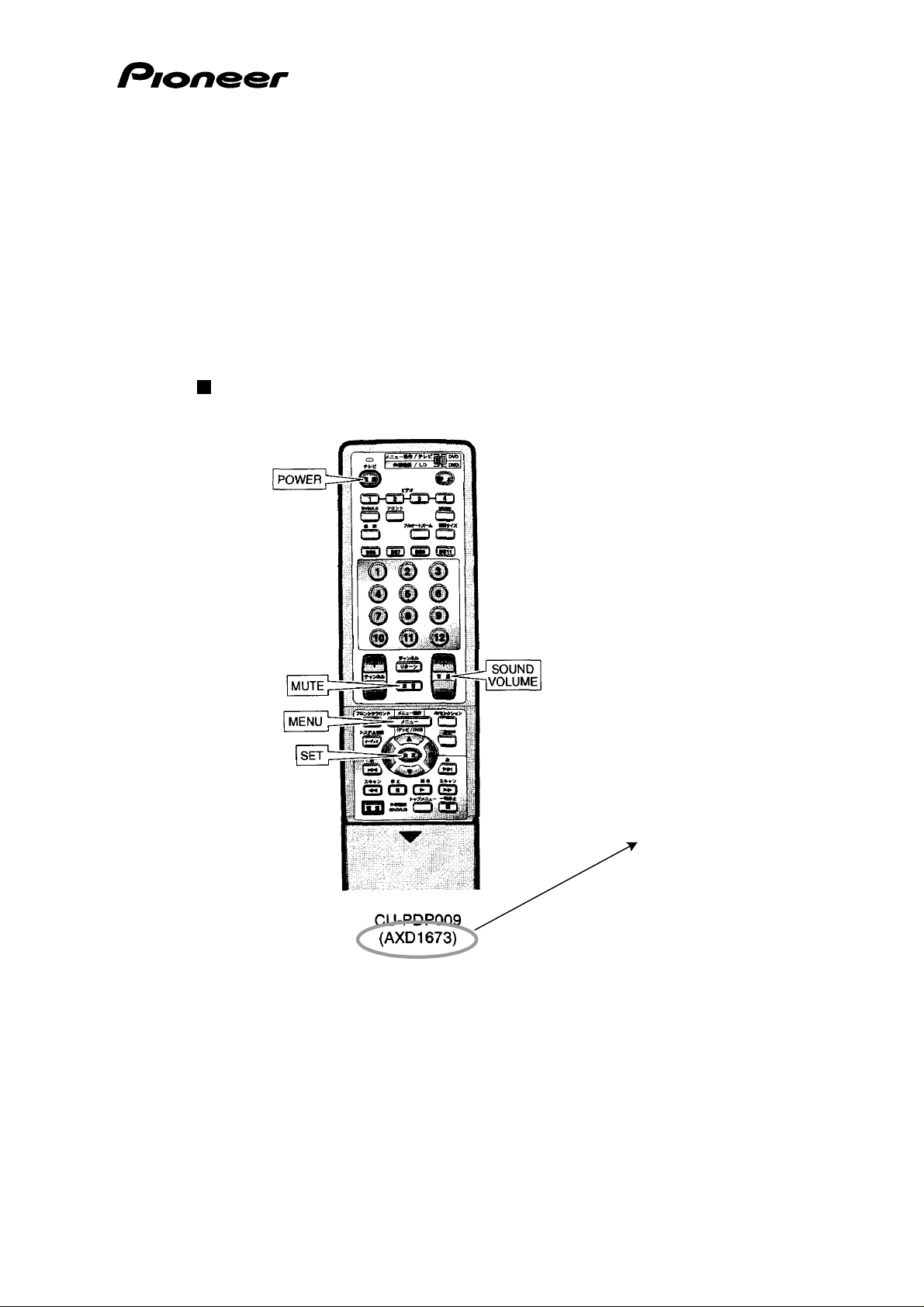

SERVICE FACTORY MODE

PIONEER CORPORATION

K.NOHARA ,MANAGER HE

Service Engineering Section Service Division

(AXD1445)

Memo: AN 70

`

SERVICE INFORMATION

Date:

Dec.19 ,2000

No.: SI-D01021-G ( 1/3 )

MODEL No. * SER.No. S/M No. PG

PRO-700HD/KUXC/CA A --- ARP3013 SD-641HD5/KUXC/CA B --- ARP3031 64LHP5000 (for SHARP) C --64LHP4000 (for SHARP) D ---

# DETAIL

SYMPTOM

1 Screen distorts due to out of synchronization when changing input video from NTSC

images ( 15.7kHz ) to progressive images ( 31.5kHz ).

CAUSE

SERVICE

1 Input signal frequency cannot be discriminated on PTV.

1 Please refer to page 2 and 3.

REMEDY

FACTORY COUNTER

Service remedy only There will be no more production for this model.

-MEASURE

Please refer to the following pages.

Note: When picture is disturbed, select the other function and reselect the function that is connecting to DVD and then it operates normally.

Ref CURRENT PARTS CO NEW PARTS

*#

A 1 Tuner u-com Assy AWV1715 AWV1881 Tuner u-com Assy A 1 Tuner u-com Assy AWV1744 AWV1881 Tuner u-com Assy B 1 Tuner u-com Assy AWV1762 AWV1884 Tuner u-com Assy C 1 Tuner u-com Assy AWV1723 AWV1882 Tuner u-com Assy

AC 1 IC2202 PD5463C, C9 PD5463D9 IC2202 AD 1 IC2202 PD5463B PD5463D9 IC2202 B 1 IC2202 PD5542A PD5542B9 IC2202 A 1 Sub video Assy AWV1718 AWV1745 Sub video Assy C 1 Sub video Assy AWV1726 AWV1745 Sub video Assy

Y.YAMAMOTO ,MANAGER HE

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

1 Tuner u-com Assy AWV1755 AWV1883 Tuner u-com Assy

PIONEER CORPORATION

NOTE:PARTS CODE

Memo: AN 69

1:Changeable from old to new. 2:Not Interchangeable an all.

Service Engineering Section Service Division

3:Interchangeable in both ways 5:Do not use old parts

Classify:

For Tuner u-com Assy:

Replace IC2202 with new one in accordance with the following list, and delete C2202. Location of this IC and capacitor is as illustrated below. (There are 2 kinds of new IC.)

Old and New one for Tuner u-com assy,

OLD

ASSY

AWV1881 AWV1881 AWV1884 AWV1882 AWV1883

PRO-700HD

SD-641HD5 64LHP5000 64LHP4000

ASSY sub u-com IC

AWV1715 AWV1744 AWV1762 AWV1723 AWV1755

PD5463C(9) PD5463B PD5542A PD5463C PD5463B

Notes: In case new Assy is available, it is possible for you to replace old Assy with new Assy. New Assy is basically the same as old Assy except for the IC replaced and capacitor deleted.

NEW

sub u-com IC

PD5463D9 PD5463D9 PD5542B9 PD5463D9 PD5463D9

( 2/3 )

IC2202

PD5463 or PD5542

C2202

IC2203

IC2201

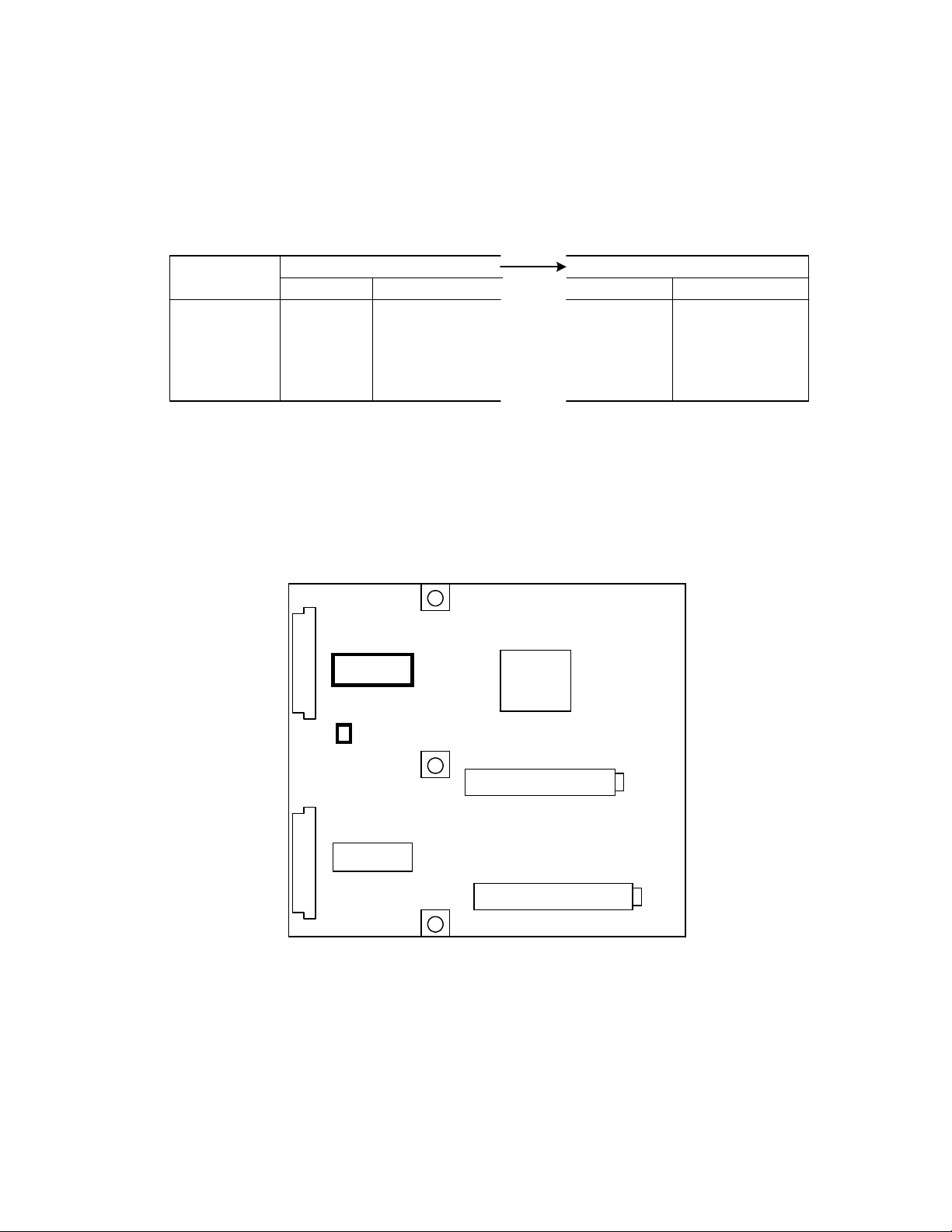

Tuner u-com Assy ( parts mount side )

For Sub Video Assy:

( 3/3 )

* Remove the shield case For PRO-700HD (Serial 1 - 1541) and 64LHP5000 (Serial 1 - 280), cut 2 pattern lines and add a jumper line as illustrated below: For others models or other serial number product, modification is not necessary on this sub-video Assy.

NEW

AWV1745

PRO-700HD

SD-641HD5 64LHP5000

64LHP4000

Serial No.

1-1541 1542ALL 1-280 281ALL

OLD MEASURE

AWV1718 AWV1745 AWV1745 AWV1726-A AWV1726-B AWV1745

necessary non non necessary non non

Notes: In case new Assy is available, it is possible for you to replace old Assy with new Assy. New Assy is basically the same as old Assy except for the above patterns and jumper cable. As to jumper cable, please use normal type and put it on the board as illustrated.

*1

*2

ADD jumper cable

Sub video Assy ( parts mount side )

CUT

R3883

R3884

R3885

R3872

R3887

*1 *2

Q3833

CUT

Q3841

Add jumper cable

Silicone bond (GYA1011)

Add jumper cable

C3828

Q3826

VR3001

IC3802

`

SERVICE INFORMATION

Date:

Dec.25, 2000

No.: SI-D01020-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-502MXE/YVLDK/1 A ----

# DETAIL

SYMPTOM

1 When the picture size is zoom mode, the picture darkens because still picture detection

works even if the moving picture is displayed.

CAUSE

SERVICE

1 Microcomputer bug.

1 Change the U-COM Assy (AWZ6520) under the below serial numbers.

REMEDY

FACTORY

Service remedy only

COUNTER

-MEASURE

Applicable Serial No.

PDP-502MXE/YVLDK/1 : Q'ty 26

UJSS001932WQ UJSS002005WQ UJSS002008WQ UJSS002009WQ UJSS002010WQ UJSS002012WQ UJSS002013WQ UJSS002052WQ

UJSS002055WQ UJSS002056WQ UJSS002057WQ UJSS002058WQ UJSS002061WQ UJSS002508WQ UJSS002509WQ UJSS002510WQ

UJSS002511WQ UJSS002512WQ UJSS002513WQ UJSS002514WQ UJSS002515WQ UJSS002516WQ UJSS002517WQ UJSS002518WQ

UJSS002519WQ UJSS002520WQ

NOTE: U-COM Assy's part number does not changed. The stock parts in WPC have modified.

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1:Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

Memo: MTV01-067 AN 70

Classify:

`

SERVICE INFORMATION

Date:

Jan 25, 2001

No.: SI-D01019-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V401/LU/CA ALL PDP-V401E/WYVLD ALL

# DETAIL

SYMPTOM

* A picture turns yellow / A cell defect appears at a part of a panel after 20,000 hours used.

CAUSE

* A radiative characteristic of a cell is reduced by Long Term Panel Drive. This happens only on a panel of the first generation.

SERVICE REMEDY

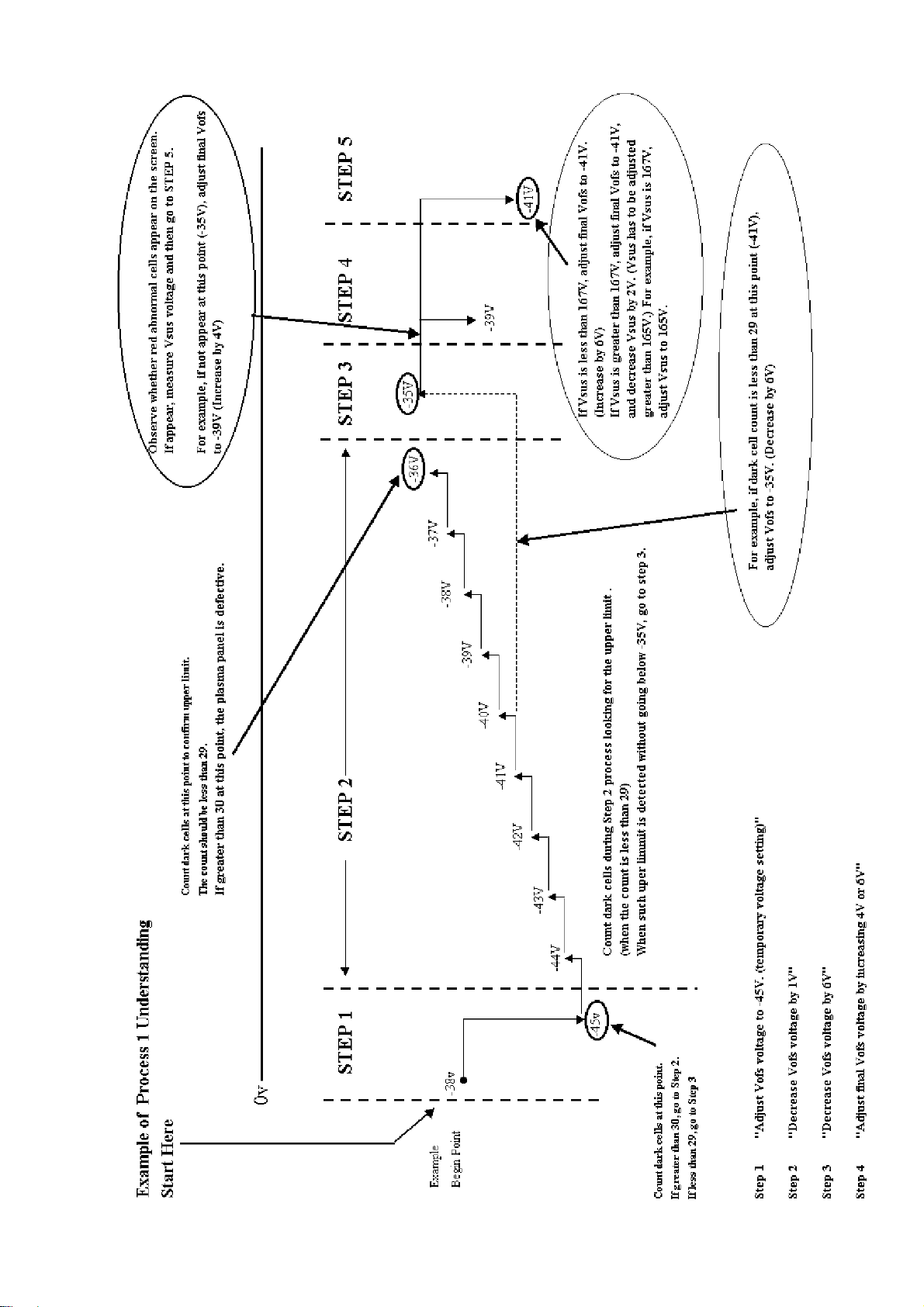

* Adjust Vofs from 140V to 150V. * Adjust the voltage of VR3601 between TP3601 and TP3602 in Main Power Assy; AWR1077.

FACTORY COUNTER

-MEASURE

* Only Service Remedy

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

M.EGASHIRA ,MANAGER 2:Not Interchangeable an all.

BS Service Administration Group 3:Interchangeable in both ways BS Service Division

1:Changeable from old to new.

5:Do not use old parts

Memo: MTV01-062

Classify: NM-70

SERVICE INFORMATION

Date:

MODEL No. * SER.No. S/M No. PG

PDP-V501X/KUC A ALL ARP2997 PDP-501MX/KUC A ALL ARP2997 PDP-501MX/TYVL A ALL ARP3011 PDP-501MX/TB A ALL ARP3012

# CHANGE

DETAIL

REASON

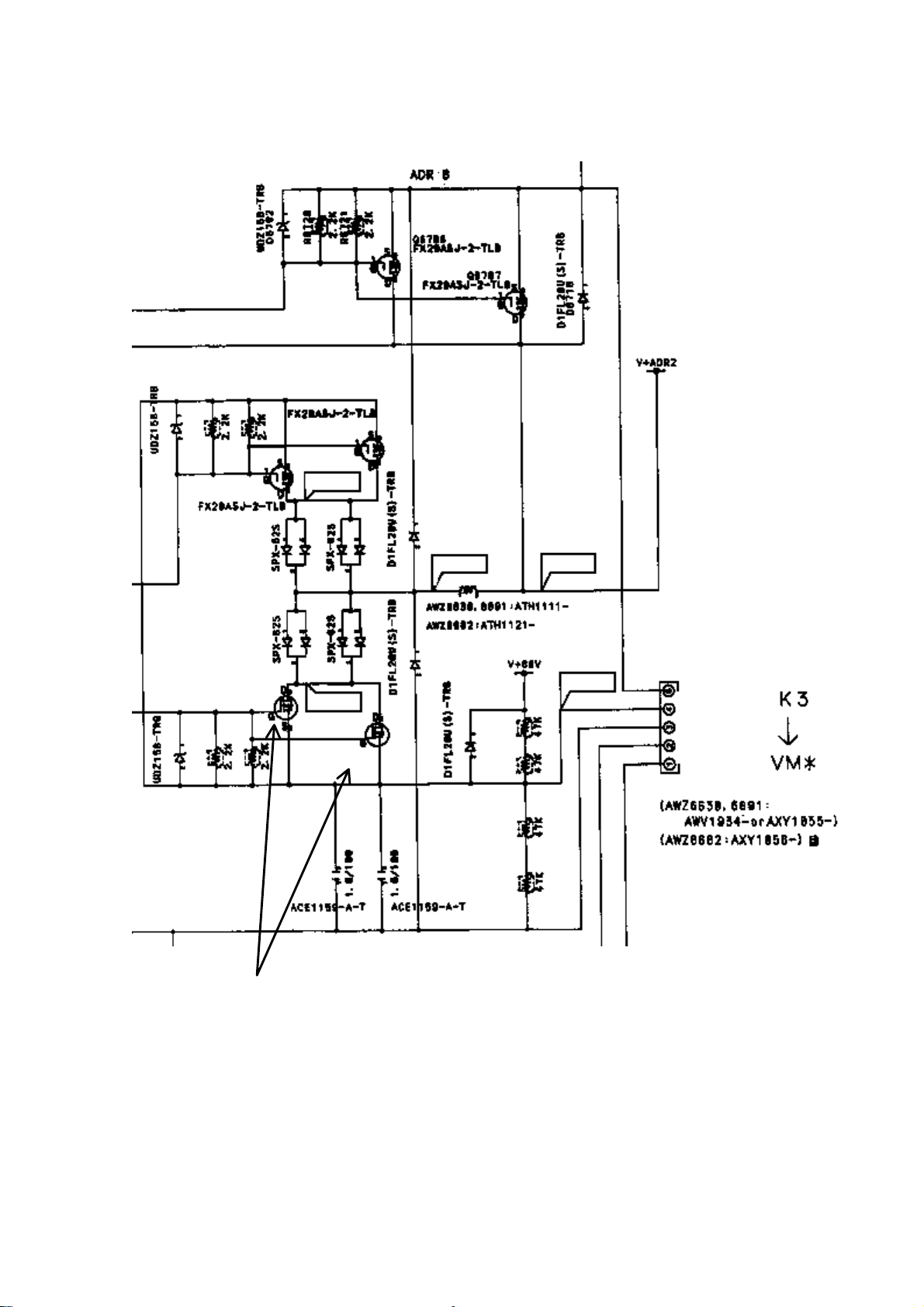

1 When one of the following FET in Y DRIVE A Assy(AWZ6321) or Y DRIVE B Assy

(AWZ6322) have to be changed, pair FET should be replaced with new part at the same time.

1 When one of FET is defective, the other is also damaged.

Q3005(FS14UM)

PAIR

Jan.11, 2001

No.: SI-D01017 ( 1/1 )

Q3006(2SK2255)

Q3011(FS14UM)

PAIR

Q3012(2SK2255)

* Parts Number is not changed.

Please be sure to replace pair parts. Otherwise the product is out of order because the other part is also damaged.

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1;Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

Memo: MTV01-060 KT, 70

Classify:

`

SERVICE INFORMATION

Date:

Dec.15,2000

No.: SI-D01016-G ( 1/2 )

MODEL No. * SER.No. S/M No. PG

See to following page

# DETAIL

SYMPTOM

1 The peripheral of PDP is affected by PDP(ex. the sound of radio becomes noisy, the slant

striped noise appears on the picture of TV etc.).

2 The sub field noise (sland striped noise) appears on the picture of PDP.

CAUSE

1.2 Increase of radiation. It may occurs the above symptom if the shield gusket is not right place when removing rear panel.

SERVICE

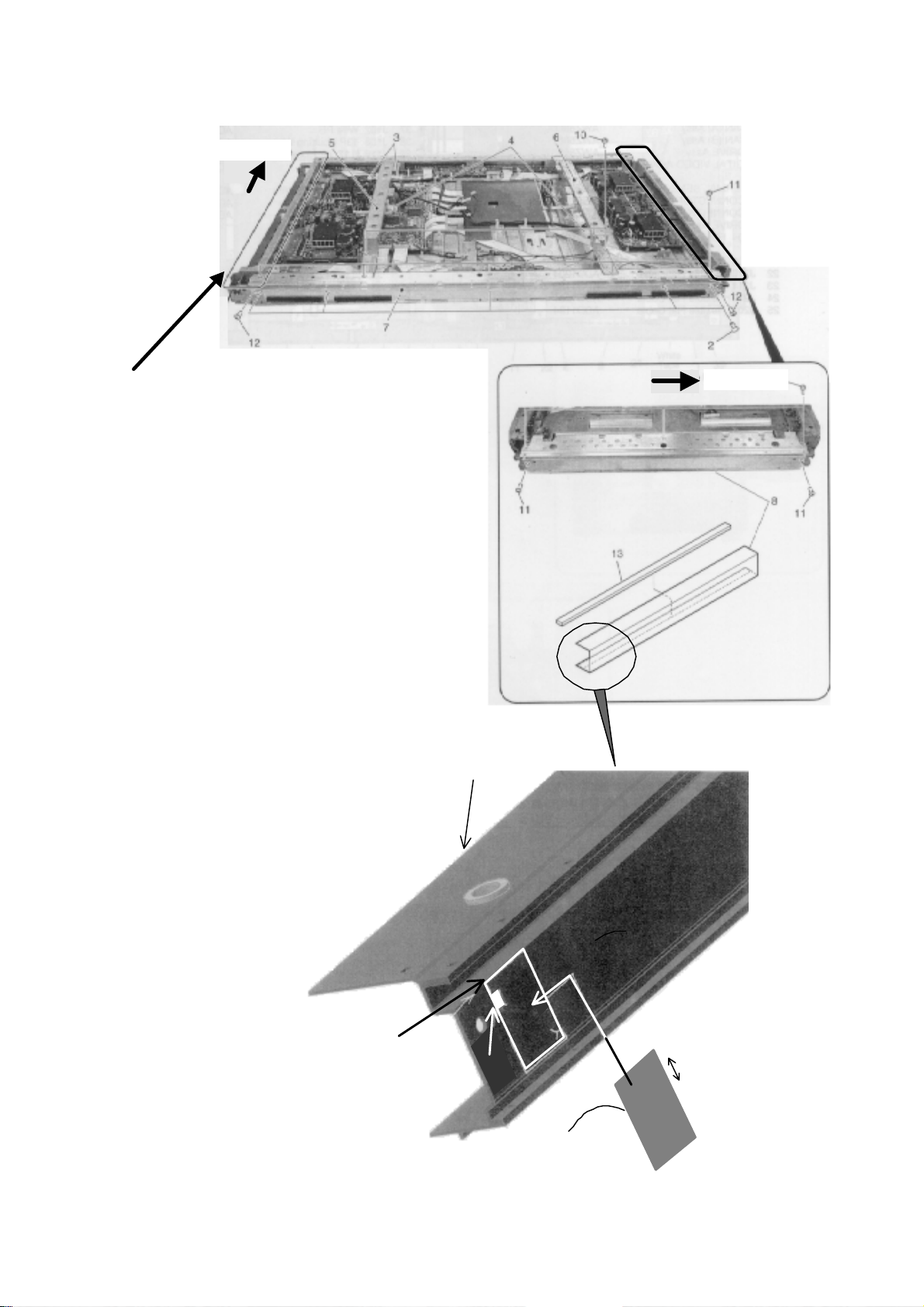

1.2 Before set the rear panel, check the position of shield guscket.

REMEDY

FACTORY

Only service remedy.

COUNTER

-MEASURE

Ref CURRENT PARTS CO NEW PARTS

*#

M.EGASHIRA ,MANAGER

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

Memo: MTV01-

053

1:Changeable from old to new. 2:Not Interchangeable an all.

BS Service Administration Group BS Service Division

3:Interchangeable in both ways 5:Do not use old parts

Classify:

( 2/2 )

MODEL No. * SER.No. S/M No. PG

PDP-V400/LU/CA A ALL PDP-V400E/WYO A ALL PDP-V401/LU/CA A ALL PDP-V401E/WYVLD A ALL PDP-V402/LUBW/CA A ALL PDP-V402E/WYVLDK A ALL

`

SERVICE INFORMATION

Date:

Dec.13,2000

No.: SI-D01015-G ( 1/2 )

MODEL No. * SER.No. S/M No. PG

See to following page

# DETAIL

SYMPTOM

CAUSE

SERVICE

A Subfield noise (diagonal pattern noise is on a picture)

A Drive noise comes into the small level signal lines.

Change of a screw from PMB30P080FZK to ABA1283.

REMEDY

FACTORY

Same as the service remedy.

COUNTER

-MEASURE

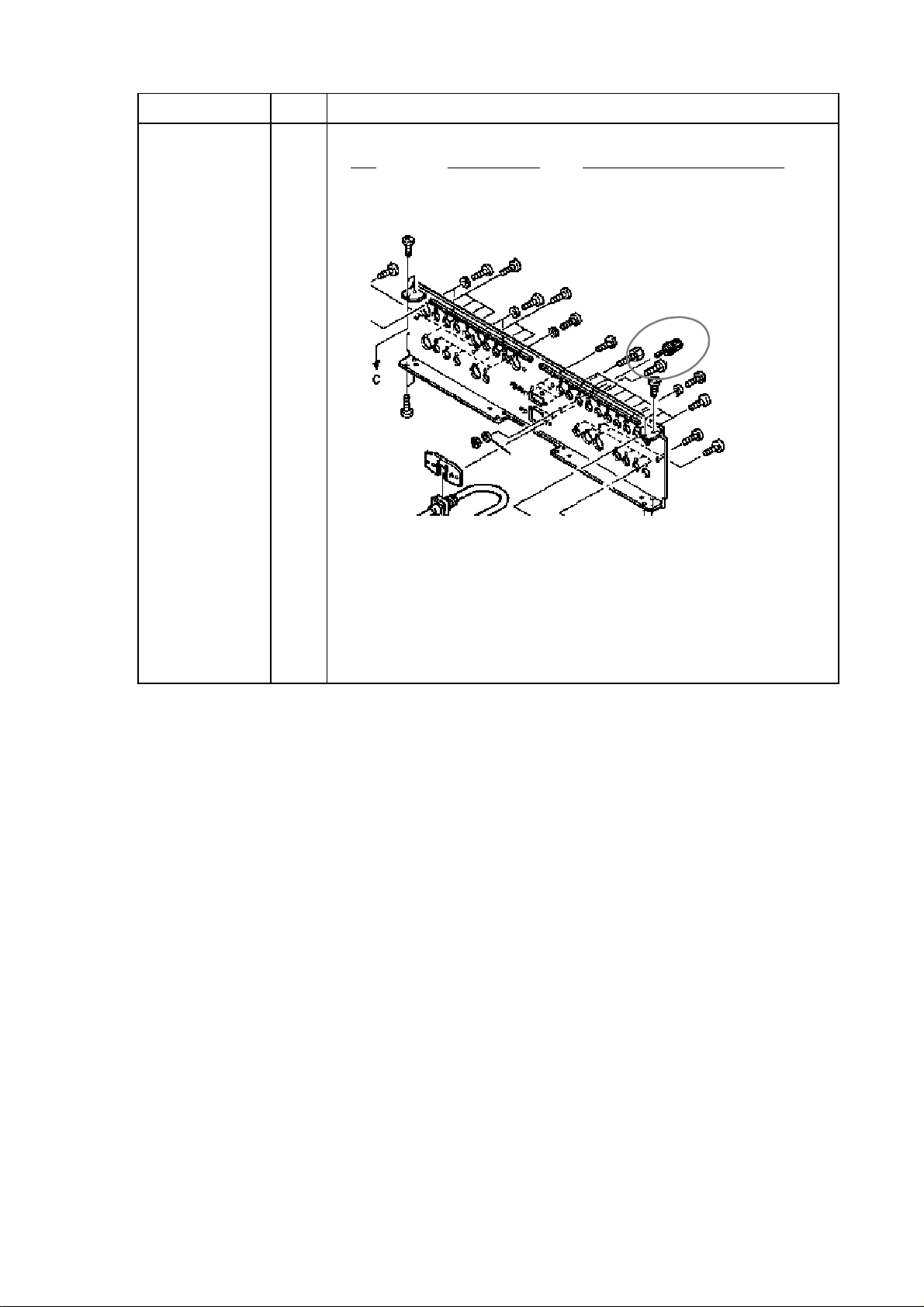

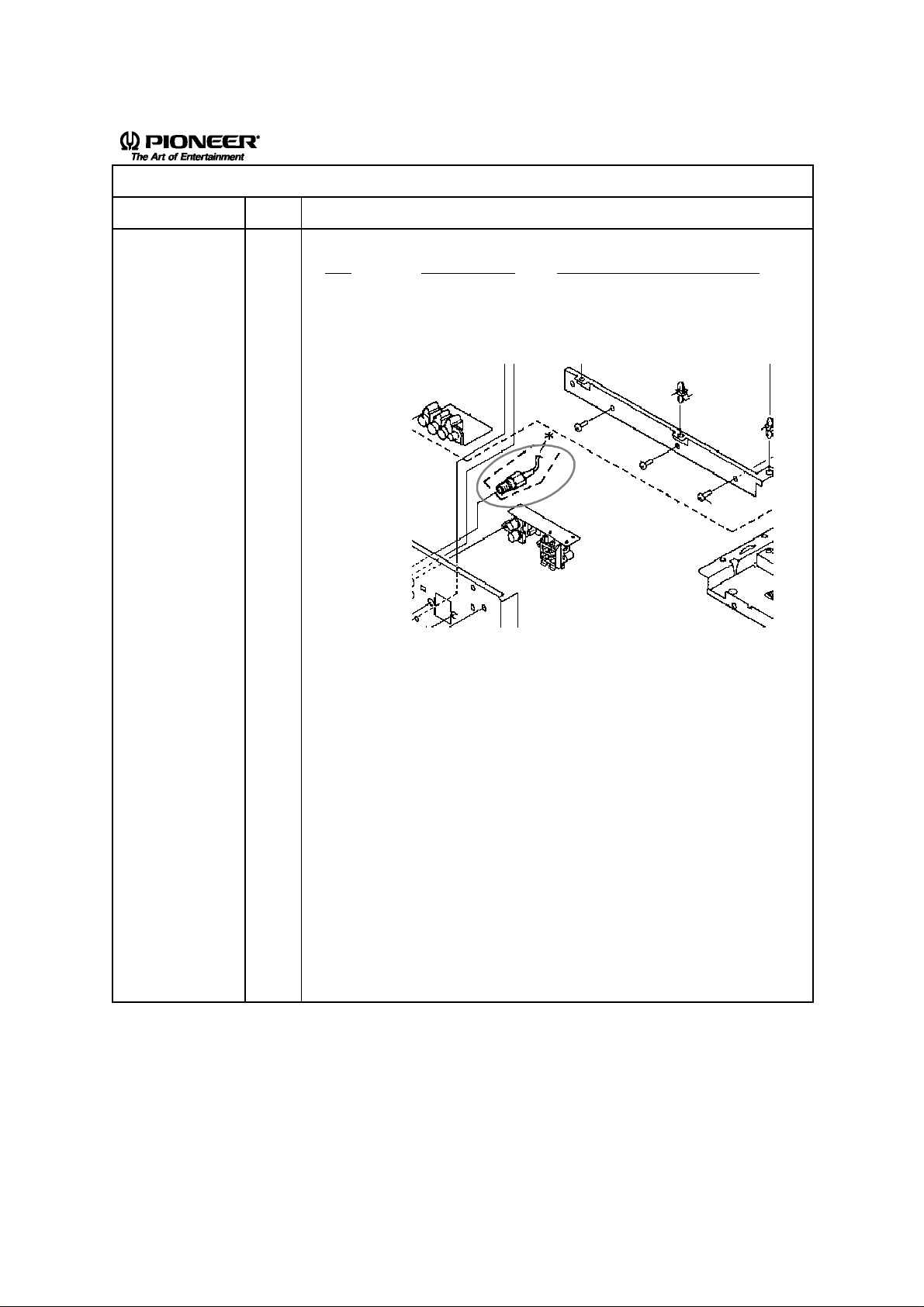

Change this screw

rear view

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER SERVICE NETWORK CORPORATION

NOTE:PARTS CODE

T. Nakagawa ,MANAGER

DP Technical Support Group

Service Support Division

1:Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

Memo: MTV01-

052

Classify:

( 2/2 )

MODEL No. * SER.No. S/M No. PG

PDP-V400/LU/CA A PDP-V400E/WYO A PDP-V401/LU/CA A PDP-V401E/WYVLD A PDP-V402/LUBW/CA A PDP-V402E/WYVLDK A

`

SERVICE INFORMATION

Date:

Nov.27,2000

No.: SI-D01014-G ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A ALL PDP-502MXE/YVLDK B ALL PDP-505HD/KUC C ALL

# DETAIL

SYMPTOM

1 Picture sometimes mutes or freezes, horizontal short line noise appears.

Power Down

CAUSE

1 Poor contact of the connection between analog video and digital video assy.

In S/M: A33(CN2901)-D20(CN3403),A34(CN2902)-D21(CN3404)

SERVICE

1 Correspond analog video kit according to the table below.

REMEDY

FACTORY

Service Remedy only

COUNTER

-MEASURE

changed block 1 2 3 4 5 6 PDP-502MX serial No. 1-300 300-750 751-2900 2901-3656 3657-4285 4286 analog(mother) AWV1769 <-- <-- <-- <-- AWV1832 analog(separated) AWZ6441 <-- <-- <-- <-- AWZ6487 PDP-502MXE serial No. 1-50 51-900 901-3225 3226-3599 3600-4625 4626 analog(mother) AWV1790 <-- <-- <-- <-- AWV1833 analog(separated) AWZ6448 <-- <-- <-- <-- AWZ6488 PDP-505HD serial No. 1-150 - 151-950 951-1250 1251-1634 1635 analog(mother) AWV1769 <-- <-- <-- <-- AWV1836 analog(separated) AWZ6441 <-- <-- <-- <-- AWZ6490 All Models digital AWV1815 <-- <-- <-- <-- AWV1838 PDP-502MX Service

Remedy

PDP-502MXE Service

Remedy

PDP-505HD Service

Remedy

When analog video is changed

When digital video is changed

When analog video is changed

When digital video is changed

When analog video is changed

When digital video is changed

GXX1182 GXX1182 GXX1182 GXX1182 AWV1815 AWV1815 AWV1815 AWV1815 AWV1838 GXX1183 GXX1183 GXX1183 GXX1183 AWV1815 AWV1815 AWV1815 AWV1815 AWV1838 GXX1185 GXX1185 GXX1185 GXX1185 AWV1815 AWV1815 AWV1815 AWV1815 AWV1838

(refer to 2/2 NOTE1)

AWV1832(AWZ6487)

AWV1833(AWZ6488)

AWV1836(AWZ6490)

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Add - GXX1182 Analog Video Kit B 1 Add - GXX1183 Analog Video Kit C 1 Add - GXX1185 Analog Video Kit

PIONEER CORPORATION

NOTE:PARTS CODE

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

Service Engineering Section Service Division

1:Changeable from old to new.

3:Interchangeable in both ways 5:Do not use old parts

Memo: MTV01-046 AN 69

Classify:

< NOTE1 >

( 2/2 )

Changed point in serial block "4" and "5" have two kind of digital video Assy with different position of resistors. Correspond according to following when coaxial cable is changed.

/ Coaxial cables are used by following combination according to connecting digital video. / Remove resistors of R3475,R3476,R3477 and place them at location of R3405,R3407,R3408 when it is necessary.

combination of Assy and connectors : ANP1931/1932 are part number of substrate.

analog video digital video AWV1815(ANP1932)

(ANP1931) A-F G(R3475,3476,3477) G(R3405,3407,3408)

suffix A-F no change exchange resistors ADE1182(2pcs)

(ADE1175/1182)

suffix G ADE1180(2pcs) no change no change

(ADE1181(2pcs)+ADX2577) (ADE1181/1180)

R3405,3407,3408,3475,3476,3477 are same all resistor(10 ohms)

/ position of R3475,3476,3477 and R3405,3407,3408 (fig,1)

ADE1180 or ADE1182

ADX2577

combination list of analog video kit

cable ADE1180(2pcs)

analog video

PDP-502MX/LUCBW AWZ6441(ANP1931-A-F) GXX1182

PDP-502MXE/YVLDK AWZ6448(ANP1931-G) GXX1182

PDP-505HD/KUC AWZ6450(ANP1931-G) GXX1182

`

SERVICE INFORMATION

Date:

Oct. 5, 2000

No.: SI-D01013-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-V402/LUBW/CA A - 875 PDP-V402E/WYVLDK A -1100

# DETAIL

SYMPTOM

1 POWER DOWN

CAUSE

1 Scan module is damaged by over -current in Y DRIVE ASSY.

SERVICE REMEDY

1 - Delete R5047 (RS1/10S301J).

- Solder R5047 (RD1/4PU560J) and D5035 (HZS2BLL).

- Apply silicone bond (GYA1011) to the soldered.

FACTORY COUNTER

-MEASURE

1 Same as the service remedy.

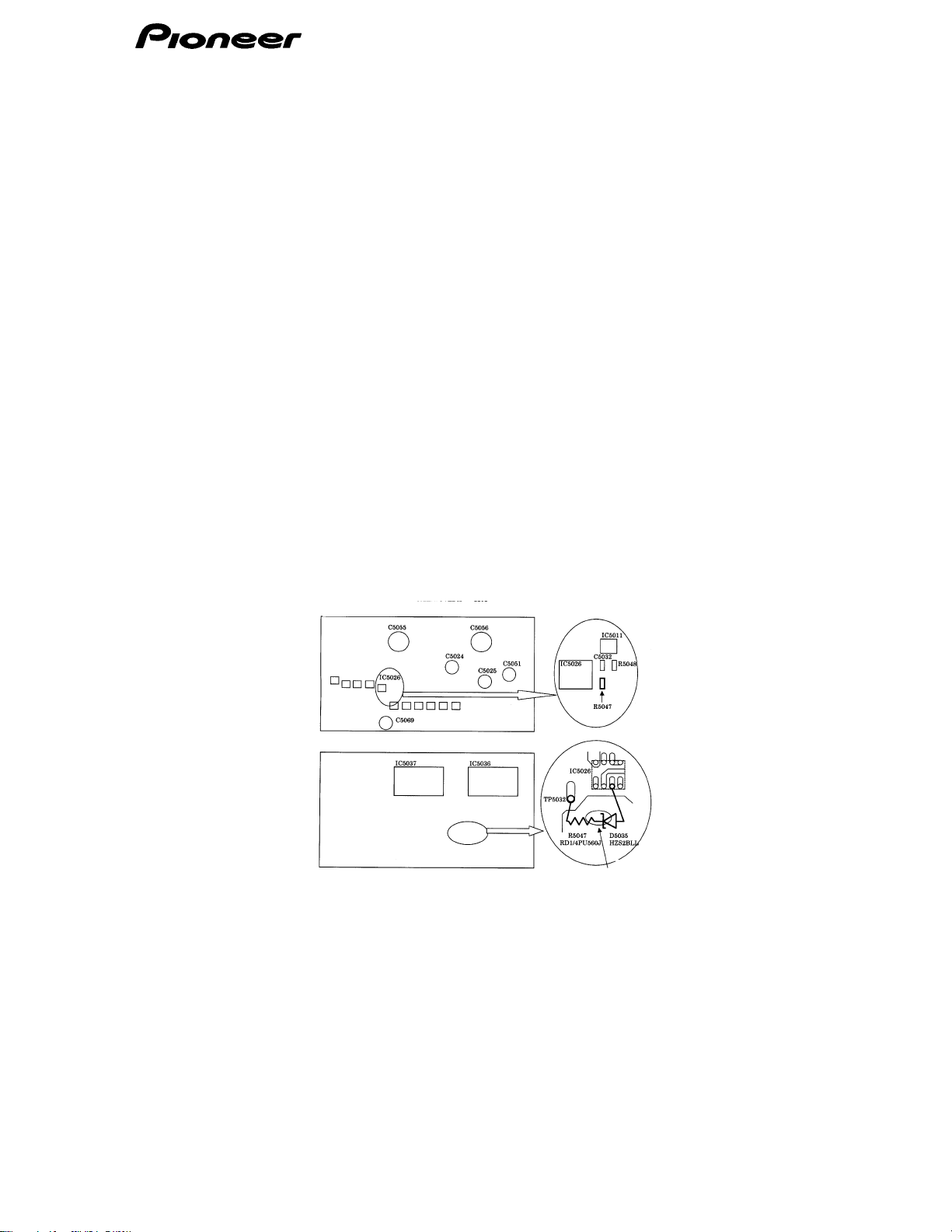

Y Drive Assy A,B

PARTS SIDE

Y Drive Assy A,B

PATTERN SIDE

Silicone bond

GYA1011

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R5047 RS1/10S301J 2 RD1/4PU560J R5047 A 1 Added - HZS2BLL D5035

PIONEER SERVICE

NETWORK

CORPORATION

NOTE:PARTS CODE

T.NAKAGAWA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

1:Changeable from old to new.

5:Do not use old parts

Memo: MTV01-029 MN-68

AA-D1729

Classify:

CORRECTION OF SERVICE MANUAL

Date:

MODEL No. S/M No. PG MODEL No. S/M No. PG

PDA-4003/UCBWYVLDK ARP3046 3

Sept.22,2000

No.: SI-D01012 ( 1/1 )

Please correct your service manual

(Old) (New)

Mark No. Description Part No. Part No.

!

7 AC Power Cord ADG1034

!

8 AC Power Cord RDG1127

RDG1034

ADG1127

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

Memo: MTV01-033 KT, 9

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A ALL ARP3037 PDP-502MXE/YVLDK A ALL ARP3037 PDP-505HD/KUC A ALL ARP3037

SYMPTOM

CAUSE

SERVICE REMEDY

FACTORY COUNTER

-MEASURE

# DETAIL

1 Abnormal active cells appear on the screen

1 The select erase sequence cannnot perform correct l y afte r a long time use

1 Please see the following

1 Same as the above service remedy

SERVICE INFORMATION

Date:

Oct.1, 2002

No.: SI-D01011E-G ( 1/5 )

< SERVICE REMEDY >

1) Take an accurate measurement of the original Vh before modification

2) Modify a part of the Vh DC-DC CONVERT BLOCK using a Service Part Kit, GXX1211 (See the next page to understand how to modify)

3) Adjust Vh and Vofs (See the attached flowchart to understand how to adjust) <Adjusting point> Vh: VR751 Adjust voltage between K753 (Vh) and K752 (PSUS) on Y DRIVE ASSY Vofs: VR701 Adjust voltage between K702 (Vofs) and K701 (SUS GND) on Y DRIVE ASSY

4) Rewrite Vh and Vofs voltage value printed on the Drive Voltage Label.

5) Put a green sticker on the right side of the serial number

Please dispose of the previous Service Information,

SI-D01011D-G issued on July 19, 2002.

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 GXX1211 Service parts kit

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable at all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

1;Changeable from old to new.

5:Do not use old parts

SYMBOL/DESCRIPTION

Memo: SY66

Classify:

)

Modification of Vh DC-DC CONVERT BLOCK

1) Prepare a Service Parts Kit, 2

Replace old parts with new parts

R760, R762, R764, R777

VR751

R752

D755, D756

C760 C761 R769

GXX1211

, consists of the following new parts

OLD

RS1/10S1302F RS1/10S1502F VRTS6VS222 VRTS6VS102 RS1/10S1201F RS1/10S1101F RD12MB RD18MB CKSQYB104K25 CKSQYF104Z50 CEHV101M16 CEHAT101M25 RS2LMF153J RS2LMF223J

Parts location

VR751

C760

( 2/5 )

NEW

R752

R769

C761

R777 R764 R760 R762

D756 D755

VH DC-DC CONV. BLOCK

Y DRIVE ASSY

Vh & Vofs Adjustment Flowchart

Take an accurate me asurement of the original Vh, the voltage between K753(Vh) and K752(PSUS). If the Vh is 85V, go to process "1". If the Vh is 110V, go to process "2".

Modify a part of the Vh DC-DC CONVERT BLOCK

( 3/5 )

(Note 1) Exclude the dark cells you confirmed at this process when adjusting Vofs.

Input red signal using a signal generator, and display it on full screen. Observe where dark cells appear on the screen under the condition before adjust Vh and Vofs. Perform the same thing using green and blue signal also. (Note 1)

Input white signal using the signal generator, and display it on full screen over 5 minutes.

Adjust so that Vh becomes "

130V

". (Caution: PSUS and chassis GND are absolutely different. Do not sho rt them.)

"1"

"2"

Rewrite Vh voltage value printed on the Drive Vol tage Label. (Note 2) (Note 3)

(Note 3) If the original Vh was 110V, it is not necessary to adjust Vofs.

Adjust so that Vofs, the voltage between K702(Vofs) and K701(SUS GND), becomes "

". (Note 4)

-45V

(Note 4) This is temporary voltage setting.

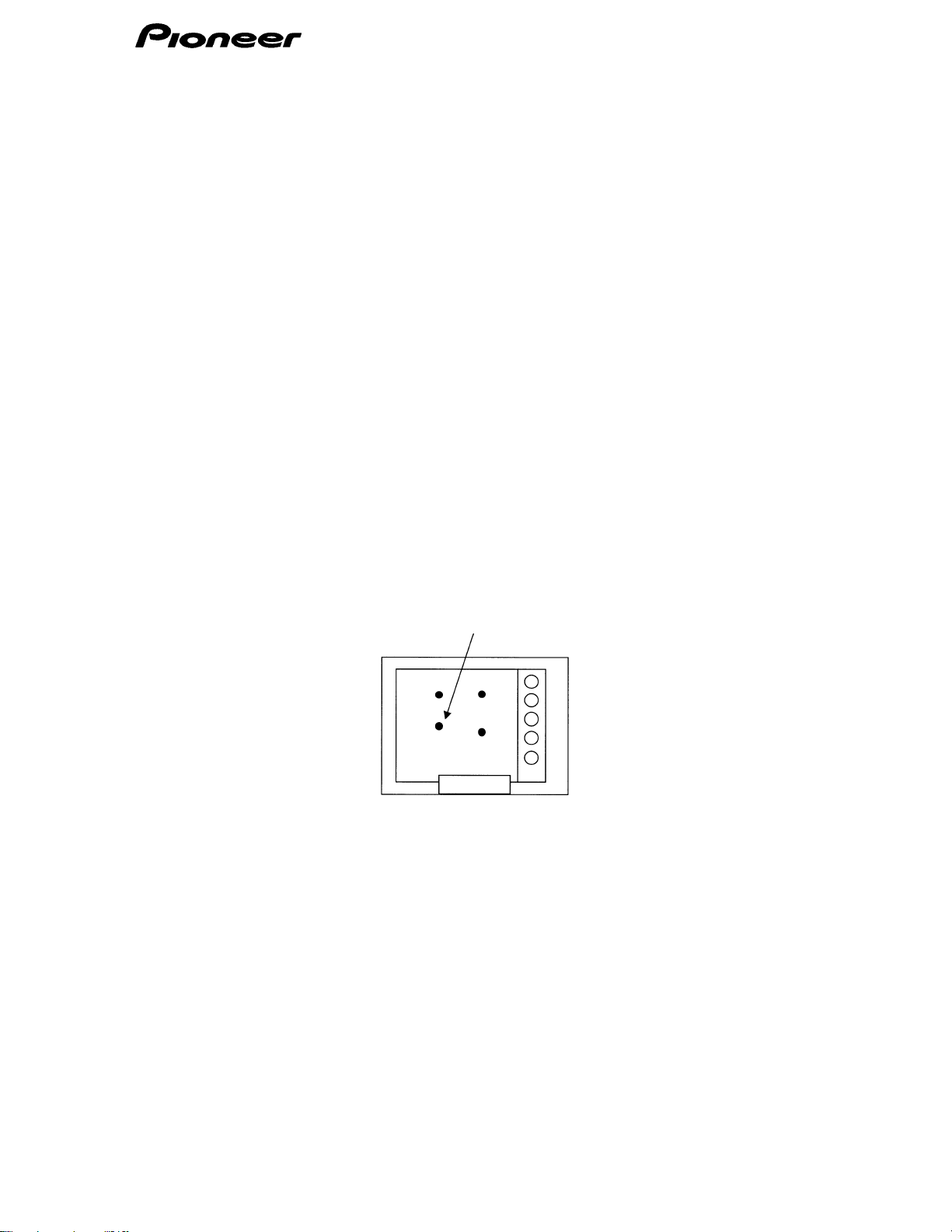

(Note 2) Position of the Drive Voltage Label

Completed this adjustment

Input red signal using a signal generator, and display it on full screen. Observe whether dark cells appear on the screen. Perform the same thing using green and blue signal also.

Do dark cells appear?

Yes

(Note 5)

No

Decrease Vofs by 6V.

A

Go to next page

(Note 5) Observe the top/bottom of the screen carefully. Generally, the dark cells appear around there. If there are 29 dark cells or less, go to "No". Remember that you can exclude dark cells you confirmed at the above process, note 1.

Yes

Vofs≧-35V

No

Decrease Vofs by 1V

The panel is defective

pp

From the previous page

A

Input white signal using the signal generator, and display it on full screen.

Press "Standby/on" key to put the display in standby mode.

In order to enter Integrator Mode, press "Menu" key and then press "Standby/on" key within 3 seconds. Confirm "B HIGH" value, one of parameters for White Balance adjustment, and keep it in mind. Adjust so that B HIGH becomes 255.

( 4/5 )

Confirm "R HIGH" value and keep it in mind. Adjust so that R HIGH becomes 100 and observe whether red abnormal cells appear on the screen.

Do red abnormal cells

ear?

a

No

Increase Vofs by 4V

Readjust B HIGH and R HIGH to the original value

Rewrite Vh and Vofs voltage value printed on the Drive Voltage Label. (Note 2)

Yes

Increase Vofs by 6V

Decrease Vsus by 2V

Vsus≧167V ?

Yes

No

Increase Vofs by 6V

Do red abnormal

cells disappear?

No

Completed this adjustment

The panel is defective

( 5/5 )

`

SERVICE INFORMATION

Date:

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A 3736- ARP3037 PDP-502MXE/YVLDK A 3601- ARP3037 PDP-505HD/KUC A 1301- ARP3043

# DETAIL

SYMPTOM

CAUSE

SERVICE REMEDY

FACTORY COUNTER

-MEASURE

1 Red active cells are appeared

1 The select erase sequence cannot be performed after a long time use.

1 1) Adjust Vh and Vofs according to flow

Vh: VR751 K752-K751 (Y DRIVE Assy) Vofs : VR701 K702-K701 (Y DRIVE Assy)

2) Adjusted voltage are described to Drive Voltage Label.

3) A green seal (8mm in diameter) is pasted near the serial number.

Same as the Service Remedy

Dec.19,2000

No.: SI-D01011BG ( 1/2 )

Please see the following page.

Please discard the previous Service Information

SI-D01011A-G dated Oct.12,2000

Ref CURRENT PARTS CO NEW PARTS

*#

Y.YAMAMOTO ,MANAGER HE 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Memo: MTV01- AN 70

020A

Classify:

Service Engineering Section Service Division

NOTE:PARTS CODE 1:Changeable from old to new.

3:Interchangeable in both ways 5:Do not use old parts

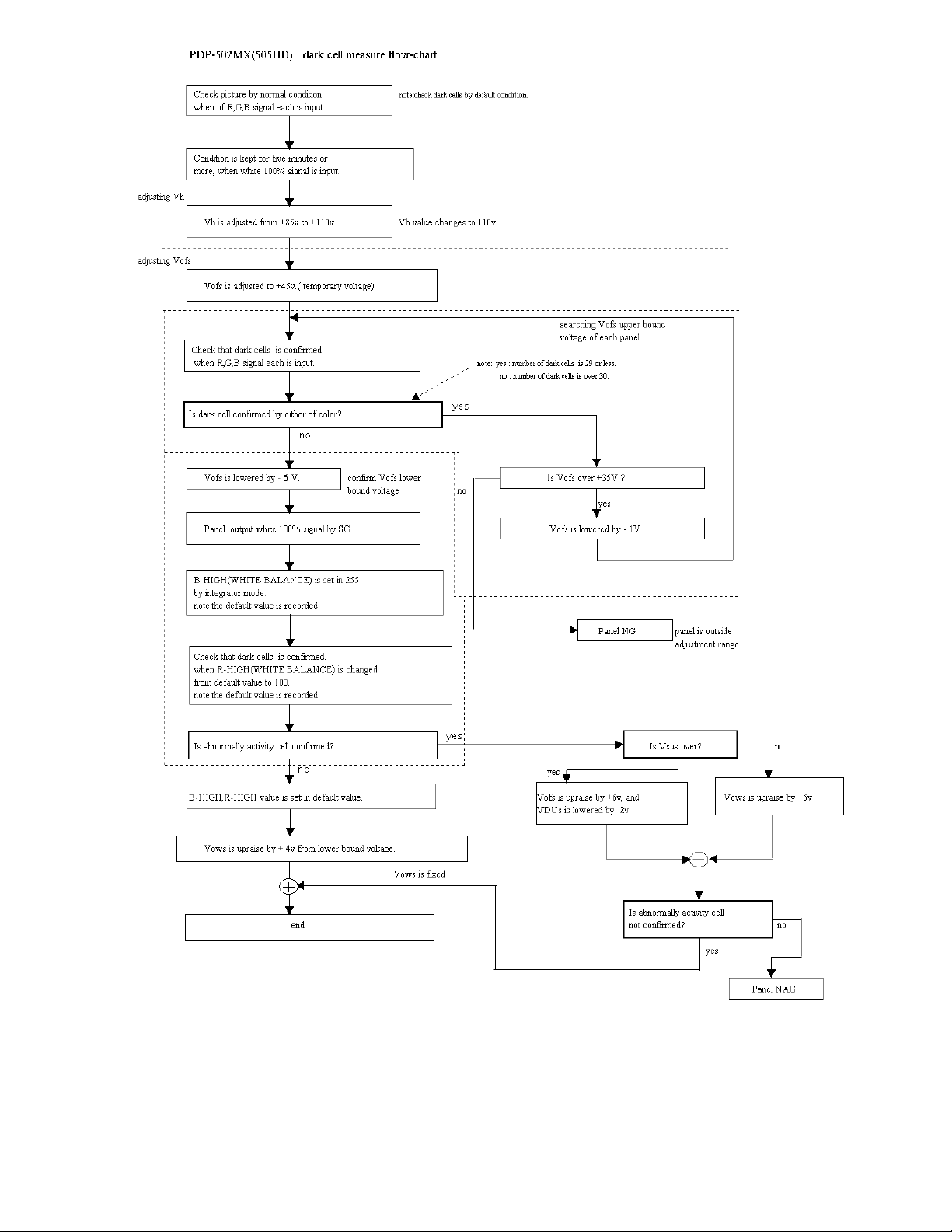

( 2/2 )

`

SERVICE INFORMATION

Date:

Oct.27,2000

No.: SI-D01010A-G ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-502MX/LUCBW A ALL ARP3037 PDP-502MX/LUCBW /1 A ALL ARP3075,ARP3078 PDP-502MXE/YVLDK A ALL ARP3037 PDP-502MXE/YVLDK /1 A ALL ARP3075,ARP3078

# DETAIL

SYMPTOM

1 Panel is cracked by heat stress when still picture which has high brightness is

displayed by observation camera. (As shown below.)

CAUSE

SERVICE

1 A part of panel emits light.

1 Refer to the following

REMEDY

FACTORY

Service remedy only

COUNTER

-MEASURE

< Service Remedy >< Symptom >

NOTE: These contents change the value in factory mode. If this procedure is failed, PDP panel might be damaged.

* Prepare either remote control unit below. CU-PDP001(AXD1432), CU-PDP009(AXD1445)

White

Black

Ref CURRENT PARTS CO NEW PARTS

*#

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

1. Setting the BRIGHT ENHANCE Function is set input 1 | Either Integrator mode (Menu -> Power) | Select OPTION 1 | Select BRIGHT ENHANCE | Set to VIDEO OFF

2. Change value of PLS NUM OFS Enter Service Factory Mode (Menu -> Set -> Power) | Select PICTURE mode | Select REFERENCE 1 | Select PLS NUM OFS | Change value from 8 to 1

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

NOTE:PARTS CODE 1:Changeable from old to new. 2:Not Interchangeable an all. 3:Interchangeable in both ways 5:Do not use old parts

Memo: MTV01-019 AN 69

Classify:

CORRECTION OF SERVICE MANUAL

Date:

MODEL No. S/M No. PG MODEL No. S/M No. PG

PRO-710HD/KUXC/CA ARP3065 5

Sept. 7,2000

No.: SI-D01009 ( 1/1 )

Please correct your service manual

(Old) (New)

Mark No. Description Part No. Part No.

1 Grille AMM2939

AMM2936

PIONEER CORPORATION

Y.YAMAMOTO ,MANAGER HE

Service Engineering Section Service Division

Memo: MTV01-016 KT, 9

MODEL No * SER.No S/M No PG MODEL No SER.No S/M No PG

BA-6310A/KU BA-6310CA/KU BA-6311A/KU BA-6350A/KU BA-6351A/KU

DETAIL

REASON

SERVICE INFORMATION

Oct.24, 1994Date:

*

A

3645701-

A

3664401-

A

3602101-

A

3648501-

A

3610901-

#

DELETION OF NUTS AND WASHERS, AND ADDITION OF NUTS WITH WASHERS

1

COST SAVING

1

ARP2571 ARP2572 ARP2574 ARP2573 ARP2594

CHANGE

No:

1/1

SI-D49004

Ref.

# SYMBOL/DESCRIPTION

*

A

11Nut

A

Washer

CURRENT PARTS

PART NUMBER

ABN-059 WAX0F160N1002-

Nut

Washer

CO DE PART NUMBER SYMBOL/DESCRIPTION

BBN1005 Deleted

NEW PARTS

Nut

PIONEER ELECTRONIC CORPORATION

Issued by

K. WATANABE, MANAGER Industrial Engineering Section Service Division

NOTE: PARTS CODE

1: Changeable from old to new. 2: Not Interchangeable at all. 3: Interchangeable in both ways. 5: Do not use old parts.

DS-23369ASPC49-288

SPC-SS 9( )

MODEL No * SER. No S/M No PG MODEL No SER. No S/M No PG

BA-9510CA/KU BA-9510A/KU BA-9510CR/KU BA-9510C/KU BA-9310C/KU

#

DETAIL

REASON

SERVICE INFORMATION

A

3617640-

A

3605901-

A

3602057-

A

3603565-

A

3605068-

Change of capacitors in Main Ass'y

1

To improve reliability

1

ARP2847 ARP2847 ARP2839 ARP2836 ARP28361414

CHANGE

Aug.31, 1994Date:

BA-9510/KU BA-9310/KU BA-9710C/KU

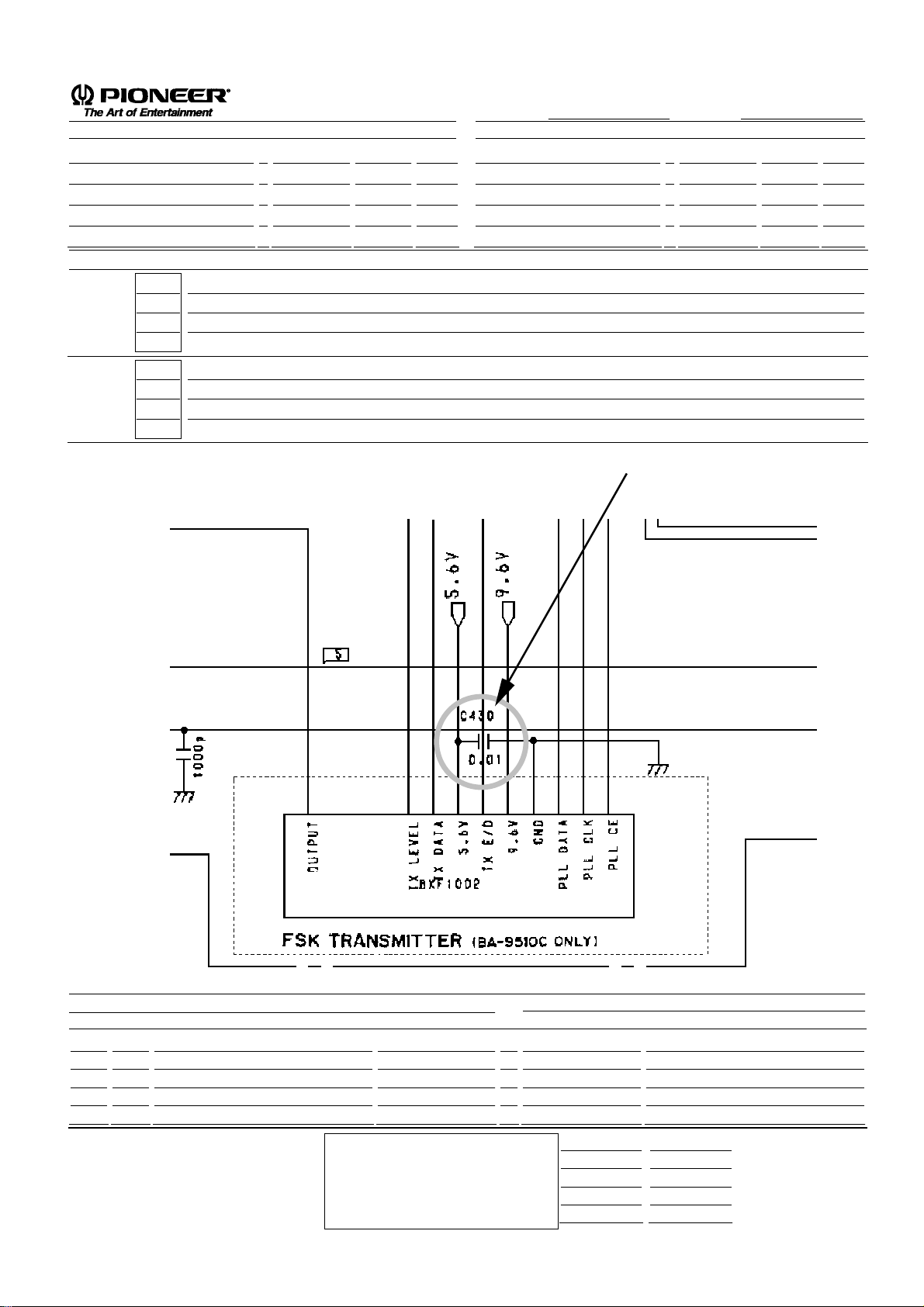

C430

*

A

3612573-

A

3613069-

A

3600051-

( )

SI-D49003

No:

1/1

ARP2836 ARP2836 ARP2837

14 14

Ref.

# SYMBOL/DESCRIPTION

*

A 1 C430(0.01µF) CKSQYF103Z50 2 CKSQYB223K50 C430(0.022 µF)

PIONEER ELECTRONIC CORPORATION

Issued by:

Y.IMAMIZU, MANAGER HE Engineering Section Service Dev.

CURRENT PARTS

PART NUMBER

NOTE: PARTS CODE

1:Changeable from old to new.

2:Not Interchangeable at all. 3:Interchangeable in both ways. 5:Do not use old parts.

CO DE PART NUMBER SYMBOL/DESCRIPTION

NEW PARTS

DS-23420SPC49-179

EF ,9( )

MODEL NO. BA-6311A/KU A BA-6351A/KU BA-6310CA/KU BA-6310A/KU BA-6350A/KU

SERVICE INFORMATION

SER. NO. MODEL NO. SER. NO. MODEL NO.

*

Running Change 36089013638871361680136410010-

*

(1/1)

No :SI-D49002

Date:Jul.27,1994

SER. NO.

*

#

1 Change of Manual 1 To meet the safety regulation

DETAIL OF CHANGE(S) REASON FOR CHANGES

#

SERVICE MANUAL

MODEL:BA-6311A

S/M NO.:ARP2574

PAGE :

MODEL:BA-6311A

S/M NO.:ARP2574

PAGE :

MODEL:BA-6351A

S/M NO.:ARP2594

PAGE :

MODEL:BA-6310CA

S/M NO.:ARP2572

PAGE :

SERVICE MANUAL

MODEL:BA-6310A

S/M NO.:ARP2571

PAGE :

Ref. CURRENT PARTS

SYMBOL/DESCRIPTION

*

#

A 1 Manual BRB1029 2 BRB1039 Manual

PART NUMBER

PIONEER ELECTRONIC CORPORATION

CO DE

PART NUMBER

(SPC49-161,DS-23348A,SPC-SS 6)

NEW PARTS

SYMBOL/DESCRIPTION

Issued by: K.WATANABE,MANAGER

Industrial Engineering Section Service Department

SERVICE INFORMATION

MODEL NO.

BA-9510CA/KU BA-9510A/KU BA-9310/KU BA-9510/KU BA-9310C/KU BA-9510C/KU

#

1 Change of 64P IC Socket in Control Ass'y 1 Cost Saving

SER. NO. MODEL NO. SER. NO. MODEL NO.

*

A 3617640-

36059013613070361257336050683603565-

DETAIL OF CHANGE(S) REASON FOR CHANGES

BA-9710C/KU BA-9510CR/KU

*

36030593602058-

#

(1/1)

No :SI-D49001

Date:Jul.13,1994

SER. NO.

*

SERVICE MANUAL

MODEL:BA-9510CA

-9510A S/M NO.:ARP2847

PAGE :

MODEL:BA-9710C

Ref. CURRENT PARTS

SYMBOL/DESCRIPTION

*

#

PART NUMBER

PIONEER ELECTRONIC CORPORATION

S/M NO.:ARP2837

PAGE :

MODEL:BA-9510CR

S/M NO.:ARP2839

PAGE :

MODEL:BA-9510C

-9310C

-9510

-9310

S/M NO.:ARP2836

PAGE :

CO DE

PART NUMBER

-A 1 64P IC Socket BKH1002 NSP 64P IC Socket

NEW PARTS

SYMBOL/DESCRIPTION

(SPC49-138,DS-23368,SPC-SS 9)

Issued by: K.WATANABE,MANAGER

Industrial Engineering Section Service Department

SERVICE INFORMATION

Date:

May 22, 2003

No.: SI-D04015 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3086 PRO-610HD/KUXC/CA A R/C ARP3086 PRO-710HD/KUXC/CA A R/C ARP3086 SD-532HD5/KBXC A R/C ARP3086 SD-532HD5/KUXC/CA A R/C ARP3086 SD-582HD5/KUXC/CA A R/C ARP3086 PRO-520HD/KUXC/CA A R/C ARP3099 PRO-620HD/KUXC/CA A R/C ARP3099 PRO-720HD/KUXC/CA A R/C ARP3099 SD-533HD5/KBXC B R/C ARP3094 SD-533HD5/KUXC/CA B R/C ARP3094 SD-643HD5/KUXC/CA B R/C ARP3094

DETAIL

# CHANGE

1 Changed a part (EEPROM) in SIGNAL ASSY.

REASON

1 To improve the performance

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 IC2454 24LC32A(I)P 1 24LC32A-I IC2454 B 1 IC2301 24LC32A(I)P 1 24LC32A-I IC2301

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4564 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

`

SERVICE INFORMATION

Date:

May 16, 2003

No.: SI-D04010-G ( 1/2 )

MODEL No. * SER.No. S/M No. PG

SD-643HD5/KUXC/CA A 0006851- ARP3094 SD-533HD5/KUXC/CA A 0012301- ARP3094 PRO-730HD/KUXC/CA A 0002901- ARP3139 PRO-630HD/KUXC/CA A 0002301- ARP3139 PRO-530HD/KUXC/CA A 0003001- ARP3139

SYMPTOM

# DETAIL

1 O ver scanning picture i s displayed when selecting HD si gnals.

CAUSE

1 Because HD circuit of these projection TV is designed based on 10305i signal.

SERVICE REMEDY

1 There are two service remedies as following ;

1. Re-ad justing convergenc e of HD mode using modified HD template

2. Changing convergence data ( STATIC and SIZE or V SIZE ) as the standard

FACTORY COUNTER

-MEASURE

1 Same as service remedy (No.2)

----- Please see the following page -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

1:Changeable from old to new.

5:Do not use old parts

SYMBOL/DESCRIPTION

Memo: SY66

Classify:

d

1. Re-adjusting convergence of HD mode using modified HD template

Adjust convergence in HD mode using the modified convergence template.

Referring S/M SD series: page 128 on ARP3094 PRO series: page 159 on ARP3139

2. Changing convergence data (STATIC and SIZE or V SIZE) as the standar

i) SD-643HD5, SD-533HD5 Modify GV, RV and BV convergence data to the following value by Coarse Adjustment of each color. ( Referring to S/M page 128)

* STATIC: 23 steps up ( e.g. 0 hex => 17 hex ) * SIZE : 12 steps down ( e.g. 90 hex => 84 hex )

( 2/2 )

ii) PRO-PRO-730HD, PRO-630HD, PRO-530HD Reduce to adjustment. ( Referring to S/M page 159. )

* e.g. 0 => -4

four steps

from the present V SIZE (HD) convergence data by "Size Mode"

SERVICE INFORMATION

Date:

May 9, 2003

No.: SI-D04009 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-503MXE-S/TA A 0000681- ARP3120

DETAIL

# CHANGE

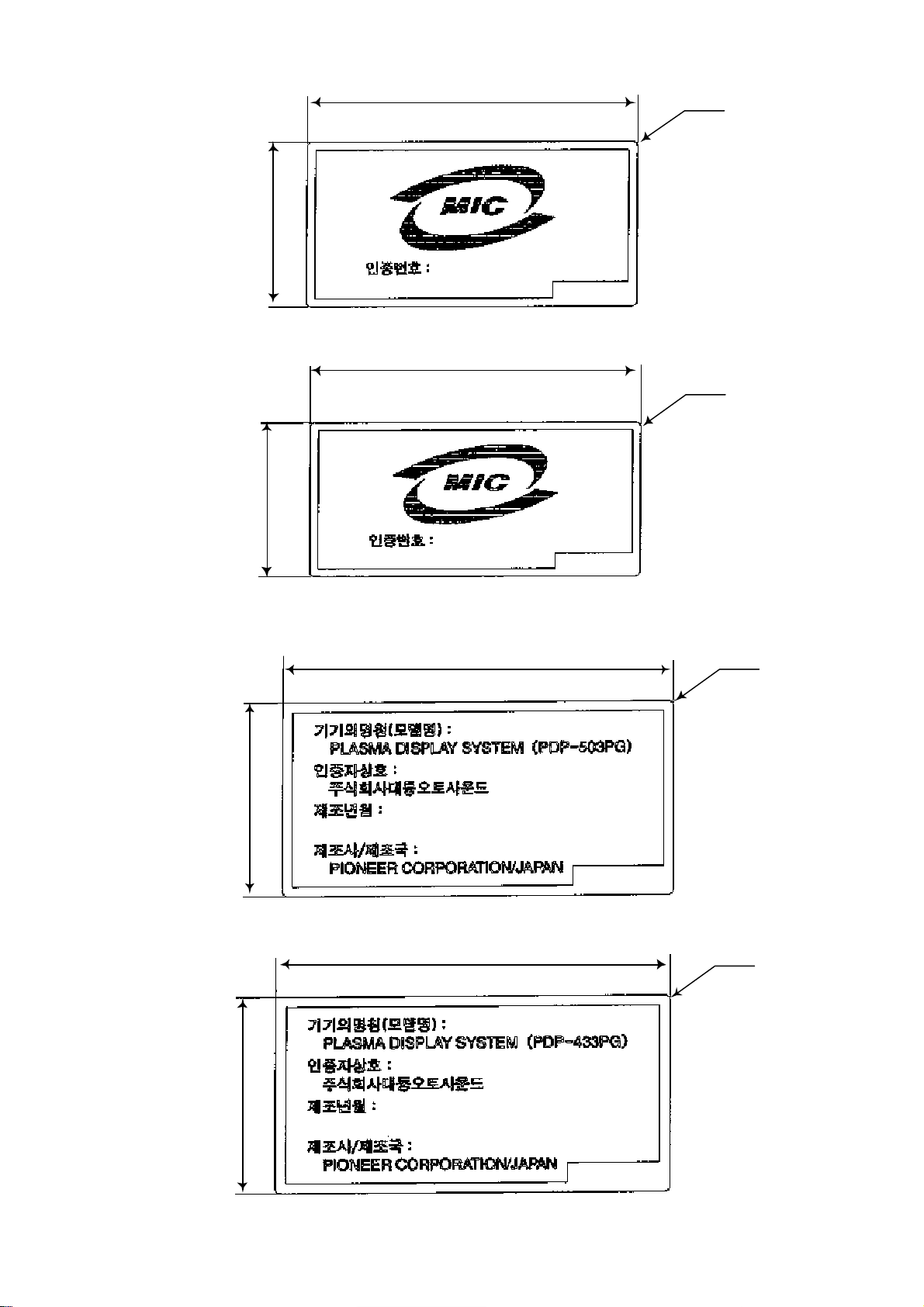

1 Change of parts number of lavels

(Only adhesive of labels are changed. The items mentioned on labels are not changed)

REASON

1 Production convenience

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 model label AAL2396 1 AAL2459 model label A 1 bolt caution label AAX2902 1 AAX2975 bolt caution label A 1 terminal label L AAX2855 1 AAX2976 terminal label L A 1 terminal label R AAX2853 1 AAX2977 terminal label R A 1 cleaning label AAX2901 1 AAX2978 cleaning label

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4965 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

SERVICE INFORMATION

Date:

May 9, 2003

No.: SI-D04008 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-433CMX/LUCBW A 0000433 - 0005010 ARP3123 PDP-433MXE/YVLDK A 0002521 - 0002930 ARP3123 PDP-433PG/TLDPKBRO A 0001251 - 0001340 ARP3118 PDP-433PU/KUC A 0003181 - 0003810 ARP3111

DETAIL

# CHANGE

1 Changed part number of Digital Video Assy

REASON

1 Production convenience

(Panel U-com in Digital Video Assy was changed in order to use for both 433 and 503 series.)

NOTICE

The new Digital Video Ass'y, AWV1980, is not applied to PDP-433PE/WYVIO6.

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Digital Video Ass'y AWV1941 3 AWV1980 Digital Video Ass'y

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4571 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

SERVICE INFORMATION

Date:

Apr.24, 2003

No.: SI-D04007 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503CMX/LUCBO A 0017021 ARP3093 PDP-503MXE-S/TA A 0000681- ARP3120 PDP-503MXE/YVLDK A 0008341- ARP3093 PDP-503PE/WYVIO6 A 0003101- ARP3107 PDP-503PG/TLDPKBRO A 0002271- ARP3117 PDP-503PU/KUC A 0005951- ARP3107 PDU-50WX2/TUCYV A 0001861- ARP3114 PDU-50WX2/TUCYV/1 A 0000811- ARP3114 PDP-433CMX/LUCBW A 0008341- ARP3123 PDP-433MXE/YVLDK A 0004381- ARP3123 PDP-433PE/WYVIO6 A 0001741- ARP3111 PDP-433PG/TLDPKBRO A 0002631- ARP3118 PDP-433PU/KUC A 0006241- ARP3111

DETAIL

# CHANGE

1 Changed the way of entering service factory mode.

REASON

1 Production convenience

----- Please see the following page for details. -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4950 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

[ Consumer Model ]

( 2/2 )

PE,PG

(with remote c ontr oller )

MODEL

PU

MODEL

(with remote c ontr oller )

MENU -> ENTER -> STAND BY/ON ENTER -> DISPLAY -> STAND BY/ON

[ Industrial Model ]

ALL

(with remote c ontr oller )

OLD

NEW

ENTER -> DISPLAY -> 0MENU -> ENTER -> 0

NEW

SET -> DISPLAY -> STAND BY/ONMENU -> SET -> STAND BY/ON

SERVICE INFORMATION

Date:

May 9, 2003

No.: SI-D04006

MODEL No. * SER.No. S/M No. PG

PRO-530HD/KUXC/CA A R/C ARP3138 PRO-630HD/KUXC/CA A R/C ARP3138 PRO-730HE/KUXC/CA A R/C ARP3138

DETAIL

# CHANGE

1,2 Changed parts

REASON

1 To prevent the electrical discharge

2 To improve the reliability of CONVER AMP when the power is turned off.

Please see the following page for the details.

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 R2086 RS1/16S0R0J 1 RS1/16S101J R2086 A 2 Added - PST9228N IC1909 A 2 Added - RS1/16S222J R1911 A 2 Added - RS1/16S102J R1906 A 2 Added - RS1/16S101J R1910 A 2 R2048 RS1/16S822J - Deleted A 2 Added - CKSRYB472K50 C1953 A 2 Added - CKSRYF104Z16 C1954 A 2 Added - CKSRYB103K50 C1955 A 2 Added - CKSRYB102K50 C1956

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4925 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

VIDEO UCOM ASS'Y AWV1963 / AWV1992

IC1906

PD5815E8

( 2/2 )

C1953

IC1909

R1911

C1954

R1910

C1955

R2048

C1956

Deleted

Added

R2048

these parts

SERVICE INFORMATION

Date:

Apr.22, 2003

No.: SI-D04005 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503PC/TAXQ A 0000221- ARP3134 PDP-503PE/WYVIO6 A 0003181- ARP3141 PDP-503PE/WYVI6XK A 0005041- ARP3141 PDP-503PG/TLDPKBRO A 0002291- ARP3141 PDP-503PU/KUC A 0006031- ARP3144 PDP-433PE/WYVIO6 A 0001751- ARP3143 PDP-433PE/WYVI6XK A 0007547- ARP3143 PDP-433PG/TLDPKBRO A 0002631- ARP3143 PDP-433PU/KUC A 0006591- ARP3143 PDP-503MXE/YVLDK A 0008861- ARP3150 PDP-503MXE-S/TA A 0000741- ARP3120 PDP-503CMX/LUCBO A 0021951- ARP3150 PDP-433CMX/LUCBW A 0008721- ARP3156

DETAIL

# CHANGE

1 Added parts

REASON

1 To prevent Terminal Panel and Front Case being off from correct position.

(Because of the mis-assembling Main Power Button cannot work normally.)

----- Please see the following page for the details. -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - AMR3371 SWspacer

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4969 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D5083

Classify:

( 2/2 )

Adeed place of SW Spacers

Rear Case

Terminal Panel

SW Spacer

< Enlarged picture >

Added SW Spacers

10mm (0.4")

Terminal

Panel

Front Case

SERVICE INFORMATION

Date:

Apr.22, 2003

No.: SI-D04004 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

SD-533HD5/KBXC A R/C ARP3094 SD-533HD5/KUXC/CA A R/C ARP3094 SD-533HD5/KUXC/CA1 A R/C ARP3163 SD-643HD5/KUXC/CA A R/C ARP3094 SD-643HD5/KUXC/CA1 A R/C ARP3163

DETAIL

# CHANGE

1 Changed parts in FRONT LEDASSY, AWZ6608.

REASON

1 Production convenience

B

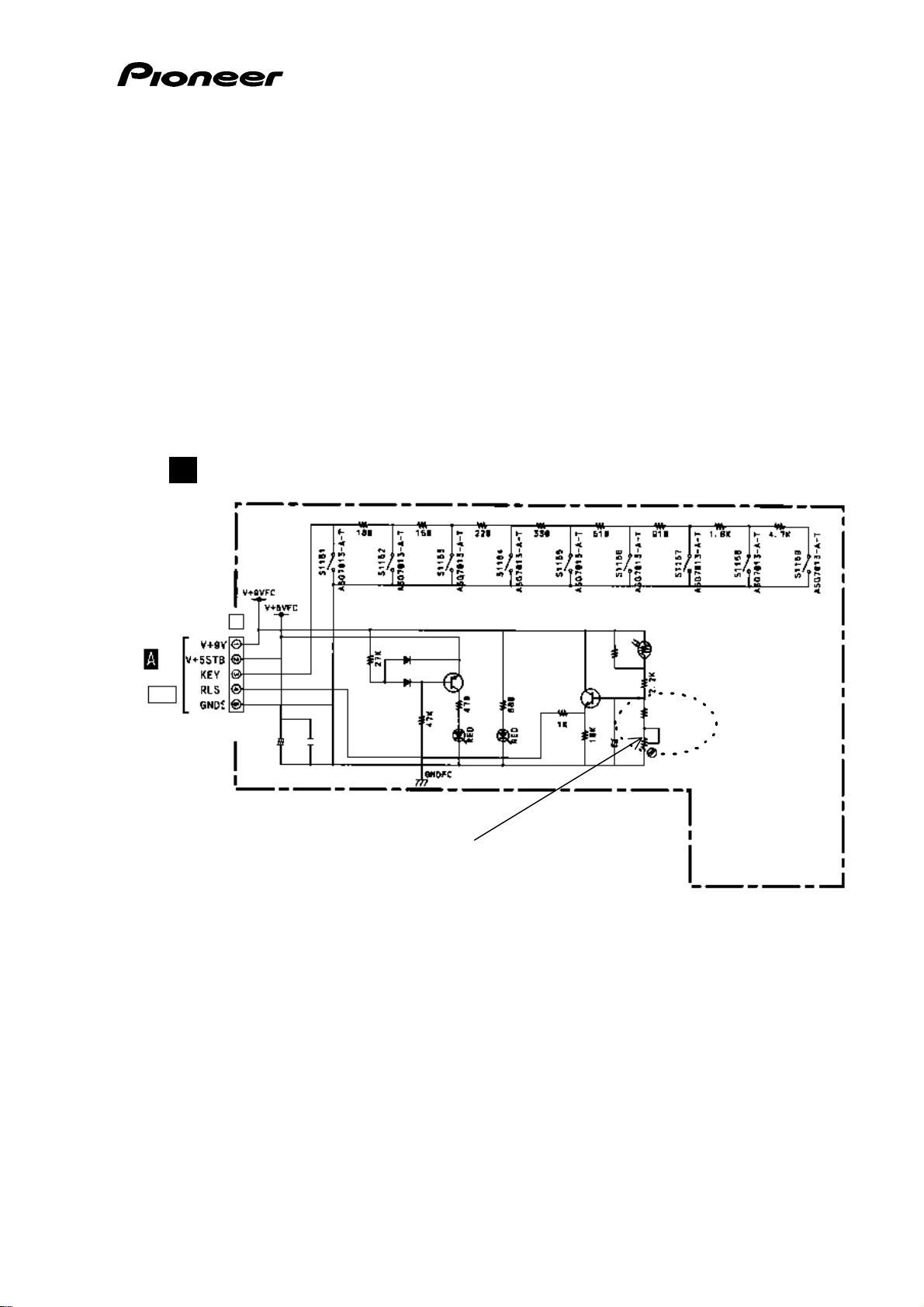

FRONT LED ASSY (AWZ6608)

CN2301

S8

5/7

F1

CN1151

KM250MA5L

C1151

R1151 R1152 R1153

R1159

INPUT

/SET

D1151

POWER

C1152

VR1151, R1167

Q1151

D1152

R1160

Changed

CH-

R1161

D1153

R1154 R1155 R1156

VOL-

R1162

D1154

VOL+ MENU

Q1152

R1163

R1164

CH+

R1165

C1153

R1166

R1167

R1157 R1158

ROOM LIGHT SENSOR

PC1151

VR1151

SWITCHES

S1151 : POWER S1152 : INPUT/SET S1153 : CHS1154 : VOLS1155 : VOL+ S1156 : CH+ S1157 : MENU S1158 : RETURN S1159 : FACTORY ADJ

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 VR1151 VCP1160 2 VCP1162 VR1151 A 1 R1167 RD1/4PU183J 2 RD1/4PU562J R1167

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC58-003 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4999

Classify:

RETURN FACTORY

SERVICE INFORMATION

Date:

Apr.18, 2003

No.: SI-D04003 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-530HD/KUXC/CA A R/C ARP3138 PRO-630HD/KUXC/CA A R/C ARP3138 PRO-730HD/KUXC/CA A R/C ARP3138

DETAIL

# CHANGE

1 Changed parts in LED RLS ASSY, AWZ6719

REASON

1 Production convenience

J5002

ADX2792-

E

LED RLS ASSY (AWZ6719)

R5012D5003

R5015

R5017

Q5003

C5004

R5016

C5002

C5003

R5013

R5009

R5014

Q5001

R5010

D5002 R5011

Changed VR5001, R5019

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 VR5001 VCP1160 2 VCP1162 VR5001 A 1 R5019 RS1/16S243J 2 RS1/16S123J R5019

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC58-012 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4998

Classify:

PC5001

R5018

R5019

VR5001

5001 AMR2294-

(DPO holder)

SERVICE INFORMATION

Date:

Apr.18, 2003

No.: SI-D04002 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-503CMX/LUCBO A 0010251- ARP3093 PDP-503MXE-S/TA A 0000601- ARP3120 PDP-503MXE/YVLDK A 0005891- ARP3093 PDP-503PE/WYVIO6 A 0002801- ARP3107 PDP-503PG/TLDPKBRO A 0001141- ARP3117 PDP-503PU/KUC A 0003311- ARP3107

DETAIL

# CHANGE

1 Changed part number of Digital Video Assy

REASON

1 Production convenience

(Panel U-com in Digital Video Assy was changed in order to use for both 433 and 503 series.)

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Digital Video Assy AWV1970 3 AWV1979 Digital Video Assy

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4569 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

`

SERVICE INFORMATION

Date:

Apr.10,2003

No.: SI-D04001 ( 1/3 )

MODEL No. * SER.No. S/M No. PG

See to following page

DETAIL

# CHANGE

1 Change of parts in ADR RESONANCE ASS'Y

REASON

1 Production convenience

----- Please see the following pages for the parts location -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Q6710, Q6711 FS30ASJ-2 1 2SK3483 Q6710, Q6711

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-433 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4514

Classify:

( 2/3 )

MODEL No. * SER.No. S/M No. PG

PDP-503PE/WYVIO6 A R/C ARP3108 PDP-503PG/TLDPKBRO A R/C ARP3117 PDP-503PU/KUC A R/C ARP3108 PDP-503PC/TAXQ A R/C ARP3135 PDP-503PE/WYVI6XK A R/C ARP3108 PDP-503CMX/LUCBO A R/C ARP3100 PRO-1000HD/LUXC/CA A R/C ARP3100 PDP-503MXE-S/TA A R/C ARP3120 PDP-503MXE/YVLDK A R/C ARP3100 PDU-50WX2/TUCYV A R/C ARP3115 PDU-50WX2/TUCYV/1 A R/C ARP3115 PDP-433PE/WYVIO6 A R/C ARP3112 PDP-433PG/TLDPKBRO A R/C ARP3118 PDP-433PU/KUC A R/C ARP3112 PDP-433PE/WYVI6XK A R/C ARP3112 PDP-433CMX/LUCBW A R/C ARP3124 PRO-800HD/LUXC/VA A R/C ARP3124 PDP-433MXE/YVLDK A R/C ARP3124 PDU-43WX2/TUCYV A R/C ARP3121

ADR RESONANCE ASS'Y

ADR U

Q6709

D6705

R6726

R6727

( 3/3 )

D6716

Q6710

R6737

Q6708

R6738

D6711

D6713

56.3V

D6712

D6714

59.7V

ADR D

Q6711

C6718

C6716

D6709

58.2V 57.7V L6704

D6710

D6717

R6739 R6735

R6744 R6740

58.0V

VADR V MID ADRGND

CN6703

DGND

B5B-PH-SM3-TBB

SW V MID CLAMP Assy

Changed

Q6710, Q6711

SERVICE INFORMATION

Date:

Mar.31, 2003

No.: SI-D03050 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-433PE/WYVIO6 A Please see the following page ARP3112 PDP-433PE/WYVI6XK A ARP3112 PDP-433PG/TLDPKBRO A ARP3118 PDP-433PU/KUC A ARP3112 PDP-433CMX/LUCBW B ARP3124 PDP-433MXE/YVLDK B ARP3124 PDP-503PC/TAXQ C ARP3135 PDP-503PE/WYVIO6 C ARP3108 PDP-503PE/WYVI6XK C ARP3108 PDP-503PG/TLDPKBRO C ARP3117 PDP-503PU/KUC C ARP3108 PDP-503CMX/LUCBO D ARP3100 PDP-503MXE/YVLDK D ARP3100 PDP-503MXE-S/TA D ARP3120

DETAIL

# CHANGE

1 Added service parts.

REASON

1 Production convenience.

----- Please see the following page for details. -----

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 Added - AZN2513 rear case 43P B 1 Added - AZN2515 rear case 43CMX C 1 Added - AZN2512 rear case 50P D 1 Added - AZN2514 rear case 50CMX

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-450 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4814

Classify:

y

( 2/2 )

* These new rear case were made for only service use, and it can be used instead of aluminum rear case. In other words, it cannot be used instead of steel rear case. Please see the following list for the details.

MODEL PDP-433PE/WYVIO6 PDP-433PE/WYVI6XK PDP-433PG/TLDPKBRO PDP-433PU/KUC PDP-433CMX/LUCBW PDP-433MXE/YVLDK PDP-503PC/TAXQ PDP-503PE/WYVIO6 PDP-503PE/WYVI6XK PDP-503PG/TLDPKBRO PDP-503PU/KUC PDP-503CMX/LUCBO PDP-503MXE/YVLDK PDP-503MXE-S/TA

aluminum rear case steel rear case

Parts No. Parts No. Serial No. Serial No. ANE1600 ANE1607

-0001480 0001481-

ANE1600 ANE1607

-0003880 0003881-

ANE1600 ANE1607

-0001270 0001271-

ANE1600 ANE1607

-0002920 0002921-

ANE1601 ANE1608

-0005130 0005131-

ANE1601 ANE1608

-0003670 0003671-

ANE1598 ANE1609

-0000080 0000081-

ANE1598 ANE1609

-0002800 0002801-

ANE1598 ANE1609

-0004110 0004111-

ANE1598 ANE1609

-0001140 0001141-

ANE1598 ANE1609

-0003370 0003371-

ANE1597 ANE1610

-0010250 0010251-

ANE1597 ANE1610

-0005990 0005991-

ANE1597 ANE1610

-0000600 0000601-

New aluminum

rear case

Par ts N o. AZN2513 AZN2513 AZN2513 AZN2513 AZN2515 AZN2515 AZN2512 AZN2512 AZN2512 AZN2512 AZN2512 AZN2514 AZN2514 AZN2514

[EX.]

When you replace aluminum rear case of PDP-433PE/WYVIO6,

ou can use new rear case, AZN2513.

SERVICE INFORMATION

Date:

Mar.31, 2003

No.: SI-D03049 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

SD-533HD5/KUXC/CA A R/C ARP3094 SD-533HD5/KBXC A R/C ARP3094 SD-643HD5/KUXC/CA A R/C ARP3094

DETAIL

# CHANGE

1,2 Changed parts

REASON

1 Prevent out of current specification of the V deflection Service Assy.

2 For increasing margin of RLS adjustment

----- Please see the back of this page -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 R0830 RS2MMF1R5J 1 RS1MMF3R9J R0830 A 1 C0821 CFTLA224J50 1 CFTLA683J2A C0821 A 2 R1167 RD1/4PU562J 1 RD1/4PU183J R1167

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4800 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4821

Classify:

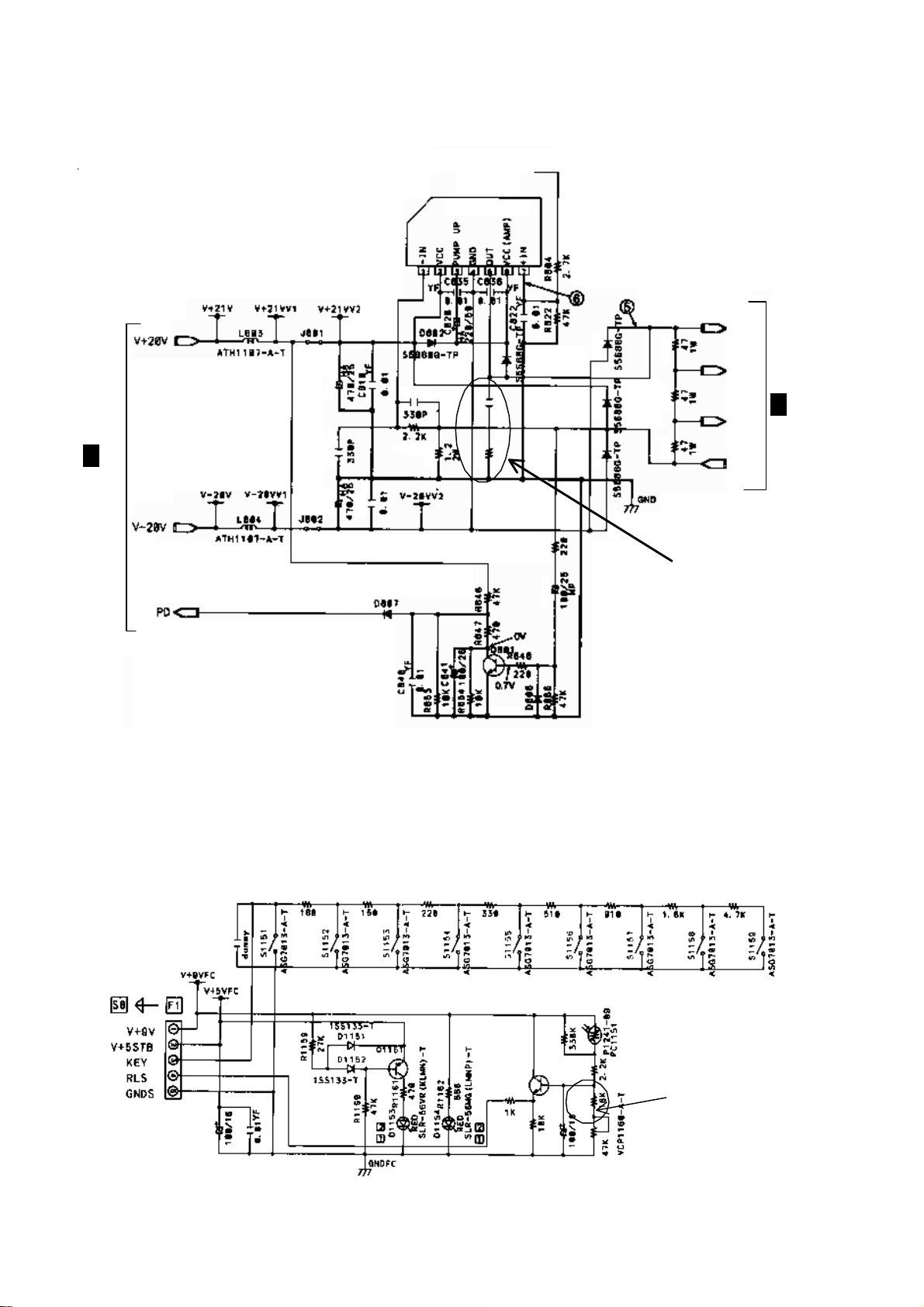

Deflection Service Ass'y

AWV1909

IC802

LA78045

V.DEF AMP

( 2/2 )

VRD

D809

C829

C819

R828

R829

R830 C821

D806 D803D804

R835C834

C817

3/3

J

C827

C828

R823R824R831

Changed

VRRGD

VGRBD

VBR

3/3

J

R830,C821

Front Control Ass'y

AWZ6608

C1154

POWER

CN1151

KM250MA5L

C1151

to AWV1891- SIGNAL ASS'Y

C1152

R1151 R1152 R1153 R1154 R1155 R1157R1156 R1158

INPUT

/SET

CH- VOL- VOL+

Q1152

R1163

CH+ MENU RETURN FACTORY

R1165

R1166

Changed

R1167

R1164

C1153

VR1151

R1167

SERVICE INFORMATION

Date:

Mar.5, 2003

No.: SI-D03048 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-1000HD/LUXC/CA A 0003356- ARP3093 PRO-800HD/LUXC/CA A 0001551- ARP3123

DETAIL

# CHANGE

1 Change of the operating instructions (page18 and 19)

REASON

1 Change of specification

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 operating instructions ARB1548 2 ARB1550 operating instructions

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-463 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4703

Classify:

MODEL No. * SER.No. S/M No. PG

PRO-710HD/KUXC/CA A R/C ARP3086 PRO-610HD/KUXC/CA A R/C ARP3086 PRO-510HD/KUXC/CA A R/C ARP3086 SD-582HD5/KUXC/CA A R/C ARP3086 SD-532HD5/KUXC/CA A R/C ARP3086 SD-532HD/KBXC A R/C ARP3086 PRO-720HD/KUXC/CA A R/C ARP3095 PRO-620HD/KUXC/CA A R/C ARP3095 PRO-520HD/KUXC/CA A R/C ARP3095

DETAIL

REASON

# CHANGE

1 Changed parts, R5094 and R5095 in RGB SW Assy (AWZ6468)

1 To improve the reliability for sync lock with Samsung STB, SIR-TS160

SERVICE INFORMATION

Date:

Mar.5, 2003

No.: SI-D03047 ( 1/1 )

In PRO-710HD, PRO-610HD, PRO-510HD, SD-582HD5 and SD-532HD5, there are two different models (original model and value analysis model) respectively. Confirm the serial No. of the product rear side, and use seach service manual. Refer to page 2 of ARP3086.

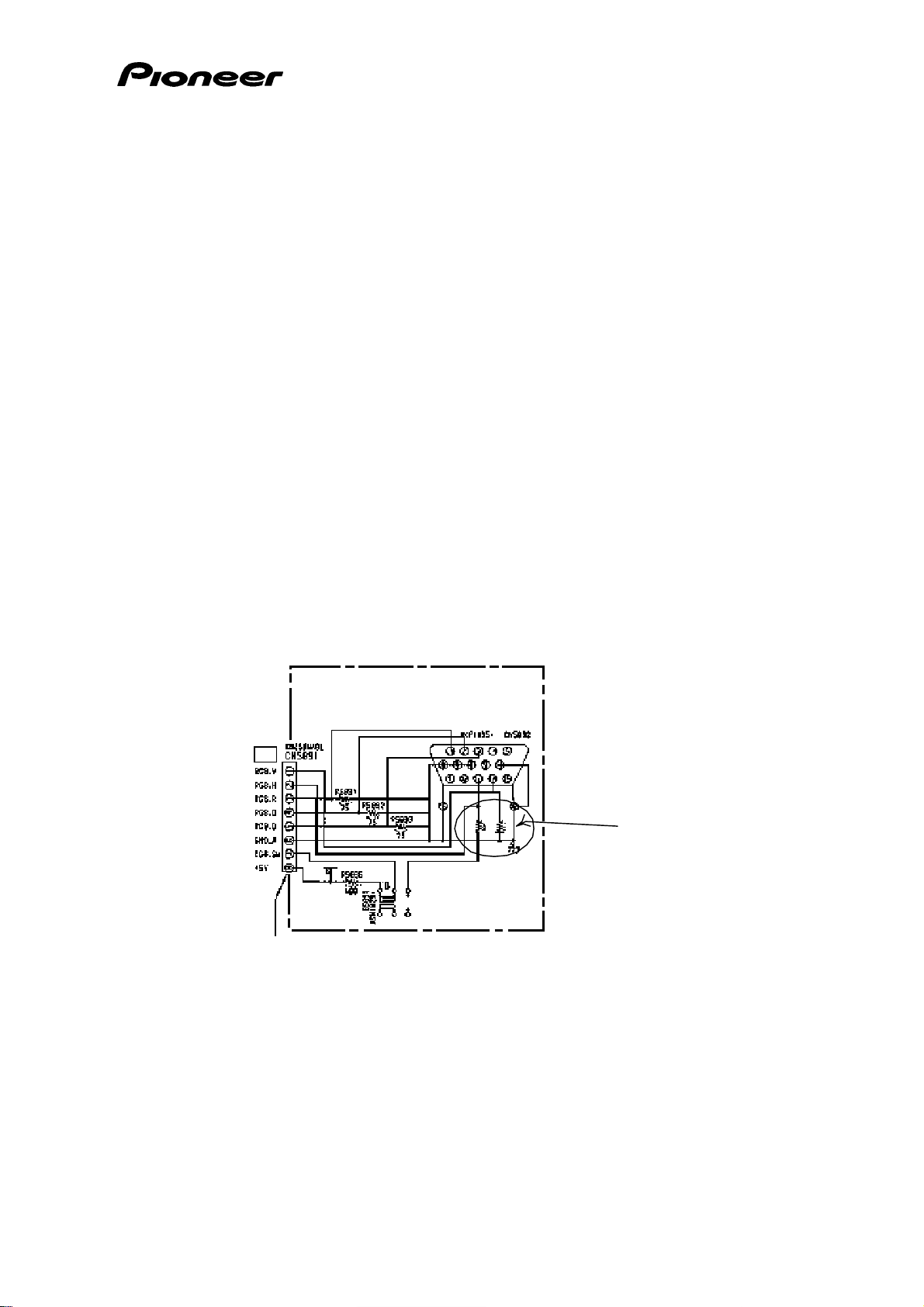

RGB SW ASSY (AWZ6468)

Q1

Changed

R5094 R5095

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 R5094, R5095 RS1/16S750J 1 RS1/16S222J R5094, R5095

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-513 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4873

Classify:

SERVICE INFORMATION

Date:

Feb.25, 2003

No.: SI-D03046 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

SD-533HD5/KBXC A R/C ARP3094 SD-533HD5/KUXC/CA A R/C ARP3094 SD-643HD5/KUXC/CA A R/C ARP3094

DETAIL

# CHANGE

1 Changed parts

REASON

1 To improve the reliability.

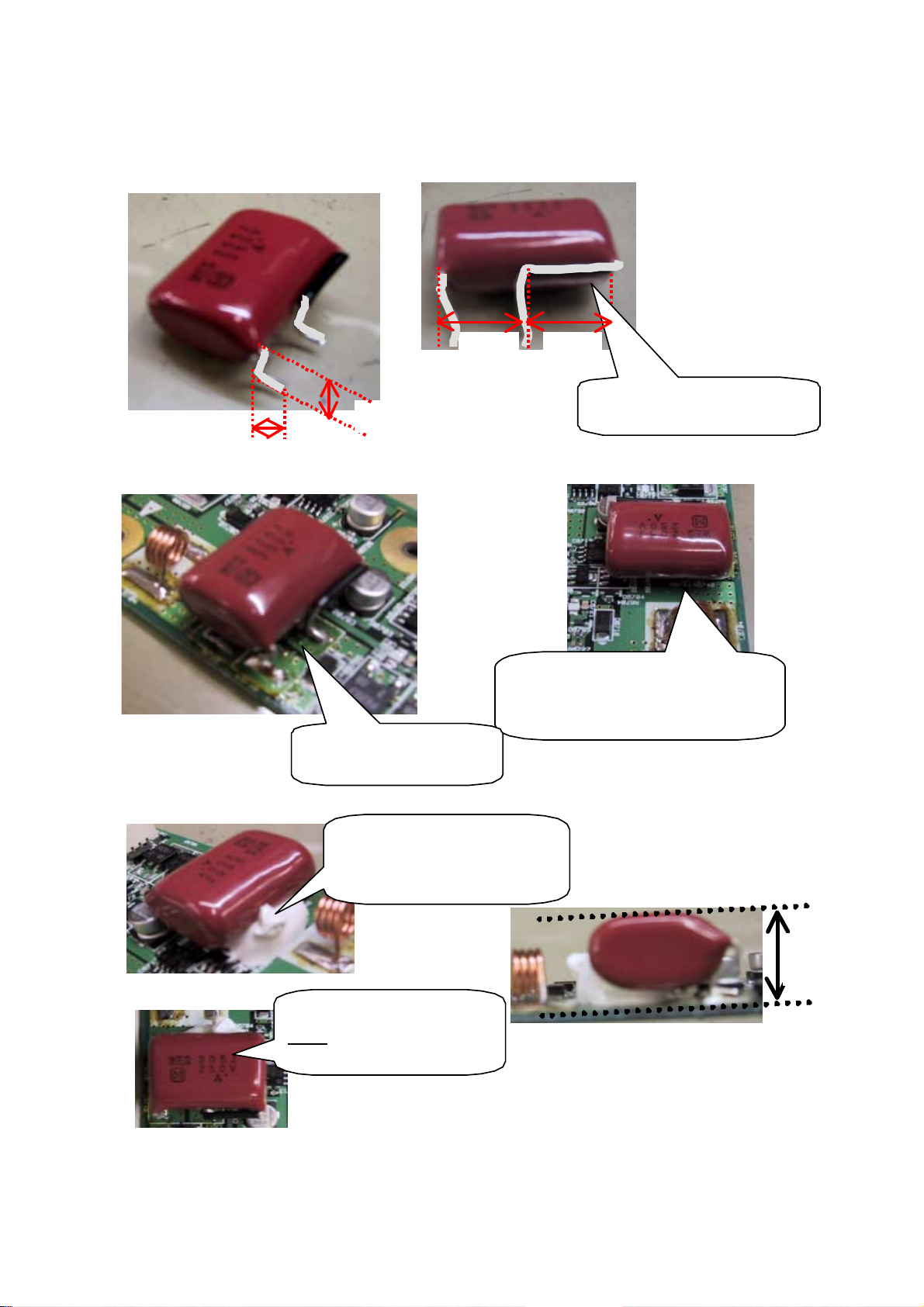

C3204

C3206

R3207

R3227

R3226

Changed

C3205

C3202

Deleted

C3207

IC3201

CXA3106Q

VIDEO IP A'SSY

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 C3205 ACE1130 1 CFTLA105J50 C3205 A 1 C3207 ACE1130 - Deleted

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-434 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4801

Classify:

SERVICE INFORMATION

Date:

Feb.25, 2003

No.: SI-D03045 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503PG/TLDPKBRO A 0001341- ARP3117 PDP-433PG/TLDPKBRO B 0001271- ARP3118

DETAIL

# CHANGE

1 Changed labels

REASON

1 Authorized by MIC

----- Please see the following page for pictures of each label. -----

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - AAX2948 MIC label A 1 Added - AAX2950 MIC label for packing box B 1 Added - AAX2949 MIC label B 1 Added - AAX2951 MIC label for packing box AB 1 KTL label AAX2912 - Deleted

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-341 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4707

Classify:

AAX2948

32

64

E-B900-02-3335(B)

AAX2948-A

4-R1

( 2/2 )

AAX2949

AAX2950

40

32

64

E-B900-02-3334(B)

AAX2949-A

80

4-R1

AAX2951

40

80

AAX2950-A

4-R1

AAX2951-A

SERVICE INFORMATION

Date:

Feb.21, 2003

No.: SI-D03044 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PRO-700HD/KUXC/CA A R/C ARP3013 SD-641HD5/KUXC/CA A R/C ARP3031

DETAIL

# CHANGE

1 Change of CRT socket in R, G and B CRT DRIVE ASSY.

REASON

1 To prevent CRT socket from dew.

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 CRT socket AKG1005 1 AKG1006 CRT socket

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC54-102 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D1285

Classify:

MODEL No. S/M No. PG MODEL No. S/M No. PG

PDP-433PE/WYVI6 ARP3111 45 PDP-433PU/KUC ARP3111 45

CORRECTION OF SERVICE MANUAL

Date:

Please correct your service manual

Feb.18, 2003

No.: SI-D03043 ( 1/1 )

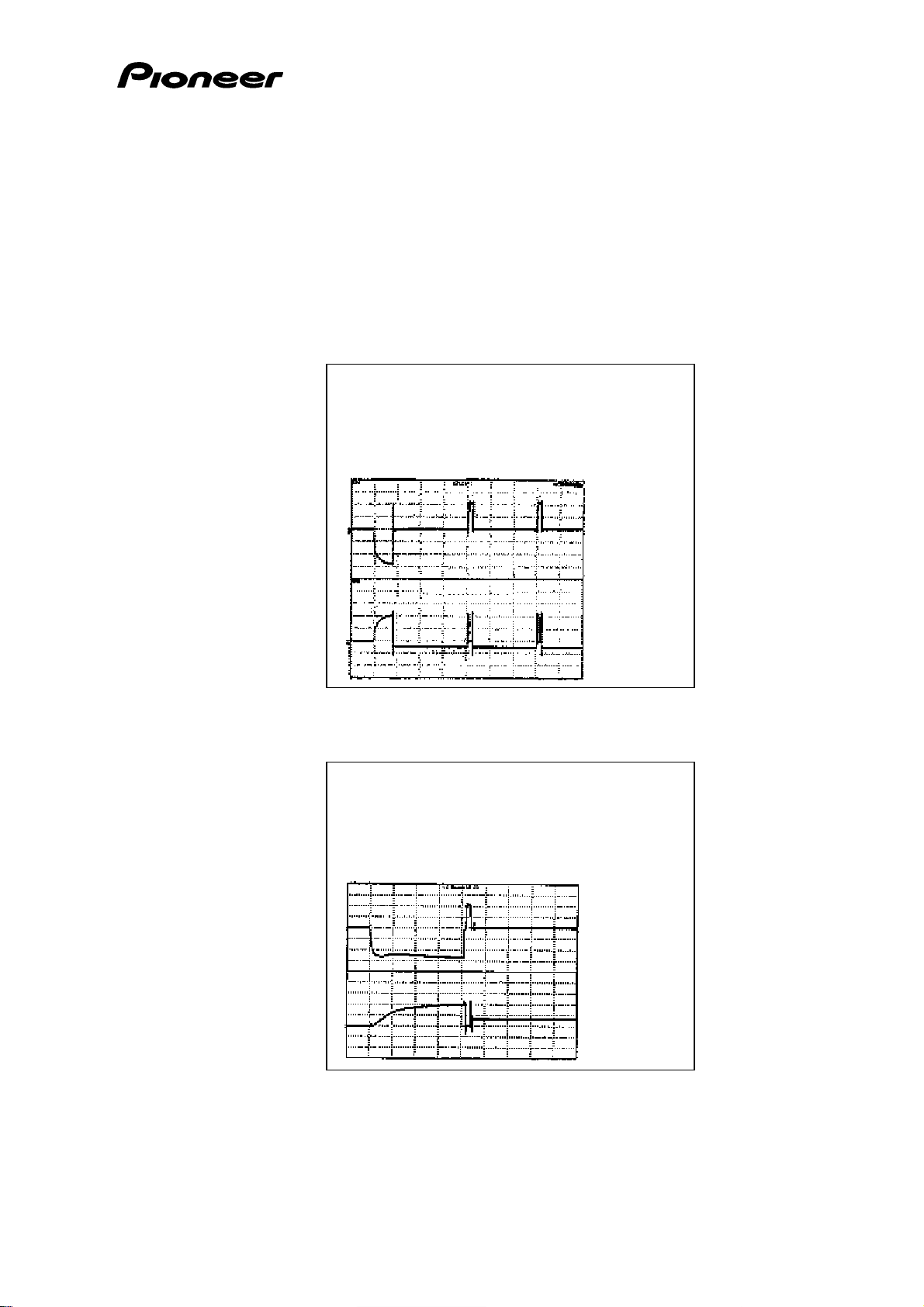

[OLD]

Sustain Waveforms

* Sustain Waveform (1 sub-field)

ch 1 : K3107(X.PSUS) - K3201(SUSGND)

V: 100V/div. H: 500microsec/div.

ch 2 : K2220(Y.PSUS) - K2219(SUSGND)

V: 100V/div. H: 500microsec/div.

[NEW]

Sustain Waveforms

* Reset Waveform

ch 1 : K3107(X.PSUS) - K3201(SUSGND)

V: 100V/div. H: 100microsec/div.

ch 2 : K2220(Y.PSUS) - K2219(SUSGND)

V: 100V/div. H: 100microsec/div.

PIONEER CORPORATION

K.MATSUMURA ,MANAGER DP

Technical Support Group

Service Support Division

Memo: SY66

MODEL No. S/M No. PG MODEL No. S/M No. PG

PRO-730HD/KUXC/CA ARP3139 161 PRO-630HD/KUXC/CA ARP3139 161 PRO-530HD/KUXC/CA ARP3139 161

CORRECTION OF SERVICE MANUAL

Date:

Please correct your service manual

Feb.10, 2003

No.: SI-D03042 ( 1/1 )

[OLD]

3.2 Confirmation of Convergence Data

The convergence coarse adjustment modes change cyclically, as shown below, with each press of the mode:

INPUT4

key in FACTORY

[NEW]

3.2 Confirmation of Convergence Data

The convergence coarse adjustment modes change cyclically, as shown below, with each press of the mode:

DOT

key in FACTORY

PIONEER CORPORATION

K.MATSUMURA ,MANAGER DP

Technical Support Group

Service Support Division

Memo: SY66

SERVICE INFORMATION

Date:

Apr.10, 2003

No.: SI-D03041-A ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503PE/WYVIO6 A Please see the following page ARP3107 PDP-503PG/TLDPKBRO A ARP3117 PDP-503PU/KUC A ARP3107 PDP-503MXE/YVLDK B ARP3093 PDP-503MXE-S/TA B ARP3120 PDP-503CMX/LUCBO B ARP3093 PDP-433PE/WYVIO6 C ARP3111 PDP-433PG/TLDPKBRO C ARP3118 PDP-433PU/KUC C ARP3111 PDP-433MXE/YVLDK D ARP3123 PDP-433CMX/LUCBW D ARP3123

DETAIL

# CHANGE

1 Created new X and Y Drive Assy

REASON

1 Changed the circuit to meet new Pulse Module, STK795-470

----- Please see the following page -----

Please dispose of the previous Service Information,

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

SI-D03041

issued on Feb.18, 2003.

AB 1 X DRIVE ASSY AWV1901 1 AWV1984 X DRIVE ASSY CD 1 X DRIVE ASSY AWV1930 1 AWV1985 X DRIVE ASSY A 1 Y DRIVE ASSY AWZ6707 1 AWZ6746 Y DRIVE ASSY B 1 Y DRIVE ASSY AWZ6645 1 AWZ6745 Y DRIVE ASSY C 1 Y DRIVE ASSY AWZ6708 1 AWZ6749 Y DRIVE ASSY D 1 Y DRIVE ASSY AWZ6683 1 AWZ6748 Y DRIVE ASSY

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4754 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4755

Classify:

"

[Serial No. of new DRIVE ASSY]

MODEL X DRIVE ASSY Y DRIVE ASSY PDP-503PE/WYVIO6 0003001- 0003001PDP-503PG/TLDPKBRO 0001821- 0001821PDP-503PU/KUC 0004591- 0004591PDP-503MXE/YVLDK 0007611- 0007611PDP-503MXE-S/TA 0000631- 0000631PDP-503CMX/LUCBO 0013671- 0013671PDP-433PE/WYVIO6 0001691- 0001691PDP-433PG/TLDPKBRO 0001861- 0001991PDP-433PU/KUC 0004531- 0004531PDP-433MXE/YVLDK 0003671- 0003901PDP-433CMX/LUCBW 0006121- 0006811-

( 2/2 )

[Notice]

It is not necessary to replace both X DRIVE ASSY and Y DRIVE ASSY at the same time. It is impossible to replace a new part with an old part. It is possible to replace an old part with a new part.

In this c ase , it is n ecessary to reset va lue of X- SUS-B ADJ or Y-SU S-B A DJ in service factory mode using the remote control unit provided with the plasma display. (Regarding the operations of service factory mode, see the service manual.)

1) 503 series When you replace the DRIVE ASSY of 503 series, add 2 steps to the current value of SUS-B ADJ that correspond to the part you replace.

(e.g.1) When you replace X DRIVE ASSY and the current value of X-SUS-B ADJ is "08 reset the value to "10". In this c ase , it is n ot n ecessary to rese t the value of Y-SU S-B A DJ.

(e.g.2) When you replace Y DRIVE ASSY and the current value of Y-SUS-B ADJ is "08 reset the value to "10". In this c ase , it is n or neces sary to rese t the value of X -SU B- B A D J.

2) 433 series When you replace the DRIVE ASSY of 433 series, add 1 step to the current value of SUS-B ADJ that correspond to the part you replace.

(e.g.1) When you replace X DRIVE ASSY and the current value of X-SUS-B ADJ is "08 reset the value to "09". In this c ase , it is n ot n ecessary to rese t the value of Y-SU S-B A DJ.

(e.g.2) When you replace Y DRIVE ASSY and the current value of Y-SUS-B ADJ is "08 reset the value to "09". In this c ase , it is n ot n ecessary to rese t the value of X-SU S-B A DJ.

SERVICE INFORMATION

Date:

Feb.18, 2003

No.: SI-D03041 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503PE/WYVIO6 A Please see the following page ARP3107 PDP-503PG/TLDPKBRO A ARP3117 PDP-503PU/KUC A ARP3107 PDP-503MXE/YVLDK B ARP3093 PDP-503MXE-S/TA B ARP3120 PDP-503CMX/LUCBO B ARP3093 PDP-433PE/WYVIO6 C ARP3111 PDP-433PG/TLDPKBRO C ARP3118 PDP-433PU/KUC C ARP3111 PDP-433MXE/YVLDK D ARP3123 PDP-433CMX/LUCBW D ARP3123

DETAIL

# CHANGE

1 Created new X and Y Drive Assy

REASON

1 Changed the circuit to meet new Pulse Module, STK795-470

--- Please see the following page ---

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

AB 1 X DRIVE ASSY AWV1901 1 AWV1984 X DRIVE ASSY CD 1 X DRIVE ASSY AWV1930 1 AWV1985 X DRIVE ASSY A 1 Y DRIVE ASSY AWZ6707 1 AWZ6746 Y DRIVE ASSY B 1 Y DRIVE ASSY AWZ6645 1 AWZ6745 Y DRIVE ASSY C 1 Y DRIVE ASSY AWZ6708 1 AWZ6749 Y DRIVE ASSY D 1 Y DRIVE ASSY AWZ6683 1 AWZ6748 Y DRIVE ASSY

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4754 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4755

Classify:

[Serial No. of new DRIVE ASSY]

MODEL X DRIVE ASSY Y DRIVE ASSY PDP-503PE/WYVIO6 0003001- 0003001PDP-503PG/TLDPKBRO 0001821- 0001821PDP-503PU/KUC 0004591- 0004591PDP-503MXE/YVLDK 0007611- 0007611PDP-503MXE-S/TA 0000631- 0000631PDP-503CMX/LUCBO 0013671- 0013671PDP-433PE/WYVIO6 0001691- 0001691PDP-433PG/TLDPKBRO 0001861- 0001991PDP-433PU/KUC 0004531- 0004531PDP-433MXE/YVLDK 0003671- 0003901PDP-433CMX/LUCBW 0006121- 0006811-

( 2/2 )

[Notice]

It is not necessary to replace both X DRIVE ASSY and Y DRIVE ASSY at the same time. It is impossible to replace a new part with an old part. It is possible to replace an old part with a new part.

In this cas e, it is neces s ary to re set value of X- SUS-B ADJ or Y- SUS-B A D J in service factory mode using the remote control unit provided with the plasma display. (Regarding the operations of service factory mode, see the service manual.)

1) 503 series When you replace the DRIVE ASSY of 503 series, add 2 steps to the current value of SUS-B ADJ that correspond to the part you replace. (e.g.) When you replace X DRIVE ASSY and the current value of X-SUS-B ADJ is "08", res et the v alue to "10 ". In this cas e, it is no t ne ces s ary to r ese t the va lue of Y-SUS-B ADJ.

2) 433 series When you replace the DRIVE ASSY of 433 series, add 1 step to the current value of SUS-B ADJ that correspond to the part you replace. (e.g.) When you replace X DRIVE ASSY and the current value of X-SUS-B ADJ is "08", res et the v alue to "09 ". In this cas e, it is no t ne ces s ary to r ese t the va lue of Y-SUS-B ADJ.

SERVICE INFORMATION

Date:

Feb.10, 2003

No.: SI-D03040 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PRO-530HD/KUXC/CA A R/C ARP3138 PRO-630HD/KUXC/CA A R/C ARP3138 PRO-730HD/KUXC/CA A R/C ARP3138

DETAIL

# CHANGE

1 Changed some parts on Video Ucom Assy, AWV1963

This information apply to Video Ucom Service Assy, AWV1992, also.

REASON

1 Improvement of productivity

---- Please see the parts locations in the schematic back of this page ----

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 R5451 RD1/4PU331J 1 RS1/16S331J R5451 A 1 CN1902 KM250MA9 - Deleted A 1 Added - RS1/16S152J R2937 A 1 R5452 RD1/4PU470J - Deleted A 1 R5453 RD1/4PU152J - Deleted

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4900 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4880

Classify:

( 2/2 )

VIDEO UCOM ASS'Y

V17

C2880

IC2805

M52055FP-TBB

C2889

R2931

R2930

R2932

R5470

VIDEO UCOM ASS'Y

R2933

R2934

R2936

R2935

R5471

C2890

R2937

C2881

R2938

C2882

R5472

Added R2937

Deleted

CN1902

V2

TO REPLACEBLE BOARD

R1901

V3

KM250MA9

1 2 3 4 5 6 7 8 9

R1902

CN1902

MODEL No. * SER.No. S/M No. PG

PRO-510HD/KUXC/CA A R/C ARP3086 PRO-610HD/KUXC/CA A R/C ARP3086 PRO-710HD/KUXC/CA A R/C ARP3086 SD-532HD5/KBXC A R/C ARP3086 SD-532HD5/KUXC/CA A R/C ARP3086 SD-582HD5/KUXC/CA A R/C ARP3086 PRO-520HD/KUXC/CA A R/C ARP3086 PRO-620HD/KUXC/CA A R/C ARP3086 PRO-720HD/KUXC/CA A R/C ARP3086

DETAIL

REASON

# CHANGE

1 Changed capacitors

1 Production convenience

SERVICE INFORMATION

Date:

Feb.10, 2003

No.: SI-D03039 ( 1/1 )

[Detail]

Changed capacitors, C5601 and C5602, on Video Assy

Model Part number of Video Assy PRO-510HD/KUXC/CA PRO-610HD/KUXC/CA

AWV1799 PRO-710HD/KUXC/CA SD-532HD5/KBXC SD-532HD5/KUXC/CA

AWV1804 SD-582HD5/KUXC/CA PRO-520HD/KUXC/CA PRO-620HD/KUXC/CA

AWV1916 PRO-720HD/KUXC/CA

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 C5601, C5602 CEAT101M10 1 CEANP101M10 C5601, C5602

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4871 SY66

1;Changeable from old to new.

5:Do not use old parts

SPC57-576

Classify:

[OLD]

N

ipti

Part N

PG.1

H

t

AZB1432

Page 7

2

Nat

AZB1433

3

3P Assy

AZD1106

4

10P Assy

AZD1107

5

14P Assy

AZD1108

6

232C Assy

AZK1138

7

DC Assy

AZK1139

8

F

)

AZN2418

9

F

)

10

F

(Right)

AZN2484

11

F

ft)

AZN2421

12

E

AZN2422

13

C

AZN2423

14

S

AZN2425

15

Fil

RC

AZN2426

[NEW]

N

ipti

Part N

1

H

t

AZB1432

2

NatAZB1433

3

3P Assy

AZD1106

4

10P Assy

AZD1107

5

14P Assy

AZD1108

6

232C Assy

AZK1138

7

DC Assy

AZK1139

8

F

)

AZN2418

9

F

)

10

F

(Right)

AZN2484

11

F

ft)

AZN2421

12

E

AZN2422

13

C

AZN2423

14

S

AZN2425

15

Filt

RC

AZN2426

MODEL No. S/M No. PG MODEL No. S/M No. PG

PDK-50HW2 ARP3109 7

CORRECTION OF SERVICE MANUAL

Date:

Please correct your service manual

Dec.12, 2002

No.: SI-D03038 ( 1/1 )

CORTING SE CTION PARTS LIST

Mark

o. Descr

on

o.

exagon Na

rame (Lower rame (Upper

AZN2419

rame rame (Le

scutcheon orner ensor Holder

ter

CORTING SE CTION PARTS LIST

Mark

o. Descr

on

exagon Na

rame (Lower rame (Upper

AZN2499

rame

o.

rame (Le

scutcheon orner ensor Holder

er

PIONEER CORPORATION

K.MATSUMURA ,MANAGER DP

Technical Support Group

Service Support Division

Memo: AA-D4272 SY66

SERVICE INFORMATION

Date:

Dec.11, 2002

No.: SI-D03037 ( 1/1 )

MODEL No. * SER.No. S/M No. PG

PDP-503CMX/LUCBO A R/C ARP3100 PDP-503MXE/YVLDK A R/C ARP3100 PDP-503PE/WYVIO6 A R/C ARP3108

DETAIL

# CHANGE

1 Change of DC-DC converter on Digital Video ASSY (AWV1903)

REASON

1 Production convenience

D8D9

AXY1052-

D10

GND

1

VCC5

18

Additional resistor

39ohm

When replacing AXY1052 with AXY1054, remove the additional resistor (39 ohm ) from Digital Video ASSY. On the other hand, AXY1054 on Digital Video ASSY does not have

the additional resistor.

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 DC-DC converter AXY1052 1 AXY1054 DC-DC converter

NOTE:PARTS CODE

K.MATUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D3802 SY66

1;Changeable from old to new.

5:Do not use old parts

Classify:

D11

MODEL No. * SER.No. S/M No. PG

PDP-503MXE/YVLDK A 0006461- ARP3093 PDP-503MXE-S/TA B 0000601- ARP3120 PDP-433MXE/YVLDK C 0002851- ARP3123

DETAIL

2 Change of the operating instructions

REASON

# CHANGE

1 Change of RGB ASSY

1,2 Design change

SERVICE INFORMATION

Date:

Dec.11, 2002

No.: SI-D03036 ( 1/1 )

* Changed MAIN uCOM program in RGB ASSY MAIN uCOM (IC5505) version 16 --> version 17 WIDE uCOM (IC5601) version 05 --> version 06

There is a silver sticker for distinction near the serial number of the performed UNIT. * The operating instructions of PDP-503CMX/LUCBO changed twice.

No. ARE1360 --> ARE1361 --> ARE1365 ARC1503 --> ARC1506 --> ARC1510 1 2

Detail 1 : Common use for 43 inch and 50 inch model Detail 2 : Design change (Not interchangeable)

Ref CURRENT PARTS CO NEW PARTS

* #

AB 1 RGB ASS'Y AWZ6743 1 AWZ6744 RGB ASS'Y C 1 RGB ASS'Y AWZ6697 1 AWZ6744 RGB ASS'Y AC 2 operating instructions ARE1361 2 ARE1365 operating instructions AC 2 operating instructions ARC1506 2 ARC1510 operating instructions B 2 operating instructions ARC1507 2 ARC1511 operating instructions

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

PIONEER CORPORATION

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: AA-D4143 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4568

Classify:

SERVICE INFORMATION

Date:

Dec.6, 2002

No.: SI-D03035 ( 1/2 )

MODEL No. * SER.No. S/M No. PG

PDP-503CMX/LUCBO A 0011071- ARP3093 PDP-503MXE-S/TA A 0000601- ARP3120 PDP-503MXE/YVLDK A 0006361- ARP3093 PDP-503PE/WYVIO6 A 0002801- ARP3107 PDP-503PG/TLDPKBRO A 0001341- ARP3117 PDP-503PU/KUC A 0003711- ARP3107 PDP-433CMX/LUCBW A 0004721- ARP3123 PDP-433MXE/YVLDK A 0003151- ARP3123 PDP-433PE/WYVIO6 A 0001551- ARP3111 PDP-433PG/TLDPKBRO A 0001451- ARP3118 PDP-433PU/KUC A 0004431- ARP3111

DETAIL

# CHANGE

1 Added the anti-vibration sheet C (AEC1927).

REASON

1 Prevent vibration between switch holder and front chassis.

Please see the next page about the added position of anti-vibration sheet.

Ref CURRENT PARTS CO NEW PARTS

* #

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION

A 1 Added - AEC1927 Anti-Vibration Sheet C

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

Service Support Division

Memo: SPC57-370 SY66

1;Changeable from old to new.

5:Do not use old parts

AA-D4652

Classify:

The position of the added sheet

Upper side

Please do not put the sheet

on this chassis.

( 2/2 )

Upper side

Front chassis V

(ANA1661: for 50inch)

(ANA1672 : for 43inch)

Please put the sheet

along the corner of

front chassis V.

square

hole

Please put the sheet

to the edge of

square hole.

< Enlargement >

Anti-vibration sheet C

(AEC1927)

[

]

*

)

*

)

*

)

*

)

*

)

*

)

MODEL No. S/M No. PG MODEL No. S/M No. PG

RM-V2500NAS/LU/CA ARP3130 2

CORRECTION OF SERVICE MANUAL

Date:

Please correct your service manual

Dec.3, 2002

No.: SI-D03034 ( 1/1 )

OLD

CONTRAST TA BLE

Part No.

P6-107 P6-108 P6-109

MarkRef.No. Remark sSymbol and Description

EXTERIOR BLOCK

NSP NAM E PL AT E AAL230 2 AAL2410 NSP UPC Code Label AAX2704 AAX2916

CRT BLOCK

CRT SERVICE ASSY (R) BWY1014

NSP CRT ASSY (R

CRT SERVICE ASSY (G

NSP CRT ASSY (G

CRT SERVICE ASSY (B

NSP CRT ASSY (B

RM-V2500NA

/LU/CA

BWL1006 AWL1 373 BWY1015 AWY1373 BWL1014 AWL1 374 BWY1016 AWY1374 BWL1008 AWL1 375

RM-V25 0 0 NAS

/LU/CA

AWY1375

TUBE

[NEW]

CONTRAST TA BLE

EXTERIOR BLOCK

NSP NAM E PL AT E AAL230 2 AAL2410 NSP UPC Code Label AAX2704 AAX2916

CRT BLOCK

P6-107 P6-108 P6-109

CRT SERVICE ASSY (R) BWY1014

NSP CRT ASSY (R

CRT SERVICE ASSY (G

NSP CRT ASSY (G

CRT SERVICE ASSY (B

NSP CRT ASSY (B

TUBE

Not used BDN1001

Part No.

RM-V2500NA

/LU/CA

RM-V25 0 0 NAS

/LU/CA

AWY1372

BWL1006 AWL1 373 BWY1015 AWY1373 BWL1014 AWL1 374 BWY1016 AWY1374 BWL1008 AWL1 375

Not used BDN1001

Remark sRef.No. Mark Symbol and Description

PIONEER CORPORATION

K.MATSUMURA ,MANAGER DP

Technical Support Group

Service Support Division

Memo: DS-29836 SY66

`

y

p

ili

d

p

g

y

p

y

i

g

MODEL No. * SER.No. S/M No. PG

SYMPTOM

CAUSE

SERVICE REMEDY

FACTORY COUNTER

-MEASURE

See to following page

# DETAIL

1 The power goes off.

1 Short circuit of Capacitors (C6716 or C6718) in the address resonance ASSY.

1 Please see the following.

1 Same as the Service Remedy.

SERVICE INFORMATION

Date:

Nov.20, 2002

No.: SI-D03033-G ( 1/5 )

Service Remed

1-a "When you repair the PDP at your service bench"

are an insulated tube and white s

Pre Remove C6716 an Set a new ca Perform same thin

1-b " When

lace both upper and lower Address Resonance Assy with new Ass

Re

C6718.

acitor , ACE 1162. Refer t o the procedure of the next page.

s to both upper and lower Address Resonance Assy.

ou repair the PDP on site"

con bonding.

Old New 50 inch AWZ6691 AWZ6750 43 inch AWZ6682 AWZ6751

2Put

nsulated sheet on both upper and lower panel chassis. Refer to the exploded views.

And furthermore, if the PDP you are fixing is an industrial model, put insulated sheet on RGB Base also.

3 Put a

Ref CURRENT PARTS CO NEW PARTS

* #

A 1 address resonance ASSY AWZ6691 5 AWZ6750 address resonance ASSY B 1 address resonance ASSY AWZ6682 5 AWZ6751 address resonance ASSY AB 1 Added - AMR3343 insulated sheet AB 1 capacitor ACE1159 5 ACE1162 capacitor

PIONEER CORPORATION

NOTE:PARTS CODE

K.MATSUMURA ,MANAGER DP 2:Not Interchangeable an all.

Technical Support Group 3:Interchangeable in both ways

reen sticker on the right side of serial number.

SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER

1:Changeable from old to new.

Service Support Division

5:Do not use old parts

SYMBOL/DESCRIPTION

Memo: AA-D4747 SY66

AA-D4749 AA-D4774

Classify:

( 2/5 )

MODEL No. * SER.No. S/M No. PG

PDP-503CMX/LUCBO A 0011321- ARP3093 PDP-503MXE/YVLDK A 0006681- ARP3093 PDP-503PE/WYVI6 A 0002971- ARP3107 PDP-503PG/TLDPKBR A 0001341- ARP3117 PDP-503PU/KUC A 0003971- ARP3107 PDP-503MXE-S/TA A 0000601- ARP3120 PDP-433CMX/LUCBW B 0004761- ARP3123 PDP-433MXE/YVLDK B 0003241- ARP3123 PDP-433PE/WYVI6 B 0001601- ARP3111 PDP-433PG/TLDPKBR B 0001451- ARP3118 PDP-433PU/KUC B 0004431- ARP3111

Procedure how to set a new capacitor

m3mm

m

.

( 3/5 )

10m

8m

Sold er the capacitor on the lands of C6716

10m

Prev ent electrical contact using an insulate d tube.

Kee p d is tance of 5 m illim eters between the capacitor and a coil, L6704

Put white silicon bond ing between the capacitor and board.

within 14mm

Confirm printed number

205J

WFS 250V
