Pioneer DEX-P99RS User Manual

Download

Page 1

CD PLAYER

DEX-P99RS

Operation Manual

English

Page 2

Contents

Thank you for purchasing this PIONEER product.

Please read through this manual before using the product for the first time, to ensure proper use. After reading, please keep the manual in a safe and accessible place

for future reference.

Before You Start

Information to User 5 For Canadian model 5 About this unit 5 About this manual 5 After-sales service for Pioneer products 6 Visit our website 6 Features 6 Protecting your unit from theft 7

– Removing the front panel 7 – Attaching the front panel 7

Resetting the microprocessor 7 Reverse mode 8 Use and care of the remote control 8

– Installing and removing the battery 8 – Using the remote control 8

Operating this unit

What’s what 10

– Head unit 10 – Steering remote control 10

Basic Operations 11

– Power ON/OFF 11 – Selecting a source 11 – Loading a disc 12 – Adjusting the volume 12

Tuner 13

– Basic Operations 13 – Storing and recalling broadcast

frequencies 13

– Introduction to advanced

operations 13

– Storing the strongest broadcast

frequencies 14

– Tuning in strong signals 14

Built-in CD Player 14

– Basic Operations 14 – Displaying text information on disc 15 – Selecting tracks from the track title

list 15

– Selecting files from the file name

list 16

– Introduction to advanced

operations 16

– Selecting a repeat play range 16 – Playing tracks in random order 16 – Scanning folders and tracks 17 – Pausing playback 17 – Using disc title functions 17

Playing songs in a USB storage device 18

– Basic Operations 18 – Displaying text information of an audio

file 18

– Selecting files from the file name

list 18

– Introduction to advanced

operations 19

Playing songs on iPod 20

– Basic Operations 20 – Browsing for a song 20 – Displaying text information on

iPod 21

– Introduction to advanced

operations 21

– Playing songs in a random order

(shuffle) 22

– Playing all songs in a random order

(shuffle all) 22

– Playing songs related to the currently

playing song 22

– Operating this unit’s iPod function

from your iPod 22

– Changing audiobook speed 23

Audio Adjustments Operation modes 24

– Adjusting the audio easily 24 – Adjusting the audio finely 24 – Extra functions 24

Introduction of audio adjustments 24 Switching left and right channel 25 Using balance adjustment 25 Using the position selector 25 About the network function 25

– Adjustable parameters 26

Page 3

Contents

– Points concerning network

adjustments 26

– Muting the speaker unit (filter) 27 – Adjusting network 27

Using the time alignment 28

– Adjusting the time alignment 29

Recalling or copying equalizer curves 29

– Recalling the equalizer curve 29 – Copying the equalizer curve 30

Fine-adjusting equalizer curve 30 Using the auto-equalizer 30 Using the sound retriever 31 Adjusting loudness 31 Adjusting source levels 31 Auto TA and EQ (auto-time alignment and

auto-equalizing) 31

– Before operating the auto TA and EQ

function 32

– Carrying out auto TA and EQ 33

Initial Settings

Adjusting initial settings 35 Selecting the display language 35 Setting the speakers 35 Setting the clock 36 Switching the warning tone 36 Switching the face auto open 36 Switching the auxiliary setting 36 Switching the dimmer setting 36 Adjusting the brightness 37 Selecting the illumination color 37 Adjusting the illumination color 37 Setting the illumination interlock 37 Correcting distorted sound 38 Resetting the audio functions 38 Switching the sound muting/attenuation 38 Setting the polarity of the door operation 38 Setting the door mute setting 38 Switching the reverse mode 39 Switching the ever scroll 39 Activating the BT Audio source 39 Entering PIN code for Bluetooth wireless

connection 39

Displaying system version for repair 40

Other Functions Using the AUX source 41

– About AUX1 and AUX2 41 – AUX1 source: 41 – AUX2 source: 41 – Selecting AUX as the source 41 – Setting the AUX title 41

Turning the clock display on or off 41 Using the external unit 42

– Selecting the external unit as the

source 42

– Basic operation 42 – Advanced operations 42

Using different entertainment displays 42 Using the DF (direct function) button 42

Available accessories XM tuner 44

– Listening to XM Satellite Radio 44 – Switching the XM display 44 – Storing and recalling broadcast

stations 44

– Selecting the XM channel select

mode 44

– Displaying the Radio ID 45

SIRIUS Satellite Radio tuner 45

– Listening to SIRIUS Satellite Radio 45 – Switching the SIRIUS display 46 – Storing and recalling broadcast

stations 46

– Introduction of advanced

operations 46

– Selecting the SIRIUS channel select

mode 47

– Using the Game Alert function 47 – Displaying the Radio ID 48 – Using Instant Replay function 48

HD Radioä tuner 49

– Basic Operations 49 – Storing and recalling broadcast

frequencies 49

– Switching the display 49 – Introduction to advanced

operations 49

Page 4

Contents

– Switching the seek mode 50 – Switching the reception mode 50

Playing songs on iPod 50

– Basic operation 50 – Displaying text information on

iPod 51

– Browsing for a song 51 – Introduction to advanced

operations 51

Bluetooth Audio 51

– Basic Operations 52 – Function and operation 52 – Connecting a Bluetooth audio

player 53

– Playing songs on a Bluetooth audio

player 53

– Stopping playback 53 – Disconnecting a Bluetooth audio

player 53

– Displaying BD (Bluetooth Device)

address 53

Bluetooth Telephone 54

– Basic Operations 54 – Setting up for hands-free phoning 54 – Making a phone call 55 – Taking a phone call 55 – Function and operation 56 – Connecting a cellular phone 56 – Disconnecting a cellular phone 57 – Registering a connected cellular

phone 57

– Deleting a registered phone 57 – Connecting to a registered cellular

phone 58

– Using the phone book 58 – Using the call history 60 – Making a call by entering phone

number 61

– Clearing memory 61 – Setting automatic rejecting 62 – Setting automatic answering 62 – Switching the ring tone 62

– Echo canceling and noise

reduction 62

Multi-CD Player 62

– Basic Operations 62 – Using CD TEXT functions 63 – Introduction to advanced

operations 63

– Using compression and bass

emphasis 64

– Using ITS playlists 64 – Using disc title functions 65

DVD Player 66

– Basic Operations 66 – Introduction to advanced

operations 66

Additional Information

Error messages 68 Understanding auto TA and EQ error

messages 69 Handling guideline of discs and player 70 DualDiscs 70 Handling guideline of USB storage device

and this unit 70 Compressed audio compatibility (disc,

USB) 71

– Supplemental information of

compressed audio (disc, USB) 71 Compressed audio files on the disc 71 Compressed audio files in the USB storage

device 72

Example of a hierarchy and playback

sequences 72

– The sequence of audio files on the

disc 72

– The sequence of audio files on the USB

storage device 72 iPod 72

– iPod compatibility 72 – About handling the iPod 73 – About iPod settings 73

Page 5

Before You Start

Section

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

For Canadian model

This Class B digital apparatus complies with Canadian ICES-003.

About this unit

The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception.

WARNING

Handling the cord on this product or cords associated with accessories sold with the product will expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm. Wash hands after handling.

CAUTION: USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

CAUTION

! Do not allow this unit to come into contact

with liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

! Keep this manual handy as a reference for op-

erating procedures and precautions.

! Always keep the volume low enough so that

you can hear sounds from outside the vehicle.

! Protect this unit from moisture. ! If the battery is disconnected or discharged,

the preset memory will be erased and must be reprogrammed.

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the enclosed warranty card.

About this manual

This unit features a number of sophisticated functions ensuring superior reception and operation. All the functions have been designed for the easiest possible use, but many are not self-explanatory. This operation manual will help you benefit fully from this unit’s potential and to maximize your listening enjoyment.

Before You Start

Page 6

Section

Before You Start

We recommend that you familiarize yourself with the functions and their operation by reading through the manual before you begin using this unit. It is especially important that you read and observe WARNINGs and CAU- TIONs in this manual.

After-sales service for Pioneer products

Please contact the dealer or distributor from where you purchased this unit for after-sales service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the companies listed below: Please do not ship your unit to the companies at the addresses listed below for repair without advance contact.

U.S.A.

Pioneer Electronics (USA) Inc. CUSTOMER SUPPORT DIVISION P.O. Box 1760 Long Beach, CA 90801-1760 800-421-1404

CANADA

Pioneer Electronics of Canada, Inc. CUSTOMER SATISFACTION DEPARTMENT 300 Allstate Parkway Markham, Ontario L3R 0P2 1-877-283-5901 905-479-4411

For warranty information please see the Limited Warranty sheet included with this unit.

Visit our website

Visit us at the following site:

http://www.pioneerelectronics.com

1 Register your product. We will keep the details

of your purchase on file to help you refer to

this information in the event of an insurance claim such as loss or theft.

2 Receive updates on the latest products and

technologies.

3 Download owner’s manuals, order product

catalogues, research new products, and much more.

Features

This unit is compatible with a wide variety of file formats and media/storage devices.

File format compatibility

! WMA ! MP3 ! AAC ! WAV

For details about compatibility, refer to Additional Information on page 68.

Media/storage device compatibility

! CD/CD-R/CD-RW ! USB portable audio player/USB memory

Make inquiries to the manufacturer about your USB portable audio player/USB memory. For details about compatibility, refer to Addi- tional Information on page 68.

iPod compatibility

This unit can control and listen to songs on an iPod. In this manual, iPod and iPhone will be referred to as iPod. For details about the supported iPod, refer to iPod compatibility on page 72.

CAUTION

! Pioneer accepts no responsibility for data lost

on the USB memory/USB portable audio player even if that data is lost while using this unit.

! Pioneer accepts no responsibility for data lost

on the iPod even if that data is lost while using this unit.

Page 7

Before You Start

Section

Protecting your unit from theft

The front panel can be detached to deter theft. ! If the front panel is not detached from the

head unit within five seconds of turning off the ignition, a warning tone sounds.

! You can turn off the warning tone. Refer to

Switching the warning tone on page 36.

Important

! Handle gently when removing or attaching

the front panel.

! Avoid subjecting the front panel to excessive

shock.

! Keep the front panel out of direct sunlight and

high temperatures.

Removing the front panel

1 Press h/Open to open the front panel.

If a disc has been inserted to this unit, pressing and holding h/Open enable to open the front panel without ejecting a disc.

3 Put the front panel into the provided protective case for safe keeping.

Attaching the front panel

1 Make sure the inner cover is closed.

2 Replace the front panel by clipping it into place.

Resetting the microprocessor

The microprocessor must be reset under the following conditions: ! Prior to using this unit for the first time

after installation

! If the unit fails to operate properly ! When strange or incorrect messages ap-

pear on the display

Before You Start

2 Press the release button, slide and remove the front panel toward you.

Take care not to grip it too tightly or to drop the front panel and protect it from contact with water or other fluids to prevent permanent damage.

Release button

% Press RESET with a pen tip or other pointed instrument.

RESET button

Page 8

Section

Before You Start

Reverse mode

If you do not perform an operation within about 30 seconds, screen indications start to reverse, and then continue reversing every 10 seconds. Pressing button B when power to this unit is turned off while the ignition switch is set to ACC or ON cancels the reverse mode. Press button B again to start the reverse mode.

Use and care of the remote control

Installing and removing the battery

Slide the tray on the back of the remote control out and insert the battery with the plus (+) and minus (–) poles aligned properly. ! When using for the first time, pull out the

film protruding from the tray.

WARNING

! Keep the battery out of the reach of children.

Should the battery be swallowed, consult a doctor immediately.

! Batteries (battery pack or batteries installed)

shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

! Use one CR2032 (3 V) lithium battery. ! Remove the battery if the remote control is not

used for a month or longer.

! There is a danger of explosion if the battery is

incorrectly replaced. Replace only with the same or equivalent type.

! Do not handle the battery with metallic tools. ! Do not store the battery with metallic objects. ! If the battery leaks, wipe the remote control

completely clean and install a new battery.

! When disposing of used batteries, comply

with governmental regulations or environmental public institutions’ rules that apply in your country/area.

! “Perchlorate Material – special handling may

apply.

www.dtsc.ca.gov/hazardouswaste/

See perchlorate. (Applicable to California, U.S.A.)”

Using the remote control

The remote control may not function properly in direct sunlight.

Important

! Do not store the remote control in high tem-

peratures or direct sunlight.

! Do not let the remote control fall onto the

floor, where it may become jammed under the brake or accelerator pedal.

! If any of the following problems occur, imme-

diately stop using the unit and consult the dealer from whom you purchased it.

— Smoke is coming from the unit. — Abnormal odor is coming from the unit. — A foreign object has entered the unit. — Liquid has been spilled on or into the unit.

If you continue to use this unit without finding a remedy, the unit may be damaged badly, resulting in a serious accident or fire.

! Do not disassemble or modify this unit. To do

so may cause a malfunction.

! Do not operate this unit while manipulating

the steering wheel as it might result in a traffic accident.

! If you need to operate this unit while driving,

look ahead carefully to avoid being involved in a traffic accident.

Page 9

Before You Start

Section

! Do not leave this steering remote control free

(unattached). When stopping the car or turning, the unit might drop on the floor. If the unit rolls under the brake pedal, it might prevent the driver from braking properly, causing serious problems. Be sure to fix the steering remote control to the steering wheel.

Before You Start

Page 10

edc

Section

Operating this unit

What’s what

Head unit

1 EQ button

Press to select various equalizer curves. Press and hold to turn the display indication and button illumination off or on.

2 Display off indicator

Lights up when the display is turned off.

3 h/Open button

Press to eject a disc from this unit. Press and hold to open or close the front panel.

4 B button

Press to select among three FM bands and one AM band. Press to return to the ordinary display when operating the menu. ! When SIRIUS tuner is selected as the

source, press and hold to perform the Instant Replay mode.

5 D/Scrl button

Press to select different displays. Press and hold to scroll through the text information.

6 RESET button

Press to reset the microprocessor.

7 MULTI-CONTROL

Move to perform manual seek tuning, fast forward, reverse and track search controls. Also used for controlling functions. Turn to display the disc title list, track title list, folder list, file list or preset channel list depending on the source.

8 SRC/Off button, Vol

This unit is turned on by selecting a source. Press to cycle through all the available sources. Rotate it to increase or decrease the vo lume.

Press to change to the clock display. ! When XM tuner or SIRIUS tuner is se-

button

lected as the source, press to change the channel select mode.

Steering remote control

Operation is the same as when using the buttons on the head unit.

a VOL –/VOL + buttons

Press to increase or decrease the volume.

Page 11

Operating this unit

Section

b SRC/Off button

This unit is turned on by selecting a source. Press to cycle through all the available sources.

c EQ button

Press to select various equalizer curves.

d DF button

Press to operate the preprogrammed functions for each source. (Refer to Using the DF (direct function) button on page 42.)

e ATT button

Press to quickly lower the volume level by about 90%. Press once more to return to the original volume level.

Basic Operations

Power ON/OFF

Turning the unit on

% Press SRC/Off to turn the unit on.

Turning the unit off

% Press SRC/Off and hold until the unit turns off.

Selecting a source

You can select a source you want to listen to.

% Press SRC/Off repeatedly to switch between the following sources. XM (XM tuner)—SIRIUS (SIRIUS tuner)— HD Radio (HD Radio tuner)—Tuner (tuner)— DVD (DVD player/multi-DVD player)—CD

(built-in CD player)—Multi CD (multi-CD player)—iPod (iPod connected with the interface adapter)—USB (USB storage device)/ iPod (iPod connected using USB input)—EXT (external unit 1)—EXT (external unit 2)— AUX1 (AUX1)—AUX2 (AUX2)—BT Audio (BT audio)—TEL (BT telephone)

Operating this unit

Notes

! In the following cases, the sound source will

not change. — When no unit corresponding to the se-

lected source is connected.

— When there is no disc or magazine in the

player.

— When the iPod is not connected to this

unit with the interface adapter.

— When AUX (auxiliary input) is set to off

(refer to page 36).

— When the BT Audio source is set to off

(refer to Activating the BT Audio source on page 39).

! When an USB storage device or iPod is not

connected to the USB port of this unit, NO DEVICE is displayed.

Page 12

Section

Operating this unit

! If the HD Radio tuner is connected to this

unit, tuner source is skipped.

! AUX1 is set to on by default. Turn off the AUX1

when not in use (refer to Switching the auxili- ary setting on page 36).

! Charging the portable audio player using

car’s DC power source while connecting it to AUX input may generate noise. In this case, stop charging.

! External unit refers to a Pioneer product (such

as ones available in the future) that, although incompatible as a source, enables control of basic functions with this unit. Two external units can be controlled with this unit. When two external units are connected, the external unit is automatically allocated to external unit 1 or external unit 2 by this unit.

! When this unit’s blue/white lead is connected

to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off.

! Certain devices may need to be switched on

before being connected to this unit.

Loading a disc

1 Press h/Open to open the front panel.

CD loading slot appears.

2 Insert a CD into the CD loading slot.

Front panel is closed automatically, and playback will start.

! When loading a CD/CD-R/CD-RW, face

the label side of a disc up.

CD loading slot

# After a CD has been inserted, press SRC/Off to select the built-in CD player.

Notes

! The built-in CD player plays one, standard, 12-

cm CD (-R/-RW) at a time. Playing back an 8cm disc is not possible with this unit.

! The built-in CD player can play back audio CD

and compressed audio recorded on a CDROM. (Please see the following section for files that can be played back. Refer to page

71.)

! Read the precautions for the player and discs

in the following section. Refer to page 70.

! Do not insert anything other than a CD into

the CD loading slot.

! There is sometimes a delay between starting

up disc playback and the sound being issued. When being read, FORMAT READ is displayed.

! If you cannot insert a disc completely or if

after you insert a disc the disc does not play, check that the label side of the disc is up. Press h/Open to eject the disc, and check the disc for damage before inserting it again.

! When the disc loading or ejecting function

does not operate properly, you can eject the disc by pressing and holding h/Open while opening the front panel.

! If an error message is displayed, refer to Error

messages on page 68.

Adjusting the volume

% Use Vol to adjust the sound level.

# With the remote control, press VOL +/VOL –

to adjust the volume.

# You can eject a disc by pressing h/Open.

Page 13

   



Operating this unit

Section

Tuner

Basic Operations

1 Band indicator 2 5 (stereo) indicator

Appears when the selected frequency is being broadcast in stereo.

3 LOC indicator

Appears when local seek tuning is on.

4 Preset number indicator 5 Signal level indicator

Shows the radio wave strength.

6 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

7 Frequency indicator

% Select a band

Press B.

# Band can be selected from among FM1, FM2, FM3 or AM.

% Manual tuning (step by step) Push MULTI-CONTROL left or right.

% Seek tuning

Push and hold MULTI-CONTROL left or right, and then release.

# You can cancel seek tuning by pushing MULTI-CONTROL left or right. # While pushing and holding MULTI-CONTROL left or right, you can skip stations. Seek tuning starts as soon as you release MULTI-CONTROL.

Storing and recalling broadcast frequencies

You can easily store up to six broadcast frequencies for later recall. ! Six stations for each band can be stored in

memory.

1 Use MULTI-CONTROL to store the selected frequency in memory.

Turn to change the preset number. Press and hold to store.

2 Use MULTI-CONTROL to select the desired station.

Turn to change the station. Press to select.

# All stations stored for FM bands can be recalled from each independent FM band. # You can also change the station by pushing MULTI-CONTROL up or down.

# To return to the ordinary display, press B. # If you do not operate the list within about 30

seconds, the display automatically returns to the ordinary display. # You can also recall radio station frequencies assigned to preset tuning numbers by pushing MULTI-CONTROL up or down during the frequency display.

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. BSM (best stations memory)—Local (local

seek tuning)

Operating this unit

Notes

! To return to the ordinary display, press B.

Page 14







Section

Operating this unit

! If you do not operate functions within about

30 seconds, the display automatically returns to the ordinary display.

Storing the strongest broadcast frequencies

BSM (best stations memory) lets you automatically store the six strongest broadcast frequencies.

1 Use MULTI-CONTROL to select BSM in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to turn BSM on.

The six strongest broadcast frequencies are stored in the order of their signal strength.

# To cancel, press MULTI-CONTROL again.

Tuning in strong signals

Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception.

1 Use MULTI-CONTROL to select Local in the function menu. Local appears in the display.

2 Press MULTI-CONTROL to turn local seek tuning on.

# To turn local seek tuning off, press

MULTI-CONTROL again.

3 Push MULTI-CONTROL left or right to select the desired setting.

FM: Level 1—Level 2—Level 3—Level 4 AM: Level 1—Level 2 Larger setting number is higher level. The highest level setting allows reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

Built-in CD Player

Basic Operations

1 WMA/MP3/AAC/WAV indicator

Shows the type of audio file currently playing when the compressed audio is playing.

2 Folder number indicator

Shows the folder number currently playing when the compressed audio is playing.

3 Track number indicator 4 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

5 Play time indicator 6 Bit rate/sampling frequency indicator

Shows the bit rate or sampling frequency of the current track (file) when the compressed audio is playing.

! When playing back VBR (variable bit

rate)-recorded WMA files, the average bit rate value is displayed.

! When playing back VBR (variable bit

rate)-recorded MP3 files, VBR is displayed instead of bit rate value.

% Select a folder

Push MULTI-CONTROL up or down.

# You cannot select a folder that does not have a compressed audio file recorded in it.

% Select a track

Push MULTI-CONTROL left or right.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

# When playing compressed audio, there is no sound on fast forward or reverse.

Page 15

Operating this unit

Section

% Return to root folder

Press and hold B.

# If folder 01 (ROOT) contains no files, playback commences with folder 02.

% Switch between compressed audio and CD-DA Press B.

# This operation is available only when playing CD-EXTRA or MIXED-MODE CDs. # If you have switched between compressed audio and CD-DA, playback starts at the first track on the disc.

Note

Playback is carried out in order of file number. Folders are skipped if they contain no files. (If folder 01 (ROOT) contains no files, playback commences with folder 02.)

Displaying text information on disc

% Press D/Scrl to select the desired text information.

! For title entered CD

Play time—

! For CD TEXT discs

Play time— track title— disc title—

— —

title,

! For WMA/MP3/AAC

Play time— name—

—

album title and title and play time— time—

: album title

! For WAV

Play time— name

: disc title and play time

: disc artist name and : : disc artist name and :

: disc title and : track title : track artist name and : track title : track title and play time— : track

: track artist name and : disc title

: folder name and : file

: artist name and : track title

: artist name and : album title— :

: track title— : track

: comment and play

: track title, : artist name and

: folder name and : file

Notes

! You can scroll through text data by pressing

and holding D/Scrl.

! Audio CD that contains certain information

such as text and/or number is CD TEXT.

! If specific information is not recorded on a

disc, title or name is not displayed.

! Depending on the version of iTunes used to

write MP3 files onto a disc, comment information may not be correctly displayed.

! Depending on the version of Windows Med-

iaä Player used to encode WMA files, album names and other text information may not be correctly displayed.

! The sampling frequency shown in the display

may be abbreviated.

! When Ever Scroll is set to ON at the initial set-

ting, text information scrolls continuously in the display. Refer to Switching the ever scroll on page 39.

! Depending on the character sets in the disc,

Russian texts may be garbled. About the allowed character sets for Russian texts, refer to Compressed audio files on the disc on page 71.

Selecting tracks from the track title list

Track title list lets you see the list of track titles on a CD TEXT disc and select one of them to play back.

% Use MULTI-CONTROL to select the desired track title.

Turn to change the track title. Press to play.

# You can scroll through text data by pressing and holding D/Scrl.

# To return to the ordinary display, press B. # If you do not operate the list within about 30

seconds, the display automatically returns to the ordinary display.

Operating this unit

Page 16

Section

Operating this unit

Selecting files from the file name list

File name list lets you see the list of file names (or folder names) and select one of them to playback.

% Use MULTI-CONTROL to select the desired file name (or folder name).

Turn to change the name of file or folder.

— when a file is selected, press to play. — when a folder is selected, press to see a list

of files (or folders) in the selected folder.

— when a folder is selected, press and hold to

play a song in the selected folder.

# You can also play the file by pushing MULTI-CONTROL right. # To return to the previous list (the folder one level higher), push MULTI-CONTROL left. # Number of the folders/files in the currently selected folder will be indicated on the right side of the display. # You can scroll through text data by pressing and holding D/Scrl.

# To return to the ordinary display, press B. # If you do not operate the list within about 30

seconds, the display automatically returns to the ordinary display.

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)—TitleInput "A" (disc title

input)

Notes

! To return to the ordinary display, press B. ! If you do not operate functions except for

TitleInput "A" within about 30 seconds, the display automatically returns to the ordinary display.

! When playing a compressed audio disc or CD

TEXT disc, you cannot switch to disc title input display.

Selecting a repeat play range

1 Use MULTI-CONTROL to select Play mode in the function menu.

Refer to Introduction to advanced operations on this page.

2 Press MULTI-CONTROL to select your favorite setting.

! Disc repeat – Repeat all tracks ! Track repeat – Repeat the current track ! Folder repeat – Repeat the current folder

# If you select another folder during repeat play,

the repeat play range changes to disc repeat. # Performing track search or fast forward/reverse during Track repeat (track repeat) changes the repeat play range to Disc repeat/ Folder repeat. # When Folder repeat (folder repeat) is se- lected, it is not possible to play back a subfolder of that folder.

Playing tracks in random order

Tracks in a selected repeat range are played in random order.

1 Use MULTI-CONTROL to select Random mode in the function menu.

Refer to Introduction to advanced operations on this page.

2 Press MULTI-CONTROL to turn random play on.

Tracks play in a random order.

# To turn random play off, press MULTI-CONTROL again.

Page 17

Operating this unit

Section

Scanning folders and tracks

Scan play searches the song within the selected repeat range.

1 Use MULTI-CONTROL to select Scan mode in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to turn scan play on.

The first 10 seconds of each track is played.

3 When you find the desired track press MULTI-CONTROL to turn scan play off.

# If the display has automatically returned to the playback display, select Scan mode again by using MULTI-CONTROL. # After scanning of a disc (folder) is finished, normal playback of the tracks begins.

Pausing playback

1 Use MULTI-CONTROL to select Pause in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to turn pause on.

Playback of the current track pauses.

# To turn pause off, press MULTI-CONTROL again.

Using disc title functions

You can input CD titles and display the title. The next time you insert a CD for which you have entered a title, the title of that CD is displayed.

Entering disc titles

Use the disc title input feature to store up to 48 CD titles in the unit. Each title can be up to 10 characters long.

1 Play the CD that you want to enter a title for.

2 Use MULTI-CONTROL to select TitleInput "A" in the function menu.

Refer to Introduction to advanced operations on the previous page.

3 Press D/Scrl to select the desired character type.

Press D/Scrl repeatedly to switch between the following character types: Alphabet (upper case), numbers and symbols —Alphabet (lower case)—European letters, such as those with accents (e.g. á, à, ä, ç)— Numbers and symbols

4 Push MULTI-CONTROL up or down to select a letter of the alphabet.

5 Push MULTI-CONTROL left or right to move the cursor to the previous or next character position.

6 Move the cursor to the last position by pushing MULTI-CONTROL right after entering the title.

When you push MULTI-CONTROL right one more time, the entered title is stored in memory.

7 Press B to return to the playback display.

Notes

! Titles remain in memory, even after the disc is

removed from the unit, and are recalled when the disc is reinserted.

! After data for 48 discs are stored in the mem-

ory, data for a new disc overwrites the oldest one.

! If you connect a multi-CD player, you can

input disc titles for up to 100 discs.

! When a multi-CD player that does not support

disc title functions is connected, you cannot enter disc titles in this unit.

Operating this unit

Page 18







Section

Operating this unit

Playing songs in a USB storage device

You can play compressed audio files stored in a USB storage device.

! For details about compatibility, refer to Ad-

ditional Information on page 68.

Basic Operations

1 WMA/MP3/AAC/WAV indicator

Shows the type of file currently playing.

2 Folder number indicator 3 Track number indicator 4 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

5 Play time indicator 6 Bit rate/sampling frequency indicator

! When playing back VBR (variable bit

rate)-recorded WMA files, the average bit rate value is displayed.

! When playing back VBR (variable bit

rate)-recorded MP3 files, VBR is displayed instead of bit rate value.

% Plugging a USB storage device and playing

1 Plug a USB storage device into the USB

port. Regarding the position of USB port, refer to Head unit on page 10.

2 Press SRC/Off to select USB as a source.

Playback will start.

% Select a folder

Push MULTI-CONTROL up or down.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

% Select a track

Push MULTI-CONTROL left or right.

% Return to root folder

Press and hold B.

% Unplugging a USB storage device

Pull out the USB storage device. You can disconnect the USB storage device anytime you want to finish listening to it.

Notes

! Read the precautions for USB storage devices

and this unit in the following section. Refer to Additional Information.

! If an error message is displayed, refer to Error

messages on page 68.

! If folder 01 (ROOT) contains no files, playback

commences with folder 02.

! When the USB portable audio player having

battery charging function is connected to this unit and the ignition switch is set to ACC or ON, the battery is charged.

Displaying text information of an audio file

The operation is the same as that of the builtin CD player. Refer to Displaying text information on disc on page 15. ! If the characters recorded on the audio file

are not compatible with the head unit, those characters are not displayed.

! The text information of some audio files

may not be correctly displayed.

Selecting files from the file name list

The operation is the same as that of the builtin CD player. Refer to Selecting files from the file name list on page 16.

Page 19

Operating this unit

Section

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)

Function and operation

Play mode, Random mode, Scan mode and Pause operations are basically the same as

that of the built-in CD player.

Function name Operation

Refer to Selecting a repeat play range on page 16.

However, the repeat play ranges you can select are different from that of the built-in CD player. The

Play mode

Random mode

Scan mode

Pause

repeat play ranges of the USB storage device are: ! Track repeat – Repeat just the

current file

! Folder repeat – Repeat the

current folder

! All repeat – Repeat all files

Refer to Playing tracks in random order on page 16.

Refer to Scanning folders and tracks on page 17.

Refer to Pausing playback on page

17.

! If you perform track search or fast forward/re-

verse during Track repeat, the repeat play range changes to Folder repeat.

! When Folder repeat is selected, it is not pos-

sible to play back a subfolder of that folder.

! After file or folder scanning is finished, nor-

mal playback of the files begins again.

! If you do not operate functions within about

30 seconds, the display automatically returns to the ordinary display.

Operating this unit

Notes

! To return to the ordinary display, press B. ! If you select another folder during repeat play,

the repeat play range changes to All repeat.

Page 20

 



Section

Operating this unit

Playing songs on iPod

You can control and listen to songs on an iPod. ! For details about the supported iPod, refer

to iPod compatibility on page 72.

! When using an iPod, iPod Dock Connector

to USB Cable is required.

Basic Operations

1 Song number indicator 2 iPod name 3 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

4 Play time indicator 5 Song time (progress bar)

% Connecting an iPod

1 Plug an iPod into the USB port using the

iPod Dock Connector to USB Cable. Regarding the position of USB port, refer to Head unit on page 10.

2 Press SRC/Off to select iPod as a source.

Playback will start.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

% Select a track (chapter)

Push MULTI-CONTROL left or right.

% Disconnecting an iPod

Pull out the iPod Dock Connector to USB Cable.

Notes

! Read the precautions for iPod in the following

section. Refer to page 72.

! If an error message is displayed, refer to Error

messages on page 68.

! When the ignition switch is set to ACC or ON,

the iPod’s battery is charged while the iPod is connected to this unit.

! While the iPod is connected to this unit, the

iPod cannot be turned on or off. However when the control mode is set to iPod, you can turn the iPod on or off.

! Before connecting the iPod to this unit, dis-

connect the headphones from the iPod.

! The iPod is turned off about two minutes after

the ignition switch is set to OFF.

Browsing for a song

Operations to control an iPod with this unit is designed to be as close to the iPod as possible to make operation and song search easy. ! Depending on the number of files in the

iPod, there may be a delay when displaying a list.

! If the characters recorded on the iPod are

not compatible with this unit, those characters are not displayed.

Searching songs by category

% Use MULTI-CONTROL to select a song.

Turn to change the category. Press to select.

Playlists (playlists)—Artists (artists)— Albums (albums)—Songs (songs)— Podcasts

(podcasts)—Genres (genres)—Composers (composers)—Audiobooks (audiobooks) List for the selected category is displayed.

# You can start playback throughout the selected category by pressing and holding MULTI-CONTROL. You can also perform this operation by pushing and holding MULTI-CONTROL right. # You can also change the category by pushing MULTI-CONTROL up or down. # You can also select the category by pushing MULTI-CONTROL right. # To return to the previous category, push MULTI-CONTROL left. # To return to the top tier of categories, push and hold MULTI-CONTROL left.

Page 21

Operating this unit

Section

# You can scroll through text data by pressing and holding D/Scrl.

# To return to the ordinary display, press B. # If you do not operate the list within about 30

seconds, the display automatically returns to the ordinary display.

Searching by alphabet in the list

1 Use MULTI-CONTROL to select a category.

Turn to change the category. Press to select.

2 When a list for the selected category is displayed, press D/Scrl to switch to alphabet search mode.

3 Turn MULTI-CONTROL to select a letter of the alphabet.

4 Press MULTI-CONTROL to display the alphabetical list.

The list is displayed starting from the selected letter of the alphabet.

# If alphabet search is aborted, NOT FOUND is displayed.

Displaying text information on iPod

% Press D/Scrl to select the desired text information.

Play time— —

: artist name and : album name— : album name and and play time— and

# You can scroll through text data by pressing and holding D/Scrl. # If the characters recorded on the iPod are not compatible with this unit, those characters are not displayed. # When Ever Scroll is set to ON at the initial setting, text information scrolls continuously in the display. Refer to Switching the ever scroll on page

39.

: artist name and : song title

: song title— : song title

: song title, : artist name

: album name

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Play mode (repeat play)—Shuffle mode

(shuffle)—Shuffle all (shuffle all)—Link play (link play)—Control mode (control mode)— Pause (pause)—Audiobooks (audiobook speed)

Function and operation

Play mode and Pause operations are basically the same as that of the built-in CD player.

Function name Operation

Refer to Selecting a repeat play range on page 16.

However, the repeat play ranges you can select are different from

Play mode

Pause

Notes

! To return to the ordinary display, press B. ! If you do not operate functions within about

30 seconds, the display automatically returns to the ordinary display.

! When Control mode is set to iPod, only

Control mode and Pause can be operated.

that of the built-in CD player. The repeat play ranges of the iPod are: ! Repeat One – Repeat the cur-

rent song

! Repeat All – Repeat all songs

in the selected list

Refer to Pausing playback on page

17.

Operating this unit

Page 22

Section

Operating this unit

Playing songs in a random order (shuffle)

1 Use MULTI-CONTROL to select Shuffle mode in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to select your favorite setting.

! Shuffle Songs – Play back songs in the se-

lected list in random order.

! Shuffle Albums – Play back songs from a

randomly selected album in order.

! Shuffle OFF – Cancel random play.

Playing all songs in a random order (shuffle all)

1 Use MULTI-CONTROL to select Shuffle all in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to turn shuffle all on.

All songs on the iPod play randomly.

# To turn shuffle all off, set Shuffle mode in the FUNCTION menu to off.

Playing songs related to the currently playing song

Songs related to the currently playing song are played. You can play songs of the following lists.

— Album list of currently playing artist — Song list of currently playing album — Album list of currently playing genre

! Depending on the number of files in the

iPod, there may be a delay when displaying a list.

1 Use MULTI-CONTROL to select Link play in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Use MULTI-CONTROL to select the desired mode.

Push MULTI-CONTROL left or right to change the mode; press to select.

! Artist – Plays the album of currently play-

ing artist.

! Album – Plays the song of currently playing

album.

! Genre – Plays the album of currently play-

ing genre.

Searching flashes while searching the list and then the playback of the list starts.

# If the related albums/songs are not found, Not found is displayed.

Operating this unit’s iPod function from your iPod

This function cannot be operated with the following iPod models.

— iPod nano first generation — iPod fifth generation

This unit’s iPod function can be operated from your iPod. Sound can be heard from the car ’s speakers, and operation can be conducted from your iPod. ! While this function is in use, even if the

ignition key is turned off, the iPod will not be turned off. To turn off power, operate the iPod.

1 Use MULTI-CONTROL to select Control mode in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to select your favorite setting.

! iPod – This unit’s iPod function can be op-

erated from the connected iPod.

! AUDIO – This unit’s iPod function can be

operated from this unit.

3 When you select iPod, operate the connected iPod to select a song and play.

# Switching the control mode to iPod pauses song playback. Operate the iPod to start playback. # Even if the control mode is set to iPod, follow- ing functions are available from this unit.

Page 23

Operating this unit

! Volume ! Fast forward/reverse ! Track up/down ! Pausing ! Switching the text information

Notes

! When the control mode is set to iPod, opera-

tions are limited as follows: — Functions other than Control mode (con-

trol mode) and Pause (pause) cannot be selected.

— Browse function cannot be operated from

this unit.

! Turning this function on pauses song play-

back. Operate the iPod to start playback.

Changing audiobook speed

While listening to an audiobook on iPod, playback speed can be changed.

1 Use MULTI-CONTROL to select Audiobooks in the function menu.

Refer to Introduction to advanced operations on page 21.

2 Press MULTI-CONTROL to select your favorite setting.

Press MULTI-CONTROL repeatedly until the desired setting appears in the display.

! Faster – Playback faster than normal speed ! Normal – Playback in normal speed ! Slower – Playback slower than normal

speed

Section

Operating this unit

Page 24



Section

Audio Adjustments

Operation modes

This unit’s 4-way network DSP lets you create a 4-way multi-amp, multi-speaker system with separate speakers for reproduction of high, middle, low and ultra-low frequencies (bands), each driven by a dedicated power amp. The 4way network mode provides network and time alignment functions. These two functions are essential for a multi-amp, multi-speaker system to enable precise control over settings for each frequency range.

Important

Even when the battery is disconnected or the microprocessor is reset, this unit’s audio setting remains in the memory. If you want to reset the audio setting, refer to Resetting the audio func- tions on page 38.

Note

If one subwoofer is used with this system, left and right channel adjustment values, such as time alignment and network settings, need to be the same.

Adjusting the audio easily

By carrying out the following settings/adjustments in the order shown, you can create a finely-tuned sound field effortlessly.

1 Using the position selector (POSI) 2 Auto TA and EQ (auto-time alignment and auto-

equalizing)

3 Using balance adjustment on the next page

(BAL)

Adjusting the audio finely

By carrying out the following settings/adjustments in the order shown, you can create a finely-tuned sound field.

1 Adjusting the time alignment (TA2) 2 Adjusting network (NW 1, NW 2, NW 3) 3 Fine-adjusting equalizer curve (EQ 2)

Extra functions

These functions are helpful in adjusting the sound to suit your system or your personal preferences.

! Recalling or copying equalizer curves (EQ 1) ! Adjusting loudness (LOUD) ! Using the sound retriever (S.Rtrv) ! Adjusting source levels (SLA)

Introduction of audio adjustments

1 Audio display

Shows the audio adjustment status.

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select AUDIO.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the audio function.

Turn MULTI-CONTROL to switch between the audio functions in the following order. BAL (balance adjustment)—POSI (position selector)—NW 1 (network adjustment 1)—NW 2 (network adjustment 2)—NW 3 (network adjustment 3)—TA1 (time alignment setting)— TA2 (time alignment adjusting)—EQ 1 (copy- ing/recalling the equalizer)—EQ 2 (31-band graphic equalizer)—A.EQ (auto-equalizer on/ off)—S.Rtrv (advanced sound retriever)— LOUD (loudness)—SLA (source level adjustment)

# When selecting FM as the source, you cannot switch to SLA. # When selecting FLAT in EQ 1, you cannot switch to EQ 2. # When selecting OFF in TA 1, you cannot switch to TA2. # To return to the display of each source, press B.

Page 25

Audio Adjustments

Section

Switching left and right channel

You can adjust following functions for left and right channel independently or commonly.

! Adjusting network (NW 1, NW 2, NW 3) ! Fine-adjusting equalizer curve (EQ 2)

1 Use MULTI-CONTROL to select the audio function described above.

2 Press MULTI-CONTROL and hold to switch between left/right independent mode and left/right common mode.

Each pressing and holding MULTI-CONTROL selects left/right independent mode and left/ right common mode.

3 Press MULTI-CONTROL to select left channel or right channel when left/right independent mode has been selected.

Each pressing MULTI-CONTROL selects left channel and right channel.

4 Adjust these functions as desired.

Using balance adjustment

You can select a balance setting that provides an ideal listening environment in all occupied seats.

1 Use MULTI-CONTROL to select BAL in the audio function menu.

Refer to Introduction of audio adjustments on the previous page.

2 Push MULTI-CONTROL left or right to adjust left/right speaker balance.

Each time MULTI-CONTROL is pushed left or right, the left/right speaker balance moves towards the left or right. L25to R25is displayed as the left/right speaker balance moves from left to right.

a delay time to match the number and position of occupied seats.

1 Use MULTI-CONTROL to select POSI in the audio function menu.

Refer to Introduction of audio adjustments on the previous page.

2 Push MULTI-CONTROL left, right or up to select a listening position.

Direction Display Position

Left Left Front seat left

Right Right Front seat right

Up Front Front seats

# To cancel the selected listening position, push MULTI-CONTROL in the same direction again.

About the network function

The network function lets you divide the audio signal into different frequency bands, and then reproduce each of them through separate speaker units. You can then make precise adjustments to the reproduced frequency band (with a low-pass filter or high-pass filter), level, phase and other parameters to match the characteristics of each speaker unit.

Audio Adjustments

Using the position selector

One way to assure a more natural sound is to clearly position the stereo image, putting you right in the center of the sound field. The position selector function lets you automatically adjust the speakers’ output levels and inserts

Page 26

Section

Audio Adjustments

Adjustable parameters

The network function enables adjustment of the following parameters. Make adjustments in line with the reproduced frequency band and characteristics of each connected speaker unit.

1 Level (dB) 2 Frequency (Hz) 3 Level 4 Reproduced frequency band 5 Cut-off frequency of HPF 6 Cut-off frequency of LPF 7 Pass 8 Slope (dB/oct.)

Reproduced frequency band

Adjusting the HPF (high-pass filter) or LPF (low-pass filter) cut-off frequency lets you set the reproduced frequency band for each speaker unit. ! The HPF cuts frequencies (low) below the

set frequency, letting high frequencies through.

! The LPF cuts frequencies (high) above the

set frequency, letting low frequencies through.

Level

The difference in reproduced levels between speaker units can be corrected.

Slope

Adjusting the HPF/LPF slope (filter attenuation slope) lets you adjust the continuity of sound between speaker units.

! The slope indicates the number of decibels

(dB) the signal is attenuated when the frequency is one octave higher (lower) (Unit: dB/oct.). The steeper the slope, the more the signal is attenuated.

Phase

You can switch phase (normal, reverse) for each speaker unit’s input signal. When the continuity of sound between speakers is imprecise, try switching phase. This may improve the continuity of sound between speakers.

Points concerning network adjustments

Cut-off frequency adjustment

! If you set the Low-LPF or SW-LPF cut-off

frequency at a high level with a low-range speaker or subwoofer installed in the rear of the vehicle, the bass sound is separated so it sounds like it is coming from the rear. Setting the Low-LPF or SW-LPF cut-off frequency to 100 Hz or lower is recommended.

! The maximum input power setting for mid-

dle- and high-range speakers is usually lower than low-range speakers. Please be aware that if the Mid-HPF or High-HPF cutoff frequency is set lower than required, strong bass signal input may damage the speaker.

Level adjustment

The basic frequencies of many musical instruments are in the middle range. First perform middle-range level adjustment, followed by high-range and then low-range and subwoofer level adjustment in that order.

Slope adjustment

! If you set a small absolute value for the

slope (for a gentle slope), interference between adjacent speaker units can easily result in degraded frequency response.

Page 27

Audio Adjustments

Section

! If you set a large absolute value for the

slope (for a steep slope), continuity of sound between speaker units is degraded, and sounds appear to be separated.

! If you set the slope to 0 dB/oct. (pass), the

audio signal bypasses the filter, so the filter does not have an effect.

Phase adjustment

When the cross-over point value for filters on both sides is set to –12 dB/oct., the phase is reversed 180 degrees at the filter cut-off frequency. In this case, reversing the phase assures improved sound continuity.

3 4

1 Normal phase 2 Reverse phase 3 0dB 4 –3dB 5 –12 dB 6 Crossover point

Muting the speaker unit (filter)

You can mute each speaker unit (filter). When a speaker unit (filter) is muted, no sound is outputted from that speaker. ! If you mute the selected speaker unit (fil-

ter), MUTE blinks and no adjustments are possible.

! Even if any speaker unit (filter) is muted,

you can adjust the parameters for other speaker units (filters).

1 Use MULTI-CONTROL to select NW 1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Push MULTI-CONTROL left or right to select the speaker unit (filter) to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker unit (filter) is selected in the following order: SW-HPF (subwoofer HPF)—SW-LPF (subwoofer LPF)—Low-HPF (low-range speaker HPF)

—Low-LPF (low-range speaker LPF)— Mid-HPF (middle-range speaker HPF)— Mid-LPF (middle-range speaker LPF)— High-HPF (high-range speaker HPF)— High-LPF (high-range speaker LPF)

3 Push and hold MULTI-CONTROL down to mute the selected speaker unit (filter).

# To cancel the muting, push MULTI-CONTROL up.

Adjusting network

1 Use MULTI-CONTROL to select NW 1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Push MULTI-CONTROL left or right to select the speaker unit (filter) to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker unit (filter) is selected in the following order: SW-HPF (subwoofer HPF)—SW-LPF (subwoofer LPF)—Low-HPF (low-range speaker HPF)

—Low-LPF (low-range speaker LPF)— Mid-HPF (middle-range speaker HPF)— Mid-LPF (middle-range speaker LPF)— High-HPF (high-range speaker HPF)— High-LPF (high-range speaker LPF)

3 Turn MULTI-CONTROL to select NW 2 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

Audio Adjustments

Page 28

Section

Audio Adjustments

4 Push MULTI-CONTROL left or right to select the cut-off frequency (crossover frequency) of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed left or right, cut-off frequencies (crossover frequencies) are selected in the following order:

! High-LPF

5k—6.3k—8k—10k—12.5k—16k—20k

! High-HPF

800Hz—1k—1.25k—1.6k—2k—2.5k—

3.15k—4k—5k—6.3k—8k—10k—12.5k— 16k

! Mid-LPF, Low-LPF and SW-LPF

25Hz—31.5Hz—40Hz—50Hz—63Hz— 80Hz—100Hz—125Hz—160Hz—200Hz— 250Hz—315Hz—400Hz—500Hz—630Hz —800Hz—1k—1.25k—1.6k—2k—2.5k—

3.15k—4k—5k—6.3k—8k—10k—12.5k— 16k—20k

! Mid-HPF, Low-HPF and SW-HPF

20Hz—25Hz—31.5Hz—40Hz—50Hz— 63Hz—80Hz—100Hz—125Hz—160Hz— 200Hz—250Hz—315Hz—400Hz—500Hz

—630Hz—800Hz—1k—1.25k—1.6k—2k —2.5k—3.15k—4k—5k—6.3k—8k—10k —12.5k—16k

# You cannot select speakers that are set to off in the initial setting. Refer to Setting the speakers on page 35.

5 Push MULTI-CONTROL up or down to adjust the level of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed up or down, the level of the selected speaker unit (filter) increases or decreases. 0dBto –24 dB is displayed as the level is in- creased or decreased if you have selected

High-LPF, High-HPF, Mid-LPF or Mid-HPF. 6dBto –24 dB is displayed as the level is in-

creased or decreased, only if you have selected Low-LPF, Low-HPF, SW-LPF or

SW-HPF.

6 Turn MULTI-CONTROL to select NW 3 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

7 Push MULTI-CONTROL left or right to select the slope of the selected speaker unit (filter).

Each time MULTI-CONTROL is pushed left or right, slopes are selected in the following order:

! High-HPF

6dB/oct.—12dB/oct.—18dB/oct.— 24dB/oct.—30dB/oct.—36dB/oct.

! High-LPF, Mid-LPF, Mid-HPF, Low-LPF,

Low-HPF, SW-LPF and SW-HPF Pass—6dB/oct.—12dB/oct.—18dB/oct.— 24dB/oct.—30dB/oct.—36dB/oct.

8 Push MULTI-CONTROL up or down to switch the phase of the selected speaker unit (filter).

Push MULTI-CONTROL up selects normal phase and NOR appears in the display. Push MULTI-CONTROL down selects reverse phase and REV appears in the display.

# You can adjust the parameters for other speaker units (filters) in the same way.

9 Press B to cancel the network adjustment mode.

Using the time alignment

The time alignment lets you adjust the distance between each speaker and the listening position.

1 Use MULTI-CONTROL to select TA1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

Page 29

Audio Adjustments

Section

2 Push MULTI-CONTROL left or right to select the time alignment.

Each time MULTI-CONTROL is pushed left or right, time alignment is selected in the following order: Initial (initial)—Custom (custom)— AutoTA (auto-time alignment)—OFF (off)

! Initial is the factory supplied time align-

ment.

! Custom is an adjusted time alignment that

you created.

! AutoTA is the time alignment created by

auto TA and EQ. (Refer to Auto TA and EQ

(auto-time alignment and auto-equalizing)

on page 31.)

# You cannot select AutoTA if auto TA and EQ has not been carried out. In this case, Please Set Auto TA appears.

Adjusting the time alignment

You can adjust the distance between each speaker and the selected position. ! An adjusted time alignment is memorized

in Custom.

1 Use MULTI-CONTROL to select TA1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Press MULTI-CONTROL to select a unit of distance.

Each press of MULTI-CONTROL selects the unit of distance in the following order:

(cm) (centimeter)—(inch) (inch)

3 Use MULTI-CONTROL to select TA2 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

# Can't Adjust TA. Set POS. FL or FR appears when neither Left nor Right is selected in the position selector mode (POSI). # When selecting OFF in TA 1, you cannot switch to TA2.

4 Push MULTI-CONTROL left or right to select the speaker to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker is selected in the following order: High L (high-range left)—High R (high-range right)—Mid L (middle-range left)—Mid R (middle-range right)—Low L (low-range left)— Low R (low-range right)—SW L (subwoofer left)—SW R (subwoofer right)

5 Push MULTI-CONTROL up or down to adjust the distance between the selected speaker and the listening position.

Each time MULTI-CONTROL is pushed up or down, the distance increases or decreases.

394.75cm to 0.00cm is displayed as the distance is increased or decreased, if you have selected centimeters ((cm)).

155.39inch to 0.00inch is displayed as the distance is increased or decreased, if you have selected inches ((inch)).

# You can adjust the distance for the other speakers in the same way.

6 Press B to cancel the time alignment mode.

Recalling or copying equalizer curves

The equalizer lets you adjust the equalization to match the car’s interior acoustic characteristics as desired. It is possible to store the adjusted equalizer curve in the memory, or recall the stored equalizer curve from the memory.

Recalling the equalizer curve

1 Use MULTI-CONTROL to select EQ 1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

Audio Adjustments

Page 30

Section

Audio Adjustments

2 Push MULTI-CONTROL left or right to select the equalizer curve you want to recall.

Each time MULTI-CONTROL is pushed left or right, equalizer curve is recalled in the following order. MEMORY1 (memory 1)—MEMORY2 (memory 2)—MEMORY3 (memory 3)—MEMORY4 (memory 4)—MEMORY5 (memory 5)—FLAT (flat)

# When FLAT is selected, no supplement or cor- rection is made to the sound. This is useful to check the effect of the equalizer curves by switching alternatively between FLAT and a set equalizer curve.

Copying the equalizer curve

1 Use MULTI-CONTROL to select EQ 1 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Push MULTI-CONTROL left or right to select the equalizer curve you want to copy.

3 Press MULTI-CONTROL and hold to copy the selected equalizer curve.

4 Push MULTI-CONTROL left or right to select the storage area (MEMORY1 to MEMORY5).

# If an equalizer curve has already been stored in memory, it will be overwritten by the newly adjusted equalizer curve.

2 Use MULTI-CONTROL to select EQ 2 in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

3 Push MULTI-CONTROL left or right to select the equalizer band to adjust.

Each time MULTI-CONTROL is pushed left or right, equalizer bands are selected in the following order.

20Hz—25Hz—31.5Hz—40Hz—50Hz—63Hz —80Hz—100Hz—125Hz—160Hz—200Hz—

250Hz—315Hz—400Hz—500Hz—630Hz— 800Hz—1k—1.25k—1.6k—2kHz—2.5k—

3.15k—4k—5k—6.3k—8k—10k—12.5kHz— 16k—20k

4 Push MULTI-CONTROL up or down to adjust the level of the equalizer band.

Each time MULTI-CONTROL is pushed up or down, the level of the equalization band increases or decreases. +12 to –12 is displayed as the level is increased or decreased.

# You can then select another band and adjust the level.

5 Equalizer curve is automatically stored in memory.

5 Press MULTI-CONTROL and hold to store the equalizer curve.

Fine-adjusting equalizer curve

You can perform 31–band level adjustment to achieve the optimum acoustic characteristics for your vehicle’s interior environment.

1 Select the storage area (MEMORY1 to MEMORY5).

Refer to Copying the equalizer curve on this page.

Using the auto-equalizer

The auto-equalizer is the equalizer curve created by auto TA and EQ (refer to Auto TA and

EQ (auto-time alignment and auto-equalizing)

on the next page). You can turn the auto-equalizer on or off.

1 Use MULTI-CONTROL to select A.EQ in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

Page 31

Audio Adjustments

Section

# If auto TA and EQ has not been carried out,

Please Set Auto EQ appears. This indicates that you cannot turn this function on.

2 Press MULTI-CONTROL to turn the autoequalizer on.

# To turn auto-equalizer off, press

MULTI-CONTROL again.

Using the sound retriever

The sound retriever function automatically enhances compressed audio and restores rich sound.

1 Use MULTI-CONTROL to select S.Rtrv in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Press MULTI-CONTROL to select the desired setting. OFF (off)—MODE1—MODE2

# MODE1 is effective for the low compression rate. # MODE2 is effective for the high compression rate. # This function can be used for the audio data stored in a CD, DVD, Bluetooth Audio, iPod, USB or AUX.

Adjusting loudness

Loudness compensates for deficiencies in the low- and high-sound ranges at low volume.

1 Use MULTI-CONTROL to select LOUD in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

2 Press MULTI-CONTROL to turn loudness on.

# To turn loudness off, press MULTI-CONTROL again.

Adjusting source levels

SLA (source level adjustment) lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. ! Settings are based on the FM volume level,

which remains unchanged.

1 Compare the FM volume level with the level of the source you wish to adjust.

2 Use MULTI-CONTROL to select SLA in the audio function menu.

Refer to Introduction of audio adjustments on page 24.

3 Push MULTI-CONTROL up or down to adjust the source volume.

Each time MULTI-CONTROL is pushed up or down, source volume increases or decreases. +4 to –4 is displayed as the source volume is increased or decreased.

Notes

! The AM volume level can also be adjusted

with source level adjustments.

! The built-in CD player and the multi-CD player

are set to the same source level adjustment volume automatically.

! External unit 1 and external unit 2 are set to

the same source level adjustment volume automatically.

Auto TA and EQ (auto-time alignment and autoequalizing)

The auto-time alignment is automatically adjusted for the distance between each speaker and the listening position. The auto-equalizer automatically measures the car interior acoustic characteristics, and then creates the auto-equalizer curve based on that information.

Audio Adjustments

Page 32

Section

Audio Adjustments

WARNING

! To prevent accidents, never carry out auto TA

and EQ while driving. When this function measures the car interior acoustic characteristics to create an auto-equalizer curve, a loud measurement tone (noise) may be outputted from the speakers.

! Be sure to connect the high-range speakers to

the high range output. If the speakers are not connected correctly, they may be damaged by the low frequency measurement tone.

CAUTION

! Carrying out auto TA and EQ under the follow-

ing conditions may damage the speakers. Be sure to check the conditions thoroughly before carrying out auto TA and EQ. — When speakers are incorrectly connected.

(e.g., When a mid-range speaker is connected to a subwoofer output.)

— When a speaker is connected to a power

amp delivering output higher than the speaker’s maximum input power capability.

! If the microphone is placed in an unsuitable

position the measurement tone may become loud and measurement may take a long time, resulting in a drain on battery power. Be sure to place the microphone in the specified location.

! When tweeters and super-tweeters are con-

nected to this system, be sure to use the super-tweeter’s cross-over network.

! When tweeters and super-tweeters are con-

nected to this system, auto-time alignment and auto-equalizing may not operate properly. In this case, manual adjustment is needed.

Before operating the auto TA and EQ function

! Check the speaker’s usable frequency

range. Then connect the proper speakers to high, mid, low or subwoofer outputs. If the speakers are not connected correctly, auto-

time alignment and auto-equalizing may not perform properly.

! Carry out auto TA and EQ in as quiet a

place as possible, with the car engine and air conditioning switched off. Also cut power to car phones or portable telephones in the car, or remove them from the car before carrying out auto TA and EQ. Sounds other than the measurement tone (surrounding sounds, engine sound, telephones ringing etc.) may prevent correct measurement of the car interior acoustic characteristics.

! Be sure to carry out auto TA and EQ using

the supplied microphone. Using another microphone may prevent measurement, or result in incorrect measurement of the car interior acoustic characteristics.

! When the speakers activated in the initial

setting menu are not connected, auto TA and EQ cannot be carried out.

! When the mid range speaker units are

muted, auto TA and EQ cannot be carried out. (Refer to the next page.)

! When this unit is connected to a power

amp with input level control, auto TA and EQ may not be possible if you lower power amp input level. Set the power amp’s input level to the standard position.

! When this unit is connected to a power

amp with an LPF, turn off the LPF on the power amp before carrying out auto TA and EQ. In addition, the cut-off frequency for built-in LPF of an active subwoofer should be set to the highest frequency.

! The time alignment value calculated by

auto TA and EQ may differ from the actual distance in the following circumstances. However, the distance has been calculated by computer to be the optimum delay to give accurate results for the circumstances, so please continue to use this value. — When the reflected sound within a vehi-

cle is strong and delays occur.

Page 33

Audio Adjustments

Section

— When delays occur for low sounds due

to the influence of the LPF on active subwoofers or external amps.

! Auto TA and EQ changes the audio settings

as below: — The balance settings return to the center

position. (Refer to page 25.)

— The graphic equalizer curve switches to

FLAT. (Refer to page 29.)

! If you carry out auto TA and EQ when a pre-

vious setting of this already exists, the setting will be replaced.

! When connecting tweeters, please confirm

the tweeter’s usable frequency range. When you set the cut-off frequency, set higher than the lowest usable frequency of the tweeter.

! Auto TA uses higher range than 10 kHz for

measurement. Therefore, using the tweeter that cannot reproduce 10 kHz frequency range may damage the tweeter. When Auto TA&EQ is operated, be sure to set the appropriate cut-off frequency. Also, use the tweeter that can reproduce 10 kHz at the lowest usable frequency.

! Speakers used with this system need to be

activated in the initial setting menu. Refer to Setting the speakers on page 35.

! To perform auto-time alignment and auto-

equalizing, be sure to connect speakers to mid range output.

Carrying out auto TA and EQ

1 Stop the car in a place that is as quiet as possible, close all doors, windows and the sun roof, and then turn the engine off.

# If the engine is left running, engine noise may prevent correct auto TA and EQ.

2 Fix the supplied microphone in the center of the headrest of the driver’s seat, facing forward, using the belt (sold separately).

Audio Adjustments

# The auto TA and EQ may differ depending on where you place the microphone. If desired, place the microphone on the front passenger seat to carry out auto TA and EQ.

3 Turn the ignition switch to ON or ACC.

# If the car’s air conditioner or heater is turned on, turn it off. Noise from the fan in the air conditioner or heater may prevent correct auto TA and EQ. # Press SRC/Off to turn the source on if this unit is turned off.

4 Press SRC/Off and hold until the unit turns off.

5 Press and hold EQ to enter the auto TA and EQ menu.

The front panel opens automatically.

6 Plug the microphone into the microphone input jack on this unit.

7 Turn MULTI-CONTROL to select Select position in the auto TA and EQ menu.

Page 34

Section

Audio Adjustments

8 Press MULTI-CONTROL to select a position.

Each press of MULTI-CONTROL selects settings in the following order: Front left (front left)—Front right (front right) Select the position for the seat on which the microphone is placed.

9 Turn MULTI-CONTROL to select Select N/W mode in the auto TA and EQ menu.

10 Press MULTI-CONTROL to select a network mode.

Each press of MULTI-CONTROL selects settings in the following order: Auto N/W (auto)—Custom N/W (custom)

# If you want to carry out auto TA and EQ based on previously customized network settings, select Custom N/W. Otherwise, select Auto N/W. # If manually adjusted value is not suitable for the actual specifications of the speakers, autotime alignment and auto-equalizer may not perform properly.

11 Turn MULTI-CONTROL to select Auto TA & EQ stop in the auto TA and EQ menu.

standing auto TA and EQ error messages on page 69.)

15 Press B to cancel the auto TA and EQ mode.

16 Store the microphone carefully in the glove compartment.

Store the microphone carefully in the glove compartment or any other safe place. If the microphone is subjected to direct sunlight for an extended period, high temperatures may cause distortion, color change or malfunction.

Note

Make sure you have disconnected the microphone before pressing h/Open to open or close the panel (an alert sounds if the mic is still connected).

12 Press MULTI-CONTROL to start the auto TA and EQ.

13 Get out of the car and close the door within 10 seconds when the 10-second count-down starts.

The measurement tone (noise) is outputted from the speakers, and auto TA and EQ begins.

# To stop auto TA and EQ, press MULTI-CONTROL again. # To cancel auto TA and EQ part way through, press B.

14 When auto TA and EQ is completed, Complete is displayed.

When correct measurement of car interior acoustic characteristics is not possible, an error message is displayed. (Refer to Under-

Page 35



Initial Settings

Section

Adjusting initial settings

Using the initial settings, you can customize various system settings to achieve optimal performance from this unit.

1 Function display

Shows the function status.

1 Press SRC/Off and hold until the unit turns off.

2 Press MULTI-CONTROL and hold until the initial setting menu appears in the display.

3 Turn MULTI-CONTROL to select one of the initial settings.

Turn MULTI-CONTROL to switch between the functions in the following order.

Language select (language selection)— SP connection (speaker setting)—Clock (clock)—Warning tone (warning tone)— Face auto open (face auto open)—AUX1 (auxiliary input 1)—AUX2 (auxiliary input 2) — Dimmer (dimmer)—Brightness (brightness) —Illumination 1 (illumination select)— Illumination 2 (custom illumination)— ILL line (illumination interlock)—Digital ATT

(digital attenuation)—Audio Reset (audio reset)—Mute (sound muting/attenuation)— Door mute 1 (intelligent mute polarity setting)

—Door mute 2 (intelligent mute setting)— Reverse mode (reverse mode)—Ever-scroll (ever scroll)—BT AUDIO (Bluetooth audio)— Pin code input (pin code input)— BT Version Info. (Bluetooth version informa-

tion) Use the following instructions to operate each particular setting.

# BT AUDIO, Pin code input and BT Version Info. can be selected only when Blue-

tooth adapter (e.g., CD-BTB200) is connected to this unit. # To cancel initial settings, press B.

Selecting the display language

For your convenience, this unit equips multiple language display. You can select the language best suited to your first language.

1 Use MULTI-CONTROL to select Language select in the initial setting menu.

Refer to Adjusting initial settings on this page.

2 Press MULTI-CONTROL to select the language.

Each press of MULTI-CONTROL selects languages in the following order:

English—Français—Español

Setting the speakers

You need to set the speakers used with this system. When this setting is performed correctly, this unit reproduces high-definition sound suited to your system. ! You cannot change the middle-range

speaker setting. (The middle-range speaker is always on.)

! If this setting is adjusted after performing

auto-time alignment and auto-equalizing function, perform auto-time alignment and auto-equalizing again.

1 Use MULTI-CONTROL to select SP connection in the initial setting menu.

Refer to Adjusting initial settings on this page.

2 Push MULTI-CONTROL left or right to select the speaker to be adjusted.

Each time MULTI-CONTROL is pushed left or right, the speaker is selected in the following order: Subwoofer (subwoofer)—Low range (low range speaker)—High range (high range speaker)

Initial Settings

Page 36

Section

Initial Settings

3 Press MULTI-CONTROL to turn the selected speaker on.

# To turn off, press MULTI-CONTROL again.

Setting the clock

Use these instructions to set the clock.

1 Use MULTI-CONTROL to select Clock in the initial setting menu.

Refer to Adjusting initial settings on the previous page.

2 Push MULTI-CONTROL left or right to select the segment of the clock display you wish to set.

Pushing MULTI-CONTROL left or right will select one segment of the clock display: Hour—Minute As you select segments of the clock display, the selected segment blinks.

3 Push MULTI-CONTROL up or down to put a clock right.

# You can match the clock to a time signal by pressing MULTI-CONTROL.

! If 00 to 29, the minutes are rounded down.

(e.g., 10:18 becomes 10:00.)

! If 30 to 59, the minutes are rounded up.

(e.g., 10:36 becomes 11:00.)

Switching the warning tone

If the front panel is not detached from the head unit within four seconds of turning off the ignition, a warning tone sounds. You can turn off the warning tone.

1 Use MULTI-CONTROL to select Warning tone in the initial setting menu.

Refer to Adjusting initial settings on the previous page.

2 Press MULTI-CONTROL to turn warning tone on.

# To turn warning tone off, press

MULTI-CONTROL again.

Switching the face auto open

To protect against theft, this unit features detachable front panel. To detach the front panel easily, the front panel opens automatically. This function is on as a default.

1 Use MULTI-CONTROL to select Face auto open in the initial setting menu.

Refer to Adjusting initial settings on the previous page.

2 Press MULTI-CONTROL to turn the face auto open on.

# To turn the face auto open off, press

MULTI-CONTROL again.

Switching the auxiliary setting

Auxiliary devices connected to this unit can be activated individually. Set each AUX source to ON when using. For more information about connecting or using auxiliary devices, refer to Using the AUX source on page 41.

1 Use MULTI-CONTROL to select AUX1/ AUX2 in the initial setting menu.

Refer to Adjusting initial settings on the previous page.

2 Press MULTI-CONTROL to turn AUX1/ AUX2 on.

# To turn AUX off, press MULTI-CONTROL again.

Switching the dimmer setting

To prevent the display from being too bright at night, the display is automatically dimmed when the car ’s headlights are turned on. You can turn the dimmer on or off.

1 Use MULTI-CONTROL to select Dimmer in the initial setting menu.

Refer to Adjusting initial settings on the previous page.

Page 37

Initial Settings

Section

2 Press MULTI-CONTROL to turn dimmer on.

# To turn dimmer off, press MULTI-CONTROL again.

Adjusting the brightness

You can adjust the display brightness.

1 Use MULTI-CONTROL to select Brightness in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Push MULTI-CONTROL left or right to adjust the brightness level. 0 to 15 is displayed as the level is increased or

decreased.

# When dimmer is functioning, the brightness level can be adjusted 0 to 10.

Selecting the illumination color

You can select the illumination color from among White, Red, Amber, Green and Blue. Also, you can adjust brightness of each color.

1 Use MULTI-CONTROL to select Illumination 1 in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Push MULTI-CONTROL left or right to select the desired illumination color.

Each time MULTI-CONTROL is pushed left or right, the illumination color is selected in the following order:

White (white)—Red (red)—Amber (amber)— Blue (blue)—Green (green)—Custom (cus-

tom)

# If you select Custom, you can adjust the level of three primary colors such as red, green and blue. For details, Adjusting the illumination color on this page.

3 Push MULTI-CONTROL up or down to adjust the brightness level. +1 to –1 is displayed as the level is increased

or decreased.

Adjusting the illumination color

You can create an illumination color by adjusting the level of the three primary colors, which are red, green and blue. ! This function can be used only when

Custom is selected in Illumination 1.

1 Use MULTI-CONTROL to select Illumination 2 in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Push MULTI-CONTROL left or right to select the color to adjust. R (red)—G (green)—B (blue)

3 Push MULTI-CONTROL up or down to adjust the level of color. 4 to 0 is displayed as the level is increased or

decreased.

Setting the illumination interlock

This unit’s button illumination can be interlocked with either the ignition key or the vehicle light switch. In this setting, you can select the appropriate option.

1 Use MULTI-CONTROL to select ILL line in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to turn this function on.

When this function is on, the button illumination is interlocked with the vehicle light switch. When this function is off, the button illumination is interlocked with the ignition switch.

# To turn off, press MULTI-CONTROL again.

Initial Settings

Page 38

Section

Initial Settings

Correcting distorted sound

When listening to a CD or other source on which the recording level is high, setting the level of each frequency to high may result in distortion. You can switch the digital attenuator to low to reduce distortion. ! Sound quality is better at the high setting

so this setting is usually used.

1 Use MULTI-CONTROL to select Digital ATT in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to select the digital attenuator level.

Pressing MULTI-CONTROL repeatedly will switch between High (high) and Low (low) and that status will be displayed.

Resetting the audio functions

You can reset all audio functions.

1 Use MULTI-CONTROL to select Audio Reset in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL. Reset data? appears in the display.

3 Push MULTI-CONTROL right. Are You Sure? appears in the display.

4 Press MULTI-CONTROL to reset audio functions. Complete appears in the display and audio

functions are reset.

# To cancel this function on the way, press B.

! Sound from this system returns to normal

when the muting or attenuation is canceled.

1 Use MULTI-CONTROL to select Mute in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to switch the telephone muting/attenuation.

Each press of MULTI-CONTROL selects settings in the following order: 20dB ATT (20 dB attenuation)—TEL mute (mute)—10dB ATT (10 dB attenuation)

! 20dB ATT has a stronger effect than

10dB ATT.

Setting the polarity of the door operation

Before using door mute function, it is necessary to set the polarity of the door operation. Check the polarity of the door opening operation, and set it correctly.

1 Use MULTI-CONTROL to select Door mute 1 in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to select setting.

Each press of MULTI-CONTROL selects settings in the following order: High (high)—Low (low)

! If the polarity changes to + (positive) when

the door is opened, select High.

! If the polarity changes to – (negative) when

the door is opened, select Low.

Switching the sound muting/attenuation

Sound from this system is muted or attenuated automatically when the signal from the equipment with mute function is received. ! The sound is muted or attenuated, MUTE

or ATT are displayed and no audio adjustment is possible.

Setting the door mute setting

Sound from this system is muted or attenuated automatically when the vehicle door is opened. ! Sound from this system returns to normal

when the muting or attenuation is canceled.

Page 39

Initial Settings

Section

1 Use MULTI-CONTROL to select Door mute 2 in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to switch the door muting/attenuation.

Each press of MULTI-CONTROL selects settings in the following order:

OFF (off)—20dB ATT (20 dB attenuation)— MUTE (mute)

Switching the reverse mode

If you do not perform an operation for about 30 seconds, screen indications start to reverse, and continue reversing every 10 seconds.

1 Use MULTI-CONTROL to select Reverse mode in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to turn the reverse mode on.

# To turn the reverse mode off, press

MULTI-CONTROL again.

# You can also turn on or off reverse mode by pressing B while this unit is turned off. For more details, refer to Reverse mode on page 8.

Switching the ever scroll

When ever scroll is set to on, literal information such as CD title scrolls continuously in the display. Set to off if you prefer the information to scroll just once.

1 Use MULTI-CONTROL to select Ever-scroll in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to turn the ever scroll on.

# To turn the Ever Scroll off, press

MULTI-CONTROL again.

Activating the BT Audio source

You need to activate the BT Audio source in order to use a Bluetooth audio player. ! You can only operate this function when

Bluetooth adapter (e.g. CD-BTB200) is connected to this unit.

1 Use MULTI-CONTROL to select BT AUDIO in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Press MULTI-CONTROL to turn the BT Audio source on.

# To turn the BT Audio source off, press MULTI-CONTROL again.

Entering PIN code for Bluetooth wireless connection

To connect your cellular phone to this unit via Bluetooth wireless technology, you need to enter PIN code on your phone to verify the connection. The default code is 0000, but you can change this in this function. ! With some Bluetooth audio players, you

may be required to enter the Bluetooth audio player PIN code in advance to set this unit for a connection.

! You can only operate this function when

Bluetooth adapter (e.g. CD-BTB200) is connected to this unit.

1 Use MULTI-CONTROL to select Pin code input in the initial setting menu.

Refer to Adjusting initial settings on page 35.

2 Push MULTI-CONTROL up or down to select a number.

3 Push MULTI-CONTROL left or right to move the cursor to the previous or next position.

4 After inputting PIN code (up to 16 digits), press MULTI-CONTROL.

PIN code can be stored in memory.

Initial Settings

Page 40

Section

Initial Settings

When you press MULTI-CONTROL again on the same display, the PIN code you entered is stored in this unit.

# Pushing MULTI-CONTROL right in the confir- mation display returns you to the PIN code input display, and you can change the PIN code.

Displaying system version for repair

Should this unit fails to operate properly and you consult your dealer for repair, you may be asked to indicate the system versions of this unit and of Bluetooth module. You can display the versions and confirm them. ! You can only operate this function when

Bluetooth adapter (e.g. CD-BTB200) is connected to this unit.

1 Use MULTI-CONTROL to select BT Version Info. in the initial setting menu.

Refer to Adjusting initial settings on page 35. The system (microprocessor) version of this unit is displayed.

2 Push MULTI-CONTROL left to switch to the version of the Bluetooth module of this unit.

# Pushing MULTI-CONTROL right returns to the system version of this unit.

Page 41

Other Functions

Section

Using the AUX source

Up to two auxiliary devices such as VCR or portable devices (sold separately) can be connected to this unit. When connected, auxiliary devices are automatically read as AUX sources and assigned to AUX1 or AUX2. The relationship between AUX1 and AUX2 sources is explained below.

About AUX1 and AUX2

There are two methods to connect auxiliary devices to this unit.

AUX1 source:

When connecting auxiliar y device using a stereo mini plug cable

1 Press and hold h/Open to open the front panel.

AUX1 input jack appears.

2 Insert the 2.5 mm stereo plug into the AUX1 input jack on this unit.

This auxiliary device is automatically set to AUX1.

This auxiliary device is automatically set to AUX2.

# You can only make this type of connection if the auxiliary device has RCA outputs.

Selecting AUX as the source

% Press SRC/Off to select AUX (AUX1 or AUX2) as the source.

# If the auxiliary setting is not turned on, AUX cannot be selected. For more details, refer to Switching the auxiliary setting on page 36.

Setting the AUX title

The title displayed for the AUX1 or AUX2 source can be changed.

1 After you have selected AUX as the source, use MULTI-CONTROL and select FUNCTION to display TitleInput "A".

2 Enter a title in the same way as the built-in CD player.

For details concerning operation, refer to Entering disc titles on page 17.

Turning the clock display on or off

You can turn the clock display on or off. ! Even when the sources are off, the clock

display appears on the display.

Other Functions

AUX2 source:

When connecting auxiliar y device using an IPBUS-RCA Interconnector (sold separately)

% Use an IP-BUS-RCA Interconnector such as the CD-RB20/CD-RB10 (sold separately) to connect this unit to auxiliary device featuring RCA output.

For more details, refer to the IP-BUS-RCA Interconnector owner’s manual.

% Press off.

Each press of off.

# The clock display disappears temporarily when you perform other operations, but the clock display appears again after 4 seconds.

to turn the clock display on or

turns the clock display on or

Page 42

Section

Other Functions

Using the external unit

External unit refers to a Pioneer product (such as ones available in the future) that, although incompatible as a source, enables control of basic functions with this unit. Two external units can be controlled with this unit. When two external units are connected, the external unit is automatically allocated to external unit 1 or external unit 2 by this unit. Basic operations of the external unit are explained below. Allocated functions are different depending on the connected external unit. For details concerning functions, refer to external unit’s owner ’s manual.

Selecting the external unit as the source

% Press SRC/Off to select EXTERNAL as the source.

Basic operation

Functions allocated to the following operations are different depending on the connected external unit. For details concerning functions, refer to the connected external unit’s owner’s manual.

% Press B.

% Press and hold B.

% Push MULTI-CONTROL left or right.

% Push and hold MULTI-CONTROL left or

right.

% Push MULTI-CONTROL up or down.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Function1 (function 1)—Function2 (function

2)—Function3 (function 3)—Function4 (function 4)—Auto/Manual (auto/manual)

# To return to the ordinary display, press B.

Using different entertainment displays

You can enjoy entertainment displays while listening to each sound source.

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select DISPLAY.

Turn to change the menu option. Press to select.

3 Use MULTI-CONTROL to change the display.

Turn to change the menu option. Press to select.

BASIC DISPLAY (basic display)— SPECTRUM ANALYZER-1 (spectrum analyzer

1)—SPECTRUM ANALYZER-2 (spectrum analyzer 2)—LEVEL METER (level meter)— DISPLAY OFF (display off)

# To return to the playback display, press B. # You can also select DISPLAY OFF (display off)

by pressing and holding EQ. # While the display indication is turned off, display off indicator lights up.

Advanced operations

1 Press MULTI-CONTROL to display the main menu.

Using the DF (direct function) button

You can operate the preprogrammed functions for each source by using DF on the remote control.

Page 43

Other Functions

% Press DF to turn pause on when selecting the following sources:

! CD – Built-in CD player ! iPod – iPod connected using USB input/

iPod connected with the interface adapter

! Multi CD – Multi-CD player ! USB – USB portable audio player/USB

memory

! BT Audio – Bluetooth audio player ! DVD – DVD player/multi-DVD player

# To turn pause off, press DF again.

% Press DF and hold to turn BSM on when

selecting tuner as the source. Press DF and hold until the BSM turns on.

# To cancel the storage process, press DF again.

% Press DF to turn function 1 on when se-

lecting EXT (exter nal unit 1/exter nal unit 2) as the source.

# To turn function 1 off, press DF again.

Section

Other Functions

Page 44





Section

Available accessories

XM tuner

Listening to XM Satellite Radio

You can use this unit to control an XM satellite digital tuner (GEX-P920XM), which is sold separately.

For details concerning operation, refer to the XM tuner’s operation manuals. This section provides information on XM operations with this unit which differs from that described in the XM tuner ’s operation manual. ! With this unit, you can operate two addi-

tional functions: XM channel direct selection and preset channel list.

1 XM band indicator 2 XM channel number indicator 3 XM preset number indicator 4 XM channel select setting indicator

Shows what channel select setting has been selected. CH is displayed when Channel number is selected, and CAT is displayed when Category is selected.

5 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

6 XM text information

Shows the text information of broadcast channel.

% Select an XM band.

Press B.

# Band can be selected from XM1, XM2 or XM3.

% Select a channel. Push MULTI-CONTROL left or right.

# If you push and hold MULTI-CONTROL left or right, you can increase or decrease channel number continuously. # You can also perform tuning from a desired channel category. (Refer to Selecting a channel in the channel category on the next page.)

Switching the XM display

% Press D/Scrl to switch the XM display.

# You can scroll the text information to the left

by pressing and holding D/Scrl.

Storing and recalling broadcast stations

You can easily store up to six broadcast stations for later recall. ! Six stations for each band can be stored in

memory.

1 Use MULTI-CONTROL to store the selected station in memory.

Turn to change the preset number. Press and hold to store. The XM preset number you have selected will flash and then remain lit. The selected station has been stored in memory.

2 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the display is automatically returned to the ordinary display.

Selecting the XM channel select mode

You have two methods for selecting a channel: by number and by category. When selecting by number, channels in any category can be selected. Select by category to narrow your search down to only channels in a particular category.

Page 45





Available accessories

Section

% Press B repeatedly to select the desired channel select setting. Channel number (channel number select set-

ting)—Category (channel category select setting)

# If you do not operate the function within about 30 seconds, the display is automatically returned to the channel display.

Note

You can also perform this operation in the menu that appears by using MULTI-CONTROL.

Selecting a channel in the channel category

1 Switch the channel select settings to Category.

Refer to Selecting the XM channel select mode on the previous page.

2 Push MULTI-CONTROL up or down to select the desired channel category.

3 Push MULTI-CONTROL left or right to select the desired channel in the selected channel category.

Displaying the Radio ID

Channel number select setting

1 Select the channel select settings to Channel number.

Refer to Selecting the XM channel select mode on the previous page.

2 Push MULTI-CONTROL left or right to select RADIO ID.

# If you select another channel, display of the ID code is canceled. # Display of the ID code repeats displaying RADIO ID and the ID code one after the other.

SIRIUS Satellite Radio tuner

Listening to SIRIUS Satellite Radio

You can use this unit to control a SIRIUS Satellite Radio tuner, which is sold separately.

When the SIRIUS tuner is used together with this unit, some operations differ slightly from those described in the SIRIUS operation manual. This manual provides information on these points. For all other information on using the SIRIUS tuner, please refer to the SIRIUS operation manual.

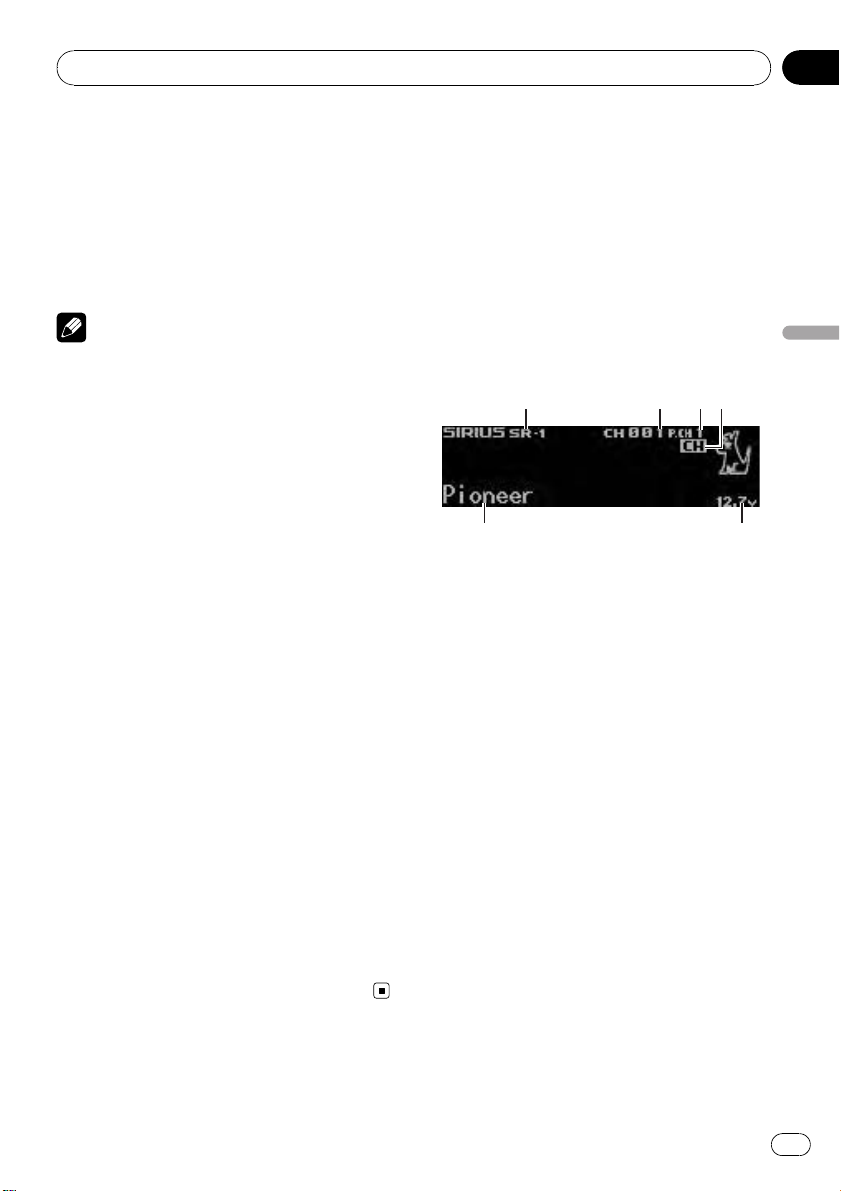

1 SIRIUS band indicator 2 SIRIUS channel number indicator 3 SIRIUS preset number indicator 4 SIRIUS channel select setting indicator

Shows what channel select setting has been selected. CH is displayed when Channel number is selected, and CAT is displayed when Category is selected. I.R is displayed during the Instant Replay mode.

5 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

6 SIRIUS channel name

Shows the channel name of broadcast channel.

% Select a SIRIUS band.

Press B.

# Band can be selected from SR1, SR2 or SR3.

Available accessories

% Select a channel.

Push MULTI-CONTROL left or right.

Page 46

Section

Available accessories

Note

It may take a few seconds before you can hear anything while this unit acquires and processes the satellite signal when you change the source to SIRIUS tuner or select a channel.

Switching the SIRIUS display

% Press D/Scrl to switch the SIRIUS display.

Each press of D/Scrl changes the SIRIUS display in the following order: Play time—Channel number—Channel name —Category name—Artist name—Song title/ program title—Composer name

# Play time is displayed during the Instant Replay mode. Refer to Using Instant Replay function on page 48. # Play time display indicates the time inverted from the live broadcast. Play time is displayed in negative number.

Storing and recalling broadcast stations

You can easily store up to six broadcast stations for later recall. ! Six stations for each band can be stored in

memory.

1 Use MULTI-CONTROL to store the selected station in memory.

Turn to change the preset number. Press and hold to store. The SIRIUS preset number you have selected will flash and then remain lit. The selected station has been stored in memory.

2 Use MULTI-CONTROL to select the desired station.

Turn to change the station; press to select.

# You can also change the station by pushing MULTI-CONTROL up or down. # If you do not operate the list within about 30 seconds, the display is automatically returned to the ordinary display.

Introduction of advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

The function selection menu is displayed. Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Channel mode (channel select mode setting) —Game alert (game alert setting)— Team setting (team setting)—Game info (game info)—Pause (pause)

Notes

! To return to the ordinary display, press B. ! If you do not operate functions within about

30 seconds, the display is automatically returned to the ordinary display.

! During the Instant Replay mode, you can se-

lect Pause (pause). Refer to Using Instant Re- play function on page 48.

! Pause is the same as that of the built-in CD

player. (Refer to Pausing playback on page 17.)

Page 47

Available accessories

Section

Selecting the SIRIUS channel select mode

% Press B repeatedly to select the desired channel select setting. Channel number (channel number select set-

ting)—Category (channel category select setting)

Note

You can also perform this operation in the menu that appears by using MULTI-CONTROL.

Selecting a channel in the channel category

1 Select the channel select settings to Category.

Refer to Selecting the SIRIUS channel select mode on this page.

2 Push MULTI-CONTROL up or down to select the desired channel category.

3 Push MULTI-CONTROL left or right to select the desired channel in the selected channel category.

! You can also operate this function when

SIR-PNR2 is connected to this unit.

Selecting teams for Game Alert

1 Display the function selection menu.

Refer to Introduction of advanced operations on the previous page.

2 Use MULTI-CONTROL to select Team setting in the function menu.

3 Push MULTI-CONTROL left or right to select a desired league.

League names are switched in the display.

4 Push MULTI-CONTROL up or down to select a desired team.

Teams in the selected category are switched in the display.

5 Press MULTI-CONTROL to store the selected team in memory.

The game alert function will start on that team.

# To turn the Game Alert off of the selected team, press MULTI-CONTROL again. # When you have already made 12 team selections, FULL is displayed and additional team selection is not possible. In this case, first delete the team selection and then try again.

6 Repeat these steps for selecting other teams.

Up to 12 teams can be selected.

Available accessories

Using the Game Alert function

This system can alert you when games involving your favorite teams are about to start. To use this function you need in advance to set up a game alert for the teams. ! To use this function, Pioneer SIRIUS bus in-

terface (e.g. CD-SB10) is required.

! To use this function, SIRIUS plug-and-play

unit with Game Alert Function is required.

! For details, refer to SIRIUS plug-and-play

unit’s manuals.

Switching the Game Alert on or off

Once you made team selections, you need to turn the Game Alert function on. ! The Game Alert function is on at the default

setting.

1 Display the function selection menu.

Refer to Introduction of advanced operations on the previous page.

2 Use MULTI-CONTROL to select Game alert in the function menu.

Page 48

Section

Available accessories

3 Press MULTI-CONTROL to turn the Game Alert on.

The Game Alert function is now on.

# To turn the Game Alert function off, press MULTI-CONTROL again.

When the game of the selected team starts

When a game of the selected team is about to start (or is currently playing) on a different station, Game alert is displayed. Press and hold MULTI-CONTROL to switch to that station, and you can listen to that game. ! If you do not operate the function within

about 10 seconds, the display is automatically returned.

Displaying game information

If games of your selected teams are currently playing, you can display information of the games and tune to the broadcast channel. You can display information of the games while enjoying the sound from currently tuning station. You can also tune to the broadcast channel when you wish to.

1 Display the function selection menu.

Refer to Introduction of advanced operations on page 46.

2 Use MULTI-CONTROL to select Game info in the function menu.

The game information of your selected team is displayed.

3 Push MULTI-CONTROL up or down to select a game.

The game is displayed, followed by more detailed game information.

! Game score will be updated automatically.

4 Press MULTI-CONTROL to switch to that station to listen to the game.

Notes

! If you have not made any team selections,

NOT SET is displayed.

! When games involving your favorite teams are

not currently playing, NO GAME is displayed.

Displaying the Radio ID

If you select RADIO ID, the ID code is displayed.

% Push MULTI-CONTROL left or right to select RADIO ID.

Note

To select RADIO ID, set the channel select setting to Channel number. About the channel select setting, refer to Selecting the SIRIUS channel se- lect mode on the previous page.

Using Instant Replay function

Following functions can be operated during the Instant Replay mode. ! To use this function, Pioneer SIRIUS bus in-

terface (e.g. CD-SB10) is required.

! To use this function, SIRIUS plug-and-play

unit with Instant Replay Function is required.

! For details, refer to SIRIUS plug-and-play

unit’s manuals.

% Performing the Instant Replay mode

When SIRIUS tuner is selected as the source, press and hold B.

# In the following conditions, tuner exits from the Instant Replay mode.

— When B is pressed — When another source is selected

% Select a track

Push MULTI-CONTROL left or right.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right for about one second and release.

Page 49







Available accessories

Section

HD Radioä tuner

Basic Operations

You can use this unit to control an HD Radio tuner (e.g. GEX-P20HD), which is sold separately.

For details concerning operation, refer to the HD Radio tuner’s operation manual.

1 / (signal reception status) indicator

When digital signal is received, played. Otherwise,

2 Channel number 3 Band indicator 4 Preset number indicator 5 Signal level indicator

Shows the radio wave strength.

6 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

7 Frequency indicator 8 Title name

% Select a band

Press B.

# Band can be selected from among FM1, FM2, FM3 or AM.

is displayed.

is dis-

Storing and recalling broadcast frequencies

The operation is the same as that of the tuner. (Refer to Storing and recalling broadcast fre- quencies on page 13.)

Switching the display

Desired information can be displayed.

% Press DScrl.

Press D/Scrl repeatedly to switch between the following settings: Station name—artist name—song title—program type

# When the tuner has been tuned in to an HD Radio broadcasting, default display is changed into station name instead of frequency.

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select. The function menu is displayed.

3 Turn MULTI-CONTROL to select the function. BSM (best stations memory)—Local (local seek tuning)—Seek mode (seek mode)— Blending (reception mode)

Available accessories

% Manual tuning (step by step)

Push MULTI-CONTROL left or right.

% Seek tuning

Push and hold MULTI-CONTROL left or right, and then release.

# You can cancel seek tuning by pushing MULTI-CONTROL left or right.

Function and operation

BSM and Local operations are basically the same as that of the tuner.

Function name Operation

BSM

Local

Refer to Storing the strongest broadcast frequencies on page 14.

Refer to Tuning in strong signals on page 14.

Page 50





Section

Available accessories

Note

To return to the playback display, press B.

Switching the seek mode

There are two method of seek tuning settings, one is Seek HD (Digital broadcasting stations seek) and the other is Seek ALL (normal seek).

1 Use MULTI-CONTROL to select Seek mode in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to select your favorite setting. Seek ALL—Seek HD





1 Song number indicator 2 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

3 Play time indicator 4 Song time (progress bar)

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

Switching the reception mode

If a digital broadcast reception condition gets poor, this unit automatically switches to the analog broadcast of the same frequency level. If this function is set to on, the tuner switches between digital broadcast and analog broadcast automatically. If this function is off, reception will be conducted within an analog broadcast.

1 Use MULTI-CONTROL to select Blending in the function menu.

Refer to Introduction to advanced operations on the previous page.

2 Press MULTI-CONTROL to select your favorite setting. ON—OFF

Playing songs on iPod

Basic operation

You can use this unit to control an interface adapter for iPod (e.g. CD-IB100N), which is sold separately.

% Select a track

Push MULTI-CONTROL left or right.

Notes

! Read the precautions for iPod in the following

section. Refer to page 72.

! If an error message is displayed, refer to Error

messages on page 68.

! When the ignition switch is set to ACC or ON,

the iPod’s battery is charged while the iPod is connected to this unit.

! While the iPod is connected to this unit, the

iPod cannot be turned on or off.

! Before connecting the iPod to this unit, dis-

connect the headphones from the iPod.

! The iPod is turned off about two minutes after

the ignition switch is set to OFF.

Page 51

Available accessories

Section

Displaying text information on iPod

% Press D/Scrl to select the desired text information.

Play time— —

: artist name and : album name— : album name and

: artist name and : song title

: song title— : song title

and play time

# If the characters recorded on the iPod are not compatible with this unit, those characters are not displayed.

Notes

! You can scroll through text data by pressing

and holding D/Scrl.

! When Ever Scroll is set to ON at the initial set-

ting, text information scrolls continuously in the display. Refer to Switching the ever scroll on page 39.

Browsing for a song

The operation is the same as that of the iPod connected to USB interface of this unit. (Refer to Browsing for a song on page 20.) However, the selectable categories are slightly different. Selectable categories are

Playlists (playlists)—Artists (artists)— Albums (albums)—Songs (songs)— Genres

(genres) ! You cannot search songs by alphabet in

the list while using an iPod with interface adapter.

3 Turn MULTI-CONTROL to select the function. Play mode (repeat play)—Shuffle mode (shuffle)—Pause (pause)

Function and operation

Play mode and Pause operations are basically the same as that of the built-in CD player. Also, Shuffle mode operation is basically the same as that of iPod connected to USB interface of this unit.

Function name Operation

Refer to Selecting a repeat play range on page 16.

However, the repeat play ranges you can select are different from

Play mode

Shuffle mode

Pause

Notes

! To return to the ordinary display, press B. ! If you do not operate functions within about

30 seconds, the display automatically returns to the ordinary display.

that of the built-in CD player. The repeat play ranges of the iPod are: ! Repeat One – Repeat the cur-

rent song

! Repeat All – Repeat all songs

in the selected list

Refer to Playing songs in a random order (shuffle) on page 22.

Refer to Pausing playback on page

17.

Available accessories

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

Bluetooth Audio

If you connect a Bluetooth adapter (e.g. CDBTB200) to this unit, you can control Bluetooth audio players via Bluetooth wireless technology.

! In some countries, CD-BTB200 is not sold

on the market.

Page 52

Section

Available accessories

Basic Operations

1 Device name

Shows the device name of the connected Bluetooth audio player (or Bluetooth adapter).

2 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

Important

! Depending on the Bluetooth audio player con-

nected to this unit, the operations available with this unit are limited to the following two levels: — A2DP profile (Advanced Audio Distribution

Profile): Only playing back songs on your audio player is possible.

— AVRCP profile (Audio/Video Remote Con-

trol Profile): Playing back, pausing, selecting songs, etc., are possible.

! Since there are a number of Bluetooth audio

players available on the market, operations with your Bluetooth audio player using this unit vary extensively. Refer to the instruction manual that came with your Bluetooth audio player as well as this manual while operating your player on this unit.

! Information about songs (e.g. the elapsed

playing time, song title, song index, etc.) cannot be displayed on this unit.

! While you are listening to songs on your Blue-

tooth audio player, refrain from using on your cellular phone as much as possible. If you use your cellular phone, the signal from your cellular phone may cause noise on the song playback.

! When you are talking on a cellular phone con-

nected to this unit via Bluetooth wireless technology, song playback from your Bluetooth audio player connected to this unit is muted.

! Even if you are listening to a song on your

Bluetooth audio player and you switch to another source, song playback continues.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

% Select a track

Push MULTI-CONTROL left or right.

Notes

! For details concerning operation, refer to the

Bluetooth adapter’s operation manual. This section provides brief information on Bluetooth audio player operations with this unit, which slightly differs or is abbreviated from that described in the Bluetooth adapter’s operation manual.

! Even though your audio player does not con-

tain a Bluetooth module, you can still control it from this unit via Bluetooth wireless technology. To control your audio player using this unit, connect a product featuring Bluetooth wireless technology (available on the market) to your audio player and connect the Bluetooth adapter (e.g. CD-BTB200) to this unit.

Function and operation

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Connection open (connection open)— Disconnect audio (disconnect audio)—Play (play)—Stop (stop)—Pause (pause)— Device info. (device information)

Page 53

Available accessories

Section

# Pause is the same as that of the built-in CD player. (Refer to Pausing playback on page 17.)

Notes

! To return to the ordinary display, press B. ! If a Bluetooth audio player is not connected to

this unit yet, Connection open and Device info. appear in the function menu and

other functions are not available.

! If a Bluetooth audio player is connected via

AVRCP (Audio/Video Remote Control Profile), Connection open does not appear in the function menu.

! If a Bluetooth audio player is connected via

A2DP (Advanced Audio Distribution Profile) , only Disconnect audio and Device info. appear in the function menu.

! If you do not operate functions other than

Connection open and Disconnect audio within about 30 seconds, the display is automatically returned to the ordinary display.

Connecting a Bluetooth audio player

1 Use MULTI-CONTROL to select Connection open in the function menu.

Refer to Function and operation on the previous page.

2 Press MULTI-CONTROL to open the connection. Always waiting is displayed. This unit is now

on standby for connection from Bluetooth audio player. If your Bluetooth audio player is set ready for Bluetooth wireless connection, connection to this unit is automatically established.

Note

Before you can use audio players you may need to enter the PIN code into this unit. If your player requires a PIN code to establish a connection, look for the code on the player or in its accompanying documentation. Refer to Entering PIN code for Bluetooth wireless connection on page 39.

Playing songs on a Bluetooth audio player

1 Use MULTI-CONTROL to select Play in the function menu.

Refer to Function and operation on the previous page.

2 Press MULTI-CONTROL to start playback.

Available accessories

Stopping playback

1 Use MULTI-CONTROL to select Stop in the function menu.

Refer to Function and operation on the previous page.

2 Press MULTI-CONTROL to stop the playback.

Disconnecting a Bluetooth audio player

1 Use MULTI-CONTROL to select Disconnect audio in the function menu.

Refer to Function and operation on the previous page.

2 Press MULTI-CONTROL to disconnect the Bluetooth audio player. Disconnected is displayed. The Bluetooth

audio player is now disconnected from this unit.

Displaying BD (Bluetooth Device) address

1 Use MULTI-CONTROL to select Device info. in the function menu.

Refer to Function and operation on the previous page.

2 Push MULTI-CONTROL left to switch to the BD address.

12-digit hexadecimal string is displayed.

Page 54









Section

Available accessories

# Pushing MULTI-CONTROL right returns to the device name.

Bluetooth Telephone

If you use a Bluetooth adapter (e.g. CDBTB200), you can connect a cellular phone featuring Bluetooth wireless technology to this unit for hands-free, wireless calls, even while driving.

! In some countries, CD-BTB200 is not sold

on the market.

Basic Operations

1 Device name

Shows the device name of the cellular phone.

2 Signal level indicator

Shows the signal strength of cellular phone.

! The level shown on the indicator may

differ from the actual signal level.

3 User number indicator

Shows the registration number of the cellular phone.

4 Battery strength indicator

Shows the battery strength of cellular phone.

! The level shown on the indicator may

differ from the actual battery strength.

! If the battery strength is not available,

nothing is displayed in the battery strength indicator area.

5 Incoming call notice indication

Shows when an incoming call has been received and not checked yet.

! Incoming call notice is not displayed for

calls made when your cellular phone is disconnected from this unit.

6 Automatic answering/Automatic rejecting in-

dicator Shows AUTO when the automatic answering function is on (for more details, refer to Setting automatic answering on page 62). Shows REFUSE when the automatic rejecting function is on (for more details, refer to Setting automatic rejecting on page 62).

7 Clock display

Shows the time (if connected with a phone).

Important

! Since this unit is on standby to connect with

your cellular phone via Bluetooth wireless technology, using this unit without running the engine can result in battery drainage.

! Advanced operations that require your atten-

tion such as dialing numbers on the monitor, using phone book, etc., are prohibited while you are driving. When you need to use these advanced operations, stop your vehicle in a safe place.

Notes

! The equalizer curve for the phone source is

fixed.

! When selecting the phone source, you can

only operate Fader (balance adjustment) in the audio menu.

Setting up for hands-free phoning

Before you can use the hands-free phoning function you must set up the unit for use with your cellular phone. This entails establishing a Bluetooth wireless connection between this unit and your phone, registering your phone with this unit, and adjusting the volume level.

1 Connection

For detailed instructions on connecting your phone to this unit via Bluetooth wireless technology, refer to Connecting a cellular phone on page 56.

Page 55

Available accessories

Section

# Your phone should now be temporarily connected. However, to make best use of the technology, we recommend you register the phone to this unit.

2 Registration

To register your temporarily connected phone, refer to Registering a connected cellular phone on page 57.

3 Volume adjustment

Adjust the earpiece volume on your cellular phone for comfort. When adjusted, the volume level is recorded in this unit as the default setting.

# Caller’s voice volume and ring volume may vary depending on the type of cellular phone. # If the difference between the ring volume and caller’s voice volume is big, overall volume level may become unstable. # Before disconnecting the cellular phone from this unit, make sure to adjust the volume to a proper level. If the volume is muted (zero level) on your cellular phone, the volume level of your cellular phone remains muted even after the cellular phone is disconnected.

Making a phone call

Voice recognition

1 Press B and hold until Voice dial appears in the display. Voice dial appears in the display. When Voice dial ON is displayed, voice recognition

function is now ready.

# If your cellular phone does not feature voice recognition function, No voice dial appears in the display and operation is not possible.

2 Pronounce the name of your contact.

Taking a phone call

Answering or rejecting an incoming call

% Answering an incoming call

When a call comes in, press MULTI-CONTROL.

# You can also perform this operation by pushing MULTI-CONTROL up.

% End a call

Push MULTI-CONTROL down.

% Rejecting an incoming call

When a call comes in, push MULTI-CONTROL down.

Notes

! If private mode is selected on the cellular

phone, hands-free phoning may not be performed.

! The estimated call time appears in the display

(this may differ slightly from the actual call time).

Operating a call waiting

% Answering a call waiting

When a call comes in, press MULTI-CONTROL.

# You can also perform this operation by pushing MULTI-CONTROL up.

% End all calls

Push MULTI-CONTROL down.

% Switch between callers on hold

Press MULTI-CONTROL.

# You can also perform this operation by pushing MULTI-CONTROL up.

% Rejecting call waiting

Push MULTI-CONTROL down.

Available accessories

Notes

! Pushing MULTI-CONTROL down ends all

calls including calls waiting on line.

Page 56

Section

Available accessories

! To end the call, both you and your caller need

to hang up the phone.

Function and operation

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Search&Connect (search and connect)— Disconnect phone (disconnect phone)— Connection open (connection open)— Set phone (registering phone)— Connect phone (connect phone)— Delete phone (delete phone)—PH.B.Transfer

(phone book transfer)—PH.B.Name view (phone book name view)—Clear memory (clear memory)—Number dial (call by entering number)—Refuse calls (automatic reject setting)—Auto answer (automatic answer setting)—Ring tone (ring tone select)— Auto connect (automatic connection setting) —Echo cancel (echo cancel)—Device info. (device information)

If not connected yet

The following functions cannot be operated.

! Disconnect phone (disconnect phone) ! Set phone (registering phone) ! PH.B.Name view (phone book name view) ! Clear memory (clear memory) ! Number dial (call by entering number)

If connected but not registered yet

The following functions cannot be operated.

! Search&Connect (search and connect) ! Connection open (connection open) ! Connect phone (connect phone) ! PH.B.Name view (phone book name view) ! Clear memory (clear memory)

If already connected and registered

The following functions cannot be operated.

! Search&Connect (search and connect)

! Connection open (connection open) ! Set phone (registering phone) ! Connect phone (connect phone)

Notes

! To return to the playback display, press B. ! Device info. is the same as that of the Blue-

tooth audio. (Refer to Displaying BD (Bluetooth Device) address on page 53.)

! PH.B.Name view (phone book name view)

cannot be selected for cellular phone registered guest phone.

! If cellular phone is connected to this unit via

Bluetooth wireless technology with HSP (Head Set Profile), PH.B.Name view,

Clear memory, Number dial and Refuse calls cannot be selected.

! If you do not operate functions other than

Search&Connect, Connection open, Connect phone, PH.B.Transfer, Disconnect phone, Number dial and Clear memory within about 30 seconds, the

display automatically returns to the ordinary display.

Connecting a cellular phone

Searching for available cellular phones

1 Use MULTI-CONTROL to select Search&Connect in the function menu.

Refer to Function and operation on this page.

2 Press MULTI-CONTROL to search for available cellular phones.

While searching, Searching flashes. When available cellular phones featuring Bluetooth wireless technology are found, device name or Name not found (if names cannot be obtained) is displayed.

# If this unit fails to find any available cellular phones, Not found is displayed.

3 Push MULTI-CONTROL up or down to select a device name you want to connect.

# Push MULTI-CONTROL left or right to switch the BD address and device name.

Page 57

Available accessories

Section

4 Press MULTI-CONTROL to connect the selected cellular phone.

While connecting, Connecting flashes. To complete the connection, check the device name (Pioneer BT Unit) and enter the link code on your cellular phone. If the connection is established, Connected is displayed.

# PIN code is set to 0000 as the default. You can change this code. Refer to Entering PIN code for Bluetooth wireless connection on page 39.

Using a cellular phone to initiate a connection

1 Use MULTI-CONTROL to select Connection open in the function menu.

Refer to Function and operation on the previous page.

2 Press MULTI-CONTROL to open the connection. Always waiting flashes and the unit is now

on standby for connection from a cellular phone.

3 Use cellular phone to connect to this unit.

# PIN code is set to 0000 as the default. You can change this code. Refer to Entering PIN code for Bluetooth wireless connection on page 39.

Registering a connected cellular phone

1 Use MULTI-CONTROL to select Set phone in the function menu.

Refer to Function and operation on the previous page.

2 Push MULTI-CONTROL up or down to select a pairing assignment. P1 (user phone 1)—P2 (user phone 2)—P3

(user phone 3)—G1 (guest phone 1)—G2 (guest phone 2)

# Push MULTI-CONTROL left or right to switch the BD address and device name. # As you select each assignment, you can see whether or not a phone is already registered. If the assignment is empty, No data is displayed. If the assignment is already taken, the device name appears. To replace an assignment with a new phone, first delete the current assignment. For more detailed instructions, see Deleting a regis- tered phone on this page.

3 Press MULTI-CONTROL to register the currently connected phone.

When registration is completed, Reg.Completed is displayed.

# If the registration fails, Reg.ERROR is dis- played. In this case, return to step 1 and try again.

Available accessories

Disconnecting a cellular phone

1 Use MULTI-CONTROL to select Disconnect phone in the function menu.

Refer to Function and operation on the previous page. Device name of the connected phone appears in the display.

2 Press MULTI-CONTROL to disconnect a cellular phone from this unit.

After disconnection is completed, Disconnected is displayed.

Deleting a registered phone

1 Use MULTI-CONTROL to select Delete phone in the function menu.

Refer to Function and operation on the previous page.

2 Push MULTI-CONTROL up or down to select a pairing assignment. P1 (user phone 1)—P2 (user phone 2)—P3

(user phone 3)—G1 (guest phone 1)—G2 (guest phone 2)

# Push MULTI-CONTROL left or right to switch the BD address and device name. # If the assignment is empty, No data is dis- played and operation is not possible.

Page 58

Section

Available accessories

3 Push MULTI-CONTROL right to select Delete YES. Delete YES is displayed. Deleting phone is

now on standby.

4 Press MULTI-CONTROL to delete the phone.

After the phone is deleted, Deleted is displayed.

Connecting to a registered cellular phone

Connecting to a registered phone manually

1 Use MULTI-CONTROL to select Connect phone in the function menu.

Refer to Function and operation on page 56.

2 Push MULTI-CONTROL up or down to select a pairing assignment. P1 (user phone 1)—P2 (user phone 2)—P3

(user phone 3)—G1 (guest phone 1)—G2 (guest phone 2)

# Push MULTI-CONTROL left or right to switch the BD address and device name. # If the assignment is empty, No data is dis- played and operation is not possible.

3 Press MULTI-CONTROL to connect the selected cellular phone.

While connecting, Connecting is displayed. After the connection is completed, Connected is displayed.

Connecting to a registered phone automatically

1 Use MULTI-CONTROL to select Auto connect in the function menu.

Refer to Function and operation on page 56.

2 Press MULTI-CONTROL to turn automatic connection on.

If your cellular phone is ready for Bluetooth wireless connection, connection to this unit is automatically established.

# To turn automatic connection off, press MULTI-CONTROL again.

Using the phone book

Transferring entries to the phone book

The Phone Book can hold a total of 500 entries. 300 from User 1, 150 from User 2, and 50 from User 3.

1 Use MULTI-CONTROL to select PH.B.Transfer in the function menu.

Refer to Function and operation on page 56.

2 Press MULTI-CONTROL to enter the phone book transfer standby mode. Transfer YES appears in the display.

3 Press MULTI-CONTROL to show the confirmation display. Transfer -/- appears in the display.

4 Use the cellular phone to perform phone book transfer.

Perform phone book transfer using the cellular phone. For detailed instructions, refer to the instruction manual that came with your cellular phone.

# The display indicates how many entries have been transferred and the total number to be transferred.

5 Data transferred is displayed and phone book transfer is completed.

Changing the phone book display order

1 Use MULTI-CONTROL to select PH.B.Name view in the function menu.

Refer to Function and operation on page 56.

Invert names YES appears in the display.

2 Press MULTI-CONTROL to change the name view order. Inverted is displayed and the name view

order is changed.

Page 59

Available accessories

Section

Pressing MULTI-CONTROL repeatedly changes the name view order between first and last name.

Calling a number in the phone book

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

After finding the number you want to call in the phone book, you can select the entry and make the call.

1 Turn MULTI-CONTROL to display the list.

2 Press D/Scrl to display the phone book.

Press D/Scrl repeatedly to switch between the following lists: Phone book—Missed call—Dialled call—Received call

3 Push MULTI-CONTROL left or right to select the first letter of the name you are looking for.

4 Press MULTI-CONTROL to display entries.

The display shows the first three Phone Book entries starting with that letter (e.g. “Ben”, “Brian” and “Burt” when “B” is selected).

5 Push MULTI-CONTROL up or down to select a Phone Book entry you want to call.

# You can scroll through text data by pressing and holding D/Scrl.

6 Push MULTI-CONTROL right to display the detailed list of the selected entry.

The phone number, name and genre (if assigned) of entries are displayed in the detailed list.

# You can scroll through text data by pressing and holding D/Scrl. # If several phone numbers are included in an entry, select one by turning MULTI-CONTROL.

# If you want to go back and select another entry, push MULTI-CONTROL left.

7 Press MULTI-CONTROL to make a call.

8 To end the call, push MULTI-CONTROL down.

Editing the name of a Phone Book entry

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

You can edit the names of Phone Book entries. Each name can be up to 16 characters long.

1 Display the detailed list of your desired Phone Book entry.

Please see Steps 1 to 6 of the following section for how to do this. Refer to Calling a number in the phone book on this page.

2 Press and hold MULTI-CONTROL to display the name input screen. Edit name is displayed.

3 Press D/Scrl to select the desired character type.

Each press of D/Scrl switches the character types in the following order: Alphabet (upper case), numbers and symbols —alphabet (lower case)—numbers and symbols—European characters, such as those with accents (e.g., á, à, ä, ç) or Russian characters

# Pressing and holding D/Scrl enables you to switch character set between ISO8859-1 (European characters) and ISO8859-5 (Russian characters) alternately. # European characters and Russian characters can’t be mixed.

4 Push MULTI-CONTROL up or down to select a letter.

# To delete a character and leave a space, select

“_” (underbar).

Available accessories

Page 60

Section

Available accessories

5 Push MULTI-CONTROL left or right to move the cursor to the previous or next character position.

6 Press MULTI-CONTROL to store the new name.

Editing phone numbers

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

You can edit the numbers of Phone Book entries. Each phone number can be up to 24 digits long.

1 Display the detailed list of your desired Phone Book entry.

Please see Steps 1 to 6 of the following section for how to do this. Refer to Calling a number in the phone book on the previous page.

2 Press and hold MULTI-CONTROL to display the name input screen. Edit name is displayed.

3 Turn MULTI-CONTROL to switch to the number input screen. Edit name (name input screen)— Edit number (number input screen)— Clear memory (clear memory screen)

4 Push MULTI-CONTROL left or right to move the cursor to the number you want to change.

5 Push MULTI-CONTROL up or down to change numbers.

Repeat these steps until you have finished changing.

Clearing a phone book entry

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

1 Display the detailed list of your desired Phone Book entry.

Please see Steps 1 to 5 of the following section for how to do this. Refer to Calling a number in the phone book on the previous page.

2 Press and hold MULTI-CONTROL to display the name input screen. Edit name is displayed.

3 Turn MULTI-CONTROL to switch to the clear memory screen. Edit name (name input screen)— Edit number (number input screen)— Clear memory (clear memory screen)

4 Push MULTI-CONTROL right to show a confirmation display. Clear memory YES is displayed.

# If you do not want to clear the memory that you have selected, push MULTI-CONTROL left. The display reverts to normal.

5 Press MULTI-CONTROL to delete the Phone Book entry. Cleared is displayed.

The Phone Book entry is deleted. The display returns to Phone Book entry list.

Using the call history

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

6 Press MULTI-CONTROL to store the new number.

The 12 most recent calls made (dialled), received and missed, are stored in the call history. You can browse the call history and call numbers from it.

1 Turn MULTI-CONTROL to display the list.

Page 61

Available accessories

Section

2 Press D/Scrl to display the phone book.

Press D/Scrl repeatedly to switch between the following lists: Phone book—Missed call—Dialled call—Received call

# For more details about the Phone Book list, refer to Using the phone book on page 58. # If no phone numbers are stored in the selected list, No data is displayed.

3 Turn MULTI-CONTROL to select a phone number.

Turning MULTI-CONTROL to change the phone numbers stored in the list.

# If the phone number is already in the phone book, the corresponding name is displayed. # You can also change the phone number by pushing MULTI-CONTROL up or down.

4 Push MULTI-CONTROL right to display the detailed list.

Name and phone number are displayed in the detailed list.

# If the number is already in the Phone Book then the name is also displayed. # Turning MULTI-CONTROL switches to the pre- vious or next phone number displayed in the detailed list.

# If you do not operate functions other than Edit- ing the name of a Phone Book entr y and Editing phone numbers within about 30 seconds, the dis-

play automatically returns to the ordinary display.

5 Press MULTI-CONTROL to make a call.

# For an international call, press and hold

MULTI-CONTROL to add + to the phone number.

6 To end the call, push MULTI-CONTROL down.

Making a call by entering phone number

Important

Be sure to park your vehicle and apply the parking brake when performing this operation.

1 Use MULTI-CONTROL to select Number dial in the function menu.

Refer to Function and operation on page 56.

2 Push MULTI-CONTROL up or down to select a number.

3 Push MULTI-CONTROL left or right to move the cursor to the previous or next position.

# Up to 24 digits can be entered.

4 When you finish entering the number, press MULTI-CONTROL.

Call confirmation appears.

# Pushing MULTI-CONTROL right in the confir- mation display returns you to the number input display, and you can reenter the phone number.

5 Press MULTI-CONTROL to make a call.

6 To end the call, push MULTI-CONTROL down.

Clearing memory

1 Use MULTI-CONTROL to select Clear memory in the function menu.

Refer to Function and operation on page 56.

2 Push MULTI-CONTROL up or down to select an item.

Each time MULTI-CONTROL is pushed up or down, the items are switched in the following order: Phone book (phone book)—Missed calls (missed call history)—Dialed calls (dialled call history)—Received calls (received call history)—Dial preset (preset phone numbers)— All clear (delete all memory)

# If you want to clear all the Phone Book, dialled/received/missed call history list and preset phone number, select All clear. # If guest phone is connected to this unit via Bluetooth wireless technology, Phone book cannot be selected.

Available accessories

Page 62







Section

Available accessories

3 Push MULTI-CONTROL right to determine the item that you want to delete from this unit. Clear memory YES is displayed. Clearing

memory is now on standby.

# If you do not want to clear the memory that you have selected, push MULTI-CONTROL left. The display reverts to normal.

4 Press MULTI-CONTROL to clear the memory. Cleared is displayed and data on the selected

item is cleared from this unit’s memory.

Setting automatic rejecting

1 Use MULTI-CONTROL to select Refuse calls in the function menu.

Refer to Function and operation on page 56.

2 Press MULTI-CONTROL to turn automatic call rejection on.

# To turn automatic call rejection off, press

MULTI-CONTROL again.

Setting automatic answering

1 Use MULTI-CONTROL to select Auto answer in the function menu.

Refer to Function and operation on page 56.

Echo canceling and noise reduction

1 Use MULTI-CONTROL to select Echo cancel in the function menu.

Refer to Function and operation on page 56.

2 Press MULTI-CONTROL to turn echo canceling on.

# To turn echo canceling off, press

MULTI-CONTROL again.

Multi-CD Player

Basic Operations

You can use this unit to control a multi-CD player, which is sold separately. ! Only functions described in this section can

be operated.

! Only functions described in this manual are

supported by 50-disc multi-CD players.

! This unit is not designed to operate disc title

list functions with a 50-disc multi-CD player. For information about the disc title list functions, refer to Selecting discs from the disc title list on page 65.

2 Press MULTI-CONTROL to turn automatic answering on.

# To turn automatic answering function off, press MULTI-CONTROL again.

Switching the ring tone

1 Use MULTI-CONTROL to select Ring tone in the function menu.

Refer to Function and operation on page 56.

2 Press MULTI-CONTROL to turn the ring tone on.

# To turn the ring tone off, press

MULTI-CONTROL again.

1 Disc number indicator 2 Track number indicator 3 Play time indicator 4 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

% Select a disc

Push MULTI-CONTROL up or down.

Page 63

Available accessories

Section

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

% Select a track

Push MULTI-CONTROL left or right.

Notes

! When multi-CD player completes preparatory

operations, READY is displayed.

! If an error message is displayed, refer to the

multi-CD player owner’s manual.

! If there are no discs in the multi-CD player ma-

gazine, NO DISC is displayed.

Using CD TEXT functions

You can use these functions only with a CD TEXT compatible multi-CD player.

The operation is the same as that of the builtin CD player. Refer to Displaying text information on disc on page 15.

Introduction to advanced operations

You can only use Compression (compression and DBE) with a multi-CD player that supports them.

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function. Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)—Compression (compression and DBE)—ITS play mode (ITS play)— ITS memo (ITS programming)— TitleInput "A" (disc title input)

# If you do not operate functions other than

ITS memo and TitleInput "A" within about 30 seconds, the display automatically returns to the ordinary display. # When playing a CD TEXT disc on a CD TEXT compatible multi-CD player, you cannot switch to TitleInput "A". The disc title is already recorded on the CD TEXT disc.

Function and operation

Play mode, Random mode, Scan mode, Pause and TitleInput "A" operations are basi-

cally the same as that of the built-in CD player.

Function name Operation

Refer to Selecting a repeat play range on page 16.

However, the repeat play ranges you can select are different from that of the built-in CD player. The repeat play ranges of the multi-CD

Play mode

Random mode

Scan mode

Pause

TitleInput "A"

Notes

! To return to the playback display, press B. ! If you select other discs during repeat play,

the repeat play range changes to M-CD repeat.

! If you perform track search or fast forward/re-

verse during Track repeat, the repeat play range changes to Disc repeat.

player are: ! M-CD repeat – Repeat all

discs in the multi-CD player

! Track repeat – Repeat just the

current track

! Disc repeat – Repeat the cur-

rent disc

Refer to Playing tracks in random order on page 16.

Refer to Scanning folders and tracks on page 17.

Refer to Pausing playback on page

17.

Refer to Entering disc titles on page 17.

Available accessories

Page 64

Section

Available accessories

! After track or disc scanning is finished, nor-

mal playback of the tracks begins again.

Using compression and bass emphasis

You can only use these functions with a multiCD player that supports them.

COMP (compression) and DBE (dynamic bass emphasis) functions lets you adjust the sound playback quality of the multi-CD player.

1 Use MULTI-CONTROL to select Compression in the function menu.

Refer to Introduction to advanced operations on the previous page.

# If the multi-CD player does not support COMP/DBE, No COMP is displayed when you attempt to select it.

2 Press MULTI-CONTROL to select your favorite setting. COMP OFF—COMP 1—COMP 2— COMP OFF—DBE 1—DBE 2

Using ITS playlists

ITS (instant track selection) lets you make a playlist of favorite tracks from the multi-CD player magazine. After you have added your favorite tracks to the playlist, you can turn on ITS play and play just those selections. You can use ITS to enter and play back up to 99 tracks per disc from up to 100 discs (with the disc titles). (With multi-CD players sold before the CDX-P1250 and CDX-P650, up to 24 tracks can be stored in the playlist.)

Creating a playlist with ITS programming

1 Play a CD that you want to program.

Push MULTI-CONTROL up or down to select the CD.

3 Select the desired track by pushing MULTI-CONTROL left or right.

4 Push MULTI-CONTROL up to store the currently playing track in the playlist. Memory complete is displayed and the cur-

rently playing selection is added to your playlist.

5 Press B to return to the playback display.

Note

After data for 100 discs is stored in memory, data for a new disc will overwrite the oldest one.

Playback from your ITS playlist

ITS play lets you listen to the tracks that you have entered into your ITS playlist. When you turn on ITS play, tracks from your ITS playlist in the multi-CD player begin to play.

1 Select the repeat range.

Refer to Playing tracks in random order on page 16.

2 Use MULTI-CONTROL to select ITS play mode in the function menu.

Refer to Introduction to advanced operations on the previous page.

3 Press MULTI-CONTROL to turn ITS play on. ITS play appears in the display. Playback be-

gins of those tracks from your playlist within the previously selected M-CD repeat or Disc repeat ranges.

# If no tracks in the current range are programmed for ITS play, then ITS empty is displayed. # To turn ITS play off, press MULTI-CONTROL again.

2 Use MULTI-CONTROL to select ITS memo in the function menu.

Refer to Introduction to advanced operations on the previous page.

Erasing a track from your ITS playlist

You can delete a track from your ITS playlist if ITS play is on.

Page 65

Available accessories

Section

If ITS play is already on, skip to step 2. If ITS play is off, use MULTI-CONTROL.

1 Play the CD with the track you want to delete from your ITS playlist, and turn ITS play on.

Refer to Playback from your ITS playlist on the previous page.

2 Use MULTI-CONTROL to select ITS memo in the function menu.

Refer to Introduction to advanced operations on page 63.

3 Select the desired track by pushing MULTI-CONTROL left or right.

4 Push MULTI-CONTROL down to erase the track from your ITS playlist.

The currently playing selection is erased from your ITS playlist and playback of the next track begins.

# If there are no tracks from your playlist in the current range, ITS empty is displayed and normal playback resumes.

5 Press B to return to the playback display.

Erasing a CD from your ITS playlist

You can delete all tracks of a CD from your ITS playlist if ITS play is off.

1 Play the CD that you want to delete.

Push MULTI-CONTROL up or down to select the CD.

2 Use MULTI-CONTROL to select ITS memo in the function menu.

Refer to Introduction to advanced operations on page 63.

3 Push MULTI-CONTROL down to erase all tracks on the currently playing CD from your ITS playlist.

All tracks on the currently playing CD are deleted from your playlist and Memory deleted is displayed.

4 Press B to return to the playback display.

Using disc title functions

You can input CD titles and display the titles. Then, you can easily search for and play a desired disc.

Entering disc titles

Use the disc title input feature to store up to 100 CD titles (with ITS playlist) into the multiCD player. Each title can be up to 10 characters long. For details concerning operation, refer to En- tering disc titles on page 17. ! Titles remain in the memory even after the

disc is removed from the magazine, and are recalled when the disc is reinserted.

! After data for 100 discs is stored in mem-

ory, data for a new disc will overwrite the oldest one.

Displaying disc titles

% Press D/Scrl to select the desired text information.

! For title entered CD

Play time—

! For CD TEXT discs

Play time— track title— disc title—

: track artist name and : track title

—

: track title and play time

—

# You can scroll through text data by pressing and holding D/Scrl.

Selecting discs from the disc title list

Disc title list lets you see the list of disc titles entered in the multi-CD player and select one of them to play back.

% Use MULTI-CONTROL to select the desired disc title.

Turn to change the disc title. Press to play.

: disc title and play time

: disc artist name and : : disc artist name and :

: disc title and : track title

Available accessories

Page 66

   



Section

Available accessories

# You can also change the disc title by pushing

MULTI-CONTROL up or down.

# When playing CD TEXT disc, push

MULTI-CONTROL right to see a list of the tracks in the selected disc. Push MULTI-CONTROL left to return to the disc list. # If no title is entered for a disc, NO TITLE is dis- played. # NO DISC is displayed next to the disc number when there is no disc in the magazine. # You can scroll through text data by pressing and holding D/Scrl. # If you do not operate the list within about 30 seconds, the display automatically returns to the ordinary display.

DVD Player

Basic Operations

You can use this unit to control a DVD player or multi-DVD player, which is sold separately.

For details concerning operation, refer to the DVD player’s or multi-DVD player’s operation manual. This section provides information on DVD operations with this unit which differs from that described in the DVD player’sor multi-DVD player’s operation manual.

Shows the chapter (when playing DVD video) or track (when playing Video CD, CD or compressed audio) currently playing.

5 Voltage indicator

Shows the battery voltage.

! The level displayed on the voltage indi-

cator may differ from the actual voltage level.

6 Play time indicator

% Select a chapter/track

Push MULTI-CONTROL left or right.

% Fast forward or reverse

Push and hold MULTI-CONTROL left or right.

# When playing compressed audio, there is no sound on fast forward or reverse.

% Select a disc/title VCD/CD: Push MULTI-CONTROL up or down. DVD-V/MP3/WMA: Push and hold MULTI-CONTROL up or down.

% Select a folder Push MULTI-CONTROL up or down.

# You can operate this function only when a DVD player compatible with compressed audio playback is connected to this unit. # You cannot select a folder that does not have a compressed audio file recorded in it.

1 DVD-V/VCD/CD/MP3/WMA indicator

Shows the type of disc currently playing.

2 Disc number indicator

Shows the number of the disc currently playing when using a multi-DVD player.

3 Title/Folder number indicator

Shows the title (when playing DVD video) or folder (when playing compressed audio) of the selection currently playing.

4 Chapter/track number indicator

Introduction to advanced operations

1 Press MULTI-CONTROL to display the main menu.

2 Use MULTI-CONTROL to select FUNCTION.

Turn to change the menu option. Press to select.

3 Turn MULTI-CONTROL to select the function.

During DVD video or Video CD playback

Play mode (repeat play)—Pause (pause)

During CD playback

Page 67

Available accessories

Section

Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)—

Pause (pause)—ITS play mode (ITS play)— ITS memo (ITS input)—TitleInput "A" (disc

title input)

During compressed audio playback

Play mode (repeat play)—Random mode (random play)—Scan mode (scan play)— Pause (pause)

# To return to the playback display, press B. # If you do not operate functions except for

ITS memo and TitleInput "A" within about 30 seconds, the display is automatically returned to the ordinary display.

Function and operation

Play mode, Random mode, Scan mode, Pause and TitleInput "A" operations are basi-

cally the same as that of the built-in CD player. Also, ITS play mode and ITS memo operations are basically the same as that the multiCD player.

Function name Operation

Refer to Selecting a repeat play range on page 16.

But the repeat play range that you can select is vary depending on the type of disc or system. The repeat play ranges of the DVD player/multi-DVD player are as below: During PBC playback of Video CDs, this function cannot be oper-

Play mode

Random mode

Scan mode

ated. ! Disc repeat – Repeat the cur-

rent disc

! Folder repeat – Repeat the

current folder

! Title repeat – Repeat just the

current title

! Chapter repeat – Repeat just

the current chapter

! Track repeat – Repeat the cur-

rent track

Refer to Playing tracks in random order on page 16.

Refer to Scanning folders and tracks on page 17.

Pause

ITS play mode

ITS memo

TitleInput "A"

Refer to Pausing playback on page

17.

Refer to Using ITS playlists on page 64.

Refer to Entering disc titles on page 17.

Notes

! If you select other discs during repeat play,

the repeat play range changes to Disc repeat.

! When playing back Video CD or CD, if you per-

form track search or fast forward/reverse during Track repeat, the repeat play range changes to Disc repeat.

! When playing back compressed audio, if you

select another folder during repeat play, the repeat play range changes to Disc repeat.

! When playing back compressed audio, if you

perform track search or fast forward/reverse during Track repeat, the repeat play range changes to Folder repeat.

! Multi-DVD player that has ITS functions and

disc title functions can also be connected to this unit. In this case, ITS play mode, ITS memo and disc title input can be controlled.

! The ITS function of a DVD player differs

slightly from ITS playback with a multi-CD player. With multi-DVD player, ITS playback applies only to the CD playing. For details, refer to Using ITS playlists on page 64.

Available accessories

Page 68

Appendix

Additional Information

Error messages

When you contact your dealer or your nearest Pioneer Service Center, be sure to have the error message recorded.

Built-in CD Player

Message Cause Action

ERROR-11, 12, 17, 30

ERROR-10, 11, 12, 15, 17, 30, A0

ERROR-15 The inserted disc

ERROR-22, 23 The CD format

NO AUDIO The inserted disc

TRK SKIPPED The inserted disc

PROTECT All the files on

USB storage device

Message Cause Action

NO AUDIO No songs Transfer the audio

NO DEVICE The USB storage

Dirty disc Clean disc.

Scratched disc Replace disc.

Electrical or mechanical

does not contain any data

cannot be played back

does not contain any files that can be played back

contains WMA files that are protected by DRM

the inserted disc are secured by DRM

USB storage device with security enabled is connected

device or iPod is not connected to the USB port of this unit.

Turn the ignition switch OFF and back ON, or switch to a different source, then back to the CD player.

Replace disc.

files to the external storage device and connect.

Follow the USB storage device instructions to disable the security.

Connect a compatible USB storage device.

The connected

TRK SKIPPED

PROTECT All the files in the

NOT COMPATIBLE

CHECK USB The USB connec-

ERROR-19 Communication

ERROR-23 USB storage de-

USB storage device contains WMA files that are protected by Windows Mediaä DRM 9/10

USB storage device are protected by Windows Media DRM 9/10

The USB storage device connected to is not supported by this unit.

tor or USB cable is short-circuited.

The connected USB storage device consumes more than 500 mA (maximum allowable current).

failure

vice is not formatted with FAT16 or FAT32

Play an audio file not protected by Windows Media DRM 9/10.

Transfer audio files not protected by Windows Media DRM 9/10 to the USB storage device and connect.

Connect a USB storage device that is USB Mass Storage Class compliant.

Confirm that the USB connector or USB cable is not caught in something or damaged.

Disconnect the USB storage device and do not use it. Turn the ignition switch to OFF, then to ACC or ON and then connect the compliant USB storage device.

Perform one of the following operations. –Turn the ignition switch OFF and back ON. –Disconnect or eject the USB storage device. –Change to a different source. Then, return to the USB source.

USB storage device should be formatted with FAT16 or FAT32.

Page 69

Additional Information

Appendix

iPod

Message Cause Action

ERROR-19 Communication

ERROR-16, 18 Old version of

ERROR-A1 CHECK USB

NO SONGS No songs Transfer the songs

STOP No songs in the

NO DEVICE The USB storage

failure

iPod failure Disconnect the

iPod

iPod failure Disconnect the

iPod is not charged but operates correctly

current list

device or iPod is not connected to the USB port of this unit.

Disconnect the cable from iPod. Once iPod main menu is displayed, connect the cable again. Reset the iPod.

cable from iPod. Once iPod main menu is displayed, connect the cable again. Reset the iPod.

Update the iPod version.

cable from iPod. Once iPod main menu is displayed, connect the cable again. Reset the iPod.

Check if the connection cable for iPod shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back ON or disconnect the iPod and connect again.

to iPod.

Select a list that contains the songs.

Connect a compatible iPod.

Understanding auto TA and EQ error messages

When correct measurement of car interior acoustic characteristics is not possible using the auto TA and EQ, an error message may appear on the display. If an error message appears, refer to the table below to see what the problem is and the suggested method of correcting the problem. After checking, try again.

Message Cause Action

ERR:MIC check Microphone is

ERR:High Band, ERR: High–Lch, ERR:High–Rch, ERR:Mid Band, ERR:Mid–Lch, ERR:Mid–Rch, ERR:Low Band, ERR: Low–Lch, ERR: Low–Rch, ERR: SUBWOOFER, ERR:SW-Lch, ERR:SW-Rch

ERR:Outside Noise

not connected.

The microphone cannot pick up the measuring tone of a speaker.

The surrounding noise level is too high.

Plug the supplied microphone securely into the jack.

! Confirm that the speakers are connected correctly. ! Correct the input level setting of the power amp connected to the speakers. ! Set the microphone correctly.

! Stop your car in a place that is as quiet as possible, and switch off the engine, air conditioner or heater. ! Set the microphone correctly.

Additional Information

Page 70

Appendix

Additional Information

Handling guideline of discs and player

! Use only discs featuring either of following

two logos.

! Use only conventional, fully circular discs.

Do not use shaped discs.

! Use a 12-cm CD. Do not use an 8-cm disc. ! Do not insert anything other than a CD into

the CD loading slot.

! Do not use cracked, chipped, warped, or

otherwise damaged discs as they may damage the player.

! Unfinalized CD-R/CD-RW disc playback is

not possible.

! Do not touch the recorded surface of the

discs.

! Store discs in their cases when not in use. ! Avoid leaving discs in excessively hot envir-

onments including under direct sunlight.

! Do not attach labels, write on or apply che-

micals to the surface of the discs.

! To clean a CD, wipe the disc with a soft

cloth outward from the center.

! Condensation may temporarily impair the

player’s performance. Leave it to adjust to the warmer temperature for about one hour. Also, wipe any dump discs with a soft cloth.

! Playback of discs may not be possible be-

cause of disc characteristics, disc format, recorded application, playback environment, storage conditions, and so on.

! Text information may not be correctly dis-

played depending on the recorded environment.

! Road shocks may interrupt disc playback. ! Read the precautions for discs before

using them.

DualDiscs

! DualDiscs are two-sided discs that have a

recordable CD for audio on one side and a recordable DVD for video on the other.

! Since the CD side of DualDiscs is not phy-

sically compatible with the general CD standard, it may not be possible to play the CD side with this unit.

! Frequent loading and ejecting of a Dual-

Disc may result in scratches on the disc. Serious scratches can lead to playback problems on this unit. In some cases, a DualDisc may become stuck in the disc loading slot and will not eject. To prevent this, we recommend you refrain from using DualDisc with this unit.

! Please refer to the information from the

disc manufacturer for more detailed information about DualDiscs .

Handling guideline of USB storage device and this unit

! This unit can play back files in the USB por-

table audio player/USB memory that is USB Mass Storage Class.

! Optimum performance of this unit may not

be obtained depending on the connected USB storage device.

! Do not leave the USB storage device in any

place with high temperatures.

! Depending on the kind of USB storage de-

vice you use, this unit may not recognize the storage device or file may not be played back properly.

! Operations may vary depending on the

kind of a USB storage device.

Page 71

Additional Information

Appendix

! You cannot connect a USB storage device

to this unit via a USB hub.

! Do not plug anything other than the USB

storage device into the USB port.

! Firmly secure the USB storage device when

driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

! Partitioned USB storage device is not com-

patible with this unit.

! Depending on the USB storage device con-

nected to this unit, it may generate noise in the radio.

Compressed audio compatibility (disc, USB)

WMA

! Compatible format: WMA encoded by

Windows Media Player

! File extension: .wma ! Bit rate: 48 kbps to 320 kbps (CBR), 48 kbps

to 384 kbps (VBR)

! Sampling frequency: 32 kHz to 48 kHz ! Windows Media Audio Professional, Loss-

less, Voice: No

MP3

! File extension: .mp3 ! Bit rate: 8 kbps to 320 kbps (CBR, VBR) ! Sampling frequency: 16 kHz to 48 kHz (32,

44.1, 48 kHz for emphasis)

! Compatible ID3 tag version: 1.0, 1.1, 2.2,

2.3, 2.4 (ID3 tag Version 2.x is given priority than Version 1.x.)

! M3u playlist: No ! MP3i (MP3 interactive), mp3 PRO: No

AAC

! Compatible format: AAC encoded by iTunes ! File extension: .m4a ! Transmission rate: 16 kbps to 320 kbps

(CBR)

! Sampling frequency: 11.025 kHz to 48 kHz ! Apple Lossless: No

WAV

! Compatible format: Linear PCM (LPCM),

MS ADPCM

! File extension: .wav ! Quantization bits: 8 and 16 (LPCM), 4 (MS

ADPCM)

! Sampling frequency: 16 kHz to 48 kHz

(LPCM), 22.05 kHz to 44.1 kHz (MS ADPCM)

Supplemental information of compressed audio (disc, USB)

! There may be a slight delay when starting

playback of audio files encoded with image data.

! File extensions must be used properly. ! Only 32 characters from the beginning can

be displayed as a file name (including the extension) or a folder name.

! Russian text to be displayed on this unit

should be encoded with the following character sets:

— Unicode (UTF-8, UTF-16) — Character sets other than Unicode that

are used in Windows environment and are set to Russian in the multi-language setting

! The text information of some audio files

may not be correctly displayed.

Compressed audio files on the disc

! ISO 9660 Level 1 and 2 compliant. Romeo

and Joliet file systems are both compatible with this player.

! Multi-session playback is possible. ! Compressed audio files are not compatible

with packet write data transfer.

! Regardless of the length of blank section

between the songs of original recording, compressed audio discs play with a short pause between songs.

Additional Information

Page 72

Appendix

Additional Information

Compressed audio files in the USB storage device

About USB storage device compatibility, refer to Specifications on page 75. ! Copyright protected files cannot be played

back.

! There may be a slight delay when starting

playback of audio files on a USB storage device with numerous folder hierarchies.

Example of a hierarchy and playback sequences

: Folder

: Compressed audio file

3 4

Level 1 Level 2 Level 3 Level 4

The sequence of audio files on the USB storage device

For USB portable audio players, the sequence is different and depends on the player.

! 01 to 05 represent assigned folder num-

bers. 1 to 6 represent the playback sequence. The user cannot assign folder numbers and specify the playback sequence with this unit.

! Playback sequence is the same as re-

corded sequence in the USB storage device.

! To specify the playback sequence, the fol-

lowing method is recommended.

1 Create the file name including numbers

that specify the playback sequence (e.g.,

001xxx.mp3 and 099yyy.mp3). 2 Put those files into a folder. 3 Record the folder containing files into the

USB storage device.

However, depending on the system environment, you cannot specify the playback sequence.

! Up to 15 000 files in a USB storage device

can be played back.

! Up to 500 folders in a USB storage device

can be played back.

! Up to eight tiers directory in a USB storage

device can be played back.

The sequence of audio files on the disc

! This unit assigns folder numbers. The user

cannot assign folder numbers.

! Folder selection sequence or other opera-

tion may be altered depending on the encoding or writing software.

! For practical use, the folder hierarchy

should have as few tiers as possible.

! Up to 999 files on a disc can be played

back.

! Up to 99 folders on a disc can be played

back.

iPod

iPod compatibility

! This unit supports only the following iPod

models. Supported iPod software versions are shown below. Older versions of iPod software may not be supported. — iPod nano first generation (software ver-

sion 1.3.1) — iPod nano second generation (software

version 1.1.3) — iPod nano third generation (software

version 1.1.2) — iPod nano fourth generation (software

version 1.0.3)

Page 73

Additional Information

Appendix

— iPod fifth generation (software version

1.3.0)

— iPod classic (software version 1.1.2) — iPod touch (software version 2.0) — iPhone (software version 2.0) — iPhone 3G (software version 2.0)

! Depending on the generation or version of

the iPod, some functions can not be operated.

! Operations may vary depending on the soft-

ware version of iPod.

! When using an iPod, iPod Dock Connector

to USB Cable is required.

! Pioneer CD-IU50 interface cable is also

available. For details, consult your dealer.

! This unit can control previous generations

iPod models with a Pioneer iPod adapter (e.g. CD-IB100N). For details concerning operation with the iPod adapter, refer to Playing songs on iPod on page 50.

About handling the iPod

! Do not leave the iPod in direct sunlight for

extended amounts of time. Extended exposure to direct sunlight can result in iPod malfunction due to the resulting high temperature.

! Do not leave the iPod in a high tempera-

ture.

! Connect directly the dock connector cable

to the iPod so that this unit works properly.

! Firmly secure the iPod when driving. Do

not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.

! For details, refer to the iPod’s manuals.

About iPod settings

! You cannot operate the iPod Equalizer on

Pioneer products. We recommend that you set the iPod Equalizer to off, before connecting to this unit.

! You cannot set Repeat to off on the iPod

when using this unit. Even if you set Repeat

to off on the iPod, Repeat is automatically changed to All when connecting the iPod to this unit.

WMA

Additional Information

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

MP3

Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegenerating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/ or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

Page 74

Appendix

Additional Information

iPod

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPhone

Please inquire to your dealer or nearest authorized Pioneer service station regarding the satellite radio tuner that can be connected to this unit. For satellite radio tuner operation, please refer to the satellite radio tuner owner ’s manual. ! The system will use direct satellite-to-recei-

ver broadcasting technology to provide listeners in their cars and at home with crystal-clear sound seamlessly from coast to coast. Satellite radio will create and package over 100 channels of digital-quality music, news, sports, talk and children’s programming.

! “SAT Radio”, the SAT Radio logo and all re-

lated marks are trademarks of Sirius Satellite Radio Inc., and XM Satellite Radio Inc.

HD Radio Technology

! HD Radioä and the HD Radio Ready logo

are proprietary trademarks of iBiquity Digital Corp.

iPhone is a trademark of Apple Inc. “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

SAT Radio

The SAT RADIO READY mark indicates that the Satellite Radio Tuner for Pioneer (i.e., XM tuner and Sirius satellite tuner which are sold separately) can be controlled by this unit.

Page 75

Additional Information

Appendix

Specifications

General

Power source ............................. 14.4 V DC (10.8 V to 15.1 V

allowable)

Grounding system ................... Negative type

Max. current consumption

..................................................... 2.0 A

Dimensions (W × H × D):

DIN

Chassis ..................... 178 mm × 5 0 mm × 1 64

(7 in. × 2 in. × 6-1/2 in.)

Nose ........................... 188 mm × 58 m m × 18 m m

(7-3/8 in.× 2-1/4 in.× 3/4 in.)

Chassis ..................... 178 mm × 5 0 mm × 1 64

(7 in.× 2 in.× 6-1/2 in.)

Nose ........................... 170 mm × 45 m m × 18 m m

(6-3/4 in.× 1-3/4 in.× 3/4 in.)

Weight .......................................... 1.6 kg (3.5 lbs)

Audio/DSP

Preout max output level ....... 5.0 V

Loudness contour ................... +10 dB (100 Hz), +6.5 dB

(10 kHz) (volume: –30 dB) Equalizer (Left/Right independent 31-Band Graphic Equalizer):

Frequency .......................... 20/25/31.5/40/50/63/80/100/

125/160/200/250/315/400/

500/630/800/1k/1.25k/1.6k/

2k/2.5k/3.15k/4k/5k/6.3k/8k/

10k/12.5k/16k/20k Hz

Equalization range ........ ±12 d B (0.5 dB step)

Time alignment ........................ 0 cm t o 394.24 cm (0.77 cm/

step), 0 inch to 155.392 inch

(0.3035 inch/step) Network (Left/Right independent):

High:

LPF

Frequency ................ 5k/6.3k/8k/10k/12.5k/16k/20k

Slope .......................... PASS, –6/–12/–18/–24/–30/

–36 dB/oct

Gain ............................ 0 dB to –24 dB/Mute (1 dB

step)

Phase ........................ Normal/Reverse

HPF

Frequency ................ 800/1k/1.25k/1.6k/2k/2.5k/

3.15k/4k/5k/6.3k/8k/10k/

12.5k/16k Hz

Slope .......................... –6/–12/–18/–24/–30/–36 dB/

oct

Gain ............................ 0 dB to –24 dB/Mute (1 dB

step)

Phase ........................ Normal/Reverse

Mid:

HPF/LPF

Frequency (LPF) ... 25/31.5/40/50/63/80/100/125/

160/200/250/315/400/500/ 630/800/1k/1.25k/1.6k/2k/

2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k/20k Hz

Frequency (HPF)

................................. 20/25/31.5/40/50/63/80/100/

125/160/200/250/315/400/ 500/630/800/1k/1.25k/1.6k/ 2k/2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k Hz

Slope (LPF) ............. PASS, – 6/–12/– 18/–24/–30/

–36 dB/oct

Slope (HPF) ............ PASS, –6/–12/–18/–24/–30/

–36 dB/oct

Gain ............................ 0 dB to –24 dB/Mute (1 dB

step)

Phase ........................ Normal/Reverse

Low:

HPF/LPF

Frequency (LPF) ... 25/31.5/40/50/63/80/100/125/

160/200/250/315/400/500/ 630/800/1k/1.25k/1.6k/2k/

2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k/20k Hz

Frequency (HPF)

................................. 20/25/31.5/40/50/63/80/100/

125/160/200/250/315/400/ 500/630/800/1k/1.25k/1.6k/ 2k/2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k Hz

Slope (LPF) ............. PASS, – 6/–12/– 18/–24/–30/

–36 dB/oct

Slope (HPF) ............ PASS, –6/–12/–18/–24/–30/

–36 dB/oct

Gain ............................ + 6 dB to –24 dB/Mute (1

dB step)

Phase ........................ Normal/Reverse

Additional Information

Page 76

Appendix

Additional Information

SW:

HPF/LPF

Frequency (LPF) ... 25/31.5/40/50/63/80/100/125/

160/200/250/315/400/500/ 630/800/1k/1.25k/1.6k/2k/

2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k/20k Hz

Frequency (HPF)

................................. 20/25/31.5/40/50/63/80/100/

125/160/200/250/315/400/ 500/630/800/1k/1.25k/1.6k/ 2k/2.5k/3.15k/4k/5k/6.3k/8k/ 10k/12.5k/16k Hz

Slope (LPF) ............. PASS, – 6/–12/– 18/–24/–30/

–36 dB/oct

Slope (HPF) ............ PASS, –6/–12/–18/–24/–30/

–36 dB/oct

Gain ............................ + 6 dB to –24 dB/Mute (1

dB step)

Phase ........................ Normal/Reverse

CD player

System .......................................... Compact disc audio system

Usable discs .............................. Compact disc

Signal-to-noise ratio ............... 115 dB (1 k Hz ) (IHF-A net-

work)

Number of channels .............. 2 (st ereo)

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch

audio)

(Windows Media Player)

AAC decoding format ............ MPEG-4 AAC (iTunes en-

coded only) (.m4a)

(Ver. 7.7 and earlier)

WAV signal format .................. Linear PCM & MS ADPCM

(Non-compressed)

FM tuner

Frequency range ...................... 87.9 MHz to 107.9 MHz

Usable sensitivity ..................... 9 dBf (0.8 µV/75 W, mono,

S/N: 30 dB)

Signal-to-noise ratio ............... 72 d B (IHF-A network)

AM tuner

Frequency range ...................... 530 kHz to 1 710 k Hz (10

kHz)

Usable sensitivity ..................... 2 5 µV (S/N: 20 dB)

Signal-to-noise ratio ............... 62 d B (IHF-A network)

Note

Specifications and the design are subject to modifications without notice due to improvements.

USB

USB standard specification

..................................................... USB 2.0 full speed

Maximum current supply .... 500 mA

Minimum memory capacity

..................................................... 256 MB

USB Class ................................... MSC (Mass Storage Class)

File system .................................. FAT16, FAT32

MP3 decoding format ........... MPEG-1 & 2 Audio Layer 3

WMA decoding format ......... Ver. 7, 7.1, 8, 9, 10, 11 (2ch

AAC decoding format ............ MPEG-4 AAC (iTunes en-

WAV signal format .................. Linear PCM & MS ADPCM

audio) (Windows Media Player)

coded only) (.m4a) (Ver. 7.7 and earlier)

(Non-compressed)

Page 77

PIONEER CORPORATION

4-1, MEGURO 1-CHOME, MEGURO-KU TOKYO 153-8654, JAPAN

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique TEL: (0) 3/570.05.11

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: (03) 9586-6300

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901 TEL: 905-479-4411

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270

先鋒股份有限公司

總公司：台北市中山北路二段44號13樓

電話： (02) 2521-3588

先鋒電子（香港）有限公司

香港九龍尖沙嘴海港域世界商業中心

9樓901-6室電話： (0852) 2848-6488

Printed in Japan

<CRB3070-A>UC

Pioneer DEX-P99RS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
