Operating Instructions
Blu-ray Disc PLAYER
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1_En-A
CAUTION
This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.
The following caution label appears on your unit. Location: inside of the unit
2
En
D3-4-2-1-8*_C_En
" #% ) !' % + % " !"' # !* !&"(% & &( & ' ! "! '$( # !'
$!) %)./ ''%)# /$%. 0)%/ ( &! .0-! /* '! 1!
.+ ! -*0) /$! 0)%/ "*- 1!)/%' /%*) /* %(+-*1! $! / - % /%*) / '! ./ ( / /*+ ( / -! - ) ( / ! $ .% !
'*/. ) *+!)%)#. %) /$! %)!/ -! +-*1% ! "*- 1!)/%' /%*) /* !).0-! -!'% '! *+!- /%*) *" /$! +-* 0 / ) /* +-*/! / %/ "-*( *1!-$! /%)# * +-!1!)/ "%-! $ 4 - /$! *+!)%)#. .$*0' )!1!- !'* &! *- *1!-! 2%/$ %/!(. .0 $ . )!2.+ +!-. / '! '*/$. 0-/ %). *- 3 *+!- /%)# /$! !,0%+(!)/ *) /$% & -+!/ *- !
)
Operating Environment
#$& ! !($"! !& & #$&'$! ' &* + &" + + &" + %% & ! "" ! ( !&% !"& " " !"& !%& & % '! & ! #""$* ( !& &$"$! " & "!% )#"% &" ' &* "$ $& %'! & "$ %&$"!$& &
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
+$!) $ ) + ! ! %$, ' (*%%!- '($' # )$ $*#)'- $' ' $# (*' ) ) ) %$, ' (*%%!- +$!) $ ) ' , ' ) ( *# ) , !! *( " )( ) ' &* ' +$!) $' ,' )) # $# ) ' ' % # !
CAUTION
The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).
$ " !
" $$ $ ! !$ !$ !" "
# "!
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
This product complies with the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.
D3-4-2-1-9a_A_En
|
|
|
|
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
For U.K model:
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.
IMPORTANT: THE MOULDED PLUG
This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark |
|
|
or the BSI mark |
on the body of the fuse. |
|
|
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.
If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows ;
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.
D3-4-2-1-2-2_B_En
3
En
Information for users on collection and disposal of old equipment and used batteries
Symbol for |
These symbols on the products, packaging, and/or accompanying documents mean |
|||||||||
equipment |
that used electrical and electronic products and batteries should not be mixed with |
|||||||||
|
|
|
|
|
|
|
|
|
|
general household waste. |
|
|
|
|
|
|
|
|
|
|
For proper treatment, recovery and recycling of old products and used batteries, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
please take them to applicable collection points in accordance with your national |
|
|
|
|
|
|
|
|
|
|
legislation. |
|
|
|
|
|
|
|
|
|
|
By disposing of these products and batteries correctly, you will help to save valuable |
|
|
|
|
|
|
|
|
|
|
|
Symbol examples |
resources and prevent any potential negative effects on human health and the |
|||||||||
for batteries |
environment which could otherwise arise from inappropriate waste handling. |
|||||||||
|
|
|
|
|
|
|
|
|
|
For more information about collection and recycling of old products and batteries, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
please contact your local municipality, your waste disposal service or the point of sale |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
where you purchased the items. |
|
|
|
|
|
|
|
|
|
|
These symbols are only valid in the European Union. |
|
|
|
|
|
|
|
|
|
|
For countries outside the European Union: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you wish to discard these items, please contact your local authorities or dealer and |
|
|
|
|
|
|
|
|
|
|
ask for the correct method of disposal. |
Pb
K058a_A1_En
4
En
Contents
01 Before you start
What’s in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Putting the batteries in the remote control. . . . . . . . . . . . . . . . . . . 6 Types of discs/files that can be played. . . . . . . . . . . . . . . . . . . . . . . . 7 Playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Playable files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
02 Connecting up
Connecting a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Connecting using a commercially available HDMI cable . . . . . . 14 Connecting using a commercially available component video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Connecting using the included audio cable and video
cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Connecting an AV receiver or amplifier . . . . . . . . . . . . . . . . . . . . . . 17 Connecting using a commercially available HDMI cable . . . . . . 17 Connecting using audio cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting using a commercially available digital audio
cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Connecting the power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
03 Getting Started
Making settings using the Setup Navigator menu . . . . . . . . . . . . . 20 Operating the TV with the player’s remote control . . . . . . . . . . . . . 22 TV Preset code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using the TOOLS menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Erasing the additional data from BD-ROMs . . . . . . . . . . . . . . . . . . 24 Switching the video output terminal . . . . . . . . . . . . . . . . . . . . . . . . 24 Switching the output video resolution . . . . . . . . . . . . . . . . . . . . . . . 24
04 Playback
Playing discs or files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Forward and reverse scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Playing specific titles, chapters or tracks . . . . . . . . . . . . . . . . . . . 27 Skipping content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Playing in slow motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Step forward and step reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Switching the camera angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Switching the subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Switching the audio streams/channels . . . . . . . . . . . . . . . . . . . . 28 Switching the secondary video . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Displaying the disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Play Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Playing from a specific time (Time Search) . . . . . . . . . . . . . . . . . 29 Playing a specific title, chapter or track (Search) . . . . . . . . . . . . 30 Playing a specific section within a title or track repeatedly
(A-B Repeat). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Playing repeatedly (Repeat Play) . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Playing in random order (Random Play). . . . . . . . . . . . . . . . . . . . 32 About Play Mode types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Playing from the Home Media Gallery . . . . . . . . . . . . . . . . . . . . . . . 34 Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Playing movie files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Playing music files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Playing in the desired order (HMG Playlist). . . . . . . . . . . . . . . . . .36
05 Adjusting audio and video

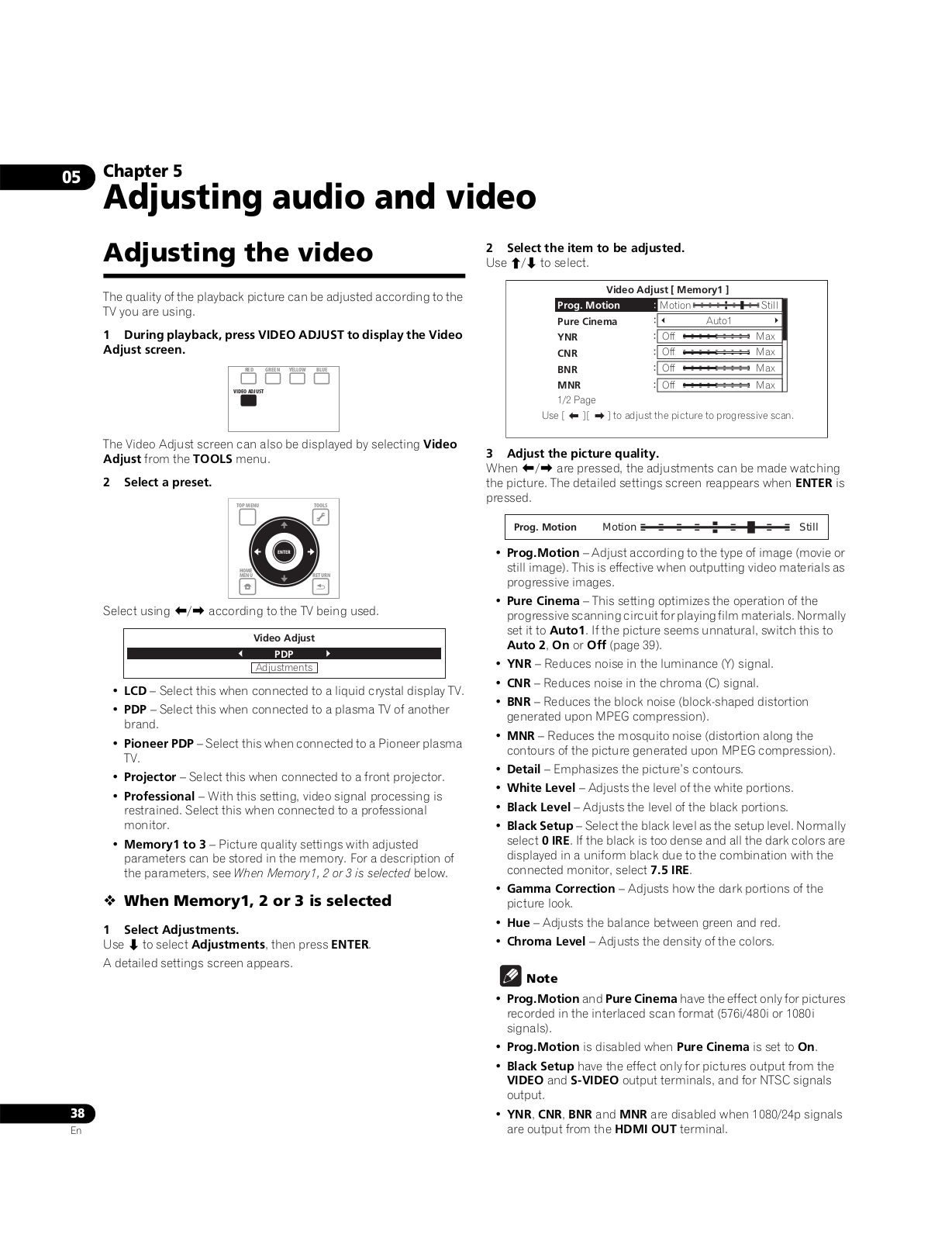

Adjusting the video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Adjusting the Audio DRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
06 Advanced settings

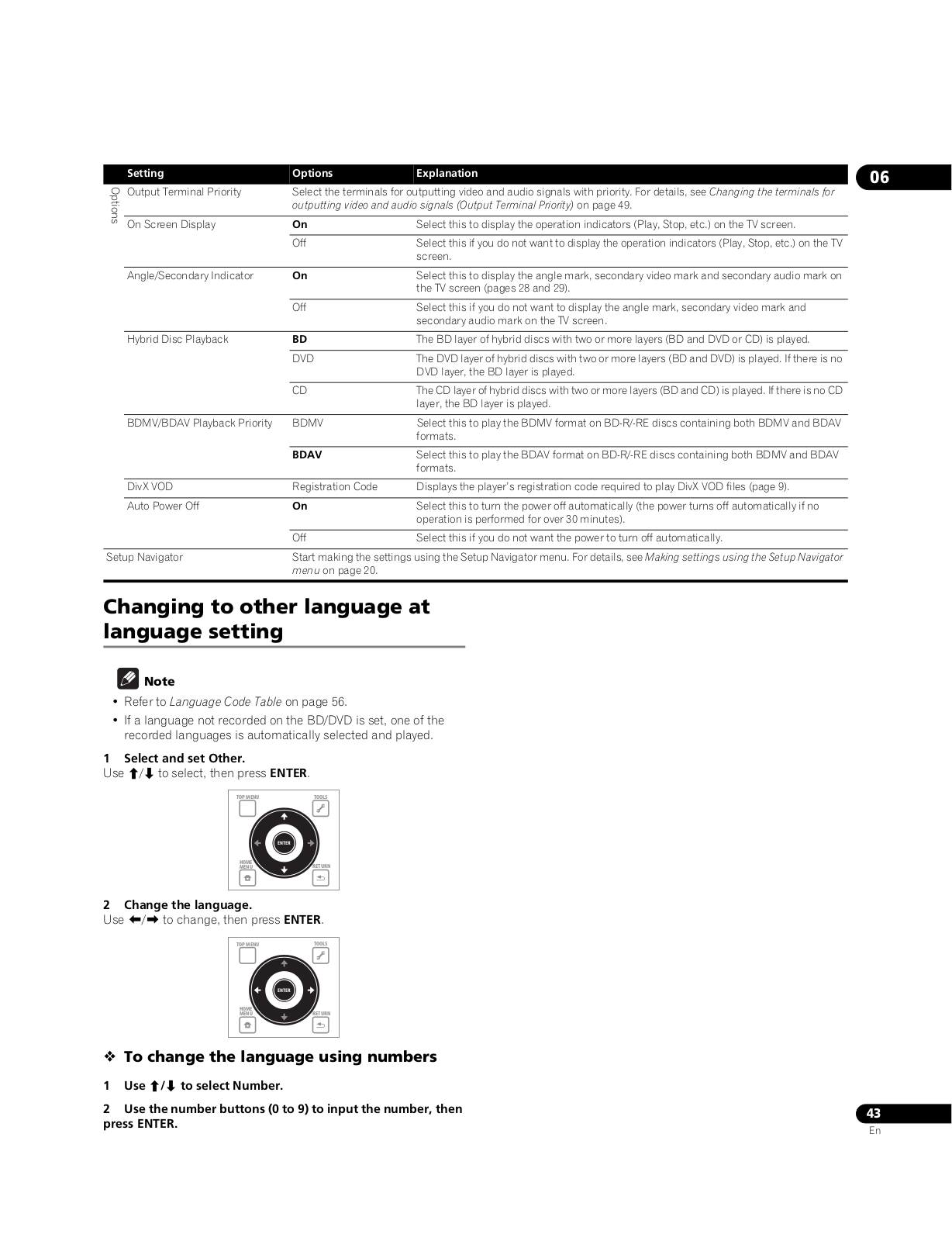

Changing the settings (Initial Setup) . . . . . . . . . . . . . . . . . . . . . . . .40 Operating the Initial Setup screen . . . . . . . . . . . . . . . . . . . . . . . . .40 Changing to other language at language setting . . . . . . . . . . . . .43 Changing the speaker setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Adjusting the output level of the various speakers

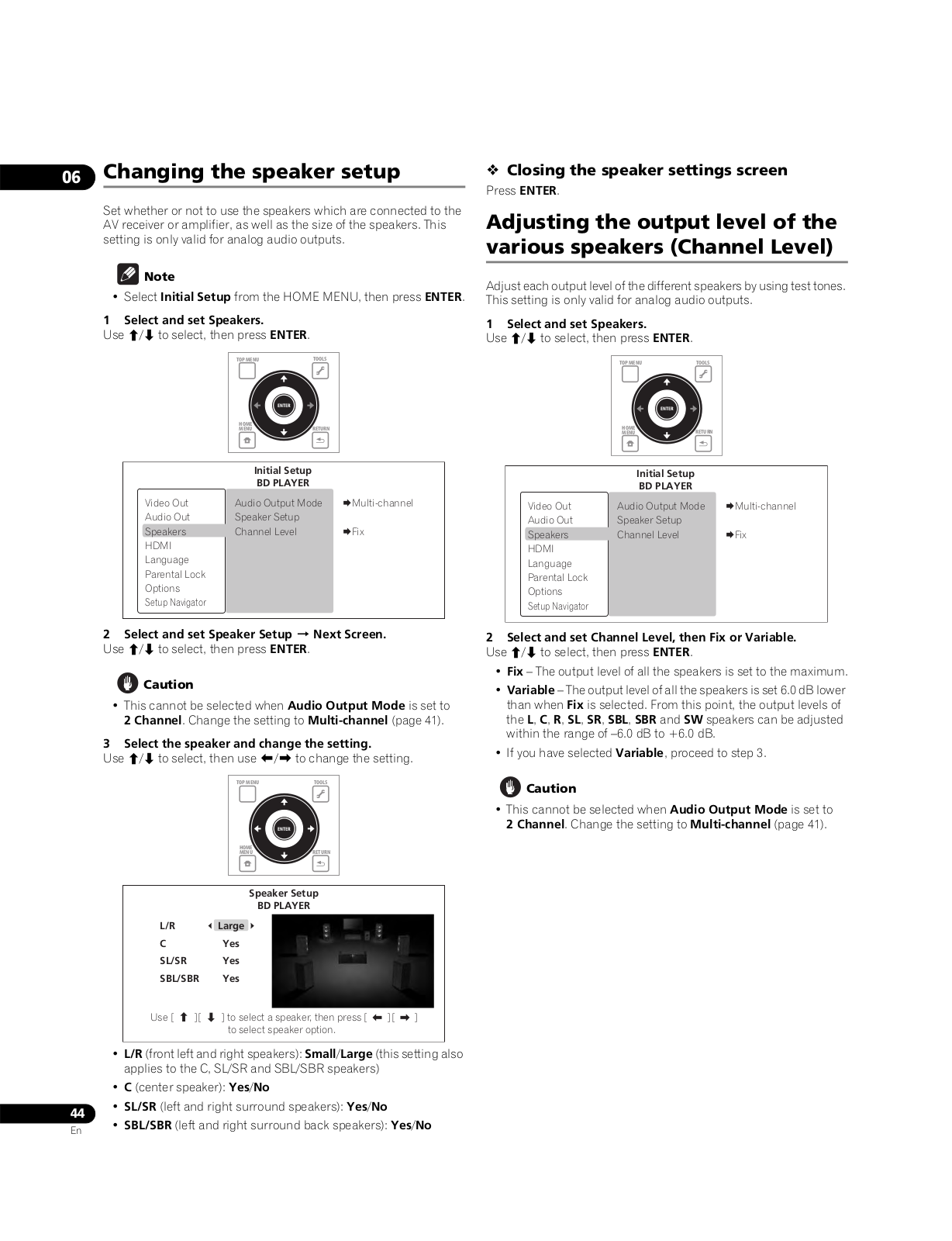

(Channel Level). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Registering or Changing the password . . . . . . . . . . . . . . . . . . . . .45 Changing the Age Restriction for watching BD-ROMs . . . . . . . .46 Changing the Parental Lock level for watching DVDs . . . . . . . . .47 Changing the Country/Area code . . . . . . . . . . . . . . . . . . . . . . . . . .48 Changing the terminals for outputting video and audio signals (Output Terminal Priority) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Restoring all the settings to the factory default settings . . . . . . .49 About the audio output settings . . . . . . . . . . . . . . . . . . . . . . . . . . .50
07 Additional information
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 When connected using an HDMI cable. . . . . . . . . . . . . . . . . . . . .54 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Language Code Table and Country/Area Code Table . . . . . . . . . . .56 Language Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Country/Area Code Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Cautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Moving the player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Place of installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Turn the power off when not using the player . . . . . . . . . . . . . . . .58 Condensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Cleaning the player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Caution for when the unit is installed in a rack with a glass
door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Cleaning the pickup lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 Handling discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
5
En
01 |
Chapter 1 |
Before you start |
What’s in the box
Remote control x 1 |
Audio cable (white/red plugs) x 1 |
||||
STANDBY/ON |
|
|
|
OPEN/CLOSE |
|
TV CONTROL |
|
|
|
|
|
INPUT |
CH |
VOL |
|
|
|
SELECT |
|
|
|
||
AUDIO SUBTITLE |
ANGLE |
FL DIMMER |
Video cable (yellow plugs) x 1 |
||
|
|
|
|
|
|
CLEAR |
|
|
|
ENTER |
|
SECONDARY |
|
|
OUTPUT |
|
|
AUDIO |
VIDEO |
RESOLUTION |
AA/R6 dry cell batteries x 2 |
||
VIDEO SELECT PLAY MODE |
|
|
|||
|
|
|
|||
HOME MEDIA |
|
|
|
|
|
GALLERY |
DISPLAY |
POPUP MENU |
|
||
|
|
|
|
MENU |
|
TOP MENU |
|
|
|
TOOLS |
|
|
ENTER |
|
|
|
|
HOME |
|
|
|
RETURN |
|
MENU |
|
|
|
|
|
|
PLAY |
|
|
|
|
PREV |
PAUSE |
STOP |
NEXT |
Power cable x 1 |
|
RED |
GREEN |
YELLOW |
BLUE |
Warranty card |
|
VIDEO ADJUST |
|
|
|
|
|
|
|
|
|
|
Operating instructions (this manual) |
BD PLAYER |
|
6
Putting the batteries in the remote control
1 Open the rear cover.
Press lightly on this part and slide into the direction of the arrow.
2 Insert the batteries (AA/R6 x 2).
Insert as indicated by the / marks into the battery compartment.
Insert the negative ( ) side first.
3 Close the rear cover.
Close securely (a click should be heard).
Caution
•Do not mix new and old batteries together.
•Batteries may have different voltages, even if they look similar. Do not use different kinds of batteries together.
•To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time
(1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries.
•When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/area.
•WARNING
Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It
can also reduce the life or performance of batteries.
D3-4-2-3-3_En
En
Types of discs/files that can be played
Playable discs
Discs with the logo marks below indicated on the disc label, package or jacket can be played.
|
|
|
Logo |
|
|
Application format |
|
|
||
|
Disc type |
|
|
|
|
|
|
|
|
|
|
|
|
BDMV1 |
BDAV |
DVD-Video |
DVD VR |
CD-DA |
DATA-DISC2 |
||
|
|
|
|
|
DTS-CD |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BD-ROM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BD |
|
BD-R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BD-RE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD-ROM |
|
|
|
|
|
|
DVD-R |
|
|
|
|
|
|
|
DVD |
|
|
|
|
|
|
|
DVD-R DL |
|
|
|
|
|
|
|
(Dual Layer) |
|||||||
|
|
|
|
|
|
||
DVD-RW |
|
|
|
|
|
|
|
DVD+R |
|
|
|
|
|
|
|
DVD+RW |
|
|
|
|
|
|
|
CD-DA |
|
|
|
|
|
|
|
(Music CD) |
|||||||
|
|
|
|
|
|
||
CD |
|
|
|
|
|
|
|
CD-R |
|
|
|
|
|
|
|
CD-RW |
|
|
|
|
|
|
|
CD-ROM |
|
|
|
|
|
|
1.Including the AVCHD format.
2.Discs on which movie files or music files are recorded
Discs that cannot be played
•HD DVDs
•DVD Audio discs
•DVD-RAM discs
•Non-finalized DVD-R/DVD-RW/DVD+R/DVD+RW discs in the DVD-Video format and AVCHD format
•SACDs
•Video CDs
•SVCDs
“Blu-ray Disc” and |
are trademarks. |
is a trademark of DVD Format/Logo Licensing Corporation.
01
7
• Non-finalized Dual Layer DVD-R discs in the DVD VR format
En
01 Note
•Some discs cannot be played, even if one of the above logo marks is indicated.
•To play 8 cm discs, set the disc in the 8 cm disc depression in the center of the disc tray. No adapter is necessary. 8 cm BDROMs cannot be played.
About audio formats
The following audio formats are supported on this player:
•Dolby TrueHD
•Dolby Digital Plus
•Dolby Digital
•DTS-HD Master Audio
•DTS-HD High Resolution Audio
•DTS Digital Surround
•MPEG
•MPEG-2 AAC
•Linear PCM
To enjoy the surround sound of Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD High Resolution Audio, it is recommended to connect the player to an AV receiver or amplifier compatible with these audio formats using an HDMI cable. After loading a BD containing sound in one of these audio formats, select the audio format on the menu screen.
See About the audio output settings on page 50 for the output conditions of the different formats.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Playing BDs
•BDs (BDMV) compatible with the formats below can be played.
–Blu-ray Disc Read-Only (ROM) Format Version 2
–Blu-ray Disc Recordable (R) Format Version 2
–Blu-ray Disc Rewritable (RE) Format Version 3
This player supports BD-ROM Profile 1 Version 1.1. BONUSVIEW Functions such as playback of secondary video (Picture-in-Picture) and secondary audio can be used. For details on secondary video and secondary audio playback, refer to the disc’s instructions.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
When a BD-ROM is played, additional data may be stored in the player’s memory area (local storage). If the message indicating low memory (local storage) appears, erase the BDMV data (page 24).
•BDs (BDAV) compatible with the formats below can be played.
–Blu-ray Disc Recordable (R) Format Version 1
–Blu-ray Disc Rewritable (RE) Format Version 2
•Dual Layer BDs can be played.
•Movie and music files recorded on BDs cannot be played.
•8 cm BD-ROMs cannot be played.
Playing DVDs
•DVD-Video can be played.
•DVD-R/-RW/+R/+RW discs recorded in the DVD-Video format can be played (finalize them before playing them on this player).
•DVD-R/-RW discs recorded in the VR format (Video Recording format) can be played.
•This label indicates playback compatibility with DVD-RW discs recorded in VR format (Video Recording format). However, for discs recorded with a record-only-once encrypted program, playback can only be achieved using a CPRM compatible device.
•DVDs recorded in the AVCHD format can be played (finalize them before playing them on this player).
Manufactured under license under U.S. Patent #: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Advanced Digital Out are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
“AVCHD” and the “AVCHD” logo are trademarks of Matsushita Electric Industrial Co., Ltd. and Sony Corporation.
•Movie and music files recorded on DVD-R/-RW/+R/+RW discs can be played. See Playable files on page 9.
•Dual Layer DVDs can be played. However, non-finalized Dual Layer DVD-R discs recorded in the VR format cannot be played (finalize them before playing them on this player).
•HD DVD, DVD Audio and DVD-RAM discs cannot be played.
8
En
About region numbers
Blu-ray Disc Player and BD-ROM or DVD-Video discs are assigned region numbers according to the region in which they are sold.
This player’s region numbers are:
•BD-ROM: B
•DVD-Video: 2
Discs not including these numbers cannot be played. Discs playable on this player are as shown below.
• BDs: B (including B) and ALL
• DVDs: 2 (including 2) and ALL
Playing CDs
•Music CDs (CD-DAs and DTS-CDs) can be played.
•Movie and music files recorded on CDs can be played. See
Playable files below.
•SACD, Video CD and Super VCD discs cannot be played.
•Regarding copy protected CDs: This player is designed to conform to the specifications of the Audio CD format. This player does not support the playback or function of discs that do not conform to these specifications.
DualDisc playback
A DualDisc is a new two-sided disc, one side of which contains DVD content — video, audio, etc. — while the other side contains nonDVD content such as digital audio material.
The DVD side of a DualDisc will be played on this player (excluding any DVD-Audio content).
The non-DVD, audio side of the disc is not compatible with this player.
It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.
For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.
Playing discs created on computers
•It may not be possible to play DVD-R/-RW or CD-R/-RW discs recorded using a personal recorder or computer. (This can be due to various reasons, including disc properties, scratches, dirt on the disc, dirt on the player’s lens, condensation and so on.)
•It may not be possible to play discs recorded using a computer due to the application settings or environment. Record discs in the proper format. For details, contact the dealer.
Playable files
Movie and music files recorded on DVDs and CDs can be played.
Caution
•In DVD, only the one recorded by the ISO 9660 file system can be played.
•Some files may not be playable.
•For some files, it may not be possible to use certain functions during playback.
•It may not be possible to play some files, even if they have the extension of a file playable on this player.
•Files protected by DRM (Digital Rights Management) cannot be played (not including DivX VOD files).
Supported movie file formats
•DivX
DivX is a media technology created by DivX, Inc. DivX media files contain not only video but also advanced media features like subtitles and alternate audiotracks, etc.
Conform to the size under 720 x 576 pixels/720 x 480 pixels. DivX files encoded with GMC/Qpel option cannot be played.
Only audio signals with MP3 or Dolby Digital (AC3) format are output.
Note that files other than the ones containing DivX video cannot be played, even if they have the extension “.avi”.
Official DivX® Certified product.
Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
Note
•DivX VOD files are protected by DRM. They can only be played on registered devices.
–You may be requested by the file distributor to input the DivX VOD registration code for authorization of the player in order
to play DivX VOD files. This player’s DivX VOD registration code can be checked at Initial Setup Options DivX VOD Registration Code (page 43).
–DivX VOD files for which the player’s DivX VOD registration code is not authorized cannot be played (Authorization Error is displayed).
–The number of views is restricted for some DivX VOD files. When such files are played on this player, the remaining number of views is displayed. Files for which the remaining number of views has reached 0 cannot be played (Rental Expired is displayed). Files for which the number of views is not restricted can be played as many times as you like (the remaining number of views is not displayed).
Supported music file formats
•Windows Media™ Audio 9 (WMA9)
Bit rate: Up to 192 kbps
Sampling frequencies: 22.05 kHz, 32 kHz, 44.1 kHz and 48 kHz
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.
01
9
En
•MPEG-1 Audio Layer 3 (MP3)
01Bit rate: Up to 320 kbps
Sampling frequencies: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz and 48 kHz
Playable file extensions
•Movie files
.divx and .avi
•Music files
.wma and .mp3
Part Names and Functions
Remote Control
1 |
STANDBY/ON |
|
|
|
OPEN/CLOSE |
15 |
|
|
|
|
|
||
|
TV CONTROL |
|
|
|
|
|
2 |
INPUT |
CH |
VOL |
|
|
|
SELECT |
|
|
|
|||
|
|
|
|
|
||
3 |
AUDIO SUBTITLE |
ANGLE |
FL DIMMER |
16 |
||
|
|
|
|
|
||
4 |
|
|
|
|
|
17 |
5 |
|
|
|
|
|
|
|
CLEAR |
|
|
|
ENTER |
|
6 |
SECONDARY |
|
|
OUTPUT |
|
|
AUDIO |
VIDEO |
RESOLUTION |
|
|||
|
|
|
|
|
18 |
|
7 |
VIDEO SELECT PLAY MODE |
|
|
|||
HOME MEDIA |
|
POPUP MENU |
19 |
|||
8 |
GALLERY |
DISPLAY |
20 |
|||
|
|
|
|
MENU |
||
9 |
TOP MENU |
|
|
|
TOOLS |
21 |
|
|
|
|
|
22 |
|
10 |
|
ENTER |
|
|
|
|
|
HOME |
|
|
|
RETURN |
|
11 |
MENU |
|
|
|
23 |
|
|
|
|
|
|
||
|
|
PLAY |
|
|
|
|
12 |
PREV |
PAUSE |
STOP |
NEXT |
|
|
13 |
RED |
GREEN |
YELLOW |
BLUE |
|
|
|
|
|
|
|
|
VIDEO ADJUST
14
BD PLAYER
1 STANDBY/ON
Press to turn the power on and off.
2 TV CONTROL
10Your TV can be controlled using the player’s remote control (page 22).
En
– Press to turn the TV’s power on and off.
INPUT SELECT – Press to switch the TV’s input.
CH +/– – Press to select the TV channel.
VOL +/– – Press to adjust the volume.
3 AUDIO
Press to switch the audio streams/channels (page 28).
4 SUBTITLE
Press to switch the subtitles (page 28).
5Number buttons – Use these to select and play the title/ chapter/track you want to watch or listen to and to select items from menus.
CLEAR – Press to clear the numeric number, etc.
ENTER – Press to execute the selected item or enter a setting that has been changed, etc.
6SECONDARY AUDIO – When playing a BD-ROM on which secondary audio is recorded, press to switch to the secondary audio (page 28).
SECONDARY VIDEO – When playing a BD-ROM on which secondary video (Picture-in-Picture) is recorded, press to switch to the secondary video (page 29).
7VIDEO SELECT
Press to switch the terminal from which the video signals are output. Use to switch between digital output (HDMI output) and analog output (Component Video output, S-Video output or Video output) (the signals are only output from the selected video output terminal) (page 24).
8 HOME MEDIA GALLERY
Press to display/hide the Home Media Gallery screen (page 34).
9 TOP MENU
Press to display the top menu of the BD-ROM or DVD-Video.
10/ / / – Use to select items, change settings and move the cursor.
ENTER – Press to execute the selected item or enter a setting that has been changed, etc.
11 HOME MENU
Press to display/hide the Home Menu.
12PLAY – Press to start playback.
PAUSE – Press to pause playback. Press again to restart playback.
STOP – Press to stop playback.
PREV/ NEXT – Press to skip to the beginning of the previous/next title/chapter/track/file (page 27).
/ / – Press during playback to start reverse scanning. While playback is paused, press for step reverse playback. Press and hold while playback is paused for reverse slow motion playback (pages 26 and 27).
/ / – Press during playback to start forward scanning. While playback is paused, press for step forward playback. Press and hold while playback is paused for forward slow motion playback (pages 26 and 27).
13 RED/GREEN/YELLOW/BLUE
Use these to navigate BD-ROM menus.
14 VIDEO ADJUST
Press to display/hide the Video Adjust menu (page 38).
15 OPEN/CLOSE
Press to open and close the disc tray.
16 FL DIMMER
Press to switch the brightness of the front panel display. The FL OFF indicator lights when Off is selected.
17 ANGLE
Press to switch the BD-ROM or DVD-Video camera angles (page 28).
18 OUTPUT RESOLUTION
Use these to switch the output video resolution from the HDMI OUT or COMPONENT VIDEO output terminals (page 24).
19 PLAY MODE
Press to display/hide the Play Mode screen (page 29).
20 POP UP MENU/MENU
Press to display the BD-ROM or DVD-Video menus.
21 DISPLAY
Press to display disc information (page 29).
22 TOOLS
Press to display/hide the TOOLS menu (page 23).
23 RETURN
Press to return to the previous screen.
01
11
En
01 Front Panel
1 |
2 |
3 |
4 |
5 |
|
|
|
|
|
|
10 |
9 |
8 |
7 |
6 |
|
1 |
STANDBY/ON |
|
5 |
|
|
|
Press to turn the power on and off. |
|
Press to start playback. |
||||
2 |
Remote control sensor |
|
6 |
HDMI indicator |
||
Point the remote control to this, then operate it within approximately |
This lights when an HDMI-compatible device is connected |
|||||
7 m. |
|
(page 14). |
|
|||
The player may have trouble capturing remote control signals if |
7 |
Touch sensor indicator |
||||
there is a fluorescent light nearby. If this happens, move the player |
||||||
This lights when the touch sensor is touched. |
||||||
away from the fluorescent light. |
|
|||||
|
8 |
Disc tray |
|
|||
3 |
Front panel display |
|
|
|||
|
9 |
FL OFF indicator |
||||
4 Touch sensor – Touch the center of the words or marks lightly |
||||||
This lights when Off is selected with FL DIMMER. |
||||||
|
to operate. |
|
||||
|
|
10 HD indicator |
||||
|
OPEN/CLOSE – Press to open and close the disc tray. |
|||||
|
This lights when an HDMI cable is connected and video signals are |
|||||
|
RESOLUTION – Press to switch the output video resolution from |
|||||
|
being output with a resolution of 1080/50i, 1080/50p, 720/50p, 1080/ |
|||||
|
the HDMI output or component video output terminals |
|||||
|
24p, 1080/60i, 1080/60p or 720/60p. It also lights when a component |
|||||
|
(page 24). |
|
||||
|
|
video cable is connected and video signals are being output with a |
||||
|
|
|
||||
|
/ – Press to skip to the beginning of the previous title/ |
resolution of 1080/60i or 720/60p. |
||||
|
chapter/track/file. Press and hold to start reverse scanning |
|
|
|
||
|
(pages 26 and 27). |
|
|
|
|
/ – Press to skip to the beginning of the next title/ chapter/track/file. Press and hold to start forward scanning (pages 26 and 27).
– Press during playback to pause. Press again to restart playback.
– Press to stop playback.
12
En
Front Panel Display |
01 |
||
1 |
2 |
3 |
|
PQLS 24HZ CONTROL 50HZ 60HZ
|
6 |
5 |
|
4 |
1 |
|
|
4 |
Character display |
Lights during playback. |
|
Displays the title/chapter/track number, elapsed time, etc. |
||
2 |
|
|
5 |
24HZ/50HZ/60HZ |
Lights when playback is paused. |
|
The frequency of the video frame or field being output lights. |
||
3 |
PQLS |
|
6 |
CONTROL |
Lights when the PQLS function is activated (page 15). |
Lights when the HDMI Control function is activated (page 15). |
Rear Panel
1 |
2 |
3 |
4 |
5 |
R |
DIGITAL
OUT
COAXIAL
CONTROL
IN
OPTICAL
L
AUDIO OUT (2 ch)
FRONT |
SURROUND |
SURROUND |
CENTER |
|
BACK |
|
|||
L |
|
|
|
|
R |
|
|
|
|
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
|
|
|
COMPONENT VIDEO |
AC IN |
Y
PB |
VIDEO |
HDMI OUT |
|
PR |
S-VIDEO |
7
1 DIGITAL OUT (COAXIAL/OPTICAL)
Connect with the digital audio input terminal on an AV receiver or amplifier, etc.
2 AUDIO OUT (2 ch) terminals
Connect with the audio input terminals on a TV, AV receiver or amplifier, etc.
3 AUDIO OUT (7.1 ch) terminals
Connect with the multi-channel (7.1- or 5.1-channel) audio input terminals on an AV receiver or amplifier, etc.
4VIDEO OUT terminals
VIDEO – Connect with the video input terminal on a TV, AV receiver or amplifier, etc.
S-VIDEO – Connect with the S-Video input terminal on a TV, AV receiver or amplifier, etc.
COMPONENT VIDEO – Connect with the component video input terminals on a TV, AV receiver or amplifier, etc.
5AC IN
Connect the power cord here.
6
6 HDMI OUT terminal
Connect with an HDMI-compatible TV, AV receiver or amplifier, etc.
7 CONTROL IN terminal
Use to control this player from the remote sensor of another Pioneer component with a CONTROL OUT terminal and bearing the mark. Connect the CONTROL OUT of the other component to the CONTROL IN of this player using a mini-plug cord.
Caution
•Be sure to connect cables for outputting the audio and video signals (pages 14 and 17).
•When connected via System Control, point the remote control toward the connected component (such as an AV receiver or amplifier). The remote will not work correctly when pointed at this player.
•You cannot use System Control with components that do not have a System Control terminal or with components manufactured by companies other than Pioneer.
13
En
02 |
Chapter 2 |
Connecting up |
Connecting a TV
Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
Note
•Make the settings in the Setup Navigator menu according to the type of cable connected (page 20).
Connecting using a commercially available HDMI cable
The audio and video signals can be transferred to HDMI-compatible devices as digital signals with no loss of sound or video quality. After connecting, make the settings at the Setup Navigator menu according to the connected HDMI-compatible device (page 20).
Also refer to the operating instructions of the device being connected.
Note
•The HDMI indicator on the player’s front panel lights when an HDMI-compatible device is connected. (Depending on the connected device, in some cases it may only light when the player is selected as the device’s input.)
•1080p video signals may not be output, depending on the HDMI cable being used.
14
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
OUT |
Y |
COAXIAL
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
|
OPTICAL |
|
|
|
|
P |
S-VIDEO |
Match the direction of the plug to the terminal and insert straight.
PB |
VIDEO |
HDMI OUT |
|
PR |
S-VIDEO |
cableHDMI available)(commercially |
It is also possible to |
|
|
|
connect to an AV |
|
receiver or amplifier |
|
using an HDMI cable |
|
(page 17). |
|
To HDMI input terminal |
TV
Direction of signal flow
Caution
•Hold the plug when connecting and disconnecting the cable.
•Placing a load on the plug could result in faulty contact and no video signals being output.
About HDMI
This player incorporates High-Definition Multimedia Interface (HDMI™) technology.
The player supports Deep Color.
The conventional players can transmit a video signal with 8 bit color depth in the YCbCr 4:4:4 or RGB formats, the players supporting Deep Color can transmit a video signal with a color bit depth of greater than 8 bits per color component. Subtle color gradations can be reproduced when connected to a TV that supports Deep Color.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
En
Audio signals that can be transferred with the player’s HDMI output terminal
•Dolby TrueHD
•Dolby Digital Plus
•Dolby Digital
•DTS-HD Master Audio
•DTS-HD High Resolution Audio
•DTS Digital Surround
•MPEG-2 AAC
•Linear PCM
Linear PCM audio signals meeting the following conditions can be output:
–Sampling frequency: 32 kHz to 192 kHz
–Number of channels: Up to 8 (up to 6 for a 192 kHz sampling frequency)
For details, see About the audio output settings on page 50.
About the HDMI high speed transmission
This player outputs 1080/50p, 1080/60p and Deep Color video signals. If your TV supports 1080/50p, 1080/60p or Deep Color signals, use a High Speed HDMI™ cable in order to take advantage of the maximum performance the player and TV can offer. Also set
HDMI High-Speed Transmission to On (page 42).
High Speed HDMI™ cables are tested to carry signals up to 1080p. 1080/50i, 1080/50p, 720/50p, 1080/24p, 1080/60i, 1080/60p and 720/ 60p video signals that are capable of Deep Color can also be carried.
Note
•Set HDMI High-Speed Transmission to Off when using an HDMI cable other than a High Speed HDMI™ cable (a Standard HDMI™ cable).
•The following restrictions apply when HDMI High-Speed Transmission is set to Off:
–Deep Color signals are not output.
–If output video resolution is set to Auto, the signals are output with a resolution of 1080/50i or 1080/60i when TV’s preferred resolution is 1080/50p or 1080/60p.
–When the output video resolution is set to 576i/480i or 576p/ 480p, Dolby TrueHD and DTS-HD Master Audio signals are not output as such. They are either output as Dolby Digital or DTS Digital Surround signals or converted into linear PCM. Also, 96 kHz and 192 kHz multi-channel linear PCM audio signals cannot be output. They are output as 2-channel signals (page 50).
•When an HDMI cable with a built-in equalizer is connected, it may not operate properly.
About HDCP
HDCP (High-bandwidth Digital Content Protection) is a copyright protection system by which digital video signals are encrypted.
When connected to a DVI device
•It is not possible to connect DVI devices (computer displays, for example) that are not compatible with HDCP.
•No audio signals are output. Connect using an audio cable (included), etc.
•This player is designed for connection with HDMI-compatible devices. When connected to a DVI device, it may not operate properly depending on the DVI device.
About HDMI Control function
•When the player is connected to a Pioneer Flat Screen TV, AV system (AV receiver or amplifier, etc.) or HD AV Converter, supporting the HDMI Control function, it can be operated from the Flat Screen TV, AV system (AV receiver or amplifier, etc.) or HD AV Converter.
•The Flat Screen TV’s input is switched automatically when playback is started on the player or the Home Menu or the Home Media Gallery is displayed. When the input is switched, the playback picture, the Home Menu or the Home Media Gallery appears on the Flat Screen TV (Auto-select function). If the Flat Screen TV’s power is being turned off at this time, it may turn on automatically (Simultaneous power function). When the language information from a connected Flat Screen TV is received, you can have the player’s on-screen display language change automatically to that of the Flat Screen TV (Unified language function). This function is available only when playback is stopped and the menu screen is not displayed.
•Also refer to the operating instructions of the Flat Screen TV, AV system (AV receiver or amplifier, etc.) or HD AV Converter.
To use the HDMI Control function
•The HDMI Control function operates when HDMI Control is set to On for all devices connected with HDMI cables. Once connections and the settings of all the devices are finished, be sure to check that the player’s picture is output to the Flat Screen TV. (Also check after changing the connected devices and reconnecting HDMI cables.) The HDMI Control function may not operate properly if the player’s picture is not properly output to the Flat Screen TV.
•Use High Speed HDMI™ cables when using the HDMI Control function. The HDMI Control function may not operate properly if other HDMI cables are used.
•The function name of KURO LINK used on the web and in catalogs is referred to as HDMI Control in the operating instructions and on the player.
About PQLS function
The PQLS (Precision Quartz Lock System) is a transfer control technology using the HDMI Control function. The player’s output signals are controlled from the AV receiver or amplifier to achieve high quality sound playback using the quartz oscillator of AV receiver or amplifier. This eliminates the influence of the jitter generated upon transfer which can adversely affect the sound quality.
•The PQLS function is only activated when the player is connected to a Pioneer AV receiver or amplifier compatible with the PQLS function via HDMI connection.
•The PQLS function is only activated when playing a music CD (CD-DA).
•The PQLS function is activated when the player is set as follows (page 42):
HDMI Control: On PQLS: Auto
•Also refer to the operating instructions of AV receiver or amplifier.
Caution
•If the output video resolution is switched when playing a music CD (CD-DA), the PQLS function does not work. This function will work again after playback stops and restarts.
02
15
En
02 Connecting using a commercially |
|
Connecting using the included |
|
|
available component video cable |
|
audio cable and video cable |
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
|
|
OUT |
|
Y |
|
COAXIAL |
|
|
|
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
OPTICAL |
|
|
|
|
|
P |
S-VIDEO |
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
OUT |
Y |
COAXIAL
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
|
OPTICAL |
|
|
|
|
P |
S-VIDEO |
R L
AUDIO OUT (2 ch)
DIGITAL
OUT
COAXIAL
L
OPTICAL
cable Audio |
Red |
White |
(included) |
|
|
SURROUND |
|
|
|
FRONT |
SURROUND |
CENTER |
|
FRONT SURROUND BACK |
CENTER |
|
|
SURROUND BACK |
|
||
L |
|
|
|
L |
|
|
|
|
|
|
R |
L |
|
|
|
R |
|
|
|
R |
|
|
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
|
AUDIO OUT (2 ch) |
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
|
|
COMPONENT VIDEO |
|||||
|
COMPONENT VIDEO |
DIGITAL |
|
|
|||
|
|
|
|
|
|
|
|
|
Y |
|
OUT |
|
|
Y |
|
|
|
|
COAXIAL |
|
|
|
|
PB |
VIDEO |
PB |
VIDEO |
HDMI OUT |
|
HDMI OUT |
|
|
|
OPTICAL |
|
PR |
S-VIDEO |
PR |
S-VIDEO |
It is also possible to connect to an AV receiver or amplifier. Connect the audio signals using audio cables (7.1 channels), an optical digital audio cable or a coaxial digital audio cable (page 18).
three or cable Component cables video available) (commercially
cable Audio |
Red |
White |
(included) |
|
|
It is also possible to connect to an AV receiver or amplifier. Connect the audio signals using audio cables (7.1 channels), an optical digital audio cable or a coaxial digital audio cable (page 18).
(included) cable Video |
Yellow |
(commercially cable Video-S An for used be also can available) .connection |
To audio input |
To component video input |
To audio input |
To video input |
To S-Video input |
terminals |
terminals |
terminals |
terminal |
terminal |
TV
Direction of signal flow
Caution
•When connected to the TV using a component video cable (commercially available), video signals are not output with a resolution of 1080/50i, 1080/50p, 720/50p, 1080/24p or 1080/60p.
•Depending on the output video resolution setting, the picture may not be output (page 24).
TV
Direction of signal flow
Caution
•Video signals are output with a resolution of 576/50i or 480/60i when connected using a video cable (included) or an S-Video cable (commercially available).
•Connect the player’s video output directly to your TV.
This player supports analog copy protection technology. Therefore the picture may not be displayed properly if connected to a TV via a DVD recorder/video deck or when playing the player’s output material that is recorded by a DVD recorder/
16
En
video deck. Furthermore, the picture may not be displayed properly due to the copy protection when the player is connected to a TV with a built-in video deck. For details, contact the manufacturer of your TV.
Connecting an AV receiver or amplifier
Connect to an AV receiver or amplifier in order to enjoy the surround sound of Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution Audio or DTS Digital Surround. For instructions on connecting the TV and speakers to the AV receiver or amplifier, refer to the operating instructions of AV receiver or amplifier.
Note
•Make the settings in the Setup Navigator menu according to the type of cable connected (page 20).
•To output video signals from this player, connect using one of the following (not including when connected using an HDMI cable): a component video cable (commercially available), an S- Video cable (commercially available) or a video cable (included).
Connecting using a commercially 02 available HDMI cable
Caution
•When DTS-HD Master Audio and DTS-HD High Resolution Audio signals are output as linear PCM signals, the DTS Digital Surround signals are converted to linear PCM for output (page 50).
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
OUT |
Y |
COAXIAL
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
|
OPTICAL |
|
|
|
|
P |
S-VIDEO |
Match the direction of the plug to the terminal and insert straight.
HDMI OUT |
cable HDMI (commercially available)
PB |
VIDEO |
PR |
S-VIDEO |
AV receiver or amplifier |
To HDMI input terminal |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
available) |
(commercially |
cable HDMI
From HDMI output terminal
To HDMI input terminal
TV
Direction of signal flow
17
En
02 Connecting using audio cables
Caution
•For DTS-HD Master Audio and DTS-HD High Resolution Audio signals, the DTS Digital Surround signals are converted to linear PCM for output (page 50).
When connecting to a 7.1-channel compatible AV receiver or amplifier – Connect using the included audio cable and 3 commercially available audio cables (diagram below).
When connecting to a 5.1-channel compatible AV receiver or amplifier – Connect using the included audio cable and 2 commercially available audio cables (do not connect to the surround back left and right terminals).
•After connecting, set Audio Output Mode to Multi-channel
(page 41).
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
OUT |
Y |
COAXIAL
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
|
OPTICAL |
|
|
|
|
P |
S-VIDEO |
R L
AUDIO OUT (2 ch)
DIGITAL |
OUT |
COAXIAL |
L |
OPTICAL |
SURROUND
FRONT SURROUND BACK CENTER
L
R
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
|
|
|
||
COMPONENT VIDEO |
|
||
|
|
||
|
Y |
|
|
HDMI OUT |
PB |
|
VIDEO |
|
|
|
|
|
PR |
|
S-VIDEO |
White |
Red |
cable Audio available) (commercially |
cable Audio available) (commercially |
|
cable Audio (included) |
cable Audio (commercially available) |
Component three or cable cables video (commercially available) |
To multi-channel |
To component video input |
|
audio input |
||
terminals |
||
terminals |
||
|
AV receiver or amplifier
Direction of signal flow
18
Connecting using a commercially available digital audio cable
Connect either an optical digital audio cable or a coaxial digital audio cable.
Player’s rear panel
|
FRONT |
SURROUND |
SURROUND |
CENTER |
|
|
BACK |
|
|||
|
L |
|
|
|
|
R |
L |
|
|
|
|
|
R |
|
|
|
|
AUDIO OUT (2 ch) |
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
DIGITAL |
|
OUT |
Y |
COAXIAL
CONTROL |
|
P |
VIDEO |
IN |
HDMI OUT |
||
|
OPTICAL |
|
|
|
|
P |
S-VIDEO |
SURROUND
FRONT SURROUND BACK CENTER
L
R L
|
R |
|
|
|
AUDIO OUT (2 ch) |
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
|
|
|
|||
COMPONENT VIDEO |
|
|||
DIGITAL |
|
|
||
|
|
|
|
|
OUT |
|
Y |
|
|
COAXIAL |
|
|
|
|
L |
|
PB |
|
VIDEO |
|
HDMI OUT |
|
||
|
|
|
|
|
OPTICAL |
|
|
|
|
|
|
PR |
|
S-VIDEO |
cable digital Optical available) (commercially |
cable digital Coaxial available) (commercially |
|
video three or cable Component available) (commercially cables |
To optical digital |
|
To coaxial digital |
To component video input |
audio input |
|
audio input |
|
|
terminals |
||
terminal |
|
terminal |
|
|
|
AV receiver or amplifier
Direction of signal flow
Caution
•Dolby TrueHD signals are output as Dolby Digital signals or signals converted from Dolby TrueHD to linear PCM (page 50).
•Dolby Digital Plus signals are output as Dolby Digital signals or signals converted from Dolby Digital to linear PCM (page 50).
•DTS-HD Master Audio and DTS-HD High Resolution Audio signals are output as the DTS Digital Surround signals or signals converted from DTS Digital Surround to linear PCM (page 50).
En
Connecting the power |
02 |
cord |
|
|
|
Connect the power cord after all the connections between devices have been completed.
Player’s rear panel
R L
AUDIO OUT (2 ch)
DIGITAL
OUT
COAXIAL
CONTROL
IN
OPTICAL
FRONT |
SURROUND |
SURROUND |
CENTER |
|
BACK |
|
|||
L |
|
|
|
|
R |
|
|
|
|
|
AUDIO OUT (7.1 ch) |
SUB WOOFER |
VIDEO OUT |
COMPONENT VIDEO |
AC IN |
Y |
|
P |
VIDEO |
HDMI OUT |
|
P |
S-VIDEO |
UT
AC IN
VIDEO
S-VIDEO
Power cable (included)
To wall outlet
19
En
03 |
Chapter 3 |
Getting Started |
Making settings using the Setup Navigator menu
Be sure to perform these settings when using the player for the first time.
Caution
•Before turning on the power, check that the connections between the player and other devices are correct.
1 Turn on the power. Press STANDBY/ON.
STANDBY/ON OPEN/CLOSE
TV CONTROL
INPUT |
CH |
VOL |
|
SELECT |
|||
|
|
2 Turn on the TV’s power and switch the input.
See the TV’s operating instructions for instructions on operating the TV.
Check that the Setup Navigator menu is displayed.
If TV Control is set, the TV can be operated with the player’s remote control (page 22).
If the Setup Navigator menu is not displayed
Press HOME MENU to display the Home Menu, select Initial Setup Setup Navigator Start, then press ENTER.
3 Select the OSD language.
Use / to select, then press ENTER.
TOP MENU |
TOOLS |
|
ENTER |
HOME |
RETURN |
MENU |
|
|
|
Setup Navigator
BD PLAYER
Please select the on-screen display language.
Audio, subtitle and BDMV/DVD-Video menu language will also be set.
20
When you have this player connected to a Pioneer Flat Screen TV that is compatible with HDMI Control, language settings are imported from the Pioneer Flat Screen TV’s language settings before Setup Navigator begins.
4 Select and set the video and audio output terminals.
Select the actually connected video and audio output terminals. Use / / / to select, then press ENTER.
TOP MENU |
TOOLS |
|
ENTER |
HOME |
RETURN |
MENU |
Setup Navigator
BD PLAYER
Select the output terminals to be used for the video and audio signals of this player.
Video |
|
HDMI |
Audio |
|
HDMI |
Use [ |
][ |
] to select video or audio, then |
press [ |
][ |
] to select the output terminal. |
•When HDMI is selected for Video or Audio, proceed to step 5.
•When Component Video is selected for Video, proceed to step 6.
•When S-Video/Video is selected for Video, proceed to step 7.
Setting item |
Output terminal name |
||
Video |
HDMI |
HDMI Output |
|
|
|
||
|
|
|
|
|
Component Video |
Video Output |
Component Video |
|
|
|
|
|
S-Video/Video |
|
S-Video |
|
|
|
|
|
|
|
Video |
|
|
|
|
Audio |
HDMI |
HDMI Output |
|
|
|
|
|
Digital Audio |
Digital Audio |
Coaxial |
|
|
|
Output |
|
|
|
Optical |
|
|
|
|
|
|
|
|
|
|
Analog Audio |
Audio Output (2 ch) |
|
|
|
|
|
|
|
Audio Output (7.1 ch) |
|
|
|
|
|
Caution
• When HDMI is selected for Video, no video signals are output from the COMPONENT VIDEO, S-VIDEO or VIDEO output terminals.
• When Component Video or S-Video/Video is selected for
Video, no video signals are output from the HDMI OUT terminal.
• The video and audio signals output from the set output terminals are output synchronously (lip synchronization).
• Linear PCM audio signals (2 channels) are output from all terminals other than the ones selected for Audio, regardless of the audio format or the player’s settings.
En
5 Select and set the HDMI High-Speed Transmission setting.
Use / to select, then press ENTER.
TOP MENU |
TOOLS |
|
ENTER |
HOME |
RETURN |
MENU |
Setup Navigator
BD PLAYER
Select the HDMI Hi-speed transmission setting.
On Off
Normally select [On] (Recommended). Select [Off] if the video or audio of HDMI-connected
was not output in the test output.
•When HDMI High-Speed Transmission is set to On, use a High Speed HDMI™ cable. The picture and sound may not be output properly if any other HDMI cable (standard HDMI™ cable) is used.
•When HDMI is selected for Video, proceed to step 8.
•When Component Video is selected for Video, proceed to step 6.
•When S-Video/Video is selected for Video, proceed to step 7.
6 Select the output video resolution from the COMPONENT VIDEO output terminals.
Use / to select, then press ENTER.
Setup Navigator
BD PLAYER
Select the output video resolution at the
Component video terminal.
If you select [Source Direct], the output resolution is determined according to the video format of the playing source.
For details on the resolution settings, see Switching the output video resolution on page 24.
7 Select the aspect ratio of your TV.
Use / to select, then press ENTER.
Setup Navigator
BD PLAYER
Select the screen aspect ratio to match your TV.
8 Check the settings. |
03 |
Select Proceed, then press ENTER. |
Setup Navigator
BD PLAYER
Select [Proceed] if you want to start testing your audio and video settings.
Proceed
9 Output test tones.
Use / to select Yes, then press ENTER.
Setup Navigator
BD PLAYER
The test tone will be output.
Reduce the volume to an appropriate level.
Yes No
The video and/or audio may not be output under certain setup.
The setup menu comes back in 30 seconds.
Caution
•The screen in step 10 and test tones are output simultaneously according to the settings in steps 4 to 7. Lower the volume of the devices connected with the player.
10 Finish the Setup Navigator menu.
Use / to select Finish, then press ENTER.
Setup Navigator
BD PLAYER
Setup is complete!
Finish |
|
Go Back |
The setup menu comes back in 30 seconds.
To redo the settings from the start, select Go Back.
Depending on the output terminal setting of step 4 or the HDMI cable being used, it may happen that no picture and/or sound is output. If this happens, the setup returns to step 4 if there is no operation for over 30 seconds. Once the setup returns to step 4, redo the settings according to the connected devices and the HDMI cable being used.
21
En
03 About the screen saver
The screen saver is automatically activated if there is no operation for over 1 minute after playback is stopped or paused. The screen saver turns off when an operation is performed on the player or remote control.
The screen saver is automatically activated if there is no operation for over 1 minute after the Home Menu or Home Media Gallery is displayed while playing a BD or DVD.
With CDs and music files, the screen saver is automatically activated if no button is operated for over 1 minute, even while the CD or music file is playing.
Operating the TV with the player’s remote control
When the manufacturer code for your brand of TV is set on the player’s remote control, the TV can be operated using the player’s remote control.
1 Input the 2-digit manufacturer code.
Press the number buttons (0 to 9) to input the code while pressing
TV CONTROL .
STANDBY/ON OPEN/CLOSE
TV CONTROL
INPUT |
CH |
VOL |
|
SELECT |
|||
|
|
||
AUDIO SUBTITLE |
ANGLE FL DIMMER |
CLEAR |
|
ENTER |
|
|
OUTPUT |
AUDIO |
VIDEO |
RESOLUTION |
Note
•The factory setting is PIONEER 00.
•If you make a mistake when inputting the code, start over from the beginning.
•When there are multiple codes for a manufacturer, try inputting them in the indicated order until the TV can be operated.
2 Check that the TV can be operated.
STANDBY/ON OPEN/CLOSE
TV CONTROL
INPUT |
CH |
VOL |
|
SELECT |
|||
|
|
Caution
• For some models it may not be possible to operate the TV with the player’s remote control, even for TVs of brands listed on the manufacturer code list.
• The setting may be restored to the default after the batteries are
replaced. If this happens, reset it.
22
En
TV Preset code list
Manufacturer Code(s)
PIONEER 00, 31, 32, 07, 36, 42, 51
ACURA 44 ADMIRAL 31 AIWA 60
AKAI 32, 35, 42
AKURA 41
ALBA 07, 39, 41, 44
AMSTRAD 42, 44, 47
ANITECH 44 ASA 45 ASUKA 41
AUDIOGONIC 07, 36 BASIC LINE 41, 44
BAUR 31, 07, 42
BEKO 38
BEON 07 BLAUPUNKT 31 BLUE SKY 41 BLUE STAR 18 BPL 18 BRANDT 36 BTC 41
BUSH 07, 41, 42, 44, 47, 56
CASCADE 44
CATHAY 07 CENTURION 07 CGB 42 CIMLINE 44 CLARIVOX 07 CLATRONIC 38 CONDOR 38 CONTEC 44 CROSLEY 32 CROWN 38, 44 CRYSTAL 42 CYBERTRON 41
DAEWOO 07, 44, 56
DAINICHI 41
DANSAI 07
DAYTON 44
DECCA 07, 48
DIXI 07, 44
DUMONT 53 ELIN 07 ELITE 41 ELTA 44 EMERSON 42 ERRES 07
FERGUSON 07, 36, 51
FINLANDIA 35, 43, 54
FINLUX 32, 07, 45, 48, 53, 54
FIRSTLINE 40, 44
FISHER 32, 35, 38, 45
FORMENTI 32, 07, 42
FRONTECH 31, 42, 46 FRONTECH/PROTECH 32 FUJITSU 48
FUNAI 40, 46, 58 GBC 32, 42
GE 00, 01, 08, 07, 10, 11, 17, 02, 28, 18 GEC 07, 34, 48
GELOSO 32, 44
GENERAL 29 GENEXXA 31, 41
GOLDSTAR 10, 23, 21, 02, 07, 50 GOODMANS 07, 39, 47, 48, 56
GORENJE 38 GPM 41 GRAETZ 31, 42
GRANADA 07, 35, 42, 43, 48
GRADIENTE 30, 57 GRANDIN 18 GRUNDIG 31, 53
HANSEATIC 07, 42
HCM 18, 44 HINARI 07, 41, 44
HISAWA 18
HITACHI 31, 33, 34, 36, 42, 43, 54, 06, 10, 24, 25, 18
HUANYU 56
HYPSON 07, 18, 46 ICE 46, 47
IMPERIAL 38, 42 INDIANA 07 INGELEN 31
INTERFUNK 31, 32, 07, 42
INTERVISION 46, 49 ISUKAI 41
ITC 42
ITT 31, 32, 42
JEC 05
JVC 13, 23 KAISUI 18, 41, 44
KAPSCH 31
KENDO 42 KENNEDY 32, 42 KORPEL 07 KOYODA 44
LEYCO 07, 40, 46, 48
LIESENK&TTER 07 LOEWE 07
LUXOR 32, 42, 43
M-ELECTRONIC 31, 44, 45, 54, 56, 07, 36, 51
MAGNADYNE 32, 49 MAGNAFON 49
MAGNAVOX 07, 10, 03, 12, 29
MANESTH 39, 46 MARANTZ 07 MARK 07
MATSUI 07, 39, 40, 42, 44, 47, 48
MCMICHAEL 34
MEDIATOR 07
MEMOREX 44 METZ 31 MINERVA 31, 53
MITSUBISHI 09, 10, 02, 21, 31
MULTITECH 44, 49 NEC 59 NECKERMANN 31, 07
NEI 07, 42
NIKKAI 05, 07, 41, 46, 48
NOBLIKO 49
NOKIA 32, 42, 52 NORDMENDE 32, 36, 51, 52 OCEANIC 31, 32, 42 ORION 32, 07, 39, 40 OSAKI 41, 46, 48
OSO 41 OSUME 48
OTTO VERSAND 31, 32, 07, 42 PALLADIUM 38
PANAMA 46
PANASONIC 31, 07, 08, 42, 22
PATHO CINEMA 42 PAUSA 44
PHILCO 32, 42
PHILIPS 31, 07, 34, 56, 68
PHOENIX 32
PHONOLA 07
PROFEX 42, 44
PROTECH 07, 42, 44, 46, 49
QUELLE 31, 32, 07, 42, 45, 53
R-LINE 07 RADIOLA 07
RADIOSHACK 10, 23, 21, 02
