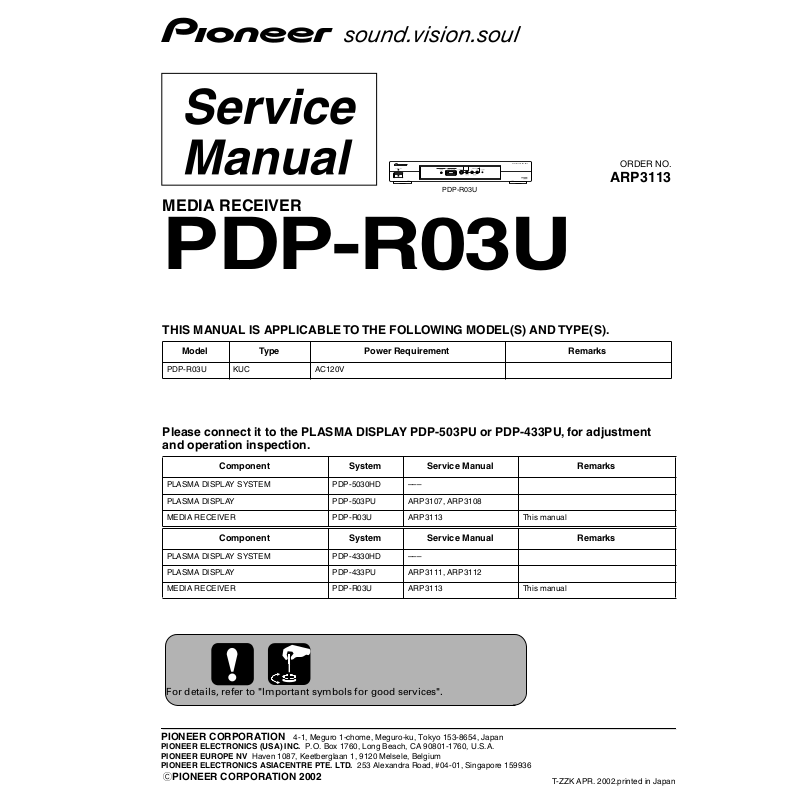

MEDIA RECEIVER
STANDBY/ON
POWER
PDP-R03U
ORDER NO.
ARP3113
PDP-R03U
MEDIA RECEIVER
PDP-R03U
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ModelTypePower RequirementRemarks
PDP-R03UKUCAC120V
Please connect it to the PLASMA DISPLAY PDP-503PU or PDP-433PU, for adjustment
and operation inspection.
ComponentSystemService ManualRemarks
PLASMA DISPLAY SYSTEMPDP-5030HD–––
PLASMA DISPLAYPDP-503PUARP3107, ARP3108
MEDIA RECEIVERPDP-R03UARP3113This manual
ComponentSystemService ManualRemarks
PLASMA DISPLAY SYSTEMPDP-4330HD–––
PLASMA DISPLAYPDP-433PUARP3111, ARP3112
MEDIA RECEIVERPDP-R03UARP3113This manual
For details, refer to "Important symbols for good services".
T-ZZK APR. 2002.printed in Japan
Page 2
1234
SAFTY INFORMATION
A
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
B
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
C
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.

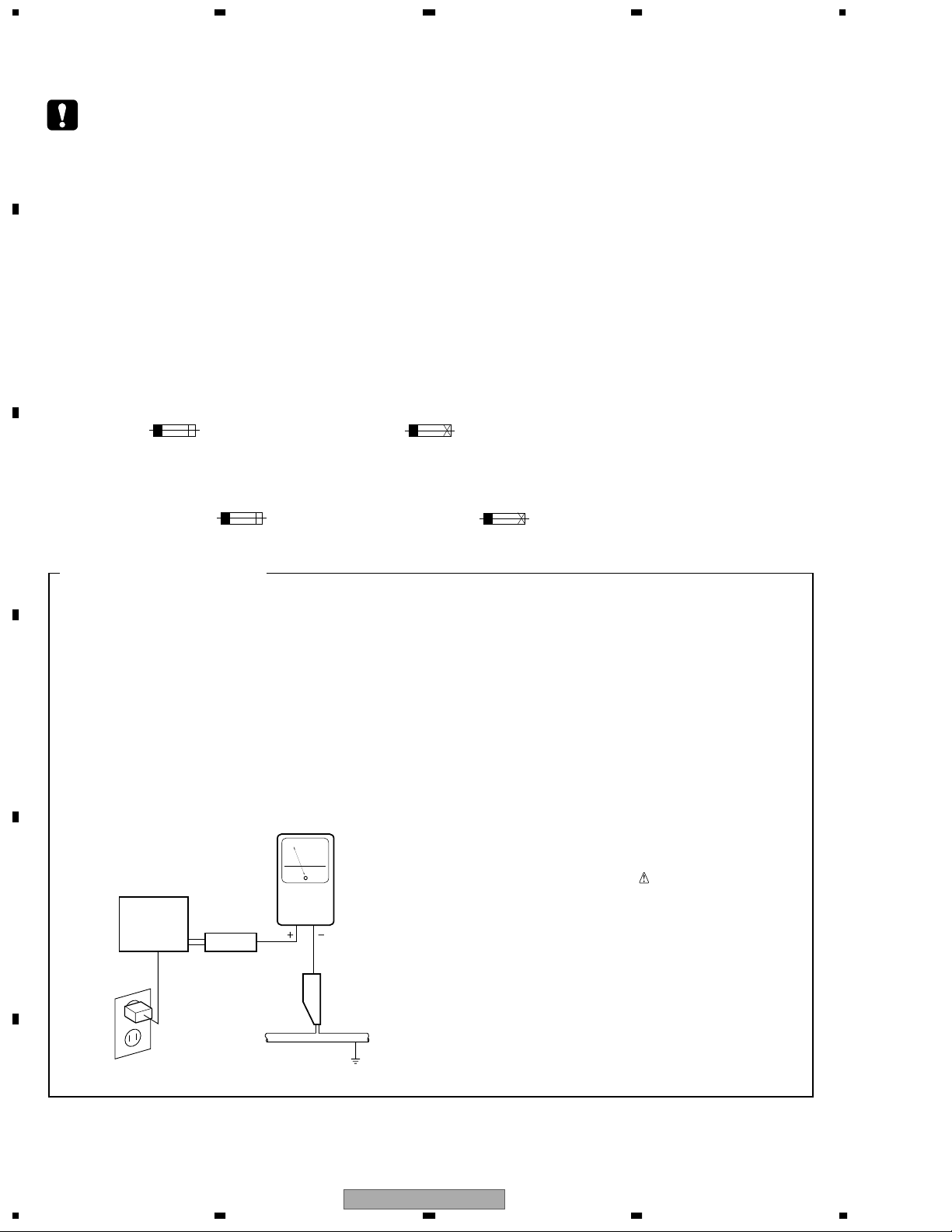

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
D
E
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Reading should
not be above
0.5 mA
Earth
ground
Device
under
test
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
Leakage
current
tester
AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
on the schematics and
F
2
1234
PDP-R03U
Page 3
5678
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
A
B
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.

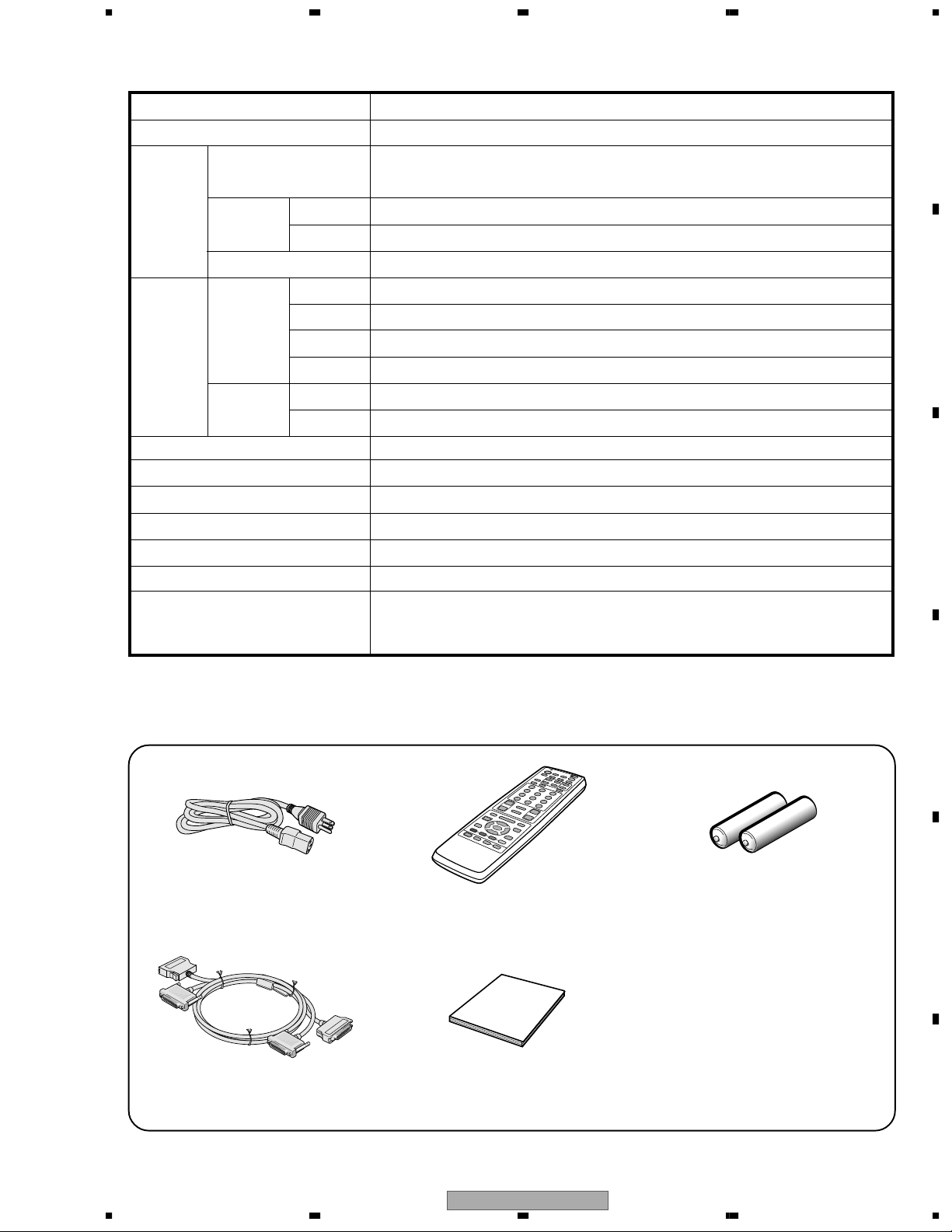

Power cord, Remote control unit, Two AA size batteries, System cable,
Operating instruction
Circuit type
Tuner
Rear
INPUT 1
Front
Rear
• Design and specifications ar e subject to change without notice.
Other Features
OSD Language
English/French/Spanish
Picture & Picture, Still image, Dual Tuner System
PLL digital synthesizer system
5678
1. SPECIFICATIONS
A
B
C
D
E
F
56
PDP-R03U
7
5
8
Page 6
1234

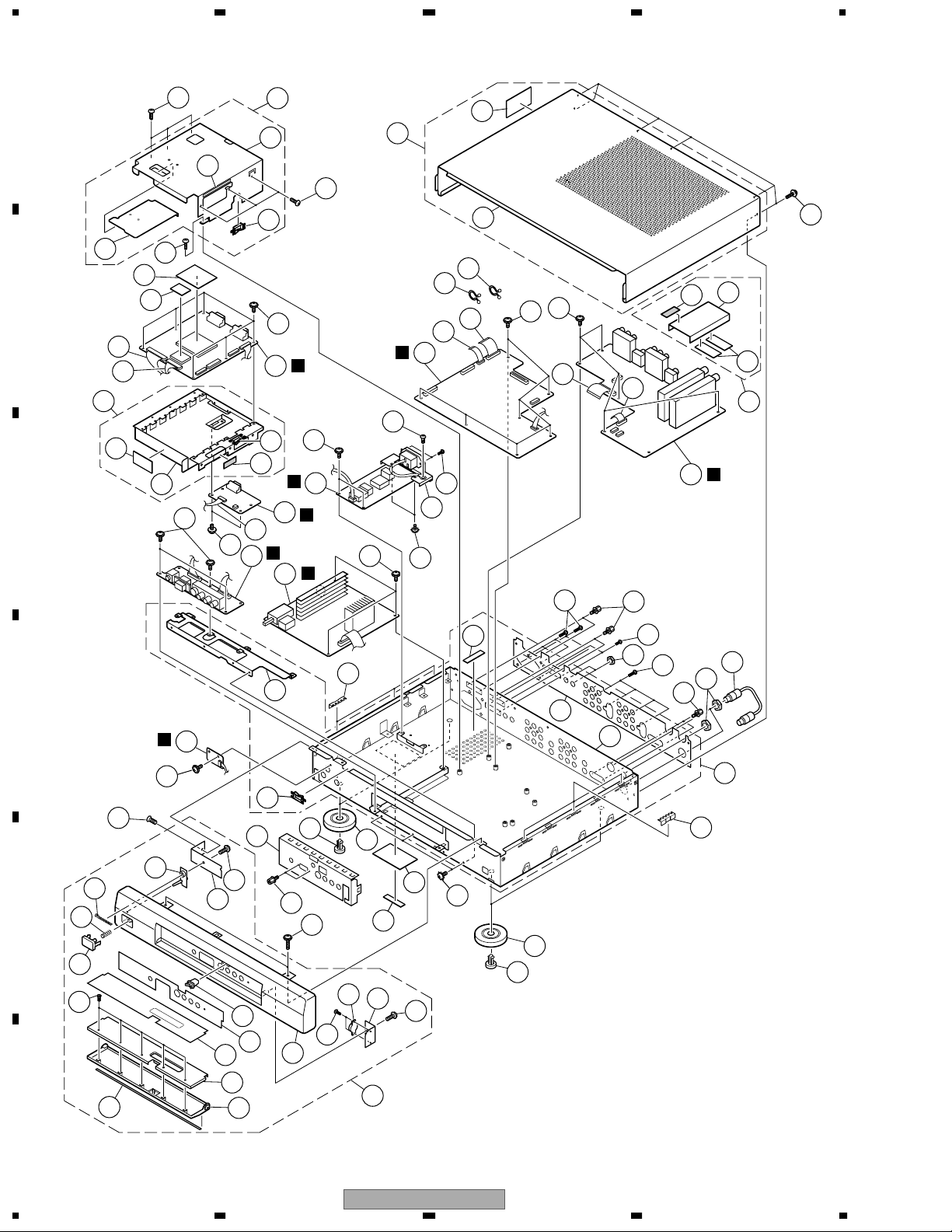

2. EXPLODED VIEWS AND PARTS LIST
NOTES:
A

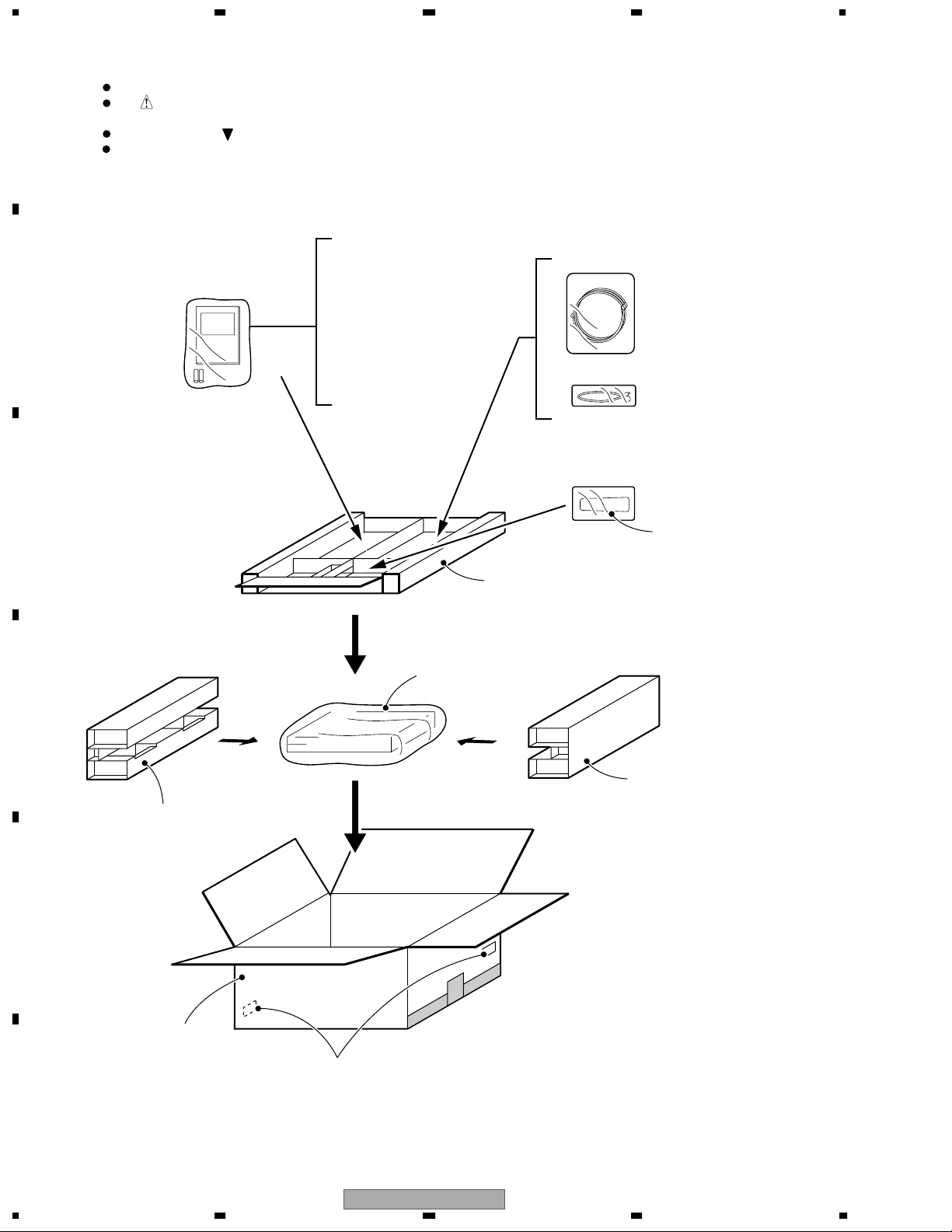

2.1 PACKING
B
C
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
1-6 GasketQEARZA007WJZZ
1-7 Model LabelTLABM4302CEZZ
1-8 ScrewXBPSD30P06R00
2Front Panel AssyCWAKP1474CE01
NSP 2-1 Front Panel• • • • • •
2-2 LED CoverGCOVA2015CEKA
2-3 DoorGDORF3026CEKA
2-4 Pioneer BadgeHBDGE3130CESA
2-5 Decoration PlateHDECP0171CESA
2-6 Control IndicatorHINDP5932CESA
2-7 Door IndicatorHINDP5852CESA
2-8 Power ButtonJBTN-2073CEKA
2-9 Fixing Metal(Door)LANGF9655CESA

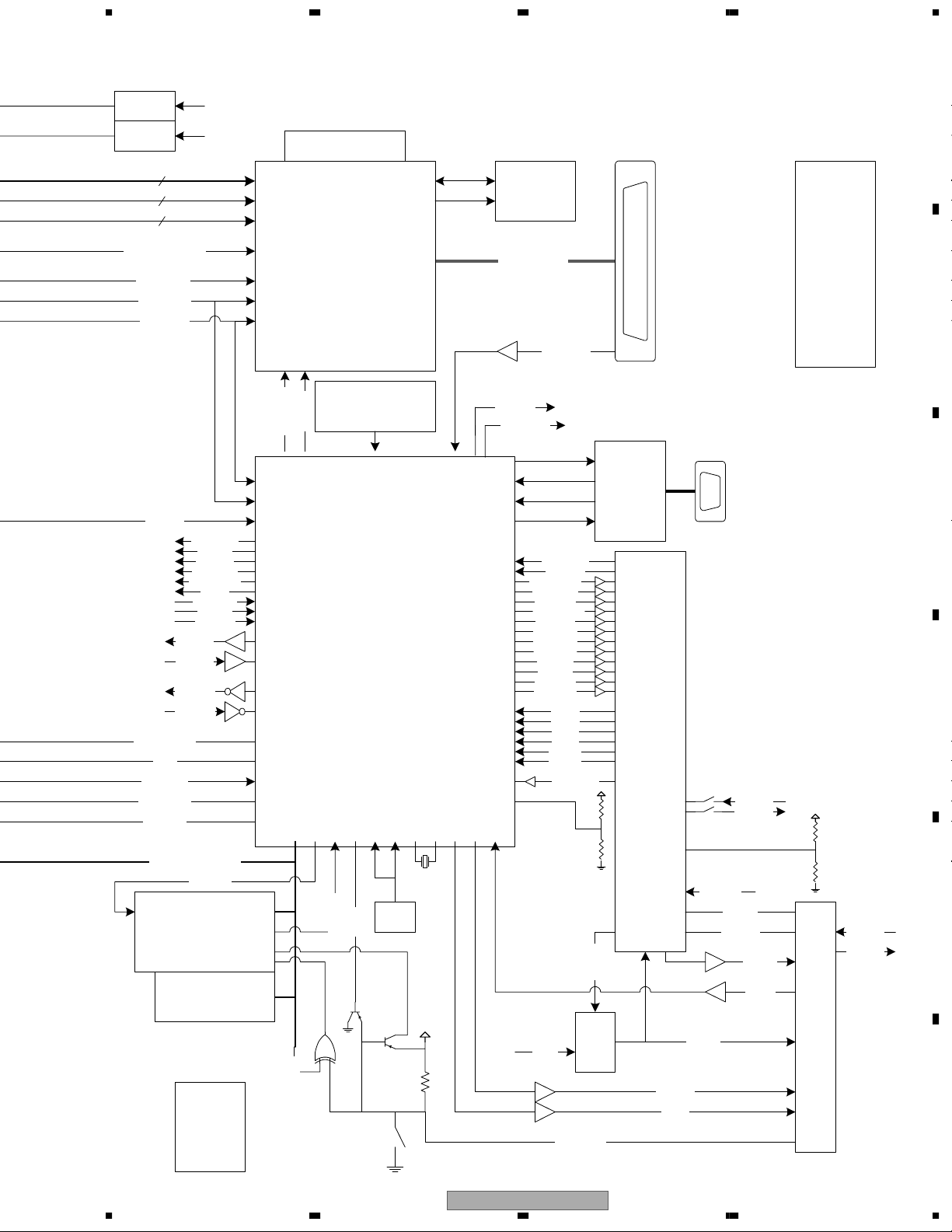

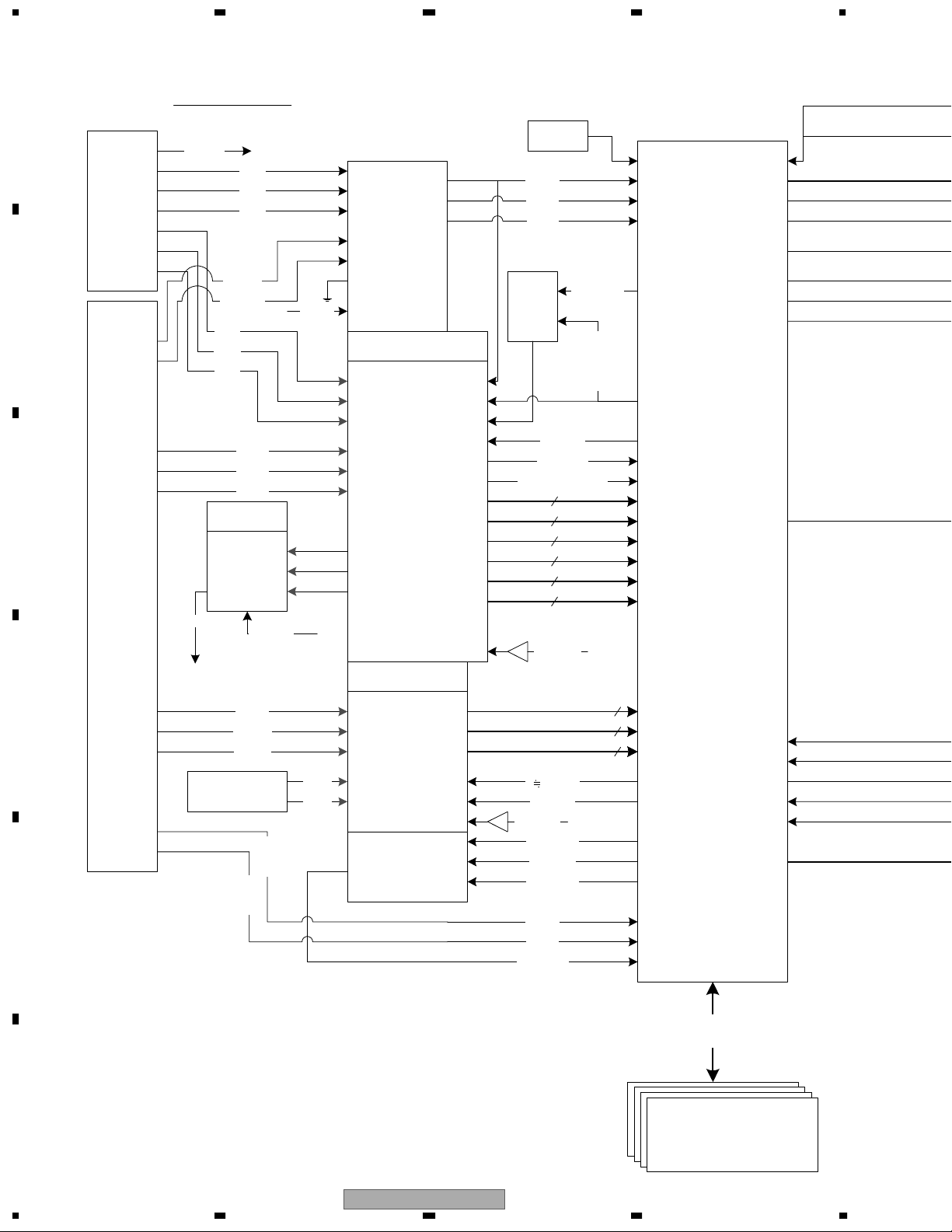

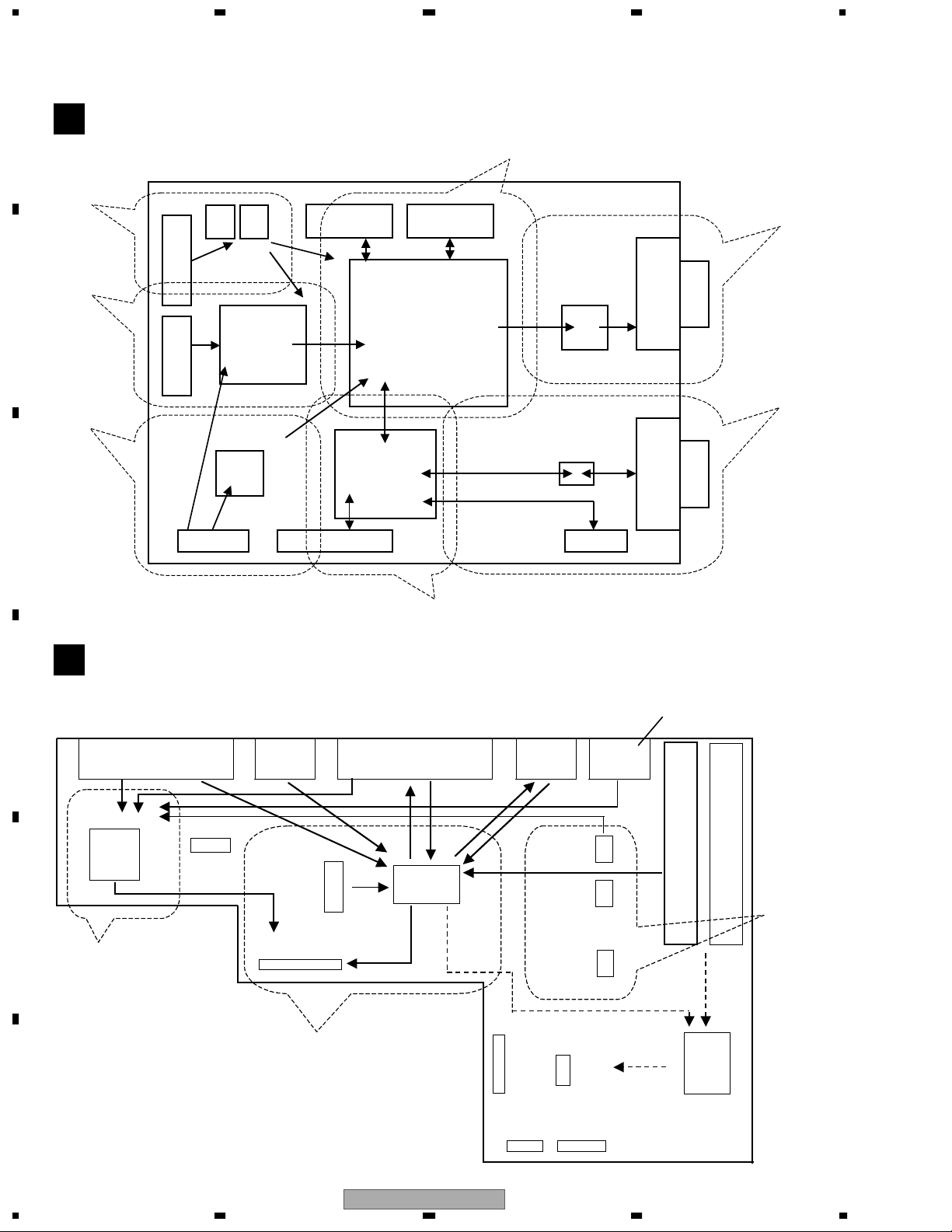

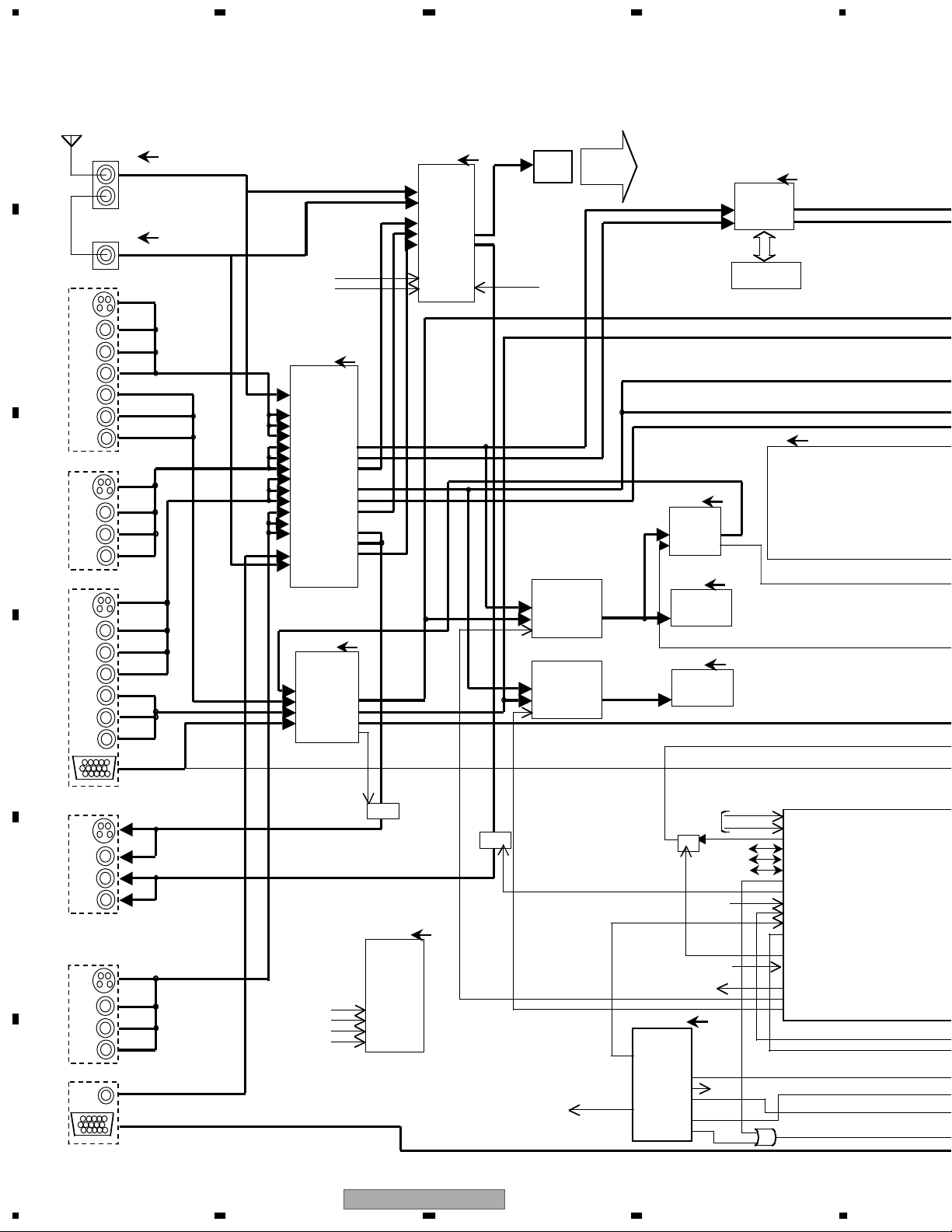

J1104
INPUT3 AV TERMINAL
INPUT3 CONPONENT TERMINAL
MONITER OUT AV TERMINAL

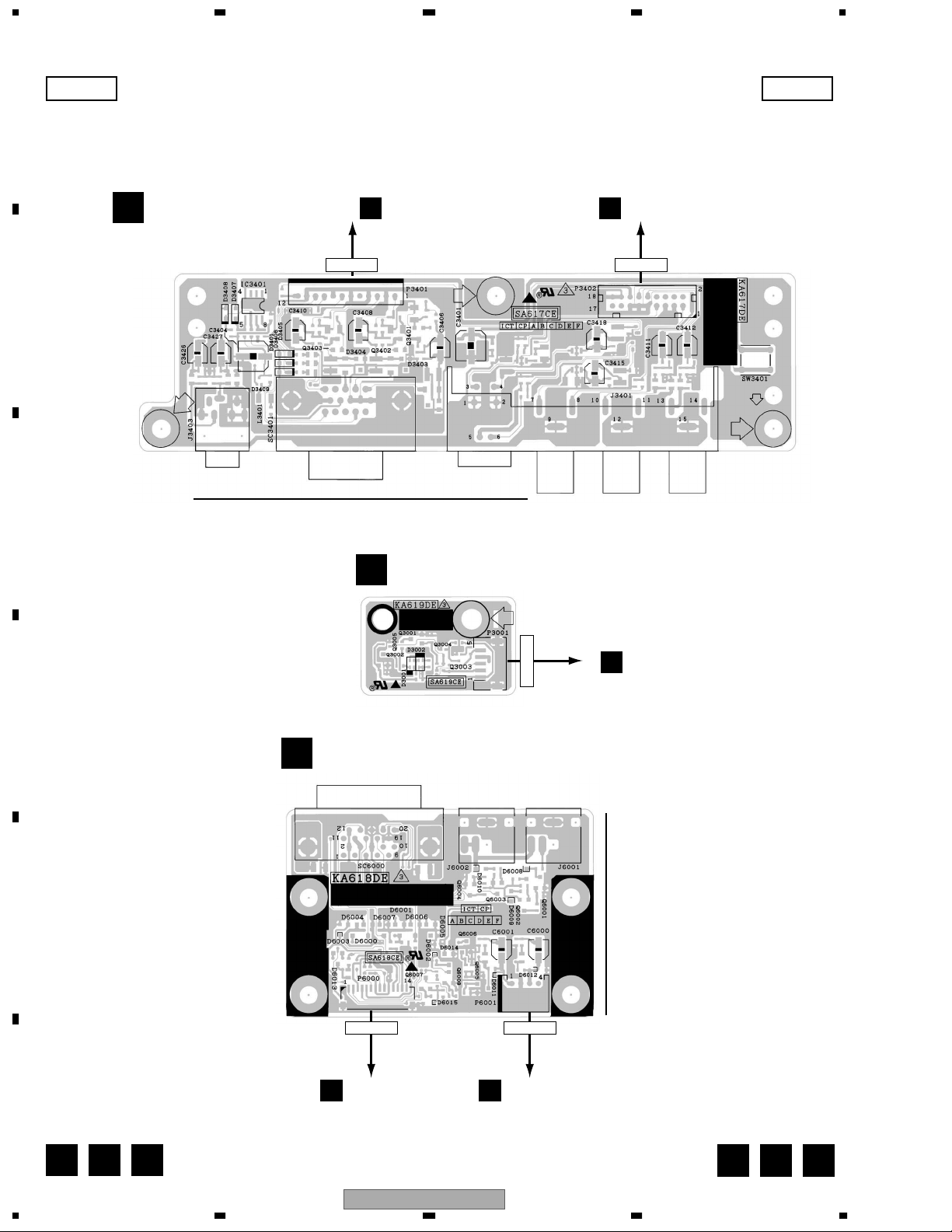

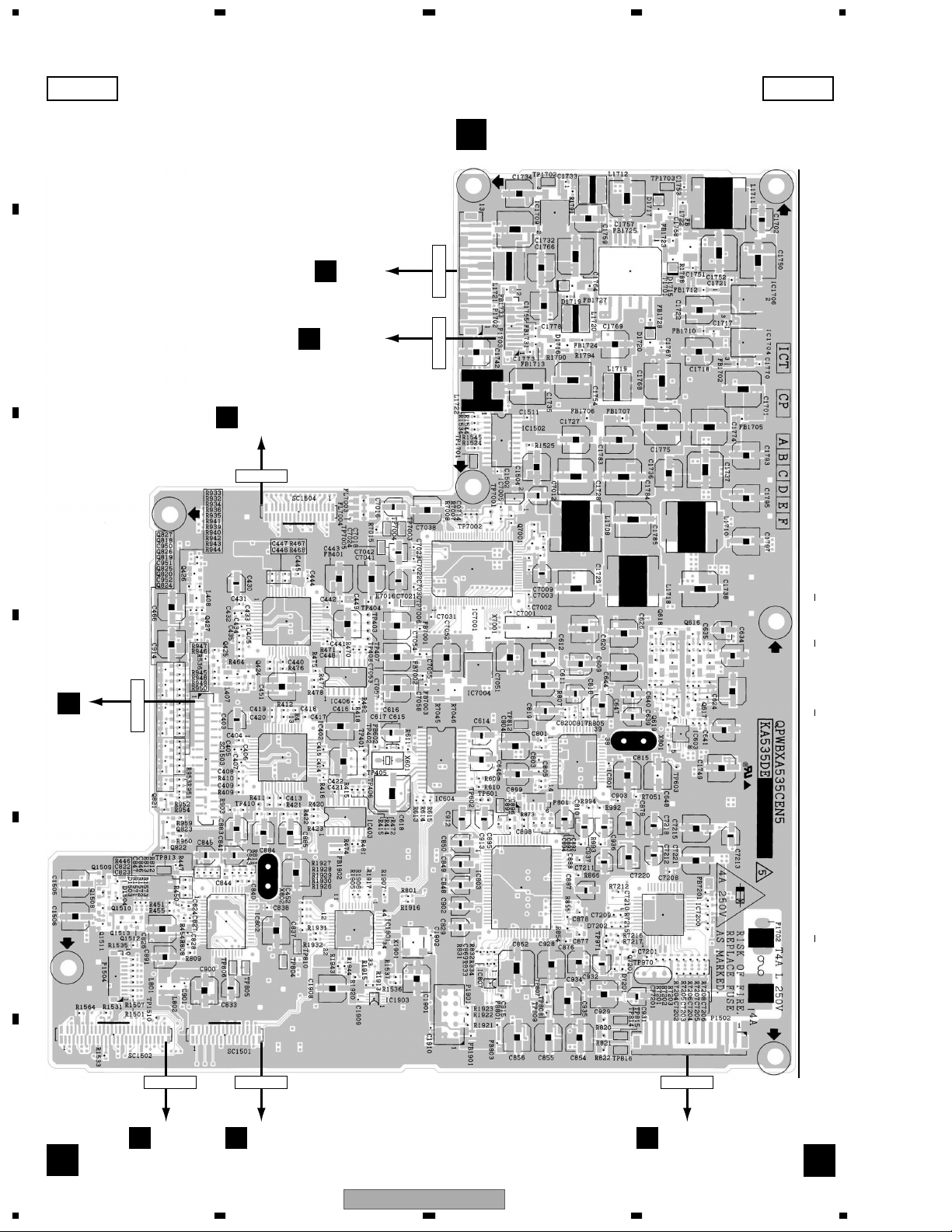

IC1301
AV SWITCH
SC1102
INPUT3, MONITER OUT
S-VIDEO TERMINAL
SC1402
CONNECTOR
P2503
CONNECTOR
IC1602
CCD
IC1601
V-CHIP
IC1603
V-CHIP
P2502
CONNECTOR
P2501
CONNECTOR
SC1103
INPUT4
RGB TERMINAL
TU1102 U/V TUNER
IC2501
MULTI SOUND
TU1101 U/V TUNER
V-CHIP CIRCUIT
20
PDP-R03U
1234
Page 21
5678

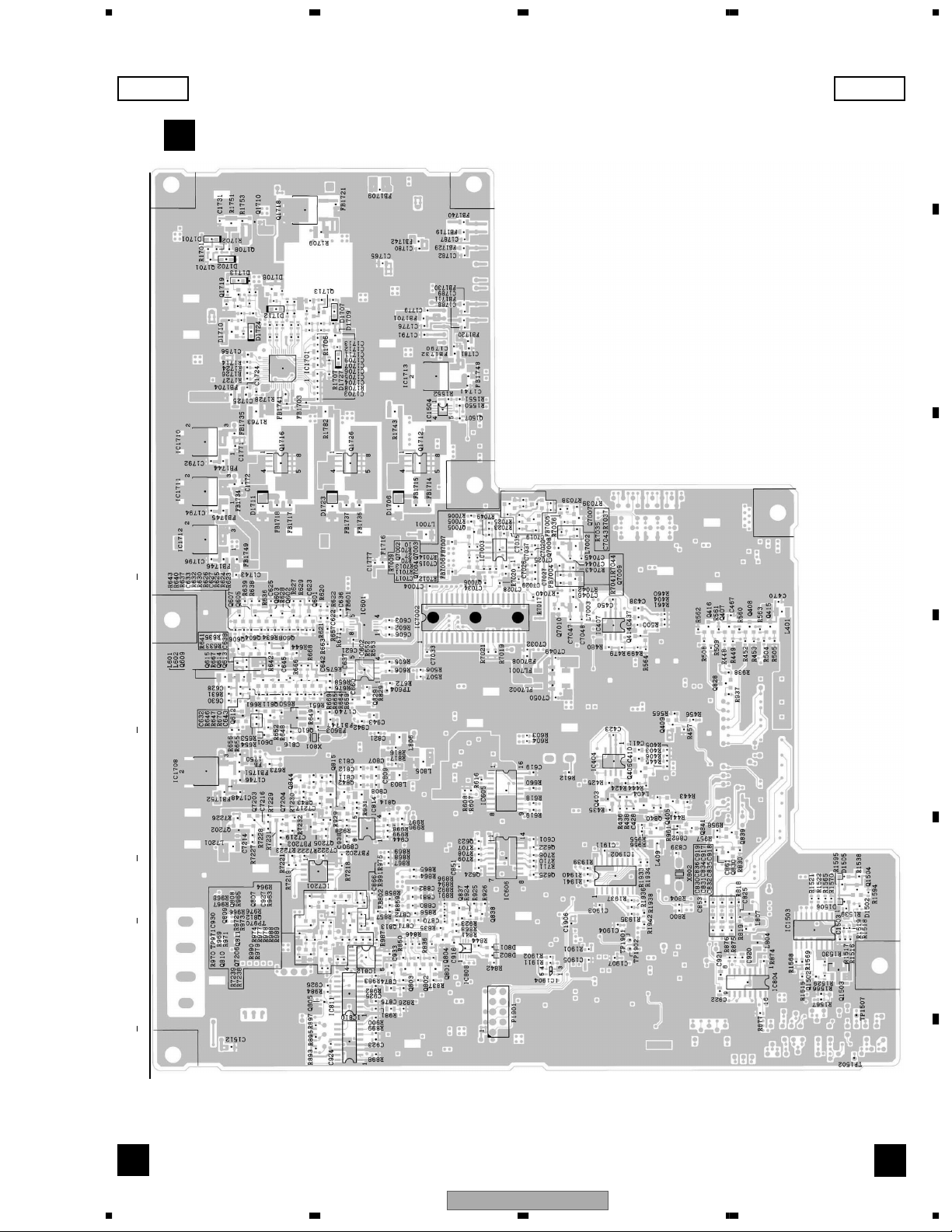

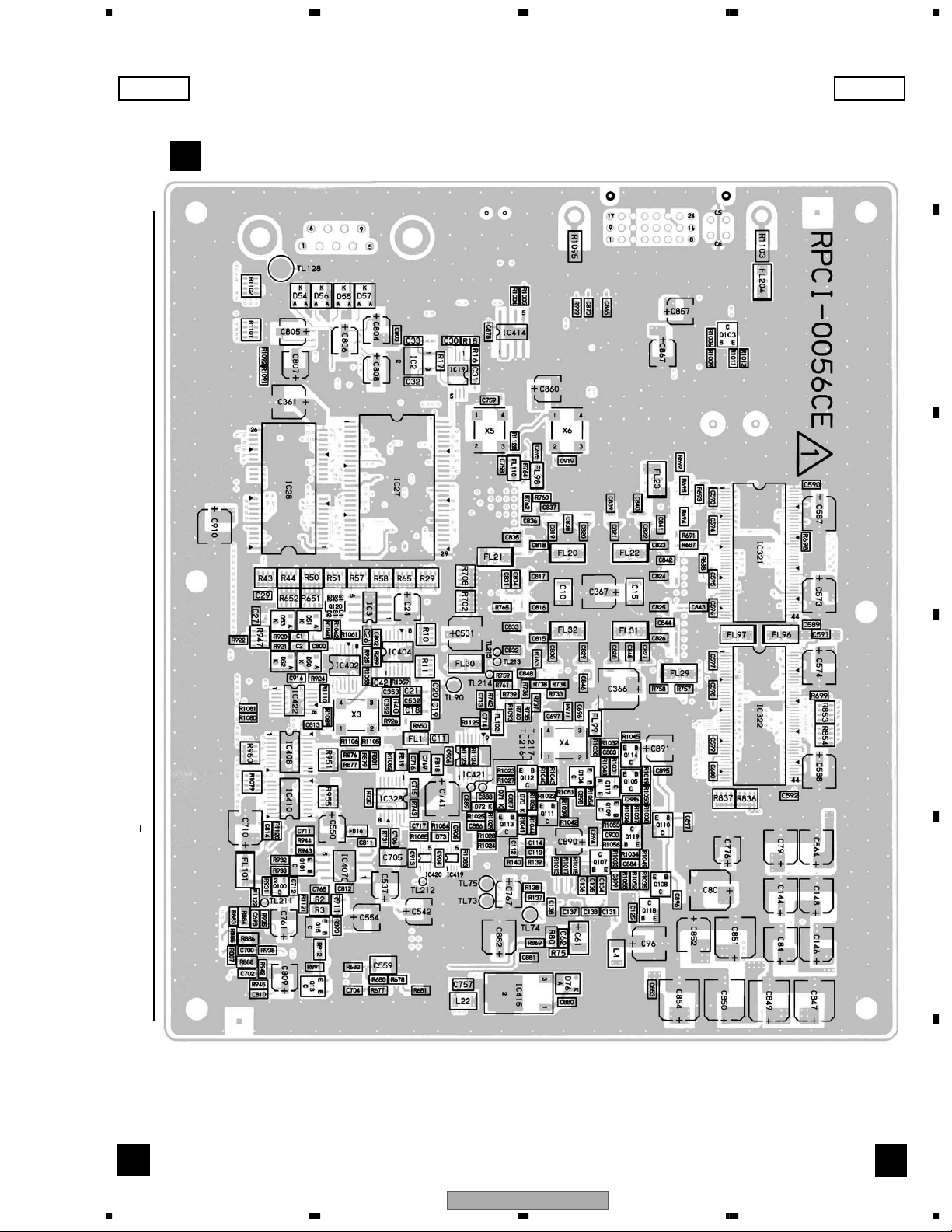

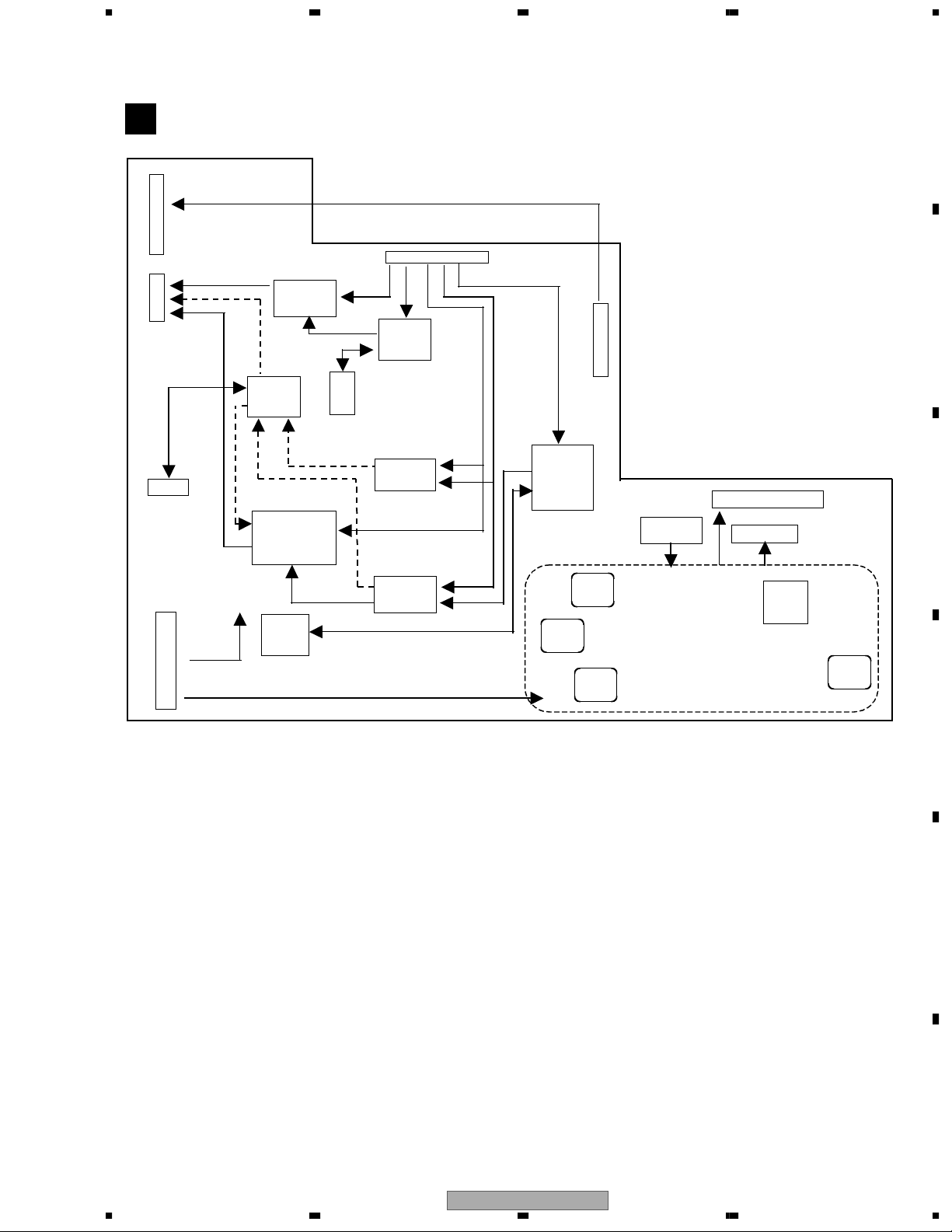

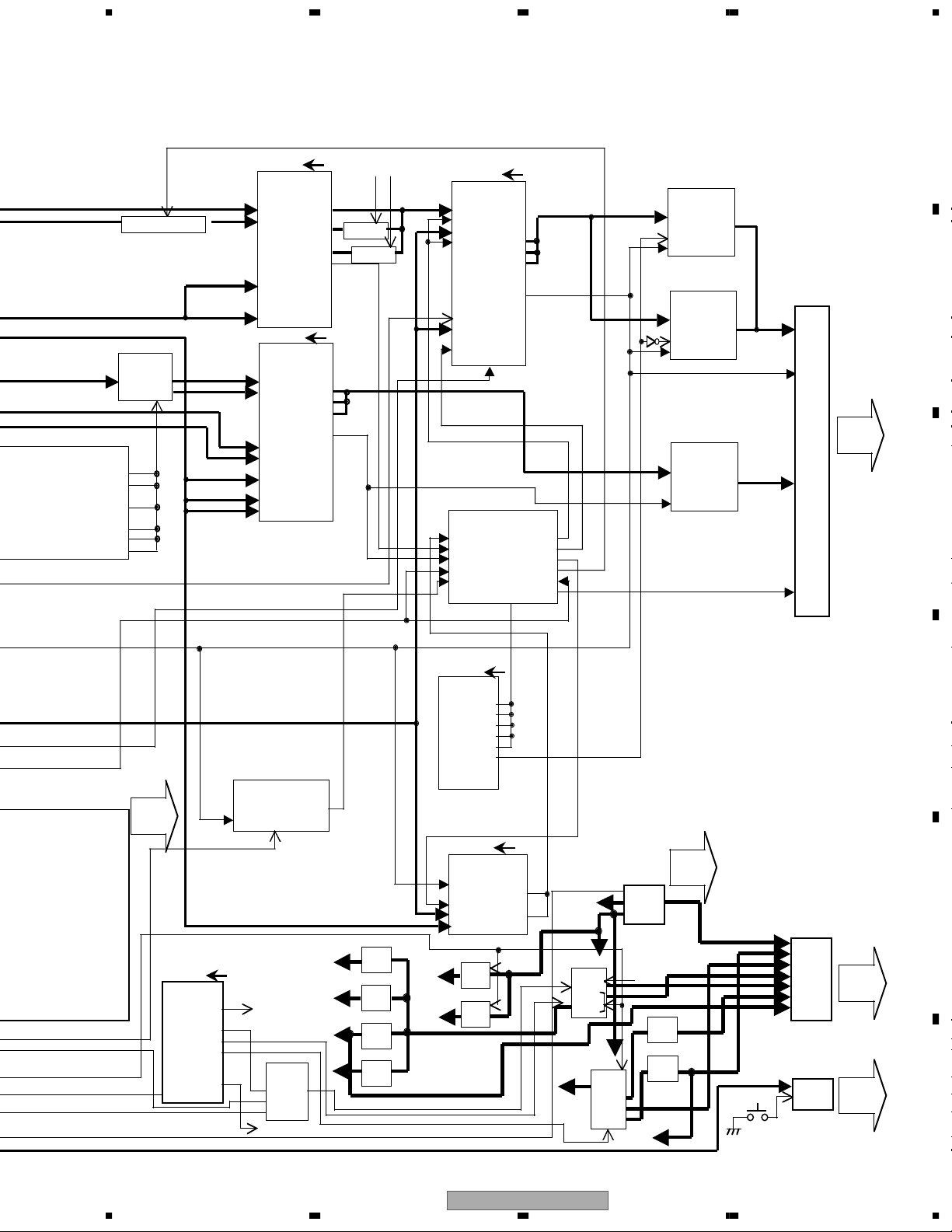

MAIN UNIT
A
SC1502
CONNECTOR
SC1501
CONNECTOR
P1901
PROGRAMMING
CONNECTOR
P1502
CONNECTOR
IC802
SUB VIDEO CHROMA
IC1901
PLD
IC803
RGB DECODER
IC402
SUB COMB FILTER
IC403
CONTROL
IC604
SYNC SEPARATE
IC801
MAIN VIDEO CHROMA
SC1503
CONNECTOR
IC7001
Y/C SEPARATE
L1708
SC1504
CONNECTOR
IC1502
DAC
A
B
P1702
CONNECTOR
C
P1703
CONNECTOR

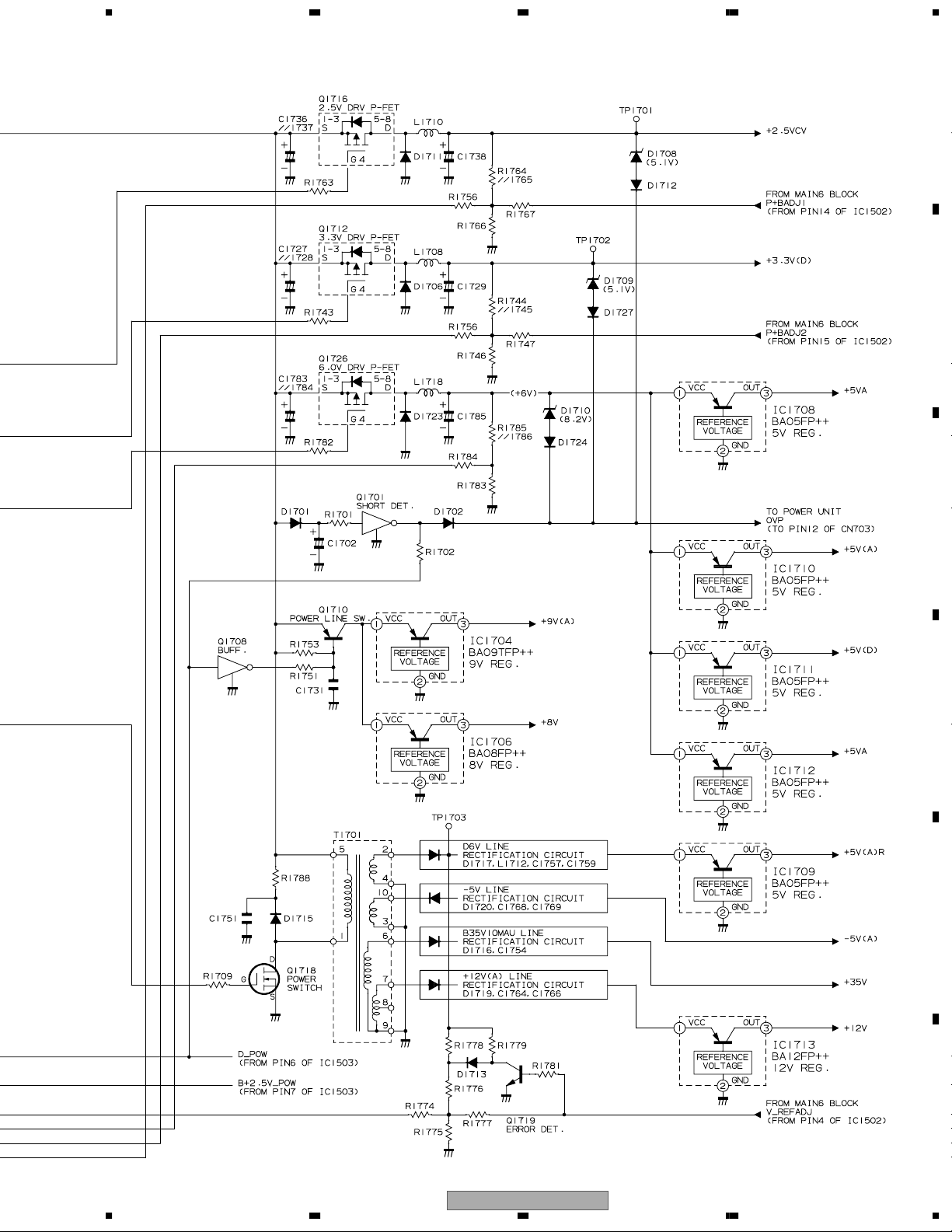

T1701
POWER SUPPLY
IC7002
MEMORY
L1718
DC/DC CONVERTER CIRCUIT
L1710
L1711
D
E
PDP-R03U
56
F
21
7
8
Page 22
1234
A

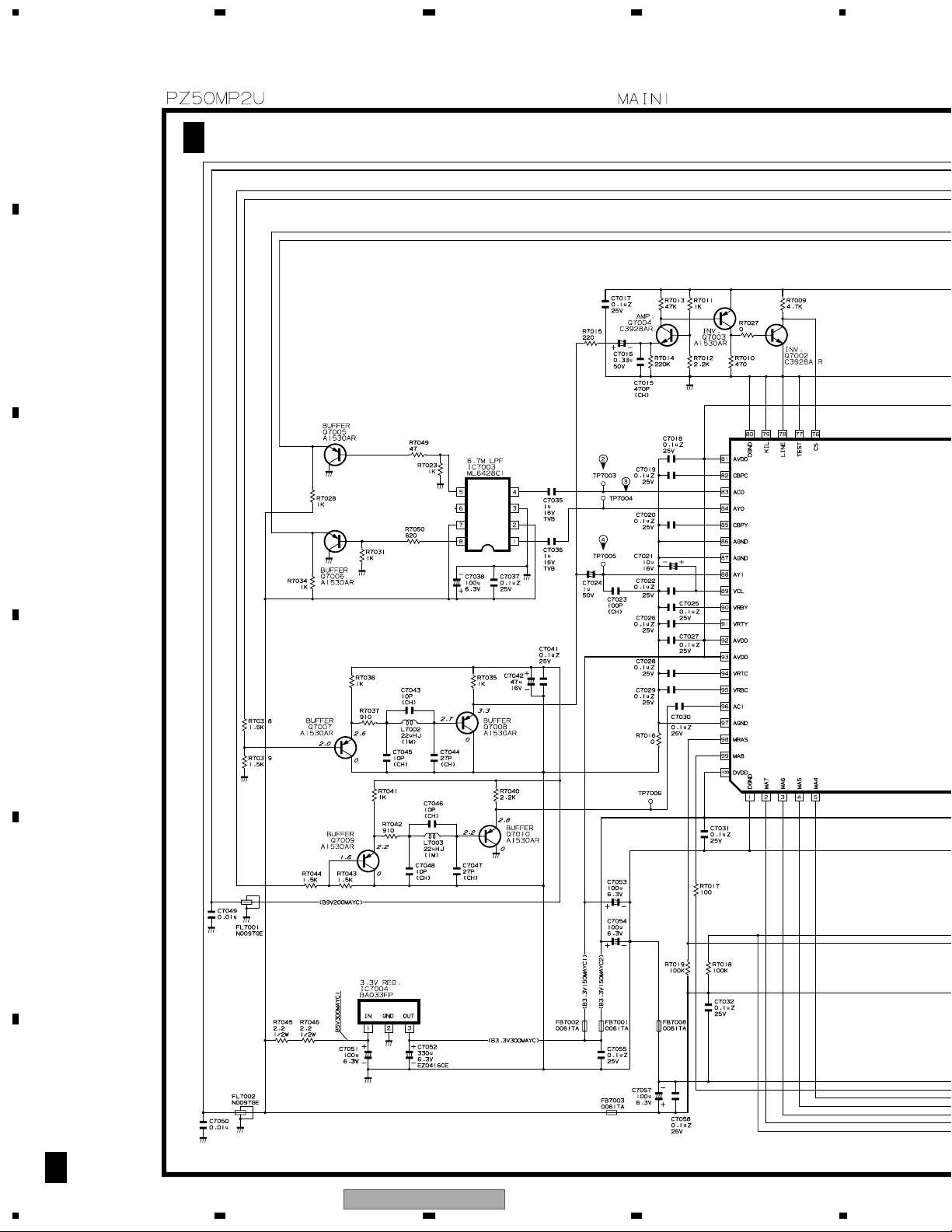

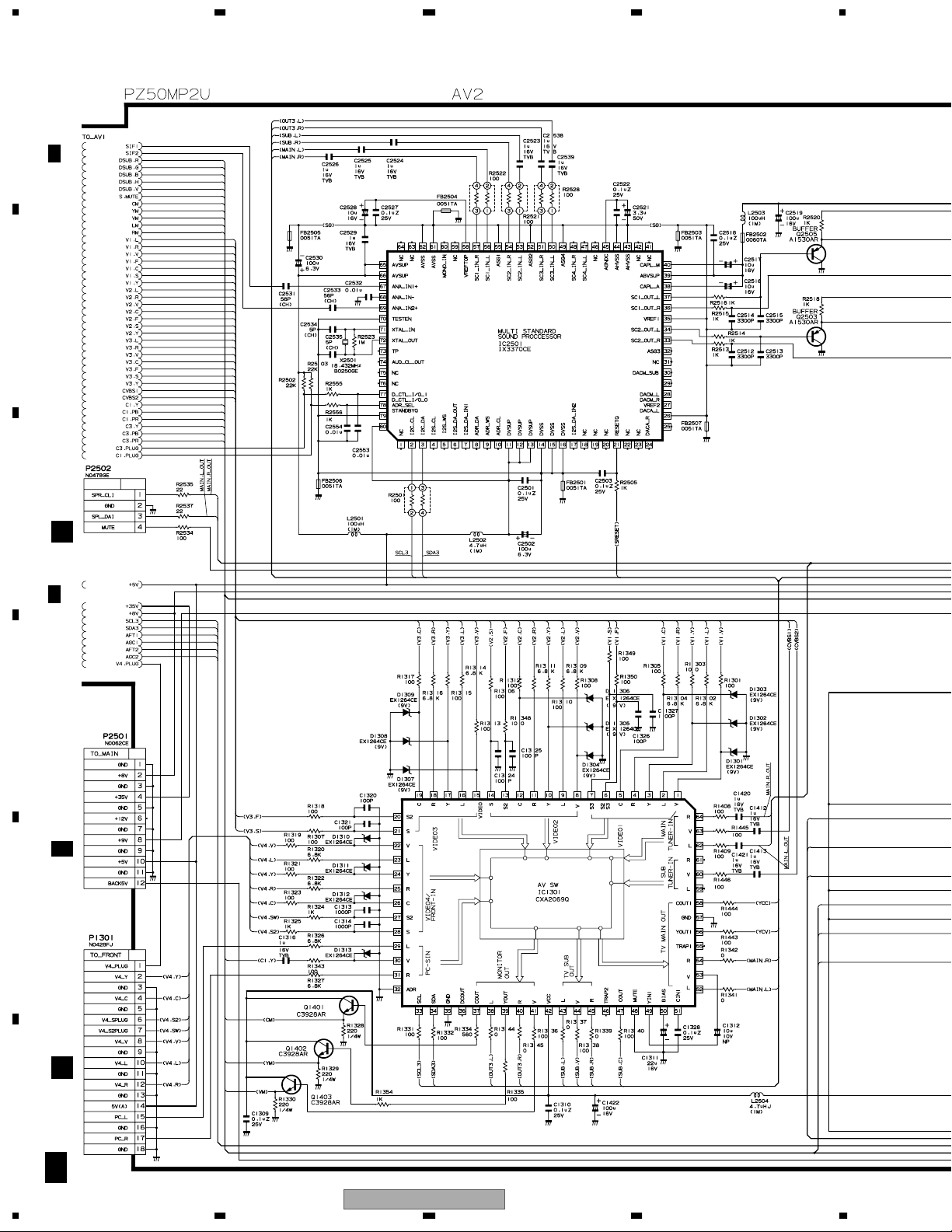

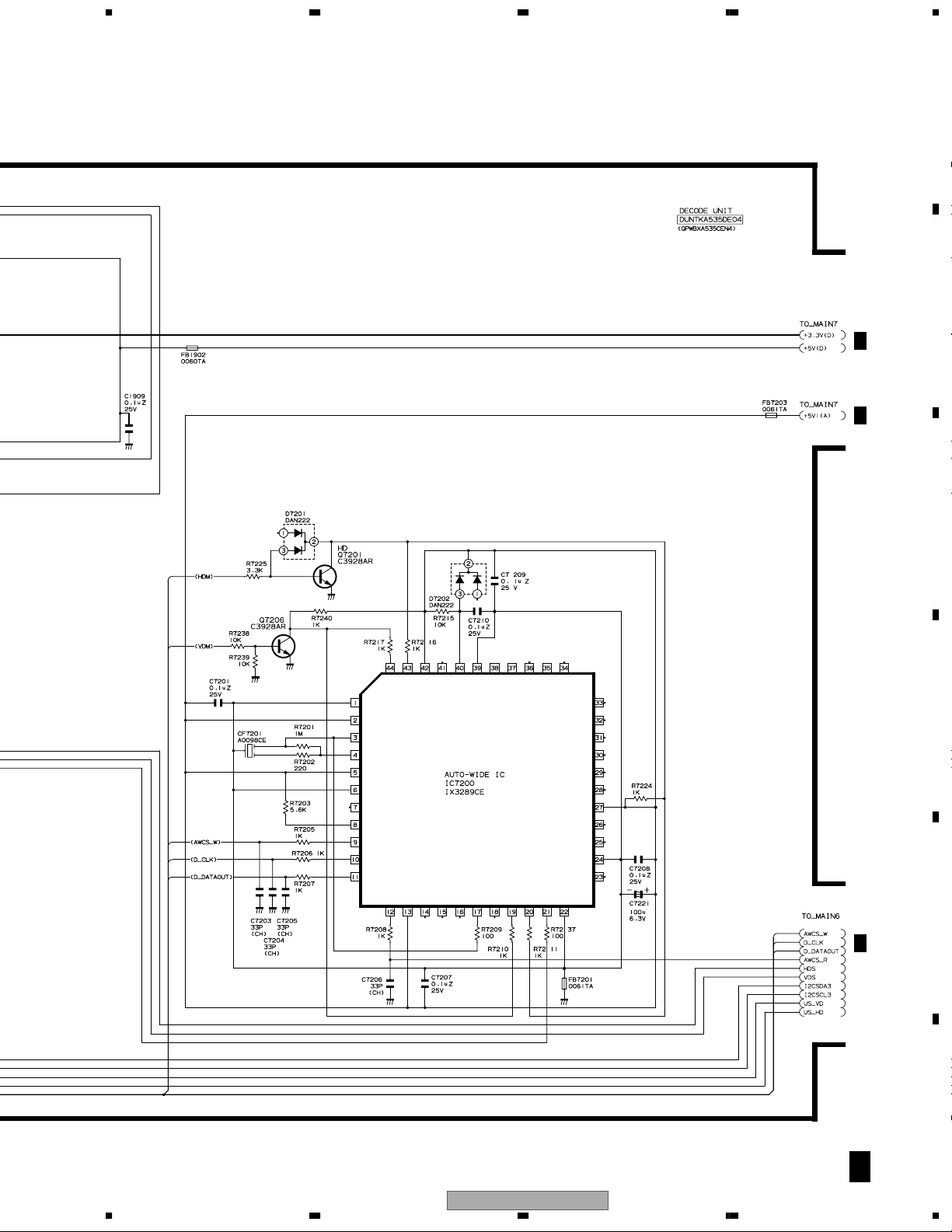

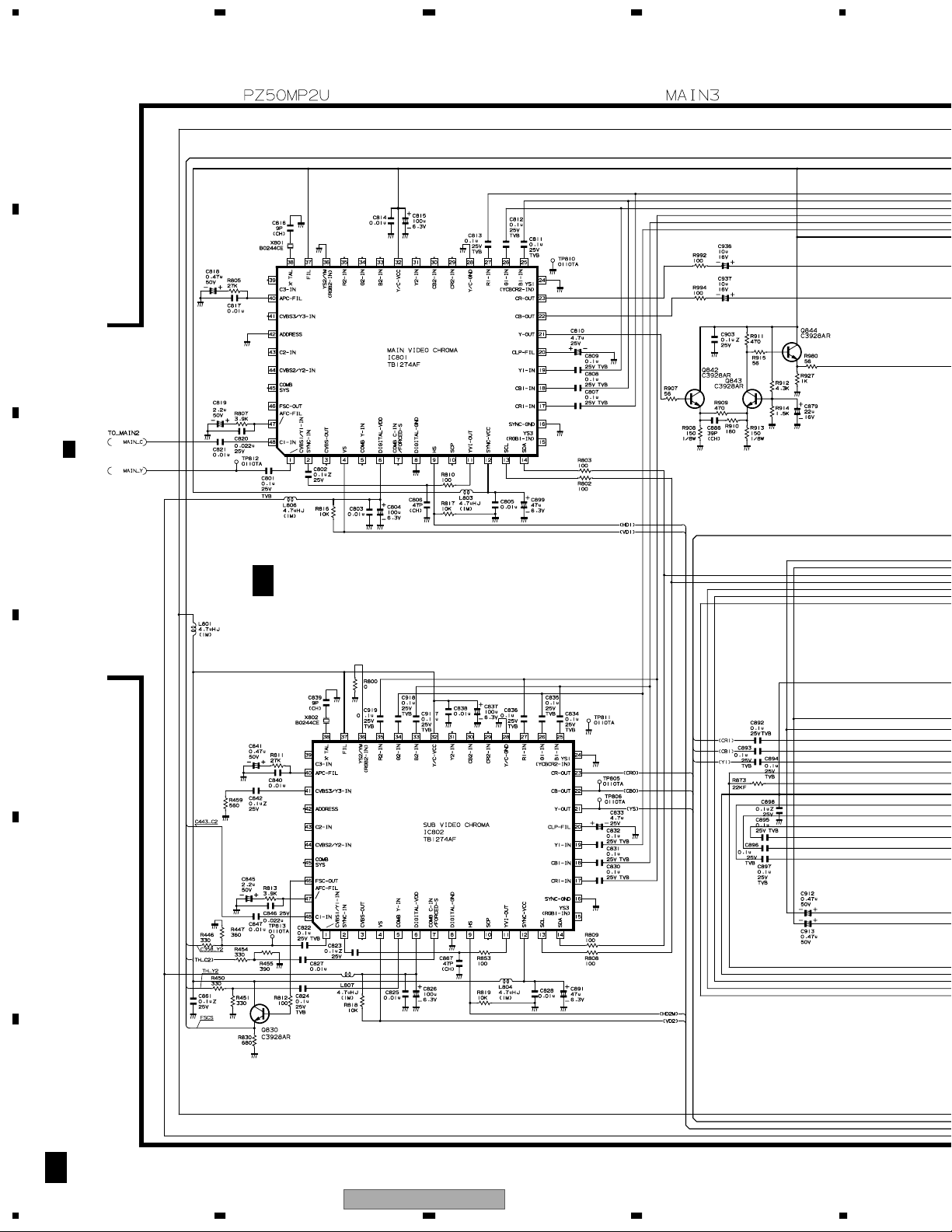

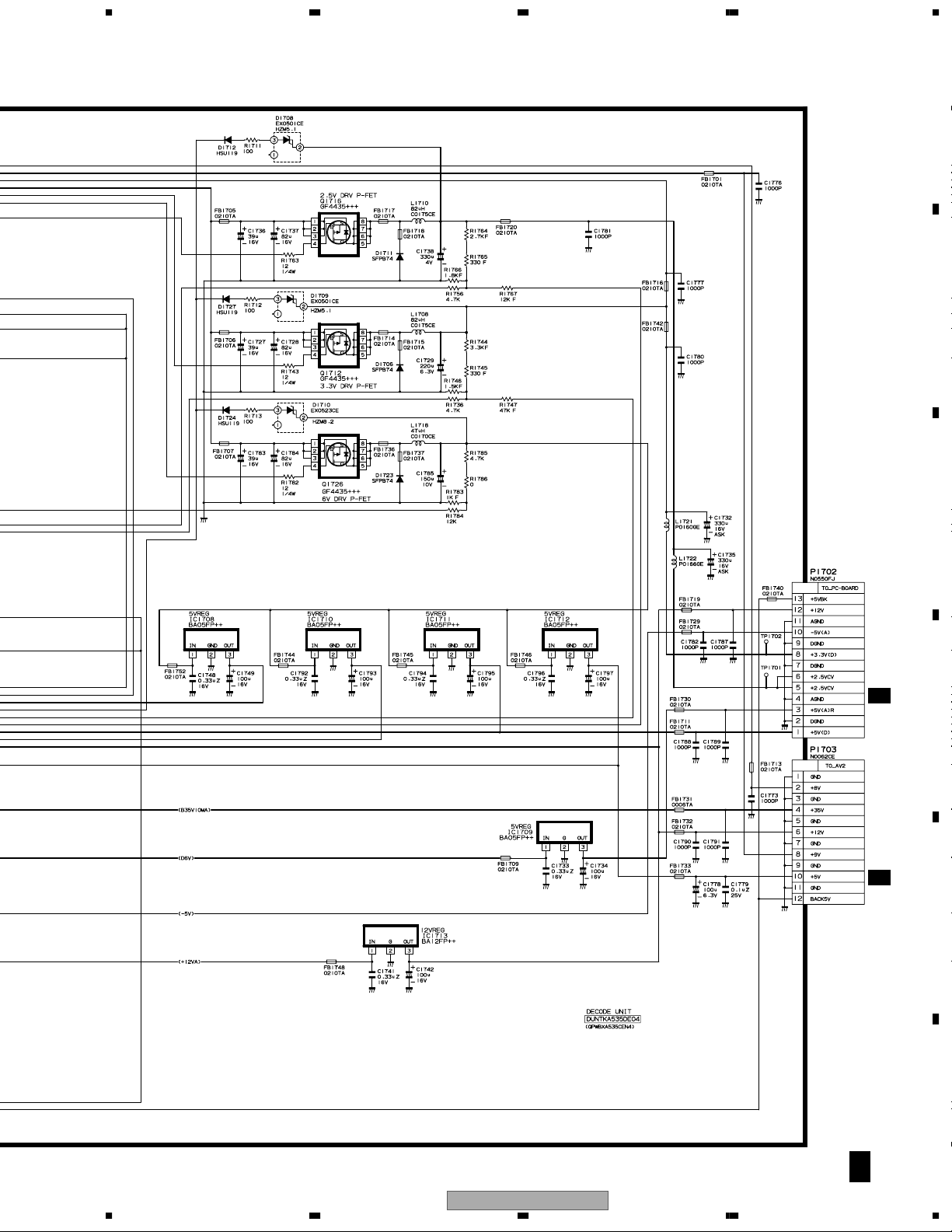

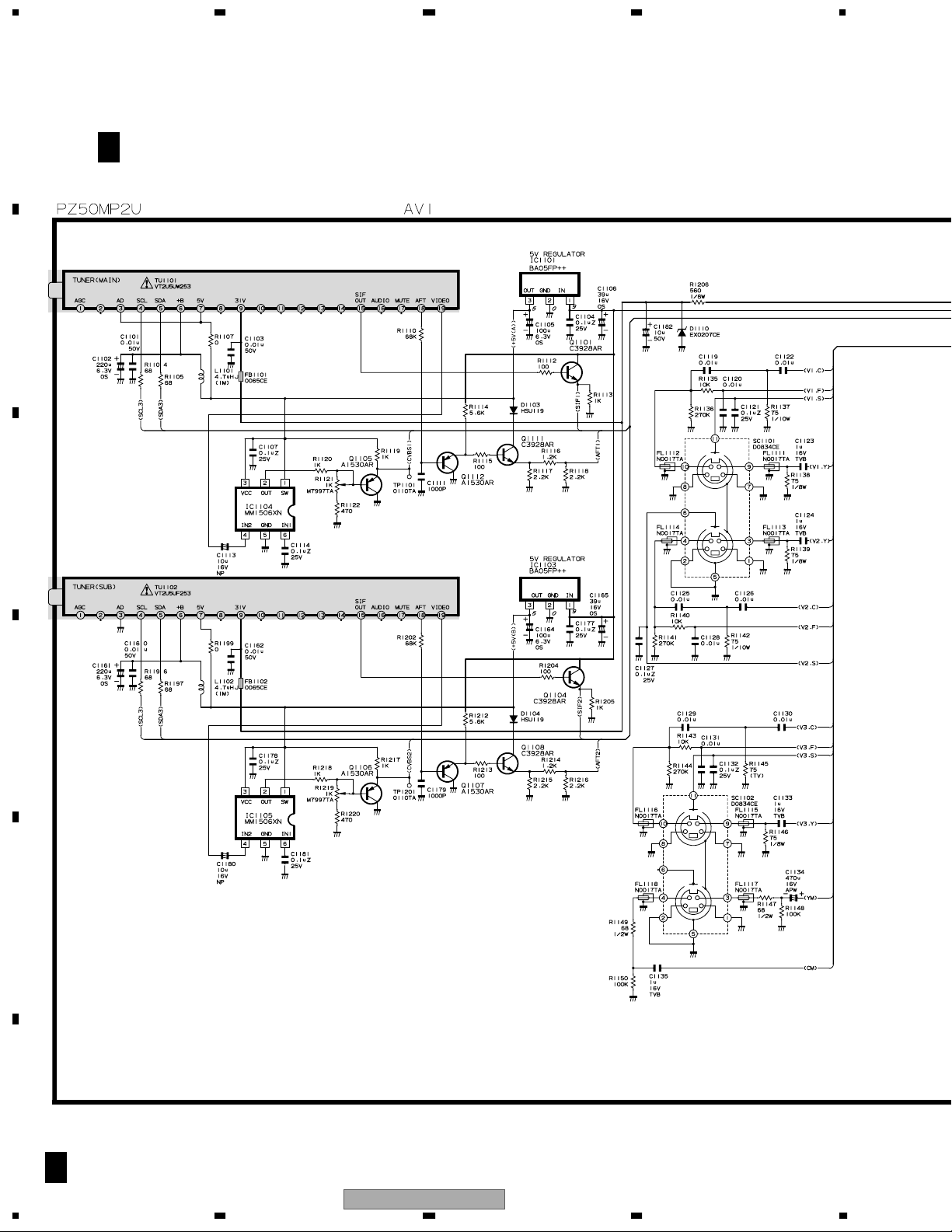

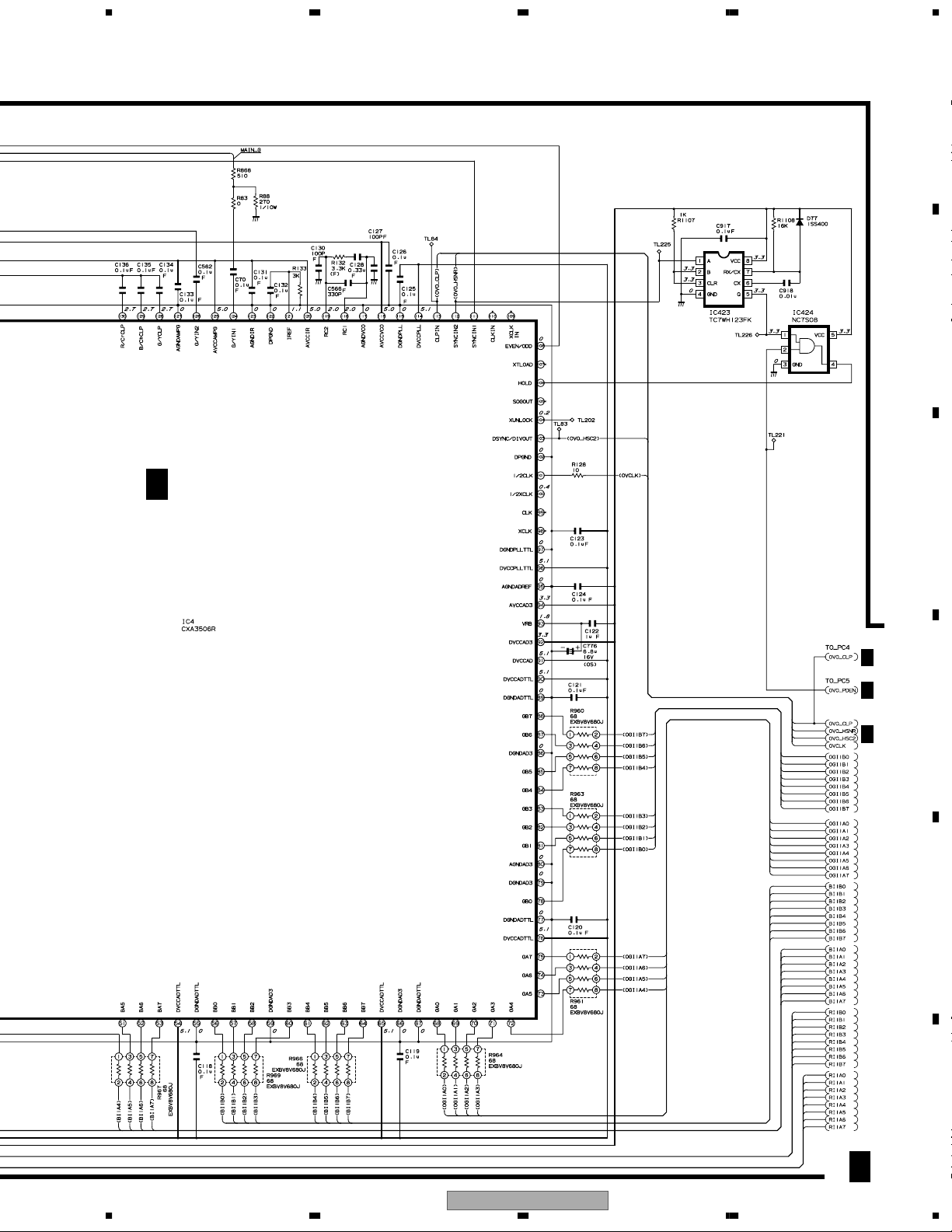

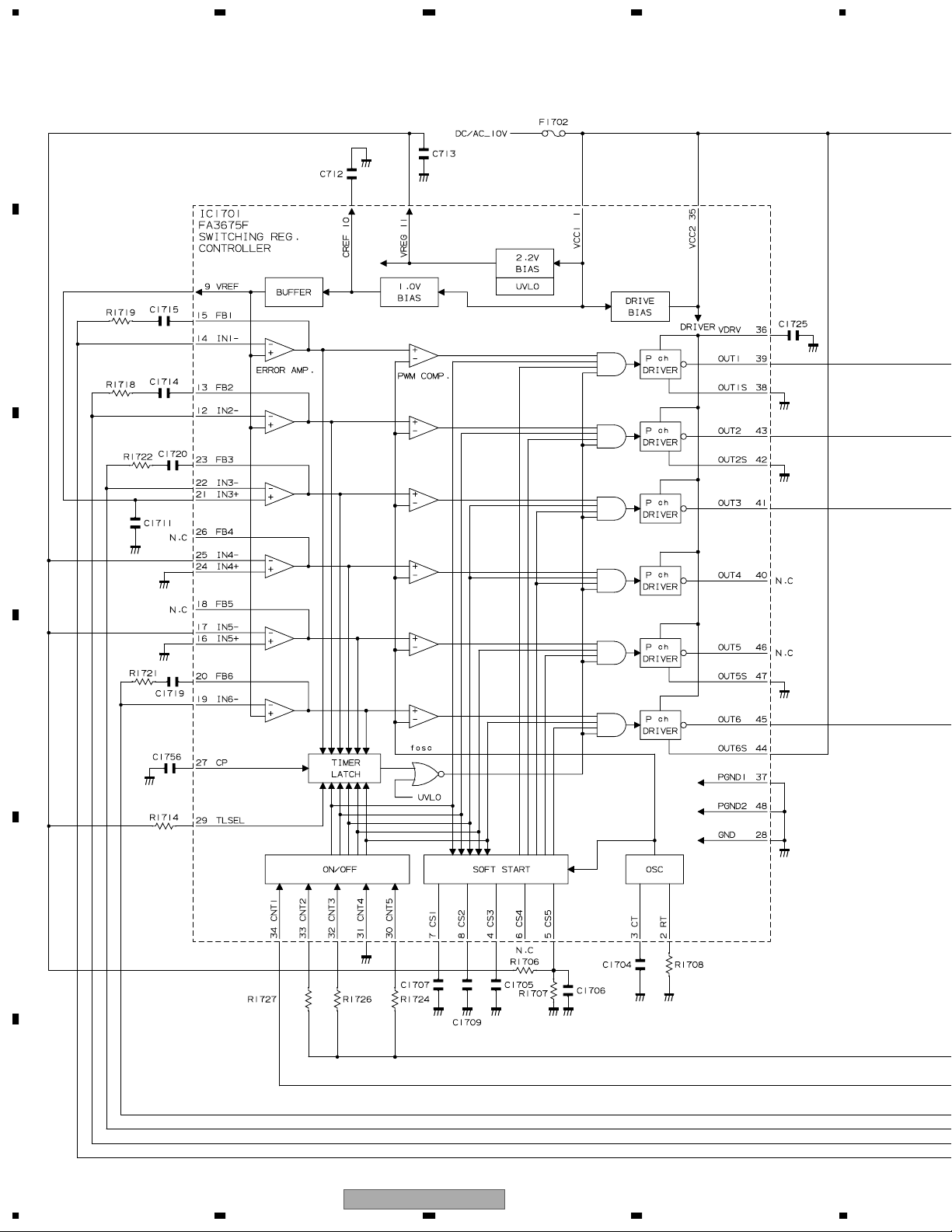

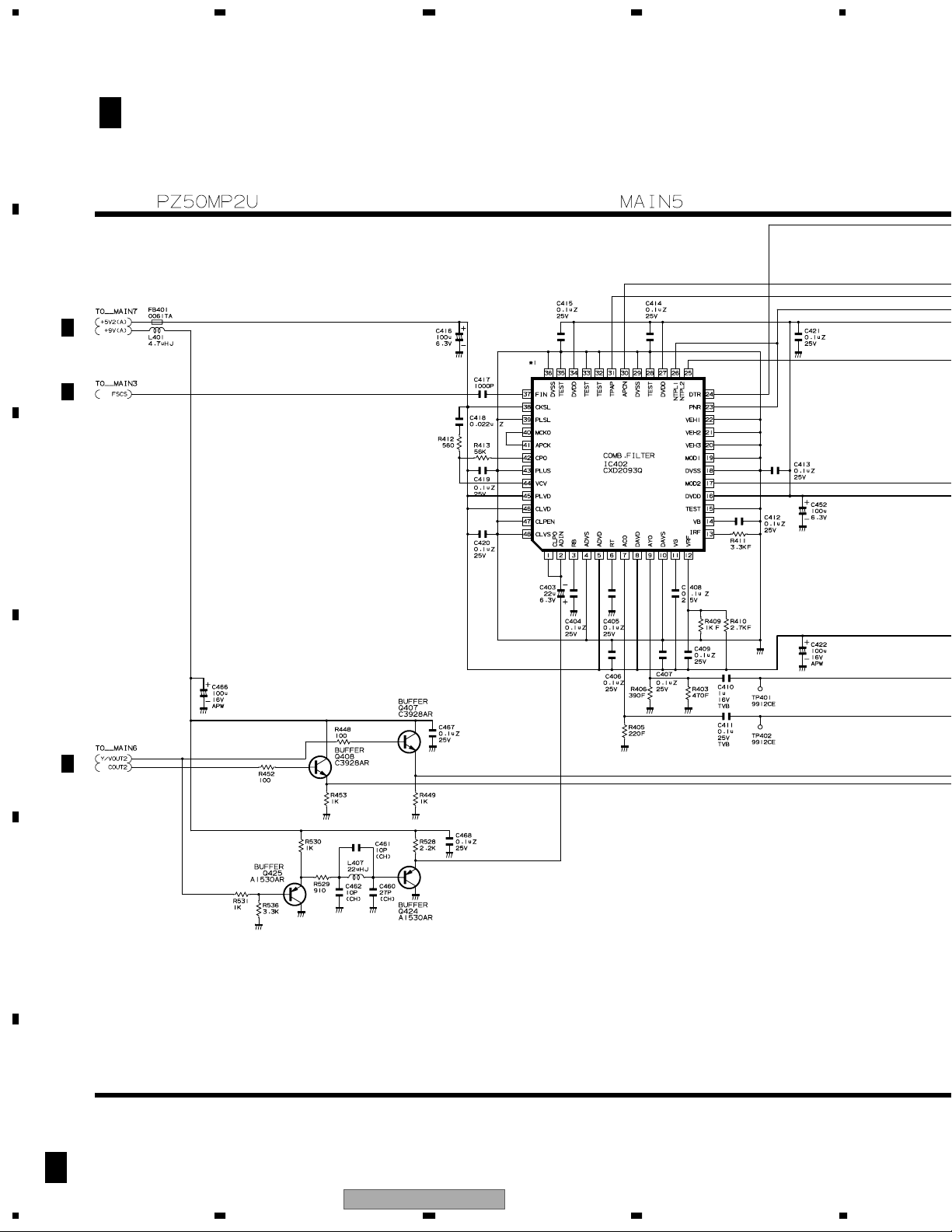

DESCRIPTION OF SCHEMATIC DIAGRAM
VOLTAGE MEASUREMENT CONDITION:
1. When the exclusive-use AC adapter is used, the color
bar signal of color bar generator for service is input to
get the normal screen. When the audio is minimized,
the voltage value is measured with the 20 k /V tester.
WAVEFORM MEASUREMENT CONDITION:
B
1. When the exclusive-use AC adapter is used, the color
density, lightness and color hue are set to the center
position, and the signal of color bar generator for service
is observed to get waveform.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
INDICATION OF RESISTOR & CAPACITOR:
C
RESISTOR
1. The unit of resistance “” is omitted.
(K=k =1000 , M=M ).
2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)
3. All resistors are Carbon type, unless otherwise noted.
C : SolidW : Cement
S : Oxide FilmT : Special
N : Metal Coating
CAPACITOR
1. All capacitors are mF, unless otherwise noted.
(P=pF=mmF).
2. All capacitors are Ceramic type, unless otherwise
noted.
(ML) : Mylar(TA) : Tantalum
(PF) : Polypro Film(ST) : Styrol
CAUTION:
This circuit diagram is original one, therefore there may be a
slight difference from yours.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH “” ( )ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.
D
E
F
22
PDP-R03U
1234
Page 23

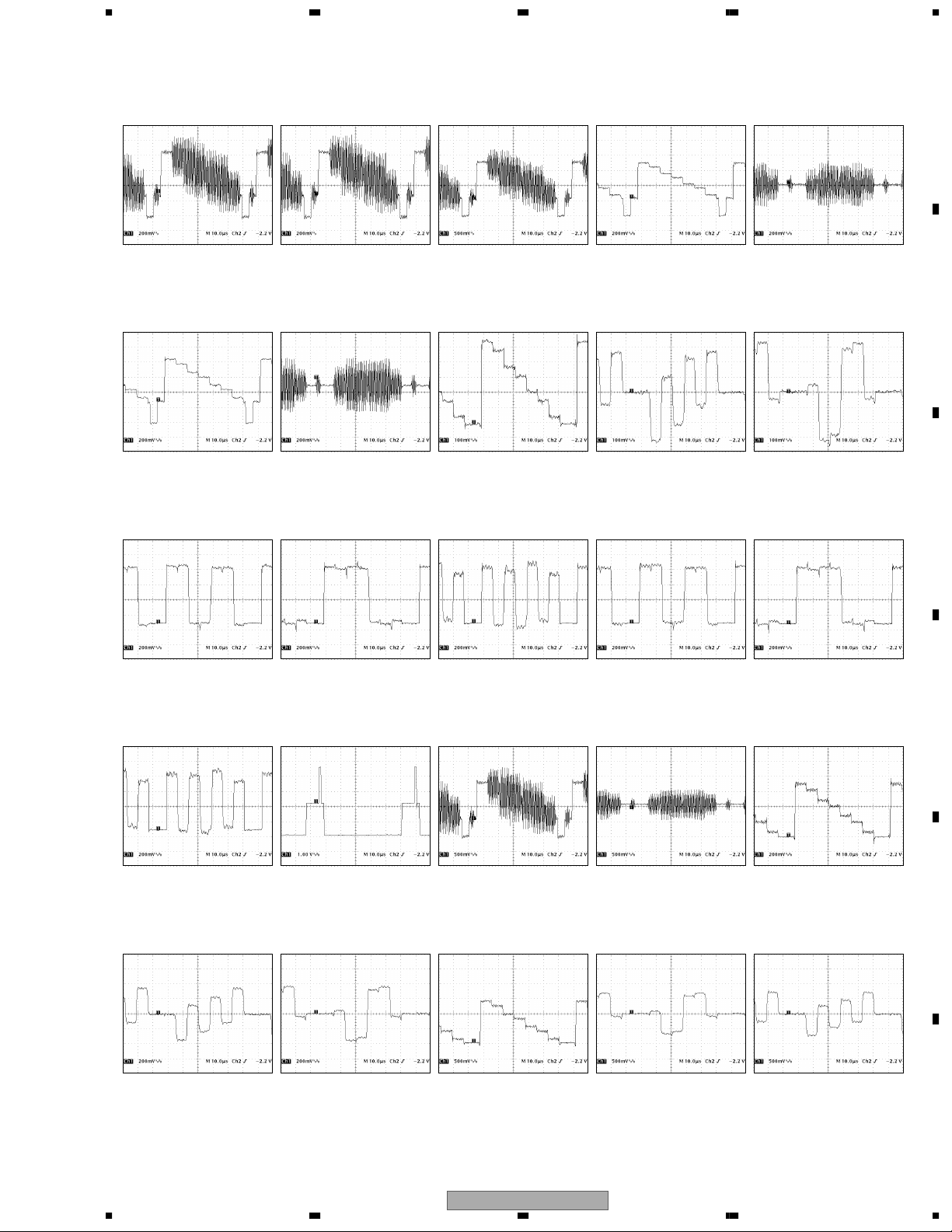

WAVEFORMS
1
IC1301 63-pin
V: 200mV/div H: 10µsec/div
2
IC1301 60-pin
V: 200mV/div H: 10µsec/div
3
IC1301 56-pin
V: 500mV/div H: 10µsec/div
4
TP7004
V: 200mV/div H: 10µsec/div
5
TP7003
V: 200mV/div H: 10µsec/div
6
TP812
V: 200mV/div H: 10µsec/div
7
TP603
V: 200mV/div H: 10µsec/div
8
TP803
V: 100mV/div H: 10µsec/div
9
TP802
V: 100mV/div H: 10µsec/div
0
TP801
V: 100mV/div H: 10µsec/div
-
TP809
V: 200mV/div H: 10µsec/div
=
TP808
V: 200mV/div H: 10µsec/div
~
TP807
V: 200mV/div H: 10µsec/div
!
IC810 13-pin
V: 200mV/div H: 10µsec/div
@
IC810 11-pin
V: 200mV/div H: 10µsec/div
#
IC810 10-pin
V: 200mV/div H: 10µsec/div
$
IC803 31-pin
V: 1V/div H: 10µsec/div
%
IC1301 44-pin
V: 500mV/div H: 10µsec/div
^
TP410
V: 500mV/div H: 10µsec/div
&
IC802 21-pin
V: 200mV/div H: 10µsec/div
*
IC802 22-pin
V: 200mV/div H: 10µsec/div
(
IC802 23-pin
V: 200mV/div H: 10µsec/div
)
IC804 13-pin
V: 500mV/div H: 10µsec/div
_
IC804 11-pin
V: 500mV/div H: 10µsec/div
+
IC804 10-pin
V: 500mV/div H: 10µsec/div
5678
A
B
C
D
56
PDP-R03U
7
E
F
23
8
Page 24
1234

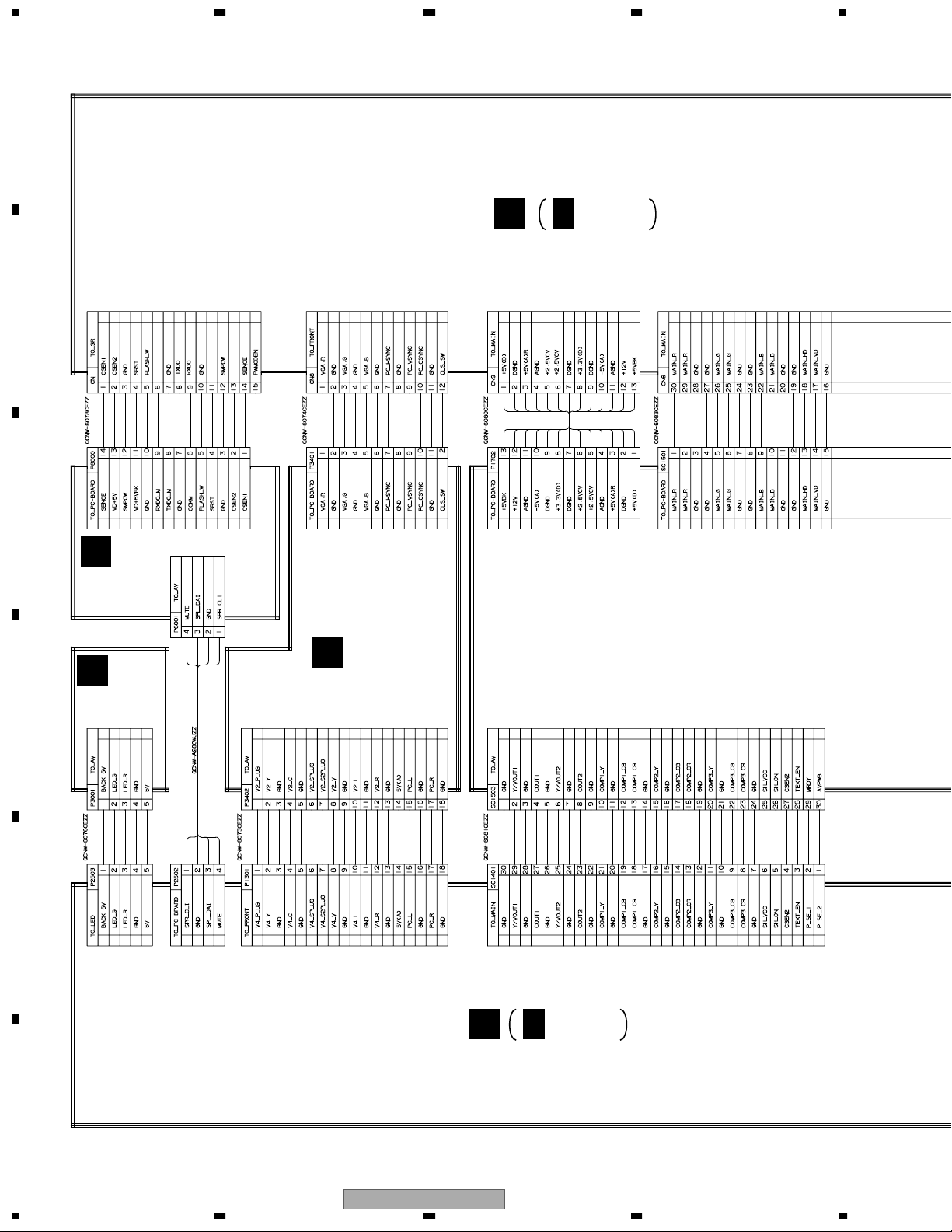

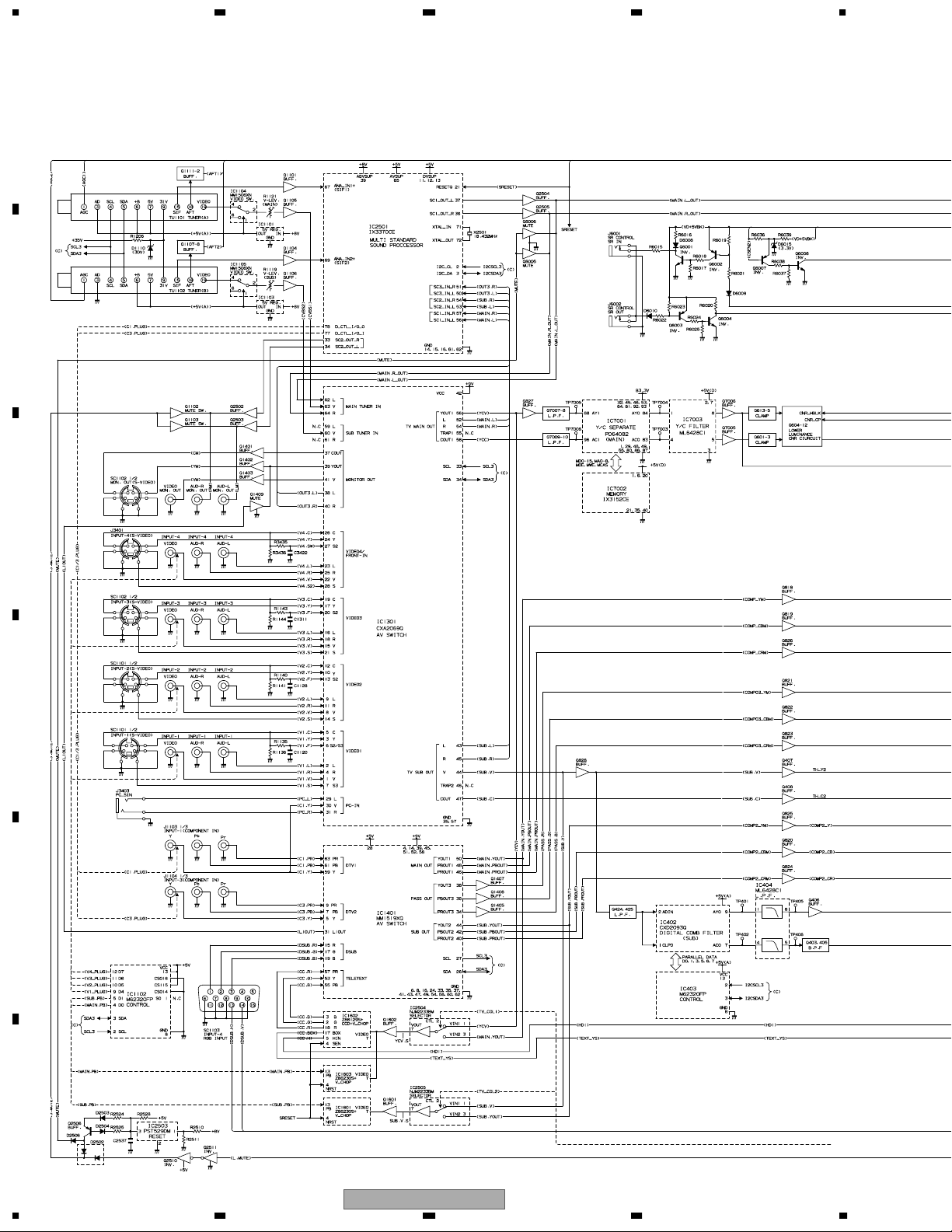

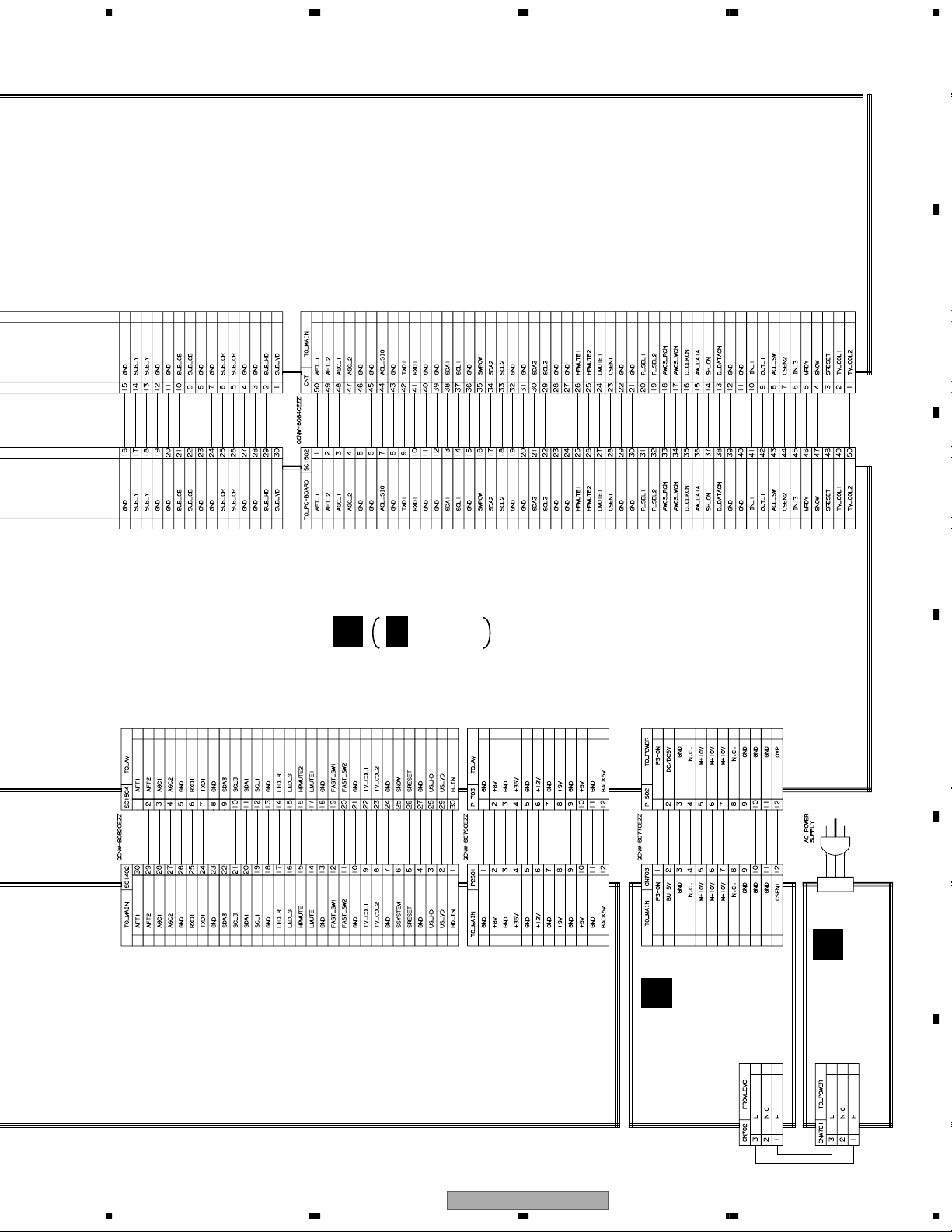

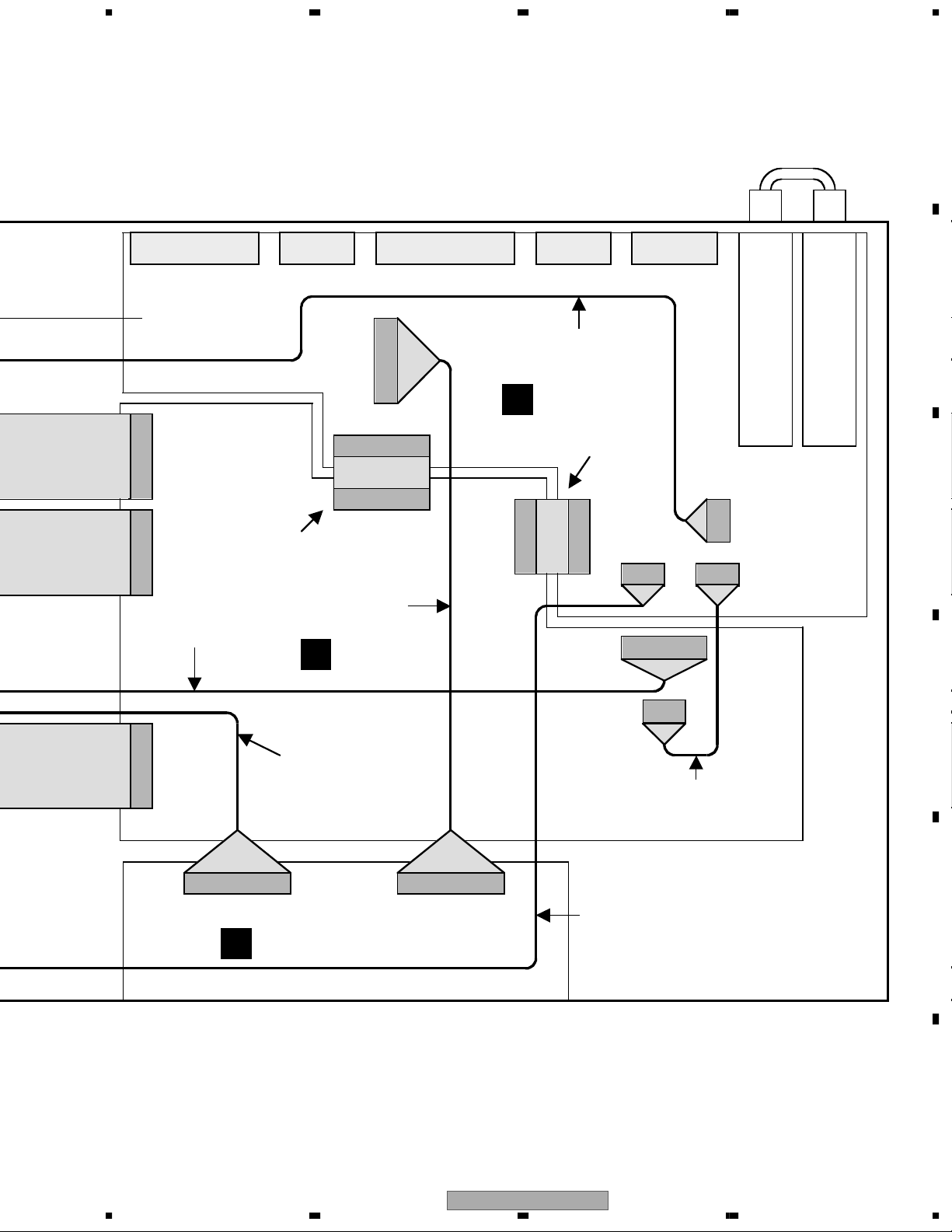

3.7 OVERALL WIRING DIAGRAM (1)
A
B
H
EMC
UNIT
SR CONNECT
E
UNIT
P6000P6001
F
PC I/F UNIT
QCNW6084CEZZ
CN1
CN7
C
CN9CN8
D
CN702
QCNW6083CEZZ
CN6
CN703
QCNW-6077CEZZ
G
E
POWER UNIT
P3001

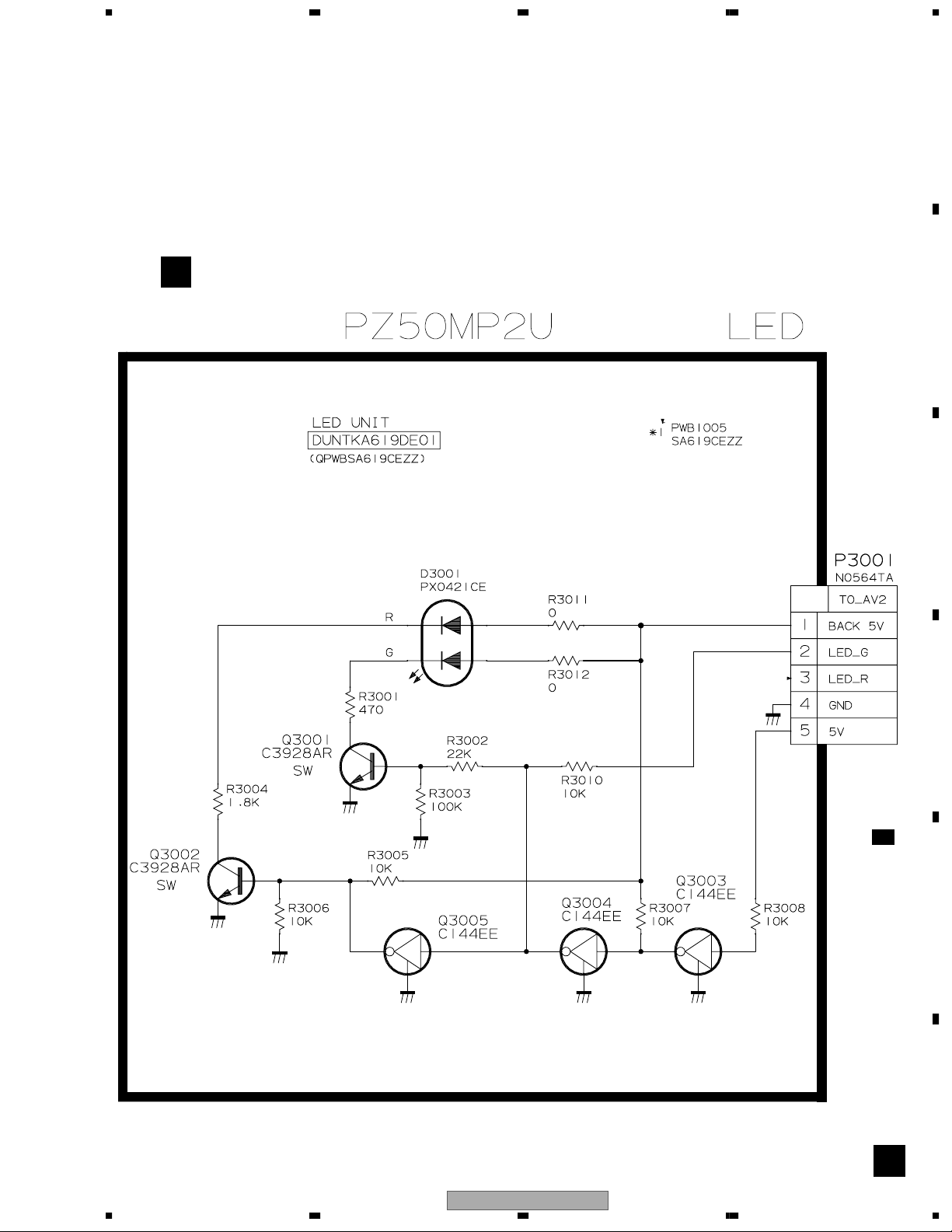

LED UNIT
D
F
24
1234
PDP-R03U
Page 25
5678
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
QCNW-6078CEZZ
QCNW-A280WJZZ
TUNER
TUNER
P1301
AV UNIT
C
SC1401
QCNW-6082CEZZ
SC1502
P2502
P2501
SC1501
SC1503
QCNW-6081CEZZ
SC1504
P2503
SC1402
A
B
C
QCNW-6073CEZZ
QCNW-6080CEZZ
P1502
QCNW-6074CEZZ
P3401P3402
FRONT UNIT
B
MAIN UNIT
A
P1702
P1703
QCNW-6079CEZZ
QCNW-6076CEZZ
D
E
PDP-R03U
56
F
7
25
8
Page 26
1234

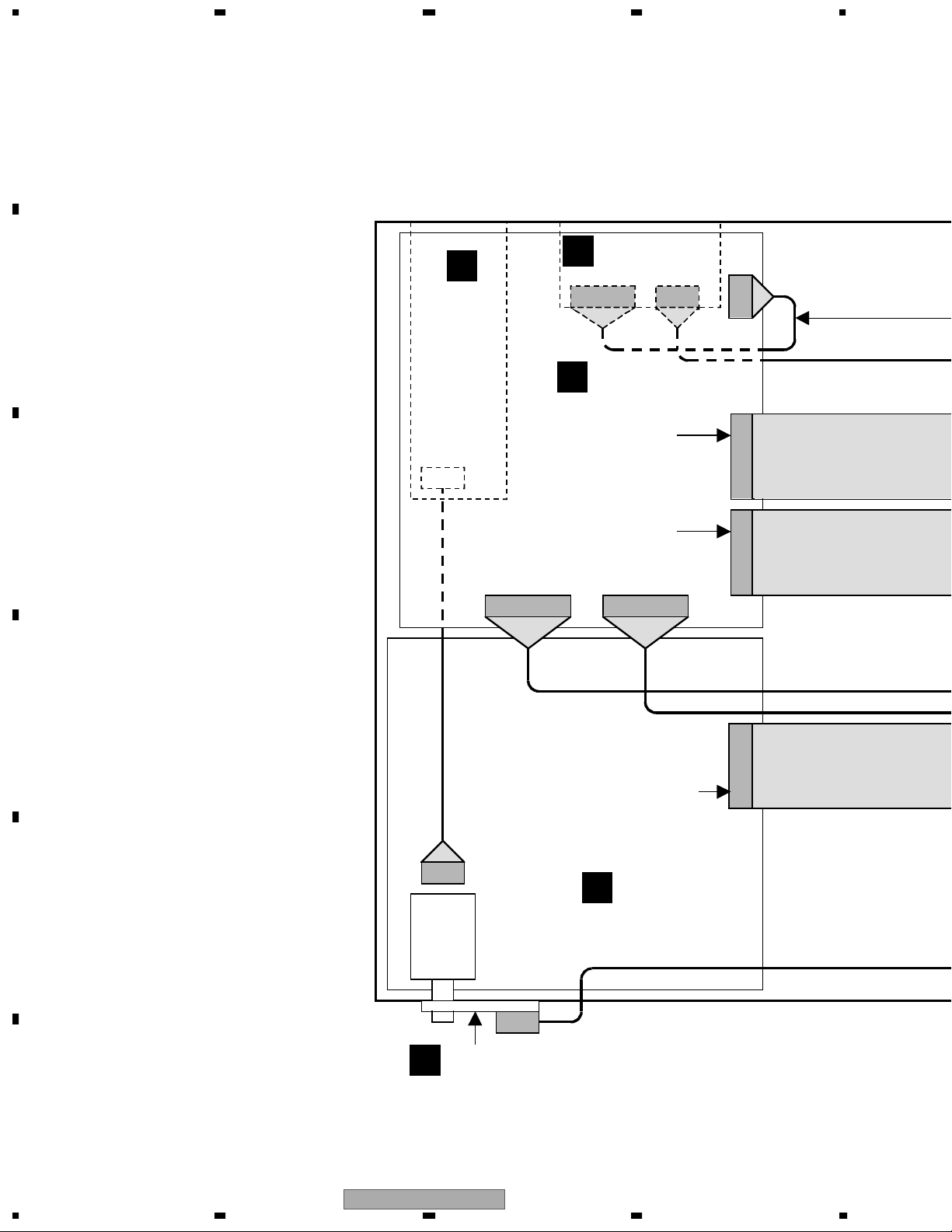

3.8 OVERALL WIRING DIAGRAM (2)
A
F
PC I/F UNIT (CPCI-0056CE15)
B
C
SR CONNECT
E
UNIT
(DUNTKA
618DE01)
LED
D
UNIT
(DUNTKA
D
619DE01)
B
FRONT UNIT
(DUNTKA617DE01)
F 1/7-7/7
E
C
AV UNIT (DUNTKA616DE01)
F
26
1234
PDP-R03U
C 1/3-3/3
Page 27
5678
A
B
A
A 1/7-7/7
MAIN UNIT (DUNTKA535DE04)
G
POWER UNIT
(RDENC0331CEZZ)
C
D
E
H
EMC
UNIT
(RDENCA
007WJZZ)
PDP-R03U
56
F
7
27
8
Page 28
1234
3.9 MAIN UNIT (1/7)
A
A 1/7
B
C
MAIN UNIT (DUNTKA535DE04)
D
E
F
A
A
28
1/7
PDP-R03U
1234

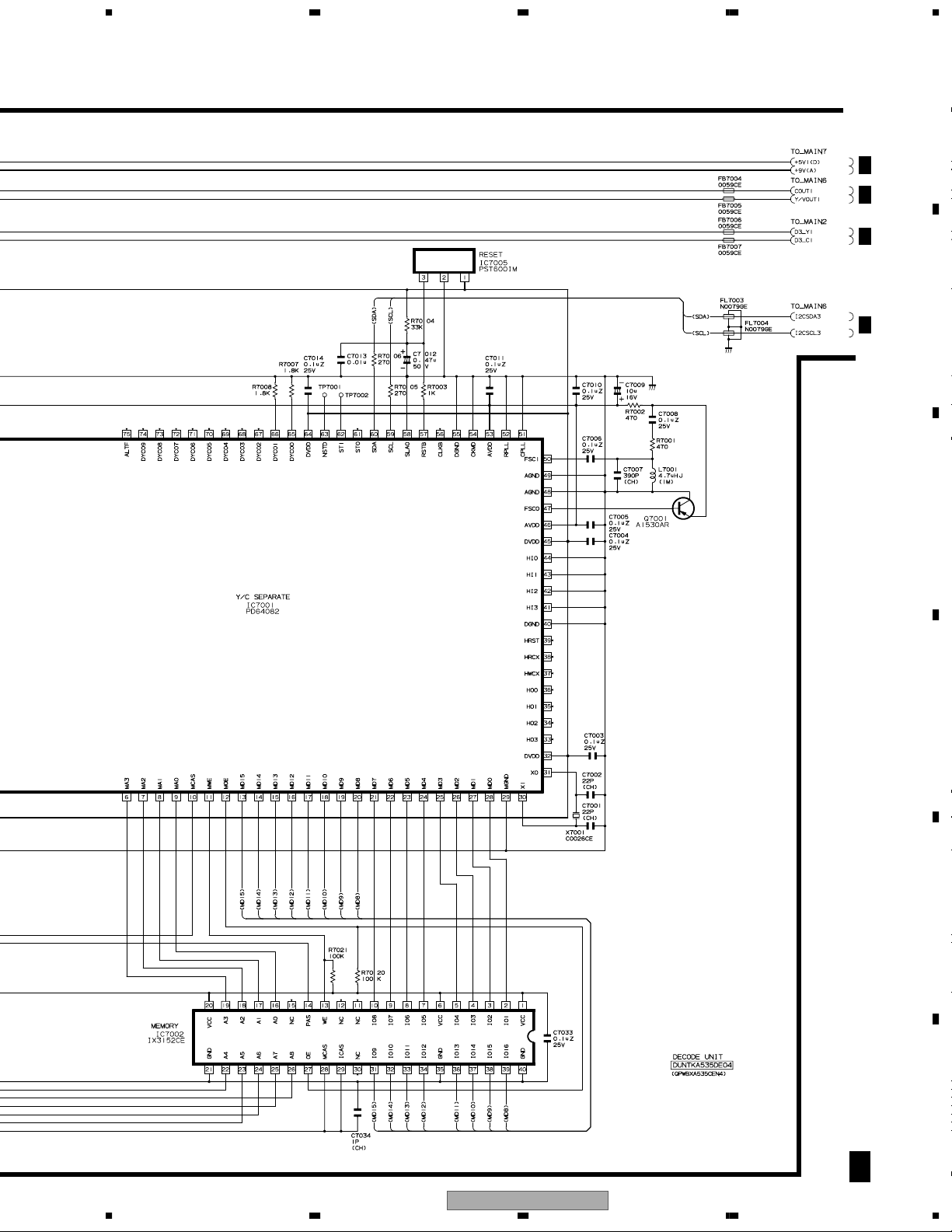

Page 29
5678
A
A
7/7
A
6/7
A
2/7
B
A
6/7
C
D
E
PDP-R03U
56
F
A
1/7
7
29
8
Page 30
1234

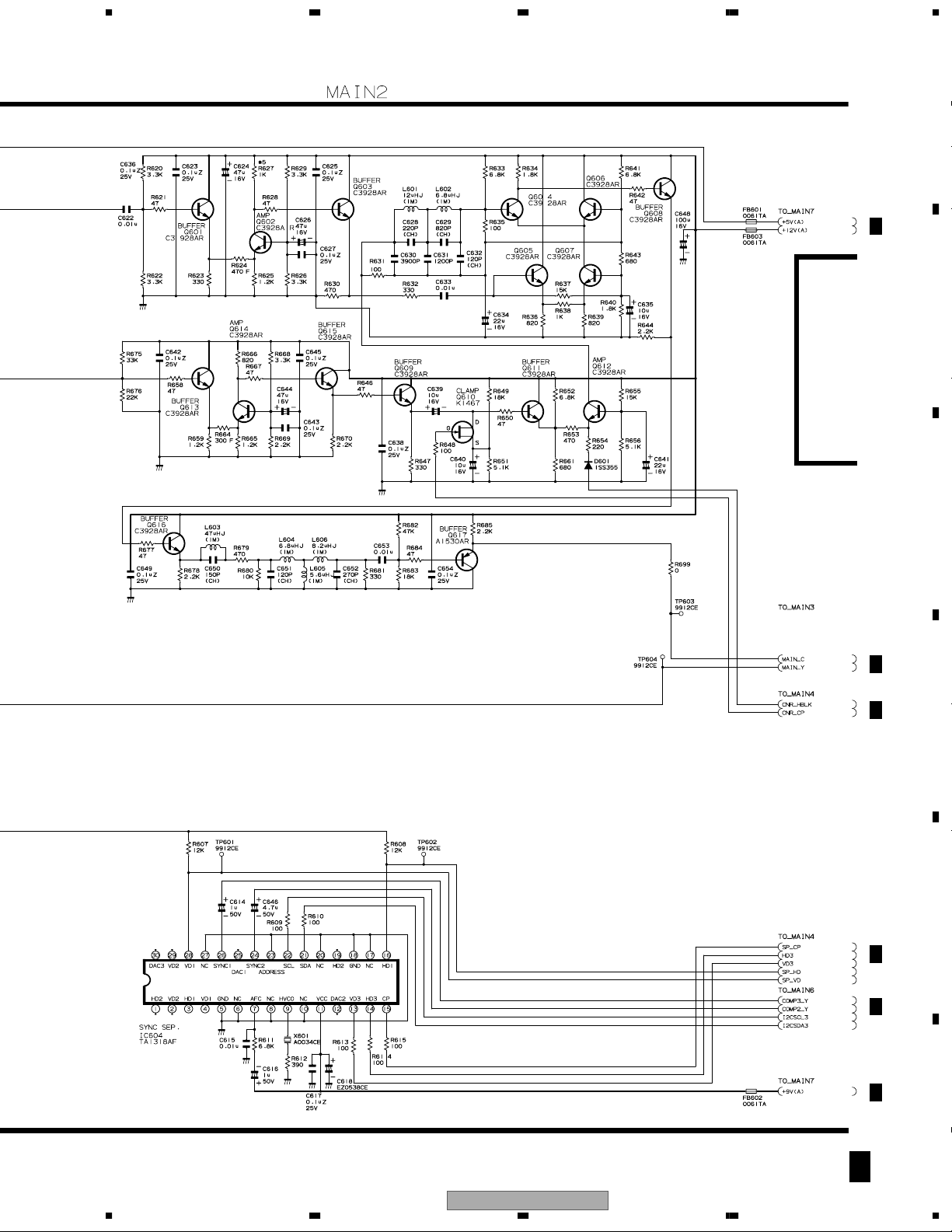

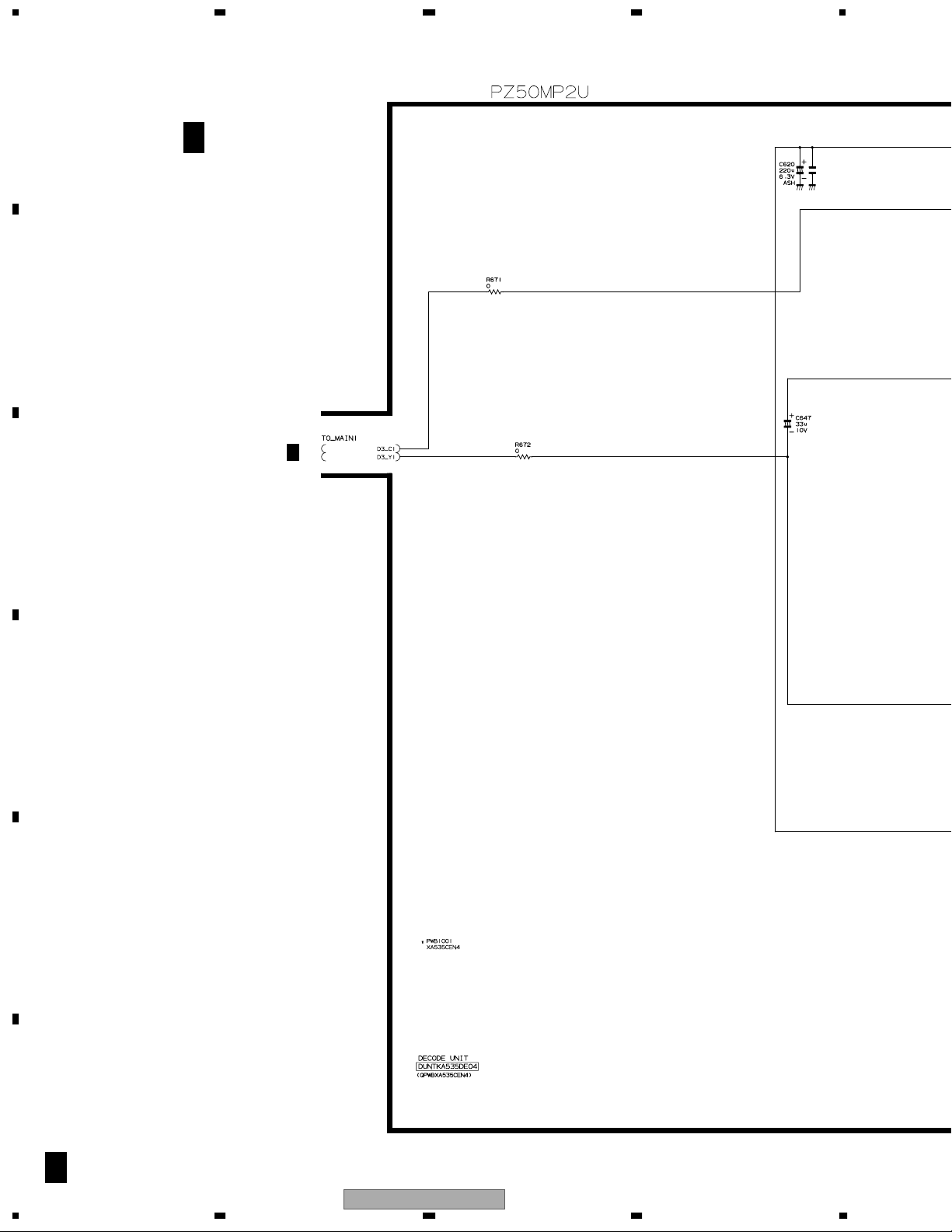

3.10 MAIN UNIT (2/7)
A
B
A 2/7
MAIN UNIT
(DUNTKA535DE04)
A
1/7
C
D
E
F
A
2/7
A
30
1234
PDP-R03U
Page 31
5678
A
A
7/7
B
C
A
3/7
A
4/7
A
4/7
D
E
PDP-R03U
56
A
6/7
A
7/7
F
A
2/7
7
31
8
Page 32
1234
3.11 MAIN UNIT (3/7)
A
B
A
2/7
C
A 3/7
MAIN UNIT
(DUNTKA535DE04)
D
E
F
A
3/7
A
32
1234
PDP-R03U

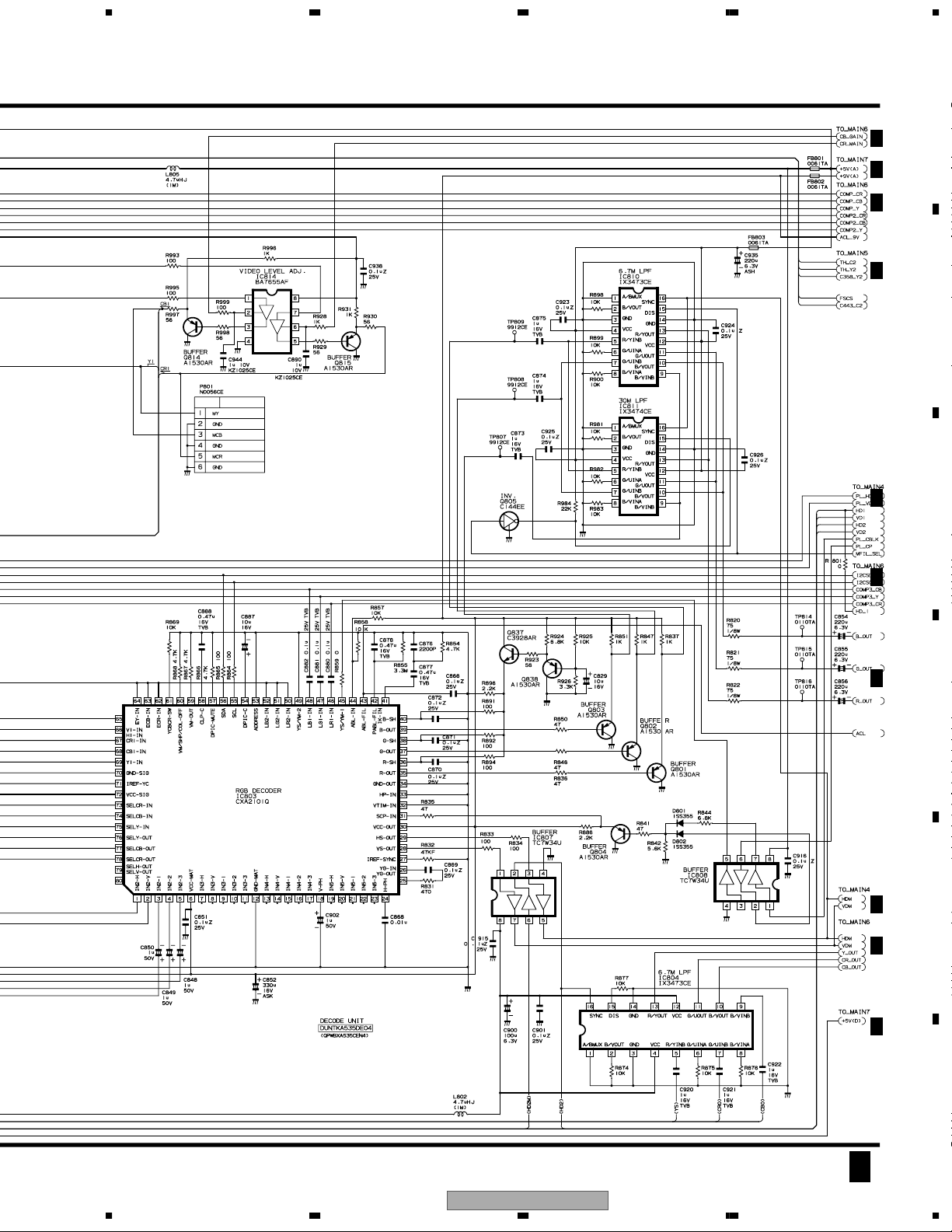

Page 33
5678
A
A
6/7
A
7/7
A
6/7
A
5/7
B
A
4/7
A
6/7
A
6/7
A
4/7
A
6/7
C
D
E
PDP-R03U
56
A
7/7
F
A
3/7
7
33
8
Page 34
1234

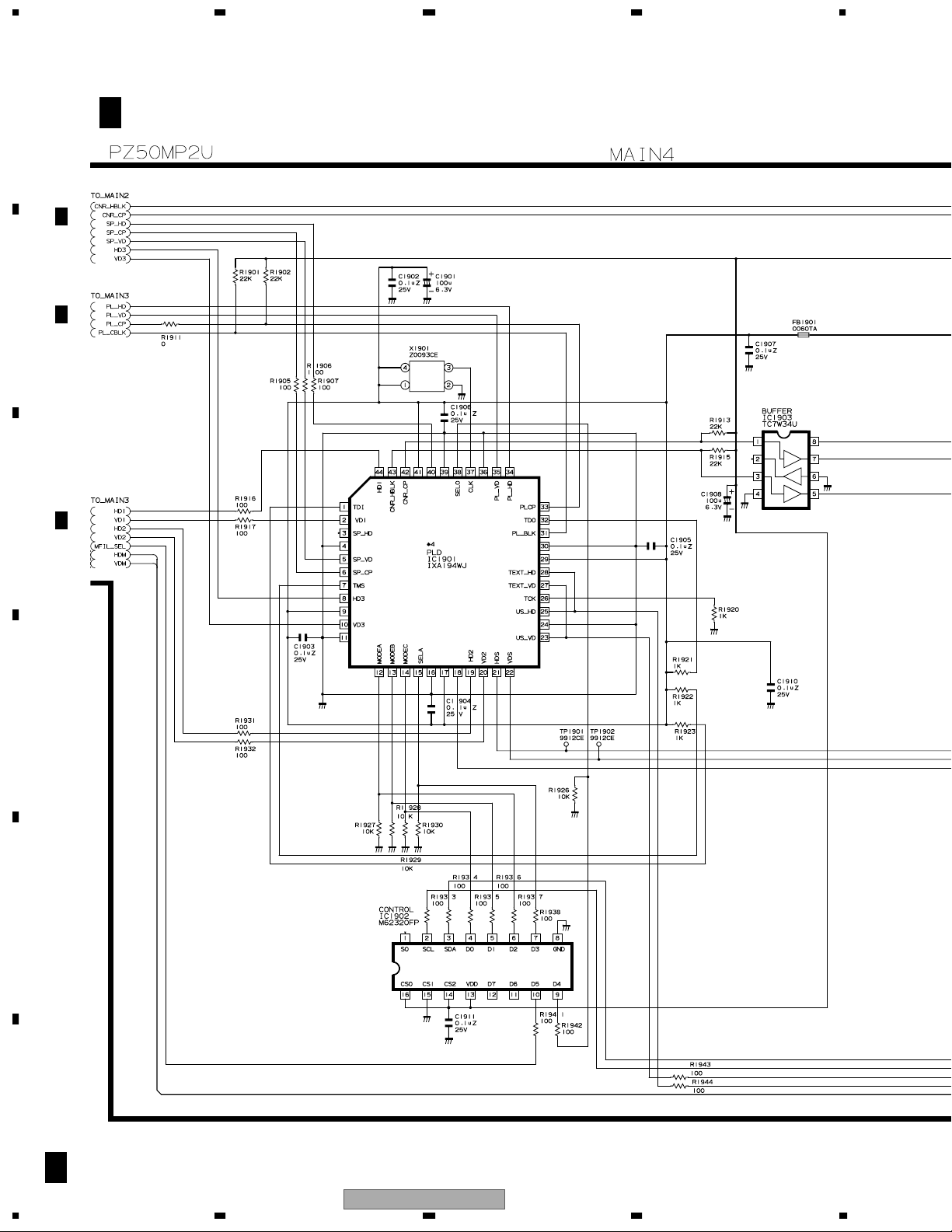

3.12 MAIN UNIT (4/7)
A
B
C
A
A
A
A 4/7
2/7
3/7
3/7
MAIN UNIT (DUNTKA535DE04)
D
E
F
A
A
34
4/7
PDP-R03U
1234
Page 35

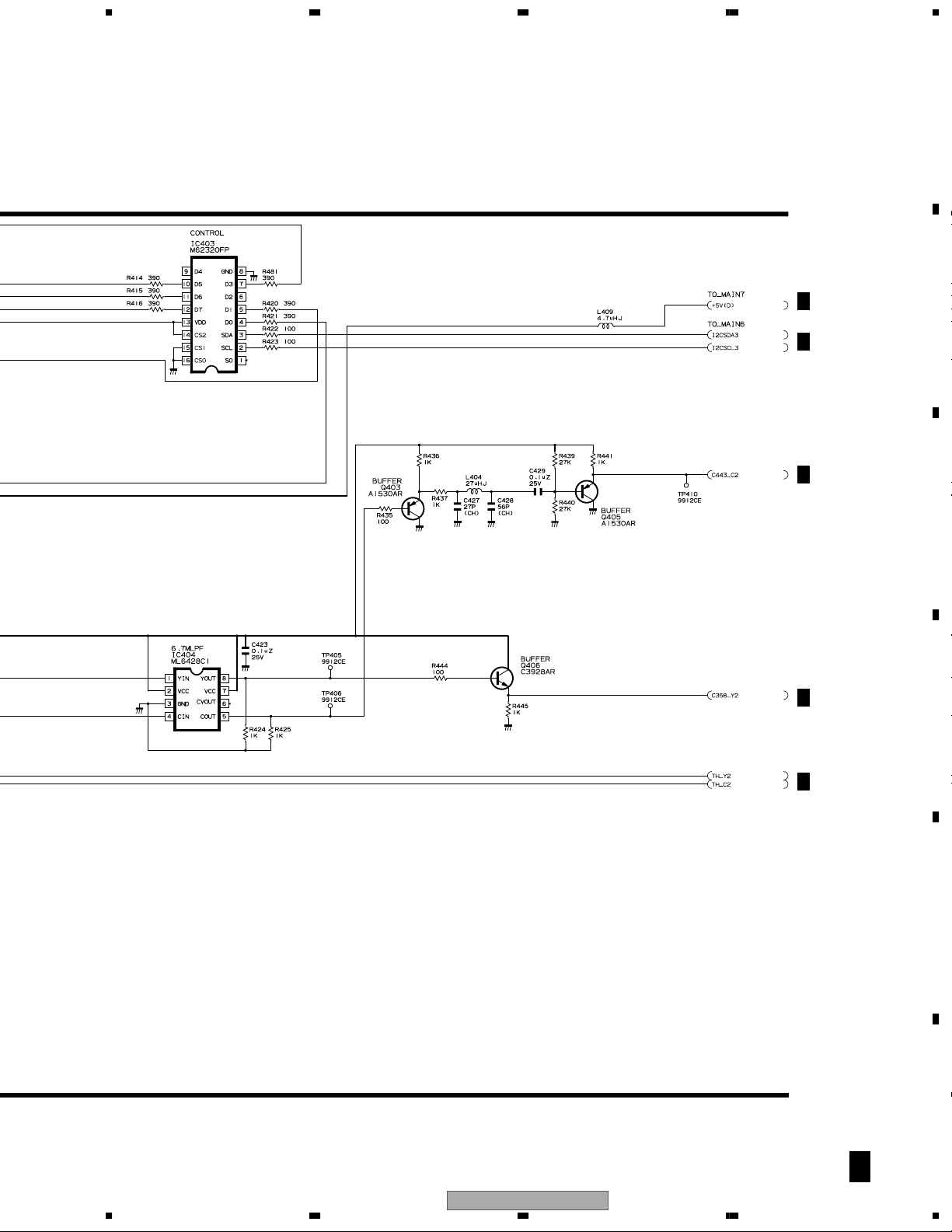

5678
A
B
A
7/7
A
7/7
C
D
E
A
6/7
PDP-R03U
56
F
A
4/7
7
35
8
Page 36
1234
3.13 MAIN UNIT (5/7)
A
B
C
A
7/7
A
3/7
A 5/7
MAIN UNIT (DUNTKA535DE04)
D
A
6/7
E
F
A
A
36
5/7
PDP-R03U
1234
Page 37
5678
A
A
7/7
A
6/7
B
A
3/7
C
A
3/7
D
A
3/7
E
PDP-R03U
56
F
A
5/7
7
37
8
Page 38
1234

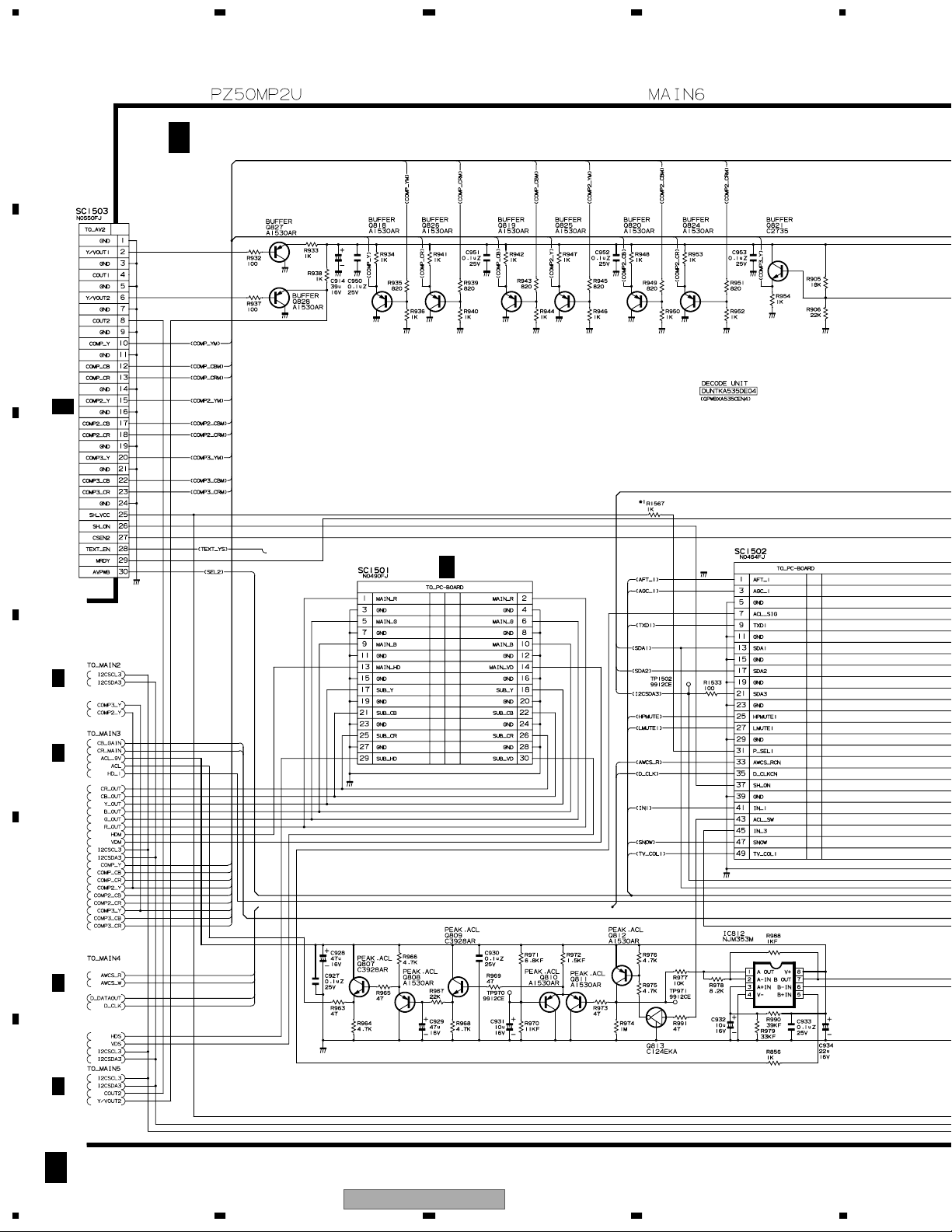

3.14 MAIN UNIT (6/7)
A
A 6/7
B
SC1401
MAIN UNIT (DUNTKA535DE04)
C 2/3
C
CN6
F 7/7
A
2/7
D
A
3/7
E
A
4/7
A
5/7
F
A
A
38
6/7
PDP-R03U
1234
Page 39
5678
A
B
CN703
G
F 2/7
C
CN7
SC1402
C 2/3
D
E
PDP-R03U
56
A
7/7
F
A
6/7
7
39
8
Page 40
1234

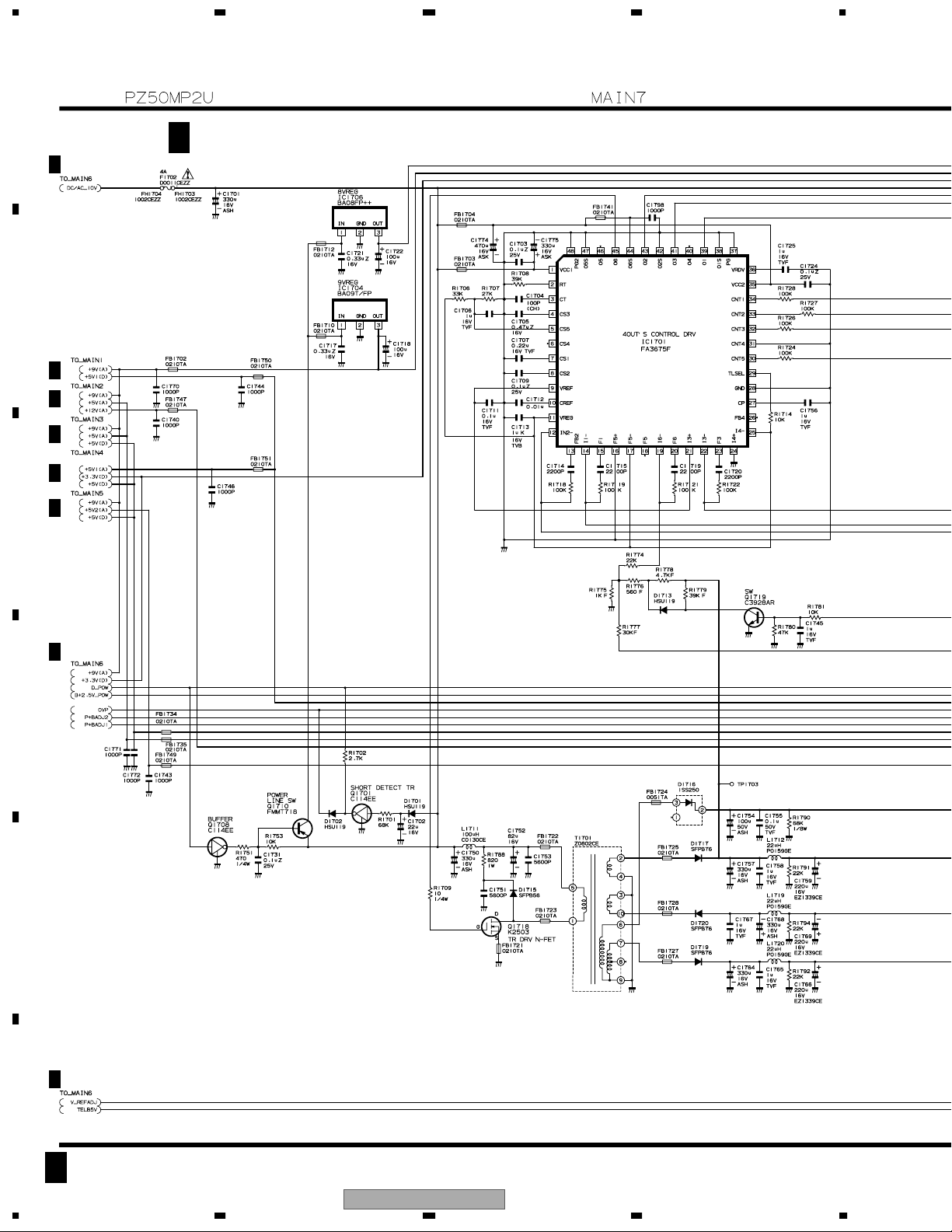

3.15 MAIN UNIT (7/7)
A
A 7/7
A
6/7
B
A
1/7
A
2/7
A
3/7
A
4/7
A
C
5/7
MAIN UNIT (DUNTKA535DE04)
A
6/7
D
E
A
6/7
F
A
7/7
A
40
1234
PDP-R03U
Page 41
5678
A
B
CN9
F 7/7
P2501
C 2/3
C
D
E
PDP-R03U
56
F
A
7/7
7
41
8
Page 42
1234

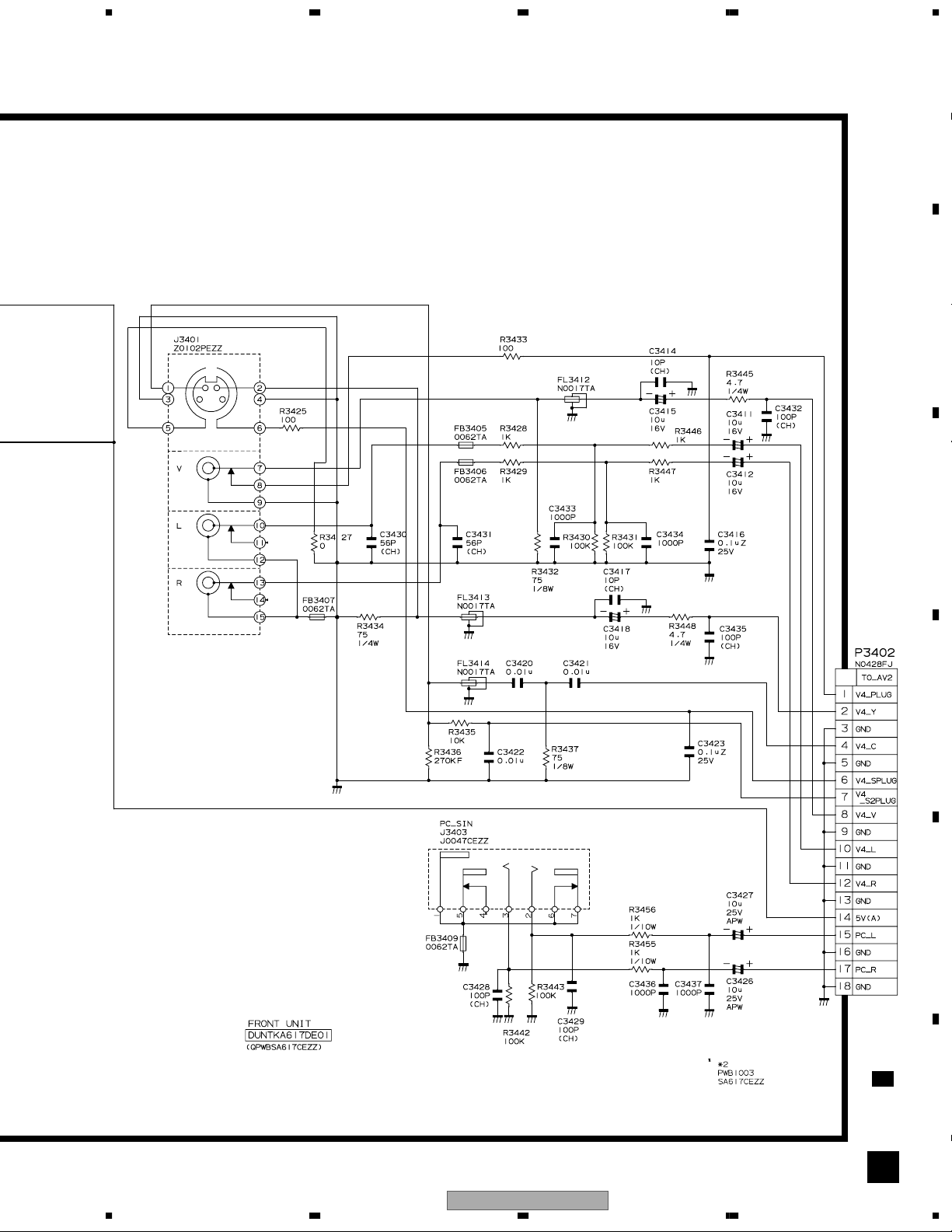

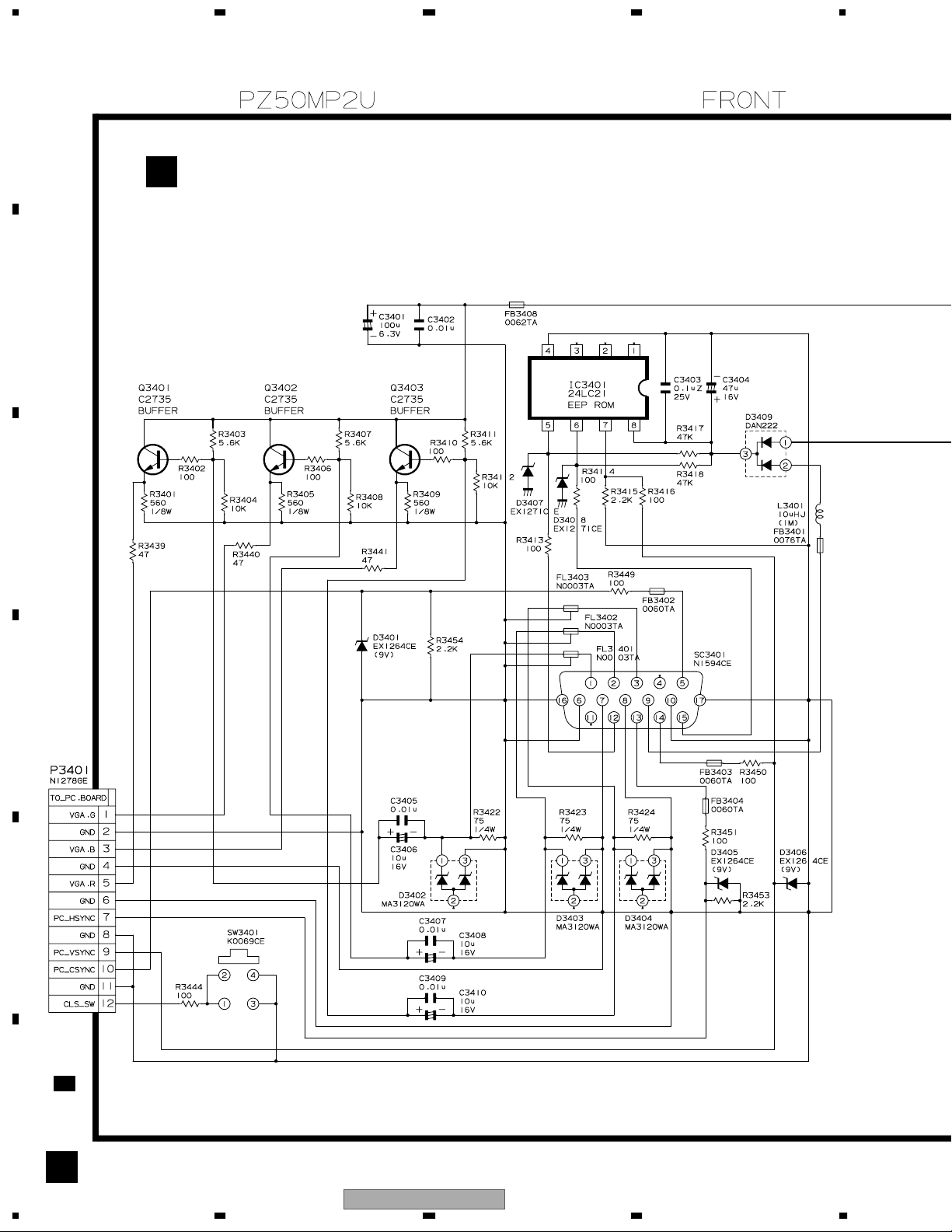

3.16 FRONT UNIT
A
B
B
FRONT UNIT (DUNTKA617DE01)
C
D
E
SW3401 : CLEAR
CN8
F 3/7
F
B
42
1234
PDP-R03U
Page 43
5678
A
B
C
D
E
PDP-R03U
56
P1301
C 2/3
F
B
7
43
8
Page 44
1234
3.17 AV UNIT (1/3)
A
C 1/3
B
C
AV UNIT (DUNTKA616DE01)
D
E
F
C
A
44
1/3
PDP-R03U
1234

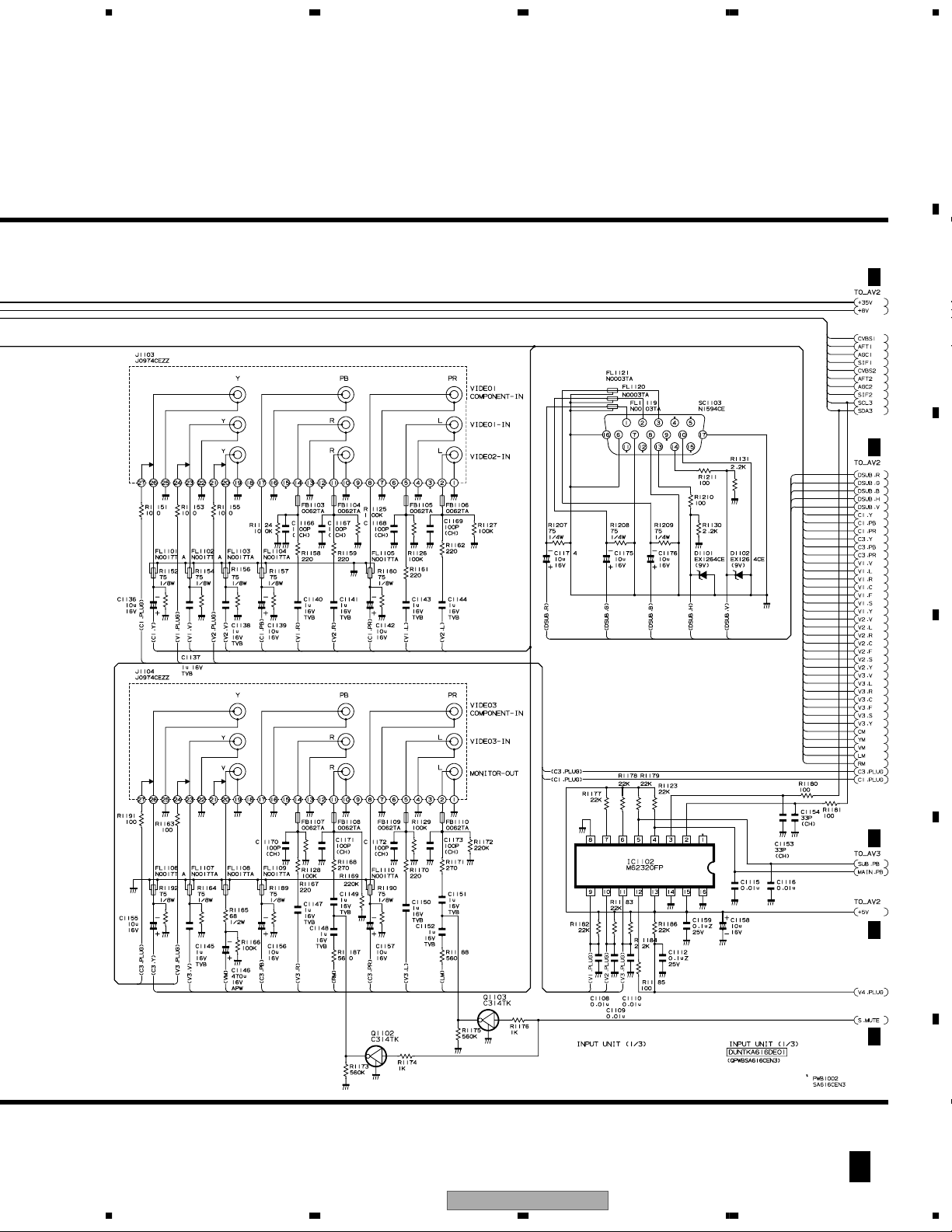

Page 45
5678
A
C
2/3
B
C
2/3
C
D
C
3/3
PDP-R03U
56
C
2/3
C
2/3
C
1/3
7
45
8
E
F
Page 46
1234

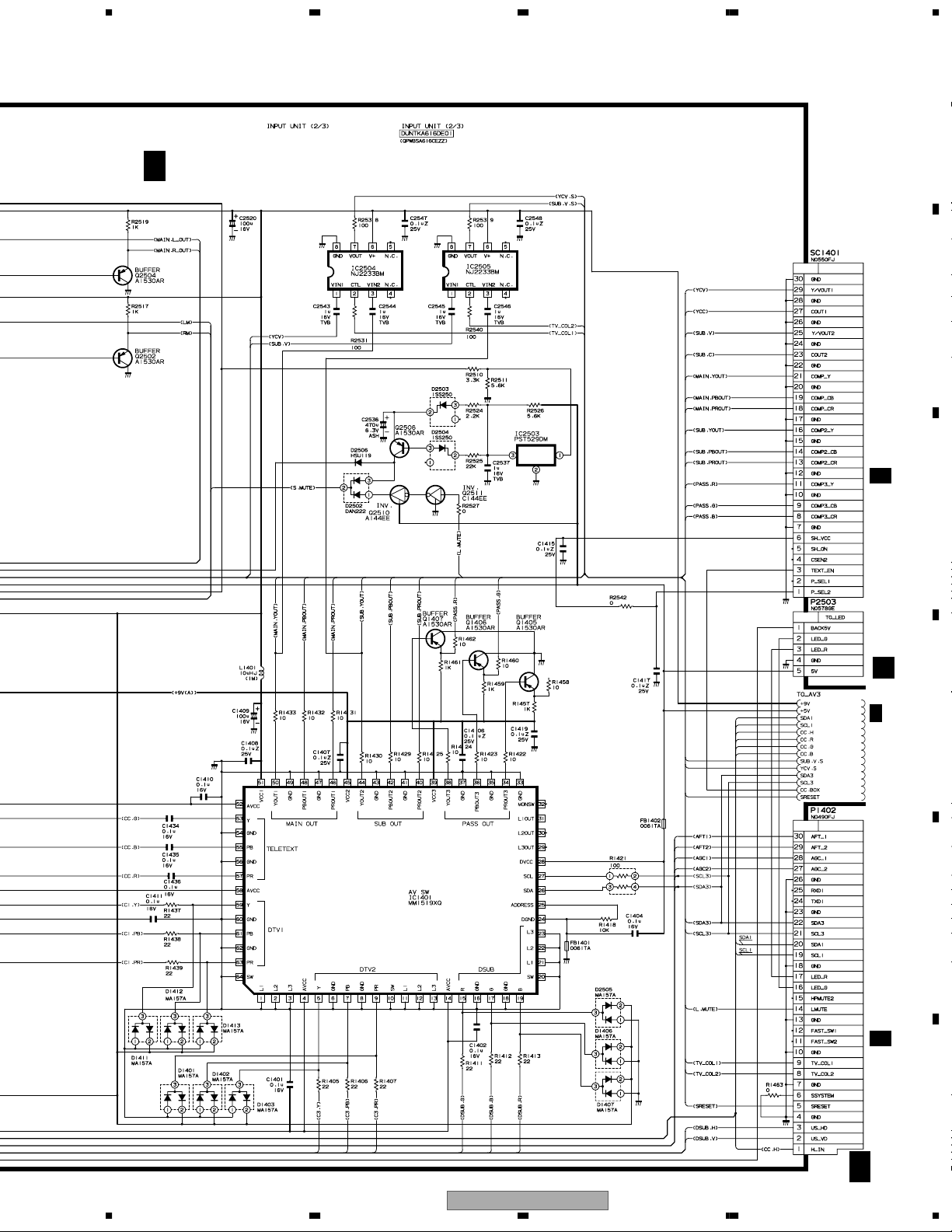

3.18 AV UNIT (2/3)
A
C
1/3
B
C
P6001
E
C
1/3
D
P1703
A 7/7
E
P3402
B
F
C
2/3
A
46
1234
PDP-R03U
Page 47
5678
A
C 2/3
AV UNIT (DUNTKA616DE01)
B
SC1503
A 6/7
C
P3001
D
C
3/3
SC1504
A 6/7
D
E
PDP-R03U
56
F
C
2/3
7
47
8
Page 48
1234

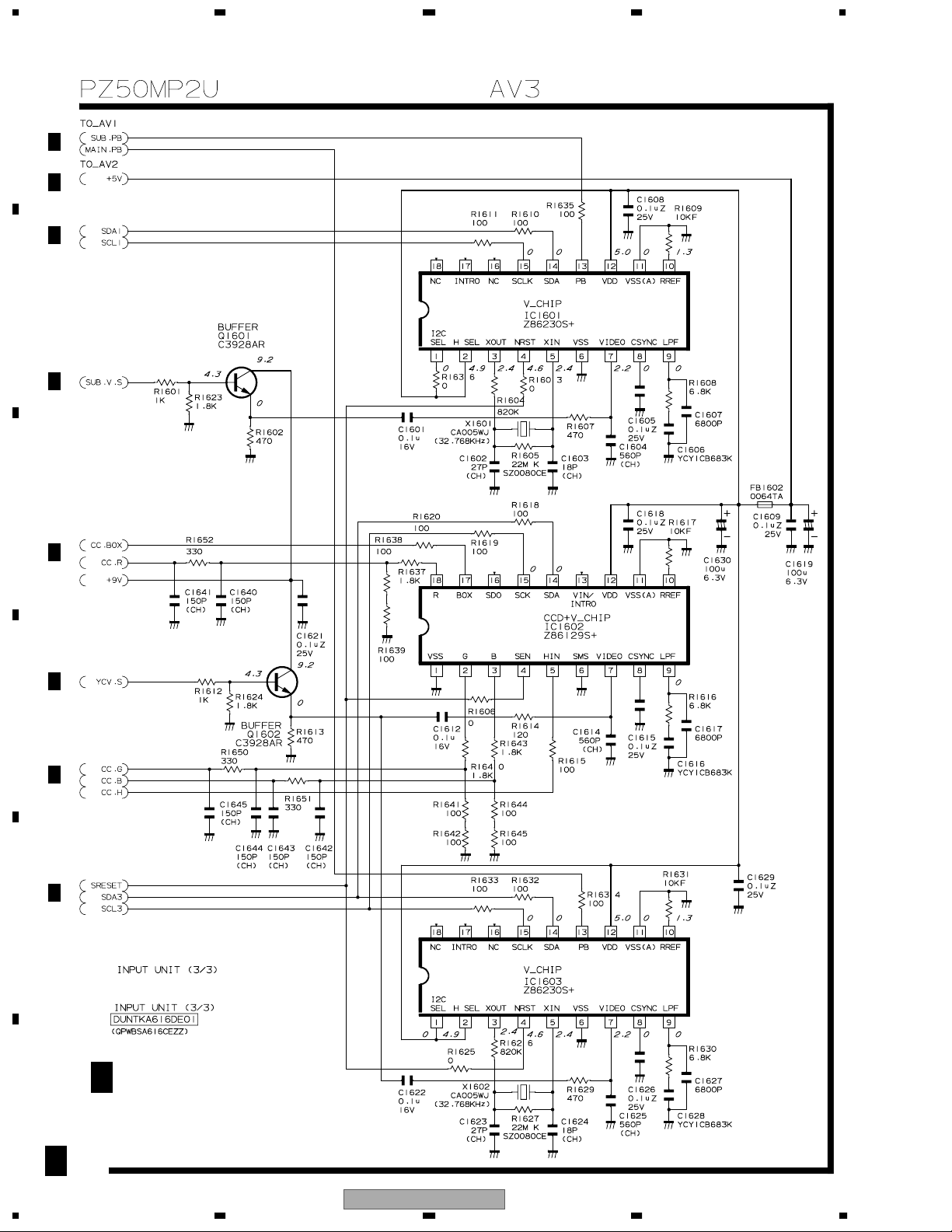

3.19 AV UNIT (3/3)
A
C
1/3
C
2/3
C
2/3
B
C
2/3
C
C
2/3
C
2/3
D
C
2/3
C
2/3
E
C 3/3
F
AV UNIT (DUNTKA616DE01)
C
3/3
A
48
1234
PDP-R03U
Page 49
5678
D
LED UNIT (DUNTKA619DE01)
D
P2503
C 2/3
3.20 LED UNIT
A
B
C
D
PDP-R03U
56
E
F
7
49
8
Page 50
1234

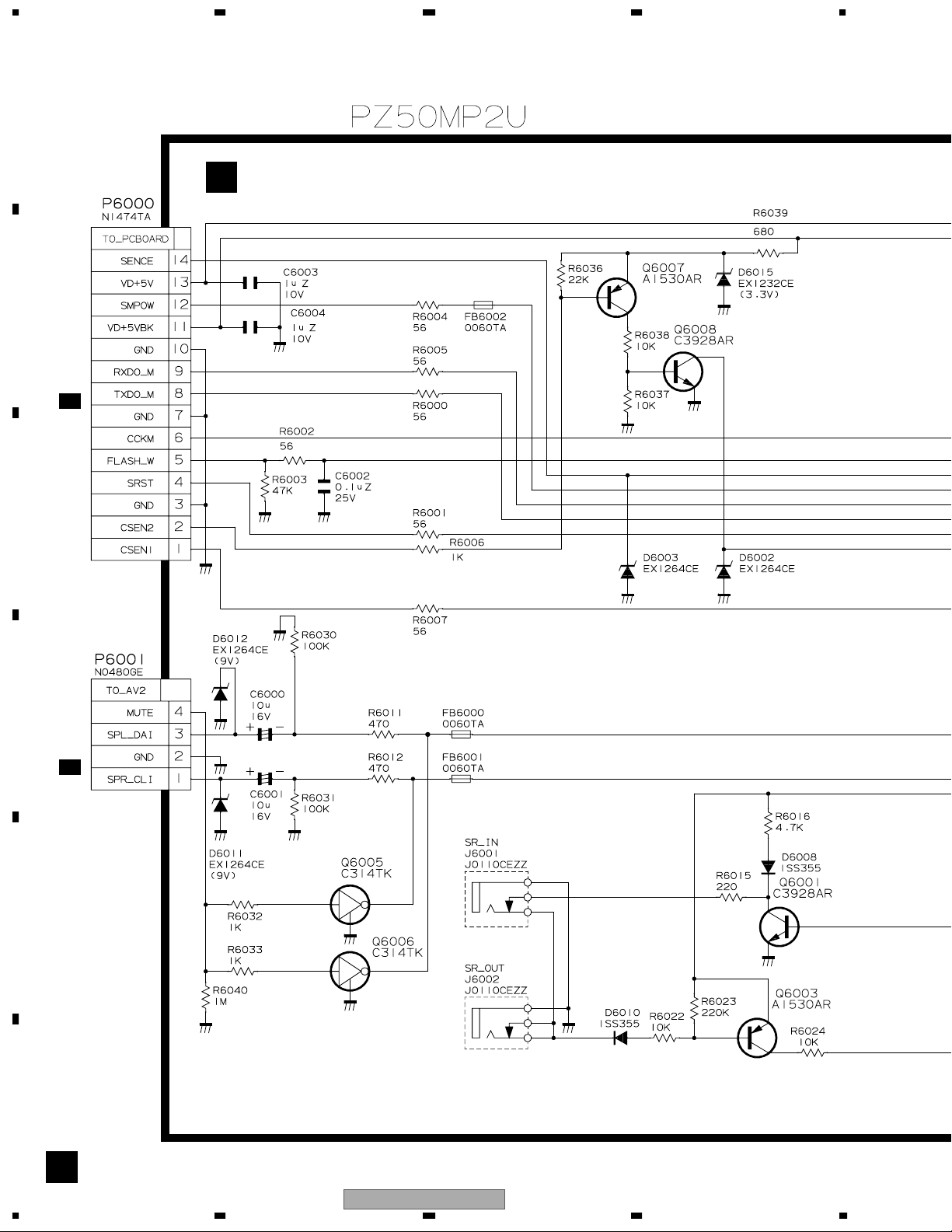

3.21 SR CONNECT UNIT
A
E
B
CN1
F 7/7

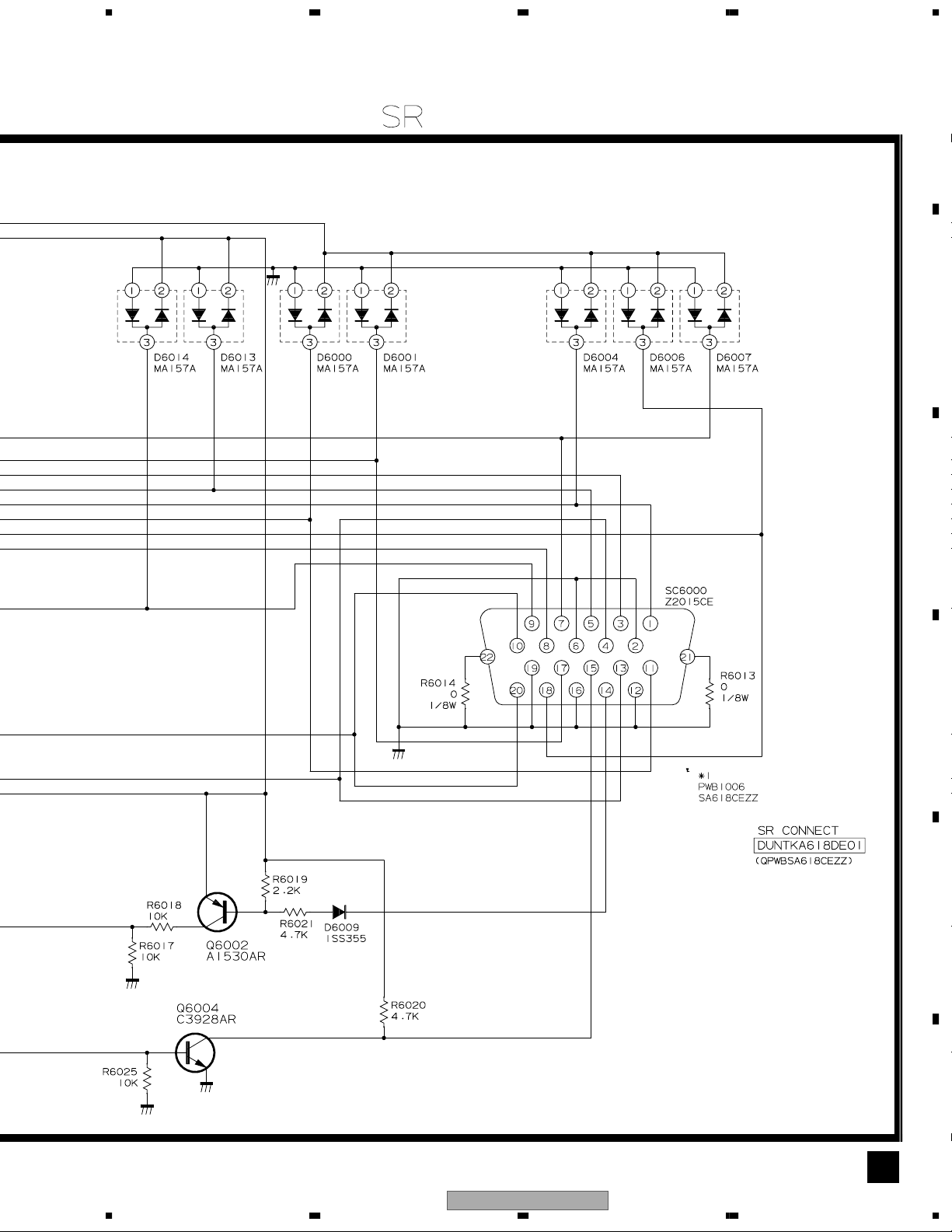

SR CONNECT UNIT (DUNTKA618DE01)
C
D
P2502
C 2/3
E
F
E
50
1234
PDP-R03U
Page 51
5678
A
B
C
D
E
PDP-R03U
56
F
E
7
51
8
Page 52
1234

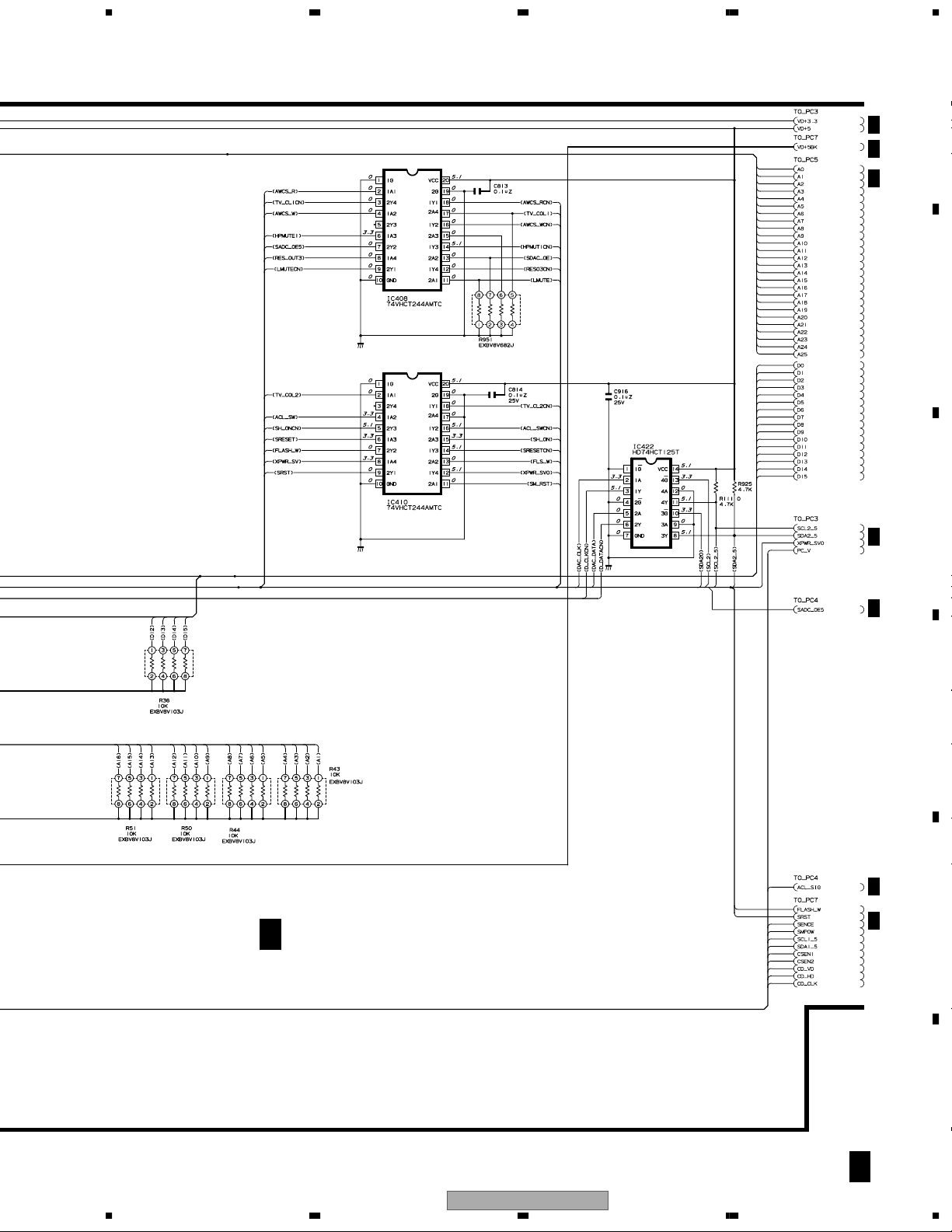

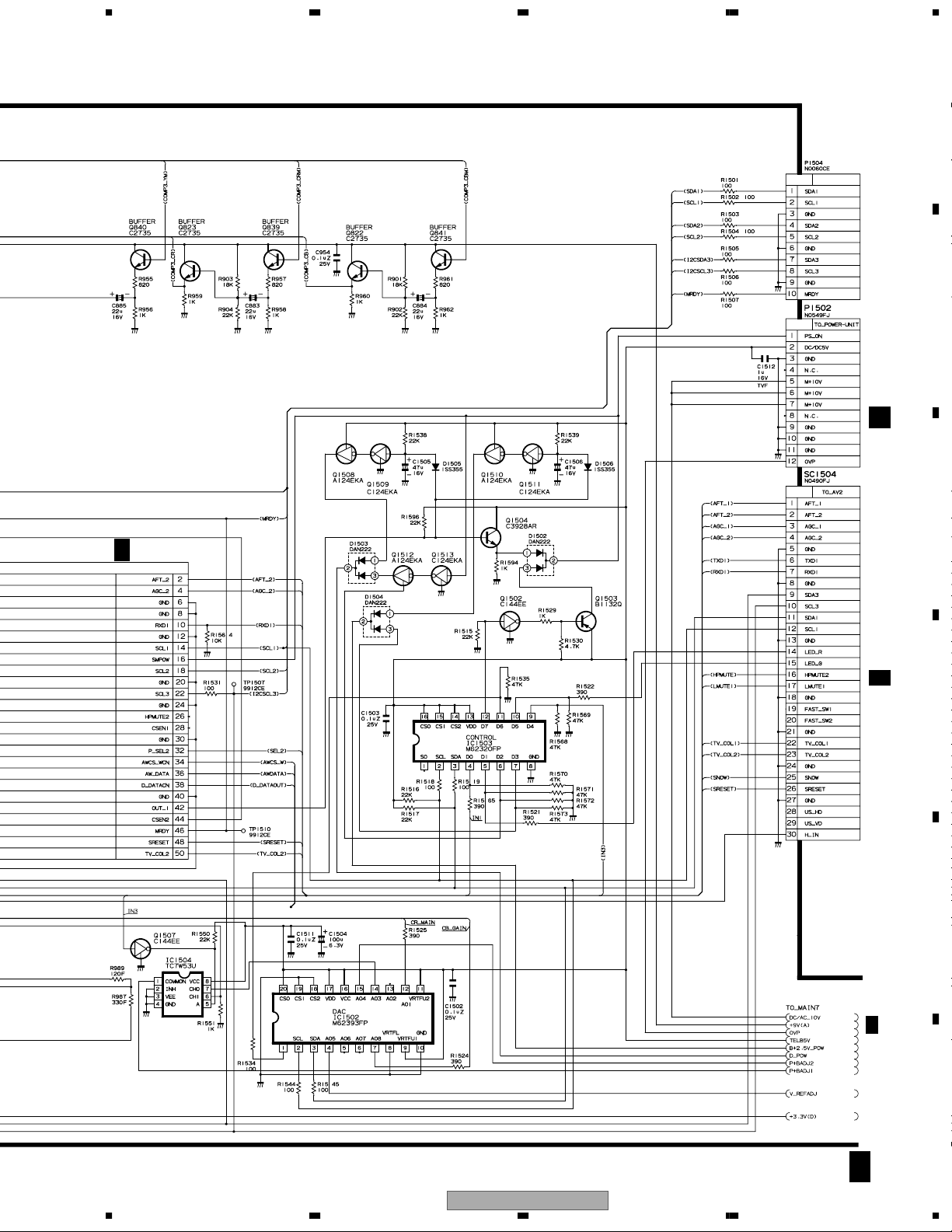

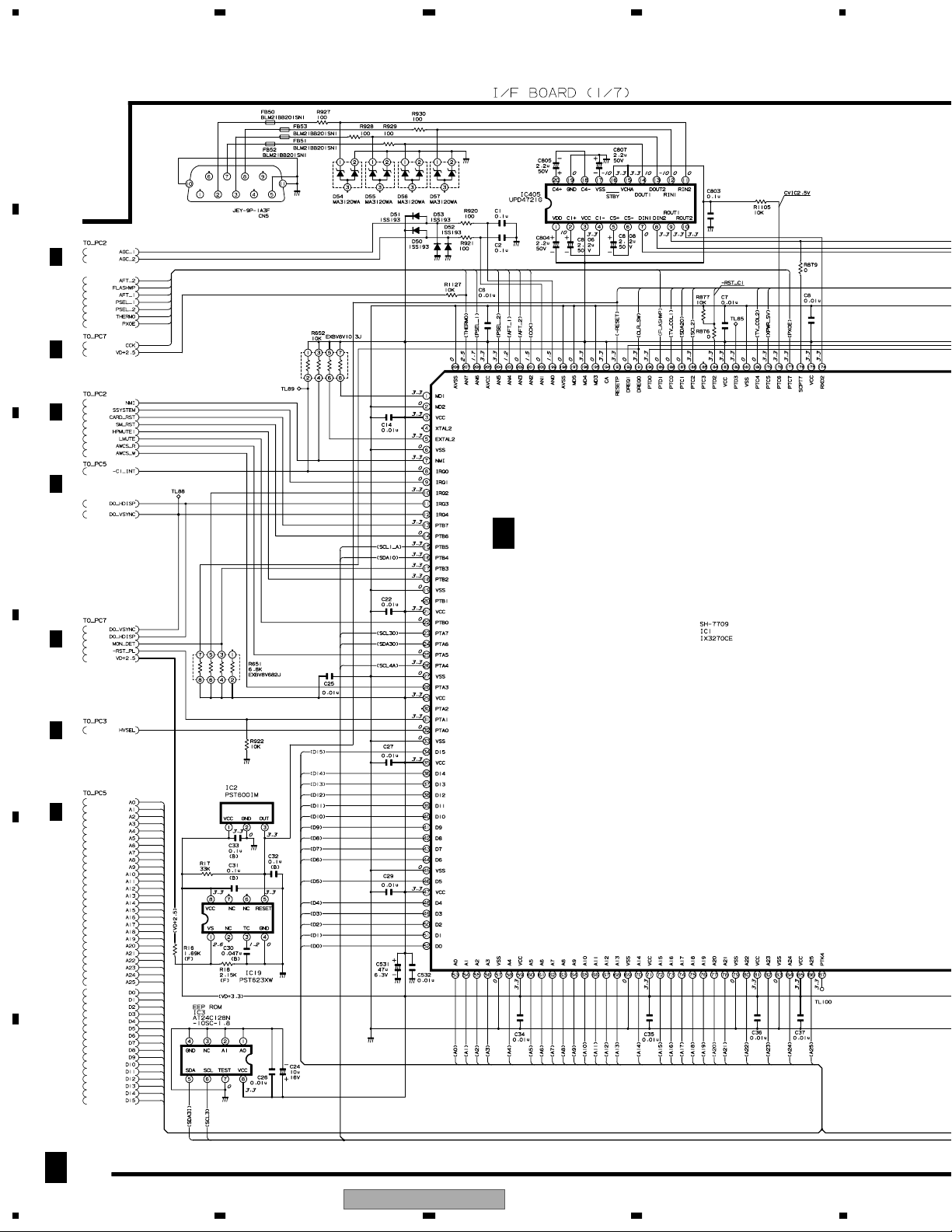

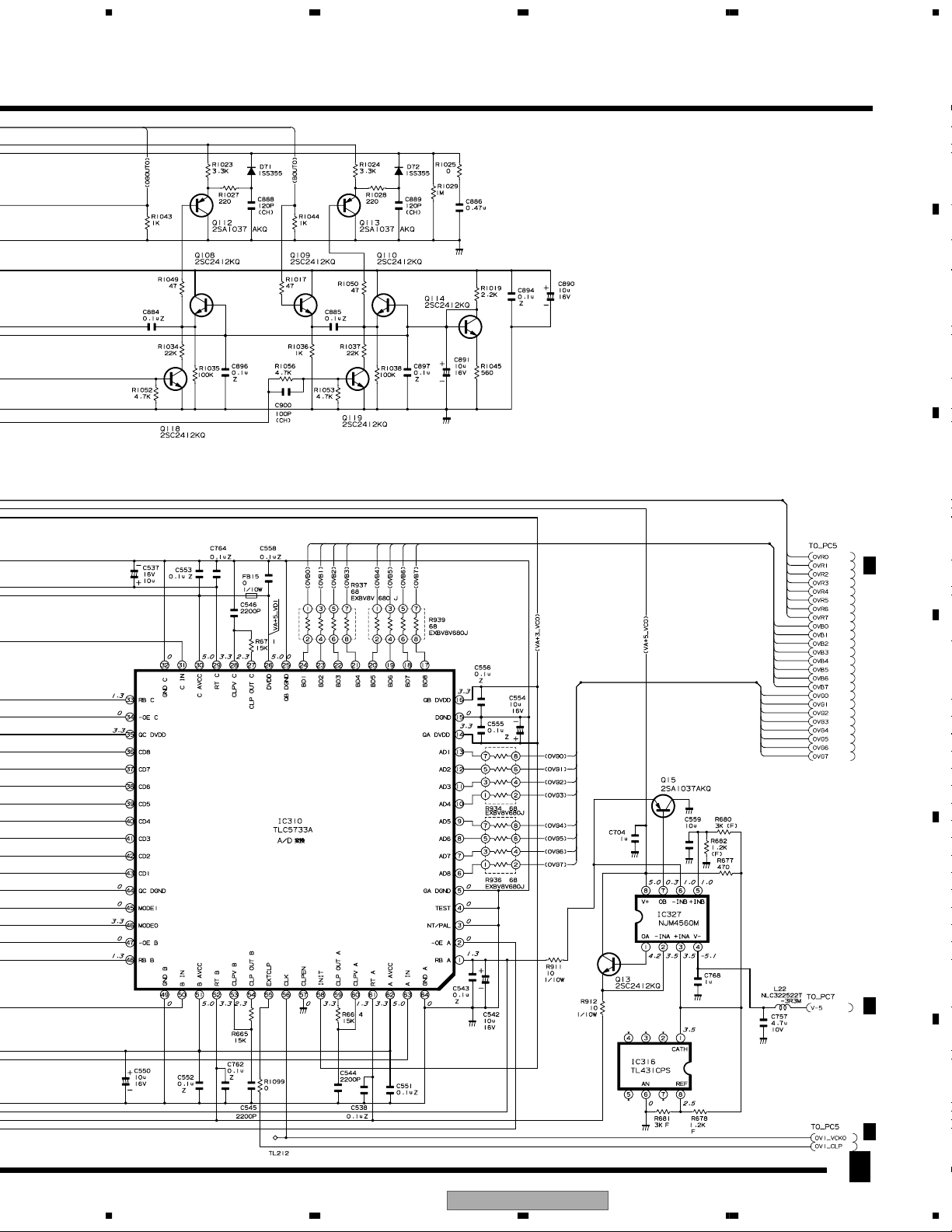

3.22 PC I/F UNIT (1/7)
A
F
2/7
B
F
7/7
F
2/7
F
5/7
C
F 1/7
F
7/7
D
F
3/7
F
5/7
E
PC I/F UNIT (CPCI-0056CE15)
F
F
1/7
A
52
1234
PDP-R03U
Page 53
5678
A
F
7/7
F
4/7
F
5/7
F
2/7
B
F
3/7
F
7/7
F
5/7
F
2/7
F
7/7
F
5/7
F
2/7
C
D
E
PDP-R03U
56
F
2/7
F
5/7
F
3/7
F
1/7
7
53
8
F
Page 54
1234

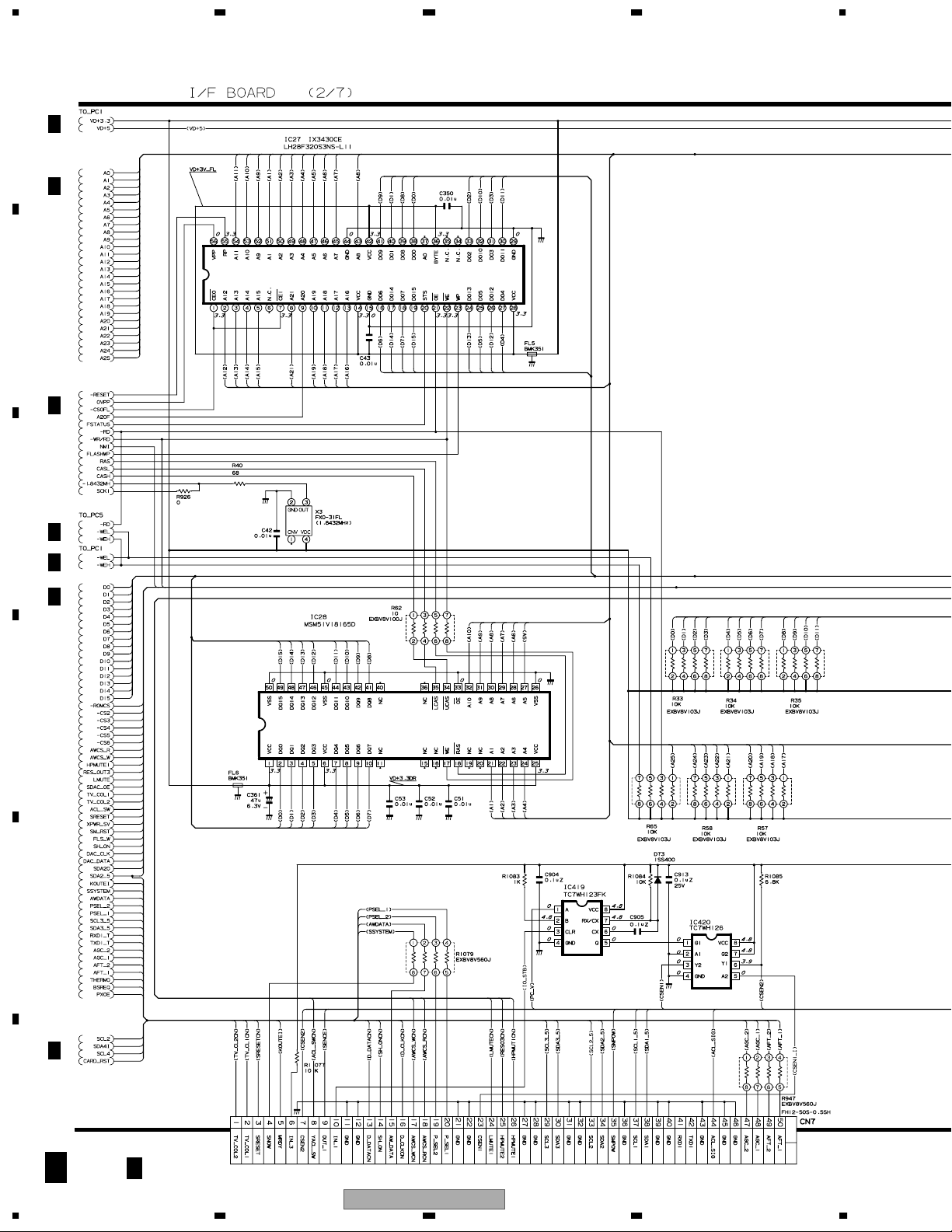

3.23 PC I/F UNIT (2/7)
A
F
1/7
F
1/7
B
F
1/7
C
F
5/7
F
1/7
F
1/7
D
E
F
1/7
F
SC1502
F
A
54
2/7
A 6/7
PDP-R03U
1234
Page 55
5678
A
F
3/7
F
7/7
F
5/7
B
F 2/7
PC I/F UNIT (CPCI-0056CE15)
C
F
3/7
F
4/7
D
F
4/7
F
7/7
E
PDP-R03U
56
F
F
2/7
7
55
8
Page 56
1234

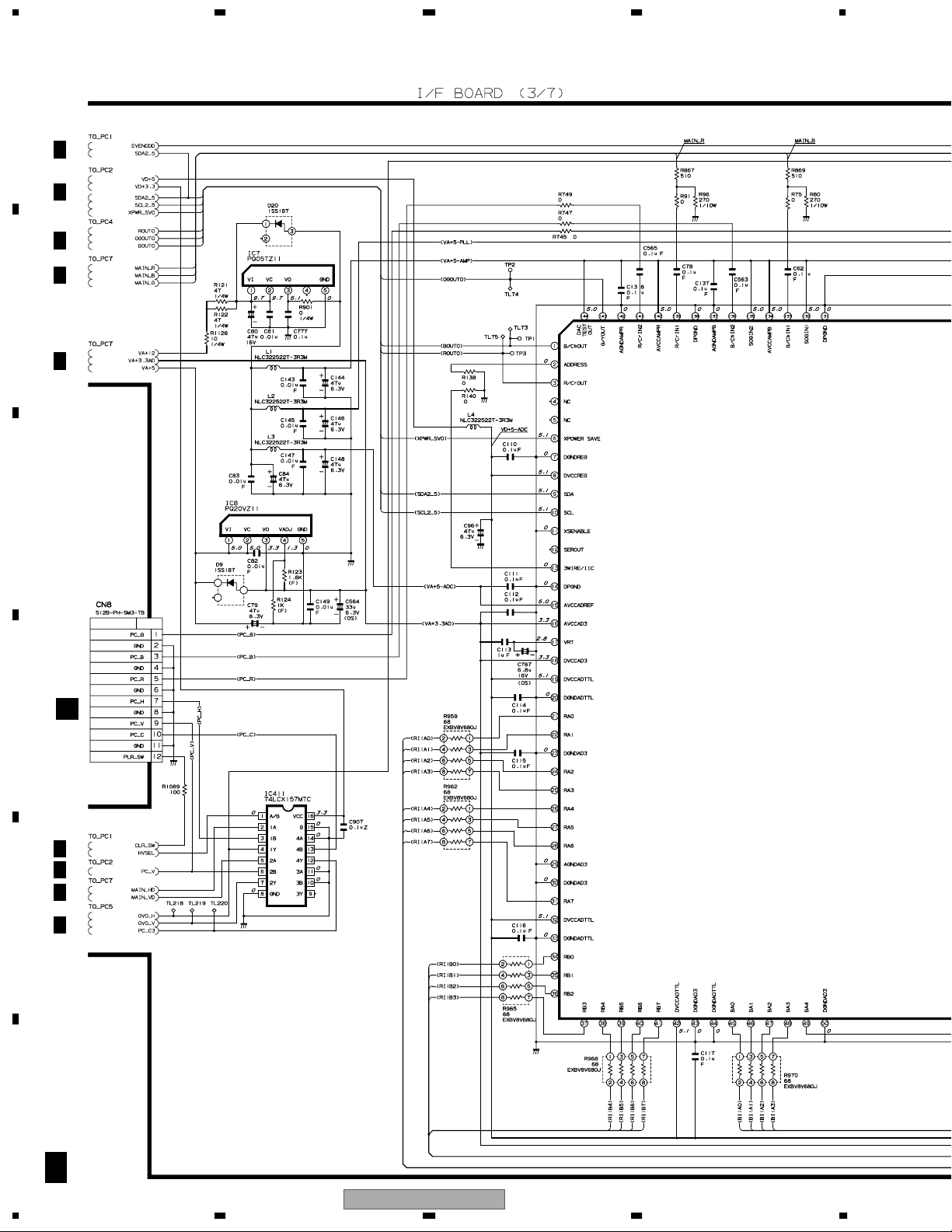

3.24 PC I/F UNIT (3/7)
A
F
1/7
F
2/7
F
4/7
F
7/7
B
F
7/7
C
P3401
D
E
B
F
1/7
F
2/7
F
7/7
F
5/7
F
F
3/7
A
56
1234
PDP-R03U
Page 57
5678
A
B
F 3/7
PC I/F UNIT (CPCI-0056CE15)
C
F
4/7
F
5/7
D
F
5/7
E
PDP-R03U
56
F
F
3/7
7
57
8
Page 58
1234

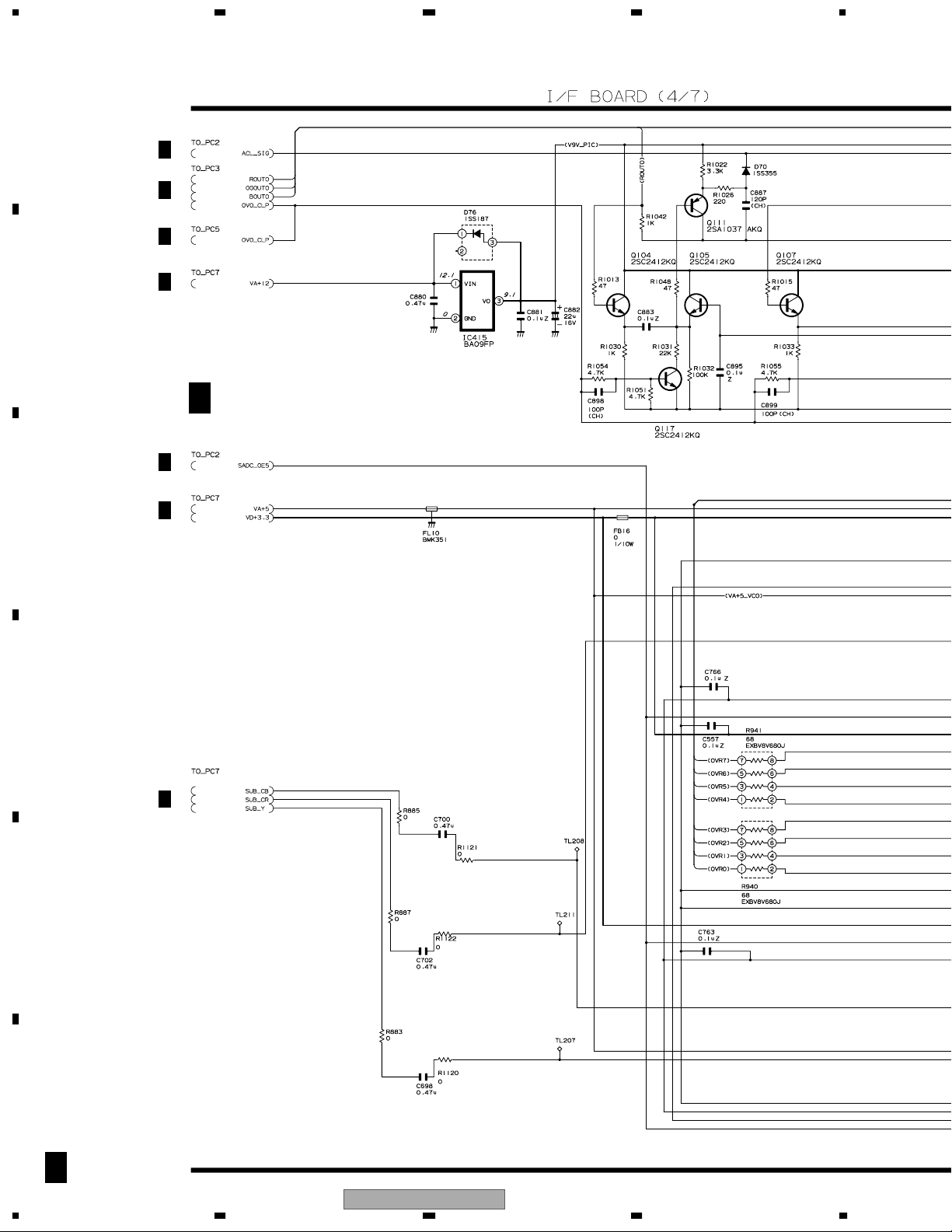

3.25 PC I/F UNIT (4/7)
A
F
2/7
F
3/7
F
5/7
F
7/7
B
F 4/7
F
2/7
F
C
D
7/7
F
7/7
PC I/F UNIT (CPCI-0056CE15)
E
F
F
4/7
A
58
1234
PDP-R03U
Page 59
5678
A
B
C
F
5/7
D
E
PDP-R03U
56
F
7/7
F
5/7
F
4/7
7
59
8
F
Page 60
1234

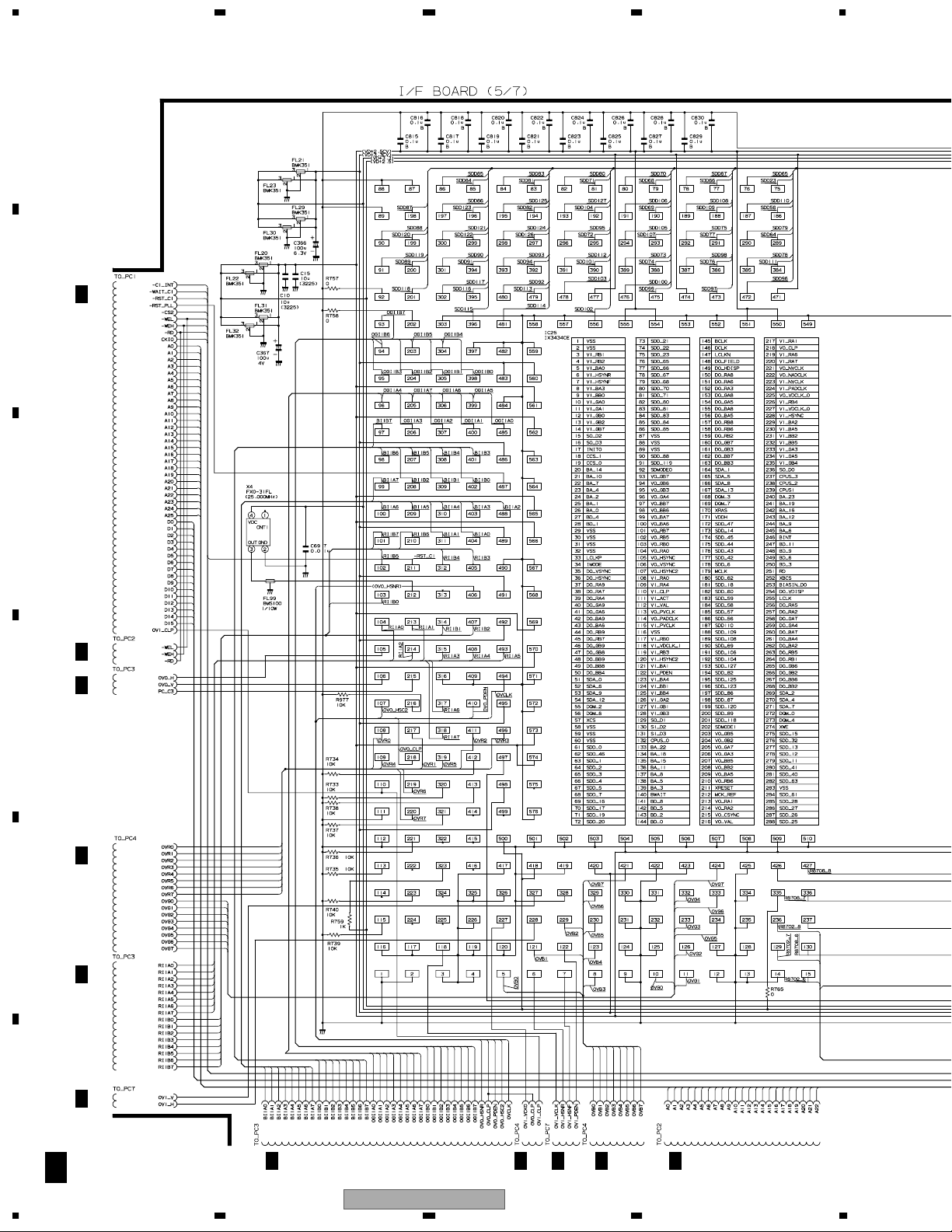

3.26 PC I/F UNIT (5/7)
A
F
B
1/7
C
F
2/7
F
3/7
D
F
4/7
E
F
3/7
F
7/7
F
F
A
60
F
5/7
1234
3/7
PDP-R03U
F
4/7
7/7
4/7
F
F
F
2/7

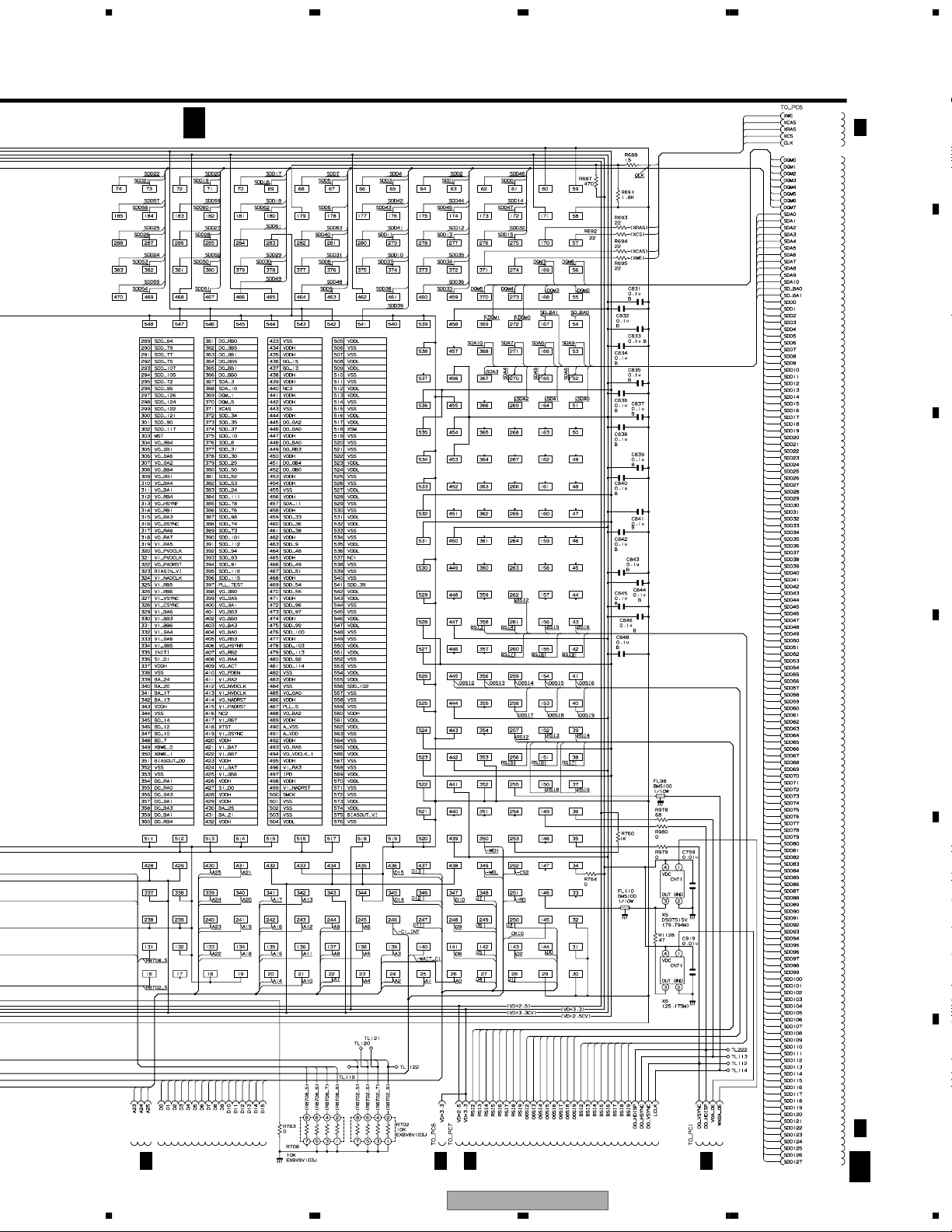

Page 61
5678
A
F 5/7
PC I/F UNIT (CPCI-0056CE15)
F
6/7
B
C
D
E
F
6/7
F
2/7
56
F
6/7F7/7
PDP-R03U
F
1/7
7
F
5/7
61
8
F
Page 62
1234

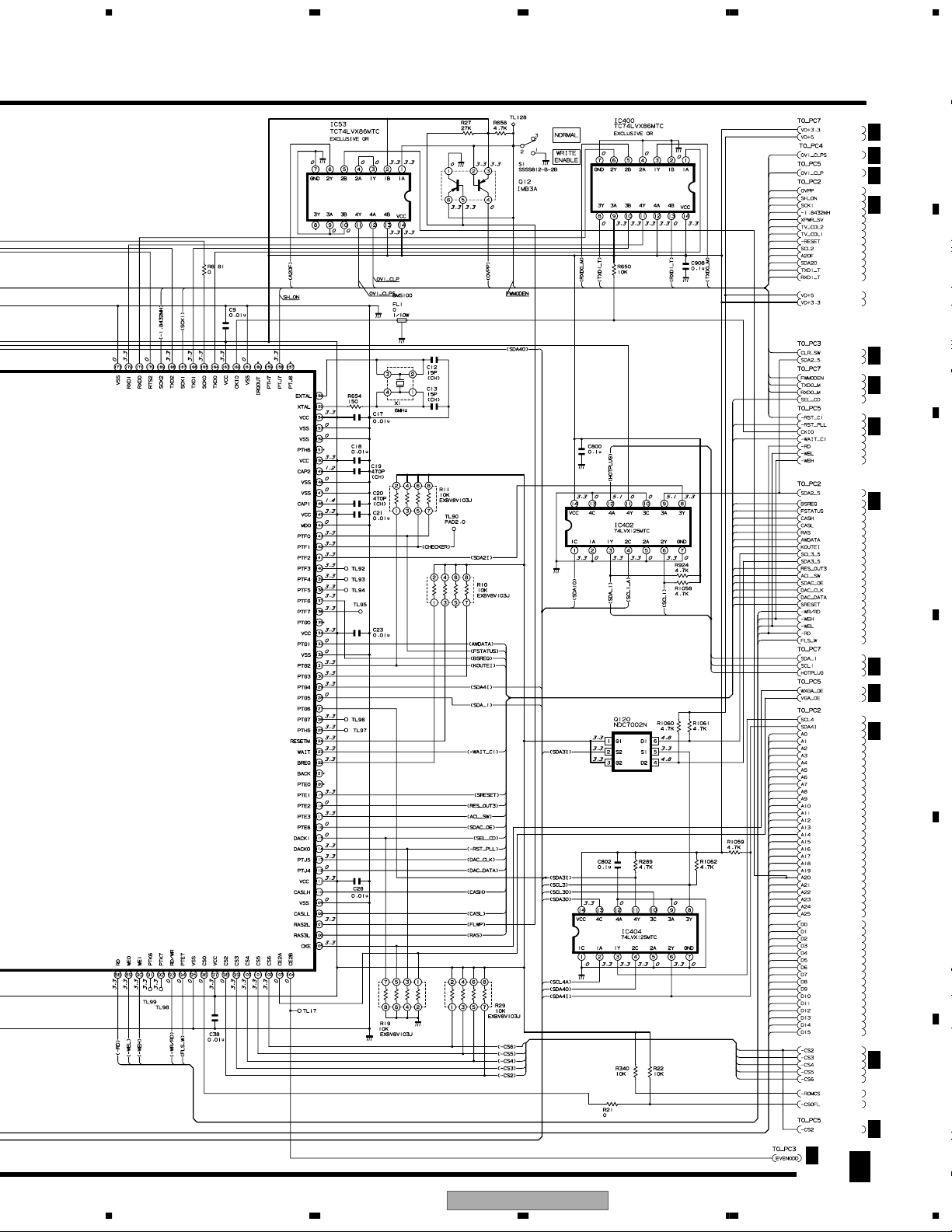

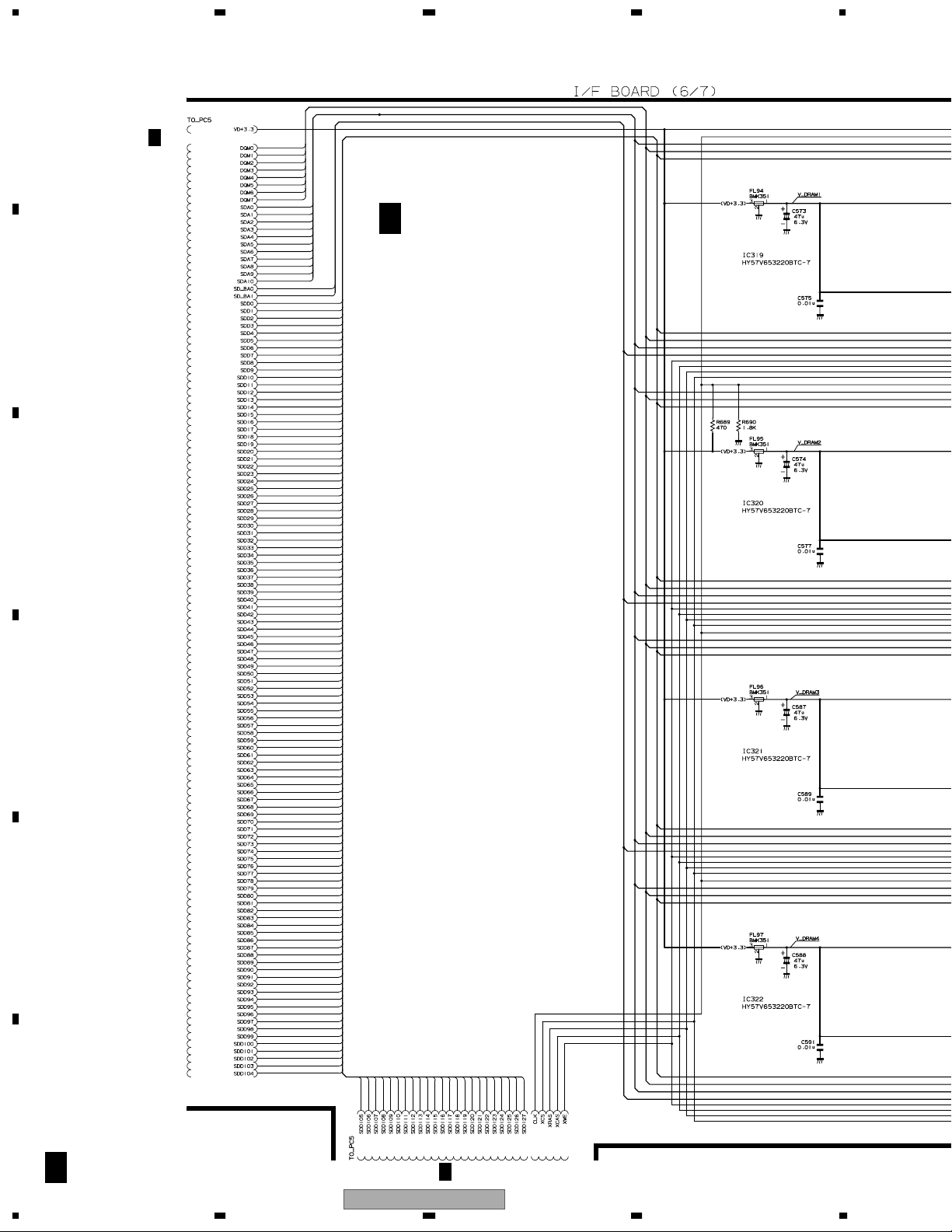

3.27 PC I/F UNIT (6/7)
A
F
5/7
F 6/7
PC I/F UNIT
(CPCI-0056CE15)
B
C
D
E
F
F
A
62
F
6/7
PDP-R03U
1234
5/7

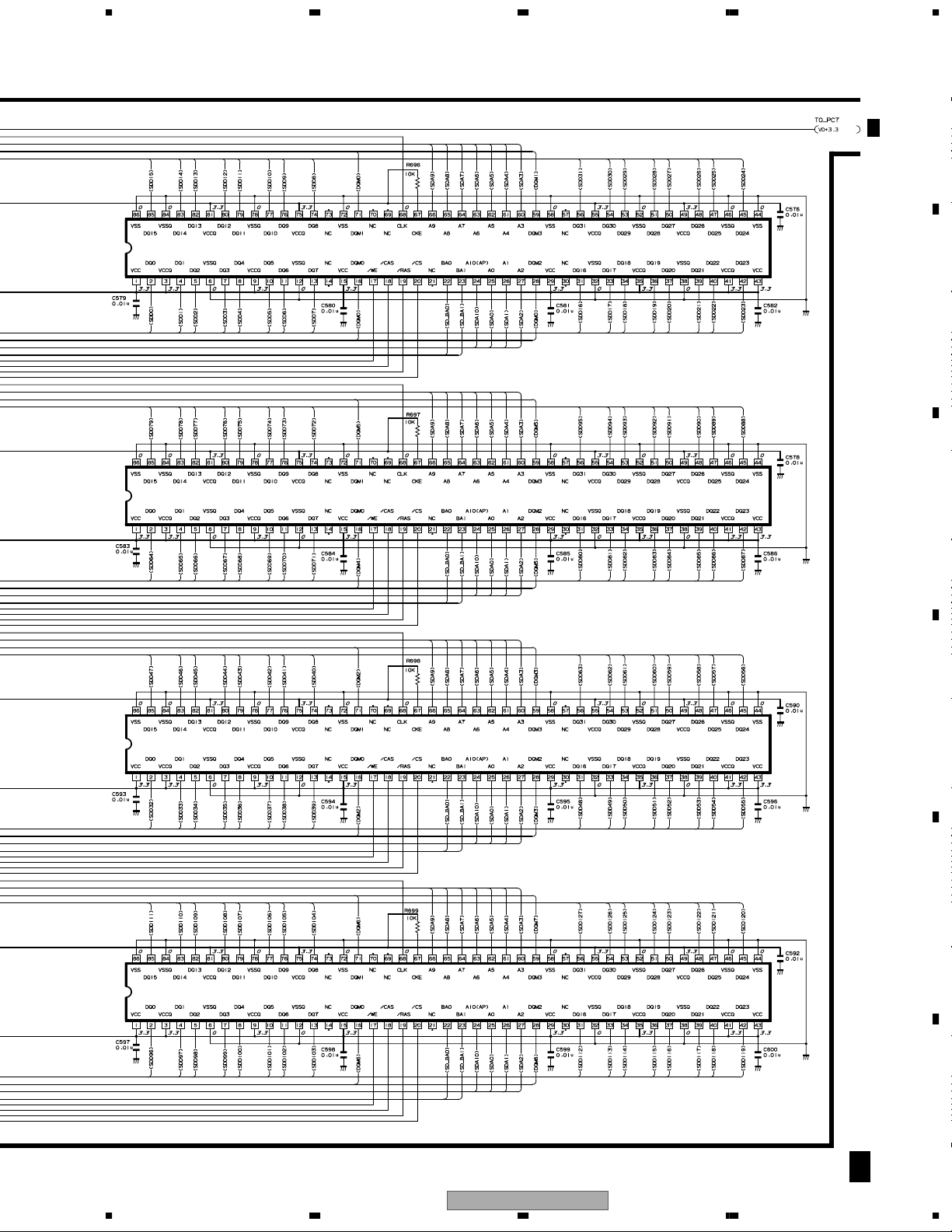

Page 63
5678
A
F
7/7
B
C
D
E
PDP-R03U
56
F
F
6/7
7
63
8
Page 64
1234

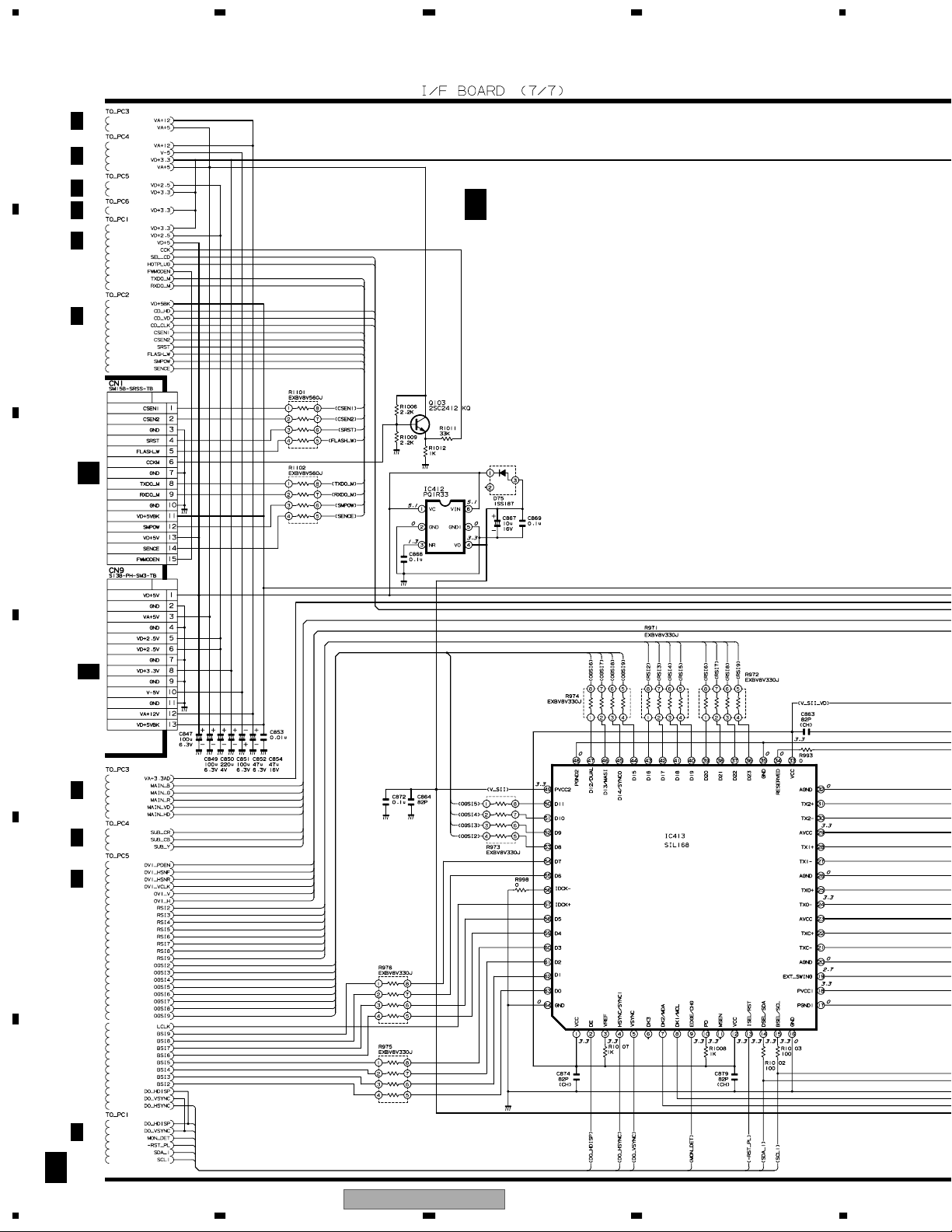

3.28 PC I/F UNIT (7/7)
A
B
F
3/7
F
4/7
F
5/7
F
6/7
F
1/7
F
2/7
P6000
F 7/7
PC I/F UNIT (CPCI-0056CE15)
E
C
P1702
A 7/7
D
F
3/7
F
4/7
F
5/7
E
F
F
A
64
F
1/7
7/7
PDP-R03U
1234

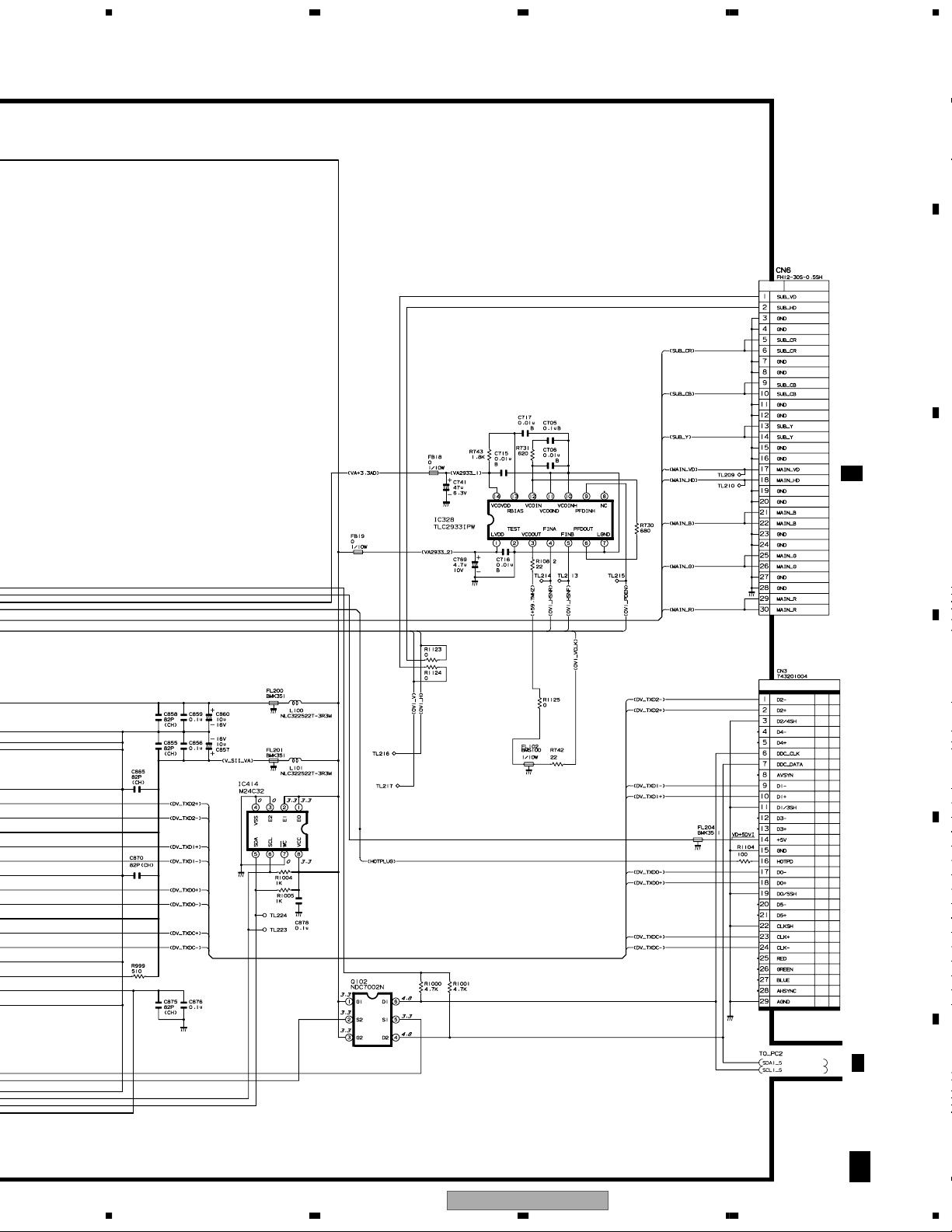

Page 65
5678
A
B
SC1501
A 6/7
C
D
E
PDP-R03U
56
F
2/7
F
F
7/7
7
65
8
Page 66
1234

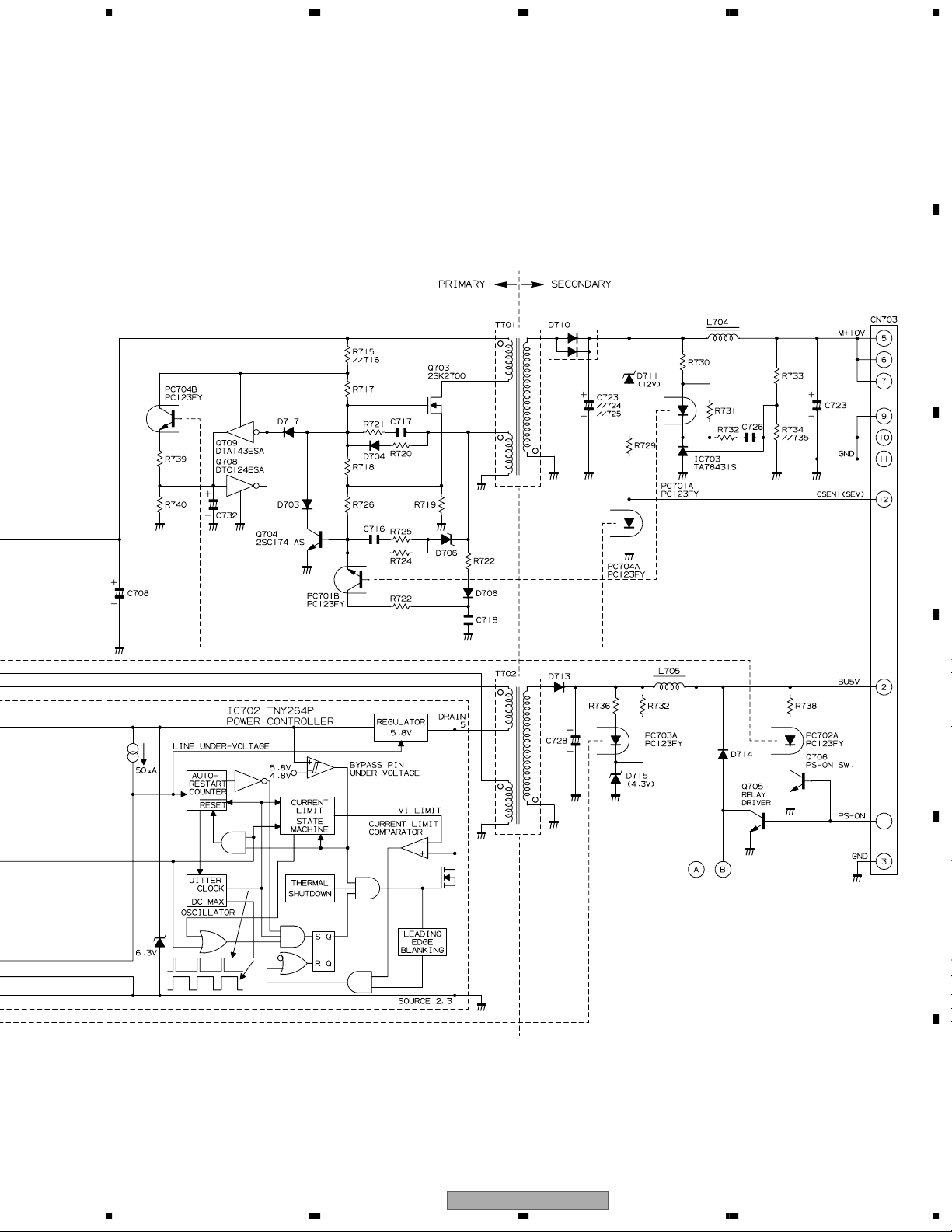

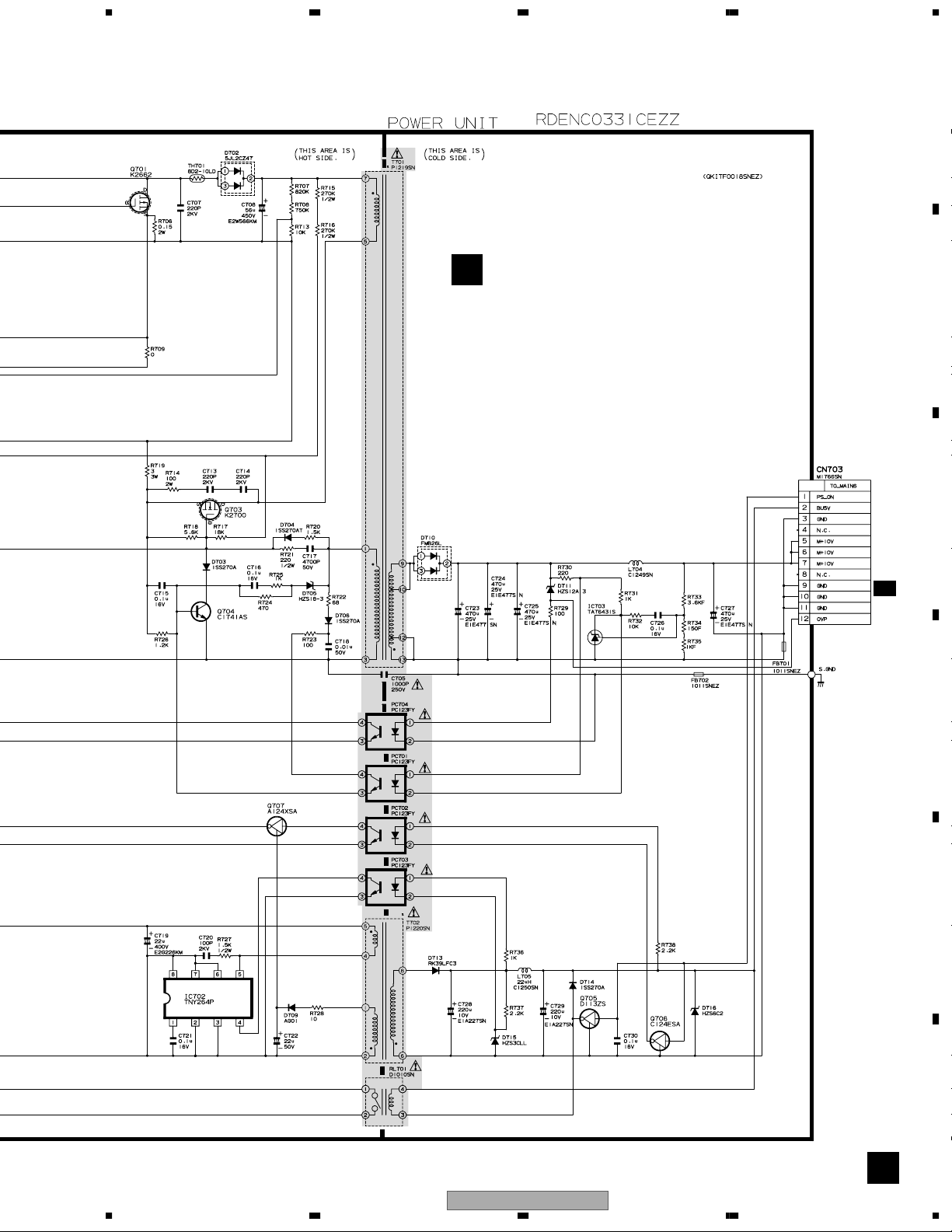

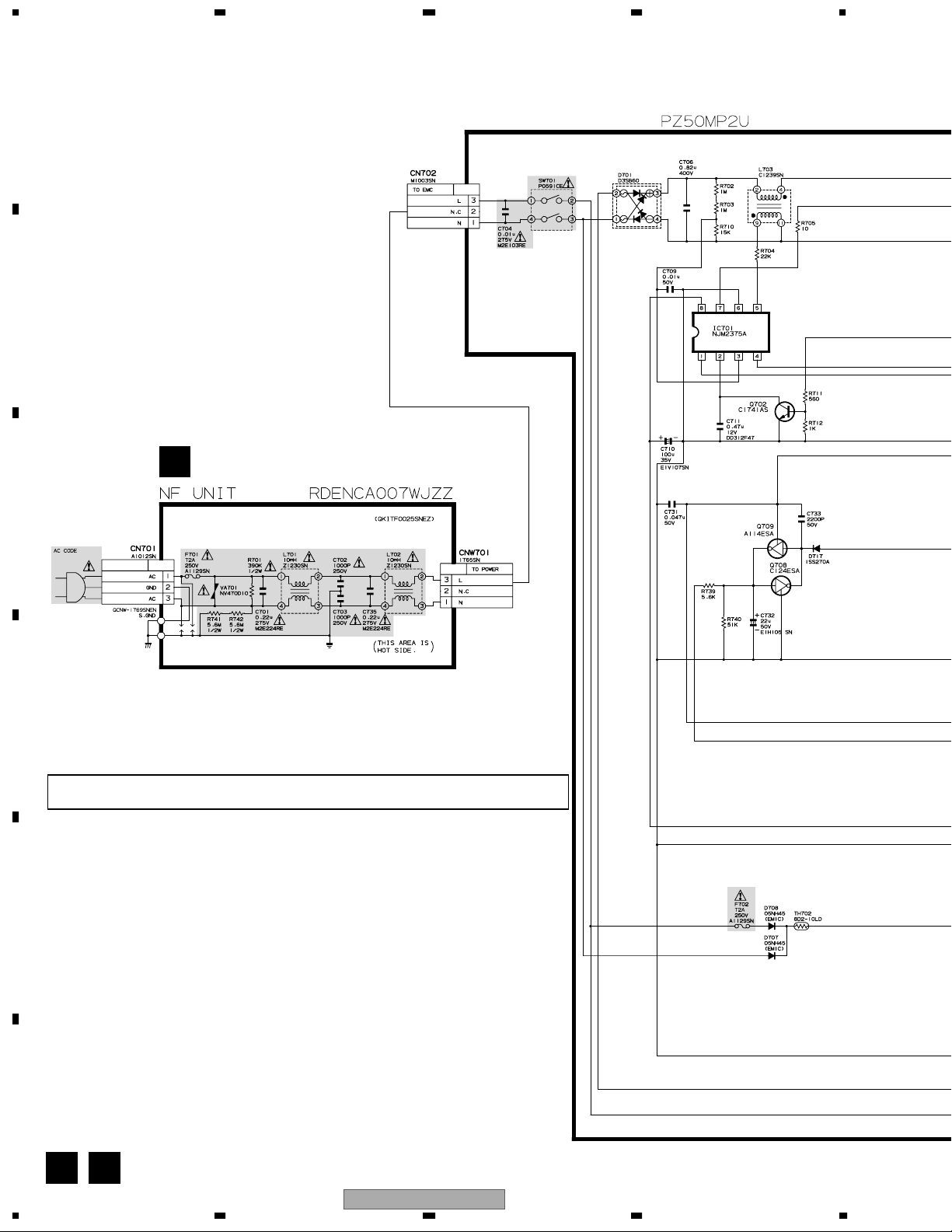

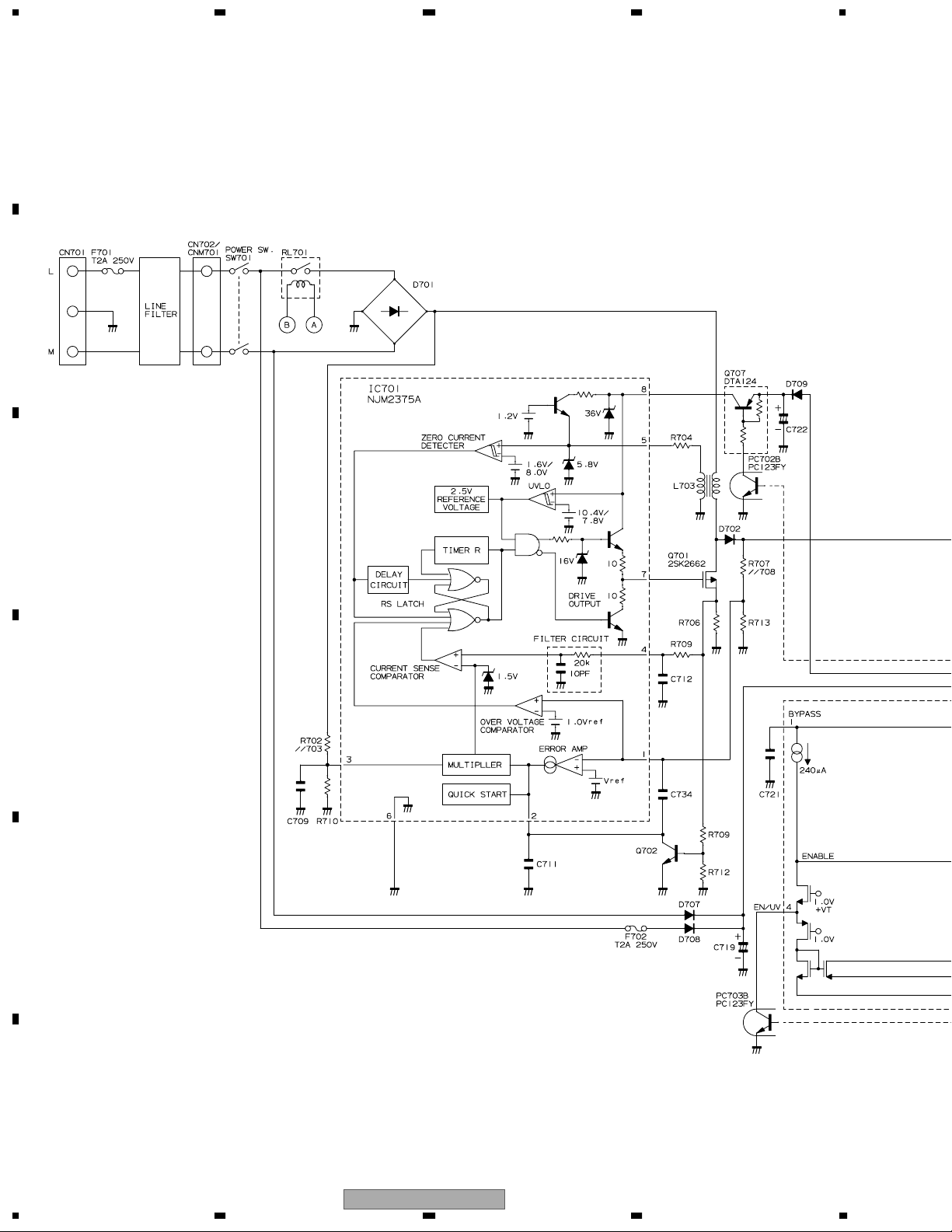

3.29 POWER and EMC UNITS
A
B
EMC UNIT (RDENCA007WJZZ)
H
(LIVE)
(NEUTRAL)
C
(LIVE)
(NEUTRAL)
D
• NOTE FOR FUSE REPLACEMENT
CAUTION -
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
E
(LIVE)
(NEUTRAL)
F
GH
66
PDP-R03U
1234
Page 67
5678
A
POWER UNIT (RDENC0331CEZZ)
G
B
P1502
A 6/7
C
D
E
PDP-R03U
56
F
G
7
67
8
Page 68
1234
4. PCB CONNECTION DIAGRAM
A
B

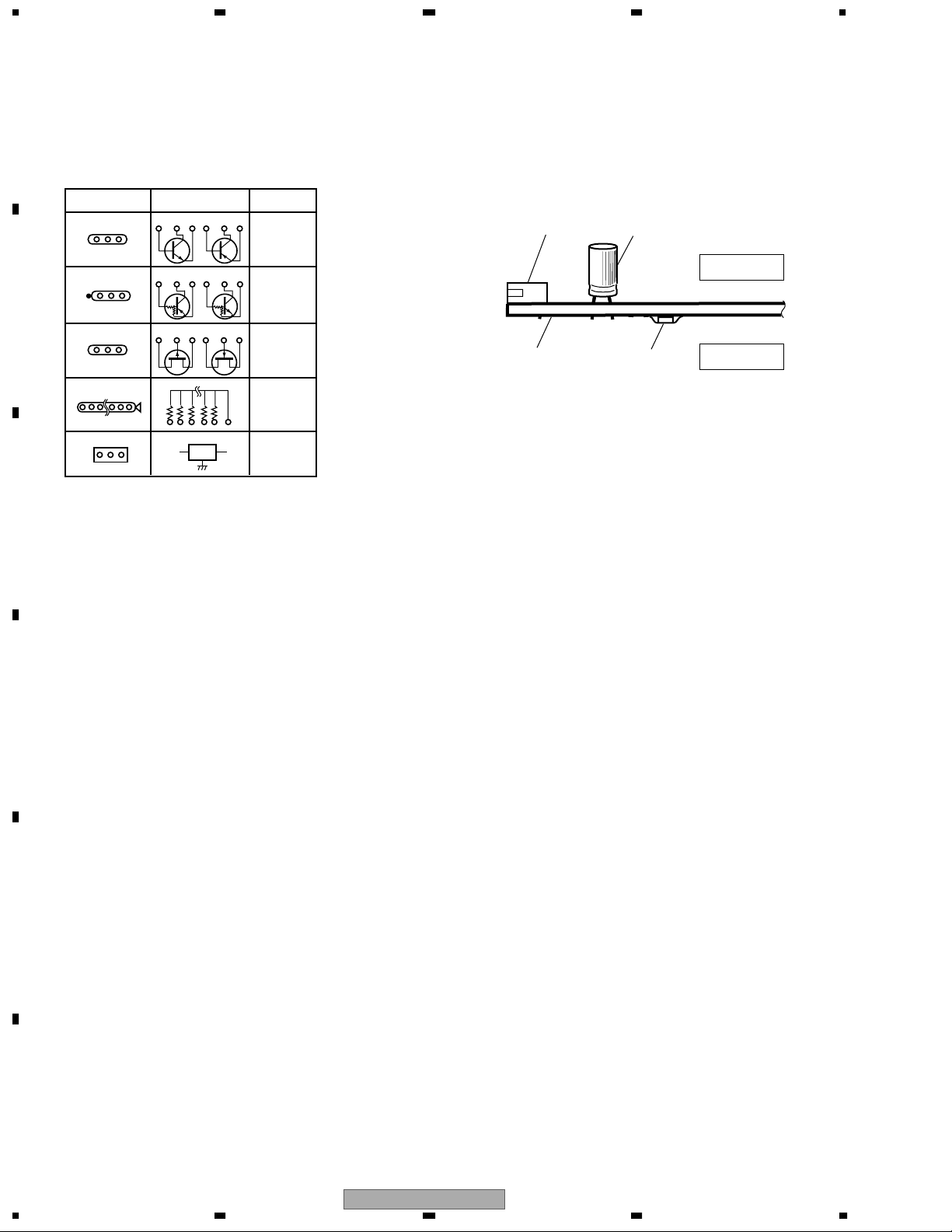

NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
Symbol In PCB
Diagrams
BCE
BCE
D
Symbol In Schematic
Diagrams
BCEBCE
BCE
DGGSS
BCE
DGS
Part Name
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Connector
Capacitor
SIDE A
P.C.Board
Chip Part
SIDE B
C
D
E
F
68
PDP-R03U
1234
Page 69
5678
GH
GH
SIDE ASIDE A
EMC UNIT
H
POWER UNIT
G
LIVE
NEUTRAL
AC IN
P1502
A
Q708
Q709
Q701
Q703
Q704
Q702
IC701
IC702
IC703
Q707
Q706
Q705
CN703

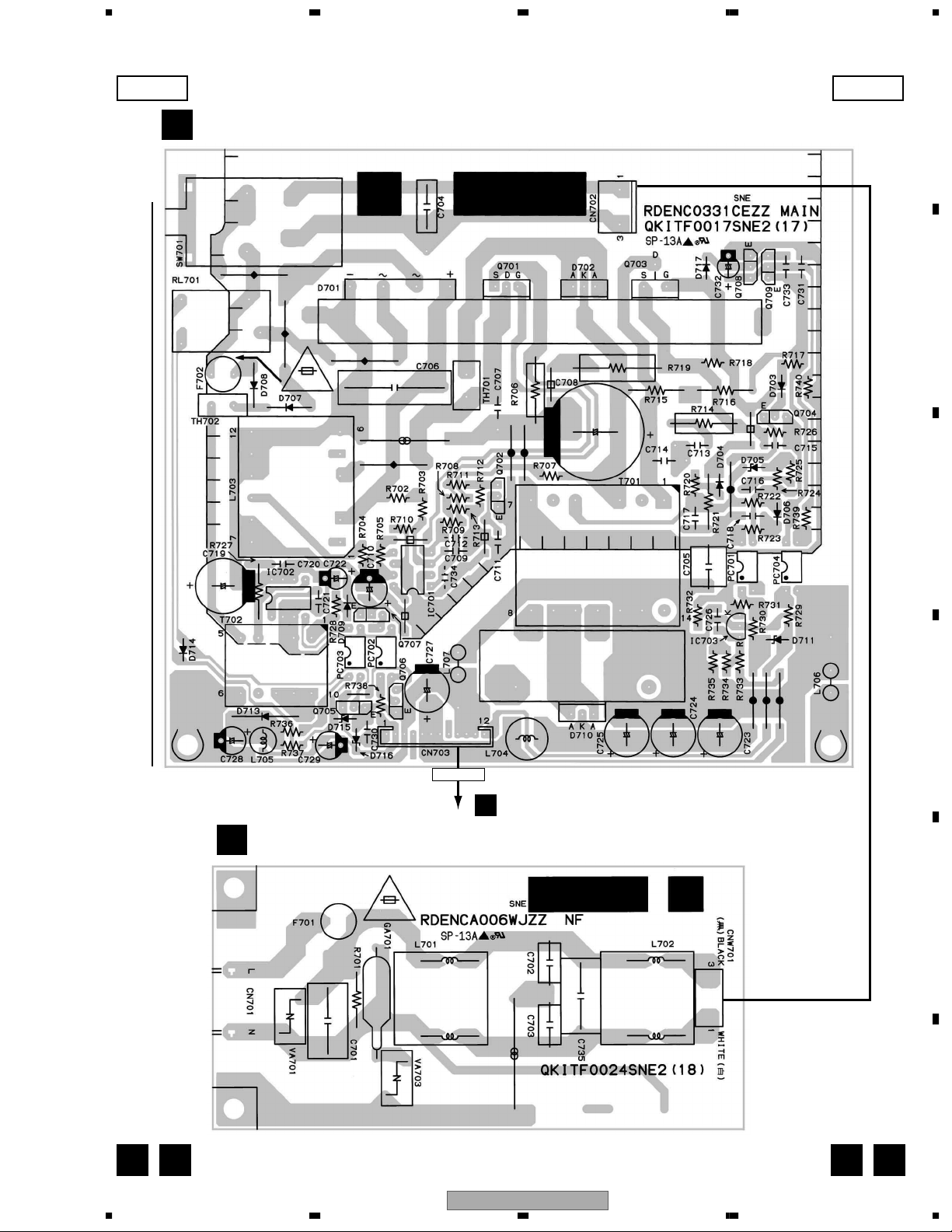

4.1 POWER and EMC UNITS
A
B
C
D
E
PDP-R03U
56
F
7
69
8
Page 70
1234

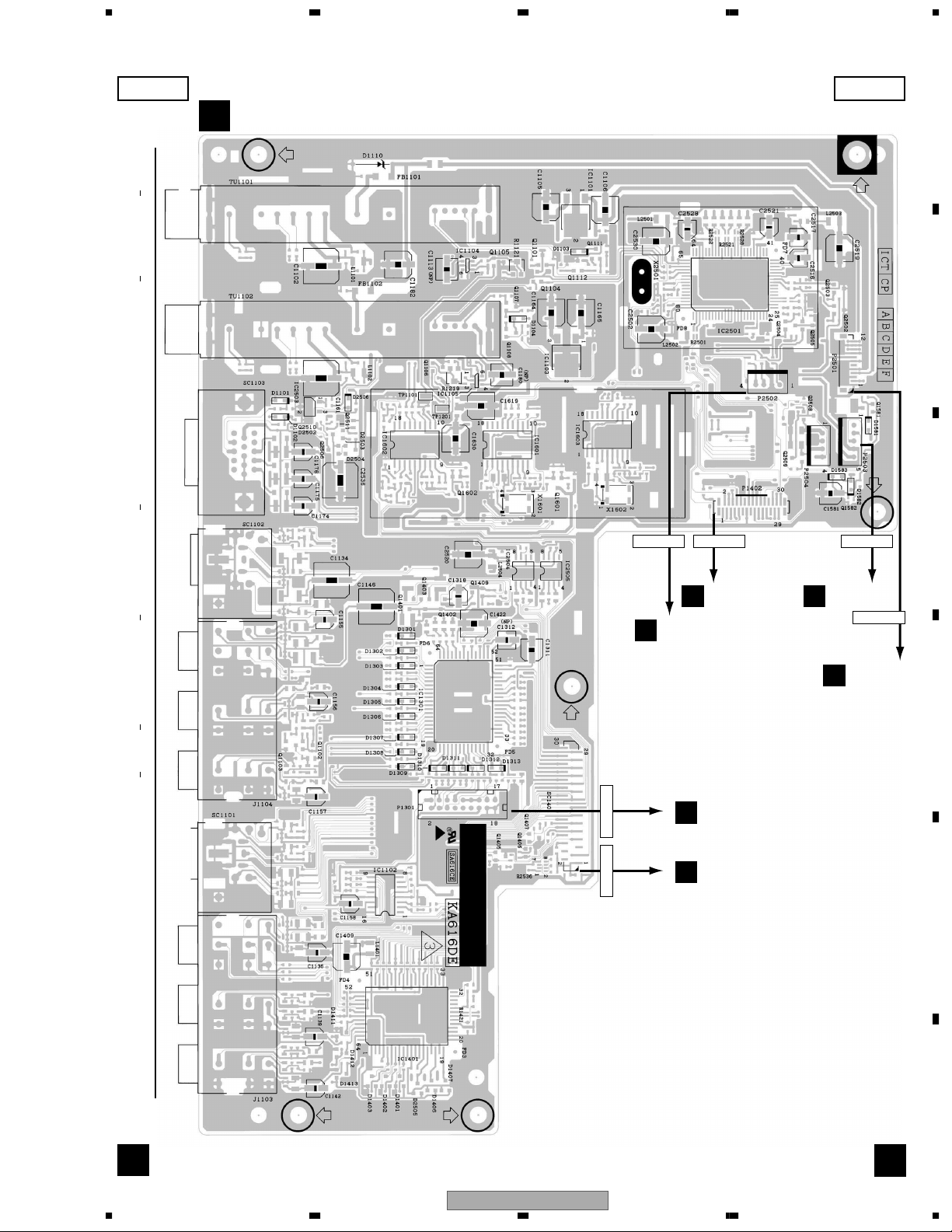

4.2 MAIN UNIT
SIDE ASIDE A
A
MAIN UNIT
A
CN9
F
B
IC1706
C
D
C
SC1401
SC1503
SC1402
C
SC1504
C
P2501
P1703P1702
IC1704
IC1502
Q7001
IC7001
Q424
Q427
IC405
Q616
Q619
IC406
IC7004
Q818
Q827
IC603
IC402
IC604
IC801
IC403
IC803
IC7200
IC802
E
P1502SC1501SC1502
F
F
CN7
F
CN6
G
CN703
A
70
1234
PDP-R03U
IC1901
Q1508
Q1511
IC807
IC1903
A
Page 71
5678
Q1710
Q1718
Q1701
Q1708
Q1719
Q1713
Q1716
Q1726
Q1712
IC1701
IC1713
IC1504
IC1710
IC1711
IC1712
Q601
Q615
Q621
IC7003
IC7002
IC602
IC1708
IC404
IC605
IC814
IC7201
IC1902
IC1503
IC804
IC813
IC812
IC811
IC810
MAIN UNIT
A
Q801
Q813
Q803
Q806
Q7202
Q7205
Q1502
Q1503
Q1504
Q7002
Q7010
IC407
Q408
Q407
Q414
Q415
Q416
Q420
Q421
Q428
A
A
SIDE BSIDE B
A
B
C
D
PDP-R03U
56
E
F
7
71
8
Page 72
1234
4.3 FRONT, LED and SR CONNECT UNIT
SIDE ASIDE A
A
FRONT UNIT
B
P3401P3402
B
C
IC3401
Q3403Q3402 Q3401
CN8
F
LED UNIT
D
C
P1301
P2503
P3001
D
SR CONNECT UNIT
E
E
P6001P6000
F
CN1
C
P2502
C
Q6004
Q6003
Q6001
Q6002
Q6006
Q6005
F
BDE
72
BDE
PDP-R03U
1234
Page 73
5678
C
C
SIDE ASIDE A
AV UNIT
C
SC1504
A
SC1503
A
P3402
B
P1703
A
P3001
E
P6001
D
IC1401
IC1301
IC1102
IC1606
IC1605
IC1012
IC1602
IC1611
IC1603
IC1601
IC1604
IC1606
IC2504
IC2501
IC1105
IC1103
IC1104
IC1615
IC1614
IC1609
IC1613
IC2503
Q1101
Q1406
Q1405
Q1407
Q1103
Q1108
Q1102
Q1125
Q1127
Q1130
Q1109
Q1106
Q1107
Q1104
Q1105
Q1105
Q1133
Q1124
Q1120
Q1106
Q1107
Q1610
Q1611
Q1609
Q1112
Q1109
Q1112
Q1113
Q1117
Q1131
Q1135
P2502P1402P2503
P2501
P1301SC1401
4.4 AV UNIT
A
B
C
D
E
PDP-R03U
56
F
7
73
8
Page 74
1234

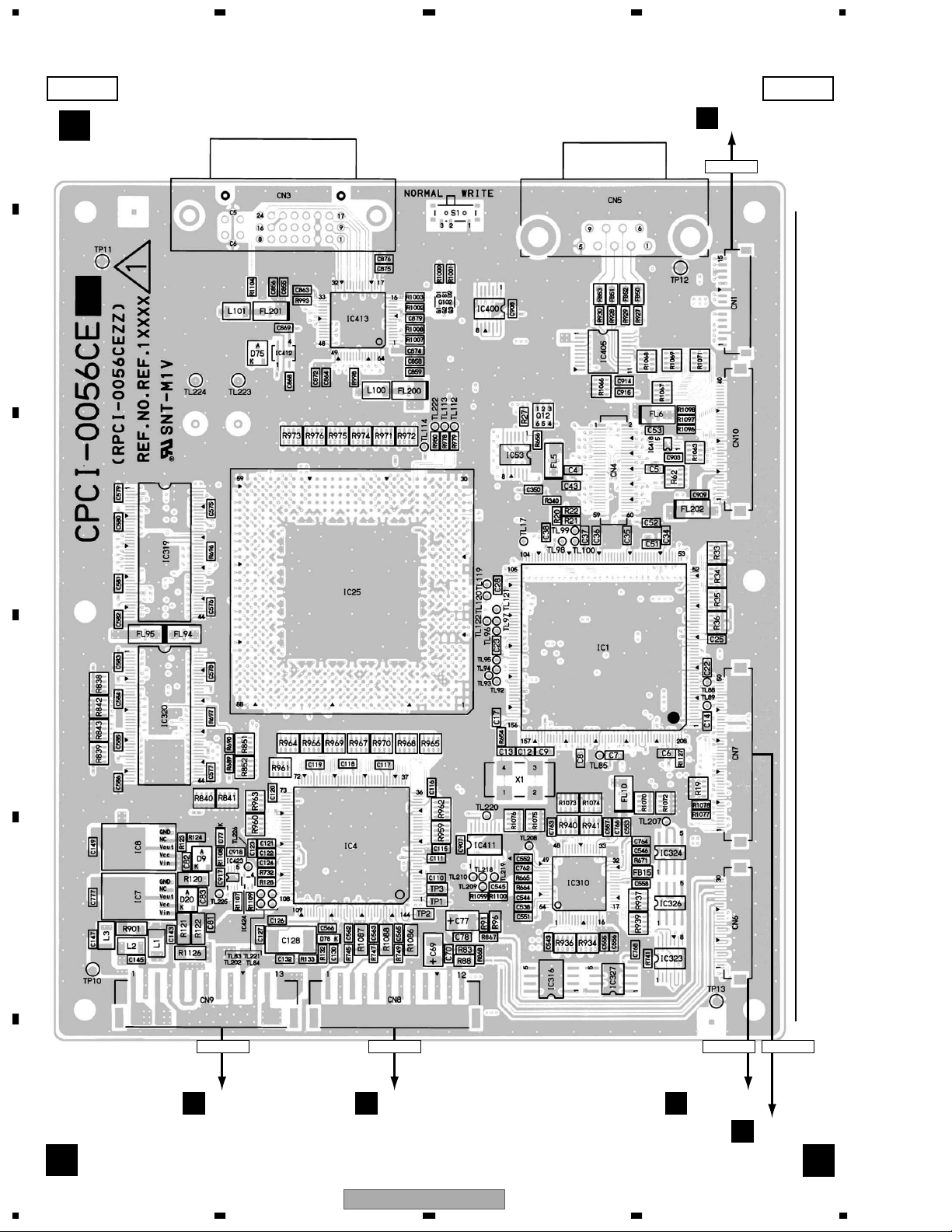

4.5 PC I/F UNIT
SIDE ASIDE A
A
PC I/F UNIT
F
D
P6000
CN1
B
C
D
Q102
IC413
IC400
IC405
Q12
IC418
IC53
IC319
IC25
IC1
IC320
IC411
IC324
IC4
IC8
IC310
IC423
IC7
E
CN9CN8CN7CN6
P1702
F
A
B
P3401
SC1501
A
A
F
74
1234
PDP-R03U
IC326
IC323
IC316
IC327
SC1502
F
Page 75
5678
F
F
SIDE BSIDE B
PC I/F UNIT
F
Q103
Q120
Q101
Q104
Q119
IC414
IC27
IC28
IC321
IC404
IC402
IC422
IC408
IC410
IC328
IC415
IC421
IC420
IC419
IC407
IC322
IC19
IC2
IC3
A
B
C
D
E
PDP-R03U
56
F
7
75
8
Page 76
1234
5. PCB PARTS LIST
A
NOTES:
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 Ω
47k Ω
0.5 Ω
1 Ω
56 x 10
47 x 10
R50
1R0
1
3
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
R403470 1/16W Metal Oxide VRS-CY1JF471F
R405220 1/16W Metal Oxide VRS-CY1JF221F
R406390 1/16W Metal Oxide VRS-CY1JF391F
R4091.0k 1/16W Metal Oxide VRS-CY1JF102F
R4102.7k 1/16W Metal Oxide VRS-CY1JF272F
Page 81
5678
Mark No. DescriptionPart No.
R4113.3k 1/16W Metal Oxide VRS-CY1JF332F
R412560 1/16W Metal Oxide VRS-CY1JF561J
R41356k 1/16W Metal Oxide VRS-CY1JF563J
R414390 1/16W Metal Oxide VRS-CY1JF391J
R415390 1/16W Metal Oxide VRS-CY1JF391J
R416390 1/16W Metal Oxide VRS-CY1JF391J
R420390 1/16W Metal Oxide VRS-CY1JF391J
R421390 1/16W Metal Oxide VRS-CY1JF391J
R422100 1/16W Metal Oxide VRS-CY1JF101J
R423100 1/16W Metal Oxide VRS-CY1JF101J
R4241.0k 1/16W Metal Oxide VRS-CY1JF102J
R4251.0k 1/16W Metal Oxide VRS-CY1JF102J
R435100 1/16W Metal Oxide VRS-CY1JF101J
R4361.0k 1/16W Metal Oxide VRS-CY1JF102J
R4371.0k 1/16W Metal Oxide VRS-CY1JF102J
R43927k 1/16W Metal Oxide VRS-CY1JF273J
R44027k 1/16W Metal Oxide VRS-CY1JF273J
R4411.0k 1/16W Metal Oxide VRS-CY1JF102J
R444100 1/16W Metal Oxide VRS-CY1JF101J
R4451.0k 1/16W Metal Oxide VRS-CY1JF102J
R446330 1/16W Metal Oxide VRS-CY1JF331J
R447360 1/16W Metal Oxide VRS-CY1JF361J
R448100 1/16W Metal Oxide VRS-CY1JF101J
R4491.0k 1/16W Metal Oxide VRS-CY1JF102J
R450330 1/16W Metal Oxide VRS-CY1JF331J
Mark No. DescriptionPart No.
R6341.8k 1/16W Metal Oxide VRS-CY1JF182J
R635100 1/16W Metal Oxide VRS-CY1JF101J
R636820 1/16W Metal Oxide VRS-CY1JF821J
R63715k 1/16W Metal Oxide VRS-CY1JF153J
R6381.0k 1/16W Metal Oxide VRS-CY1JF102J
R639820 1/16W Metal Oxide VRS-CY1JF821J
R6401.8k 1/16W Metal Oxide VRS-CY1JF182J
R6416.8k 1/16W Metal Oxide VRS-CY1JF682J
R64247 1/16W Metal Oxide VRS-CY1JF470J
R643680 1/16W Metal Oxide VRS-CY1JF681J
R6442.2k 1/16W Metal Oxide VRS-CY1JF222J
R64647 1/16W Metal Oxide VRS-CY1JF470J
R647330 1/16W Metal Oxide VRS-CY1JF331J
R648100 1/16W Metal Oxide VRS-CY1JF101J
R64918k 1/16W Metal Oxide VRS-CY1JF183J
R65047 1/16W Metal Oxide VRS-CY1JF470J
R6515.1k 1/16W Metal Oxide VRS-CY1JF512J
R6526.8k 1/16W Metal Oxide VRS-CY1JF682J
R653470 1/16W Metal Oxide VRS-CY1JF471J
R654220 1/16W Metal Oxide VRS-CY1JF221J
R65515k 1/16W Metal Oxide VRS-CY1JF153J
R6565.1k 1/16W Metal Oxide VRS-CY1JF512J
R65847 1/16W Metal Oxide VRS-CY1JF470J
R6591.2k 1/16W Metal Oxide VRS-CY1JF122J
R661680 1/16W Metal Oxide VRS-CY1JF681J
A
B
C
R451330 1/16W Metal Oxide VRS-CY1JF331J
R452100 1/16W Metal Oxide VRS-CY1JF101J
R4531.0k 1/16W Metal Oxide VRS-CY1JF102J
R454330 1/16W Metal Oxide VRS-CY1JF331J
R455390 1/16W Metal Oxide VRS-CY1JF391J
R459560 1/16W Metal Oxide VRS-CY1JF561J
R481390 1/16W Metal Oxide VRS-CY1JF391J
R5282.2k 1/16W Metal Oxide VRS-CY1JF222J
R529910 1/16W Metal Oxide VRS-CY1JF911J
R5301.0k 1/16W Metal Oxide VRS-CY1JF102J
R5311.0k 1/16W Metal Oxide VRS-CY1JF102J
R5363.3k 1/16W Metal Oxide VRS-CY1JF332J
R60712k 1/16W Metal Oxide VRS-CY1JF123J
R60812k 1/16W Metal Oxide VRS-CY1JF123J
R609100 1/16W Metal Oxide VRS-CY1JF101J
R610100 1/16W Metal Oxide VRS-CY1JF101J
R6116.8k 1/16W Metal Oxide VRS-CY1JF682J
R612390 1/16W Metal Oxide VRS-CY1JF391J
R613100 1/16W Metal Oxide VRS-CY1JF101J
R614100 1/16W Metal Oxide VRS-CY1JF101J
R615100 1/16W Metal Oxide VRS-CY1JF101J
R6203.3k 1/16W Metal Oxide VRS-CY1JF332J
R62147 1/16W Metal Oxide VRS-CY1JF470J
R6223.3k 1/16W Metal Oxide VRS-CY1JF332J
R623330 1/16W Metal Oxide VRS-CY1JF331J
R664300 1/16W Metal Oxide VRS-CY1JF301F
R6651.2k 1/16W Metal Oxide VRS-CY1JF122J
R666820 1/16W Metal Oxide VRS-CY1JF821J
R66747 1/16W Metal Oxide VRS-CY1JF470J
R6683.3k 1/16W Metal Oxide VRS-CY1JF332J
R6692.2k 1/16W Metal Oxide VRS-CY1JF222J
R6702.2k 1/16W Metal Oxide VRS-CY1JF222J
R6710 1/16W Metal Oxide VRS-CY1JF000J
R6720 1/16W Metal Oxide VRS-CY1JF000J
R67533k 1/16W Metal Oxide VRS-CY1JF333J
R67622k 1/16W Metal Oxide VRS-CY1JF223J
R67747 1/16W Metal Oxide VRS-CY1JF470J
R6782.2k 1/16W Metal Oxide VRS-CY1JF222J
R679470 1/16W Metal Oxide VRS-CY1JF471J
R68010k 1/16W Metal Oxide VRS-CY1JF103J
R681330 1/16W Metal Oxide VRS-CY1JF331J
R68247k 1/16W Metal Oxide VRS-CY1JF473J
R68318k 1/16W Metal Oxide VRS-CY1JF183J
R68447 1/16W Metal Oxide VRS-CY1JF470J
R6852.2k 1/16W Metal Oxide VRS-CY1JF222J
R6990 1/16W Metal Oxide VRS-CY1JF000J
R8000 1/16W Metal Oxide VRS-CY1JF000J
R801560 1/16W Metal Oxide VRS-CY1JF561J
R802100 1/16W Metal Oxide VRS-CY1JF101J
R803100 1/16W Metal Oxide VRS-CY1JF101J
D
E
R624470 1/16W Metal Oxide VRS-CY1JF471F
R6251.2k 1/16W Metal Oxide VRS-CY1JF122J
R6263.3k 1/16W Metal Oxide VRS-CY1JF332J
R6271.0k 1/16W Metal Oxide VRS-CY1JF102J
R62847 1/16W Metal Oxide VRS-CY1JF470J
R6293.3k 1/16W Metal Oxide VRS-CY1JF332J
R630470 1/16W Metal Oxide VRS-CY1JF471J
R631100 1/16W Metal Oxide VRS-CY1JF101J
R632330 1/16W Metal Oxide VRS-CY1JF331J
R6336.8k 1/16W Metal Oxide VRS-CY1JF682J
56
PDP-R03U
R80527k 1/16W Metal Oxide VRS-CY1JF273J
R8073.9k 1/16W Metal Oxide VRS-CY1JF392J
R808100 1/16W Metal Oxide VRS-CY1JF101J
R809100 1/16W Metal Oxide VRS-CY1JF101J
R81127k 1/16W Metal Oxide VRS-CY1JF273J
R812100 1/16W Metal Oxide VRS-CY1JF101J
R8133.9k 1/16W Metal Oxide VRS-CY1JF392J
R81610k 1/16W Metal Oxide VRS-CY1JF103J
R81710k 1/16W Metal Oxide VRS-CY1JF103J
R81810k 1/16W Metal Oxide VRS-CY1JF103J
7
8
F
81
Page 82
1234
Mark No. DescriptionPart No.
R81910k 1/16W Metal Oxide VRS-CY1JF103J
A
B
C
R82075 1/8W Metal Oxide VRS-TQ2BD750J
R82175 1/8W Metal Oxide VRS-TQ2BD750J
R82275 1/8W Metal Oxide VRS-TQ2BD750J
R830680 1/16W Metal Oxide VRS-CY1JF681J
R831470 1/16W Metal Oxide VRS-CY1JF471J
R83247k 1/16W Metal Oxide VRS-CY1JF473F
R833100 1/16W Metal Oxide VRS-CY1JF101J
R834100 1/16W Metal Oxide VRS-CY1JF101J
R83547 1/16W Metal Oxide VRS-CY1JF470J
R83647 1/16W Metal Oxide VRS-CY1JF470J
R8371.0k 1/16W Metal Oxide VRS-CY1JF102J
R84147 1/16W Metal Oxide VRS-CY1JF470J
R8425.6k 1/16W Metal Oxide VRS-CY1JF562J
R8446.8k 1/16W Metal Oxide VRS-CY1JF682J
R84647 1/16W Metal Oxide VRS-CY1JF470J
R8471.0k 1/16W Metal Oxide VRS-CY1JF102J
R85047 1/16W Metal Oxide VRS-CY1JF470J
R8511.0k 1/16W Metal Oxide VRS-CY1JF102J
R8544.7k 1/16W Metal Oxide VRS-CY1JF472J
R8553.3M 1/16W Metal Oxide VRS-CY1JF335J
R8561.0k 1/16W Metal Oxide VRS-CY1JF102J
R85710k 1/16W Metal Oxide VRS-CY1JF103J
R85810k 1/16W Metal Oxide VRS-CY1JF103J
R8590 1/16W Metal Oxide VRS-CY1JF000J
Mark No. DescriptionPart No.
R9246.8k 1/16W Metal Oxide VRS-CY1JF682J
R92510k 1/16W Metal Oxide VRS-CY1JF103J
R9263.3k 1/16W Metal Oxide VRS-CY1JF332J
R9271.0k 1/16W Metal Oxide VRS-CY1JF102J
R9281.0k 1/16W Metal Oxide VRS-CY1JF102J
R92956 1/16W Metal Oxide VRS-CY1JF560J
R93056 1/16W Metal Oxide VRS-CY1JF560J
R9311.0k 1/16W Metal Oxide VRS-CY1JF102J
R932100 1/16W Metal Oxide VRS-CY1JF101J
R9331.0k 1/16W Metal Oxide VRS-CY1JF102J
R9341.0k 1/16W Metal Oxide VRS-CY1JF102J
R935820 1/16W Metal Oxide VRS-CY1JF821J
R9361.0k 1/16W Metal Oxide VRS-CY1JF102J
R937100 1/16W Metal Oxide VRS-CY1JF101J
R9381.0k 1/16W Metal Oxide VRS-CY1JF102J
R939820 1/16W Metal Oxide VRS-CY1JF821J
R9401.0k 1/16W Metal Oxide VRS-CY1JF102J
R9411.0k 1/16W Metal Oxide VRS-CY1JF102J
R9421.0k 1/16W Metal Oxide VRS-CY1JF102J
R943820 1/16W Metal Oxide VRS-CY1JF821J
R9441.0k 1/16W Metal Oxide VRS-CY1JF102J
R945820 1/16W Metal Oxide VRS-CY1JF821J
R9461.0k 1/16W Metal Oxide VRS-CY1JF102J
R9471.0k 1/16W Metal Oxide VRS-CY1JF102J
R9481.0k 1/16W Metal Oxide VRS-CY1JF102J
R864100 1/16W Metal Oxide VRS-CY1JF101J
R865100 1/16W Metal Oxide VRS-CY1JF101J
R8664.7k 1/16W Metal Oxide VRS-CY1JF472J
R8674.7k 1/16W Metal Oxide VRS-CY1JF472J
R8684.7k 1/16W Metal Oxide VRS-CY1JF472J
R86910k 1/16W Metal Oxide VRS-CY1JF103J
R87322k 1/16W Metal Oxide VRS-CY1JF223F
R87410k 1/16W Metal Oxide VRS-CY1JF103J
R87510k 1/16W Metal Oxide VRS-CY1JF103J
D
E
R87610k 1/16W Metal Oxide VRS-CY1JF103J
R87710k 1/16W Metal Oxide VRS-CY1JF103J
R8862.2k 1/16W Metal Oxide VRS-CY1JF222J
R891100 1/16W Metal Oxide VRS-CY1JF101J
R892100 1/16W Metal Oxide VRS-CY1JF101J
R894100 1/16W Metal Oxide VRS-CY1JF101J
R8962.2k 1/16W Metal Oxide VRS-CY1JF222J
R89810k 1/16W Metal Oxide VRS-CY1JF103J
R89910k 1/16W Metal Oxide VRS-CY1JF103J
R90010k 1/16W Metal Oxide VRS-CY1JF103J
R90118k 1/16W Metal Oxide VRS-CY1JF183J
R90222k 1/16W Metal Oxide VRS-CY1JF223J
R90318k 1/16W Metal Oxide VRS-CY1JF183J
R90422k 1/16W Metal Oxide VRS-CY1JF223J
R90518k 1/16W Metal Oxide VRS-CY1JF183J
R90622k 1/16W Metal Oxide VRS-CY1JF223J
R949820 1/16W Metal Oxide VRS-CY1JF821J
R9501.0k 1/16W Metal Oxide VRS-CY1JF102J
R951820 1/16W Metal Oxide VRS-CY1JF821J
R9521.0k 1/16W Metal Oxide VRS-CY1JF102J
R9531.0k 1/16W Metal Oxide VRS-CY1JF102J
R9541.0k 1/16W Metal Oxide VRS-CY1JF102J
R955820 1/16W Metal Oxide VRS-CY1JF821J
R9561.0k 1/16W Metal Oxide VRS-CY1JF102J
R957820 1/16W Metal Oxide VRS-CY1JF821J
R9581.0k 1/16W Metal Oxide VRS-CY1JF102J
R9591.0k 1/16W Metal Oxide VRS-CY1JF102J
R9601.0k 1/16W Metal Oxide VRS-CY1JF102J
R961820 1/16W Metal Oxide VRS-CY1JF821J
R9621.0k 1/16W Metal Oxide VRS-CY1JF102J
R96347 1/16W Metal Oxide VRS-CY1JF470J
R9644.7k 1/16W Metal Oxide VRS-CY1JF472J
R96547 1/16W Metal Oxide VRS-CY1JF470J
R9664.7k 1/16W Metal Oxide VRS-CY1JF472J
R96722k 1/16W Metal Oxide VRS-CY1JF223J
R9684.7k 1/16W Metal Oxide VRS-CY1JF472J
R96947 1/16W Metal Oxide VRS-CY1JF470J
R97011k 1/16W Metal Oxide VRS-CY1JF113F
R9716.8k 1/16W Metal Oxide VRS-CY1JF682F
R9721.5k 1/16W Metal Oxide VRS-CY1JF152F
R97347 1/16W Metal Oxide VRS-CY1JF470J
R90756 1/16W Metal Oxide VRS-CY1JF560J
R908150 1/8W Metal Oxide VRS-TQ2BD151J
R909470 1/16W Metal Oxide VRS-CY1JF471J
R910180 1/16W Metal Oxide VRS-CY1JF181J
R911470 1/16W Metal Oxide VRS-CY1JF471J
F
R9124.3k 1/16W Metal Oxide VRS-CY1JF432J
R913150 1/8W Metal Oxide VRS-TQ2BD151J
R9141.5k 1/16W Metal Oxide VRS-CY1JF152J
R91556 1/16W Metal Oxide VRS-CY1JF560J
R92356 1/16W Metal Oxide VRS-CY1JF560J
82
1234
PDP-R03U
R9741.0M 1/16W Metal Oxide VRS-CY1JF105J
R9754.7k 1/16W Metal Oxide VRS-CY1JF472J
R9764.7k 1/16W Metal Oxide VRS-CY1JF472J
R97710k 1/16W Metal Oxide VRS-CY1JF103J
R9788.2k 1/16W Metal Oxide VRS-CY1JF822J
R97933k 1/16W Metal Oxide VRS-CY1JF333F
R98056 1/16W Metal Oxide VRS-CY1JF560J
R98110k 1/16W Metal Oxide VRS-CY1JF103J
R98210k 1/16W Metal Oxide VRS-CY1JF103J
R98310k 1/16W Metal Oxide VRS-CY1JF103J
Page 83
5678
Mark No. DescriptionPart No.
R98422k 1/16W Metal Oxide VRS-CY1JF223J
R987330 1/16W Metal Oxide VRS-CY1JF331F
R9881.0k 1/16W Metal Oxide VRS-CY1JF102F
R989120 1/16W Metal Oxide VRS-CY1JF121FY
R99039k 1/16W Metal Oxide VRS-CY1JF393F
R99147 1/16W Metal Oxide VRS-CY1JF470J
R992100 1/16W Metal Oxide VRS-CY1JF101J
R993100 1/16W Metal Oxide VRS-CY1JF101J
R994100 1/16W Metal Oxide VRS-CY1JF101J
R995100 1/16W Metal Oxide VRS-CY1JF101J
R9961.0k 1/16W Metal Oxide VRS-CY1JF102J
R99756 1/16W Metal Oxide VRS-CY1JF560J
R99856 1/16W Metal Oxide VRS-CY1JF560J
R999100 1/16W Metal Oxide VRS-CY1JF101J
R1501 100 1/16W Metal Oxide VRS-CY1JF101J
R1502 100 1/16W Metal Oxide VRS-CY1JF101J
R1503 100 1/16W Metal Oxide VRS-CY1JF101J
R1504 100 1/16W Metal Oxide VRS-CY1JF101J
R1505 100 1/16W Metal Oxide VRS-CY1JF101J
R1506 100 1/16W Metal Oxide VRS-CY1JF101J
R1507 100 1/16W Metal Oxide VRS-CY1JF101J
R1515 22k 1/16W Metal Oxide VRS-CY1JF223J
R1516 22k 1/16W Metal Oxide VRS-CY1JF223J
R1517 22k 1/16W Metal Oxide VRS-CY1JF223J
R1518 100 1/16W Metal Oxide VRS-CY1JF101J
Mark No. DescriptionPart No.
R1712 100 1/16W Metal Oxide VRS-CY1JF101J
R1713 100 1/16W Metal Oxide VRS-CY1JF101J
R1714 10k 1/16W Metal Oxide VRS-CY1JF103J
R1718 100k 1/16W Metal Oxide VRS-CY1JF104J
R1719 100k 1/16W Metal Oxide VRS-CY1JF104J
R1721 100k 1/16W Metal Oxide VRS-CY1JF104J
R1722 100k 1/16W Metal Oxide VRS-CY1JF104J
R1724 100k 1/16W Metal Oxide VRS-CY1JF104J
R1726 100k 1/16W Metal Oxide VRS-CY1JF104J
R1727 100k 1/16W Metal Oxide VRS-CY1JF104J
R1728 100k 1/16W Metal Oxide VRS-CY1JF104J
R1736 4.7k 1/16W Metal Oxide VRS-CY1JF472J
R1743 12 1/4W Metal Oxide VRS-TW2ED120J
R1744 3.3k 1/16W Metal Oxide VRS-CY1JF332F
R1745 330 1/16W Metal Oxide VRS-CY1JF331F
R1746 1.5k 1/16W Metal Oxide VRS-CY1JF152F
R1747 47k 1/16W Metal Oxide VRS-CY1JF473F
R1751 470 1/4W Metal Oxide VRS-TW2ED471J
R1753 10k 1/16W Metal Oxide VRS-CY1JF103J
R1756 4.7k 1/16W Metal Oxide VRS-CY1JF472J
R1763 12 1/4W Metal Oxide VRS-TW2ED120J
R1764 2.7k 1/16W Metal Oxide VRS-CY1JF272F
R1765 330 1/16W Metal Oxide VRS-CY1JF331F
R1766 1.8k 1/16W Metal Oxide VRS-CY1JF182F
R1767 12k 1/16W Metal Oxide VRS-CY1JF123F
A
B
C
R1519 100 1/16W Metal Oxide VRS-CY1JF101J
R1521 390 1/16W Metal Oxide VRS-CY1JF391J
R1522 390 1/16W Metal Oxide VRS-CY1JF391J
R1524 390 1/16W Metal Oxide VRS-CY1JF391J
R1525 390 1/16W Metal Oxide VRS-CY1JF391J
R1529 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1530 4.7k 1/16W Metal Oxide VRS-CY1JF472J
R1531 100 1/16W Metal Oxide VRS-CY1JF101J
R1533 100 1/16W Metal Oxide VRS-CY1JF101J
R1534 100 1/16W Metal Oxide VRS-CY1JF101J
R1535 47k 1/16W Metal Oxide VRS-CY1JF473J
R1538 22k 1/16W Metal Oxide VRS-CY1JF223J
R1539 22k 1/16W Metal Oxide VRS-CY1JF223J
R1544 100 1/16W Metal Oxide VRS-CY1JF101J
R1545 100 1/16W Metal Oxide VRS-CY1JF101J
R1550 22k 1/16W Metal Oxide VRS-CY1JF223J
R1551 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1564 10k 1/16W Metal Oxide VRS-CY1JF103J
R1565 390 1/16W Metal Oxide VRS-CY1JF391J
R1567 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1568 47k 1/16W Metal Oxide VRS-CY1JF473J
R1569 47k 1/16W Metal Oxide VRS-CY1JF473J
R1570 47k 1/16W Metal Oxide VRS-CY1JF473J
R1571 47k 1/16W Metal Oxide VRS-CY1JF473J
R1572 47k 1/16W Metal Oxide VRS-CY1JF473J
R1774 22k 1/16W Metal Oxide VRS-CY1JF223J
R1775 1.0k 1/16W Metal Oxide VRS-CY1JF102F
R1776 560 1/16W Metal Oxide VRS-CY1JF561F
R1777 30k 1/16W Metal Oxide VRS-CY1JF303F
R1778 4.7k 1/16W Metal Oxide VRS-CY1JF472F
R1779 39k 1/16W Metal Oxide VRS-CY1JF393F
R1780 47k 1/16W Metal Oxide VRS-CY1JF473J
R1781 10k 1/16W Metal Oxide VRS-CY1JF103J
R1782 12 1/4W Metal Oxide VRS-TW2ED120J
R1783 1.0k 1/16W Metal Oxide VRS-CY1JF102F
R1784 12k 1/16W Metal Oxide VRS-CY1JF123J
R1785 4.7k 1/16W Metal Oxide VRS-CY1JF472J
R1786 0 1/16W Metal Oxide VRS-CY1JF000J
R1788 820 1W Metal Oxide VRS-CR3AD821J
R1790 68k 1/8W Metal Oxide VRS-TQ2BD683J
R1791 22k 1/16W Metal Oxide VRS-CY1JF223J
R1792 22k 1/16W Metal Oxide VRS-CY1JF223J
R1794 22k 1/16W Metal Oxide VRS-CY1JF223J
R1901 22k 1/16W Metal Oxide VRS-CY1JF223J
R1902 22k 1/16W Metal Oxide VRS-CY1JF223J
R1905 100 1/16W Metal Oxide VRS-CY1JF101J
R1906 100 1/16W Metal Oxide VRS-CY1JF101J
R1907 100 1/16W Metal Oxide VRS-CY1JF101J
R1911 0 1/16W Metal Oxide VRS-CY1JF000J
R1913 22k 1/16W Metal Oxide VRS-CY1JF223J
D
E
R1573 47k 1/16W Metal Oxide VRS-CY1JF473J
R1594 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1596 22k 1/16W Metal Oxide VRS-CY1JF223J
R1701 68k 1/16W Metal Oxide VRS-CY1JF683J
R1702 2.7k 1/16W Metal Oxide VRS-CY1JF272J
R1706 33k 1/16W Metal Oxide VRS-CY1JF333J
R1707 27k 1/16W Metal Oxide VRS-CY1JF273J
R1708 39k 1/16W Metal Oxide VRS-CY1JF393J
R1709 10 1/4W Metal Oxide VRS-TW2ED100J
R1711 100 1/16W Metal Oxide VRS-CY1JF101J
56
PDP-R03U
R1915 22k 1/16W Metal Oxide VRS-CY1JF223J
R1916 100 1/16W Metal Oxide VRS-CY1JF101J
R1917 100 1/16W Metal Oxide VRS-CY1JF101J
R1920 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1921 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1922 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1923 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R1926 10k 1/16W Metal Oxide VRS-CY1JF103J
R1927 10k 1/16W Metal Oxide VRS-CY1JF103J
R1928 10k 1/16W Metal Oxide VRS-CY1JF103J
7
8
F
83
Page 84
1234
Mark No. DescriptionPart No.
R1929 10k 1/16W Metal Oxide VRS-CY1JF103J
A
B
C
D
E
F
R1930 10k 1/16W Metal Oxide VRS-CY1JF103J
R1931 100 1/16W Metal Oxide VRS-CY1JF101J
R1932 100 1/16W Metal Oxide VRS-CY1JF101J
R1933 100 1/16W Metal Oxide VRS-CY1JF101J
R1934 100 1/16W Metal Oxide VRS-CY1JF101J
R1935 100 1/16W Metal Oxide VRS-CY1JF101J
R1936 100 1/16W Metal Oxide VRS-CY1JF101J
R1937 100 1/16W Metal Oxide VRS-CY1JF101J
R1938 100 1/16W Metal Oxide VRS-CY1JF101J
R1941 100 1/16W Metal Oxide VRS-CY1JF101J
R1942 100 1/16W Metal Oxide VRS-CY1JF101J
R1943 100 1/16W Metal Oxide VRS-CY1JF101J
R1944 100 1/16W Metal Oxide VRS-CY1JF101J
R7001 470 1/16W Metal Oxide VRS-CY1JF471J
R7002 470 1/16W Metal Oxide VRS-CY1JF471J
R7003 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7004 33k 1/16W Metal Oxide VRS-CY1JF333J
R7005 270 1/16W Metal Oxide VRS-CY1JF271J
R7006 270 1/16W Metal Oxide VRS-CY1JF271J
R7007 1.8k 1/16W Metal Oxide VRS-CY1JF182J
R7008 1.8k 1/16W Metal Oxide VRS-CY1JF182J
R7009 4.7k 1/16W Metal Oxide VRS-CY1JF472J
R7010 470 1/16W Metal Oxide VRS-CY1JF471J
R7011 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7012 2.2k 1/16W Metal Oxide VRS-CY1JF222J
R7013 47k 1/16W Metal Oxide VRS-CY1JF473J
R7014 220k 1/16W Metal Oxide VRS-CY1JF224J
R7015 220 1/16W Metal Oxide VRS-CY1JF221J
R7016 0 1/8W Metal Oxide VRS-TQ2BD000J
R7017 100 1/16W Metal Oxide VRS-CY1JF101J
R7018 100k 1/16W Metal Oxide VRS-CY1JF104J
R7019 100k 1/16W Metal Oxide VRS-CY1JF104J
R7020 100k 1/16W Metal Oxide VRS-CY1JF104J
R7021 100k 1/16W Metal Oxide VRS-CY1JF104J
R7023 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7027 0 1/16W Metal Oxide VRS-CY1JF000J
R7028 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7031 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7034 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7035 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7036 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7037 910 1/16W Metal Oxide VRS-CY1JF911J
R7038 1.5k 1/16W Metal Oxide VRS-CY1JF152J
R7039 1.5k 1/16W Metal Oxide VRS-CY1JF152J
R7040 2.2k 1/16W Metal Oxide VRS-CY1JF222J
R7041 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7042 910 1/16W Metal Oxide VRS-CY1JF911J
R7043 1.5k 1/16W Metal Oxide VRS-CY1JF152J
R7044 1.5k 1/16W Metal Oxide VRS-CY1JF152J
R7045 2.2 1/2W Metal Oxide VRS-TX2HF2R2JY
R7046 2.2 1/2W Metal Oxide VRS-TX2HF2R2JY
R7049 47 1/16W Metal Oxide VRS-CY1JF470J
R7050 620 1/16W Metal Oxide VRS-CY1JF621JY
R7201 1.0M 1/16W Metal Oxide VRS-CY1JF105J
R7202 220 1/16W Metal Oxide VRS-CY1JF221J
R7203 5.6k 1/16W Metal Oxide VRS-CY1JF562J
R7205 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7206 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7207 1.0k 1/16W Metal Oxide VRS-CY1JF102J
84
1234
Mark No. DescriptionPart No.
R7208 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7209 100 1/16W Metal Oxide VRS-CY1JF101J
R7210 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7211 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7215 10k 1/16W Metal Oxide VRS-CY1JF103J
R7216 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7217 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7224 1.0k 1/16W Metal Oxide VRS-CY1JF102J
R7225 3.3k 1/16W Metal Oxide VRS-CY1JF332J
R7237 100 1/16W Metal Oxide VRS-CY1JF101J
R7238 10k 1/16W Metal Oxide VRS-CY1JF103J
R7239 10k 1/16W Metal Oxide VRS-CY1JF103J
R7240 1.0k 1/16W Metal Oxide VRS-CY1JF102J
(1) Using the system cable, interconnect the plasma display and the AVC system.
(2) Connect the plasma display to the AC power source.
(3) Connect the AVC System to the AC power source.
2. Procedure for turning ON the power
(1) Turn ON the AC power switch located on the plasma display.
The power indicator on the plasma display will start blinking in red.
(When the AC power switch on the AVC System is not ON, the power indicator on the plasma display always
blinks in red.)
(2) Turn ON the power switch located on the AVC System.
The power indicator on the AVC System will be illuminated in green. Simultaneously, the power indicator on the
plasma display will change from blinking in red to illumination in green. Now the system has started up.
(3) If the power indicators on the AVC System and on the plasma display are both illuminated in red, press the
power key located on the remote controller and the power button located on the plasma display. The power
indicators on the plasma display and on the AVC System will change from red to green. Now the system has
started up.
Procedure for upgrading the AVC System software
(1) With the power being OFF, open the top cabinet of the AVC System and then set the slide switch from the
NORMAL position to the WRITE position by inserting an insulated stick into the cutout located between the
WHITE port on the rear of the shield case for the PC I/F unit and the RS-232C port. (Or the software may be
upgraded by calling the process adjustment mode and using CENTER PROG UPDATE on the process
adjustment menu screen. This is discussed later.)
(2) Connect a program-installed PC to the AVC system using the RS-232C cross cable. (For the details of the
program, see Appendix.)
(3) Open the MS-DOS window on the PC and then go to the directory in which the software is installed.
(4) Start up the system to which the AVC System and plasma display have been connected.
(5) Run “vup.bat (tentative name)” at the MS-DOS prompt. The software will be upgraded.
(6) Load the file “civic_XXXXa.bhx main.bhx osd.bhx (tentative name)”.
It will take a couple of minutes until the file has been loaded. Never turn OFF the power or operate the system
during this rewriting period.
(7) After the file has been loaded, turn OFF the plasma display and the AVC System, and then return the slide
switch in the above step (1) back from the WRITE position to the NORMAL position. Now the software has been
upgraded.
Procedure for adjusting each part of the AVC System
1. The adjustments were made to the best settings at factory. If any setting deviates or if any readjustment is
regarded as necessary when any part has been replaced, perform the following steps.
2. Any parameter that has been changed in the process adjustment mode is stored on the memory. If any
readjustment is required, write down the current value before changing it.
3. Use a stable AC power source.
4. If the program is upgraded, it will take approximately 1 minute for the EEPROM to be initialized before any
video appears. Therefore, you will need to wait for this time period. Do not turn OFF the power or operate the
system during the period.
5. If the program is rewritten, preferably write down the parameters that have been changed within the process
adjustment (see “OSD menu and parameters displayed at manual adjustment”), initialize the EEPROM, and
then reenter the recorded values.
6. ADJUSTMENT
A
B
C
D
E
PDP-R03U
56
7
F
99
8
Page 100
1234
Entering a special mode
A
1. Entering the process adjustment mode
With the system being ON, tur
n OFF the main power of the plasma display. Next holding down the INPUT SELECT
and CH UP buttons on the plasma display itself, turn ON the main power again. Now the adjustment mode screen
shows up.
2. Adjustments in the adjustment process mode
[Steps]
Make adjustments using the process adjustment mode buttons, listed below.
[Description]
B
Following the items displayed on the process adjustment menu screen, adjust the settings given in their
adjustment tables.
3. Procedure for making factory settings
[Steps]
In the process adjustment mode, move the cursor to the line “INDUSTRY INIT” onscreen. Turn ON with the VOL
key and press the SET/ENTER key.
(Within the adjustment process, the channel settings remain unchanged. Once you exit the process adjustment
mode, the channel settings entered in the delivery adjustment mode become valid.)
[Description]
The user’s adjustment parameters and others will be set to the default values. Keep in mind that the channel
C
settings will also be initialized.
Exiting the process adjustment mode
To exit the process adjustment mode, turn off the AVC System power.
OSD menu and parameters displayed at manual adjustment
• The default values may slightly differ depending upon the program version to be rewritten.
• The settings are not initialized to the default values by merely rewriting the program. (See the paragraph for
Procedure for adjusting each part of the AVC System.)
D
(1) Descriptions of special buttons in process adjustment mode
(All on the remote controller)
Cursor UP key: Returns to the previous page.
Cursor DOWN key : Proceeds to the next page.
Vol UP key: Increases the adjusted value by 1.
Vol DOWN key: Decreases the adjusted value by 1.
Cursor RIGHT key : Increases the adjusted value by 10.
Cursor LEFT key : Decreases the adjusted value by 10.
CH UP key: Moves up the cursor.
CH DOWN key: Moves down the cursor.
E
(2) Process adjustment menu table
The items displayed on the menu screen must be written down before replacing the EEPROM at the AVC
System side.
Procedure for replacing the PC I/F unit
Before replacing the PC I/F unit, write down the items displayed on each menu screen of the adjustment process.
If the I/F unit is completely broken and the above items cannot be jotted down in advance, follow the instructions
in “Adjustment procedures and items” and make all adjustments.
F
100
1234
PDP-R03U
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
