Pinnacle Systems Pro Tools LE - 5.3 Menus Guide

Pro Tools
Menus Guide
Version 5.3 for Macintosh and Windows
Digidesign
2001 Junipero Serra Boulevard
Daly City, CA 94014-3886 USA
tel: 650·731·6300
fax: 650·731·6399
650·731·6100
650·856·4275
Product Information (USA)
650·731·6102
800·333·2137
International Offices
Visit the Digidesign Web site
for contact information
Web Site
www.digidesign.com
Copyright
This guide is copyrighted ©2002 by Digidesign, a division of Avid Technology, Inc. (hereafter “Digidesign”), with all rights reserved. Under copyright laws, this guide may not be duplicated in whole or in part without the written consent of Digidesign.
DIGIDESIGN, AVID and PRO TOOLS are trademarks or registered trademarks of Digidesign and/or Avid Technology, Inc. All other trademarks are the property of their respective owners.
All features and specifications subject to change without notice.
PN 932909712-00 REV A 1/02
contents
Chapter 1. File Menu
New Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Open Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Close Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Save Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Save Session As . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Save Session Copy In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Revert To Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Bounce to Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
New Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Group Selected Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Duplicate Selected Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Split Selected Tracks Into Mono . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Make Selected Tracks Inactive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Delete Selected Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Import Audio to Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Import MIDI to Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Export MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Export Session As Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Import Tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Get Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Quit/Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Contents
iii
Chapter 2. Edit Menu
Undo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Redo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Paste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Repeat Paste to Fill Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Merge Paste. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Duplicate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Select All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Capture Region. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Separate Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Heal Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Quantize Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mute/Unmute Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Lock/Unlock Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Consolidate Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Compress/Expand Edit to Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Identify Sync Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Identify Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Insert Silence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Copy to Send . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thin Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Write Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trim Automation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pro Tools Menus Guide
iv

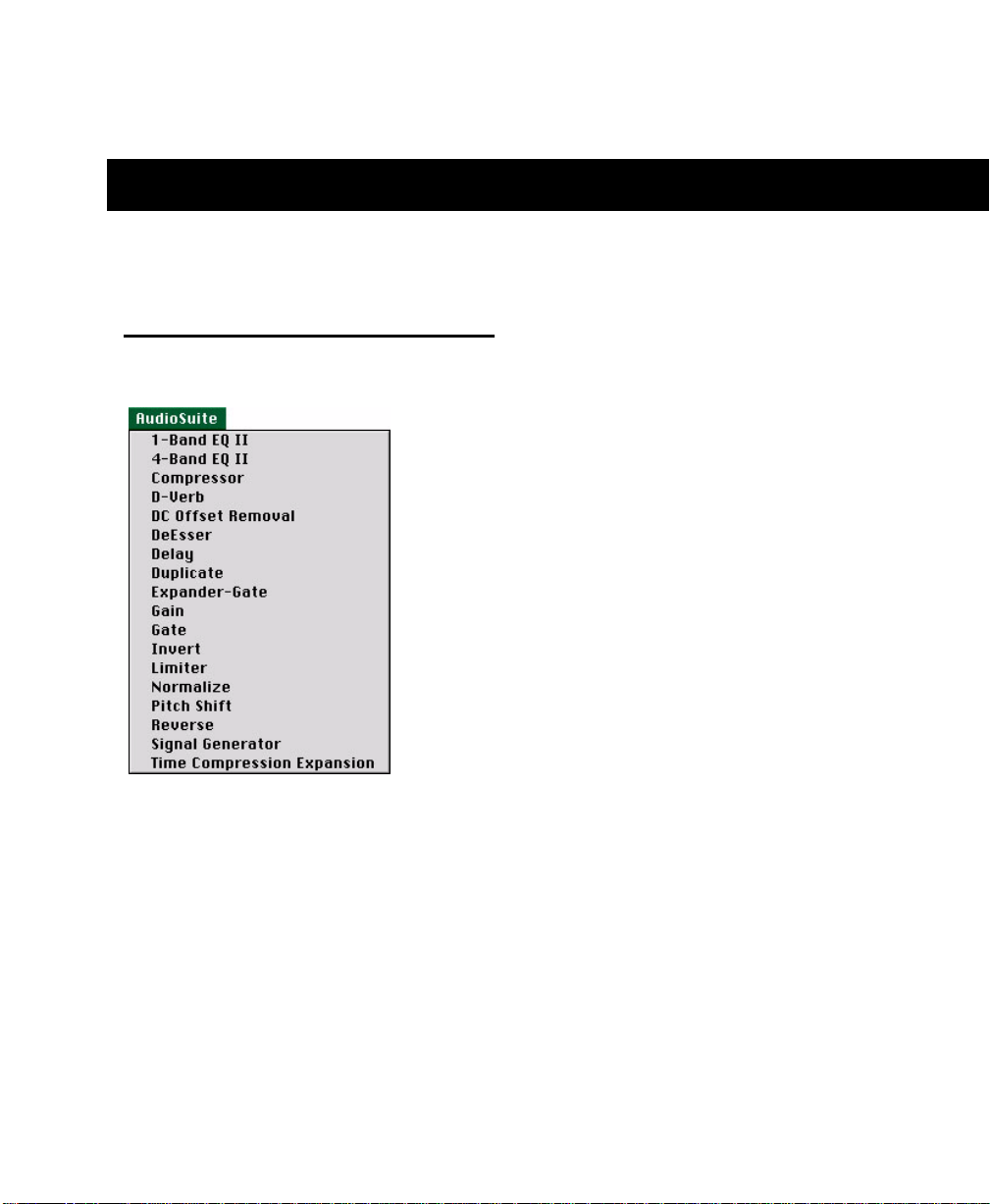

Chapter 3. AudioSuite Menu
1-Band EQ II and 4-Band EQ II. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Compressor, Limiter, Expander-Gate, and Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
D-Verb. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DC Offset Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DeEsser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Duplicate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Invert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Normalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pitch Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Signal Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Time Compression/Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 4. MIDI Menu
Change Tempo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Change Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Renumber Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Quantize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Change Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Change Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Transpose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Select Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Split Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Input Quantize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Click . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Click Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MIDI Beat Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Input Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Input Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
MIDI Thru . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
All Notes Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contents
v
Chapter 5. Movie Menu
Import Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Import Audio From Current Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Import Audio From Other Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Bounce to Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
New Movie Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Normal Priority Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Medium Priority Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Highest Priority Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Set Movie Sync Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Movie Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Window Aspect Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Add Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Undo Add Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Clear Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Clear Movie Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Chapter 6. Operations Menu
Destructive Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Loop Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
QuickPunch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto Input Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Input Only Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Pre/Post-Roll Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Loop Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Scroll Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Link Edit and Timeline Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Copy Edit Selection to Timeline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Copy Timeline Selection to Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Play Timeline Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Play Edit Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Mute Frees Explicit Voice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Auto-Spot Regions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Active in Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Pre-Fader Metering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Pro Tools Menus Guide
vi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Calibration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

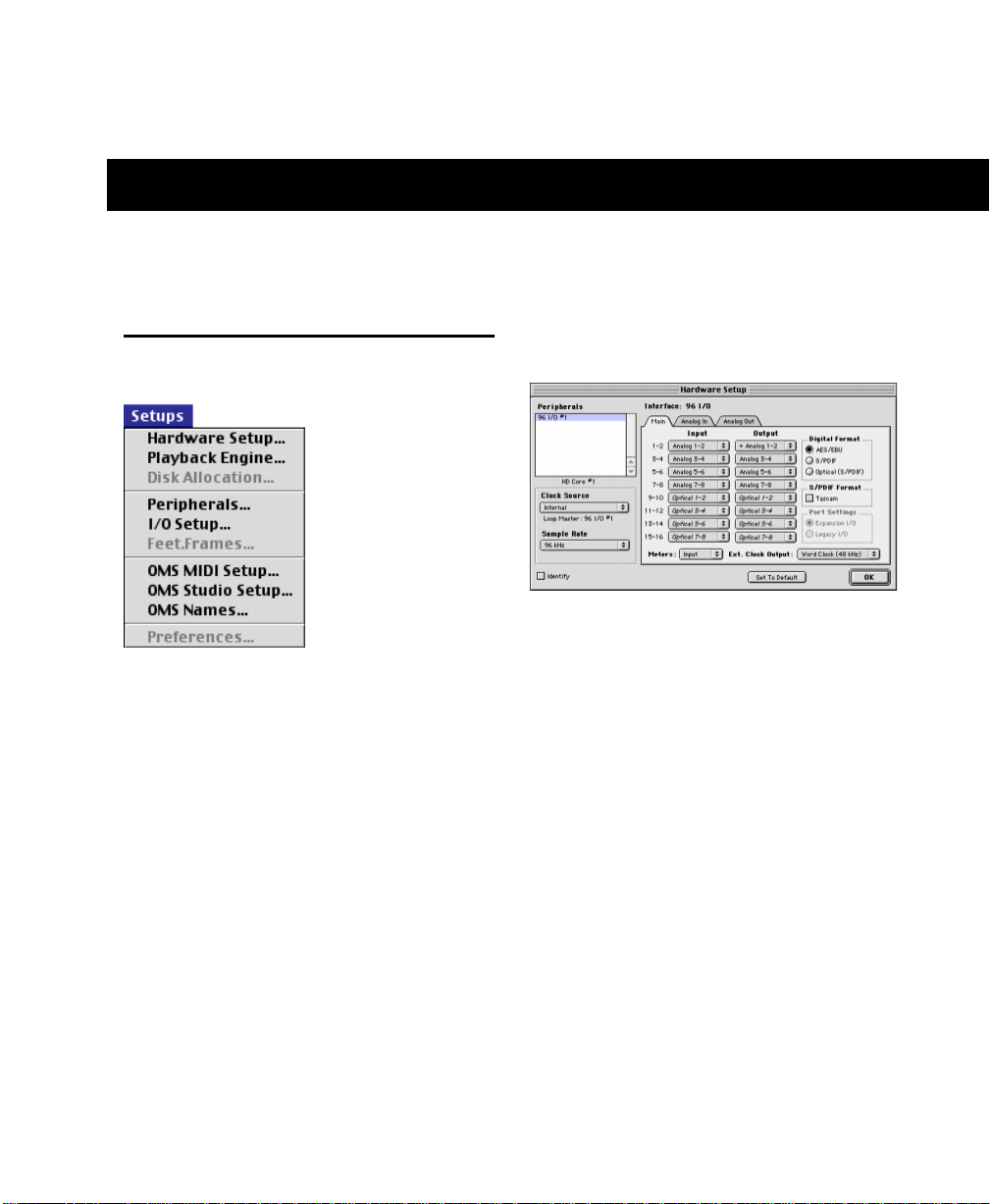

Chapter 7. Setups Menu
Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Playback Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Disk Allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

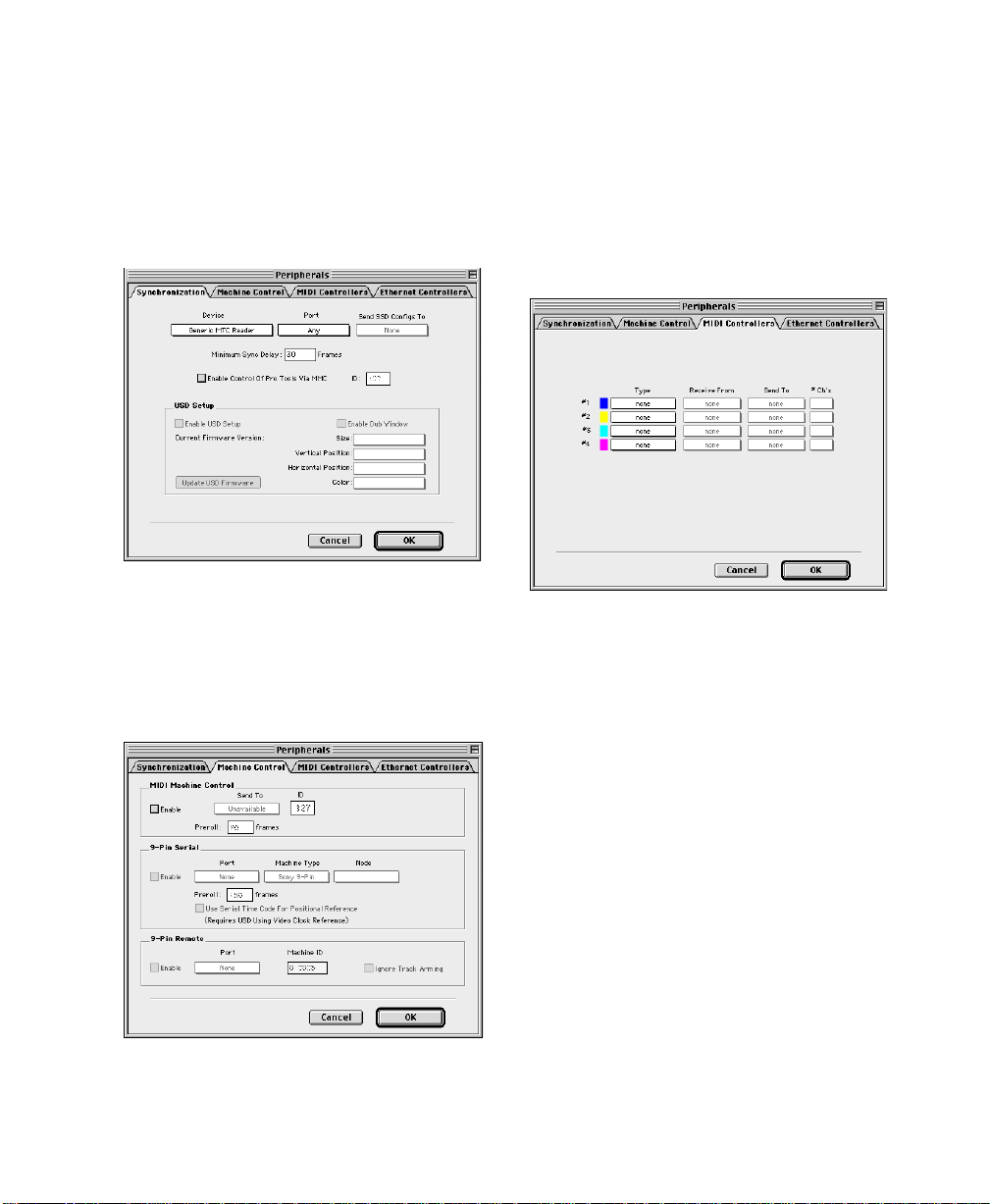

Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
I/O Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Feet.Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
OMS MIDI Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
OMS Studio Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
OMS Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

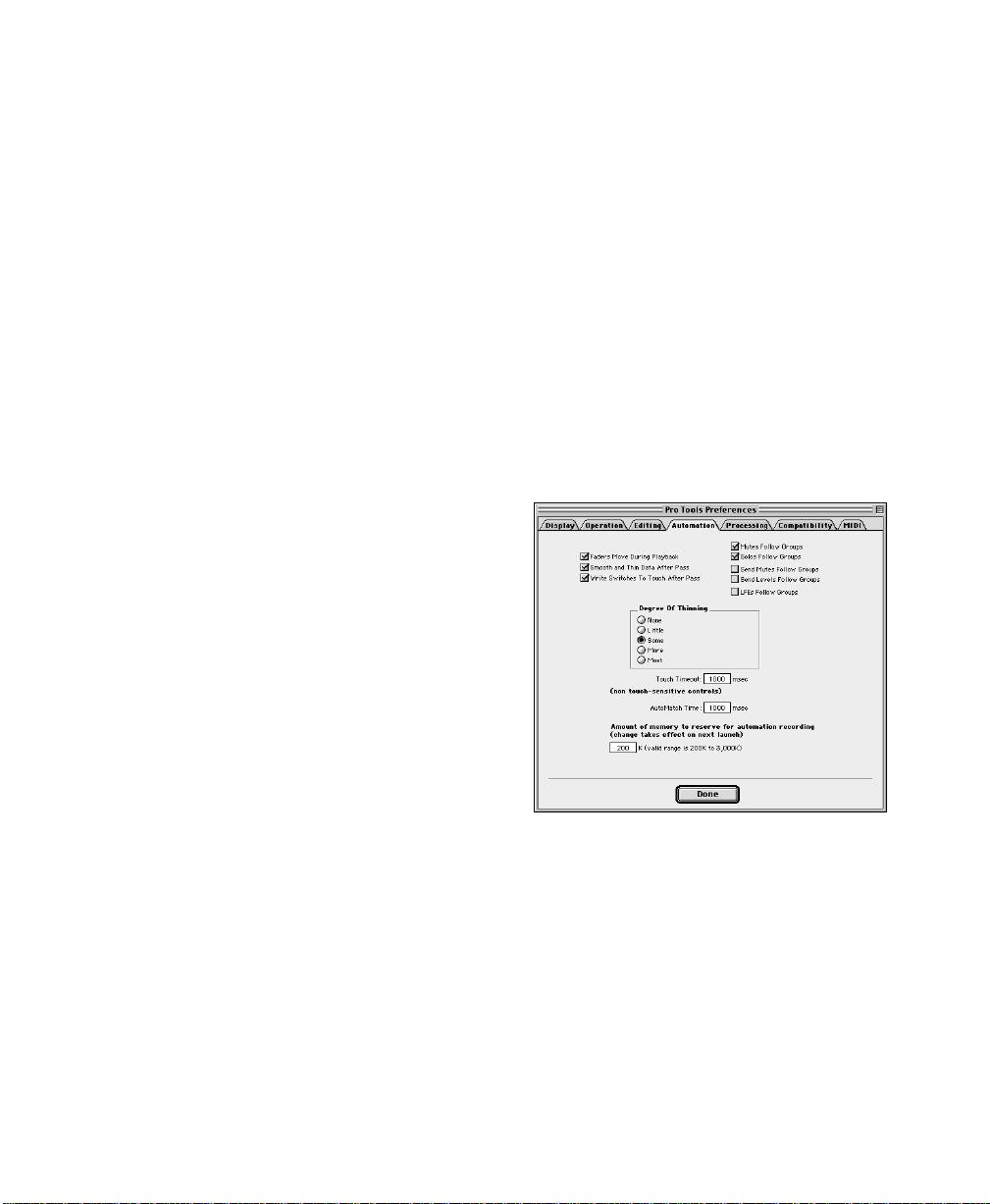

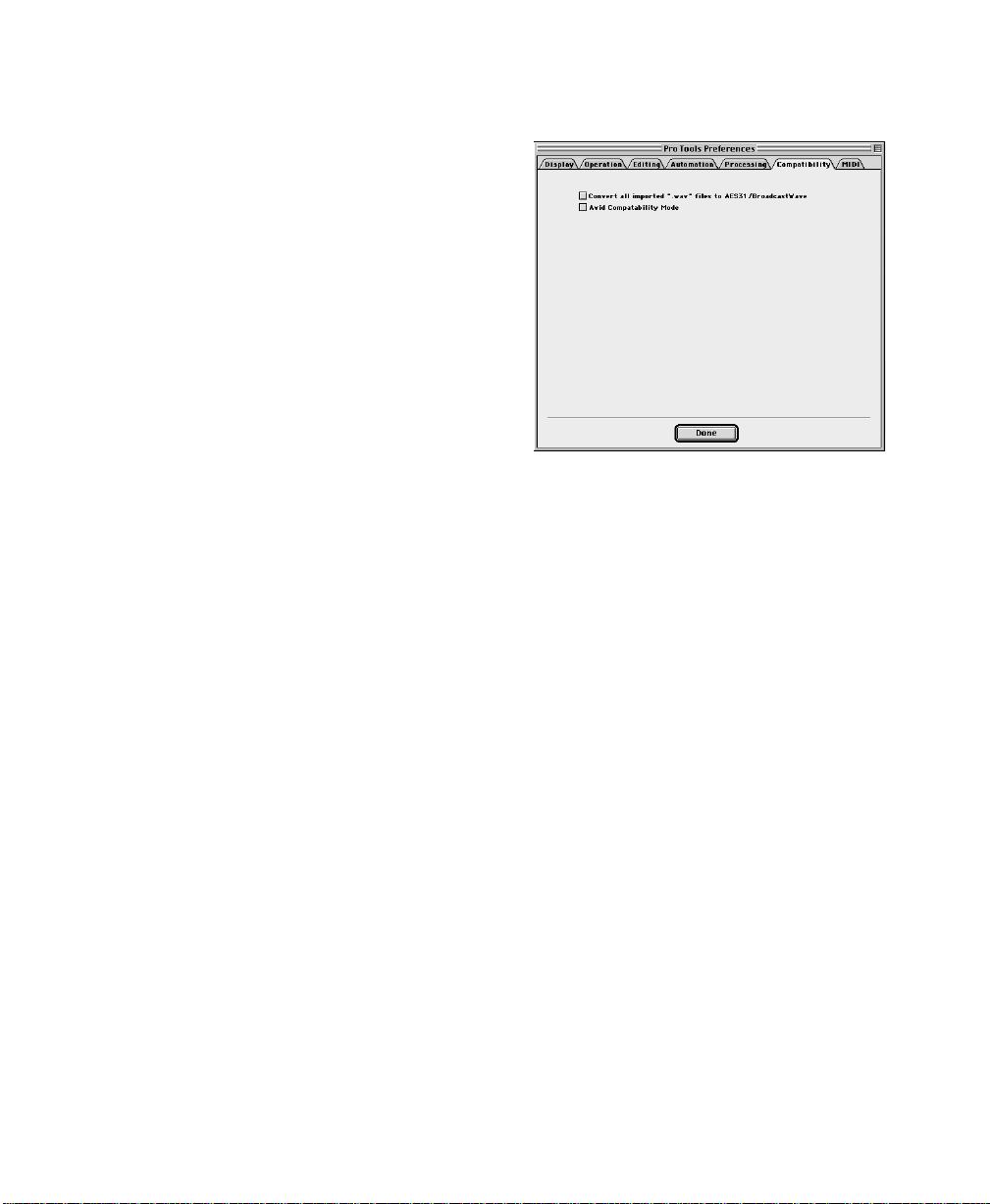

Preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Chapter 8. Display Menu
Narrow Mix Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Mix Window Shows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Edit Window Shows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Transport Window Shows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Sends View Shows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Ruler View Shows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
System Usage Window Shows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Disk Space Window Shows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Display Time in Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Display Name in Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Display Auto-Created Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Bars:Beats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Minutes:Seconds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Time Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Feet.Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Contents
vii
Chapter 9. Windows Menu
Show Mix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Show Edit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Show MIDI Event List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Show Tempo/Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Show MIDI Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Show MIDI Track Offsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Show Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Show Session Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Show Big Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Show Automation Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Show Memory Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Show Machine Track Arm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Show Universe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Show Beat Detective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Show Movie Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Show Strip Silence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Show System Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Show Disk Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chapter 10. Help Menu
Index
Pro Tools Menus Guide
viii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
chapter 1

File Menu

File Menu
File Menu
File menu commands are used to create and maintain Pro Tools sessions.

New Session

New Session dialog
The New Session command creates a new Pro Tools session. Before the session is created, you must name the session and choose its Audio File type, Sample Rate, Bit Depth, and I/O Set­tings. Selecting the Enforce Mac/PC Compatibil­ity option on Macintosh or the Enforce PC/Mac Compatibility option on Windows ensures proper interchange of sessions and their associ­ated media between Macintosh and Windows­based systems. Specific file-naming and audio format restrictions apply.
Chapter 1: File Menu
1

Open Session

The Open Session command opens a session previously created with Pro Tools. Only one ses­sion can be open at a time.

Close Session

The Close Session command closes the current session without quitting Pro Tools. Pro Tools prompts you to save changes before closing the session.

Save Session

The Save Session command saves changes made since the last time the session was saved. You cannot undo the Save Session command.

Save Session As

The Save Session As command saves a copy of the current session under a different name, or in a different location. Because the Save Session As command closes the current session and allows you to keep working on the renamed copy, it is useful for saving successive stages of the session.

Save Session Copy In

Save Session Copy In dialog
The Save Session Copy In command saves a copy of the currently selected session document under a different name, in a different location, or at a different bit-depth or sample rate. Ses­sions can be saved in a variety of session formats for compatibility with older systems. This com­mand is useful for archiving sessions.
Pro Tools Menus Guide
2
Unlike the Save Session As command, Save Ses­sion Copy In does not close the original session, so subsequent edits are made to the original ses­sion. The saved copy becomes a backup copy, and gives you the option of reverting to the ear­lier version.
When you Save Session Copy In with a lower bit rate, Dither (and Noise Shaping) may be ap­plied. See the following table:
Dither and Noise Shaping are applied as follows:
Bit Rate Conversion Noise Shaping
24-bit to 16-bit Yes (Dither
Noise Shaping)
and

Revert To Saved

The Revert to Saved command restores the most recently saved version of a session, discarding all changes made since the last time you saved. Re­verting to the last saved version of a session is like closing the session without saving changes and reopening it.
24-bit to 8-bit No (Dither Only)
16-bit to 8-bit No (Dither Only)
The Items To Copy section of this dialog pro­vides several options for copying a session along with its associated files.
All Audio Files
audio files are copied to the new location. Se­lecting All Non-AIFF Audio Files copies all audio files
except
format. This option’s file format type will always be the default audio file format of the session; so if the session’s default audio file format is WAV, the option will read All Non-WAV Audio Files. Selecting Don’t Copy Fade Files omits crossfade files from the copied data.
Session Plug-In Settings Folder
tion is selected, the session’s Plug-In Settings Folder is copied to the new location. The refer­ences to these plug-in settings in the session are redirected to the copied files.
Movie/Video Files
a session’s video files are copied to the new loca­tion, and the references in the session are redi­rected to the copied movie or video file.
When this option is selected, all
audio files of the specified audio file
When this op-
When this option is selected,

Bounce to Disk

Bounce to Disk dialog
The Bounce to Disk command allows you to mix together the outputs of all currently audible tracks routed to a common output path to create a new audio file. You can use the Bounce to Disk command to create a submix or to create a final mix in any of several audio file formats.
Bounce Source
bounce. Only audio routed to the selected path will be included in the bounce.
Selects the audio output path to
Chapter 1: File Menu
3
File Type
are SDII, WAV, AIFF, RealAudio, MPEG-1 Layer 3 (MP3), QuickTime, and Sound Resource (Mac­intosh) or Windows Media (Windows). Certain file types are restricted in regards to format, res­olution, and sample rate.
Format
mono (summed), multiple mono, or inter­leaved.
Resolution
24-, 16-, or 8-bit.
Sample Rate
Conversion Quality
to Tweak Head when bouncing to a new sample rate.
Selects the audio file format. Choices
Selects the channel format. Choices are
Selects the bit depth. Choices are
Selects the sample rate.
Selects the quality from Low

New Track

New Track dialog
The New Track command adds one or more new Audio Tracks, Auxiliary Inputs, Master Faders, or MIDI tracks to a session. Tracks can be mono, stereo, or any one of a variety of multichannel formats.

Group Selected Tracks

Use Squeezer
bounced audio before conversion to 8-bit reso­lution.
Convert During Bounce
file type, sample rate, and bit resolution conver­sion as the file is being bounced.
Convert After Bounce
file type, sample rate, and bit resolution conver­sion after the file has been bounced.
Import After Bounce
audio after it is bounced and adds it to the Re­gions List so that it can be used in the session.
Optimizes the dynamics of the
Automatically performs
Automatically performs
Automatically imports the
Group Selected Tracks dialog
This command groups the currently selected tracks together so that their controls are linked together in the Mix and/or Edit window. Groups can be nested so that subgroups are contained within larger groups.
Pro Tools Menus Guide
4

Duplicate Selected Tracks

This command duplicates a selected track, in­cluding its audio or MIDI data, playlists, auto­mation, and other attributes.

Split Selected Tracks Into Mono

This command splits a selected multichannel track into individual mono tracks that can be edited and manipulated independently.

Make Selected Tracks Inactive

This command makes selected tracks inactive, so that they no longer play back or use any DSP resources or voices. Inactive tracks can be made active again by choosing the Make Selected Tracks Active command.

Delete Selected Tracks

This command removes tracks from a session. While audio or MIDI region data will remain in the Regions List, the track and its playlists will be deleted.

Import Audio to Track

Import Audio to Track dialog
This command loads audio files or regions into the current session. Each imported audio file will appear on its own individual track. To im­port audio files without automatically creating new tracks for them, use the Import Audio com­mand in the Audio Regions List pop-up menu.

Import MIDI to Track

The Import MIDI to Track command imports all tracks from a Standard MIDI file into Pro Tools and automatically places them in new MIDI tracks. To import MIDI regions to a session with­out automatically creating new tracks for them, use the Import MIDI command in the MIDI Re­gions List pop-up menu. The Import MIDI to Track command allows you to import tempo data in the sequence or apply existing tempo data in the session to the imported file.
Chapter 1: File Menu
5

Export MIDI

This command exports all currently audible MIDI tracks in a session as a standard MIDI file. Muted MIDI tracks will not be exported. You can export the file as a Type 1 (multitrack) or Type 0 (merged) Standard MIDI file.

Export Session As Text

Import Tracks

Import Tracks dialog
This command imports all tracks from an exist­ing session into the current session. Options are provided for time code mapping, sample rate conversion, and audio and video source file ref­erencing, copying, and conversion.

Get Info

Export Session As Text dialog
This command exports the current session as a tab-delimited text file containing region and file names, and SMPTE start times. This command will not print or format session events to any particular standard; it simply provides the data in a text format.
Pro Tools Menus Guide
6
Get Info command
This command saves information about the ses­sion itself. Left-column text fields are topic fields. Text entered there is saved with your Pro Tools Preferences and will appear in all ses­sions, allowing you to preset the field to topics that you commonly use.
Right-column text fields are information fields. Text entered there is session specific.

Quit/Exit

The Quit (Macintosh) or Exit (Windows) com­mand ends your Pro Tools session and closes the Pro Tools application.
Chapter 1: File Menu
7
Pro Tools Menus Guide
8
chapter 2

Edit Menu

Edit Menu
Edit menu commands are used to edit and ma­nipulate regions.

Undo

The Undo command lets you sequentially undo up to 16 of your previous actions. Certain com­mands and actions (such as saving) are not un­doable.

Redo

After undoing a command or action, you can redo it by choosing Redo command. This is a good way to compare before and after states of edits.
Cut
Edit Menu
This command cuts a selection out of its current location and stores it in memory so that you can paste it elsewhere.

Copy

This command copies a selection (leaving the original intact) and stores it in memory so that you can paste it elsewhere.
Chapter 2: Edit Menu
9

Paste

Repeat

This command inserts cut or copied data into a location specified with an Edit tool (such as the Selector tool).

Repeat Paste to Fill Selection

(TDM Systems Only)
This command repeatedly pastes copied data until it completely fills a selection. If you select an area that is not an exact multiple of the cop­ied region size, the remaining selection area is filled with a trimmed version of the original se­lection. This allows you to easily create drum loops and other repetitive effects. Before the data is pasted, Pro Tools prompts you to specify a crossfade to smooth transitions between re­gions.

Merge Paste

This command pastes MIDI data into a track without replacing existing data by merging the pasted data with the existing data. This can be useful for consolidating MIDI data from several tracks into a single MIDI track.

Clear

This command removes a selection in the Edit window.
This command is similar to Duplicate, but al­lows you to specify the number of times the se­lected material is duplicated. To use this com­mand, select the material you want to repeat, choose Repeat, then enter the number of repeti­tions.

Shift

This command moves track material earlier or later in time by a specified amount. To use this command, select the material you want to move, choose Shift, then enter the desired direc­tion and time value.

Select All

This command selects all audio and MIDI data in one or more tracks.
To select all regions in a single track, select a portion of the track, or click the Selector any­where in a track and choose Select All.
To select all regions on multiple tracks, Shift­click a region on each track with the Selector or Grabber and choose Select All.
To select all regions on all tracks, Select the
“All” Edit Group in the Groups List, click the Se­lector anywhere in a track, and choose Select All.

Duplicate

This command copies a selection and places it immediately after the end of that selection in a track.
Pro Tools Menus Guide
10

Trim

This command removes audio before and after a selection, leaving only the selection. This pro­vides a convenient means of quickly removing all data within a region except the current selec­tion.

Capture Region

Mute/Unmute Region

This command defines a selection as a new re­gion and adds it to the Regions List. From there the new region can be dragged into a track. You cannot capture selections across multiple re­gions unless the data is contiguous material from the same file.

Separate Region

This command defines a selection as a new re­gion (or the current insertion point as a region split point), and in the process, separates it from adjacent data in the track where it was created. By separating a region you will also create by­product regions from data on either side of the separation.

Heal Separation

This command repairs separated regions, pro­vided that the regions are contiguous and their relative start and end points haven’t changed since they were originally separated. If you have trimmed or changed the start and end points of the two regions, or moved them away from each other, they cannot be repaired with the Heal Separation command.

Quantize Regions

This command adjusts the placement of a se­lected audio or MIDI region in a track so that its start point (or Sync Point, if it contains one) pre­cisely aligns to the nearest Grid boundary. Grid units are chosen from the Grid pop-up menu in the Edit window.
This command mutes playback of a selected re­gion. Choosing the Unmute command unmutes the region. This command does not create auto­mation data.

Lock/Unlock Region

Locked audio region
This command locks a selected region in place so it cannot be moved unless you unlock it. This command is useful for permanently associating a region with a particular location in a track (such as a beat, SMPTE frame, or a time value). A small lock icon appears in the region indicating it has been locked.

Consolidate Selection

This command consolidates multiple regions into a single region for ease of use. When an au­dio track is consolidated, a new audio file is writ­ten that encompasses the selection range, in­cluding any blank space. To use this command, select the material you want to consolidate, then choose Consolidate Selection.

Compress/Expand Edit to Play

(TDM Systems Only)
This command uses the Time Compression/Ex­pansion plug-in to fit an audio selection to a Timeline selection. This is only possible when the Edit and Timeline selections are unlinked.
Chapter 2: Edit Menu
11

Identify Sync Point

Insert Silence

This command identifies a specific point within a region and spots that point to a SMPTE frame location. A triangle indicates the Sync Point’s position. When you choose this command, the current SMPTE time is automatically entered as the SMPTE location for the Sync Point. To re­move a Sync point from a region, select the re­gion with the Grabber and choose Edit > Remove Sync Point.

Identify Beat

Identify Beat dialog
This command lets you establish a tempo/meter map for audio that was recorded without listen­ing to a click, or for imported audio with un­known tempos.
The Identify Beat command analyzes a selection range (usually with a distinct number of beats or measures) and calculates its tempo based on the specified meter. In doing this, Bar|Beat markers for the calculated tempo are inserted and appear in the Tempo Ruler at the beginning and end of the selection. in addition, meter events are in­serted into the Meter Ruler.
This command creates regions of silence. Make a selection on one or more tracks, choose Insert Silence, and precisely that amount of silence will be inserted.

Fades

Fades dialog
This command creates a crossfade between two adjacent audio regions or a fade-in or fade-out of a single region. Crossfade duration, position, and shape are all selectable. A selection that crosses multiple regions will create crossfades for each of the region transitions. If a selection includes regions that already contain crossfades, the existing crossfades will be modified.
Create Fades
cent regions according to parameters you spec­ify with the Fades editor.
Delete Fades
cent regions.
Fade to Start
insertion point to a region’s start point.
Produces a crossfade between adja-
Removes a crossfade between adja-
Creates a fade-in from the current
Pro Tools Menus Guide
12
Fade to End
insertion point to a region’s end point.
Creates a fade-out from the current

Copy to Send

(TDM Systems Only)
Copy to Send dialog
This command copies a selected track’s volume, pan, mute, or LFE automation to the corre­sponding playlist for the send. This is useful when you want a track’s send automation to mirror automation on the track itself.
To copy a track’s current control settings to a send on that track, select Current Value. To copy the entire automation playlist for the track to a send, select Automation.

Write Automation

This command lets you write automation states to specific session locations in a single step. This saves you the trouble of performing multiple au­tomation passes for different parameters in real time, or having to graphically draw automation state changes on individual automation play­lists.

Trim Automation

This command lets you use trim values as snap­shots and apply the relative changes or
ues
to the selected automation. This is similar to the Write Automation command, except that it writes delta values instead of absolute values to automation data. You can use trim values in writing snapshot automation to any automat­able parameter.
delta val-

Thin Automation

This command lets you selectively thin areas in a track where automation data is too dense, aversely affecting CPU performance. The amount of thinning performed is determined by the amount you have selected in the Automa­tion page of the Preferences dialog. Avoid over­thinning data or it may no longer accurately re­flect the original automation.
Chapter 2: Edit Menu
13
Pro Tools Menus Guide
14
chapter 3

AudioSuite Menu

AudioSuite Menu
AudioSuite Menu
The AudioSuite menu allows you to access all AudioSuite plug-ins currently installed in your system’s Plug-Ins Folder. AudioSuite plug-ins are non-real-time, file-based processing plug-ins for Pro Tools. For detailed information on each of the AudioSuite plug-ins, refer to the
Plug-Ins Guide
.
DigiRack

1-Band EQ II and 4-Band EQ II

The EQ II plug-ins adjust the frequency spec­trum of an audio selection. The 1-band EQ can be configured as a high-pass, low-shelf, high­shelf, low-pass, or peak EQ. The 4-band EQ pro­vides one high-shelf, one low-shelf, and two peak EQs.
Compressor, Limiter, Expander­Gate, and Gate
These plug-ins provide dynamics processing. This type of processing allows you to control the dynamic range of audio material, increasing or decreasing gain as needed. For detailed informa­tion on each of the AudioSuite dynamics plug­ins, refer to the
DigiRack Plug-Ins Guide.

D-Verb

D-Verb is a studio-quality reverb. Reverberation processing can simulate the complex natural re­flections and echoes that occur after a sound has been produced, imparting a sense of an acoustic environment. D-Verb artificially creates a sound space with a specific acoustic character.
Chapter 3: AudioSuite Menu
15

DC Offset Removal

Invert

The DC Offset Removal plug-in recognizes and removes spikes caused by DC offset in the cur­rently selected region if any are present.

DeEsser

The DeEsser plug-in reduces sibilants (“s,” “sh,” and “t” sounds) and other high frequency noises that can occur in vocals, voice-overs, and some wind instruments. These sounds can cause peaks in an audio signal and lead to distortion.
The DeEsser reduces these unwanted sounds us­ing fast-acting compression. A Threshold con­trol sets the level above which compression starts, and a Frequency control sets the fre­quency band in which the DeEsser operates.

Delay

The Delay plug-in provides time delay-based ef­fects, with up to 10.9 seconds of delay (regard­less of the sample rate). In addition to long de­lays, you can create many delay-based effects with this plug-in, including slap echo, doubling, chorusing, and flanging.
The Invert plug-in inverts the phase (polarity) of the currently selected region.

Normalize

The Normalize plug-in uniformly adjusts all lev­els in the currently selected area to a user-defin­able level, referencing the loudest peak in either a specific region, or examining the relative peak level of several regions.

Pitch Shift

The Pitch Shift plug-in changes the pitch of the currently selected region, with or without changing its duration. It also allows you to per­form Time Compression/Expansion on your se­lection simultaneously with a pitch change.

Reverse

The Reverse plug-in rewrites the currently se­lected region in reverse, producing a backwards audio effect.

Signal Generator

Duplicate

The Duplicate plug-in duplicates a selected area or region in place. The Duplicate Plug-In is use­ful for creating a single audio file from a selec­tion encompassing many smaller regions with areas of silence between them.

Gain

The Gain plug-in adjusts the gain (volume) of the currently selected region in decibels or a per­centage value.
Pro Tools Menus Guide
16
The Signal Generator plug-in produces audio test tones in a variety of frequencies, waveforms, and amplitudes. It is useful for generating refer­ence signals with which to calibrate various ele­ments of your studio.

Time Compression/Expansion

The Time Compression/Expansion plug-in changes the length (duration) of the currently selected region, with or without changing its pitch.
chapter 4

MIDI Menu

MIDI Menu
MIDI Menu
The MIDI menu contains commands for MIDI editing.

Change Tempo

Change Tempo dialog
This command allows you to insert a tempo event into the Tempo Track to define or change the tempo of a session. Pro Tools allows multi­ple tempo changes within a session.
Chapter 4: MIDI Menu 17

Change Meter

Quantize

Change Meter dialog
This command allows you to insert a Meter event into the Meter Track to define or change the meter of a session. Pro Tools allows multiple meter changes within a session.

Renumber Bars

Renumber Bars dialog
This command renumbers the bars in a session. To do this, change the numbering of bar 1, and all subsequent bars are renumbered accordingly.
Quantize dialog
This command adjusts the placement of se­lected MIDI events in a track so that their start or end points precisely align to the quantization value chosen.

Change Velocity

Change Velocity dialog
This command adjusts attack and release veloc­ities for selected MIDI notes. Use it to make notes louder or softer, or to create crescendos or decrescendos.
Pro Tools Menus Guide18

Change Duration

Change Duration dialog
This command adjusts the duration for selected MIDI notes. It can be used to make melodies and phrases more staccato or more legato.

Transpose

Select Notes

Select Notes dialog
This command selects MIDI notes based on pitch. It can be used to select a single note or note range for the entire length of a region or track, or to select the upper or lower notes within chords.

Split Notes

Transpose dialog
This command transposes selected MIDI notes up or down the musical scale by a specific num­ber of semitones (half steps). With this feature you can easily add key changes and other trans­position effects to MIDI tracks.
Split Notes dialog
This command is similar to the Select Notes command, but also lets you automatically cut or copy the selected notes. One use for this com­mand is in the case where you have recorded a track with chords in the left hand and melody in the right. You can cut the melody notes and paste them to another track to assign them to play on a different device or channel.
Chapter 4: MIDI Menu 19

Input Quantize

Input Quantize dialog
This command quantizes MIDI notes as they are performed and recorded. While this will im­prove the strict rhythmic accuracy of a perfor­mance, it can also give it a stiff, mechanical feel. To preserve the original rhythmic nuances of a performance, deselect this option.

Click Options

Click Options dialog
This command lets you configure click parame­ters such as MIDI note, velocity, duration, and output.

MIDI Beat Clock

Click

When enabled, a metronome sounds during playback and recording (as specified by the set­tings in the Click Options dialog).
Pro Tools Menus Guide20
MIDI Beat Clock dialog
This command synchronizes certain MIDI de­vices—such as drum machines, software synthe­sizers, and hardware sequencers—to MIDI Beat Clock. Devices selected in this dialog will receive the MIDI Beat Clock signal. If your MIDI inter­face does not support transmitting MIDI Beat Clock to separate ports, the interface will appear as the only destination.

Input Filter

MIDI Input Filter dialog
This command filters out selected MIDI mes­sages from your recording. The Input Filter can be set to record all messages, only the specified messages, or all except the specified messages. When using the Only option, only the MIDI messages that are selected will be recorded. Con­versely, when using the All Except option, the selected messages will not be recorded.

Input Devices

(Macintosh Only)
Input Devices dialog
This command enables selected MIDI control­lers and control surfaces so that MIDI data re­ceived from them can be recorded. Disabling de­vices in this dialog will ensure that unwanted notes (such as those from drum machines or an arpeggiator) are not recorded.

MIDI Thru

Enabling MIDI Thru routes MIDI from your con­trollers to the devices and channels assigned to the MIDI track currently record-enabled. This al­lows you to monitor MIDI tracks while record­ing.

All Notes Off

This command sends an All Notes Off MIDI message to all MIDI devices connected to your system to silence any stuck notes.
Chapter 4: MIDI Menu 21
Pro Tools Menus Guide22
chapter 5

Movie Menu

Movie Menu
Movie Menu
Movie menu commands are used for adding QuickTime movies and other audio formats to a session, and managing movie playback.

Import Movie

This command imports a QuickTime movie into the current session. Once imported, a Quick­Time movie is displayed in its own Movie track in the Edit window, and in a floating Movie window. With a QuickTime movie in a session,
Pro Tools serves as a fast, random-access visual reference for “sweetening” the movie by adding sound effects, music, Foley, dialog, or other au­dio.

Import Audio From Current Movie

This command imports audio directly from a QuickTime movie currently loaded into a ses­sion. Pro Tools will convert the audio to the cur­rent session sample rate and bit resolution.

Import Audio From Other Movie

This command imports audio from a QuickTime movie on your hard drive. If necessary, Pro Tools will convert the audio to the current session sample rate and bit resolution. This command can also be used to import audio files from audio CDs.

Bounce to Movie

This command compiles a new QuickTime movie with the current session as the audio soundtrack. Pro Tools will convert the audio tracks to the selected sample rate and bit resolu­tion, then create a new flattened movie with the bounced audio. As a QuickTime file, the new movie is supported by all software applications that support QuickTime video.
Chapter 5: Movie Menu 23

New Movie Track

(Avoption and AVoption|XL Only)
This command creates a new empty movie track into which you can record or import video.

Normal Priority Playback

This is the default setting for QuickTime movie playback. It gives no extra priority to movie playback over other screen update tasks such as metering, moving faders, and so on. In most cases you should use this setting. If, however, you are running QuickTime movies without a video capture card, you may need to use the Me­dium or High Priority Playback setting.

Medium Priority Playback

This command gives QuickTime movie play­back a higher priority relative to other Pro Tools screen update tasks. This yields better movie playback performance if you are running Quick­Time movies without a video capture card.

Set Movie Sync Offset

When you import a QuickTime movie into a ses­sion, by default, the first frame of the movie is set to the start time of the session. In some cases, you may need to offset the movie earlier or later so you can accurately spot audio to it. The Set Movie Sync Offset command allows you to set this offset in 1/4-frame increments. This is more accurate than dragging the movie track, and is especially useful in cases where a movie track begins with a partial frame.

Movie Online

This command enables and disables movie play­back. You may want to do this to have the Movie frozen at a particular point in time rela­tive to Pro Tools playback, or to give highest screen update priority to other Pro Tools tasks such as metering, moving faders, and so on.

Window Aspect Ratio

(AVoption and AVoption|XL Only)

Highest Priority Playback

This command gives QuickTime movie play­back highest priority. In this mode, Pro Tools disables screen activity such as metering during movie playback. This yields the highest movie playback performance if you are running Quick­Time movies without a video capture card.
Pro Tools Menus Guide24
This command lets you change the dimensions or aspect ratio of the Movie window.

Add Movie

(AVoption and AVoption|XL Only)
This command adds additional movie clips to the Movie Track. You will be prompted to spot the clip to a SMPTE location. If the clip is spot­ted to a location that already contains a movie clip, the first clip will be truncated.

Undo Add Movie

This command undoes the Add Movie com­mand and other Movie Track editing functions such as moving, copying, or clearing clips. These actions cannot be undone by choosing the standard Undo command from the Edit menu.

Clear Selection

This command clears a selection in the Movie Track. This allows simple editing of movie clip content.

Clear Movie Track

This command clears the entire Movie Track.
Chapter 5: Movie Menu 25
Pro Tools Menus Guide26
chapter 6

Operations Menu

Operations Menu
Operations Menu
The Operations menu commands allow you to toggle on or off several recording, monitoring, playback, and display options.

Destructive Record

This command enables Destructive Record mode. In this mode, recording over existing re­gions replaces the original audio permanently. This allows you to conserve hard drive space. However, if you have sufficient drive space, it is usually best to use Pro Tools in Non-Destructive Record mode to avoid losing any previously re­corded material.

Loop Record

Loop Record lets you record take after take while the same section of audio repeats. This is a con­venient technique for quickly recording multi­ple takes of a part without losing spontaneity.
The time range that is looped and recorded— which must be at least one second in length—is defined by selecting a range in the Ruler or in a track’s playlist, or by specifying start and end points in the Transport window.

QuickPunch

QuickPunch gives you the ability to instanta­neously punch-in (initiate recording) on a record-enabled audio track during playback, then punch-out (exit recording) by clicking the Transport’s Record button. Recording with QuickPunch is non-destructive.
Chapter 6: Operations Menu 27

Auto Input Monitoring

Scroll Options

In this mode, when session playback is stopped, Pro Tools monitors audio input. When playback is started for a punch-in, Pro Tools monitors ex­isting track material up until the punch point. While punched in, the input signal is moni­tored. On punch-out, monitoring switches back to the existing track material. This is similar to the auto-switching logic found on digital and analog multitrack tape machines.

Input Only Monitoring

In this mode, when a track is record-enabled, Pro Tools monitors audio input only, regardless of any punch in or out selection.

Online

This command arms Pro Tools for online syn­chronization. Playback or recording can then be triggered by an external time code source. On­line recording or playback begins as soon as Pro Tools receives and locks to time code or ADAT sync.

Pre/Post-Roll Playback

This command enables pre- and post-roll play­back. Pre- and post-roll amounts can be entered in the Transport window, set from a track’s play­list or Timebase Ruler, or by recalling a Memory Location.

Loop Playback

This option continuously loops playback of a se­lection until you stop playback. Looping play­back is a useful way to check the rhythmic con­tinuity of a selection when working with musical material. Selections must be at least 0.5 seconds in length to use Loop Playback.
Pro Tools provides several options for how the contents of the Edit window scroll during play­back and recording. These include:
No Auto-Scrolling Disables scrolling during and after playback. The playback cursor moves across the Edit window, indicating the playback location.
Scroll After Playback Causes the Edit window to scroll to the final playback location after play­back has stopped. In this mode, the playback cursor moves across the Edit window, indicating the playback location.
Page Scroll During Playback Causes the Edit window to scroll during playback. With this op­tion, the playback cursor moves across the Edit window, indicating the playback location. When the right edge of the Edit window is reached, its entire contents are scrolled, and the playback cursor continues moving from the left edge of the window.
Continuous Scroll During Playback Causes the Edit window’s contents to scroll continuously past the playback cursor, which remains in the center of the window. With this option, play­back is always based on the Timeline selection (unlike Continuous Scroll With Playhead). This option is available only on Pro Tools TDM sys­tems.
Continuous Scroll With Playhead Causes the Edit window’s contents to scroll continuously past the Playhead, which is a blue line in the center of the window (red when recording). This option is available only on Pro Tools TDM systems.
Regardless of which Scrolling option is se­lected in the Operations menu, Pro Tools does not scroll when zoomed down to the sample level.
Pro Tools Menus Guide28

Link Edit and Timeline Selection

This command lets you link or unlink Timeline selections. When the Edit and Timeline selec­tions are unlinked, you can make a selection within a track for editing purposes that is dis­tinct from the selection in the Timeline (which determines the playback and recording range).
When the Edit and Timeline selections are linked, making a selection in a track’s playlist (an Edit selection) also defines the play and record range (the Timeline selection).

Copy Edit Selection to Timeline

(TDM Only)
When the Edit and Timeline selections are un­linked, this command copies the current Edit se­lection to the Timeline.

Mute Frees Explicit Voice

(TDM Systems Only)
When this option is enabled, a muted track’s voice will be allocated to the next highest prior­ity track assigned to the same explicit voice.

Auto-Spot Regions

(TDM Only)
When enabled, this option simplifies the task of spotting regions. If you are using VITC with this option enabled, or MachineControl software, you can pause your video at an appropriate SMPTE frame location, click on a region with the Grabber, and the region will be automati­cally spotted to the current time code location.

Active in Background

Copy Timeline Selection to Edit

(TDM Only)
When the Edit and Timeline selections are un­linked, this command copies the current Time­line selection to an Edit selection.

Play Timeline Selection

(TDM Only)
This command plays a Timeline selection when Continuous Scroll with Playhead is enabled.

Play Edit Selection

This command plays an Edit selection when Continuous Scroll with Playhead is enabled
.
When enabled, this option allows Pro Tools to operate in the background while you use an­other application.

Pre-Fader Metering

This option toggles track metering between pre­and post-fader operation. When set to Pre-Fader Metering, level meters show levels independent of fader position. With post-fader metering, the level meters respond to fader position.

Calibration Mode

(TDM Only)
Use the Calibration mode in Pro Tools to adjust the input and output levels for your audio inter­face (such as the 192 I/O or the 888|24 I/O) so they match those of your mixing console and other audio devices in your studio.
Chapter 6: Operations Menu 29
Pro Tools Menus Guide30
chapter 7

Setups Menu

Setups Menu
Setups Menu
This menu allows you to configure various Pro Tools hardware and software parameters.

Hardware Setup

Hardware Setup dialog
The Hardware Setup dialog has several tabbed pages in which you can specify your preferred settings for various session parameters. Each au­dio interface connected to your Pro Tools sys­tem will use these settings.
The Main tab of the Hardware Setup dialog can be used to define what physical ports are routed to Pro Tools input and output channels. The Main tab also provides controls for Session Sam­ple Rate, Sync settings, and defining whether Expansion Port or Legacy Port peripherals are active.
Additional pages can be used to configure other parameters on each audio interface (such as set­ting operating levels). Refer to the Getting Started Guide for your Pro Tools system.
Chapter 7: Setups Menu 31

Playback Engine

Playback Engine dialog
Use the Playback Engine dialog to set Hardware Buffer Size, CPU Usage Limit (for RTAS plug­ins), the Number of Voices (and voiceable tracks), Sample Rate, and DAE Playback Buffer Size for your system and its sessions.
If you change settings mid-session, the session will be saved, closed and reopened to enable the new settings. For details on using this feature, refer to the Getting Started Guide for your Pro Tools system.

Disk Allocation

Disk Allocation dialog
If you are using multiple hard drives for record­ing, this dialog lets you assign each track in a session to a specific drive. Audio for that track will then be recorded to the chosen drive.
Pro Tools Menus Guide32

Peripherals

The Peripherals dialog lets you configure syn­chronization, MIDI, machine control, and eth­ernet peripheral devices for use with Pro Tools.
Synchronization
Synchronization setup
This page configures synchronization devices such as Digidesign’s SYNC I/O to synchronize Pro Tools to SMPTE Time Code.
Machine Control
This page configures MIDI machine control and 9-pin machine control devices for use with Pro Tools. MIDI Machine Control is supported on all Pro Tools systems. The Pro Tools MachineControl software option is required for use of 9-pin controllers.
MIDI Controllers
MIDI Controllers setup
This page configures MIDI control surfaces such as the CM Labs MotorMix™, Mackie Designs HUI™, Penny & Giles MM16/DC16, JL Cooper CS-10 family, and the Peavey PC-1600.
Machine Control setup
Chapter 7: Setups Menu 33
Ethernet Controllers

I/O Setup

Ethernet setup
This page configures ethernet-equipped devices and Digidesign dedicated controllers (such as ProControl) for use with Pro Tools.
I/O Setup dialog
I/O Setup provides tools to label and map Pro Tools input, output, insert, and bus signal paths.
In addition, the I/O Setup dialog, like the Main page of Hardware Setup, provides controls for routing the physical ports on your audio inter­face (such as a 96 I/O) to Pro Tools Input and Output channels.
Pro Tools Menus Guide34

Feet.Frames

(TDM Systems Only)
Feet.Frames dialog
For sessions in which feet and frames are the time scale of reference, this command lets you enter a Start Frame based on an appropriate frame location at the beginning of your project tape. The Feet.Frames Ruler will then use this value as its start reference.

OMS Studio Setup

(Macintosh Only)
OMS Studio Setup

OMS MIDI Setup

(Macintosh Only)
OMS MIDI Setup
This command configures OMS to use MIDI in­terfaces, instruments, and other peripherals on Macintosh-based Pro Tools systems. Refer to the Getting Started Guide that came with your system for details on configuring OMS.
This command configures OMS to use MIDI in­terfaces, instruments, and other peripherals on Macintosh-based Pro Tools systems. Refer to the Getting Started Guide that came with your system for details on configuring OMS.
Chapter 7: Setups Menu 35

OMS Names

(Macintosh Only)
OMS Names dialog
This command opens patch name documents for all configured OMS devices, and edit patch and note name information. Edited patch names will appear in the Program Change win­dow within Pro Tools.

Preferences

The Preferences dialog has several tabbed pages in which you can specify your preferred settings for various session parameters. Each new session will use these preferences.

Display Preferences

Recompute Invalid Overviews This option prompts Pro Tools to look for missing or cor­rupted overview data (the data used to create waveform displays) when it opens sessions. If Pro Tools finds that overview data is missing or corrupted, it will recreate one or more overviews for the session. This may take some time if there are many tracks in the session. If you suspect that overview data for a session has become cor­rupted, or if you import audio files which have no overview data into a session, make sure this preference is enabled for the session, save and close the session, then reopen it. Pro Tools will recreate any overviews for the session when it opens.
Draw Waveforms Rectified This option displays audio waveform data in rectified view. In this view, audio waveforms are displayed so that their positive and negative waveform excursions
Pro Tools Menus Guide36
(the portions that fall above and below the cen­ter line) are summed together and viewed as a single positive-value signal. This view allows more waveform detail to be seen in either nor­mal or reduced track height views. It can be par­ticularly useful when editing volume automa­tion data, since it depicts waveform levels as starting at the bottom of the track.
Draw Grids in Edit Window This option adds grid lines to the Edit window. Grid line resolution is based on the zoom level of the Edit window.
Mix Window Follows Bank Selection This option, which is only available if you are using a sup­ported external MIDI controller, causes Pro Tools to scroll the Mix window to display the selected bank of tracks when you switch banks on the MIDI controller, ensuring that the current bank is viewable on-screen.
Edit Window Follows Bank Selection This op­tion, which is only available if you are using a supported external MIDI controller, causes Pro Tools to scroll the Edit window to display the selected bank of tracks when you switch banks on the MIDI controller, ensuring that the current selection of tracks in the current bank is viewable on-screen.
Edit Window Default Length This option allows you to set a default length for the Edit window in hours, minutes, seconds, and frames. This ca­pability is useful if you wish to assemble a ses­sion of a particular length or leave extra room to expand the Edit window’s work area in your ses­sion. There is a 13 hour maximum limit for the length of a Pro Tools session.
Show Meters in Sends View When the Sends View is displaying individual send controls, you can enable this option to show send level meters. If you are using a slower computer, you can disable this option to reduce the processing load on your CPU.
Edit Window Color Coding
Edit Window Color Coding determines how col­ors are assigned to the waveform display in the Edit window. Choices are:
None This option turns off color assignment to the waveform display of tracks in the Edit win­dow.
Tracks and MIDI Channels Assigns a color to the waveform display of each track in the Edit win­dow according to its voice number and MIDI channel assignment.
Tracks and MIDI Devices Assigns a color to the waveform display of each track in the Edit win­dow according to its voice number and MIDI de­vice type.
Groups Assigns a color to the waveform display of each track in the Edit window according to its group ID. If groups are suspended using the Sus­pend Groups command, all waveforms will be displayed in black.
Peak Hold Options
These options determine how long the peak in­dicators on track meters stay lit after a peak is detected. Choices are:
3-Second Peak Hold When selected, track meters display the last peak level for three seconds.
Infinite Peak Hold When selected, track meters display the last peak level until you click them to clear them.
No Peak Hold When selected, track meters do not hold the peak level.
Chapter 7: Setups Menu 37

Operation Preferences

Timeline Insertion Follows Playback This option causes the screen’s play cursor to update its loca­tion to the point where playback stops.
Edit Insertion Follows Scrub/Shuttle When se­lected, the edit cursor automatically locates to the point where scrubbing stops.
Support Background Record Applications Allows other audio recording applications to run in the background concurrently with Pro Tools. Files recorded in the background can be imported into Pro Tools, and then trimmed and viewed while recording continues.
Sends Default to –INF Sets the initial fader level
of newly-created Sends to – (no audible signal
level).
Audio During Fast Forward/Rewind When se­lected, audio is audible during fast-forward or re­wind.
Latch Record Enable Buttons When deselected, prevents multiple tracks from being record-en­abled: Record-enabling a track takes any other track out of record-enabled mode.
Latch Solo Buttons When deselected, prevents multiple tracks from being soloed. Soloing a track mutes any track that is soloed.
Link Mix and Edit Group Enables When selected, links enabling and disabling of Mix and Edit groups: Enabling Group A in the Edit Window automatically enables Group A in the Mix win­dow.
Use F11 Key for Wait for Note When selected, pressing the F11 Function key puts MIDI record­ing in Wait for Note mode.
Numeric Keypad Mode
Numeric Keypad Mode determines how the nu­meric keypad functions. You can always use the numeric keypad to select and enter values in the Event Edit Area, Location Indicators, and Trans­port fields.
Classic Emulates the way Pro Tools worked in versions earlier than 5.0. With the Numeric Key­pad Mode set to Classic, you can play up to two tracks of audio in Shuttle Lock mode. Press Con­trol (Macintosh) or the Start key (Windows), fol­lowed by 0–9 for different play speeds. Press Plus (+) or Minus (–) to reverse direction. Recall Memory Locations by typing the Memory Loca­tion number, followed by period (.).
Transport Allows you to set a number of record and play functions, and also operate the Trans­port from the numeric keypad. With the Nu­meric Keypad Mode set to Transport, you can play up to two tracks of audio in Shuttle Lock mode. Press Control (Macintosh) or the Start key (Windows), followed by 0–9 for different play speeds. Press Plus (+) or Minus (–) to reverse direction. Recall Memory Locations by typing period (.), the Memory Location number, and period (.) again.
Pro Tools Menus Guide38
Shuttle Selects a type of shuttling different from that of Shuttle Lock mode. With the Numeric Keypad Mode set to Shuttle, playback is trig­gered by pressing and holding the keys on the numeric keypad—playback stops once the keys are released. Various playback speeds are avail­able in both forward and reverse. You can also recall Memory Locations by typing period (.), the Memory Location number, and period (.) again.
Open Ended Record Allocation
This preference determines how much of your available hard drive space is allocated for record­ing. Choices are:
Use All Available Space When selected, the drive’s entire available space is allocated. This can sometimes slow down the recording process for hard drives that use certain file systems, in­cluding HFS+ and NTFS.
Autosave
This preference determines how the Autosave feature functions.
Enable Autosave When selected, Pro Tools auto­matically saves sessions while you work. Use the Keep and Save Every fields to specify the total number of incremental backups that are kept and how often the session is saved.
Online Options
Record Online at Time Code (or ADAT) Lock When selected, online recording begins as
soon as Pro Tools receives and locks to time code or ADAT sync.
Record Online at Insertion/Selection When se­lected, online recording begins at the Edit cursor location. Recording continues until Pro Tools stops receiving time code. If you make a selec­tion, Pro Tools records online for the length of the selection.
Limit To Sets the maximum allowable recording duration. This can help reduce the time it takes to begin recording by allocating only a portion of your hard drive. The number of minutes spec­ified is allocated for each record-enabled track. You may find it necessary to experiment with this number to achieve the desired performance for recording.
Machine Control
These preferences determine how a connected transport responds to Pro Tools. Choices are:
Machine Chases Memory Location When se­lected, navigating to a specific location in a ses­sion with a Memory Location causes a con­nected transport to chase to that location.
Machine Follows Edit Insertion/Scrub When se­lected, navigating to a specific location in a ses­sion by moving the selection point or by scrub­bing a track will cause a connected transport to chase to that location.
Machine Cues Intelligently When selected, if you navigate to a cue point that is more than 10 sec­onds from the current location, Pro Tools will command a connected transport to shuttle to the desired location at full speed to within 10 seconds of the cue point. Cueing will then slow to normal speed until the point is reached. This significantly speeds up tape cueing.
Chapter 7: Setups Menu 39
Remote Mode
Punch In Frame Offset Sets an offset in frames to
compensate for punch in timing advances or de­lays.
Punch Out Frame Offset Sets an offset in frames to compensate for punch out timing advances or delays.
Auto Regions Fade In/Out Length Sets a default length for fade-ins and fade-outs automatically applied to region boundaries. Using automatic fade-ins and fade-outs saves you the trouble of editing to zero-crossings or creating numerous rendered fades in order to eliminate clicks or pops in playback. Autofades are not written to disk. Value range is from 0–10 ms for the Auto Region Fade In/Out Length. A value of zero (the default) means that no auto-fading will occur. The Auto Fade value is saved with the session, and is automatically applied to all free-standing region boundaries until you change it.
Calibration Reference Level Sets a default cali­bration reference level in dB when Pro Tools is in Calibration mode. See the Pro Tools Reference Guide for details on using Calibration mode.

Editing Preferences

Track Selection Follows Regions List Selection When selected, selecting a region in
the Regions List causes Pro Tools to highlight that region’s occurrence in a track.
Region List Selection Follows Track Selection When selected, selecting a region in a
track also selects it in the Regions List.
Auto-Name Separated Regions When selected, Pro Tools automatically names newly separated regions by appending a number to the region’s name.
Auto-Name Memory Locations When Playing When selected, Pro Tools gives new
memory locations default names based on their time location in the session. The time units cur­rently chosen in the Display menu determine the units for the names.
Recall Original Track Selections When selected, Memory Locations that recall a selection also re­call the track in which the selection was made.
Crossfade Preview Pre-Roll This option specifies the amount of pre-roll to be added when you are auditioning crossfades in the Fades dialog.
Pro Tools Menus Guide40
Crossfade Preview Post-Roll This option speci­fies the amount of post-roll to be added when you are auditioning crossfades in the Fades dia­log.
Default Fade Settings
“Separate Region” Operates On All Related Takes When selected, editing a region with the
Separate Region command also affects all other related takes with the same User Time Stamp. This option helps you compare different sec­tions from a group of related takes.
Fade In Selects the default envelope shape for fade-ins.
Crossfade Selects the default envelope shape for crossfades.
Fade Out Selects the default envelope shape for fade-outs.
Conversion Quality Selects the sample rate con­version quality. Sample rate conversion is used in a variety of Pro Tools processes including converting and importing audio files of differ­ent formats into a session, and bouncing and saving tracks to a different sample rate or bit depth. The higher the quality of sample rate conversion you choose, the longer Pro Tools will take to process the audio file.
“Matching Start Time” Takes List
Command-clicking (Macintosh) or Control­clicking (Windows) in a track, will display a list of regions whose time stamp matches the cur­rent cursor location. The preferences that follow determine which takes appear in this list:
QuickPunch Crossfade Length Specifies a default length for crossfades created by QuickPunch re­cording. Crossfades occur before the punch in and after the punch out.
Levels Of Undo Sets the maximum number of ac­tions (up to 16) that can be undone with the multiple undo feature.

Automation Preferences

Take Region Names That Match Track Names When selected, only regions that share
the same root name with the track and playlist appear in the Takes List pop-up menu.
Take Region Lengths That Match When selected, only regions that match the length of the cur­rent selection appear in the Takes List pop-up menu.
Faders Move During Playback When selected, faders move on-screen when automated. When deselected, faders do not move, but automation is still functioning.
Smooth and Thin Data After Pass When se­lected, automation is automatically smoothed and thinned by the amount specified with the Degree of Thinning option.
Chapter 7: Setups Menu 41
Write Switches To Touch After Pass After an au­tomation pass in Auto Write mode, Pro Tools automatically switches to Auto Touch mode. On TDM systems you can choose to stay in Auto Write mode by deselecting this option.
Mutes Follow Groups When selected, muting a track that belongs to a Mix group mutes all other members of the group. When deselected, tracks must be muted individually.
Solos Follow Groups When selected, soloing a track that belongs to a Mix group solos all other members of the group. When deselected, tracks must be soloed individually.
Send Mutes Follow Groups When selected, mut­ing a Send that belongs to a group mutes all other members of the group. When deselected, Sends must be muted individually.
Send Levels Follow Groups When selected, ad­justing the level of a Send that belongs to a group adjusts the Send levels of all other mem­bers of the group. When deselected, Send levels must be adjusted individually.
AutoMatch Time Specifies how quickly Pro Tools returns a fader or other control to its previously automated level after automation recording stops.
Amount of Memory for Automation Recording Al­lows you to reserve additional memory for re­cording automation. If you have dense automa­tion data or a large number of automated tracks, increase this amount. Relaunch Pro Tools for this setting to take effect.

Processing Preferences

LFEs Follow Groups When selected, adjusting or editing an LFE control that belongs to a group adjusts the LFE controls of all other members of the group. When deselected, LFE controls must be adjusted individually.
Degree of Thinning Specifies the amount of auto­mation data thinning applied when automation is recorded. Avoid over thinning automation data or it may no longer accurately reflect the original pass.
Touch Timeout Specifies how quickly automa­tion recording stops or “times out” after you stop moving a MIDI controller in Touch mode.
Pro Tools Menus Guide42

AudioSuite Dither

Use AudioSuite Dither When selected, applies dither to specific audio processing tasks.
Dither Plug-In Specifies the plug-in used for dither processing when the Use AudioSuite Dither option is selected.
Edit Settings When a Digidesign dithering plug­in is used, allows you to apply either normal or noise-shaping dither.

Bit Depth

16-, 18-, 20-, and 24-Bit allows you to select a bit depth for the dithered audio.

AudioSuite Buffer Size

Audio Suite Buffer Size sets the size of the mem­ory buffer used for audio processing and pre­viewing with AudioSuite plug-ins. Generally, choosing a smaller buffer speeds up AudioSuite audio previewing functions. Choosing a larger buffer speeds up AudioSuite processing func­tions. Set the buffer according to your current task. Before auditioning an AudioSuite plug-in, set the buffer to Mini or Small. When you pro­cess a file, set it to Large or Jumbo.

TC/E

TC/E Plug-In Allows you to choose the plug-in used for Time Compression and Expansion when you edit audio with the Time Trimmer tool. The Time Trimmer works by using Time Compression/Expansion to match an audio re­gion to the length of another region, a tempo grid, a video scene, or other reference point.
Default Settings Specifies the default settings used by the chosen Time Compression/Expan­sion plug-in.

Compatibility Preferences

Convert All Imported “WAV” Files To AES31/BroadcastWave When selected, this op-
tion applies to all newly imported .WAV files, making them compliant with the AES31/EBU Broadcast standard.
Avid Compatibility Mode When selected, ensures that all imported OMF media files are treated as Read-Only and prevents destructive editing pro­cesses such as those used by the Pencil and Time Trimmer tools and AudioSuite processing.
Chapter 7: Setups Menu 43

MIDI Preferences

Play MIDI Notes When Editing When selected, causes MIDI notes to sound when you insert them with the Pencil or drag them with the Grabber.
Default Note On Velocity Sets the default Note On velocity for MIDI notes inserted in the Edit win­dow and the MIDI Event List.
MIDI Note Display Sets the reference for middle C as C3, C4, or MIDI note number 60.
Default Thru Instrument Sets the default MIDI Thru instrument from your available MIDI in­struments.
Pencil Tool Resolution Sets the default resolution for MIDI controller data created with the Pencil. Setting this to a lower resolution helps avoid creating controller data that is unnecessarily dense. The value range is from 1 to 100 millisec­onds.
Global MIDI Playback Offset Sets an offset in sam­ples to compensate for MIDI latency. Entering a value here has the same effect as setting an off­set with the MIDI Track Offset command (Win­dows > MIDI Track Offset). Offset values can be positive (later) or negative (earlier).
Pro Tools Menus Guide44
chapter 8

Display Menu

Display Menu
Display Menu
Display menu commands control the display of Pro Tools windows, tracks, and track data. Some commands display or hide various Pro Tools windows or data. These act as toggles; selecting the command displays the data and deselecting it hides the data.

Narrow Mix Window

This command reduces the width of Mix chan­nels on-screen, allowing you to display the max­imum number of tracks on your computer mon­itor. In this view, track names, names of sends, and plug-in names are abbreviated to accommo­date the smaller view. To return to normal view width, choose this command again.

Mix Window Shows

This command selectively displays Comments, I/O, Inserts, and Sends views in the Mix win­dow.

Edit Window Shows

This command selectively displays Comments, I/O, Inserts, and Sends views in the Edit win­dow.

Transport Window Shows

This command selectively displays basic trans­port controls, counter, and MIDI controls in the Transport window.

Sends View Shows

This command displays either send assignments for all sends, or the controls for individual sends.
Chapter 8: Display Menu 45

Ruler View Shows

This command selectively displays various Timebase and Conductor Rulers in the Edit win­dow. In addition to providing a timing reference for track material, Timebase Rulers are used to define Edit and Timeline selections.

System Usage Window Shows

User Time Stamp Displays the User Time Stamp of all regions in all tracks. When a file is first re­corded, its User Time Stamp is identical to its original time stamp. You can change the User Time Stamp using the Time Stamp Selected command in the Audio Regions List. This allows you to use a custom time stamp for spotting or re-spotting the region to a time location differ­ent from its Original Time Stamp.
This command sets the display format for the System Usage window. The System Usage win­dow shows the usage of DSP and CPU resources during a session.

Disk Space Window Shows

This command specifies either a text-based or “gas-gauge” style display format for the Disk Space window. The Disk Space window shows how much recording time is currently available on each hard drive connected to your system.

Display Time in Regions

This command displays the time stamp of all re­gions in currently displayed tracks. When a re­gion is created, it is time stamped relative to the SMPTE start time specified for the session. This original time stamp is permanently stored with the region and cannot be changed. If a region is ever moved, it can easily be placed at its original position using the Spot dialog.
None Disables time stamp display in regions.
Current Time Displays the time stamp of all re-
gions placed in all tracks according to their cur­rent location in the track.
Original Time Stamp Displays the Original Time Stamp of all regions in all tracks.

Display Name in Regions

This command allows you to display or hide a region’s name in tracks in the Edit window. Hid­ing a display is useful if you are working at a zoom level where region names obscure the view of audio waveforms.

Display Auto-Created Regions

Deselecting this command streamlines the dis­play of region names in the Regions Lists by hid­ing automatically created regions. These are re­gions that were created as a by-product of cutting, pasting, and separating other regions. Since these by-product regions can become nu­merous, hiding them helps you to avoid scroll­ing through unnecessarily long Regions Lists.

Bars:Beats

This command displays the Time Scale in Bars and Beats. Use this Time Scale if you are working with musical material that must align with bars and beats.

Minutes:Seconds

This command displays the time scale in min­utes and seconds.
Pro Tools Menus Guide46

Time Code

(TDM Systems Only)
This command displays the Time Scale in SMPTE frames. The Frame Rate and Session Start time are set from the Session Setup window. Pro Tools supports the following frame rates: 24, 25, 29.97, Non-Drop, 29.97 Drop, 30 Non-Drop, and 30 Drop frames per second.

Feet.Frames

(TDM Systems Only)
This command displays the Time Scale in feet and frames for referencing audio-for-film projects. The Feet.Frames time display is based on the 35 millimeter film format.

Samples

This command displays the Time Scale in sam­ples. This format is useful for high-resolution sample editing.
Chapter 8: Display Menu 47
Pro Tools Menus Guide48
chapter 9

Windows Menu

Windows Menu
Windows Menu
The Windows menu has commands that show or hide various Pro Tools windows. They act as toggles: Selecting the command displays the de­sired window (the menu item will change from Show to Hide); selecting it again hides the win­dow (the menu item will change from Hide to Show).

Show Mix

This command displays the Mix window, used for recording and mixing tasks. Show Mix is available when the Edit window is active. Hide Mix is available when the Mix window is active.

Show Edit

This command displays the Edit window, used for graphical editing and arranging of audio, MIDI and automation. Show Edit is available when the Mix window is active. Hide Edit is available when the Edit window is active.
Chapter 9: Windows Menu 49

Show MIDI Event List

Show MIDI Operations

MIDI Operations window
MIDI Event List
This command opens the MIDI Event List win­dow. This window shows the contents of a MIDI track in a single, easy to read list. Using the MIDI Event List, you can quickly and precisely insert, edit, or locate any type of MIDI data using your computer keyboard.

Show Tempo/Meter

Tempo/Meter window
This command opens the Tempo Meter win­dow. This window allows you to manipulate MIDI data using the Tempo Change and Meter Change commands.
This command opens the MIDI Operations win­dow. The window allows you to configure spe­cific MIDI data by choosing any of the following commands from the pop-up menu at the top of the window:
Quantize
Change Velocity
Change Duration
Transpose
Select Notes
Split Notes
Input Quantize
Pro Tools Menus Guide50

Show MIDI Track Offsets

MIDI Track Offsets window
This command opens the MIDI Track Offsets window. This window allows you to create tim­ing offsets for MIDI tracks to compensate for MIDI-to-audio latencies in hardware-based or software-based MIDI synthesizers.
By configuring a MIDI offset, you can make MIDI tracks play back slightly earlier (by a spe­cific number of samples), thereby compensating for any audio monitoring latencies. MIDI offsets affect playback only and do not alter how MIDI data is displayed in the Edit window.

Show Transport

Show Session Setup

Session Setup window
This command opens the Session Setup win­dow. This window allows you to configure vari­ous session parameters including sample rate, session start frame, SMPTE frame rate, and sev­eral time code parameters.

Show Big Counter

Big Counter window
This command opens the Big Counter window. This window provides a large, easy to see refer­ence for the current session time location. Time is displayed in the currently chosen Time Scale format.
Transport window
This command opens the Transport window. This window has standard transport controls, a counter, and MIDI controls.
Chapter 9: Windows Menu 51

Show Automation Enable

Automation Enable window
This command opens the Automation Enable window. This window allows you to enable or suspend the writing of volume, pan, mute, plug­in, send level, send pan, and send mute automa­tion for all tracks.
a memory location, click the button for the de­sired location or, on your computer’s numeric keypad, press the number of the location fol­lowed by a period (.).

Show Machine Track Arm

This command opens the Machine Track Arm window. When using MachineControl, this window allows you to record-arm external re­cording devices from within Pro Tools.

Show Universe

(TDM Systems Only)
Before you can record automation, the desired automation type must be enabled. Buttons are highlighted when enabled. To suspend writing of automation, deselect the button for the de­sired automation type.

Show Memory Locations

Memory Locations window
This command opens the Memory Locations window. Here you can store up to 200 time lo­cation markers, selections, zoom settings, pre­and post-roll times, track show and hide states, track height states, and group enables. To recall
Universe window
This command opens the Universe window. This window provides a visual overview of all tracks in a session. Use the Universe window to quickly click and go to any location in a session.

Show Beat Detective

(TDM Systems Only)
Beat Detective window
This command opens the Beat Detective win­dow. Beat Detective automatically detects the tempo of a session and conforms an audio track or selection to that tempo by separating it into regions and aligning it to the beats. Beat Detec­tive is ideal for tailoring a performance to a groove. For detailed information about Beat De­tective, refer to the Pro Tools Reference Guide.
Pro Tools Menus Guide52

Show Movie Window

(Macintosh Only)
Movie window
This command opens the Movie window. This window displays QuickTime movies imported into the current session using the Import Movie command. The movie serves as a sample-accu­rate, random-access reference for spotting sound effects, music, Foley, dialog, or other au­dio to the QuickTime movie.

Show System Usage

System Usage window
This command opens the System Usage win­dow. This window shows how much of your sys­tem’s DSP and CPU processing capacity is in use by the current session.

Show Strip Silence

Strip Silence window
This command opens the Strip Silence window. Use this window to remove areas of silence from a selection. Strip Silence automatically divides a selection into regions, which can be useful for quantizing audio to musical values or SMPTE lo­cations.

Show Disk Space

Disk Space window
This command opens the Disk Space window. This window shows the recording capacity of each hard drive attached to your system, mea­sured in track minutes. This calculation is based on the bit depth and sample rate of the current session.
Chapter 9: Windows Menu 53
Pro Tools Menus Guide54
chapter 10

Help Menu

Help Menu
The Pro Tools Help menu provides links to im­portant Pro Tools documentation, including the
Pro Tools Reference Guide, the DigiRack Plug-Ins Guide, the MIDI Control Surfaces Guide, and oth-
ers.
Select the title of the desired guide from the Help menu to launch the document in Adobe Acrobat Reader (the Adobe Acrobat Reader in­staller can be found on your Pro Tools Installa­tion CD-ROM or can be downloaded from www.adobe.com).
You can also use the Help menu to enable and disable Balloon Help.
Chapter 10: Help Menu 55
Pro Tools Menus Guide56

index

Numerics
1-Band EQ plug-in 15 3-Second Peak Hold preference 37 4-Band EQ plug-in 15
A
Active in Background option 29 Add Movie command 24 All Notes Off command 21 Amount of Memory for Automation Recording
42
option Audio During Fast Forward/Rewind option 38 AudioSuite Buffer Size preference 43 AudioSuite Dither preferences 42 AudioSuite menu 15
DC Offset Removal plug-in 16 Delay plug-in 16 Duplicate plug-in 16 dynamics plug-ins 15 EQ II plug-ins 15 Gain plug-in 16 Invert plug-in 16 Normalize plug-in 16 Pitch Shift plug-in 16 Reverse plug-in 16 Signal Generator plug-in 16 Time Compression/Expansion plug-in 16
Auto Input Monitoring option 28 Auto Regions Fade In/Out Length option 40 AutoMatch Time option 42 Automation Preferences 41 Auto-Name Memory Locations While Playing option
40
Auto-Name Separated Regions option 40 AutoSave option 39 Auto-Spot Regions command 29 Avid Compatibility Mode option 43
B
Bars:Beats Time Scale 46 Bounce options
Conversion Quality 4 Convert After Bounce 4 Convert During Bounce 4 File Type 4 Format 4 Import After Bounce 4 Resolution 4 Sample Rate 4 Source 3 Use Squeezer 4
Bounce to Disk command 3 Bounce to Movie command 23
C
Calibration Mode command 29 Calibration Reference Level preference 40 Capture Region command 11 Change Duration command 19 Change Meter command 18 Change Tempo command 17 Change Velocity command 18 Classic Numeric Keypad Mode 38 Clear command 10 Clear Selection command (movies) 25 Click command 20 Click Options command 20 Close Session command 2 Compatibility Preferences 43 Compress/Expand Edit To Play command 11 Consolidate Selection command 11 Continuous Scroll During Playback option 28 Continuous Scroll with Playhead option 28 Conversion Quality option 4, 41
Index 57
Convert .WAV files to AES31/BroadcastWave
43
option Convert After Bounce option 4 Convert During Bounce option 4 Copy command 9 Copy Edit Selection to Timeline command 29 Copy Timeline Selection to Edit command 29 Copy To Send command 13 Create Fades command 12 Crossfade Preference for Pre/Post-Roll option 41 Current Time option 46 Cut command 9
D
DC Offset Removal plug-in 16 Default Fade Settings 41 Default Note On Velocity option 44 Default Settings preference 43 Degree of Thinning option 42 Delay plug-in 16 Delete Fades command 12 Delete Selected Tracks command 5 Destructive Record mode 27 Disk Allocation command 32 Disk Space Window Shows command 46 Display Auto-Created Regions option 46 Display menu 45
Bars:Beats Time Scale 46 Disk Space Window Shows command 46 Display Auto-Created Regions option 46 Display Name in Regions option 46 Display Time in Regions option 46 Edit Window Shows option 45 Feet.Frames Time Scale 47 Minutes:Seconds Time Scale 46 Mix Window Shows option 45 Narrow Mix Window option 45 Ruler View Shows option 46 Samples Time Scale 47 Sends View Shows command 45 Show Mix Window command 49 System Usage Window Shows command 46 Time Code Time Scale 47 Transport Window Shows command 45
Display Name in Regions option 46 Display Preferences 36
Display Time in Regions option 46 Dither Plug-In preference 42 Draw Waveforms Rectified option 36 Duplicate command 10 Duplicate plug-in 16 Duplicate Selected Tracks command 5 D-Verb 15
E
Edit Dither Settings preference 42 Edit Insertion Follows Scrub/Shuttle option 38 Edit menu
Capture Region command 11 Clear command 10 Compress/Expand Edit To Play command 11 Consolidate Selection command 11 Copy command 9 Copy To Send command 13 Cut command 9 Duplicate command 10 Fades command 12 Heal Separation command 11 Identify Beat command 12 Identify Sync Point command 12 Insert Silence command 12 Lock/Unlock Regions command 11 Merge Paste command 10 Mute/Unmute Region command 11 Paste command 10 Quantize Regions command 11 Redo command 9 Repeat command 10 Repeat Paste To Fill Selection command 10 Select All command 10 Separate Region command 11 Shift command 10 Thin Automation command 13 Trim Automation command 13 Trim command 10 Undo command 9 Write Automation command 13
Edit Window Color Coding option 37 Edit Window Default Length option 37 Edit Window Follows Bank Selection option 37 Edit Window Shows option 45 Editing Preferences
Crossfade Preference for Pre/Post-Roll option
41
Pro Tools Menus Guide58
Enable Autosave option 39 Enforce Mac/PC Compatibility option 1 Enforce PC/Mac Compatibility option 1 EQ II plug-ins 15 Ethernet Controllers page 34 Exit command (Windows) 7 Export MIDI command 6 Export Session as Text command 6
F
Fade To End command 13 Fade To Start command 12 Faders Move During Playback option 41 Fades command 12 Feet.Frames command 35 Feet.Frames Time Scale 47 File menu
Bounce to Disk command 3 Close Session command 2 Delete Selected Tracks command 5 Duplicate Selected Tracks command 5 Exit command (Windows) 7 Export MIDI command 6 Export Session as Text command 6 Get Info command 6 Group Selected Tracks command 4 Import Audio to Track command 5 Import MIDI to Track command 5 Import Tracks command 6 Make Selected Tracks Inactive command 5 New Session command 1 New Track command 4 Open Session command 2 Quit command (Macintosh) 7 Revert to Saved command 3 Save Session As command 2 Save Session command 2 Save Session Copy In command 2 Split Selected Tracks Into Mono command 5
G
Gain plug-in 16 Get Info command 6 Global MIDI Playback Offset option 44 Group Selected Tracks command 4
H
Hardware Setup dialog 31 Heal Separation command 11 Help menu 55 Highest Priority Playback option 24
I
I/O Setup command 34 Identify Beat command 12 Identify Sync Point command 12 Import Audio From Current Movie command 23 Import Audio From Other Movie command 23 Import Audio to Track command 5 Import MIDI to Track command 5 Import Movie command 23 Import Tracks command 6 Infinite Peak Hold preference 37 Input Devices command 21 Input Filter command 21 Input Only Monitoring option 28 Input Quantize command 20 Insert Silence command 12 Invert plug-in 16
L
Latch Record Enable Buttons option 38 Latch Solo Buttons option 38 Levels of Undo option 41 LFEs Follow Groups option 42 Limit To option 39 Link Edit and Timeline Selection option 29 Link Mix and Edit Group Enables option 38 Lock/Unlock Regions command 11 Loop Playback option 28 Loop Record mode 27
M
Machine Chases Memory Location option 39 Machine Control option 39 Machine Control page 33 Machine Cues Intelligently option 39 Machine Follows Edit Insertion/Scrub option 39 Make Selected Tracks Inactive command 5 Matching Start Time Takes List preference 41
Index 59
Medium Priority Playback option 24 Merge Paste command 10 MIDI Beat Clock command 20 MIDI Controllers page 33 MIDI menu
All Notes Off command 21 Change Duration command 19 Change Meter command 18 Change Tempo command 17 Change Velocity command 18 Click Options command 20 Input Devices command 21 Input Filter command 21 Input Quantize command 20 MIDI Beat Clock command 20 MIDI Thru option 21 Quantize command 18 Renumber Bars command 18 Select Notes command 19 Split Notes command 19 Transpose command 19
MIDI Preferences 44
Pencil Tool Resolution When Drawing Controller
Data option 44
MIDI Thru option 21 Minutes:Seconds Time Scale 46 Mix Window Follows Bank Selection option 37 Mix Window Shows option 45 Movie menu
Add Movie command 24 Bounce to Movie command 23 Clear Selection command 25 Highest Priority Playback option 24 Import Audio From Current Movie command 23 Import Audio From Other Movie command 23 Import Movie command 23 Medium Priority Playback option 24 Movie Online command 24 New Movie Track command 24 Normal Priority Playback option 24 Set Movie Sync Offset command 24 Undo Add Movie command 25 Window Aspect Ratio command 24
Movie Online command 24 Mute Frees Assigned Voice option 29 Mute/Unmute Region command 11 Mutes Follow Groups option 42
N
Narrow Mix Window option 45 New Movie Track command 24 New Session command 1 New Track command 4 No Auto-Scrolling option 28 No Peak Hold preference 37 Normal Priority Playback option 24 Normalize plug-in 16 Numeric Keypad Mode 38 Numeric Keypad modes 38
O
OMS MIDI Setup command 35 OMS Names command 36 OMS Studio Setup command 35 Online option 28, 39 Open Ended Record Allocation option 39 Open Session command 2 Operation Preferences 38 Operations menu
Active in Background option 29 Auto Input Monitoring option 28 Auto-Spot Regions command 29 Calibration Mode command 29 Copy Edit Selection to Timeline command 29 Copy Timeline Selection to Edit command 29 Destructive Record mode 27 Input Only Monitoring option 28 Link Edit and Timeline Selection option 29 Loop Playback option 28 Loop Record mode 27 Mute Frees Assigned Voice option 29 Online option 28 Play Edit Selection command 29 Play Timeline Selection command 29 Pre/Post Roll Playback command 28 Pre-Fader Metering command 29 QuickPunch mode 27 Scroll Options command 28
Original Time Stamp 46
P
Page Scroll During Playback option 28 Paste command 10 Peak Hold option 37
Pro Tools Menus Guide60
Pencil Tool Resolution When Drawing Controller
Data option
44
Peripherals command 33
Ethernet Controllers page 34 Machine Control page 33 MIDI Controllers page 33 Synchronization page 33
Pitch Shift plug-in 16 Play Edit Selection command 29 Play MIDI Notes When Editing option 44 Play Timeline Selection command 29 Playback Engine dialog 32 Playhead 28 Pre/Post Roll Playback command 28 Pre-Fader Metering command 29 Preferences
AudioSuite Dither
Bit Depth option 43
Preferences command 36 Processing Preferences 42 Punch In Frame Offset preference 40 Punch Out Frame Offset preference 40
Q
Quantize command 18 Quantize Regions command 11 QuickPunch 27 QuickPunch Crossfade Length option 41 QuickTime movies 23 Quit command (Macintosh) 7
R
Recall Original Track Selections preference 40 Recompute Invalid Overviews preference 36 Record Online at Insertion/Selection preference
39
Record Online at Time Code (or ADAT) Lock
preference Redo command 9 Region List Selection Follows Track Selection
option Remote Mode option 40 Renumber Bars command 18 Repeat command 10 Repeat Paste To Fill Selection command 10
39
40
Reverse plug-in 16 Revert to Saved command 3 Ruler View Shows option 46
S
Samples Time Scale 47 Save Session As command 2 Save Session command 2 Save Session Copy In command 2
Items To Copy 3
All Audio Files 3 Movie/Video Files 3 Session Plug-In Settings Folder 3
Scroll After Playback option 28 Scroll Options command 28 Select All command 10 Select Notes command 19 Send Levels Follow Groups option 42 Send Mutes Follow Groups option 42 Sends Default to -INF preference 38 Sends View Shows command 45 Separate Region command 11 Separate Region Operates On All Related Takes
41
option Set Movie Sync Offset command 24 Setups menu
Disk Allocation command 32 Feet.Frames command 35 Hardware Setup dialog 31 I/O Setup command 34 OMS MIDI Setup command 35 OMS Names command 36 OMS Studio Setup command 35 Peripherals command 33 Playback Engine dialog 32 Preferences command 36
Shift command 10 Show Automation Enable command 52 Show Beat Detective command 52 Show Big Counter command 51 Show Disk Space command 53 Show Edit Window command 49 Show Machine Track Arm command 52 Show Memory Locations command 52 Show Meters in Sends View preference 37 Show MIDI Event List command 50
Index 61
Show MIDI Operations command 50 Show MIDI Track Offsets command 51 Show Mix Window command 49 Show Movie Window command 53 Show Session Setup command 51 Show Strip Silence command 53 Show System Usage command 53 Show Tempo/Meter command 50 Show Transport command 51 Show Universe command 52 Shuttle, Numeric Keypad mode 39 sibilants 16 Signal Generator plug-in 16 Smooth and Thin Data After Pass option 41 snapshot automation 13 Solos Follow Groups option 42 Split Notes command 19 Split Selected Tracks Into Mono command 5 Support Background Record Applications
preference Synchronization page 33 System Usage Window Shows command 46
38
T
Take Region Lengths That Match option 41 Take Region Names That Match Track Names
41
option TC/E Plug-In preference 43 Thin Automation command 13 Time Code Time Scale 47 Time Compression/Expansion plug-in 16 time stamp 46 Timeline Insertion Follows Playback option 38 Touch Timeout option 42 Track Selection Follows Regions List Selection
40
option Transport Numeric Keypad Mode 38 Transport Window Shows command 45 Transpose command 19 Trim Automation command 13 Trim command 10
Use All Available Space preference 39 Use AudioSuite Dither preference 42 Use F11 for Wait for Note option 38 Use Squeezer option 4 User Time Stamp 46
W
Window Aspect Ratio command 24 Windows menu
Show Automation Enable command 52 Show Beat Detective command 52 Show Big Counter command 51 Show Disk Space command 53 Show Machine Track Arm command 52 Show Memory Locations command 52 Show MIDI Event List command 50 Show MIDI Operations command 50 Show MIDI Track Offsets command 51 Show Movie Window command 53 Show Session Setup command 51 Show Strip Silence command 53 Show System Usage command 53 Show Tempo/Meter command 50 Show Transport command 51 Show Universe command 52
Write Automation command 13 Write Switches to Touch After Pass preference 42
U
Undo Add Movie command 25 Undo command 9
Pro Tools Menus Guide62
Loading...
