Avid® EDL Manager

User’s Guide

Release 10.0

tools for storytellers®

Avid EDL Manager User’s Guide • Part 0130-04524-01 Rev. A • August 2000

Chapter 1 Working with EDLs

EDLs and the EDL Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Online and Offline Editing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

What the EDL Manager Does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Starting EDL Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Creating or Reading an EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Creating an EDL from a Sequence in a Bin, Existing EDL,

or OMFI File (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Creating an EDL from a Sequence in a Bin, Existing EDL, or

OMFI File (Macintosh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Reading an Existing EDL from the RT-11 Disk . . . . . . . . . . . . . . 15

Saving an EDL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Saving an EDL as a Text File or an OMFI Composition . . . . . . 18

Saving an EDL to an RT-11 Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Verifying an RT-11 Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Formatting an RT-11 Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Printing an EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Copying an EDL Between Storage Locations . . . . . . . . . . . . . . . . . . . 22

Using EDL Manager with Your Avid Editing System. . . . . . . . . . . . 24

Creating an EDL from the Active Sequence . . . . . . . . . . . . . . . . 24

Creating a Sequence from an EDL. . . . . . . . . . . . . . . . . . . . . . . . . 25

Viewing a List of Tapes in the Source Table. . . . . . . . . . . . . . . . . . . . 25

Printing a List of Tapes in the Source Table . . . . . . . . . . . . . . . . . . . . 27

Chapter 2 Customizing EDLs

EDL Manager Option Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Changing Settings in the EDL Manager Window . . . . . . . . . . . . . . . 29

Changing the Title of an EDL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Defining Video Tracks and Audio Channels. . . . . . . . . . . . . . . . 31

Including or Excluding Specific Tracks. . . . . . . . . . . . . . . . . 32

Redefining a Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Combining or Isolating Tracks . . . . . . . . . . . . . . . . . . . . . . . . 34

Creating Stereo Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Choosing a Format for the Audio Channels. . . . . . . . . . . . . 35

Displaying Different Views of an EDL . . . . . . . . . . . . . . . . . . . . 35

Selecting a Template for the EDL. . . . . . . . . . . . . . . . . . . . . . . . . . 36

File Names in the Template Pop-up Menu . . . . . . . . . . . . . . 36

Opening a Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Adjusting the Source and Output Timecodes . . . . . . . . . . . . . . . 37

Finding the Field Where an Edit Occurred . . . . . . . . . . . . . . . . . 39

Updating an EDL with EDL Manager Window Changes . . . . . 40

Changing Settings in the Options Window . . . . . . . . . . . . . . . . . . . . 41

Selecting an Edit Controller Format . . . . . . . . . . . . . . . . . . . . . . . 42

Selecting an Edit Controller Format . . . . . . . . . . . . . . . . . . . . . . . 43

Sorting the Order of Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Setting Up a Master List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Setting Up a Dupe List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Using the Preread Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Showing or Hiding Comments and Other Information . . . . . . 51

The Effects Info Comment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

The Repair Notes Comment . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Optimizing the EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Setting Up Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting the Record Start Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Setting the Pulldown Start Frame . . . . . . . . . . . . . . . . . . . . . . . . . 57

Setting the Tapename Truncation . . . . . . . . . . . . . . . . . . . . . . . . . 58

Saving Options to a Template File. . . . . . . . . . . . . . . . . . . . . . . . . 59

Changing Options in the Site Settings Dialog Box. . . . . . . . . . . . . . 60

Changing Serial Transmission Options . . . . . . . . . . . . . . . . . . . . 60

Changing Font Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Chapter 3 Editing and Troubleshooting EDLs

Using a Text Editor to Edit an EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Fitting the Format to the EDL Manager . . . . . . . . . . . . . . . . . . . . 63

Changing the Header Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Removing Problems Caused by Complex Sequences. . . . . . . . . . . . 64

Using the Console Window to Display Messages . . . . . . . . . . . 65

Fixing Difficult Transitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Locating Trouble Spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Slicing and Dicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Trying One Track at a Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Avoiding Problems in EDLs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Simplifying Effects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Looking for Missing Information . . . . . . . . . . . . . . . . . . . . . . . . . 69

Dealing with Corruptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Appendix A Check List for Online Editing

Calling Ahead to the Online Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Deciding What to Take to the Online Suite . . . . . . . . . . . . . . . . . . . . 73

Take EDL Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Take the EDL in Several Forms . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Take Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Double-Checking the EDL File Names . . . . . . . . . . . . . . . . . . . . . . . . 74

Appendix B Creating EDLs for Film Projects

Matchback Conversion in Film-to-Video EDLs . . . . . . . . . . . . . . . . . 75

Creating EDLs for a Matchbacked Sequence . . . . . . . . . . . . . . . . . . . 76

Creating Audio-Only EDLs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Appendix C Using Serial Transmission to Transfer EDLs

Connecting the Edit Controller to the Computer. . . . . . . . . . . . . . . . 78

Setting Serial Transmission Options . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Transmitting the EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Glossary Index

Tables

Table 2-1 Source and Output Timecodes . . . . . . . . . . . . . . . . . . . 39

Table 2-2 Timecode Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 2-3 Formats and Audio Channels . . . . . . . . . . . . . . . . . . . . 43

Table 2-4 EDL Sort Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Table 2-5 Master List Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Table 2-6 Dupe List Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Table 2-7 Show Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 2-8 Optimization Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Table 2-9 Standards Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 2-10 Tapename Truncation Options . . . . . . . . . . . . . . . . . . . 59

Tab l e C-1 Serial Transfer Options . . . . . . . . . . . . . . . . . . . . . . . . . . 80

CHAPTER 1

Working with EDLs

This chapter introduces edit decision lists (EDLs) and provides instructions for basic EDL Manager procedures. It includes the following sections:

• EDLs and the EDL Manager

• Starting EDL Manager

• Using Help

• Creating or Reading an EDL

• Saving an EDL

• Formatting an RT-11 Disk

• Printing an EDL

• Copying an EDL Between Storage Locations

• Using EDL Manager with Your Avid Editing System

• Viewing a List of Tapes in the Source Table

EDLs and the EDL Manager

An edit decision list (EDL) is a list of instructions for all the edits you make for creating a program on videotape. This list might include cuts, wipes, dissolves, fades, and black edits. The EDL Manager application organizes the instructions as a series of chronological edits called events. Each event specifies a timecode for the source and master tapes.

Online and Offline Editing

In most cases, you generate an EDL to take a project from the offline editing environment, where rough editing and experimentation are less

expensive, into the online editing environment, where an editor using an edit controller can produce a finished master in less time. The EDL Manager saves EDLs in a format an editing system can use, such as GVC or CMX. You might also need to import an EDL from the online environment back into the offline suite to make further changes before completing the master tape.

Traditionally, the offline environment consisted of a simplified videotape suite with less expensive machines and fewer effects capabilities. More recently, offline environments are likely to include nonlinear editing systems such as Avid’s Media Composer environment might also include a high-end nonlinear editing system

such as Avid’s Symphony™, or an online model of Media Composer.

. The online

In all cases, the EDL, in the form of a file generated in a readable format, is the link back and forth between the two environments.

What the EDL Manager Does

You can use EDL Manager to generate an EDL from a sequence in a bin or from an OMFI file. OMFI is a file format for importing and exporting media; it allows you to share information with other platforms. You can also read a previously saved EDL into EDL

Manager. After creating an EDL, you can save it as a text file that can be read by different edit controllers, such as Sony you can save the EDL as an OMFI composition.

You can use EDL Manager to create an EDL that displays additional types of information, such as comments or patches. You can specify the different audio and video tracks in the sequence. You can also specify the assembly modes that the online edit controller uses when creating your program.

Because EDL Manager is a standalone application, your other Avid applications do not have to be running when you create EDLs from sequences. When you run EDL Manager with your Avid editing system, you can bring the sequence that is currently in the editing system into the EDL Manager window. After working with the EDL in EDL Manager, you can create a sequence in the Avid editing system from the EDL.

Starting EDL Manager

You can start EDL Manager as a standalone application, or you can start it from within your Avid editing system application.

, GVG, or CMX, or

(Windows) To start EDL Manager as a standalone application:

1. Click the Start button.

2. Point to Programs.

3. Point to Avid.

4. Point to EDL Manager.

EDL Manager opens.

Using Help

(Macintosh) To start EDL Manager as a standalone application:

t Double-click the EDL Manager icon.

EDL Manager opens.

To start EDL Manager from within your Avid editing system application:

t Choose EDL from the Output menu.

EDL Manager opens as the active window, showing the Editing System icon connected to the Update button by a Right Arrow button.

The Help provides all the information contained in Avid EDL Manager User’s Guide, and operates in a web browser. To open the Help, choose EDL Manager Help from the Help menu in the Avid EDL Manager application. For information about using the Help, click the Using Help button in the Help system.

Creating or Reading an EDL

The EDL Manager window displays the EDL you create or the existing EDL you open or read. You can view an EDL by doing any of the following:

• Creating an EDL from a Sequence in a Bin, Existing EDL, or

OMFI File (Macintosh).

• Creating an EDL from the Active Sequence.

• Reading an Existing EDL from the RT-11 Disk.

Creating an EDL from a Sequence in a Bin, Existing EDL, or OMFI File (Windows)

To create an EDL from a sequence in a bin, from an existing EDL, or from an OMFI file:

1. Choose Open from the File menu.

The Choose file to open dialog box appears.

2. Choose Common Files (*.avb, *.edl, *.omf) from the Files of type pop-up menu.

3. Navigate to the disk or folder that contains the file you want.

4. Select a file — either a sequence in a bin (.avb), another EDL (.edl),

or an OMFI (.omf) file — and click Open.

When you open an OMF file or a file from a bin, EDL Manager automatically determines whether the EDL you are generating should be NTSC, PAL Video, or PAL Film 1 or 2. If you open an EDL other than from an OMF file or a file from a bin, you must select a standard suboption.

If you select a bin or an OMFI file, one of the following happens:

• If the file contains only one sequence, EDL Manager creates

the EDL for that sequence.

• If the file contains more than one sequence, the Open dialog

box appears.

5. Select a sequence and click OK.

The created EDL appears in the EDL Manager window.

The Source and Output pop-up menus appear only for 24p or 25p bins and for OMFI files.

For information on changing the settings in the EDL, see Chapter 2.

Creating an EDL from a Sequence in a Bin, Existing EDL, or OMFI File (Macintosh)

To create an EDL from a sequence in a bin, from an existing EDL, or from an OMFI file:

1. Choose Open from the File menu.

A dialog box appears.

2. Navigate to the disk or folder that contains the file you want.

3. Select a file — either a sequence in a bin (.avb), another EDL (.edl),

or an OMFI (.omf) file — and click Open.

If you select a bin or an OMFI file, one of the following happens:

• If the file contains only one sequence, EDL Manager creates

the EDL for that sequence.

• If the file contains more than one sequence, a dialog box

appears. Select a sequence, and then click OK. EDL Manager creates the EDL.

The created EDL appears in the EDL Manager window.

The Source and Output pop-up menus appear only for 24p or 25p bins and for OMFI files.

For information on changing the settings in the EDL, see Chapter 2.

Reading an Existing EDL from the RT-11 Disk

(Windows) To read an EDL that is saved on an RT-11 disk in a CMX, GVG, or high-density GVG (HDGVG) edit controller format:

1. Insert the RT-11 disk that contains the EDL you want to read into the disk drive.

2. Choose Read From RT11 Disk from the File menu.

The Open dialog box appears

3. Select the EDL you want and click OK.

The EDL opens in the EDL Manager window.

Disk icon

(Macintosh) To read an EDL that is saved on an RT-11 disk in a CMX, GVG, or high-density GVG (HDGVG) edit controller format:

1. Insert the RT-11 disk that contains the EDL you want to read into the disk drive.

An alert box warns that the disk is not a Macintosh disk.

2. Click OK.

A Disk icon appears in the main window.

3. Choose Read From RT11 Disk from the File menu.

A list of EDL files appears.

4. Select the EDL you want and click OK.

The EDL opens in the EDL Manager main window.

To eject the RT-11 disk:

t Choose Eject RT11 Disk from the File menu.

Saving an EDL

You can save an EDL as a text file with the .EDL file name extension, or as an OMFI composition. The location where you save the EDL can be a DOS-formatted disk, a hard drive or other storage device, or an RT-11 disk that can be read by CMX or GVG edit controllers. For information on formatting an RT-11 disk, see “Formatting an RT-11 Disk” on

page 21.

Saving an EDL as a Text File or an OMFI Composition

To save an EDL as a text file or an OMFI composition:

1. Choose one of the following from the File menu:

• Save As, to save the EDL as a text file

• Save As OMFI, to save the EDL as an OMFI composition

A dialog box appears.

2. Navigate to the disk or folder where you want to save the EDL.

3. Accept the default file name, or enter a new name.

If you are saving to a DOS-formatted disk for transfer to an edit controller, use a file name that the edit controller can read. The name must be eight alphanumeric characters or less in uppercase letters, followed by the file name extension (either .EDL or .OMF). For example:

ANNA23.EDL

4. Click Save.

EDL Manager saves the EDL to the location you specified.

Saving an EDL to an RT-11 Disk

(Windows) To save an EDL to an RT-11 disk:

1. Insert a CMX or GVG disk into the disk drive.

2. With an EDL open in the EDL Manager window, choose Write To RT11 Disk from the File menu.

A dialog box appears, showing the name of your EDL.

3. Accept the EDL file name, or type a new name.

The name must be six or fewer alphanumeric characters, in uppercase letters, followed by the .EDL file name extension. For example:

LEO3A.EDL

4. Click OK.

EDL Manager saves the EDL to the CMX or GVG disk.

Some edit systems cannot read high-density disks (marked with the HD symbol), so you might have to use a double-density disk. If you are in doubt, check with the online suite or have the suite provide you with a formatted disk.

(Macintosh) To save an EDL to an RT-11 disk:

1. Insert a CMX or GVG disk into the disk drive.

An alert box appears.

2. Click OK.

3. With an EDL open, choose Write To RT11 Disk from the File menu.

A dialog box appears, showing the name of your EDL.

4. Accept the EDL file name, or type a new name.

The name must be six or fewer alphanumeric characters, in uppercase letters, followed by the .EDL file name extension. For example:

LEO3A.EDL

5. Click OK.

EDL Manager saves the EDL to the CMX or GVG disk.

Verifying an RT-11 Save

Because an RT-11 disk is not initialized for Macintosh, Windows NT, or Windows 98 format, you cannot see its contents by using the standard operating system tools (for example, My Computer on Windows). To verify that the EDL has been saved successfully to the disk, you can follow the first few steps of “Reading an Existing EDL from the RT-11

Disk” on page 15. If the EDL appears in the Make Selection dialog

box, then you know it was saved to the disk.

To verify that the EDL was saved to the disk:

1. Choose Read From RT11 Disk from the File menu.

The list of files for the RT-11 disk appears, allowing you to verify that your EDL was saved to the disk.

2. Click Cancel to return to the EDL Manager.

Formatting an RT-11 Disk

An RT-11 disk in EDL Manager can be in any of the following formats:

•CMX

•GVG

• HDGVG (high-density GVG)

When you take a DOS or Macintosh-formatted disk and format it as an RT-11 disk, data on the disk is erased.

To format an RT-11 disk:

1. Choose Format RT11 Disk from the File menu.

A dialog box appears telling you to insert a diskette.

2. Insert a DOS-formatted disk (Windows) or a blank disk (Macintosh) into the drive and click OK.

3. Click OK.

4. Click one of the option buttons to choose an EDL disk type format.

EDL Manager formats the disk.

Printing an EDL

To print an open EDL:

1. Choose Print EDL (Windows) or Print (Macintosh) from the File

A message box appears warning that all data on the disk will be lost.

The Format Options dialog box appears.

menu.

A dialog box appears.

2. Select the print options you want.

3. Click OK (Windows) or Print (Macintosh).

Copying an EDL Between Storage Locations

You can copy an EDL from any drive or disk storage location to another without having to open the EDL in the EDL Manager window or switch to operating system tools such as My Computer. The storage locations, including RT-11 disks, must be accessible to your computer.

To copy an EDL from one location to another:

1. To copy to or from an RT-11 disk, insert the RT-11 disk in the disk drive.

(Macintosh only) A message appears stating that this is not a Macintosh disk.

2. Click OK.

3. Choose Copy To/From Disk from the File menu.

The following dialog box appears:

4. To select the EDL to copy, do one of the following:

• To copy from an RT-11 disk, click Yes.

A list of EDL files appears. Select the EDL you want and click OK.

• To copy from any other disk or drive, click No.

A dialog box appears.

• Navigate to the file you want to open and click Open.

Once you have selected the EDL you want to copy, a dialog box appears asking if you want to write to an RT-11 disk.

5. To select the destination for the EDL copy, do one of the following:

• To copy to an RT-11 disk, click Yes, either accept the default

file name or enter a new name of six or fewer uppercase characters, and then click OK.

• To copy to any other disk or drive, click No.

A dialog box appears.

• Navigate to the location where you want to save the file and

click Save.

Using EDL Manager with Your Avid Editing System

EDL Manager is a standalone application; your other Avid editing applications (for example, Media Composer, Film Composer, Symphony, or Avid Xpress) do not have to be running when you create EDLs from existing sequences.

When you start EDL Manager from your Avid editing system, or have EDL Manager and the editing system running at the same time, you can create an EDL for the sequence loaded in the active monitor or you can create a sequence in the Avid editing system from an EDL that is open in EDL Manager. See the following sections for more information:

• Creating an EDL from the Active Sequence

• Creating a Sequence from an EDL

Creating an EDL from the Active Sequence

You can create an EDL directly from the sequence that is loaded in your Avid editing system. For more information, see “Using EDL

Manager with Your Avid Editing System” on page 24.

To create an EDL from the sequence currently loaded in the Avid editing system, do one of the following in EDL Manager:

t Click the Right Arrow button between the Editing System button

and the Update button in the EDL Manager window.

t Choose Get Current Sequence from the File menu.

The EDL appears in the EDL Manager window and a Left Arrow button appears under the Right Arrow button, indicating that you can now also create a sequence from the EDL.

Creating a Sequence from an EDL

You can create a sequence in your Avid editing system directly from an EDL. This procedure only applies to 30i and 25i projects and sequences.

To create a sequence in your Avid editing system from an EDL that is open in EDL Manager:

1. With your Avid editing system running, do one of the following:

t Click the Left Arrow button between the Editing System

button and the Update button in the EDL Manager EDL Manager window.

t Choose Create Composer Sequence from the EDL Manager

File menu.

The editing system becomes the active window, and a dialog box appears. The dialog box lists only those bins currently open in the editing system.

2. Do one of the following:

t Select an existing bin in which to place the EDL sequence, and

then click OK.

t Click New Bin to create a new bin in which to place the EDL

sequence.

The sequence is created in the bin you selected, and EDL Manager becomes the active window again.

Viewing a List of Tapes in the Source Table

The source table lists all source tapes in the sequence that the EDL describes. The source table is a useful reference when you assemble your program.

To view the source table:

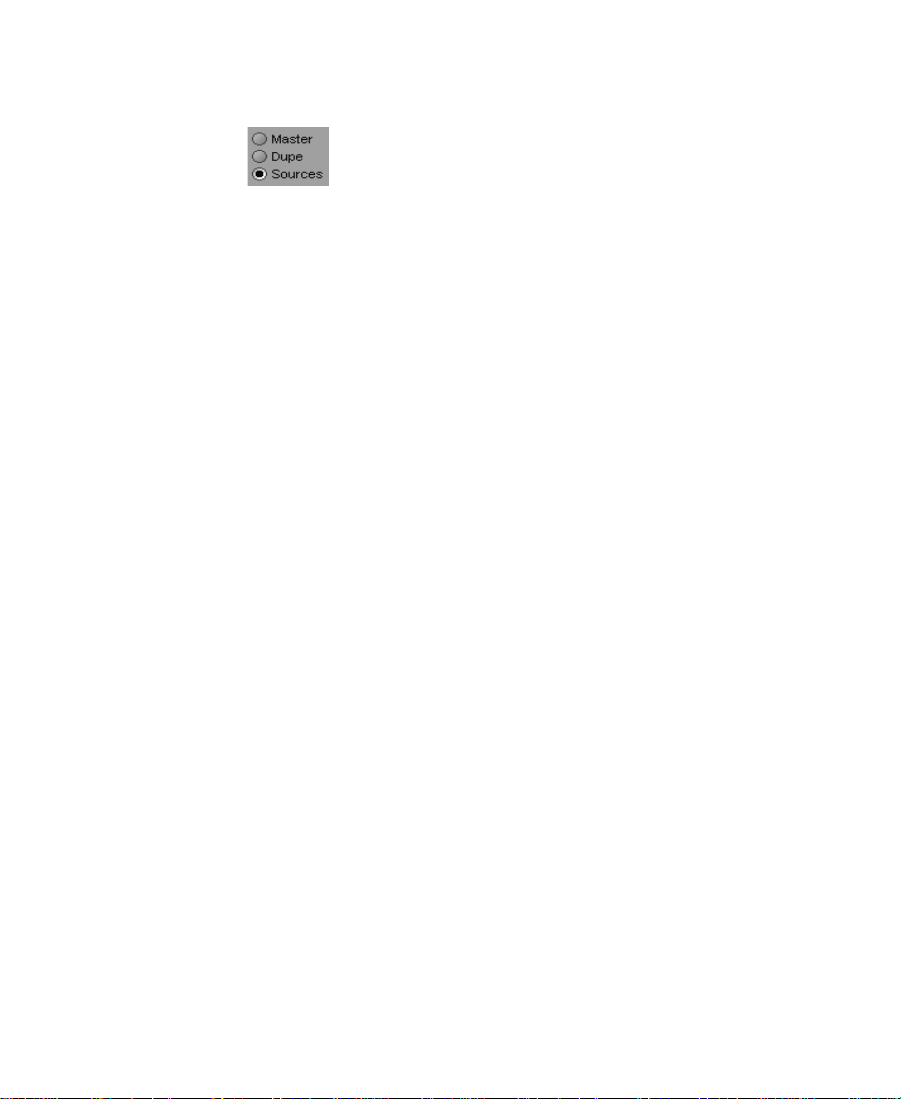

t Click the Sources button in the EDL Manager window. A list of

source tapes appears.

User-defined name

If Sources is already selected before you open an EDL, the source table appears when you complete the opening procedure. To view the master EDL display, click Master in the EDL Manager window.

The source table has one row for each source tape. The three columns provide the following information:

• The user-defined name for a source tape

• The Avid-defined name for a source tape

•The Avid import ID, which is the internal identification for your Avid source tape

The exact format for these columns varies depending on the format of your EDL.

Avid-defined name

Avid import ID

User-defined name

Avid-defined name

Avid import ID

Before your online session, you might want to print the source table on paper.

Printing a List of Tapes in the Source Table

To print the source table:

t Choose Print EDL from the File menu.

For more information about the online session, see “Online and

Offline Editing” on page 9.

CHAPTER 2

Customizing EDLs

This chapter describes how to customize an edit decision list by changing a variety of settings. It also explains how to save settings as templates for use with other EDLs.

This chapter includes the following sections:

• EDL Manager Option Settings

• Changing Settings in the EDL Manager Window

• Changing Settings in the Options Window

• Changing Options in the Site Settings Dialog Box

EDL Manager Option Settings

Initially, EDL Manager uses default option settings to generate the EDL, unless you customize the EDL by changing the settings for any of the options. You can change the settings, save them to a template, and then use the template for other EDLs; or you can continue to manipulate the settings until you find the most effective combination for your sequence.

Settings that you can change are located in several places within EDL Manager. See the following sections:

• Changing Settings in the EDL Manager Window

• Changing Settings in the Options Window

• Changing Options in the Site Settings Dialog Box

As you choose the settings for your EDL, remember that they might significantly affect the online session in terms of time and money. For example, if you finish your program in a suite with preread capabilities, choosing the preread option in the EDL Manager application can save time in dubbing sources, and save money in additional deck rental.

Changing Settings in the EDL Manager Window

Use the EDL Manager window (see Figure 2-1) to change or select the following settings:

• Title name of your EDL

• Video tracks and audio channels

• Views of the EDL — master list, dupe list, or source table

• Templates to apply to the EDL

• Source and output frame rates (for 24p or 25p bins and OMFI files only)

Use the Update button to update the EDL with changes you make to the video tracks, audio channels, title, and to the Source and Output frame rates.

EDL

EDL name Three views

Update button

Source timecode Output timecode

Video and Audio Track selector panel

Timecode options (24p, 25p and OMFI files only)

Figure 2-1 EDL Manager Window

Changing the Title of an EDL

You can change the title of your EDL at any time. For example, you might want to open an EDL, modify it in some way, and then retitle the modified version to distinguish it from the original. If you then save the new version by using a new file name, you have two distinct versions of the EDL with different titles and file names.

To change the title of an EDL:

1. Click in the Title text box.

2. Delete the old title and type a new one.

3. Click Update.

The new title appears as the first line of the EDL.

Changing the title of an EDL does not automatically create a new file. To create a new file, you must save the EDL by choosing Save As from the File menu. In the Save As dialog box that opens (for an EDL with a changed title),

the system supplies a new file name by default — the first six characters of the new name plus the .EDL file name extension. You can accept this file name or modify it before you save the EDL.

Defining Video Tracks and Audio Channels

EDL Manager works with a maximum of 24 video tracks and 16 audio channels, depending on the edit controller format you select, as described in “Changing Settings in the Options Window” on

page 41. The capabilities of the edit controller determine how many

output tracks (channels) you can use.

The Track Selector panel in the EDL Manager window controls the selection of video and audio tracks for the EDL. Each button in the panel represents one channel of audio or video in the EDL.

Initially, EDL Manager uses the following panel configuration:

Audio channelsVideo track

The number on each button refers to the channel from the sequence that is assigned to that channel in the EDL.

If you create an EDL from a simple sequence that contains one video track and up to four audio channels, you can use the default arrangement of the Track Selector panel. For other situations, you can reconfigure the Track Selector panel differently.

Including or Excluding Specific Tracks

If multiple audio channels and video tracks exist in your sequence, you might want to include only certain tracks in the EDL.

To specify which tracks to include or exclude:

1. Click the audio or video track button in the Track Selector panel.

A pop-up menu of channels (or tracks) appears. The number of audio channels listed depends on your edit controller.

2. Do one of the following:

t Choose a track number from the pop-up menu.

t Choose the minus sign (–), at the top of the pop-up menu, to

turn off a track.

The track number or the minus sign appears on the button.

Redefining a Track

3. Click Update.

You can assign any track from your sequence to any track in your EDL. Keeping channel A1 in the sequence as the first audio channel in the EDL is not necessary.

For example, suppose you decide to move audio channel 16 in your sequence to audio channel 1 in your EDL. Choose A16 from the pop-up menu.

The underlined number in the list of available tracks — in this case, A1 — is a reminder that you are moving A16 to the EDL audio channel 1.

EDL channels

The audio button displays A16, indicating that you have assigned track A16 from the sequence to the first audio channel in the EDL.

Track selected to include in the EDL

When you generate your list, the EDL will refer to this channel as A1 because it is the first audio channel in the EDL itself.

Track displayed in the EDL

Combining or Isolating Tracks

Depending on the complexity of your sequence, you can combine or isolate video tracks.

• For simple sequences, you can combine video tracks. To do so, choose the All V (All Video) setting from the Video Track pop-up menu. EDL Manager combines all the video tracks in a sequence into one representative video track in the EDL.

When you combine video tracks and the list is too complex, EDL Manager simplifies the list. To see error messages, choose Console from the Windows menu. For more information on the Console window, see “Removing Problems Caused by Complex

Sequences” on page 64.

• For sequences too complex to be represented in one EDL, you can isolate a video track.

As an example, you might have multiple layers of keys, or a key over a superimposition (super) with color correction, and so on.

Track isolation creates successive EDLs for the same sequence, each with a different video track.

To isolate a video track:

1. Assign a single video track from the sequence, such as V1, to the EDL Manager video track.

2. Save this EDL with a unique name.

Repeat the steps for each video track you want to isolate.

When you save successive EDLs for the same sequence, be sure to devise a system for giving each file a unique name, such as SOURCE1.EDL, SOURCE2.EDL, and so on.

Creating Stereo Channels

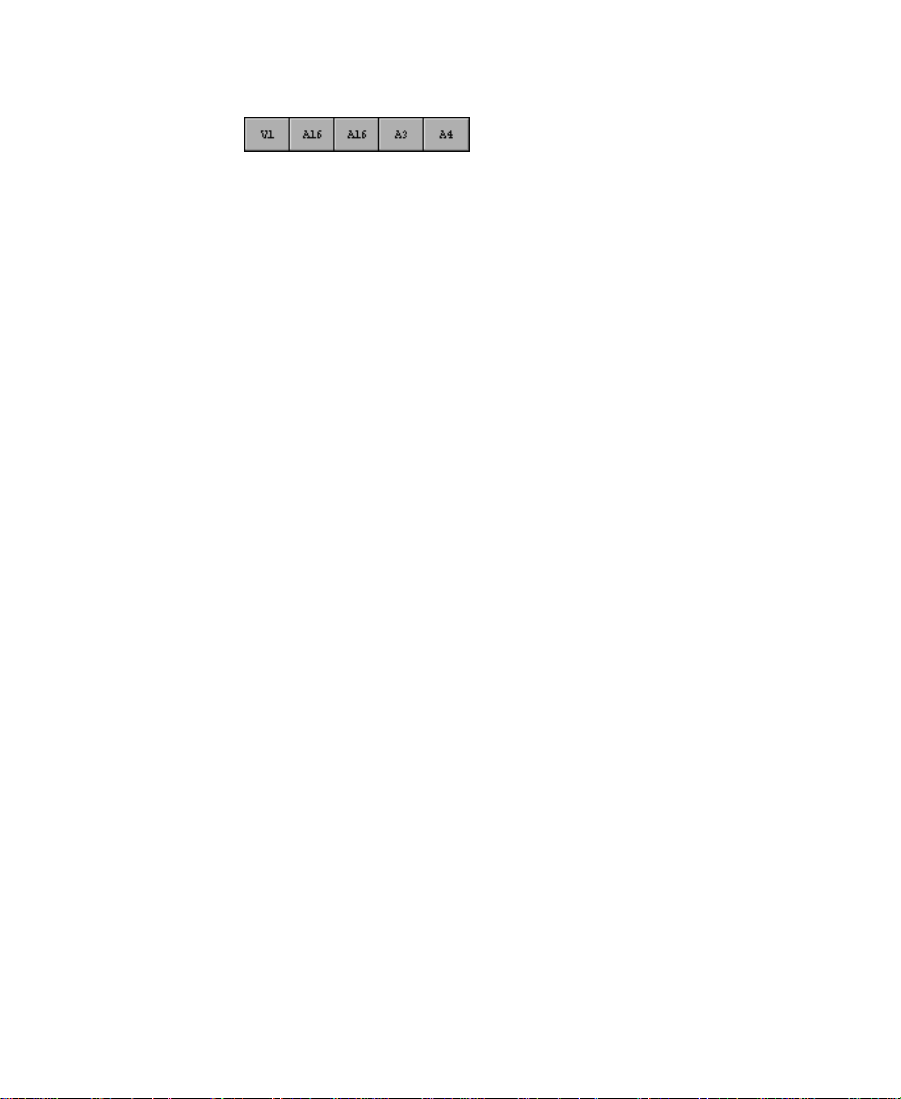

By assigning the same audio channel from your sequence to two different EDL Track Selector panels, you can create stereo channels.

For example, to create stereo channels using A16 from your sequence, assign A16 to both audio tracks 1 and 2 in EDL Manager:

To create stereo channels:

1. Click an audio button in the Track Selector panel.

2. Choose the audio channel in the sequence from which you want to create a stereo channel.

3. Click another audio button.

4. Choose the same audio channel from the sequence to assign to this EDL channel.

5. Click Update.

Choosing a Format for the Audio Channels

Your EDL can include a maximum of 16 audio channels at any one time in the EDL, depending on the edit controller format you chose. For information on choosing an edit controller format, see “Selecting

an Edit Controller Format” on page 42.

Displaying Different Views of an EDL

Your EDL Manager window can display the EDL in one of three ways:

• Master list

• Dupe list (if options are set for creating a dupe list)

• A table of your source tapes

To display one of the views in the EDL Manager window:

t Click the button of the view you want to see.

For more information, see “Setting Up a Master List” on page 46,

“Setting Up a Dupe List” on page 48, and “Viewing a List of Tapes in the Source Table” on page 25.

Selecting a Template for the EDL

A template file is where you can save a customized set of options. This feature allows you to organize and recall the customized settings in whatever way is useful for your work. For example, you might want to create a template for each editor who works on your system, or perhaps create a template for each type of edit controller you regularly work with.

File Names in the Template Pop-up Menu

The Template pop-up menu lists the name of the current template your EDL is using and any other templates you have saved. It also lists any temporary template, shown as an italicized file name. EDL Manager automatically creates the temporary file as you make and apply changes in the Options window (see Figure 2-2). To save your customized options to a template, see “Saving Options to a

Template File” on page 59.

Opening a Template

To open an existing template or a temporary template:

1. Click the Template pop-up menu.

A list of templates appears.

2. Choose the template you want to open.

EDL Manager loads the option settings associated with the template. To see the options that are set for this template, open the Options window by choosing Options from the EDL Manager Windows menu. The name of the template appears in the Template Name text box in the Options window.

Adjusting the Source and Output Timecodes

You can deliver various output formats in 24p and 25p projects by adjusting the timecodes in your EDL. The Source and Output pop-up menus, in the EDL Manager Window, each list timecode options that you can set for the EDL. The Source and Output options you choose affect the source and output timecode columns of the EDL (see

Figure 2-1).

The Source and Output pop-up menus appear in the EDL Manager window only when you read in a sequence from a 24p or 25p project or from an OMFI file.

If you are not working with a 24p or 25p project, you set the timecodes in the Timecode Type pop-up menu in the Master List pane of the Options Window. For information on the Timecode Type pop-up menu, see Table 2-5 on page 47.

Setting the timecodes in the Master List pane for 24p and 25p projects has no effect on your EDL; you must use the Source and Output pop-up menus to set timecodes for 24p and 25p projects.

To adjust source and output timecodes for 24p and 25p projects and OMFI files:

1. Choose Open from the File menu.

2. Select a 24p or 25p project sequence from a bin or select an OMFI file.

The EDL automatically loads into the EDL Manager window and the Source and Output pop-up menus appear.

Source pop-up menu

Source timecodes Output timecodes

Output pop-up menu

3. Choose a frame rate option from the Source pop-up menu, the Output pop-up menu, or from both. Ta b l e 2 - 1 explains the options.

EDL Manager adjusts the frame rates and displays the new timecodes in the source and output timecode columns of the EDL.

4. Click the Update button. EDL Manager displays the new timecodes in the EDL.

Table 2-1 Source and Output Timecodes

Source Timecodes Output Timecodes Description

Start (LTC) — The longitudinal timecode.

VITC — The vertical interval timecode.

Sound TC — The sound timecode, such as

DAT or Nagra.

Film TC — The film timecode from the film

source in your bin.

Aux 1–5 TC — The timecode from the timecode

column in the bin.

24 TC 24 TC 24 fps

25pd TC 25p TC 25 fps with pulldown

25 TC 25 TC 25 fps

30 TC 30D 30 fps drop frame

30ND 30 fps non-drop-frame

Finding the Field Where an Edit Occurred

While field dominance is generally consistent for video-originated material, the pulldown of the film transfer determines field dominance for 24p and 25p material. This field information, which is important for color correction of 24p and 25p material, is indicated in the timecode display.

The timecode format is as follows:

hh:mm:ssQff

Table 2-2 explains how Q indicates the timecode format and field.

Table 2-2 Timecode Format

Symbol Example Field Timecode Format

. (period)

: (colon)

, (comma)

; (semi-colon)

04:50:25.05

04:50:25:05

04:50:25,05

04:50:25;05

Field 1 Non-drop-frame

Field 2 Non-drop-frame

Field 1 Drop frame

Field 2 Drop frame

Updating an EDL with EDL Manager Window Changes

Changes you make to the Track Selector panel or to the Source and Output pop-up menus do not take effect until you update the EDL.

To update the EDL with these changes:

t Click the Update button.

The Update button flashes to indicate when you should update.

Changing Settings in the Options Window

You can further customize your EDL by defining options in the EDL Manager Options window. You can set the following options:

• Format of the edit controller

• Sort mode

• Master list characteristics

• Dupe list/preread characteristics

• Show or hide options

• Optimization types

• Standards settings

• Record start time settings

• Saving options to a template file

EDL Manager initially uses default settings to generate your EDL, if you do not customize the EDL. For any subsequent EDL, EDL Manager uses settings from the previously generated EDL, unless you specify a template of settings to use.

To change the option settings:

t Choose Options from the EDL Manager Windows menu.

The Options window opens in EDL Manager. The name of the template you are using appears in the Template Name text box.

Figure 2-2 Options Window

Selecting an Edit Controller Format

For information on going to the online suite, see Appendix A.

EDL Manager needs to know the format and version number of your edit controller. If you do not select a format, EDL Manager uses format CMX_3600, which is the most common format. Ta b le 2- 3 lists the available edit controller formats and the number of audio channels that each format supports.

Check with your online house before you make an edit decision list. As a

backup, always create a list based on the CMX_3600 format — it is the most common format. Otherwise, create several lists in different formats with distinct titles and file names. You will be prepared in case your list will not load or you are moved to another editing room at the last minute.

Selecting an Edit Controller Format

To choose a format:

1. Click the Format pop-up menu to open it.

2. Choose a format.

3. Click Apply.

A format might be available in several versions. For example, Avid supports GVG 4.1 and GVG 7.0 formats.

Ta b le 2- 3 explains the formats.

Table 2-3 Formats and Audio Channels

Format Number of Audio Channels

Abekas Solo (ASCII) 2

Ace 25 2

Ace_25_4.1_4.1 2

AmpexACE 200_9.10.03 4

Avid

CMX_340 2

CMX_3600 4

Table 2-3 Formats and Audio Channels (Continued)

Format Number of Audio Channels

CMX_DigitalCut 4

CMX_Pulldown 4

CMX_Transfer 4

Cuedos_1 16

GVG_4.1_6.0 4

GVG_7.0_7.0 4

Paltex 2

Sony_5000 2

Sony_9000 1.0_2.21 4

Sony_9000 2.22_2.32 4

Sony_9100 1.02_1.04 4

Sony_9100 1.1_2.11 4

Sony_DigitalCut 4

Sony_Pulldown 4

Sony Transfer 4

a. Avid is not available as a selection from the Format menu. How-

ever, you might want to generate an EDL for further use with an Avid editing system. In this case, you can preserve up to 16 channels of audio information by choosing 16 from the Audio Channels pop-up menu in the Standards option pane (see “Setting Up

Standards” on page 55).

If you mix down audio channels, EDL Manager does not represent them properly in an EDL. Once audio channels are mixed down, EDL Manager does not have a source to associate them with, and therefore cannot find the timecode values it needs to create a list.

Sorting the Order of Events

To minimize the amount of time the edit controller spends shuttling linear tapes, you can choose the appropriate sort mode. Sort mode affects only the order of the events and not their content. Table 2-4 describes the different ways you can use each mode.

Do not select a sort mode and then expect to change it again in the online session unless you have EDL Manager installed at the site. Some edit controllers cannot re-sort an EDL.

To choose a sort mode for your EDL:

1. Click the Sort Mode pop-up menu to open it.

2. Choose a sort mode.

3. Click Apply.

Choose mode A if you are unsure about which sort mode to use.

Table 2-4 EDL Sort Modes

Mode Sorts by Results in Use when

A (Record In)

Record In timecode. Sequential editing from one

IN point on the record tape to the next.

You have a short show, want to generate a simple, flexible EDL, or need to make many last-minute decisions.

Table 2-4 EDL Sort Modes (Continued)

Mode Sorts by Results in Use when

B (Source, Record In)

C (Source, Source In)

C (Source Start, Source In)

D (Source, Record In, Effects at End)

E (Source, Source In, Effects at End)

S (Source Start)

Individual source reel, then by the Record In timecode.

Individual source reel, then by the Source In timecode.

Source In timecode, then by individual source reel.

Individual source reel, then by the Record In timecode. Sorts effects at the end.

Individual source reel, then by the Source In timecode. Sorts effects at the end.

Source In timecode only.

Checkerboard editing on the record reel, one source reel to the next.

Checkerboard editing on the record reel, with sequential playback of material from each source.

Direct sequential transfer of source material by record reel.

Same as B, but with all effects saved for the end.

Same as C, but with all effects saved for the end.

Direct sequential transfer of source material, in matching order on the record reel.

The length of source material is roughly equivalent to the length of the finished show.

The length of source material is much greater than the length of the finished show.

The length of source material is roughly equivalent to the length of the finished show, and there are many special effects.

The length of source material is much greater than the length of the finished show, and there are many special effects.

Completing one-light transfers.

Setting Up a Master List

In the Master List area of the Options window (see Figure 2-2), you can specify the master start event, reel ID type, timecode type, whether to convert reel IDs to numbers, and whether to include a source table.

Ta bl e 2 -5 explains the master list options.

Table 2-5 Master List Options

Option Procedure Suboption Notes

Master Start Event

Reel ID type Click to open the pop-up

Change the master start event number by typing in the text box.

menu, then select the reel ID type.

The highest number accepted by most edit controllers is 999. You should not need to change this number.

If you change the reel ID, you

must reload the sequence from the bin, OMFI file, or Record monitor.

Tape Uses the reel ID from the tape

source from which you digitized your video.

Sound roll Uses the reel ID from the sound

roll source, such as digital audiotape (DAT) (if you entered this information in the bin). Used for film projects.

Camera roll Uses the reel ID from the camera

source (if you entered this information in the bin). Used for film projects.

AUX Sources 1–4 Uses the reel ID from various

auxiliary sources (if you entered this information in the bin).

Timecode type Click to open the pop-up

menu, then select the timecode type.

EDL Manager can access only

those types of timecode that are present in your bin.

Address (LTC) Uses the longitudinal timecode of

the source from which you digitized.

Table 2-5 Master List Options (Continued)

Option Procedure Suboption Notes

VITC Uses the vertical interval timecode

of the source in your bin from which you digitized.

Sound TC Uses the timecode from the sound

source, such as DAT or Nagra, from which you digitized. Used for film projects.

Film TC Uses the timecode from the film

source in your bin.

Aux 1–5 TC Uses the timecode specified in the

timecode column in your bin.

Convert to Numbers

Incl. source table w/ saved EDL

Click to select or deselect. If you select Convert to Numbers,

Click to select or deselect. Includes the source table

Setting Up a Dupe List

A dupe reel is a compilation of the duplicate clips that you need to conform a sequence, or make the final show from your editing. If you

have clips that a transition effect joins from a single tape, you need to dupe a clip so that another source tape exists to transition to and from, as one tape cannot be in two places at once. The second source tape is called a B-roll.

the EDL you generate always uses numbers for reel IDs, even if your edit controller uses alphanumeric tape names.

information whenever you save an EDL.

The following figure illustrates the use of dupe clips and a B-roll:

Shot 2, Source A

Sequence

B-roll

Shot 1, Source A

(Handle)

Dissolve

A dupe list is a list of dupe clips. The editor conforms the dupe list onto a separate tape, which is then used as a source when editing the final show from the master list.

In the Dupe List/Preread area of the Options window (see Figure 2-2), you can set the dupe list options. Ta b l e 2 -6 explains the options.

Table 2-6 Dupe List Options

Option Procedure Suboption Notes

Type Click to open the pop-up

menu, then select the dupe reel type.

None Creates no dupe reel.

(Handle)

One, New Timecodes

Creates one dupe reel with a timecode you select.

One, Jam Sync Creates one dupe reel with

timecodes from the original sources.

Multiple (B-rolls) Appends a “B” to the incoming

source when transitions are made from a single source.

Table 2-6 Dupe List Options (Continued)

Option Procedure Suboption Notes

Preread Creates no dupe list. Adapts the

EDL master list to accommodate duplicate frames as preread frames when editing with digital decks. For more information on preread, see “Using the Preread Option”

on page 51.

Dupe reel name Type a name or number in

the text box.

Preread name Type a new name in the

text box to override the default name.

Starting Event Type in the text box to

change the dupe reel’s starting event number.

Start Timecode Type in the text box to

specify the starting record timecode of the dupe reel.

Handle Type in the text box to

specify the length of extra material you include before and after cuts on the dupe reel.

Dupe all transitions

Click to select or deselect. Forces a B-roll for every transition.

Used to specify the source name of

the “to” side in a preread transition (see “Using the Preread Option”

on page 51). The new name is an

override only for the duration of the session.

To avoid handles, set this number to 00:00:00:00.

Using the Preread Option

Preread (see Tab l e 2 - 6 ) is an increasingly popular choice for online editing because more suites now have digital decks. Preread allows an editor to make a transition between two segments of a single source. The online session requires fewer source decks, and preread virtually eliminates the need for dupe reels, allowing online editing to move more quickly. This saves both time and resources.

Without preread, a dissolve between two shots from a single source requires three decks: two source decks and a record deck. One of the shots must be dubbed out and played from a second source deck. With preread, the third deck and the dubbing out are unnecessary.

With preread edits, the cut before the transition (sometimes called the A-side, or outgoing footage) is overrecorded. The overrecord area must be equal to or greater than the duration of the transition. You specify the source name of the

“to” side of a preread transition in the Preread name text box (see Ta b l e 2 -6 ) of the Dupe List/Preread area in the Options window.

Showing or Hiding Comments and Other Information

The Show area of the Options window (see Figure 2-2) is where you select the types of comments and other information, generated during the editing of a sequence, to display in the EDL. Displaying this information can be helpful when conforming the program in an online suite.

Click an option in the Show area to select or deselect it. The selected options that appear in the EDL are prefixed by asterisks (*). Ta bl e 2 - 7 explains the options.

Table 2-7 Show Options

Option Description

Comments Includes comments about events in the EDL that were

added during editing.

Clip Names Includes names associated with the source clips in Avid

editing system bins.

Patch Info Refers to audio patching information. Can aid during the

manual setup of cross-channel patching.

Audio EQ Info Refers to audio equalization (EQ) information. EDL

Manager generates comments containing EQ values specified for clips with audio EQ.

Pan/Volume Info Displays pan and volume levels in each event: pan levels

are measured in percentages left and right of center, and

volume is measured in +/– decibels.

Effects Info Refers to information about special effects; for more

information, see explanation in “The Effects Info

Comment” on page 53.

Repair Notes Indicates modifications made to the EDL by EDL

Manager; for more information, see “The Repair Notes

Comment” on page 53.

Locators Includes locator text added to the sequence during

digitize.

Some edit controllers might not be able to load comments successfully. Check with the online editor to make sure the edit controller can support these types of comments. If necessary, you

can create two separate versions of the list — one without comments for the edit controller, and one with comments — that you can print for your own reference.

The Effects Info Comment

If you select Effects Info, EDL Manager generates a comment in the EDL that indicates the type of effect and its parameters. Effect types available in EDL Manager are:

• Picture-in-Pictures

• Superimpositions

•Masks

• Resize and Blowup

• Flip, Flop, and Flip-Flop

• Color Effects

• Film Dissolves

• Film Fades

• Fades to Color

• Fades from Color

• Keys

•Wipes

• Rolling and crawling titles

For more information on effects, see your Avid editing system

documentation.

The Repair Notes Comment

Repair notes indicate changes EDL Manager makes to handle a complex EDL or discrepancies EDL Manager finds in the sequence. If you select the Repair Notes option, EDL Manager displays changes that it makes, such as limiting the number of frames in a dissolve or invalid Source In times.

The following example shows two repair notes:

Example of repair notes

For more information on the use of repair notes, see “Removing

Problems Caused by Complex Sequences” on page 64.

Optimizing the EDL

Optimization is a process that simplifies your EDL. An optimized EDL contains simplified text, and events that are combined or condensed to speed up the online assembly process.

For example, if two tracks of video and one channel of audio share the same Record In and Record Out timecodes, and they come from the same source tape, optimization expresses them as one edit instead of three.

In the Optimization area of the Options window (see Figure 2-2), click an option to select or deselect it. Tab l e 2 - 8 explains the options.

Table 2-8 Optimization Options

Option Description

Optimize EDL Allows optimization to occur.

Dissolves as Cuts Changes all dissolves to cuts.

Wipes as Cuts Changes all wipes to cuts.

Table 2-8 Optimization Options (Continued)

Option Description

Include Black Edits Includes filler as black edits (video only). Choose this

option to have Cuts to Black appear in your EDL.

Audio Dissolves as Cuts

If you choose both Optimize EDL and Dissolves as Cuts, EDL Manager will display an alert message. This does not affect the sequence in your bin, OMFI file, or Record monitor. You can always reset the dissolves by reloading your bin.

Setting Up Standards

The Standards area of the Options Window (see Figure 2-2) includes the broadcast standards, number of supported audio channels, and switcher settings.

To set Standards options:

t Click an item in the Standards area to open the pop-up menu, and

then select the option you want. Ta b le 2- 9 explains the options.

Table 2-9 Standards Options

Changes all audio dissolves to cuts.

Option Suboption Description

Standard NTSC Use for video projects or for film projects

in which video and audio were transferred and digitized at 30 frames per second (fps) using pulldown.

PA L Video Use exclusively for video projects.

Table 2-9 Standards Options (Continued)

Option Suboption Description

PAL Film 1 Use for film projects in which video and

audio were transferred and digitized together at 25 fps.

PAL Film 2 Use for film projects in which video and

audio were transferred and digitized separately at different speeds.

Switcher EDL Manager supports the SMPTE

switcher, and a number of GVG and Sony switchers.

Audio Channels 4 Use for selecting the number of channels.

For a full list of edit controllers and the number of supported audio channels, see

Table 2-3 on page 43.

16 Use this setting for Cuedos controllers and

Avid systems. If you choose 16 channels, the tracks display changes to reflect your choice. For a list of edit controllers and the number of supported audio channels, see

Table 2-3 on page 43.

If you open an OMF file or a file from a bin, EDL Manager automatically determines whether the EDL you are generating should be NTSC, PAL Video, or PAL Film 1 or 2. However, if you open an EDL other than from an OMF file or file from a bin, you must select a standard suboption.

Setting the Record Start Time

The Record Start Time area of the Options window (see Figure 2-2) allows you to base the record start time on either of the following options:

• The sequence currently active in your Avid video-based editing system.

• The time that you specify.

To specify a time:

t Enter a time in the Other text box.

Setting the Pulldown Start Frame

The Pulldown Start Frame area of the Options Window (see

Figure 2-2), used with 24p and 25p projects, allows you to choose the

start frame for your generated EDL.

To set the pulldown start frame:

t Choose one of the following options from the pulldown menu:

• Sequence — default setting, based on start frame set in

sequence

• A Frame — sets pulldown start frame to A

• B Frame — sets pulldown start frame to B

To see the pulldown start frame in the EDL:

t Select the Show Pulldown Comment option.

The following example shows the pulldown start frame:

Setting the Tapename Tr uncation

The Tapename Truncation area of the Options window allows you to determine which part of the tapename you want to save.

To set the tapename truncation:

t Choose one of the following options from the pulldown menu:

• Trunc. End

• Remove Middle

• Remove Beginning

• First Char. + End

Ta bl e 2 -1 0 describes these options.

Table 2-10 Tapename Truncation Options

Option Example Description Use When

Trunc. End CHICAGO138101

becomes CHICAGO1.

Remove Middle CHICAGO138101

becomes CHIC8101.

Remove Beginning CHICAGO138101

becomes GO138101.

First Char. + End CHICAGO138101

becomes CO138101.

Truncates the end of the tape name. This method is the default.

Takes half of the allowed number of characters from the front and the other half from the end of the tape name.

Removes the beginning of the tape name.

Keeps the first character and the last characters and removes everything in between.

Saving Options to a Template File

To save your customized options as a template:

Distinguishing segment of tape name is at the beginning.

Sequentially numbered series of tape names, such as CHICAGO138100, CHICAGO138101, and so forth.

Distinguishing segment of tape name is at the end, such as tape names with very long numbers in a large library system.

Distinguishing segment of tape name is at the end.

1. Make changes to any of the option settings as described in this chapter.

2. Click one of the following buttons:

• Apply — saves your settings to a temporary template and

brings the EDL Manager window to the front. The italicized name of the temporary template appears in the Template pop-up menu of the EDL Manager window. The template

remains temporary until you click the Save As button and provide a file name.

• Save As — saves the options to a new template. A dialog box

opens in which you can provide a file name for the template. The new name appears in two places:

– In the Template pop-up menu in the EDL Manager window

– In the Template Name text box of the Options window

3. Click the Revert button to discard your changes and reinstate the options of the current template file.

Changing Options in the Site Settings Dialog Box

You can change serial transmission, list font, and printer font options in the Site Settings dialog box.

To open the Site Settings dialog box:

t Choose Site Settings from the Edit menu.

Changing Serial Transmission Options

Set up serial transmission options only if you will be transferring an EDL to an online editor by means of serial transmission. For information on using the Site Settings dialog box to define the serial transmission and options, see Appendix C.

Changing Font Options

The List Font and Printer Font tabs in the Site Settings dialog box allow you to change the font and size of the text in your EDL. The List Font tab affects the on-screen display; the Printer Font tab affects the printed version of the EDL.

To change the font and font size of your EDL text:

1. Click either the List Font or Printer Font tab, depending on which font you want to change.

2. Choose a font from the Font pulldown menu.

3. Type a number in the Font Size text box.

4. Click OK.

CHAPTER 3

Editing and Troubleshooting EDLs

You can edit an EDL with a text editor to clean up the EDL for a successful reading. You can also troubleshoot EDLs by using techniques described in this chapter.

This chapter includes the following sections:

• Using a Text Editor to Edit an EDL

• Removing Problems Caused by Complex Sequences

• Locating Trouble Spots

• Avoiding Problems in EDLs

Using a Text Editor to Edit an EDL

You can use a text editor to delete or change information in the EDL that might not read correctly into EDL Manager.

Before you edit, create a copy of the EDL. Edit the copied EDL rather than the original. You can then revert to the original if you make errors.

When you edit the EDL, be careful to delete only the information you want to delete; do not delete any extra characters. If you delete extra characters, you might see further errors when you try to read the EDL again.

The following sections describe possible edits you can make to clean up the EDL for successful reading. To make sure EDL Manager can read your EDL, complete the following procedures. If the first procedure does not solve the problem, proceed to the next.

Fitting the Format to the EDL Manager

If you are having trouble reading a list in EDL Manager, the list might not meet EDL Manager formatting requirements. The following is a check list of the most common formatting problems:

t Check the format layout.

Make sure the columns are in the correct place and the characters are correct for your edit controller. If you use an editor that can display hidden characters, turn on that feature to view spacing, tabs, and carriage returns more easily. If you are unsure about the layout, see the edit controller documentation from the online suite.

t Check reel names and numbers.

Make sure they are the appropriate length for your edit controller. If you are unsure about the layout, see the edit controller documentation from the online suite.

t Delete all general-purpose interface triggers.

These triggers, labeled GPI, cause problems reading into EDL Manager.

t Delete any Master/Slave comments.

These comments, preceded by the MS symbol, cause problems reading into EDL Manager.

t Change the source names in the EDL from Aux and Black to an

unused reel number.

When you create a new EDL, this new number will represent Aux and Black. You need to do this because EDL Manager reads only numbers, not letters.

Changing the Header Format

Sometimes the EDL does not read properly because the EDL Manager does not recognize the header format. This might happen if you use an EDL not generated by an Avid video-based editing system. If this is the case, you can replace the unreadable header with an EDL header generated by the Avid editing system.

To make sure the header format matches the EDL:

1. Delete the current header from the EDL you are trying to read.

2. Generate a list in EDL Manager that is the same format as the EDL you are trying to read.

3. Open an EDL generated by an Avid video-based editing system and copy the EDL headers.

4. Paste the EDL headers into the EDL you are trying to read.

Removing Problems Caused by Complex Sequences

When a sequence is too complex for the EDL Manager to describe, it generates error messages and tries to simplify the sequence. This happens most frequently when you try to generate a list for a sequence that has multiple video tracks.

EDL Manager’s attempts at simplifying complex sequences are pointed out in the repair notes and appear as comments within the list.

You can avoid having EDL Manager simplify your composition by requesting a separate list for each video track. This is known as track isolation. Or you can delete comments and motion effects that might be causing problems.

Using the Console Window to Display Messages

To display EDL Manager messages:

t Choose Console from the Windows menu.

The Console window opens.

Message area

Command text box

Repeat button Recall button

To get help about console commands:

t Type the Help command in the Command text box, and then press

Return.

A description of how to use the Help command appears in the message area.

To display a previous command in the Command text box:

t Click the Recall button (F3).

To perform a previous command:

t Click the Repeat button (F2).

To clear the display:

t Click the Clear button.

Always check the Console window after making a list. Error messages appear in the Console window if certain comments or events cause problems.

EDL Manager generally identifies motion effects by M1, M2, and so on.

Do not use the programming functions of the Console window without the guidance of an Avid professional. If you need help interpreting information in the Console window, contact your local Avid Reseller; in North America, you may call Avid Customer Support at 1-800-800-AVID (2843).

Fixing Difficult Transitions

Specific transitions can cause difficulties for the EDL Manager. For example, a color effect on a resized motion-controlled clip that dissolves to an imported graphic file will overwhelm the EDL

Manager’s descriptive capacities, forcing a repair note. Less obvious complexities can also affect list generation.

You can best resolve these problems by isolating the offending transitions and simplifying or removing them.

Locating Trouble Spots

You can isolate trouble spots in several ways. They include slicing and dicing, and trying one track at a time.

Slicing and Dicing

The most effective method for finding trouble spots is slicing and dicing the sequence. Slicing and dicing isolates trouble spots by dividing sequences in half and testing for successful generation.

To slice and dice the sequence with your Avid video-based editing system:

1. Load the sequence into the Source monitor.

2. Mark an IN point at the head frame and an OUT point halfway through.

3. Cut this portion over to the Record side.

4. Test this portion of the sequence by creating an EDL.

If the EDL is generated successfully, you know that the problem is in the second half of the sequence. If not, subdivide the sequence elsewhere to further isolate the source of the problem.

To subdivide the sequence:

1. Press Ctrl+Z (Windows) or Command+Z (Macintosh) to clear the sequence from the Record monitor (so you will not accumulate

“Untitled Sequence.01...02...03” in your bin).

2. Load the unsuccessful half into the Source monitor, and repeat steps 2 through 4 in the preceding procedure.

Trying One Track at a Time

Another way to isolate trouble spots is to generate an EDL by using one track at a time. The problem might be on a particular track. For information on isolating tracks, see “Combining or Isolating Tracks”

on page 34.

Avoiding Problems in EDLs

You can help resolve problems by trying the following:

• Simplifying Effects

• Looking for Missing Information

• Dealing with Corruptions

Simplifying Effects

You can simplify effects in your sequence that are overly complex. For example, you can remove a color effect from a resized segment. Use comments to help re-create the original sequence in the online suite.

Looking for Missing Information

Occasionally, EDL Manager fails to generate a list because clips in the sequence are missing information essential to the EDL (for example, you try to create an audio list by using clips lacking audio timecode).

Try the following suggestions if you suspect a problem caused by missing information:

• Scan your bins for any obvious omissions of files you need for your sequence.

• Use the slice and dice technique to isolate difficulties.

• In your Avid video-based editing system, find the overlap frame of troublesome clips, then use the Find Bin command to check their statistics.

• Add information to the bin as needed.

Dealing with Corruptions

List generation can be hampered by corruptions. These are areas where information relating to a clip or transition has become damaged or lost, preventing the system from describing it in an EDL. In extreme cases, corruption prevents the clip from playing. The most effective way of dealing with corruptions is to cut them out and replace them.

Scrupulously backing up a project can reward you if you encounter corruptions. Using an earlier, uncorrupted version of a sequence that does not exhibit the corruption can save you considerable time.

APPENDIX A

Check List for Online Editing

When you move from nonlinear to linear editing systems and generate EDLs to help re-create your sequence online, you might encounter some obstacles. For example, an EDL generated in one format might be incompatible with the edit controller at the online suite. Or, you might be unaware of the dupe reel characteristics your EDL should contain. Problems like these might result in an unproductive and costly online session.

This appendix contains a list of suggestions to help you avoid or minimize problems.

• Calling Ahead to the Online Suite

• Deciding What to Take to the Online Suite

• Double-Checking the EDL File Names

If you have questions, contact your local Avid Reseller; in North America, you may call Avid Customer Support at 800-800-AVID (2843).

Calling Ahead to the Online Suite

Before you finish working offline, call the online suite to find out:

• What types of edit controllers the suite has. Find out all the different types in case you are assigned to one edit controller but end up using another when you get there. If possible, go to the suite, look at the equipment, and determine the appropriate EDL format.

• Whether the edit controller reads high-density or low-density (double-density) disks.

• What EDL format the controller reads. CMX_3600 format is read by most edit controllers. If you are unsure what type of edit controller the suite uses, save the EDL in several different formats. If you have trouble with one format, you will have other formats from which to choose.

• If the computer system at the online suite reads 3.5-inch disks. Some older computers use only 5.25-inch or 8-inch disks, and very few newer computers can read or write to these types of disks.

• If you need to generate a dupe reel list with new timecodes or a multiple B-roll list in EDL Manager. Also, find out if any other information is required for your project and that you should include as a comment in the EDL.

• If the online suite can create all the effects you specified in the EDL. If not, consider regenerating the EDL and adjusting the options.

• If you can send a preliminary version of the EDL ahead of time to make sure it loads properly on the edit controller. If it does not, you can make the necessary adjustments.

• The name of the switcher in the online suite. If you are not sure which switcher is being used, adjust the Switcher setting in EDL Manager to SMPTE. (The switcher setting is in the Options window.)

• If the suite has a computer you can use.

Deciding What to Take to the Online Suite

Consider taking EDL Manager, several forms of your EDL, and reference information to the online suite.

Take EDL Manager

If possible, take EDL Manager with you, along with the bins on a disk. You can use EDL Manager on a computer running the Windows NT, Windows 98, or Macintosh operating systems. If you do not have a portable computer, call ahead to find out if you can load EDL Manager from a CD-ROM onto a computer at the suite.

Take the EDL in Several Forms

Having your EDL in several forms allows greater editing flexibility. If difficulties arise, you can refer to a paper copy. Take the EDL in the following forms:

• Saved on 3.5-inch disk

• Printed on paper (in A-mode sort for easy reference)

For more information on saving and printing, see “Saving an EDL” on

page 18 and “Printing an EDL” on page 22.

Take Reference Information

You might also want to take as a reference one of the following:

• A digital cut. For more information, see the user’s guide for your Avid video-based editing system.

• An audio layback (AudioVision

the Avid AudioVision User’s Guide.

• A printout of the source table.

only). For more information, see

Double-Checking the EDL File Names

Make sure the EDL file names are the correct length and type for the disk format in which you saved them. Follow these guidelines:

• If you save your EDL to a disk formatted for CMX or GVG, the file name must have six or fewer uppercase alphanumeric characters followed by the file name extension .EDL. There can be no spaces in the file name, and no characters except letters and numbers.

For example, TEST1.EDL is a valid file name for GVG and CMX systems.

• If you save your EDL to a DOS-formatted disk, make sure the file names are no more than eight uppercase alphanumeric characters followed by the .EDL file name extension. Again, the file name must not contain spaces or other special characters; only letters and numbers are acceptable.

For example, WINSTON3.EDL is a valid file name for DOS-formatted disks.

APPENDIX B

Creating EDLs for Film Projects

This appendix explains several things to consider when you create EDLs for film projects. It includes the following sections:

• Matchback Conversion in Film-to-Video EDLs

• Creating EDLs for a Matchbacked Sequence

• Creating Audio-Only EDLs

Matchback Conversion in Film-to-Video EDLs

If you are editing a film project with an Avid video-based editing system, you might intend to finish the project in video. The matchback conversion process requires the editing system to perform special calculations to match the film to video. Because the ratio of film-to-video frames is uneven, the film and corresponding video edit points do not line up evenly.

For example, with a ratio of 24 film frames to 30 video frames, a 6-frame film edit corresponds exactly to a 7 1/2-frame video edit. However, video edits cannot include partial frames, so the video edit must be 7 or 8 frames long.

Edit

Film

NTSC

The corresponding video edit point does not fall exactly on the boundary between two video frames.

Because video edits might be longer or shorter than the original film edits, the system makes sure the film and video sequences match as closely as possible by checking the durations at the end of each edit. If the total video-sequence duration is a frame longer than the film, the system will subtract a frame from the last video edit. If the video is a frame too short, the system adds a frame to the last video edit.

Creating EDLs for a Matchbacked Sequence

When you create an EDL for a sequence that converts from film to video, an edit listed in the EDL might be slightly longer or shorter than the corresponding film edit. The EDL might not be an exact

representation of the sequence — it can be plus or minus one frame, in accordance with the 30 to 24 frames per second (fps) matchback conversion. In this case, be aware of the discrepancy when you go to the online suite so that you can adjust for the difference.

Creating Audio-Only EDLs

If you create an audio-only EDL for a film project, set the following options in the EDL Manager Options window before you generate the list:

• Dissolves as Cuts (Optimization area)

• Sound Roll as the Reel ID type (Master List area)

• Sound TC as the Timecode type (Master List area)

These options simplify the EDL, and ensure that the pertinent source information is referred from the bin to the EDL.

APPENDIX C

Using Serial Transmission to Transfer EDLs

If your offline and online editing suites are in the same building, or if you are transferring the EDL to an edit controller that has no disk drive, consider using serial connections to transmit EDLs from offline to online.

This appendix contains the following sections:

• Connecting the Edit Controller to the Computer

• Setting Serial Transmission Options

• Transmitting the EDL

Connecting the Edit Controller to the Computer

To connect the edit controller and your computer:

1. Decide which port on the edit controller you will use for transmission.

2. Connect the serial port on the computer to the port on the edit controller that you have chosen to use for transmission.

Setting Serial Transmission Options

Before the edit controller and computer can communicate, you must specify various options in EDL Manager.

To set the serial transfer options:

1. Choose Site Settings from the Edit menu.

The Site Settings dialog box appears.

2. Select an option from the pop-up menus. Ta bl e C - 1 explains the options.

3. Click OK to apply your changes to your EDL.

4. Click OK to implement the options you have selected.

Ta bl e C -1 explains the serial transfer options.

Table C-1 Serial Transfer Options

Option Description

Port Indicates the system port. The items on this pop-up

menu vary depending on your system’s ports.

Data Width Indicates if 7-bit words or 8-bit words are being

transferred — the default is 7 bits.

Parity Indicates error detection, found through counting the

number of bits in a transmitted word. Even indicates the number of bits in a word is even. Odd indicates the number of bits is odd. The default is zero.

Baud Rate Sets the data transmission rate for the computer on

which EDL Manager is running — the default is 9600.

Stop Bits Indicates how many bits are needed to make a break in

transmission — the default is 0 stop bits.

Handshaking Allows communication between two systems — the

default is none. Options include DTR and XON/XOFF.

Transmitting the EDL

When you are ready to transmit the EDL, another person should be ready at the edit controller to help you.

To transmit the EDL, do the following at the same time:

• Have the other person press Receive at the edit controller.

• Choose Transmit EDL from the EDL Manager File menu.

When you see events scrolling one by one onto the edit controller screen, the transmission was successful.

If you see either an error or strings of indistinguishable text, the serial parameters were set incorrectly in EDL Manager. Check the parameters for the serial port and reset them in the Site Settings dialog box.

Glossary

24p or 25p

bin

black edits

B-roll

CMX

24-fps or 25-fps progressive media. The progressive media file is composed of single frames, each of which is vertically scanned as one pass. The Avid system creates 24p or 25p media by combining (deinterlacing) two video fields into a single full, reconstructed frame. For NTSC film-to-tape transfers, the system creates 24p or 25p media by undoing the 2:3 pulldown inserted by the telecine process, removing the extra fields, and creating progressive frames.

A database in which master clips, subclips, effects, and sequences are organized for a project in an Avid editing system. A file structure that contains other files, including sequences, and is analogous to a folder or a directory in other computer applications.

1. A video source with no image.

2. A special source you can fade into, out of, or use for other effects.

An exact copy of the A-roll original material, or new original material on a separate reel, for use in A/B-roll editing.

Edit controller made by CMX Corporation (originally a joint venture by CBS (340, 3600).

and Memorex®). CMX uses its own proprietary format EDLs

composition

The standard term used by OMF Interchange® to refer to an edited sequence made up of a number of clips. The OMF equivalent of a sequence in an Avid editing system.

conform

corruptions

cut

dissolve

dupe list

dupe reel

To make the final show based on the editing. Conforming organizes the source material for final assembly.

Information relating to a clip or transition that has been damaged or lost, preventing EDL Manager from describing the information in an EDL. The solution is to cut the corruptions out and replace them with a backup version of the sequence.

An instantaneous transition from one video source to another. Also, a section of source or record tape.

A video or audio transition in which an image from one source gradually becomes less distinct as an image from a second source replaces it.

A list of dupe reels. A view of this list is available only if options are set for creating a dupe list. You can set the options in the EDL Manager Options window.

A reel designated for the recording and playback of dupes (duplicate shots) during videotape editing. You create dupe reels as backup copies, to help in the creation of special effects, and for A/B-roll editing.

edit controller

An electronic device, often computer-based, that allows an editor to precisely control, play, and record to various videotape machines. The edit controller keeps track of timecodes for each shot and coordinates the machines in the suite: videotape machines, monitors, an audio mixing board, a videotape switcher, and other peripheral devices.

Index

A B C D E F G H I L M N O P R S T U V W

Numerics

24p and 25p projects 39 24p projects 37

All Video setting 34 Apply options 59 Audio channels

See also Tracks choosing format for defining 31 mixing down 45 selecting 31 standards options in EDLs 56

support in edit controllers 42 Audio Dissolves as Cuts option 55 Audio layback 74 Audio-only EDLs

creating Avid editing system

creating a sequence from an EDL on

creating an EDL from a sequence on 24

using EDL Manager with 24 Avid Xpress 24

Backing up projects 70 Bins

creating EDLs from

Black edits 55 Broadcast standards

options in EDLs settings for 55

B-roll 49

Changing

header format

Changing EDL titles 30 Changing settings

in the EDL Manager window in the Options window 41

Channels, audio

choosing format for defining 31 mixing down 45 selecting 31 standards options in EDLs 56 support in edit controllers 42

Check list for online editing 71

Choosing audio channel format Clip Names option 52 CMX format

for RT-11 disks Combining tracks 34 Comments in EDLs

showing or hiding Complex sequences 34, 64 Composer

using EDL Manager with Console window

using to display messages Controllers

connecting to a computer

defining tracks and channels for 31

format for audio channels 35

selecting a format for 42

sorting events for 45

support for comments 52 Copying

EDLs between storage locations Corruptions 70 Creating a sequence from an EDL 25 Creating EDLs

for matchbacked sequences

from a bin 11

from an active sequence 24

from an existing EDL 11

from an OMFI file 12

from sequence in bin 11

with audio only 77 Creating stereo channels 34 Customizing EDLs

in the EDL Manager window

in the Options window 41

in the Site Settings dialog box 60

Defining a track 32

Defining audio channels 31 Defining video tracks 31 Digital cut 74 Disks

See also RT-11 disk types used in online suite

Dissolves as Cuts option 54 Dupe list

described options in EDLs 48 view in EDL Manager window 35

Dupe reel

described

Edit controllers

connecting to a computer defining tracks and channels for 31 format for audio channels 35 selecting a format for 42 sorting events for 45 support for comments 52

Editing EDLs

for successful reading with a text editor 62

EDL formats

troubleshooting

EDL Manager

defined functions 9

EDL Manager window

changing settings in displaying different views in 35

EDLs (edit decision lists)

audio-only changing titles of 30 creating for film projects 75 creating for matchbacked sequences 76 creating from an active sequence 24

creating from an OMFI files

creating sequences from 25

customizing 28

defined 9

editing with a text editor 62

file name guidelines for 74

film-to-video matchback conversion 75

finding the edited field 39

formats supported for 42

formatting 63

optimizing 54

printing 22

reading in CMX or GVG (RT-11) format 15,

saving as OMFI compositions 18

saving as text files 18

saving to RT-11 disks 19

selecting templates for 36

serial transmission 78

setting options 29

sorting 45

transmitting 80

troubleshooting 62

updating 40

verifying an RT-11 save 21

views for 35 Effects

simplifying

supported in EDL Manager 53 Effects Info comment 53 Effects Info option 52 Error messages 65 Events

order of

simplifying 54 Excluding tracks 32

File names of templates 36 Film projects

creating EDLs for

Film-to-video EDLs

matchback conversion in

Fixing transitions 67 Format header 64 Formats

selecting EDL

supported by EDL Manager 43 Formatting requirements 63 Formatting RT-11 disks 21 Frame rates 37

41, 42

GPI (general-purpose interface) triggers 63 GVG format

for RT-11 disks

Hardware connections

for serial transmission Header format

changing

in EDLs 64

troubleshooting 64 Hiding or showing text 51

Include Black Edits option 55 Including tracks 32 Isolating tracks 34

File name guidelines for EDLs 74

Launching EDL Manager 10 List views 35 Locating missing information 69 Locating trouble spots 67 Locators

in EDLS

Main window

changing EDL setting in

Master list

options in EDLs

view in EDL Manager window 35 Master start event 47 Matchback conversion in EDLs 75 Messages

displayed in Console window Missing information

locating

Online editing

check list for defined 9

Online suite

preparing for running EDL Manager at 73 transmitting to 78

Opening

template

Opening an existing EDL 12 Optimization

options for EDLs

Options

defined saving 60 undoing changes 60

Options window

changing settings in setting Record Start Time in 57

Order of events, sorting 45 Output and Source pop-up menus

updating changes to

Output and Source timecodes

adjusting

Nonlinear editing systems 9 NTSC (National Television Standards

Committee)

Options window

Offline editing

transmitting from OMFI

defined OMFI compositions

saving EDLs as

PAL (Phase Alternating Line)

PAL standards (Options window)

Preread option 50 Printing

EDLs

source tables 27

Printing list of tapes in Source table 27 Problems

header format

Projects

backing up

Reading existing EDLs

in CMX or GVG (RT-11) format Record Start Time (Options window) 57 Repair notes

in EDLs Representing complex sequences 34 Revert button 60 RT-11 disk

formatting

reading an EDL from 15, 17

saving EDLs to 19

verifying a save to 21

52, 53

15, 17

Save As button 60 Saving EDLs

as OMFI compositions

as text files 18, 62

to RT-11 disks 19 Saving options to a template 59 Selecting EDL Controller formats 42 Selecting EDL settings 41 Sending EDLs Sequences

complex

creating an EDL from an Avid editing

creating from an EDL 25

for an Avid editing system from an EDL 25 Serial transfer options

changing Serial transmission

hardware connections for

of EDLs 78

options in Site Settings dialog box 60

setting options 79 Setting EDL options 29

34, 64

system

Settings

for EDL Manager for pulldown start frame 57 for record start time 57 for serial transmission 79 for tapename truncation 58 in the EDL Manager window 29 in the Options window 41 selecting a template of 36

Showing or hiding text 51 Simplifying

EDLs

Simplifying effects 69 Site Settings dialog box, opening 60 Slicing and dicing 67 Sort mode options 45 Sorting order of events 45 Source and Output pop-up menus

updating changes to

Source and Output timecodes

adjusting

Source table

displaying list of source tapes in printing 27 taking to the online suite 74 view in EDL Manager window 35

Source tapes

printing list of viewing list of 25

Standards

options for EDLs

Start time options 57 Starting EDL Manager 10 Stereo channels, creating 34 Suite

defined Suite See Online suite Switchers

options for EDLs

Template pop-up menu 36 Templates

described file names of 36 opening 37 saving options as 59 selecting 36 temporary files 59

Temporary template file 59 Text

showing or hiding

Text editors

editing EDLs with

Timecode

adjusting field where edit occurred 39 formats 40 sort mode 45

Title of EDL, changing 30 Track Selector panel

described updating changes to 40

Tracks

See also Audio channels combining defining 31, 32 excluding 32 including 32 isolating 34 selecting 31 stereo, creating 34

Transitions

troubleshootng Transmitting EDLs See Serial transmission Triggers

GPI Troubleshooting

complex sequences

corruptions 70

difficult transitions 67 EDL formats 63 EDLs 62 error messages 65 header format 64 missing information 69 simplifying effects 69 slicing and dicing 67 trouble spots 67

Undoing option changes 60 Update button 40 Updating EDLs 40 Using EDL Manager with an Avid editing

system

Verifying a save to an RT-11 disk 21 Video tracks

See also Audio channels combining creating stereo 34 defining 31, 32 excluding 32 including 32 isolating 34 selecting 31

updating 40 Viewing list of tapes in Source table 25 Views of an EDL 35

Wipes as Cuts option 54

Pinnacle Systems EDL Manager - 10.0 User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Working with EDLs

EDLs and the EDL Manager

Online and Offline Editing

What the EDL Manager Does

Starting EDL Manager

Using Help

Creating or Reading an EDL

Creating an EDL from a Sequence in a Bin, Existing EDL, or OMFI File (Windows)

Creating an EDL from a Sequence in a Bin, Existing EDL, or OMFI File (Macintosh)

Reading an Existing EDL from the RT-11 Disk

Saving an EDL

Saving an EDL as a Text File or an OMFI Composition

Saving an EDL to an RT-11 Disk

Verifying an RT-11 Save

Formatting an RT-11 Disk

Printing an EDL

Copying an EDL Between Storage Locations

Using EDL Manager with Your Avid Editing System

Creating an EDL from the Active Sequence

Creating a Sequence from an EDL

Viewing a List of Tapes in the Source Table

Printing a List of Tapes in the Source Table

Customizing EDLs

EDL Manager Option Settings

Changing Settings in the EDL Manager Window

Changing the Title of an EDL

Defining Video Tracks and Audio Channels

Including or Excluding Specific Tracks

Redefining a Track

Combining or Isolating Tracks

Creating Stereo Channels

Choosing a Format for the Audio Channels

Displaying Different Views of an EDL

Selecting a Template for the EDL

File Names in the Template Pop-up Menu

Opening a Template

Adjusting the Source and Output Timecodes

Finding the Field Where an Edit Occurred

Updating an EDL with EDL Manager Window Changes

Changing Settings in the Options Window

Selecting an Edit Controller Format

Selecting an Edit Controller Format

Sorting the Order of Events

Setting Up a Master List

Setting Up a Dupe List

Using the Preread Option

Showing or Hiding Comments and Other Information

The Effects Info Comment

The Repair Notes Comment

Optimizing the EDL

Setting Up Standards

Setting the Record Start Time

Setting the Pulldown Start Frame

Setting the Tapename Tr uncation

Saving Options to a Template File

Changing Options in the Site Settings Dialog Box

Changing Serial Transmission Options

Changing Font Options

Editing and Troubleshooting EDLs

Using a Text Editor to Edit an EDL

Fitting the Format to the EDL Manager

Changing the Header Format

Removing Problems Caused by Complex Sequences

Using the Console Window to Display Messages

Fixing Difficult Transitions

Locating Trouble Spots

Slicing and Dicing

Trying One Track at a Time

Avoiding Problems in EDLs

Simplifying Effects

Looking for Missing Information

Dealing with Corruptions

Check List for Online Editing

Calling Ahead to the Online Suite

Deciding What to Take to the Online Suite
