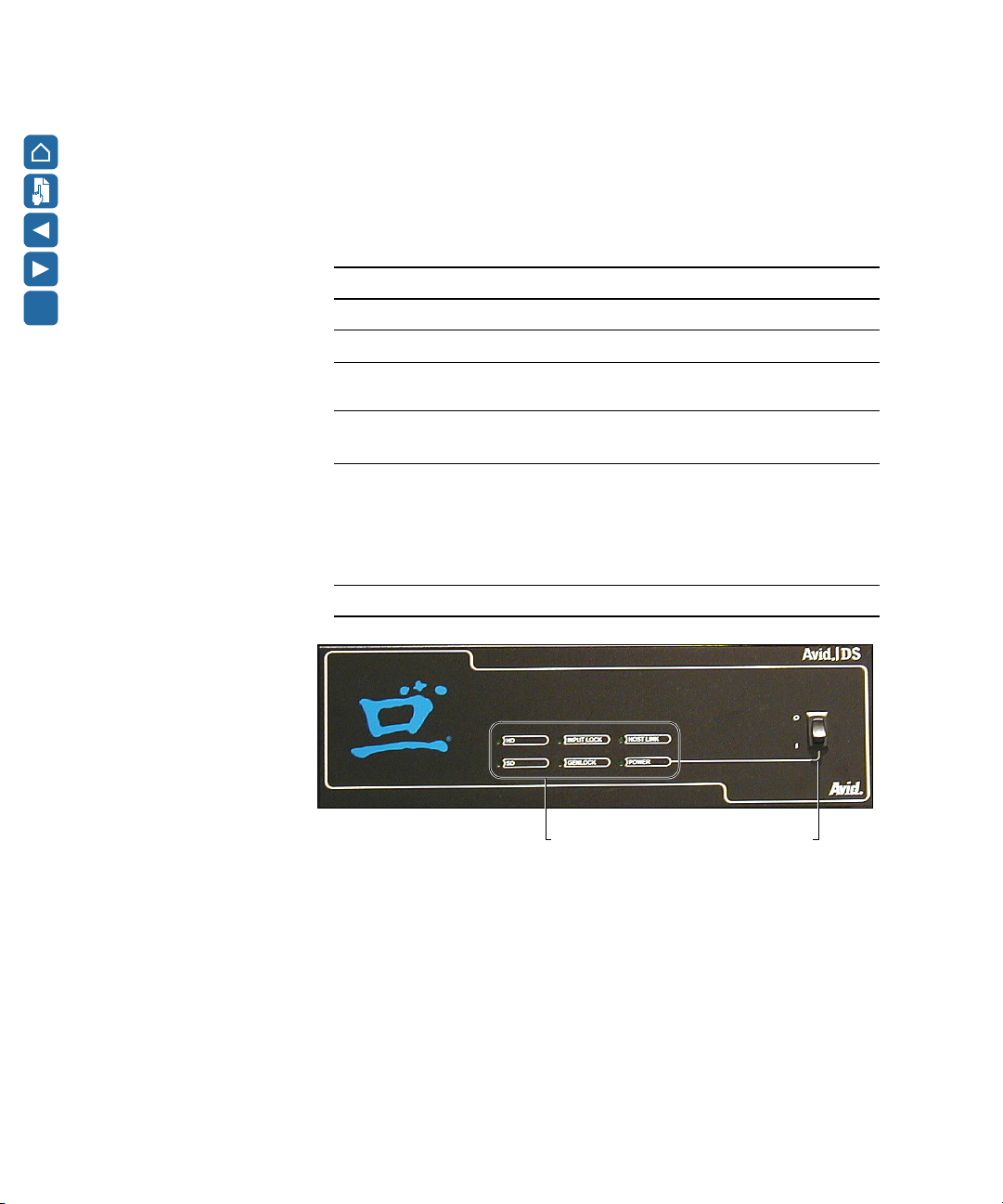

The Avid Equinox Break-Out-Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

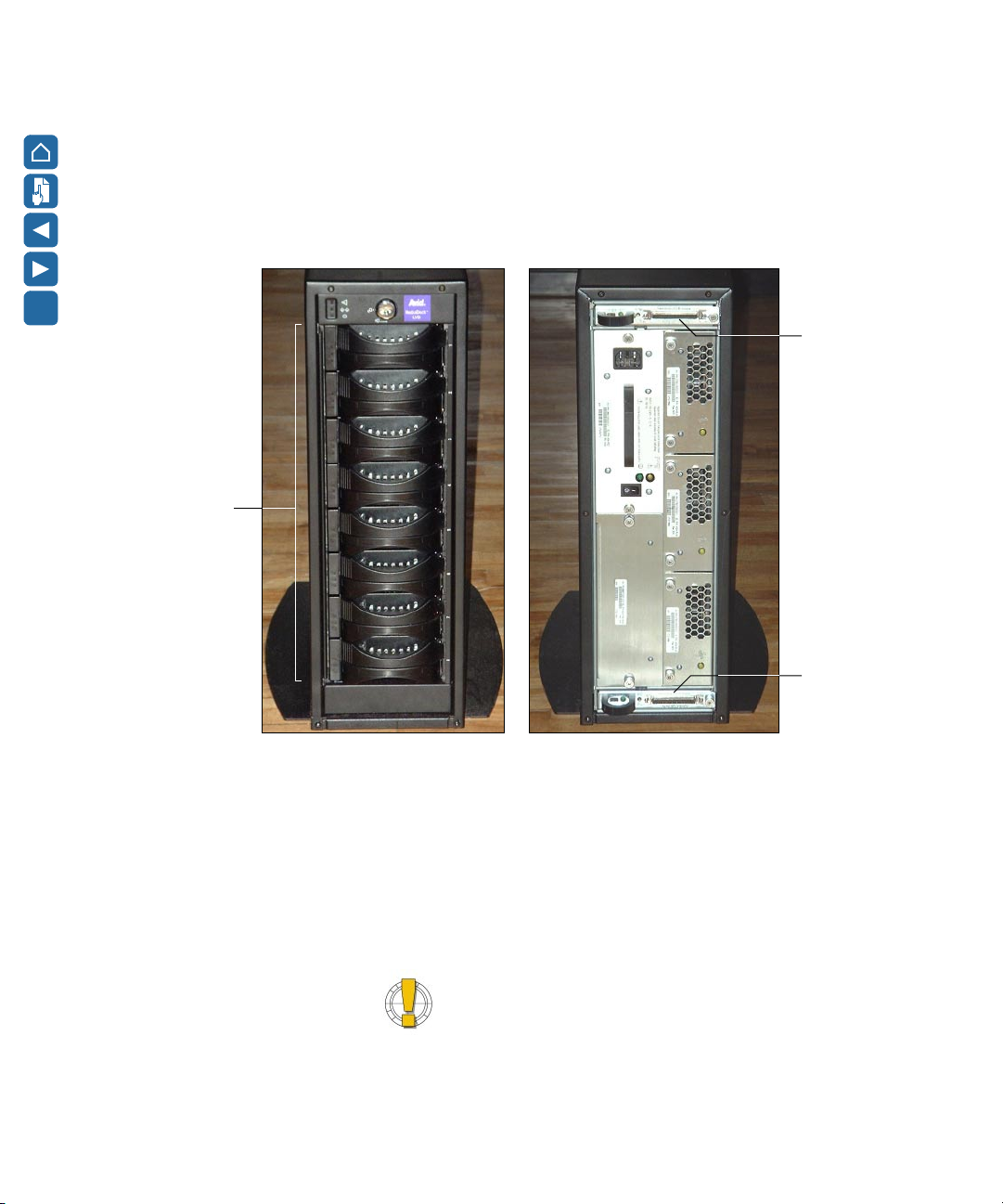

The Avid MediaDock LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

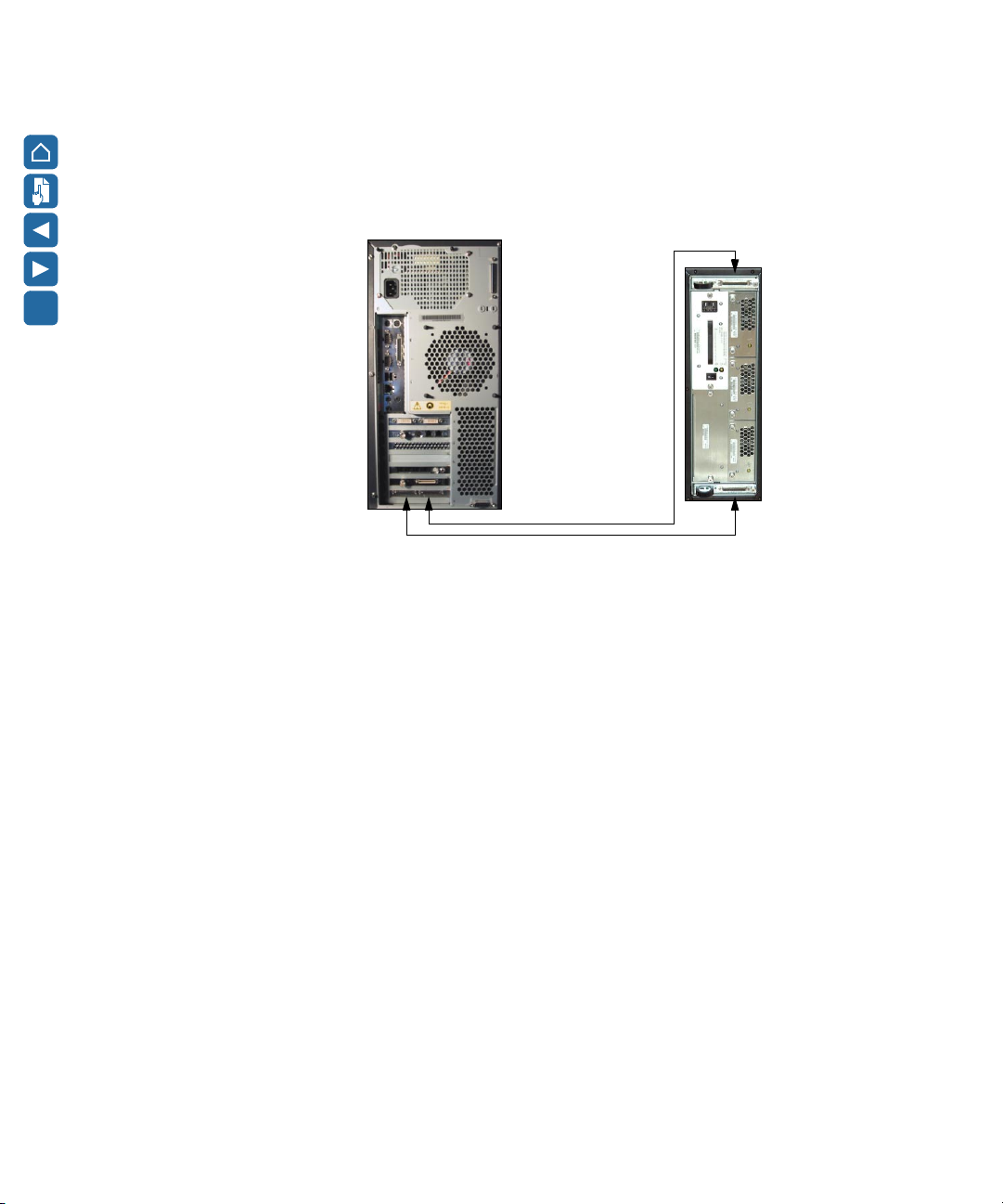

Single-Enclosure Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

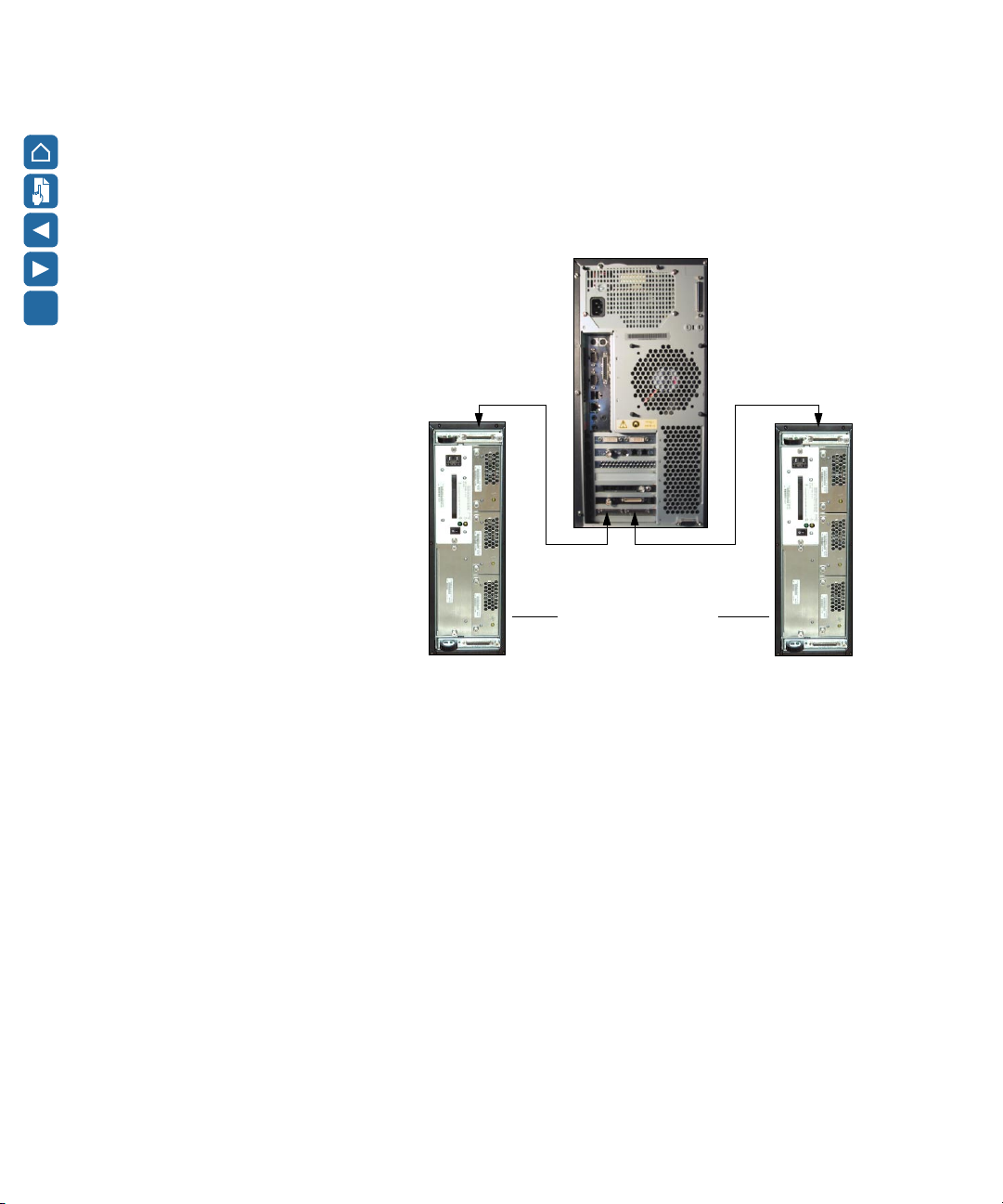

Two-Enclosure Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Three-Enclosure Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Avid Unity MediaNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Installing the Emulex Fibre Channel Controller . . . . . . . . . . . . . . . . 48
The Avid MEDIArray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Connecting the Copper Cables to the Fibre Channel
Controller Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
The Machine Control Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Peripheral Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Video Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Audio Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
The Software Protection Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6 Workstation Setup Guide
?

Before You Start

Workstation Setup Guide 7
Before You Start

Where to Find Information

The Avid Roadmap, youll know where to find the information you need to get up and running quickly and effectively.
?
Start with the Workstation Setup Guide to prepare your site for Avid|DS and assemble your workstation. Use the Installation & Administration Guide should you need to reinstall and license any of the components, or for tips on the daily maintenance of your system.
Use the Drivers CD if you need to reinstall or update the drivers for any of the components, or troubleshoot problems with Avid|DS. This CD also contains PDF versions of all the documentation and a few utilites you may find useful.
Note: In order to view the documentation on the CD, you need to have Adobe Acrobat Reader 5.0 and QuickTime version 5.0 or later installed. Acrobat Reader is included on the Drivers CD. QuickTime can be downloaded from the Apple website.
®
|DS package includes a comprehensive set of learning materials. With this
Comments?
Wed appreciate any comments or suggestions you may have about this guide or any other piece of our documentation. Just send them to: dsdocs@avid.com.
8 • Workstation Setup Guide
Refer to the Release Notes for feature limitations and workarounds.
You can join the Avid|DS Discussion Group, a worldwide network of Avid|DS users exchanging ideas and techniques by e-mail. To subscribe, send an e-mail to
majordomo@softimage.com with the following text in the body of your message: subscribe ds.

About This Guide

About This Guide
This guide provides information on:
The components of the workstation
Proper assembly of the workstation
Necessary additional peripherals
?

Document Conventions

Troubleshooting
Following these guidelines can help ensure the successful installation of your workstation, and avoid delays in getting your workstation up and running.
This guide is intended for anyone who is installing an Avid|DS 5.0 HD (high definition) or standard definition workstation for the first time, moving a workstation, or attempting to solve problems that can arise with the hardware.
This guide uses the following symbols and conventions:
Bold
Italics
> The greater than (>) sign indicates menu commands (and
Bold is used for menu commands, dialog box and property editor options, and file/folder names.
Italics place emphasis on certain words.
subcommands) in the order that you choose them. For example, File > Import means to open the File menu and then choose the Import command. This applies to menus from the main menu bar and pop-up menus that appear when you right-click on the interface.
Notes are reminders or contain important information.
Tips are useful bits of information, workarounds, and shortcuts that you may find helpful in a particular situation.
Warnings are used when you can lose or damage information or equipment, such as deleting data or not being able to easily undo an action. Warnings always appear before you attempt a task!
Workstation Setup Guide 9
?
Before You Start
Mouse, Pen and Keyboard
In Avid|DS, you can use a two-button mouse (with wheel) or a pen and tablet. The left and right mouse buttons perform different operations. Unless otherwise stated, use the left mouse button.
The mouse and pen operate slightly differently. All the procedures in this guide are documented for the mouse. You can, however, easily use a pen or the keyboard. The following table shows the terms relating to the mouse, pen, and keyboard.
This term Means this with a mouse Means this with a pen
Click Quickly press and release the
Double-click Click the left mouse button
Right-click Quickly press and release the
Drag Hold down the left mouse
Alt+
key,
Ctrl+
key,
Shift+
key,
etc.
left mouse button. Always use the left mouse button unless otherwise stated.
twice rapidly.
right mouse button.
button or the wheel while you move the mouse.
Hold down the first key while you press the second key. For example, Press Alt+F1 means to hold down the Alt key while you press the F1 key.
Tap the tablet once with the tip of the pen, or touch the pen to the tablet with enough pressure to click.
Quickly tap the tablet twice in the same screen pixel or press the F5 key to go from single to double-click.
Press the top portion of the switch on the side of the pen or press the F6 key to go from left to right-click.
Press the pen to the tablet while moving the pen.
Customizing the Pen or Mouse
By customizing the pen, you can adjust the click pressure, switch functions, and other features. For information on customizing the pen, refer to the WACOM ArtZII documentation provided with your Avid|DS system.
You can also customize the mouse. For example, you can select left-handed configuration or change the double-click speed.
10 Workstation Setup Guide
For information on customizing the mouse, refer to the Windows NT or Windows 2000 online help.
?

Avid|DS Support

Avid|DS Support
Technical support for Avid|DS is provided by your Avid reseller working together with Avid|DS Customer Service. Immediate assistance for any technical issue is available through our hotline, e-mail, and web support services.

Licensing Support You must contact your reseller to request a license for your Avid|DS system.

You can do this through your reseller or through the license request form under Licensing at http://softimage.com/avidds.

Training Support If you’re interested in Avid|DS training, you’ll find a complete overview of

courses, education centers, and training programs under Education at http://softimage.com/avidds.

Hotline Support Avid resellers provide first line support for Avid|DS according to their specific

geographical area and time zone. Working as an extension of Avid|DS Customer Service, these fully trained agents provide the most efficient and effective support possible to all our customers.
Contact information for your Avid reseller is available through the Avid Reseller Locator at http://avid.com/cgi/locator/index.asp.
You can reach Avid|DS Customer Service at the following:
Avid|DS Customer Service
North America
tel: 1 800 387-2559 fax: 1 514 845 8252
Wo r l d w i d e
tel: 1 514 845-2199 fax: 1 514 845 8252
9:00 am to 9:00 pm (Eastern) 2:00 pm to 2:00 am (GMT)
Hotline assistance is also available 24 hours a day, 7 days a week for an additional fee.
Europe
tel: 44 175 365 0670 fax: 44 175 365 8503
9:00 am to 6:00 pm (GMT) 4:00 am to 1:00 pm (Eastern)
E-mail & Web
e-mail: dssupport@avid.com web: avid.com
Workstation Setup Guide 11
Before You Start

Corporate Addresses You can reach Avid Technology, Inc. at the following addresses:

Corporate Headquarters
Avid Technol ogy, Inc. Avid Technol ogy Park One Park West Tewksbury, MA 01876 tel: 800 949-AVID or 978 640-6789
?
fax: 978 640 1366 web: avid.com
European Headquarters
Avid Technology Europe Ltd. Westside Complex Pinewood Studios Pinewood Road Iver, Buckinghamshire SLO ONH United Kingdom tel: 44 175 365 5999 fax: 44 175 365 4999
Asian Headquarters
Avid Technology (S.E. Asia) Pte. Ltd. 315 Alexandra Road #03-01 Performance Center Singapore 159944 Republic of Singapore tel: 65 476 7666 fax: 65 475 7666

Avid|DS Mailing List If you have an e-mail account, you can join the worldwide network of Avid|DS

users exchanging ideas. The mailing list has proven to be quite useful for users, with a constant stream of new subscribers.
To subscribe, send an e-mail to majordomo@softimage.com with the following text in the body of your message: subscribe ds. You can get further information on using the automated list server by e-mailing majordomo@softimage.com with “help” as your message.

Web Support The Avid|DS Support and Download sections at http://softimage.com/avidds

provide quick access to a wide range of resources from the Avid|DS teams and user community. Downloads, including presets, drivers, and Quick Fix Engineering (QFE), provide the latest solutions for your Avid|DS system. Online documentation, tutorials, and Knowledge Base articles ensure you get the most out of your work with Avid|DS. It's like having a dedicated Avid|DS Customer Service engineer sitting at your desk!
12 Workstation Setup Guide
?

Chapter 1 Package Contents

Workstation Setup Guide 13
Chapter 1 Package Contents
In This Chapter...
?
This chapter provides an overview of the hardware, software, and documentation included with your Avid|DS workstation.
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
14 Workstation Setup Guide
?

Package Contents

Package Contents
Your Avid|DS workstation contains hardware, software, and documentation.

Hardware After carefully unpacking the hardware, verify all of the items on the packing

slip before setting up your workstation. And, make sure that you write down the serial number of all the devices.
Your workstation contains the following hardware:
Device Device, cables, and accessories
IBM IntelliStation Z Pro Base unit
21-inch IBM P260 monitors 2 21-inch monitors
Avid MediaDock™ LV D storage system
Avid MEDIArray Fibre Channel storage system
(only available with the standard definition version of Avid|DS)
Avid Equinox Break-Out-Box
WACOM tablet •Tablet
DUA II audio convertor (standard with HD systems)
DataMate/Rosetta Stone (RS-232 to RS-422 convertor for deck control)
Keyboard
IBM mouse
2 optical cables (for Mykerinos audio card)
Power cable
Rackmount kit (optional)
2 monitor cables with inputs
2 power cables
MediaDock LVD enclosure
8 MediaDock LVD shuttles (for HD systems)
4 MediaDock LVD shuttles (for SD systems)
Power cable
LVD cab le s
Fibre Channel Drive Enclosure (FCDE)
8 Fibre Channel drives
2 power cords
Copper Fibre Channel cable
Rack mount rails, clip nuts, mounting clips,
and screws (for the rackmount FCDE)
Breakout box
Digital tether cable
USB and BNC cables
Power cable
Pen and stand
RS-232 cable
Power transformer cable with AC adapter
4D mouse
Convertor
2 optical cables
Power cable
Convertor
RS-232 cable
RS-422 cable
If you purchased the standard definition version of Avid|DS, you can choose between an Avid MediaDock LVD storage or an Avid MEDIArray Fibre Channel storage.
Workstation Setup Guide 15
Chapter 1 Package Contents

Software Most of the software that you receive on CD is also installed on your

workstation's hard drive. You should keep the Software, Drivers, and Recovery CDs in a safe place in case you need to reinstall the software or any of the drivers.
The Avid|DS version 5 software package contains:
Avid|DS Software CD
Avid|DS Drivers C D
?
Avid|DS Recover y CD
Software protection key (dongle)
Your workstation comes with the following software components pre­installed on your workstation:
Windows 2000 Professional and Windows 2000 Service Pack 2 software and documentation
Merging Technologies Mykerinos documentation
WACOM software and documentation
3Dlabs Wildcat 4210 software and documentation
16 Workstation Setup Guide

Documentation The complete Avid|DS documentation set includes:

Document Format Version Description
Release Notes Print 5 Describes known problems and provides workarounds.
Package Contents
?
Workstation Setup Guide Print 5 Shows you how to prepare for and set up your
Installation & Administration Guide
Remote Processing Guide Print 5 Provides instructions on how to install and configure remote
New Features Tour and Guide
Online Help Online 5 Contains reference information on:
Quick Reference Card Online 5 Contains a list of editing tips.
Shortcut Card Online 5 Contains all the Avid|DS keyboard shortcuts. You can slide
Tutorial Print 5 Contains basic step-by-step lessons with specific
User’s Guide Print 5 Describes the work processes of Avid|DS and shows you
Compositing & Effects Guide
Print 5 Provides instructions on how to reinstall the current version
Online/
Print
Print 5 Describes the basic types of effects in Avid|DS and shows
workstation hardware.
of Avid|DS, and perform workstation administration tasks.
processing stations.
5 Provides an interactive multimedia overview of the new
features in Avid|DS.
Layouts and views
Parameters in property editors and dialog boxes
Commands in toolbars and pop-up menus.
it under the cover sheet of your graphic tablet.
examples, so you can start working with Avid|DS.
how to perform basic and advanced tasks in every phase of post production, from capturing material to outputting a finished sequence.
you how to apply them to your media. There’s also information on when and how to process effects.
Vendor documentation Print -- Guides from the vendors of the various hardware
components that comprise your Avid|DS workstation. Note: For details on setting up, handling and maintaining
these components, refer to the documentation included with each of them.
Workstation Setup Guide 17
Chapter 1 Package Contents
?
18 Workstation Setup Guide
?

Chapter 2 Site Preparation

Workstation Setup Guide 19
Chapter 2 Site Preparation
In This Chapter...
?
This chapter describes how to prepare your site for an Avid|DS workstation.
Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Additional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
20 Workstation Setup Guide

Site Planning

Site Planning
When preparing your site, you must consider the environmental, electrical, and space requirements for your Avid|DS workstation, as well as any additional equipment that you may need to purchase and its requirements.
?

Environmental Requirements

Electrical Requirements

The site you choose for your Avid|DS workstation should meet the following environmental requirements:
Clean and dust free
Free from significant temperature or humidity changes
Sturdy, level, and not subject to vibration
Away from high-traffic or high-noise areas
Provides adequate space in front of and behind the workstation
components, so that you can connect cables and service your workstation. This also provides adequate air flow for cooling.
A minimum clearance of 3 inches (7.6 cm) for the side and back panels of the desk side base unit
A table (or other surface) that is at least 60 inches wide by 48 inches deep (150 cm × 120 cm) for the editing workstation
Your site should meet the following electrical requirements:
Adequate power for each workstation component, so that extension cords are not needed.
At least two 15-amp circuits available; one for the workstation and one for the Avid MediaDock LVD storage(s).
Site is away from major electrical equipment, such as motors, air conditioners, or elevators.
Site is not subject to static electrical buildup.
Uses an uninterruptible power supply (UPS) to protect your workstation
from sudden power surges or losses, and save you from the resulting loss of work.
Plug only your Avid|DS equipment into the power strip. Do not plug in coffee makers, radios, lights, or other such devices.
Workstation Setup Guide 21
Chapter 2 Site Preparation
In addition, make sure your site meets the following electrical specifications:
Component Voltage Frequency
IBM IntelliStation Z Pro workstation
21-inch IBM P260 monitors 100 to 240 V AC 50 to 60 Hz
100 to 127 V AC (NA) 200 to 240 V AC (Intl)
47 to 63 Hz
?
Avid Equinox Break-Out-Box 100 to 240 V AC 50 to 60 Hz
Avid MediaDock LVD storage system
Avid MEDIArray Fibre Channel storage (standard definition version of Avid|DS only)
Merging DUA II audio convertor (included with HD systems only)
WACOM tablet 120 V AC (NA)

Space Requirements Your workstation includes either a tower or rack mount base unit, the video

storage array, and two 21-inch monitors. You can place the workstation base unit and the video storage chassis next to your work area. The following illustration shows a typical tower configuration:
HD or NTSC
video monitor
Speaker Speaker
Left monitor Right monitor
90 to 264 V AC (fully configured)
400 VA maximum (fully configured)
100 to 240 V AC 50 to 60 Hz
220 V AC (Intl)
IBM Z Pro
workstation
50 to 60 Hz
50 to 70 Hz
60 Hz
Avid MediaDock LVD
or MEDIArray storage
Graphic tablet Keyboard Mouse
22 • Workstation Setup Guide
Intellistation Z Pro
The speakers and video monitor are purchased separately. The video monitor and the computer monitor(s) should be placed at least 12 inches (30 cm) apart. Placing them closer together may cause synchronization interference on the computer monitor(s).
Site Planning
If you purchase the optional rack mount kit for the base unit, it mounts in a standard 19-inch equipment rack. The Avid Equinox Break-Out-Box, MEDIArray, MediaDock LVD storage system, and DUA II audio convertor can also be mounted in the same or another equipment rack.
The following table lists the dimensions of the major hardware components:
?
Hardware component
Base unit (tower) Height: 17.3
Base unit (rack mount) -- --
21-inch monitor(s) Height: 19.8
Avid Equinox Break-Out-Box (rack mountable)
Avid MediaDock LVD (tower) Height: 18.8
Avid MediaDock LVD (rack mount)
Avid MEDIArray (tower) (standard definition version of Avid|DS only)
Avid MEDIArray (rackmount) (standard definition version of Avid|DS only)
DUA II (rack mountable) (included with HD systems only)
WACOM tablet Width: 9
Dimensions (inches)
Depth: 8.5 Width: 23.9
Width: 19.6 Depth: 20.0
Height: 5.3 Width: 17.6 Depth: 7.5
Width: 10.5 Depth: 17.6
Height: 5.3 Width: 17.6 Depth: 17.4
Height: 26.8 Width: 9.8 Depth: 29.4
Height: 6.1 Width: 17.5 Depth: 24.0
Height: 1.7 Width: 17.6 Depth: 6.9
Depth: 12
Dimensions (centimeters)
Height: 44.0 Depth: 21.6 Width: 60.6
Height: 50.3 Width: 49.8 Depth: 50.8
Height: 13.3 Width: 44.6 Depth: 19.5
Height: 47.7 Width: 26.7 Depth: 44.8
Height: 13.3 Width: 44.6 Depth: 44.2
Height: 68.0 Width: 24.8 Depth: 74.7
Height: 15.4 Width: 44.5 Depth: 60.9
Height: 4.3 Width: 44.6 Depth: 17.5
Width: 22.9 Depth: 30.0
Workstation Setup Guide 23
Chapter 2 Site Preparation

Additional Equipment

A typical Avid|DS workstation requires the following additional peripherals and cables:
Device Description
?
House sync generator
Video monitor HD or NTSC/PAL
Video tape recorder (VTR)
Digital waveform monitor
Speakers and amplifier
Cables Video: Use high quality 75-ohm coaxial cables with
Standards convertors
The house sync must have the same video format as your video equipment, as well as the project that you create in Avid|DS.
You will need a tri-level sync generator for HD projects.
VTRs connect to the base unit through an RS-422 cable. (Contact your Avid|DS reseller for a list of approved HD VTRs)
Measures the luminance and chrominance video signals
Analog and/or digital audio equipment and converters for converting audio signals
75-ohm BNC coaxial connectors. Audio: Balanced cables
Lets you convert between HD and other (NTSC and PAL for example) standards in order to accommodate archival footage coming from other formats or standards
24 • Workstation Setup Guide
?

Chapter 3 System Overview

Workstation Setup Guide 25
Chapter 3 System Overview
In This Chapter...
This chapter gives you an overview of the hardware included with your Avid|DS workstation.
System Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Signal Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
?
House Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Back Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Disk Subsystem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
26 Workstation Setup Guide

System Inputs and Outputs

The following table describes the system inputs and outputs:
Input/output Description
Video In HD via BNC connector
System Inputs and Outputs
?
Video Out HD via BNC connector
Composite via BNC connector S-video via S-video connectors
Optical Digital Input ADAT and S/PDIF multichannel optical digital interface (ODI)
Optical Digital Output ADAT and S/PDIF multichannel optical digital interface (ODI)
USB Provides a communications link between the workstation
and the Avid Equinox Break-Out-Box
Genlock Input BNC connector for sync input
RS-232 Remote DB-9 connector that connects the RS-232 to RS-422
convertor. Use the supplied cable only.
Adaptec 39160 VHDCI connectors for the Avid MediaDock LVD
storage system
MIDI out 15-pin game port that enables MIDI control for the
JLCooper MCS-3800 external controller
The MIDI/game port on the lower-right corner of the workstation gives you MIDI control of external controllers, such as the JLCooper MCS-3800. MIDI control requires a separately purchased breakout cable and the proper MIDI driver.
A recommended breakout cable is the Creative Labs MIDI adapter (part number 1013251001), which provides MIDI in, MIDI out, and a joystick port.
For instructions on connecting peripherals and various video equipment to your workstation, see Assembling the System on page 35.
Avoid using adapters as they may cause signal degradation. If you must use them, use only high-quality, tight-fitting adapters.
Workstation Setup Guide 27
Chapter 3 System Overview

Signal Flow

?
The following provides an overview of the signal flow during capture and playback. The Avid|DS software controls the process.
Capture
Capture mode lets you use Avid|DS to capture or play back video and audio from the VTR.
The video output of the VTR goes through the Avid Equinox Break-Out-Box to the Avid Equinox PCI card, and from there to the video storage array.
The audio output of the VTR goes through the DUA II convertor to the Mykerinos audio card, and is stored on the audio storage area.
The video output of the Avid Equinox PCI card goes to the Wildcat card and then to the workstation monitors, where it is displayed as video-in-a-window.
The control signal from the COM 1 port goes to the VTR to control device operation (the supplied RS-232/RS-422 convertor and cable must be connected to the workstation).
The sync signal from the house sync goes through the Avid Equinox Break-Out-Box to the Avid Equinox PCI card, and then internally to the Mykerinos audio card.
28 Workstation Setup Guide
Playback
Playback mode allows you to use Avid|DS to record video on the VTR.
The video stored on the video storage array goes through the Avid Equinox PCI card to the Avid Equinox Break-Out-Box, and then goes to the VTR and video monitor.
The audio stored on the audio disk goes to the Mykerinos audio card, through the DUA II convertor, and then to the VTR.
The video output of the Avid Equinox PCI card goes to the Wildcat card and then to the workstation monitors, where it displays as video-in-a-window.
The control signal from the COM 1 port goes to the VTR to control device operation.
The sync signal from the house sync goes through the Avid Equinox Break-Out-Box to the Avid Equinox PCI card and then internally to the Mykerinos audio card.
?

House Sync

House Sync
Whenever you use more than one video device, you need to have video synchronization. If the devices are not in sync, a monitor will show rolling, tearing, or incorrect colors in the picture whenever you transfer the video between devices.
A sync generator or house sync provides the synchronizing composite signal to all other devices (video and audio) that must lock to the main video program. This analog composite reference video signal, called color black or black-burst video, is a timing pulse that is added to a composite video signal and contains horizontal, vertical, and color synchronizing information.

Tri-level Sync In the case of HD video devices, you need a tri-level sync. Tri-level sync could

be considered synonymous to black-burst in that it is simply the reference synchronizing information from the facility's master generator.
Each HD format needs a specific tri-level sync. You must use the proper tri­level sync to synchronize your VTR and the Equinox video subsystem for all the HD formats supported by Avid|DS.
The following table lists the HD formats currently supported by Avid|DS and their relevant frame rates.
HD format Supported frame rates (fps)
1080i Interlaced 30.00 fps, 29.97 fps, 25.00 fps
1080Psf Progressive 30.00 fps, 29.97 fps, 25.00 fps, 24.00 fps, 23.976 fps

Sync Topology When syncing analog and digital video/audio devices, it is always preferable to

feed every component with a separate black-burst or tri-level sync signal in a star pattern. Some drifting or jittering problems can be caused by the video reference being looped from one machine to another.
Workstation Setup Guide 29
Chapter 3 System Overview
Master house sync
generator
?
To a n a l o g
Reference In
NTSC/PAL
black-burst
generator
Video
Distr. Amp
Analog video routing
switcher or video patch
To Genlock Input
Avid|DS Equinox
Break-Out-Box
SD VTR HD VTR
Tri-level sync
generator
Video
Distr. Amp
To H D Reference In
A typical star pattern sync topology
You also need to verify the following to make sure your topology is correct:
Quality of the Distribution Amp (DA)—If your DA feeds multiple machines that are far apart, the stability and strength of the signal it sends will be crucial.
Distance between devicesA good DA in a star pattern topology will be necessary to ensure that every device is properly referenced.
30 Workstation Setup Guide
Video convertersSome converters won't need to be fed a sync signal, as they will reference themselves on the incoming digital video signal from a device that will itself sync on a central color black sync signal. This is possible because digital video is much steadier than its analog counterpart, and the converter will always see the right frame size when converting the signal.
Routing switchersSince the Equinox Break-Out-Box only has one REF In you may want to consider using an analog routing switcher to select between tri-level and black-burst sync signals.
?

Back Panel Overview

Back Panel Overview
On the back panel of your base unit, four expansion cards are installed for use with Avid|DS. The back panel also contains ports for connecting the mouse, keyboard, monitors, and software protection key (dongle).

Workstation Cards The following table describes the function of each expansion card installed in

the workstation. Expansion cards are installed in the workstation’s PCI and AGP slots. For details on card specifications and configuration, refer to the vendor documentation.
Slot Card Function
AGP Wildcat 4210 Processes input from the Avid
PCI 1 Empty None (space used by Wildcat 4210)
PCI 2 Empty None (space used by Wildcat 4210)
PCI 3
PCI 4 Mykerinos audio card Processes and routes audio to optional
PCI 5 Avid Equinox PCI card Processes video capture and playback
PCI 6
Empty on Avid|DS HD, or on standard definition versions of Avid|DS with Avid MediaDock LVD storage system
Emulex card on standard definition systems with fibre channel storage
Adaptec 39160 on Avid|DS HD, or on standard definition versions of Avid|DS with Avid MediaDock LVD storage
Empty on standard definition systems with Fibre Channel storage system
Equinox PCI card, handles OGL processing, and outputs video signal to workstation monitor(s)
Processes input and output to the Fibre Channel storage on standard definition versions of Avid|DS.
devices
I/O for the VTR and routes video to the Wildcat 4210 graphics card
Processes input and output to the Avid MediaDock LVD storage system
For more information on a specific expansion card, refer to the vendor documentation.
Workstation Setup Guide 31
Chapter 3 System Overview

Card Placement The following illustration shows the placement of cards in the expansion slots

of a deskside workstation.
AGP slot: Wildcat video
PCI slot 1: Used by the Wildcat 4210. These connectors are not used in Avid|DS.
PCI slot 2: Used by the Wildcat 4210
?
PCI slot 3: Empty, or used by the Emulex card on standard definition systems with Fibre Channel storage or connected to Avid Unity MediaNet
PCI slot 4: Mykerinos audio card
PCI slot 5: Avid Equinox PCI card
PCI slot 6: Adaptec 39160
On a rack mount workstation, the AGP slot is to the left, and the PCI slot 6 is to the right when viewing the back of the workstation base unit.
Mykerinos Audio Card Connections
The following illustration shows the connections on the Mykerinos audio card. For more information on the Mykerinos audio card, refer to the vendor documentation.
Reference signal in
from Avid Equinox
Break-Out-Box
32 • Workstation Setup Guide
Output B
(optical)
Line out
Output A
(optical)
Input B (ADAT)
Input A (S/PDIF)
The optical outputs on the card are red.
Avid Equinox PCI Card Connections
The following illustration shows the connections on the Avid Equinox PCI card. For information on connecting your video and audio equipment to the Avid Equinox PCI card, see Per ipheral Dev ices on page 51.
Digital Tether (Video I/O)
?
Back Panel Overview
Adaptec Card Connections
The following illustration shows the connections on the Adaptec 39160 card. This is the storage adapter included with HD systems and with standard definition versions of Avid|DS that use the Avid MediaDock LVD storage. For more information on the Adaptec card, refer to the vendor documentation.
Very high density connectors
Channel 2/B Channel 1/A
Emulex Card Connections
The following illustration shows the connections on the Emulex Fibre Channel controller. This is the storage adapter included with standard definition versions of Avid|DS that use the Avid MEDIArray Fibre Channel storage. For more information on the Emulex card, refer to the vendor documentation.
DB-9 connector
Workstation Setup Guide 33
Chapter 3 System Overview

Disk Subsystem

?
Drive Label Description Contents Format
In a standard configuration, one Low-Voltage Differential Signaling (LVDS) SCSI disk drive is installed in the base unit, and eight LVDS disk drives are installed in the Avid MediaDock LVD. The system disk drive is formatted with three partitions for storing operating system files, project files, and audio files. The Avid MediaDock LVD drives are formatted as a striped volume for video file storage.
Disk striping is a hardware capability that speeds up data I/O from disk storage. The workstation divides the data into pieces, and spreads the pieces across the disks in the striped volume. Because the workstation transfers data to multiple drives in smaller chunks than would be transferred to a single drive, the data transfer rate is accelerated. The Adaptec 39160 adapter handles data I/O for the video storage drives.
The following table summarizes disk drive information for a standard configuration:
C: System A partition of the primary system disk Operating system
D: Video storage
F: Projects A partition of the primary system disk Audio and
Z: DVD-ROM - - -
8 disk drives striped (HD systems)
4 disk drives striped (standard
definition versions of Avid|DS with Avid MediaDock LVD storage)
8 disk drives striped (standard definition versions of Avid|DS with Fibre Channel storage)
software
Video files NTFS
project-related files
NT File System (NTFS)
NTFS
34 • Workstation Setup Guide
?

Chapter 4 Assembling the System

Workstation Setup Guide 35
Chapter 4 Assembling the System
In This Chapter...
This chapter gives you detailed instructions for connecting an Avid|DS workstation base unit to the peripheral devices.
Before Assembling the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
The Keyboard, Mouse, and Graphic Tablet . . . . . . . . . . . . . . . . . . . . . 38
?
The Computer Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
The Avid Equinox Break-Out-Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
The Avid MediaDock LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Avid Unity MediaNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
The Avid MEDIArray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
The Machine Control Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Peripheral Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
The Software Protection Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
36 Workstation Setup Guide

Before Assembling the System

Before setting up your system, consult the Read Me First document or Release Notes to make sure that there are no changes, additions, or deletions to the procedures in this chapter.
The required expansion cards are installed and configured for Avid|DS. You should not remove or modify these cards.
Before Assembling the System
?
For detailed instructions on setting up the base unit hardware, refer to the IBM documentation. For a rack mount workstation, you must install the base unit into a standard rack before connecting the hardware.
To prevent equipment damage that may be caused by static electricity, do all of the following before making any connections:
Turn the power switch off on all the devices.
Wear an antistatic wrist strap.
Connect all the devices to a grounded power source.
Touch the metal casing of the device.
Workstation Setup Guide 37
Chapter 4 Assembling the System

The Keyboard, Mouse, and Graphic Tablet

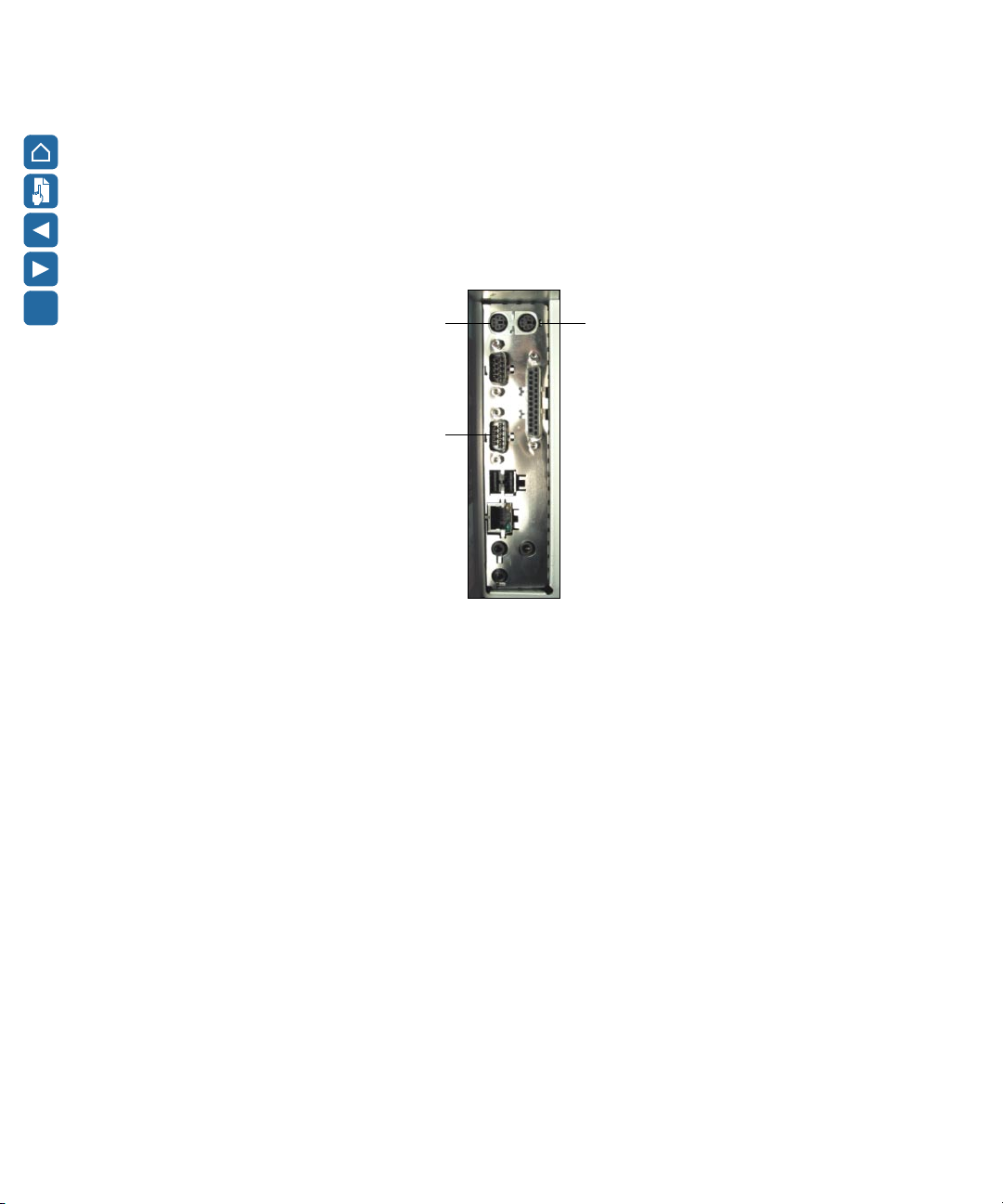

The keyboard and mouse come with attached cables for connecting them to the back panel. The WACOM graphic tablet comes with a power transformer and a DB-9 cable. The following illustration shows the keyboard, mouse, and WACOM tablet connections on a deskside workstation. For more information, refer to the WACOM documentation.
?
Keyboard
WACOM tablet
To connect the keyboard and mouse
Mouse
1. In the base unit, connect the keyboard to the top-left or bottom mini-DIN port.
2. Connect the mouse to the top-right or top mini-DIN port in the base unit.
To connect the WACOM tablet
1. Connect the AC power transformer to the tablet's DB-9 cable.
2. Connect the DB-9 cable from the WACOM tablet to the COM 2 port on the back panel of the base unit.
38 Workstation Setup Guide
3. Verify that the input voltage on the power adapter matches the voltage of your power outlet.
4. Connect the power adapter to the AC outlet.
?

The Computer Monitors

The Computer Monitors
Your workstation comes with two 21-inch monitors for Avid|DS. Place the monitors side-by-side in your work area. Each monitor comes with a DVI cable and a power cable. For more information on the card and cables, refer to the Wildcat 4210 and monitor documentation.
On a rack mount workstation, the video ports are to the left when viewing the back of the workstation base unit.
DVI connector for
left monitor
To connect the monitors
DVI connector for right monitor
1. Verify that the power switches on the monitor(s) and the base unit are in the Off position, and then connect these devices to a power source.
2. Attach each monitors video cable to the appropriate DVI connector as per the illustration above.
Only the DVI connectors of the Wildcat 4210 are used in Avid|DS.
Workstation Setup Guide 39
Chapter 4 Assembling the System

The Avid Equinox Break-Out-Box

The Avid|DS workstation also includes the Avid Equinox Break-Out-Box, which provides the high definition and standard definition input and output from your workstation. The front panel of the break-out-box has several status LEDs and a power switch. The status LEDs are as follows:
?
LED Status
HD The break-out-box is in HD mode (as opposed to SD).
SD The break-out-box is in standard definition mode.
Input Lock The break-out-box has a valid input signal and is locked to it
(for capture).
Genlock The break-out-box is locked to the house sync.
This LED blinks if it detects a sync signal that is not valid.
Host Link When Avid|DS is running, this LED blinks to indicate that there
Power Indicates whether the break-out-box is on or off.
is communication between the workstation and the break-out­box. Otherwise, it glows steadily.
If this LED is off, it indicates that your USB cable may be disconnected or the USB driver is disabled on your Avid|DS workstation.
Power switchStatus LEDs
Front panel of the Avid Equinox Break-Out-Box
40 • Workstation Setup Guide
The Avid Equinox Break-Out-Box
The back panel of the break-out-box has several connectors that provide the following:
USB connection
Digital tether that transfers video signal data between the workstations
Avid Equinox PCI card and the break-out-box
Sync output to the Avid Equinox PCI card
?
HD video input from a VTR or other device
HD video outputs to VTRs or monitors
If either of the HD video outputs is not being used, terminate it with a 75-ohm terminating resistor.
Standard definition video input from a VTR or other device
Standard definition video outputs to VTRs or monitors
If either of the standard definition video outputs is not being used, terminate it with a 75-ohm terminating resistor.
Genlock input for the incoming house sync signal
Monitoring outputs for composite and S-video monitors
You can only monitor the composite and S-video signals during standard definition sessions.
Standard definition
output to VTR and video
Sync output to
Avid Equinox PCI card
HD input from VTR
monitor
Genlock input from house sync USB connector
Power cord
connector
Digital tether input/output
from Avid Equinox PCI card
HD output to
VTR and video
monitor
Standard definition input from VTR
Composite and S-video monitoring outputs
Back panel of the Avid Equinox Break-Out-Box
Workstation Setup Guide 41
Chapter 4 Assembling the System
?
To connect the Avid Equinox Break-Out-Box to the workstation
1. Make sure that the power switch on the break-out-box is in the Off position.
2. Attach the power cord to the power connector at the back of the break­out-box and plug it into a power outlet.
3. Locate the USB cable in the break-out-box kit.
4. Plug one end of the cable into the USB connector on the back of the break-out-box.
5. Plug the other end of the cable into the USB connector on the back of the workstation.
6. Plug one end of the digital tether cable into the In/Out connector at the back of the break-out-box.
7. Plug the other end of the digital tether cable into the Digital tether connector on the Avid Equinox PCI card.
8. Secure both ends of the cable with the thumbscrews on the cable connectors.
9. Attach one end of the BNC cable to the Sync output connector on the break-out-box and the other end to the Reference signal in connector on the Avid Equinox PCI card.
42 • Workstation Setup Guide
Avid Equinox Break-Out-Box
USB cable
BNC cableDigital tether cable
Avid|DS workstation

The Avid MediaDock LVD

The Avid MediaDock LVD is the default storage system that ships with Avid|DS. You can connect the Avid MediaDock LVD storage system directly to the Adaptec controller in the Avid|DS workstation with the included SCSI cables. The controller is installed before your Avid|DS workstation is shipped.
The Avid MediaDock LVD
?
Drive shuttles
ESM module
I/O module
Front
Back
The Avid MediaDock LVD storage system
The Avid MediaDock LVD has eight slots for LVD shuttle drives. You can use them in either single or dual-bus configurations. With Avid|DS, however, the Avid MediaDock LVD is used in a dual-bus configuration. In this configuration, the slots are shared between bus A and bus B. For example, the four top slots on bus A and the four bottom slots on bus B.
If you need extra storage, you can connect up to three Avid MediaDock LVD enclosures to your Avid|DS workstation.
Do not use the Avid MediaDock LVD Manager software that comes with the MediaDock. This utility is not supported on the Windows 2000 operating system at the present time and may cause problems with other applications.
Workstation Setup Guide 43
Chapter 4 Assembling the System

Single-Enclosure Configuration

?
The single-enclosure configuration is the simplest of the three supported storage configurations. The single Avid MediaDock LVD is attached to the Avid|DS workstation in a dual bus configuration as shown below.
Avid MediaDock LVDAvid|DS workstation
SCSI cable from
channel 1/A of the
Adaptec controller to
the ESM (Enclosure
Service Module) of the
Avid MediaDock LVD
SCSI cable from channel 2/B of the
Adaptec controller to the I/O module
of the Avid MediaDock LVD
To connect the Avid MediaDock LVD in a single-enclosure configuration
1. Locate one of the SCSI cables in the Avid MediaDock LVD kit. It has a very-high-density SCSI connector at one end and a high-density 68-pin connector at the other end.
44 Workstation Setup Guide
2. Attach the very-high-density connector of the cable to the channel 1/A connector of the Adaptec controller.
3. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the ESM module at the top rear of the Avid MediaDock LVD.
4. Locate the second SCSI cable; it is identical to the first.
5. Attach the very-high-density connector of the cable to the channel 2/B connector of the Adaptec controller.
6. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the I/O module at the bottom rear of the Avid MediaD ock LVD.
In this configuration the drives in the Avid MediaDock LVD are shared between the two SCSI buses.
The Avid MediaDock LVD
?

Two-Enclosure Configuration

The two-enclosure configuration uses two MediaDock LVDs, each in a single bus configuration (each enclosure connected to a single SCSI bus) as shown below. In this configuration you can use a maximum of sixteen drives, eight in each MediaDock or on each SCSI bus.
Avid|DS workstation
SCSI cable from channel 2/B of the Adaptec controller to Avid MediaDock LVD #2
Avid MediaDock LVDs
SCSI cable from channel 1/A of the Adaptec controller to Avid MediaDock LVD #1
To connect the Avid MediaDock LVD in a two-enclosure configuration
1. Locate one of the SCSI cables in the Avid MediaDock LVD kit.
2. Attach the very-high-density connector of the cable to the channel 1/A connector of the Adaptec controller.
3. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the ESM module at the top rear of Avid MediaDock LVD #1.
4. Locate the second SCSI cable; it is identical to the first.
5. Attach the very-high-density connector of the cable to the channel 2/B connector of the Adaptec controller.
6. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the ESM module at the top rear of Avid MediaDock LVD #2.
Workstation Setup Guide 45
Chapter 4 Assembling the System
7. On both Avid MediaDock LVD #1 and #2, place the configuration switches on the ESM and I/O modules into position 1.
Make sure you do not terminate the I/O modules with SCSI terminators. The I/O and ESM modules have internal termination.

Three-Enclosure Configuration

?
The three-enclosure configuration uses two Avid MediaDock LVDs in single bus configurations and one Avid MediaDock LVD in a dual bus configuration. This configuration lets you use a maximum of twenty-four drives; twelve on each SCSI bus.
Avid|DS workstation
SCSI cable from channel 2/B of the Adaptec controller to Avid MediaDock LVD #2
SCSI cable from channel 1/A of the Adaptec controller to Avid MediaDock LVD #1
46 • Workstation Setup Guide
SCSI cable
Avid MediaDock LVD #3
SCSI cable
The Avid MediaDock LVD
Before assembling this storage configuration, you must replace the ESM on Avid MediaDock LVD #1 and #2 with an SRM (SCSI Repeater module). Contact your Avid|DS reseller to obtain the necessary replacement module.
To connect the Avid MediaDock LVD in a three-enclosure configuration
1. Locate one of the SCSI cables in the Avid MediaDock LVD kit.
?
2. Attach the very-high-density connector of the cable to the channel 1/A connector of the Adaptec controller.
3. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the SRM module at the top rear of Avid MediaDock LVD #1.
4. Locate the second SCSI cable; it is identical to the first.
5. Attach the very-high-density connector of the cable to the channel 2/B connector of the Adaptec controller.
6. Attach the cable’s other high-density 68-pin connector to the corresponding connector in the SRM module at the top rear of Avid MediaDock LVD #2.
7. Locate another SCSI cable that has high density 68-pin connectors at both ends.
8. Attach one end of the cable to the connector on the I/O module at the bottom rear of Avid MediaDock LVD #1.
9. Attach the other end of the cable to the I/O module at the bottom rear of Avid MediaDock LVD #3.
10. Locate another SCSI cable that has high density 68-pin connectors at both ends.
11. Attach one end of the cable to the connector on the I/O module at the bottom rear of Avid MediaDock LVD #2.
12. Attach the other end of the cable to the ESM module at the top rear of Avid MediaDock LVD #3.
13. On Avid MediaDock LVD #1 and #2, place the configuration switches on the SRM and I/O modules into position 2.
14. On Avid MediaDock LVD #3:
Place the configuration switch on the ESM module in position 1.
Place the configuration switch on the I/O module in position 2.
Workstation Setup Guide 47
Chapter 4 Assembling the System

Avid Unity MediaNet

?

Installing the Emulex Fibre Channel Controller

Avid Unity MediaNet is the facility-class media network for content creators that lets you share a single storage between multiple workstations. You need to have an Emulex fibre channel controller installed in your Avid|DS workstation to connect to MediaNet. The Emulex fibre channel controller is available as an option when you purchase Avid|DS. Contact your Avid|DS reseller for more information on using Avid|DS with MediaNet.
Before you use Avid|DS with MediaNet you must install the Emulex card and relevant drivers in your Avid|DS workstation.
To install the Emulex card and drivers
1. Shut down your workstation and open the coversee the IBM IntelliStation Z Pro User Guide for more information.
2. Install the Emulex card in PCI slot 3 of your workstation.
The Emulex card must be installed in PCI slot 3
48 • Workstation Setup Guide
3. Restart your workstation.
Windows 2000 will detect the presence of the Emulex card.
4. Follow the onscreen instructions to complete the driver installation.
Once this is complete you are ready to install and use MediaNet. Refer to the Avid Unity MediaNet Windows Client Setup Guide for more information.
?

The Avid MEDIArray

The Avid MEDIArray
The Avid MEDIArray is an optional storage solution available with the standard definition version of Avid|DS. You need to install an Emulex fibre channel controller board to connect the Avid MEDIArray storage to your Avid|DS workstation.
The Emulex fibre channel controller is available as an option when you purchase Avid|DS. Contact your Avid|DS reseller for information on obtaining the Emulex fibre channel controller. For information on installing the Emulex fibre channel controller, see Installing the Emulex Fibre Channel Controller on page 48.
Connecting the Copper Cables to the Fibre Channel Controller Board
You can connect the Fibre Channel Drive Enclosure (FCDE) directly to the fibre channel controller board with the included
To connect the copper duplex cable to the FCDE
1. Locate the copper duplex cable in the fibre channel kit. It has a 9-pin connector on both ends.
2. Attach one end of the cable to the controller board.
Fibre channel cable to
the Avid MEDIArray
3. Attach the cable’s other 9-pin connector to the primary (PRI) 9-pin connector on the link control card (LCC) in slot A on the back of the FCDE.
4. Secure both ends of the cable with the thumbscrews on the cable connectors.
For more information, refer to the Avid MEDIArray documentation.
copper duplex cable.
Workstation Setup Guide 49
Chapter 4 Assembling the System

The Machine Control Cable

?
The machine control cable included with Avid|DS consists of the DataMate DM 7015 or Rosetta Stone adapter, a 3-foot RS-232 cable, and a 10-foot RS­422 cable. The adapters perform an RS-232 to RS-422 signal conversion that lets you control a VTR from your Avid|DS workstation. The two cables are both standard 9-pin male-to-male data cables.
The adapters includes two diagnostic LEDs (power and data). The power LED shows a steady light when the adapter is receiving adequate power through the serial port. The data LED flashes whenever data is being transmitted or received. This helps you confirm that the serial port is active.
Datamate adapter
RS-422 cable
to VTR
To assemble the machine control cable
RS-232 cable to workstation
1. Attach the RS-232 cable to the RS-232 from PC end of the adapter.
2. Attach the RS-422 cable to the RS-422 to VTR end of the adapter.
The adapter label shows the correct orientation.
50 Workstation Setup Guide
?

Peripheral Devices

Peripheral Devices
Peripheral devices, such as VTRs and DATs, connected to your workstation allow you to capture and output video/audio material. You can control this equipment remotely with Avid|DS.

Video Connections You can connect HD VTRs and video monitors to your workstation.

Although you should use a house sync, Avid|DS can capture and output using an internal sync signal generated by the Avid Equinox Break-Out-Box.
The following procedures and illustrations explain each of these variations. For more information, refer to the documentation that comes with your peripheral devices.
On a rack mount workstation, the input/output panel (which contains the COM 1 serial ports) is to the left of the expansion card slots when viewing the back of the workstation base unit.
To connect video devices
1. Connect the HD In, on the Avid Equinox Break-Out-Box, to the HD Out on the VTR.
2. Connect one of the HD Outs, on the Avid Equinox Break-Out-Box, to the HD In on the VTR.
3. Connect the other HD Out, on the Avid Equinox Break-Out-Box, to the HD In on the video monitor.
4. Set the VTR transport switch to Remote.
5. Plug the RS-232 end of your machine control cable into the COM 1 port on your workstation.
6. Plug the other end of the cable to the REMOTE IN port on the VTR.
You should not substitute the machine control cable with any other cable. The supplied machine control cable is an RS-232 to RS-422 converter.
Workstation Setup Guide 51
Chapter 4 Assembling the System
7. Plug one end of a BNC sync cable into the Avid Equinox Break-Out-Box’s Genlock Input and the other into the house sync.
?
RS-232 cable to COM 1
RS-232 to RS-422 convertor
USB cable
RS-422 cable to VTR
Digital tether
Digital VTR
House
sync
Avid Equinox
Break-Out-Box
Video
monitor
Using Internal Sync
Using internal sync lets you capture and play back video without the benefit of having a house sync signal. During capture, the Avid Equinox Break-Out-Box takes its sync signal from the SDI video signal. During output to tape, the VTR also accepts the sync signal from the SDI video signal.
52 Workstation Setup Guide
To use internal sync for capture and playback
1. Remove the connection between the house sync and your VTR, as well as the connection between the house sync and Avid Equinox Break-Out-Box.
Do not loop the Sync Output from the Equinox Break-Out-Box to the VTR.
2. If your VTR has a Servo Reference option, set it to Automat ic.
?
Peripheral Devices

Audio Connections The connections between the Mykerinos audio card, DUA II audio convertor,

and VTR may vary depending on the type of audio equipment and VTR you have. Use the following illustration and steps as a guideline for connecting the Mykerinos audio card and audio equipment.
Output
B
To Genlock input on Avid Equinox Break-Out-Box
Input
B
House
sync
Output
to VTR
DUA II
audio convertor
Input
from VTR
HD VTR
For information on specific port configurations, refer to the documentation that comes with your DUA II audio convertor, VTR, and Mykerinos audio card. For a description of the Mykerinos audio card connections, see Card Placement on page 32.
To connect your audio equipment
1. Make sure that the power switch on the DUA II is in the Off position.
2. Attach the power cord to the power connector at the back of the DUA II, and plug it into a power outlet.
3. Connect the Optical Output B to ODI In on the DUA II audio convertor.
4. Connect the Optical Input B to ODI Out on the DUA II audio convertor.
5. Connect the audio output ports on the audio convertor to the input ports on the VTR or audio device.
6. Connect the audio input ports on the audio convertor to the output ports on the VTR or audio device.
There is no external sync connection to the Mykerinos card as the sync signal is provided by the Avid Equinox PCI card via an internal connection.
Workstation Setup Guide 53
Chapter 4 Assembling the System
?
DUA II Configuration
Connecting the optical cables from the DUA II to Input B and Output B allows the DUA II to get a sync signal directly from the Mykerinos card. Input A and Output A on the Mykerinos card are S/PDIF only and do not support a sync signal.
The DUA II has eight DIP switches which are located along the right side of the DUA II unit. For the DUA II to work properly with Avid|DS, these DIP switches must be configured as follows:
Switches 1 to 4 must be ON (down)
Switches 5 to 8 must be OFF (up)
On the front panel of the DUA II, you must also have the following settings:
Synchronization (ODI): Allows the DUA II to detect a sync signal from the Mykerinos card via the optical cables.
Sample rate (Auto Detect): Press and hold the red sample rate button for approximately one second to enable automatic sample rate detection of the audio format. Once the DUA II has detected and locked to the sample rate of the sync signal, the LED indicating the sample rate turns green.
For more information on configuring your DUA II, refer to the vendor documentation.
54 Workstation Setup Guide
?

The Software Protection Key

The Software Protection Key
The software protection key (dongle) provides copy protection for the software that is installed on your workstation. Avid|DS will not start unless the dongle identification number matches the information in the license file on your workstation's hard drive.
The dongle does not require batteries as it receives electrical power from the parallel port. So, before attaching the dongle, you should verify that the parallel port is active.
Your workstation is delivered with a license file already on the hard drive. This license file was used for testing prior to shipment. Your Avid|DS reseller will provide a valid license file for your dongle. For more information, refer to Installing the License File on page 45 of the Avid|DS Installation & Administration Guide.
On a rack mount workstation, the input/output panel (which contains the parallel LPT1 port) is to the left when viewing the back of the workstation base unit.
To install the software protection key
1. Attach the dongle to the parallel (LPT1) port on the back of the workstation.
2. Start the workstation and log on as an Administrator.
3. Right-click on My Computer and choose Device Manager.
4. Select Ports (COM & LPT) and select ECP Printer Port (LPT1).
5. Right-click on ECP Printer Port (LPT1) and choose Properties.
6. Click the General tab and verify that the Device Status says This device is working properly”.
7. If not, close the dialog box, right-click on ECP Printer Port (LPT1) and choose Enable.
Parallel port LPT1
Workstation Setup Guide 55
Chapter 4 Assembling the System
?
56 • Workstation Setup Guide
A CB D USQOMKIGE VTRPNLJHF W Y ZX1

Index

?
Index
A
Adaptec card connections 33 attaching software protection key 55 audio devices, connecting 53 Avid Equinox Break-Out-Box 40
connecting 42
Avid Equinox PCI card
connections 32
Avid Media D ock LVD,
connecting 43 Avid M E DIAr r ay 49 Avid Unity MediaNet 48 Avid|DS discussion group 8
B
back panel, workstation 31
C
cables 42, 43
fibre channel 49
machine control, assembling 50 capture, signal flow 28 cards 31
Adaptec card connection 33
Avid Equinox PCI card
connections 32 Emulex card connections 33 Mykerinos audio card
connections 32 placement 32 signal flow, capture/playback 28
computer monitors, connecting 39 connecting hardware 38
audio devices 53 Avid Equinox Break-Out-Box 42 Avid Media D ock LVD 43 computer monitors 39 keyboard 38 monitors 39 mouse 38 peripheral devices 51 tablet 38 video devices 51 WAC OM ta b l et 3 8
connections, card
Adaptec 33 Avid E quinox PCI 32 Emulex 33 Mykerinos 32
contents, Avid|DS system 15
hardware 15 software 16
conventions 10
keyboard, mouse, and pen 10
customer service 11
D
devices
audio, connecting 53 peripheral, connecting 51
dimensions
hardware 23 DIP switches 54 discussion group
Av id| DS 8 disk drives 34
Low-Voltage Differential
Signaling 34 LV D S 3 4 standard configuration 34
document conventions 9 dongle (software protection key)
attaching 55
DUA II
DIP switches 54 sample rate 54 synchronization 54
E
electrical requirements 21
specifications 22
Emulex card connections 33 environmental requirements 21 Equinox Break-Out-Box,
connecting 42 Equinox PCI card 32 ESM module 47 External Controller Setup Refer to
online help
F
fibre channel cables 49 forum, Avid|DS 12
G
graphic tablet 10
H
hardware 15, 24
dimensions 23 specifications 23
hardware, connecting 38
computer monitors 39 keyboard 38 monitors 39 mouse 38 tablet 38
WAC OM ta b l et 3 8 hotline support 11 house sync 24
I
I/O module 47 input and outputs, system 27 internal sync 52
K
key, software protection 55 keyboard conventions 10 keyboard, connecting 38
L
license
file 55 licensing support 11 list, mailing 12 Low-Voltage Differential Signaling
(LVDS) SCSI disk drive 34
LVDS SCSI disk drive 34
M
machine control cable,
assembling 50 mailing list 12 MediaDock LVD
connecting 43 drives 34
Workstation Setup Guide 57
Index
A CB D USQOMKIGE VTRPNLJHF W Y ZX1
MediaNet 48 MEDIArray, connecting 49 module
ESM 47 I/O 47
SRM 47 monitors, connecting 39 mouse
?
connecting 38
conventions 10 Mykerinos card connections 32
O
outputs and inputs, system 27
P
package contents 15
hardware 15
software 16 pen
conventions 10 peripherals 24
devices 51 phone support 11 planning, site 21 to 23
electrical requirements 21
environmental requirements 21
space requirements 22 playback, signal flow 28
R
Release Notes 8 requirements 21 to 23
electrical 21
environmental 21
space 22
S
sample rate
DUA II 54 SCSI cable 44, 45, 47 SCSI disk drive, LVDS (Low Voltage
Disk Drive) 34
signal flow 28
capture 28
playback 28
single enclosure configuration 44 site planning requirements 21 to 23
electrical 21 environmental 21
space 22 software 16 software protection key (dongle),
attaching 55 space requirements 22 specifications
electrical 22
hardware 23 SRM module 47 storage
Avid Media D o ck LVD 43
Avid M E DIAr r ay 49 storage configurations 44 to 47
single enclosure 44
three enclosure 46
two enclosure 45 support 11
hotline 11
licensing 11
training 11
web 12 synchronization, DUA II 54 system contents 15
hardware 15
software 16 system inputs/outputs 27 system requirements 21 to 23
electrical 21
environmental 21
space 22
T
tablet, connecting 38 technical support 11 telephone support 11 three enclosure configuration 46 training support 11 two enclosure configuration 45
V
video devices, connecting 51
W
WACOM tablet, connecting 38 web support 12 workstation
back panel overview 31 cards 28, 31
58 Workstation Setup Guide
