Avid® Color Correction

User’s Guide

make manage move | media

™

Avid

Product specifications are subject to change without notice and do not represent a commitment on the part of Avid Technology, Inc.

The software described in this document is furnished under a license agreement. You can obtain a copy of that license by visiting Avid's Web site at www.avid.com. The terms of that license are also available in the product in the same directory as the software. The software may not be reverse assembled and may be used or copied only in accordance with the terms of the license agreement. It is against the law to copy the software on any medium except as specifically allowed in the license agreement.

Avid products or portions thereof are protected by one or more of the following United States patents: 4,746,994; 4,970,663; 5,045,940; 5,267,351; 5,309,528; 5,355,450; 5,396,594; 5,440,348; 5,452,378; 5,467,288; 5,513,375; 5,528,310; 5,557,423; 5,568,275; 5,577,190; 5,584,006; 5,640,601; 5,644,364; 5,654,737; 5,715,018; 5,724,605; 5,726,717; 5,729,673; 5,745,637; 5,752,029; 5,754,851; 5,781,188; 5,799,150; 5,812,216; 5,852,435; 5,905,841; 5,929,836; 5,929,942; 5,930,445; 5,930,797; 5,946,445; 5,987,501; 5,999,190; 6,016,152; 6,018,337; 6,023,531; 6,023,703; 6,031,529; 6,058,236; 6,061,758; 6,091,778; 6,105,083; 6,118,444; 6,128,001; 6,134,607; 6,137,919; 6,141,691; 6,157,929; 6,160,548; 6,167,404; 6,198,477; 6,201,531; 6,223,211; 6,249,280; 6,269,195; 6,317,158; 6,317,515; 6,330,369; 6,351,557; 6,353,862; 6,357,047; 6,392,710; 6,404,435; 6,407,775; 6,417,891; 6,426,778; 6,449,019; 6,473,094; 6,477,271; 6,489,969; 6,512,522; 6,532,043; 6,539,163; D396,853; D398,912. Additional U.S. and foreign patents pending.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the express written permission of Avid Technology, Inc.

APPLE COMPUTER, INC. MAKES NO WARRANTIES WHATSOEVER, EITHER EXPRESS OR IMPLIED, REGARDING THIS PRODUCT, INCLUDING WARRANTIES WITH RESPECT TO ITS MERCHANTABILITY OR ITS FITNESS FOR ANY PARTICULAR PURPOSE. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY PROVIDES YOU WITH SPECIFIC LEGAL RIGHTS. THERE MAY BE OTHER RIGHTS THAT YOU MAY HAVE WHICH VARY FROM STATE TO STATE.

The following disclaimer is required by Sam Leffler and Silicon Graphics, Inc. for the use of their TIFF library:

Permission to use, copy, modify, distribute, and sell this software [i.e., the TIFF library] and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the software and related documentation, and (ii) the names of Sam Leffler and Silicon Graphics may not be used in any advertising or publicity relating to the software without the specific, prior written permission of Sam Leffler and Silicon Graphics.

THE SOFTWARE IS PROVIDED “AS-IS” AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

The following disclaimer is required by the Independent JPEG Group:

Portions of this software are based on work of the Independent JPEG Group.

The following disclaimer is required by Paradigm Matrix:

Portions of this software licensed from Paradigm Matrix.

The following disclaimer is required by Ray Sauers Associates, Inc.:

“Install-It” is licensed from Ray Sauers Associates, Inc. End-User is prohibited from taking any action to derive a source code equivalent of “Install-It,” including by reverse assembly or reverse compilation, Ray Sauers Associates, Inc. shall in no event be liable for any damages resulting from reseller’s failure to perform reseller’s obligation; or any damages arising from use or operation of reseller’s products or the software; or any other damages, including but not limited to, incidental, direct, indirect, special or consequential Damages including lost profits, or damages resulting from loss of use or inability to use reseller’s products or the software for any reason including copyright or patent infringement, or lost data, even if Ray Sauers Associates has been advised, knew or should have known of the possibility of such damages.

The following disclaimer is required by Videomedia, Inc.:

“Videomedia, Inc. makes no warranties whatsoever, either express or implied, regarding this product, including warranties with respect to its merchantability or its fitness for any particular purpose.”

“This software contains V-LAN ver. 3.0 Command Protocols which communicate with V-LAN ver. 3.0 products developed by Videomedia, Inc. and V-LAN ver. 3.0 compatible products developed by third parties under license from Videomedia, Inc. Use of this software will allow “frame accurate” editing control of applicable videotape recorder decks, videodisc recorders/players and the like.”

The following disclaimer is required by Altura Software, Inc. for the use of its Mac2Win software and Sample Source Code:

The following disclaimer is required by Ultimatte Corporation:

Certain real-time compositing capabilities are provided under a license of such technology from Ultimatte Corporation and are subject to copyright protection.

The following disclaimer is required by 3Prong.com Inc.:

Certain waveform and vector monitoring capabilities are provided under a license from 3Prong.com Inc.

Attn. Government User(s). Restricted Rights Legend

U.S. GOVERNMENT RESTRICTED RIGHTS. This Software and its documentation are “commercial computer software” or “commercial computer software documentation.” In the event that such Software or documentation is acquired by or on behalf of a unit or agency of the U.S. Government, all rights with respect to this Software and documentation are subject to the terms of the License Agreement, pursuant to FAR §12.212(a) and/or DFARS §227.7202-1(a), as applicable.

Trademarks

888 I/O, AirPlay, AirSPACE, AirSPACE HD, AniMatte, AudioSuite, AudioVision, AutoSync, Avid, AVIDdrive, AVIDdrive Towers, AvidNet, AvidNetwork, AVIDstripe, Avid Unity, Avid Xpress, AVoption, AVX, CamCutter, ChromaCurve, ChromaWheel, DAE, D-Fi, D-fx, Digidesign, Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, DigiDrive, DINR, D-Verb, Equinox, ExpertRender, FieldPak, Film Composer, FilmScribe, FluidMotion, HIIP, HyperSPACE, HyperSPACE HDCAM, IllusionFX, Image Independence, Intraframe, iS9, iS18, iS23, iS36, Lo-Fi, Magic Mask, make manage move | media, Marquee, Matador, Maxim, MCXpress, Media Composer, MediaDock, MediaDock Shuttle, Media Fusion, Media Illusion, MediaLog, Media Reader, Media Recorder, MEDIArray, MediaShare, Meridien, MetaSync, NaturalMatch, Nearchive, NetReview, NewsCutter, OMF, OMF Interchange, OMM, Open Media Framework, Open Media Management, ProEncode, Pro Tools, QuietDrive, Recti-Fi, RetroLoop, rS9, rS18, Sci-Fi, Softimage, Sound Designer II, SPACE, SPACEShift, Symphony, the Avid|DS logo, Trilligent, UnityRAID, Vari-Fi, Video Slave Driver, VideoSPACE, and Xdeck are either registered trademarks or trademarks of Avid Technology, Inc. in the United States and/or other countries.

iNEWS, iNEWS ControlAir, and Media Browse are trademarks of iNews, LLC.

Adobe and Photoshop are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Apple, Macintosh, and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks contained herein are the property of their respective owners.

Footage

Bazaar Rugs — Courtesy of Randy Fayan. All Rights Reserved. Bell South “Anticipation” — Courtesy of Two Headed Monster — Tucker/Wayne Atlanta/GMS. Canyonlands — Courtesy of the National Park Service/Department of the Interior. Eco Challenge British Columbia — Courtesy of Eco Challenge Lifestyles, Inc., All Rights Reserved. Eco Challenge Morocco — Courtesy of Discovery Communications, Inc. It’s Shuttletime — Courtesy of BCP & Canadian Airlines. Nestlé Coffee Crisp — Courtesy of MacLaren McCann Canada. Saturn “Calvin Egg” — Courtesy of Cossette Communications. “Tigers: Tracking a Legend” — Courtesy of www.wildlifeworlds.com, Carol Amore, Executive Producer. WCAU Fire Story — Courtesy of NBC-10, Philadelphia, PA. Windhorse — Courtesy of Paul Wagner Productions.

GOT FOOTAGE?

Editors — Filmmakers — Special Effects Artists — Game Developers — Animators — Educators — Broadcasters — Content creators of every genre — Just finished an incredible project and want to share it with the world?

Send us your reels and we may use your footage in our show reel or demo!*

For a copy of our release and Avid’s mailing address, go to www.avid.com/footage.

*Note: Avid cannot guarantee the use of materials submitted.

™

/Fauer — John Fauer, Inc.

Avid Color Correction User’s Guide • Part 0130-05734-01 • May 2003

Using This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Who Should Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Symbols and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

If You Have Documentation Comments . . . . . . . . . . . . . . . . . . . . . . . . . 16

How to Order Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Avid Educational Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chapter 1 Introducing Avid Color Correction. . . . . . . . . . . . . . . . . . . . . . 17

Understanding Avid Color Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Applying and Viewing Color Corrections . . . . . . . . . . . . . . . . . . . . . 18

Automatic and Manual Color Corrections . . . . . . . . . . . . . . . . . . . . 19

The Color Correction Effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Understanding Color Correction Groups . . . . . . . . . . . . . . . . . . . . . 20

Other Color Adjustment Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Chapter 2 Understanding Color Correction Mode . . . . . . . . . . . . . . . . . . 23

Entering and Exiting Color Correction Mode . . . . . . . . . . . . . . . . . . . . . 24

Overview of the Color Correction Mode Toolset. . . . . . . . . . . . . . . . . . . 25

The Composer Window in Color Correction Mode. . . . . . . . . . . . . . . . . 26

Activating Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Displaying Tracking Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Displaying Images in Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Understanding Default Monitor Display. . . . . . . . . . . . . . . . . . . 28

Configuring Image Display in Monitors . . . . . . . . . . . . . . . . . . . 29

Splitting the Image Display in Monitors . . . . . . . . . . . . . . . . . . . 30

Hiding the Video in Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Displaying 16:9 Video in Monitors . . . . . . . . . . . . . . . . . . . . . . . 32

Using the Composer Window Buttons . . . . . . . . . . . . . . . . . . . . . . . 33

Using the Play Loop Button in Color Correction Mode . . . . . . . . . . . 35

Reviewing Color-Corrected Clips with the Edit Review Button. . . . . 35

The Client Monitor in Color Correction Mode . . . . . . . . . . . . . . . . . . . . . 36

The Color Correction Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Working with the Group and Subdividing Tabs. . . . . . . . . . . . . . . . . 37

Displaying a Group Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Displaying an HSL Subdividing Tab. . . . . . . . . . . . . . . . . . . . . . 38

Understanding Interaction Between Color Correction Groups . . . . . 39

Working with the Enable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Turning Controls On or Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Resetting Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Understanding Interaction Between Enable Buttons . . . . . . . . . 41

Using the Color Correction Tool Buttons . . . . . . . . . . . . . . . . . . . . . 42

Customizing Color Correction Mode Settings. . . . . . . . . . . . . . . . . . 43

Adding Comments to Color Correction Effects. . . . . . . . . . . . . . . . . 45

Working with Color Correction Effect Templates . . . . . . . . . . . . . . . . . . 46

Understanding How Color Correction Effect Templates

Save Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Saving a Color Correction Effect Template to a Bin . . . . . . . . . . . . . 47

Saving a Color Correction Effect Template to a Bucket . . . . . . . . . . 48

Applying Color Correction Effect Templates. . . . . . . . . . . . . . . . . . . 50

Working with Color Correction Effect Templates in the

Effect Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Chapter 3 Performing Color Corrections . . . . . . . . . . . . . . . . . . . . . . . . . 53

General Workflow for Making Color Corrections. . . . . . . . . . . . . . . . . . . 54

Using Automatic Color Corrections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Understanding Automatic Color Correction . . . . . . . . . . . . . . . . . . . 56

Adjusting Contrast and Balance Automatically. . . . . . . . . . . . . . . . . 57

Using the Remove Color Cast Buttons. . . . . . . . . . . . . . . . . . . . . . . 58

Considerations When Using Automatic Color Correction. . . . . . . . . 60

Using the Color Match Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Making a Correction with the Color Match Control . . . . . . . . . . . . . 63

Selecting Match Type Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Understanding the NaturalMatch Feature . . . . . . . . . . . . . . . . . . . . 67

Color Match Example Using the NaturalMatch Feature. . . . . . . . . . 67

Saving Custom Colors to a Bin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Getting RGB Information Using the Color Match Control . . . . . . . . 69

The HSL (Hue, Saturation, Luminance) Group . . . . . . . . . . . . . . . . . . . 70

Working with the Controls Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Making Corrections Using the Controls Tab . . . . . . . . . . . . . . . 71

Using the HSL Slider Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 72

Controls Tab Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Working with the Hue Offsets Tab . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Understanding the ChromaWheel Controls. . . . . . . . . . . . . . . . 75

Making Corrections Using the Hue Offsets Tab . . . . . . . . . . . . 77

Using the ChromaWheel Crosshair Pointers. . . . . . . . . . . . . . . 79

The Curves Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Understanding ChromaCurve Graphs . . . . . . . . . . . . . . . . . . . . . . . 81

Making Corrections Using the Curves Tab . . . . . . . . . . . . . . . . . . . 83

Adjusting ChromaCurve Graphs . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

ChromaCurve Graphs and the Color Match Control . . . . . . . . . . . . 87

Examples of ChromaCurve Graph Adjustments . . . . . . . . . . . . . . . 88

Working with the Waveform Monitors and Vectorscope Monitor . . . . . . 95

Displaying a Waveform Monitor or Vectorscope Monitor. . . . . . . . . 95

Using the Waveform and Vectorscope Information . . . . . . . . . . . . 104

Applying Color Corrections to an Entire Sequence . . . . . . . . . . . . . . . 105

Using Color Correction Effects in the Effect Palette. . . . . . . . . . . . . . . 106

Performing Automatic Color Corrections from the

Effect Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Selecting AutoCorrect Options . . . . . . . . . . . . . . . . . . . . . . . . 107

Applying Automatic Color Corrections from the

Effect Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Working with the Color Correction Effect . . . . . . . . . . . . . . . . . . . . 110

Chapter 4 Color Correction Techniques . . . . . . . . . . . . . . . . . . . . . . . . . 111

Guiding Principles for Color Correction. . . . . . . . . . . . . . . . . . . . . . . . . 112

Goals of Color Correction: Restoration and Adaptation . . . . . . . . . 112

Restoring the Original Look . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Adapting the Original Look. . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Stages of Color Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Correcting Tonal Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Neutralizing Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Achieving Shot-to-Shot Consistency . . . . . . . . . . . . . . . . . . . . 118

Achieving a Final Look. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Examples of Color Correction Problems. . . . . . . . . . . . . . . . . . . . . . . . 119

Example 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Example 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Chapter 5 Safe Colors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Overview of Safe Color Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Setting Safe Color Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Understanding the Graphical View of Safe Color Settings . . . . . . . . . . 134

Understanding Safe Color Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Safe Color Warnings in the Monitors . . . . . . . . . . . . . . . . . . . . . . . 136

Safe Color Warnings in the Color Match Control . . . . . . . . . . . . . . 138

Making Adjustments to Achieve Safe Color Values . . . . . . . . . . . . 139

Safe Color Limits with Waveform and Vectorscope Information. . . . . . 140

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Tables

Table 1 Source Menu Commands . . . . . . . . . . . . . . . . . . . . . . . . .29

Table 2 Composer Window Buttons . . . . . . . . . . . . . . . . . . . . . . . .34

Table 3 Correction Mode Settings

Features Tab Options. . . . . . . . . . . . . . . . . . . . . . . . . . .43

Table 4 Automatic Contrast and Balance Buttons . . . . . . . . . . . . .58

Table 5 Match Type Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Table 6 Controls Tab Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Table 7 Hue Offsets Tab Controls . . . . . . . . . . . . . . . . . . . . . . . . .78

Table 8 Hue Offsets ChromaWheel Crosshair Pointers . . . . . . . . .79

Table 9 Waveform and Vectorscope Commands . . . . . . . . . . . . . .96

Table 10 AutoCorrect Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Table 11 Safe Color Settings Options . . . . . . . . . . . . . . . . . . . . . .132

Table 12 Safe Color Warning Indicators. . . . . . . . . . . . . . . . . . . . .137

Table 13 Safe Color Limits in Waveform Displays . . . . . . . . . . . . .142

Using This Guide

This guide provides information on the color correction features of your

editing application. Using these features, you can easily make

Avid adjustments to color that will improve the appearance of the video material in your projects.

If your project workflow normally includes traditional color correction, your system’s color correction tools can reduce or even eliminate the need for such procedures. If your workflow has not allowed for extensive color correction in the past, your system’s color correction tools can make possible a new level of color-finishing quality.

The documentation describes the features and hardware of all models. Therefore, your system might not contain certain features and hardware that are covered in the documentation.

Who Should Use This Guide

This guide is intended for all Avid Color Correction users, from beginning to advanced.

Using This Guide

About This Guide

This guide is designed to provide you with all the information you need to make precise color adjustments using your Avid editing application, including complete explanations of all the color correction tools. The guide leads you through all color correction procedures with task-oriented instructions. Many examples of color correction techniques and typical color correction problems help you understand what to look for when you are correcting color in a sequence. Thorough cross-references to other parts of your Avid documentation make it easy for you to find additional information.

If you are reading a black-and-white hardcopy printout of this document, you will find it useful to view the color images in the Help or in the online version of this document on the Online Library DVD.

The Contents lists all topics included in the book. They are presented with the following overall structure:

• Chapter 1 provides a general introduction to Avid Color Correction and summarizes all the other color adjustment tools.

• Chapter 2 describes the Color Correction mode display in detail and explains how to control, customize, and move around in Color Correction mode.

• Chapter 3 provides step-by-step instructions for all the color adjustment operations you can perform using the Color Correction tool, together with conceptual information and examples to help you understand the differences between the various color correction controls.

• Chapter 4 provides guidelines for approaching the task of color correction, examples of typical color correction problems, and discussions of how to solve those problems using your system’s color correction tools. This chapter is especially useful as an introduction to color correction for Avid users who have little prior experience making color adjustments.

• Chapter 5 explains the Safe Color warning function of your Avid system.

• The Index helps you quickly locate specific topics.

Symbols and Conventions

Unless noted otherwise, the material in this document applies to the Windows to a specific operating system, it is marked as follows:

• (Windows) or (Windows only) means the information applies to the

• (Macintosh) or (Macintosh only) means the information applies to the

The majority of screen shots in this document were captured on a Windows XP system, but the information applies to both Windows XP and Mac OS X systems. Where differences exist, both Windows XP and Mac OS X screen shots are shown.

Avid documentation uses the following symbols and conventions:

Symbol or Convention Meaning or Action

XP and Mac OS® X operating systems. When the text applies

Windows XP operating system.

Mac OS X operating system.

A note provides important related information, reminders, recommendations, and strong suggestions.

> This symbol indicates menu commands (and

A caution means that a specific action you take could cause harm to your computer or cause you to lose data.

A warning describes an action that could cause you physical harm. Follow the guidelines in this document or on the unit itself when handling electrical equipment.

subcommands) in the order you select them. For example, File > Import means to open the File menu and then select the Import command.

Using This Guide

Symbol or Convention Meaning or Action

This symbol indicates a single-step procedure. Multiple arrows in a list indicate that you perform one of the actions listed.

k This symbol represents the Apple or Command key.

Press and hold the Command key and another key to perform a keyboard shortcut.

Margin tips In the margin, you will find tips that help you

perform tasks more easily and efficiently.

Italic font Italic font is used to emphasize certain words and to

indicate variables.

Courier Bold font

Courier Bold font identifies text that you type.

Click Quickly press and release the left mouse button

(Windows) or the mouse button (Macintosh).

Double-click Click the left mouse button (Windows) or the mouse

button (Macintosh) twice rapidly.

Right-click Quickly press and release the right mouse button

(Windows only).

Drag Press and hold the left mouse button (Windows) or

the mouse button (Macintosh) while you move the mouse.

Ctrl+key

k+key

Press and hold the first key while you press the second key.

If You Need Help

If you are having trouble using your Avid editing application:

1. Retry the action, carefully following the instructions given for that task in this guide. It is especially important to check each step of your workflow.

2. Check in one of two locations for the latest information that might have become available after the documentation was published:

- If release notes are available, they ship with your application.

- If ReadMe files are available, they are supplied in your Avid

If You Need Help

application folder. ReadMe files are also available from Help.

Release notes and ReadMe files are also available on the Avid Knowledge Center.

3. Check the documentation that came with your Avid application or your hardware for maintenance or hardware-related issues.

4. Visit the online Knowledge Center at www.avid.com/support. Online services are available 24 hours per day, 7 days per week. Search this online Knowledge Center to find answers, to view error messages, to access troubleshooting tips, to download updates, and to read/join online message-board discussions.

5. For Technical Support, please call 800-800-AVID (800-800-2843). For Broadcast On-Air Sites and Call Letter Stations, call

800-NEWSDNG (800-639-7364).

Using This Guide

If You Have Documentation Comments

We’d appreciate any comments or suggestions you may have about this document or any other piece of documentation. Please restrict your comments to documentation issues.

Please e-mail your documentation comments to:

TechPubs@avid.com

Include the title of the document, its part number, and the specific section you are commenting on in all correspondence.

How to Order Documentation

To order additional copies of this documentation from within the United States, call Avid Sales at 800-949-AVID (800-949-2843). If you are placing an order from outside the United States, contact your local Avid representative.

Avid Educational Services

For information on courses/schedules, training centers, certifications, courseware, and books, please visit www.avid.com/training or call Avid Sales at 800-949-AVID (800-949-2843).

Chapter 1

Introducing Avid Color Correction

Your Avid editing application includes Avid Color Correction, a comprehensive set of tools for correcting and adjusting colors. These tools have easy-to-use controls that can be mastered quickly by film and video editors.

This chapter provides a conceptual introduction to Avid Color Correction. This chapter also summarizes the other color adjustment features available in your Avid application and tells you where to find more information about them.

• Understanding Avid Color Correction

• Other Color Adjustment Tools

A more complete Color Correction tool is available for Avid Symphony™. If you have an Avid Symphony system, see the Avid Symphony Color Correction User's Guide.

Chapter 1 Introducing Avid Color Correction

Understanding Avid Color Correction

Avid Color Correction lets you perform color corrections on individual segments in a sequence or on multiple segments at the same time. You perform most color correction tasks in Color Correction mode, a distinct toolset that displays the Color Correction tool and a Composer window specially reconfigured for color correction work. The Color Correction tool includes several types of color correction controls, so you can select the ones that are best for your project and working methods.

When you use Color Correction mode, having a basic understanding of how your application applies color corrections is helpful. The following sections explain these basic concepts.

For an introduction to color correction techniques and illustrated examples of typical color corrections, see Chapter 4.

Applying and Viewing Color Corrections

Avid Color Correction works with video material once it has been edited into a sequence. You make color adjustments in Color Correction mode by selecting segments within a sequence and then altering their color values. Avid Color Correction applies a Color Correction effect to each segment that you correct in a sequence, and you can view the correction as you play back the sequence, within the normal limits for effects playback for your application.

Your ability to preview color correction effects in real time in the Composer monitor or in a Client monitor depends on the model of your Avid application, your hardware configuration, and the complexity of the sequence to which you have applied the color correction effects. As with other effects, you might need to render at least some of your color correction effects before you can export your sequence or perform a digital cut. For more information, see the information on previewing, playing, and rendering in the Help.

The color corrections that you make with Avid Color Correction do not cause any permanent change to clips in bins or to their associated media files. If you make a color adjustment to a clip in one sequence, that adjustment does not apply to the same clip in a different sequence.

Automatic and Manual Color Corrections

Avid Color Correction lets you make corrections both automatically and manually. Automatic corrections are easy to learn, quick to implement, and can remove common color problems in the majority of images. Manual corrections require more skill and practice but allow you more precise control over the final look of your images and give you a greater range of creative possibilities.

When you make automatic corrections, Avid Color Correction calculates and then makes the adjustments needed to improve a particular aspect of an image, for example, its color balance. Some automatic corrections involve no input from you beyond the click of a single button; others allow you to assist Avid Color Correction in its calculations by identifying targets in an image with an eyedropper, for example, an area that should be white. When you make manual corrections, you make the adjustments that change the look of the image yourself using controls such as sliders and color wheels.

Understanding Avid Color Correction

The Color Correction Effect

The Color Correction effect appears in the Image category of the Effect Palette. Because the application automatically applies a Color Correction effect in the Timeline when you make a correction in Color Correction mode, you apply the Color Correction effect directly from the Effect Palette only for a small number of special purposes.

You apply the Color Correction effect from the Effect Palette if you want to apply a single color correction to multiple segments in a sequence. You also apply the Color Correction effect from the Effect Palette if you want to apply multiple automatic color corrections to one or more segments in a sequence in accordance with the settings you have established in the

Chapter 1 Introducing Avid Color Correction

AutoCorrect tab of the Correction Mode Settings dialog box. For more information, see “Using Color Correction Effects in the Effect Palette” on

page 106.

Once you render a Color Correction effect, you can move the sequence to a system without color correction and the rendered correction will play successfully. In a system without color correction capability, a Color Correction effect is an unknown effect. The effect icon appears blank in the Timeline, and you cannot make any adjustments to it.

Understanding Color Correction Groups

Avid Color Correction provides two groups of color correction controls, the HSL (Hue, Saturation, Luminance) group and the Curves group.

You can make both automatic and manual adjustments using one or both groups of controls. If you make adjustments in both groups, you can turn either group on or off independently to control which adjustments are active. When you view the sequence or render the Color Correction effect, your application applies the adjustments from the active groups to create the final appearance. For more information on the interaction between the two groups, see “Understanding Interaction Between Color Correction

Groups” on page 39.

Each group uses a different kind of control for making adjustments. The HSL group provides controls for adjusting attributes such as hue, saturation, gain, and gamma. The Curves group allows you to manipulate points on a graph that control the relationship between input and output color.

For more information on the color correction groups, see “Working with

the Group and Subdividing Tabs” on page 37.

Other Color Adjustment Tools

In addition to the work you can do with Avid Color Correction, you can correct and adjust colors at various stages of your project using several other tools. Some of these tools are described in this guide; others are described in other parts of the documentation for your Avid editing application. The following is a summary of these tools with the locations of detailed information about them.

• In some circumstances, when you capture your video input, you can make initial adjustments to the color of incoming video using the Video Input tool. For more information, see “Preparing to Capture Media” in the Help.

• You can create keyframeable color effects on individual segments in a sequence using the Color Effect. For more information, see the “2D Effects Reference” in the Help.

• You can make many adjustments to color within other 2D and 3D effects, including color control for keys and border colors. For more information, see the “2D Effects Reference” and “3D Effects Reference” in the Help.

Other Color Adjustment Tools

You can set safe limits for the colors that appear in your project and ask the system to warn you when those limits are exceeded. For more information, see Chapter 5.

Chapter 1 Introducing Avid Color Correction

Chapter 2

Understanding Color Correction Mode

As it does with other modes (such as Trim mode and Effect mode), the Avid editing application changes the screen display to provide a specialized interface for Color Correction mode. This interface includes the Color Correction tool itself (containing the controls for adjusting color), and a reconfigured Composer monitor that allows you to view several segments in your sequence side-by-side. This chapter describes the features of Color Correction mode and explains how to control and customize them.

• Entering and Exiting Color Correction Mode

• Overview of the Color Correction Mode Toolset

• The Composer Window in Color Correction Mode

• The Client Monitor in Color Correction Mode

• The Color Correction Tool

• Working with Color Correction Effect Templates

Chapter 2 Understanding Color Correction Mode

Entering and Exiting Color Correction Mode

To enter Color Correction mode, do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8. t Click the Color Correction button.

The Color Correction toolset appears.

Overview of the Color Correction Mode Toolset

In some Avid applications, the Color Correction button appears by default below the Timeline. In others it does not appear in the default button layout, but you can map it from the CC tab of the Command palette to the keyboard or to any button location that can be remapped. For more information, see “Using the Command Palette” in the Help.

To exit Color Correction mode and return to another mode:

t Select Toolset > mode, where mode is a selection other than Color

Correction. The system replaces the Color Correction toolset with the toolset for

the mode you selected.

Overview of the Color Correction Mode Toolset

The toolset for Color Correction mode includes three windows in addition to Project and Bin windows:

• The Composer window, a three-monitor view For more information, see “The Composer Window in Color

Correction Mode” on page 26.

• The Color Correction tool For more information, see “The Color Correction Tool” on page 37.

• The Timeline, resized to accommodate the other elements of the color correction toolset

Avid Color Correction also allows you to display several kinds of image information in the Client monitor. For more information, see “The Client

Monitor in Color Correction Mode” on page 36.

The following sections describe the organization of these elements and explain how to navigate in them and how to customize them for your project needs.

Chapter 2 Understanding Color Correction Mode

The Composer Window in Color Correction Mode

The Composer window in Color Correction mode is a three-monitor view. This allows you to view material from three segments at once, making it easy to compare material on a shot-by-shot basis. This three-monitor view shares many of the features of the monitors in other modes but also includes several features specific to Color Correction mode.

The following illustration shows the features of the Composer window in Color Correction mode.

ource menu

By default, the monitors show (from left to right) the first frame of the previous segment, the first frame of the current segment, and the first frame of the next segment.

Activating Monitors

Composer Window buttons

Tracking In

ormation Display menu

Position barPosition indicator

Only one of the monitors is active at any one time. The position bar is highlighted in the active monitor, and the image from the active monitor is displayed in the Client monitor.

The Composer Window in Color Correction Mode

To activate a monitor:

t Click anywhere in the monitor’s image area, in the position bar, or on

the Tracking Information Display menu.

When you click one of the Composer Window buttons below a monitor, the system activates that monitor and performs the action associated with the button.

Displaying Tracking Information

The Composer Window monitors in Color Correction mode have the same options for displaying tracking information that are available in other modes.

To display tracking information in a Color Correction mode monitor:

t Select Tracking Information Display > format.

By default, the Tracking Information Display menu shows no information until you select a tracking format.

For more information on tracking information display, see “Displaying Tracking Information” in the Help.

Displaying Images in Monitors

The default Composer window for Color Correction mode is a threemonitor view that shows images from three adjacent segments in the Timeline. You can customize the monitor view to show images from other parts of the sequence, to show specific images in a split-screen display, to hide the video, or to display wide-screen (16:9) video. You can also customize a monitor to show waveform or vectorscope information for the current segment.

Chapter 2 Understanding Color Correction Mode

Understanding Default Monitor Display

By default, the center monitor shows the current segment (the segment the position indicator is on in the Timeline). The left monitor shows the previous segment (the segment before the current segment), and the right monitor shows the next segment (the segment after the current segment).

When you move in the sequence by clicking a Composer Window button or by moving the position indicator to a new segment in the Timeline, all three monitors update to maintain the same relationship between displayed segments.

The following illustrations show the default monitor display behavior.

Example 1

The position indicator is on segment B in the Timeline. The three monitors display segments A, B, and C.

ABC

Example 2

The position indicator has moved to segment C. All three monitors have updated so they now display segments B, C, and D.

BCD

The Composer Window in Color Correction Mode

Configuring Image Display in Monitors

You can configure each monitor to display those segments that are most useful for making comparisons in your project.

To configure the display in a monitor:

t Click the monitor’s Source menu, and select one of the commands

described in Table 1 .

Table 1 Source Menu Commands

Command Description

Empty Displays no image (black).

Entire Sequence Makes the entire sequence available in the monitor. This is useful when you want

to compare shots from many different places in a sequence. For example, you can display the current segment and the next segment in two monitors for immediate shot-to-shot comparison and display the entire sequence in the third monitor so that you can quickly navigate to any other part of the sequence you want to view. When you change the current segment, the entire sequence updates to that segment.

You can use the Play Loop button in the Command palette to play the whole

sequence in the active monitor even if the monitor is not set to Entire Sequence. For more information, see “Using the Play Loop Button in Color

Correction Mode” on page 35.

Reference Locks the current frame (the frame the position indicator is on) in the monitor.

When the other monitors update as you navigate in the Timeline, this frame continues to display as a reference. This is useful if you want to use a specific place in your sequence as a reference against which to compare all other shots, for example, a segment that contains optimal skin tones.

To lock the current frame as a reference:

t Right-click (Windows) or Ctrl+Shift+click (Macintosh) in the Composer

window or the Color Correction tool, and select Reference Current.

Current Displays the current segment. This option is not available in the Source menu if

another monitor is already set to Current.

Previous Displays the segment immediately before the current segment.

Chapter 2 Understanding Color Correction Mode

Table 1 Source Menu Commands (Continued)

Command Description

Next Displays the segment immediately after the current segment.

Second Previous Displays the segment two segments before the current segment (the segment the

position indicator is on in the Timeline).

Second Next Displays the segment two segments after the current segment.

Waveform and Vectorscope commands

•Quad Display

• RGB Histogram

•RGB Parade

• Vectorscope

• Y Waveform

• YC Waveform

• YCbCr Histogram

• YCbCr Parade

These commands configure the monitor as a Waveform monitor or Vectorscope monitor. The system displays the information for the currently active monitor. For more information, see “Working with the Waveform Monitors and Vectorscope

Monitor” on page 95.

Splitting the Image Display in Monitors

You can configure a monitor so it splits the screen to show the image before and after the current color correction adjustments are applied.

The Dual Split display does not appear in the Client monitor.

To display uncorrected and corrected images in a split screen (Dual Split):

t Click the Dual Split button for the monitor you want to display the

split screen. The split-screen display appears in the monitor.

The Composer Window in Color Correction Mode

Image with currently active corrections applied

Uncorrected image

The uncorrected image appears on the left, and the image with currently active corrections applied appears on the right. You can resize the box that contains the split-screen image by dragging its triangular handles in the monitor.

Triangular handle for adjusting size of uncorrected image

You can map the Dual Split button from the Command palette to the keyboard. You can then switch Dual Split on and off with a single keystroke. For more information, see “Using the Command Palette” in the Help.

Chapter 2 Understanding Color Correction Mode

To cancel the Dual Split display:

t Click the Dual Split button for the monitor that contains the Dual Split

display. The monitor returns to a single-image view.

Hiding the Video in Monitors

You can hide the video image area of the monitors at any time. When the video is hidden, you see only the Source and Tracking Information Display menus and the position bars for the monitors. The other parts of the Color Correction toolset expand to fill the remainder of your screen. This might be a preferable setting if you can perform your color correction tasks using only the Client monitor to view your image.

To hide the video in the monitors:

t Right-click (Windows) or Ctrl+Shift+click (Macintosh) in the

Composer window, and select Hide Video. When the video is hidden, a check mark appears beside the Hide Video

command.

To display the video again:

t Right-click (Windows) or Ctrl+Shift+click (Macintosh) in the

Composer window, and select Hide Video. When the video is visible, there is no check mark beside the Hide

Video command.

Displaying 16:9 Video in Monitors

You can display wide-screen 16:9 video as well as standard format 4:3 video in the monitors. However, you must switch to or from 16:9 display while in editing mode and then select Color Correction mode. The 16:9 Video option is unavailable in the shortcut menu when you are in Color Correction mode.

The Composer Window in Color Correction Mode

To display 16:9 video in the monitors:

t In editing mode, right-click (Windows) or Ctrl+Shift+click

(Macintosh) in the Composer window, and select 16:9 Video. For information on selecting editing mode, see “Customizing the

Composer Window” in the Help. When the monitors are set to display 16:9 video, a check mark appears

beside the 16:9 Video command.

To display standard format 4:3 video again:

t In editing mode, right-click (Windows) or Ctrl+Shift+click

(Macintosh) in the Composer window, and select 16:9 Video. When the monitors are set to display 4:3 video, there is no check mark

beside the 16:9 Video command.

Using the Composer Window Buttons

The buttons in the following illustration are available for each monitor in the Composer window when you are using Color Correction mode. You can use these buttons to play footage, move around in your sequence, display a split-screen view, and remove effects.

All these buttons are available in the Command palette and can be mapped from the Command palette to the keyboard using the procedure described in “Using the Command Palette” in the Help.

You cannot map other buttons to the Composer Window button locations of the Color Correction toolset.

Chapter 2 Understanding Color Correction Mode

Table 2 describes these buttons in detail and indicates their location within

the Command palette.

Table 2 Composer Window Buttons

Button Description

Command Palette Tab

Dual Split Splits the screen in the monitor to show the image before

and after the current Color Correction settings are applied. For more information, see “Splitting the Image Display in

Monitors” on page 30.

The Dual Split display does not appear in the Client

monitor.

Go to Previous Shot Moves the position indicator to the first frame of the

previous shot in the topmost selected video track.

Go to Next Shot Moves the position indicator to the first frame of the next

shot in the topmost selected video track.

Play Plays the material in the monitor from the current position

of the position indicator to the end of the segment. If Sequence is selected in the Source menu, clicking this button plays the material from the current position of the position bar to the end of the sequence. Clicking the button again stops play.

Go to Previous Uncorrected Shot

Moves the position indicator to the first frame of the last segment before the current segment in the topmost selected video track that has not been color corrected.

Other

Move

Play

Go to Next Uncorrected Shot

Remove Effect Removes the color correction on the current segment. FX

Moves the position bar to the first frame of the first segment after the current segment in the topmost selected video track that has not been color corrected.

The Composer Window in Color Correction Mode

Using the Play Loop Button in Color Correction Mode

The Play Loop button has a specialized function in Color Correction mode. The Play Loop button does not appear in the Composer window but does control the playback of material in the Composer window. You can access the Play Loop button from the Play tab of the Command palette or from the keyboard if it has been mapped to a keyboard location.

When you click the Play Loop button, the system plays the whole sequence in the active monitor, starting from the current position of the position indicator. Playback is not limited to the current segment alone, regardless of the Source menu command selected for the monitor. This is useful whenever you want to view the whole sequence quickly without switching monitors or making a new Source menu choice.

Reviewing Color-Corrected Clips with the Edit Review Button

The Edit Review button has a specialized function in Color Correction mode. The system plays the current clip along with parts of the previous and next clips, allowing you to quickly review the color correction on a clip in the context of the adjoining clips.

The Edit Review button does not appear in the Composer window, but you can access the Edit Review button from the Play tab of the Command palette or from the keyboard if it has been mapped to a keyboard location.

When you click the Edit Review button, the system plays part of the previous clip, all of the current clip, and part of the next clip. When playback is complete, the position indicator returns to its location in the current clip before you clicked the button.

The amount of material the system plays from the previous and next clips is determined by the current Preroll and Postroll settings in the Play Loop tab in the Trim Settings dialog box. For more information on Trim settings, see “Working in Trim Mode” in the Help.

Chapter 2 Understanding Color Correction Mode

The Client Monitor in Color Correction Mode

The Client monitor can be an important tool for color correction since it allows you to see your corrections as they will appear when output and displayed on a television screen. Your system’s Edit monitor does not have exactly the same color and luminance display characteristics as a television monitor.

With some Avid editing applications, to use a Client monitor requires that you select “High Performance (more simultaneous effects)” in the Video Display Settings dialog box. For information about the Video Display Settings dialog box, see “Understanding Real-Time Effects Processing” in the Help.

When you are using Color Correction mode, the Client monitor displays the image that is in the currently active monitor in the Composer window. By switching from one monitor to another in the Composer window, you can quickly compare whichever three images are currently displayed in the monitors. For more information on switching between monitors, see

“Activating Monitors” on page 26.

Some Avid editing applications support Dual Split display in the Client monitor. For those systems, when you select Dual Split for the active monitor, the split-screen display also appears in the Client monitor. This allows you to compare uncorrected and corrected versions of the same segment within the Client monitor. If you right-click (Windows) or Ctrl+Shift+click (Macintosh) the Color Correction tool, and select Dual Split with Reference, the split-screen display allows you to compare a shot with the current reference shot within the Client monitor. For more information on using dual-split options, see “Splitting the Image Display in

Monitors” on page 30.

If the Dual Split display does not appear in the Client monitor, your system might not support this feature. If it does, make sure that Show Graphics on Client Display is selected in the Interface Settings dialog box. See “Interface Settings” in the Help.

The Color Correction Tool

In Color Correction mode, you make adjustments in color using the Color Correction tool.

The following illustration shows the Color Correction tool in its default configuration.

The Color Correction Tool

Group tabs

Subdividing tabs

Enable buttons

Color Match control. For more information, see

“Using the Color Match Control” on page 62.

Color Correction bucketsColor adjustment slider controls

Working with the Group and Subdividing Tabs

The Color Correction tool contains two group tabs, the HSL (Hue, Saturation, Luminance) group tab and the Curves group tab.

HSL group tab Curves group tab

HSL group subdividing tabs

Color Correction Tool buttons

Within the HSL group are two tabs on the left side of the tool that subdivide the controls for that group. The Curves group has no subdividing tabs. For more information, see “Understanding Color Correction Groups”

on page 20.

Chapter 2 Understanding Color Correction Mode

Displaying a Group Tab

To display a color correction group tab:

t Click the tab in the area containing the group name.

Displaying an HSL Subdividing Tab

Do not click the Enable button when you want to display a color correction group tab.

The tab is highlighted and moves to the front, and the specific controls for that tab appear.

You can switch between the group tabs using the Page Down key or the Page U p key.

For detailed information on adjusting color using the controls within the color correction groups, see Chapter 3.

To display an HSL subdividing tab:

1. Click the HSL group tab in the area containing the group name.

Click in this area of a tab to display the tab. Do not click the Enable button.

2. Click the subdividing tab in the area that contains the subdivision name.

The subdividing tab is highlighted and moves to the front, and the specific controls for that tab appear.

The Color Correction Tool

Understanding Interaction Between Color Correction Groups

Understanding how the color correction groups work together is important. Adjustments made in each group are applied cumulatively to the current segment and its related material. If you make an adjustment in one group and then go on to make another adjustment in a different group, the image will show the cumulative effect of both adjustments.

This behavior provides you with a great deal of flexibility. For example, if you are unhappy with some of your adjustments, you can disable the group that contains those adjustments or reset its controls to default settings without disrupting other adjustments. The following illustration shows an example of this kind of control over color correction groups.

Enable button for HSL tab is turned on.

The Green and Blue ChromaCurve graphs are adjusted, but the Curves tab is turned off. The Curves tab adjustments are not currently applied to the segment. Adjustments made in the HSL tab are applied to the segment because the HSL tab is turned on, even though the HSL controls are not currently visible.

Enable button for Curves tab is turned off.

For more information on enabling, disabling, and resetting the groups, see

“Working with the Enable Buttons” on page 40.

If you make adjustments in both groups, keep in mind how the cumulative adjustments will affect the final image. Adjustments might accumulate, or cancel each other out, in ways that you do not want. Keep each stage of your correction distinct, and do not duplicate the same adjustment in both groups.

Chapter 2 Understanding Color Correction Mode

Working with the Enable Buttons

In the Color Correction tool, each group tab, subdividing tab, and individual control has an Enable button. These buttons provide an immediate visual guide to the status of the controls while you are making corrections. They also allow you to turn controls on and off in various combinations and quickly reset controls to their default values.

Turning Controls On or Off

To turn a control or tabbed group of controls on, do one of the following:

t Click the Enable button for the control or tabbed group of controls. t Adjust any individual control that is linked to the Enable button.

The Enable button changes to pink, and the control or tabbed group of controls becomes active. The system includes the adjustments in that control or group of controls when calculating the corrected color.

To turn a control or tab off:

Resetting Controls

t Click the Enable button for the control or tab.

The Enable button changes to gray.

To reset a control or a tabbed group of controls to its default values:

1. Display the control or group of controls you want to reset.

2. Alt+click (Windows) or Option+click (Macintosh) the Enable button for that control or group of controls.

The Enable button changes to gray, and all controls linked to that button return to their default values.

You cannot reset controls not currently displayed. If you Alt+click (Windows) or Option+click (Macintosh) the Enable button for a tab whose controls are not currently displayed, you display the controls but do not reset them. Alt+click (Windows) or Option+click (Macintosh) the button again to reset the controls.

Understanding Interaction Between Enable Buttons

The Enable buttons are linked in a hierarchical relationship that mirrors the relationship of the tabs themselves. When you change the status of an Enable button, the change can affect several levels of the hierarchy.

When you Alt+click (Windows) or Option+click (Macintosh) an Enable button to reset controls, you automatically reset all controls at a lower level in the hierarchy. For example, if you Alt+click (Windows) or Option+click (Macintosh) the Enable button for the Red ChromaCurve Curves tab, only that one control is reset to its default value. However, if you Alt+click (Windows) or Option+click (Macintosh) the Enable button for the Curves tab, all the controls in the Curves tab will reset to their default values.

When you turn an Enable button off, the system stops including controls below that button in the hierarchy when it calculates the corrected color for the segment. Individual controls below that button retain their values and can be reactivated at any time. Their Enable buttons remain pink.

The Color Correction Tool

™

graph in the

The Curves tab Enable button is turned off, so none of the adjustments in the Curves tab are applied to the correction. Individual controls inside the tab retain their values and can be reactivated by clicking the Curves tab Enable button again.

Chapter 2 Understanding Color Correction Mode

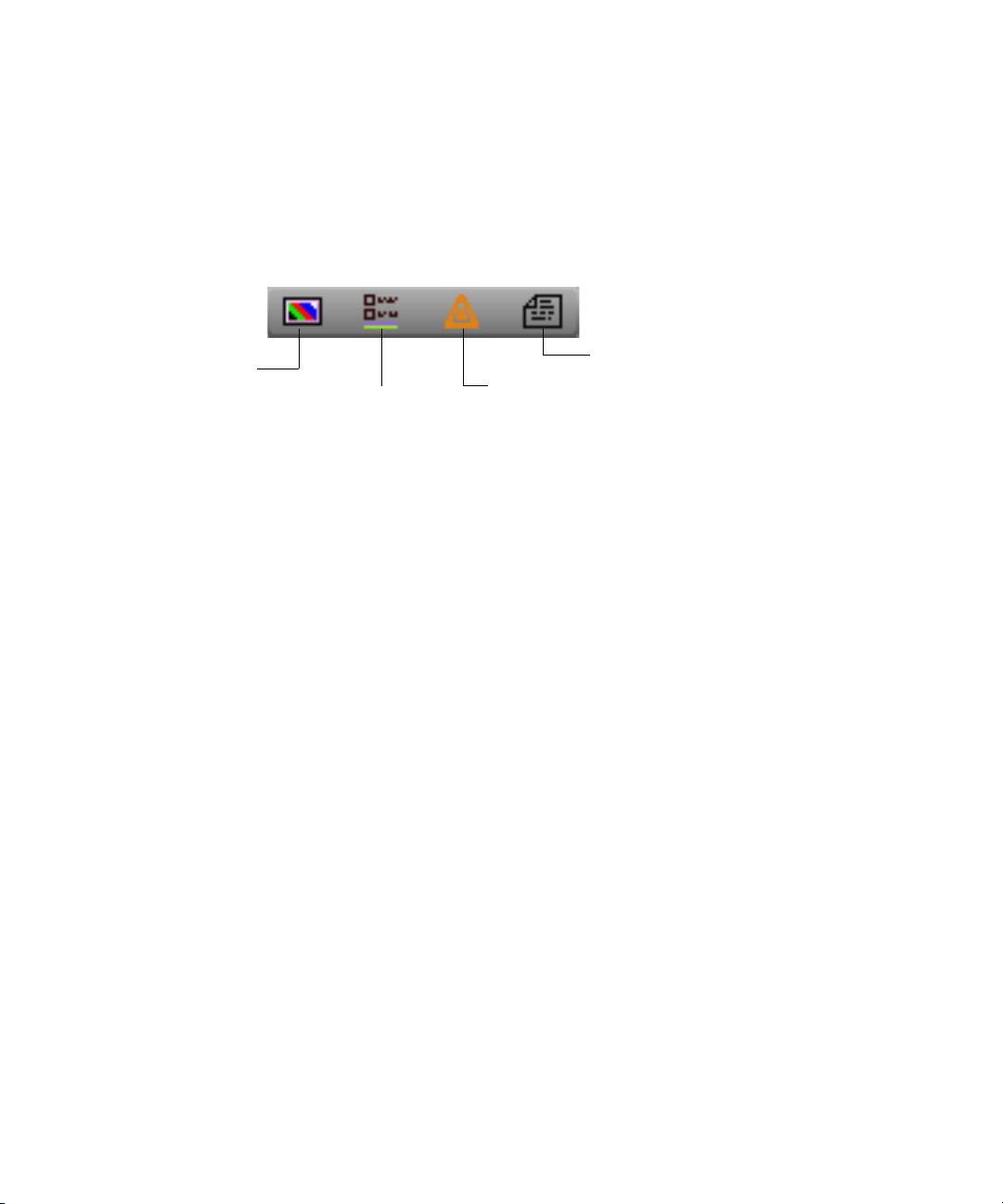

Using the Color Correction Tool Buttons

In addition to the Enable buttons, and specific control buttons within groups, the Color Correction tool has a group of buttons on the right side that control several important operations.

Color Correction Effect Template button

Comments button

Correction Mode Settings button

Safe Color Settings button

Use these buttons to:

• Create Color Correction effect templates. For more information, see “Working with Color Correction Effect

Templates” on page 46.

• Customize the operation of Avid Color Correction. For more information, see “Customizing Color Correction Mode

Settings” on page 43.

• Set Safe Color limits. For more information, see Chapter 5.

• Add comments to color-corrected segments. For more information, see “Adding Comments to Color Correction

Effects” on page 45.

Customizing Color Correction Mode Settings

You can customize the appearance and behavior of Color Correction mode by selecting options in the Correction Mode Settings dialog box.

To customize Color Correction mode:

1. Do one of the following: t In the Color Correction tool, click the Correction Mode Settings

button.

t In the Project window, click the Settings tab, and then double-click

Correction.

The Correction Mode Settings dialog box opens.

2. Click the tab that contains the options you want.

-The Features tab controls several aspects of the appearance and

behavior of Color Correction mode. Tab le 3 describes the options available in the Features tab.

-The AutoCorrect tab contains pop-up menus for defining which

automatic color corrections are made when you apply the Color Correction effect from the Effect Palette. For information on the options available in the AutoCorrect tab, see “Selecting

AutoCorrect Options” on page 107.

The Color Correction Tool

3. Select the options you want.

4. Click OK.

Table 3 Correction Mode Settings

Features Tab Options

Option Description

Saved Color Labels Select an item from the pop-up menu to control how custom colors are named in

bins. For information on saving custom colors, see “Saving Custom Colors to a

Bin” on page 69.

• None When selected, the application does not supply a name.

Chapter 2 Understanding Color Correction Mode

Table 3 Correction Mode Settings

Features Tab Options (Continued)

Option Description

• RGB When selected, the application uses the 8-bit values for the red, green, and blue components as the name.

• Name When selected, the application uses the name from the standard HTML color scheme that most closely matches the color you are saving.

• Name and RGB When selected, the application uses both the Name and the RGB information as the name. This is the default option.

Real Time Image Updating

Eyedropper 3 x 3 Averaging

Show Eyedropper Info When this option is selected, the numerical RGB values appear on the color

Eyedropper Picks from Anywhere in Application

When this option is selected, the image in the active monitor updates on-the-fly as you move controls in the Color Correction tool. This provides instant feedback on your adjustments, but the updating process might not always be smooth due to system processing limitations. This is the default option.

You can switch the current setting for Real Time Image Updating on and

off by pressing and holding the Alt key (Windows) or Option key (Macintosh). If Real Time Image Updating is on, pressing and holding the Alt key (Windows) or Option key (Macintosh) will turn updating off temporarily. If Real Time Image Updating is off, pressing and holding the Alt key (Windows) or Option key (Macintosh) will turn updating on temporarily.

When this option is selected, the application calculates the color value to pick by averaging the values of a 3 x 3 sample of pixels centered on the eyedropper’s position. This is often useful for picking up a color accurately by sight because it compensates for shifts in color value from one pixel to another. When this option is deselected, the application selects the color value of the exact pixel at the eyedropper’s position.

swatches in the Color Match controls.

When this option is selected, the eyedropper can pick a color from anywhere within the Avid application, for example, the swatch for a custom color in a bin.

Adding Comments to Color Correction Effects

You can add comments to color-corrected segments to assist you in your work. For example, you might want to briefly note the type of adjustment you made to a segment or to make notes during a preliminary correction pass of ideas for adjustments to be done later during a final pass.

The Comments button indicates whether a comment is present on a segment.

If the position indicator is on a segment that has a comment, the icon on the Comments button is yellow.

If the position indicator is on a segment that has no comment, the icon on the Comments button is not yellow.

To add a comment to a segment:

1. If you are not already in Color Correction mode, do one of the following:

t Select Toolset > Color Correction.

The Color Correction Tool

t Press Shift+F8.

2. Move the position indicator to the segment to which you want to add a comment.

3. In the Color Correction tool, click the Comments button. The Comments dialog box opens.

4. Type your comment in the text window, and click OK.

To remove a comment:

1. If you are not already in Color Correction mode, do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8.

2. Move the position indicator to the segment from which you want to remove the comment.

Chapter 2 Understanding Color Correction Mode

3. In the Color Correction tool, click the Comments button. The Comments dialog box opens.

4. Click Remove.

To view or edit a comment in the Comments dialog box:

1. If you are not already in Color Correction mode, do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8.

2. Move the position indicator to the segment for which you want to view the comment.

3. In the Color Correction tool, click the Comments button. The Comments dialog box opens and displays the text of the comment.

4. (Option) To edit the comment, click in the text window and make your edits using standard word processing procedures.

Working with Color Correction Effect Templates

Avid Color Correction offers the following versions of Color Correction effect templates:

• The Color Correction buckets provide an easily accessible location within the Color Correction tool for the short-term storage of Color Correction effect templates.

• The Color Correction Effect Template button allows you to create a template for any color correction and save it to a bin in the same way that you save other kinds of effect templates. The Save Correction button in the CC tab in the Command palette performs the same function.

Like templates for other effects, Color Correction effect templates save all the adjustment values for a color correction so you can apply those values quickly to another segment. You can apply all the values at once by dragging the template into the monitor containing the current segment, or

Working with Color Correction Effect Templates

you can apply the values for the controls in a single tab in the Color Correction tool by dragging the template onto the tab that contains the group of controls you want to change.

You can also apply a Color Correction effect template to multiple segments at once by selecting the segments and then double-clicking the effect template icon in the bin or in the Effect Palette. To do this, you must be in editing or Effect mode.

You can also save custom colors to bins. For more information, see “Using

the Color Match Control” on page 62.

Understanding How Color Correction Effect Templates Save Settings

When you create a Color Correction effect template, the application saves all the Color Correction settings for the segment. The system remembers both the values set for each control and the status of each Enable button.

Templates saved to a bin or a bucket do not update when you make new adjustments to the segment. To save new adjustments, you must save a new template to a bin or a bucket.

You can specify which settings you apply in a template by dragging the template to the active tab in the Color Correction tool. This changes only those settings contained within that tab. Using this method, you can, for example, apply settings one tab at a time without applying any other settings that might also be saved in a template.

Saving a Color Correction Effect Template to a Bin

You can save a Color Correction effect template to a bin using either the Color Correction Effect Template button in the Color Correction tool or the Save Correction button in the CC tab of the Command palette.

Color correction templates saved to a bin are saved permanently, unlike templates saved to a bucket, which are not saved beyond the current working session.

Chapter 2 Understanding Color Correction Mode

To save a Color Correction effect template to a bin:

1. If you are not already in Color Correction mode, do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8.

2. Make sure that the position indicator is in the segment that contains the settings you want to save.

3. Do one of the following: t Click the Color Correction Effect Template button, press and hold

the mouse button, and then drag the effect icon to a bin.

t With Active Palette selected in the Command palette, click the

Save Correction button in the CC tab.

t If the Save Correction button is mapped to a key, press that key.

Effect icons for open bins are also displayed in the Effect Palette.

A new effect template appears in the bin, containing all the color correction adjustment values for the segment. The new effect template is identified in the bin by its effect icon. By default, the system names the template using the clip name of the segment.

4. (Option) To rename the template, click the template name and type a new name.

Saving a Color Correction Effect Template to a Bucket

The Color Correction tool provides four buckets, located below the Color Match control, that you can use to save Color Correction effect templates for the duration of a working session. You can then apply the template quickly to any segment. The buckets are labeled C1 through C4.

You can map any Color Correction bucket from the CC tab in the Command palette to the keyboard, for example, to a function key, using the standard procedures for mapping buttons described in “Using the Command Palette” in the Help.

The following illustration shows the Color Correction buckets.

Working with Color Correction Effect Templates

Icon holders

Buckets

To save a Color Correction effect template in a bucket:

1. If you are not already in Color Correction mode, do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8.

2. Make sure that the position indicator is in the segment that contains the adjustment values you want to save.

3. Alt+click (Windows) or Option+click (Macintosh) the bucket in which you want to save the template.

Select a bucket from the range C1 to C4. Empty buckets have a blank icon holder above them. If you Alt+click (Windows) or Option+click (Macintosh) a bucket that already contains a template, you overwrite the previous template with the new adjustment values.

The values are saved as a template, and a Color Correction icon appears in the icon holder above the Color Correction bucket.

Color Correction effect templates saved to buckets do not remain from one session to another. When you end your session, the system deletes the templates. You can save an effect template in a bucket permanently by clicking the Color Correction icon in the icon holder and dragging it toabin.

Chapter 2 Understanding Color Correction Mode

Applying Color Correction Effect Templates

For help, see “Entering

and Exiting Color Correction Mode” on page 24.

To apply all adjustment values in a Color Correction effect template to the current segment, do one of the following in Color Correction mode:

t Click the effect icon for the template in the bin, the Effect Palette, or

the Color Correction bucket icon holder, and drag it to the monitor containing the current segment.

For tips on working with templates in the Effect Palette, see “Saving a

Color Correction Effect Template to a Bin” on page 47.

t Select the template in the bin or the Effect Palette, and then press Enter

(Windows) or Return (Macintosh).

t Click the appropriate Color Correction bucket (for example, C1). t If you have mapped the Color Correction bucket to the keyboard, press

the appropriate key. The system applies all the Color Correction adjustments in the

template to the segment that is the current location of the position indicator.

To apply adjustment values from a Color Correction effect template selectively to a single tab of color correction controls:

1. In the Color Correction tool, click the tab to which you want to apply the template.

2. Click the effect icon for the template in the bin, the Effect Palette, or the Color Correction bucket icon holder, drag it to the tab, and drop it anywhere in the tab.

The controls in that tab update to reflect the values in the template. Other color correction controls are not affected.

If you apply template settings to a subdividing tab in the HSL group, the image in the monitor does not reflect those settings until you enable the HSL group tab.

Working with Color Correction Effect Templates

If you apply a saved Color Correction effect template to a segment that already has a color correction, you overwrite the existing correction. The existing Color Correction settings are lost. Make sure you want to replace the existing correction before you apply a saved Color Correction effect template to a clip that already has a correction. You can use the Undo command to undo the effect of a Color Correction effect template. However, once the Undo command is no longer available, you cannot recover the original Color Correction settings.

To apply all adjustment values in a Color Correction effect template to multiple segments:

1. In editing or Effect mode, select the segment to which you want to apply the Color Correction effect template.

For more information, see “Applying an Effect to Multiple Segments” in the Help.

2. Open the bin that contains the Color Correction effect template.

3. Double-click the Color Correction effect template icon in the bin or in the Effect Palette.

The application applies the Color Correction effect template to each of the selected segments.

Working with Color Correction Effect Templates in the Effect Palette

The following list of reminders and suggestions can help you work quickly when you are using saved Color Correction effect templates in the Effect Palette.

• Press Ctrl+8 (Windows) or k+8 (Macintosh) to open the Effect Palette or to make the Effect Palette active.

The Effect Palette becomes inactive whenever you perform an action in another area of the interface (for example, when you move the position indicator in the Timeline). Pressing Ctrl+8 (Windows) or k+8 (Macintosh) is a quick keyboard method for reactivating the Effect Palette. The Effect Palette must be active before you can use it to apply a Color Correction effect template.

Chapter 2 Understanding Color Correction Mode

• Use the Tab key to make one side or the other of the Effect Palette active.

For example, if the effect categories list on the left side of the Effect Palette is active, press the Tab key to activate the list of templates on the right side. Press the Tab key again to activate the effect categories list. Clicking a specific item in either list also activates that side of the Effect Palette.

• To display a group of effect templates in the Effect Palette, select the bin or the color-corrected sequence that contains the templates in the effect categories list on the left side of the palette.

• Use the Up Arrow and Down Arrow keys to move through the active list.

For example, you can quickly move from the most recent correction to the third most recent in the list by pressing the Down Arrow key twice.

• The Effect Palette remembers the currently selected item in the list of corrections even when it becomes inactive or is closed.

For example, if you have the most recent correction in the list selected and then leave the Effect Palette to perform another operation or close the Effect Palette, that correction will be the selected correction when you reactivate or reopen the Effect Palette.

This makes it easy to apply the same template successively to a number of segments, especially if you have navigation buttons such as Fast Forward, Rewind, Go to Next Uncorrected Shot, and Go to Previous Uncorrected Shot mapped to the keyboard. Once you have the template you want selected in the Effect Palette, you simply navigate to another segment, press Ctrl+8 (Windows) or k+8 (Macintosh) to activate the Effect Palette, and then press Enter (Windows) or Return (Macintosh) to apply the template.

Chapter 3

Performing Color Corrections

This chapter describes procedures for making color corrections and provides a complete explanation of all the controls in the Color Correction tool.

• General Workflow for Making Color Corrections

• Using Automatic Color Corrections

• Using the Color Match Control

• The HSL (Hue, Saturation, Luminance) Group

• The Curves Group

• Working with the Waveform Monitors and Vectorscope Monitor

• Applying Color Corrections to an Entire Sequence

• Using Color Correction Effects in the Effect Palette

Chapter 3 Performing Color Corrections

General Workflow for Making Color Corrections

Avid Color Correction gives you a great deal of flexibility when you make color corrections. The exact workflow that you employ will depend on your individual methods, your degree of familiarity with the color correction controls, and the requirements of your project. However, the basic steps to take when making a correction will be similar for all users.

The following procedure outlines a typical color correction operation. You can adapt the exact order in which steps are performed or repeated to conform to your particular needs.

To color correct a sequence:

1. In editing mode, load the sequence.

2. Do one of the following:

t Select Toolset > Color Correction. t Press Shift+F8.

The Color Correction toolset appears.

3. (Option) If necessary, configure the toolset and adjust Correction Mode Settings to suit the requirements of your project and editing style. For more information, see Chapter 2.

4. Preview the material in the sequence to develop a sense of the kinds of corrections that are needed and the approach you will use to make them.

For example, you might look for a shot that you would like to use as a reference for your adjustments and lock that shot in one of the monitors. For general guidance on what to look for when previewing material, see Chapter 4.

Some users might prefer to preview extensively and plan their corrections in advance. Others, especially those with more color correcting experience, might work by moving back and forth frequently between making corrections and assessing the material on which they are working.

Using Automatic Color Corrections

5. Make sure that the Record Track button for the track on which you want to make corrections is the topmost selected button in the Track Selector panel in the Timeline.

You can color correct any number of tracks, including nested tracks by stepping into the nest. However, you can correct only one track at a time. Color correction is applied to the topmost selected track in a sequence.

6. Use the Composer Window buttons or the position indicator in the Timeline to move to a segment you want to correct.

7. Click the appropriate tabs in the Color Correction tool to display the controls you want to use to make the correction.

8. Use the automatic color correction features or adjust the color correction controls manually until you are satisfied with the correction.

Remember that you can repeat steps 7 and 8 to make successive adjustments using several different groups of controls and to selectively turn them on and off while you assess their effect on the segment. You can use the Dual Split button in the monitors to view corrected and uncorrected images side by side.

9. (Option) Add a comment for the correction.

10. Repeat steps 5 through 9 for each segment you want to correct.

11. When you are satisfied with the corrections throughout the sequence, make a selection from the Toolset menu to exit Color Correction mode and return to other editing operations.

Using Automatic Color Corrections

Both color correction groups include buttons that allow you to make automatic color corrections to correct contrast problems, balance color, or remove color casts by identifying areas of an image that should be color neutral.

You can also apply up to three automatic color corrections in a single operation by selecting options in the AutoCorrect tab of the Correction Mode Settings dialog box and applying the Color Correction effect from

Chapter 3 Performing Color Corrections

the Effect Palette to one or more segments in a sequence. For more information, see “Using Color Correction Effects in the Effect Palette” on

page 106.

The Color Match control also corrects automatically by adjusting an image so that a poor color value matches a better one. You select the colors on which you want Color Match to operate using an eyedropper. For more information, see “Using the Color Match Control” on page 62.

Understanding Automatic Color Correction

Automatic color correction simplifies the work of correcting common color problems in video images. When you use one of the automatic color corrections, Avid Color Correction analyzes the existing color characteristics of an image and makes adjustments to color correction controls that usually eliminate or at least significantly reduce a specific color problem.

You will often want to begin your color correction work by using automatic color corrections, especially if you do not have time for detailed manual adjustments, if you only need to correct basic color problems such as color casts, or if you lack experience with the manual controls in the Color Correction tool.

Since automatic color correction adjusts controls in the Color Correction tool just as you would when making manual corrections, you are always free to make additional adjustments manually if you need to fine-tune the correction. Also, automatic color corrections can help you learn how to recognize color problems in images and what kinds of adjustments you might make to correct images manually. For example, if the Auto Balance automatic correction in the Hue Offsets subdividing tab adjusts an image

™

by adding yellow in the ChromaWheel

controls, then the analysis of that

image revealed a blue color cast.

Automatic color corrections operate within normal limits for legal video levels. For example, an automatic color correction will not make an adjustment that takes a significant area of an image beyond legal luminance levels.

Using Automatic Color Corrections

Adjusting Contrast and Balance Automatically

You can adjust the contrast and balance the color automatically for an image simply by clicking buttons. An automatic contrast adjustment expands the tonal range of the image, which usually improves sharpness and detail. An automatic balance adjustment evens out the influence of the different color channels in the image, which usually greatly reduces or even eliminates any color cast.

Automatic contrast and balance buttons appear in the Color Correction tool in the following locations:

• The Hue Offsets subdividing tab of the HSL tab, as shown in the following illustration:

Auto White button

Auto Balance button

Auto Black button

Auto Contrast button

• The Curves tab, as shown in the following illustration:

Auto Contrast button

Auto Balance button

To make an automatic contrast or balance adjustment:

1. If you have not already done so: a. Move the position indicator to the segment you want to correct. b. Click the Color Correction group tab or subdividing tab that

contains the automatic correction button you want to use.

2. Click the appropriate automatic correction button. The application analyzes the currently selected frame in the segment

and adjusts the appropriate color correction controls. Table 4 lists the available contrast and balance buttons and describes their function.

Chapter 3 Performing Color Corrections

Table 4 Automatic Contrast and Balance Buttons

Location in Color

Button

Correction Tool

Description

Auto Balance HSL tab, Hue Offsets

subdividing tab

Auto Black HSL tab, Hue Offsets

subdividing tab

Auto Contrast HSL tab, Hue Offsets

subdividing tab

Auto White HSL tab, Hue Offsets

subdividing tab

Auto Balance Curves tab Makes adjustments to the Red, Green, and Blue curves to balance

Auto Contrast Curves tab Makes an adjustment to the Master curve to maximize the tonal

Makes adjustments to the three ChromaWheel controls to balance the colors in the image. This eliminates any color cast for most images.

Makes an adjustment to the Setup control that makes the darkest areas of the image as dark as possible.

Makes adjustments to the Gain and Setup controls to maximize the tonal range in the image. The brightest areas of the image are made as bright as possible, and the darkest areas of the image are made as dark as possible.

Makes an adjustment to the Gain control that makes the brightest areas of the image as bright as possible.

the colors in the image. This eliminates any color cast for most images.

range in the image. The brightest areas of the image are made as bright as possible, and the darkest areas of the image are made as dark as possible.

Using the Remove Color Cast Buttons

You can remove a color cast automatically by clicking a Remove Color Cast button and using an eyedropper to identify an area in your image that you want to be color neutral (white, black, or a shade of gray). Avid Color

Using Automatic Color Corrections

Correction analyzes the current color characteristics of the area you have selected and then adjusts color correction controls to make that area color neutral.

Remove Color Cast buttons provide more precise control over color cast removal than Auto Balance buttons because their adjustments are limited either by luminance range or by the impact that they have on existing curve graphs. However, Remove Color Cast buttons are useful only when you are working with an image that has areas that should be color neutral.

Remove Color Cast buttons appear in the Color Correction tool in the following locations:

• Below each of the three ChromaWheel controls in the Hue Offsets subdividing tab of the HSL tab, as shown in the following illustration:

Remove Color Cast button

• In the Curves tab, as shown in the following illustration:

Remove Color Cast button

Each ChromaWheel Remove Color Cast button is associated with the wheel above it. Adjustments are made only to that wheel; only the parts of the image that fall within the luminance range controlled by that wheel are changed. You choose which ChromaWheel control to adjust based on the luminance level of the area you want to identify, as follows:

• To make white or light gray areas of an image color neutral and remove a cast throughout the lightest part of the image, use the Remove Color Cast button below the Highlights ChromaWheel control.

• To make mid-gray areas of an image color neutral and remove a cast throughout the midtones of the image, use the Remove Color Cast button below the Midtones ChromaWheel control.

Chapter 3 Performing Color Corrections

• To make black or dark gray areas of an image color neutral and remove a cast throughout the darkest parts of the image, use the Remove Color Cast button below the Shadows ChromaWheel control.

The Curves tab Remove Color Cast button works by adding a point to each of the Red, Green, and Blue curves that makes the area you identify with the eyedropper color neutral. You can use the Curves tab Remove Color Cast button repeatedly to identify multiple areas that you want to be color neutral. Each new use adds another point to each of the three curves. (You can add new points up to the 16-point limit. Once several points are distributed along the curve, however, further points are unlikely to improve the image significantly).

The effect of each added point on the image as a whole varies depending on the shape of the entire curve. In general, each new point affects the image most in areas with similar luminance values to the area you identify with the eyedropper and affects the image least in areas with very different luminance values.

To use a Remove Color Cast button:

1. If you have not already done so, move the position indicator to the segment you want to correct.

2. Do one of the following: t Click the Remove Color Cast button below a ChromaWheel

control in the Hue Offsets subdividing tab of the HSL tab.

t Click the Remove Color Cast button in the Curves tab.

The button appears highlighted.

3. Drag the pointer into the image. The pointer changes to an eyedropper.

4. Continue to drag the eyedropper until it is over the part of the image you want to become color neutral, and then release the mouse button.

Avid Color Correction analyzes the part of the image you have identified and adjusts the controls to remove the color cast.

Using Automatic Color Corrections

Considerations When Using Automatic Color Correction

Although automatic color corrections are much simpler to learn and perform than manual corrections, practice and experience will still improve your ability to correct a range of images with different color characteristics. If one set of automatic corrections does not produce good results, remove it and try a different combination. Remember also that some images with extreme color characteristics might require manual correction in addition to or instead of automatic correction.

The following tips and suggestions will help you to achieve the best possible results when using automatic color correction:

• The Auto Contrast correction is most useful for images that should have both areas of strong highlight (white or close to white) and areas of strong shadow (black or close to black). If you make an Auto Contrast correction on an image that should not have such a full tonal range (many close-ups fall into this category), the correction might introduce too much contrast. When an image requires strong highlights but not strong shadows (or the reverse), you can use the Auto White or the Auto Black button to set the white or black point without making the overall range of tones too extreme.

• When you perform both an Auto Contrast and an Auto Balance correction, the order in which you perform these two operations affects the final quality of the correction. In most cases, you will achieve the best results by doing the following:

- In the Hue Offsets subdividing tab of the HSL tab, use Auto

Contrast first, and then use Auto Balance.

- In the Curves tab, use Auto Balance first, and then use Auto

Contrast.

• There is usually no gain in performing an automatic correction more than once on the same image, even if the second correction would be made in a different group from the first. For example, once you have performed an Auto Balance correction in the Curves tab, you will not usually see any improvement in the color balance of the image if you perform a second Auto Balance correction either in the Curves tab or in the Hue Offsets subdividing tab of the HSL tab.

Chapter 3 Performing Color Corrections

• If an Auto Contrast and Auto Balance combination has improved an image but some color cast remains, you can often fine-tune the correction using one or more of the Remove Color Cast buttons.

• Automatic corrections you make in the Hue Offsets subdividing tab of the HSL tab and those you make in the Curves tab do not produce identical results for most images (and might produce markedly different results for some images). The methods for calculating the corrections are different, and the controls being adjusted operate differently. Automatic corrections in the Curves tab often work well for correcting basic problems caused by incorrect camera color balancing. Automatic corrections in the Hue Offsets subdividing tab of the HSL tab are often better for more extreme problems such as bad lighting conditions. However, there are no rules that cover all situations. If automatic correction in one Color Correction group does not yield good results, remove it and try a correction in the other group.

Using the Color Match Control

Both Color Correction groups include a Color Match control. This control allows you to quickly make a correction by selecting input and output colors from your images, from the Windows Color dialog box, or from the

Macintosh

Color Picker. If you select Eyedropper Picks from Anywhere in Application in the Correction Mode Settings dialog box, you can also select colors from any other location within your Avid editing application, such as a custom color swatch saved in a bin.

When you use the Color Match control, the application replaces the input color value with the output color value and adjusts all the other color values in the image proportionally. The application also automatically adjusts the other controls in the group to reflect the change. By making menu selections, you can set the combination of color channels or components the application uses to determine the match.

For example, if you want to replace the blue sky tone in one image with that in another to match the two shots, you can use the Color Match control to pick the two colors and automate the color adjustment.

Using the Color Match Control

When you are working in the Curves group, the Color Match control also

™

includes the NaturalMatch

feature. The NaturalMatch feature allows you to replace the hue values in an image with new output values without distorting the saturation and luminance values in the image.

You can also Alt+drag (Windows) or Option+drag (Macintosh) colors to a bin and save them as custom colors. You can then click a custom color and drag it into the Color Match control at any time, or, if you have Eyedropper Picks from Anywhere in Application selected, you can select a custom color from its swatch in the bin using the eyedropper.

The following illustration shows the Color Match control.

Input color swatch

Match Type button

Output color swatch

Match Color button

Making a Correction with the Color Match Control

For complete information on the Correction Mode Settings dialog box, see

“Customizing Color Correction Mode Settings” on page 43.

To make a correction using the Color Match control:

1. In the Color Correction tool, click the tab that includes the Color Match control with which you want to work.

For help, see “Entering and Exiting Color Correction Mode” on

page 24.

2. (Option) If necessary, select either of the following options in the Correction Mode Settings dialog box:

- Eyedropper 3 x 3 Averaging

When you select Eyedropper 3 x 3 Averaging, the application calculates the color value to pick by averaging the values of a 3 x 3 sample of pixels centered on the eyedropper’s position. This is often useful for picking up a color accurately by sight because it

Chapter 3 Performing Color Corrections

compensates for shifts in color value from one pixel to another. When this option is deselected, the application selects the color value of the exact pixel at the eyedropper’s position.

- Eyedropper Picks from Anywhere in Application

When you select Eyedropper Picks from Anywhere in Application, you can pick colors from anywhere in the application using the Color Match eyedroppers. For example, you can pick a target color for a Color Match correction, such as a desirable skin tone, from the swatch that appears beside a custom color saved in a bin or from one of the ChromaWheel controls.

3. Select the input color (the color to be replaced): a. Move the pointer over the input color swatch.

The pointer changes to an eyedropper.

b. Press and hold the mouse button, and then drag the eyedropper to

the area of the image in the monitor from which you want to select an input value.

The input color swatch in the Color Match control updates as you move the pointer in the image.

c. Release the mouse button to complete the selection.

The input color appears in the input color swatch.

If Eyedropper Picks from Anywhere in Application is selected in the Correction Mode Settings dialog box, you can select an input color from another location in your Avid editing application using the eyedropper. Also, you can pick from the Windows Color dialog box or the Macintosh Color Picker by double-clicking the input color swatch. However, you will usually want to select your input color from the current segment.

4. Select the output color: a. Move the pointer over the output color swatch.

The pointer changes to an eyedropper.

b. Press and hold the mouse button, and then drag the eyedropper to

the area of the image in the monitor from which you want to select an output value.

Using the Color Match Control

The output color swatch in the Color Match control updates as you move the pointer in the image.

c. Release the mouse button to complete the selection.

The output color appears in the output color swatch.

Match Type button

You will usually select your output color from an image other than the current segment, such as the next segment or a reference frame. If Eyedropper Picks from Anywhere in Application is selected in the Correction Mode Settings dialog box, you can select an output color from another location in your Avid editing application, such as a custom color swatch in a bin, using the eyedropper. You can also double-click the output color swatch and select a color from the Windows Color dialog box or the Macintosh Color Picker. These alternatives are useful for selecting a saved “ideal” replacement color such as a completely neutral gray or an optimal skin tone. For more information on using the Windows Color dialog box or the Macintosh Color Picker, see “Using the Windows Color Dialog Box” or “Using the Macintosh Color Picker” in the Help.

5. Click the Match Type button, and select a Match Type to determine the exact nature of the match the application makes.

The options available in the Match Type pop-up menu depend on the group in which you are working. For more information on Match Type options, see “Selecting Match Type Options” on page 66.

6. Click the Match Color button to make the correction. The application adjusts the current segment and resets the group

controls to reflect the adjustment. The corrected image displays in the monitor that contains the current segment.

Chapter 3 Performing Color Corrections

Selecting Match Type Options

The options available in the Match Type pop-up menu reflect the way in which color is handled in the group in which you are working. Table 5 describes the options available in the Match Type pop-up menu.

Table 5 Match Type Options

Group Description

HSL (Controls tab)

• H + S + L Makes a match based on the hue, saturation, and luminance of the color selected in the output color swatch.

• Hue Makes a match based on only the hue of the color selected in the output color swatch.

• Saturation Makes a match based on only the saturation of the color selected in the output color swatch.

• Luminance Makes a match based on only the luminance of the color selected in the output color swatch.

HSL (Hue Offsets tab)

• Highlights Makes a match based on both the hue and the saturation across the highlights portion of the tonal range.

• Midtones Makes a match based on both the hue and the saturation across the midtones portion of the tonal range.

• Shadows Makes a match based on both the hue and the saturation across the shadows portion of the tonal range.

Curves

• Master Makes a match based on the luminance of the color selected in the output color swatch.

• R + G + B Makes a match based on the values of all three color channels of the color selected in the output color swatch.

Using the Color Match Control

Table 5 Match Type Options (Continued)

Group Description

• NaturalMatch Switches the NaturalMatch feature on and off. Choose NaturalMatch to select or deselect the NaturalMatch feature.

When this command is selected, all the match types in the Curves group use the NaturalMatch feature when making a correction and match types appear in the Color Match control with the extension (Nat). For more information on the NaturalMatch feature, see “Understanding the NaturalMatch Feature” on page 67.

Understanding the NaturalMatch Feature

In many situations when you are correcting on a shot-to-shot basis, color matching is complicated by differences in lighting between one shot and another. For example, you might want to match the skin tone in Shot A, which is in shadow, with that in Shot B, which is brightly lit. To achieve a natural-looking correction, you need to replace the hue of Shot A while preserving luminance and saturation characteristics that suggest shadow.

The NaturalMatch feature solves this problem by making calculations that compensate for the luminance and saturation qualities of the original image when making the correction. The correction made when you use the NaturalMatch feature adopts the new hue value, preserves the original luminance value, and adjusts the saturation value in relation to the other values. The NaturalMatch feature allows you to use the quick correction method offered by the Color Match control even when images show significant differences in lighting.

Color Match Example Using the NaturalMatch Feature

The following illustrations show an example of the use of the Color Match control and the NaturalMatch feature to correct color from shot to shot.

Chapter 3 Performing Color Corrections

Uncorrected Image

This original image is very gray and shows poor skin tones. The RGB values for a point in the center of the man’s forehead are R:61, G:62, B:66 — an almost completely neutral gray.

Reference Image

This image shows much better color characteristics, including good skin tones and a better color for the canvas of the tent. If we want to present these two shots next to one another in a sequence, we will almost certainly want to make their color characteristics match better. One way to do this is with the Color Match control. If we use the center of the forehead in the first image as an input value and the center of the forehead in this reference image (R:110, G:70, B:56) as an output value, and then make a color match using the NaturalMatch feature to automatically generate ChromaCurve graph adjustments for all three color channels, we can quickly match the skin tones in the weak image to those in the better one.

Corrected Image

Though this image would benefit from further correction (particularly to improve the contrast ratio), it is improved dramatically as a result of the color match. The skin tones and the color of the tent in the background now match the reference image well.

Saving Custom Colors to a Bin

You can save a color that you have selected in the Color Match control as an item in a bin. For example, you might want to save a skin tone that you want to match throughout your sequence. You can then load that color back into the Color Match control whenever you need to make a match based on that color.

To save a color to a bin:

1. In the Color Match control, Alt+click (Windows) or Option+click (Macintosh) the swatch that contains the color you want to save, and press and hold the mouse button.

The pointer changes to a hand, and a rectangular outline appears.

2. Drag the rectangular outline to a bin, and release the mouse button. The color appears in the bin as a rectangular color swatch icon. The

application assigns the color a name based on the current Saved Color Labels settings in the Correction Mode Settings dialog box. For more information, see “Customizing Color Correction Mode Settings” on

page 43.

Using the Color Match Control

3. (Option) If you want to rename the custom color, click the existing name in the bin and type a new name.

To load a custom color into the Color Match control, do one of the following:

t Click the color icon in the bin, and drag it to the appropriate color

swatch in the Color Match control.

t If Eyedropper Picks from Anywhere in Application is selected in the

Correction Mode Settings dialog box, select the saved color from its swatch in the bin using the Color Match eyedropper.

Getting RGB Information Using the Color Match Control

By default, the color swatches in the Color Match control display the RGB values for the selected color. This makes the Color Match control useful as an information palette to check the exact RGB value of a sample area in your image.

Chapter 3 Performing Color Corrections

For example, if you have an area in your image that you know should appear white, you can sample that area using the Color Match eyedropper and check how far its RGB values depart from a true white. If the values are R:231, G:217, B:229, then you know that a little green needs to be added to achieve white. (In other words, the image has a magenta cast.) If you want this area in the image to be exactly reference white (R,G,B:235), you know that you also need to adjust the white point slightly to increase the RGB values.

The HSL (Hue, Saturation, Luminance) Group

The HSL (Hue, Saturation, Luminance) group provides controls that allow you to alter attributes such as hue, saturation, gain, and gamma. These controls resemble those found in the Video Input tool and in the Color Effect, and, therefore, HSL is the group in the Color Correction tool that will be most familiar to experienced Avid editors.

The HSL group also allows you to specify an offset for the hue of an image, a control that is especially useful for correcting a color cast. For example, when an object in an image that should be a neutral gray appears tinged with a color, you can use the offset adjustment to restore the correct gray color. You can make Hue Offset adjustments in three different luminance ranges — highlights, midtones, and shadows — allowing you more precise control over color cast corrections.

You can invert both the chrominance and luminance values in an image with a single click. You can also set clipping values for both the High and Low ends of the luminance range.

Using the HSL controls, you can correct a wide range of problems. If you are comfortable working with the HSL group and gain some experience using it, you might be able to make most of your common corrections without needing to use the Curves group. For some kinds of adjustments, however, you might find the curve graph controls in the Curves group more suitable. The Auto Contrast and Auto Balance buttons in the Curves group might correct a basic color balance problem more successfully than HSL group corrections.

Working with the Controls Tab

The Controls tab of the HSL group includes slider controls for making adjustments to hue, saturation, and luminance values. It also includes the Color Match control for making hue, saturation, and luminance adjustments automatically, based on selected input and output color values. For information on the Color Match control, see “Using the Color Match

Control” on page 62.

The following illustration shows the Controls tab.

The HSL (Hue, Saturation, Luminance) Group

Making Corrections Using the Controls Tab

To make a correction using the Controls tab:

1. If you have not already done so: a. Move the position indicator to the segment you want to correct. b. Click the HSL tab. c. On the left side of the Color Correction tool, click the Controls

subdividing tab.

2. Make your adjustments by doing one of the following: t Adjust one or more of the individual slider controls or buttons. For

more information, see “Using the HSL Slider Controls” on

page 72 and “Controls Tab Controls” on page 73.

t Use the Color Match control to make a correction by selecting

input and output colors. For more information, see “Using the

Color Match Control” on page 62.

Chapter 3 Performing Color Corrections

Using the HSL Slider Controls

The following illustration shows details of the HSL controls.

Enable button

Direction buttons

Text box

To adjust the HSL slider controls, do one of the following:

Slider

t Type a value in the text box, and then press Enter (Windows) or Return

(Macintosh).

t Click the slider, and drag it to a new value. t Click one of the direction buttons to change the value in small

increments.

t Click one of the direction buttons, and press and hold the mouse button

to change the value quickly over a large range.

You can “nudge” the numerical value of a control up or down by small increments. To do this, click in the text box, and then press the Up Arrow key to increase the value or the Down Arrow key to decrease the value.

Each slider control has an Enable button that you can click to turn that control on or off or Alt+click (Windows) or Option+click (Macintosh) to reset the control to its default value. For more information, see “Working

with the Enable Buttons” on page 40.

The HSL (Hue, Saturation, Luminance) Group

Controls Tab Controls

Table 6 describes the individual controls available in the Controls tab of

the HSL tab.

Table 6 Controls Tab Controls

Control Description

Hue Shifts the hues in the image around the color wheel. Values range from –180 to 180, where

0 is the default and causes no change in the image. A value of 120 shifts red to blue, and a value of –120 shifts red to green.

Saturation Specifies the amount or intensity of color. Values range from 0 to 200, where 100

represents no change to the image, 0 represents complete desaturation (monochrome image), and 200 represents maximum saturation.

Brightness Adjusts the luminance of the image by shifting the luminance value of every pixel by the

value set in the control. Values range from –100 to 100, where –100 subtracts 100 from the 8-bit luminance value of every pixel, and 100 adds 100 to the 8-bit luminance value of every pixel.

The effect of the Brightness control is very similar to that of the Setup control (on the Hue Offsets tab). One important difference, however, is that the Brightness control interacts with the Contrast control, while the Setup control interacts with the Gain and Gamma controls. If you have made a Contrast adjustment, it is better to adjust luminance further using the Brightness control. If you have made an adjustment using the Gain control or the Gamma control, it is better to adjust luminance further using the Setup control.

Contrast Increases or decreases the amount of contrast in the image. Values range from –100 to

100, where –100 represents no contrast (all pixels mapped to neutral gray) and 100 represents maximum contrast.

Clip Low Clip High

Invert Chroma Replaces the color value of every pixel in the image with the opposite color value on the

Invert Luma Reverses the brightness level of every pixel in the image. Dark areas become light, and

Sets the Low clip and the High clip for the image. All pixels with the Low clip value or less are clipped to black; all pixels with the High clip value or more are clipped to white. The default settings for these controls are 16 and 235 on an 8-bit scale, representing the normal broadcast values for black and white.

color wheel. This is the equivalent of setting the Hue control to 180 or –180.

light areas become dark.

Chapter 3 Performing Color Corrections

Working with the Hue Offsets Tab

The Hue Offsets tab of the HSL group includes the following controls:

• Three ChromaWheel controls that allow you to adjust hue and saturation values at the same time by dragging in color wheels, by entering values in linked text boxes, or by using the Remove Color Cast buttons. Each ChromaWheel control adjusts a distinct luminance range — Shadows, Midtones, and Highlights. These controls are especially well-suited for correcting color casts in images. For more information, see “Understanding the ChromaWheel Controls” on

page 75 and “Using the Remove Color Cast Buttons” on page 58.

• Slider controls for adjusting Gain, Gamma, and Setup. These controls offer one of the best ways to control the tonal range of your images. For more information, see Table 7 on page 78.

• Four automatic color correction buttons that automatically adjust the Gain control and the Setup control or the ChromaWheel controls based on an analysis of the color characteristics of the active frame. For more information, see “Adjusting Contrast and Balance Automatically” on

page 57.

• The Color Match control, which you can use to automatically make a hue offset adjustment based on selected input and output colors. For information on the Color Match control, see “Using the Color Match

Control” on page 62.

Since the Hue Offsets ChromaWheel controls provide an adjustment method that is similar to the physical controllers on traditional color correction equipment, experienced colorists might choose to use them as their preferred controls for many color adjustments.

The HSL (Hue, Saturation, Luminance) Group

The following illustration shows the Hue Offsets tab.

ChromaWheel

Midtones ChromaWheel

Highlights ChromaWheel

Understanding the ChromaWheel Controls

The ChromaWheel controls in the Hue Offsets tab show outlines that resemble the design of a vectorscope monitor, overlaid on full-color depictions that show the color represented by each area of the wheel. Each ChromaWheel control appears as a circular graph that represents hue and saturation values. Hue values are mapped around the circumference of the wheel, with colors in the same positions that they occupy on a vectorscope. Red is at the 0° point on the wheel, and cyan is at the 180° point.

As you move around the wheel counterclockwise from red to cyan, you move through positive degree values. For example, green is at +120°. As you move around the wheel clockwise from red to cyan, you move through negative degree values. For example, blue is at –120°.

Saturation values are mapped along the radius of the wheel. The center point of the wheel represents zero saturation (neutral gray); the edge of the wheel represents maximum saturation. As you move out from the center of the wheel, you shift from less to more saturation. Saturation values are measured on a scale from 0 (zero saturation) to 100 (maximum saturation).

Color Match controlShadows

By picking a specific point on the wheel, you select an exact combination of hue and color intensity to add to your image. You can select a gray with a slight yellow tinge near the center of the wheel, for example, or an intensely saturated blue at the outer edge.

Chapter 3 Performing Color Corrections

Hue changes as you move around the wheel.

Saturation increases from the center of the wheel toward the edge.

The ChromaWheel control shows the degree values for measuring hue.

When you use the ChromaWheel controls to correct a color cast, you use a basic principle of color theory: you can cancel out one color in an image by adding an equal amount of the opposite color on the wheel. For example, to remove a red cast, add some cyan. To remove a yellow cast, add some blue. You do not even need to remember which colors are opposite when you use the ChromaWheel control. Simply add some color from the opposite side of the wheel to the color you want to remove, and then fine-tune your adjustment until you are satisfied with the result.

The Hue Offsets ChromaWheel controls are designed to create a familiar environment for users by duplicating the general appearance of a vectorscope monitor. Their representation of hue and saturation values does not exactly match the calibration of a true vectorscope monitor.

Making Corrections Using the Hue Offsets Tab

To make a correction using the Hue Offsets tab:

1. If you have not already done so: a. Move the position indicator to the segment you want to correct. b. Click the HSL tab. c. Click the Hue Offsets subdividing tab.

2. Make your adjustments by doing one or more of the following: t Click one or more of the automatic color correction buttons. For

more information, see “Adjusting Contrast and Balance

Automatically” on page 57.

t Use one or more of the Remove Color Cast buttons below the

ChromaWheel controls. For more information, see “Using the

Remove Color Cast Buttons” on page 58.

t Use the Color Match control to calculate an offset automatically,

based on input and output colors. For more information, see

“Using the Color Match Control” on page 62.

The HSL (Hue, Saturation, Luminance) Group

t Move the crosshair pointer on the appropriate the NaturalMatch

feature control. For more information, see “Using the

ChromaWheel Crosshair Pointers” on page 79.

As you move the pointer in the wheel, the Hue and Amount text boxes update to display numerical values for the adjustment.

t Type values in the Hue and Amount text boxes for the appropriate

ChromaWheel control to set the offset you want. You must press Enter (Windows) or Return (Macintosh) after typing a value for it to take effect.

Hue values range from –180° to 180° where 0° is the position of red on the wheel. Amount values range from 0 to 100. When you change the Hue and Amount values, the pointer on the ChromaWheel control updates to represent the adjustment.

Chapter 3 Performing Color Corrections

t Adjust one or more of the Gain, Gamma, and Setup controls. For

more information, see “Using the HSL Slider Controls” on

page 72 and Table 7 on page 78.

3. Fine-tune your adjustments until you are satisfied with the result. Remember that you can make adjustments on more than one

ChromaWheel control and turn them on and off individually to assess their effect on the image.

Table 7 Hue Offsets Tab Controls

Control Description

Gain Adjusts the gain or white point for the image. Values range from 0 to 200, where

100 represents the unchanged image.

The main difference between Brightness (on the Controls tab) and Gain is that Brightness adjusts by adding to the 8-bit luminance value of every pixel, while Gain makes an adjustment based on a percentage of the original luminance.

Gamma Adjusts the midpoint of the luminance range. Values range from 0.1 to 10, where

1 represents the unchanged image. Lowering the value darkens the midtones and brings the image closer to black. Raising the value lightens the midtones and brings the image closer to white.

Setup Adjusts the setup or black point for the image. Values range from –255 to 255,

where 0 represents the unchanged image (no offset).

The effect of the Setup control is very similar to that of the Brightness control (on the Controls tab). One important difference, however, is that the Setup control interacts with the Gain and Gamma controls, while the Brightness control interacts with the Contrast control. If you have made an adjustment using the Gain control or the Gamma control, it is better to adjust luminance further using the Setup control. If you have made a Contrast adjustment, it is better to adjust luminance further using the Brightness control.

Using the ChromaWheel Crosshair Pointers

Each ChromaWheel control contains a crosshair pointer that identifies the currently selected point on the wheel. Each pointer has a distinctive appearance to help you distinguish them from one another. Table 8 shows the three pointers.

Table 8 Hue Offsets ChromaWheel Crosshair Pointers

ChromaWheel Type Pointer

Shadows

Midtones

Highlights

To move the crosshair pointer in a ChromaWheel control:

The HSL (Hue, Saturation, Luminance) Group

1. Click anywhere in the wheel, and press and hold the mouse button. The standard mouse pointer disappears, and the crosshair pointer is

dynamically linked to the mouse.

2. Drag the crosshair pointer around in the wheel until you are satisfied with the adjustment, and then release the mouse button.

For more precise control over the movement of the crosshair pointer in the central area of the wheel, press and hold the Shift key while performing the actions in this procedure.

Chapter 3 Performing Color Corrections

The Curves Group

The Curves group includes the following controls:

• Four ChromaCurve graphs, which allow you to control color and luminance by placing up to sixteen control points on a graph and then adjusting the points. For more information on ChromaCurve graphs and how they operate, see “Understanding ChromaCurve Graphs” on

page 81.

• Three automatic color correction buttons that adjust one or more of the ChromaCurve graphs automatically to correct problems of contrast or color balance. For more information, see “Adjusting Contrast and

Balance Automatically” on page 57 and “Using the Remove Color Cast Buttons” on page 58.

• The Color Match control, which you can use to automatically add or modify a control point in the curves, based on selected input and output colors. For more information on the Color Match control, see

“Using the Color Match Control” on page 62 and “ChromaCurve Graphs and the Color Match Control” on page 87.

The following illustration shows the Curves tab.

Color Match controlChromaCurve graphs

Understanding ChromaCurve Graphs

A ChromaCurve graph shows the relationship of input values (on the horizontal axis) to output values (on the vertical axis). A background grid indicates the quartile points on each axis to assist you when you are reading the graph and making adjustments.

The following illustration shows the Red ChromaCurve graph.

The Curves Group

The default curve (before you make any adjustments) is an ascending

straight line, since input and output values are the same across the

45 entire range. The control points for the two ends of the curve are set by the application, but you can change their location.

If you make an adjustment that moves part of the line below the 45

angle, you make the output values for that part of the image lower than the input values. If you make an adjustment that moves part of the line above the

angle, you make the output values for that part of the image higher than

45 the input values.

If you make an extreme adjustment to a curve so that it becomes a horizontal line, you are converting all input values to the same output value.

Chapter 3 Performing Color Corrections

For example, in the following illustration, all input values are mapped to an output value of 128. When this adjustment is made across all three color channels, the result is a uniform, midgray image.

When you make less extreme adjustments, the result is a true curve, since the graph updates by calculating a curve based on the values of the control points and their positions with respect to one another.

In each of the Red, Green, and Blue ChromaCurve graphs, the color of the background indicates what color in the image is adjusted if you created a curve through that part of the graph. The upper left corner of the graph is the color of the graph name (red, green, blue) and represents complete saturation in that color. The lower right corner of the graph is the complementary color (cyan, purple, yellow). The upper right corner is white, and the lower left corner is black.

The Master ChromaCurve graph controls overall luminance in the image. The grayscale tone of its background indicates the luminance range that is affected by that part of the graph but does not directly indicate the result of an adjustment. Adjustments that result in parts of the graph being above

the default 45 that result in parts of the graph being below the default 45

angle make those areas of the image brighter. Adjustments

angle make

those areas of the image darker.

For examples showing how various curves affect an image, see “Examples

of ChromaCurve Graph Adjustments” on page 88.

Making Corrections Using the Curves Tab

To make corrections using the Curves tab:

1. If you have not already done so: a. Move the position indicator to the segment you want to correct. b. Click the Curves tab.

2. Do one of the following: t Use one or more of the automatic color correction buttons to adjust

the ChromaCurve graphs. For more information, see “Adjusting

Contrast and Balance Automatically” on page 57 and “Using the Remove Color Cast Buttons” on page 58.

t Use the Color Match control to adjust the ChromaCurve graphs.

For more information, see “Using the Color Match Control” on

page 62.

t Adjust the ChromaCurve graphs manually, either by clicking and

dragging to add and move control points or by entering values in the Input and Output text boxes, until you are satisfied with the results. For more information, see “Adjusting ChromaCurve

Graphs” on page 84.

The Curves Group

Chapter 3 Performing Color Corrections

Adjusting ChromaCurve Graphs

You can have 16 control points in a Curves tab ChromaCurve graph. Graphs must always have at least two control points. Avid Color Correction sets default control points such that input and output values are the same across the entire range of colors.

To add a control point:

t Click the curve line in the graph at the point where you want the new

point to appear. A new control point appears with a circle around it to indicate that it is

the active control point.

New control point

To select a control point:

t Click the control point you want to select.

A circle appears around the control point to indicate that it is the active control point.

Active control point

Inactive control point

The Curves Group

To move a control point, do one of the following:

t Click the control point, press and hold the mouse button, and drag the

control point to the location on the graph where you want to place the point.

The curve updates as you drag the control point.

t Type input and output values for the position of the control point in the

Input and Output text boxes below the ChromaCurve graph. You must press Enter (Windows) or Return (Macintosh) after typing a value for it to take effect.

Control point at 100 on the input (horizontal) axis, 69 on the output (vertical) axis

Input text box Output text box

To delete a control point:

1. Click the control point to activate it. A circle appears around the control point.

2. Make sure the pointer is over the ChromaCurve graph that contains the control point you want to delete.

3. Press the Delete key.

A curve is defined by at least two control points. If you have only two control points set in a ChromaCurve graph, you cannot delete one.

Chapter 3 Performing Color Corrections

To anchor a portion of the curve so it does not move when you are making other adjustments:

1. Place two control points at either end of the portion of the curve you want to anchor.

2. Place a third control point very close to the point that separates the portion of the curve you want to anchor from the portion of the curve you want to adjust.

3. Place a fourth control point on the portion of the curve you want to adjust.

Third control point. The curve will adjust around this point but will not move between the first two points.

Fourth control point. Drag this point to adjust the upper portion of the curve.

First two control points define the portion of the curve you want to anchor.

Adjusted portion of the curve

Anchored portion of the curve

Now when you drag the new control point to adjust the curve, the portion of the curve between the first two control points will not move.

ChromaCurve Graphs and the Color Match Control

When you use the Color Match control in the Curves tab, a gray crosshair marker appears in each appropriate ChromaCurve graph to mark the intersection of the input value as defined by the input color swatch in the Color Match control and the output value as defined by the output color swatch in the Color Match control.

When you click the Match Color button, the application adds a new control point and updates the ChromaCurve graphs to reflect the color match. If you are not using the NaturalMatch feature or if the ChromaCurve graphs have not received any previous adjustment, the new control point appears at the location of the crosshair marker. If you are using the NaturalMatch feature or if the ChromaCurve graphs have already received some adjustment, the application makes a more complex calculation to reflect the input saturation and luminance values or to take earlier ChromaCurve graph adjustments into account. In these cases, the new control point does not appear at the location of the crosshair marker.

The following illustrations show this behavior both before and after you click the Match Color button.

The Curves Group

The crosshair marker on the Green ChromaCurve graph represents the values for Green in the color swatches — Input 131, Output 105. Since R+G+B is selected as the Match Type, similar crosshair markers appear on the Red and Blue ChromaCurve graphs.

Chapter 3 Performing Color Corrections

Examples of ChromaCurve Graph Adjustments

When you click the Match Color button, the application creates a new control point and updates the curve to reflect the color match. In this illustration, The NaturalMatch feature is selected and the calculation is not complicated by other control points, so the new control point is created at the exact location of the crosshair marker. The Green input and output values as shown in the color swatches now appear in the Input and Output text boxes below the graph.

The following illustrations show a series of simple adjustments made to an image using the Red ChromaCurve graph in the Curves tab. By comparing the results of these adjustments, you will learn how curves can be used to control color across different parts of the brightness range.

In each adjustment example, the new corrected image and the curve used to produce it are shown together with one other image from the series for the purpose of comparison.

In each example, the color of the background behind the control point represents the color change to the image. In the first example, creating a curve through the darker cyan area causes reds to be reduced in the darker parts of the image. In the second example, creating a curve through the lighter cyan area causes reds to be reduced in the lighter areas of the image.

Uncorrected Image

Adjustment 1

The Curves Group

Adjustment 1. Red is reduced primarily in the shadows range (the lower part of the curve). Notice how much of the red tone is lost from the background grass, the shirt, and the lower red signpost, which loses much of its detail. The higher red signpost is relatively less desaturated, however, and some of the reddish tinge is retained in the cloud highlights in the top right.

Chapter 3 Performing Color Corrections

Adjust

ment

Adjustment 2

Adjustment 2. Red is reduced primarily in the highlights range (the upper part of the curve). The differences between this adjustment and adjustment 1 are most apparent in the lower signpost, which retains more redness and detail, and in the background, where the crop in the lower right retains more red tones, but the cloud highlights in the top right have lost their red tinge.

Adjustment 2

Adjustment 3

The Curves Group

Adjustment 3. Red is reduced more evenly across the entire luminance range but with the largest change in the midtones. Though the differences between this adjustment and adjustment 2 are subtle, the strong midtone reduction in red is most noticeable in the skin tones, which appear more gray than in either adjustment 1 or adjustment 2. However, adjustment 3 retains both some detail in the lower signpost and some of the reddish highlights in the clouds.

Chapter 3 Performing Color Corrections

Adjustment 3

Adjustment 4

Adjustment 4. Red is boosted relatively evenly across the entire luminance range but with the largest change in the midtones. Here the difference from adjustment 3 is obvious throughout the image. The most extreme differences appear in the midtone range, for example, in the hands.

Adjustment 4

Adjustment 5

The Curves Group

Adjustment 5. Red is boosted primarily in the highlights range. Here the most noticeable difference can be seen in the crop in the background. In adjustment 4, where red has been boosted more in the lower ranges, the crop looks more orange. In adjustment 5, where red has been boosted very little in the shadows range, the crop looks more yellow-green.

Chapter 3 Performing Color Corrections

Adjustment 5

Adjustment 6

Adjustment 6. In the final adjustment, red is boosted primarily in the shadows range. In comparison with adjustment 5, there is much more of a red or orange tinge in the darker parts of the image (for example the crop in the lower right and the lower part of the shirt). Highlights in the clouds, however, have much less of a red tinge.

Working with the Waveform Monitors and Vectorscope Monitor

The waveform and vectorscope commands, in the Source menu, configure the monitor to graphically display color information about your sequence. Avid Color Correction displays the information for the currently active monitor.

A waveform indicates the brightness of the image. The higher the green trace goes on the scale, the brighter that part of the image is.

Waveform monitors display all the information for the current field or frame overlaid in the waveform. That is, each left-to-right trace in the waveform represents one scan line. If you see a bright object on the left side of the image, you will see its peak on the left side of the waveform. A bright object in the top left of the image produces the same waveform if it is in the bottom left of the image.

Displaying a Waveform Monitor or Vectorscope Monitor

To display a Waveform monitor or Vectorscope monitor:

1. Click in the monitor for which you want to display color information. The monitor becomes the active monitor.

2. In one of the other monitors, click the Source menu and select a waveform or vectorscope command.

The monitor displays the selected waveform or vectorscope information.

For more information, see “Using the Waveform and Vectorscope

Information” on page 104.

Chapter 3 Performing Color Corrections

Table 9 describes each command.

Table 9 Waveform and Vectorscope Commands

Command Description

Quad Display Displays the following waveform and vectorscope information in a single monitor

(clockwise from the top left corner):

• YC Waveform

• Vectorscope

• RGB Histogram

•RGB Parade

For information on each display, see its individual entry in this table.

Working with the Waveform Monitors and Vectorscope Monitor

Table 9 Waveform and Vectorscope Commands (Continued)

Command Description

RGB Histogram Displays a graph showing which RGB values in the image appear most frequently. The

darkest values of red, green, and blue in the image appear as peaks on the left of the graph, and the brightest values appear as peaks on the right. The height of a peak indicates the number of pixels of that value. The width of a peak indicates how many pixels in the image have similar values.

For example, if the blue histogram has many tall peaks at the left side, it shows that the image has many pixels with low blue values. However, those same pixels might appear in the image as many different colors, since they might have any red and green values.

For information on using the RGB Histogram display, see “Using the Waveform and

Vectorscope Information” on page 104.

Chapter 3 Performing Color Corrections

Table 9 Waveform and Vectorscope Commands (Continued)

Command Description

RGB Parade Displays waveforms of the RGB (red, green, and blue) components side by side. Since

video cameras capture in RGB, this display helps to show camera problems. It is also used for general reference to the three primary colors.

RGB signals are used together to create all other colors. A white area in the image appears as peaks in all three waveforms at the same relative location. A high red level does not mean a red image, unless the green and blue levels are low.

RGB Parade incorporates any safe color limits you have set. The application displays RGB values in white when the values fall outside the RGB Gamut limits. For more information on color limits, see “Safe Color Limits with Waveform and Vectorscope

Information” on page 140.

For information on using the RGB Parade display, see “Using the Waveform and

Vectorscope Information” on page 104.

Working with the Waveform Monitors and Vectorscope Monitor

Table 9 Waveform and Vectorscope Commands (Continued)

Command Description

Vectorscope Displays chroma information without luma information as a circular graph where the

center represents no chroma and chroma increases as the trace moves away from the center.

All white, black, and gray parts of the image appear at the center. Areas with more saturation appear further out from the center. Images with an overall color cast produce a vectorscope trace that is generally off-center. Colors created by various positive and negative combinations of Cb and Cr appear around the circle.

Small squares mark the location of standard color bar vectors. Inner squares represent the proper values for 75% color bars, and outer squares represent 100% color bars.

For information on using the Vectorscope display, see “Using the Waveform and

Vectorscope Information” on page 104.

Chapter 3 Performing Color Corrections

Table 9 Waveform and Vectorscope Commands (Continued)

Command Description

Y Waveform Displays a Waveform monitor with luma information. Luma is the brightness of an

image without regard to color.

The scale on the left is a digital level scale using a 256-step (8-bit) range; 16 is the level for black, and 235 is the level for white.

The scale on the right shows the amount of white in the image as a percentage; 0% represents black, and 100% represents white.

Parts of an image can have values outside the 0% to 100% range. The digital video standard allows for headroom and footroom so you can correct a mistake in level in the postproduction process. The minimum is digital 0 or –8%, and the maximum is digital 255 or 108%.

Some external software or hardware processing can clip a signal that is outside

the 0% to 100% range.

Y Waveform incorporates any safe color limits you have set. The application displays Luma values in white when the values fall outside the Luminance limits. For more information on color limits, see “Safe Color Limits with Waveform and Vectorscope

Information” on page 140.

100

For information on using the Y Waveform display, see “Using the Waveform and

Vectorscope Information” on page 104.

Pinnacle Systems Color Correction - 1.0, Color Correction - 4.0 User’s Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Tables

Using This Guide

Who Should Use This Guide

About This Guide

Symbols and Conventions

If You Need Help

If You Have Documentation Comments

How to Order Documentation

Avid Educational Services

Introducing Avid Color Correction

Understanding Avid Color Correction

Applying and Viewing Color Corrections

Automatic and Manual Color Corrections

The Color Correction Effect

Understanding Color Correction Groups

Other Color Adjustment Tools

Understanding Color Correction Mode
