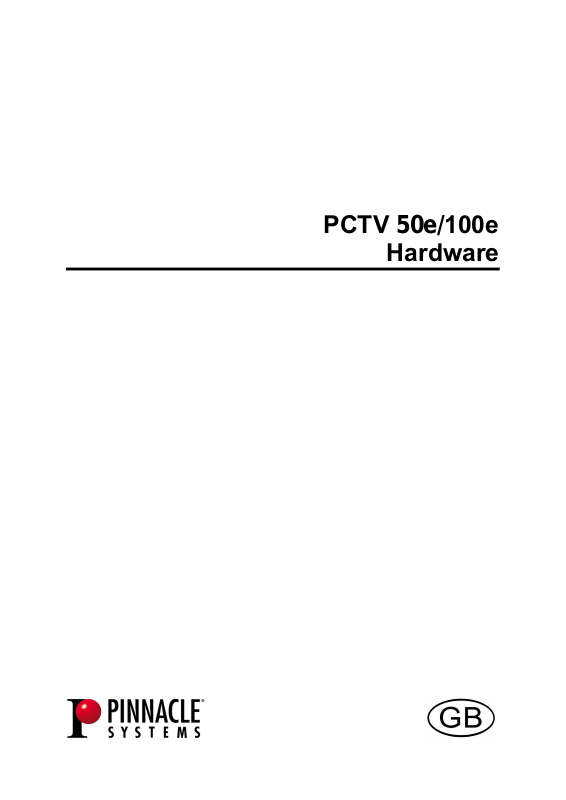

Page 1
PCTV 50e/100e
Hardware
Page 2
PCTV 50e/100e Hardware
GB January 2005
© Pinnacle Systems GmbH 2005
All rights reserved.
No part of this manual may be reproduced or transferred to other media without
explicit written permission from Pinnacle Systems GmbH, Braunschweig,
Germany.
All brand or product names are trademarks or registered trademarks of their
respective holders.
This manual is printed on chlorine-free, bleached paper using solvent-free ink.
Pinnacle Systems GmbH has written this manual to the best of its knowledge,
but does not guarantee that the programs/systems will fulfill the users’ intended
applications.
No warranty is made as to the specifications of features.
Pinnacle Systems GmbH retains the right to make alterations to the content of
the manual without obligation to inform third parties.
All quotes, sales, supply and manufacturing contracts from Pinnacle Systems
GmbH, including consulting, installation and other contractual services are
subject exclusively to the General Sales and Delivery Terms of Pinnacle
Systems GmbH.
Page 3
Table of Contents
System requirements .............................................................................................1
Computer hardware............................................................................................ 1
Computer software.............................................................................................1
Connections ........................................................................................................... 2
Connections – Front side ...................................................................................2
Connections – Rear side .................................................................................... 2
Antenna connection ........................................................................................... 3
PC connection ....................................................................................................3
Video device connection.................................................................................... 3
Sample configuration......................................................................................... 4
Technical Data....................................................................................................... 5
Bus system ......................................................................................................... 5
Antenna input..................................................................................................... 5
Video input......................................................................................................... 5
Audio input ........................................................................................................5
TV tuner ............................................................................................................. 5
i
Page 4
Notes
ii
Page 5
System requirements
Your system must satisfy the following requirements in order for PCTV 50e/100e to
function without problems:
Computer hardware
Processor
Minimum: Pentium IV 2.0 GHz, Pentium M 1.3 GHz
or equivalent AMD Athlon XP processor
Recommended: Pentium IV 2.5 GHz, Pentium M 1.5 GHz
or equivalent AMD Athlon 64 processor
Memory
Minimum: 256 MB RAM
Recommended: 512 MB RAM
Hard disk
Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space
Graphics card
Minimum: DirectX 8-compatible graphics card
Recommended: DirectX 9-compatible (or higher) graphics card
Sound card
Minimum: DirectX 9-compatible sound card
USB port
USB 2.0 port (high speed compatible)
CD-ROM / DVD-ROM drive or recorder
Minimum: CD-ROM or DVD-ROM drive
Recommended: CD or DVD recorder
Computer software
Windows XP (Home Edition, Professional Edition or Media Center Edition
2005) with the latest Service Pack
1
Page 6
Connections
Connections – Front side
dio in
Au
eo
S
ter
S-Video in
n
i
Infrared receiver
for the remote
Video
ite
os
p
Com
Connections – Rear side
na
c
o
n
a
r
b
le
t
e
USB
TV ante
r
m
l
a
n
i
2
Page 7
Antenna connection
Hook up the antenna input of PCTV 50e/100e to your house antenna (coaxial
connection) or to your cable connection.
To connect the antenna, you need the corresponding cable. Note that the
quality of the cable has a great influence on the quality of the reception.
PC connection
Insert the USB connector of PCTV 50e/100e into your PC.
Use only the USB cable included in the delivery.
Video device connection
Connect your video source (for example, a camcorder, video recorder or
DVD player) to the audio input and to the corresponding video input of
PCTV 50e/100e. You can use any video device that delivers an S-video signal or
a composite video signal in PAL, NTSC or SECAM (for example, a video
recorder, camcorder or DVD player). This is independent of the video system
used (for example, VHS, S-VHS, Hi8 or Video 8).
Note that, depending on the product variant, not all video standards (PAL,
NTSC or SECAM) are available.
If your video source has a S-video output, connect this and not the
composite video output to ensure better output quality.
3
Page 8
Sample configuration
TV antenna
USB
optional:
Video source
e.g. camcorder
or DVD player
4
Audio- and
Video-in
Page 9
Technical Data
Bus system
USB 2.0
Antenna input
75 Ohm, F-connector or IEC
Video input
S-video input (mini-DIN), composite video input (cinch)
Audio input
Stereo audio input (3.5 mm jack plug)
TV tuner
Microtune MT2050
The tuner supports the following depending on it circuitry:
PAL B/G/D/K/I/SECAM
or
NTSC, PAL M/N
The frequency range is 48.25 to 855.25 MHz.
5
Page 10
Konformitätserklärung nach ISO/IEC Guide 22
Declaration of conformity in accordance with ISO/IEC Guide 22
Nr. / No 1.00
Anbieter / Supplier : Pinnacle Systems GmbH
Anschrift / Address : Frankfurter Strasse 3c, 38122 Braunschweig, Germany
Produkt / Product : PCTV USB2
Das oben beschriebene Produkt ist konform mit:
The product described above is in conformity with:
Dokument-Nr.
Document No.
EN 55022 : 1998
Class B
EN 55024 : 1999 Störfestigkeitseigenschaften für Einrichtungen der Informationstechnik - Grenzwerte und Prüfverfahren
EN 61000-4-2 : 2001 Störfestigkeit gegen Entladung statischer Elektrizität
EN 61000-4-3 : 2001 Störfestigkeit gegen hochfrequente elektromagnetische Felder
EN 61000-4-4 : 2002 Störfestigkeit gegen schnelle transiente elektrische Störgrößen/BURST
EN 61000-4-5 : 2001 Störfestigkeit gegen Stoßspannungen/SURGE
EN 61000-4-6 : 2001 Störfestigkeit gegen leitungsgeführte Störgrößen, induziert durch hochfrequente Felder
EN 61000-4-8 : 2001 Störfestigkeit gegen Magnetfelder mit energietechnischen Frequenzen
EN 61000-4-11 : 2001 Störfestigkeit gegen Spannungseinbrüche, Kurzzeitunterbrechungen und Spannungsschwankungen
ENV 50204 : 1995 Störfestigkeit gegen hochfrequente elektromagnetische Felder von digitalen Funktelefonen
EN 61000-3-2 : 2001 Grenzwerte für Oberschwingungsströme
EN 61000-3-3 : 2001 Grenzwerte für Spannungsschwankungen und Flicker
EN 55013 : 1990
+ A14:1999
EN 55020 : 1994
+ A14:1999
EN 60950 : 2000 Sicherheit von Einrichtungen der Informationstechnik
Titel
Title
Grenzwerte und Messverfahren für Funkentstörungen von Einrichtungen der Informationstechnik
Limits and methods of measurement of radio interference characteristics of information technology equipment
Immunity characteristics for information technology equipment - limits and methods of measurement
Electrostatic discharge immunity test
Radiated, radio-frequency, electromagnetic field immunity test
Electrical fast transient/burst immunity test
Surge immunity test
Immunity to conducted disturbances, induced by radio-frequency fields
Power frequency magnetic field immunity test
Voltage dips, short interruptions and voltage variations immunity tests
Radiated electromagnetic field from digital radio telephones - Immunity test
Limitations for harmonic currents
Limitations of voltage fluctuations and flicker
Funkstöreigenschaften von Rundfunkempfängern und verwandten Geräten der Unterhaltungselektronik
Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and
associated equipment
Störfestigkeit von Rundfunkempfängern und verwandten Geräten der Unterhaltungselektronik
Electromagnetic immunity of broadcast receivers and associated equipment
Safety of information technology equipment
Dieser Erklärung liegt zugrunde: Prüfbericht(e) des EMV-Prüflabors
This certification is based on: Test report(s) generated by EMI-test laboratory
Braunschweig, 27. Februar 2004 / February 27th, 2004
......................................... ..............................................
Bernd Riemann Oliver Hellmold
Direktor Hardwareentwicklung Finanzdirektor / Director Finance
Director Hardware Engineering (Rechtsverbindliche Unterschrift / Legally Binding)
6
Page 11
BAUGLEICHHEITSBESCHEINIGUNG
STATEMENT OF TYPE-EQUALITY
Hiermit wird bestätigt, daß die TV Tuner Karten
With this is confirmed, that the TV Tuner Boards
PCTV USB2
PCTV 100e
PCTV 50e
baugleiche Produkte sind und sich somit auf die selben Prüfberichte beziehen.
are type equal products and that they refer to the same EMI test reports.
Braunschweig, 30. August 2005
Braunschweig, August 30th, 2005
Pinnacle Systems GmbH
......................................... .................................................
Mirko Schwarz Mathias Pfleiderer
Hardware Engineering Director Material Management
(Rechtsverbindliche Unterschrift / Legally Binding)
7
