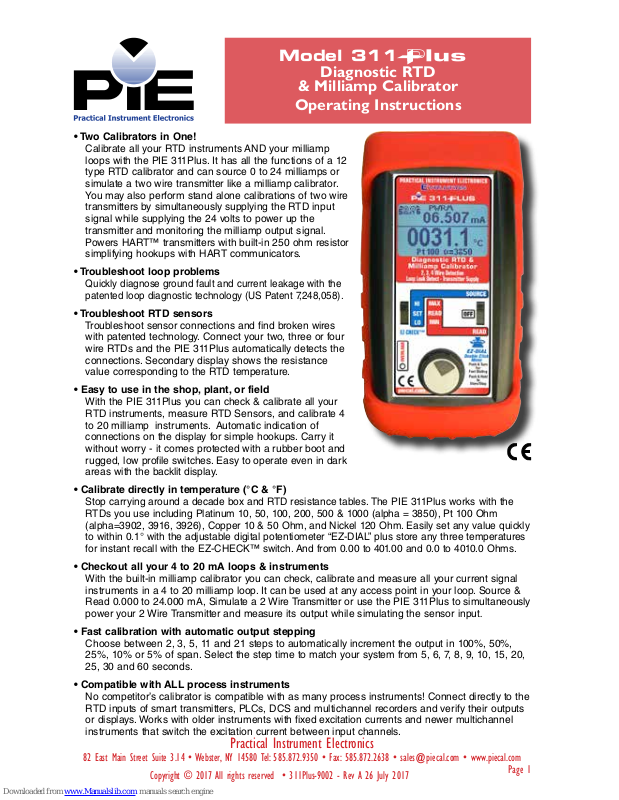

PIE 311Plus Operating Instructions Manual

Page 1

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Model 311

Diagnostic RTD

& Milliamp Calibrator

Operating Instructions

Copyright © 2017 All rights reserved • 311Plus-9002 - Rev A 26 July 2017

• Two Calibrators in One!

Calibrate all your RTD instruments AND your milliamp
loops with the PIE 311Plus. It has all the functions of a 12
type RTD calibrator and can source 0 to 24 milliamps or
simulate a two wire transmitter like a milliamp calibrator.
You may also perform stand alone calibrations of two wire
transmitters by simultaneously supplying the RTD input
signal while supplying the 24 volts to power up the
transmitter and monitoring the milliamp output signal.
Powers HART™ transmitters with built-in 250 ohm resistor
simplifying hookups with HART communicators.

• Troubleshoot loop problems

Quickly diagnose ground fault and current leakage with the
patented loop diagnostic technology (US Patent 7,248,058).

• Troubleshoot RTD sensors

Troubleshoot sensor connections and find broken wires
with patented technology. Connect your two, three or four
wire RTDs and the PIE 311Plus automatically detects the
connections. Secondary display shows the resistance
value corresponding to the RTD temperature.

• Easy to use in the shop, plant, or field

With the PIE 311Plus you can check & calibrate all your
RTD instruments, measure RTD Sensors, and calibrate 4
to 20 milliamp instruments. Automatic indication of
connections on the display for simple hookups. Carry it
without worry - it comes protected with a rubber boot and
rugged, low profile switches. Easy to operate even in dark
areas with the backlit display.

• Calibrate directly in temperature (°C & °F)

Stop carrying around a decade box and RTD resistance tables. The PIE 311Plus works with the
RTDs you use including Platinum 10, 50, 100, 200, 500 & 1000 (alpha = 3850), Pt 100 Ohm
(alpha=3902, 3916, 3926), Copper 10 & 50 Ohm, and Nickel 120 Ohm. Easily set any value quickly
to within 0.1° with the adjustable digital potentiometer “EZ-DIAL” plus store any three temperatures
for instant recall with the EZ-CHECK™ switch. And from 0.00 to 401.00 and 0.0 to 4010.0 Ohms.

• Checkout all your 4 to 20 mA loops & instruments

With the built-in milliamp calibrator you can check, calibrate and measure all your current signal
instruments in a 4 to 20 milliamp loop. It can be used at any access point in your loop. Source &
Read 0.000 to 24.000 mA, Simulate a 2 Wire Transmitter or use the PIE 311Plus to simultaneously
power your 2 Wire Transmitter and measure its output while simulating the sensor input

.

• Fast calibration with automatic output stepping

Choose between 2, 3, 5, 11 and 21 steps to automatically increment the output in 100%, 50%,
25%, 10% or 5% of span. Select the step time to match your system from 5, 6, 7, 8, 9, 10, 15, 20,
25, 30 and 60 seconds.

• Compatible with ALL process instruments

No competitor’s calibrator is compatible with as many process instruments! Connect directly to the
RTD inputs of smart transmitters, PLCs, DCS and multichannel recorders and verify their outputs
or displays. Works with older instruments with fixed excitation currents and newer multichannel
instruments that switch the excitation current between input channels.

Page 2

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Magnetic Hanging Strap

(Optional)

Deluxe Hands Free

Carrying Case (Included)

Evolution RTD Test

Leads (Included)

Page 3

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

q EZ-CHECK™ SWITCH

SOURCE: Instantly output two preset RTD

temperatures or milliamp values by moving the
EZ-CHECK™ switch to the “LO” position or “HI”
position.

For fast three point checks select the
“SET” position. The PIE 311Plus will remember
the last “SET” value, even with the power off.
These values can easily be changed to suit the
calibration requirements. The values stored in the HI
and LO positions are also used for Auto Stepping.

READ: Slide the switch to the SET position. The PIE
311Plus will display the current temperature from the
RTD sensor or the current milliamp value. Slide the
switch to HI and the highest value measured since
turn-on or reset will be displayed; slide the switch to
LO and the lowest value measured since turn-on or
reset will be displayed.

w SOURCE/OFF/READ Switch

Select “SOURCE” to output in °C, °F, Ohms or
milliamps.
Select “READ” to read a RTD sensor, Ohms or
milliamps. Select “OFF” to turn the unit off.

e EZ-DIAL™ KNOB

SOURCE: Turn the knob to adjust the output
level. Turn clockwise to increase the output,
counter clockwise to decrease the output in 0.1°,

0.01 Ω or 0.001 mA steps at a time. Push down
and turn the EZ-DIAL knob for faster dialing.

Press and hold the knob for two seconds to store
desired EZ-Check™ HI/LO points in SOURCE
mode. Continue to press and hold the knob for
three more seconds to start the automatic
stepping or ramping.

READ: Press and hold the knob for two seconds
to transfer the current measured value into the
EZ-Check™ HI/LO points. This clears the HI/LO
readings which will update as the measured
value changes.

Double click the knob to get into the PIE 311Plus
Configuration Mode.

CHANGING BATTERIES

Low battery is indicated by a battery symbol on
the display. Approximately one hour of typical
operation remain after the first time the low
battery symbol appears. To change the batteries;
remove the rubber boot, remove the battery door
from the back of the unit by sliding the door
downward. This allows access to the battery
compartment. Replace with four (4) “AA” 1.5V
batteries being careful to check the polarity.
Replace the battery door and the boot. All stored
configuration options (T/C Type, EZ-CHECK
Memories, etc.,) are reset to factory settings
when the batteries are removed.

Note: Alkaline batteries are supplied and
recommended. Purchase the optional Ni-MH
rechargeable batteries for maximum battery life.

Basic Operation

°C

3 2 1 4

   

100.0

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ
MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

-

+

Page 4

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Configuration

Double Click Menus - MAIN Page

Move w POWER SWITCH to “SOURCE” or
“READ”.

Double click the EZ-DIAL knob to access the
Double Click Menus. Shown are the MAIN
menus for each function. Turn the knob to scroll
thru the menus and press the knob to select.
Available choices are shown in grey.

Source RTDs

Read RTDs

Source & Read Ohms

Source mA &

Simulate 2 Wire Transmitters

DOUBLE CLICK

EZ-DIAL KNOB

FOR CONFIGURATION

V#.##

MAIN

> EXIT (1/3)
FUNCTION OHMS RTD mA
RANGE 400 Ω 4000 Ω

MAIN

> EXIT (1/2)
FUNCTION mA
MODE SOURCE 2W SIM
UNITS mA %
HART 250Ω ON OFF

MAIN

>EXIT (1/3)
FUNCTION RTD
UNITS °C °F
RTD Pt 100 a=3850

[*See Read RTD]

MAIN

>EXIT (1/3)
FUNCTION RTD
UNITS °C °F

RTD Pt 100 a=3850,

Pt 200 a=3850,
Pt 500 a=3850, Pt 1000 a=3850,
Pt 100 a=3902, Pt 100 a=3916,
Pt 100 a=3926,
Cu 10 a=4274, Cu 50 a=4280,
Ni 120 a=6720
Pt 10 a=3850, Pt 50 a=3850

Read mA, Power/Measure

Transmitters & Leak Detect

Turn the e DIAL KNOB to move through the two
to four pages of menus. Press the e DIAL
KNOB to toggle between OFF and ON or to
scroll through the settings.

MAIN

> EXIT (1/3)
FUNCTION mA
MODE READ PWR MEAS
UNITS mA %
HART 250Ω ON OFF

Double Click Menu - RTD DISPLAY

DISPLAY OHMS - If DISPLAY OHMS is ON the

Ohms value corresponding to the sourced or
measured temperature is displayed.

SENSOR mA - If SENSOR mA is ON the
excitation current supplied from the RTD
measuring instrument is displayed (SOURCE
only).

Double Click Menu - OHMS DISPLAY

SENSOR mA - If SENSOR mA is ON the

excitation current supplied from the resistance
measuring instrument is displayed (SOURCE
only).

RTD DISPLAY (SOURCE)

> EXIT (2/4)
DISPLAY OHMS OFF ON
SENSOR mA* OFF ON

OHMS DISPLAY

> EXIT (2/4)
SENSOR mA* OFF ON

RTD DISPLAY (READ)

> EXIT (2/3)
DISPLAY OHMS OFF ON

Page 5

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

AUTO OFF - If AUTO OFF is ON, the unit will
turn off after 30 minutes of inactivity to save
battery life. If AUTO OFF is OFF the unit will
stay on until the POWER SWITCH is moved to
the off position.

BACKLIGHT - If BACKLIGHT is ON the
backlight will light all the time the unit is powered
up. For maximum battery life turn the backlight
off when using the calibrator in areas with
enough ambient light to read the display.
STEPS/RAMP - pressing the knob will cycle
through 2, 3, 5, 11 and RAMP. The endpoints
of the steps or ramp are based on the values
stored in the HI and LO EZ-CHECK outputs.

2 steps will automatically switch between the
values stored in the HI & LO EZ-CHECK (0 &
100%).

3 steps between the HI, Midpoint and LO
EZ-CHECK (0, 50 & 100%).

5 steps between the HI and LO EZ-CHECK
in 25% increments (0, 25, 50, 75 & 100%).

11 steps between the HI and LO EZ-CHECK
in 10% increments (0, 10, 20...80, 90 &100%).

RAMP continuously ramps up and down
between the HI and LO EZ-CHECK outputs.

STEP/RAMP TIME - pressing the knob will
cycle through 5, 6, 7, 8, 9, 10, 15, 20, 25,

30 and 60 seconds.

FEATURES

> EXIT (4/4)
AUTO OFF ON OFF
BACKLIGHT ON OFF
STEPS/RAMP 2 3 5 11 RAMP
STEP/RAMP TIME 5 6 7 8 9 10 15 20 25 30 60

Double Click Menu - FEATURES

Double Click Menu - mA DISPLAY

MODE - pressing the knob will cycle through
READ, PWRM, READ%, PWRM% and OFF.

READ turns on the mA display and indicates

current passing through the loop proportional
to the input of the transmitter which is controlled
by the output of the 311Plus. Choose READ%
to display in percent of 4-20 milliamps.

PWRM is POWER MEASURE which uses the
internal loop supply of the 311Plus to power up
the transmitter while indicating the current
passing through the loop proportional to the
input of transmitter which is controlled by the
output of the 311Plus. Choose PWRM% to
display in percent of 4-20 milliamps.

If PWRM or PWRM% is selected an
additional menu selection of LEAK DETECT
will appear. When LEAK DETECT is turned
on the 311Plus will display LEAK and the
amount of current that is uncontrolled in the
loop. This may be due to a faulty transmitter,
corrosion causing a bridge to ground or
moisture present at some connection point.
When LEAK DETECT tests a loop with
leakage the loop mA signal will be affected.

HART 250Ω - turn on the 250Ω resistor if you
are powering up a HART transmitter. This
provides the loop load required for HART
communication.

mA DISPLAY (For RTD)

> EXIT (3/4)
MODE

OFF READ PWRM READ% PWRM%
HART 250Ω ON OFF

LEAK DETECT OFF ON

Configuration

Page 6

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

To change the Automatic Stepping settings

Double click the e DIAL KNOB at any time the unit is on and the menu will appear for 15 seconds.

Turn the e DIAL KNOB to move through down
to the third (FEATURES) menu. Press the e
DIAL KNOB to toggle between OFF and ON or
to change the STEPS and the STEP TIME
settings. These settings are remembered even
with the power off.

EXIT MENU - exits this menu immediately and saves any changes. Menu will automatically exit after
15 seconds of inactivity.

STEPS - pressing the knob will cycle through 2, 3, 5 and 11 then reverse direction. The endpoints of
the steps are based on the values stored in the HI and LO EZ-CHECK outputs.

2 steps will automatically switch between the values stored in the HI & LO EZ-CHECK (0 &
100%).

3 steps between the HI, Midpoint and LO EZ-CHECK (0, 50 & 100%).

5 steps between the HI and LO EZ-CHECK in 25% increments (0, 25, 50, 75 & 100%).

11 steps between the HI and LO EZ-CHECK in 10% increments (0, 10, 20...80, 90 &100%).

RAMP continuously between the HI and LO EZ-CHECK.

STEP TIME - pressing the knob will cycle through 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds.

To start the Automatic Stepping

Start automatic stepping or ramping by placing the EZ-CHECK Switch into the HI or LO position
then press and hold the

e DIAL KNOB for 6 seconds (the word STORE will appear on the display

after 3 seconds and continue to press the DIAL KNOB) until the word STEPPING appears on the
display. The word STEPPING will appear on the display anytime the selected automatic function is
running. Stop the stepping by again pressing and holding the

e DIAL KNOB for 3 seconds.

Automatic Stepping

Storing EZ-CHECK Outputs

STORING HI and LO EZ-CHECK Outputs

Choose this function to provide a simulated RTD signal into controllers, temperature transmitters,
indicators or any other input device that measure RTD sensors.

1) Store your high (SPAN) output temperature by moving the EZ-CHECK switch to the HI position
and turn the

e EZ-Dial knob until the desired temperature is on the display. Press and hold the

EZ-Dial knob until STORED appears to store the value. Release the EZ-Dial knob.

2) Store your low (ZERO) output temperature by moving the EZ-CHECK switch to the LO position
and turn the

e EZ-Dial knob until the desired temperature is on the display. Press and hold the

EZ-Dial knob until STORED appears to store the value. Release the EZ-Dial knob.

3) Instantly output your SPAN and ZERO temperature outputs by moving the EZ-CHECK switch
between HI and LO. You may also select any third temperature output (such as mid-range) using
the SET position on the EZ-CHECK switch.

FEATURES

> EXIT (3/3)
AUTO OFF ON OFF
BACKLIGHT ON OFF
STEPS/RAMP 2

3 5 11 RAMP

STEP/RAMP TIME 5 6 7 8 9 10 15 20 25 30 60

Page 7

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

The PIE 311Plus has four standard banana jacks for
2, 3 or 4 wire instruments or sensors. All connections
are made at the top of the calibrator where the jacks
are numbered for ease of use.

SOURCE - Plug in the 2, 3 or 4 wires to match the
connection on the instrument being calibrated.

Connections

READ - Plug in the 2, 3 or 4 wires from the sensor
and the PIE 311Plus will automatically detect the
correct setting for 2, 3 or 4 wire simulation using a
patented circuit.

Milliamp - All milliamp connections are connected to
the banana jacks labeled 5 (+) and 6 (-).

Page 8

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Troubleshooting RTD Sensors

Here is an example of the PIE
311Plus reading a sensor with all 4
wires connected.

Here is an example where
connections are made to a 4 wire
sensor and the 311Plus indicates that
only Wires 1, 2 & 4 are connected.
There may be a loose connection or
a break in wire 3 somewhere between
the sensor and the 311Plus.

Only a calibrator with PIE’s patented 2, 3 & 4 wire detection
makes troubleshooting sensor wiring quick, easy and automatic.
This is much simpler and faster than going through the process
of testing each pair of wires to figure out which, if any,
connection is loose or which wire is broken.

Problem found with RTD Sensor Wiring

Page 9

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Troubleshooting RTD Instruments

When you are having an issue where an
instrument won't read an RTD sensor or you
don't know if the calibrator is connected properly
the PIE 311Plus has a function to measure and
display the fixed or pulsed sensor (excitation)
current that the instrument uses to measure the
resistance of the RTD sensor.

Double click the

e DIAL KNOB at any time the

unit is on and then turn the e DIAL KNOB to
move to the second menu page so the word
DISPLAY appears at the top of the menu.
Turn the

e DIAL KNOB to move through the

menu until the cursor is pointing at SENSOR
mA. Press the e DIAL KNOB to toggle SENSOR
mA ON.

Disconnect all sensor wires from the devices to be
calibrated and connect the PIE

311Plus

to the
inputs of the device using 2, 3 or 4 wires. The sensor
current generated by the instrument will be indicated
on the display followed by the word FIXED or
PULSE. Older single channel RTD instruments used
a constant (fixed) current source to measure an RTD
sensor. Smart transmitters, multichannel recorders
and PLC or DCS input cards switch the current
source sequentially through the channels which is
seen as an intermittent (pulsed) current.

Instrument with RTD Input

Controller

Temperature Transmitter

Temperature Indicator

Temperature Trip or Alarm

Pt 100 α=3850

01.15mA PULSE

289.27 Ω

°C

3 2 1 4

   

100.0

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ
MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

-

+

°C

00.21mA FIXED

289.27 Ω

525.00

01.15mA PULSE

289.27 Ω

525.00

°C

Troubleshooting RTD Instruments

Excitation current generated

by the RTD Instrument

Excitation current generated

by the RTD Instrument

Page 10

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

RTD Source

Choose this function to provide a simulated RTD signal into controllers, temperature transmitters,
indicators or any input devices that measure RTD sensors.

Move the power switch

w to SOURCE then Double Click the EZ-DIAL knob to get into the menu.

Turn the knob to scroll through the settings and press the knob to make your selection. Select RTD
for the FUNCTION, °F or °C for the UNITS, and RTD Type (Pt 100 a=3850, Pt 200 a=3850, Pt
500 a=3850, Pt 1000 a=3850, Pt 100 a=3902, Pt 100 a=3916, Pt 100 a=3926, Cu 10 a=4274, Cu 50
a=4280, Ni 120 a=6720, Pt 10 a=3850, Pt 50 a=3850).

Connect the PIE 311Plus to the inputs of the device being calibrated 2, 3 or 4 wires.

Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI
and LO. You may also select any third output setting (such as mid-range) using the SET position on
the EZ-CHECK switch. The output is adjusted in 0.1° increments by turning the knob

e. Press and

turn the knob for faster dialing with 10.0° increments.

°C

3 2 1

  

100.0

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ
MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

-

°C

3 2 1 4

   

100.0

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ

MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

-

+

Instrument with RTD Input

Controller

Temperature Transmitter

Temperature Indicator

Temperature Trip or Alarm

Operating Instructions

Read RTD Sensors

Choose this function to measure temperatures with a RTD probe, sensor or any device that output
a RTD signal.

Move the power switch

w to READ then Double Click the EZ-DIAL knob to get into the Double Click

Menu. Turn the knob to scroll through the settings and press the knob to make your selection. Select
RTD for the FUNCTION, °F or °C for the UNITS, and RTD Type (Pt 100 a=3850, Pt 200
a=3850, Pt 500 a=3850, Pt 1000 a=3850, Pt 100 a=3902, Pt 100 a=3916, Pt 100 a=3926, Cu 10
a=4274, Cu 50 a=4280, Ni 120 a=6720, Pt 10 a=3850, Pt 50 a=3850).

Connect the PIE 311Plus to the RTD sensor being measured. If no sensor is connected, a wire is
broken or the sensor is burned out, CHECK CONNECTIONS will appear on the display along with
an indication of which wires are connected. Signals above the maximum scale are limited by
protection circuitry with “OVER RANGE” on the display and the OVERLOAD LED blinks red.

The PIE 311Plus measures the input signal and constantly updates the display with the current
reading. Move the EZ-CHECK switch

q to MAX to see the highest reading and to MIN to see the

lowest reading. Press and hold the knob e to clear the MAX and MIN readings.

Page 11

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

OHMS SOURCE

Choose this function to provide an output from 0.00 to 4010.0 ohms.

Move the power switch

w to SOURCE then Double Click the EZ-DIAL knob to get into the Menu.

Turn the knob to scroll through the settings and press the knob to make your selection. Select
OHMS for the FUNCTION and 400Ω or 4000Ω for the RANGE.

Connect the output leads of the PIE 311Plus to the inputs of the device being calibrated.

Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI
and LO. You may also select any third output setting (such as mid-range) using the SET position on
the EZ-CHECK switch. The output is adjusted in 0.01 Ω increments by turning the knob

e. Press

and turn the knob for faster dialing with 1.00 Ω increments.

Voltage Receiver Input

Controller

Transmitter

Computer

Logger

DCS

2 1

 

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ
MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

mV

40.000

All RTD & Ohms Connections

Voltage Output Signal

Controller

Transmitter

Power Supply

2 1

 

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ
MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

+

-

mV

42.345

Read Ohms

Choose this function to measure from 0.00 to 4010.0 ohms.

Move the power switch

w to READ then Double Click the EZ-DIAL knob to get into the Menu. Turn

the knob to scroll through the settings and press the knob to make your selection. Select OHMS for
the FUNCTION and 400Ω or 4000Ω for the RANGE.

Connect the input leads of the PIE 311Plus to the resistance being measured.

Signals above the maximum scale are limited by protection circuitry with “OVER RANGE” flashed on
the display and the red OVERLOAD LED lit.

The PIE 311Plus measures the input signal and constantly updates the display with the current
reading. Move the EZ-CHECK switch

q to MAX to see the highest reading and to MIN to see the

lowest reading. Press and hold the knob e to clear the MAX and MIN readings.

Page 12

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

Milliamp Receiver Input

Controller

Transmitter

Computer

Logger

I/P

DCS

OFF

OVERLOAD

Double Click

Menu

HI

SET

LO

SOURCE

MAX

READ

MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

mA

20.000

5 6

 

+

-

HART

SOURCE

HI

mA SOURCE/ % SOURCE (Percent of 4 to 20 mA)

Choose this function to provide an output from 0.000 to 24.000 milliamps. The compliance voltage
is a nominal 24 VDC to provide the driving power to your milliamp receivers.

Move the power switch

w to SOURCE then Double Click the EZ-DIAL knob to get into the menu.

Turn the knob to scroll through the settings and press the knob to make your selection. Select mA
for the FUNCTION and SOURCE for the MODE. Choose either mA or % and whether you need
the 250Ω HART resistor active in the loop.

Connect the output leads of the PIE 311Plus to the inputs of the device being calibrated, making
sure to check polarity. Red lead to the plus (+) input and black lead to the minus (-) input.

Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI
and LO (defaults to 20 & 4 mA). You may also select any third output setting (such as mid-range)
using the SET position on the EZ-CHECK switch. The output is adjusted in 0.001 mA (0.01%)
increments by turning the knob

e. Press and turn the knob for faster dialing with 0.100 mA (1.00%)

increments.

OFF

OVERLOAD

Double Click

Menu

HI

SET
LO

SOURCE

MAX

READ

MIN

READ

Push & Hold

to

Store/Step

Push & Turn

for

Fast Dialing

Diagnostic RTD &

Milliamp Calibrator

2, 3, 4 Wire Detection

Loop Leak Detect ∙ Transmitter Supply

Milliamp Output Signal

Controller

Transmitter

P/I

DCS

mA

19.997

5 6

 

+

-

HART

READ

READ mA, READ % (Percent of 4 to 20 mA)

Choose this function to measure from 0.000 to 24.000 milliamps or -25.00 to 125.00%.

Move the power switch

w to READ then Double Click the EZ-DIAL knob to get into the Menu. Turn

the knob to scroll through the settings and press the knob to make your selection. Select mA for the
FUNCTION and SOURCE for the MODE. Choose either mA or % and whether you need the

250Ω HART resistor active in the loop.

Connect the red input lead (+) of the PIE 311Plus to the more positive point of the break and the
black input to the more negative point.

Signals below 0 mA or open circuits are indicated by 0.000 mA (-25.00%) on the display. Signals
above 24 mA are current limited by protection circuitry with “OVERRANGE” flashed on the display
and the red OVERLOAD LED lit.

The PIE 311Plus measures the input signal and constantly updates the display with the current
reading. Move the EZ-CHECK switch

q to MAX to see the highest reading and to MIN to see the

lowest reading. Press and hold the knob

e to clear the MAX and MIN readings.

All Milliamp Connections

Page 13

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

Typical

2-Wire

Transmitter

+ IN - REF -OUT+

Transmitter Input

Sensor

Process Signal

Simulated Input

11.997

mA

 

HART

5 6

PWRM

Power/Measure mA, Power/Measure % (Percent of 4 to 20 mA)

Choose this function to simultaneously supply power to a 2 Wire Transmitter while displaying the

4.000 to 20.000 mA output of the transmitter.

Move the power switch

w to READ then Double Click the EZ-DIAL knob to get into the menu. Turn

the knob e to scroll through the settings and press the knob to make your selection. Select mA for
the FUNCTION and PWR MEAS for the MODE. Choose either mA or % and whether you need
the 250Ω HART resistor active in the loop.

Disconnect one or both input wires from the device to be calibrated. Connect the red source lead of
the PIE 311Plus to the plus (+) input of the device and the black source lead to the minus (-).

The PIE 311Plus supplies a nominal 24 volts DC at 24 mA to the 2 Wire Transmitter. The current
passed by the transmitter will be accurately displayed by the PIE 311Plus. Calibrate the transmitter
in the usual manner and disconnect the PIE 311Plus. Signals above 24 mA are current limited by
protection circuitry with “OVERRANGE” flashed on the display and the red OVERLOAD LED lit.

To

Sensor

Typical
2-Wire

Transmitter

(Disconnected)

+ IN - REF +OUT-

Powers External

2-Wire Transmitter

Power Supply

(2 to 60 VDC)

Receiver

12.422

mA

 

5 6

2-WIRE

Choose this function to simulate a 2 Wire Transmitter output from 0.000 to 24.000 milliamps.
Operates in loops with power supply voltages from 2 to 60 VDC.

Move the power switch

w to SOURCE then Double Click the EZ-DIAL knob to get into the Menu.

Turn the knob to scroll through the settings and press the knob to make your selection. Select mA
for the FUNCTION and 2W SIM for the MODE. Choose either mA or % and whether you need
the 250Ω HART resistor active in the loop.

Connect the output leads of the PIE 311Plus to the inputs of the device being calibrated, making sure
to check polarity. Red lead to the plus (+) input and black lead to the minus (-) input.

Instantly output your SPAN and ZERO output settings by moving the EZ-CHECK switch between HI
and LO (defaults to 20 & 4 mA). You may also select any third output setting (such as mid-range)
using the SET position on the EZ-CHECK switch. The output is adjusted in 0.001 mA (0.01%)
increments by turning the knob

e. Press and turn the knob for faster dialing with 0.100 mA (1.00%)

increments.

2 Wire SIM mA, 2 Wire SIM % (Percent of 4 to 20 mA)

All Milliamp Connections

Page 14

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

Calibrate a 2-Wire RTD Transmitter by sourcing the input while monitoring the output.

Move the power switch w to SOURCE and Double click the e DIAL KNOB and the MAIN menu for
the function in use will appear for 15 seconds:
Turn the e DIAL KNOB to move to FUNCTION. Select RTD for the FUNCTION, °F or °C for the
UNITS, and RTD Type (Pt 100 a=3850, Pt 200 a=3850, Pt 500 a=3850, Pt 1000 a=3850, Pt 100
a=3902, Pt 100 a=3916, Pt 100 a=3926, Cu 10 a=4274, Cu 50 a=4280, Ni 120 a=6720, Pt 10
a=3850, Pt 50 a=3850). Turn the e DIAL KNOB to move to the third menu page so the word mA
DISPLAY appears at the top of the menu.

Turn the

e DIAL KNOB to move through the menu. Press the e DIAL KNOB to toggle between OFF

and ON or to change the MODE setting.

MODE - pressing the knob will cycle through READ, PWRM, READ% ,PWRM% and OFF.

READ turns on the mA display and indicates current passing through the loop proportional to the
input of the transmitter which is controlled by the output of the 311Plus. Choose READ% if your
would like the mA display in percent of 4-20 milliamps.

PWRM is POWER MEASURE which uses the internal loop supply of the 311Plus to power up the
transmitter while indicating the current passing through the loop proportional to the input of
transmitter which is controlled by the output of the 311Plus. Choose PWRM% if your would like
the mA display in percent of 4-20 milliamps.

If PWRM or PWRM% is selected an additional menu selection of LEAK DETECT will appear.
When LEAK DETECT is turned on the 311Plus will display LEAK and the amount of current
that is uncontrolled in the loop. This may be due to a faulty transmitter, corrosion causing a bridge
to ground or moisture present at some connection point. When LEAK DETECT tests a loop with

leakage the loop mA signal will be affected.
HART 250Ω - turn on the 250Ω resistor if you are powering up a HART transmitter. This provides
the loop load required for HART communication.

EXIT MENU - exits this menu immediately and saves any changes. Menu will automatically exit after
15 seconds of inactivity.

mA DISPLAY

> EXIT (3/4)
MODE OFF READ PWRM READ% PWRM%

HART 250Ω OFF ON
LEAK DETECT OFF ON

MAIN
> >EXIT (1/4)

FUNCTION RTD
UNITS °C °F

RTD Pt 100 a=3850,

Pt 200 a=3850,
Pt 500 a=3850, Pt 1000 a=3850,
Pt 100 a=3902, Pt 100 a=3916,
Pt 100 a=3926,
Cu 10 a=4274, Cu 50 a=4280,
Ni 120 a=6720
Pt 10 a=3850, Pt 50 a=3850

Page 15

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

Typical

2-Wire

Transmitter

+ IN - REF -OUT+

311.2

°F

 

HART

5 6

PWRM

12.523 mA

Pt 100 α=3850

00.51 mA LEAK

(Enlarged Display)

PWRM

00.51 mA LEAK

12.523 mA

311.2 °F

Pt 100 a=3850

5 6

HART

Page 16

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Operating Instructions

mA OUT, % OUT (Percent of 4 to 20 mA)

Find current leaks in loops caused by ground faults, moisture or corrosion. The 311Plus
simultaneously supplies power to a 2 Wire Transmitter (or loop with a transmitter) while displaying
the 4 to 20 mA output and the amount of current leaking in the loop.

1) Move the power switch

w to READ then Double Click the EZ-DIAL knob to get into the Menu.

Turn the knob

e to scroll through the settings and press the knob to make your selection. Select

mA for the FUNCTION and PWR MEAS for the MODE. Choose either mA or %.

2) Turn the knob e until the menu to the right appears.

3) Turn the knob e to scroll through the settings and press the

knob to make your selection. Turn on the LEAK DETECT.

4) Connect the red source lead from the mA (+) jack of the
311Plus to the plus (+) input of the device and the black source lead from the mA (-) to the minus
(-).

The PIE 311Plus supplies a nominal 24 volts DC at 24 mA to the 2 Wire Transmitter or loop. The
current passed by the transmitter will be accurately displayed by the 311Plus along with an indication
of leakage current at the top of the display. If there is an uncontrolled loop caused by a transmitter
with upscale burnout and a sensor that is burned out or missing, or a short in the loop wiring, the
311Plus will display "OVER RANGE”

Using Ground Leak Detection

mA DIAGNOSTIC

> EXIT (2/3)
LEAK DETECT OFF ON

Typical Error Conditions

The PIE 311Plus is supplying the loop voltage.
A calibrated transmitter is limiting the loop
current to 12.00 mA. An additional 0.51 mA is
not controlled by the transmitter and is leaking
somewhere in the loop.

The PIE 311Plus is supplying the loop voltage.
There is a control loop error. This may be a
transmitter (set for upscale burnout) with a
bad or missing sensor, or a short in the loop.
The red ERROR LED will also flash.

PWRM LEAK

00.51 mA

12.506 mA

5 6

HART

PWRM

OVER RANGE

mA

5 6

HART

Note: Many loops with installed transmitters will
normally indicate 0.01 to 0.02 mA leakage
without significant control problem. Unstable
readings may indicate loose connections or the
presence of moisture.

All Milliamp Connections

Page 17

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

General

Operating Temperature
Range

-25 to 60 °C (-10 to 140 °F)

Relative Humidity Range 10 % ≤RH ≤90 % (0 to 35 °C), Non-condensing

10 % ≤RH≤ 70 % (35 to 60 °C), Non-condensing

Temperature Drift

± 0.01% of span outside of 23°C ±10 °C (73°C ±18 °F)

Size

5.63 x 3.00 x 1.60 in, 143 x 76 x 41 mm (L x W x H)

Weight 12.1 ounces, 0.34 kg (including boot & batteries)

Batteries Four “AA” Alkaline 1.5V (LR6)

Battery Life 25 Hours RTD, 8 Hours milliamp

Isolation: Voltage 60V rms between all milliamp functions and Source/Read RTD/Ohms

Normal Mode Rejection 50/60 Hz, 50 dB

Common Mode Rejection 50/60 Hz, 120 dB

Optional NiMh
Rechargeable battery kit

Charger, four

NiMh batteries [Part # 020-0103]

Low Battery Low battery indication with nominal 1 hour of operation left

Protection against
misconnection

Over-voltage protection to 60 V dc (rated for 30 seconds)

Display High contrast graphic liquid crystal display. LED backlighting for use in low

lit areas.

Read Ohms & RTD

3 Wire & 4 Wire Accuracy
2 Wire Accuracy

±(0.015% of Reading + 0.05 Ohms)
±(0.015% of Reading + 0.15 Ohms)

Resistance Ranges 0.00 to 401.00, 0.0 to 4010.0 Ohms

Excitation Current

0.9 mA to 401 Ohms, 0.4 mA to 4010 Ohms (nominal)

Source Ohms & RTD

3 & 4 Wire Accuracy

From 1 to 10.2 mA

External Excitation Current

Below 1 mA of External
Excitation Current

2 Wire Accuracy

±(0.015% of Reading + 0.05 Ohms)

±(0.015% of Rdg + + 0.05 Ohms)

Add 0.1 Ohms to 3 Wire & 4 Wire Accuracy

Resistance Ranges 0.00 to 401.00, 0.0 to 4010.0 Ohms

Allowable Excitation

Current Range

0 to 400 Ohm: 10.2 mA max; steady or pulsed/intermittent
401 to 4000 Ohms: 1 mA max; steady or pulsed/intermittent

Pulsed Excitation Current
Compatibility

DC to 0.01 second pulse width

0.025 mV

mA Excitation Current

PIE 311Plus Specifications

Unless otherwise indicated all specifications (except Cold Junction) are rated from a nominal 23 °C, 70 % RH for 1 year from calibration

Page 18

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

PIE 311Plus Specifications

Unless otherwise indicated all specifications (except Cold Junction) are rated from a nominal 23 °C, 70 % RH for 1 year from calibration

Read mA

Ranges and Resolution

0.000 to 24.000 mA or -25.00 to 125.00% of 4-20 mA

Accuracy ≤ ± (0.02 % of Reading + 0.003 mA)

Voltage burden ≤ 2V at 24 mA

Overload/Current limit
protection

25 mA nominal

Source mA / Power & Measure Two Wire Transmitters & PWRM LEAK

Ranges and Resolution

0.000 to 24.000 mA or -25.00 to 125.00% of 4-20 mA

Accuracy ≤ ± (0.02 % of Reading + 0.003 mA)

Loop compliance voltage

≥ 24 DCV @ 20.00mA

Loop drive capability 1200 Ω at 20 mA for 15 hours nominal;

950 Ω with Hart Resistor or leak detection running

mA 2-Wire Transmitter Simulation

Accuracy Same as Source/Power & Measure

Voltage burden ≤ 2V at 20 mA

Overload/Current limit
protection

24 mA nominal

Loop voltage limits 2 to 60 VDC (fuse-less protected from reverse polarity connections)

Page 19

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

RTD Ranges & Accuracies

Table based on 3 & 4 Wire RTD Accuracy:

≤ ± (0.015 % of Reading +0.05 Ohms)

[Read based on 1.0 mA of fixed excitation current]

RTD

Type

Alpha Degrees C

Range

°C

Degrees F

Range

°F

Pt 100 Ohm

DIN/IEC/JIS 1989

ITS-90

1.3850

(0.00385)

-200.0 to -150.0

-150.0 to 360.0

360.0 to 740.0

740.0 to 850.0

±0.1°
±0.2°
±0.3°
±0.4°

-328.0 to -238.0

-238.0 to 660.0

660.0 to 1364.0

1364.0 to 1562.0

±0.2°
±0.4°
±0.6°
±0.7°

Pt 10 Ohm

DIN/IEC/JIS 1989

Based on

ITS-90

1.3850

(0.00385)

-200.0 to -120.0

-120.0 to 210.0

210.0 to 370.0

370.0 to 650.0

650.0 to 850.0

±1.2°
±1.4°
±1.5°
±1.7°
±1.9°

-328.0 to -184.0

-184.0 to 410.0

410.0 to 698.0

698.0 to 1202.0

1202.0 to 1562.0

±2.2°
±2.6°
±2.8°
±3.1°
±3.4°

Pt 50 Ohm

DIN/IEC/JIS 1989

ITS-90

1.3850

(0.00385)

-200.0 to 200.0

200.0 to 550.0

550.0 to 850.0

±0.3°
±0.4°
±0.5°

-328.0 to 392.0

392.0 to 1022.0

1022.0 to 1562.0

±0.6°
±0.8°
±1.0°

Pt 200 Ohm

DIN/IEC/JIS 1989

ITS-90

1.3850

(0.00385)

-200.0 to -120.0

-120.0 to 180.0

180.0 to 450.0

450.0 to 680.0

680.0 to 850.0

±0.1°
±0.1°
±0.2°
±0.2°
±0.3°

-328.0 to -184.0

-184.0 to 356.0

356.0 to 842.0

842.0 to 1256.0

1256.0 to 1562.0

±0.1°
±0.2°
±0.3°
±0.4°
±0.5°

Pt 500 Ohm

DIN/IEC/JIS 1989

ITS-90

1.3850

(0.00385)

-200.0 to -90.0

-120.0 to 180.0

180.0 to 450.0

450.0 to 680.0

680.0 to 850.0

±0.1°
±0.1°
±0.2°
±0.2°
±0.3°

-328.0 to -194.0

-184.0 to 356.0

356.0 to 842.0

842.0 to 1256.0

1256.0 to 1562.0

±0.1°
±0.2°
±0.3°
±0.4°
±0.5°

Pt 1000 Ohm

DIN/IEC/JIS 1989

ITS-90

1.3850

(0.00385)

-200.0 to 170.0

170.0 to 470.0

470.0 to 730.0

730.0 to 850.0

±0.1°
±0.1°
±0.2°
±0.2°

-328.0 to 338.0

338.0 to 878.0

878.0 to 1346.0

1346.0 to 1562.0

±0.1°
±0.2°
±0.3°
±0.4°

Pt 100 Ohm

(Burns)

1.3902

(0.003902)

-195.6 to -100.0

-100.0 to 370.0

370.0 to 648.9

±0.1°
±0.2°
±0.3°

-320.1 to -148.0

-148.0 to 698.0

698.0 to 1200.0

±0.3°
±0.4°
±0.6°

Pt 100 Ohm

(Old JIS

1981)

1.3916

(0.003916)

-200.0 to -140.0

-140.0 to 130.0

130.0 to 370.0

370.0 to 648.9

±0.1°
±0.2°
±0.2°
±0.3°

-328.0 to -220.0

-220.0 to 266.0

266.0 to 698.0

698.0 to 1200.0

±0.2°
±0.3°
±0.4°
±0.6°

Pt 100 Ohm

(US Lab)

1.3926

(0.003926)

-200.0 to -140.0

-140.0 to 130.0

130.0 to 380.0

380.0 to 610.0

610.0 to 850.0

±0.1°
±0.2°
±0.2°
±0.3°
±0.4°

-328.0 to -220.0

-220.0 to 266.0

266.0 to 716.0

716.0 to 1130.0

1130.0 to 1562.0

±0.2°
±0.3°
±0.4°
±0.5°
±0.7°

Copper 10

Ohm (Minco)

1.4274

(0.004274)

-200.0 to -150.0

-150.0 to 90.0

90.0 to 260.0

±1.2°
±1.3°
±1.4°

-328.0 to -238.0

-238.0 to 194.0

194.0 to 500.0

±2.2°
±2.4°
±2.4°

Copper 50

Ohm

1.4280

(0.00428)

-50.0 to 150.0

±0.3°

-58.0 to 302.0

±0.5°

Ni 120 Ohm

(Pure)

1.6720

(0.00672)

-80.0 to 260.0

±0.1°

-112.0 to 500.0

±0.2°

Page 20

Practical Instrument Electronics

82 East Main Street Suite 3.14 • Webster, NY 14580 Tel: [phone] • Fax: [phone] • [e-mail] • www.piecal.com

Warranty

Our equipment is warranted against defective material and workmanship (excluding batteries) for a
period of three years from the date of shipment. Claims under warranty can be made by returning
the equipment prepaid to our factory. The equipment will be repaired, replaced or adjusted at our
option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our
warranty. No responsibility is accepted for damage, loss or other expense incurred through sale or
use of our equipment. Under no condition shall Practical Instrument Electronics, Inc. be liable for any
special, incidental or consequential damage.

Additional Information

This product is calibrated on equipment traceable to NIST and includes a Certificate of Calibration.

Test Data is available for an additional charge.

Practical Instrument Electronics recommends a calibration interval of one year. Contact your local

representative for recalibration and repair services.

Accessories

Standard Test Leads (Included with calibrator) Part No. 020-0208
Two black and two red test leads

three feet (1 meter) long with a spade lug on one end and a

banana plug on the other end.

Magnetic Hanging Strap Part No. 020-0236
Optional Ni-MH 1 Hour Charger w/4 Ni-MH AA Batteries Part No. 020-0103
