HealthEMS®
Monitor/Defibrillator User Guide for Mobile v4
Last updated: Apr 2016
Purpose
This user guide is designed to provide HealthEMS customers with instructions on how to import ECG
data into HealthEMS Mobile from a monitor/defibrillator. Please refer to the HealthEMS ECG/EKG
Guide for an up-to-date list of requirements and support materials.
This document provides links to vendor instructions on how to setup data transmission connections.
Instructions on how to program and configure the monitor/defibrillator for transmitting the case file are
not included in this document. Customers should consult with their monitor/defibrillator vendor and
complete the data transmission setup process prior to using this document for importing the data into
HealthEMS Mobile.
Philips HeartStart MRx Physio-Control LIFEPAK 15 ZOLL X-Series for EMS
©2016 Physio-Control, Inc. Redmond, WA 98052. All rights reserved. All names herein are trademarks or registered trademarks of their respective owners.
Contents
Purpose ......................................................................................................................................................... 0
Philips ................................................................................................................................................... 2
Transferring Data via Bluetooth / Wireless Link .............................................................................................. 2
Importing Data into HealthEMS Mobile .......................................................................................................... 3
Physio ................................................................................................................................................... 8
Transferring Data via Bluetooth / Cable ......................................................................................................... 8
Installing CODE-STAT™ 9 SDK ...................................................................................................................... 9
Configuring LIFENET® System Device Communications.............................................................................. 12
Importing Data into HealthEMS Mobile ........................................................................................................ 17
ZOLL ................................................................................................................................................... 21
Transferring Data via WiFi............................................................................................................................ 21
Transferring Data via USB ........................................................................................................................... 27
Transferring Data via Bluetooth .................................................................................................................... 31
Importing Data into HealthEMS Mobile ........................................................................................................ 32
Page 1
Philips
Transferring Data via Bluetooth / Wireless Link
Click HERE to open the PDF of Phillip’s instructions for the HeartStart MRx in your browser window.
Navigate to Chapter 19: Data Transmissions, page 250 of the PDF to find the instructions on how to
set up a Bluetooth connection.
Page 2
Instructions
Screen View
1.
Select "EKG" for the attachment
type. (this choice may have been
set to automatically be selected)
Importing Data into HealthEMS Mobile
To upload an ECG file select the attachment icon while editing an ePCR.
Page 3
Instructions
Screen View
2.

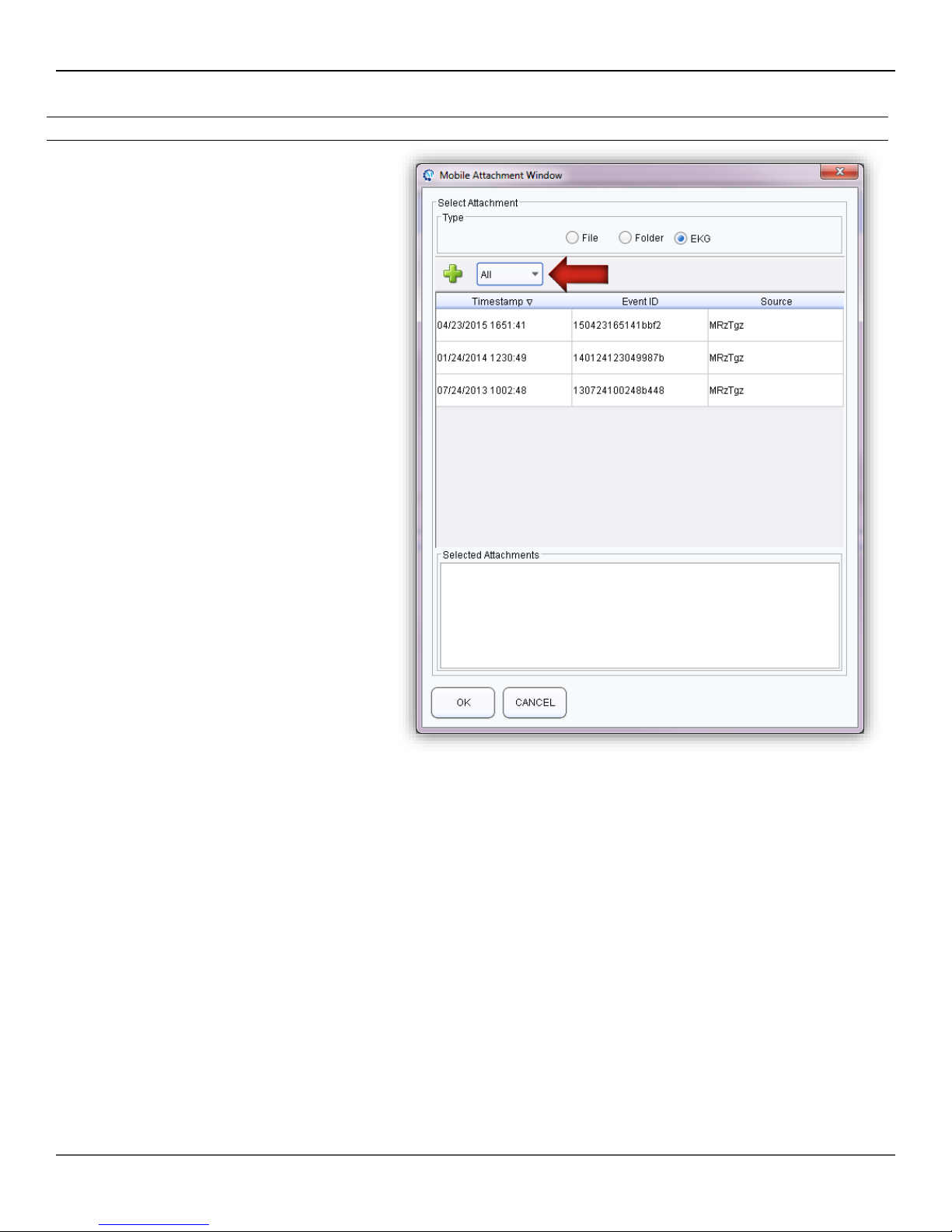

The Mobile Attachment window
will default to showing all ECG
attachments from the last 3 hours.
Change this to the appropriate
setting to be able to see the ECG
data to be imported.
Page 4
Instructions
Screen View
3.

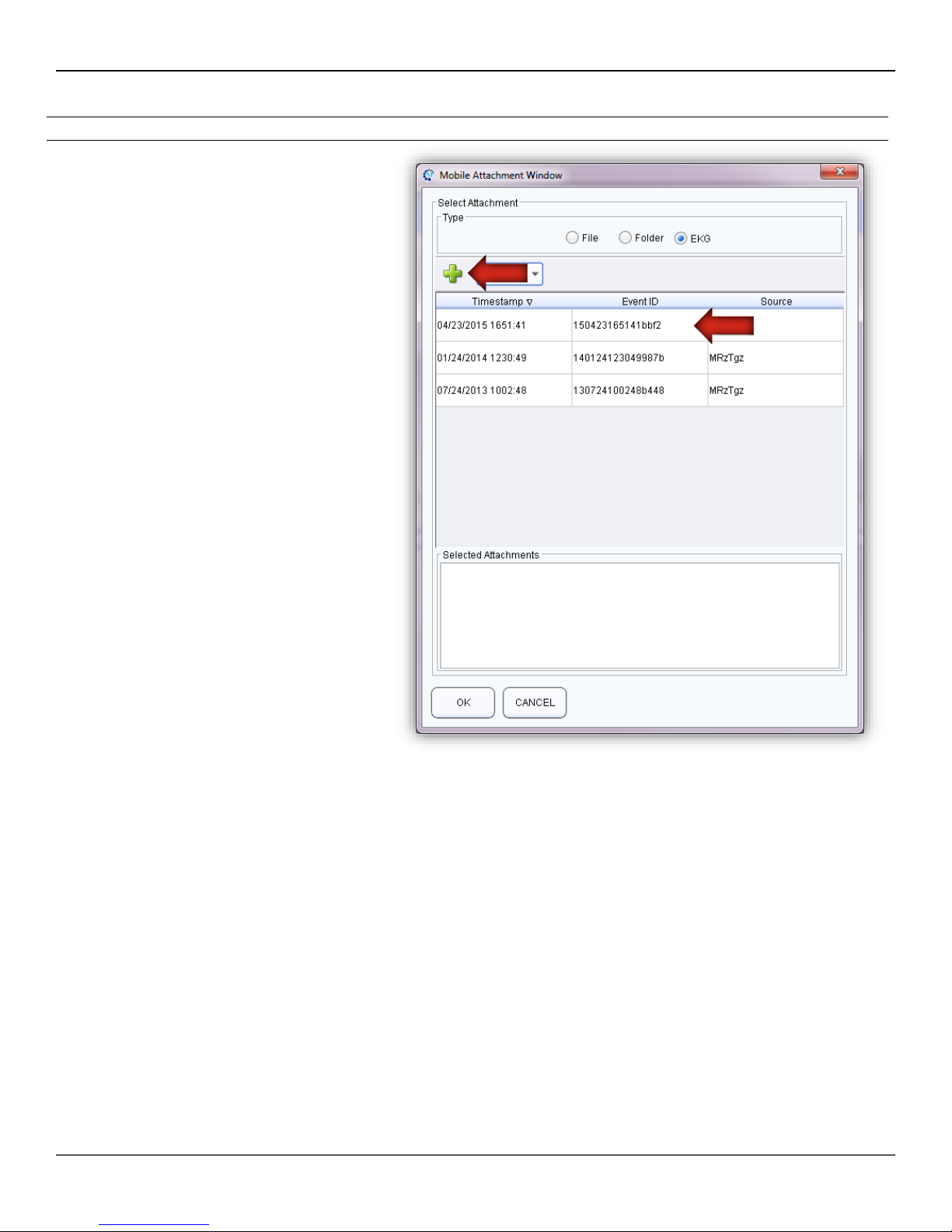

Double click the desired ECG file
or select the row and click the
green plus icon.
Page 5
Instructions
Screen View
4.

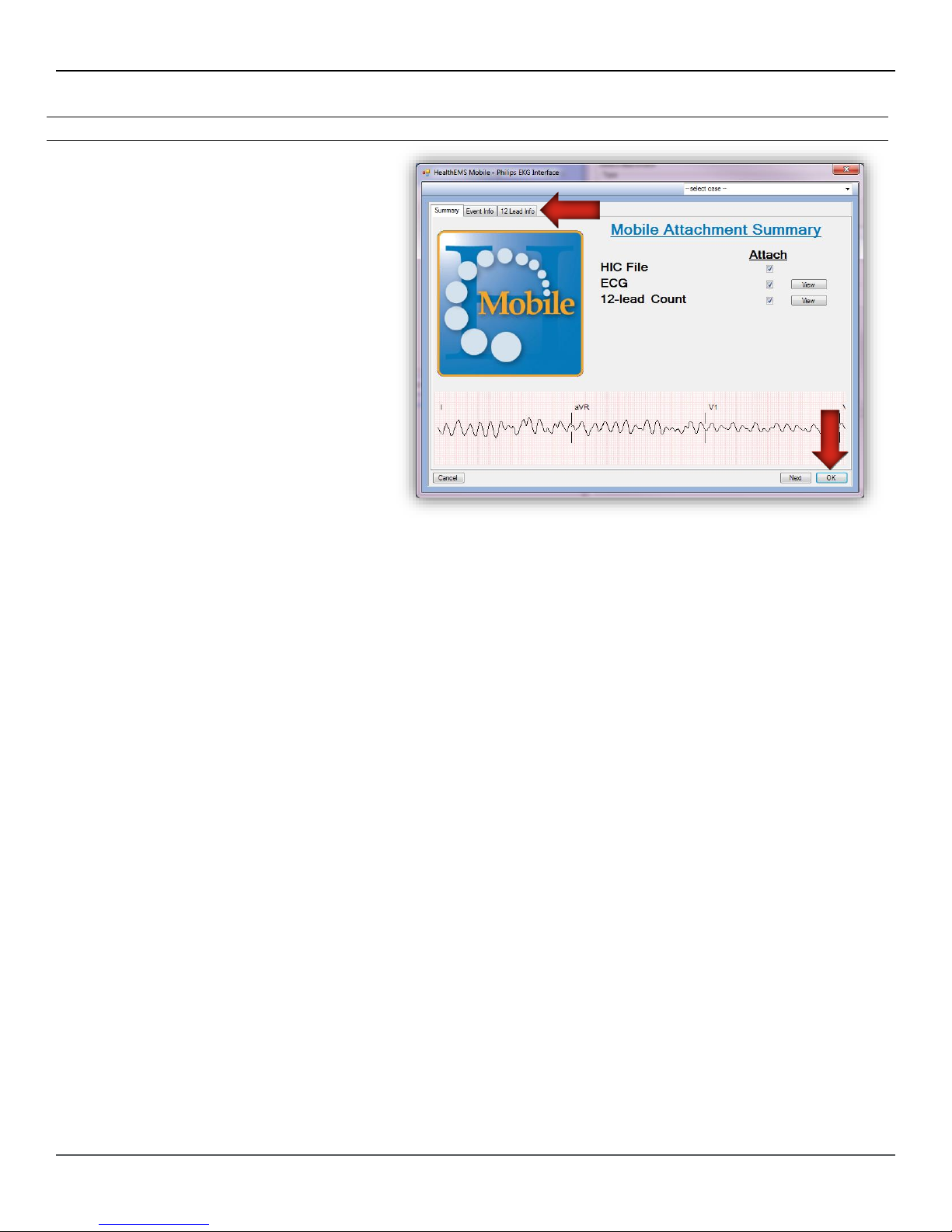

Selecting the tabs across the top
will display details of the attached
ECG data file.
After reviewing, click “OK” to
continue.
Page 6
Instructions
Screen View
5.

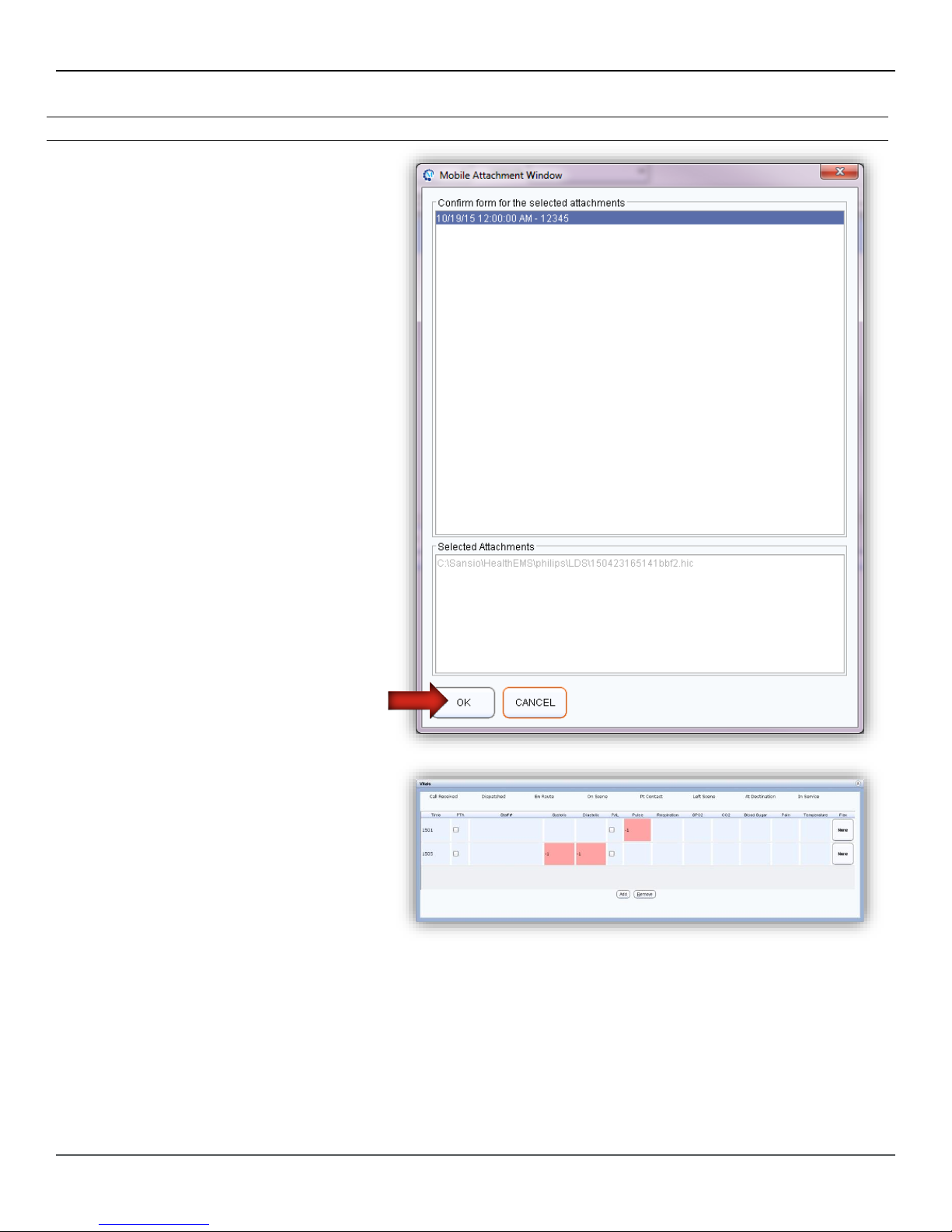

The Mobile Attachment Window
will display your ECG data file
attachments.
Click “OK” to continue.
6.
The available data will populate
into the Vitals and Flowchart
sections.
Page 7
Physio
Transferring Data via Bluetooth / Cable
For instructions on how to set up a Bluetooth connection between your device and LIFEPAK 15, as
well as instructions on how to use a direct connection (Ositech cable), proceed to section 8 page 165
of the instructions linked HERE.
Page 8
Instructions
Screen View
1.

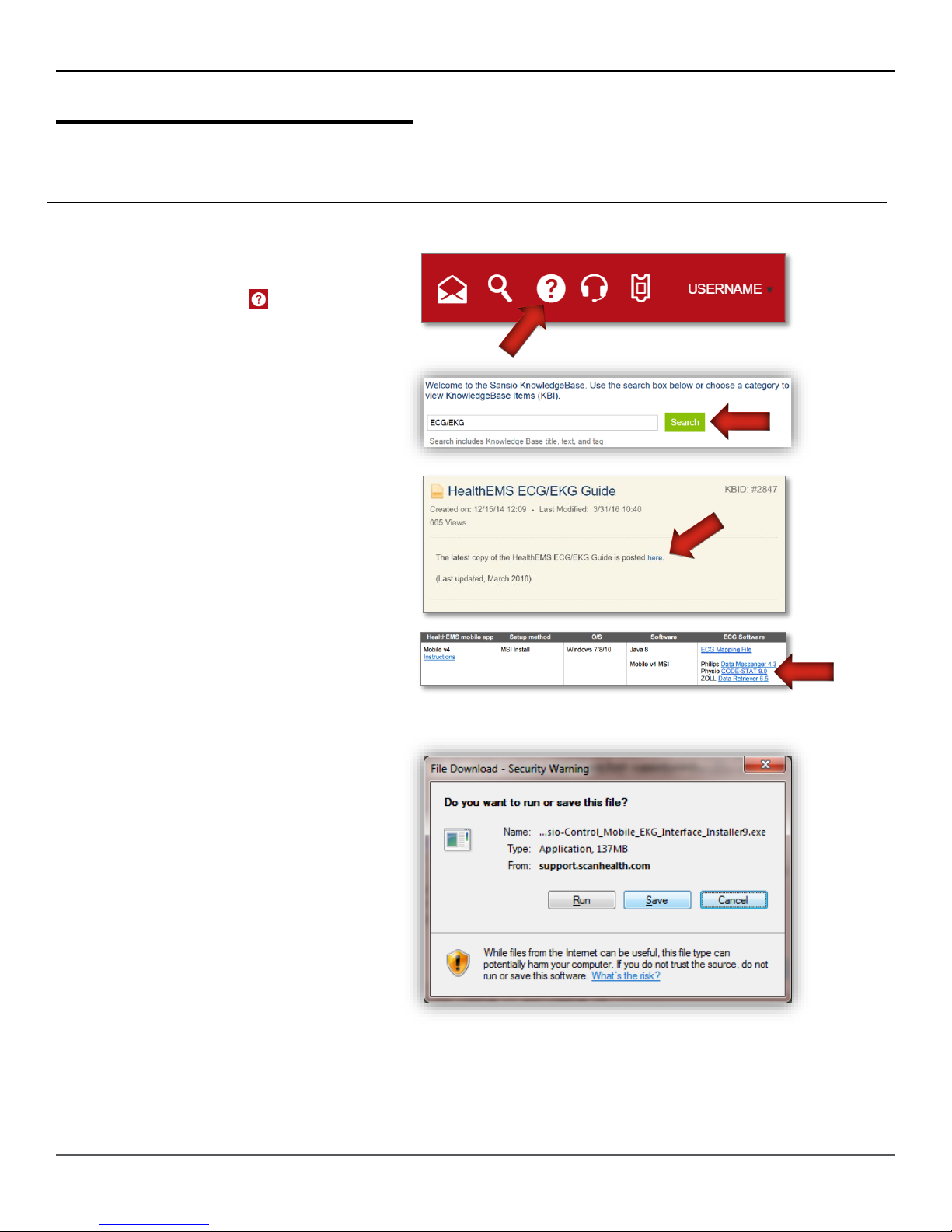

Login to HealthEMS and
navigate to the
Knowledgebase by
clicking the icon
2.
Search for “ECG/EKG”
3.
Open the "HealthEMS
ECG/EKG Guide" under
the SUPPORT
INSTRUCTIONS section
and click on “
here
”
4.
Navigate to the Mobilev4
ECG Software section
and select "
CODE-STAT
9.0
"
5.
On the popup window
select "Save"
Installing CODE-STAT™ 9 SDK
This section will lay out the steps for installing the CODE-STAT™ 9 SDK on your device.
Page 9
Instructions
Screen View
6.
Select the desired
destination to save the
file and click "Save"
7.
When the download
completes…
8.
Select "Run" on the
security warning popup
Page 10
