RED5 User’s Manuals
8 August 2017
2 of 12
Preliminary Version
RED5 User’s Manuals -
Contents
1 Pin Description .................................................................................................................................. 3
1.1 RED5 Pin Description.......................................................................................................................... 3
2 Operation Method .............................................................................................................................. 5
2.1 Power Supply ...................................................................................................................................... 5
2.2 UART ................................................................................................................................................... 5
2.3 RF In/Out ............................................................................................................................................. 6
2.4 GUI control .......................................................................................................................................... 6
3 Specification .................................................................................................................................... 11
8 August 2017
3 of 12
Preliminary Version
GND
RF IO
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
171819
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
VO UT33
GND
P13_RXD1
P01_TXD0
RESETb
SWCLK
SWDIO
ENABLE
ISP_MODEb
CSE
NC
P15
P16
P17
P12_SCL
P11_SDA
P00_RXD0
P14_TXD1
GND
GND
GND
VO UT30
GND
VCCIN
VCCIN
GND
GND
GND
VCCIN
VCCIN
GND
RF IO
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
171819
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
VO UT33
GND
P13_RXD1
P01_TXD0
RESETb
SWCLK
SWDIO
ENABLE
ISP_MODEb
CSE
NC
P15
P16
P17
P12_SCL
P11_SDA
P00_RXD0
P14_TXD1
GND
GND
GND
VO UT30
GND
VCCIN
VCCIN
GND
GND
GND
VCCIN
VCCIN
1
VOUT33
Internal LDO 3.3V output for PR9200 SOC
2
GND
Ground
3
RESETb
Reader SOC Reset signal 0: reset
4
SWDIO
Serial Wire Debug data in out
5
SWCLK
Serial Wire Debug Clock
Enable pin for RED5. It turns on/off internal LDOs
When ISP_MODEb is Logic ‘L’, ISP mode is set as shown below table
Pin No.
7
12
11
10
Pin Name
ISP_MODEb
P17
P16
P15
Normal
1
GPIO/INT
GPIO/INT
GPIO/INT
FLASH UART ISP
0 0 0
0
Chip Select Enable. Internally connected to VCC33.
9
NC
Not Connection
10
P15
User configurable general purpos e I/O port
11
P16
User configurable general purpos e I/O port or External Interrupt 4
12
P17
User configurable general purpos e I/O port or External Interrupt 5
User configurable general purpos e I/O port or I2C Clock
1 Pin Description
RED5 User’s Manuals -

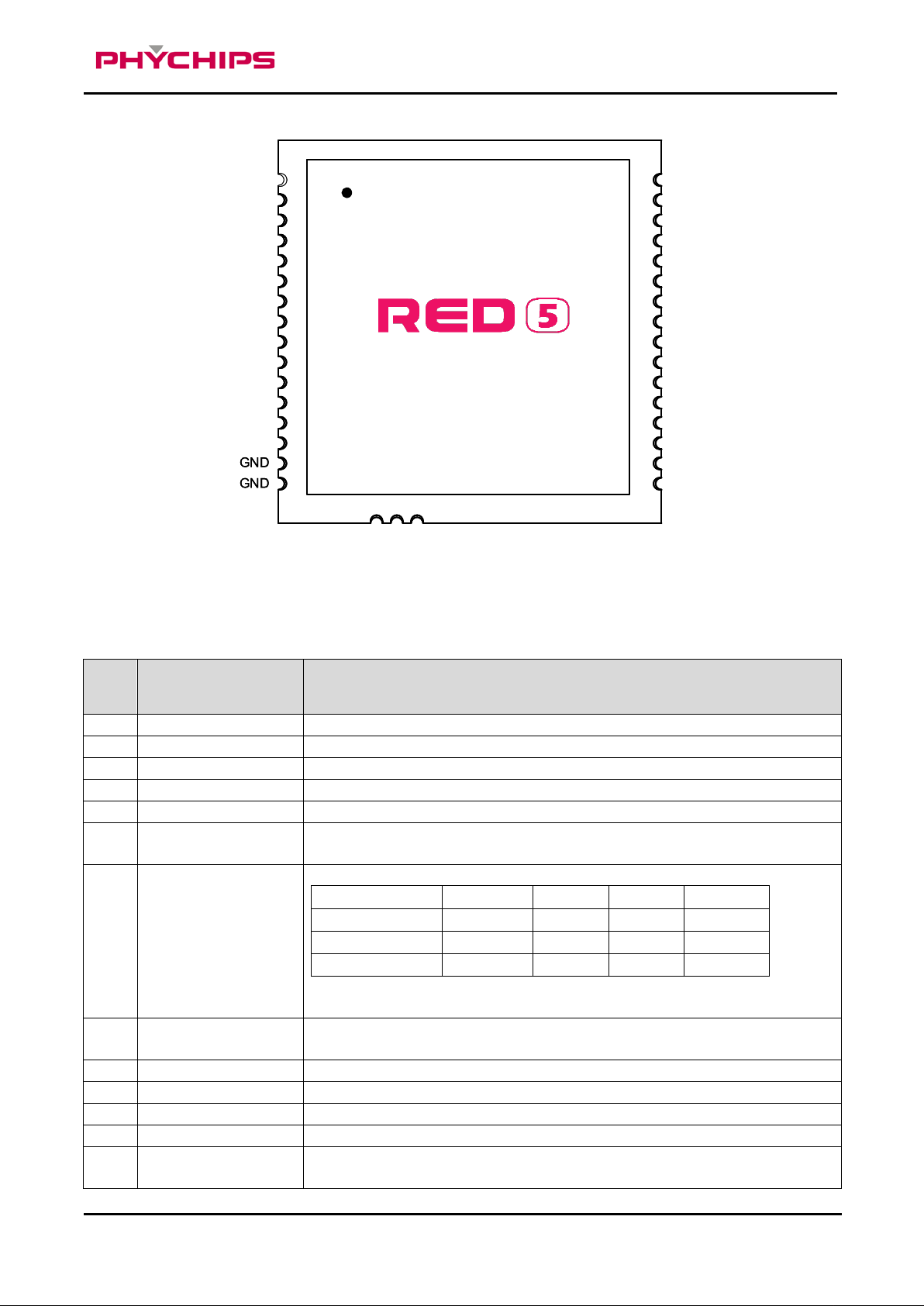

Figure 1 Pin Description
1.1 RED5 Pin Description
No. Pin Name Description
6 ENABLE
7 ISP_MODEb
8 CSE
13 P12_SCL
Logic high : enable, Logic low : disable (POWER DOWN)
[CAUTION] Except ISP mode, ISP_MODEb should be set “high” for robust
stability for FLASH memory
For the power control of RED5, use ENABLE pin
The pull-up resistor is always switched on.
8 August 2017
4 of 12
Preliminary Version
Reserved Address : 0x70, 0x71
User configurable general purpos e I/O port or I2C Data In / Out
15
GND
Ground
16
GND
Ground
17
GND
Ground
18
RF IO
RF input/output. Antenna port
19
GND
Ground
20
VCCIN
DC power input for module and PA
21
VCCIN
DC power input for module and PA
22
GND
Ground
23
GND
Ground
24
GND
Ground
25
VCCIN
DC power input for module and PA
26
VCCIN
DC power input for module and PA
27
GND
Ground
28
VOUT30
Internal LDO output for PA BIAS
29
GND
Ground
30
GND
Ground
31
GND
Ground
32
P14_TXD1
User configurable general purpos e I/O port or UART1 Output
33
P13_RXD1
User configurable general purpos e I/O port or UART1 Input
34
P01_TXD0
User configurable gen er al purpos e I/O port or UART0 Output
35
P00_RXD0
User configurable general purpos e I/O port or UART0 Input
14 P11_SDA
RED5 User’s Manuals -
The pull-up resistor is always switched on.
Reserved Address : 0x70, 0x71
8 August 2017
5 of 12
Preliminary Version
Host M CU
TXDx
RXDx
GND
TXD
RXD
GND
RED5
RS232C Trance iver
TXDx
RXDx
GND
RXOUT
TXIN
GND
TXOUT
RXIN
GND
PC
TXD
RXD
GND
RED5
2 Operation Method
RED5 User’s Manuals -

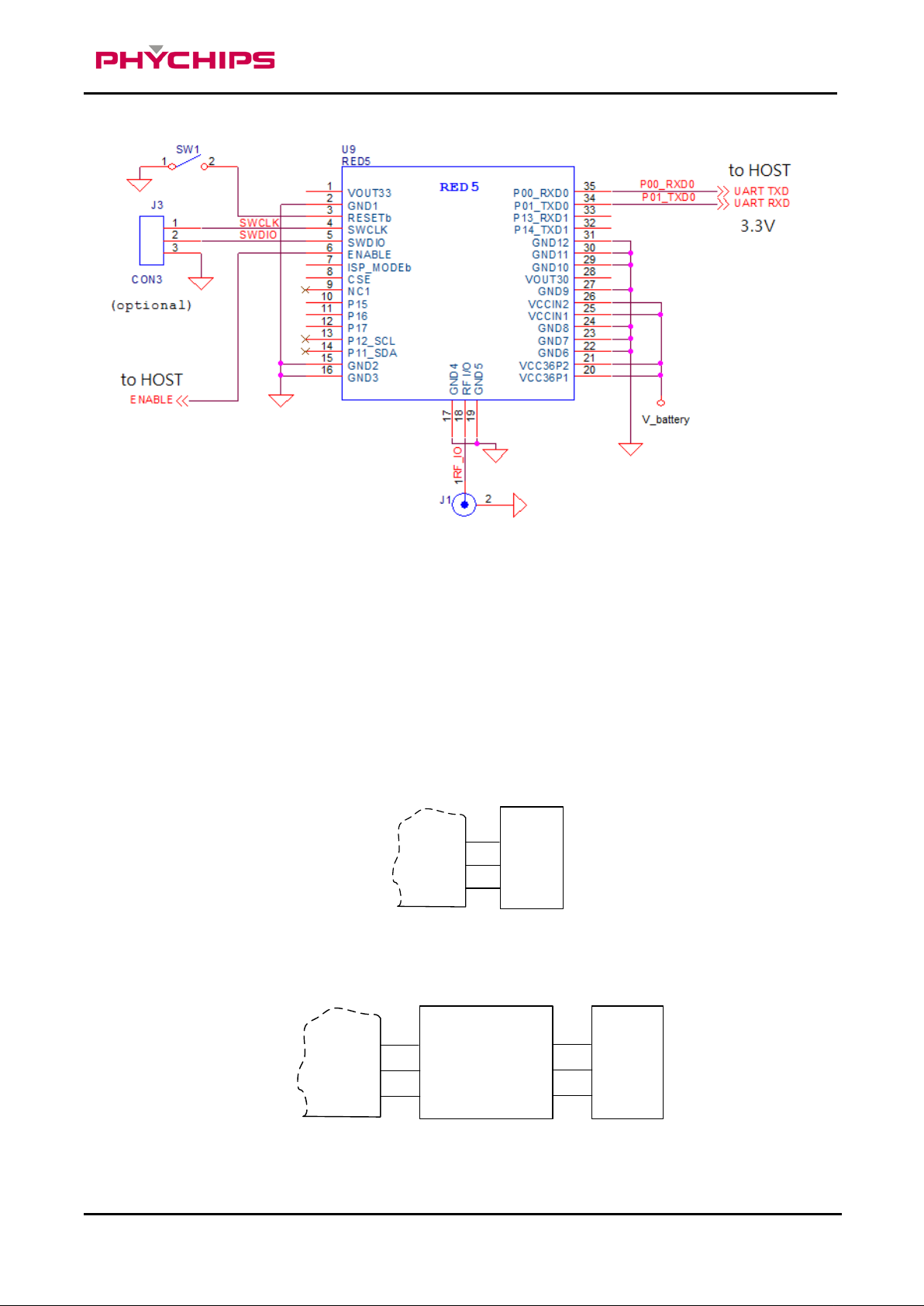

Figure 2 Application Circuit
2.1 Power Supply
DC power for RED5 is VCC IN ( pin2 1,2 2,25 ,26) . T her e ar e 2 LDO insid e module. One is to suppl y for PR92 0 0
which DC voltage is 3.3 volts ( typ.). The other is to supply for VBIAS f or power am p which is 3. 0V. VCCIN is
connected to input of LD Os. Total current consumption of RED5 is typically 1.37A at 30dBm Tx CW output
power.
2.2 UART
The serial interface is assigned with two wires. RXD0, which pin is assigned to pin 35, is for receiving
command from host and TXD0, which pin is assigned to pin 34, is for transmitting response to host. Pin
connection is shown as below figure.
Figure 3 Host MCU Connection
RS232C transceiver is required to interface with PC that connection diagram is shown as below figure
Figure 4 USB transceiver Connection
8 August 2017
6 of 12
Preliminary Version
USB Tranceiver
TXDx
RXDx
GND
RXOUT
TXIN
GND
D+
VBUS
GND
USB
D-
D+
VBUS
GND
D-
RED5
RED5 User’s Manuals -

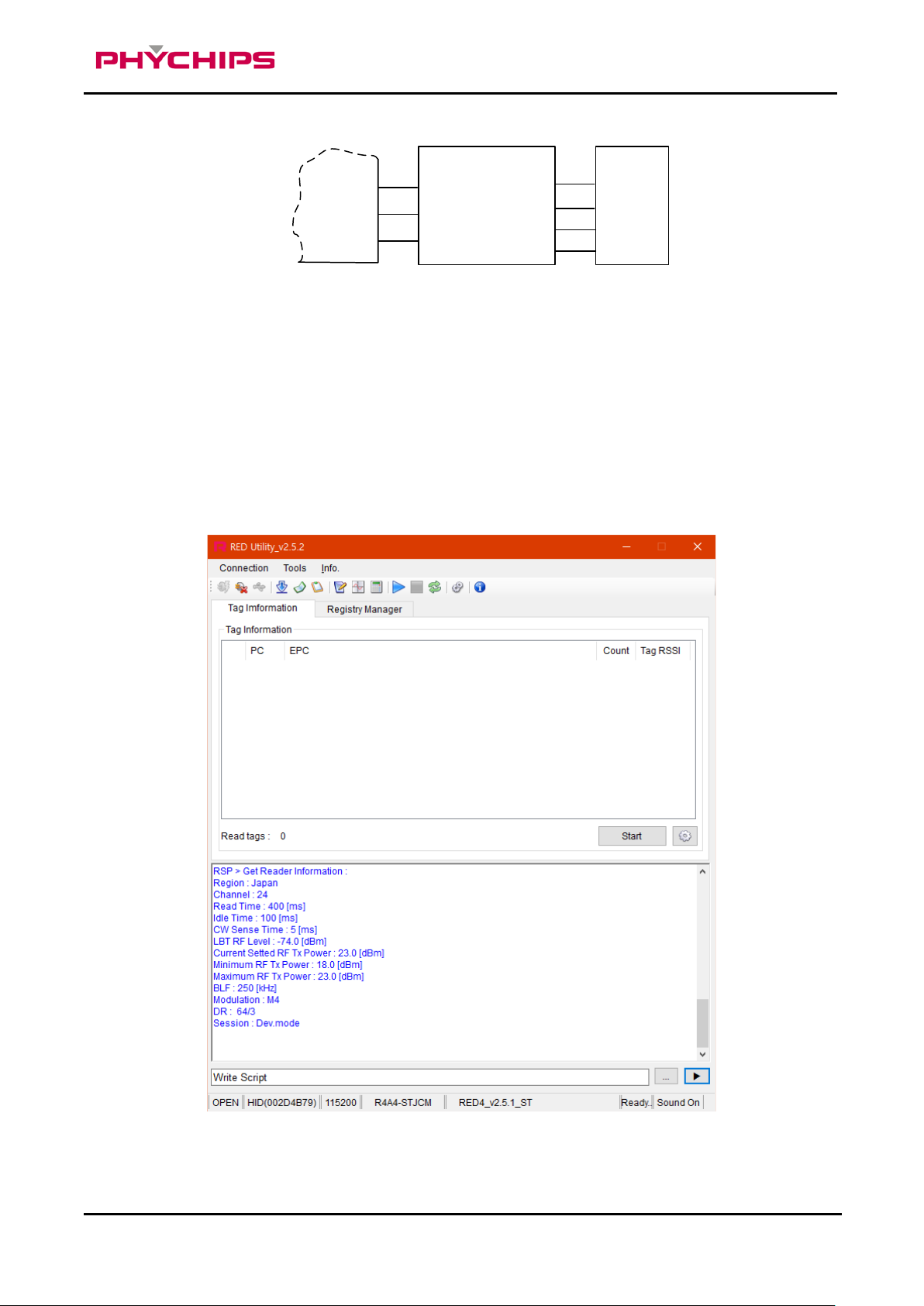

Following configuration is used for interfacing to USB transceiver.
Figure 5 USB transceiver connection
2.3 RF In/Out
RF I/O which assigned to Pin 18 is opt imized with 50ohm impedance.
2.4 GUI Control
The RED Utility helps the user to start working with RED DK RFID reader quickly.
Follow below steps to run GUI.
Windows Start button Program Menu RED Utility_vX.X.X
Figure 6 RED Utility_vX.X.X
8 August 2017
7 of 12
Preliminary Version
RED5 User’s Manuals -
2.4.1 Mode Change
RED Utility provides two view modes. User can select view mode depending on purpose of use between
Basic View Mode and Extended View Mode.
Figure 7 Basic View Mode

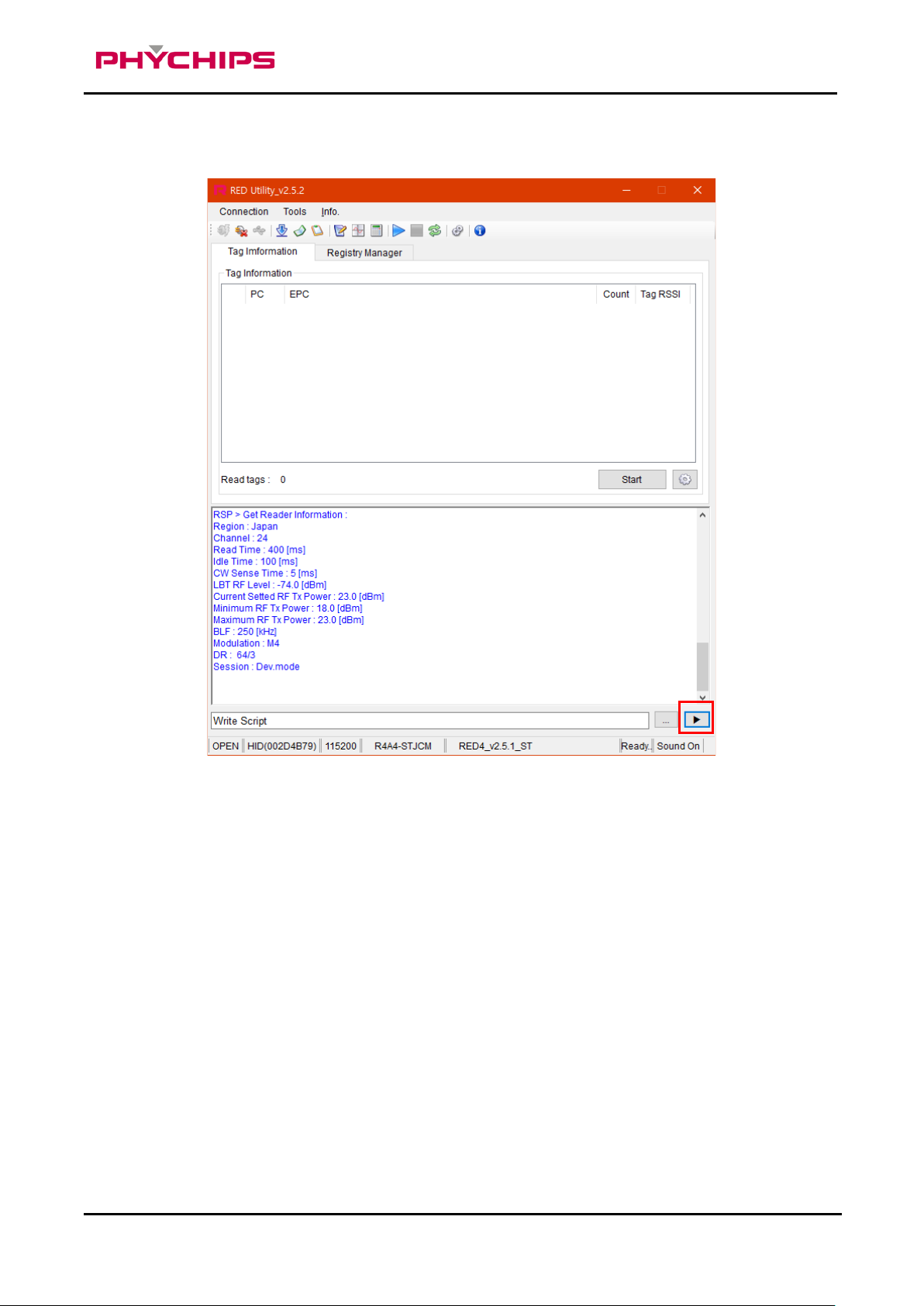

To change View Mode, click the extension button marked red in Figure 6 above.
8 August 2017
8 of 12
Preliminary Version
RED5 User’s Manuals -

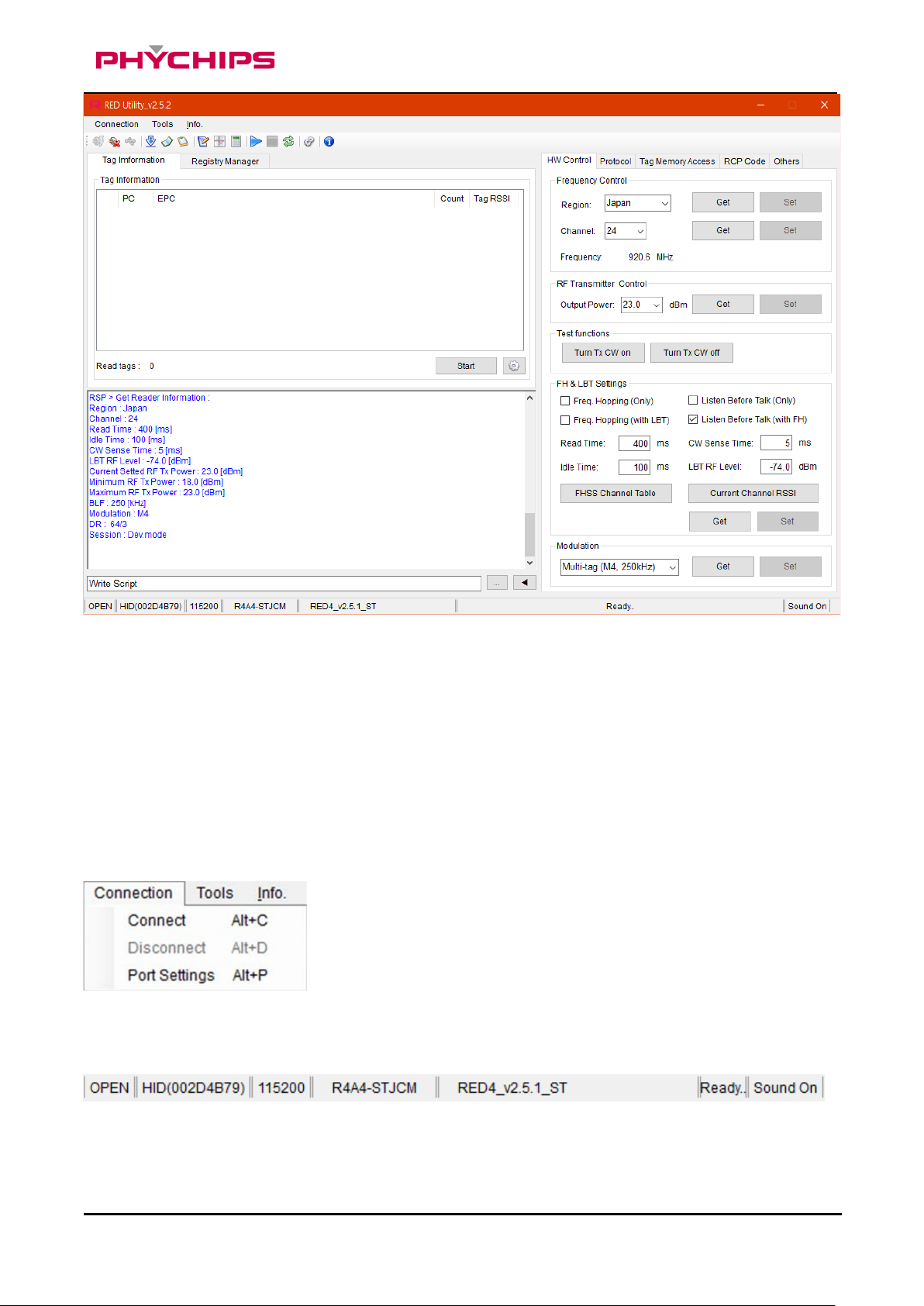

Figure 8 Extended View Mode
Always use Extended View Mode for measurement.
2.4.2 RED5 Connection
If hardware connection is valid, RED utility connect module REDx automatically.
If utility cannot connect hardware, please follow below step
Click “Connection->Connect” to connect to REDx-DK through USB-to-UART at main window
GUI will find the Device an d synchronize par ameters with REDx m odule automatical ly. If the GUI cannot f ind
the device automatically, Click “Connection->Port Setting” and select other Device. Default Baud rate is
115200 bit/s.
If the Device connected successfully, status bar will display “OPEN” state and device number and so on.
8 August 2017
9 of 12
Preliminary Version
RED5 User’s Manuals -

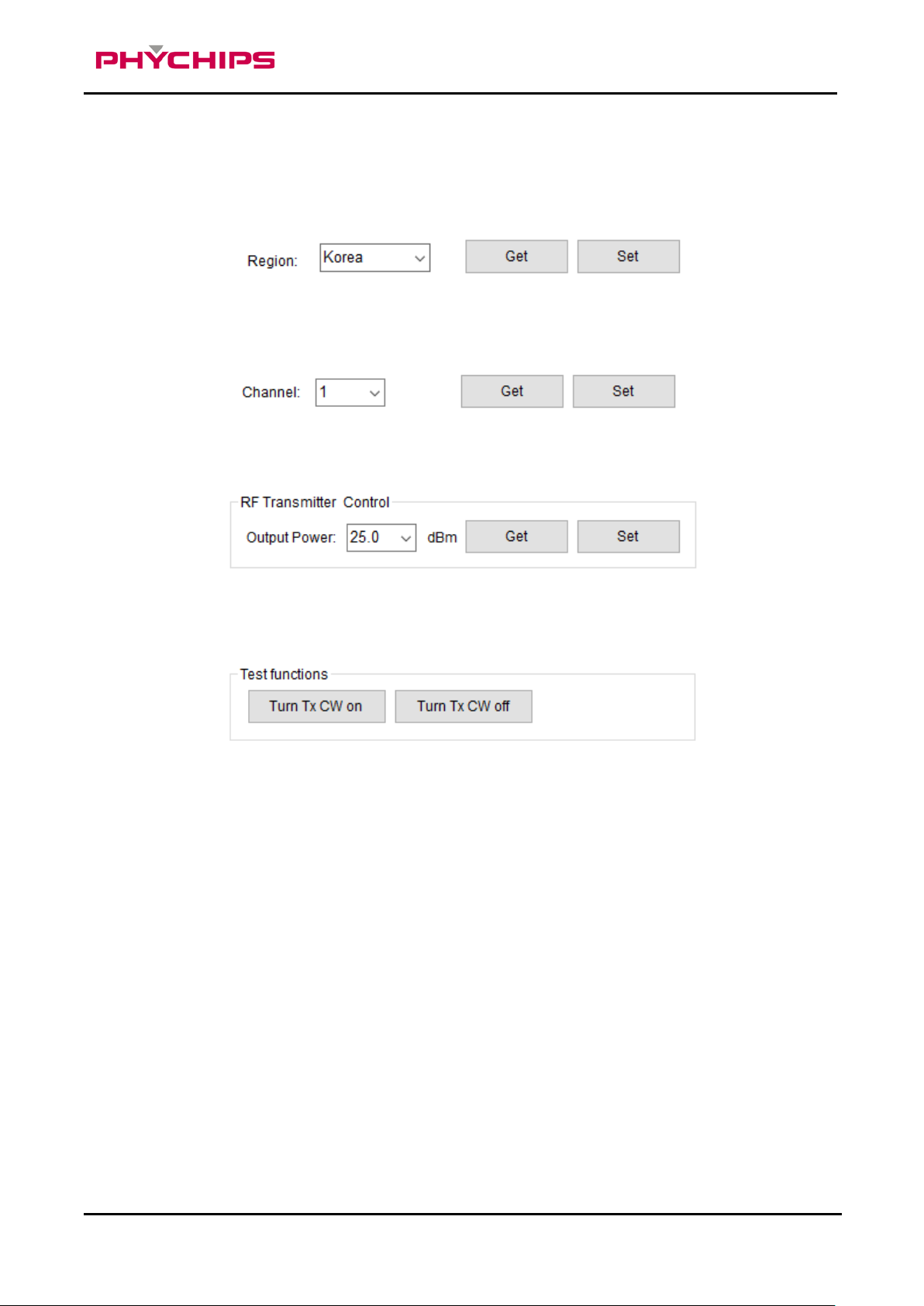

2.4.3 Hardware Control
Click ‘H/W Control Tab.’ To control hardware.
2.4.3.1 Band(Region) Setting
To select operating band, band setting should b e required. Select ba nd in combo box and clic k Set button to
set operating band in group box ‘Frequency Control.’
2.4.3.2 Power Class Setting
Some countries classif y channel number by power c lass. Click Get button and choose req uired power class.
And then click Set button to set finally.
.
2.4.3.3 Output Power setting
To set RED output power, select the Output Power combo box and click Set button.
2.4.3.4 CW (Continuous Wave) setting
It is only used for hardware debugging.
To set CW on, click Turn Tx CW on button. To set CW off, click Tx CW off button.
8 August 2017
10 of 12
Preliminary Version
RED5 User’s Manuals -

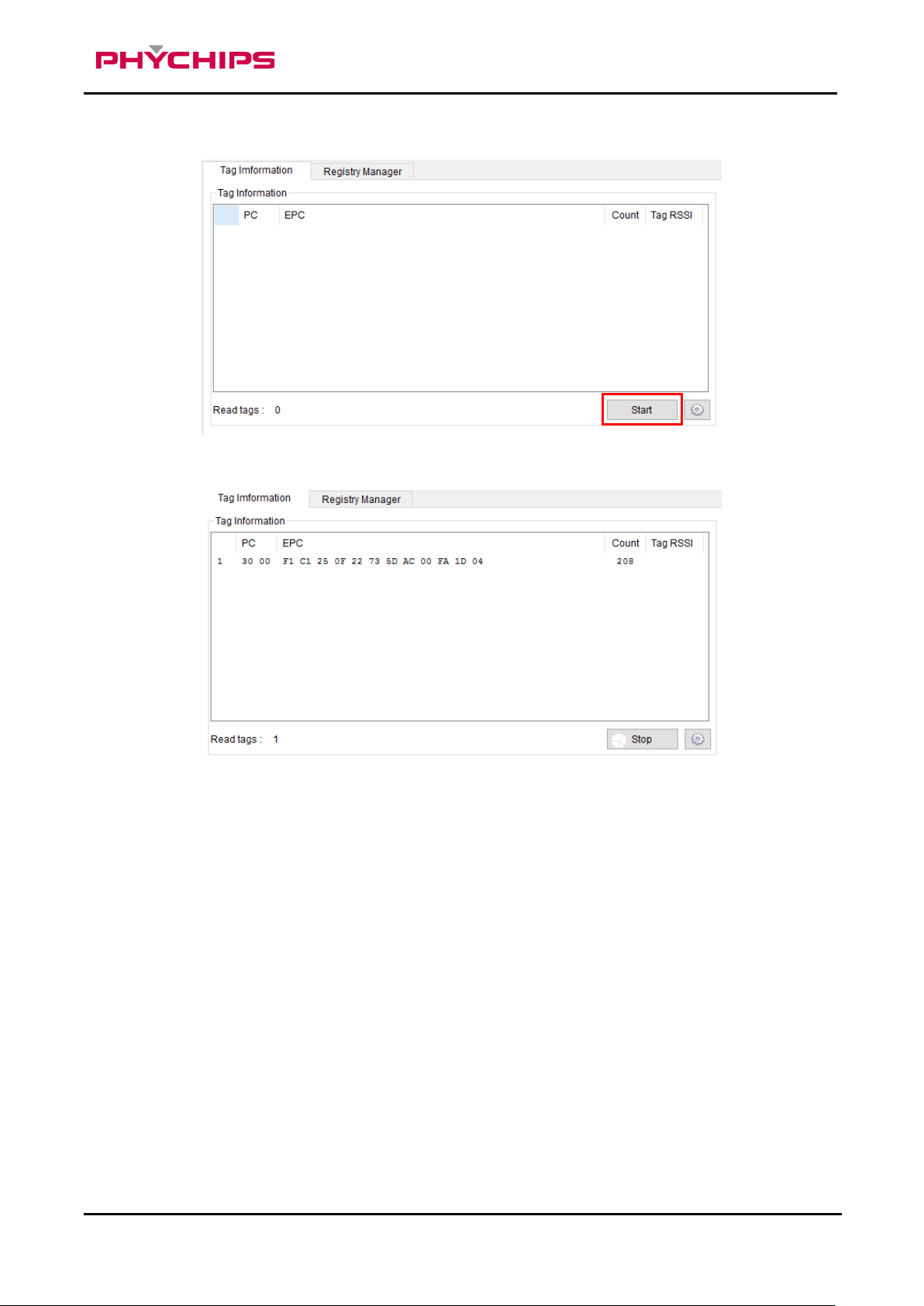

2.4.4 Tag Inventory Procedure
Click Start button in Tag Information Tab to read UHF RFID tag with RED Utility.
Click Start button and Tag’s EPC information is displayed.
8 August 2017
11 of 12
Preliminary Version
Specification
min
Typ.
max
1
Frequency Range
MHz
917.1
926.9
2
Tx Power
dBm 29.5
3
Spurious
dBm
US (FCC 15C)
4
Impedance
Ω
50
RF I/O
5
DC Power
VCCIN
V
2.5
5.5
6
Operating Temperature
°C
-20
70
7
Operating Humidity
% 0 90
Power Down
uA
20
Idle
20
Active
1,370
•Device Name(Model Name) : RED5
•Certification No.:
•Name of Grantee: PHYCHIPS Inc.
•Production year, month, date:
•Manufacturer/Country:
* Power supply regul ati on i nf ormation
RED5 User’s Manuals -
3 Specification
No. Item Unit Test Condition
Active current is
8 Current
mA
9 Size mm 24.0 * 24.0 * 3.0
10 Weight g 3
measured at 25dBm
with 50ohm load
Remark
- This module uses the input voltage of DC 2.5V ~ 5.5V, this input voltage is
converted to DC 3.3V constant voltage through a regulator to operate the product.
FCC Information to User
This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipmen t
is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manua l, may cause ha r mful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) the device may not cause interference, and
(2) the device must accept any interference, including interference that may cause undesired operation of this
device.
Caution : Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment
End Product Labeling
8 August 2017
12 of 12
Preliminary Version
RED5 User’s Manuals -
The module is labeled with its own FCC. If the FCC ID is not visible when the module is installed inside
another device, then the outside of the device into which the module is installed mus t also disp lay a labe l
referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the
following:
“
Contains FCC ID: Y3D-RED5”
OEM Responsibilities to comply with FCC and Industry Canada Regulations
The module has been certified for integration into products only by OEM integrators under the following
condition:
- The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times.
- The module is limited to installation in mobile or fixed applications.
- The transmitter module mu st not be co-located or operating in conjunc tion with any other a ntenna or
transmitter except in accordance with FCC multi-transmitter product procedures.
- Separate approval will be required for all other operating configurations, including portable
configurations wit h respect to Part 2.1093 and different antenna configur ations other than supplied
antennas.
As long as the two condition above is met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements required
with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
In the event that these conditions cannot be met, then the FCC authorizations are no longer considered valid
and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product including this module and obtaining separate FCC authorizations.
- This device is intended only for OEM integrators
- For OEM integration only – device cannot be sold to general public.
- Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module.

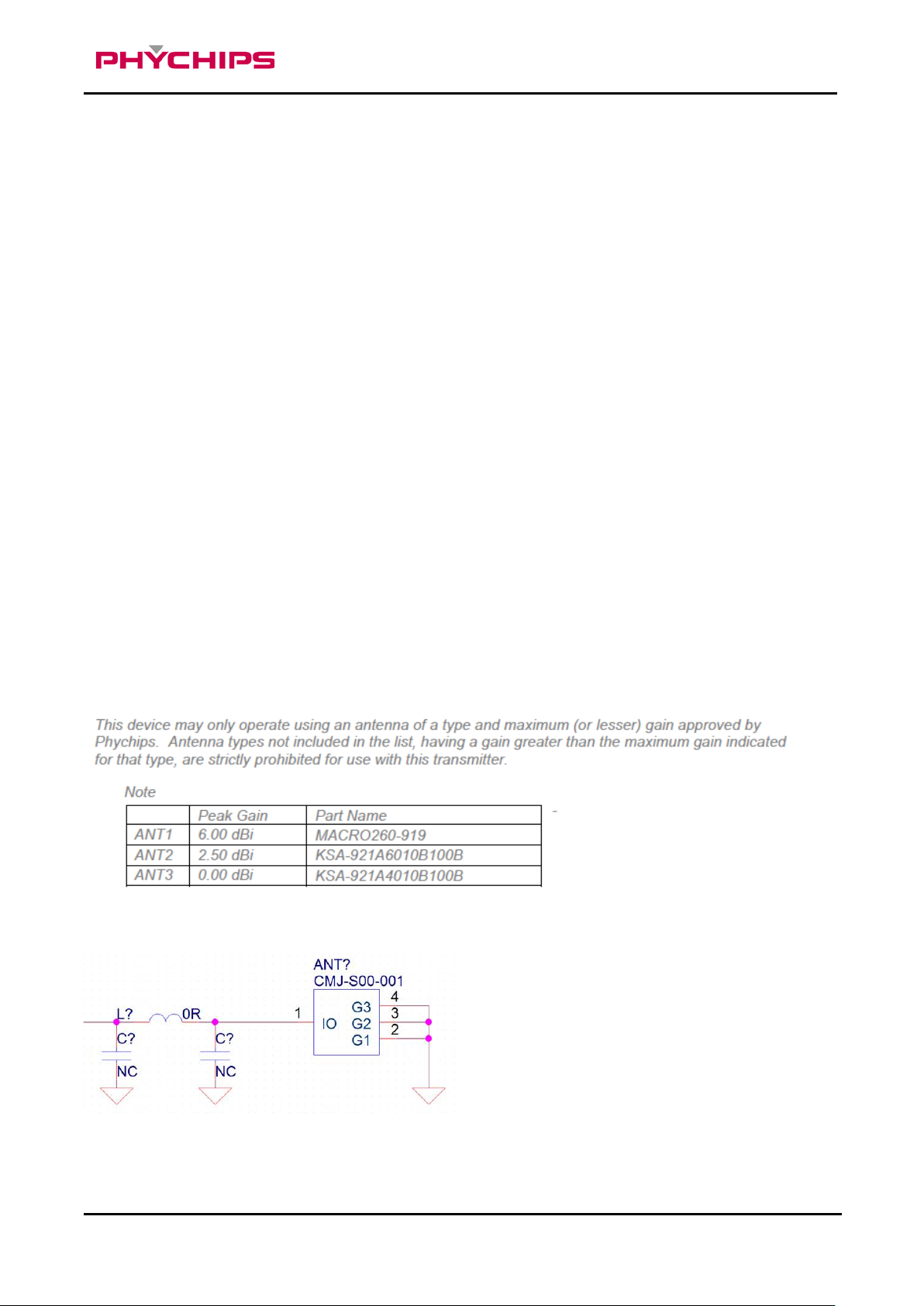

The antenna matching circuit is a Pi as shown below, and th e m inimum loss is 0dB. The antenna connec tor is
CMJ type, and the distance to the connector is Max 100mm.
