RED4S User’s Manuals
RED4S User’s Manuals - Preliminary Version
Contents
1 Pin Description .................................................................................................................................. 3
1.1 RED4S Pin Description ....................................................................................................................... 3
2 Operation Method .............................................................................................................................. 5
2.1 Power Supply ...................................................................................................................................... 5
2.2 UART ................................................................................................................................................... 5
2.3 RF In/Out ............................................................................................................................................. 7
2.4 GUI Control ......................................................................................................................................... 7
3 Specification .................................................................................................................................... 12
2 March 2018 2 of 14
RED4S User’s Manuals - Preliminary Version
1 Pin Description
VCC 36
GND
NC
NC
NC
NC
IS P_MO DEb
CSE
NC
P15
P16
P17
P12
NC
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
171819
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
P00_RXD0
P01_T XD0
NC
NC
NC
RESETb
SWCLK
SWDIO
GND
GND
GND
GND
GND
GND
VCC36P
VCC36P
GND
GND
RFIO

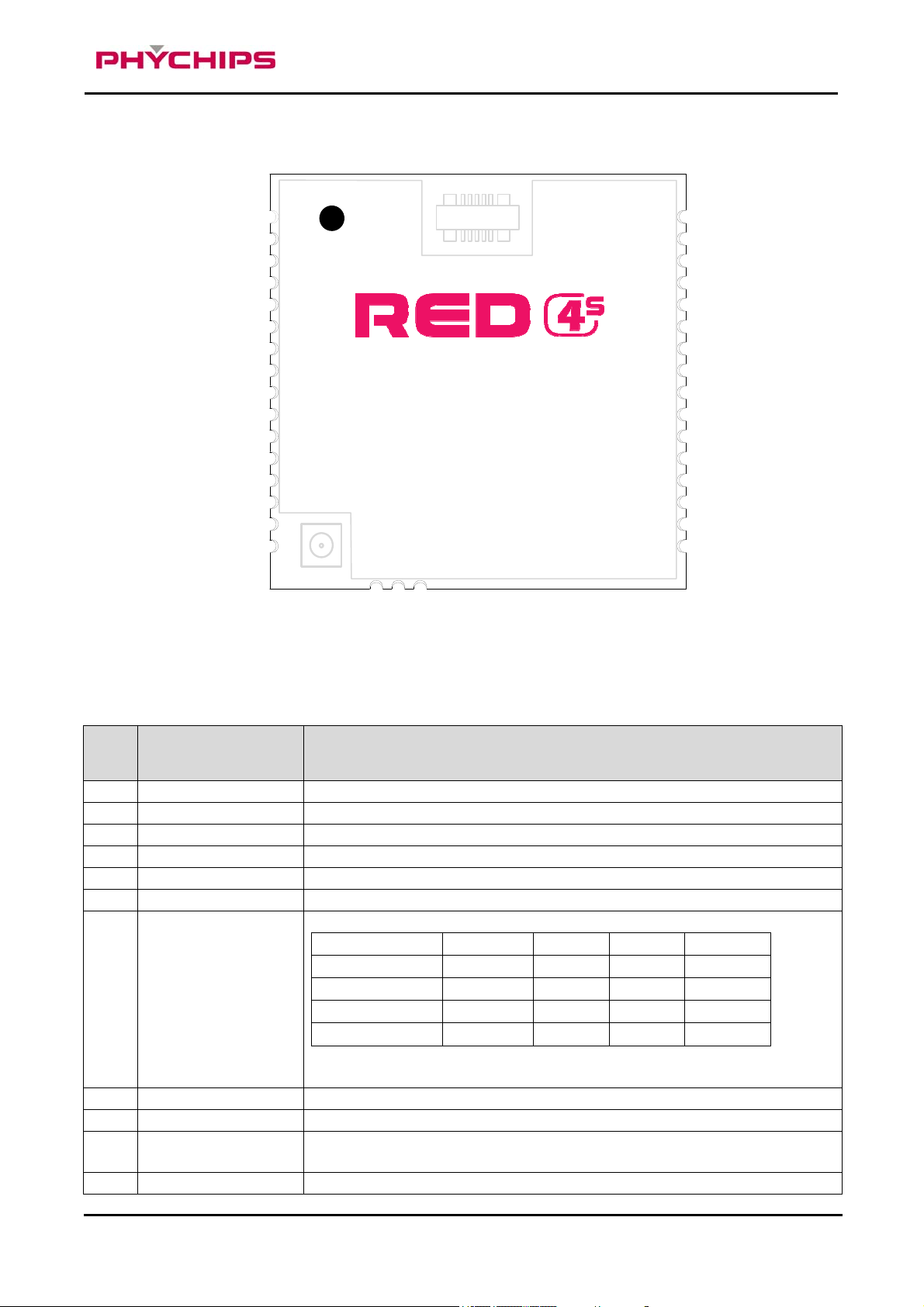

Figure 1 Pin Description
1.1 RED4S Pin Description
No. Pin Name Description
1 VCC36 DC Power for Reader SOC
2 GND Ground
3 P04_SPI_TXD Quasi-bi directional I/O port or SPI Output
4 P05_SPI_RXD Quasi-bi directional I/O port or SPI Input
5 P06_SPI_CLK Quasi-bi directional I/O port or SPI Clock
6 P07_SPI_CS Quasi-bi directional I/O port or SPI Chip Select
When ISP_MODEb is Logic ‘Low’, ISP mode is set as shown below table
Pin No. 7 12 11 10
MODE ISP_MODEb P17 P16 P15
7 ISP_MODEb
8 CSE Chip Select enable / module power enable 0:Disable 1: Enable
9 NC Not Connection
10 P15
11 P16 Quasi-bi directional I/O port or External Interrupt 4
2 March 2018 3 of 14
Normal 1 GPIO/INT GPIO/INT GPIO/INT
UART ISP 0 0 0 0
SPI ISP 0 0 0 1
[CAUTION] Except ISP mode, ISP_MODEb should be set logic ‘High’ for
robust stability for FLASH memory
Quasi-bi directional I/O port
NOTE] This pin is already used internally. So this pin should be only for ISP mode
[
12 P17 Quasi-bi directional I/O port or External Interrupt 5
13 P12_SCL
14 P11_SDA
15 GND Ground
16 GND Ground
17 GND Ground
18 RF IO Rx Input / Tx Output
19 GND Ground
20 VCC36P DC Power for Power Amp
21 VCC36P DC Power for Power Amp
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground
26 GND Ground
27 GND Ground
28 SWDIO Serial Wire Debug data in out
29 SWCLK Serial Wire Debug Clock
30 RESETb Reader SOC Reset signal 0: reset
31 NC Not Connection
32 NC Not Connection
33 NC Not Connection
34 P01_TXD0 Quasi-bi directional I/O port or UART0 Output
35 P00_RXD0 Quasi-bi directional I/O port or UART0 Input
Quasi-bi directional I/O port I2C Clock
The pull-up resistor is always switched on.
Reserved Address : 0x70, 0x71
Quasi-bidirectional I/O port I2C Data In / Out
The pull-up resistor is always switched on.
Reserved Address : 0x70, 0x71
RED4S User’s Manuals - Preliminary Version
2 March 2018 4 of 14
W
RED4S User’s Manuals - Preliminary Version
2 Operation Method (Installation guide for power supply)
LDO
U2
V_battery
1
VIN
VOUT
EN
2
to HOST
hen ENABLE is high, RED4S ON
ENABLE
3
VCC=3.3V
P15
P16
P17
P12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
U1
VCC 36
GND1
NC1
NC2
NC3
NC4
ISP_MODE
CSE
NC5
P15
P16
P17
P12
NC6
GND2
GND3
RED4S
RED4S
GND417RF I/O18GND5
RF_IO
1
J1
35
P00_RXD0
P01_TXD 0
NC9
NC8
NC7
RESET
SWCL K
SWDI O
GND11
GND10
GND9
GND8
GND7
GND6
VCC36P
VCC36P
19
2
P00_RXD0
34
P01_TXD 0
33
32
31
30
29
28
27
26
25
24
23
22
21
20
V_battery
SWCLK
SWDI O
to HOST
UART TXD
UART RXD
J3
1
2
3
CON3
(optional)
SW1
1 2
(optional)

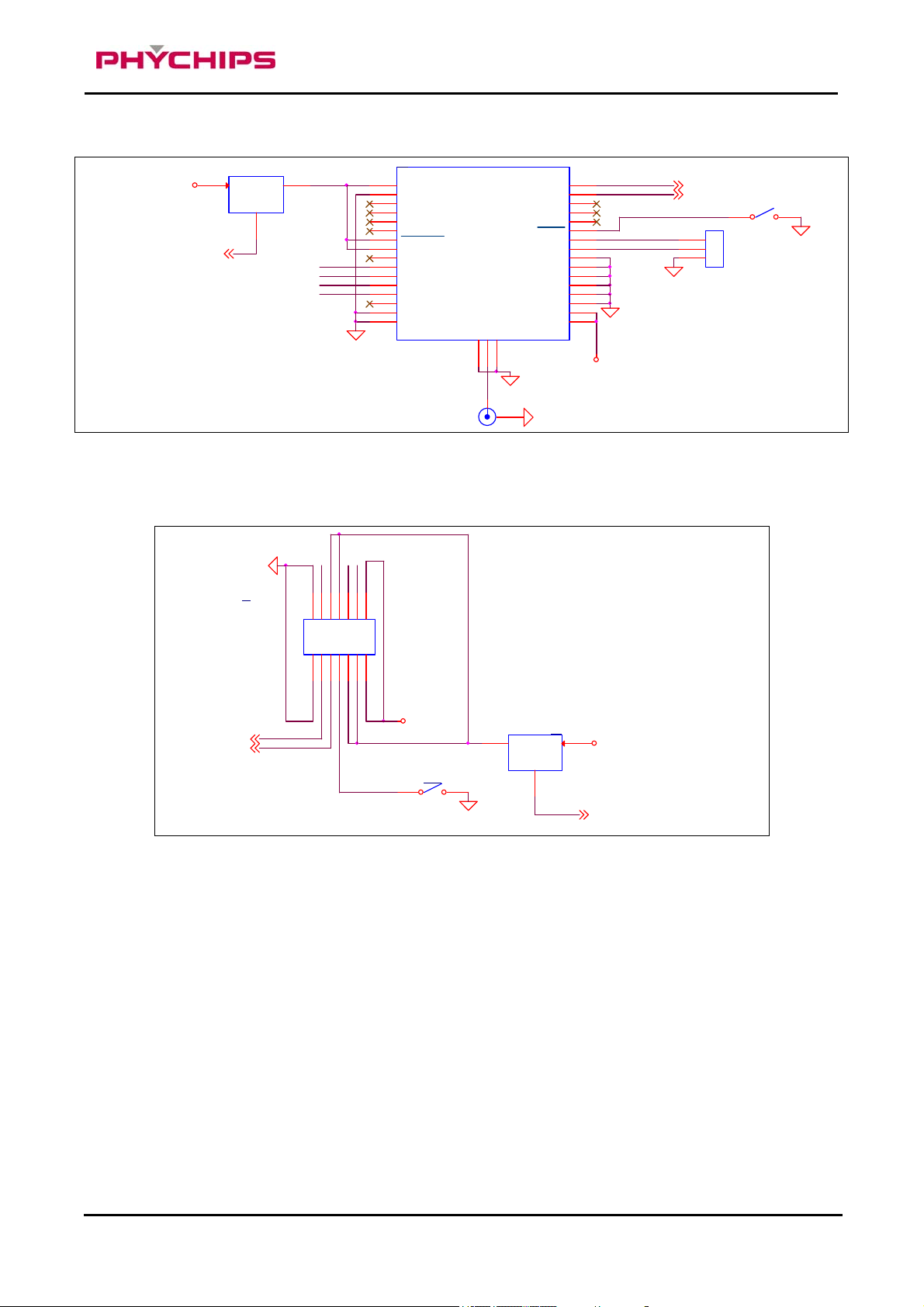

Figure 2 Application Circuit
ISP_MODEb
CSE
P16
P15
P17
J1
BM24-10DP/2-0.35V
to HOST
UART TXD
UART RXD
12345678910
GND GND
VCC36P
1112
1314
P01_TXD0
VCC36
VCC36
RESETb
P00_RXD0
VCC36P
V_battery
VCC=3.3V
SW1
1 2
(optional)
3
U1
1
VOUT
VIN
EN
2
V_battery
ENABLE
When ENABLE is high, RED4S ON
Figure 3 Application circuit: DC/Signal connector
2.1 Power Supply
DC power to operate RED4S is separated by 2 kinds. VCC36 is to supply for PR9200 which power range is
3.3 to 3.6 volts, VCC36P is to supply for power amp which power range is 3.3 to 4.2 volts.
In mobile device with battery, VCC36P can be connected to battery power directly. VCC36 pins need to
external LDO (or another device). As the Host control the LDO’s enable, user control power down mode of
module. If you do not control external LDO, you can control CSE pin to enter power down mode instead.
2.2 UART
The serial interface is assigned with two wires. RXD0, which pin is assigned to pin 35, is for receiving
command from host and TXD0, which pin is assigned to pin 34, is for transmitting response to host. Pin
connection is shown as below figure.
2 March 2018 5 of 14
RED4S User’s Manuals - Preliminary Version

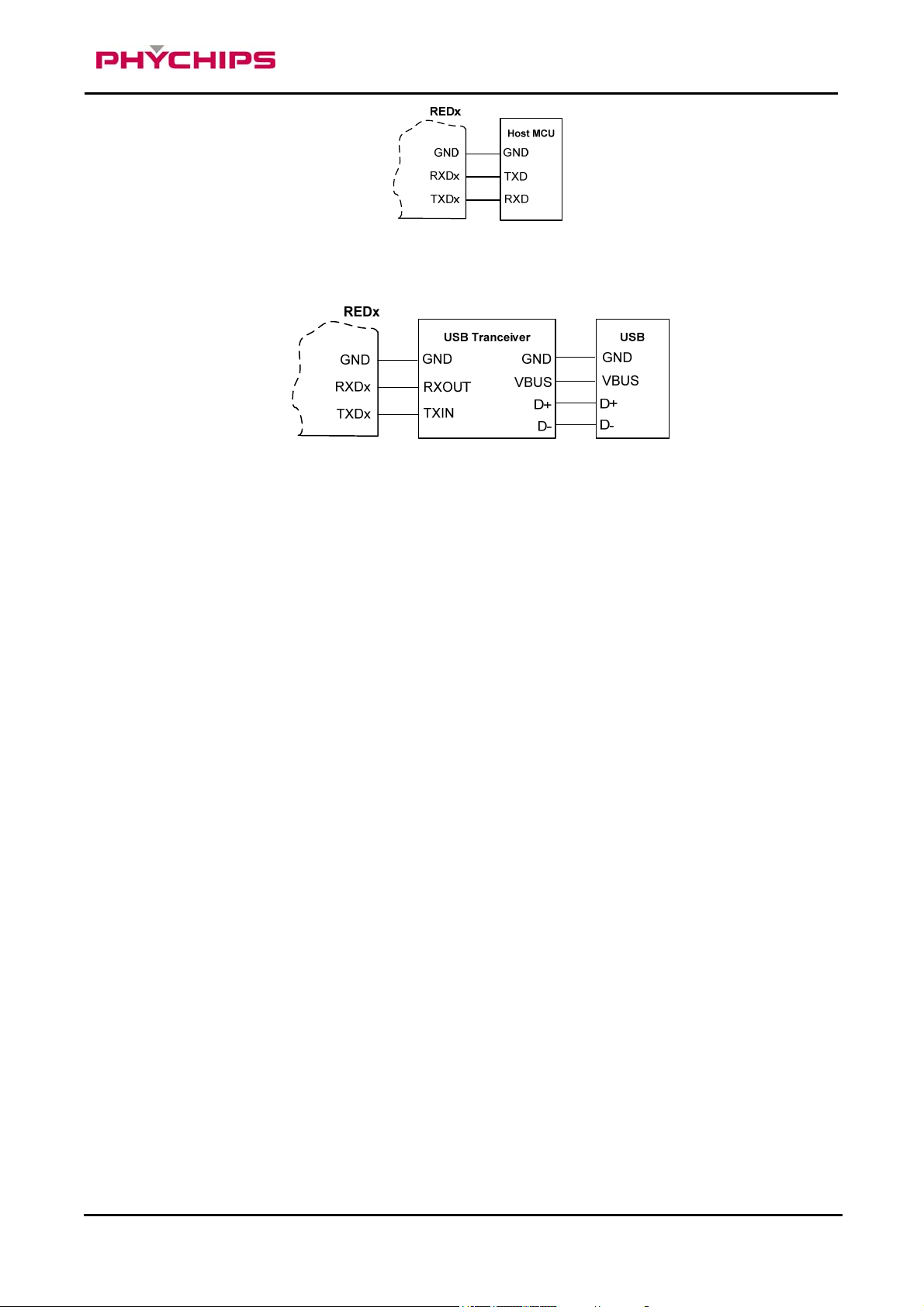

Figure 4 Host MCU Connection
Following configuration is used for interfacing to USB transceiver.
Figure 5 USB transceiver Connection
2 March 2018 6 of 14
RED4S User’s Manuals - Preliminary Version
2.3 RF In/Out
RF I/O which assigned to Pin 18 is optimized with 50ohm impedance.
2.4 GUI Control
The RED Utility helps the user to start working with RED DK RFID reader quickly.
Follow below steps to run GUI.
Windows Start button Program Menu RED Utility_vX.X.X

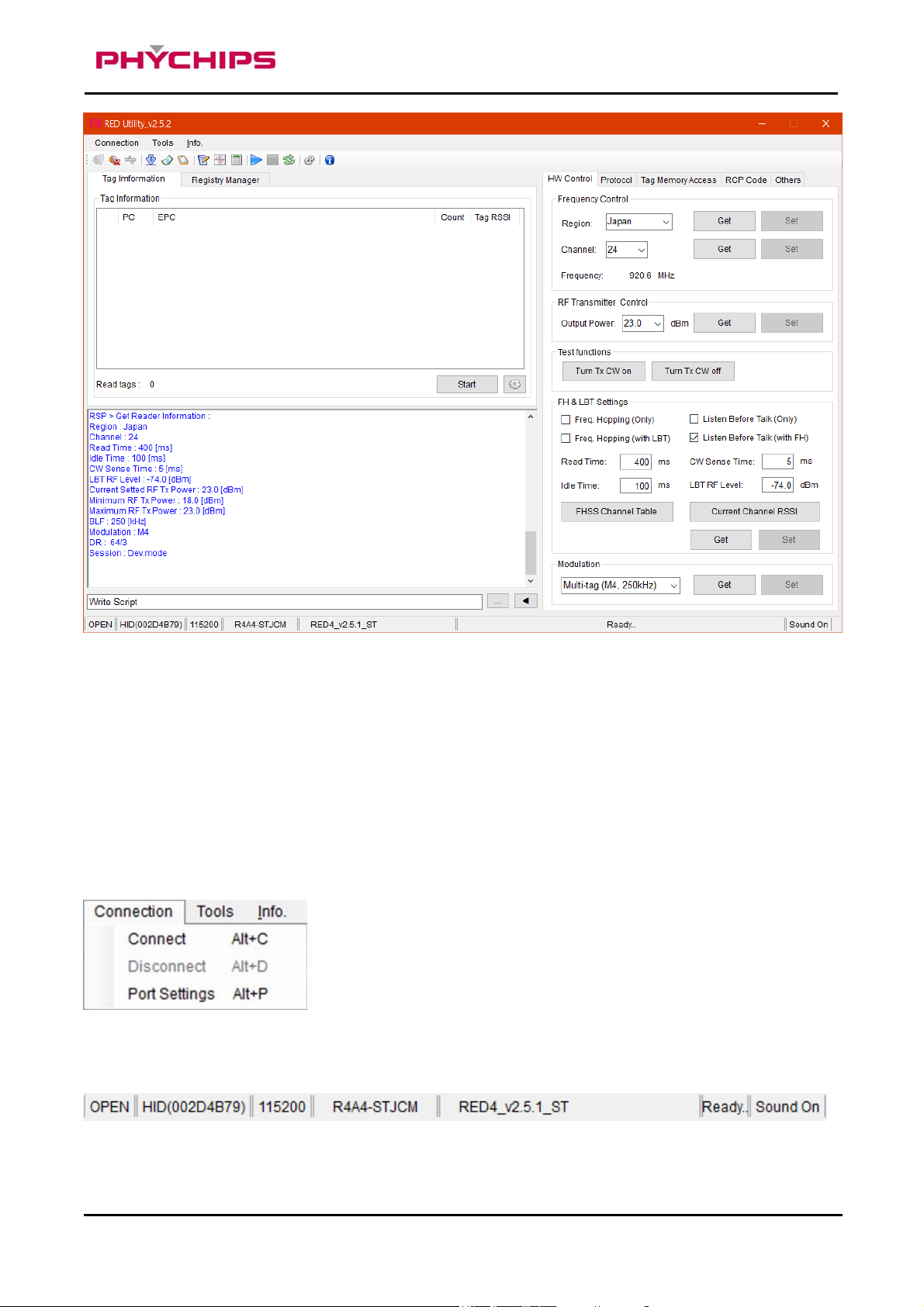

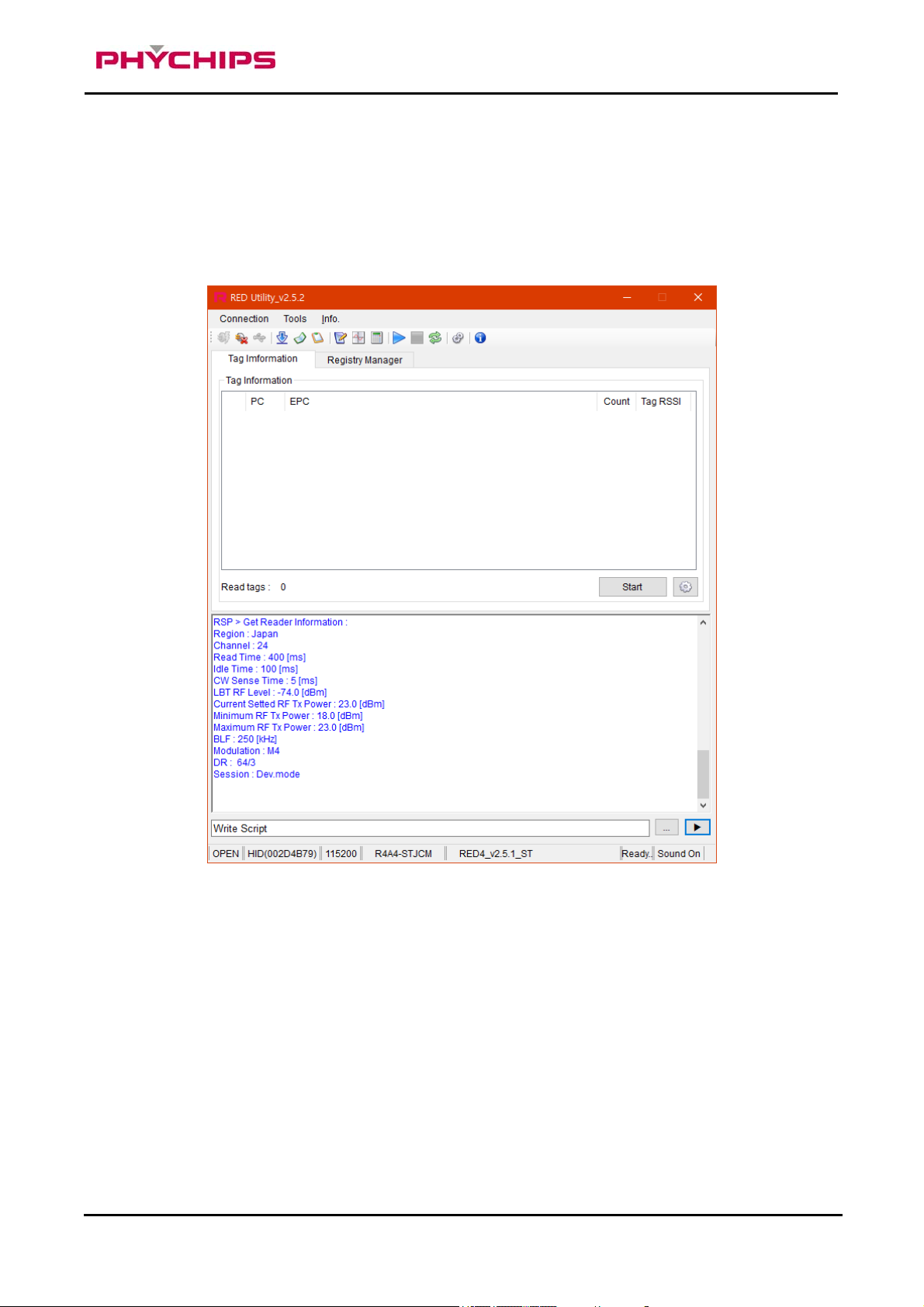

Figure 6 RED Utility_vX.X.X
2 March 2018 7 of 14
RED4S User’s Manuals - Preliminary Version
2.4.1 Mode Change
RED Utility provides two view modes. User can select view mode depending on purpose of use between
Basic View Mode and Extended View Mode.

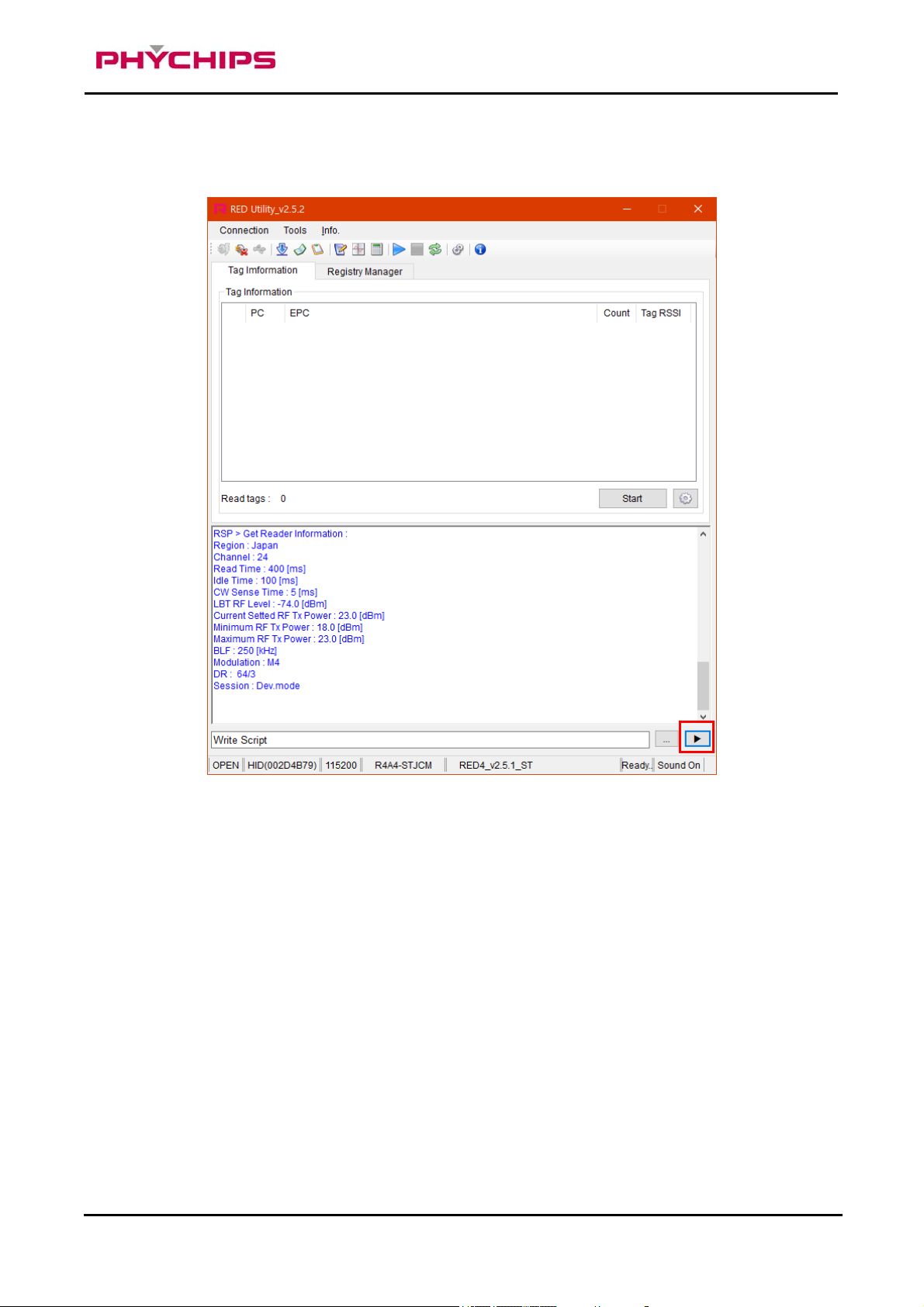

Figure 7 Basic View Mode
To change View Mode, click the extension button marked red in Figure 7 above.
2 March 2018 8 of 14
RED4S User’s Manuals - Preliminary Version
Figure 8 Extended View Mode
Always use Extended View Mode for measurement.
2.4.2 RED4S Connection
If hardware connection is valid, RED utility connect module REDx automatically.
If utility cannot connect hardware, please follow below step
Click “Connection->Connect” to connect to REDx-DK through USB-to-UART at main window
GUI will find the Device and synchronize parameters with REDx module automatically. If the GUI cannot find
the device automatically, Click “Connection->Port Setting” and select other Device. Default Baud rate is
115200 bit/s.
If the Device connected successfully, status bar will display “OPEN” state and device number and so on.
2 March 2018 9 of 14
RED4S User’s Manuals - Preliminary Version
2.4.3 Hardware Control
Click ‘H/W Control Tab.’ To control hardware.

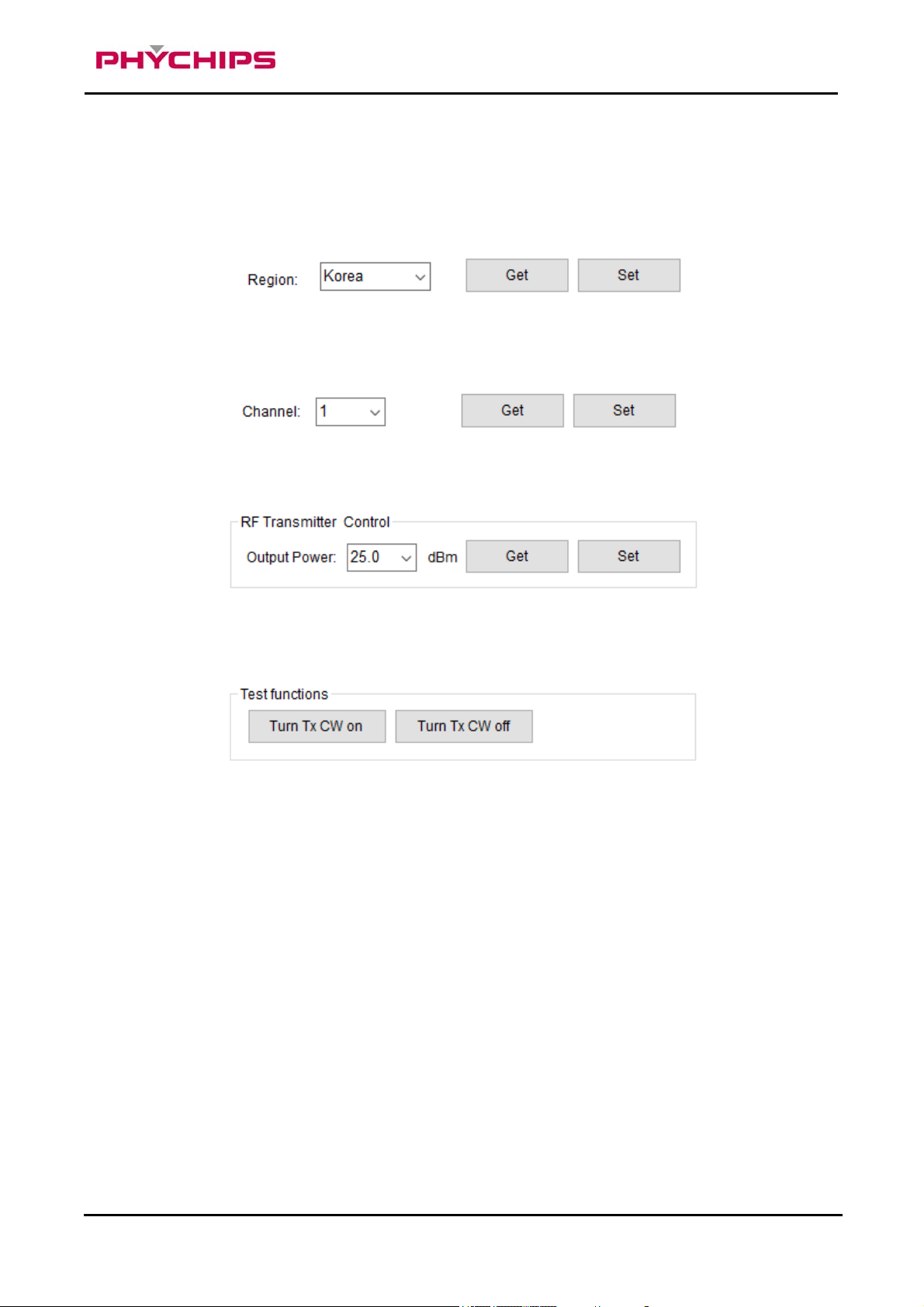

2.4.3.1 Band(Region) Setting
To select operating band, band setting should be required. Select band in combo box and click Set button to
set operating band in group box ‘Frequency Control.’
2.4.3.2 Power Class Setting
Some countries classify channel number by power class. Click Get button and choose required power class.
And then click Set button to set finally.
.
2.4.3.3 Output Power setting
To set RED output power, select the Output Power combo box and click Set button.
2.4.3.4 CW (Continuous Wave) setting
It is only used for hardware debugging.
To set CW on, click Turn Tx CW on button. To set CW off, click Tx CW off button.
2 March 2018 10 of 14
RED4S User’s Manuals - Preliminary Version

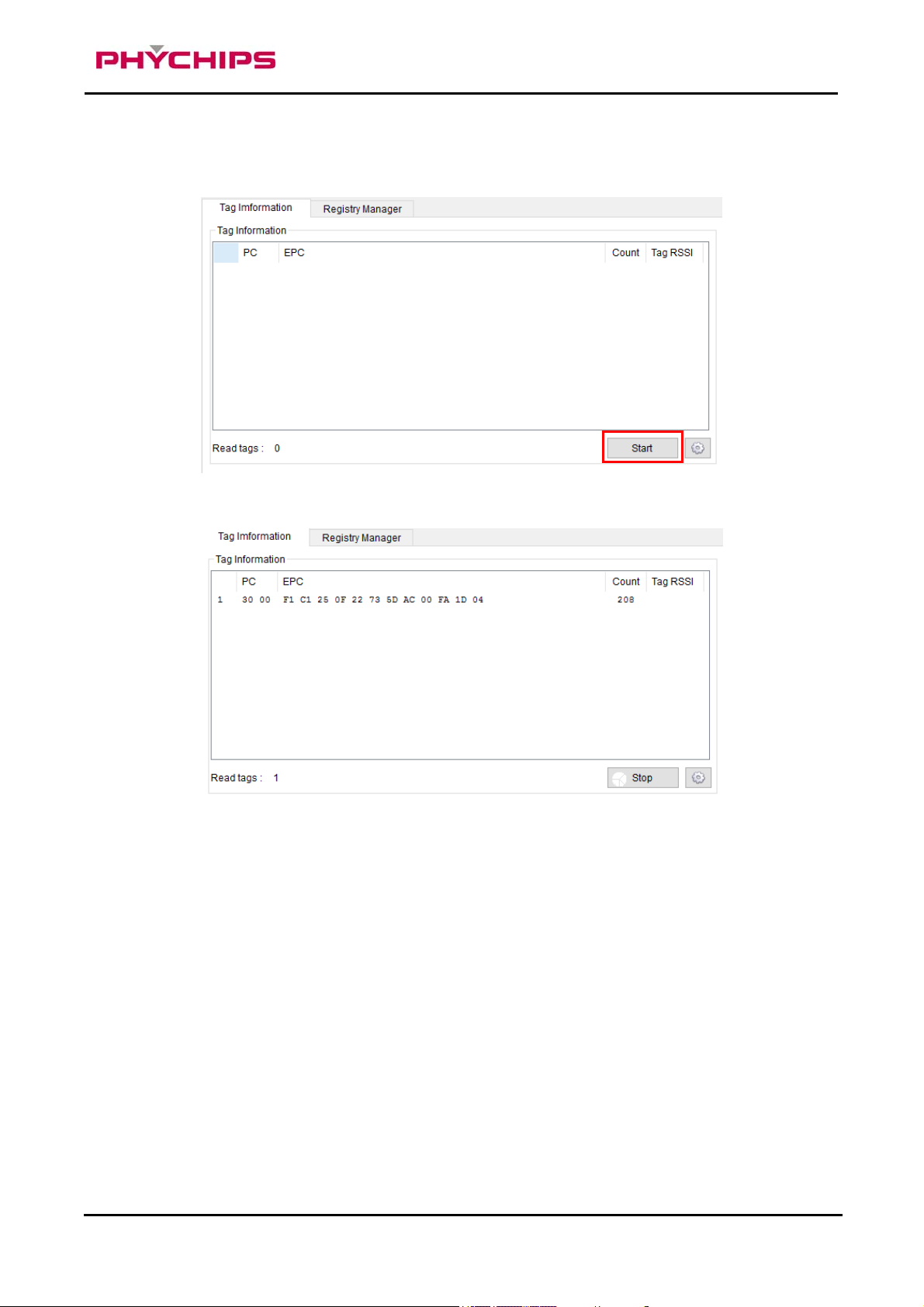

2.4.4 Tag Inventory Procedure
Click Start button in Tag Information Tab to read UHF RFID tag with RED Utility.
Click Start button and Tag’s EPC information is displayed.
2 March 2018 11 of 14
RED4S User’s Manuals - Preliminary Version
3 Specification
No. Item Unit Test Condition
1 Frequency Range MHz 917.1 926.9
2 Tx Power dBm 26 27 PEAK
3 Spurious dBm
4 Impedance Ω 50 RF I/O
5 DC Power
VCC36P
VCC36 3.3 3.6
V
6 Operating Temperature °C -20 70
7 Operating Humidity % 0 90
8 Current
Power Down uA
Idle
Active -
mA
Active current is
measured at 25dBm
with 50ohm load
9 Size mm 24.0 * 24.0 * 3.0
10 Weight g 3
•Device Name(Model Name) : RED4S
•FCC ID: Y3D-RED4S
•Name of Grantee: PHYCHIPS Inc.
•Production year, month, date:
•Manufacturer/Country: Korea
Specification
min Typ. max
US (FCC 15C)
3.3 3.6 4.2
20
20
Remark
2 March 2018 12 of 14
RED4S User’s Manuals - Preliminary Version
FCC Information to User
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) the device may not cause interference, and
(2) the device must accept any interference, including interference that may cause unde sired operation of this
device.
Caution : Any changes or modifications in construction of this device which are not expressly approved b y the
party responsible for compliance could void the user's authority to operate the equipment
This device generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technical for help.
End Product Labeling
The module is labeled with its own FCC. If the FCC ID is not visible when the module is installed inside
another device, then the outside of the device into which the module is installed must also display a label
referring to the enclosed module. In that case, the final end product must be labeled in a visible area with the
following:
“
Contains FCC ID: Y3D-RED4S”
OEM Responsibilities to comply with FCC
The module has been certified for integration into products only by OEM integrators under the following
condition:
- The antenna(s) must be installed such that a minimum separation distance of at least 20 cm
ismaintained between the radiator (antenna) and all persons at all times.
- The module is limited to installation in mobile or fixed applications.
- The transmitter module must not be co-located or operating in conjunction with any other antenna
ortransmitter except in accordance with FCC multi-transmitter product procedures.
- Separate approval will be required for all other operating configurations, including
portableconfigurations with respect to Part 2.1093 and different antenna configurations other than
suppliedantennas.
- The end product must have a power supply regulation circuit.
The supply voltage for this module is 3.3~3.6V. Please refer to the installation guide.(on page 5)
As long as the condition above is met, further transmitter testing will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements required
with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
In the event that these conditions cannot be met, then the FCC authorizations are no longer considered valid
and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product including this module and obtaining separate FCC authorizations.
- This device is intended only for OEM integrators
- For OEM integration only – device cannot be sold to general public.
- Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user’s manual of the end product which integrates
this module.
2 March 2018 13 of 14
RED4S User’s Manuals - Preliminary Version
This device may only operate using an antenna of a type and maximum (or lesser) gain approved by
Phychips. Antenna types not included in the list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this transmitter.
Note
-
Peak Gain Part Name
ANT 3.72 dBi
–
921A6015B100B
KSA
2 March 2018 14 of 14
Loading...
