PRM92K20CE

UHF RFID Module

User’s Manual

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

Contents

1 Revision History ................................................................................................................................ 3

2 Introduction ....................................................................................................................................... 4

2.1 Package configuration ......................................................................................................................... 4

2.2 Features .............................................................................................................................................. 5

3 DK description ................................................................................................................................... 6

3.1 PRM92x10C_CTRL ............................................................................................................................. 6

4 Specifications .................................................................................................................................... 9

5 Address Information ....................................................................................................................... 10

28 December 2012 2 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

1 Revision History

Version Date Description

ADK01 2012.10. 09 Initial Release

28 December 2012 3 of 12

–

2 Intr

The PRM92 supports D PRM92x20

2.1 Pack

PRM92x20

duction

x20CE DK

power sup

E is UHF R

ge confi

E DK inclu

onsists of P

ly and PC i

FID reader

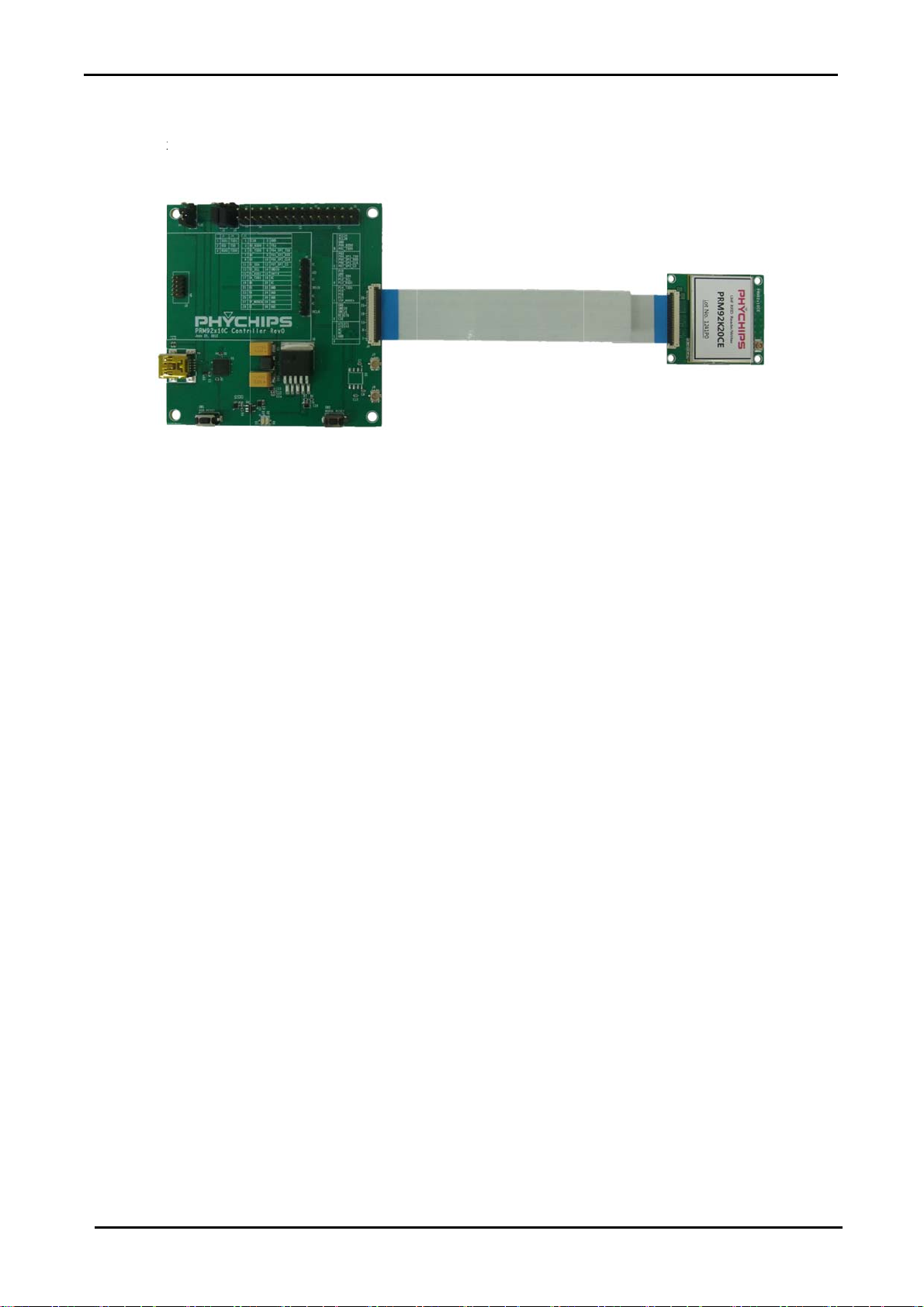

Figure 1 C

uration

M92x20C

terface.

odule usin

nnection to

PRM92x2

and PRM9

PR9200 a

RM92x10

0CE USER’

10C_CTRL

d include T

_CTRL & P

MANUAL

board. The

XO.

M92x20C

PRM92x2

PRM9x10C

CE_ADK0

CTRL boar

 PR  PR  AQ  Tag  Mini  FF  Des

92x20CE : 9x10C_CT AxxxS_601

Samples (

-USB cable cable

ign Kit Docu

RF board

L : PC inte 0 Antenna PM Short D

ment CD

face board

pole)

28 Dece

ber 2012

4 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

2.2 Features

PRM92x20CE is reference designed module of PR9200 and low cost components. PRM9x10C_CTRL is control board that connects Reader Module to PC, supporting USB-to-UART interface and DC power management for reader module.

PRM92x20CE

- EPC Gen2 support

- RCP protocol with CRC

- FCC,EN certified

- PR9200, TCXO, Coupler, Antenna port

- Module size : 30mm x 35mm

- U.FL connector for Antenna port (50ohm)

- 30pin FFC connector (PR9200 full IO including I2C, GPIO)

PRM92x10C_CTRL

- Board size: 70mm x 70mm

- DC power supply to USB

- UART based PC interface

- Mini USB connector

- FFC connector for DC supplement & data interface

- 2.54mm pitch application connector (ALL GPIO)

- SWD support

Firmware & GUI

- RCP protocol with CRC

- Read, Write, access, lock, kill operation

- Bi-directional transfer to host microcontroller

- Bi-directional transfer via I2C interface

- Modular and easy to customize to final use case

- Easy to access to GPIOs

28 December 2012 5 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

3 DK description

3.1 PRM92x10C_CTRL

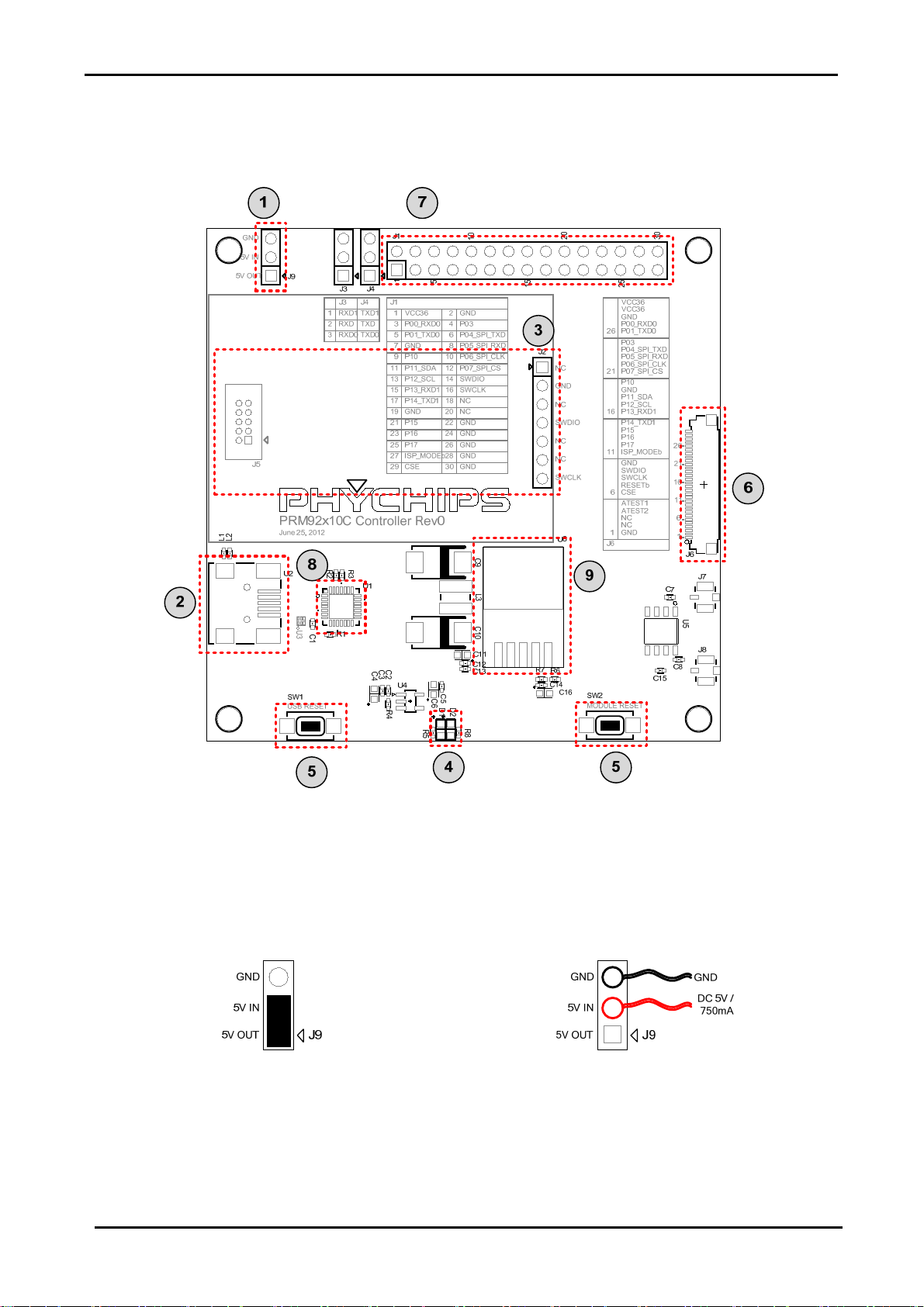

Figure 2

3.1.1 Power connector ①

This is 3-pin connector for power supply to internal LDO of this module (⑨) If this connector is connected by jumper, PRM92x20CE is powered by USB 5V. Also you can connect external power through this connector pin.

(A) When USB power is used (Default) (B) When External power is used

Figure 3 Power connector

3.1.2 Mini USB port ②

Connect mini-USB port to PC using mini-USB cable enclosed in the package PRM92x20CE can connect PC through UART and be supplied DC power.

28 December 2012 6 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

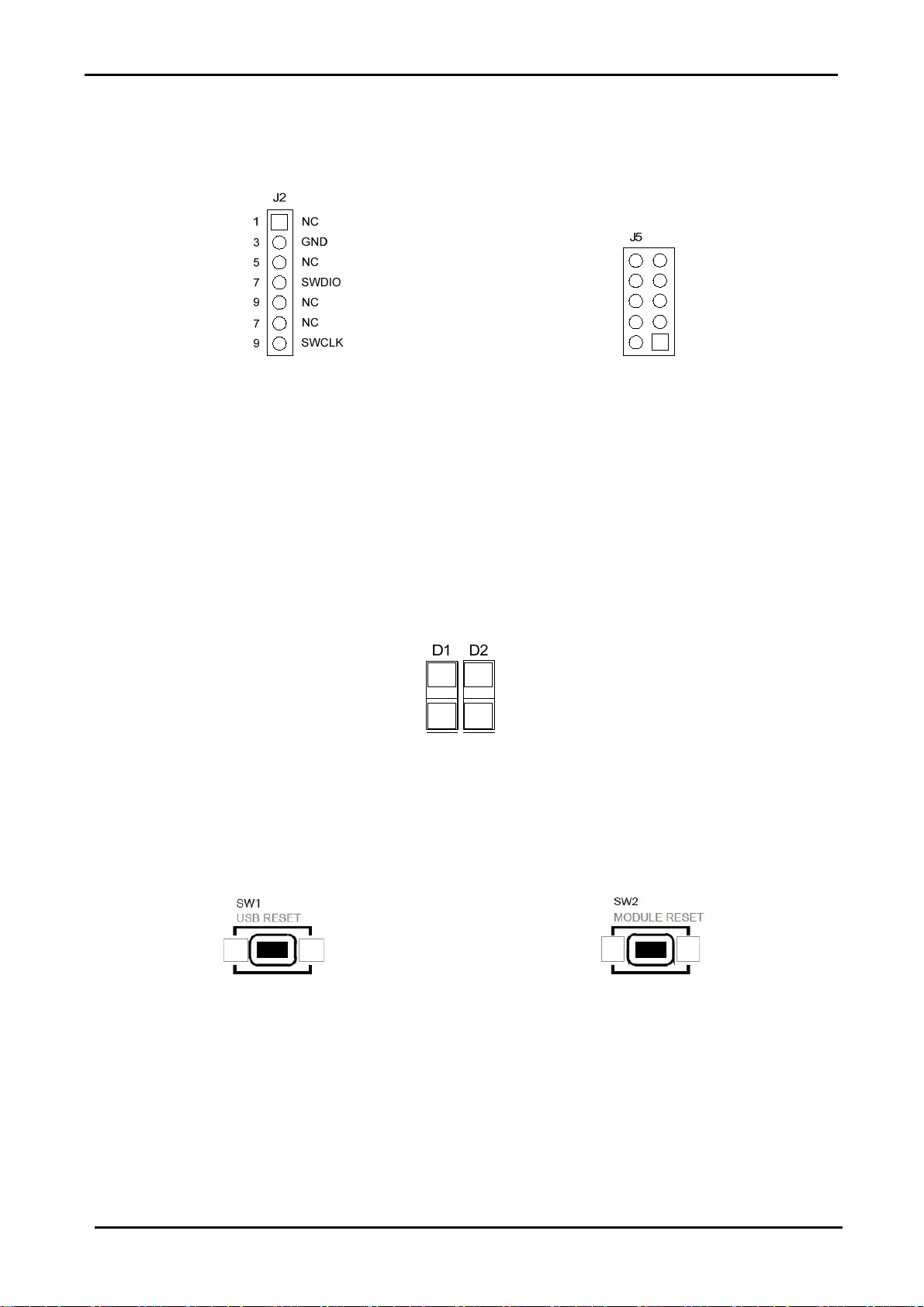

3.1.3 SWD port ③

In order to debug or firmware download, this SWD port is connected to H/W debugger such as ULINK2 and XLINK

(A) X-LINK port (B) ULINK2 port

Figure 4 SWD port

[Notice] SWD port power (3.3V) is provided by ULINK2 or X-LINK adapter. Please check jumper setting of adapter (refer to ULINK2 user’s guide, http://www.keil.com/support/man/docs/ulink2/ulink2_hw_jumpers.htm)

3.1.4 LED part ④

PRM9x10C_CTRL has two LED. One indicate POWER, the other indicate ACTIVE. When DC power is normally supplied, “POWER” LED is ON. When RFID reader is ready, “ACTIVE” LED is ON. “ACTIVE” LED is connected to GPIO(P07) of PRM92x20CE and change that function in Firmware

Figure 5 PRM92x20CE_CTRL LED

3.1.5 RESETb button ⑤

This button is used when user want to reset PRM92x20CE and CP2102.

Figure 6 Reset button

3.1.6 FFC connector ⑥

30pin FFC connector has used for interconnection with PRM92x20CE

28 December 2012 7 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

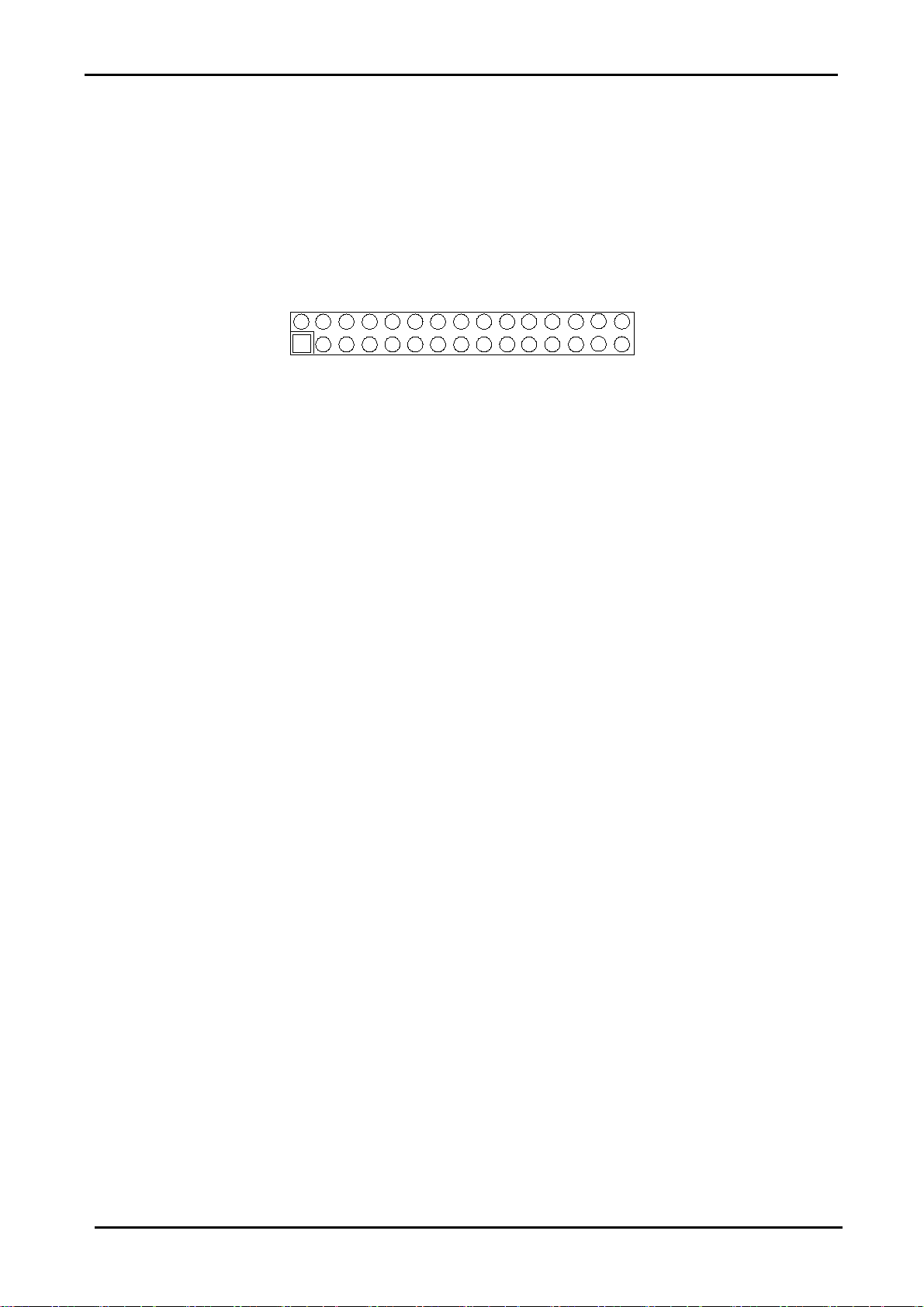

3.1.7 Application connector ⑦

User can connect GPIO, SPI, I2C through application connector and use PRM92x20CE MCU all IO function. This connector has 2.54mm pitch. Each pin location help user connect IO in many way.

GND

SWCLK

SWDIO

P07_SPI_CS

P06_SPI_CLK

P05_SPI_RXD

P04_SPI_TXD

P03

GND

VCC36

P00_RXD0

P10

GND

P01_TXD0

P11_SDA

P12_SCL

P13_RXD1

P14_TXD1

GND

P15

Figure 7 Application connector

P16

P17

ISP_MODEb

30 GND

29CSE

3.1.8 USB-to-UART ⑧

PRM92x10C_CTRL use CP2102 (Silicon Labs) as USB-to-UART bridge. In order to connect PRM92x20CE to PC, user must install driver at first time.

3.1.9 LDO ⑨

This LDO make 3.6V power supply voltage for PR9200 and TCXO.

28 December 2012 8 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

4 Specifications

Parameter Symbol Min Typ Max Unit

PRM92x10C_CTRL supply voltage 5 V

PRM92x10C_CTRL output voltage VDD_36 3.6 V

PRM92x10C Current consumption in active mode

TX output maximum power 1 P

25 dBm

OUT

Frequency range fC 917.1 926.9 MHz

1. Current board max power is about 25dBm.

550 mA

28 December 2012 9 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

5 Address Information

PHYCHIPS Inc. #204 Migun Techno world 1, 533 Yongsan-dong, Yuseong-gu, Daejeon, Korea, 305-500 http://www.phychips.com sales@phychips.com Tel: +82-42-864-2402 Fax: +82-42-864-2403

Disclaimer: PHYCHIPS reserves the right to make changes to the information in this document without

prior notice. The purchase of PHYCHIPS products does not convey any license under patent rights owned by PHYCHIPS or others. PHYCHIPS does not assume any responsibility for the use of this product. It is the customer’s responsibility to make sure that the system complies with regulations.

28 December 2012 10 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

[Appendix1] Channel Number Table

1. US band

Channel Channel Frequency Channel Channel Frequency

1 917.10 MHz 26 922.10 MHz

2 917.30 MHz 27 922.30 MHz

3 917.50 MHz 28 922.50 MHz

4 917.70 MHz 29 922.70 MHz

5 917.90 MHz 30 922.90 MHz

6 918.10 MHz 31 923.10 MHz

7 918.30 MHz 32 923.30 MHz

8 918.50 MHz 33 923.50 MHz

9 918.70 MHz 34 923.70 MHz

10 918.90 MHz 35 923.90 MHz

11 919.10 MHz 36 924.10 MHz

12 919.30 MHz 37 924.30 MHz

13 919.50 MHz 38 924.50 MHz

14 919.70 MHz 39 924.70 MHz

15 919.90 MHz 40 924.90 MHz

16 920.10 MHz 41 925.10 MHz

17 920.30 MHz 42 925.30 MHz

18 920.50 MHz 43 925.50 MHz

19 920.70 MHz 44 925.70 MHz

20 920.90 MHz 45 925.90 MHz

21 921.10 MHz 46 926.10 MHz

22 921.30 MHz 47 926.30 MHz

23 921.50 MHz 48 926.50 MHz

24 921.70 MHz 49 926.70 MHz

25 921.90 MHz 50 926.90 MHz

28 December 2012 11 of 12

PRM92x20CE USER’s MANUAL – PRM92x20CE_ADK01

[Appendix2] FCC Certification Requirements

1. Caution

Any changed or modifications not expressly approved by the party responsible for compliance could void the user`s authority to operate this equipment.

2. OEM installation guide

I. OEM integrators must be instructed to ensure that the end-user has no manual instructions to

remove or install the module.

II. This module is to be installed only in mobile of fixed devices. ▪ Mobile device: The devices is

to be generally used in such a way that a separation distance of at least 20cm is normally maintained between the transmitter`s radiating structures and the body of the user or nearby persons. ▪ Fixed devices: The device is physically secured at one location and is not able to be easily moved to another location.

III. To ensure compliance with all non-transmitter functions the host manufacturer is responsible

for ensuring compliance with the module(s) installed and fully operational.

IV. To satisfy FCC exterior labeling requirements, the following text must be placed on exterior of

the end product.

V. An additional permanent label referring to the enclosed module: “Contains Transmitter

Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1” must be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID.

3. FCC RF exposure requirements

The antenna used with this module must be installed to provide a separation distance of at least 20cm from all persons, and must not transmit simultaneously with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

4. FCC authorization for this module

If this module is installed in portable devices or the different antenna configurations are used, the FCC authorizations are no longer considered valid and FCCID for module cannot be used on the final product. And the OEM installer will be responsible for re-evaluating the final product including this module and obtaining separate FCC authorization.

5. Information for importation of radio frequency devices in to the United States

To ensure compliance with all non-transmitter functions the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For example, if a host was previously authorized as an unintentional radiator under the Declaration of Conformity procedure without a transmitter certified module and a module is added, the host manufacturer is responsible for ensuring that the after the module is installed and operational the host continues to be compliant with the Part 15B unintentional radiator requirements. Please see CFR47 Part 2 Subpart J Equipment Authorization Procedures, KDB784748 D01 v07, and KDB 997198.

6. User Information

This device complies with Part 15 of the FCC`s Rule. Operation is subject to the following to conditions;

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesirable operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

28 December 2012 12 of 12
