USER’S MANUAL
PRM90U10A Specification- Preliminary Version
Contents
1 Overview & block composition diagram................................................... 3
2 Pin Description............................................................................................ 4
3 Operation method........................................................................................ 6
4 Specification ……………………………………………………………………..12
9 December 2010 2 of 13
PRM90U10A Specification- Preliminary Version
1 Overview & Block Composition Diagram
1.1 Overview
The PRM90U10A is a UHF RFID Reader hybrid module which integrates high performance UHF RFID reader chipset, VC-TCXO, Low Drop Regulator, Balun, Coupler, Saw filter, Power amp, Isolator and low pass filter. UHF RFID reader chipset uses PR9000 of PHYCHIPS which integrates 900MHz radio, baseband processor, industry standard enhanced 8052 MCU, memory (64k Flash & 16k SRAM) and many other features. This module fully compliant with ISO18000-6C/EPC Global Gen II reader protocol and provide all functions of PR9000. Also reduce size, cost and power consumption.
1.2 Block Domposition Diagram
DC 3.6V/500mA
PRM90K10x
SHDNb
LDO
19.2MHz TCXO
GPIO
PR9000
BALUN SAW

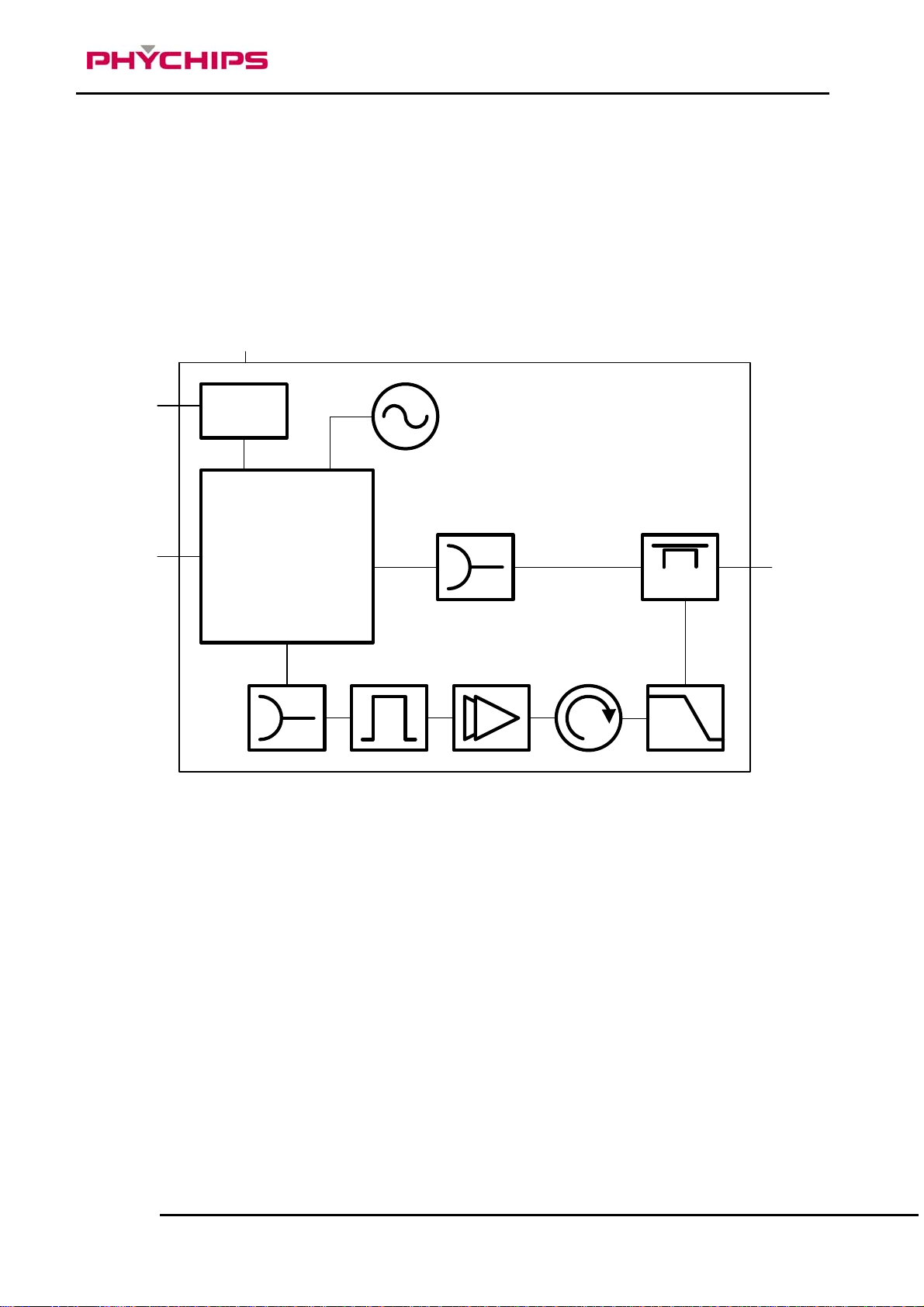

Figure 1 Block Composition Diagram
BALUN
AMP
RF I/O
COUPLER
LPF
9 December 2010 3 of 13
PRM90U10A Specification- Preliminary Version
2 Pin Description
7
91011
13
15
17
19
21
23
25
27
29
8
12
14
16
18
20
22
24
26
28
30
35 34 33 3231 30 2928 27 26 2524 23 22 21 20
12345
6
19 18 17
12345678910111213141516
29
30
27
28
25
26
23
24
21
22
19
20
17
18
15
16
13
14
12
7
91011
8
12345
6

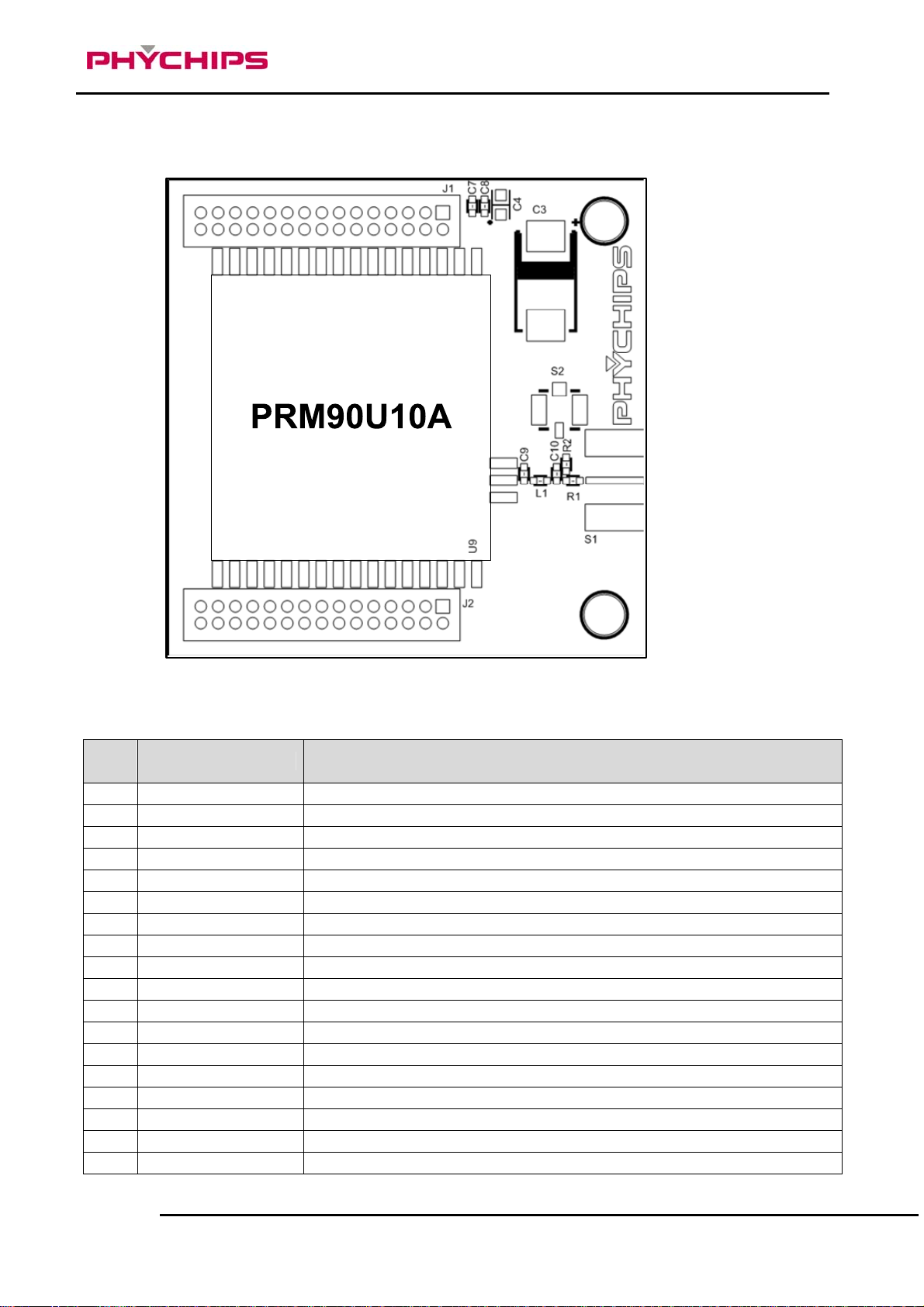

Figure 2 Pin Description
2.1 J1 Pin Description
No. Pin Name Description
1 VDD_3.6V 3.6 V DC Power for SOC(Max. 1A) 2 VDD_3.6V 3.6 V DC Power for SOC(Max. 1A) 3 VDD_3.6V 3.6 V DC Power for SOC(Max. 1A) 4 VDD_3.6V 3.6 V DC Power for SOC(Max. 1A) 5 GND Ground 6 GND Ground 7 GND Ground 8 GND Ground 9 NC Reserved, Not Ground 10 NC Reserved, Not Ground 11 NC Reserved, Not Ground 12 NC Reserved, Not Ground 13 GND Ground 14 GND Ground 15 NC Reserved, Not Ground 16 NC Reserved, Not Ground 17 GND Ground 18 GND Ground
9 December 2010 4 of 13
PRM90U10A Specification- Preliminary Version
19 P2.2 Quasi-bidirectional I/O port 20 NC Reserved, Not Ground
21 MDS_SCL
22 MDS_SDA
I/O for ISP. The pull-up resistor is always switched on. This port is quasi­bidirectional I/O for ISP. The pull-up resistor is always switched on. This port is quasi-
bidirectional 23 GND Ground 24 RESETb External Reset for SOC 25 P0.1 Quasi-bidirectional I/O port or Serial Port 0 Output 26 P0.0 Quasi-bidirectional I/O port or Serial Port 0 Input 27 NC Reserved, Not Ground 28 P0.2 Quasi-bidirectional I/O port or External Interrupt Input 0
29 P0.5
30 P0.4
Quasi-bidirectional I/O port or Timer 1 External Input or SPI Master Output
Slave Input
Quasi-bidirectional I/O port or Timer 0 External Input or SPI Master Input
Slave Output
2.2 J2 Pin Description
No. Pin Name Description
1 NC Reserved, Not Ground 2 NC Reserved, Not Ground 3 GND Ground 4 GND Ground 5 NC Reserved, Not Ground 6 NC Reserved, Not Ground 7 GND Ground 8 GND Ground 9 TXD1 Quasi-bidirectional I/O port or Serial Port 1 Output 10 RXD1 Quasi-bidirectional I/O port or Serial Port 1 Input 11 GND Ground 12 GND Ground 13 P1.7 Quasi-bidirectional I/O port or External Interrupt 5 (Negative Edge) 14 P1.6 Quasi-bidirectional I/O port or External Interrupt 4 (Positive Edge) 15 P1.5 Quasi-bidirectional I/O port or External Interrupt 3 (Negative Edge) 16 P1.4 Quasi-bidirectional I/O port or External Interrupt 2 (Positive Edge) 17 P1.3 Quasi-bidirectional I/O port or I2C SCL 18 P1.2 Quasi-bidirectional I/O port or I2C SDA 19 P1.1 Quasi-bidirectional I/O port or Timer/ Counter 2 Capture/Reload Trigger 20 P1.0 Quasi-bidirectional I/O port or External Input for Timer/Counter 2 21 P0.7 Quasi-bidirectional I/O port or SPI Slave Select Bar 22 P0.6 Quasi-bidirectional I/O port or SPI SCK 23 NC Reserved, Not Ground 24 NC Reserved, Not Ground 25 NC Reserved, Not Ground 26 NC Reserved, Not Ground 27 GND Ground 28 GND Ground
Module Enable/Disable 29 SHDNb
Enable : Open
Disable : Ground
9 December 2010 5 of 13
PRM90U10A Specification- Preliminary Version
Module Enable/Disable 30 SHDNb
Enable : Open
Disable : Ground
2.3 S1 Pin Description(RF I/O)
3 Operation method
DC 3.6V
/150mA
UART
TXD
RXD
1nF
0.1uF10uF
1
VDD_36
2
GND
3
P0.7
4
P1.0
5
P1.1
6
P1.2
7
P1.3
8
P1.4
9
P1.5
10
P1.6
11
P1.7
12
GND
13
RXD1
14
TXD1
NC
15
NC
NC
16
NC
PRM90U10A
GND
RFIO
GND
17
18
19
MDS_SDA
MDS_SCL
VDDPA_36
VDDPA_36
GND
P0.6
P0.5
P0.4
P0.2
P0.1
P0.0
RESET
P2.2
SHDN
GND
GND
35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20
OPEN : NORMAL CLOSE : SHUT DOWN
1nF 0.1uF 10uF100uF
ISP
RESET MDS_SDA MDS_SCK VDD GND
DC 3.6V
/350mA
ANT

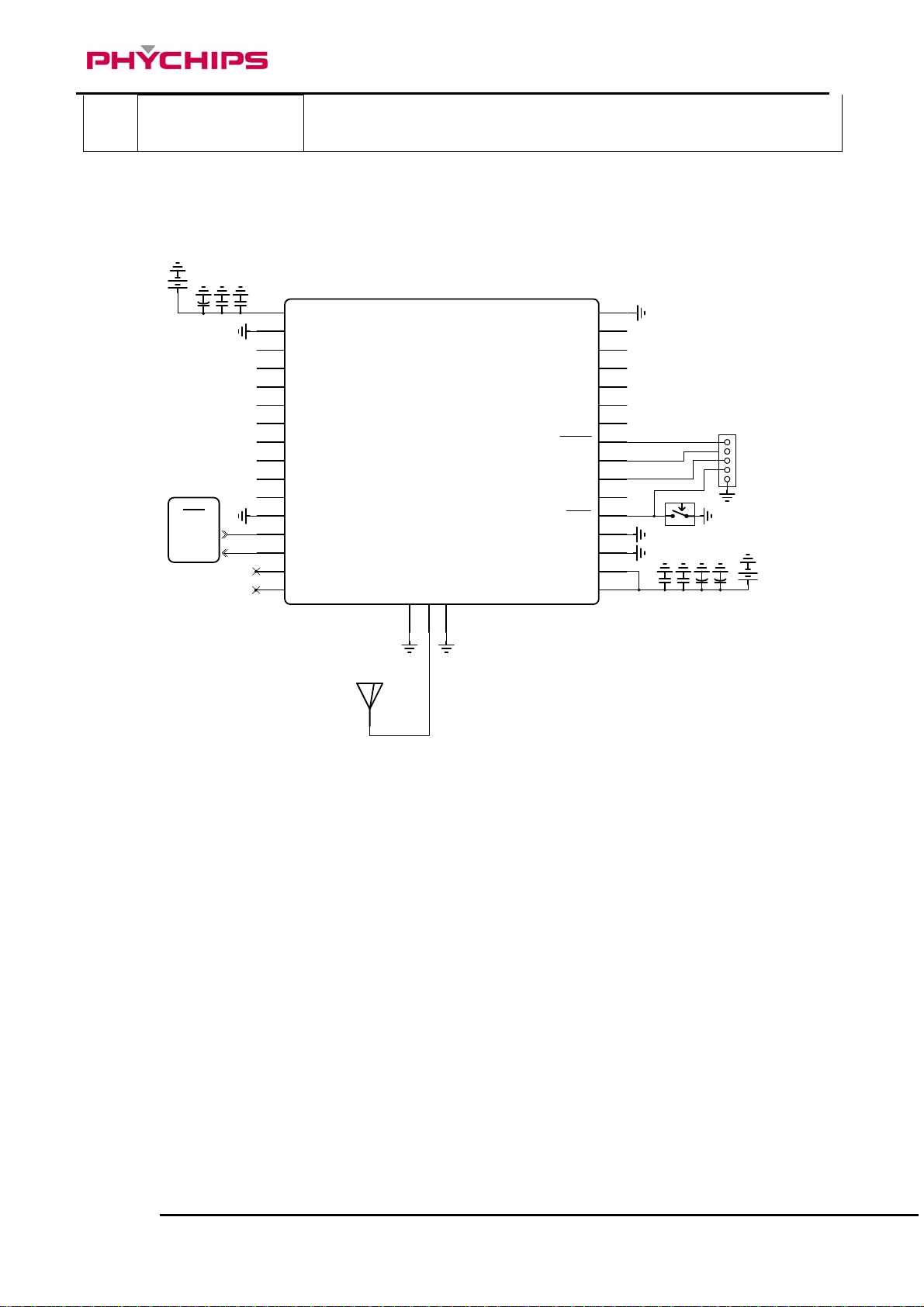

Figure 3 Application Circuit
3.1 Power Supply
PRM90U10A should be supplied by 2 kinds of 3.6 volts DC power; VDD_36(Pin 1) and VDDPA_36(Pin 20,
21). VDD_36 is for operating of PR9000 RFID reader chipset which current consumption is about 150mA. VDDPA_36 is for operating of power amp which current consumption is 350mA typically. Additionally, decoupling capacitors should be placed as close as possible these pins. The decoupling capacitors should be placed in the same layer as the module, to avoid any additional parasitic inductance caused by vias.
3.2 Hardware Mode Control
PRM90U10A provides normal mode and shut down mode. The mode can control by SHDNb(Pin 24). Normal mode should be controlled by SHDN pin to open which can activate the module. Otherwise, If SHDNb pin contact to ground, supplied power of the module is shut down internally. In shut down mode, all GPIO ports and UART ports should not input any signal and positive voltage.
3.3 UART
The serial interface assigned to two pins. RXD1(Pin 13) is for receiving command from host and TXD1(Pin 14) is for transmitting response to host. Pin connection is shown as below figure.
9 December 2010 6 of 13
PRM90U10A Specification- Preliminary Version

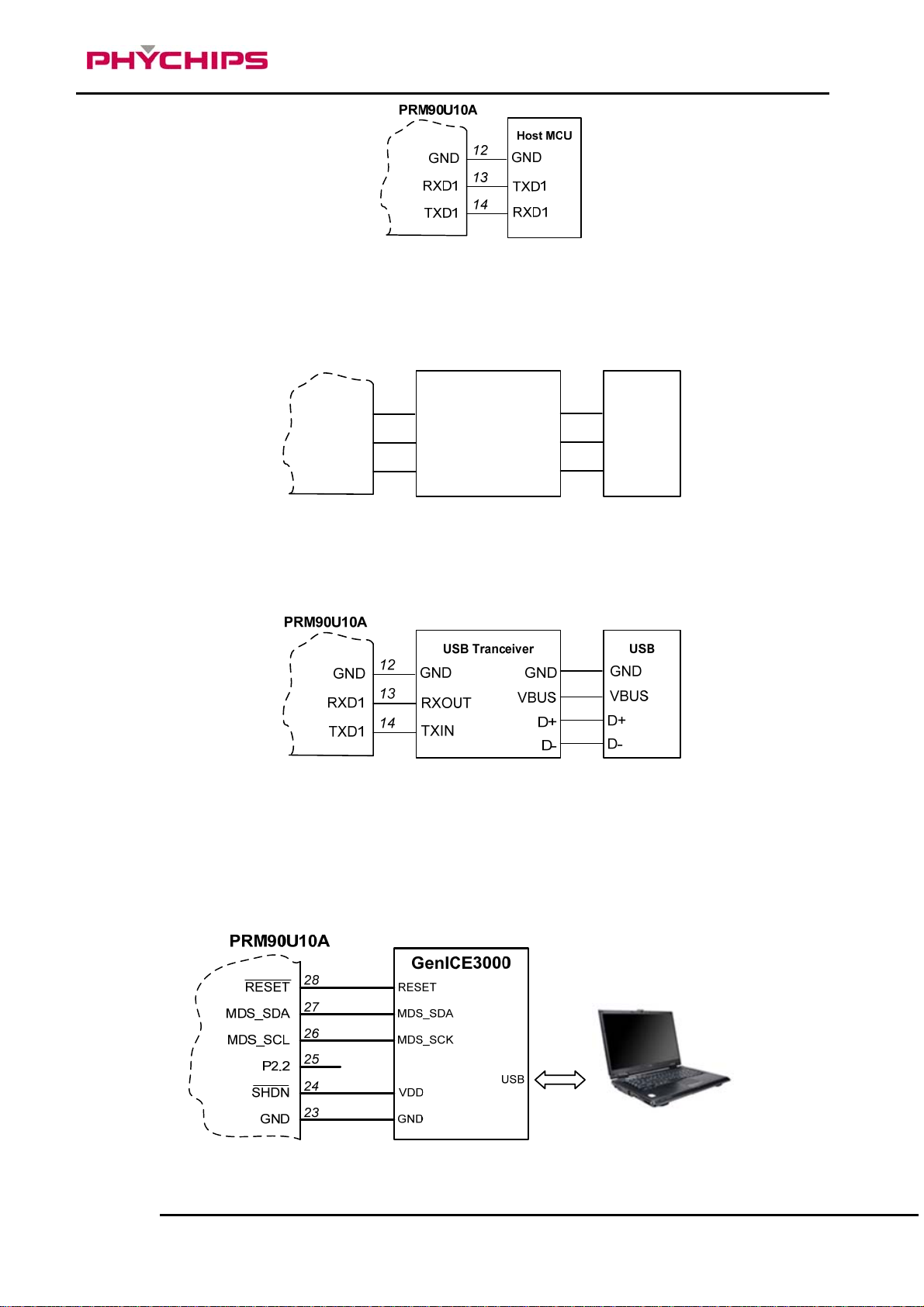

Figure 4 Connecting to host MCU
RS232C transceiver is required for interfacing to PC and diagram connection is shown as below figure.
PRM90U10A
GND
RXD1
TXD1
12 13 14
RS232C Tranceiver
GND
RXOUT
TXIN
GND
RXIN
TXOUT
PC
GND
TXD
RXD
Figure 5 Connecting to RS232 transceiver
Following configuration is used for interfacing to USB transceiver.
Figure 6 Connecting to USB transceiver
3.4 ISP
For firmware downloading in PRM90U10A should be used GenICE3000 by CORERIVER(manufacturer), which downloading speed is faster than UART. Code memory(62kB) and EEPROM(2kB) can be programmed using EJTAG in target. Following configuration is used for downloading to GenICE3000.
Figure 7 Connecting to GenICE3000 for firmware downloading
9 December 2010 7 of 13
PRM90U10A Specification- Preliminary Version
3.5 GPIO
PRM90U10A provides 16 bi-directional I/O ports. All ports can be configured in two different modes: open­drain (by default) and push-pull which has 3.3V input and 3.3V output.
3.6 RF In/Out
RF I/O(Pin 20) is optimized at 50 ohms impedance.
3.7 Using GUI

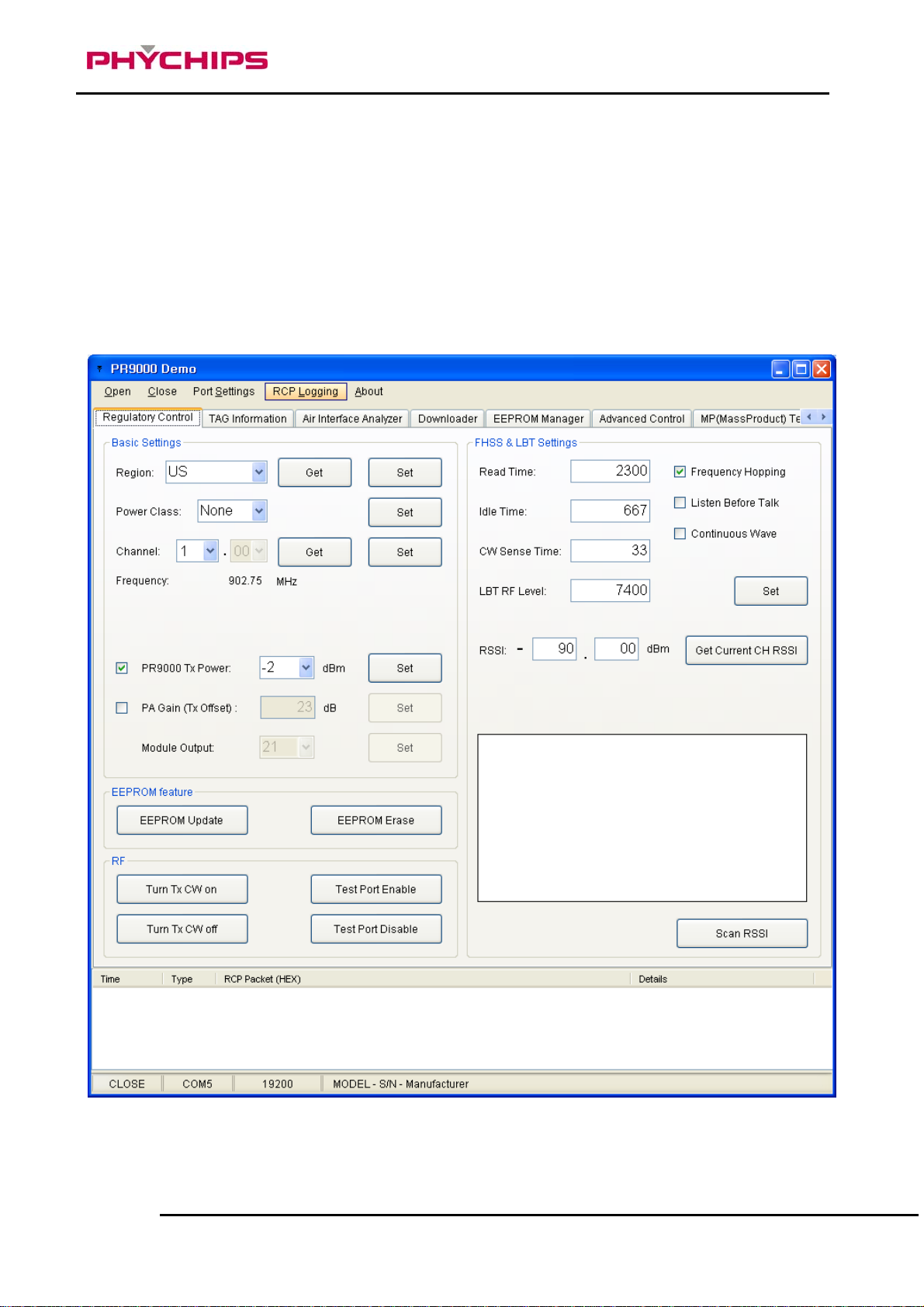

The GUI is for the user to be able to quickly get started working with PRM90U10A RFID reader. To run the GUI, click the Windows start button, Program menu, Phychips, PR9000 SDK. After start-up, a window will be opened as shown below.
Figure 8 Demo GUI
9 December 2010 8 of 13
PRM90U10A Specification- Preliminary Version

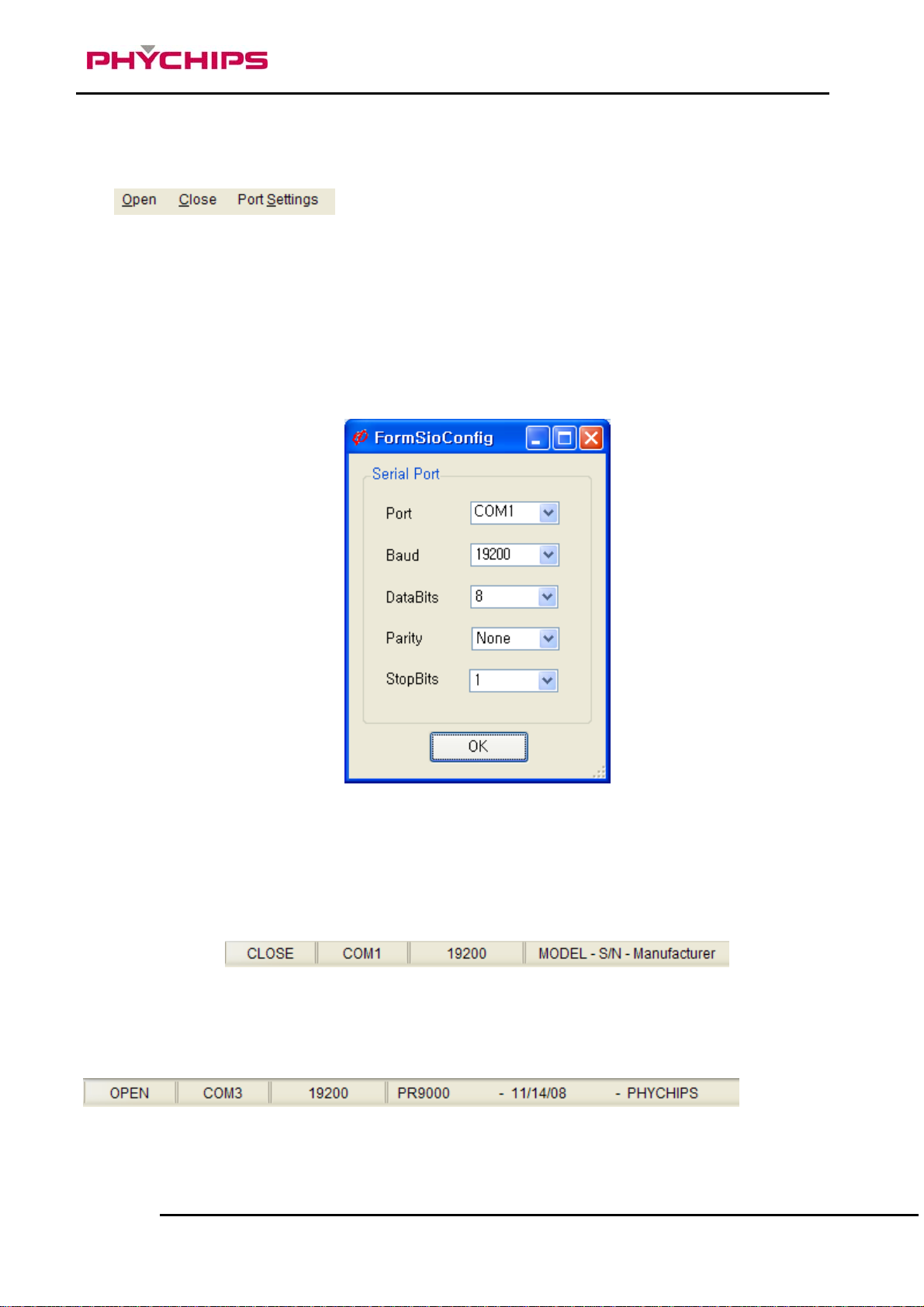

3.7.1 Serial Port Control
Serial port is controlled by below menu.
To open serial port, click Open menu.
To close serial port, click Close menu.
3.7.1.1 Serial Port Configurations
Port number is selectable from COM1 upto COM9. (Depending on your Windows system settings) Baud Rate should be set 19200 bps.
Figure 9 Serial Port Settings
3.7.1.2 Reader Connection Status
Below status bar shows the reader connection status.
Figure 10 Reader Connection Statuses
If PC is successively connected to reader after clicking open button, status bar would be updated as shown below.
9 December 2010 9 of 13
PRM90U10A Specification- Preliminary Version

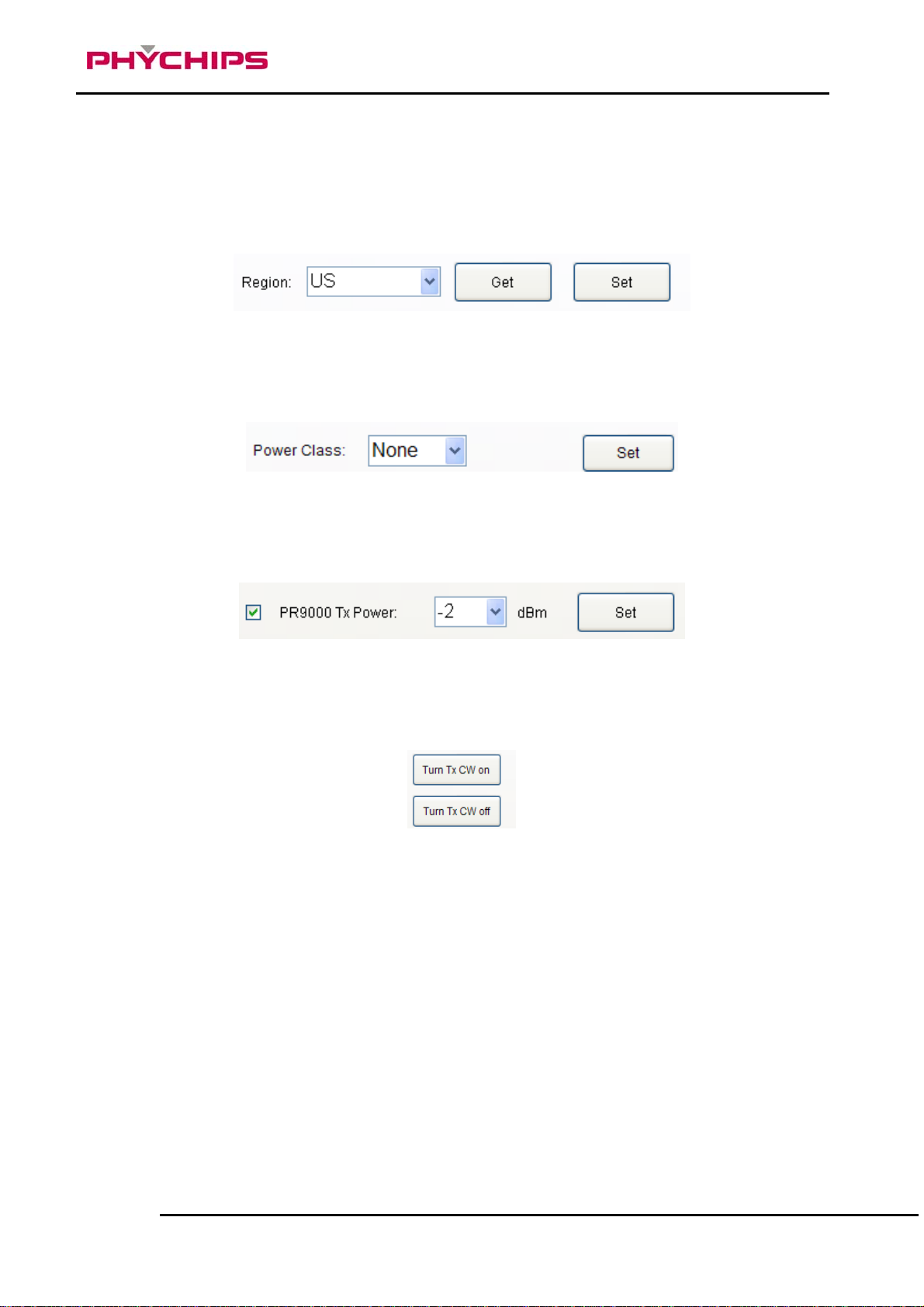

3.7.2 Hardware Control
To control hardware, click ‘H/W Control Tab.’
3.7.2.1 Band setting
To select operating band, band setting should be required. Select band in combo box and click Set button to set operating band in group box ‘Basic settings.’
3.7.2.2 Power Class setting
Some countries classified channel numbers according to the power class. Select the power class and click Set button. .
3.7.2.3 Output Power setting
To set PR9000 output power, select the PR9000 Tx Power combo box and click Set button.
3.7.2.4 CW (Continuous Wave) setting
These buttons are used for hardware debugging purpose only. To turn CW on, click Turn Tx CW on button. To turn CW off, click Turn Tx CW off button.
3.7.3 Procedures for Tags Inventory Operation
To read UHF RFID tags with PR9000 SDK software, follow sequence as described below.
Configure your serial port settings.
Open serial port. Then, PR9000 SDK software will try connecting to PR9000.
Select operation band and click ‘Set’ button.
Click ‘Tag Information’ tab.
9 December 2010 10 of 13
PRM90U10A Specification- Preliminary Version

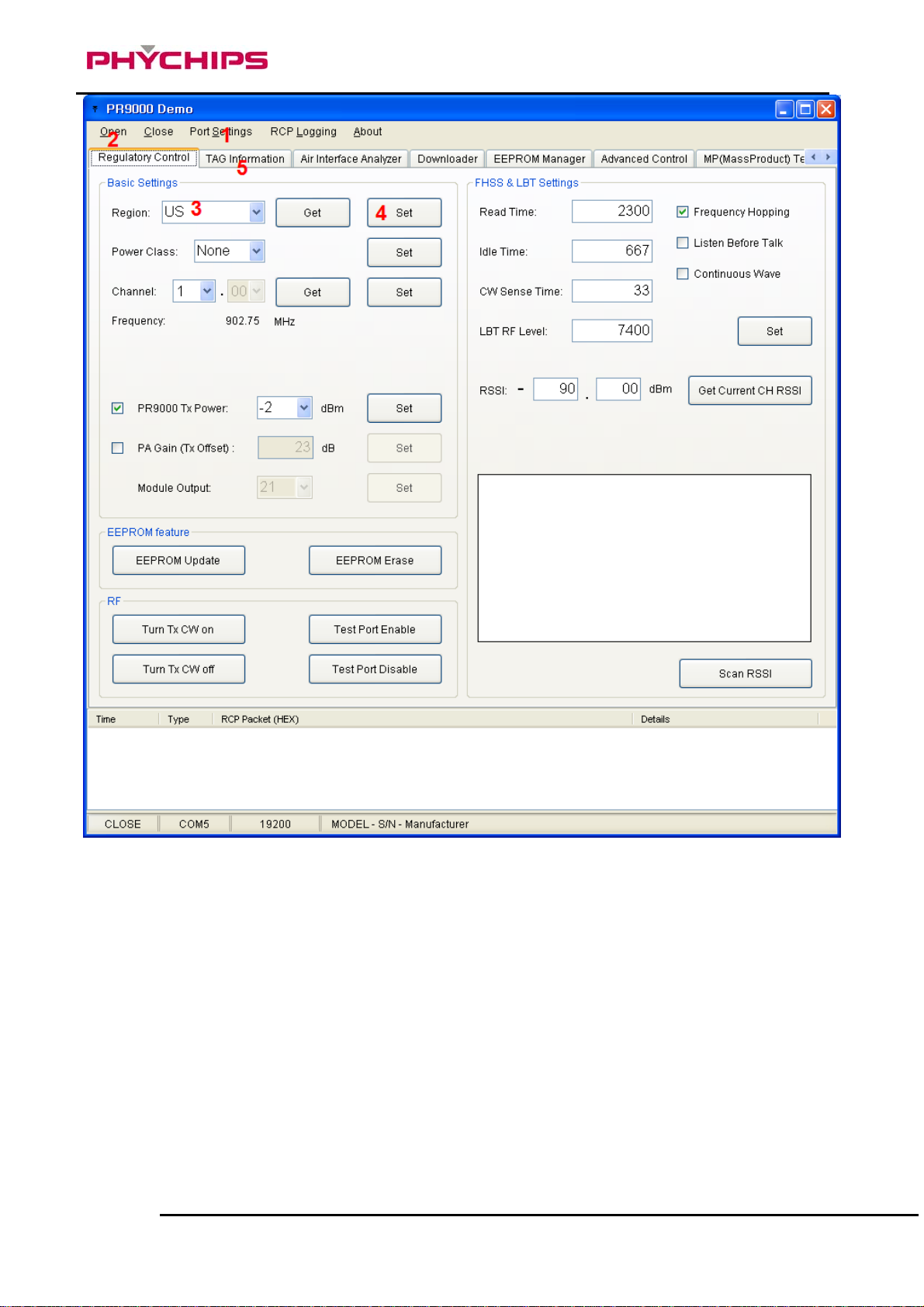

Figure 11 Procedures for tag inventory operation
9 December 2010 11 of 13
PRM90U10A Specification- Preliminary Version

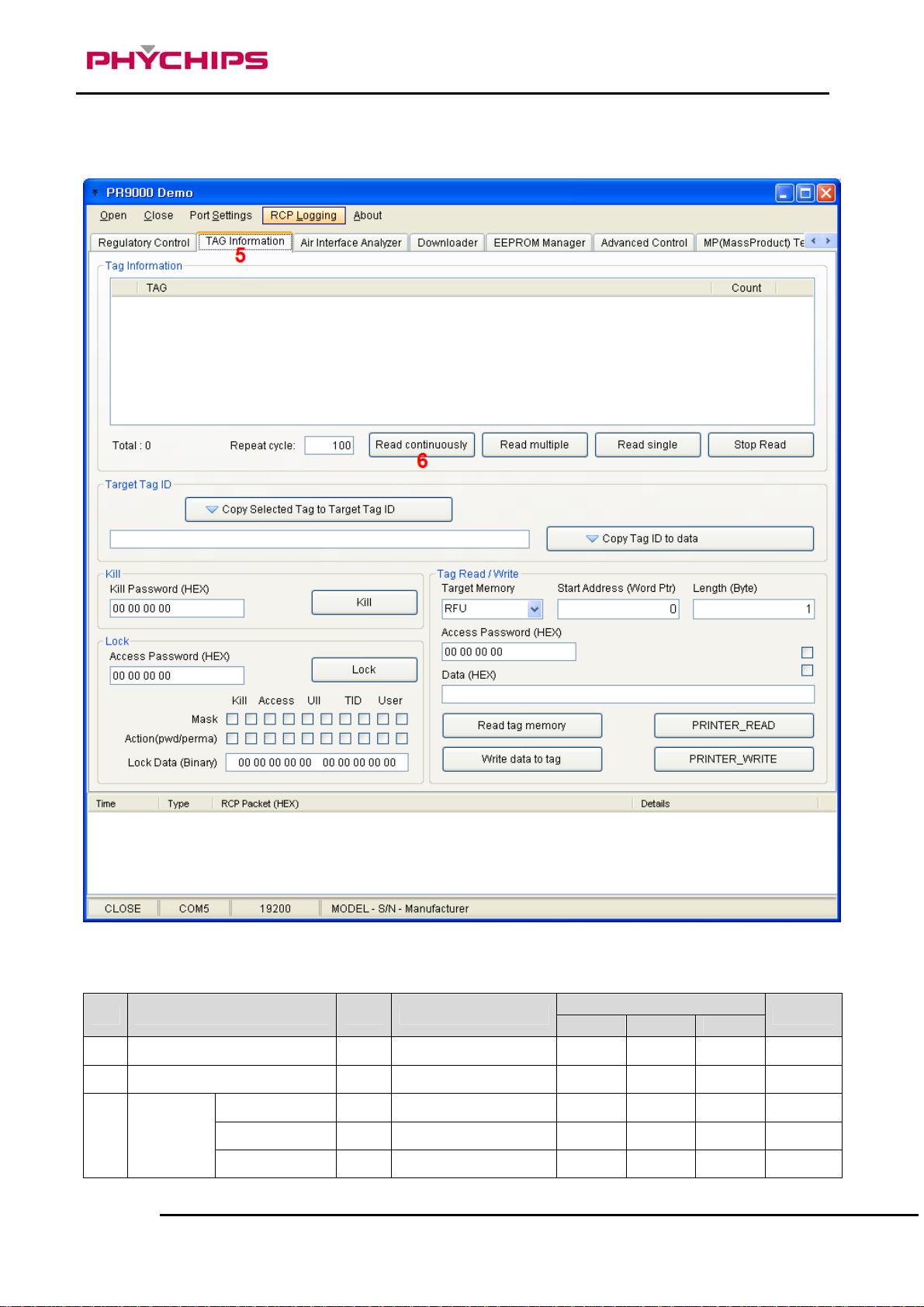

Click ‘Read multiple’ button to start reading RFID tags.
Figure 12 Procedures for tag inventory operation
4 Specification
No. Item Unit Test Condition
1 Freq. Range MHz 902.75 927.25
2 Tx Power dBm PR9000 = 4dBm 25.5
3 Tx ACPR
+/-200kHz dBc PR9000 = 4dBm -20
+/-400kHz dBc PR9000 = 4dBm -50
+/-600kHz dBc PR9000 = 4dBm -60
9 December 2010 12 of 13
Specification min Typ. max
Remark
PRM90U10A Specification- Preliminary Version
+/-800kHz dBc PR9000 = 4dBm -65
GPIO = HIGH - GPIO = ALL HIGH HIGH
4 GPIO
GPIO = LOW - GPIO = ALL LOW LOW
5 Impedance 50 RF I/O
6 DC Power V 3.6
7 OperatingTemperature °C 0 50
8 Operating Humidity % 0 60
SHDN 2
Consumption
9
Current
IDLE 16
ACTIVE
mA
PR9000 = 4dBm 500 550
10 Modulation - DSB - ASK
11 Size mm 35x45x8
12 Weight g 11
Cautions
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
FCC RF EXPOSURE:
The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user.
