Page 1
7” TFT/LCD
2 DIN NAVIGATION
DVD RECEIVER
TOYOTA
RAV4 ‘06>
CONNESSIONI-FUNZIONI
CONNECTIONS-FUNCTIONS
CONNEXIONS-FONCTIONS
KABEL-VERBINDUNGEN-FUNKTIONEN
CONEXIONES-FUNCIONES
VM 083
Page 2
USCITA AUDIO/VIDEO 1
AUDIO VIDEO OUTPUT 1
USCITA SUBWOOFER
SUBWOOFER OUTPUT
RETROCAMERA
C
GPS
V-IN AUX-L AUX-R
V-OUT2 CAM SW
V-OUT1 RL RR
USCITA VIDEO 2
VIDEO OUTPUT 2
REAR CAMERA
INGRESSO AUDIO/VIDEO
FUSE
AUDIO VIDEO INPUT
ANT
REM. ANT.
BLU / BLUE
ADATTATORE ANTENNA PER I MODELLI TOYOTA DAL 2008>
ANTENNA ADAPTER FOR TOYOTA 2008>
5/145
CONNETTORI ORIGINALI AUTO
ORIGINAL AUTO CONNECTOR

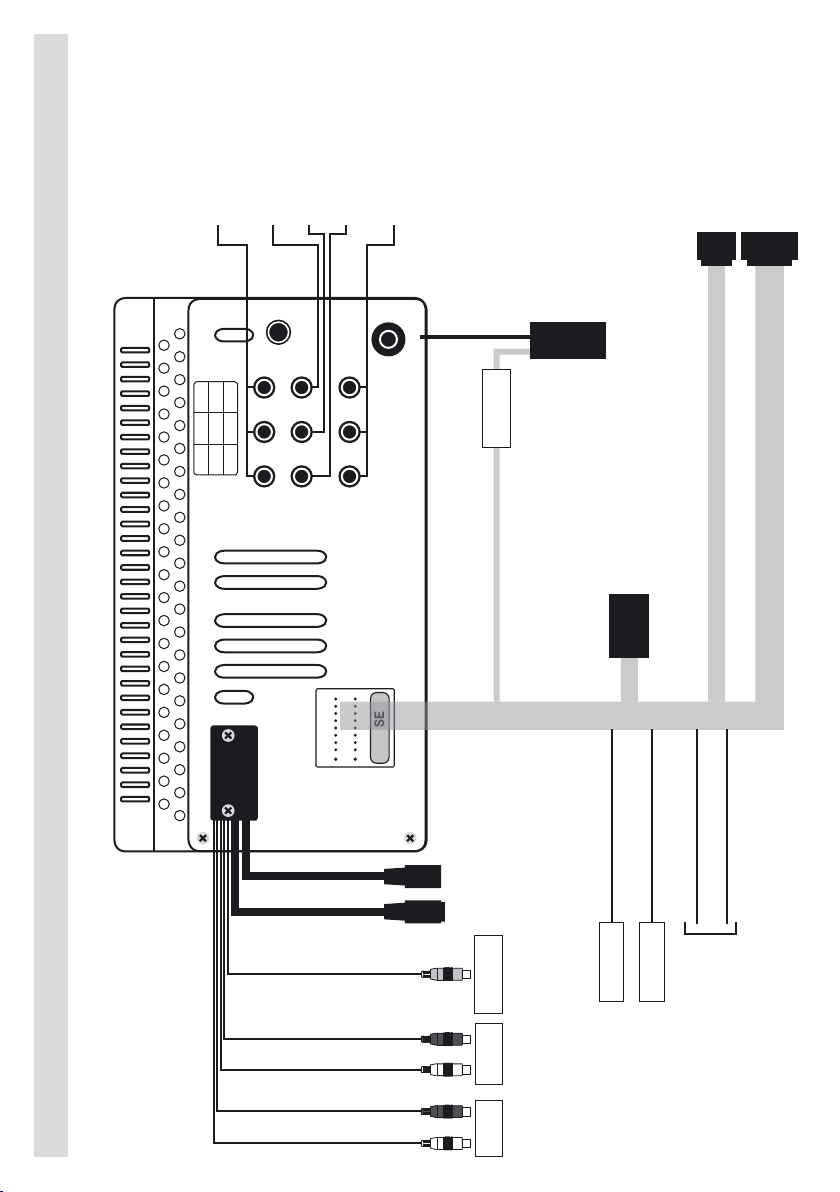

CONNESSIONI • CONNECTIONS • CONNEXIONS • KABEL-VERBINDUNGEN • CONEXIONES
USB
iPOD
GRIGIO / GREY
MIC PORT
BLUETOOTH
RED RGHT / DESTRA ROSSO
WHITE LEFT / BIANCO SINISTRA
RED RGHT / ROSSO DESTRA
WHITE LEFT / BIANCO SINISTRA
OUTPUT
FRONT RCA
PRE-AMP OUTPUT
OUTPUT
BACK RCA
USCITA PRE-AMPLIFICATA
ROSA / PINK
ARANCIONE / ORANGE
BRAKE
CAMERA
PARKING
REAR VIEW
MARRONE / BROWN
BLU-NERO / BLUE-BLACK
NON COLLEGARE
DO NOT CONNECT
Page 3

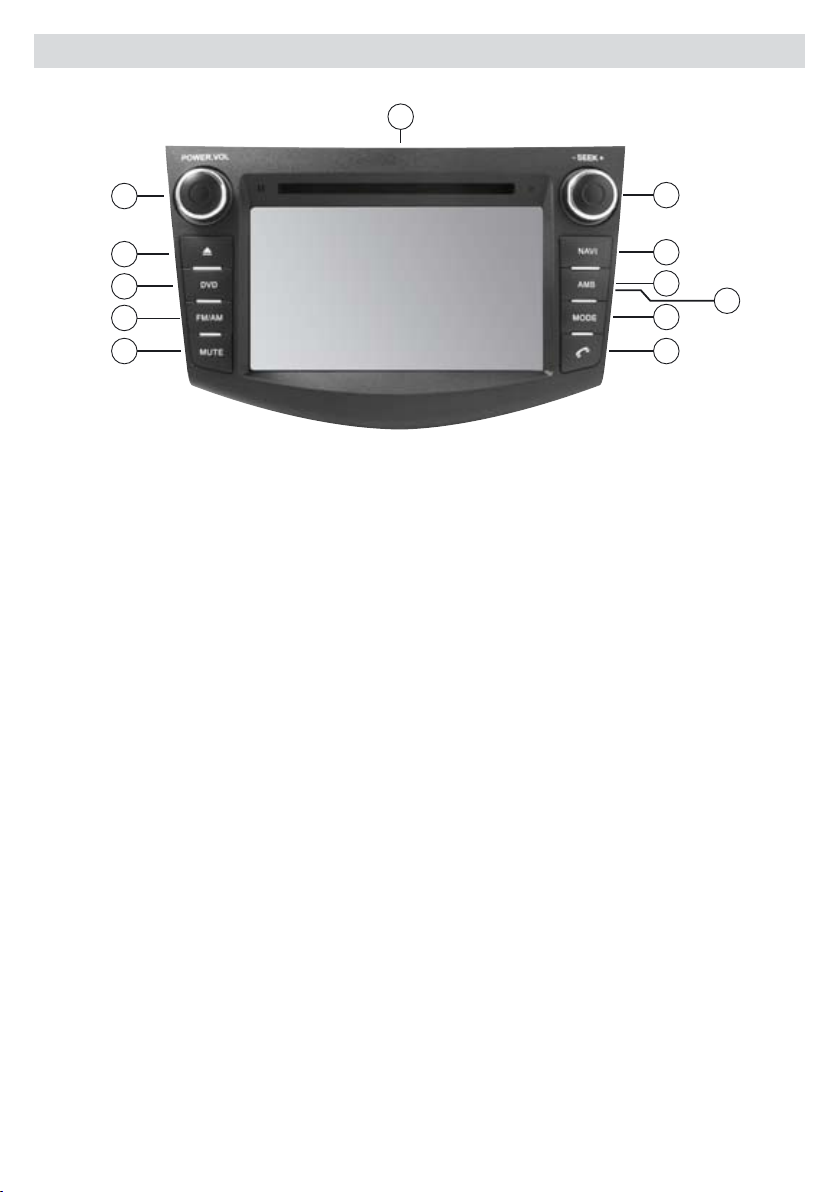

FUNZIONI • FUNCTIONS • FONCTIONS • FUNKTIONEN • FUNCIONES
12
1
2
3
4
5
1. Sorgente - Volume
Accensione/Spegnimento
2. Espulsione disco
3. DVD
4. Radio
5. Silenzia audio
6. Invia e ricevi chiamate
7. Modalità Audio/Video
8. Slot SD Card navigazione
9. Auto memorizzazione
stazioni radio
10. Navigazione
11. Ricerca traccia
Stazioni radio.
12. Feritoia inserimento disco
1. Source Volume
ON / OFF
2. CD-Eject
3. DVD
4. Radio
5. Mute
6. Start/Receive Calls
7. Audio/Video-Mode
8. Navigation-SD-slot
9. Automatic Memorization
radio-Stations
10. Navigation
11. Research Track
Radio-station
12. CD-slot
11
10
9
8
7
6
1. Source - Volume
Allumage/Extinction
2. Expulsion disque
3. DVD
4. Radio
5. Réduit en silence l’audio
6. Envoie e reçoit appels
7. Modalité Audio/Vidéo
8. Slot SD Card navigation
9. Auto mémorisation
stations radio
10. Navigation
11. Recherche traces
station radio.
12. Fente insertion disque
1. Lautstärke
EIN / AUS
2. CD-Auswurf
3. DVD
4. Radio
5. Stummschaltung
6. Anruf starten/empfangen
7. Audio/Video-Modus
8. Navigations-SD-Öffnung
9. Automatische Einspeicherung
Radio-Sender
10. Navigation
11. Suche Stück
Radio-Sender.
12. CD-Einwurf.
1. Fuente - Volumen
Encendido/ Apagado
2. Expulsión disco
3. DVD
4. Radio
5. Silencia audio
6. Realizar y recibir llamadas
7. Modo Audio/Video
8. Ranura tarjeta de navegación
9. Auto memorización
emisoras de radio
10. Navegación
11. Búsqueda canciones
Emisoras de radio.
12. Ranura introducción disco
Page 4
Via F.lli Cervi, 167/C • 42124 Reggio Emilia (Italy) • Tel. ++39 0522 941621 • www.phonocar.com • e-mail:[email protected]
