XP-V310

YJ1(PT)
YJ1(YT)

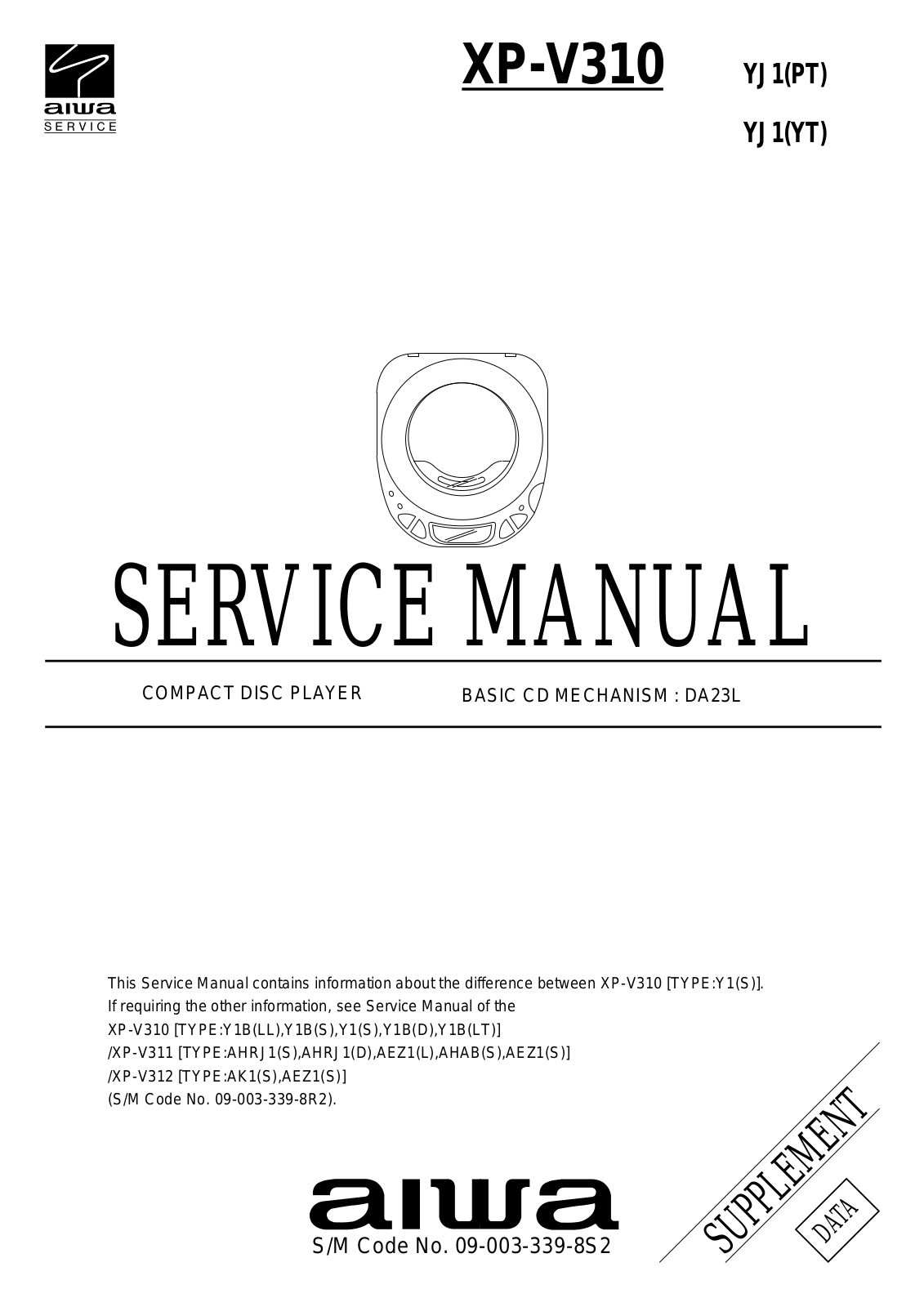

SERVICE MANUAL

COMPACT DISC PLAYER

MODEL CODE : 86HR8-0117(B)

This Service Manual contains information about the difference between XP-V310 [TYPE:Y1(S)].
If requiring the other information, see Service Manual of the
XP-V310 [TYPE:Y1B(LL),Y1B(S),Y1(S),Y1B(D),Y1B(LT)]
/XP-V311 [TYPE:AHRJ1(S),AHRJ1(D),AEZ1(L),AHAB(S),AEZ1(S)]
/XP-V312 [TYPE:AK1(S),AEZ1(S)]
(S/M Code No. 09-003-339-8R2).

BASIC CD MECHANISM : DA23L

S/M Code No. 09-003-339-8S2

SUPPLEMENT

DATA

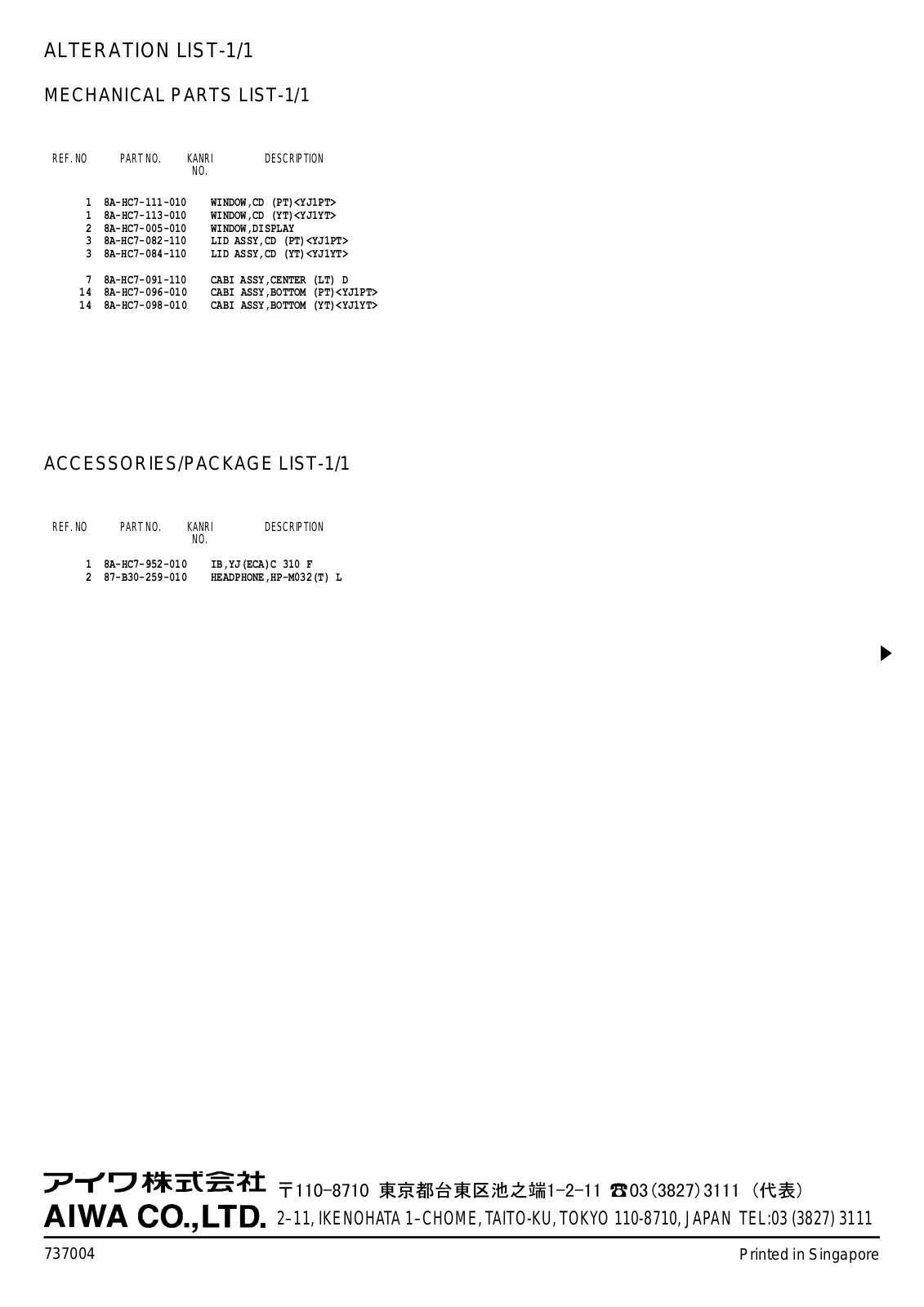

ALTERATION LIST-1/1

MECHANICAL PARTS LIST-1/1

REF. NO PART NO. KANRI DESCRIPTION

1 8A-HC7-111-010 WINDOW,CD (PT)<YJ1PT>
1 8A-HC7-113-010 WINDOW,CD (YT)<YJ1YT>
2 8A-HC7-005-010 WINDOW,DISPLAY
3 8A-HC7-082-110 LID ASSY,CD (PT)<YJ1PT>
3 8A-HC7-084-110 LID ASSY,CD (YT)<YJ1YT>

7 8A-HC7-091-110 CABI ASSY,CENTER (LT) D
14 8A-HC7-096-010 CABI ASSY,BOTTOM (PT)<YJ1PT>
14 8A-HC7-098-010 CABI ASSY,BOTTOM (YT)<YJ1YT>

NO.

ACCESSORIES/PACKAGE LIST-1/1

REF. NO PART NO. KANRI DESCRIPTION

1 8A-HC7-952-010 IB,YJ(ECA)C 310 F
2 87-B30-259-010 HEADPHONE,HP-M032(T) L

NO.

737004

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]

Printed in Singapore
