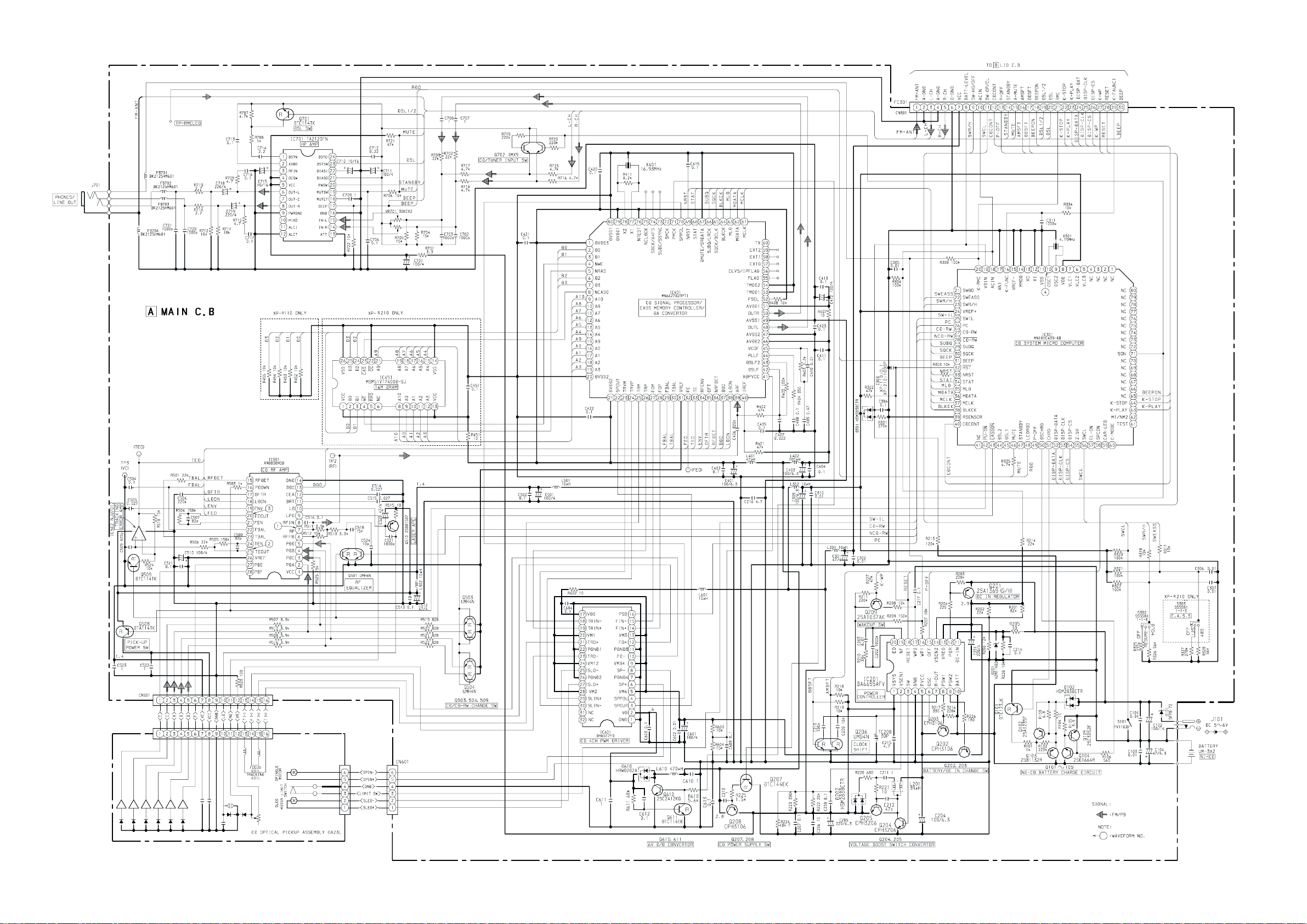

Phonic XP R110 Service Manual
XP-R110
XP-R210
ALH
ALH,AU
AHC,AHK,AHR
SERVICE MANUAL
COMPACT DISC PLAYER
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
of XP-R110<ALH>(S/M Code No. 09-001-426-4T1) and XP-R210<AU,ALH>
(S/M Code No. 09-001-426-3T1) and XP-R210<AHC,AHK,AHR>
(S/M Code No. 09-001-426-3T2).
BASIC CD MECHANISM: DA23L
S/M Code No. 09-003-426-3R1
REVISION
DATA
SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 4-times oversampling digital
filter + 1-bit DAC
Frequency Response 20 – 20,000 Hz (47 K ohms)
Output PHONES/LINE OUT jack
(stereo mini-jack)
Frequency range AM: 531/530 kHz - 1,602/
1,710 kHz (9 kHz/10 kHz steps)
FM: 87.5 - 108 MHz
Maximum output 12 mW + 12 mW
( EIAJ 16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply DC 3 V using two LR6 (size AA)
alkaline batteries
DC 2.4 V using two commercially
avaiable (Ni-Cd 1.2 V 700 mAh)
rechargeable batteries
DC 2.4 V using two supplied
rechargeable batteries<AHK>
AC house current using the
supplied AC adaptor
Maximum outside dimensions
Weight Approx. 225 g (7.9 oz.)
AC Adaptor AC-D603 HC
Rated input AC 220 V, 50 Hz<AHC>
• Design and specifications are subject to change without
notice.
128 (W) x 31.2 (H) x
129.5 (D) mm (excluding
projecting parts and controls)
1
/8 x 11/4 x 51/8 in.)
(5
(excluding batteries)
AC 120 V, 60 Hz<AU>
AC 230 V, 50 Hz<AHK>
115/230 V AC, switchable,
50/ 60 Hz<AHR>
For the customer in Argentina
AC-D603 HA: 230 V AC, 50 Hz
For the customer except in Argentina
AC-D603 HR: 115/230 V AC, switchable,
50/60 Hz<ALH>
ACCESSORIES / PACKAGE LIST
REF. NO. DESCRIPTIONPART NO.
1 8A-HC1-903-010 IB,HC(ECK)S<210AHC>
1 8A-HC1-910-010 IB,HK(ECH)S<210AHK>
1 8A-HC1-902-010 IB,HR(ECA)S<210AHR>
1 8A-HC1-904-010 IB,LH(3L)S<210ALH>
1 8A-HCB-904-010 IB,LH(3L)S<110ALH>
1 8A-HC1-901-010 IB,U(E)S<210AU>
1 8A-HC1-909-010 IB,U(F)S<210AU>
1 8A-HC1-908-010 IB,U(S)S<210AU>
2 87-A90-312-010 PLUG,CONVERSION WTN-1157R1<210ALH,210AHR,110ALH>
3 87-B30-141-010 BAT,NB-301 NC(2PCS)<210AHK>
4 87-B30-224-010 HEADPHONE,HP-M033<210AU>
4 87-B30-265-010 HEADPHONE,HP-M043<EXCEPT 210AU>
5 87-B30-286-010 AC ADAPTOR,AC-D603HCNC<210AHC>
5 87-B30-285-010 AC ADAPTOR,AC-D603HRNC<210ALH,210AHR,110ALH>
5 87-B30-284-010 AC ADAPTOR,AC-D603KNC<210AHK>
5 87-B30-282-010 AC ADAPTOR,AC-D603UNC<210AU>
KANRI
NO.
- 2 -
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(SF-P200)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
1) After the connection, remove solder shown in
the right figure.
: SOLDER
910 15161
- 3 -
PICK UP ASSY
