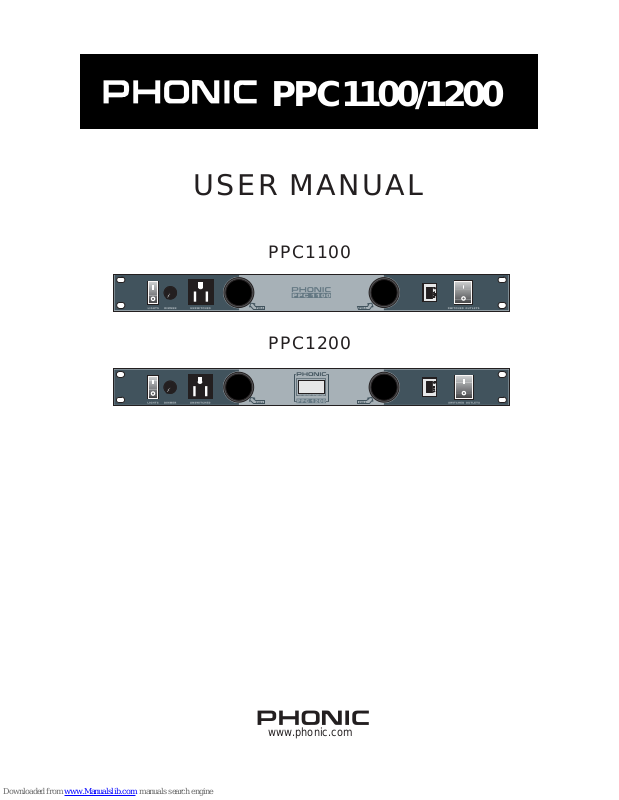

Page 1
PPC1100/1200
USER MANUAL
PPC1100
PPC1200
www.phonic.com
Page 2
1
SAFETY PRECAUTIONS!
WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS UNIT TO RAIN OR MOISTURE.
Do not allow water or liquids to be spilled into this unit, if the unit has been exposed to rain or liquids, ple a se
unplug the power cord immediately from the outlet (with DR Y HANDS) a nd get a qualified service technicia n to
check. Keep this unit away from heat sources such a s ra di ators, heat registers, stoves etc. that produce he at.
The unit contains no serviceable parts. Refer all servicing to a qualified
Service engineer, through the a ppropri ate Phonic dealer.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE P ARTS INSIDE. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
Keep this unit away from dust and dirty environment. Using a soft dry brush a nd occa sionally wi pe this unit with
a damp cloth, do not use a ny other solvents, which may cause damage to paint or pla stic parts. Regular care
and inspection will be rewarded by a long life a nd maxi mum reliability.
Y our Phonic PPC 1 100/ PPC 1200 wa s carefully pa cked in the fa ctory a nd the pa cking box wa s designed to
protect the unit from rough handling. We recommend that you carefully examine the pack aging and its contents
for any signs of physical da mage, which may have occurred in tra nsportation.
If the unit is da maged: Notify your dealer a nd the shipping company i mmediately. Claims for
damage or repla cement may not be gra nted if fail to report it properly .
This triangle, which appears on your component, alerts you to the presence of
uninsulated “ dangerous voltage” in side the
enclosure that may be sufficient to constitute a risk of shock.
This triangle, which a ppears on your component, alerts you to important operating
and maintena nce instructions in this a ccompanying literature.
Page 3
2
CONTENTS
1. INTRODUCTION ........................................................................................ 3
2. INSTALLATION ..........................................................................................3
2.1 RACK MOUNTING ............................................................................................... 3
2.2 CONNECTORS .................................................................................................... 3
3.CONTROLS ................................................................................................4
4. SPECIFICATIONS .....................................................................................6
Page 4
3
1. INTRODUCTION
The PPC 1100/ PPC 1200 Power Conditioner/Light Module is the perfect accessory to any equipment rack,
providing the working light to the rack a nd ba sic power protection essential to your equi pment on the rack. In stall
a PPC 1 100/ PPC 1200 in the top slot of your rack, a nd the eight switched AC outlets on the rear pa nel will power
up all your equipment while its two slide-out light fixtures provide discreet, illumin ation of their controls in any dark
place. A dimmer control allows you to have the suitable lamp brightness. PPC 1200 has a digital line voltage
display for monitoring current voltage at a glance, while PPC 1 100 does n’t.
PPC 1100 Features
z T wo slide out, swiveling ra ck lights with dimmer control
z Eight accessory outlets in the re ar, controlled by a front pa nel switch, widely spaced to allow f or maximum use
of “wall wart” plugs
z 15-amp rating with circuit bre aker prote ction
z Illuminated on-off switch
z Separate switch for lamps
z Seven feet heavy duty AC cord
z An addition al unswitched outlet on front pa nel
z PPC 1 100 available in 100V~120V a nd 220V~240V , depending on countrie s
PPC 1200 Features
z Includes all PPC 1 100 features, plus the f ollowing
z Tri ple-mode varistor spike and surge protection
z Improved RFI filtering with high attenuation multi-stage filter
z Digital line voltage display f or monitoring current voltage from 90V~150V for 120V version, 175V~285V for
230V version.
z PPC 1200 available in 100V~120V a nd 220V~240V , depending on countries
2. INSTALLATION
2.1 RACK MOUNTING
The Power Conditioner/Light Module may be installed in a standard 19 inch equi pment rack. It requires 1.75
inches of vertical ra ck space a nd secures to the ra ck cabinet with four ra ck mount screws a nd cup washers.
Normally PPC1 100/1200 is installed at the top of ra ck f or lighting equipment on the ra ck.
2.2 CONNECTORS
It provides eight accessory outlets in rear panel, controlled by front switch and an additional unswitched
outlet on the front panel.
Page 5
4

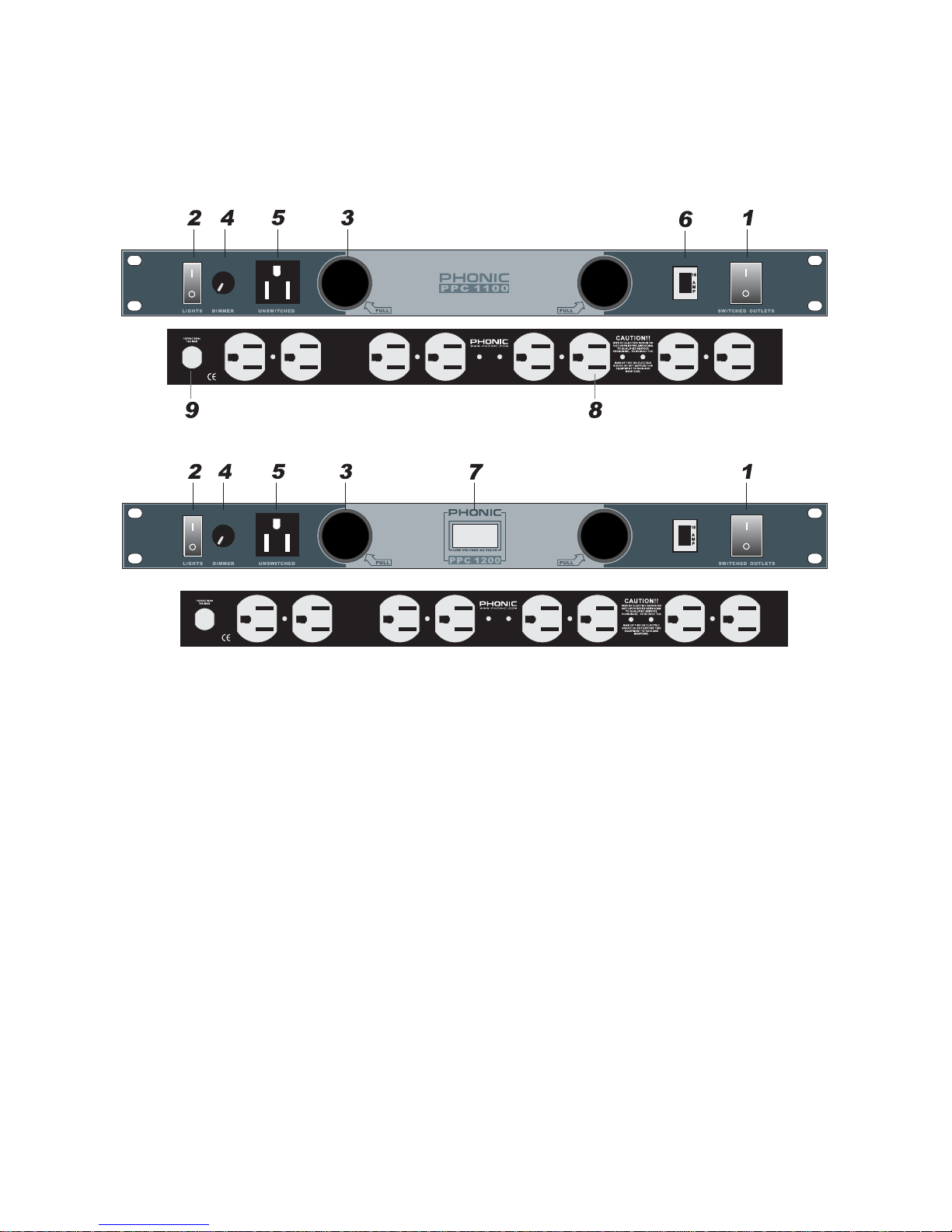

3.CONTROLS
PPC1100
PPC1200
11
11
1. MASTER SWITCH:
Use this switch to turn the power on and off f or the rear eight outlets. The illuminated switch will come on when
the power is on.
22
22
2. LAMP SWITCH:
Use this to turn on the two slide out, swiveling rack lights which allow you to check the equi pment settings
before a pplying power to it. This switch is independent from the master switch.
33
33
3. RACK LIGHT:
Two slide out, swiveling ra ck lights with di mmer control. Pull it out and turn to oppropri ate down angle when you
need them to give light to the equipments on the ra ck.
44
44
4. DIMMER CONTROL:
Use this control to adjust the brightness of the ra ck light.
55
55
5. UNSWITCHED OUTLET:
There is an addition al unswitched outlet on the front panel f or convenient temporary use. It is independent from
the master switch. Its power will be turned on when the built-in AC cord on the rear pa nel is plugged into the
main power.
Page 6
66
66
6. CIRCUIT BREAK:
The front circuit breaket ca n be ea sily and quickly re set should the PPC 1 100/ PPC 1200 be overloaded.
77
77
7. DIGITAL LINE VOLTAGE DISPLAY : (PPC 1200 ONLY)
This is for monitoring the input voltage. The number will tell you how much voltage s ha s been sent to this unit.
88
88
8. AC OUTLETS:
The eight switched AC outlets on the rear pa nel , controlled by front ma ster switch, power up all your equi pment. They are widely spaced f or maximum use of “wall wart” plugs.
99
99
9. AC CORD
Connect this built-in power cord to your power source.
5
Page 7
6
4. SPECIFICATIONS
z Current rating: 15 amps
z PPC1200 only: including a Digital line voltage display
z Input voltage: either 100-120VAC 60Hz or 220-240V AC, 50Hz, de pending on where you are located.
z Spike Protection Modes: Line to neutral, neutral to ground, line to ground. (PPC1200 only)
z Noise attenuation: Tran sverse and common modes: 20dB at 200K Hz, rising to >40dB, 1 to
100MHz.(PPC1200 only)
z Lamps: 7 watt night-light bulbs.
z Construction: Steel chassis, bla ck paint coating with lacquer; cha mpagne color aluminum front pa nel with
anode processing.
z Dimensions(HxWxD): 1.75" H x 19" W x 6" D (44x482x152 mm)
z Weight: PPC 1100, 5.37 lbs (2.44Kg); PPC 1200, 5.64 lbs (2.56Kg)
Specifications are subject to change without notice.
