MIXER
1805xMM 1805x
Page 2
MIXER
1805xMM 1805x

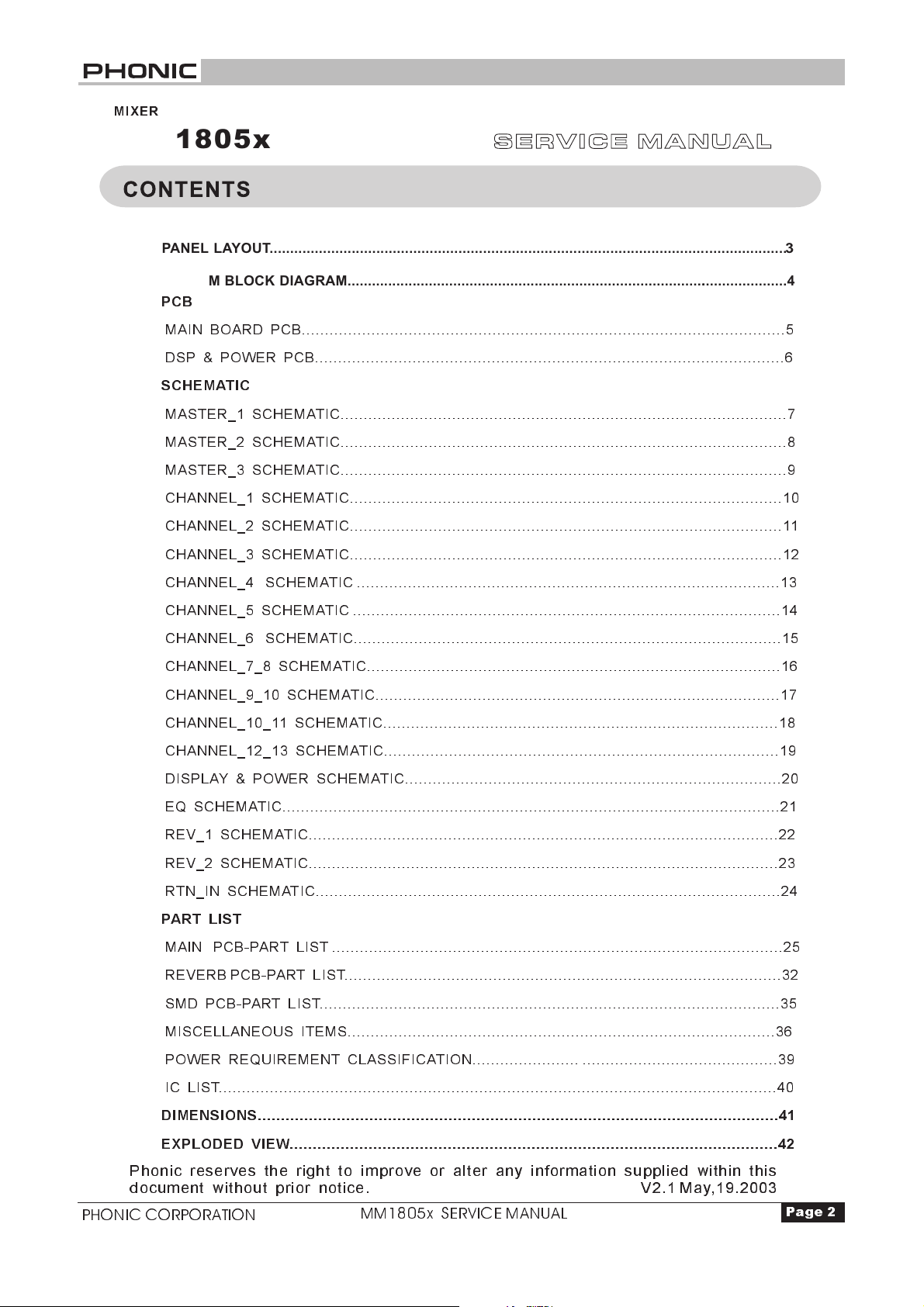

PANEL LAYOUT..............................................................................................................................
SYSTEM BLOCK DIAGRAM. .. .... ... .... ..... .. .... ... .... ..... .. .... ... .... ..... .. .... ... .... .... ... .... .. ..... .......................4
PCB
MAIN BOARD PCB........................................................................................................5
DSP & POWER PCB.....................................................................................................6
SCHEMATIC

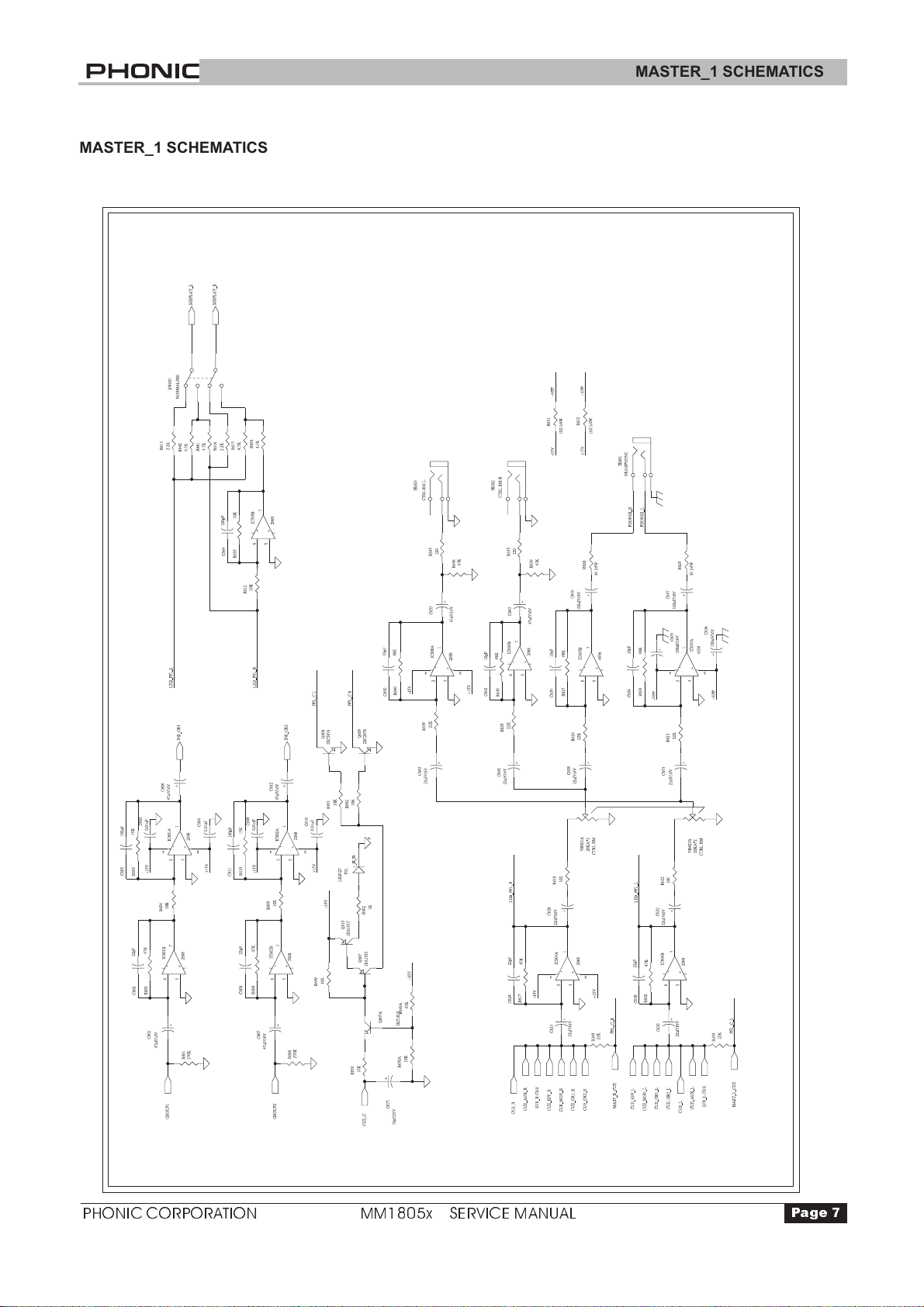

MASTER_1
MASTER_2

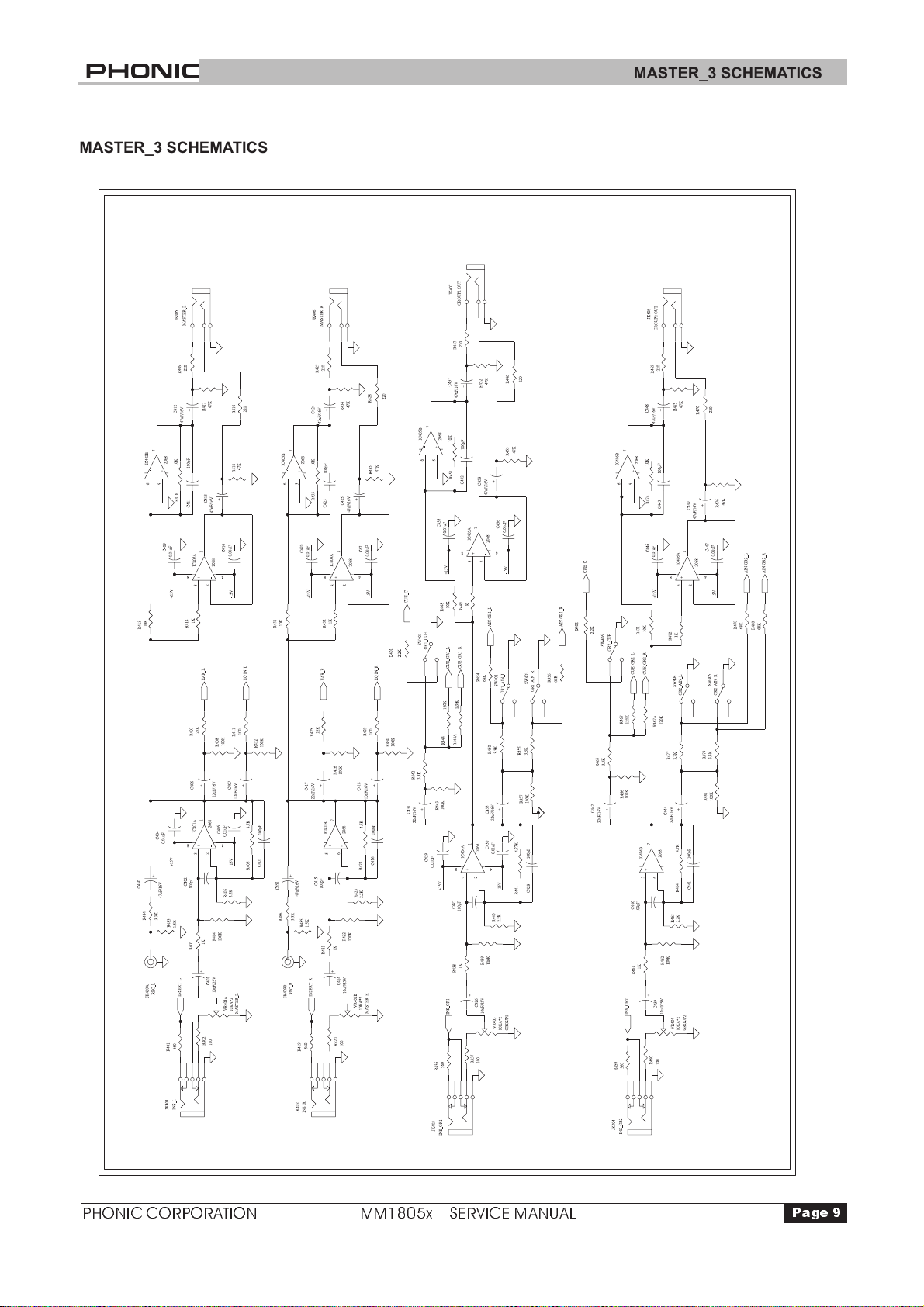

MASTER_3

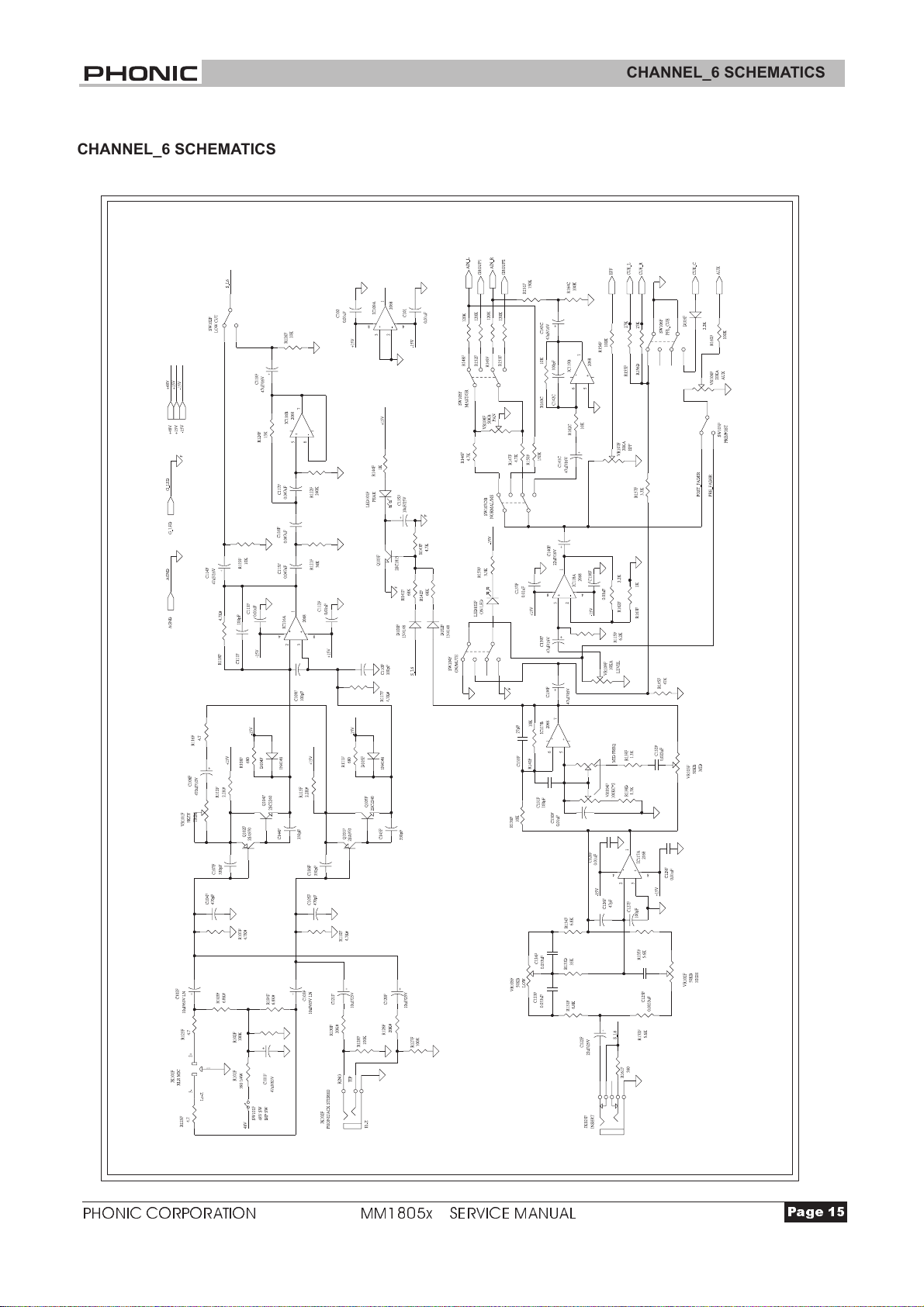

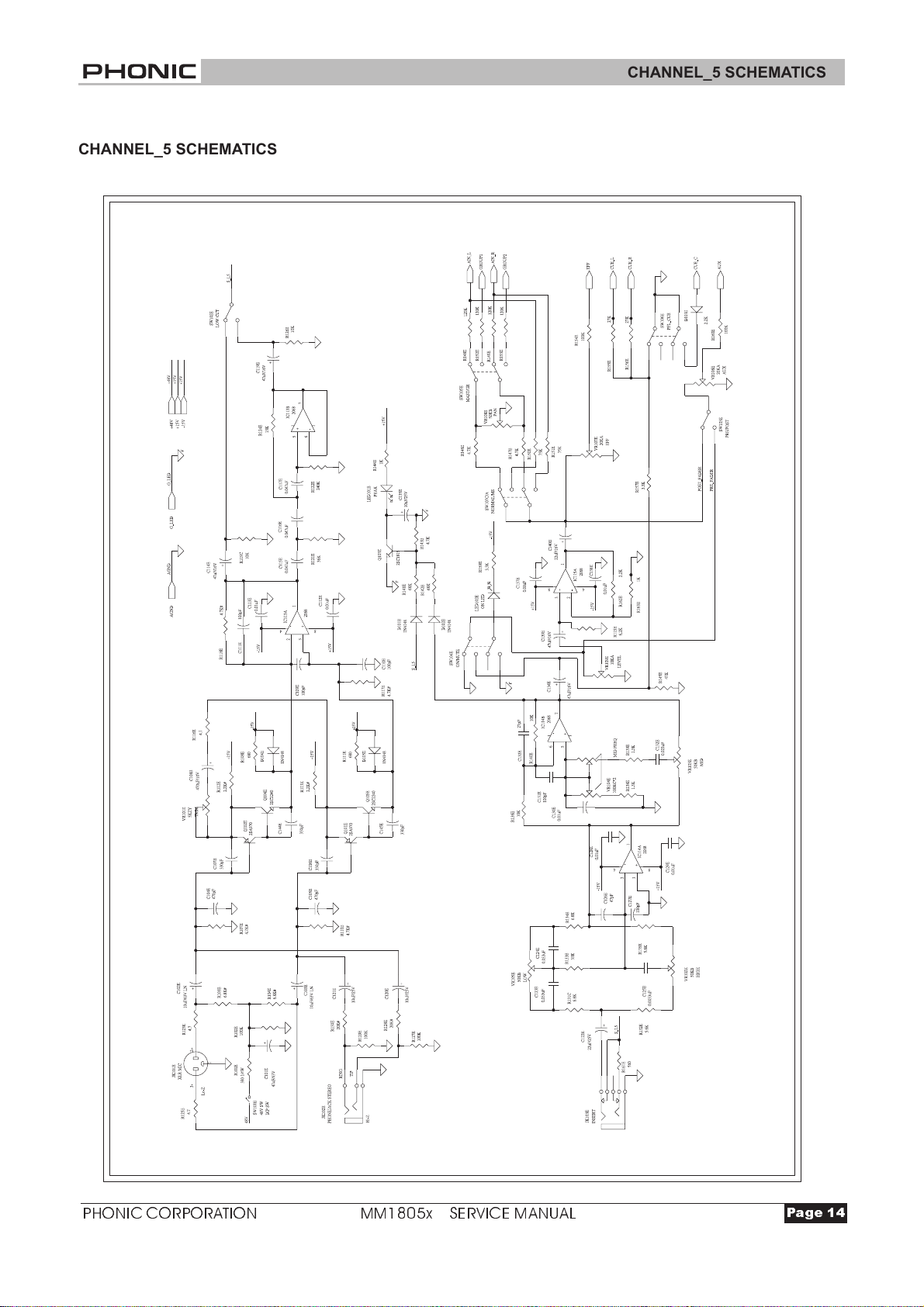

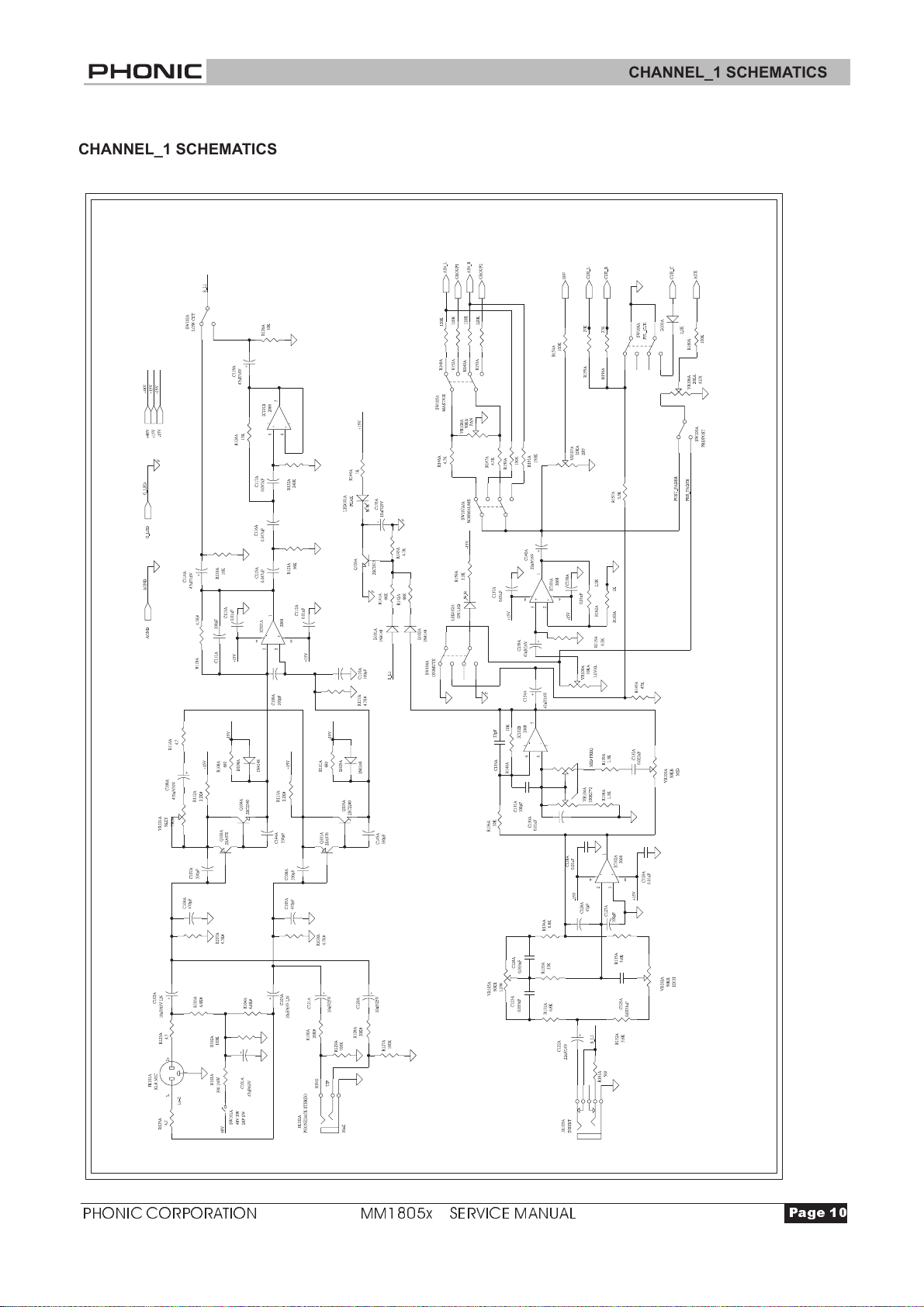

CHANNEL SCHEMATIC.............................................................................................10
CHANNEL SCHEMATIC.............................................................................................11

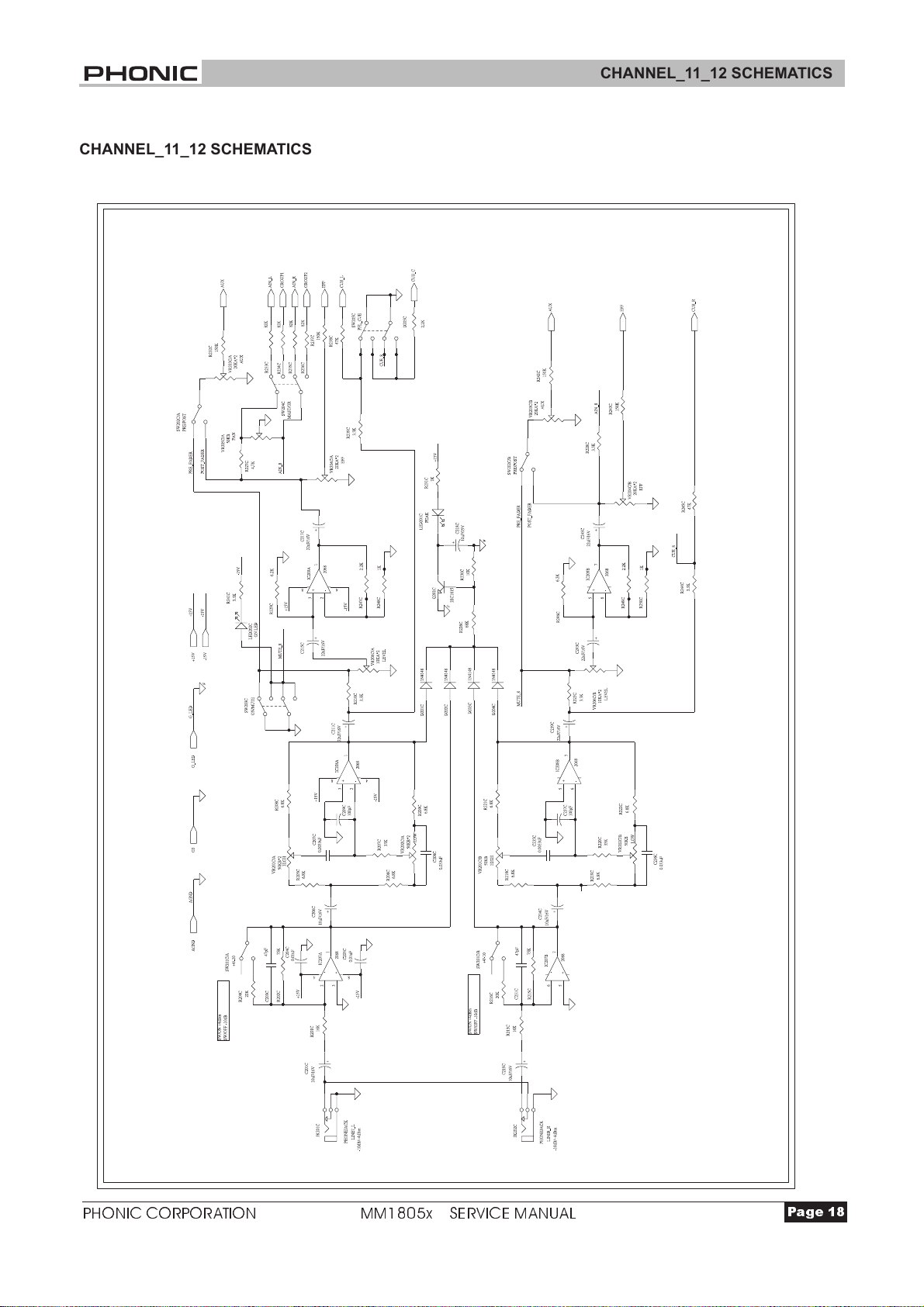

CHANNEL SCHEMATIC.............................................................................................12
CHANNEL
CHANNEL
CHANNEL
CHANNEL
CHANNEL
SCHEMATIC................................................................................................7
SCHEMATIC................................................................................................8
SCHEMATIC................................................................................................9
_1
_2
_3
_4 SCHEMATIC ...........................................................................................13
_5 SCHEMATIC ............................................................................................14
_6 SCHEMATIC............................................................................................15
_7_8 SCHEMATIC.........................................................................................16
_9_10 SCHEMATIC.......................................................................................17
3
CHANNEL
CHANNEL

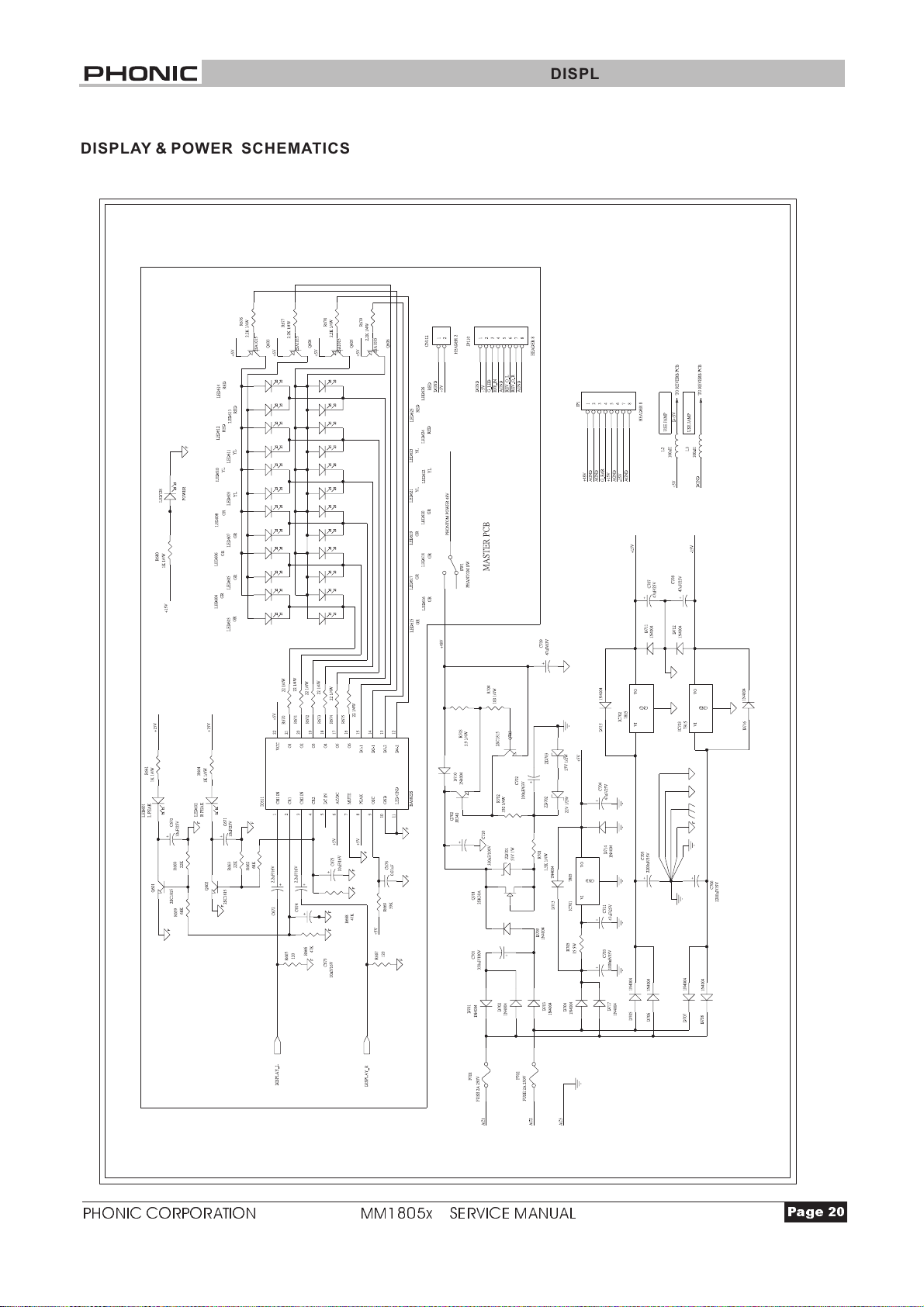

DISPLAY & POWER SCHEMATIC.................................................................................20
EQ SCHEMATIC...........................................................................................................21
REV_1 SCHEMATIC.....................................................................................................22
REV_2 SCHEMATIC.....................................................................................................23
RTN_IN SCHEMATIC....................................................................................................24
PART LIST
MAIN
REVERB PCB-PART LIST..............................................................................................32

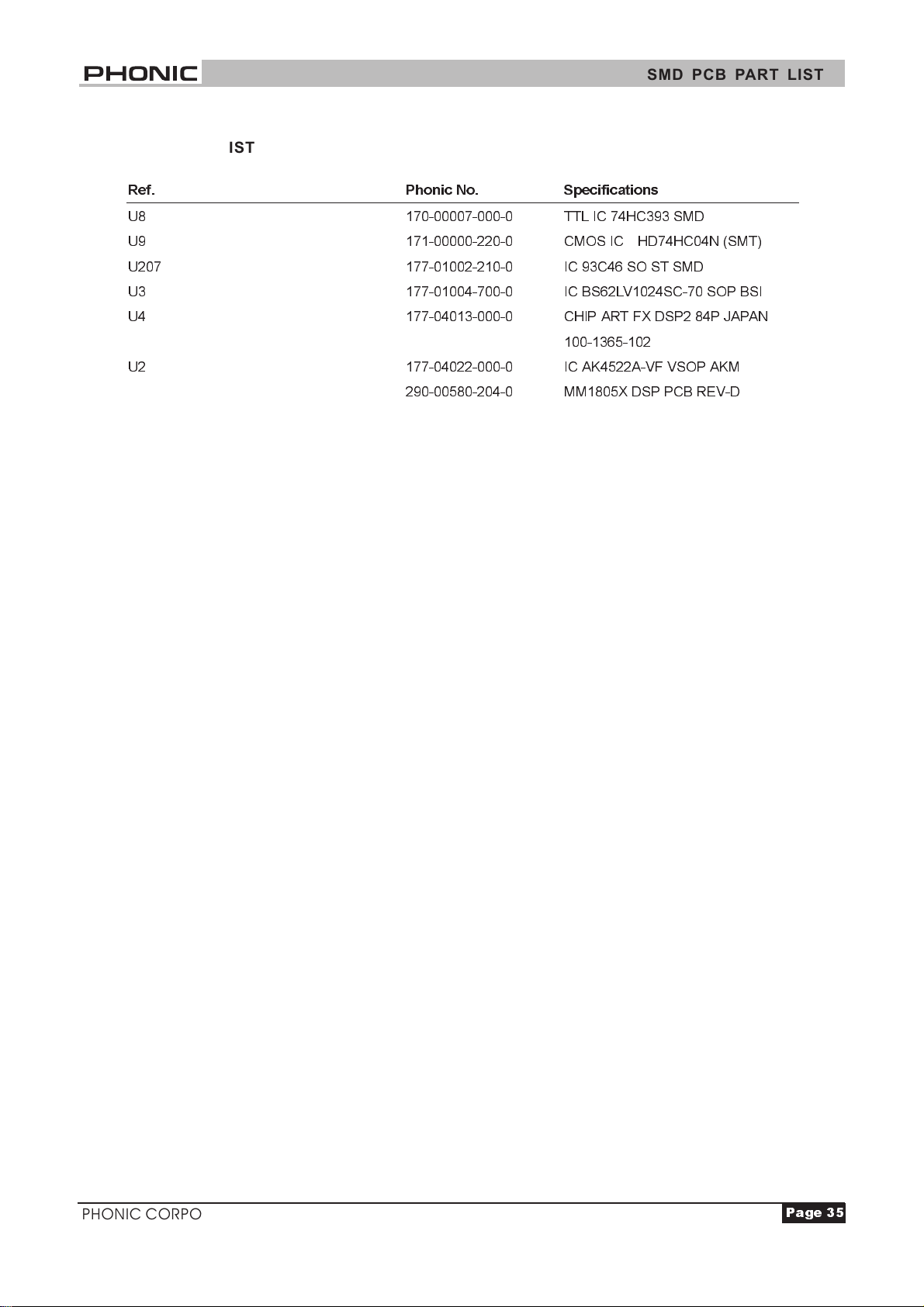

SMD PCB-PART LIST...................................................................................................35
MISCELLANEOUS ITEMS............................................................................................36
POWER REQUIREMENT CLASSIFICATION....................... ..........................................39
IC LIST........................................................................................................................40

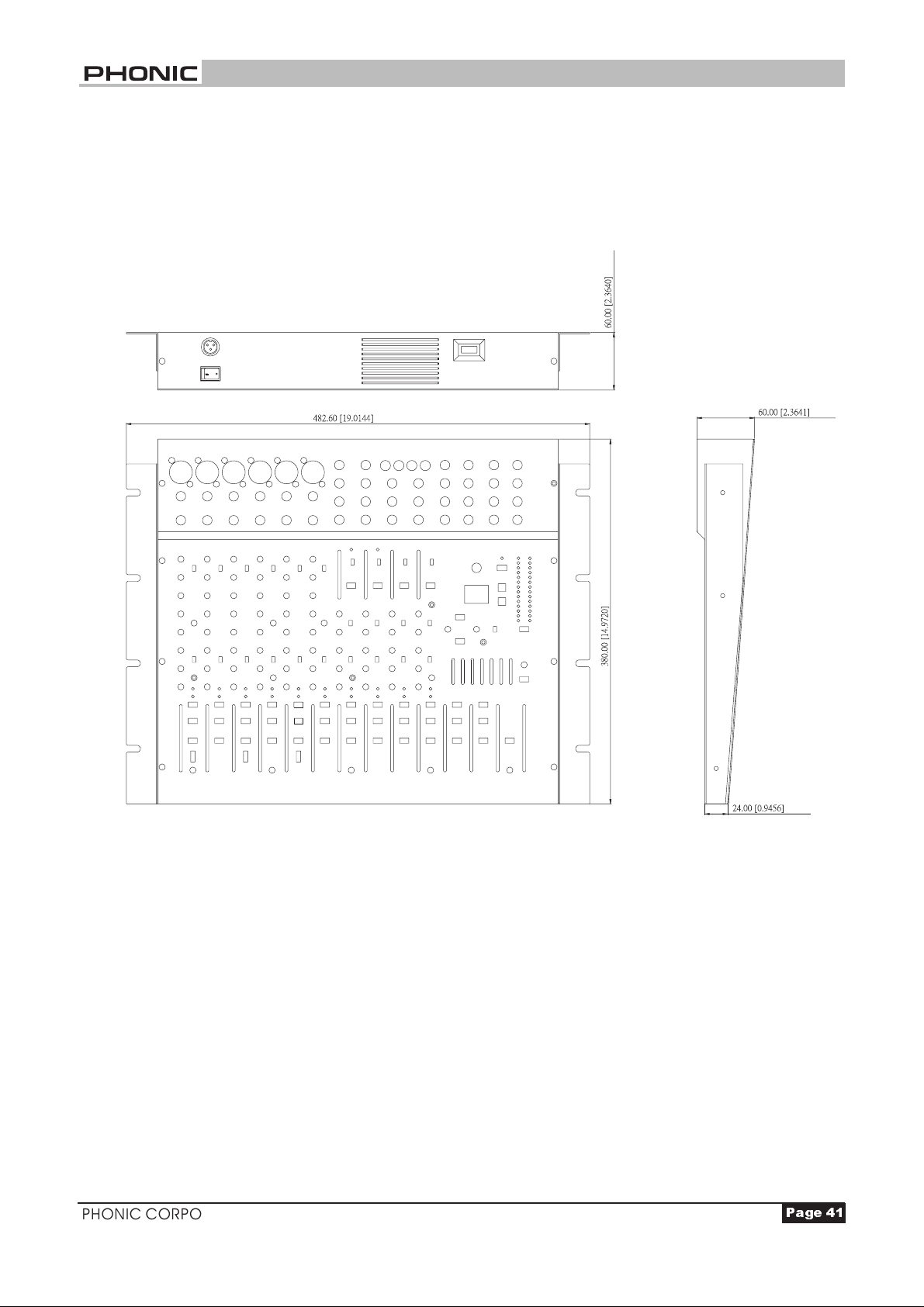

DIMENSIONS................................................................................................................41

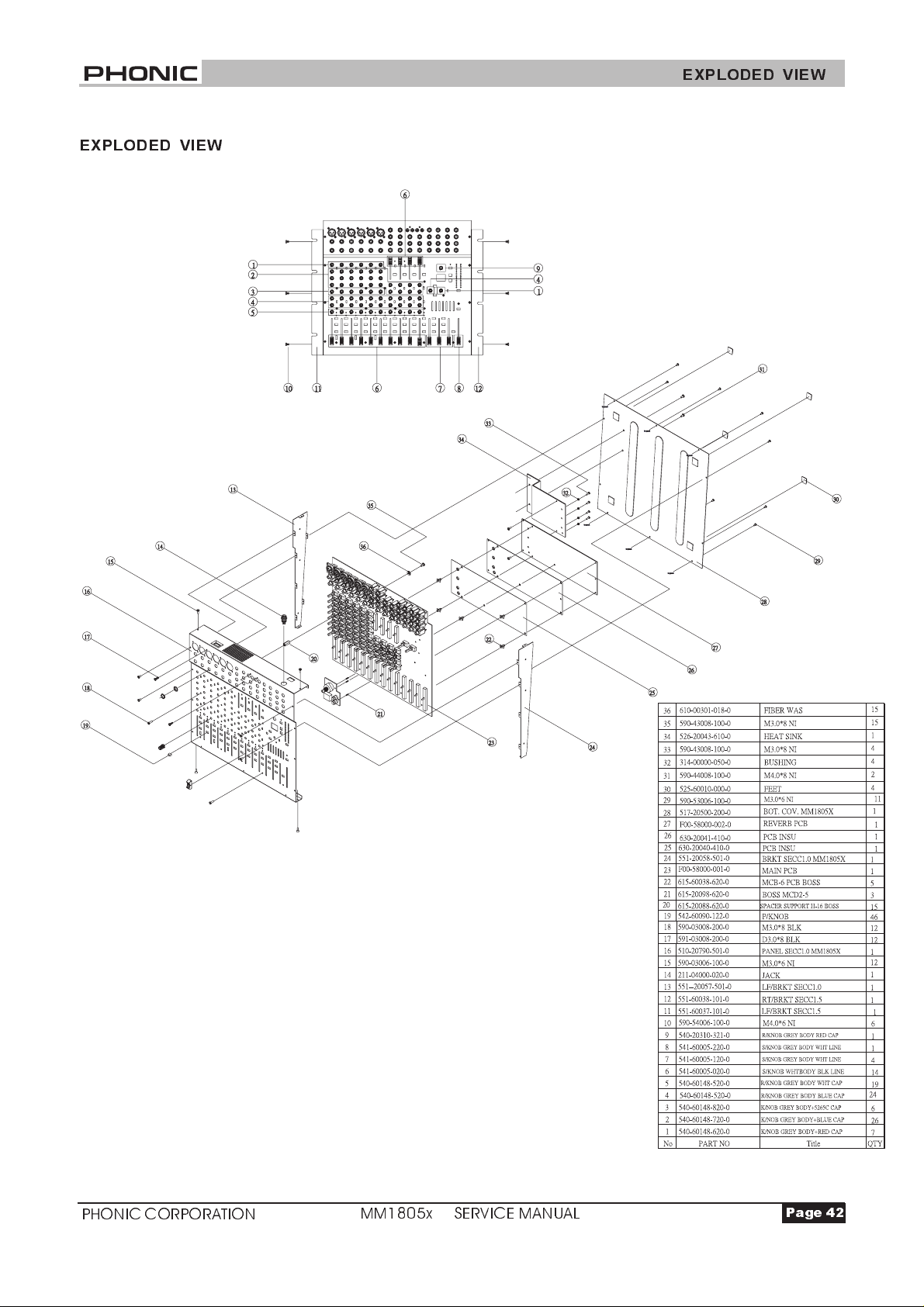

EXPLODED VIEW.........................................................................................................42
_10_11 SCHEMATIC.....................................................................................18
_12_13 SCHEMATIC.....................................................................................19
PCB-PART LIST .................................................................................................25
Phonic reserves the right to improve or alter any information supplied within this
document without prior notice. V2.1 May,19.2003
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 3

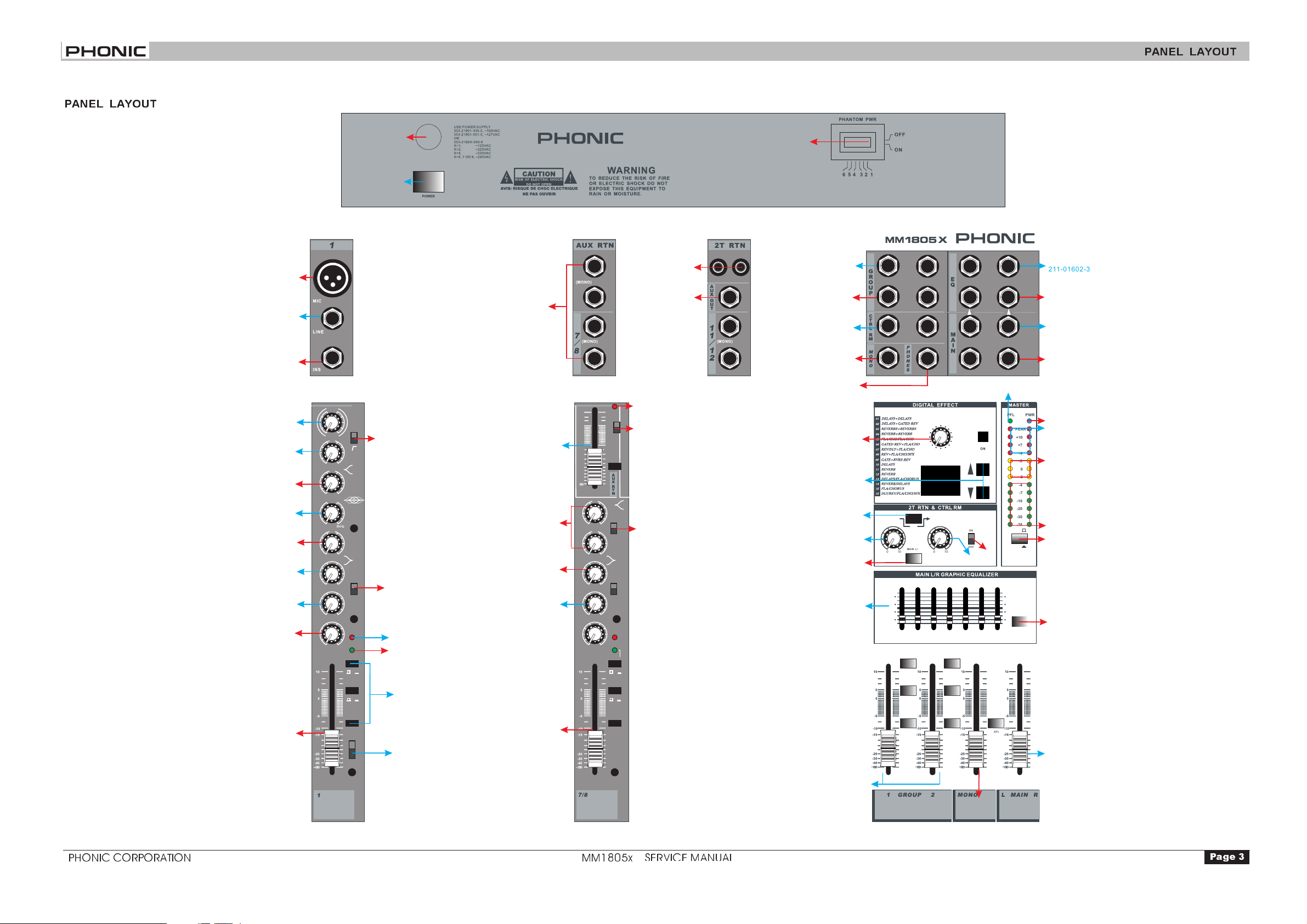

PANEL LAYOUT
PANEL LAYOUT
MIC
JACK:211-03300-160-1
LINE
JACK:211-01602-390-0
INS
JACK:211-01602-380-0
GAIN
VR:022-50290-003-0
KNOB:540-60148-620-0
VR:022-50350-011-0
KNOB:540-60148-720-0
VR:022-50350-011-0
KNOB:540-60148-720-0
EQ
VR:023-10470-021-0
KNOB:540-60148-820-6
VR:022-50350-011-0
KNOB:540-60148-720-0
AUX
VR:022-20350-001-0
KNOB:540-60148-520-0
EFX
VR:022-20350-001-0
KNOB:540-60148-520-0
PAN
VR:022-50350-011-0
KNOB:540-60148-920-0
BNC JACK
211-04000-020-0
POWER SW
210-03204-000-6
MONO L/R
JACK:211-01601-240-0
LINE
GAIN
MIC
+60
+10
dB
-10 +40
+150-15
+150-15
800
100
FREQ
+150-15 +150-15
100 100
100 100
R
L
SW:210-01202-320-0
12K
PRE PRE
POST POST
PEAK
SW:210-01202-320-0
LED RED:100-00010-030-0LED RED:100-00010-030-0
LED GRN:100-00050-000-0LED GRN:100-00050-000-0
AUX RTN/AUX OUT
VR:027-50325-031-0
KNOB:541-60005-020-0
SW:210-02201-440-0
VR:023-50350-001-0
KNOB:540-60148-720-0
AUX
VR:023-20350-001-0
KNOB:540-60148-520-0
EFX
VR:023-20350-001-0
KNOB:540-60148-520-0
PHANTOM PWR
210-07060-010-0
2TRTN/2T REC
L
R
L
R
10
5
0
-5
-10
-15
-20
-25
-30
-40
-
JACK:211-00021-100-0
AUX OUT/EFX OUT
JACK:211-01602-390-0
LED RED:100-00010-030-0LED RED:100-00010-030-0
PEAK
+4
SW:210-01202-320-0
-10
PFL
12K
+4
+150-15
AUXAUX
EFXEFX
RL
BALPAN
-10
8080
PEAK
SW:210-01202-320-0
LR
L
R
GROUP OUT/EQ OUT
JACK:211-01602-390-0
GROUP INS
JACK:211-01602-380-0
CTRL RM/MAIN OUT
JACK:211-01602-390-0
MONO
JACK:211-01602-390-0
PHONES
JACK:211-01602-560-0
EFX PATTERN
SW:210-16000-010-0
KNOB:540-20310-321-0
LED:100-02000-080-6
LENS:529-20022-100-0
SW:210-02101-040-0
SW:210-02201-440-0
KNOB:542-60090-122-0NM
2T
VR:023-20350-001-0
KNOB:540-60148-520-0
SW:210-02201-440-0
KNOB:542-60090-122-0
EQ
VR:027-20372-010-0
1
1
LR
OUT OUT
INS
2T RTN
ON
MAIN L/R
100 100
+12
6
0
6
-12
60
2
2
6
5
4
3
2
EFX PATTERN
INS
7
1
CTRL RM
LEVELLEVEL
8
16
OUT OUT
L
L
L
LR
R
IN IN
R
R
OUT OUT
INS INS
LED GRN:100-00050-000-0LED GRN:100-00050-000-0
9
10
11
12
13
14
15
PEAK
PHANTOM PWR
ON
OFF
SW:210-01202-320-0
VR:023-20350-001-0
KNOB:540-60148-620-0
+12
6
0
6
-12
7K 16K120 360 1K
2.5K
PFL PWR
PEAK
L/R
M/S
MAIN IEQ OUT
211-01602-390-0
EQ IN
JACK:211-01601-240-0
MAIN IEQ OUT
211-01602-390-0
MAIN INS
JACK:211-01602-380-0
LED BLUE:100-00070-030-0LED BLUE:100-00070-030-0
LED RED:100-00010-030-0LED RED:100-00010-030-0
+10
+7
+4
+2
LED YLW:100-00040-000-0LED YLW:100-00040-000-0
0
-2
-4
-7
-10
-20
-30
-38
LED GRN:100-00050-000-0LED GRN:100-00050-000-0
SW:210-02201-440-0
KNOB:542-60090-122-0
SW:210-02201-440-0
KNOB:542-60090-122-0
ON
PHONIC CORPORATION
CH1-6
VR:026-10326-030-0
KNOB:541-60005-020-0
MUTEMUTE ONON
MUTE/GP/PFL
L/R L/RGP GP
NORMAL
MS
SW:210-02201-440-0
KNOB:542-60090-122-0
MORMAL
SW:210-01402-010-0
CH7-14
VR:027-10326-011-0
KNOB:541-60005-020-0
PFLPFLPFL
MM1805x SERVICE MANUAL
GROUP
VR:026-10326-030-0
KNOB:541-60005-120-0
L
R
AFL
L
R
AFL
MONO
VR:026-10326-030-0
KNOB:541-60005-220-0
AFL
MAIN
VR:027-10326-011-0
KNOB:541-60005-220-0
2=CA "2=CA !
Page 4

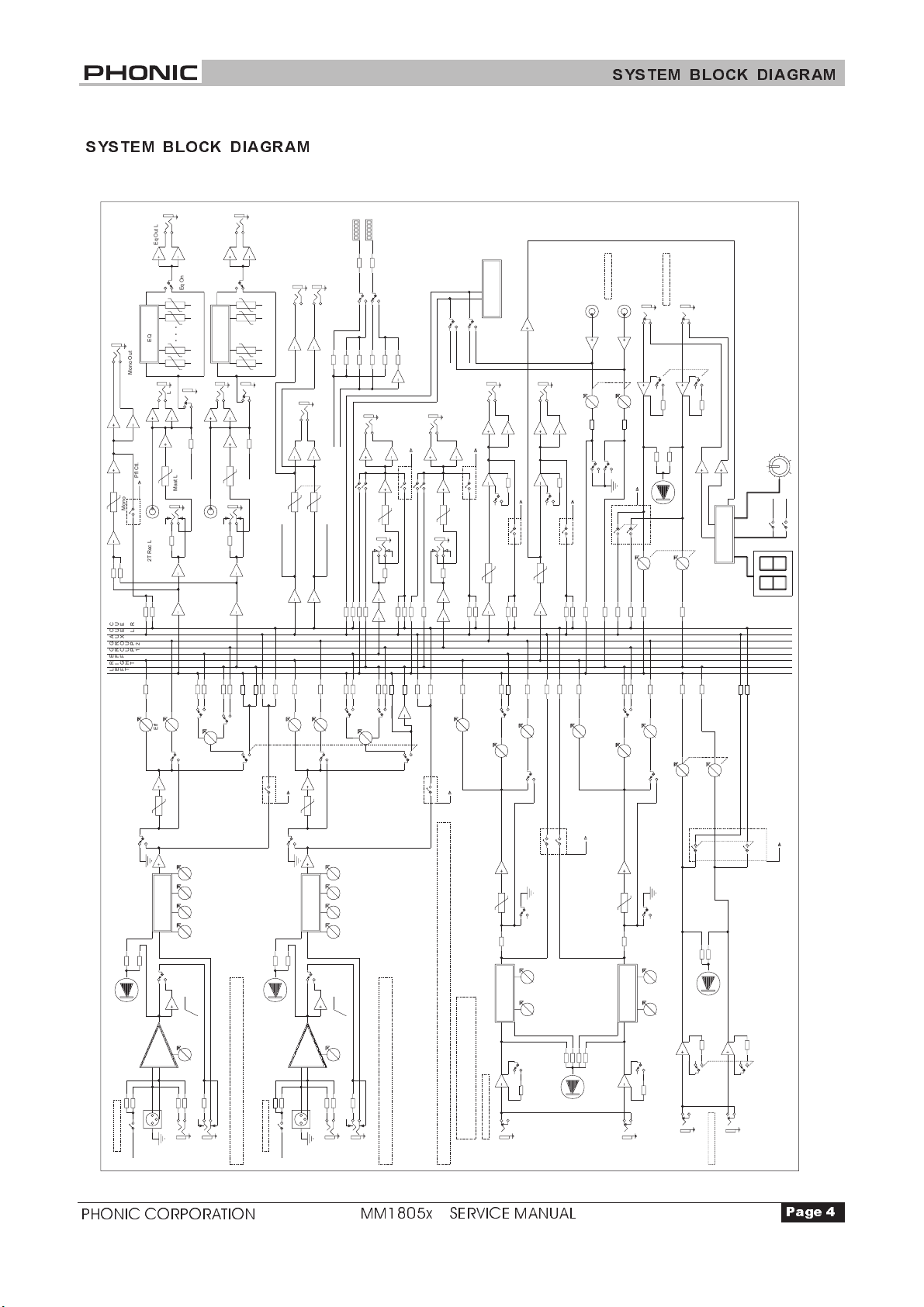

SYSTEM BLOCK DIAGRAM
SYSTEM BLOCK DIAGRAM
L
R
Eq Out L
EQ
...
Mono Out
L
Pfl Ctl.
Mast L
Mono
2T Rec L
C
U
E
R
C
U
E
L
A
U
X
G
R
O
U
P
2
G
R
O
U
P
1
E
F
F
R
I
G
H
T
L
E
F
T
Eq Out R
Ctrl Rm L/Out
Eq On
7K 16K
60 120
Eq In
Ear_L
Insert
Sum
Eq On
7K 16K
EQ
...
60 120
R
Eq In
Ear_R
Mast R
Insert
2T Rec R
Sum
Ctrl Rm R/Out
Ear Out
Display L
Level
Display R
Display L
Sum
Display R
Normal/Ms
Display
Group1
2T Rtn.
Pfl Ctl.
Ear_R
Ear_L
Aux Out
Out
Group1
Insert
Sum
Out
Group2
Pfl Ctl.
Group2
Sum
Pfl Ctl.
+4/-10
Insert
Aux
Sum
Eff Out
2T Rtn
Mute/On
Pfl Ctl.
Pfl Ctl.
+4/-10
Eff
Sum
Efx Rtn.
+4/-10
+4/-10
Pfl Ctl.
Peak
Cue
Efx Rtn.
Encoder
Up
Down
DSP.
C
U
E
R
C
U
E
L
A
U
X
G
R
O
U
P
2
G
R
O
U
P
1
E
F
F
R
I
G
H
T
L
E
F
T
Peak
Channel1
Mute/On
+48V
Level
Low Cut
Lo-z
(a)
Pfl Ctl.
*(a&b) Dual Slide/Rot. VR.
CH9_10,11_12,13_14 SAME AS CH7_8
(a)
Eff
*(a&b) Dual SW.
Group/Mast
Level
(a)
Channel7_8
EQ
(a)
Balance
Post
Aux
Pre
Cue
(a)
(a)
Mute/On
Low
(a)
Hi
(a)
+4/-10
(a)
(a)
Peak
Eff
Aux
Group/Mast
Post
EQ
Pan
Pre
Normal/Ms
Low
Mid Fr.
Hi
Trim
Hi-z
CH3,5 SAME AS CH1
Insert
Peak
Channel2
Pfl Ctl.
Mute/On
+48V
Level
Low Cut
Lo-z
Eff
Aux
Group/Mast
Post
Pre
EQ
Hi-z
Pan
Normal/Ms
Low
Mid Fr.
Hi
Trim
CH4,6 SAME AS CH2
Insert
(b)
Group/Mast
Eff
(b)
Pfl Ctl.
(b)
Cue
Level
(b)
EQ
(b)
Balance
Post
Aux
Pre
(b)
Mute/On
Low
(b)
Hi
(b)
+4/-10
(b)
(b)
Aux Rtn
Pfl Ctl.
Cue
Peak
+4/-10
+4/-10
Aux Rtn.
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA "
Page 5

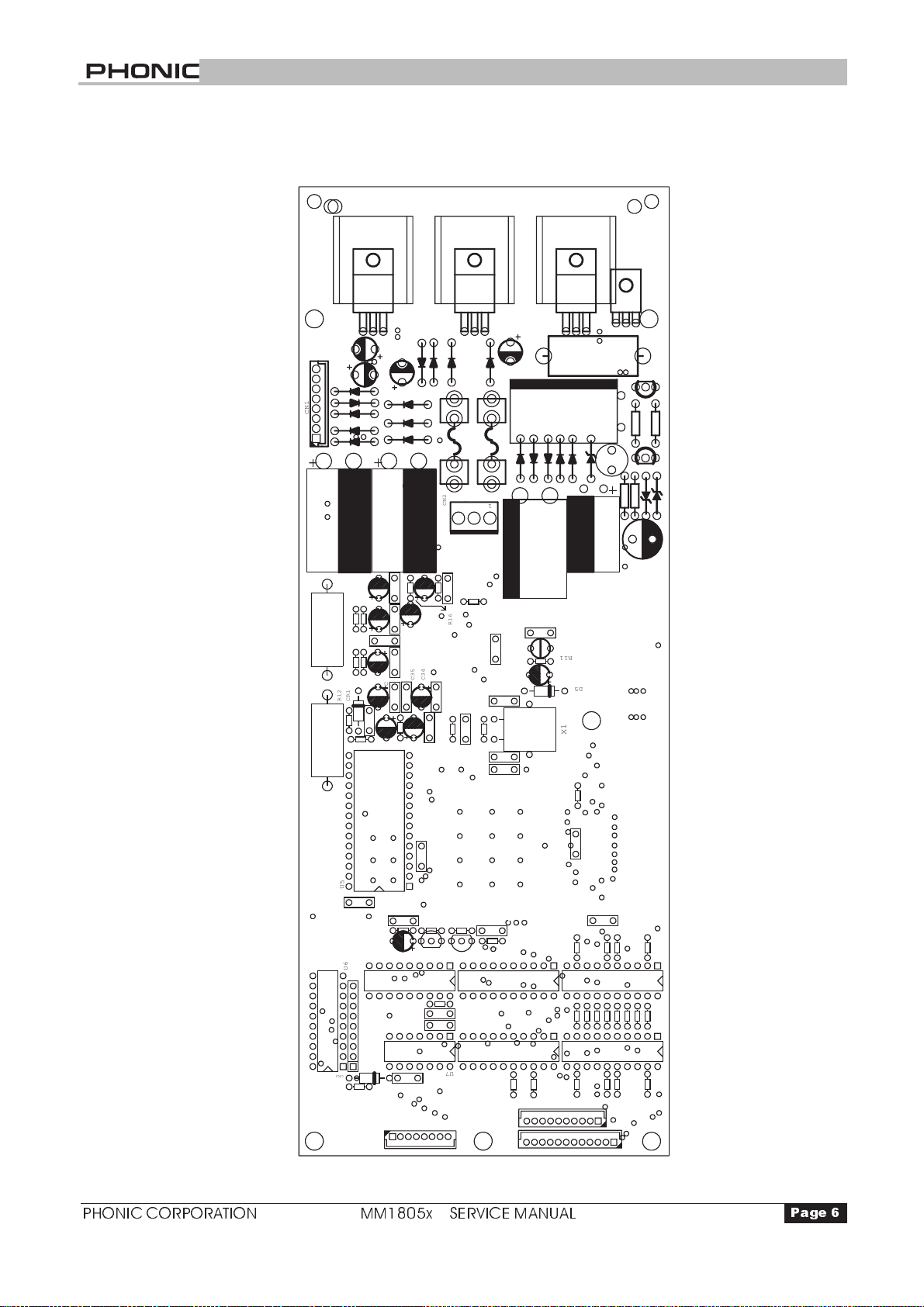

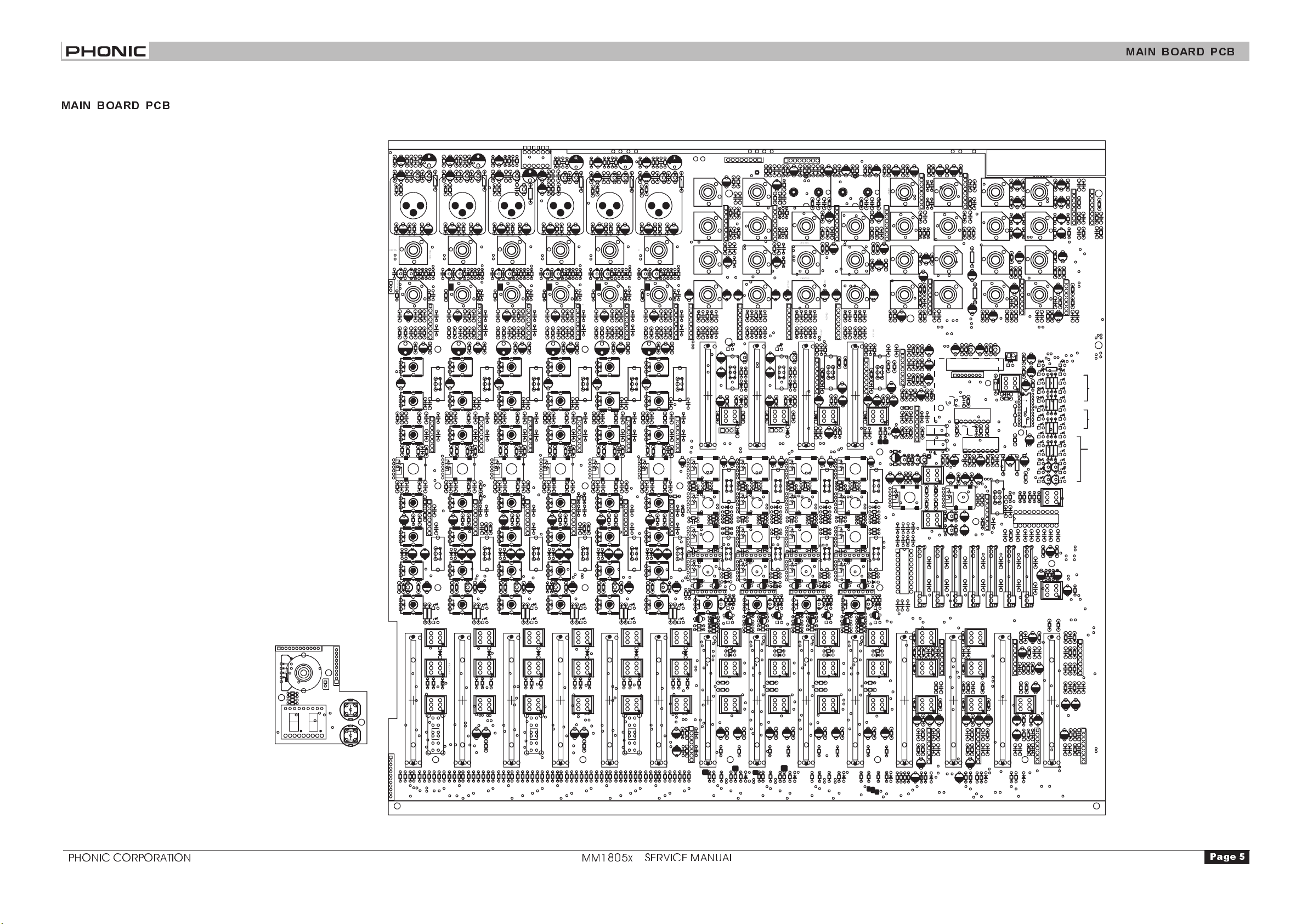

MAIN BOARD PCB
MAIN BOARD PCB
U201
4
3
2
1
290-00580-301-0
COM.
R204
R203
R202
R205
18 10
MM1805X REV/CTL_C PCB REV.A
U203
Q104B
C119B
C125B
C142A
LED101B
R148B
SW101
R102C
C103C
R110C
R104C
C101B
+
C105C
R107C
R101B
ECB
+
Q102C
C107C
C104C
R103C
C102C
R123C
R125C
R128C
R127C
R129C
C120C
R130B
+
C106C
Q101C
C145C
Q105C
R111C
D105C
R113C
JK102B
R112C
D104C
R108C
ECB
ECB
R161C
JK103C
C110B
R117B
C115C
C114C
C111C
C113B
R118C
+
C109C
R116C
R121C
C116C
R119C
C117C
R124C
C112B
IC107
+
+
C108C
R126B
SW102B
VR101C
C122C
+
VR102C
C128B
IC105
R135C
C132C
R139C
R132C
C129B
VR103C
C131B
C133C
R133C
R134C
R136C
VR104C
R166B
C124C
R131C
C123C
R138C
R165B
VR105C
C137B
C138B
+
C134C
R115C
R162A
R163A
VR106C
C139C
+
D102C
D101C
SW103B
VR107C
ECB
R142C
R141C
Q103C
C135B
+
VR108C
R144B
R159C
VR109C
SW104B
SW105B
R147B
R157B
SW106B
+
+
C143A
C141A
R164A
R160C
R153C
R151C
R156B
R155B
R149B
R154C
R152C
R110D
C101C
ECB
+
ECB
C144C
C121C
R130C
JK102C
+
C119C
R122C
SW102C
C127C
C125C
C126C
R140C
C130C
R165C
R145C
+
C140C
R143C
+
C135C
LED101C
LED102C
D103C
R146C
R150C
R148C
R102D
R107D
C105D
ECB
+
C103D
C104D
R104D
+
R101C
C102D
R103D
R125D
R123D
Q104C
R129D
R127D
C120D
R128D
+
+
C106D
Q101D
C145D
Q105D
R111D
D105D
R113D
R112D
D104D
R108D
ECB
ECB
R161D
JK103D
C110C
R117C
C113C
C115D
+
C114D
C111D
R118D
C109D
R116D
R121D
C116D
R119D
C117D
R124D
IC110
+
C112C
C108D
R126C
VR101D
C122D
+
VR102D
C128C
IC108
R132D
R135D
R139D
C132D
C129C
VR103D
C131C
C133D
R133D
R134D
R136D
VR104D
R166C
R138D
R131D
C123D
C124D
IC109
VR105D
C138C
+
R145D
C134D
R115D
C137C
VR106D
+
D101D
D102D
SW103C
VR107D
ECB
R141D
R142D
Q103D
R143D
VR108D
R144C
R159D
VR109D
SW104C
SW105C
R157C
R147C
SW106C
SW107B
R153D
R160D
R150D
R151D
R152D
R154D
R156C
R155C
R149C
R110E
R102E
C103E
R104E
C101D
+
+
C107D
Q102D
C144D
JK102D
+
R122D
C119D
SW102D
C127D
C126D
R140D
C130D
IC112
+
C139D
+
LED101D
LED102D
D103D
R146D
C105E
R107E
R101D
ECB
+
C107E
C104E
R103E
C102E
Q104D
R125E
R123E
R128E
C120E
R130D
C121D
R127E
JK101EJK101DJK101C
+
+
C106E
Q101E
C145E
Q105E
R111E
D105E
R113E
R112E
D104E
R108E
ECB
ECB
R161E
JK103E
R117D
C110D
C115E
C113D
C114E
+
C111E
R118E
C109E
R116E
R121E
C116E
R119E
C117E
R124E
+
C112D
C108E
R126D
VR101E
C122E
+
VR102E
C125D
C128D
IC111
C126E
C132E
R135E
R139E
R132E
C129D
VR103E
C131D
C133E
R133E
R134E
R136E
VR104E
C124E
C123E
R131E
R138E
R166D
R165D
VR105E
C138D
C137D
+
R163B
C142B
C140D
SW103D
C135D
R144D
R115E
C134E
R162B
VR106E
+
D102E
D101E
VR107E
ECB
Q103E
R142E
R141E
VR108E
R159E
VR109E
SW104D
SW105D
R157D
R147D
SW106D
+
+
C143B
C141B
R164B
R160E
R153E
R148D
R154E
R152E
R149D
R155D
R156D
R107F
R104F
C101E
+
+
C103F
R110F
R101E
ECB
ECB
+
C102F
R103F
Q104E
Q102E
C144E
R123F
R125F
C120F
R128F
R127F
R129E+C121E
R130E
JK101F
+
C106F
Q101F
C145F
Q105F
R111F
D105F
R113F
JK102E
R112F
D104F
R108F
ECB
R161F
JK103F
C110E
R117E
C115F
C113E
C114F
C111F
R118F
C109F
R116F
R121F
C116F
R119F
C117F
R124F
IC113
+
C112E
C108F
C119E
R122E
R126E
VR101F
SW102E
C122F
+
VR102F
C127E
C125E
C128E
IC114
R132F
R139F
C129E
VR103F
C131E
R133F
R134F
R140E
VR104F
C130E
R166E
R131F
IC115
VR105F
C138E
+
R165E
C134F
R145E
C137E
VR106F
+
D101F
D102F
C140E
C139E
SW103E
VR107F
C135E
R141F
R142F
+
R143E
LED101E
VR108F
R144E
LED102E
VR109F
SW104E
D103E
SW105E
R146E
R147E
R157E
SW106E
SW107C
R160F
R150E
R151E
R152F
R154F
R156E
R155E
R148E
R149E
PHANTOM POWER
C105F
C104F
+48V IN
R102F
C101F
JAMP_4
+
JK301
R101F
ECB
ECB
C107F
Q102F
Q104F
C144F
JK302
R130F
C121F
R129F
+
JK201A
JK102F
ECB
JK202A
C201A
R117F
C110F
+
IC116
+
C113F
IC201
C112F
+
+
R126F
R122F
C119F
SW102F
C127F
C125F
C128F
IC117
R135F
C132F
C126F
C129F
C131F
LED101F
VR301
VR201A
+
C206A
R140F
R208A
R205A
C130F
R206A
R165F
VR202A
C138F
R166F
R221A
R209A
R220A
C208A
C235A
C137F
VR203A
IC118
C209A
+
C237A
C140F
C139F
SW103F
VR204A
C135F
C211A
+
IC203
C239A
+
VR205A
R248A
R247A
C217A
+
R210A
R227A
D103F
SW105F
VR206A
R157F
R147F
R146F
SW106F
C102
R162C
R164C
+
C141C
IC119
C143C
+
C101
R163C
C142C
L_BUS
JAMP_1
R149F
R148F
R155F
R156F
C133F
R136F
R138F
C123F
C124F
R145F
R115F
+
ECB
Q103F
R143F
R159F
R144F
LED102F
SW104F
R153F
R150F
R151F
JP1
G1
G1
G3
G3
-15V
+15V
+48v
G_LED
R301
C301
R302
JK303
+
C310
C302
IC301
R303
R309
+
C305
C219A
+
R201A
R202A
C203A
R204A
R216A
R213A
R215A
C231A
C311
+
SW301
C308
+
C304
R306
+
SW302
R307
BUS
L/R
JAMP_1
C234A
+
SW201A
D202A
C207A
R207A
D203A
C236A
R219A
R242A
SW202A
IC202
R243A
+
D204A
ECB
Q201A
+
LED202A
R249A
C245A
R250A
R223A
R228A
SW204A
SW205A
R229A
C215A
+
R234A
R233A
R316
R245A
R238A
IC302
JK304
R305
C303
C307
R312
R310
JK201B
C306
C309
R308
JK202B
C201B
+
C205A
IC204
C204A
LED301
Q301
ECB
R320
R319
D302
R321
D301
R313
R318
R314
D303
VR302
VR201B
C206B
+
R208B
D202B
C207B
R205B
R207B
R206B
R222A
R209B
R221B
R220B
R218A
C235B
C208B
R232B
R232A
VR203B
C209B
C237B
R237A
VR204B
+
+
C239B
C211B
IC206
R231A
R230A
R226A
VR205B
LED201A
C218A
R247B
+
C217B
R248B
+
R210B
R227B
SW203A
R241A
D201A
VR206B
R244A
R239A
R246A
C243A
+
R236A
JAMP_1
R_BUS
JAMP_2
L_BUS
R233B
D205A
R317
R235A
R337
IC303
C327
R351
C450
C324
C325
R346
R345
R344
+
C312
+
R343
C346
C323
R354
R322
R323
C313
C514
R515
C321
JK305
JK501
R324
R326
C314
R333
R331
C318
JK201C
R330
C320
C317
+
R329
C316
JK202C
C201C
C219B
+
+
R201B
R202B
C203B
C205B
R204B
IC207
C231B
C204B
R213B
R215B
R216B
LED303
C322
Q302
+
SW303
C319
C315
ECB
+
R249B
C245B
R223B
R228B
ECB
R341
+
R340
D305
R342
R327
D304
+
R334
R339
SW304
R335
R328
BUS L/R
JAMP_2
D306
VR501
C234B
VR201C
C206C
+
+
SW201B
R208C
R205C
R206C
VR202B
D203B
R222B
R209C
R221C
R220C
C236B
C235C
C208C
R218B
R219B
R242B
VR203C
SW202B
C209C
IC205
R237B
R243B
D204B
VR204C
+
+
C211C
C239C
R250B
IC209
R231B
R226B
R230B
VR205C
LED201B
Q201B
C218B
R247C
+
C217C
R248C
+
R210C
LED202B
R227C
SW203B
R241B
D201B
SW204B
VR206C
R244B
R239B
SW205B
R246B
C215B
C243B
R229B
+
+
R236B
JAMP_2
R234B
R_BUS
D205B
R338
R235B
R245B
R238B
C345
R352
+
+
C328
C329
R353
C515
R516
JK409
JK502
R513
+
C516
R510
R509
C512
+
JK201D
R512
R511
C513
JK202D
C219C
C201D
+
+
R201C
R202C
C203C
R204C
C205C
IC210
C231C
C204C
R213C
R215C
R216C
VR502
R503
R505
C507
R507
R502
R504
SW501
IC501
C517
+
C506
C502
+
R518
C505
+
R517
SW502
D501
+
C508
C509
R519
C501
R519A
C234C
C206D
VR201D
+
+
SW201C
R208D
D202C
C207C
R207C
C237C
ECB
Q201C
+
R249C
C245C
R223C
R228C
R233C
R205D
R206D
VR202C
D203C
R222C
R209D
C236C
R221D
R220D
R218C
C235D
C208D
R219C
R232C
VR203D
R242C
SW202C
C209D
C237D
IC208
R237C
R243C
D204C
VR204D
+
C211D
C239D
R250C
IC212
R231C
R226C
R230C
VR205D
LED201C
C218C
R247D
+
C217D
R248D
R210D
+
LED202C
R227D
R241C
SW203C
D201C
SW204C
VR206D
R244C
R239C
SW205C
C215C
C243C
R229C
R246C
+
+
R234C
R236C
D205C
R235C
R245C
R238C
R483+C451
R484
C527
C528
R535
IC502
C520
D502
D202D
C207D
R207D
+
ECB
+
R249D
C245D
R250D
R223D
R228D
R233D
CUE_L
JAMP_3
R447
R485
R486
R533
+
C529
R530
R529
R531
R532
+
C653
R646
C219D
+
C205D
C203D
R202D
R201D
R204D
R215D
R213D
C204D
C231D
R216D
R523
C522
R522
C519
C518
+
+
R539
R539A
C504
C503
CUE_L/R
JAMP_3
+
R650A
C677
R650
C234D
SW201D
VR202D
D203D
R222D
C236D
R218D
R219D
R232D
R242D
SW202D
IC211
R237D
R243D
D204D
LED201D
+
Q201D
LED202D
SW204D
R244D
R239D
SW205D
C215D
R229D
+
R234D
R238D
G
CUE_R
C438
C437
R452
R453
R446
+
+
JK407
R536
IC504IC503
C525
R436
JK403
+
C526
R645
R636
C559
JK603
R569
R568
JK503
+
C556
R564
R565
R566
C536
R547
C539
R548
C537
IC506
R525
R524
R527
SW503
+
C530
+
R545
R542A
C533
C521
R537
R538
C531A
SW504
R542
C531
C664
+
R655
IC505
R541
C521A
Q607
R649
R649A
Q607A
+
ECB
R407
R408
C406
C330+C326
+
+
VR303
C477
C484
C476
C486
C475
C494
C496
R488A
IC408
R231D
R226D
R230D
C218D
C488
C490
C492
R438
R439
SW402
VR403
R450
SW203D
R241D
D201D
SW403
R455
SW401
R442
+
R246D
C243D
R457
C606
+
C603
R605
R601
R603
R236D
C601
R245D
R235D
+
R444
R456
R454
R356
R350
C426
D205D
C449+C448
R476
R475
R469
R470
+
R448
R437
R563
C535
ECB
C428
C433
IC601
C432
C435
R635
C555
IC508
+
C532
C649
C641
A
C462
C485
120HZ60HZ
R440
C441
R464
D401
C557
C558
R546
C538
C542
R551
R552
C543+C545
R543
R544
C534
R425
R426
R357
R355A
C427
IC404
+
C605
C604
C602
IC406
C447
R474
JK408
JK404
R459
JK602
JK601
C637
R659
R660
C670
ECB
+
C540
R549
+5V
R551A
DGND
G_LED
EFF_IN
C541
R550
R553
C650
IC606
+
R639
+
C417
+
C634
R624
C632
R622
R619
C638
SW305
+
+
+
ECB
Q608
R651
+
ECB
R359
C629
Q609
R652
C464
C466
C487
C489
R477
VR404
R463
R443
R465
+
R481
C612
C431
R604
C609
R610
R608
R606
C607
+
C439
R467
R496
JK412
R472
C460
C443
R494
JK410
C459
R411
C446
R471
R609A
R460
R628
+
R625
JK401
+
Q601
AGND
REV_O_L
REV_O_R
R640
C642
IC605
C407
R412A
JK405
R410
R417
C640
R409
C412
+
+
C337
R366
R401
R414
R413
Q602
R662
R663+C671
ECB
CN112
LED1
SW2
JP110
R18
AGND
C676
R669
PEAK
HOLD
R629
R630
R667
+
R623
VR601
R349
C623
1KHZ360HZ
SW404
C430
C429
+
IC602
R467A
+
R627
C639
C633
R626
C635
SW1
R631
+
C628
R479
R461
+
R480
R613
JAMP_4
+48V
PHANTOM_IN
R617
C624
C454
C453
C630
R620
C452
IC604
C468
C470
C491
C493
VR409VR408VR407VR406VR405
VR410
2.5KHZ
7KHZ
VR503
SW405
R462
C440
SW406
R466
C442
+
C335
C444
R609
C611
C331
C608
C610
D402
R478
R572
R496A
IC409
C457
C480
R497A
+
R497
R495
+
R412
+
+
R411A
C408
C413
+
R418
R416
C411
R415
R666
R665
C675
+
C636
R632
R641
R616
C461
R488
C472
C495
VR411
16KHZ
R555
C547
IC507
R557
+
C546
R559
C552
R571
R570
+
R368
+
R361
R364
C333
C334
D503
R572A
+
C483
R491
IC410
+
R494A
JK413
C482
R495A
JK411
R429
+
R430
C418
+
JK406
C419
R429A
R430A
R428
+
JK402
R434
C424
+
IC402
C673
+
+
C674
+
R602
R656
C463
C549
R558
R362
R365
C423
C410
C409
GRN
LED727
LED601
IC611
+
R642
C465
C474
C550
+
R556
+
C336
IC304
R433
R372+C344
R419
BLU
LED728
R680
LED602
C672
R668
R674
R677
R676
Q603
ECB
ECB
Q604
ECB
ECB
SW601
R615
IC407
C471
C473
C467
C469
+
R487
C455
R489
R489B
C455B
R487A
C478
R489A
+
+
C497
SW470
C455A
R402
R420
C403
R405
R554
C402
C548
+
C415
C416
C551
+
C560
R423
R424
SW505
C342
VR401
C332
C340
C341
R493
C458
R493A
R490
C456
C425
R435
R427
R432
IC403
R431
C420
C421
R675
R661
R664
RED
R672
R673
YLW
R670
R671
GRN
R679
R678
MM1805X MASTER_A PCB REV.D
290-00580-400-0
Q606
Q605
+
R489C
R406
IC401
R403
R404
R421
R422
C404
C405
+
C414+C401
C339
R367+C338
R370
IC305
C343
R371
R491A
C481
C479
R490A
IC405
R449
C436
R451
R604A
C643
+
+
R562
R547A
+
+
R612
Q610
ECB
R347
R355
SW306
R441
+
+
R444A
C103A
R110A
R104A
+
R107A
C105A
+
C102A
R103A
C104A
C107A
R123A
R125A
C120A
R127A
R128A
JK101A
+
C106A
Q101A
C145A
Q105A
R111A
D105A
R113A
R112A
D104A
R108A
ECB
JK103A
R161A
C115A
C114A
+
C111A
R118A
C109A
R116A
R121A
C116A
R119A
C117A
R124A
+
C108A
R122A
C119A
R126A
VR101A
C122A
+
VR102A
R135A
R132A
R139A
C132A
C131A
VR103A
R133A
R134A
R136A
VR104A
R131A
C123A
C124A
VR105A
+
R115A
C134A
VR106A
D101A
D102A
VR107A
ECB
R141A
R142A
Q103A
VR108A
R159A
VR109A
JP109B
JP109A
JP112
132
4
SW201
132
91
4
SW202
R152A
R154A
R153A
R160A
C103B
R110B
R102A
+
ECB
ECB
C144A
Q104A
Q102A
R130A
C121A
R129A
+
JK102A
ECB
C113A
IC101
+
SW102A
C125A
C127A
C126A
C133A
R140A
C130A
R138A
R166A
R145A
R165A
C140A
+
+
C139A
SW103A
R143A
+
C135A
LED101A
R144A
LED102A
D103A
R102B
C101A
R104B
+
+
R107B
C105B
R101A
ECB
+
Q102B
C144B
C107B
C104B
R103B
C102B
R125B
R123B
R127B
R128B
C106B
Q101B
C145B
Q105B
R111B
D105B
R113B
R112B
D104B
R108B
R161B
R117A
C110A
C115B
C114B
C111B
R118B
C109B
R116B
R121B
C116B
R119B
C117B
R124B
C112A
C128A
R132B
C129A
IC102
VR104B
IC103
C138A
C137A
R129B+C121B
C120B
JK101B
+
ECB
ECB
JK103B
+
IC104
+
C108B
R122B
VR101B
C122B
+
C127B
VR102B
C132B
R139B
C126B
R135B
VR103B
C133B
R133B
R134B
R136B
R140B
C130B
C124B
R131B
C123B
R138B
VR105B
+
C134B
R145B
R115B
VR106B
IC106
+
D101B
D102B
C139B+C140B
VR107B
ECB
Q103B
R142B
R141B
R143B
VR108B
R159B
LED102B
VR109B
SW104A
D103B
SW105A
R147A
R146A
R157A
R146B
SW106A
SW107A
R150A
R148A
R160B
R153B
R151A
R150B
R149A
R156A
R155A
R154B
R151B
R152B
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=C A #
Page 6
DSP & POWER PCB
DSP & POWER PCB
C705
7815
7915
7805
IC702
Q702
C707
8.AGND
7.-15V
6.AGND
5.+15V
4.G_EAR
2.AGND
1.48V
GIO
C708
D712
D711
3.AGND
D715
D705
D706
C704
D714
D713
D704
IC703
GIO
C711
D717
D716
CN1
D707
D708
F702
T2A/250V
D701
F701
T2A/250V
-
1
CN2
C706
1.AC1
2.AC2
3.AC3
C10
R25
R24
C22
C21
BC10
L3
R26
R27
C24
C32
C31
CR1
R12
R34
L2
C11
C26
U2
C23
C35
C34
C13
C14
C15
R42
32
33
BC11
U9
R43
BC13
R16
C25
R14
BC14
U8
C29
C27
R35
R36
16MHZ
C28
BC3
C710
D702
R705
C701
IC701
D703
12
GIO
B
E
C
Q701
GDS
-
R703
+
C709
D710
D709
ZD701
+
C36
BC12
R11
C18
D5
X1
R30
11
ECB
+
C703
+
R701
R702
290-00580-203-0
MM1805 DSP&POWER_B PCB REV.C
R704
C702
ZD702
Q703
ZD703
PHONIC CORPORATION
27C512
BC4
U5
BC7
U6
RP1
CR2
R41
1.DGND
C202
R32
C30
2.D+5V
CN110
3.GND
4.EFF_IN
5.AGND
6.EFF_L
7.EFF_R
BC8
8.AGND
U4
53
R33
54
Q5
U202
R209
C203
BC9
U7
ART FX DSP2
BC5
R31
R13
Q6
U207
R240
CN109A
CN109B
MM1805x SERVICE MANUAL
1
SRAM 128K*8
BC2
75
BC6
74
R217C9R216
U204
R225
R224
R219
R218
U208
R239
10.BT0
9.BT1
8.BT2
7.BT3
R210
R226
3.R215
2.R216
4.R214
1.R217
6.UP
5.DN
U3
32K*8
R215
R214
U205
R223
R222
R221
R220
U206
R212
R211
2=CA $
Page 7
MASTER 1_ SCHEMATICS
MASTER 1_ SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA %
Page 8
MASTER_2 SCHEMATICS
MASTER_2 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA &
Page 9
MASTER_3 SCHEMATICS
MASTER_3 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA '
Page 10
CHANNEL_ SCHEMATICS1
CHANNEL_ SCHEMATICS1
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 11

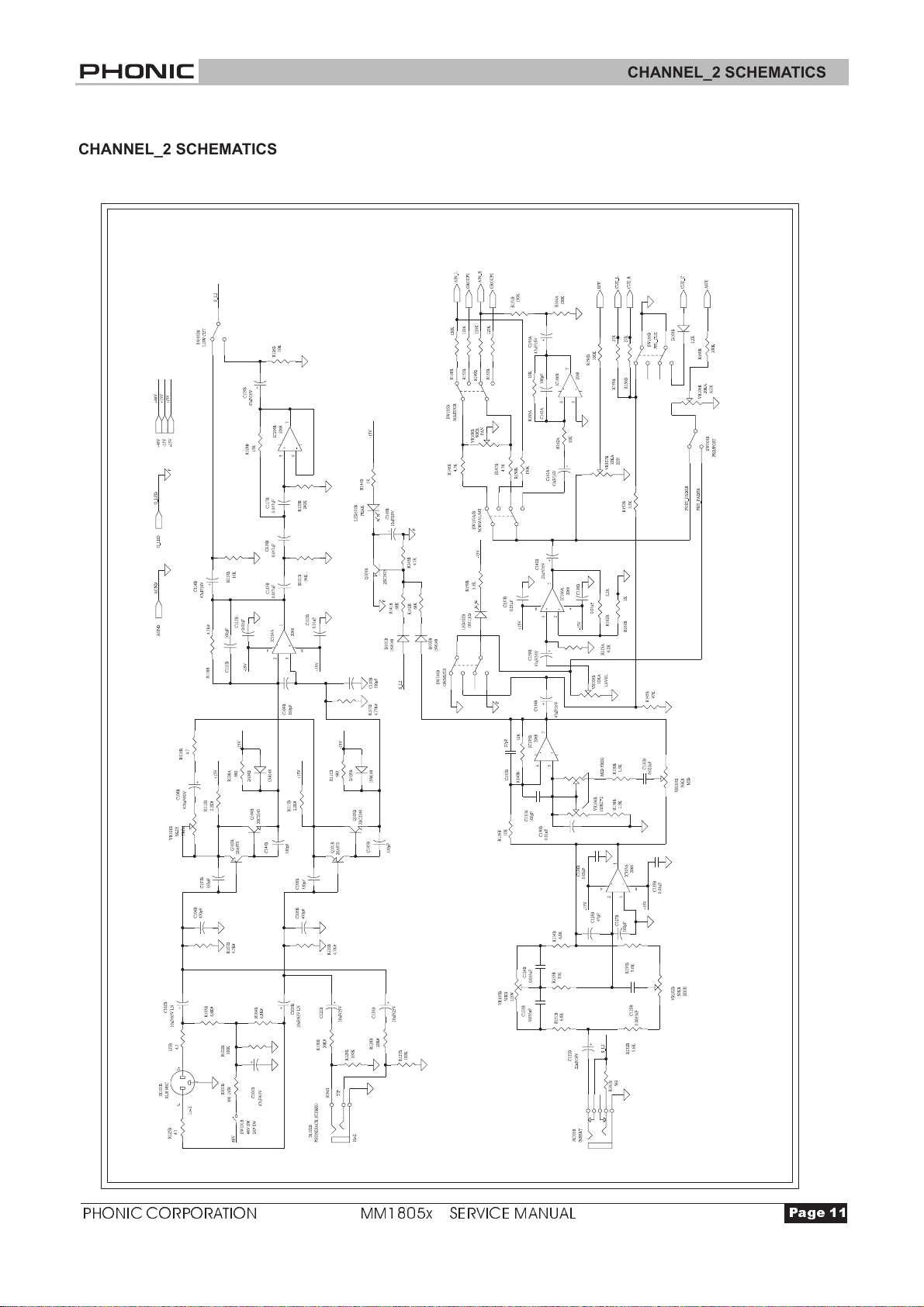

CHANNEL_2 SCHEMATICS
CHANNEL_2 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 12
CHANNEL_3 SCHEMATICS
CHANNEL_3 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 13

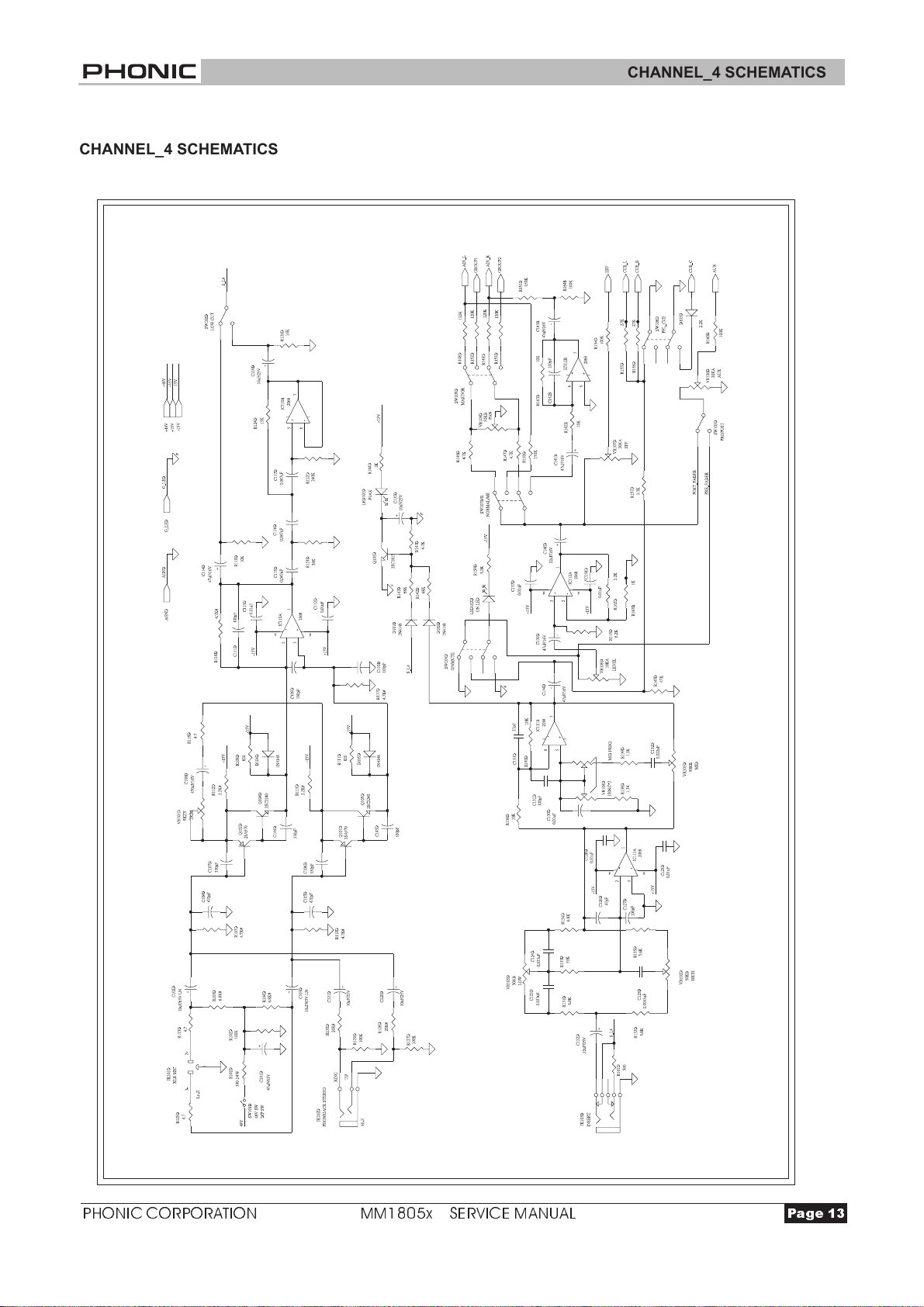

CHANNEL_4 SCHEMATICS
CHANNEL_4 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA !
Page 14
CHANNEL_5 SCHEMATICS
CHANNEL_5 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "
Page 15
CHANNEL_6 SCHEMATICS
CHANNEL_6 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA #
Page 16
CHANNEL_7_8 SCHEMATICS
CHANNEL_7_8 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA $
Page 17

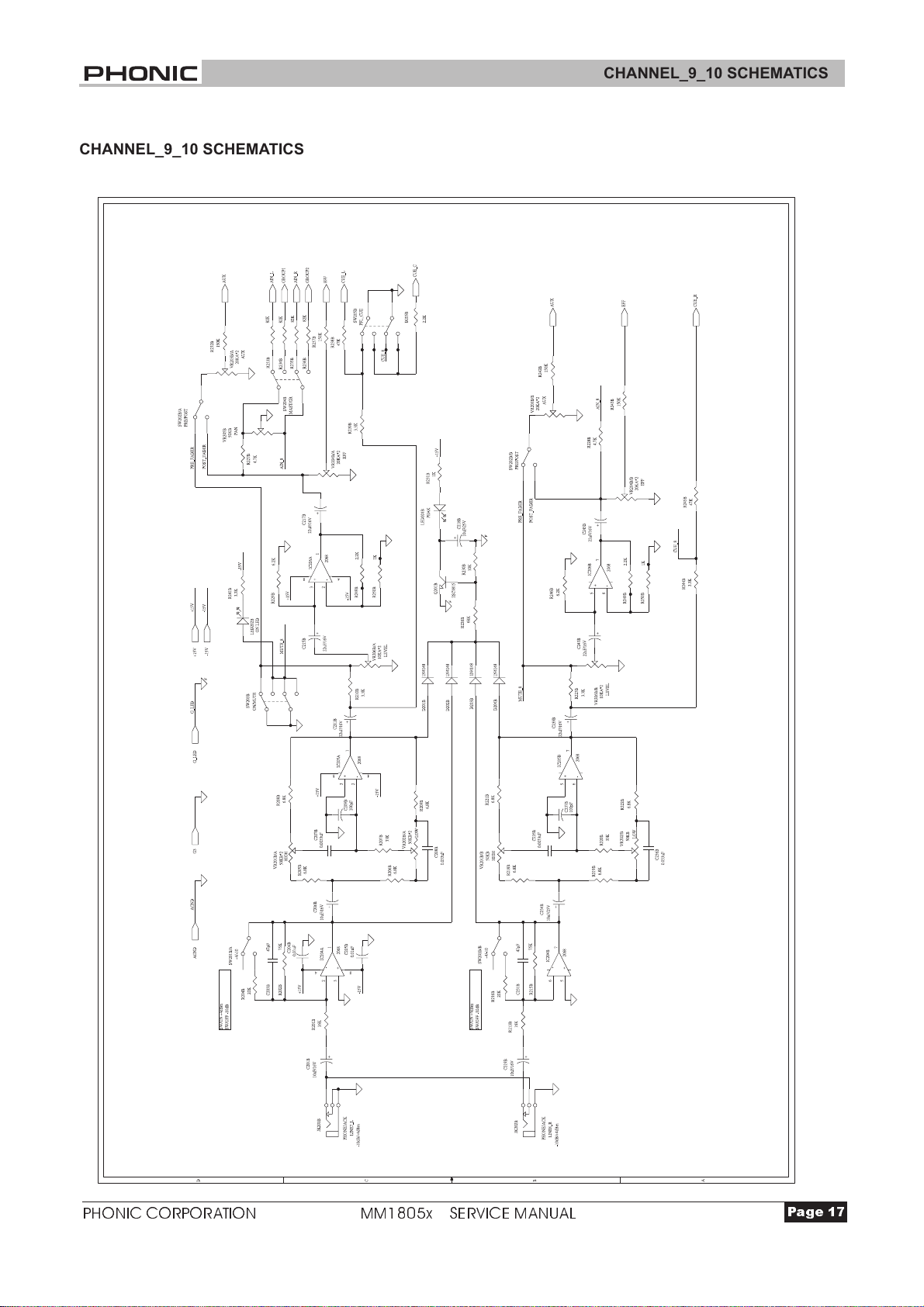

CHANNEL_9_10 SCHEMATICS
CHANNEL_9_10 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA %
Page 18
CHANNEL_11_12 SCHEMATICS
CHANNEL_11_12 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA &
Page 19

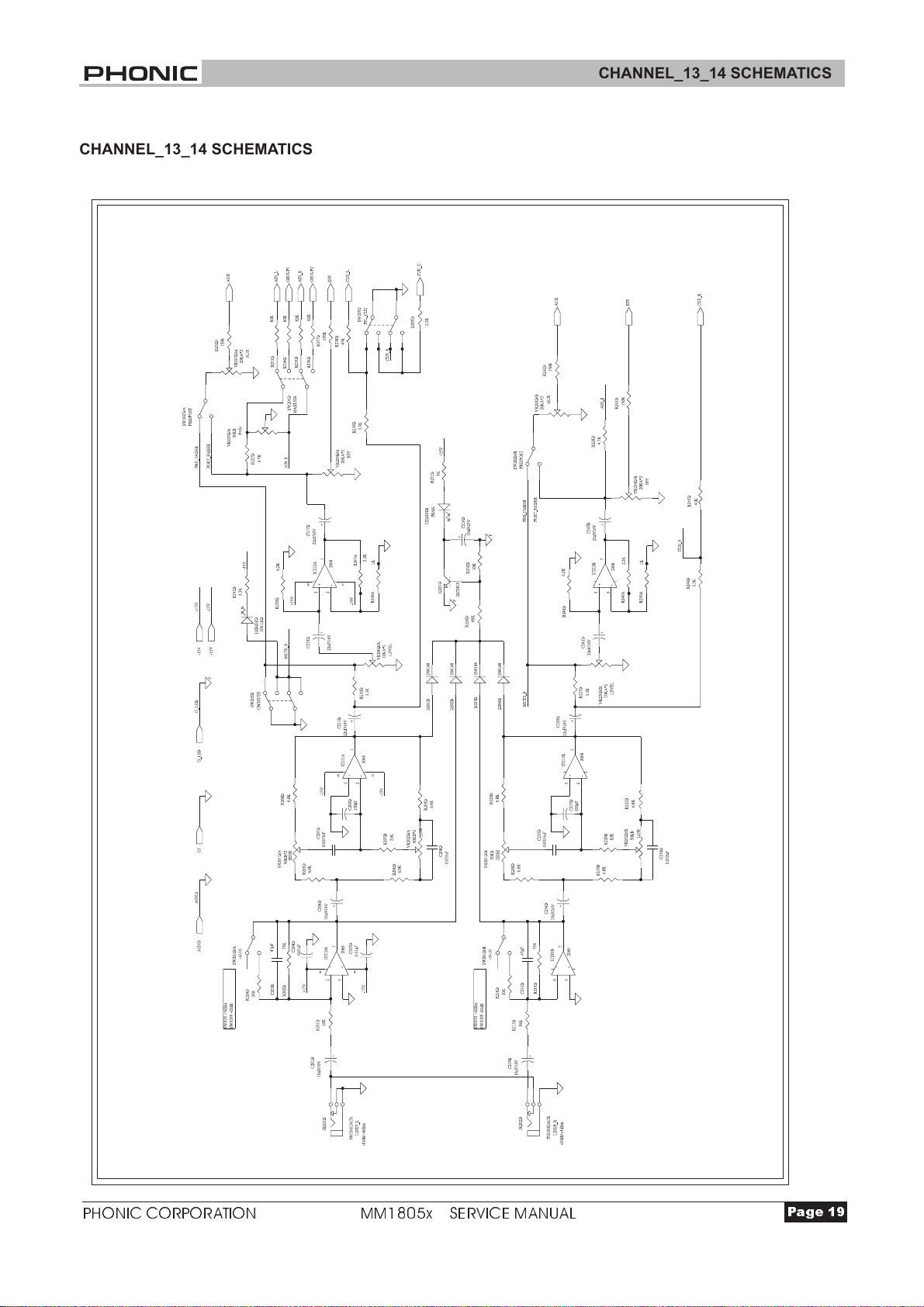

CHANNEL_13_14 SCHEMATICS
CHANNEL_13_14 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA '
Page 20
DISPLAY & POWER SCHEMATICS
DISPLAY & POWER SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA
Page 21

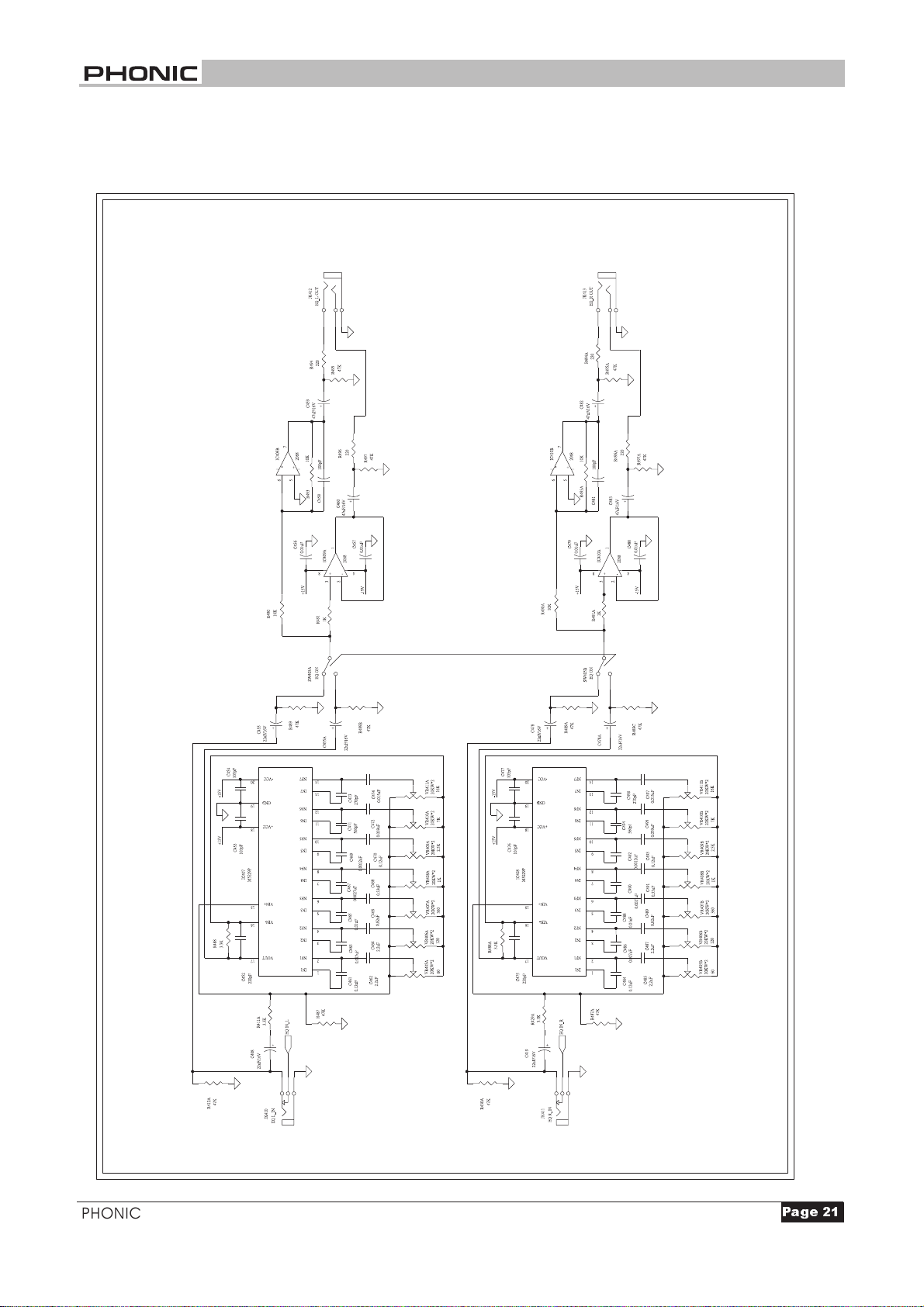

EQ SCHEMATICS
EQ SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 22

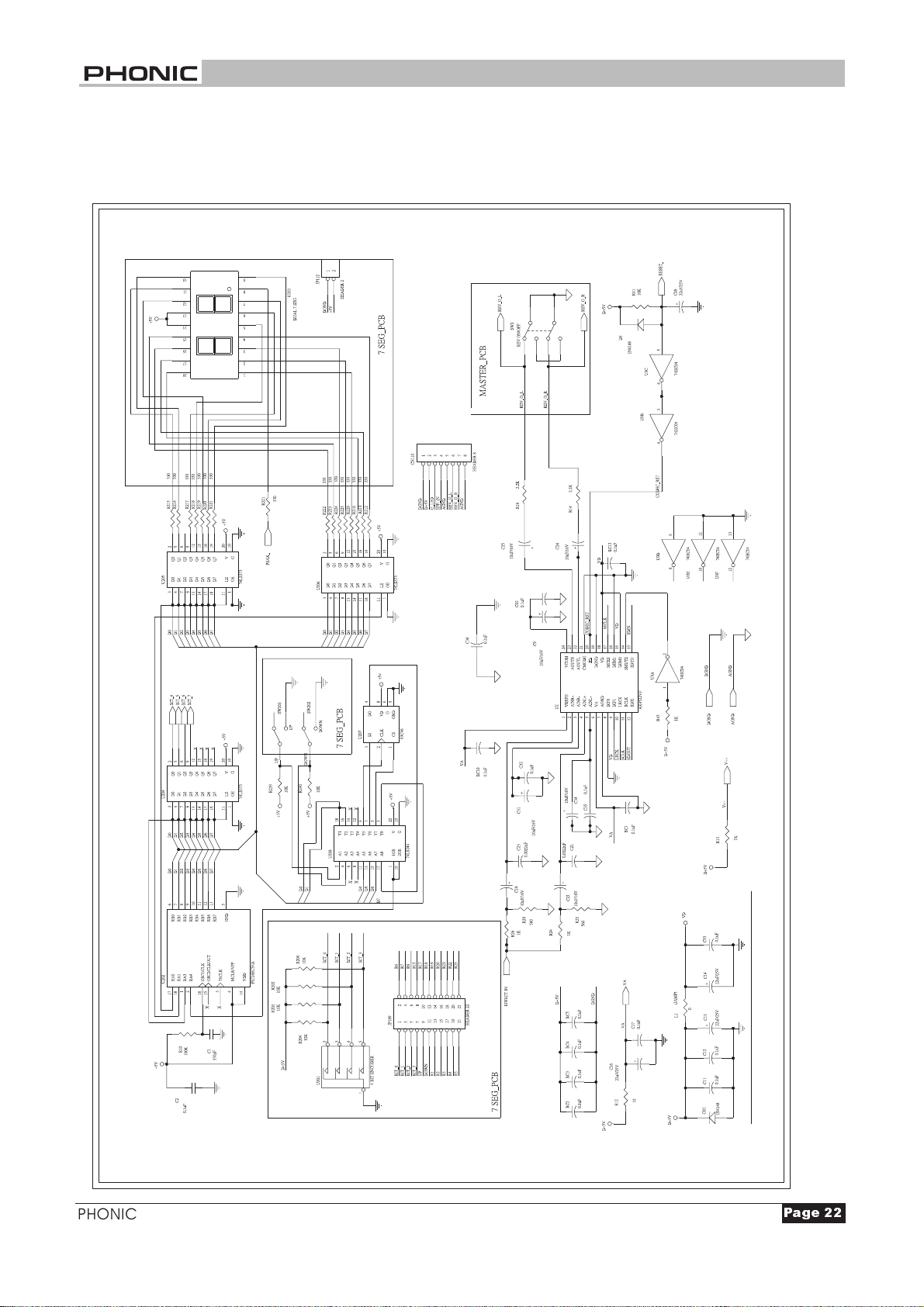

REV_1 SCHEMATICS
REV_1 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA
Page 23

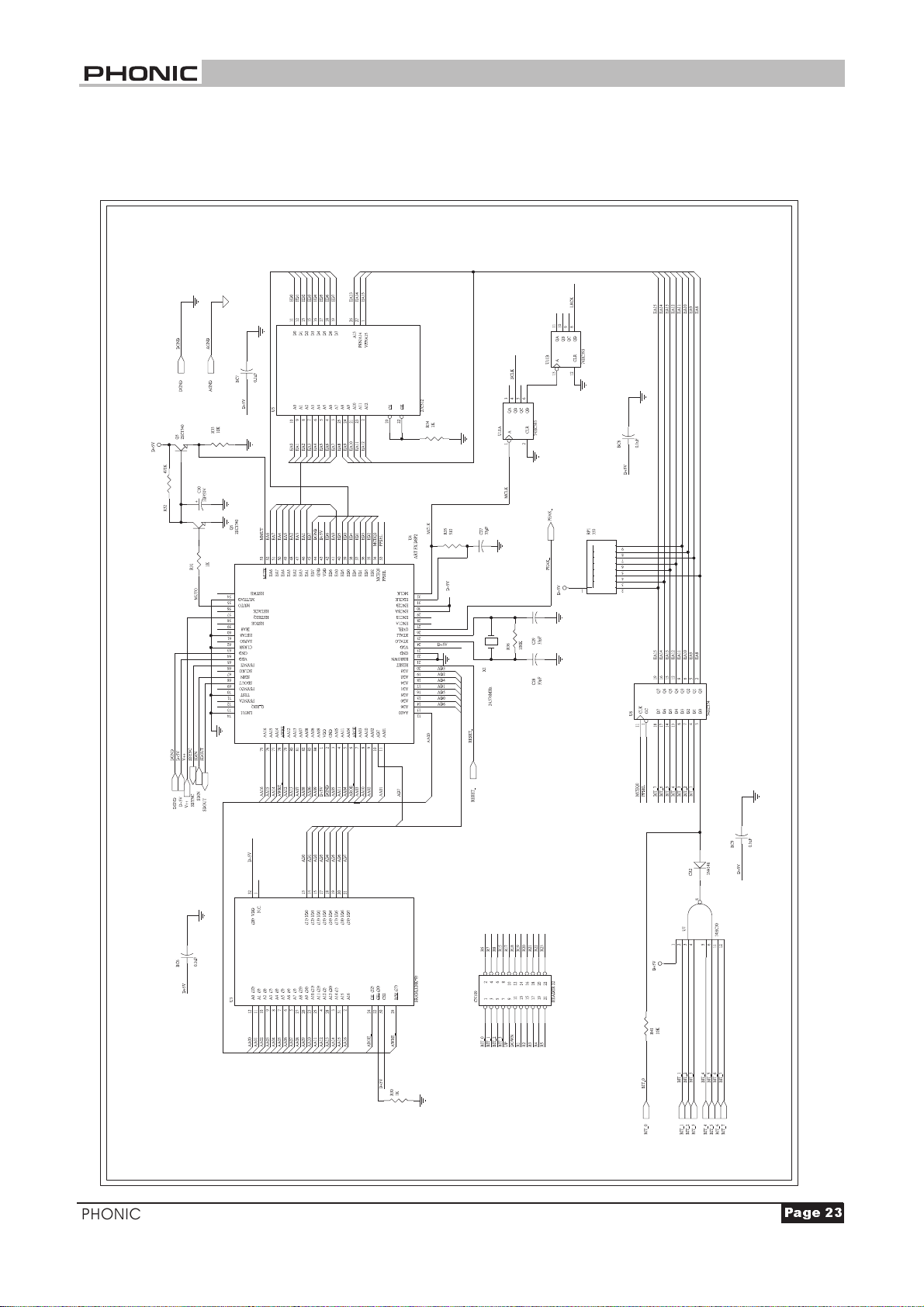

REV_2 SCHEMATICS
REV_2 SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA !
Page 24

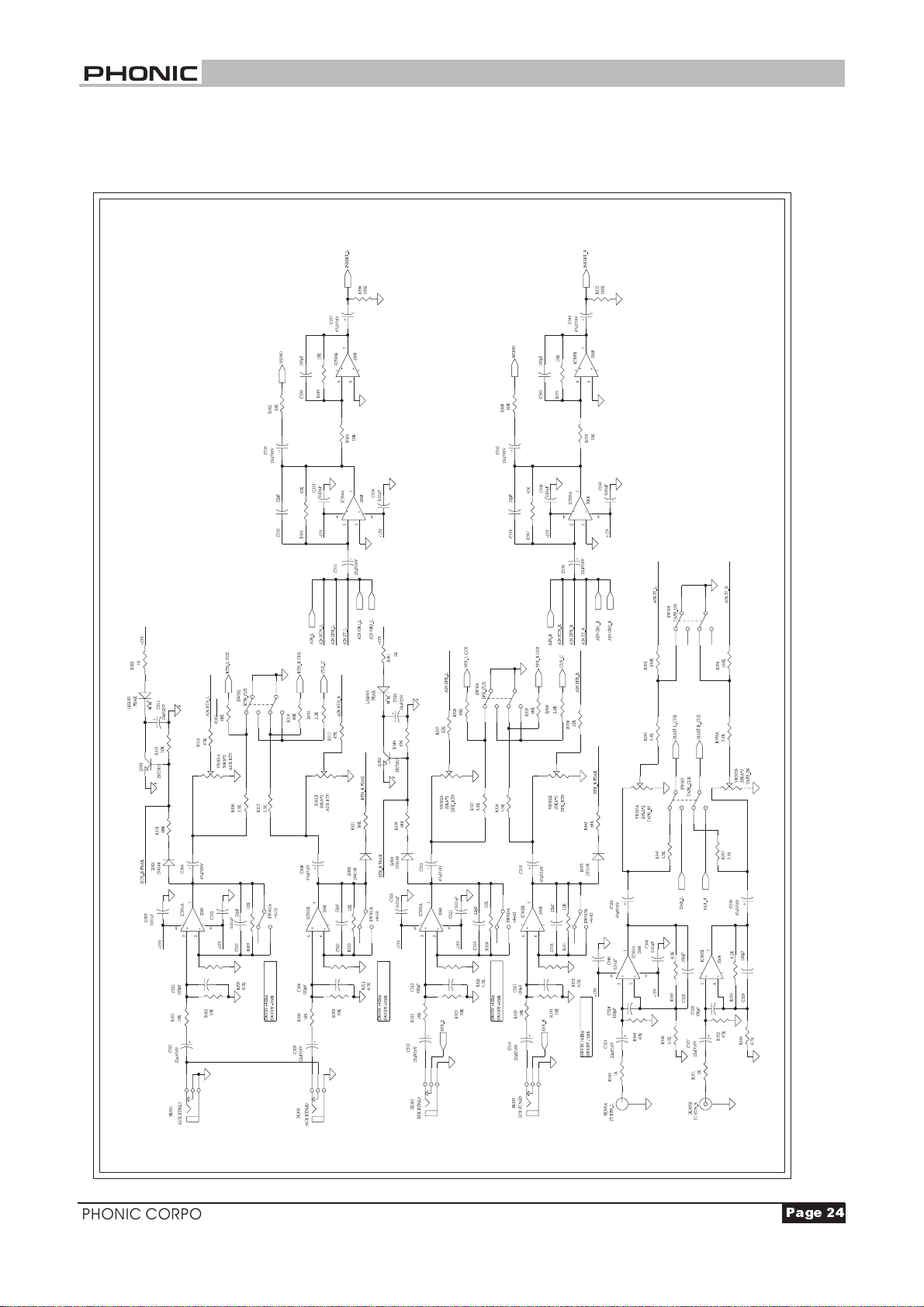

RTN_IN SCHEMATICS
RTN_IN SCHEMATICS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA "
Page 25
MAIN PCB PART LIST
MAIN PCB PART LIST
Ref. Phonic No. Specifications
R208A-208D 000-68206-400-0 CF RES. 6K8 J 1/8W T
VR106A-106F.107A-107F 022-20350-001-0 S.ROT/VR 20KA L=30MM F=12MM
VR101A-101F 022-50290-003-0 S.ROT/VR 5KZY L=30MM
RD09F1130001-5KZ
VR102A-102F.103A-103F.105A-105F
.108A-108 F.205A-205D
VR104A-104F 023-10470-021-0 D.ROT/VR 100KC 30MM P ALPS
VR203A-203D.204A-204D.303.601 023-20350-001-0 D.ROT/VR 20KA 30MM P
VR201A-201D.202A-202D 023-50350-001-0 D.ROT/VR 50KB(C.C) 30MM P
VR109A-109F.403.404.503 026-10326-030-0 S.SLD/VR 10KA L=15MM 60MM P
VR206A-206D.401 027-10326-011-0 D.SLD/VR 10KA*2 L=15MM 60MM P
VR405-411 027-20372-010-0 D.SLD/VR 20KW*2 20MM P
VR301.302.501.502 027-50325-031-0 D.SLD/VR 50KB 45MM
C462.464.485.487 037-22535-061-0 T/C 2.2MF K 16V T 5
C465.488 040-10325-150-0 ML/C 0.01MF K 50V M 5 AL T
C461.470.484.493 040-12425-160-6 ML/C 0.12MF K 50V 5 T
C474.497 040-15325-100-0 ML/C 0.015MF K 50V P 5 T
C463.486 040-27325-160-0 ML/C 0.027MF K 50V 5 T
C468.491 040-33426-100-0 ML/C 0.33MF M 50V P 5 T
C472.495 040-39325-160-0 ML/C 0.039UF K 50V 5 T
C466.489 040-82426-140-0 ML/C 0.82MF M 50V 5 T
D101A-101F.102A-102F.104A-104F.1
05A-105F.201A-201D.202A-202D.20
3A-203D
D204A-204D.301.302.304.305 090-02000-020-1 DIODE IN4148 T
LED101A-101F.201A-201D.301.303.
601.602.612-614.624-626
LED1.609.610.611.621.622.623 100-00040-000-0 LED 204YD YLW
LED102A-102F.202A-202D.603-608.
615-620.727
LED728 100-00070-030-0 LED 204UBD D3 BLUE
IC407.408 160-00002-300-0 IC M5229P MITSUBISHI
IC101-119.201-212.301-305.401-406.
409.410.501-508.601.602.604.606
IC605 160-00018-000-0 IC NJM4556AL JRC
IC611 160-00018-200-0 IC BA6822S
SW1.102A-102F.103A-103F.201A-20 210-01202-320-0 SLD/SW SS-22F-11G(NON
022-50350-011-0 S.ROT/VR 50KB(C.C)L=30MM
090-02000-020-0 DIODE 1N4148 T
100-00010-030-0 LED BL-B5141 RED
100-00050-000-0 LED BL-B2141 GRN
160-00007-510-0 IC NJM2068L JRC
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA #
Page 26
MAIN PCB PART LIST
MAIN PCB PART LIST
Ref. Phonic No. Specifications
SW107A-107C 210-01402-010-0 SLD/SW SS-86011-0402-6T-K-FN
SW2.104A-104F.105A-105F.106A-10
6F.203A-203D.204A-204D.205A-205
D.302.304.305.306
SW401-406.470.502.504.505.601 210-02201-440-1
SW101 210-07060-010-0 DIP SW RPL-RP-06
JK305.409 211-00021-100-0 RCA JACK RL-1414-2D
JK201A-201D.202A-202D.301-304.4
10.411
JK103A-103F.401-404 211-01602-380-0 6D3/J (SCJ-0658-Y)
JK102A-102F.405-408.412.413.501-5
03.602. 603
JK601 211-01602-560-0 6D4/J YLJ-6405-300
JK101A-101F 211-03300 -160-6 XLR/J SKCA229-1K3F2
CN112 211-10021-161-0 2P WAFER/S TJC3-2A P=2.5MM 180
JP1 212-10080-460-0 8P WAFER/P 80MM UL1007#24
JP110 212-10080-540-0 8P WAFER/P 120mm UL1007#24
JAMP_1.2.3 376-00123-183-6 D.S WIRE UL2547 #28 230MM GRY
JAMP_4 379-01301-101-0 M.WIRE UL1007 #26 300MM BLK
JAMP_4 379-01301-120-0 M.WIRE UL1007 #26 300MM RED
GND 379-02500-101-0 M.WIRE UL1007 #24 50MM BLK
IC206-R144F 379-02700-101-0 M.WIRE UL1007 #24 70MM BLK
IC611-PEAK 382-20005-010-0 TINNER WIRE 5.0MM D0.6
SW103A-103F.201A-201D.SW1.202
A-202D
SW102A-102F.301.303.501.503.FOR
LED301. 303
LED 615-20092 -620-0 LED HOUSING LED3-13
R402.411.420.429.437.460.503.523.
619.622
R631.632 000-10126-400-0 CF RES. 100 J 0.25W T
210-02201-440-0 PSH/SW 2P2T SFPC12MC03-PF
211-01601-240-0 6D3/J JY-6351-02-130 SCJ-0658
211-01602-390-0 6D3/J JY-6351-02-030 SCJ-0658
(NUT&WASHER)
DEGREE
P=2.5MM
PITCH:2.0
379-02241-101-0 M.WIRE UL1007 #24 240MM BLK
379-05421-122-6 M.WIRE UL1007#18 420MM RED
610-00300-326-0 PE. WAS. D3.0*D6*0.3
610-00300-516-0 FIBER WAS. D3*D8*0.5 RED
000-10106-400-0 CF RES. 100 J 1/8W T
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA $
Page 27
MAIN PCB PART LIST
Ref. Phonic No. Specifications
R144A-144F.231A-231D.320.341.34
3.351.403.414.421.432.438.449.461.
472.491.491A
R513.533.547.548.551.552.556.566.
602.166
A-166F.248A-248D.250A-250D
R661.664.680 000-10226-400-0 CF RES. 1K J 0.25W T
R119A-119F.126A-126F.136A-136F.1
40A-140F.162A-162C.163A-163C.23
0A-230D
R319.340.362.364.368.370.413.416.
431.433.448.451.471.474.490.490A.
493.493A.509
R510.529.530.544.562.563.604.609.
649.650.650A.651.652
R102A-102F.127A-127F.129A-129F.1
64A-164C.366.372.404.412.422.430.
439.443.457.462
R408.426.466.481.518.522.542A.538
.557.571.547A.551A.154A-154F.160
A-160F.350.356
R665.667 000-12106-400-0 CF RES. 120 J 1/8W T
R303.310.324.331.524 000-12306-400-0 CF RES. 12K J 1/8W T
R444.444A.467.467A.519.519A.539.
539A.572.572A
R148A-148F.149A-149F.152A-152F.1
53A-153F
R138A-138F.139A-139F 000-13206-400-0 CF RES 1K3 J 1/8W T
R124A-124F 000-13306-400-0 CF RES. 13K J 1/8W T
R483.485 000-15206-400-0 CF RES. 1K5 J 1/8W T
R365.371.605.610 000-15306-400-0 CF RES. 15K J 1/8W T
R150A-150F.151A-151F.232A-232D.
242A-242D.237A-237D.243A-243D.5
02
R201A-201D.213A-213D 000-16306-400-0 CF RES. 16K J 1/8W T
R301.308.322.329.505.525.555 000-18306-400-0 CF RES. 18K J 1/8W T
R204A-D.216A-216D 000-20306-400-0 CF RES. 20K J 1/8W T
000-10206-400-0 CF RES. 1K J 1/8W T
000-10206-400-1
000-10306-400-0 CF RES. 10K J 1/8W T
000-10306-400-1
000-10306-400-2
000-10406-400-0 CF RES. 100K J 1/8W T
000-10406-400-1
000-12406-400-0 CF RES. 120K J 1/8W T
000-12406-400-1
000-15406-400-0 CF RES. 150K J 1/8W T
MAIN PCB PART LIST
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA %
Page 28
MAIN PCB PART LIST
Ref. Phonic No. Specifications
R409.410.427.428.446.447.469.470.
494.494
A.496.496A.511.515.531.535.564.56
8.635
R645 000-22106-400-1
R165A-165F.405.423.440.463.558.D
103A-103
F.205A-205D.303.306.501-503.401.4
02
R247A-247D.249A-249D 000-22206-400-1
R676-679 000-22226-400-0 CF RES. 2K2 J 0.25W T
R337.338.349.359.407.425.623.626.
629.639 .660.663
R122A-122F 000-24406-400-0 CF RES 240K J 1/8W T
R155A-155F.156A-156F.307.314.358
.335
R601.606 000-27406-400-0 CF RES 270K J 1/8W T
R18.157A-157F.159A-159F.210A-210
D.223A-223D.239A-239D.241A-241
D.244A-244D.306
R313.327.334.347.355.355A.357.411
A.429A.442.450.455.465.477.479.48
4.486.488.488A
R517.537.542.570 000-33206-400-2
R133A-133F.207A-207D.220A-220D.
302.309.323.330.541
R559 000-36206-400-0 CF RES 3K6 J 1/8W T
R121A-121F 000-36306-400-0 CF RES. 36K J 1/8W T
R625.628 000-39026-400-0 CF RES. 39 J 0.25W T
R101A-101F 000-39126-400-0 CF RES. 390 J 0.25W T
R669 000-39306-400-0 CF RES. 39K J 1/8W T
R143A-143F.146A-146F.147A-147F.2
27A-227D.228A-228D.305.312.326.3
33.346.354
R406.424.441.464 000-47206-400-1
R145A-145F.344.352.361.367.412A.
417.418.430A.434.435.489B.489C.3
000-22106-400-0 CF RES. 220 J 1/8W T
000-22206-400-0 CF RES. 2K2 J 1/8W T
000-22306-400-0 CF RES. 22K J 1/8W T
000-27306-400-0 CF RES. 27K J 1/8W T
000-33206-400-0 CF RES. 3K3 J 1/8W T
000-33206-400-1
000-33306-400-0 CF RES. 33K J 1/8W T
000-47206-400-0 CF RES 4.7K J 1/8W T
000-47306-400-0 CF RES. 47K J 1/8W T
MAIN PCB PART LIST
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA &
Page 29
MAIN PCB PART LIST
Ref. Phonic No. Specifications
R452.453.475.476.487.487A.489.489
A.495.495A.497.497A.512.516.532.5
36.546
R549.550.553.554.565.569.603.608.
617.620.636.646.649A.666.668.245A
-245D
R116A-116F.123A-123F.125A-125F 000-47706-400-0 CF RES 4.7 J 1/8W T
R161A-161F.401.419.436.459 000-56106-400-0 CF RES. 560 J 1/8W T
R132A-132F.135A-135F.504 000-56206-400-0 CF RES. 5K6 J 1/8W T
R1 15A-115F.229A-229D.246A-246D 000-62206-400-0 CF RES. 6K2 J 1/8W T
R131A-131F.134A-134F.205A-205D.
206A-206D.209A-209D.218A-218D.2
19A-219D
R221A-221D.222A-222D 000-68206-400-1
R141A-141F.142A-142F.226A-226D.
318.321.339.342.454.456.478.480.62
4.627.630.640
R659.662 000-68306-400-1
R202A-202D.215A-215D 000-75306-400-0 CF RES 75K J 1/8W T
R345.353.507.527 000-82206-400-0 CF RES. 8K2 J 1/8W T
R233A-233D.234A-234D.235A-235D
.236A-236D
R612.655 006-10020-440-0 MF RES 10K F 1/8W T
R128A-128F.130A-130F 006-20020-440-0 MF RES 20K F 1/8W T
R112A-112F.113A-113F.613.616 006-22010-440-0 MF RES 2K2 F 1/8W T
R117A-117F 006-39010-440-0 MF RES 3K9 F 1/8W T
R107A-107F.110A-110F.118A-118F.6
15.641.642.656
R108A-108F.111A-111F 006-68000-440-0 MF RES 680 F 1/8W T
R103A-103F.104A-104F 006-68010-440-0 MF RES 6K8 F 1/8W T
C135A-135F.201A-201D.219A-219D.
311.322.335.342.401.407.414
C418.426.439.506.521.551.670.671.
673.675
C120A-120F.121A-121F.521A.677 030-10638-0A0-0 E/C 10MF Z 25V 5*11 T
000-47306-400-1
000-47306-400-2
000-68206-400-0 CF RES. 6K8 J 1/8W T
000-68306-400-0 CF RES. 68K J 1/8W T
000-82306-400-0 CF RES. 82K J 1/8W T
006-47010-440-0 MF RES 4K7 F 1/8W T
030-10626-0A0-0 E/C 10MF M 16V 5*11 T
030-10626-0A0-1
MAIN PCB PART LIST
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA '
Page 30
MAIN PCB PART LIST
Ref. Phonic No. Specifications
C635.636.637.640 030-10728-0A0-0 E/C 100MF Z 16V 6*11 T
C672.674 030-22526-0A0-0 E/C 2.2MF M 16V 5*11 T
C122A-122F.140A-140F.215A-215D.
243A-243D.301.305.312.316.323.32
7.331.338.406.408
C417.419.431.433.442.444.455.478.
505.51.520.530.535.540.541.545.550
.560.623.6287
C455A.455B.629.632.633.638 030-22628-0A0-2
C114A-114F.119A-119F.134A-134F.1
39A-139F.141A-141C.143A-143C.30
4.308.315.319.326
C330.337.344.412.413.424.425.437.
438.448-451.459.460.482.483.501.5
13.516.518.526
C529.546.556.559.601.606.607.612.
643.653
C101A-101F 030-47666-0A0-0 E/C 47MF M 63V T
C108A-108F 030-47718-0A0-0 E/C 470MF Z 10V 8*11 T
C102A-102F.103A-103F 033-10664-0A0-0 LN E/C 10MF J 63V T 6*11
C206A-206D.234A-234D 035-10628-0A0-0 MINI E/C 10MF Z 16V T 4*7
C218A-218D 035-10636-0A0-0 MINI E/C 10MF M 25V T
C211A-211D.217A-217D.239A-239D.
245A-245D.641.649
C507.522.634.639.642.650 042-10025-050-0 C/C2 10PF K 50V 5 T
C109A-109F.110A-110F.111A-1 11F.1
27A-127F.131A-131F.142A-142C.209
A-209D.237A-237D
C302.306.313.317.324.325.328.329.
336.343.402.403.411.415.416.423.42
7.428.432
C440.441.443.458.481.512.525.547.
552.555.605.611.664
C130A-130F 042-10325-050-0 C/C2 0.01MF K 50V T
C
101.102.112A-112F.113A-113F.128A-
128F.129A-129F.137A-137F.138A-13
030-22628-0A0-0 E/C 22MF Z 16V 5*11 T
030-22628-0A0-1
030-47628-0A0-0 E/C 47MF Z 16V 5*11 T
030-47628-0A0-1
030-47628-0A0-2
035-22626-0A0-0 MINI E/C 22MF M 16V T
042-10124-050-0 C/C2 100PF J 50V T
042-10124-050-1
042-10124-050-2
042-10326-050-0 C/C2 0.01MF M 50V 5 T
MAIN PCB PART LIST
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !
Page 31
MAIN PCB PART LIST
MAIN PCB PART LIST
Ref. Phonic No. Specifications
C204A-204D.205A-205D.309.310.32
0.321.333.334.340.341.345.346.404.
405.409.410
C420.421.429.430.435.436.446.447.
453.45.456.457.476.477.479.480.503
.504.5084
C509.514.515.527.528.532.533.538.
539.548.549.557.558.603.604.609.61
0.676
C303.307.314.318.332.339.502.519.
602.608.624.630
C452.475 042-22124-050-0 C/C2 220PF J 50V 5 T
C133A-133F. 042-27025-050-0 C/C 27PF K 50V T
C473.496 042-27125-050-0 C/C2 270PF K 50V 5 T
C106A-106F.107A-107F.144A-144F.1
45A-145F
C126A-126F.203A-203D.231A-231D. 042-47024-050-0 C/C2 47PF J 50V 5 T
C104A-104F.105A-105F 042-47124-050-0 C/C2 470PF J 50V 5 T
C471.494 042-56124-050-0 C/C2 560PF J 50V 5 T
C469.492 046-12204-060-0 M/C 0.0012MF J 50V 5 T
C132A-132F 046-22304-060-0 M/C 0.022MF J 50V 5 T
C467.490 046-27204-060-0 M/C 0.0027MF J 50V 5 T
C125A-125F.207A-207D.235A-235D 046-33204-060-0 M/C 0.0033MF J 50V 5 T
C123A-123F.124A-124F.208A-208D.
236A-236D
C115A-115F.116A-116F.117A-117F 046-47304-060-0 M/C 0.047MF J 50V T
Q103A-103F.201A-201D.301.302.60
1.602.607 A
Q104A-104F.105A-105F 120-00001-010-0 TRAN 2SC2240-BL TOSHIBA
Q608.609 120-00006-200-0 TRAN. 2SC2878 TOSHIBA
Q603-607.610 121-00000-200 -0 TRAN. 2SA1015 GR TOSHIBA
Q101A-101F.102A-102F 121-00000-500-0 TRAN 2SA970-BL TOSHIBA
R543.545 382-20005-010-0 TINNER WIRE 5.0MM D0.6
042-10326-050-1
042-10326-050-2
042-10326-050-3
042-22024-050-0 C/C2 22PF J 50V 5 T
042-33125-050-0 C/C2 330PF K 50V
T.
046-33305-060-0 M/C 0.033UF K 50V T
120-00000-800-0 TRAN. 2SC1815 GR TOSHIBA
290-00580-400-0 PCB MM1805X-A MAIN REV.C
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !
Page 32
REVERB PCB PART LIST
Ref. Phonic No. Specifications
R705 003-15073-600-0 CEMENT RES 15 J 5W
RP1 017-08090-010-0 NETWORK RES. A8-332 J 9P 3.3K
C703 030-10846-000-0 E/C 1000MF M 35V 10*21 T
C705.706 030-22848-002-0 E/C 2200MF Z 35V 16*27 P
C701.710 030-33789-000-0 E/C 330MF B 100V 16*25 P
D701-717 090-00007-020-0 DIODE IN4004 SILTEK T
ZD702 090-01223-000-0 Z/DIODE 22V 0.5W IN5251B
ZD703 090-01273-010-0 ZEN/DIODE 27V K 0.5W
ZD701 090-01513-110-0 Z/D10DE 51V 1W MOTOROLA
Q702 120-00005-000-0 TRAN MJE340 MOTOROLA
Q701 122-00000-200-0 FET 2SK30A-GR TOSHIBA
IC703 160-00002-904-0 IC 7915 NS
IC701 160-00004-114-0 IC UPC7805H NEC (KIA)
IC702 160-00005-002-0 IC 7815 NS
U208 170-00001-030-0 TTL IC DM74LS244 DIP FAIRCHILD
U204.205.206 170-00005-000-0 TTL IC DM74LS373 DIP FAIRCHILD
U7 171-00002-800-0 CMOS IC PC74HC30P
U6 171-00002-900-0 CMOS IC PC74HC374P
U202 177-00001-520-0 CPU IC DIP PIC16C54C-RC
U5 177-01003-510-0 IC M27C512-12 SINGAPORE
CN2 211-10034-080-0 HEADER AMP 640445-3
CN110 211-10080-000-0 8P WAFER/S A200/WV2-8P
CN1 21 1-10081-140-0 8P WAFER/S A2501WV2-8P
CN109A 211-10100-020-0 10P WAFER P=2.0 180 DEGREE
CN109B 211-10120-020-0 12P WAFER/S 180 DEGREE
U202 211-11182-000-6 IC/S 18P
U5 211-11282-001-0 IC/S 28P 17*35MM
F701*2.702*2 281-00000-020-0 FUSE CLIP FH-1206
X1 300-24572-000-0 CRYSTAL HC-49/U 24.576MHZ
IC*3 TRANSISTOR*1 314-00000-050-0 BUSHES 602S(V.0) 180 DEGREE
REVER PCB HEAT SINK*2 590-43006-200-0 M/E PAN SCR. M3.0*6 BLK
REVERB PCB PART LIST
WINBOND
P=2.0MM
313-00000-060-0 RUBBER WASHER TO-2203
379-01800-101-0 M.WIRE UL1007 #26 80MM BLK
379-05630-101-0 M.WIRE UL1007 #18 63MM BLK
526-20043-010-0 HEAT SINK MM1805X
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !
Page 33
REVERB PCB PART LIST
Ref. Phonic No. Specifications
IC*3 TRANSISTOR *1 590-83008-100-0 M/E RUD SCR (WASHER) M3*8NI
DIGITAL BACK P ANEL*1 630-20041-450-0 PCB INSU 252.2*103MM
R704 000-10126-400-0 CF RES. 100 J 0.25W T
R13.24.26.30.31.34 000-10206-400-0 CF RES. 1K J 1/8W T
R33.41.43.239.240 000-10306-400-0 CF RES. 10K J 1/8W T
R11.36.209 000-10406-400-0 CF RES. 100K J 1/8W T
R25.27 000-15206-400-0 CF RES. 1K5 J 1/8W T
R701 000-15226-400-0 CF RES. 1K5 J 0.25W T
R14.16 000-22206-400-0 CF RES. 2K2 J 1/8W T
R12 000-22706-400-0 CF RES 2.2 J 1/8W T
R210-212.214-226 000-33106-400-0 CF RES. 330 J 1/8W T
R702 000-33126-400-0 CF RES. 330 J 0.25W T
R703 000-39726-400-0 CF RES 3.9J 1/4W T
R32 000-47406-400-0 CF RES. 470K J 1/8W T
R42 000-47706-400-0 CF RES 4.7 J 1/8W T
R35 000-51106-400-0 CF RES. 510 J 1/8W T
C30 030-10558-0A0-0 E/C 1MF Z 50V 5*11 T
C22.24.25.26.31.34 030-10628-0A0-0 E/C 10MF Z 16V 5*11 T
C9 030-10638-0A0-0 E/C 10MF Z 25V 5*11 T
C702 030-10768-0A0-0 E/C 100MF Z 63V 10*17 T
C13.14.18 030-22638-0A0-0 E/C 22MF Z 25V 5*11 T
C704.707.708.711 030-47638-0A0-0 E/C 47MF Z 25V 6.3*11 T
C709 030-47666-0A0-0 E/C 47MF M 63V T
BC2-11.13.14.C10.11.15.32.35.36.20
2
C21.23 042-22225-050-0 C/C2 0.0022MF K 50V 5 T
C27.28.29 042-33024-050-0 C/C2 33PF J 50V 5 T
C203 042-33125-050-0 C/C2 330PF K 50V T
CR1.2.D5 090-02000-020 -0 DIODE 1N4148 T
Q703 120-00000-800-0 TRAN. 2SC1815 GR TOSHIBA
Q5.6 120-00004-600-0 TRAN. 2SC1740 LN-R ROHM
L2.3 382-20025-010-0 TINNER WIRE 25MM D0.6
REVERB PCB PART LIST
042-10426-050-0 C/C2 0.1MF M 50V 5 T
(2SC1313G)
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !!
Page 34

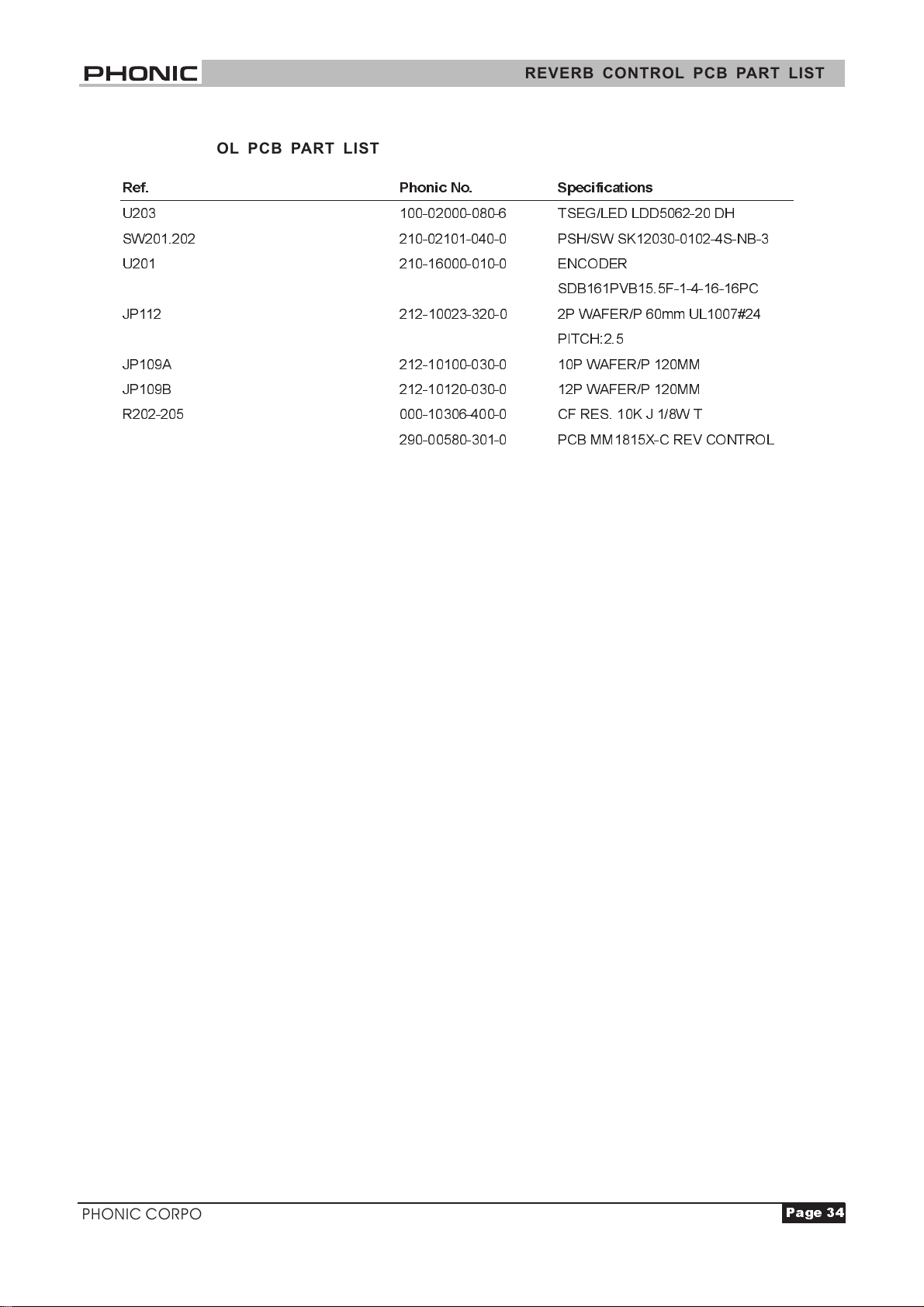

REVERB CONTROL PCB PART LIST
REVERB CONTROL PCB PART LIST
Ref. Phonic No. Specifications
U203 100-02000-080-6 TSEG/LED LDD5062-20 DH
SW201.202 210-02101-040-0 PSH/SW SK12030-0102-4S-NB-3
U201 210-16000-010-0 ENCODER
SDB161PVB15.5F-1-4-16-16PC
JP112 212-10023-320-0 2P WAFER/P 60mm UL1007#24
PITCH:2.5
JP109A 212-10100-030-0 10P WAFER/P 120MM
JP109B 212-10120-030-0 12P WAFER/P 120MM
R202-205 000-10306-400-0 CF RES. 10K J 1/8W T
290-00580-301-0 PCB MM1815X-C REV CONTROL
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !"
Page 35
SMD PCB PART LIST
Ref. Phonic No. Specifications
U8 170-00007-000-0 TTL IC 74HC393 SMD
U9 171-00000-220-0 CMOS IC HD74HC04N (SMT)
U207 177-01002-210-0 IC 93C46 SO ST SMD
U3 177-01004-700-0 IC BS62LV1024SC-70 SOP BSI
U4 177-04013-000-0 CHIP ART FX DSP2 84P JAPAN
U2 177-04022-000-0 IC AK4522A-VF VSOP AKM
SMD PCB PART LIST
100-1365-102
290-00580-204-0 MM1805X DSP PCB REV-D
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !#
Page 36
MISCELLANEOUS ITEMS
Ref. Phonic No. Specifications
JP2 212-10032-430-0 3P WAFER/P 200mm UL1015#22
POWER SW*2 379-08101-123-0 M.WIRE UL1015 #22 100MM RED
FOR EFX PATTEN 540-20310-321-0 R/KNOB 430C BODY+491C CAP
AUX*10 EFX*10 2T*1 540-60148-520-0 R/KNOB 12.0
FOR GAIN*6 CTRL*1 540-60148-620-0 R/KNOB 12
FOR EQ*26 540-60148-720-0 R/KNOB 12
FOR EQ*6 540-60148-820-0 R/KNOB 12
FOR P AN*10 540-60148-920-0 R/KNOB 12
FOR CHANNEL*10 AUX*2 EFX*2 541-60005-020-0 S/KNOB SIZE 23*9.5 WHITE
FOR GROUP*2 541-60005-120-0 S/KNOB SIZE:23*9.5 431C
MONO*1 MAIN*1 541-60005-220-0 S/KNOB 432C BODY+WHT POINT
ALL PUSH SW 542-60090-122-0 P/KNOB 9.5*5.5*8 LOW WHT
MISCELLANEOUS ITEMS
000-00116-003-0 PE BAG #3 100*70MM
210-03204-000-6 POWER/SW 6A 250V 4P 17*12.5
211-04000-020-0 BNC JACK 91M-701-3P
PITCH:3.96
321-00000-070-0 CABLE TIE HW-100MM
510-20790-501-0 PANEL MM1805X
517-20500-200-0 BOT COVER MM1805(X) PHONIC
429C
524-60009-020-0 HANDLE SIZE:10*50 COLOR:WHT
525-60010-000-0 FEET SIZE:20*20*8.0MM SF-006
529-20022-100-0 LED ACRYLIC LENS 22.6*28.6
POD1860
13*18H 17MM
430C(GREY)BODY+WHT CAP
430C(GEY)BODY+491C(RED)CAP
430C(GEY)BODY+647C(BLUE)CAP
430C(GEY)BODY+5265C(PURPLE)
CAP
430C(GRAY)BODY+432C(DEEP
GRAY)CAP
BODY+BLK POINT
BODY+WHT LINE
SIZE:23*9.5
551-20057-500-0 LF/BRKT SPCC 1.0MM 429C
551-20058-500-0 RT/BRKT MM1805(X) SPCC 1.0MM
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !$
Page 37
MISCELLANEOUS ITEMS
Ref. Phonic No. Specifications
P A D ON HEATSINK BOTTOM 566-10015-010-0 SPONGE 40*10*5
FOR OWN MANU*1 568-00003-000-0 PE BAG #10 240*340*0.05
FIX R/L BRACKET*12 590-03006-100-0 M/E FLT SCR. M3.0*6 NI
P ANEL*3 590-03008-100-0 M/E FLT SCR. M3.0*8 NI
P A NEL*12 (LEFT) 590-03008-200-0 M/E FLT SCR. M3.0*8 BLK D=6
PCB&
FIX BOT COV&HEAT SINK*2 590-44008-100-0 M/E PAN SCR M4.0*8 NI
BOT COV*10 REVER PCB*1 590-53006-100-0 M/E SET SCR. M3.0*6 NI
XLR/J*12 591-03008-200-0 T/P FLT SCR. D3.0*8 BLK
FIX RCA/J*2 591-43008-200-0 T/P PAN SCR. D3.0*8 BLK
PCB&
HEAT SINK&BOT COV. 610-00402-018-0 FIBER WAS D4.0*D9.0*2.0 RED
ALL 6D3/J*42 610-20901-001-0 TOOTH WAS D9*12*1 NI
P AN N E L& MAIN PCB*15 615-20088-620-0 SPACER SUPPORT H-16
MAIN PCB&REVERB CONTROL
PCB*3
MAIN PCB& DIGITAL BOARD*5 615-60038-620-0 MCB-6 PCB BOSS
*15
&REVERB PCB*1
*15
MISCELLANEOUS ITEMS
551-60037-100-0 L/BRACKET ER18MM
551-60038-100-0 R/BRACKET ER18MM
560-20890-101-0 CARTON MM1805X SIZE:
570*535*550MM
561-21121-100-0 G/B 510*135*515 300g
565-60052-001-0 R/POLYLON MR1843X
565-60053-001-0 L/POL YLON MR1843X
565-60054-000-0 ADAPTOR/POLYLON MM1805(X)
565-60059-000-0 L/PANEL POLYLON
568-60003-100-0 PE BAG SIZE:600*450*0.05MM
568-60046-000-0 BRACKET BAG
572-00000-050-0 DRYER 5g
573-10063-012-0 M.I.C LABEL 50*10MM
573-60240-000-0 BAR CODE LABEL PHONIC
573-60343-000-0 LABEL BLUE D=8mm
573-60415-000-0 DSP LABEL MM1805X DFX256
574-00580-114-0 OWN. MNAU. MM1805/1805X
579-00000-068-0 MINI CATALOG PHONIC SERIES
590-43008-100-0 M/E PAN SCR. M3.0*8 NI
590-54006-100-0 M/E SET SCR. M4*6 NI
600-00302-010-0 HEX. NUT M3.0*2.0 NI
610-00301-018-0 FIBER WAS. D3.0*8*1
615-20098-620-0 BOSS MCD2-5
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !%
Page 38

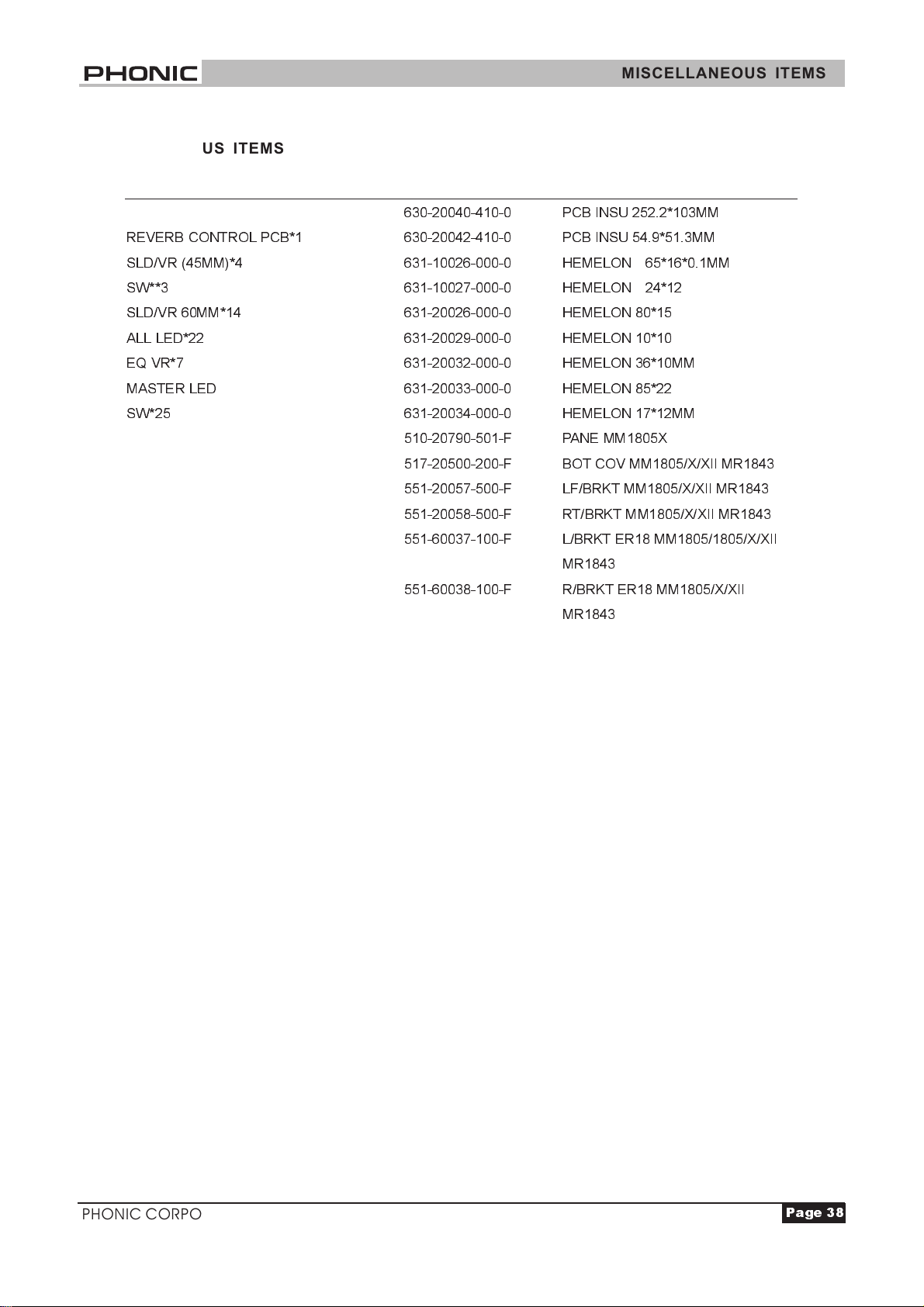

MISCELLANEOUS ITEMS
Ref. Phonic No. Specifications
REVERB CONTROL PCB*1 630-20042-410-0 PCB INSU 54.9*51.3MM
SLD/VR (45MM)*4 631-10026-000-0 HEMELON 65*16*0.1MM
SW**3 631-10027-000-0 HEMELON 24*12
SLD/VR 60MM*14 631-20026-000-0 HEMELON 80*15
ALL LED*22 631-20029-000-0 HEMELON 10*10
EQ VR*7 631-20032-000-0 HEMELON 36*10MM
MASTER LED 631-20033-000-0 HEMELON 85*22
SW*25 631-20034-000-0 HEMELON 17*12MM
MISCELLANEOUS ITEMS
630-20040-410-0 PCB INSU 252.2*103MM
510-20790-501-F PANE MM1805X
517-20500-200-F BOT COV MM1805/X/XII MR1843
551-20057-500-F LF/BRKT MM1805/X/XII MR1843
551-20058-500-F R T/BRKT MM1805/X/XII MR1843
551-60037-100-F L/BRKT ER18 MM1805/1805/X/XII
MR1843
551-60038-100-F R/BRKT ER18 MM1805/X/XII
MR1843
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !&
Page 39
POWER REQUIREMENT CLASSIFICATION
Ref. Phonic No. Specifications
BS
F701.702 280-20263-000-0 FUSE T2A 250V VDE S
353-21906-000-0 ADAPTOR MM1805X AC240V BS
573-10032-010-0 POWER LABEL (ONLY USED IN BS)
573-60012-010-0 LAB
573-60013-000-0 "CE" LABEL
IEC
F701.702 280-20263-000-0 FUSE T2A 250V VDE S
353-21904-000-0 ADAPTOR MM1805X AC230V IEC
573-60012-010-0 LABEL
573-60013-000-0 "CE" LABEL
JIS
280-2026B-001-0 FUSE 2A 250V UL/CSA/JIS S
353-21901-100-0 ADAPTOR MM1805X AC100V JIS
SA
F701.702 280-20263-000-0 FUSE T2A 250V VDE S
353-21907-000-0 ADAPTOR MM1805X AC240V SA
573-60012-010-0 LABEL
573-60013-000-0 "CE" LABEL
SAA
F701.702 280-20263-000-0 FUSE T2A 250V VDE S
353-21909-000-0 ADAPTOR MM1805X AC240V SAA
573-60012-010-0 LABEL
573-60013-000-0 "CE" LABEL
UL
F701.702 280-2026B-001-0 FUSE 2A 250V UL/CSA/JIS S
353-21901-000-0 ADAPTOR AC120V(UL)
POWER REQUIREMENT CLASSIFICATION
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA !'
Page 40

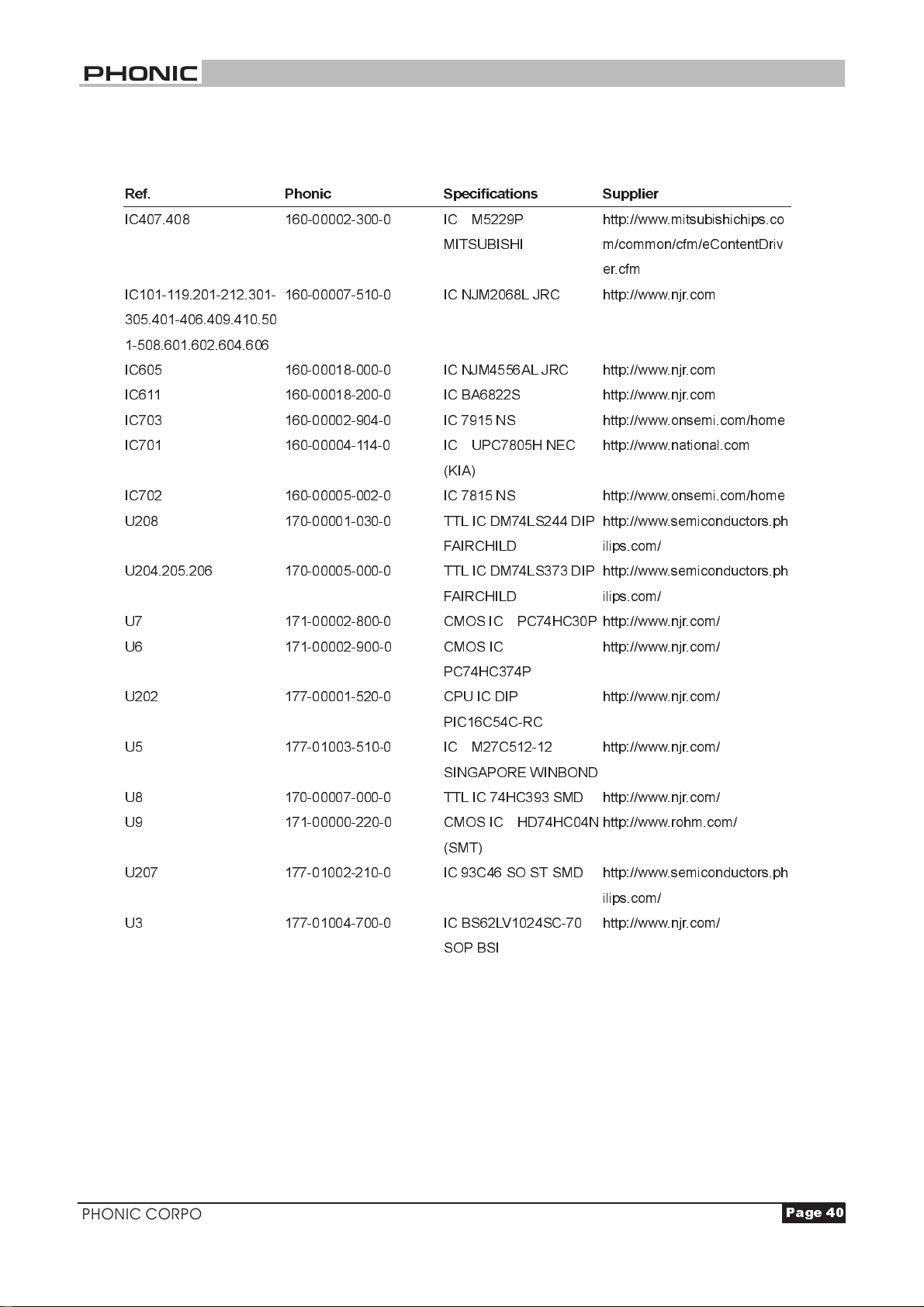

IC LIST
Ref. Phonic Specifications Supplier
IC407.408 160-00002-300-0 IC M5229P
MITSUBISHI
IC101-119.201-212.301-
305.401-406.409.410.50
1-508.601.602.604.606
IC605 160-00018-000-0 IC NJM4556 AL JRC http://www.njr.com
IC611 160-00018-200-0 IC BA6822 S http://www.njr.com
IC703 160-00002-904-0 IC 7915 NS http://www.onsemi.com/hom e
IC701 160-00004-114-0 IC UPC7805H NEC
IC702 160-00005-002-0 IC 7815 NS http://www.onsemi.com/hom e
U208 170-00001-030-0 TTL IC DM74LS244 DIP
U204.205.206 170-00005-000-0 TTL IC DM74LS373 DIP
U7 171-00002-800-0 CMOS IC PC74 HC30 P http://www.njr.com/
U6 171-00002-900-0 CMOS IC
U202 177-00001-520-0 CPU IC DIP
U5 177-01003-510-0 IC M27C5 12-12
U8 170-00007-000-0 TTL IC 74HC393 SMD http://www.njr.com/
U9 171-00000-220-0 CMOS IC HD74HC04N
U207 177-01002-210-0 IC 93C46 SO ST SMD http://www.semiconductors.ph
U3 177-01004-700-0 IC BS62LV1024SC-70
160-00007-510-0 IC NJM2068L JRC http://www.njr.com
(KIA)
FAIRCHILD
FAIRCHILD
PC74HC374P
PIC16C54C-RC
SINGAPORE WINBOND
(SMT)
SOP BSI
http://www.mitsubishichips.co
m/common/cfm/eContentDriv
er.cfm
http://www.national.com
http://www.semiconductors.ph
ilips.com/
http://www.semiconductors.ph
ilips.com/
http://www.njr.com/
http://www.njr.com/
http://www.njr.com/
http://www.rohm.com/
ilips.com/
http://www.njr.com/
IC LIST
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA "
Page 41
DIMENSIONS
DIMENSIONS
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA "
Page 42
EXPLODED VIEW
EXPLODED VIEW
PHONIC CORPORATION
MM1805x SERVICE MANUAL
2=CA "2=CA "
Page 43
Loading...
