Phonetics SENSAPHONE FARMSitter User Guide

User’s Manual

PHONETICS, INC.

SENSAPHONE

®

FARMSitter

™

Every effort has been made to ensure that the information in this
document is complete, accurate and up-to-date. Phonetics, Inc.
assumes no responsibility for the results of errors beyond its
control. Phonetics, Inc. also cannot guarantee that changes in
equipment made by other manufacturers, and referred to in this
manual, will not affect the applicability of the information in this
manual.

Copyright 2003 by Phonetics, Inc.
Second Edition, version 2.0, February, 2004
Written and produced by Phonetics, Inc.
Please address comments on this publication to:
Phonetics, Inc.

901 Tryens Road
Aston, PA 19014

Sensaphone is a registered trademark of Phonetics, Inc.

Important Safety Instr uctions

Your Sensaphone FarmSitter has been carefully designed to give you years of safe,
reliable performance. As with all electrical equipment, however, there are a few
basic precautions you should take to avoid hurting yourself or damaging the unit:

• Read the installation and operating instructions in this manual carefully. Be
sure to save it for future reference.

• Read and follow all warning and instruction labels on the product itself.

•To protect the Sensaphone FarmSitter from overheating, make sure all
openings on the unit are not blocked. Do not place on or near a heat source,
such as a radiator or heat register.

•Do not use your Sensaphone FarmSitter near water, or spill liquid of any kind
into it.

• Be certain that your power source matches the rating listed on the AC power
transformer. If you’re not sure of the type of power supply to your f acility,
consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this product
where the cord will be abused by persons walking on it.

• Do not overload wall outlets and extension cords, as this can result in the risk
of fire or electric shock.

•Never push objects of any kind into this product through ventilation holes as
they may touch dangerous voltage points or short out parts that could result in
a risk of fire or electric shock.

•To reduce the risk of electric shock, do not disassemble this product, but
return it to Sensaphone Customer Service or another approved repair facility
when any service or repair work is required. Opening or removing covers may
expose you to dangerous voltages or other risks. Incorrect reassembly can
cause electric shock when the unit is subsequently used.

•If anything happens that indicates that your Sensaphone Far mSitter is not
working properly or has been damaged, unplug it immediately and follow the
procedures in the manual for having it serviced. Return the unit for servicing
under the following conditions:

1. The power cord or plug is frayed or damaged.

2. Liquid has been spilled into the product or it has been exposed to water.

3. The unit has been dropped, or the enclosure is damaged.

4. The unit doesn’t function normally when you’re following the operating
instructions.

iii

•Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

CAUTION:To reduce the risk of fire or injury to persons, read and follow these
instructions:

1. Replace the battery only with the same or equivalent type recommended
by the manufacturer.

2. Do not dispose of the battery in a f ire. The cell may explode. Check with
local codes for possible special disposal instructions.

3. Do not open or mutilate the battery. Released electrolyte is corrosive and
may cause damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling battery in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.

Sensaphone FARMSitter Manual

iv

FCC Requirements

Part 68: The Sensaphone FarmSitter complies with 47 CFR, Par t 68 of the rules.
On the back of the unit there is a label that contains, among other information, the
Certif ication Number and the Ringer Equivalence Number (REN) for this
equipment. You must, upon request, provide this information to your local
telephone company.

The REN is useful to determine the quantity of devices that you may connect to
your telephone line and still have all of those devices ring when your telephone
number is called. In most, but not all areas, the sum of the REN’s of all devices
connected to one line should not exceed five (5.0). To be certain of the number of
devices that you may connect to your line, you may want to contact your local
telephone company to determine the maximum REN for your calling area.

The applicable certification jack USOC for this equipment is: RJ11C. The facility
interface code (FIC) for this equipment is: 02LS2.

A compliant telephone cord and modular plug are provided with equipment. This
equipment is designated to be connected to the telephone network or premises
wiring using a compatible modular jack which is Part 68 compliant. See
Installation Instructions for details.

This equipment may not be used on coin service units provided by the telephone
company. Connection to party lines is subject to state tariffs. Contact the state
public utility commission, public service commission or corporation commission
for information.

Should the FarmSitter cause harm to the telephone network, the telephone company
may discontinue your service temporarily. If possible, they will notify you in
advance. But if advance notice isn’t practical, the telephone company may
temporarily discontinue service without notice and you will be notified as soon as
possible. You will be informed of your right to file a complaint with the FCC. The
telephone company may make changes in its facilities, equipment, operations, or
procedures where such action is reasonably required in the operation of its business
and is not inconsistent with the rules and regulations of the FCC that could affect
the proper functioning of your equimenpt. If they do, you will be notified in
advance to give you an opportunity to maintain uninterrupted telephone ser vice.

If you experience trouble with the FarmSitter, or you need information on obtaining
service or repairs, please contact:

Phonetics, Inc.
901 Tryens Road
Aston, PA 19014
Toll-Free: 1-877-373-2700
FAX: [phone]

v

If the equipment is causing harm to the telephone network, the telephone company
may ask that you disconnect this equipment from the network until the problem has
been corrected or until you are sure that the equipment is not malfunctioning.

Part 15: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.

General Requirements for all Automatic Dialers

When programming emergency numbers and (or) making test calls to emergency
numbers:

1. Remain on the line and briefly explain to the dispatcher the reason for the call.

2. Perform such activities in the off-peak hours, such as early mor ning or late
evenings.

Sensaphone FARMSitter Manual

vi

Canadian Department of Communications Statement

Notice: The Canadian Department of Communications label identifies certified
equipment. This certification means that the equipment meets certain
telecommunications network protective operational and safety requirements. The
Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection. In
some cases, the company’s inside wiring associated with a single line individual
service may be extended by means of a certified connector assembly (telephone
extension cord). The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.

Repairs to certif ied equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made by
the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.

Users should ensure for their own protection that the electrical ground connections
of the power utility, telephone lines and internal metallic water pipe system, if
present, are connected together. This precaution may be particularly important in
rural areas.

CAUTION: Users should not attempt to make such connec­tions themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device denotes
the percentage of the total load to be connected to a telephone loop which is used
by the device to prevent overloading. The termination on a loop may consist of any
combination of devices subject only to the requirement that the total of the Ringer
Equivalent Numbers of all the devices does not exceed 5.0. For Sensaphone
FarmSitter, the AC Ringer Equivalent Number is 0.6B.

vii

Sensaphone FARMSitter Manual

viii

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . .iii

FCC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

Canadian Department of Communications Statement . . .vii

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . .13

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

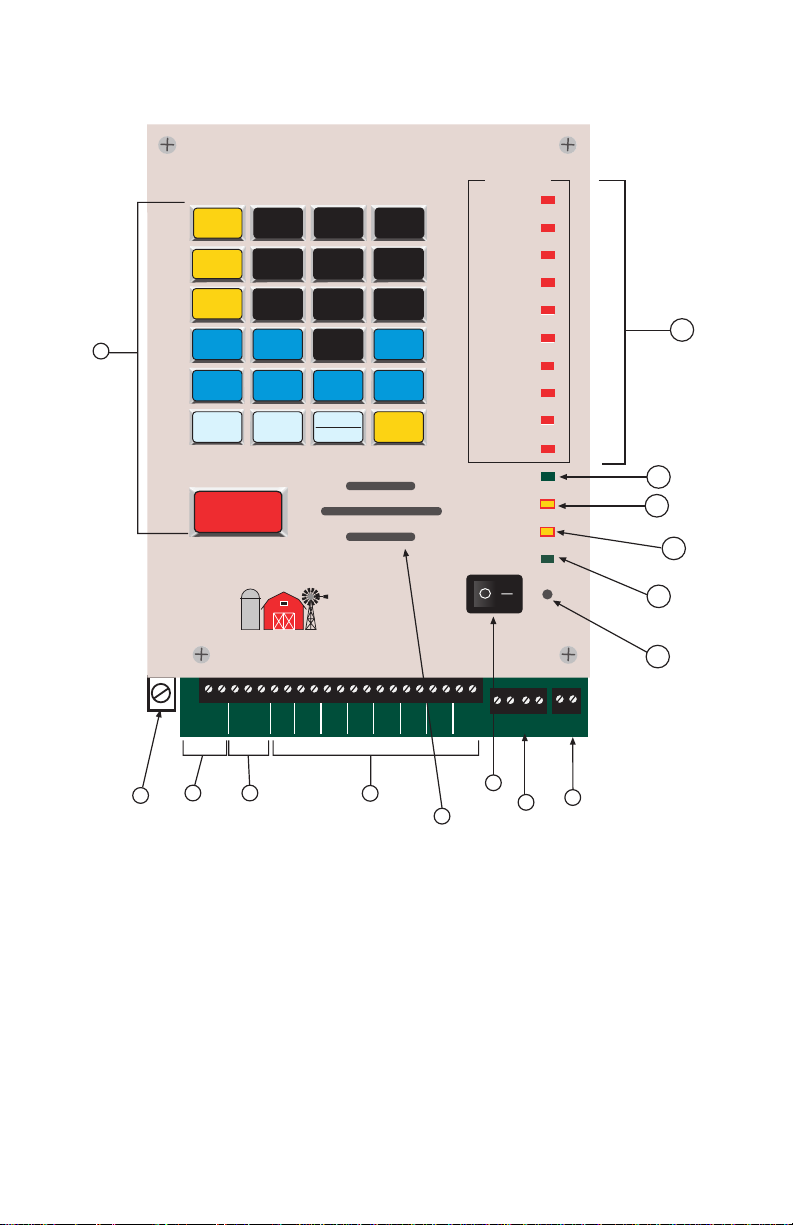

LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

TECHNICAL SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . .16

CHAPTER 2: Installation . . . . . . . . . . . . . . . . . . .17

OPERATING ENVIRONMENT . . . . . . . . . . . . . . . . . . . . .17

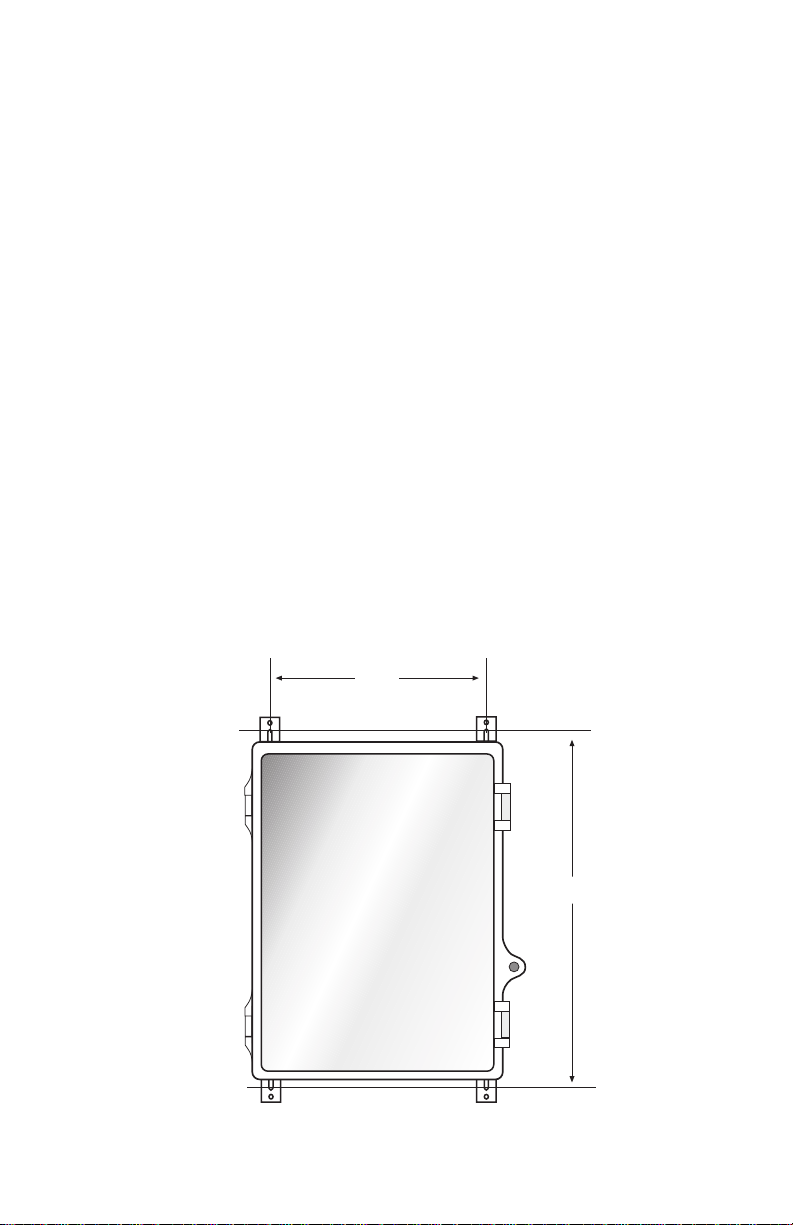

Mounting the FarmSitter . . . . . . . . . . . . . . . . . . . . .17

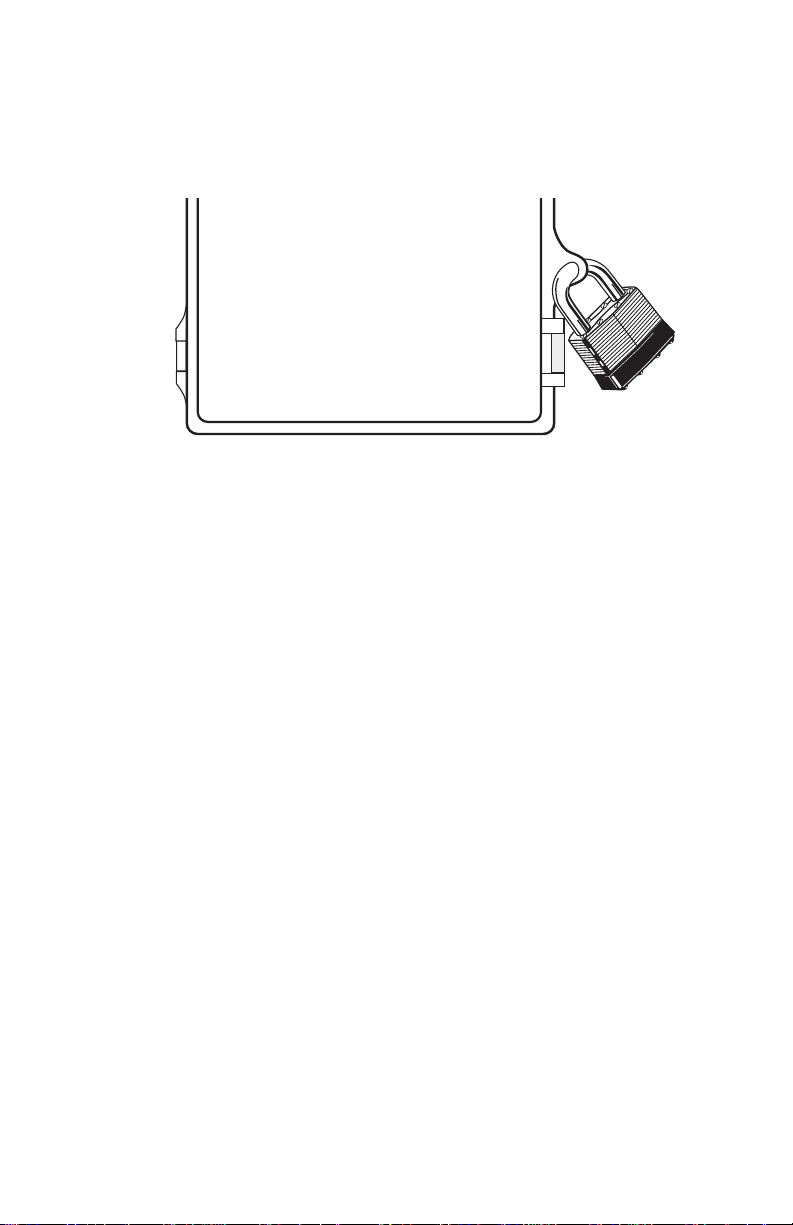

Locking the Enclosure . . . . . . . . . . . . . . . . . . . . . . .18

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

TURNING THE FARMSITTER ON . . . . . . . . . . . . . . . . . . .20

Backup Battery . . . . . . . . . . . . . . . . . . . . . . . . . . .20

TELEPHONE LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Line Seizure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

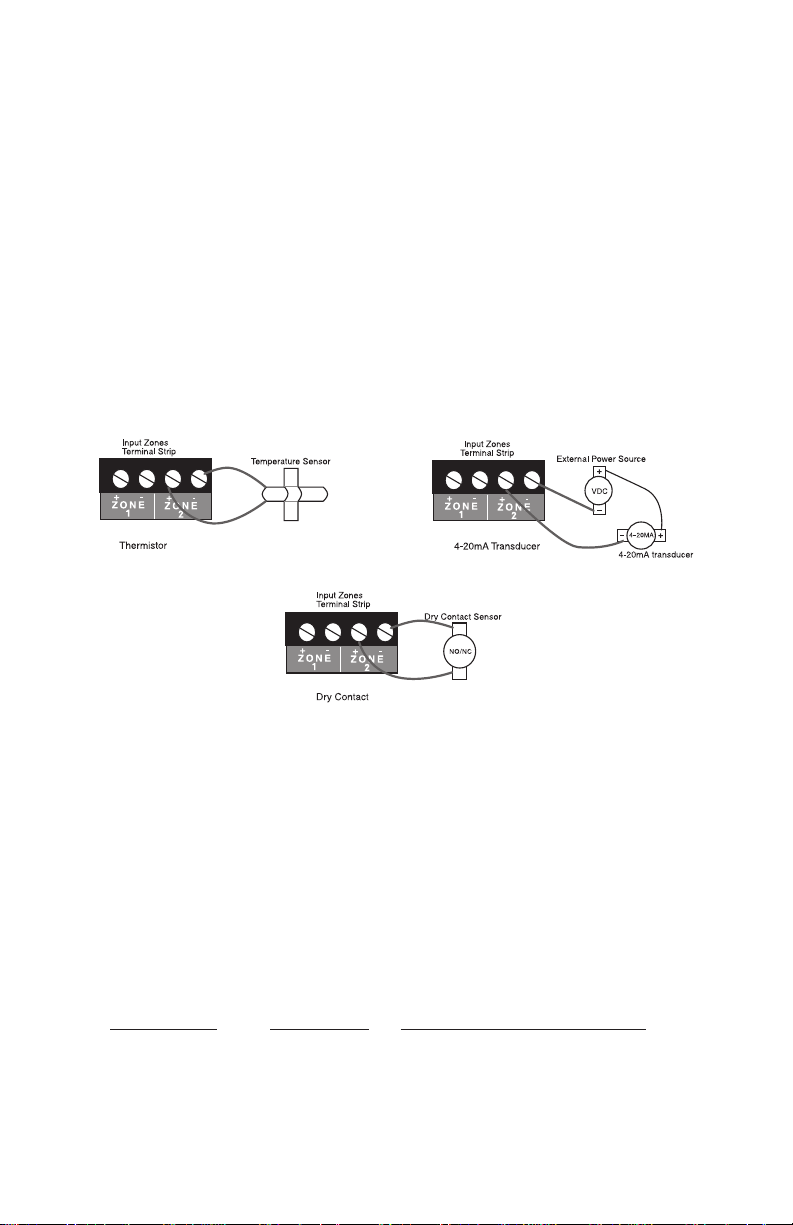

WIRING SENSORS AND TRANSDUCERS . . . . . . . . . . . .22

Wiring Recommendations . . . . . . . . . . . . . . . . . . . .23

LED INDICATORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

CHAPTER 3: Quick Start Guide . . . . . . . . . . . . .25

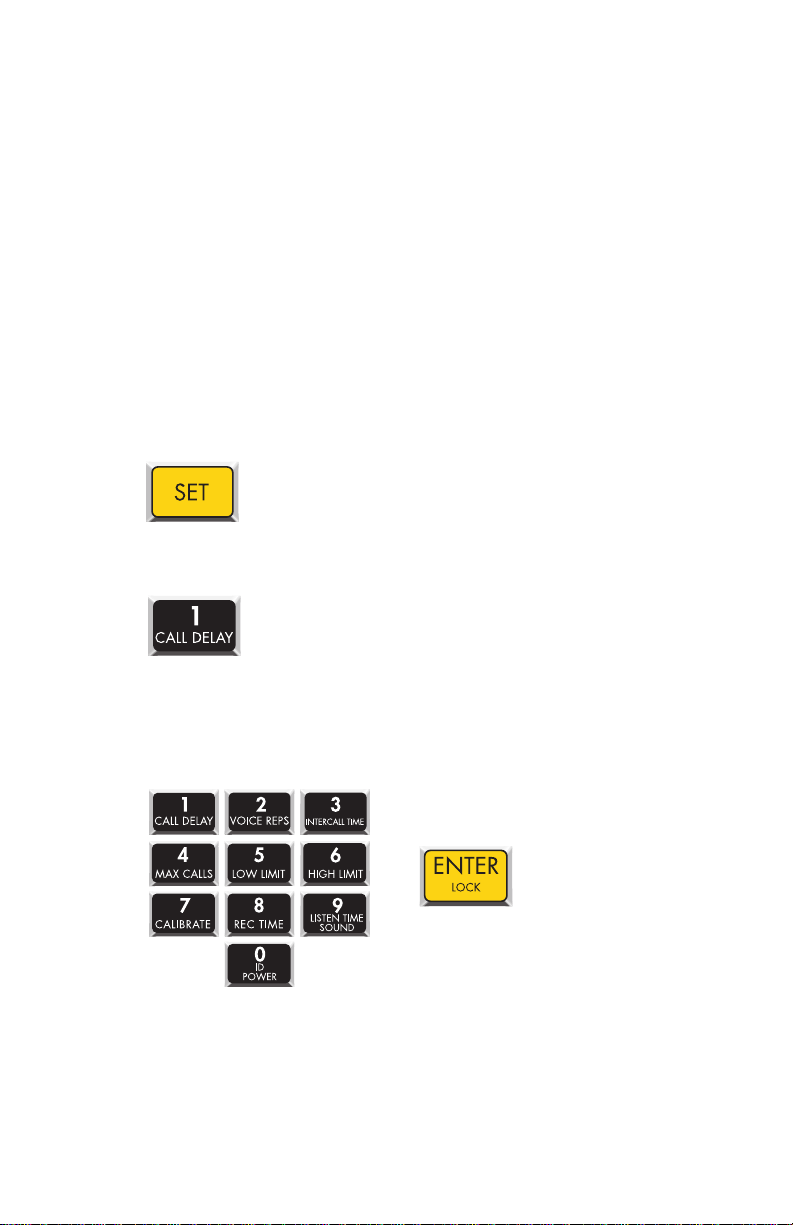

HOW THE KEYPAD COMMANDS WORK . . . . . . . . . . . .25

ABORTING A COMMAND . . . . . . . . . . . . . . . . . . . . . . .25

ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ACKNOWLEDGING A FALSE ALARM . . . . . . . . . . . . . . .26

RECOMMENDED PROGRAMMING STEPS . . . . . . . . . . . .26

ix

Table of Contents

Chapter 4: Zone Programming . . . . . . . . . . . . .27

CONFIGURE ZONE TYPE . . . . . . . . . . . . . . . . . . . . . . . .27

MANUAL ZONE CONFIGURATION . . . . . . . . . . . . . . . .28

ENABLE/DISABLE ZONE ALARMS . . . . . . . . . . . . . . . . .29

ENABLE/DISABLE SOUND LEVEL ALARM . . . . . . . . . . . .30

ENABLE/DISABLE POWER . . . . . . . . . . . . . . . . . . . . . . .30

CONFIGURE TEMPERATURE SCALE . . . . . . . . . . . . . . . .31

CONFIGURE TABLE RANGE FOR 4-20mA SENSORS . . . .32

ALARM RECOGNITION TIME . . . . . . . . . . . . . . . . . . . . .35

ALARM LIMITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

ZONE CALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . .41

SOUND LEVEL CALIBRATION . . . . . . . . . . . . . . . . . . . . .43

DESIGNATING A ZONE AS UNUSED . . . . . . . . . . . . . . .45

EXIT DELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

TEMPERATURE-ONLY STATUS REPORT . . . . . . . . . . . . . .47

Chapter 5: Communication Programming . . . . . .49

DATE and TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

VOICE MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

ID NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

ALARM DIAL-OUT TELEPHONE NUMBERS . . . . . . . . . . .56

Voice Dialout . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Numeric Pager Dialout . . . . . . . . . . . . . . . . . . . . . .58

Alphanumeric Pager Dialout . . . . . . . . . . . . . . . . . .61

SPECIAL DIALING OPTIONS . . . . . . . . . . . . . . . . . . . . .65

Blind Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

DIAL-OUT TEST MODE . . . . . . . . . . . . . . . . . . . . . . . . .67

ALARM ACKNOWLEDGEMENT CODES . . . . . . . . . . . . .68

ALARM HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Deleting the Alarm History . . . . . . . . . . . . . . . . . . .70

TONE OR PULSE DIALING . . . . . . . . . . . . . . . . . . . . . . .71

Sensaphone FARMSitter Manual

x

RINGS UNTIL ANSWER . . . . . . . . . . . . . . . . . . . . . . . . .72

CALL DELAY TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

INTERCALL TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

CALL PROGRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

VOICE REPETITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .78

MAX CALLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

TELEPHONE ANSWERING DEVICE (TAD) COMPATIBILITY . .81

LISTEN-IN TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

LOCKING THE KEYPAD . . . . . . . . . . . . . . . . . . . . . . . . .84

SPEAKER MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

CALLBACK ACKNOWLEDGEMENT . . . . . . . . . . . . . . . . .87

Chapter 6: Controlling the Output . . . . . . . . . . .89

Chapter 7: Internet Web Status . . . . . . . . . . . . .93

Chapter 8: Operation . . . . . . . . . . . . . . . . . . . .95

ALARM DIALOUT AND ACKNOWLEDGMENT . . . . . . . . .95

Alarm Recognition . . . . . . . . . . . . . . . . . . . . . . . . .95

Alarm Notification . . . . . . . . . . . . . . . . . . . . . . . . .95

Dialout Note: Call Progress . . . . . . . . . . . . . . . . . .95

Alarm Dialout—Voice . . . . . . . . . . . . . . . . . . . . . .95

Alarm Dialout—Pager . . . . . . . . . . . . . . . . . . . . . .96

Alarm Dialout—Alphanumeric Pager . . . . . . . . . . . .96

ALARM ACKNOWLEDGMENT . . . . . . . . . . . . . . . . . . . .97

Alarm Acknowledgment—Voice Dialout . . . . . . . . . .97

Alarm Acknowledgment—Numeric Pager Dialout . . .98
Alarm Acknowledgment—Alphanumeric Pager Dialout99
Alarm Acknowledgment—Automatic (Max Calls) . .100

CALL-IN STATUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

REMOTE COMMANDS VIA TOUCH-TONE PHONE . . . .102

Table of Contents

xi

APPENDIX A: Checking for Proper Operation . .107
APPENDIX B: Replacing the Back-up Batter y . .109

APPENDIX C: Troubleshooting FARMSitter . . . . .111

APPENDIX D: 2.8 and 10K Thermistor Tables . .121

APPENDIX E: Technical Specifications . . . . . . . .123

APPENDIX F: Quick Reference Guide . . . . . . . .125

APPENDIX G: Accessories . . . . . . . . . . . . . . . .129

APPENDIX H: Returning Your Unit for Repair . .131

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Sensaphone FARMSitter Manual

xii

CHAPTER 1: INTRODUCTION

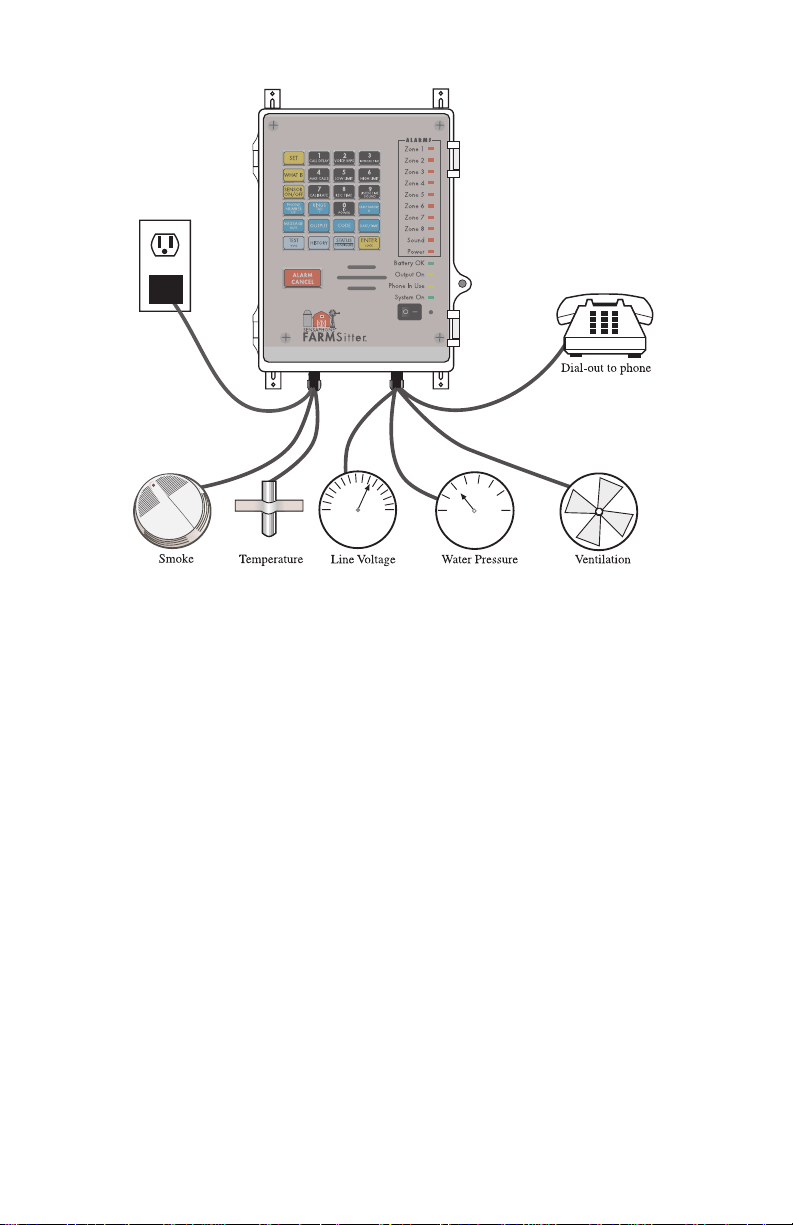

Congratulations on your purchase of the Sensaphone FarmSitter.
The FarmSitter is a powerful monitoring, alarm, and event logging
system. It can monitor equipment and environmental conditions
using eight universal Zones, built-in power failure detection, and
sound level monitoring. The Sensaphone FarmSitter also features
several communication options: user-recordable voice, numeric
pager, and alphanumeric pager (wireless phone text message). The
FarmSitter can also produce a web page of zone status and alarm
history, using our optional service. The FarmSitter is the ultimate
choice for livestock, poultry, greenhouse, ag riculture or similar
monitoring applications.

The Sensaphone FarmSitter is a fully programmable environmental
monitoring system for unattended or remote applications. The unit
will monitor and alarm on eight zones: N.O./N.C.(Normally Open
or Normally Closed) contact, 2.8K or 10K thermistor (temperature
sensor), and 4-20mA transducer. The unit will also monitor AC
power, sound level, and battery condition. On the front of the unit
are LED indicators to show the operating status. Each zone
(including power, sound and battery) has a status LED indicating
the alarm status of the Zone. There is also an LED to indicate if the
Output is On, an LED for Phone In-Use status and an LED for
System-On status.

The unit is programmed using the built-in keypad and voice
response menus. All prog ramming is stored in nonvolatile memory
so that all programming is retained even without power. The unit is
capable of performing alarm event logging of the eight universal
Zones, power, and sound. The event logging (history) is also stored
in nonvolatile memory. A battery-backed real-time clock is also
included to time-stamp logged events. The alarm event history can
be heard through the built-in speaker or remotely over the
telephone. A complete status report of all monitored conditions can
also be heard simply by calling the FarmSitter. An optional web
page can be periodically updated to allow viewing Far mSitter status
from any internet-connected computer.

Chapter 1: Introduction

13

The unit comes in a plastic NEMA-4 enclosure with tabs for wall or
panel mounting. Terminal connections for Zones, outputs and power
are easily accessible from the front of the unit. The FarmSitter is
powered by a plug-in adapter and has a 2.2AH rechargeable backup
battery located behind the panel. Circuitry in the unit will maintain
precise charging of the battery system. The unit also includes Line
Seizure capability to ensure that the telephone line is available when
necesssary (See optional Line Seizure Kit # FGD-0060).

FEATURES

The Sensaphone FarmSitter Includes the following features:

Eight Zones configurable as temperature, 4-20mA or
dry contact

Calibration for each each Zone
Each Zone can be individually enabled or disabled
Power monitor
High sound-level monitor (w/optional external mic)
1 relay output (manual or automatic control)
14 status LEDs
Dial out to eight telephone numbers
User-recordable voice messages
Alarm dialout via voice, numeric pager and

alphanumeric pager (wireless phone text message)
Line Seizure via optional kit (FGD-0060)
Microphone for on-site listen-in (w/optional external

mic
Time-stamped Alarm History
Optional web page
Superior surge/lightning protection on all Zones,

telephone line and power supply
12-hour rechargeable battery backup
NEMA-4 enclosure

Sensaphone FARMSitter Manual

14

LAYOUT

Figure 1: FARMSitter diagram

Chapter 1: Introduction

15

1. Programming Keypad

2. Grounding Lug

3. 12

VAC Power Terminals

4. N.O./N.C. Relay Output
Terminals

5. 8 Zone Terminals

6. Speaker Grille

7. Power Button

8. Phone Network/Extension
Terminals

9. External Mic Terminals

10. Built-in Condenser Mic

11. System On LED

12. Phone-in-use LED

13. Output On LED

14. Battery OK LED

15. Zone Alarm LEDs

1

SET

WHAT IS

SENSOR
ON/OFF

PHONE

NUMBER

T/P

MESSAGE

MUTE

TEST

°F/°C

1

CALL DELAY

4

MAX CALLS

CALIBRATE7REC TIME

RINGS

TAD

*

OUTPUT

HISTORY

ALARM

CANCEL

SENSAPHONE

FARMSitter

2

VOICE REPS

LOW LIMIT5HIGH LIMIT

8

0

ID

POWER

CODE

STATUS

CONFIGURE

®

3

INTERCALL TIME

6

9

LISTEN TIME

SOUND

TABLE RANGE

#

DATE/TIME

ENTER

LOCK

™

ALARMS

Zone 1
Zone 2
Zone 3
Zone 4
Zone 5
Zone 6
Zone 7
Zone 8

Sound

Power
Battery OK
Output On

Phone In Use

System On

15

14

13

12

11

10

~ ~

C NO NC

12VAC

RELAY

POWER

OUTPUT

3 4

2

+ –

ZONE

+ –

ZONE

1

+ –

ZONE

ZONE

4

3

2

ZONE

ZONE

ZONE

7

6

5

+ –

+ –

+ –

+ –

5

6

+ –

ZONE

8

Phone

EXT. MIC

7

9

8

TECHNICAL SUPPORT

Reading this instruction manual will help you install and program
FarmSitter easily. Prog ramming and voice recording are performed
locally using the built-in keypad. Some programming can also be
accessed via touch-tone phone.

If there are any questions or problems that arise upon installation or
operation, please contact Technical Support at:

PHONETICS, INC.
901 Tryens Road
Aston, PA 19014
Toll-Free Phone: [phone]
FAX: [phone]
[email protected]

Sensaphone FARMSitter Manual

16

CHAPTER 2: INSTALLATION

OPERATING ENVIRONMENT

The Sensaphone FarmSitter should be mounted and operated in a
clean, dry environment. The unit is microprocessor-controlled and
as a result it should not be installed near devices that generate
strong electromagnetic fields. Such interference is typically
generated by power switching equipment such as relays or
contactors. A poor operating environment may result in unwanted
system resets and/or system lockup. The temperature range the unit
can operate in is 32°F to 122°F (0°C to 50°C). If the unit needs to
operate below freezing, a heater should be installed nearby.

Mounting the FarmSitter

The NEMA-4 enclosure housing the FarmSitter comes with
hardware for wall or panel mounting. The four tabs are attached by
screwing the round bubble-end of a tab to each of the four rear
corners of the enclosure. Then mount the unit in a position that
allows easy access to the Zone terminal block and keypad. Also,
there must be a power outlet and telephone jack close to the unit.

Figure 1:Mounting Dimensions

Chapter 2:Installation

17

6 1/8"

11 1/2"

Locking the Enclosure

The FarmSitter enclosure can be locked by installing a small
padlock through the loop on the front door of the enclosure. See
Figure below.

Figure 2: Locking the Enclosure

Grounding

Connect a heavy gauge (#10AWG) copper wire to the earth ground
lug on the left end of the panel and connect the other end to a
ground rod or metal cold water pipe (See Figure 3). It is extremely
important that the earth ground connection be as shor t as possible.
The ground rod should have sufficient depth to provide a low
impedance connection to earth. This connection is required for the
surge/lightning protection circuits to function properly.

NOTE: Proper ear th g rounding of the FarmSitter is
required for warranty coverage.

Ground rods can typically be found at local electrical supply houses
and/or hardware stores. Be sure to contact your state“Call before
you dig” hotline at least two days before you install your ground
rod, to insure that it is safe to install the ground rod in a chosen
area.

Sensaphone FARMSitter Manual

18

Figure 3:Grounding the FarmSitter

Wiring Connectors

The FarmSitter includes compression-type liquid-tight connectors
for routing wires into the enclosure. To use these connectors, turn
them counter-clockwise to loosen (or open-up) the compression
washer. Insert all cables through the two connectors. When finished
turn them clockwise to secure and seal the FarmSitter from the
outside environment. If you don't have enough cables to obtain a
snug fit you can insert a small piece of soft PVC insulation or
rubber tubing to take up the extra space.

Chapter 2:Installation

19

Figure 4: Typical connections from FarmSitter

TURNING THE FARMSITTER ON

Plug the unit’s transformer into a 120VAC 60Hz outlet. Toggle the
power switch to ON to start the unit. The System-On LED should
glow steadily and the unit will say “Hello.”

Note that when the unit is turned off, all programming is retained in
non-volatile memory.

Backup Battery

The Sensaphone FarmSitter includes a 12V 2.2AH sealed lead-acid
gel-cell rechargeable battery for system back-up in the event of a
power f ailure. The battery will provide approximately 12 hours of
backup time. Actual backup time will depend upon the temperature,
battery age, and dialing activity. The battery is located behind the
main panel.

Sensaphone FARMSitter Manual

20

The FarmSitter will automatically charge the battery whenever the
power switch is turned on and the power transformer is plugged in.
The unit also includes special circuitry to prevent the battery from
being damaged in the event of an extended power outage. The
battery should provide about 5 years of service before needing
replacement. See Appendix B for battery replacement instructions.

The FarmSitter also includes a 3V lithium battery to retain the date
and time when main power is off. The lithium battery should
provide 8-10 years of service life.

NOTE: Have batteries ser viced by qualif ied ser vice
personnel only.

TELEPHONE LINE

Connect the FarmSitter’s Phone jack to a standard 2-wire analog
phone line. The unit dials using pulse or tone, with loop start only.
The FarmSitter will recognize ringer frequencies from 16 to 60 Hz
and will operate with all standard analog telephone systems that
accept pulse or tone dialing.

Certain private telephone systems and public switching equipment
may not accept the unit’s dialing or may generate an unacceptable
ring signal. In those cases, a dedicated line may be required for the
unit. Consult the supplier of your telephone system if you encounter
problems.

CAUTION: Never install telephone wiring during a
lightning storm. Never install telephone jacks in wet
locations unless the jack is specifically designed for
wet locations. Never touch uninsulated telephone wires
or terminals unless the telephone line has been discon­nected at the network interface. Use caution when
installing or modifying telephone lines.

Line Seizure

Line seizure gives the FarmSitter the ability to “seize” the telephone
line when it needs to dial out. For example, if an emergency occurs
which puts the Far mSitter in alar m mode, the unit will be able to
dial out even if a telephone has been left off the hook. To the right
of the LINE terminals is another set of terminals labeled EXT.

Chapter 2:Installation

21

These terminals can be used to share the line with other devices
(telephone, fax machine, modem) and to give the Far mSitter priority
in the event of an emergency. To make use of this feature you must
have all the extension devices originate from the EXT. terminals.
Whenever the unit must make an alarm phone call, the unit will
disconnect any current phone calls and seize the line for its own
use. The unit will continue to seize the line until the alarm has been
acknowledged. To ease installation, an optional accessory is
available (FGD-0060 Line Seizure Kit) which provides an RJ31x
modular wall jack, cable, and wiring instructions.

WIRING SENSORS AND TRANSDUCERS

The FarmSitter Zones are compatible with NO/NC dry contacts,
10K thermistors, and 4-20mA transducers. To prevent an alarm
from occurring while wiring the sensors, it is recommended that the
zone be disabled [SENSOR ON/OFF] + [Zone #1-8]. After wiring
all of your sensors you will need to configure the zones using the
[SET] + [CONFIGURE] command. See Chapter 3 for more
information on Disabling sensors and Configuring Zones.

Recommended sequence for adding a new sensor:

1. Disable the zone.

2. Wire up the sensor.

3. Configure the zone.

4. Enable the zone.

NOTE: If a false alarm occurs while wiring a sen­sor, you can quickly acknowledge it by pressing the
[ALARM/CANCEL] key and entering [11234] +
[ENTER]. This is the default acknowledgment
code for user #1. See Chapter 4 for more informa­tion on User Acknowledgment Codes.

Temperature: The unit will accept 10K or 2.8K thermistors. These
should be wired to a Zone terminal and the adjacent ground
terminal. For recommended thermistors check the accessory list or
thermistor data in the appendices. Thermistor temperature range:

-20ºF to 150ºF (-29ºC to 65ºC).

Sensaphone FARMSitter Manual

22

Dry Contacts: Only contacts which have no voltage or current
applied may be used. Connect the contact to a Zone terminal and an
adjacent ground terminal. Do NOT try to monitor a contact that
switches 120VAC. This will permanently damage the unit.

4-20mA: A 4-20mA transducer requires you to have an external DC
power supply for the transducer. Connect the positive wire of your
transducer to the positive terminal of your DC power supply.
Connect the negative terminal of the transducer to a Zone terminal
on the Sensaphone FarmSitter. Connect the negative terminal from
your power supply to the adjacent ground terminal on the
FarmSitter.

Figure 5: Different Sensor Types connected to the Terminal Block

Wiring Recommendations

The FarmSitter will work fine in indoor environments using
unshielded cable. When wiring will be subject to long lengths
(>250') or if run outdoors, it is highly recommended that shielded
cable be used and that the shield be connected to an earth ground.
Also, be sure to use the appropriate gauge wire based on the
distance and sensor type. See chart below:

W

ire Gauge Thermistor NO/NC Contact & 4-20mA

#24 250' 1000'
#22 500' 2000'
#20 1000' 4000'

Chapter 2:Installation

23

When preparing wire for connection to the terminal blocks, strip
1/4" of insulation from the conductor (see figure below).

Figure 6: Wire stripped for connection

LED INDICATORS

The LEDs provide on-site alarm and status information. Listed
below are descriptions of how the LEDs work.

Zones 1–8, Power and Sound:

LED Off: Zone OK
LED Blinking Fast: Alarm condition exists but

recognition time has not been met
LED Blinking Slowly: Unacknowledged alarm exists
LED On: Acknowledged alarm exists

Battery:

LED On: Battery OK
LED Blinking: Battery condition low

Output On:

LED On: Output relay on
LED Off : Output relay off

Phone-In-Use:

LED On: Unit is communicating on the phone line
LED Off: Unit is not using the phone line

System-On:

LED On: System power on
LED Off : System power off

Sensaphone FARMSitter Manual

24

.25"

CHAPTER 3: Quick Start Guide

This section presents a brief guide and some helpful hints for first­time users of the FarmSitter. Follow the instructions for installation
before attempting to program the unit.

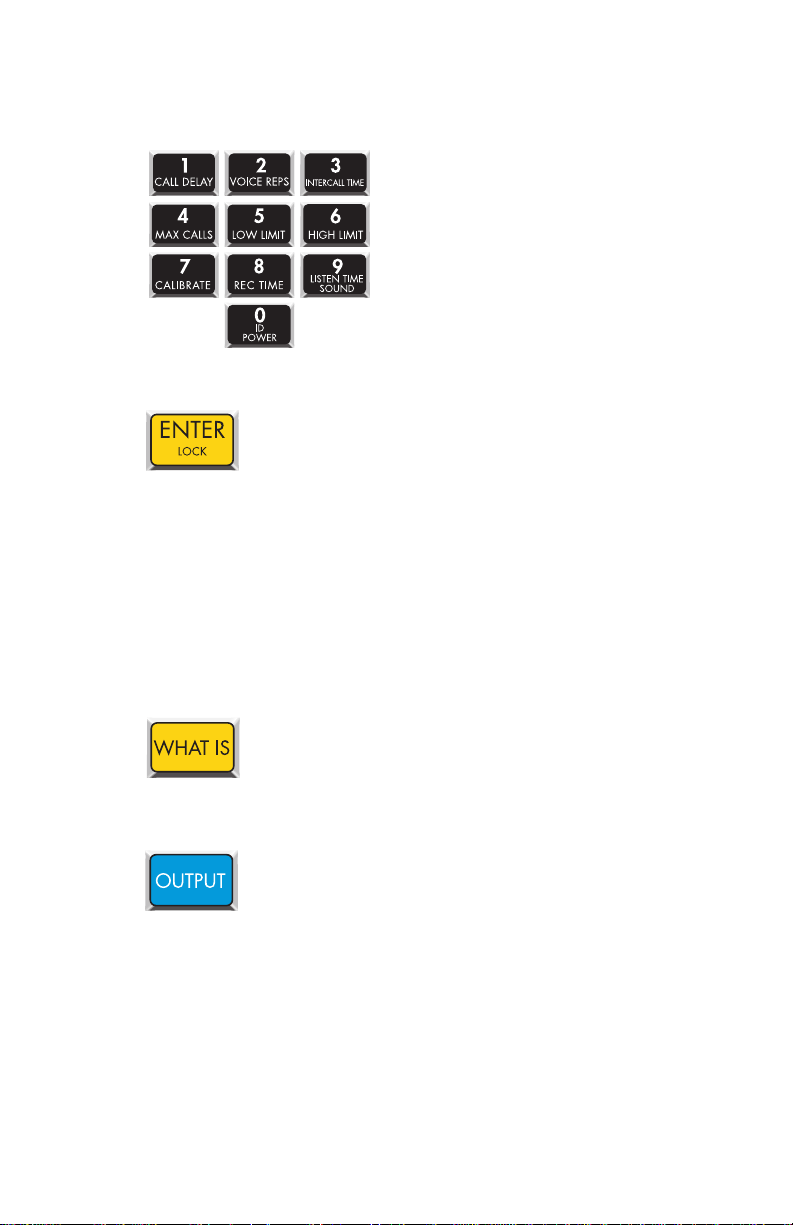

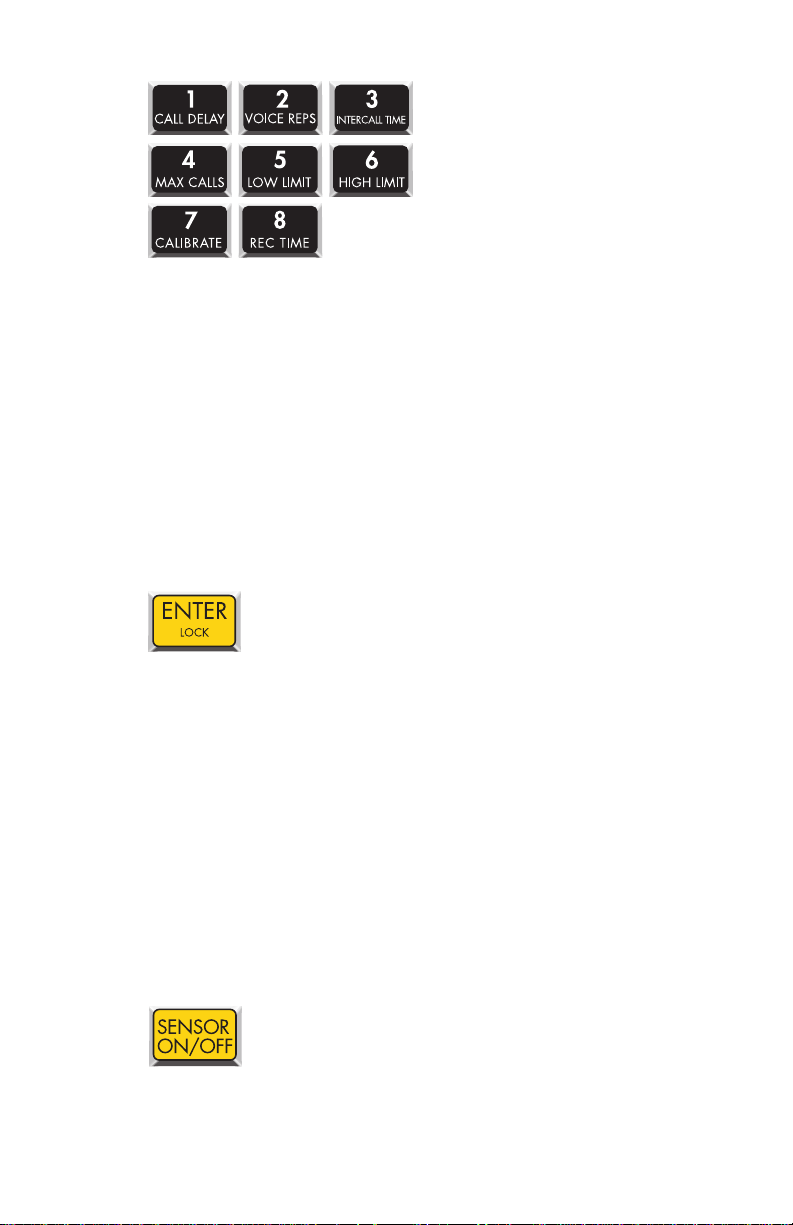

HOW THE KEYPAD COMMANDS WORK

The FarmSitter uses simple keypad commands to program and listen
to all pertinent parameters. All of the keypad commands begin with
either the SET, WHAT IS, or SENSOR ON/OFF keys. The SET key
is used to program parameters. When performing a programming
sequence, the command will typically require the SET key followed
by the parameter to be programmed, followed by a value, and then
the ENTER key at the end. For example, to program the Call Delay
you would press [SET] + [CALL DELAY] + [value] + [ENTER].
To check your programming , you would press the WHAT IS key
followed by the parameter (in this case, [WHAT IS] + [CALL
DELAY].

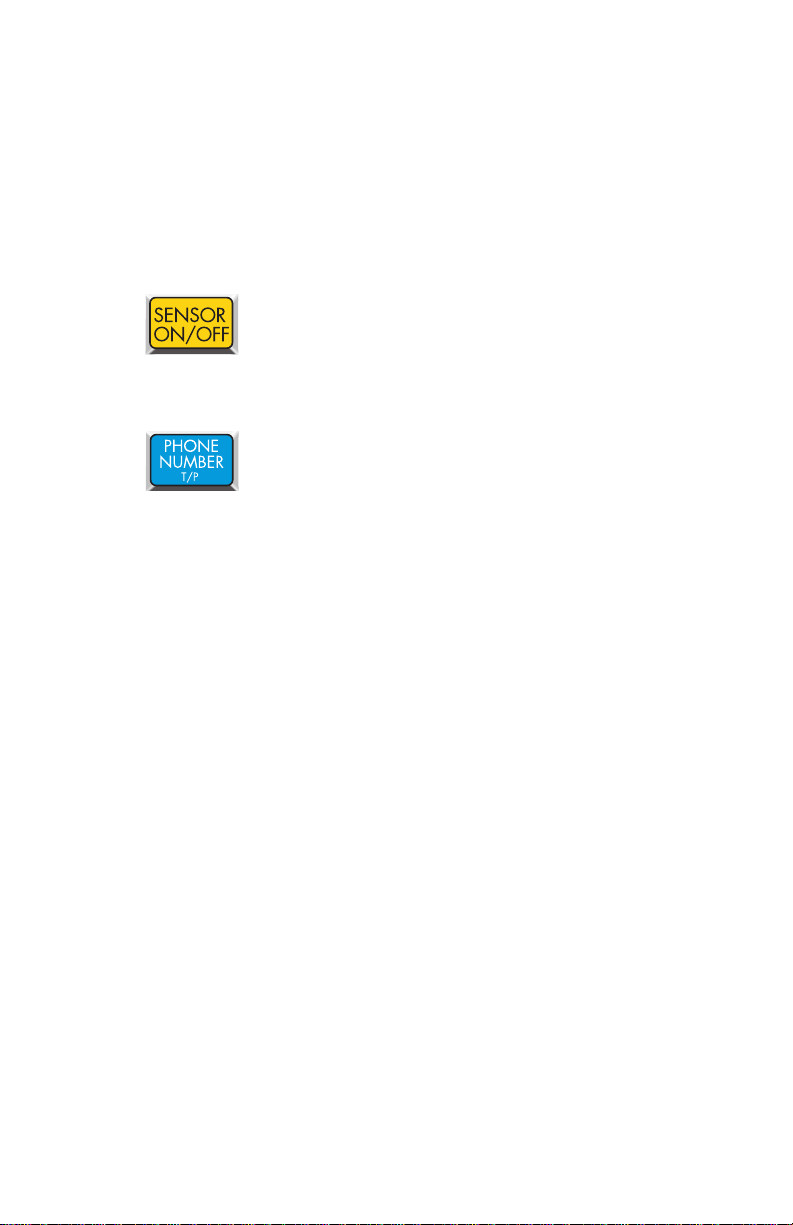

The SENSOR ON/OFF key is generally used to enable and disable
functions or to toggle a function on and off. For example, to disable
a Zone you would press [SENSOR ON/OFF] + [Zone #] or to turn
the speaker Mute on you would press [SENSOR ON/OFF] +
[MESSAGE/MUTE].

ABORTING A COMMAND

If you are in the middle of a command and you make a mistake, you
can abort the command by either pressing the ALARM CANCEL
key or by simply waiting for the command to time out (typically 30
seconds). When you abort a command, the unit will say “Error 1” to
indicate that the command has not been executed successfully.

ERROR MESSAGES

When programming parameters in the FarmSitter you may get an
error message if you inadvertently enter an incorrect value. If the
unit says “Error 1,” it means that you entered a value that is out of

Chapter 3: QuickStart Guide

25

range or have aborted the command. If the unit says “Error 2,” it
means that the keypad is locked and must be unlocked to perform
the function.

ACKNOWLEDGING A FALSE ALARM

While programming the unit you may inadver tently set off an alarm.
Once an alarm occurs, the unit will start its alarm processing
routine, which will prevent you from perfor ming any other keypad
function until the alarm is acknowledged. To acknowledge an alarm
and stop the unit from making any phone calls, press [ALARM
CANCEL] + [11234] + [ENTER]. This will acknowledge the
alarm, using the default Acknowledgement Code for user #1. If you
have changed the default acknowledgment code, then enter the new
code as required.

RECOMMENDED PROGRAMMING STEPS

Listed below are the basic programming steps to get you up and
running. The chapters that follow provide detailed prog ramming
instructions as well as additional options to customize the operation
of your Far mSitter.

Parameter Page #

1. Set the Date & Time 47

2. Configure Zones 27

3. Set Alarm Limits 38

4. Record Zone voice messages 49

5. Record ID voice message 49

6. Set ID number 52

7. Set dialout telephone numbers 54

Sensaphone FARMSitter Manual

26

CHAPTER 4: ZONE PROGRAMMING

This chapter explains the keyboard commands for the monitoring
functions of the FarmSitter. This includes:

Configure Zone Type

Enable/disable Zones
Temperature Scale
Table Range for 4-20mA sensors
Alarm Recognition Time
Alarm Limits

Zone Calibration
AC Power Monitoring Enable/disable
AC Power Recognition Time

Sound Level Monitoring Enable/disable

Sound Level Recognition Time

Sound Level Calibration

CONFIGURE ZONE TYPE

The FarmSitter is compatible with normally open, normally closed,
10K thermistor (temperature), 2.8K thermistor (temperature), and
4–20mA type sensors. All of the Zones are configured
simultaneously by keying in a simple key sequence after connecting
all of your sensors. Make sure all sensors are in their normal state.
All 4–20mA transducers should be powered on.

NOTE: Temperature sensors will default configure
to 10K. If you are connecting any 2.8K sensors to
the FarmSitter, these must be conf igured manually.

(See the Manual Configuration section)

To configure the Zone Types:

1. Press the SET key.

Chapter 4:Zone Programming

27

2. Press the CONFIGURE key.

The FarmSitter will announce each Zone number and its detected
Zone type.

The Zones are now considered normal. If a normally closed Zone
becomes open, an alarm will occur. If a normally open Zone
becomes closed, an alarm will occur.

MANUAL ZONE CONFIGURATION

If you would like to program the Zone type (NO, NC, temperature,
4–20mA) without going through the automatic process that scans all
Zones, this command will allow you to configure a single Zone.
This command is useful if you have alarms on other channels and
cannot use the automatic configuration process, or if you wish to
configure the Zone type without actually connecting the sensor.

NOTE: You MUST use manual configuration for
any zone connecting to a 2.8K temperature sensor.

To configure the Zone Type:

1. Press the SENSOR ON/OFF key.

2. Press the TABLE RANGE key.

The FarmSitter will say “Enter Number.”

3. Press the corresponding Zone key (1–8).

Sensaphone FARMSitter Manual

28

The FarmSitter will say “Enter Mode.”

4. Press the key which corresponds to the type of Zone according to
the table below:

1: NC Dry Contact
2: NO Dry Contact
3: 10K Thermistor (temperature sensor)
4: 4–20mA
5: Not applicable
6: 2.8K Thermistor (temperature sensor)

5. Press ENTER.

ENABLE/DISABLE ZONE ALARMS

This function allows you to enable or disable a Zone (1-8) for
dialout during an alarm. An enabled Zone will respond to an alarm
and allow dialout. A disabled Zone will not initiate a dialout, but it
will still be included in the status report, preceded by the word
“off.” This command is useful while you are wiring your Zones or at
any other time you would like the alarms to be ignored. The default
setting for all Zones is enabled (on).

To enable/disable Zones:

1. Press the SENSOR ON/OFF key.

2. Press the corresponding number key (1-8) of the Zone you want
to enable/disable. FarmSitter will say “Off” to indicate disabled

Chapter 4:Zone Programming

29

or “On” to indicate enabled.

3. Repeat key sequence to change.

ENABLE/DISABLE SOUND LEVEL ALARM

This function allows you to enable or disable the sound alarm for
dialout. When enabled, a high sound level at the remote
microphone (optional)—that meets the programmed recognition time
and level—will trip a sound alarm and the unit will dial out.
Disabling sound will prevent a sound alarm dialout status report.
The default setting is enabled (on).

To enable/disable sound:

1. Press the SENSOR ON/OFF key.

2. Press the Sound Alarm key (9). FarmSitter will say “Off” to
indicate disabled or “On” to indicate enabled.

3. Repeat the steps to change.

ENABLE/DISABLE POWER

This function allows you to enable or disable AC power f ailure
monitoring (0). Enabled AC power monitoring will respond to an
alarm and allow dialout. Disabled AC power monitoring will not
initiate a dialout status report. The default setting is enabled (on).

Sensaphone FARMSitter Manual

30

To enable/disable power:

1. Press the SENSOR ON/OFF key.

2. Press the power key (0) to enable/disable. FarmSitter will say
“Off” to indicate disabled or “On” to indicate enabled.

3. Repeat the steps to change.

CONFIGURE TEMPERATURE SCALE

The FarmSitter can read temperature in degrees Fahrenheit or
Celsius. The default is degrees Fahrenheit.

To change the Temperature Scale:

1. Press the SENSOR ON/OFF key.

2. Press the F/C key.

FarmSitter will say “degrees F” or “degrees C” to indicate the
current setting. Repeat the key sequence to change.

Chapter 4:Zone Programming

31

CONFIGURE TABLE RANGE FOR 4-20mA SENSORS

The FarmSitter allows you to create a unique linear table for each
4-20mA sensor Zone. The Table Low (4mA) and Table High
(20mA) values are used to define the upper and lower range of your
4-20mA sensor. For example, suppose you are using a 4-20mA
transducer to measure the depth of water in a 15 foot well. Simply
enter a Table Low value of 0 and a Table High value of 15 and the
FarmSitter will scale the Zone to read between 0 and 15. The low
and high table range can be set from -10,000 to + 10,000. To make
a value negative, precede the value with the [RINGS/TAD/*] key.

To configure the Table Low and High Range:

1. Press the SET key.

2. Press the TABLE RANGE key.

3. Press the corresponding Zone number (1-8). FarmSitter will say
“Enter Low Number.”

Sensaphone FARMSitter Manual

32

4. Using the number keys, enter the Table Low value, then press
ENTER.

FarmSitter will say “Enter High Number.”

5. Using the number keys, enter the Table High value and press
ENTER.

FarmSitter will say “OK.”

To play back the Table Low and Table High Range:

1. Press the WHAT IS key.

2. Press the TABLE RANGE key.

Chapter 4:Zone Programming

33

3) Press the corresponding Zone number (1-8).

The FarmSitter will say “Low” then speak the value, then
FarmSitter will say “High” and speak the value.

Sensaphone FARMSitter Manual

34

ALARM RECOGNITION TIME

The Alarm Recognition Time is the length of time an alert condition
must be present before a valid alarm exists and dial-out is activated.
If a condition exists and then clears within the recognition time, it is
not considered an alarm. This is useful to prevent nuisance dialouts
for momentary alarm conditions or on self-cor recting equipment.
Each Zone can be programmed with a different recognition time,
including power alar ms and Sound Level Alarms. The def ault
recognition time is 3 seconds for Zones, 5 minutes for Power, and 8
seconds for Sound level. You may program the recognition time for
Zone and Power alarms from 0 seconds up to 272 minutes. Sound
level alarms may be prog rammed from 5 to 60 seconds.

NOTE: When the main power f ails, the FarmSitter
will announce out loud “Power is OFF” every 15
seconds. It will do this regardless of the pro­grammed recognition time. As a result, when the
programmed recognition time is finally met, the
unit will dial immediately and not wait the pro­grammed Call Delay time. The Power Alarm is the
only one treated in this f ashion.

To program the Alarm Recognition Time:

1. Press the SET key.

2. Press the REC TIME key.

Chapter 4:Zone Programming

35

3. Press the corresponding Zone key (1-8), Power(0), or Sound(9).

FarmSitter will say “Enter minutes.”

4. Using the number keys, enter minutes. Then press ENTER.

FarmSitter will say “Enter seconds.”

5. Using the number keys, enter seconds. Then press ENTER.

FarmSitter will say “OK.”

Sensaphone FARMSitter Manual

36

To play back the Alarm Recognition Time:

1. Press the WHAT IS key.

2. Press the REC TIME key.

3. Press the corresponding Zone key (1-8), Power(0), or Sound (9).

FarmSitter will recite the programmed recognition time for that
Zone.

Chapter 4:Zone Programming

37

ALARM LIMITS

The Alarm Limits determine the level at which a temperature or
4-20mA Zone has reached the alarm threshold. Each Zone has a
programmable Low and High Alarm Limit. The default settings are
Low Limit=0 and High Limit=100. The range of programming is

-20 to +150 for Zones configured as temperature (deg rees F), -29 to
66 for Zones configured as temperature (deg rees C), and - 10,000 to
10,000 for 4–20mA Zones. To make a value negative, precede the
value with the [RINGS/TAD/*] key.

NOTE: Only Zones configured as temperature or
4–20mA can have Alarm Limits programmed.

To program the Low Alarm Limit:

1. Press the SET key.

2. Press the LOW LIMIT key.

3. Press the corresponding Zone key (1-8), FarmSitter will say
“Enter number.”

Sensaphone FARMSitter Manual

38

4. Using the number keys, enter a value. Then press ENTER.

To program the High Alarm Limit:

1) Press the SET key.

2) Press the HIGH LIMIT key.

3) Press the corresponding Zone key (1-8), FarmSitter will say
“Enter number.”

4. Using the number keys, enter a value. Then press ENTER.

Chapter 4:Zone Programming

39

To Play back the Low Alarm Limit:

1. Press the WHAT IS key.

2. Press the LOW LIMIT key.

3. Press the corresponding Zone key (1-8), FarmSitter will say the
programmed value.

To Play Back the High Alarm Limit:

1. Press the WHAT IS key.

2. Press the HIGH LIMIT key.

3. Press the corresponding Zone key (1-8), FarmSitter will say the
programmed value.

Sensaphone FARMSitter Manual

40

ZONE CALIBRATION

Due to tolerance variations or other factors, you may need to
program an offset to calibrate the sensor Zones. The offset can
range from -15 to +15 for Zones configured as temperature, and

-100 to +100 for Zones configured as 4–20mA. Setting a positive
number will add that number to the Zone reading. Setting a negative
number will subtract the programmed value from the Zone reading.
For instance, if a temperature sensor consistently read two degrees
high, you could use the calibration feature to adjust that temperature
down two degrees. To make a value negative, precede the value
with the [RINGS/TAD/*] Key.

To calibrate a Zone:

1. Press the SET key.

2. Press the CALIBRATE key.

Express will say “Enter number.”

3. Press the corresponding Zone key (1–8).

FarmSitter will say “Enter Number.”

Chapter 4:Zone Programming

41

4. Enter the number. Then press ENTER.

FarmSitter will say “OK.”

To play back the present calibration:

1. Press the WHAT IS key.

2. Press the CALIBRATE key.

3. Press the corresponding Zone key (1–8).

FarmSitter will recite the programmed calibration.

Sensaphone FARMSitter Manual

42

SOUND LEVEL CALIBRATION

This feature allows you to prog ram the level of sound that will
cause the FarmSitter to respond to an alarm and dial out. It may be
useful to desensitize the FarmSitter to sound if it is installed in an
area with a relatively high noise level, or where a loud noise occurs
frequently but is not associated with an alarm. In some applications,
it may be desireable to increase sound sensitivity to low Sound
Levels. The sensitivity setting (calibration) for sound alarm
monitoring ranges from 1 to 255. A value of 1 makes the
microphone the MOST sensitive to changes in sound. The value
255 makes the microphone the LEAST sensitive to sound. The
default value is 32.

To calibrate the Sound Level:

1. Press the SET key.

2. Press the CALIBRATE key.

3. Press the SOUND key.

The FarmSitter responds: “Enter number.”

Chapter 4:Zone Programming

43

4. Using the number keys, enter a value for sound calibration and
press ENTER

FarmSitter will say, “OK.”

To play back the Sound Level calibration:

1. Press the WHAT IS key.

2. Press the CALIBRATE key.

3. Press the SOUND key.

The FarmSitter will recite the programmed sound sensitivity level.

Sensaphone FARMSitter Manual

44

DESIGNATING A ZONE AS UNUSED

This feature allows you to mark selected Zones as unused, which
will prohibit them from going into alarm and will also leave them
out of the status report.

To designate a Zone as unused:

1. Press the SENSOR ON/OFF key.

2. Press the SET key.

The FarmSitter will say “Enter Number.”

3. Press the corresponding number of the Zone you wish to mark
as unused.

The FarmSitter will respond by saying “Off.” Repeat the key
sequence to place the Zone back in use.

Chapter 4:Zone Programming

45

EXIT DELAY

The Exit Delay feature is useful when you are using your FarmSitter
for security monitoring. This feature allows you to exit a building
without tripping a security alarm. When tripping an alarm is
unavoidable, yet a true aler t condition has not actually occurred, the
alarm response—including dial-out—can be temporarily
suppressed.

The FarmSitter is able to suppress and then reset its dial-out
function automatically through use of the Status Report. This is
especially convenient when an alert condition is created upon
exiting a monitored door, and there is no way to cancel from the
local keypad.

Example: You are planning to exit through a monitored door. Prior
to exiting, you initiate a Status Report recitation at the Far mSitter
keypad by pressing [WHAT IS], followed by [STATUS], (key
sequence shown below). This allows you approximately 60 seconds
to exit without activating the FarmSitter’s programmed response to
an alarm. At the conclusion of the status report, normal alarm
response is reactivated.

To use exit delay, initiate the Status Report.

1. Press WHAT IS.

2. Press STATUS.

The FarmSitter recites the full Status Report; during this time, you
are able to exit the monitored area without tripping an alarm.

Sensaphone FARMSitter Manual

46

TEMPERATURE-ONLY STATUS REPORT

You can receive a limited status report that only includes inputs
configured as temperature. This can be useful when you don't care
to listen to the entire status report.

To initiate a Temperature-only Status Repor t:

1. Press the What IS key

2. Press the Test key.

Chapter 4:Zone Programming

47

Sensaphone FARMSitter Manual

48

CHAPTER 5: COMMUNICATION PROGRAMMING

This chapter explains the keyboard commands for programming the
communications functions of the FarmSitter. This includes
programming, interrogating and/or resetting of:

Date and Time
Voice messages
ID Number
Dial-out phone numbers
Special dialing
Tone or pulse dialing
Rings until answer
Call delay time
Intercall time
Call Progress
Voice repetitions
Maximum number of calls
Telephone Answering Device compatibility
Listen-in time
Keypad lock
Local voice mute

DATE and TIME

The FarmSitter has an internal clock/calendar that is used to time­stamp events and maintain alarm history. To program the date and
time:

1. Press SET, followed by the DATE/TIME key.

Chapter 5: Communication Programming

49

2. The unit will say “Enter date.” Enter the date in month/day/year
(mm/dd/yy) format using two digits for each. For example, if
the date was January 7, 2003 you would enter 010703, then
press ENTER.

3. Next, the unit will say “Enter time.” Enter the time in 24-hour
format (e.g. 3:00 PM = 15:00) using hours/minutes (hh/mm)
format. For example, if the time was 1:30PM you would enter
1330, then press ENTER.

4. To check the date and time press WHAT IS, followed by
DA TE/TIME. The unit will announce the date and time.

NOTE: The inter nal clock is powered by an
onboard lithium battery which should provide 10
years of service life.

To program only the Date or only the Time, you can simply press
the ENTER key when prompted and the unit will keep its current
value. For example, to program a new TIME but keep the current
DA TE, press [ENTER] when prompted for the Date. The unit will
keep the current setting and then prompt you to enter the new Time.

Sensaphone FARMSitter Manual

50

VOICE MESSAGES

The FarmSitter’s digital speech recording feature allows you to
record custom messages for each of the eight Zones and an ID
Message. This means that when FarmSitter calls you during an
alarm, you will hear a personalized Voice Message telling you
exactly what alarm condition exists. You can record a separate
message for each of the eight Zones. The message can run a
maximum of 3.75 seconds. The ID Message can be a maximum of
six seconds.

The ID Message is used to identify the unit. This could be a
particular building name, its location (address or city), or some
other identifier.

To program the ID Message:

1. Locate the condenser mic.

2. Press the SET key.

3. Press the MESSAGE key.

4. Press ID key (number 0 key).

5. When the unit beeps, begin speaking your message into the
microphone. The microphone is located next to the power
switch on the front panel. The unit will say “OK,” when the
recording time has elapsed; then it will play back your recorded
message.

Chapter 5: Communication Programming

51

To play back the ID Message:

1. Press the WHAT IS key.

2. Press the MESSAGE key.

3. Press the ID key (number 0 key).

4. The FarmSitter will play back your recorded message.

The Zone Messages are used to identify the device or condition
being monitored such as temperature, humidity, equipment alar ms,
security alarms, etc.

To program the Voice Message for Zone 1:

1. Locate the condenser mic.

2. Press the SET key.

3. Press the MESSAGE key.

4. Press number 1 key (substitute other Zone numbers to record
their respective messages).

Sensaphone FARMSitter Manual

52

5. When the unit beeps begin speaking your message into the
microphone. The microphone is located next to the power
switch on the front panel. The unit will say “OK,” when the
recording time has elapsed; then it will play back your recorded
message.

To play back the message for Zone 1:

1. Press the WHAT IS key.

2. Press the MESSAGE key.

3. Press the number 1 key (substitute other Zone numbers to hear
their respective messages).

The FarmSitter will play back your recorded message.

Chapter 5: Communication Programming

53

ID NUMBER

The ID Number is the identification number of the FarmSitter. This
number is typically the telephone number where the unit is installed,
or it may be designated using any number that best suits your
application. The purpose of the ID Number is to immediately
provide the source of any alarm, especially when using multiple
FarmSitter units in a complex monitoring system. The ID number is
announced during voice alarm messages and displayed on pagers.
The ID Number can be up to 16 digits long.

When the FarmSitter is called from a remote location, it always
begins its message with the identification number: “Hello, this is
(ID Number).”

To program the ID Number:

1. Press the SET key.

2. Press the ID key (number 0 key).

3. The unit will say “Enter number.” Using the number keys, enter
the unit’s phone number, then press ENTER.

If the number was accepted, the FarmSitter will say “OK.”

Sensaphone FARMSitter Manual

54

To play back the ID Number:

1. Press the WHAT IS key.

2. Press the ID key (number 0 key).

3. The FarmSitter will recite the ID Number.

Chapter 5: Communication Programming

55

ALARM DIAL-OUT TELEPHONE NUMBERS

The Sensaphone FarmSitter will dial up to eight 48-digit phone
numbers to report alarm conditions. These are the numbers that will
be called during an alarm dial-out. The unit can deliver an alarm
message via voice telephone call, numeric page, or alphanumeric
page. Most wireless phones can also receive the alarm message as
text when programmed using the alphanumeric page format. The
telephone numbers are dialed sequentially 1 through 8. Therefore,
program the first number you want called as Phone #1, the second
one as Phone #2, and so on. A pause, pound or asterisk can be
added to the phone number to access different phone and beeper
systems (see special dialing options). Once the alarm is
acknowledged, all dial-out stops.

Voice Dialout

When FarmSitter calls in Voice mode it will announce the ID
Message and the alarm message. Afterward it will ask for the
acknowledgement code. If a correct code is entered, the unit will
stop dialout. If the wrong code is entered it will hang up and
continue dialing the next number.

To program a VOICE dial-out telephone number:

1. Press the SET key.

2. Press the PHONE NUMBER key.

3. Select which Phone number to program. Press any unassigned
number key (keys 1-8) to represent the new telephone number
entry. FarmSitter will respond: “Enter number.”

Sensaphone FARMSitter Manual

56

4. Enter the phone number using the number keys, and then press
ENTER.

FarmSitter will say “OK.”

To play back a programmed dial-out telephone number:

1. Press the WHAT IS key

2. Press the PHONE NUMBER key.

3. Select an assigned Phone number (keys 1-8)

Chapter 5: Communication Programming

57

The FarmSitter will recite the type of call (voice, pager,
alphanumeric pager) and the number programmed. If there is no
number programmed, FarmSitter will say “No number.”

Numeric Pager Dialout

When programming the FarmSitter to dial a Numeric pager there
are two methods that can be used:

Automatic mode and Manual

mode.
The only difference is that in Automatic mode the FarmSitter will

automatically try to sense when the call has been answered and then
send the ID Number and alarms. In some instances, the automatic
answer detection and timing from the FarmSitter is incompatible
with the paging service, and the Manual mode must be used.

NOTE: If your phone system requires you to dial a
‘9’ followed by a pause to get an outside line, you
must use Manual mode and inser t the pauses at the
end of the number.

When the FarmSitter calls your Numeric Pager it will leave the
programmed ID Number along with the Zone number that is in
alarm. To acknowledge the alarm you will have to call the unit back
and enter an acknowledgement code, otherwise the unit will
continue dialing the remaining numbers.

To program a NUMERIC PAGER using AUTOMATIC Mode:

1. Press the SET key

2. Press the PHONE NUMBER key

3. Select which Phone number to program. Press any unassigned
number key (keys 1-8) to represent the new telephone number
entry. FarmSitter will respond: “Enter number.”

Sensaphone FARMSitter Manual

58

4. Press CODE 3 (This tells FarmSitter this is a Numeric pager
call).

5. Enter the pager telephone number using the number keys. Then
press ENTER.

The FarmSitter will say “OK.”

To program a NUMERIC PAGER using the MANUAL Mode:

1. Press the SET key

2. Press the PHONE NUMBER key

3. Select which Phone number to program. Press any unassigned
number key (keys 1-8) to represent the new telephone number
entry. FarmSitter will respond: “Enter number.”

Chapter 5: Communication Programming

59

4. Press CODE 3 (This tells FarmSitter this is a Numeric pager
call).

5. Enter the pager telephone number using the number keys.

6. Press CODE 1 twice.

NOTE: Depending on your pager service, you may
need to insert a longer or shorter delay (additional
pauses). Two pauses is the recommended starting
point. Use the Dial-out Test Mode to help deter mine
the proper number of pauses for your pager service.
When it is programmed properly, you will hear the
FarmSitter dial your pager service, then wait (based
on the number of pauses) until the call has been
answered, and then send another series of
Touch-Tones and hang up.

7. Press the ENTER key.

Sensaphone FARMSitter Manual

60

To play back a NUMERIC PAGER number:

1. Press WHAT IS

2. Press the PHONE NUMBER key

3. Select the programmed Phone Number from the number keys
(keys 1-8). Far mSitter will recite the type of call, “pager,”
followed by the pager number assigned to that key.

Alphanumeric Pager Dialout

When the FarmSitter sends a text message to your alphanumeric
pager (or wireless phone) it must connect with your service
provider’s paging terminal. This is a telephone number that is
answered by a modem. Your service provider’s paging terminal
must support TAP protocol. This is the standard protocol used by
most major service providers. You will need to know this telephone
number and your pager ID Number to program this type of call into
the FarmSitter. If you don't know the paging terminal number or

your pager ID Number, contact your service provider (or visit their
web page).

When sending text messages to your wireless telephone, the pager
ID is typically the telephone number of your phone. Many wireless
phone providers have toll-free national numbers for their paging
terminals. The list below is provided for your convenience.

Chapter 5: Communication Programming

61

TAP Protocol Paging Terminal Phone Numbers

AT&T Wireless: 800-841-8837
Cingular Wireless: 800-469-5351
MCI: 800-759-6366
Mobil Comm: 800-946-4644
NEXTEL National: 800-201-2501
Sprint: 888-656-1727
Verizon Wireless: 866-823-0501

To program an ALPHANUMERIC PAGER dial-out
telephone number:

1. Press the SET key

2. Press the PHONE NUMBER key

3. Press any unassigned number key (keys 1-8) to represent the
new telephone number entry. FarmSitter will respond: “Enter
number.”

4. Press CODE 4 (tells FarmSitter this is an Alpha Numeric pager
call). FarmSitter will say “Alpha Pager.”

Sensaphone FARMSitter Manual

62

5. Enter the telephone number of your paging terminal using the
number keys.

6. Press CODE 5 (this tells the FarmSitter that the next digits will
be the pager ID number).

FarmSitter will say “Alpha ID.”

7. Using the number keys, enter the pager ID Number and then
press ENTER.

The FarmSitter will say “OK.”

To play back an ALPHANUMERIC PAGER number:

1. Press WHAT IS

2. Press the PHONE NUMBER key

Chapter 5: Communication Programming

63

3. Select the programmed Phone Number from the number keys
(keys 1-8). Far mSitter will recite the the type of call, “Alpha
Pager,” followed by the paging terminal number and the Alpha
ID Number.

To delete a dial-out telephone number:

1. Press the SET key.

2. Press the PHONE NUMBER key.

3. Select the Phone number (1-8) to erase.

The FarmSitter will say “Enter number.”

4. Press the ENTER key. FarmSitter will say “OK.”

Sensaphone FARMSitter Manual

64

SPECIAL DIALING OPTIONS

The FarmSitter has provisions for special dialing requirements.
These including dialing a * or #, inserting a two-second pause, or
forcing the system to wait for the called party to answer. These
options are typically used when: (a) the unit is connected to a PBX
and must dial a ‘9’ or extension to reach an outside line; (b) when
dialing a business and stepping through menus to reach a specific
extension; or (c) when a pager service is answered by a voice menu.
The special dialing commands can be inserted as part of the dialout
telephone number. Valid commands are listed below:

A # tone can be dialed by inserting the Table Range/# key
in the telephone number.

The * tone can be dialed by inserting the Rings/Tad/* key in

the telphone number.

A two-second pause can be inserted in the dialout telephone

number by pressing CODE 1.

The FarmSitter can be instructed to wait for the call to be

answered before dialing additional digits. This is useful if
you need to call a company’s main number and then dial
additional digits to go to a specific extension (Example:
888-555-1200—wait for answer—227). Press CODE 2 to
make the unit wait for an answer.

Chapter 5: Communication Programming

65

Blind Dialing

The FarmSitter normally checks for a dial tone before dialing.

However, if your telephone system does not produce a dial tone,
you can make the Far mSitter dial blindly (i.e., without dial
tone). To do this, make the first digit of each telephone number
a pause (CODE 1). When the Far mSitter sees this as the first
digit, it will not check for a dial tone, but dial the number
regardless.

Special Dialing Codes for the FarmSitter are:

Code 1: two second pause
Code 2: Wait for answer
Code 3: Numeric pager type
Code 4: Alphanumeric pager type
Code 5: Alphanumeric pager ID Number
Code 6: Change to Touch-Tone dialing

Sensaphone FARMSitter Manual

66

DIAL-OUT TEST MODE

The FarmSitter allows you to test your telephone programming by
simulating an alarm dialout to any programmed telephone number.
This can be a valuable tool for insuring that your programming is
correct and also for troubleshooting dialing problems. In this mode
all signals on the telephone line are audible through the local
speaker.

To test a dialout phone number:

1. Press the SET key.

2. Press the TEST key.

The FarmSitter will say “Enter Number.”

3. Press a number key (1-8) corresponding to the phone number
entry you wish to test, and press ENTER.

The FarmSitter will dial the number and send a test message.

Chapter 5: Communication Programming

67

ALARM ACKNOWLEDGEMENT CODES

When the FarmSitter detects an alarm, it starts dialing each
telephone number until it receives acknowledgment. An alarm can
be acknowledged either by pressing the ALARM CANCEL button
on the keypad and entering an Acknowledgement Code, or by
entering the Acknowledgment Code over the telephone using touch
tones. An Acknowledgement Code is made up of five digits: the
user’s entr y number (1-8) plus a four-digit code. Up to eight
different Acknowledgement Codes may be programmed into the
unit to identify individual users in the Alar m Histor y Log. When the
unit makes a telephone call in Voice mode it will prompt the user to
enter an Acknowledgement Code. If this is entered cor rectly, the
FarmSitter will say “Alarm Acknowledged.” When an alarm
message is sent to a pager, the person who receives the page will
have to call the unit back to acknowledge the alar m. When
acknowledging an alarm, the user must first press their entry
number (1-8), and then their programmed 4-digit Acknowledgment
Code. Acknowledgment Code 1 defaults to 1234, so to acknowledge
an alarm the user would have to enter 11234. All other Codes (2-8)
are not programmed by default.

To Program an Acknowledgement Code:

1. Press SET

2. Press CODE

Sensaphone FARMSitter Manual

68

3. Press a telephone number entry (1-8)

FarmSitter will say “Enter code.”

4. Enter a 4-digit acknowledgement code.

The FarmSitter will say “OK.”

To play back an Acknowledgement Code:

1. Press WHAT IS

2. Press CODE

3. Press a telephone number entry 1-8

The FarmSitter will recite the Acknowledgment Code for the
selected telephone number entry.

Chapter 5: Communication Programming

69

ALARM HISTORY

The FarmSitter will retain historical information on the last 10
alarms. The information retained includes: Zone number, the
time/date that the alarm occurred, and the User number that
acknowledged the alarm.

To hear the Alarm Histor y:

1. Press the WHAT IS key.

2. Press the HISTORY key.

The unit will recite the history for the last 10 alarms. A sample
report is shown below:

“Zone 1 (custom message) alarm high at 3:31

PM 4/8/2003

acknowledged by number 4”

“Zone 8 (custom message) alarm low at 2:35

AM 3/27/2003

acknowledged by number 1”

Deleting the Alarm History

The Alarm History can be deleted by pressing SET, then HISTORY.

Sensaphone FARMSitter Manual

70

TONE OR PULSE DIALING

The FarmSitter can dial out in pulse or touch-tones. All numbers
will be called using the chosen dialing method. The default is
TONE.

To program as either Tone or Pulse:

1. Press the SENSOR ON/OFF key.

2. Press the PHONE NUMBER(T/P) key.

The unit will say “On” to indicate that Tone dialing is enabled,
it will say “Off” when tone dialing is disabled (i.e., when pulse
dialing is enabled).

Chapter 5: Communication Programming

71

RINGS UNTIL ANSWER

The Rings Until Answer is the number of rings that must occur
before FarmSitter answers the phone. This value can be from 1 to

15. The default value is 4.

To program Rings Until Answer:

1. Press the SET key

2. Press the RINGS key.

FarmSitter will say “Enter number.”

3. Using the number keys, enter a value and press ENTER.

The FarmSitter will say “OK.”

To play back the Rings Until Answer:

1. Press the WHAT IS key

2. Press the RINGS key.

The FarmSitter will recite the programmed value.

Sensaphone FARMSitter Manual

72

CALL DELAY TIME

The call delay time is the length of time the FarmSitter will
announce an alarm before it starts the dial-out sequence. This only
applies to the first call. To set delay time between calls, see
INTERCALL TIME. The default call delay time is 30 seconds. It
can be programmed from 0 to 60 minutes. The purpose of Call
Delay is to allow time for personnel at the FarmSitter’s installation
site to respond to and cancel an alarm before dial-out begins.
During this time, the unit will audibly repeat its “alarm” message
and the front panel alarm LED will blink.

To program call delay time:

1. Press the SET key.

2. Press the CALL DELAY key.

FarmSitter will say “Enter minutes.”

3. Enter the number of minutes using the number keys. Then press
ENTER.

FarmSitter will say “Enter Seconds.”

Chapter 5: Communication Programming

73

4. Using the number keys, enter the number of seconds, and then
press ENTER.

The FarmSitter will say “OK.”

To play back the call delay time:

1. Press the WHAT IS key

2. Press the CALL DELAY key

The FarmSitter will recite the programmed time.

INTERCALL TIME

The Intercall Time is the programmable period of time the
FarmSitter waits between making alarm phone calls. Intercall Time
is activated only after alarm dial-out to the first telephone number
fails to be acknowledged. This period can be programmed from 10
seconds to 60 minutes. The default Intercall Time is 30 seconds.

TIP: When the Far mSitter is programmed to make
calls to pagers, make sure the intercall delay time is
long enough to give the person carrying the pager
some time to get to a phone to call the unit back.

If an incoming telephone call is received by FarmSitter during the
Intercall Time (in between dialing of subsequent telephone numbers
to report an alarm), it will answer the incoming call and

Sensaphone FARMSitter Manual

74

immediately report any existing alarms. The manner in which the
incoming call is answered depends upon whether or not TAD is
enabled or disabled:

If TAD is disabled (default), Rings Until Answer will be the

programmed number of rings.

If TAD (Telephone Answering Device) is enabled, Rings Until

Answer will be 1.

To program intercall time:

1. Press the SET key.

2. Press the INTERCALL TIME key.

FarmSitter will say “Enter minutes.”

3. Using the number keys, enter the number of minutes, and then
press ENTER.

FarmSitter will say “Enter seconds.”

Chapter 5: Communication Programming

75

4. Using the number keys, enter the number of seconds, and press
ENTER.

The FarmSitter will say “OK.”

To play back the Intercall Time:

1. Press the WHAT IS key

2. Press the INTERCALL TIME key

The FarmSitter will recite the programmed time.

Sensaphone FARMSitter Manual

76

CALL PROGRESS

The FarmSitter monitors call progress when it dials out for an
alarm. If FarmSitter encounters a busy signal or receives no answer
after eight rings, the unit hangs up, waits the programmed intercall
time and then dials the next phone number. When dialing some
beeper/pager services, the line may be answered before receiving a
ringback. This may interfere with the call progress detection and
result in a failed call to certain phone systems or beeper/pager
services. If this occurs, disable call progress detection.

To disable call progress detection:

1. Press the SENSOR ON/OFF key.

2. Press the STATUS/CONFIG key.

FarmSitter will respond “Off ” to indicate that call progress has been
turned off.

3. Repeat key sequence to change.

Chapter 5: Communication Programming

77

VOICE REPETITIONS

The voice repetitions is the number of times the Far mSitter will
recite the alarm message per phone call when it dials out. This can
be programmed from 1 to 10 repetitions. The default value is 3
repetitions.

To program the voice repetitions:

1. Press the SET key

2. Press the VOICE REPS key.

FarmSitter will say, “Enter number.”

3. Using the number keys, enter a value and then press ENTER.

The FarmSitter will say “OK.”

To play back the number of voice repetitions:

1. Press the WHAT IS key.

2. Press the VOICE REPS key.

The FarmSitter will repeat the number programmed.

Sensaphone FARMSitter Manual

78

MAX CALLS

The FarmSitter has the ability to acknowledge itself by using the
Max Calls function. The unit keeps a count of the number of phone
calls it makes for a particular alarm. Once the number of calls made
reaches Max Calls, the FarmSitter will acknowledge the alar m and
stop the dialout process. The unit indicates it has reached max calls
by saying “alarm acknowledged by (ID Number).” The max calls
can be programmed from 0 to to 255. The default is 100.

NOTE: If only one Phone Number is programmed, FarmSitter
will dial a maximum of 15 times, regardless of the programmed
value of max calls, as required by FCC rules.

To program Max Calls:

1. Press the SET key.

2. Press the MAX CALLS key.

FarmSitter will say “Enter number.”

3. Using the number keys, enter a value, then press ENTER.

The FarmSitter will say “OK.”

Chapter 5: Communication Programming

79

To play back Max Calls:

1. Press the WHAT IS key.

2. Press the MAX CALLS key

The FarmSitter will recite the value of max calls.

Sensaphone FARMSitter Manual

80

TELEPHONE ANSWERING DEVICE (TAD) COMPATIBILITY

The FarmSitter can be used on the same telephone line as a
telephone answering device, such as an answering machine, fax
machine, or modem. This feature allows you to call in to FarmSitter
and bypass the answering device.

To use TAD:

1. Program FarmSitter’s Rings Until Answer to a greater number
than the rings until answer for your answering device. For
example, Far mSitter RINGS = 5, device rings = 3.

2. Press the SENSOR ON/OFF key.

3. Press the TAD key.

FarmSitter will say “On.” (If FarmSitter says “Off” repeat steps 2
and 3.)

4. Once TAD is on, allow the phone to ring once when you call the
unit and then hang up. FarmSitter recognizes that a call was
made and activates a 30 second internal timer. This allows you
30 seconds to call the FarmSitter back.

5. Call back within 30 seconds. FarmSitter will over ride the
answering device on this incoming call and answer the phone on
the first ring. FarmSitter resets the TAD timer after one
incoming call is received. If you want to call the unit again, you
must repeat steps 4 and 5.

Chapter 5: Communication Programming

81

LISTEN-IN TIME

The Listen-In Time is the amount of time you can listen to sounds at
the unit’s location during a status call-in. An external microphone
(optional) is required to listen in to on-site sounds. The
programmable range is 0 to 255 seconds. The def ault setting is 0
seconds (disabled).

To program the Listen-In Time:

1. Press the SET key.

2. Press the LISTEN TIME key.

FarmSitter will say “Enter seconds.”

3. Using the number keys, enter the seconds, then press ENTER.

The FarmSitter will say “OK.”

To play back the Listen-in Time:

1. Press the WHAT IS key.

Sensaphone FARMSitter Manual

82

2. Press the LISTEN TIME key

The FarmSitter will recite the time programmed.

Chapter 5: Communication Programming

83

LOCKING THE KEYPAD

The keypad can be locked to prevent unauthorized access to the
FarmSitter’s programming. This will only prevent programming from
being changed. You may, however, play back programming
parameters and listen to a status report without unlocking the keypad.
To edit programming parameters or record messages, you must
unlock the keyboard by entering the four-digit lock/unlock code.

For call-in access, you may freely listen to a status report but the
lock/unlock code must be entered via touch-tone phone to obtain
programming access if the keypad is in the “locked” mode. If you
enter the correct code, you will gain access to FarmSitter to use the
phone commands. If you enter the incorrect code, FarmSitter will
hang up. You cannot program or change the lock code remotely.

For an explanation of how to use the lock code during a call-in, see
Chapter Eight.

To Lock the keypad:

1. Press the SET key.

2. Press the LOCK key.

FarmSitter will say “Enter security code.”

3. Using the number keys, enter 4 digits, and press ENTER.

The FarmSitter will say “OK.”

Sensaphone FARMSitter Manual

84

To Unlock the keypad:

1. Press the WHAT IS key.

2. Press the LOCK key.

FarmSitter will say “Enter security code.”

3. Using the number keys, enter your 4-digit code and press
ENTER. (If you enter the incorrect code, FarmSitter will say
“error 2.”)

If the correct code was entered, the FarmSitter will say “OK.”

NOTE: You may not interrogate the security code. The WHAT
IS key is used to unlock the keypad when the correct code is
entered.

Chapter 5: Communication Programming

85

SPEAKER MUTE

When the FarmSitter dials out with an alarm, it recites the alarm
message over the phone and at the monitor site. The Speaker Mute
command allows you to silence the FarmSitter at the monitor site.

To Mute the speaker:

1. Press the SENSOR ON/OFF key.

2. Press the MUTE key

FarmSitter will say “On” to indicate that the speaker mute is on. It
will say “Off” to indicate when the speaker mute is off.

3. Repeat key sequence to change.

Sensaphone FARMSitter Manual

86

CALLBACK ACKNOWLEDGEMENT

This is an optional feature that can be enabled using the keypad
(default=disabled). It allows an alar m to be acknowledged simply
by calling the unit and letting the line ring 10 times. When this
feature is enabled it will temporarily make the Rings Until Answer
set to 10 when an unacknowledged alarm exists. If you receive a
call via Voice or Pager and are unable to send touch-tones, then you
can call the unit back, let the line ring 10 times, and the unit will
answer and say “Alarm Acknowledged.”

NOTE: If TAD is also enabled, then the FarmSitter will answer
on 1 ring and acknowledge the alarm.

To Enable the Callback Acknowledgement Feature:

1. Press SENSOR ON/OFF.

2. Press CODE.

The FarmSitter will say “On” to indicate that Callback
Acknowledgement is enabled. Repeat the key sequence to disable.

Chapter 5: Communication Programming

87

Sensaphone FARMSitter Manual

88

CHAPTER 6: CONTROLLING THE OUTPUT

The FarmSitter includes a relay output that can be used to control a
light, siren, or other device. The output is a Form-C Normally
Open/Normally Closed mechanical relay and is rated for 120VAC

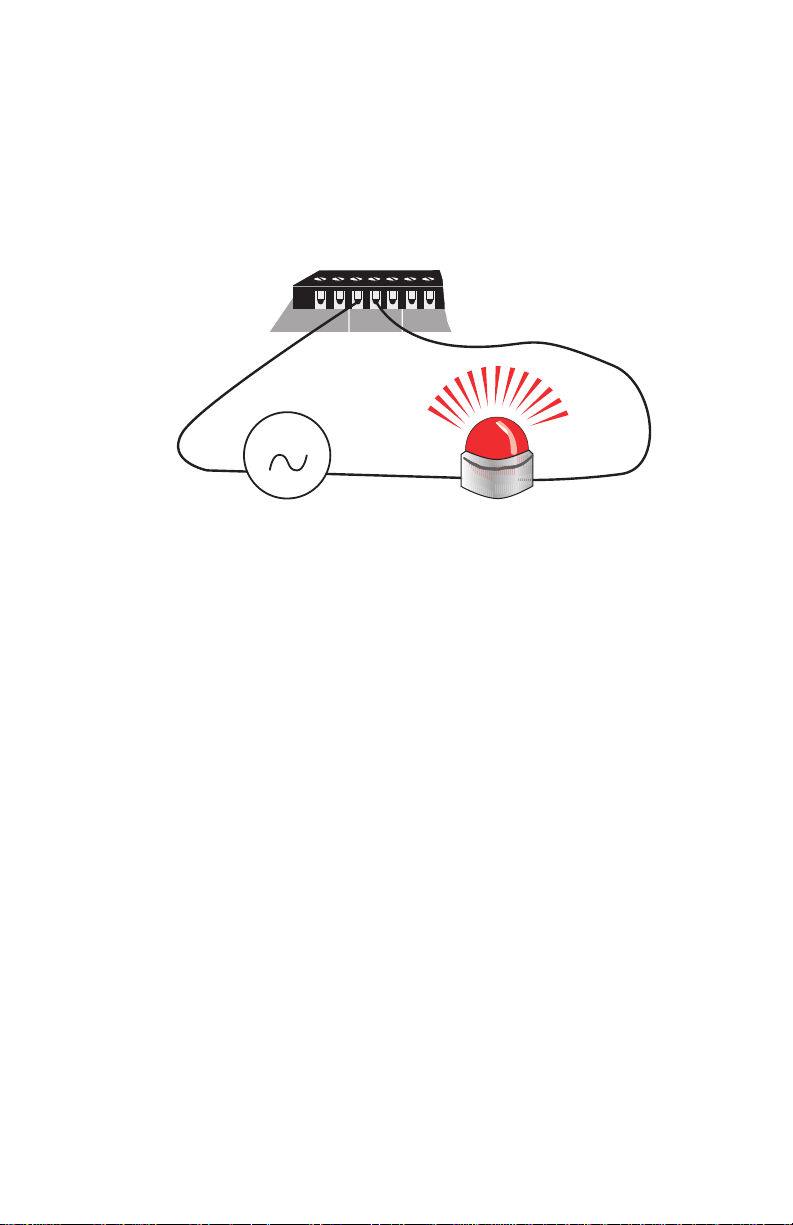

2A. A sample wiring diagram is shown below:

Figure 1: Relay output connected to alarm

The output can be programmed to operate in one of 10 automatic
modes or it can operate in manual mode. The 10

automatic modes

allow the output to automatically turn on and off based on
individual alarms or any alarm. In

manual mode the output is

controlled via keypad command or remotely via touch-tone phone
(See Chapter 8). A description of each mode is shown below:

AUTOMATIC MODES

Mode 1: Output on when zone 1 goes into alarm. Off when alarm

is acknowledged.

Mode 2: Output on when zone 2 goes into alarm. Off when alarm

is acknowledged.

Mode 3: Output on when zone 3 goes into alarm. Off when alarm

is acknowledged.

Mode 4: Output on when zone 4 goes into alarm. Off when alarm

is acknowledged.

Mode 5: Output on when zone 5 goes into alarm. Off when alarm

is acknowledged.

Chapter 6:Controlling the Output

89

NC

NO

C
OUTPUT

120VAC

H

N

Alarm

Light

Mode 6: Output on when zone 6 goes into alarm. Off when alarm

is acknowledged.

Mode 7: Output on when zone 7 goes into alarm. Off when alarm

is acknowledged.

Mode 8: Output on when zone 8 goes into alarm. Off when alarm

is acknowledged.

Mode 9: Output on when a Sound alarm occurs. Off when alarm is

acknowledged.

Mode 0: Output on when a Power alarm occurs. Off when alarm is

acknowledged.

Mode 10: Output on when any alarm occurs. Off when all alarms

are acknowledged.

MANUAL MODE

Mode 11: Output controlled manually via keypad command or

touch-tone telephone.
When programmed for Manual mode, the command to switch the

output is:
SENSOR ON/OFF + OUTPUT.

The FarmSitter will respond “ON” or “OFF” to indicate the state of
the output.

Note: If the FarmSitter says nothing, the output is
not programmed for manual mode.

To program the Output Mode:

1. Press the SET key.

2. Press the OUTPUT key.

Sensaphone FARMSitter Manual

90

FarmSitter will say “Enter Number.”

3. Using the number keys, enter a value for the output mode.

4. Press the ENTER key.

The FarmSitter will say “OK” and recite a description of the mode
selected, such as “Automatic on Zone 1” or “Manual.” Note that
when

Mode 10 is selected, the FarmSitter will simply say “Automatic

on Alarm,” meaning that the output will automatically turn on when
any alarm occurs.

To play back the programmed Output Mode:

1. Press WHAT IS.

2. Press OUTPUT.

The FarmSitter will recite the programmed output mode.

Chapter 6:Controlling the Output

91

Sensaphone FARMSitter Manual

92

CHAPTER 7: INTERNET WEB STATUS

The FarmSitter can create a web page based on the sensors
connected to it and post the web page on the internet. The web
page will contain a snapshot status of all monitored conditions and
update the information every 24 hours. The web page can be viewed
at www.myfarmsitter.com/<last 5 digits of unit serial number>.
The basic web page feature is free for the first year. An annual
subscription fee is required thereafter.

The FarmSitter automatically updates its web page by calling the
FarmSitter Status Center at Sensaphone, and transmits the current
status every 24 hours. The receiving server captures the status
information, formats it, and places it on a web page.

Two levels of service are available:

Basic Web Status

• Free for the first year.

• Snapshot status of all zones once a day.

• Details of the most recent alarm.

Adv

anced Web Status

• Subscription service (refer to subscription form or contact
Sensaphone, Inc.).

• Hourly snapshots of all zones with history maintained for the
life of the account.

• Full history of all logged alarms for the life of the account.

Chapter 7:Internet Web Status

93

To activate the web page feature for your FarmSitter,
follow these two simple steps:

1. Contact a Sensaphone Sales Associate toll-free at
1-877-373-2700 and tell us you want to activate your FarmSitter
web page (have your serial number ready), or fill out the for m
that came with your Far mSitter and f ax it to us at 610-558-0222.

2. Press SENSOR ON/OFF and then ENTER to Enable the
Internet Web Page Feature.

The FarmSitter will say “ENTER CODE.” Enter the Authorization
code provided by Sensaphone and then press ENTER. The
authorization code activates the web page for one year.

NOTE: The FarmSitter will be dialing a toll num­ber to send the web page. It updates the page once
a day, and the call is placed between the off-peak
hours of 12:00

AM and 6:00 AM. The length of the

call will only be be about one minute.

Sensaphone FARMSitter Manual

94

CHAPTER 8: OPERATION

After installation and programming have been completed, the
FarmSitter is fully operational. This chapter explains how the
FarmSitter operates.

ALARM DIALOUT AND ACKNOWLEDGMENT

There are three stages to a complete alarm event: 1) Alar m
Recognition, 2) Alar m Notification, 3) Acknowledgment. Note that
not all alert conditions will go through each stage. For example,
some may not meet the recognition time.

Alarm Recognition

1. FarmSitter monitors eight zones plus sound level and power
failure. When the status of a zone changes or exceeds
user-programmed limits, it causes an alert condition.

2. If the alert condition lasts long enough to meet its programmed
recognition time, the alert condition becomes an alarm and the
FarmSitter begins the alar m notification sequence.

Alarm Notification

The FarmSitter can make three types of phone calls: Voice, Numeric
Pager, and Alphanumeric Pager.

Dialout Note: Call Progress

The FarmSitter monitors call progress when dialing out. If the
FarmSitter dials out and encounters a busy signal or no answer
within 30 seconds, the unit hangs up, waits the programmed
intercall delay time, and then dials the next phone number.

NOTE: Dial-tone and call-progress detection may
optionally be disabled.

Alarm Dialout—Voice

When dialing out to a destination programmed as “voice,” the
FarmSitter waits for the phone to be answered, then recites its user­recorded identification message, then the message identifying the
zone or zones that have gone into alarm.

Chapter 8: Operation

95

Below is an example of what the FarmSitter might say during a
typical “voice” dialout:

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Enter acknowledgment code.”

In this example, the number of Voice Message Repetitions was set
to three.

NOTE: If the call reaches an answering machine,
the message will be recorded, but the FarmSitter
will be talking over your outgoing message, so you
will probably lose part of the first alarm message
repetition.

Alarm Dialout—Pager

When dialing out to a destination programmed as “Numeric Pager,”
the FarmSitter leaves its programmed ID number on the display of a
numeric pager along with the zone number(s) in alarm.

IMPORTANT: When dialing out to a phone number programmed as
“Numeric Pager,” the FarmSitter DOES NOT speak a voice message.
It calls the pager company or service, enters the number to be
displayed on the beeper, then hangs up.

Alarm Dialout—Alphanumeric Pager

When dialing out to a destination programmed as “Alphanumeric
Pager,” the FarmSitter leaves a text message up to 160 characters
long on the display of an alphanumeric pager or wireless phone.

IMPORTANT: When dialing out to a phone number programmed as
“Alphanumeric Pager,” FarmSitter DOES NOT speak a voice message.
It calls the pager company or service, transmits the information to be
displayed on the pager, then hangs up.

Sensaphone FARMSitter Manual

96

ALARM ACKNOWLEDGMENT

Alarm Acknowledgment—Voice Dialout

Repeated below is the same example of what the FarmSitter might
say during a typical “voice” dialout:

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Enter acknowledgment code.”

FarmSitter will now wait 5 seconds for a Touch-Tone
acknowledgment code to be entered. After the last digit of the
acknowledgment code has been received, the FarmSitter will
respond by saying: “Alar m Acknowledged.” The alarm has been
acknowledged and the unit will hang up. Once the alarm has been
acknowledged, the dialout process stops.

If a Touch-Tone acknowledgment code is not received, the
FarmSitter will offer you a second chance to enter it, responding
with: “beep,” “error,” “Enter acknowledgment code.” If the
acknowledgement code is still not received, then the FarmSitter will
respond by saying: “beep,” “error,” “goodbye.” The alarm has not
been acknowledged. The FarmSitter will hang up and wait for a
callback acknowledgment. This waiting period is called the
“intercall delay time.” During this time you may call the unit back
from a Touch-Tone phone and the unit will give a voice report.
Once you receive the complete report, enter the code to
acknowledge the alarm. NOTE: An alarm cannot be acknowledged
using a pulse (rotary) telephone unless the Callback
Acknowledgment feature is enabled.

Chapter 8: Operation

97

Alarm Acknowledgment—Numeric Pager Dialout

The FarmSitter will dial out to your pager service and leave a
number on the display of your beeper. (See Programming Section)
The unit will then hang up without speaking a voice message and
wait for you to call back and enter an acknowledgment code. This
waiting period is called the “intercall delay time.” During this time
you may call the unit back from a Touch-Tone phone to receive a
report of the alarm condition and acknowledge the alarm by
entering the acknowledgment code.

NOTE: An alarm cannot be acknowledged using a
pulse (rotary) telephone unless the Callback
Acknowledgment feature is enabled.

Below is an example of what the FarmSitter will say when you call
it back to acknowledge a typical alarm:

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Enter acknowledgment code.”

The FarmSitter will now wait 10 seconds for a Touch-Tone
acknowledgment code to be entered. After the last digit of the
acknowledgment code has been received, the FarmSitter will
respond by saying: “Alar m Acknowledged.” The alarm has been
acknowledged and the unit will hang up. Once the alarm has been
acknowledged, the dialout process stops.

If a Touch-Tone acknowledgment code is not received, the
FarmSitter will offer you a second chance to enter it, responding
with: “beep,” “error,” “Enter acknowledgment code.” If an
acknowledgement code is still not received, then the FarmSitter will
respond by saying: “beep,” “error,” “goodbye.” The alarm has not
been acknowledged. The FarmSitter will hang up and wait for you
to call back and enter the acknowledgment code. This waiting
period is called the “intercall delay time.” During this time you may
call the unit back from a Touch-Tone phone and the unit will give a
voice report. Once you receive the complete report, enter the code
to acknowledge the alarm.

Sensaphone FARMSitter Manual

98

NOTE: An alarm cannot be acknowledged using a
pulse (rotary) telephone unless the Callback
Acknowledgment feature is enabled.

TIP: When the Far mSitter is programmed to make calls to
pagers, make sure the intercall delay time is long enough to give
the person carrying the pager some time to get to a phone to
call the unit back.

Alarm Acknowledgment—Alphanumeric Pager Dialout

The FarmSitter will dial out to your alphanumeric pager service and
leave a message on the display of your pager. (See Programming
Section, Chapter Four, for dialing to beepers/pagers). The unit will
then hang up without speaking a voice message and wait for you to
call back and enter an acknowledgment code. This waiting period is
called the “intercall delay time.” During this time you may call the
unit back from a Touch-Tone phone to receive a report of the alarm
condition and acknowledge the alarm by entering an
acknowledgment code.

NOTE: An alarm cannot be acknowledged using a
pulse (rotary) telephone unless the Callback
Acknowledgment feature is enabled.

Below is an example of what the FarmSitter will say when you call
it back to acknowledge a typical alarm:

“Hello, this is 555-2278, ‘Building Three at the Oak Ridge Farm,’
Zone One, ‘Temperature in Poultry House Four,’ alarm exists,
temperature too high, it is now 95 degrees F.”

“Enter acknowledgment code.”

The FarmSitter will now wait 10 seconds for a Touch-Tone
acknowledgment code to be entered. After the last digit of the
acknowledgment code has been received, the FarmSitter will
respond by saying, “Alar m Acknowledged.” The alarm has been
acknowledged and the unit will hang up. Once the alarm has been
acknowledged, the dialout process stops.

If a Touch-Tone acknowledgment code is not received, the
FarmSitter will respond by saying: “beep,” “error,” “goodbye.” The
alarm has not been acknowledged. The FarmSitter will hang up and
wait for you to call back and enter an acknowledgment code. This

Chapter 8: Operation

99

waiting period is called the “intercall delay time.” During this time
you may call the unit back from a Touch-Tone phone and the unit
will give a voice report. Once you receive the complete report,
enter the code to acknowledge the alarm. NOTE: An alarm cannot
be acknowledged using a pulse (rotary) telephone unless the
Callback Acknowledgment feature is enabled.

TIP: When the Far mSitter is programmed to make
calls to alphanumeric pagers, make sure the inter­call delay time is long enough to give the person
carrying the pager some time to get to a phone to
call the unit back.

Alarm Acknowledgment—Automatic (Max Calls)

The FarmSitter has the ability to acknowledge itself by using the
Max Calls function. The unit keeps a count of the number of phone
calls it makes for a particular alarm. Once the number of calls made
reaches Max Calls, the FarmSitter will acknowledge the alar m and
stop the dialout process.

Sensaphone FARMSitter Manual

100
