Phonak M90-SP, M50-SP, M70-SP, M30-SP, M-sp Trial User Manual
Phonak NaídaTM M
User Guide
Phonak Naída M-SP
Phonak Naída M-SP Trial
This user guide is valid for:
Models
Phonak Naída M90-SP
Phonak Naída M70-SP
Phonak Naída M50-SP
Phonak Naída M30-SP
Phonak Naída M-SP Trial
CE mark applied
2019
2019
2019
2019
2019
Your hearing aid details
If no box is checked and you do not know the
model of your hearing aid, please ask your hearing
care professional.
Your hearing aids operate between 2.4 GHz–
2.48 GHz frequency range. When ying please check
if ight operator requires devices to be switched
into ight mode, see chapter 12.
Model
c
Naída M-SP (M90/M70/M50/M30)
c
Naída M-SP Trial
Earpiece
c
Classic earmold
c
Universal eartip
c
Dome
c
SlimTip
Battery size
13
13
3
Your hearing aids have been developed by
Phonak – the world leader in hearing solutions based
in Zurich, Switzerland.
These premium products are the result of decades of
research and expertise and are designed to keep you
connected to the beauty of sound! We thank you for
making such a great choice and wish you many years of
listening pleasure.
Please read the user guide carefully to make sure that you
understand and get the best out of your hearing aids. For
more information about features and benets, simply
contact your hearing care professional.
Phonak – life is on
www.phonak.com
4
Contents
Your hearing aid
1. Quick guide
2. Parts of the hearing aid
Using the hearing aid
3. Left & right hearing aid markings
4. On/O
5. Batteries
6. Putting on the hearing aid
7. Removing the hearing aid
8. Multi-function button
9. Connectivity overview
10. Initial pairing
11. Phone calls
12. Flight mode
Further information
13. Join our hearing loss community!
14. Care and maintenance
15. Exchanging the earpiece
16. Service and warranty
17. Compliance information
18. Information and description of symbols
19. Troubleshooting
20. Important safety information
6
8
10
11
12
14
16
18
19
20
23
27
29
30
33
36
38
44
48
50
1. Quick guide
Left & right hearing aid markings
Blue marking for left hearing aid.
Red marking for right hearing aid.
Changing batteries
1.
Remove the
sticker from the
new battery and
wait two minutes.
6
2.
Open the
battery door.
3.
Place battery in
the battery door
with the “+”
symbol facing
upwards.
On/O
Multi-function button
The button has several functions. It
functions as a volume control and/or a
program change depending on the hearing
aid programming. This is indicated in your
individual instructions. If paired with a
Bluetooth® enabled phone, a short press
will accept and a long press will reject an
incoming call.
Flight mode
To enter ight mode press the lower part
of the button for 7 seconds while closing
the battery door. To exit ight mode, simply
open and close the battery door again.
OOn
7
2. Parts of the hearing aid
The following pictures show the possible earpieces and
hearing aid model described in this user guide.
Possible earpieces
Classic
earmold
8
Universal
eartip
SlimTip Dome
Naída M-SP / Naída M-SP Trial
Hook / sound output
Classic earmold (detachable)
Multi-function
button
Battery door
9
3. Left & right hearing aid markings
There is a red or blue marking to tell you if it is a left or a
right hearing aid.
Blue marking for left hearing aid.
Red marking for right hearing aid.
10
4. On/O
The battery door is also the on/o switch.
1.
Closed battery door =
hearing aid is on
2.
Open battery door =
hearing aid is o
When you switch on the hearing aid you may hear a
start-up melody.
11
5. Batteries
1.
Remove the
sticker from
the new battery
and wait two
minutes.
If it is dicult to close the battery door: Check that
the battery is inserted correctly and the “+” symbol is
facing upwards. If the battery is not inserted correctly,
the hearing aid will not work and the battery door can
be damaged.
12
2.
Open the
battery door.
3.
Place battery in
the battery door
with the “+”
symbol facing
upwards.
Low power: You will hear two beeps when the battery is
low. You will have approximately 30 minutes to change
the battery (this can vary, depending on the hearing aid
settings and battery). We recommend that you always
have a new battery on hand.
Replacement battery
This hearing aid requires a size 13 zinc-air battery.
Model
Phonak Naída
M-SP / M-SP Trial
Zinc-air
battery
size
13
Color
marking on
package
orange
IEC
code
PR48
ANSI
code
7000ZD
Please ensure you use the correct type of battery in
your hearing aids (zinc-air). Please also read chapter
20.2 for further information on product safety.
13
6. Putting on the hearing aid
6.1 Putting on the hearing aid with
classic earmold
1.
Take the earmold up to your ear
and place the ear canal part into
your ear canal.
2.
Place the hearing aid behind
your ear.
3.
Insert the upper part of the
earmold into the upper part of
the bowl of your ear.
14
6.2 Putting on the hearing aid with dome,
SlimTip or universal eartip
1.
Place the hearing aid behind
your ear.
2.
Insert the earpiece into your
ear canal.
3.
If there is an anchor attached to
the earpiece, tuck it into the bowl of
your ear to secure your hearing aid.
15
7. Removing the hearing aid
7.1 Removing the hearing aid with
classic earmold
1.
Lift the hearing aid above the
upper part of your ear.
2.
Grasp the earmold with your
ngers and gently remove it.
Please try to avoid gripping the tube to remove the
hearing aid.
16
7.2 Removing the hearing aid with dome,
SlimTip or universal eartip
1.
Pull on the bend of the tube
and remove the hearing aid
from behind the ear.
17
8. Multi-function button
The multi-function button has several functions.
It functions as a volume
control and/or a program
change depending on the
hearing aid programming.
This is indicated in your
individual “Hearing aid
instructions”. Please ask
your hearing care professional
for a printout.

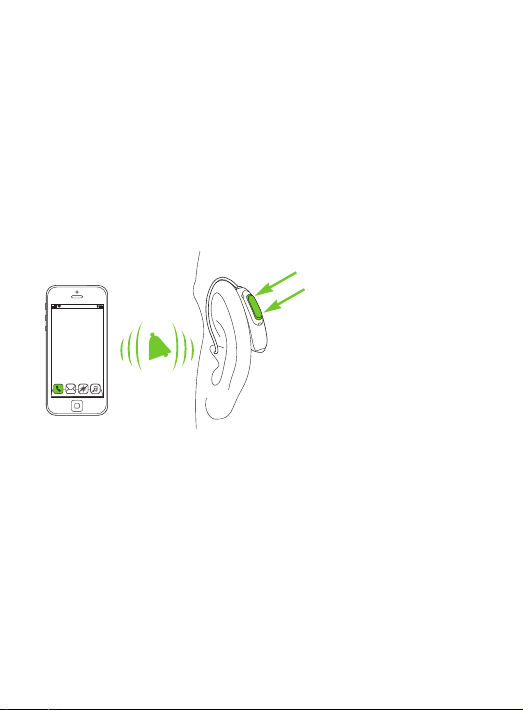

If the hearing aid is paired with a Bluetooth® enabled
phone, a short press on the upper or lower part of the
button will accept an incoming call and a long press will
reject an incoming call – refer to chapter 11.
18
9. Connectivity overview
The illustration below shows the connectivity options
available for your hearing aid.
Cell phone
TV Connector connected to TV*
Roger**
* The TV Connector can be connected to any audio source such as a TV, PC or hi- system.
** Roger wireless microphones can be connected to your hearing aids as well.
19
10. Initial pairing
10.1 Initial pairing to Bluetooth® enabled device
It is only necessary to perform the pairing procedure
once with each device featuring Bluetooth wireless
technology. After the initial pairing, your hearing aids
will connect automatically to the device. This can take
up to 2 minutes.
1.
On your device (e.g. a phone), ensure that Bluetooth
wireless technology is enabled and search for Bluetooth
enabled devices in the connectivity setting menu.
2.
Switch on both hearing aids.
You now have 3 minutes to
pair your hearing aids with
your device.
20
