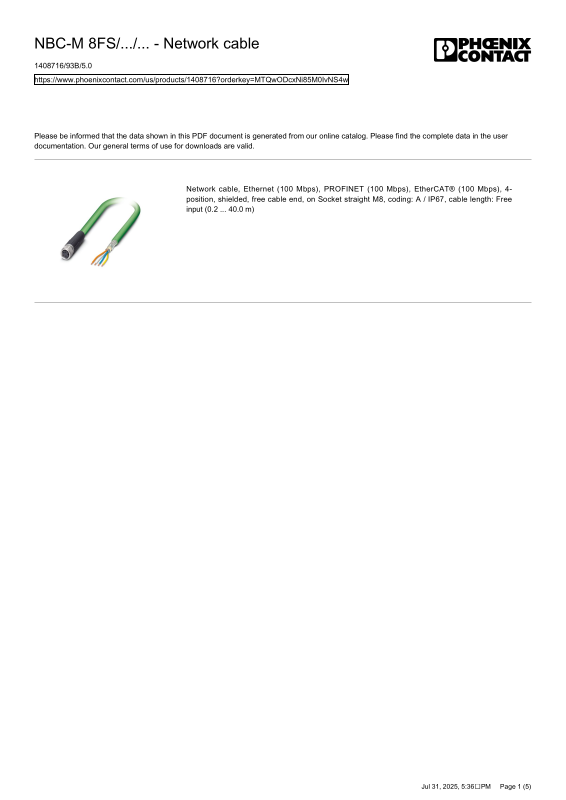

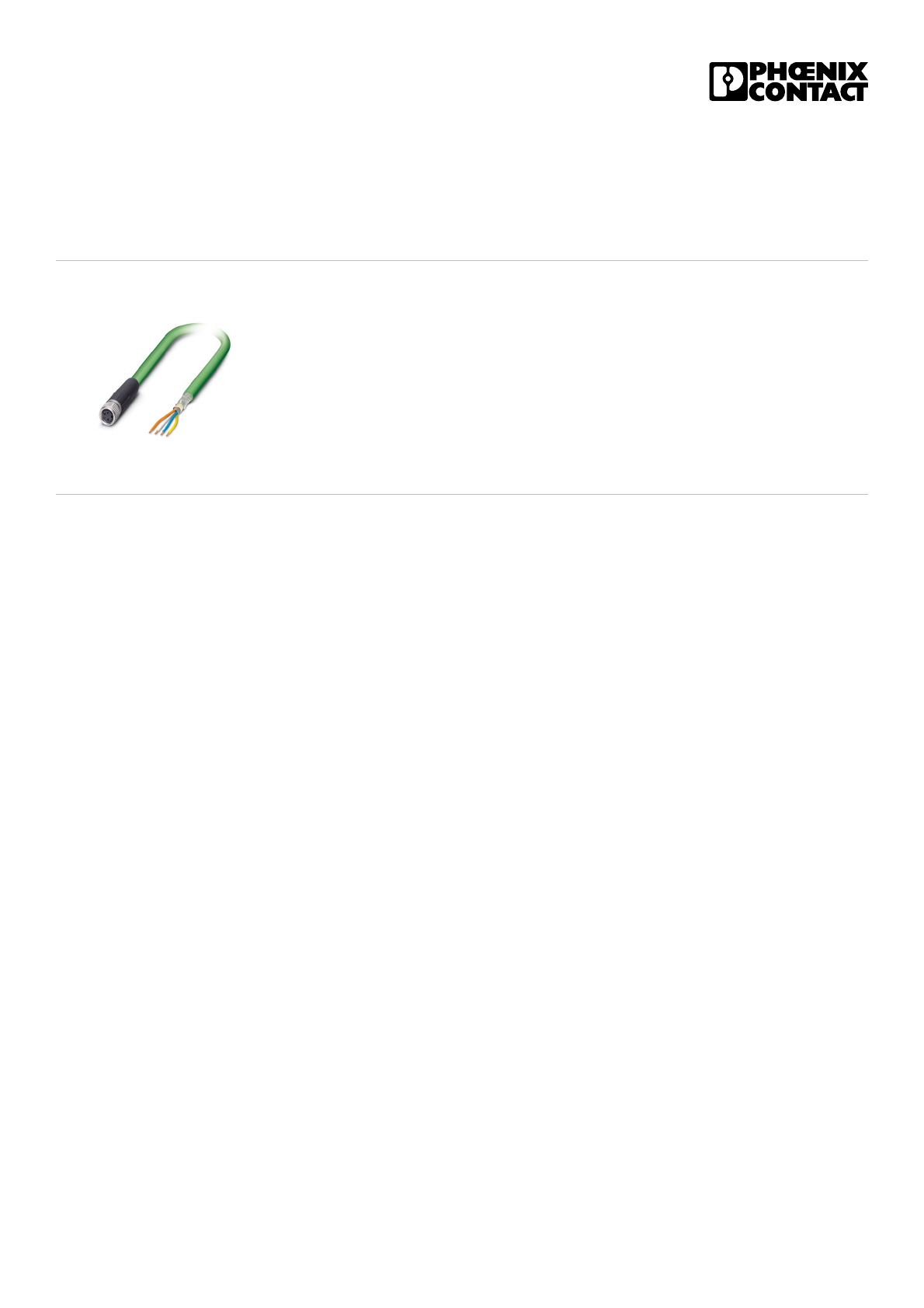

Network cable, Ethernet (100 Mbps), PROFINET (100 Mbps), EtherCAT® (100 Mbps), 4-
position, shielded, free cable end, on Socket straight M8, coding: A / IP67, cable length: Free
input (0.2 ... 40.0 m)
NBC-M 8FS/.../... - Network cable
1408716/93B/5.0
https://www.phoenixcontact.com/us/products/1408716?orderkey=MTQwODcxNi85M0IvNS4w
Jul 31, 2025, 5:36PM Page 1 (5)
Page 2
Technical data
Product properties
Product type Data cable preassembled
Application Standard
Sensor type Ethernet
Number of positions 4
No. of cable outlets 1
Shielded yes
Interfaces
Bus system Ethernet
Ethernet, 100 Mbps
PROFINET, 100 Mbps
Signal type/category
EtherCAT®, 100 Mbps
Signaling
Status display no
Status display present no
Electrical properties
30 VACNominal voltage U
N
30 VDC
Nominal current I
N
4 A
Transmission medium Copper
Transmission speed 100 Mbps
Material specifications
Seal material NBR
Connector
Connection 1
Type free cable end
Connection 2
Type Socket straight M8 / IP67
Number of positions 4
Coding type A (Standard)
Handle color black
CuSn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carrier)
TPU, hardly inflammable, self-extinguishing (Grip body)
Material
Zinc die-cast, nickel-plated (Screw connection)
NBC-M 8FS/.../... - Network cable
1408716/93B/5.0
https://www.phoenixcontact.com/us/products/1408716?orderkey=MTQwODcxNi85M0IvNS4w
Jul 31, 2025, 5:36PM Page 2 (5)
Page 3
Insertion/withdrawal cycles ≥ 100
Insulation resistance ≥ 100 MΩ
Tightening torque 0.2 Nm
Degree of protection IP67
Ambient temperature (operation) -25 °C ... 90 °C
Cable/line
Cable length Free input (0.2 ... 40.0 m)
PROFINET PVC stranded CAT5[93B]
UL AWM Style 21695 (80 °C / 600 V)
Number of positions 4
Shielded yes
PROFINET PVC stranded CAT5[93B]Cable type
PROFINET PVC stranded CAT5 93B
Conductor structure 1x4xAWG22/7, SF/TQ
AWG signal line 22
Conductor cross section 4x 0.34 mm²
Wire diameter incl. insulation 1.5 mm ±0.1mm
External cable diameter 6.50 mm ±0.2mm
Outer sheath, material PVC
External sheath, color green RAL 6018
Conductor material Tin-plated Cu litz wires
Material wire insulation PE
Single wire, color white, yellow, blue, orange
Overall twist Star quad
Shielding Aluminum-coated foil, tinned copper braided shield
Optical shield covering 85 %
Insulation resistance ≥ 5 GΩ*km
Loop resistance ≤ 120.00 Ω/km
Wave impedance 100 Ω ±5Ω (at 100MHz)
Nominal voltage, cable ≤ 600 V
Test voltage Core/Core 2000 V ((50Hz/1min))
Test voltage Core/Shield 2000.00 V ((50Hz/1min))
Minimum bending radius, fixed installation 4 x D
Minimum bending radius, flexible installation 8 x D
UL1581, Section 1060 and UL2556, Section 9.3 (FT1)
UL1685 (CSA FT 4)
Flame resistance
UL1581, Section 1100 and UL2556, Section 9.1 (HFT/FT2)
Resistance to oil OIL RES I according to UL2256
Other resistance UV resistant (according to UL1581, Section1200)
-40 °C ... 80 °C (cable, fixed installation)Ambient temperature (operation)
-10 °C ... 70 °C (Cable, flexible installation)
PROFINET drag chain CAT5[93C]
NBC-M 8FS/.../... - Network cable
1408716/93B/5.0
https://www.phoenixcontact.com/us/products/1408716?orderkey=MTQwODcxNi85M0IvNS4w
Jul 31, 2025, 5:36PM Page 3 (5)
Page 4
UL AWM Style 20233 (80°C/300 V)
Number of positions 4
Shielded yes
PROFINET drag chain CAT5[93C]Cable type
PROFINET drag chain CAT5 93C
Conductor structure 1x4xAWG22/7, SF/TQ
AWG signal line 22
Conductor cross section 4x 0.34 mm²
Wire diameter incl. insulation 1.5 mm ±0.05 mm
External cable diameter 6.50 mm ±0.2mm
Outer sheath, material PUR
External sheath, color green RAL 6018
Conductor material Tin-plated Cu litz wires
Material wire insulation PE
Single wire, color white, yellow, blue, orange
Overall twist Star quad
Shielding Aluminum-coated foil, tinned copper braided shield
Optical shield covering 85 %
Insulation resistance ≥ 500 MΩ*km
Loop resistance ≤ 120.00 Ω/km
Wave impedance 100 Ω ±15Ω (at 1 ... 100 MHz)
Nominal voltage, cable ≤ 300 V
Test voltage Core/Core 2000 V (50Hz, 1min.)
Test voltage Core/Shield 2000.00 V (50Hz, 1min.)
Minimum bending radius, fixed installation 5 x D
Minimum bending radius, flexible installation 7.5 x D
Dynamic load capacity (bending) Max. bending cycles: 3000000, Bending radius: 200 mm,
Traversing path: 10 m, Traversing rate: 4 m/s, Acceleration: 4
m/s²
Dynamic load capacity (torsion) Torsion: ±30 °/m
Halogen-free according to IEC60754-1
according to IEC60332-1-2
in accordance with UNECE-R118.03
Flame resistance
according to CSA C 22.2 No. 210-FT1
Resistance to oil in accordance with DINEN60811-404
Other resistance UV resistant
-40 °C ... 70 °C (cable, fixed installation)Ambient temperature (operation)
-40 °C ... 70 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
IP65
IP67
Degree of protection
IP65/IP67
NBC-M 8FS/.../... - Network cable
1408716/93B/5.0
https://www.phoenixcontact.com/us/products/1408716?orderkey=MTQwODcxNi85M0IvNS4w
Jul 31, 2025, 5:36PM Page 4 (5)
Page 5
Ambient temperature (operation) (male connector/female
connector)
-25 °C ... 90 °C (M8 connectors)
Standards and regulations
M8
Standard designation M8 connector
Standards/specifications IEC61076-2-104
