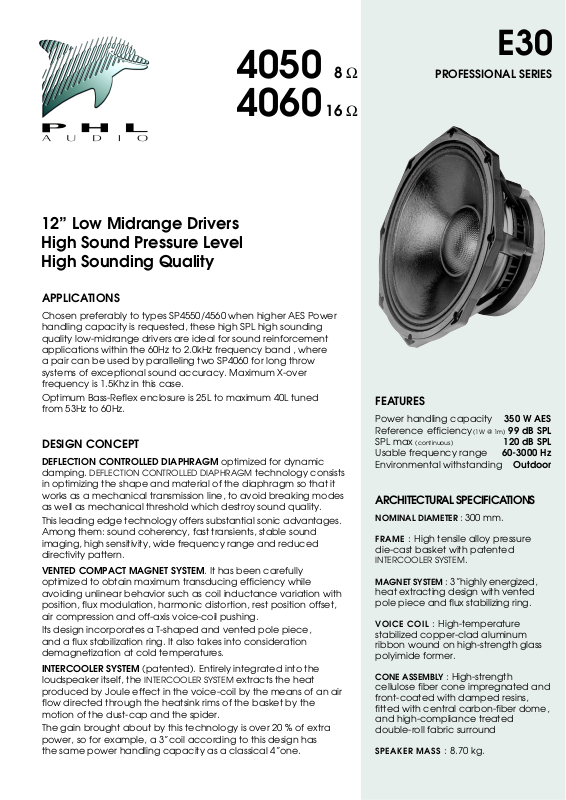

Page 1
E30
4050
4060
8 Ω
16 Ω
12” Low Midrange Drivers
High Sound Pressure Level
High Sounding Quality
APPLICATIONS
Chosen preferably to types SP4550/4560 when higher AES Power
handling capacity is requested, these high SPL high sounding
quality low-midrange drivers are ideal for sound reinforcement
applications within the 60Hz to 2.0kHz frequency band , where
a pair can be used by paralleling two SP4060 for long throw
systems of exceptional sound accuracy. Maximum X-over
frequency is 1.5Khz in this case.
Optimum Bass-Reflex enclosure is 25L to maximum 40L tuned
from 53Hz to 60Hz.
DESIGN CONCEPT
DEFLECTION CONTROLLED DIAPHRAGM optimized for dynamic
damping. DEFLECTION CONTROLLED DIAPHRAGM technology consists
in optimizing the shape and material of the diaphragm so that it
works as a mechanical transmission line, to avoid breaking modes
as well as mechanical threshold which destroy sound quality.
This leading edge technology offers substantial sonic advantages.
Among them: sound coherency, fast transients, stable sound
imaging, high sensitivity, wide frequency range and reduced
directivity pattern.
VENTED COMPACT MAGNET SYSTEM. It has been carefully
optimized to obtain maximum transducing efficiency while
avoiding unlinear behavior such as coil inductance variation with
position, flux modulation, harmonic distortion, rest position offset,
air compression and off-axis voice-coil pushing.
Its design incorporates a T-shaped and vented pole piece,
and a flux stabilization ring. It also takes into consideration
demagnetization at cold temperatures.
INTERCOOLER SYSTEM (patented). Entirely integrated into the
loudspeaker itself, the INTERCOOLER SYSTEM extracts the heat
produced by Joule effect in the voice-coil by the means of an air
flow directed through the heatsink rims of the basket by the
motion of the dust-cap and the spider.
The gain brought about by this technology is over 20 % of extra
power, so for example, a 3”coil according to this design has
the same power handling capacity as a classical 4”one.
PROFESSIONAL SERIES
FEATURES
Power handling capacity 350 W AES
Reference efficiency (1W @ 1m) 99 dB SPL
SPL max (continuous) 120 dB SPL
Usable frequency range 60-3000 Hz
Environmental withstanding Outdoor
ARCHITECTURAL SPECIFICATIONS
NOMINAL DIAMETER : 300 mm.
FRAME : High tensile alloy pressure
die-cast basket with patented
INTERCOOLER SYSTEM.
MAGNET SYSTEM : 3”highly energized,
heat extracting design with vented
pole piece and flux stabilizing ring.
VOICE COIL : High-temperature
stabilized copper-clad aluminum
ribbon wound on high-strength glass
polyimide former.
CONE ASSEMBLY : High-strength
cellulose fiber cone impregnated and
front-coated with damped resins,
fitted with central carbon-fiber dome,
and high-compliance treated
double-roll fabric surround
SPEAKER MASS : 8.70 kg.
Page 2
4050 ■4060
12” Low Midrange Drivers
4050 4060
TYPICAL CHARACTERISTICS
Rated impedance Z 8 16 Ω
Reference efficiency (1 W@1 m) - 99 99 dB SPL
Usable frequency range
Power handling capacity 2(AES) - 350 350 W
Max Sound Pressure Level
Min. impedance modulus Z
Voice-coil inductance 4@ 1 kHz L
Bl product Bl 20.9 28.8 N/A
Moving mass M
THIELE-SMALL PARAMETERS : TYPICAL (QC LIMITS)
Resonance frequency
DC resistance
6
Mechanical quality factor Q
Electrical quality factor Q
Total quality factor Q
Mechanical suspension compliance C
Effective piston area S
Equivalent Casair load V
Max. linear excursion X
Linear displacement volume V
Half-space efficiency 4.6 4.1 %
Unity load volume V
ABSOLUTE MAXIMUM RATINGS
Short term max. input voltage
Max. excursion before damage X
Ambient operating temperature –10 to +50 °C
Storage temperature
Environmental conditions
APPLICATION INFORMATION
Air volume occupied by the driver
Speaker net mass 8.7 8.7 Kg
Recommended reflex box Vb/F
Electrical polarity A positive voltage applied on the red
1
3
@ 10 kHz L
5
7
8
9
10
- 60-3000 60–3000 Hz
SPL
min
e1k
e10k
ms
F
s
R
e
ms
es
ts
ms
d
as
max
d
as Qts
V
max
dam
120 120 dB SPL
max
6.9 @ 430Hz 15.4 @ 420Hz Ω
1.12 2.52 mH
0.51 1.16 mH
0.051 0.051 Kg
49 (±6) 49 (±6) Hz
5.8 (±0.6) 12.2(±1.2) Ω
3.3 3.3 1
0.21 0.23 1
0.20 0.22 1
205 205 10-6m/N
0.054 0.054 m
0.084 0.084 m
± 4.5 ± 4.5 mm
0.243 0.243 10-3m
2
3.2 3.9 10-3m
110 150 V
12 12 mm
–20 to +70 °C
Outdoor
2.6 2.6 10
b
40 / 63 L / Hz
-3 m3
terminal produces forward cone motion.
PHYSICAL CHARACTERISTICS
8 x Ø 6.5 Holes eq. spaced
on Ø 300 and on Ø 308
(on angles)
Ø 326.5 max
+
Red dot
2 x screw button
terminals
13
128.5 max.
2
3
3
Note 1 : Allowing for energy response, excursion
capability, Power spectrum, and -3dB low
freq. roll-off for standard reflex tuning.
Note 2 : Established at 20°C ambient temp, according to
3
AES2-1984 standard using IEC268-1 simulated
programme signal and a 50 liter Bass-Reflex test
enclosure tuned at 53Hz.
Note 3 : Established at 1m on axis of the loudspeaker mounted
in test enclosure, when driven at full AES Power
Handling Capacity, including 4dB of thermal
compression loss.
Note 4 : Measured at 20 mA in free air.
Note 5 : Measured at 20 mA and 20°C ambient temp.
in free air conditions, after full run and rest.
Note 6 : Measured at 20°C ambient temp.
QC limits are ±10%
Note 7 : Stated in RMS voltage according to IEC 268-5.
Note 8 : Includes shipping conditions. The lower limit prevents
from demagnetization.
Note 9: Our products are classified in three categories :
Indoor, Outdoor, and Outdoor
outdoor use or severe conditions.
Note 10 : Calculated for front mounting on to a 18 mm thick
board.
Ø 307 max.
Ø 204 max.
Ø 281.5 max.
SPECIFICATION NOTES
✚
for permanent
461, rue des chênes ■ Z.A
77590 CHARTRETTES
FRANCE
Tél : 33 01 64 81 29 80
Fax : 33 01 60 69 10 28
e-mail : [email protected]
http: //www.phlaudio.com
PHL Audio S.A. provides these specifications as representative of current production after conditioning. Because of our continuous research, they are subject to change without notice.
